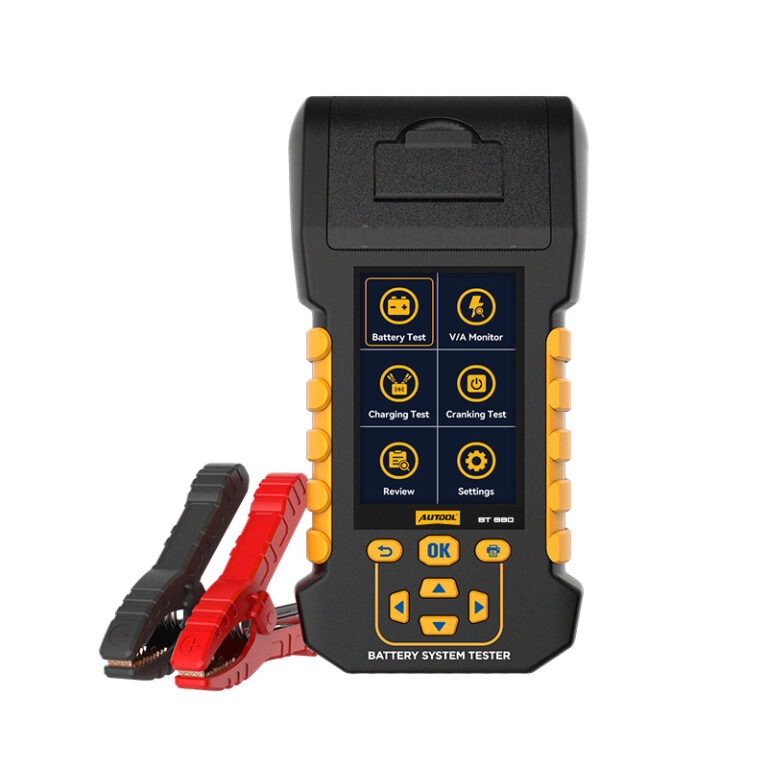

AUTOOL BT880 Car Load Battery Tester Leakage Test with Built-in Temperature Sensor

(18 customer reviews)

US$109.90

Secure checkoutFast supportBulk ready
AUTOOL BT880

Product Overview

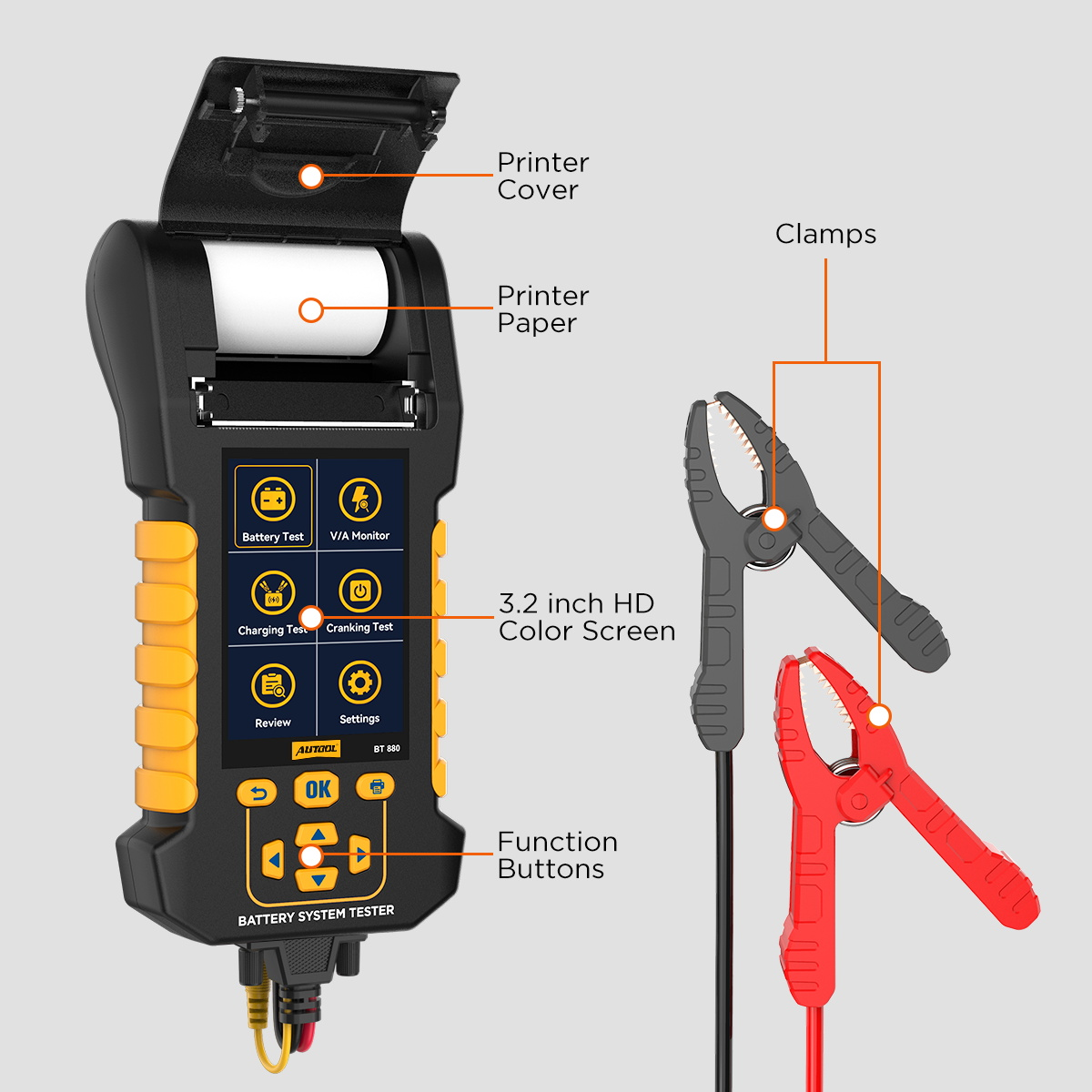

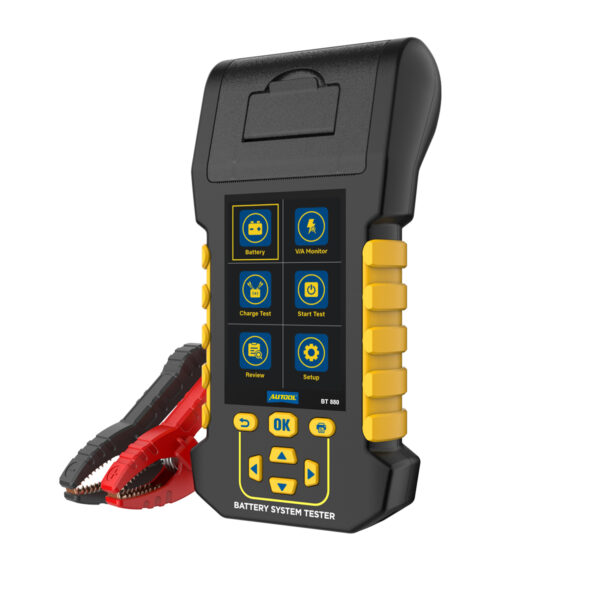

The AUTOOL BT880 is a professional 12V/24V battery system tester with a built-in temperature sensor, leakage current monitoring, thermal printer, data review, cranking test, charging system test, maximum load test, and voltage/current monitoring. It helps technicians check battery health, record test results, locate leakage faults, and provide printed reports for maintenance records.

Temperature Sensor Leakage Monitor Thermal Printer Data Review
8-30V DCOperating Voltage
15mA-5ALeakage Range
30-2000CCACCA Range
3 YearsWarranty

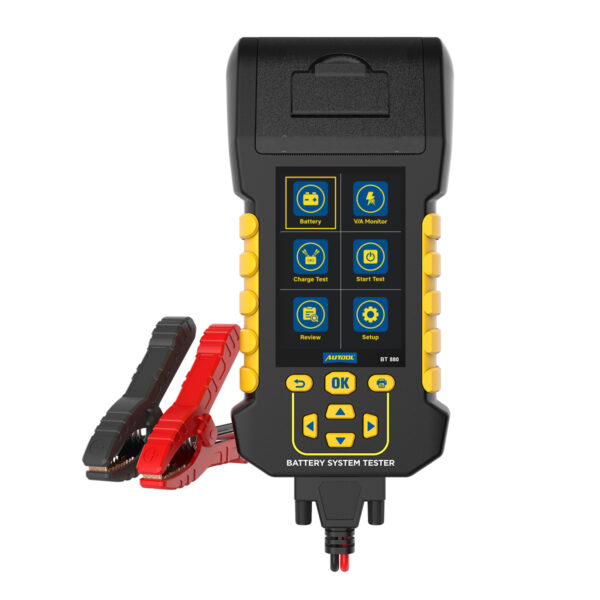

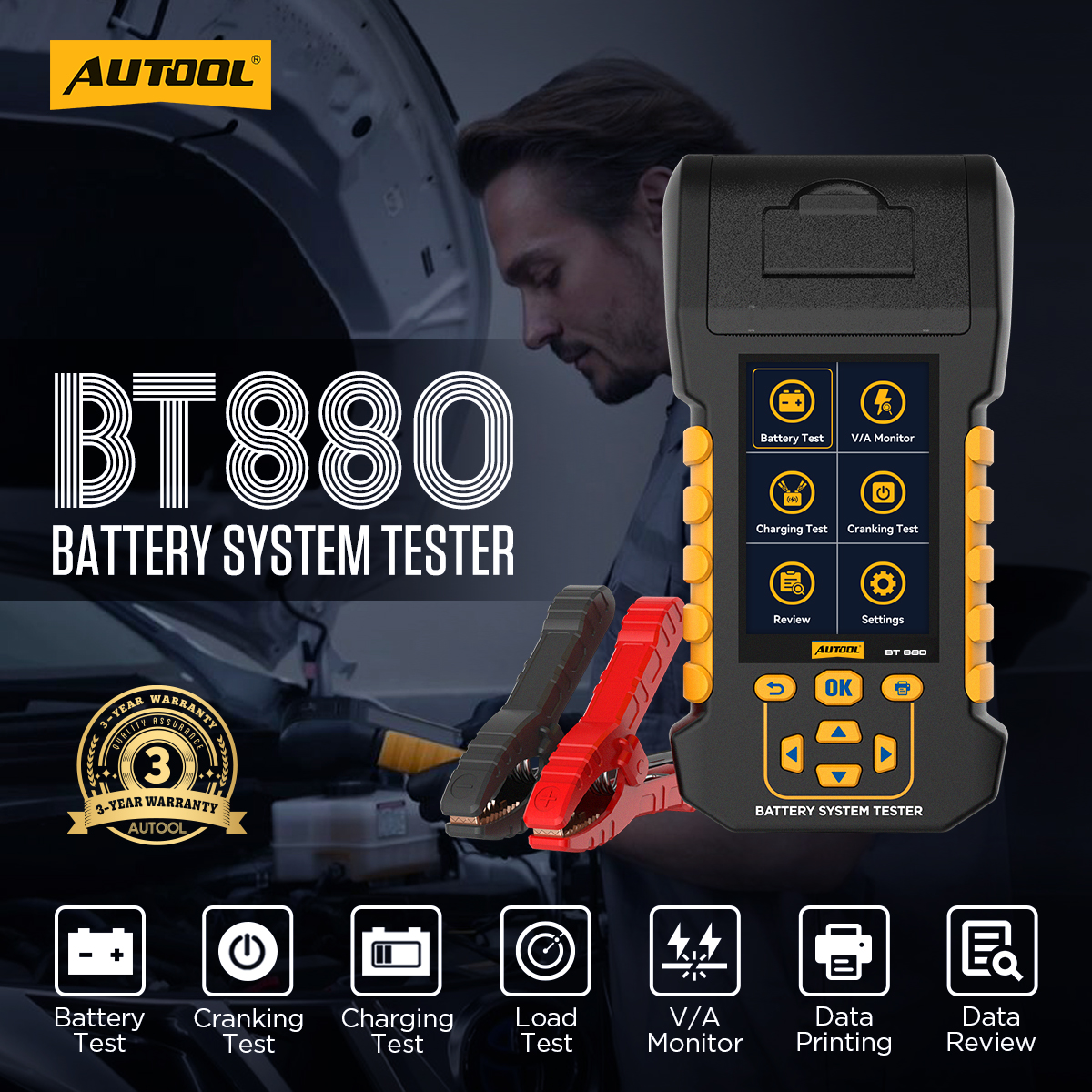

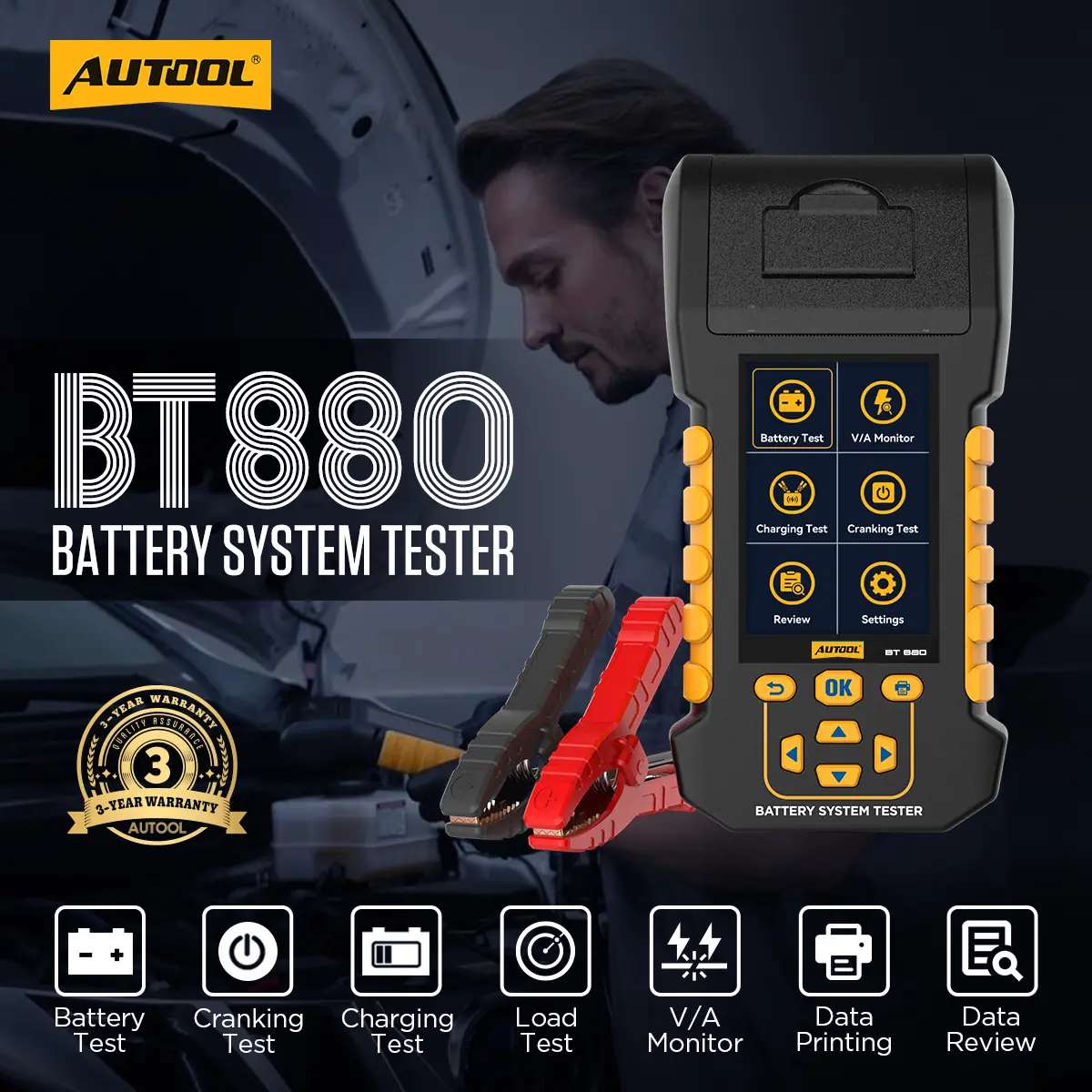

AUTOOL BT880 battery system tester with printer and leakage monitoring Click to enlarge
Before You Order And Use

Before You Order And Use

BT880 is a battery system tester, not a charger. Review the battery compatibility, lithium battery limitation, leakage test connection rule, and printer paper reminder before ordering or testing.

Not A Battery Charger

BT880 supports battery test, cranking test, charging system test, maximum load test, voltage/current monitoring, data printing, and data review. It does not charge batteries.

Lithium Battery Limitation

BT880 supports regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries. It is not the lithium battery model; choose BT960 if lithium battery testing is required.

Correct Leakage Test Connection

For leakage current monitoring, connect the battery clamps correctly, disconnect the negative terminal as instructed, and use the special leakage clamp on the vehicle negative bus.

Temperature Affects Batteries

The built-in temperature sensor helps reduce the influence of ambient temperature on test results. Battery performance can vary in high or low temperature environments.

Thermal Paper Required

The built-in printer uses thermal paper and does not require ink. Replace the thermal paper roll when printing becomes unclear or the paper runs out.

Use The Manual For Setup

Follow the BT880 manual for battery type selection, rating standard selection, clamp connection, leakage monitoring, data review, printing, and firmware upgrade operation.

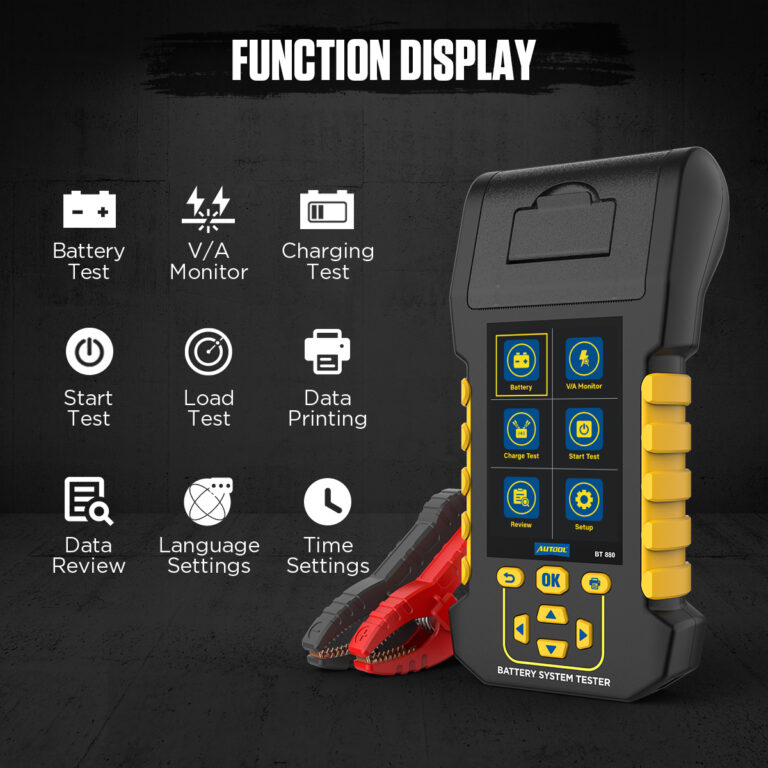

Key Features

Key Features

BT880 combines battery diagnostics, leakage current monitoring, temperature compensation, data recording, and thermal printing in one handheld tester for workshop inspection and vehicle maintenance.

Battery Health Test

Run battery testing to check voltage, CCA, resistance, SOC, SOH, and overall battery condition based on the selected battery type and rating standard.

Cranking And Charging Tests

Use cranking test and charging system test to evaluate starting performance and charging status, helping diagnose common vehicle electrical faults.

Maximum Load Test

BT880 supports maximum load testing to help evaluate battery and system behavior under load conditions during maintenance checks.

Leakage Current Monitoring

The leakage test function monitors leakage current from 15mA to 5A and records the current waveform to help identify abnormal vehicle power consumption.

Voltage And Current Monitor

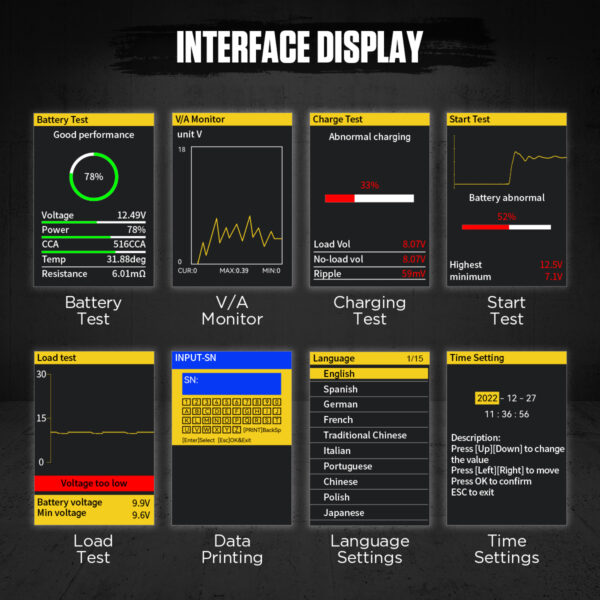

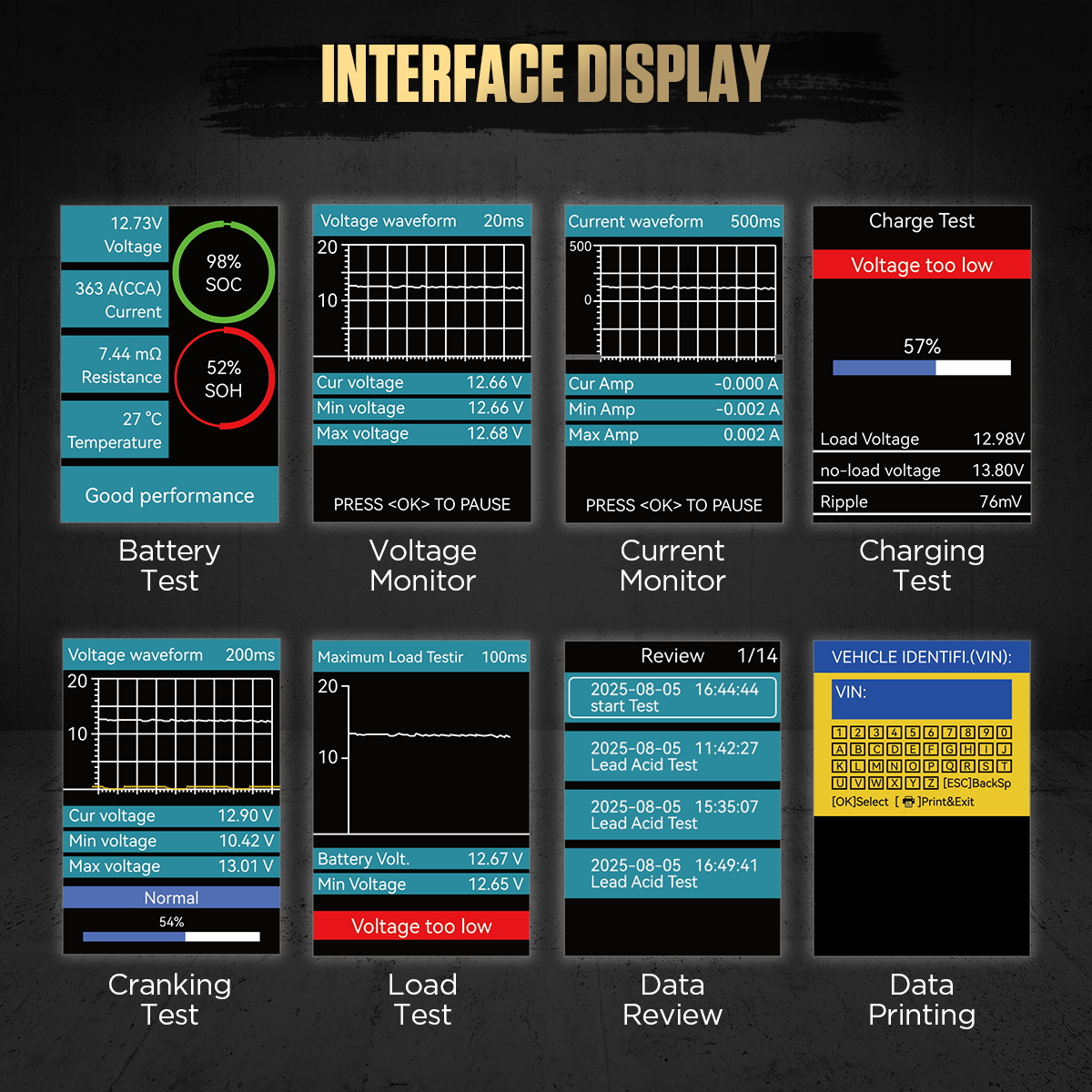

The V/A monitor displays voltage and current waveforms, allowing users to observe voltage fluctuation and current changes during inspection.

Real-Time Temperature Sensor

The built-in temperature sensor monitors ambient temperature and helps improve test reference accuracy when battery performance is affected by hot or cold conditions.

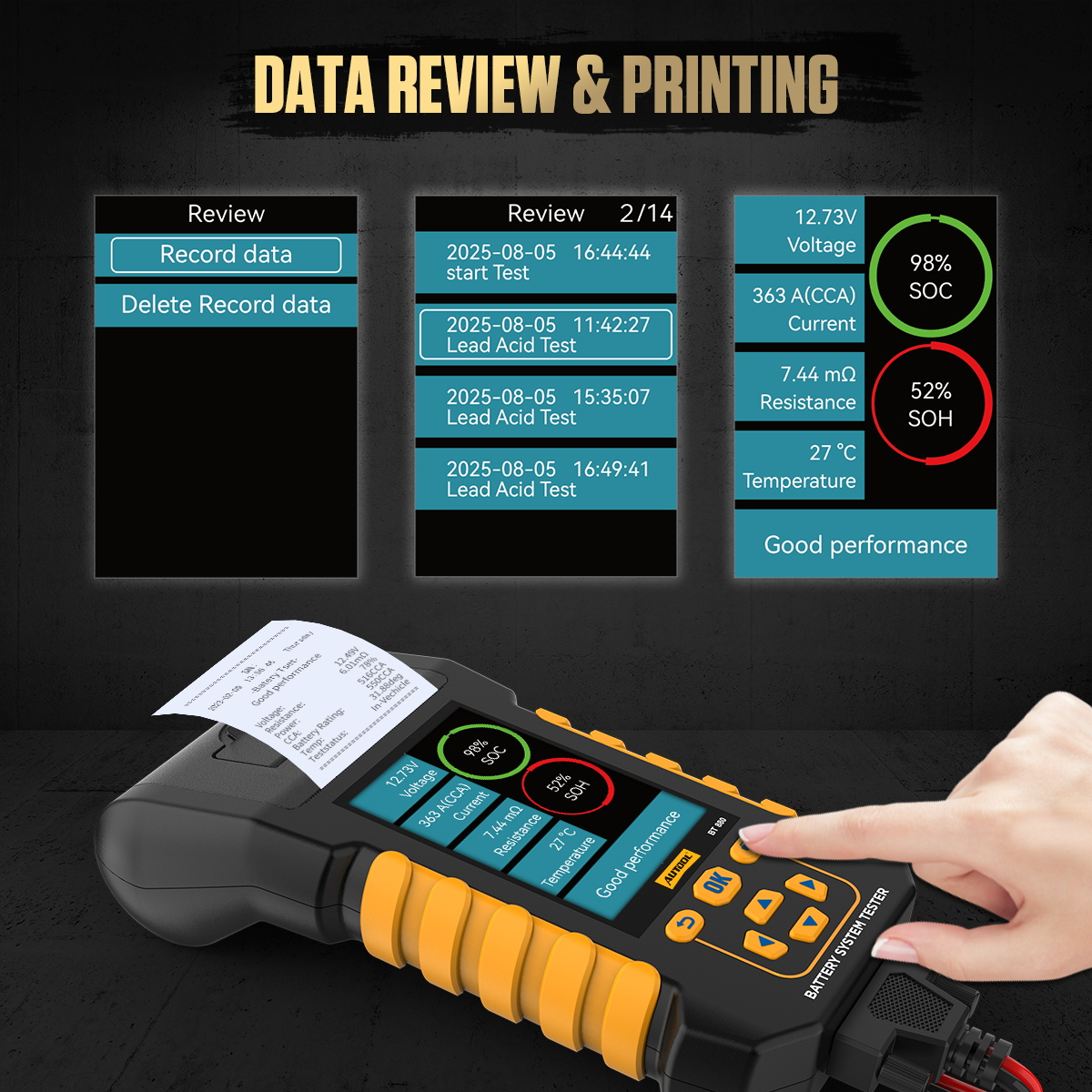

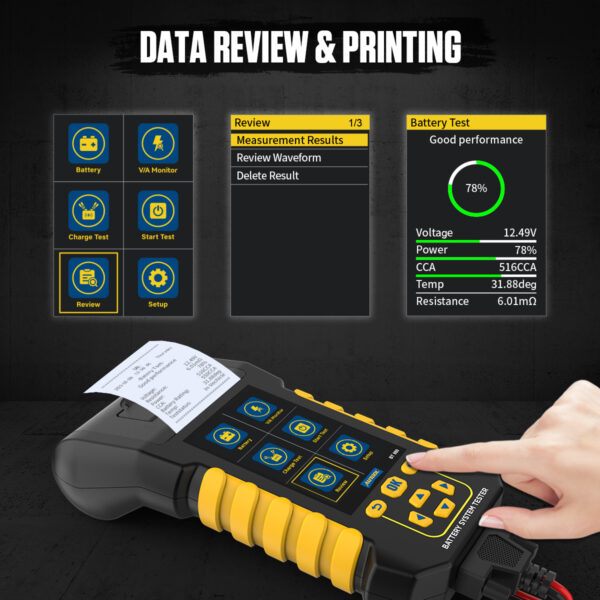

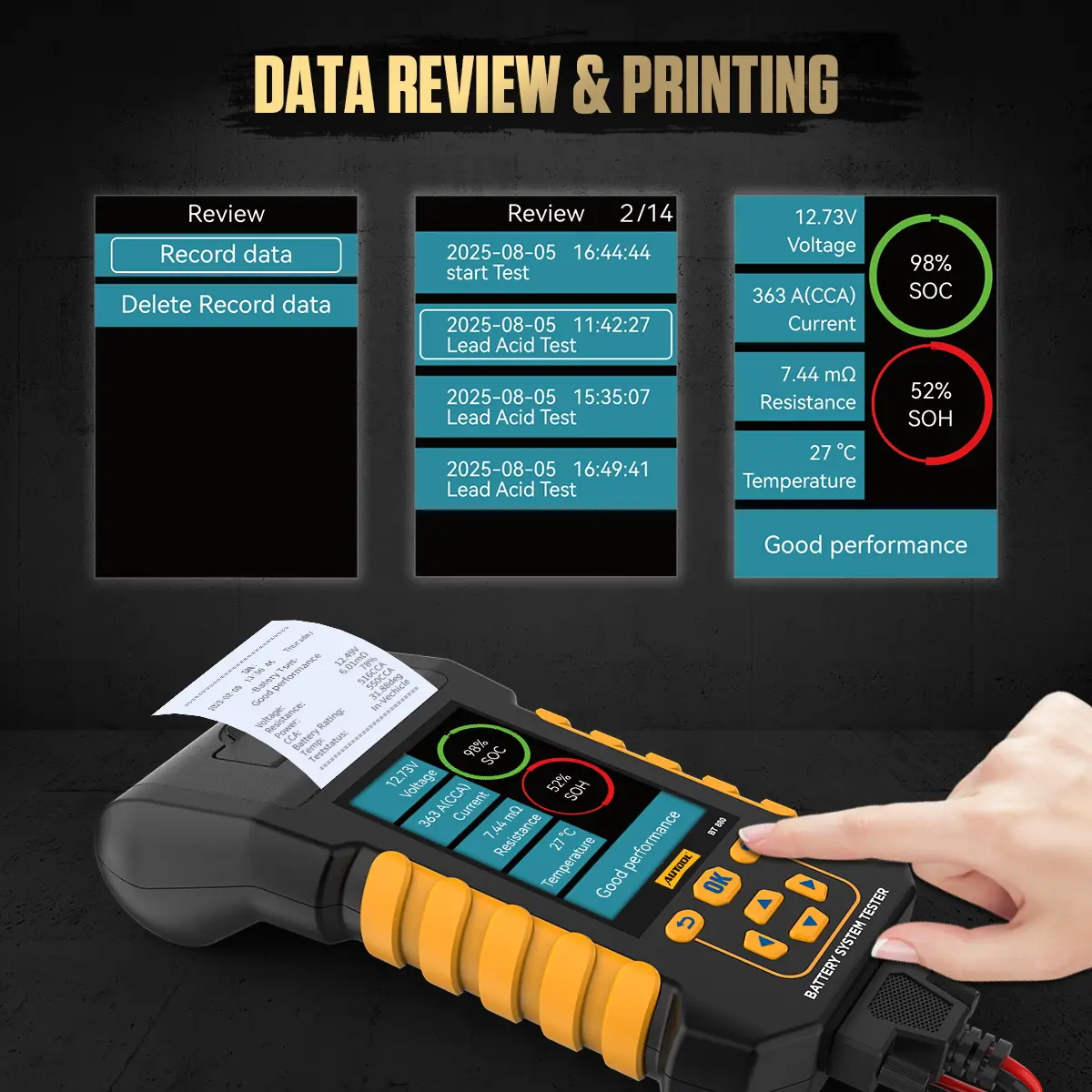

Data Review And Playback

BT880 can record previous test data and battery voltage values, so users can review historical results and compare vehicle battery behavior over time.

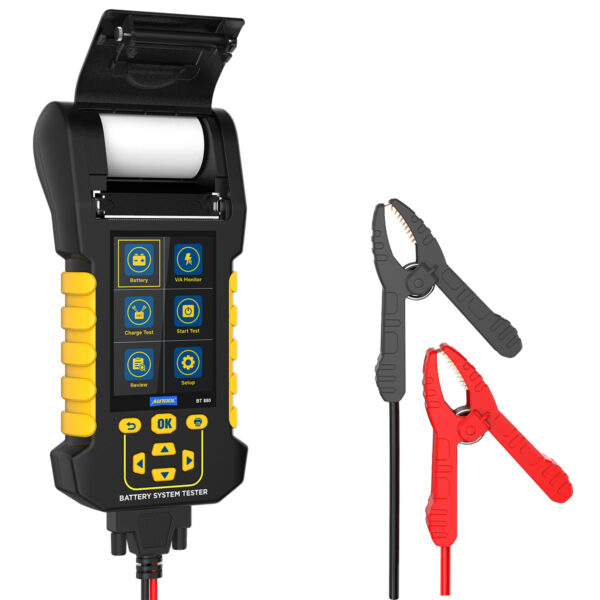

Built-In Thermal Printer

Print battery test results directly from the tester and attach them to work orders, customer reports, or workshop maintenance records.

Remote Firmware Upgrade

Remote firmware upgrade support helps keep the tester current with software improvements and function updates when available.

Compatibility And Fitment

Compatibility And Fitment

BT880 is designed for 12V and 24V battery rated voltage testing and supports common lead-acid battery types and mainstream battery rating standards.

Supported Battery Types

Regular flooded, AGM flat plate, AGM spiral, GEL, and EFB enhanced flooded batteries.

Rating Standards

CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, and BCI rating standards are supported.

Detection Ranges

Operating voltage is 8-30V DC, leakage current detection range is 15mA-5A, and CCA detection range is 30-2000CCA.

Lithium Battery Note

BT880 does not support lithium batteries. For lithium battery testing, compare BT960 before ordering.

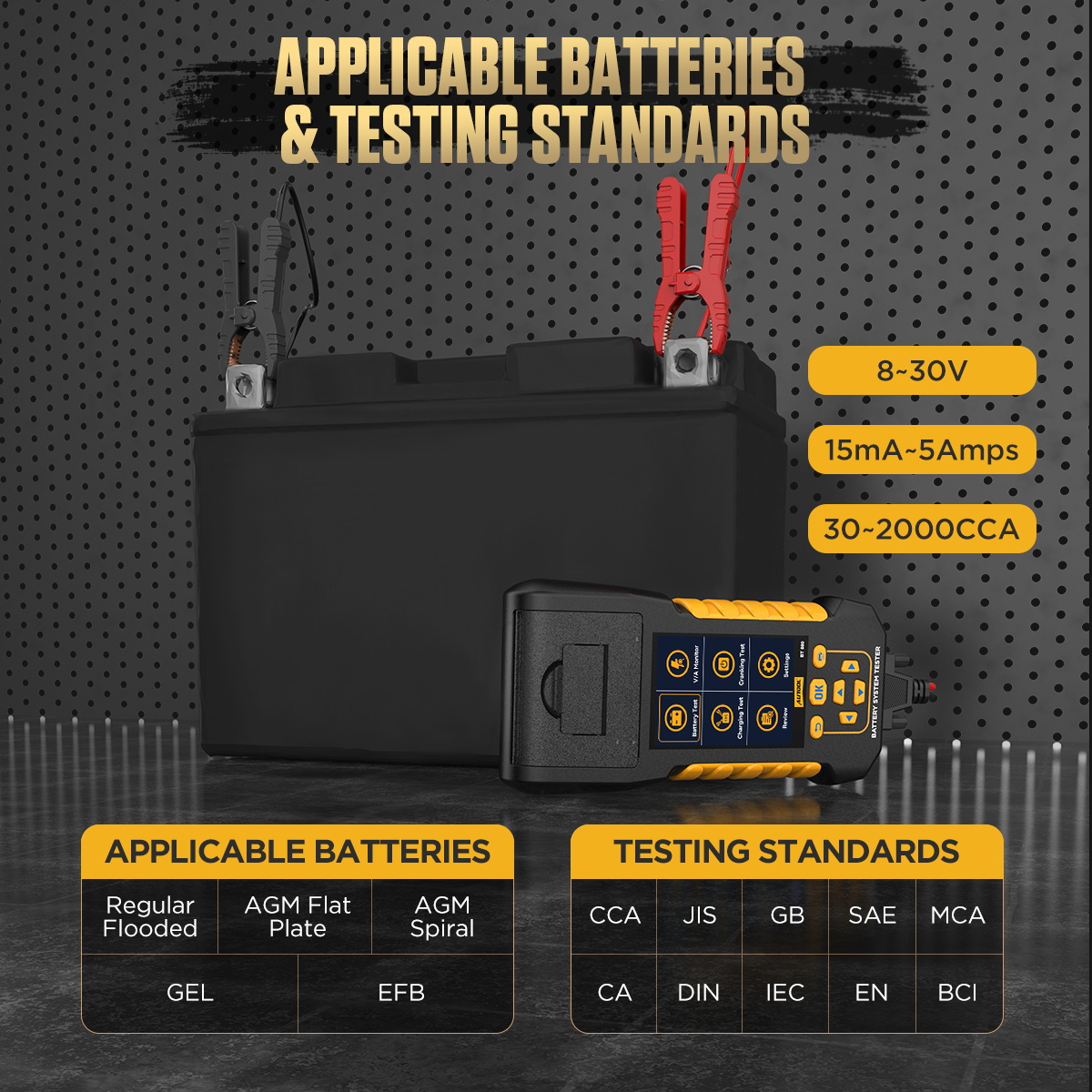

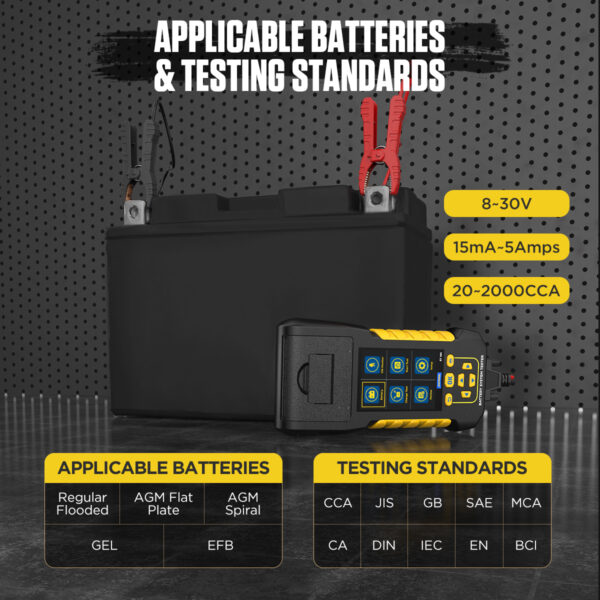

AUTOOL BT880 applicable batteries and testing standards Click to enlarge
Product Comparison

Product Comparison

Compare BT880 with other AUTOOL battery system testers before choosing the right screen size, printer, leakage current monitor, thermal monitor, language support, and lithium battery capability.

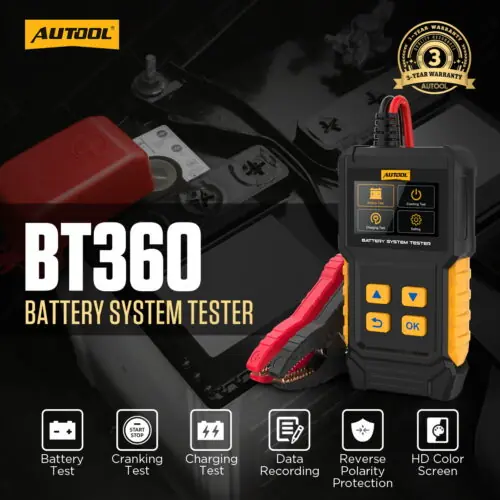

BT360 FocusEntry model for battery test, cranking test, charging system test, reverse polarity protection, data records, color screen, 14 languages, and 12V/24V rated battery testing.

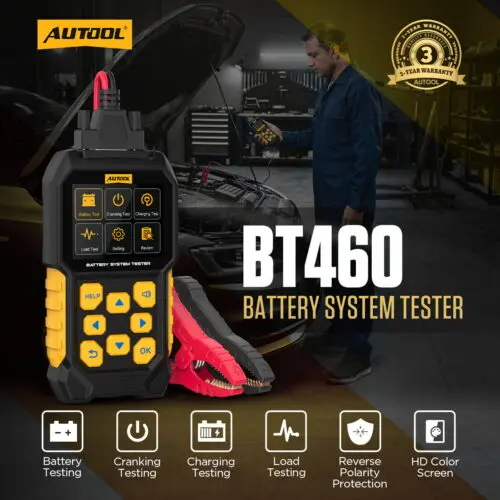

BT460 FocusAdds maximum load test and uses a 2.8 inch color screen while keeping common lead-acid battery support and 12V/24V rated battery testing.
BT760 FocusAdds data printing with a 3.2 inch screen, making it suitable when printed reports are needed but leakage current monitoring is not required.
BT880 FocusAdds thermal monitor, leakage current monitoring, data printing, data records, software upgrade, 3.2 inch color screen, and 18 language support.

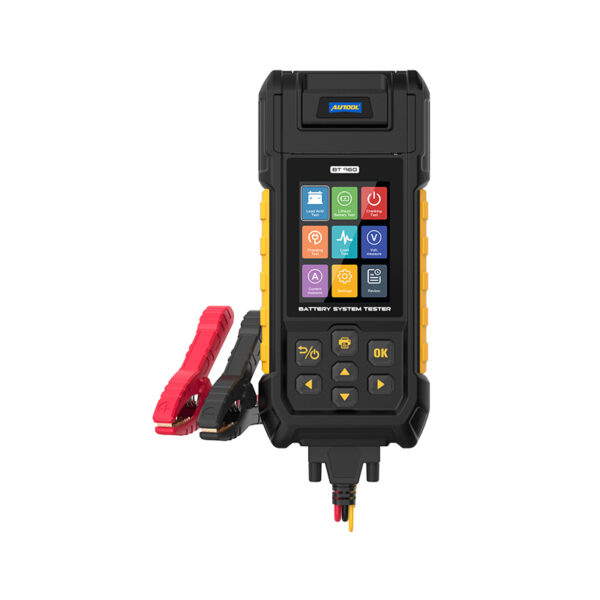

BT960 FocusChoose BT960 if lithium battery testing is required. BT960 supports lithium batteries while BT880 does not.
Decision CheckChoose BT880 when you need lead-acid battery diagnostics, leakage monitoring, thermal monitoring, printed test reports, and 18 language support in one tester.

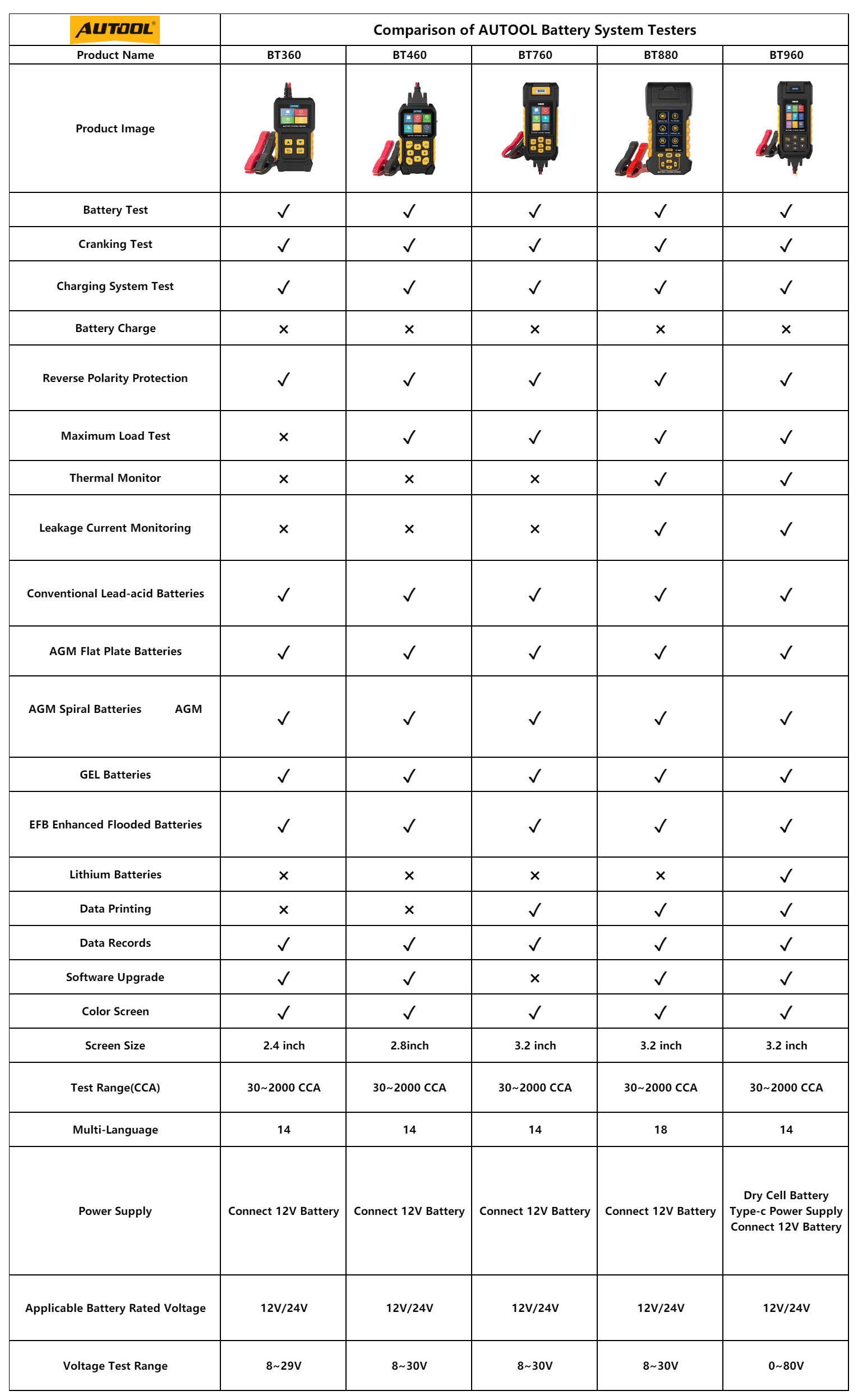

AUTOOL BT360 BT460 BT760 BT880 BT960 battery system tester comparison chart Click to enlarge
Specifications

BT880 Product Specifications

BT880 combines an 8-30V DC operating range, 15mA-5A leakage current detection, 30-2000CCA battery CCA detection, 3.2 inch color display, and built-in thermal printer in a handheld body.

1>
Electrical Range
ProductAUTOOL BT880 Battery System Tester
Operating Voltage8-30V DC
Applicable Battery Rated Voltage12V / 24V
Leakage Current Detection Range15mA-5A
Battery CCA Detection Range30-2000CCA
Battery And Standards
Supported Battery TypesRegular flooded, AGM flat plate, AGM spiral, GEL, EFB
Testing StandardsCCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, BCI
Lithium Battery TestingNot supported by BT880; choose BT960 for lithium battery testing
Functions
Battery TestSupported
Cranking TestSupported
Charging System TestSupported
Maximum Load TestSupported
Leakage Current MonitoringSupported
Thermal MonitorSupported
Voltage / Current MonitorSupported
Data PrintingBuilt-in thermal printer
Data ReviewSupported
Reverse Polarity ProtectionSupported
Remote Firmware UpgradeSupported
Display And Language
Screen3.2 inch HD color screen

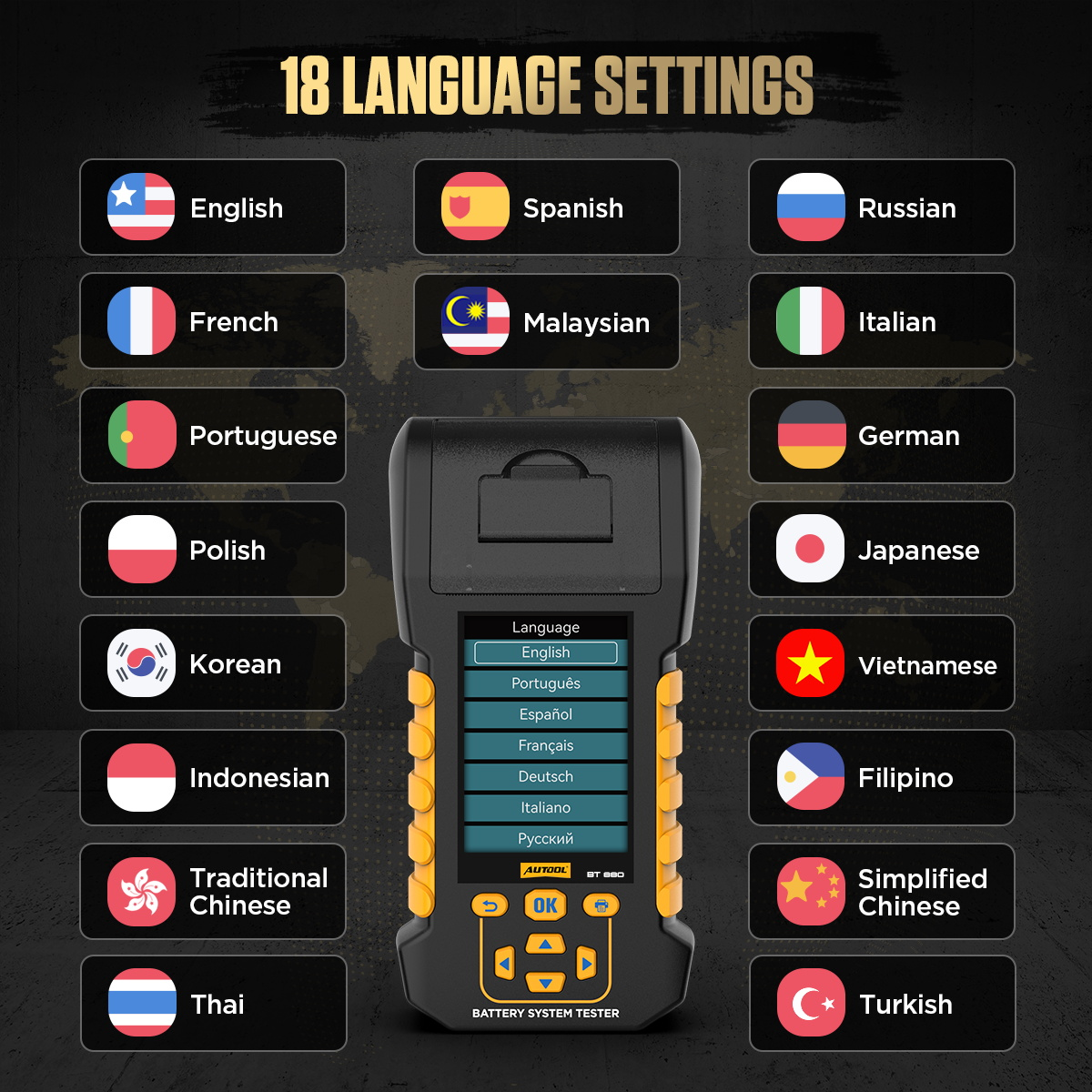

Languages18 languages: English, Spanish, Russian, Malay, Italian, Portuguese, French, German, Polish, Japanese, Korean, Vietnamese, Indonesian, Filipino, Turkish, Thai, Simplified Chinese, Traditional Chinese
Size And Support
Product Dimensions106 × 55 × 203mm
Printer ConsumableThermal paper roll
Warranty3-year warranty support for eligible non-human damage cases

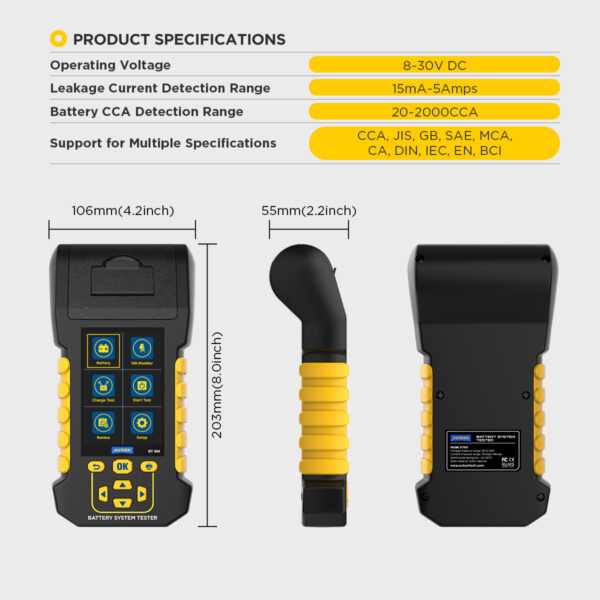

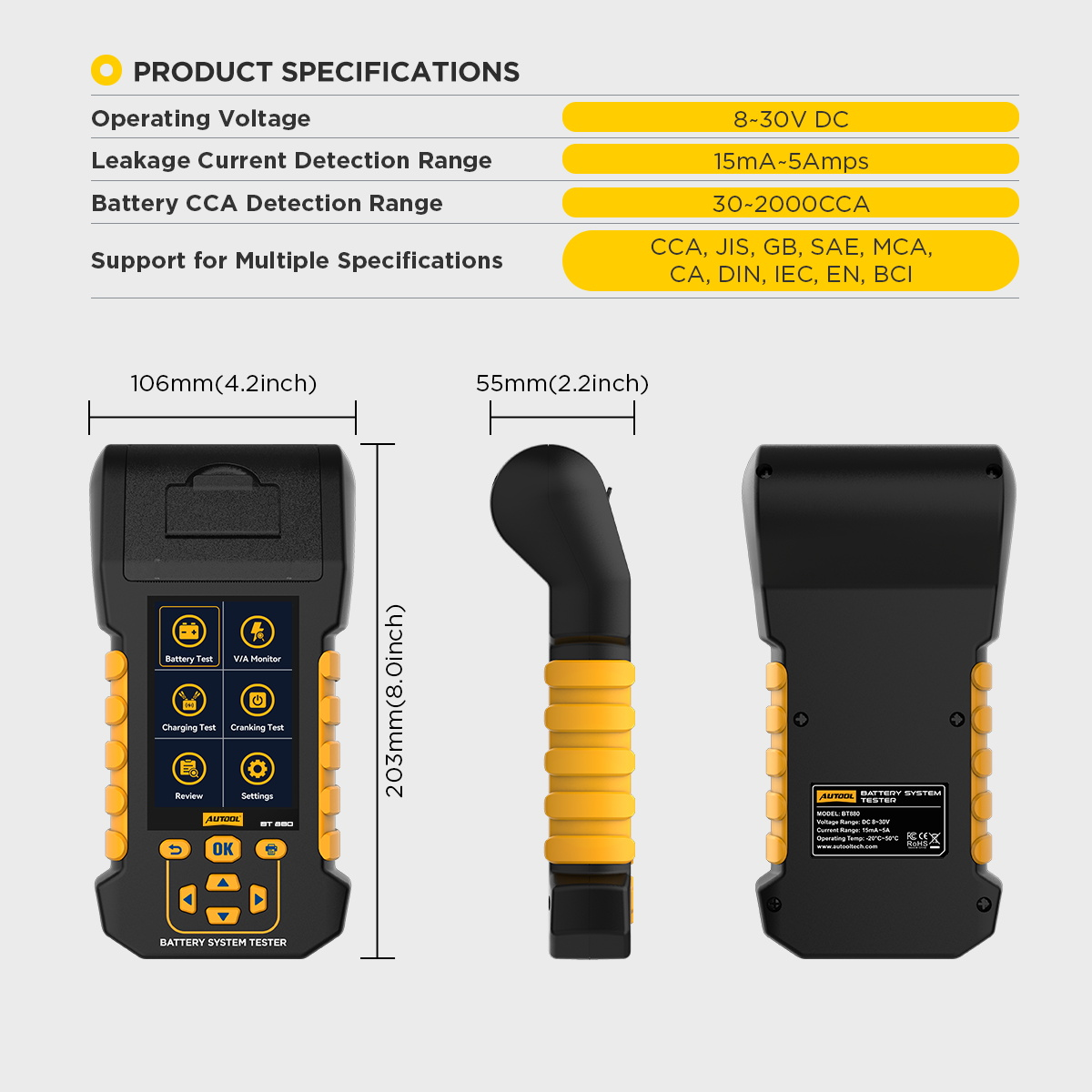

AUTOOL BT880 product specifications with operating voltage leakage current and dimensions Click to enlarge
Electrical Range
Operating Voltage8-30V DC
Battery Rated Voltage12V / 24V
Leakage Range15mA-5A
CCA Range30-2000CCA
Battery Types And Standards
Battery TypesRegular flooded, AGM flat plate, AGM spiral, GEL, EFB
StandardsCCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, BCI
Lithium BatteriesNot supported by BT880
Display And Size
Screen3.2 inch HD color screen
Languages18 languages
Dimensions106 × 55 × 203mm
How To Use

How To Use

BT880 provides guided battery system testing. Select the proper test mode, connect the clamps correctly, choose the battery type and rating standard, then review or print the result.

Select Test Mode

Choose battery test, cranking test, charging system test, maximum load test, V/A monitor, leakage test, data review, or data printing according to the inspection task.

Connect Clamps Correctly

Connect the red and black clamps to the battery terminals according to polarity. Reverse polarity protection is supported, but correct connection is still required for reliable testing.

Choose Battery Type And Standard

Select the correct battery type and rating standard, such as CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, or BCI, before running the battery test.

Monitor Leakage When Needed

For leakage current monitoring, disconnect the negative terminal as instructed, use the special leakage clamp on the negative bus, and observe the real-time waveform and current value.

Review Or Print Results

Use data review to check stored records or use the built-in thermal printer to print test results for work orders, customer records, and maintenance documentation.

Use Notes

  • BT880 can test 12V and 24V battery rated voltage systems, but it does not charge batteries.
  • Select the correct battery type before testing to avoid misleading results.
  • Use the leakage test only after connecting the special clamp according to the manual.
  • Use thermal paper for the printer; ink is not required.
  • For lithium battery testing, choose a compatible model such as BT960 instead of BT880.

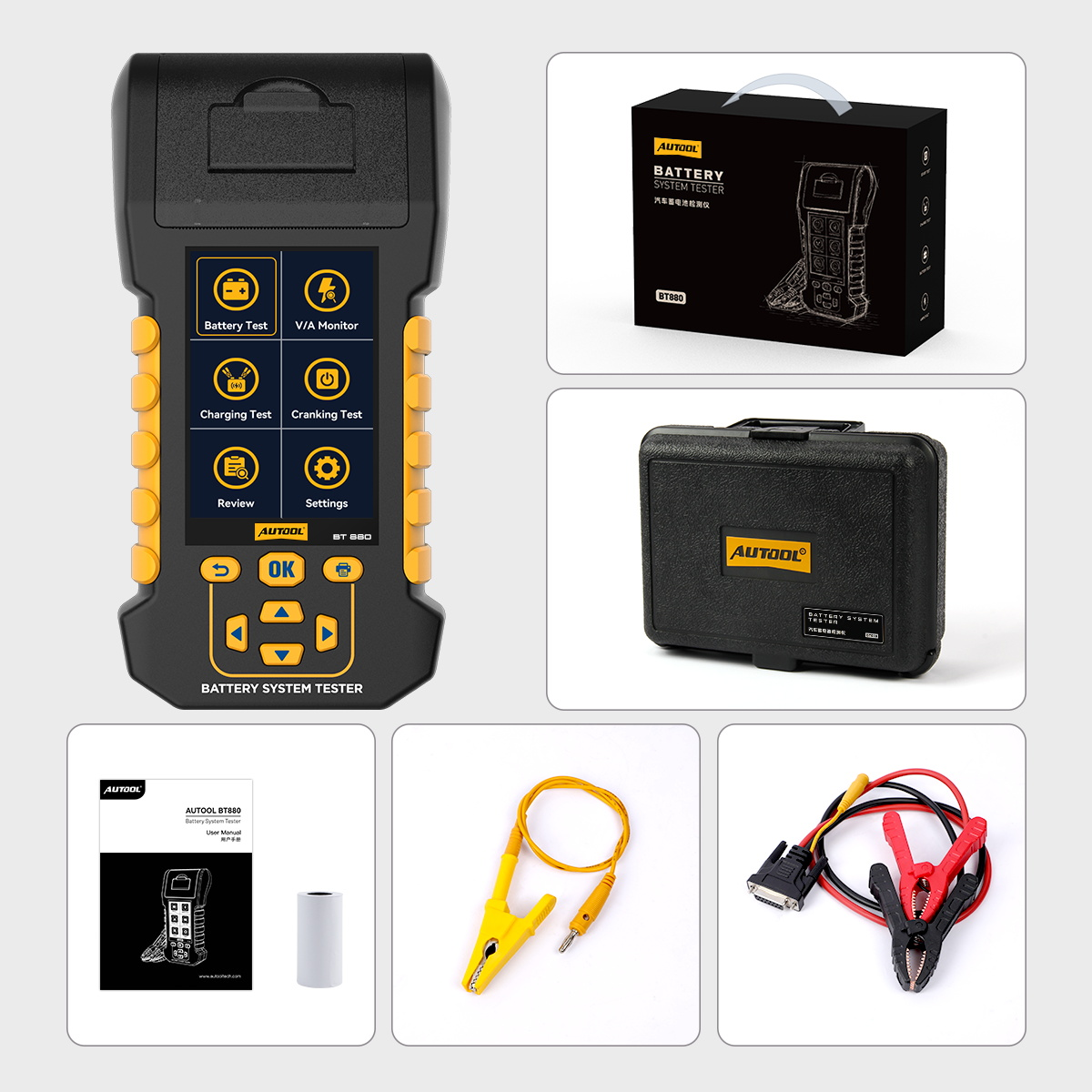

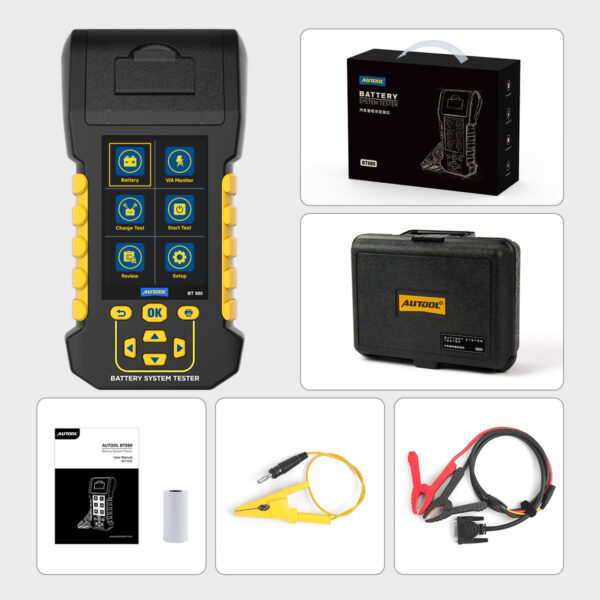

AUTOOL BT880 battery tester packing list and package contents Click to enlarge
What Is In The Box

What Is In The Box

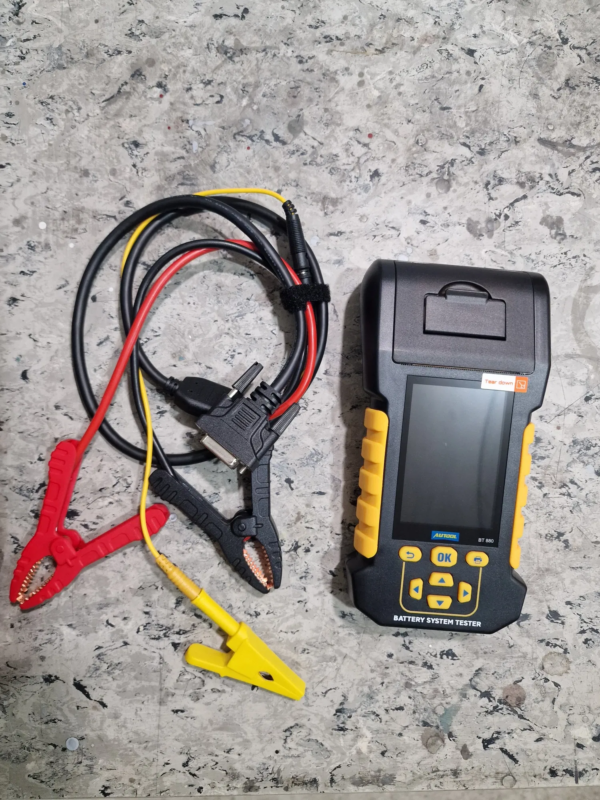

The packing list image shows the BT880 main unit, retail box or carrying case, user manual, thermal paper, leakage test clamp cable, battery clamp cable, and accessories shown in the package image.

Main UnitAUTOOL BT880 battery system tester with built-in thermal printer
Battery Clamp CableMain red and black clamp cable shown in the package image
Leakage Test CableYellow leakage current test clamp cable shown in the package image
Printer ConsumableThermal paper roll shown in the package image
DocumentationBT880 user manual

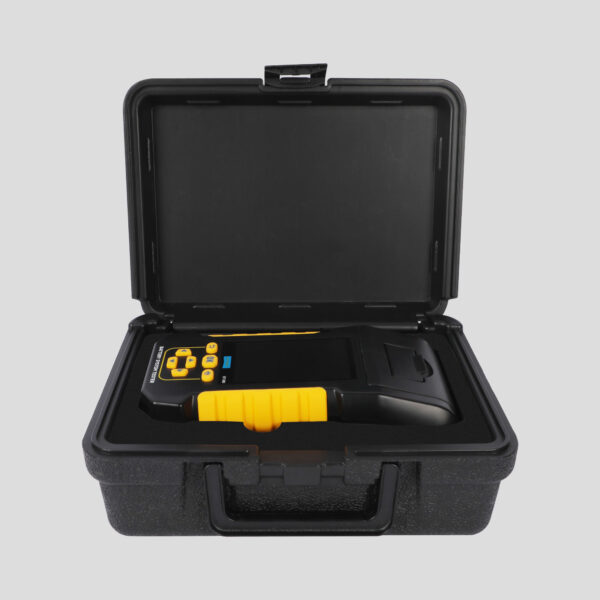

Storage / PackagingRetail box or carrying case shown in the package image
Related Products

Related Products

Compare related AUTOOL battery tester models before choosing the right screen size, printer, leakage monitor, thermal monitor, and lithium battery support.

Manual And Downloads

Manual And Downloads

Download the BT880 manual for battery testing, cranking test, charging test, load test, leakage current monitoring, V/A monitor, data review, printing, language settings, and safe operation.

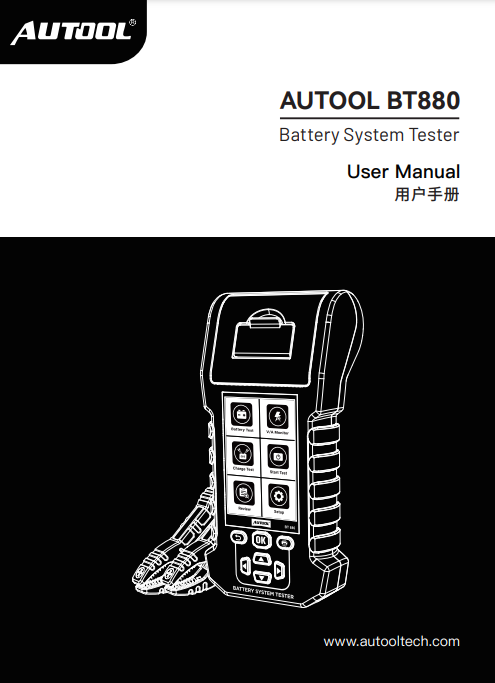

AUTOOL BT880 battery system tester user manual preview Click to enlarge

AUTOOL BT880 User Manual

Open the PDF manual for BT880 setup, test modes, leakage monitoring, data review, thermal printing, and operation guidance.

Download Manual

Need Compatibility Confirmation?

Contact AUTOOL Store before ordering if you need to confirm BT880 battery type compatibility, 12V/24V testing, lithium battery limitation, leakage test wiring, thermal paper, or comparison with BT960.

Questions And Answers

These answers cover battery compatibility, lithium battery limitation, leakage current monitoring, temperature sensing, printing, data review, languages, 12V/24V support, and BT880 model selection.

Related Guides

Related Guides

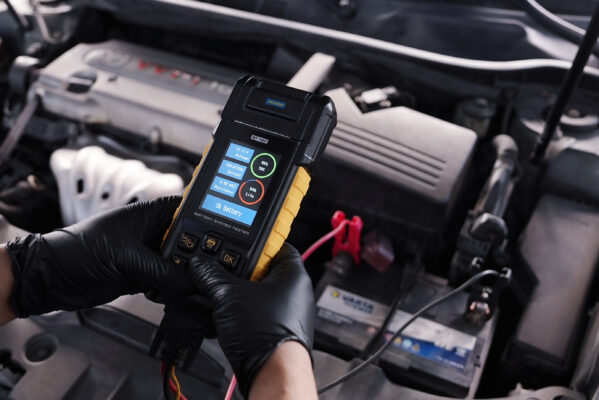

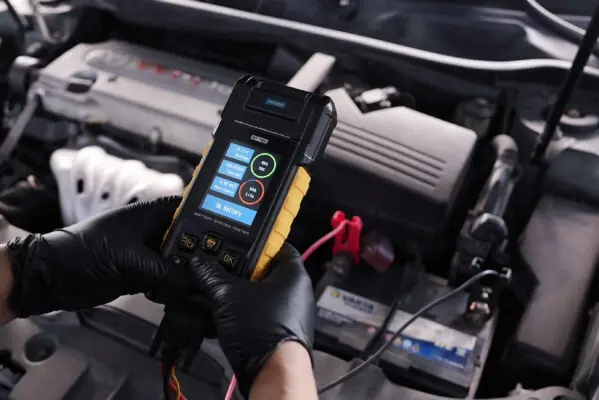

Read the related BT series guide to understand higher-end battery tester use cases and workshop battery diagnostics.

Pressure gauges for workshop guide image
Guide / 10-21-2024

8 Pressure Gauges for Your Workshop

In the automotive repair industry, precise pressure testing is crucial for ensuring the proper operation of vehicles. With advancements in technology, digital pressure.

Warranty And Contact

Warranty And Contact

For BT880 setup, 12V/24V compatibility, battery type confirmation, lithium battery limitation, leakage test connection, thermal paper replacement, firmware upgrade, package contents, or BT880 / BT960 model selection, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming whether BT880 fits your battery type, rating standard, testing workflow, leakage monitoring use case, printer requirement, or workshop diagnostic process.

  • 3-year warranty support for eligible non-human damage cases
  • 12V / 24V battery rated voltage testing confirmation
  • Regular flooded, AGM flat plate, AGM spiral, GEL, and EFB compatibility support
  • Lithium battery limitation and BT960 model comparison
  • Leakage current monitoring connection guidance
  • Thermal paper and built-in printer support
  • Manual, firmware upgrade, data review, and troubleshooting support
  • Packing List and accessory confirmation
