AUTOOL ATL-4D Two Post Car Lift 4000KG Load Capacity
Price range: US$2,699.00 through US$2,799.00
Key Features
- Single-Side Unlocking
- Direct-Drive Hydraulics
- SUV to Light-Truck Lift
- Single-Side Unlocking: One-side operation unlocks both columns together, which simplifies workflow and helps avoid unsafe tilt during release.
- Direct-Drive Hydraulics: A chainless dual-cylinder hydraulic drive with cable balance is described for smooth and synchronized lifting.
- SUV to Light-Truck Lift: The symmetric two-post layout is presented as suitable for SUVs, vans, pickups, and light trucks.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support
AUTOOL ATL-4D
Product Overview
The AUTOOL ATL-4D two post car lift is a standard gantry lift designed for professional workshop vehicle lifting. It features single-side control, allowing the operator to unlock both columns at the same time from one side. This makes operation faster and simpler, while reducing the risk of vehicle tilting caused by unsafe or unsynchronized unlocking.
The ATL-4D frame uses strong steel tubing and laser-precision steel plates. Its chainless dual-cylinder direct-drive hydraulic system, synchronized steel cable balance mechanism, precision hydraulic components, Japanese or Italian seals, and wear-resistant slide blocks support smooth, quiet, stable, and long-lasting performance for SUVs, vans, pickups, and light trucks.
Single-Side Control Dual-Cylinder Drive Mechanical Safety Lock Workshop Lift
4500kgImage Listed Capacity
1845mmMax Lift Height
3700mmTotal Height
2.2KWMotor Power
Key Features
Key Features
ATL-4D combines steel structure manufacturing, direct hydraulic drive, synchronized lifting, precision cylinder machining, premium sealing, and low-noise slide blocks for professional workshop use.
Single-Side Control
Operate from one column side to unlock both columns at the same time. This simplifies operation and reduces the risk of vehicle tilt caused by single-side misoperation or unsynchronized unlocking.
Dual-Cylinder Direct Drive
The chainless dual-cylinder direct-drive hydraulic system transfers lifting force through hydraulic cylinders, reducing chain wear risk and improving long-term reliability.
Steel Cable Balance System
A synchronized steel cable balance mechanism helps both columns lift evenly and maintain stable movement through the lifting process.
Precision Steel Structure
Laser-cut steel plates, strong steel tubing, shot blasting, and high-temperature coating help improve assembly accuracy, corrosion resistance, scratch resistance, and durability.
CNC-Machined Hydraulic Cylinders
Key hydraulic cylinder components are machined with fully automated CNC lathes, while cylinder barrel inner walls use roller burnishing to reduce friction and extend service life.
Wear-Resistant Slide Blocks
Polymer composite self-lubricating slide blocks reduce metal-to-metal friction, lower operation noise during long-term load lifting, and simplify future maintenance.
Before You Order And Use
Before You Order And Use
ATL-4D integrates mechanical locking, synchronized release, electrical interlock logic, and tested structural protection to support safer vehicle lifting in workshop environments.
Simultaneous Mechanical Lock Release
Single-side control releases the safety locks on both columns at the same time, reducing operational complexity and misoperation risk.
Rack-And-Pinion Mechanical Locking
Mechanical rack-and-pinion locking devices work with the electrical system to provide stable backup protection at selected lift heights.
Hook-Type Safety Lock
The technical image highlights a more stable hook-type safety lock designed to help prevent slippage caused by slider wear.
EU Testing Standards Reference
The technical image lists 150% static test and 115% dynamic test references under EU testing standards.
Specifications
Specifications

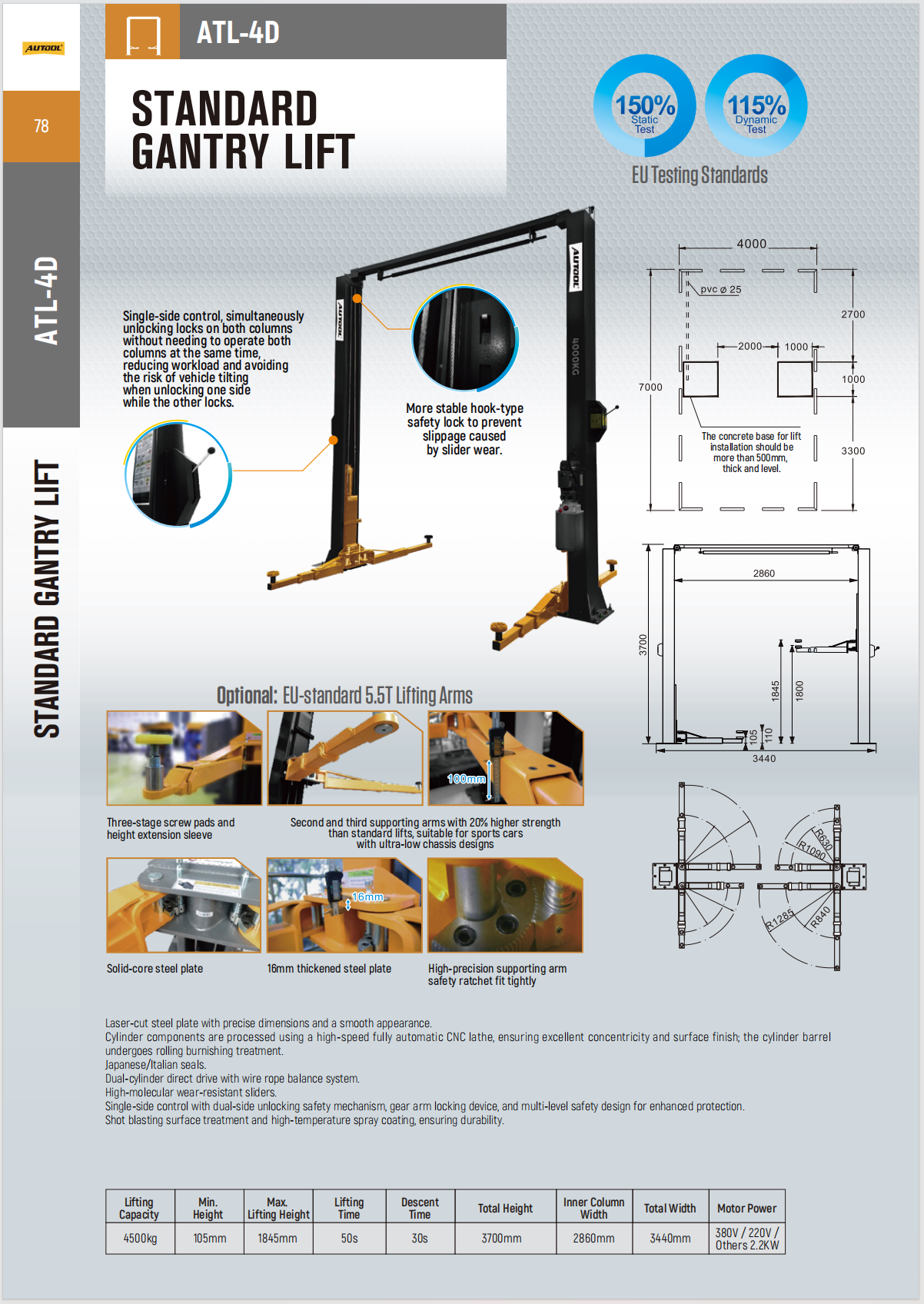

The technical image is the main visual data source for ATL-4D. It includes the standard gantry lift structure, single-side control explanation, hook-type safety lock, optional EU-standard 5.5T lifting arms, floor layout, overall dimensions, arm swing radius, and the parameter table.
| Technical Data From Image | |
| Model | ATL-4D |
| Lift Type | Standard gantry lift |
| Lifting Capacity | 4500kg shown in the technical image |
| Minimum Height | 105mm |
| Maximum Lifting Height | 1845mm |
| Lifting Time | 50s |
| Descent Time | 30s |
| Total Height | 3700mm |
| Inner Column Width | 2860mm |
| Total Width | 3440mm |
| Motor Power | 380V / 220V / Others, 2.2KW |
Capacity Confirmation Required
- The source title mentions 4000KG load capacity, while the technical image lists 4500kg lifting capacity.
- Confirm the final rated lifting capacity before publishing, ordering, or quoting.
Click to enlargeInstallation And Setup
Installation And Setup
Before ordering or installation, confirm floor condition, ceiling height, column spacing, arm swing clearance, motor voltage, and the target vehicle types.
Concrete Requirement
The technical image states that the concrete base for lift installation should be more than 500mm thick and level.
Column Layout
Use the technical drawing to confirm floor space, column spacing, total width, and vehicle access before installation.
Arm Swing Clearance
Check the arm radius diagram before installation to ensure the lift can serve the target vehicle types safely and efficiently.
Power Confirmation
Confirm 380V / 220V / other motor power configuration before ordering to match the workshop electrical environment.
Before You Order And Use
Before You Order And Use
ATL-4D is an inquiry-based workshop lift. Confirm optional arms, electronic unlocking, voltage, floor condition, and installation details before ordering.
Optional EU-Standard 5.5T Lifting Arms
The technical image shows optional EU-standard 5.5T lifting arms. Confirm whether this option is included or needs to be purchased separately before ordering.
Electronic Unlocking Consultation
For ATL-4D, ATL-4.5D, and ATL-4.5DW models that require an additional budget for electronic unlocking, contact AUTOOL Store for consultation.
Voltage Configuration
Confirm whether the workshop requires 380V, 220V, or another motor power configuration before placing the order.
Workshop Fit Check
Confirm floor size, ceiling height, target vehicle size, installation base, lifting capacity, and arm swing clearance before purchase.
What Is In The Box
What Is In The Box
No dedicated Packing List image is available in the provided content. The technical data image is not used here because Packing List should only use the most relevant package image when one exists.
Main And Auxiliary Units
Source package size: 383 × 44 × 72, weight 671 kg. Dimension unit requires final confirmation before publishing.
Electrical Control Box
Source package size: 83 × 28 × 31, weight 20 kg. Dimension unit requires final confirmation before publishing.
Accessories Box
Source package size: 40 × 40 × 25, weight 15 kg. Dimension unit requires final confirmation before publishing.
Before You Order And Use
Before You Order And Use
ATL-4D is a large workshop lift. Confirm capacity, installation base, motor voltage, optional configurations, and package dimension units before quotation and installation.
Order And Installation Notes
- Confirm the final rated lifting capacity before publishing, because the source title says 4000KG while the technical image lists 4500kg.
- Confirm whether the Packing List dimensions use cm or mm before publishing.
- Confirm motor voltage configuration: 380V / 220V / other options.
- The concrete base for lift installation should be more than 500mm thick and level according to the technical image.
- Confirm ceiling height, column spacing, total width, arm swing clearance, and vehicle size before installation.
- Optional EU-standard 5.5T lifting arms are shown in the technical image and should be confirmed before ordering.
- ATL-4D, ATL-4.5D, and ATL-4.5DW models requiring electronic unlocking may need additional budget; contact AUTOOL Store for consultation.
- Professional installation and safe operation procedures are required for two-post car lifts.
Questions And Answers
These answers cover rated capacity confirmation, suitable vehicles, single-side control, mechanical safety locking, installation base, motor power, optional 5.5T lifting arms, and electronic unlocking consultation.
The source title mentions 4000KG load capacity, while the technical image lists 4500kg lifting capacity. Please confirm the final rated capacity before publishing or ordering.
ATL-4D is designed for SUVs, vans, pickups, and light trucks, provided that the vehicle weight, lift arm position, and workshop installation conditions match the lift requirements.
Single-side control allows the operator to unlock both columns from one side at the same time, simplifying operation and reducing the risk of uneven unlocking.
ATL-4D uses mechanical locking protection. The technical image also highlights a more stable hook-type safety lock designed to reduce slippage risk caused by slider wear.
The technical image states that the concrete base for lift installation should be more than 500mm thick and level.
The technical image lists motor power as 380V / 220V / Others, 2.2KW. Confirm the correct voltage configuration before ordering.
The technical image shows optional EU-standard 5.5T lifting arms. Confirm whether this option is included or needs to be purchased separately before ordering.
For ATL-4D, ATL-4.5D, and ATL-4.5DW models that require electronic unlocking, additional budget may be needed. Contact AUTOOL Store for consultation.
Warranty And Contact
Warranty And Contact
For ATL-4D lifting capacity confirmation, voltage configuration, installation size, floor requirement, optional 5.5T lifting arms, electronic unlocking budget, packing dimension units, or professional installation support, contact AUTOOL Store before ordering.
Pre-Sales And Lift Configuration Support
ATL-4D is a professional workshop lift and should be confirmed before quotation and installation. Use support to verify lifting capacity, power configuration, foundation requirements, optional arms, electronic unlocking, and packing details.
- ATL-4D lifting capacity confirmation
- Voltage configuration confirmation
- Installation size and floor requirement confirmation
- Optional 5.5T lifting arm confirmation
- Electronic unlocking budget consultation
- Packing dimension unit confirmation
- Professional installation support
