AUTOOL PT610 Cylinder Pressure Gauge Automotive Tool
US$119.00
Key Features
- 2.8-Inch HD
- Live Pressure
- 6-Cylinder Memory
- 2.8-Inch HD: Large display makes cylinder readings easier to see.
- Live Pressure: Shows real-time and average cylinder pressure during testing.
- 6-Cylinder Memory: Stores up to six cylinders of data for comparison.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support

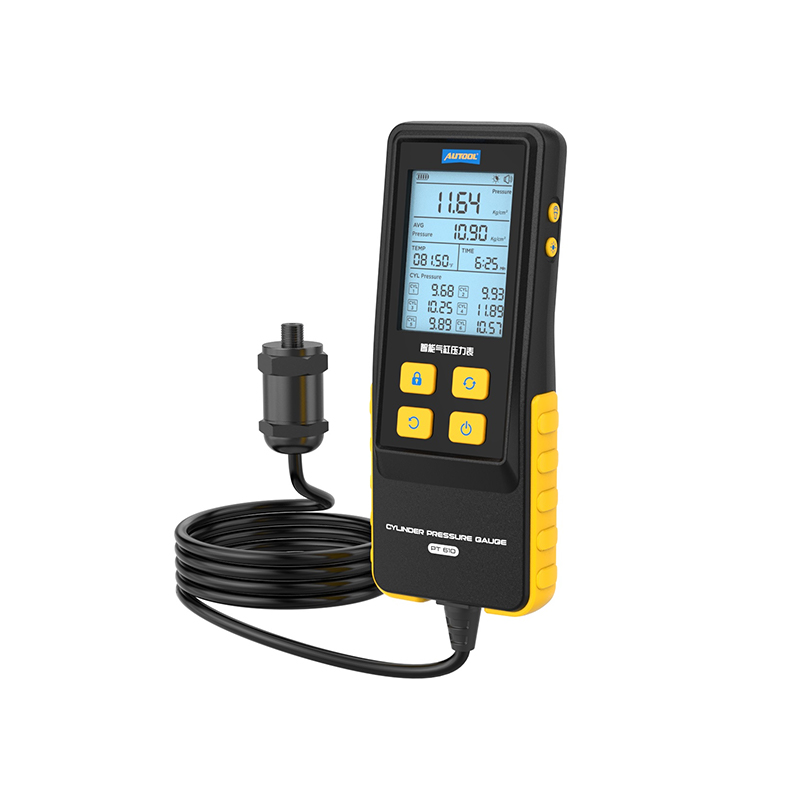

AUTOOL PT610
Product Overview

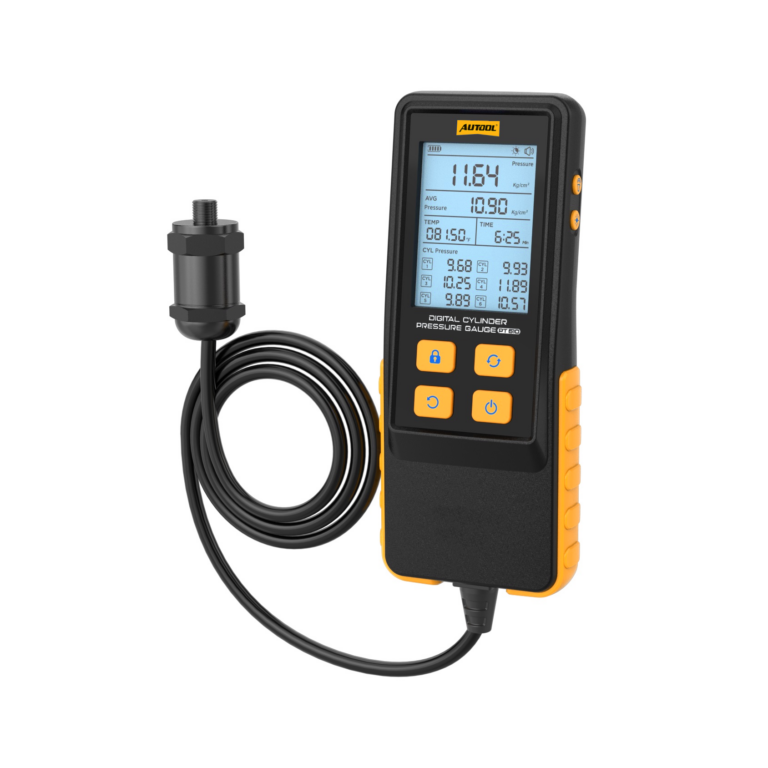

The AUTOOL PT610 is a smart digital cylinder compression pressure gauge for motorcycles, cars, and trucks. Its 2.8-inch HD backlit screen helps you read real-time pressure value, average pressure value, cylinder current temperature, measuring time, and up to 6 cylinders of saved pressure data for comparison and diagnosis.
Cylinder Compression Test 2.8″ Backlit Display 6-Cylinder Data Storage PSI / Bar / kg/cm²
0-426.6 PSIPressure Range
0.01Display Resolution
6 SetsData Storage
3 YearsWarranty Support
Click to enlargeProduct Comparison

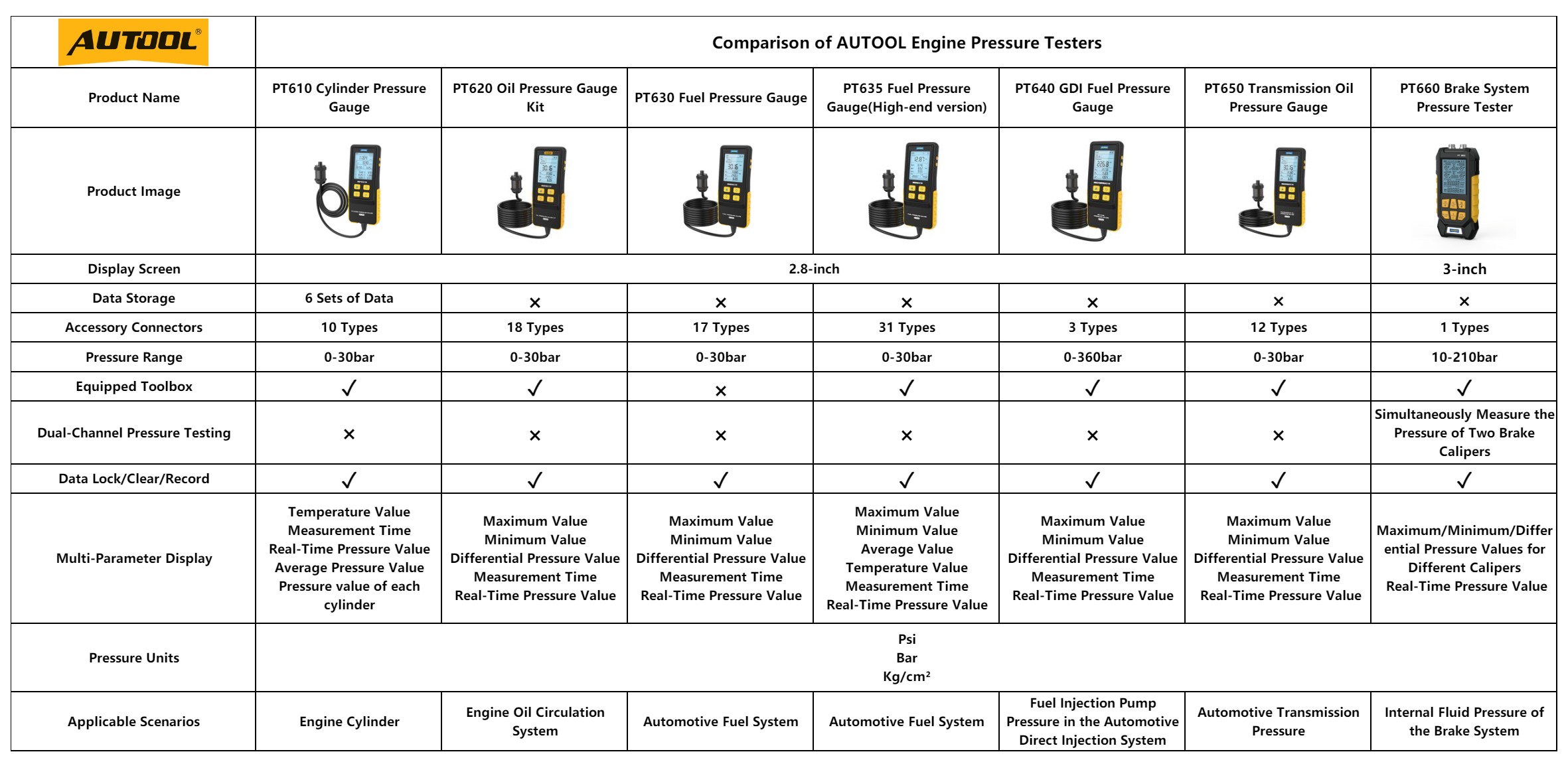

Product Comparison
PT610 is focused on engine cylinder compression pressure testing. Compare it with other AUTOOL pressure tester models before choosing the right tool for cylinder, oil, fuel, GDI, transmission, or brake system pressure checks.
PT610 Cylinder Pressure GaugeChoose PT610 for engine cylinder compression testing, 6 sets of cylinder pressure data storage, 10 accessory connector types, 0-30bar pressure range, data lock / clear / record, and pressure units in PSI, Bar, and kg/cm².
PT620 Oil Pressure Gauge KitChoose PT620 for engine oil circulation system pressure testing. It supports 0-30bar measurement, equipped toolbox, 18 accessory connector types, and maximum / minimum / differential / real-time pressure display.

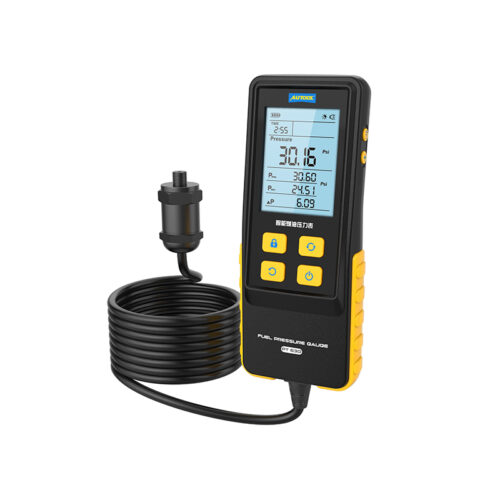

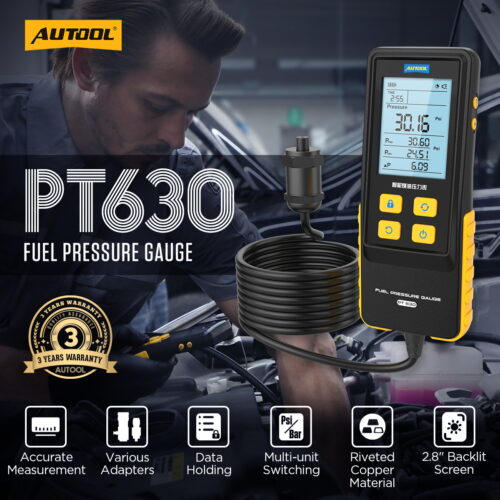

PT630 / PT635 Fuel Pressure GaugeChoose PT630 or PT635 for automotive fuel system pressure testing. PT635 is the high-end fuel pressure gauge version with 31 accessory connector types and equipped toolbox.

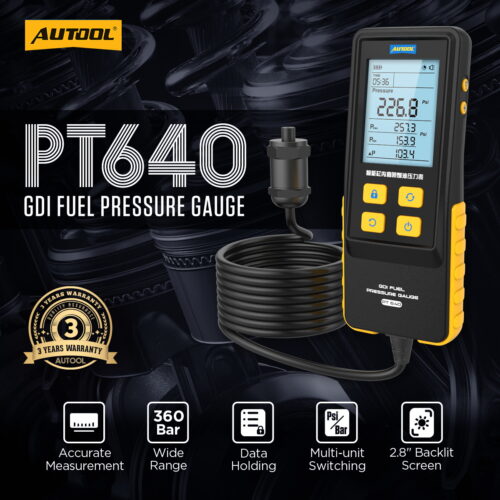

PT640 GDI Fuel Pressure GaugeChoose PT640 for fuel injection pump pressure testing in automotive direct injection systems. It supports a wider 0-360bar pressure range.
PT650 / PT660 Pressure TestersChoose PT650 for automotive transmission pressure testing. Choose PT660 for internal fluid pressure testing of the brake system, including dual-channel brake caliper pressure comparison.
Click to enlargeKey Features
Key Features
PT610 combines digital pressure measurement, clear screen reading, cylinder data storage, multi-unit switching, durable copper adapters, and a long reinforced hose for automotive cylinder compression testing.

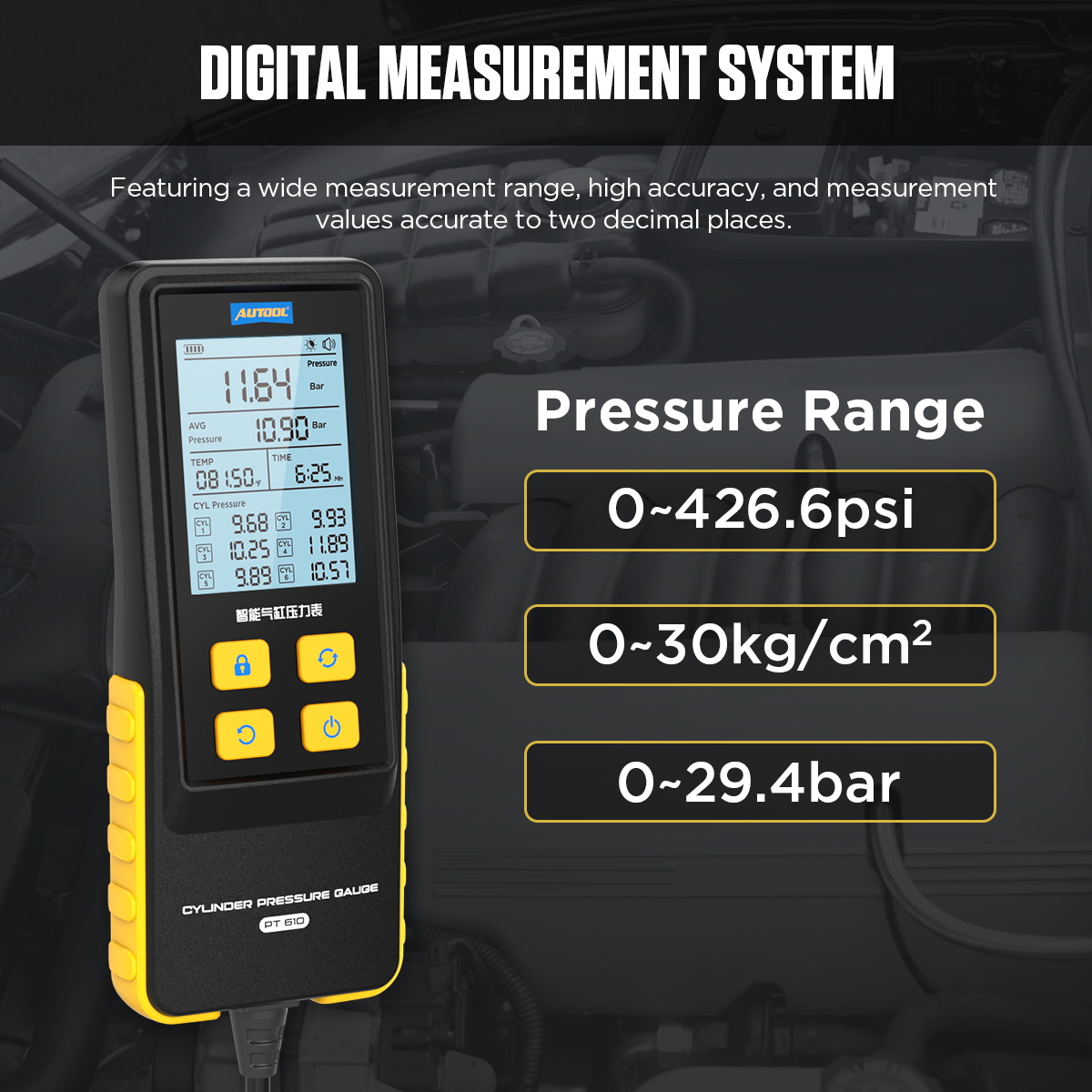

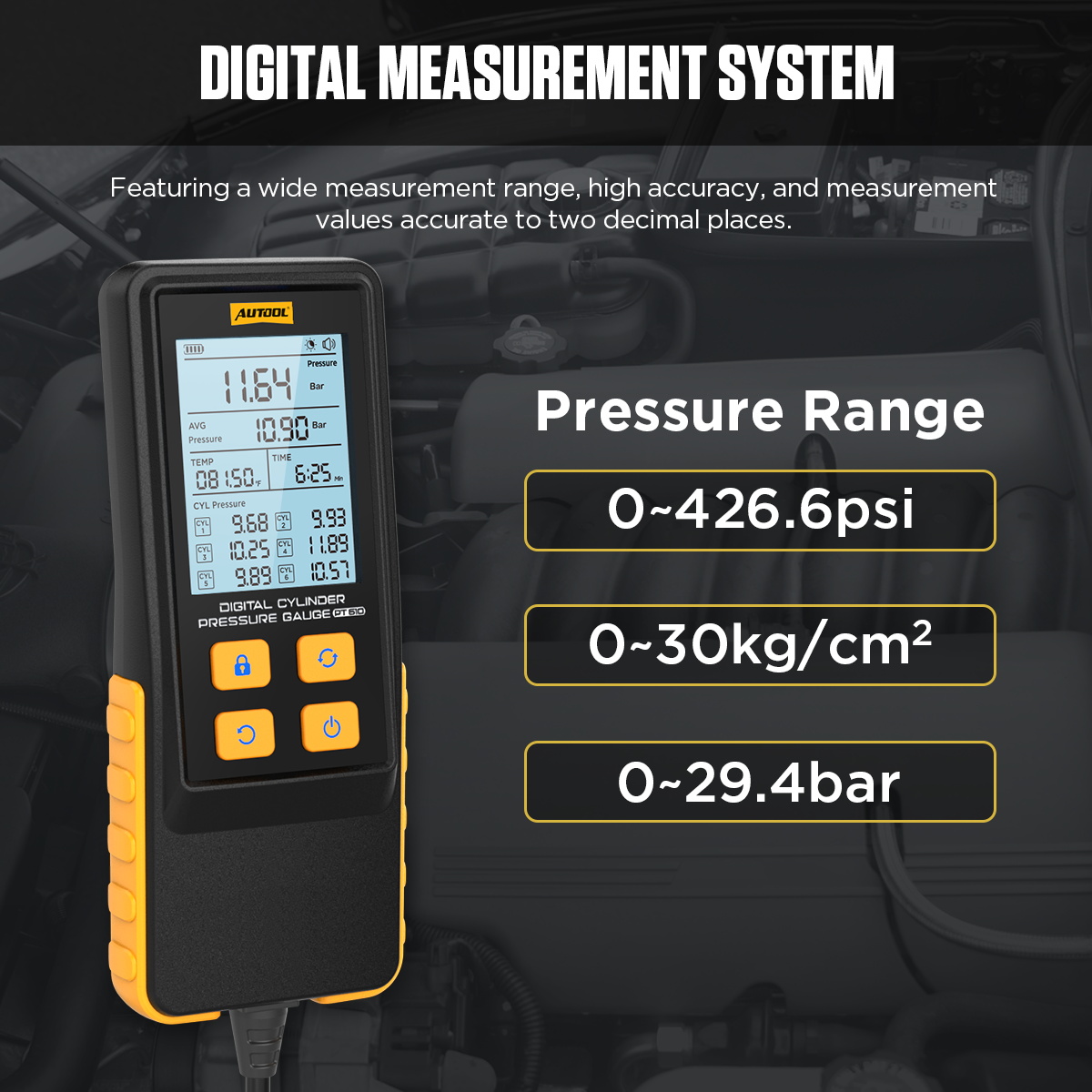

Accurate Digital Measurement
The PT610 has a large measuring range and high precision. Measurement values can be displayed to two decimal places for easier comparison.

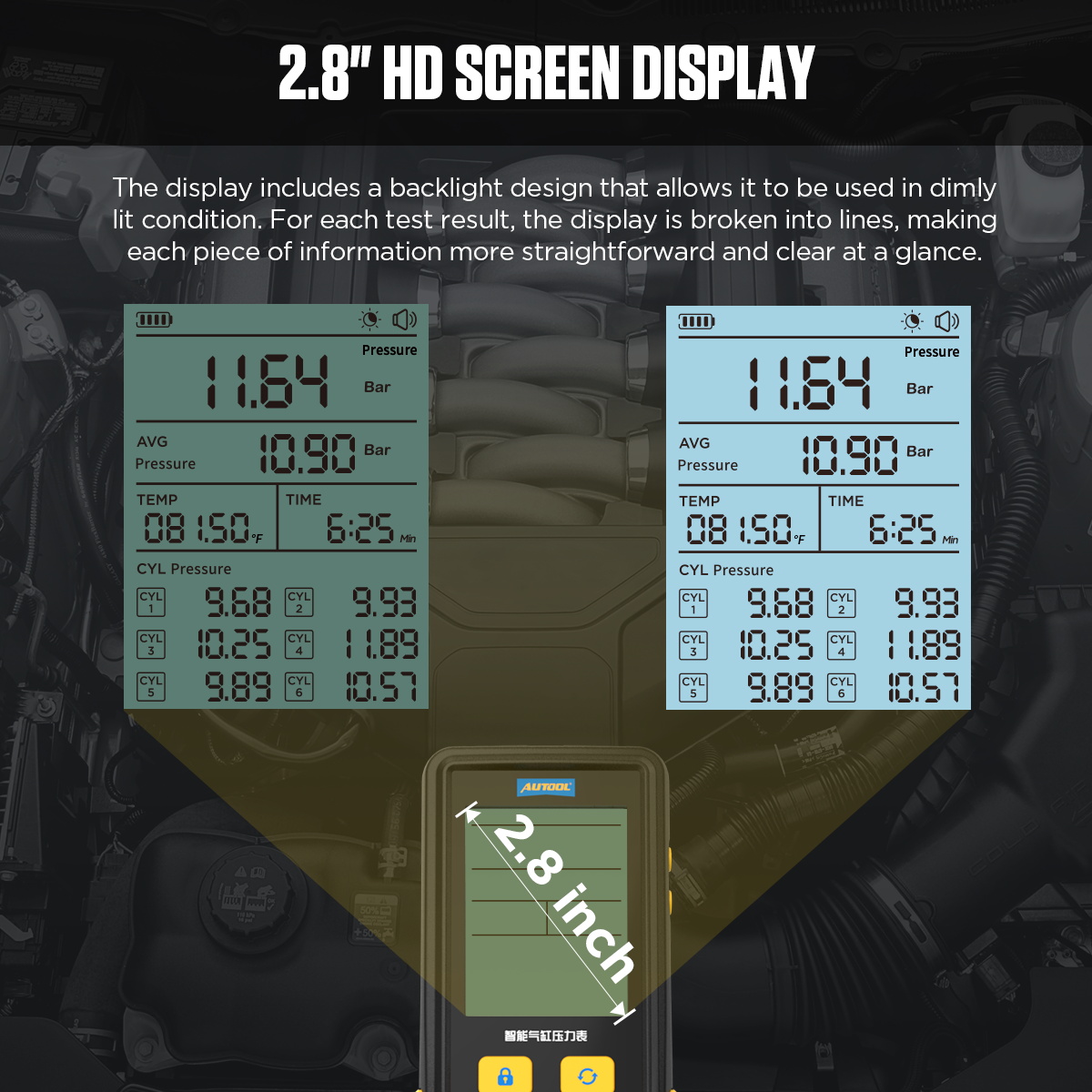

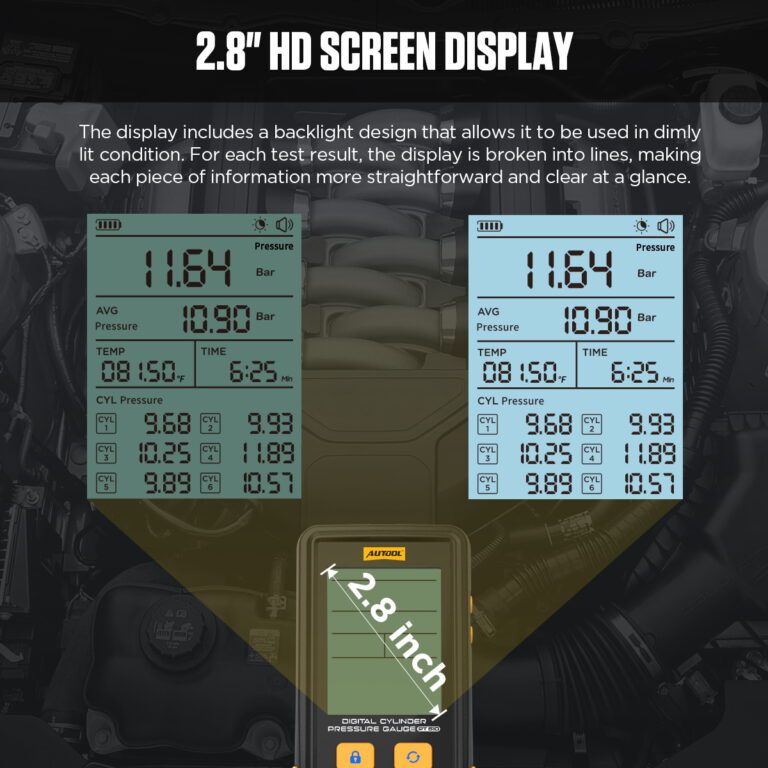

2.8″ Backlit Display
The 2.8-inch HD backlit display shows clear pressure, average pressure, temperature, measuring time, and cylinder pressure data even in dimly lit conditions.

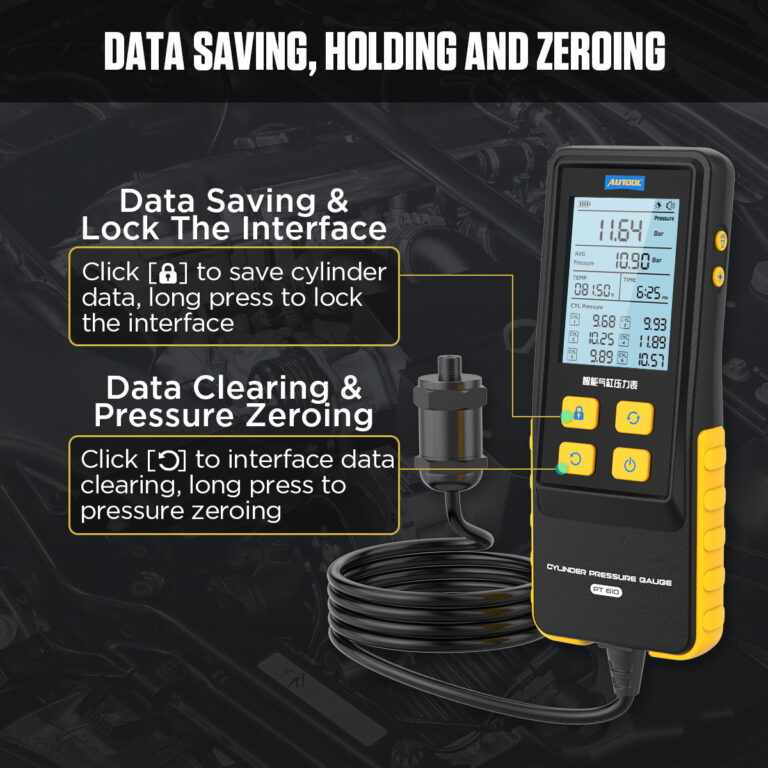

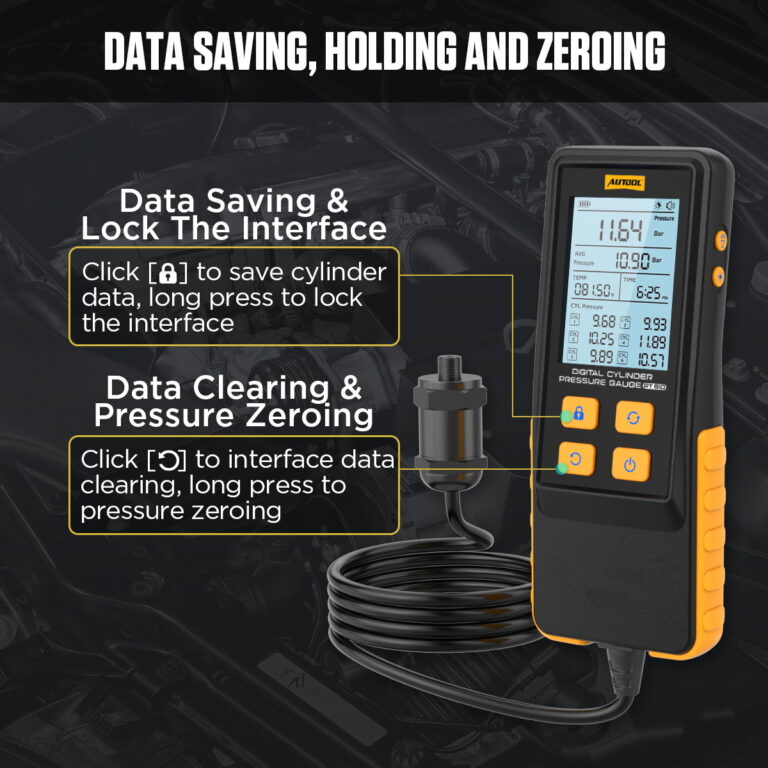

6 Sets Of Data Storage
The data saving and interface locking function allows you to save up to 6 sets of cylinder test data for recording, querying, and comparing during diagnosis.

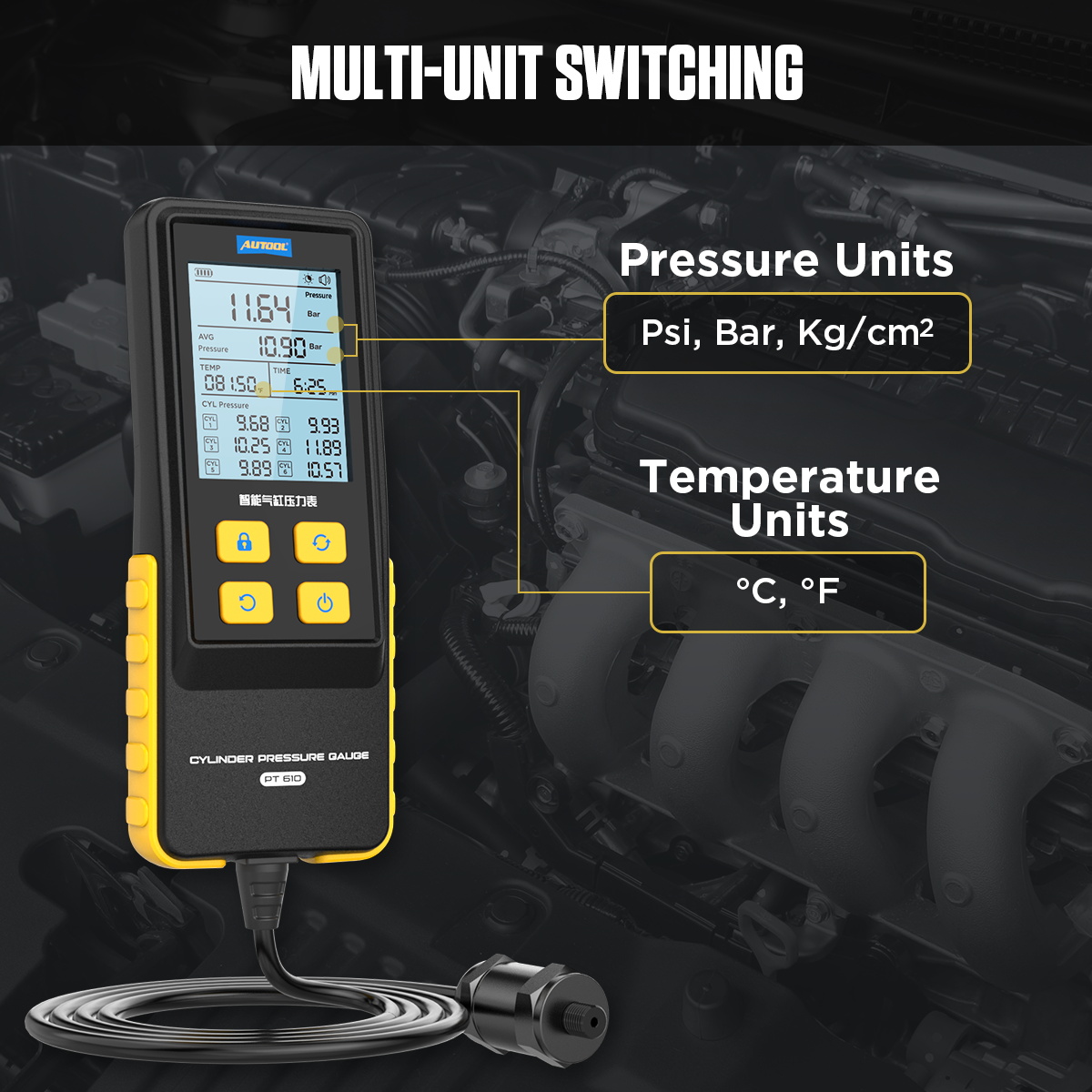

Multi-Unit Switching
Pressure units can be switched among PSI, Bar, and kg/cm². Temperature units can be switched between Celsius and Fahrenheit.

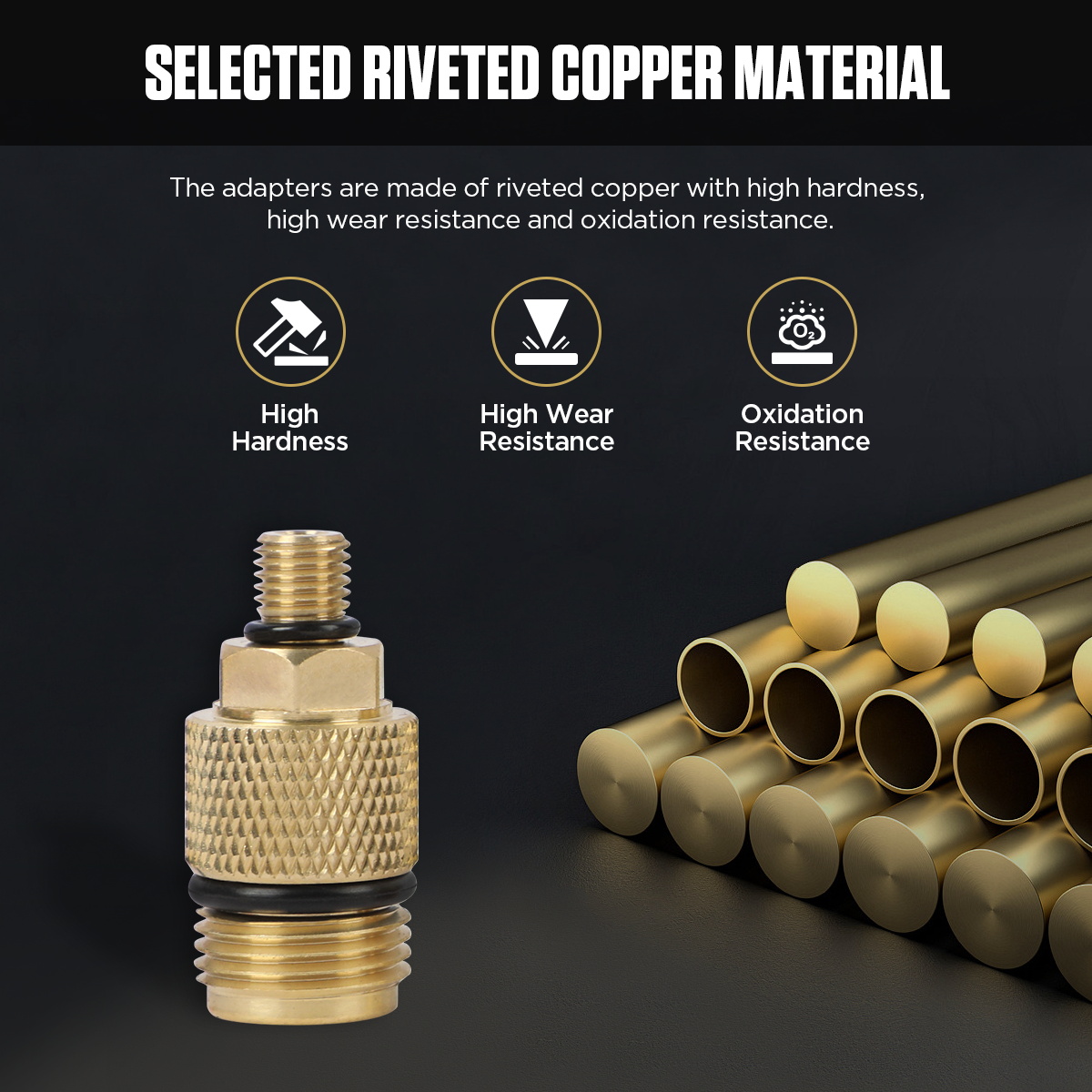

Riveted Copper Adapters
The included fittings use selected riveted copper material for hardness, wear resistance, oxidation resistance, and corrosion resistance.
Long Reinforced Hose
The extra-long 78.7-inch reinforced rubber hose helps resist pressure, temperature, and twisting during cylinder pressure testing.
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlargeSpecifications
AUTOOL PT610 Specifications And Display Details

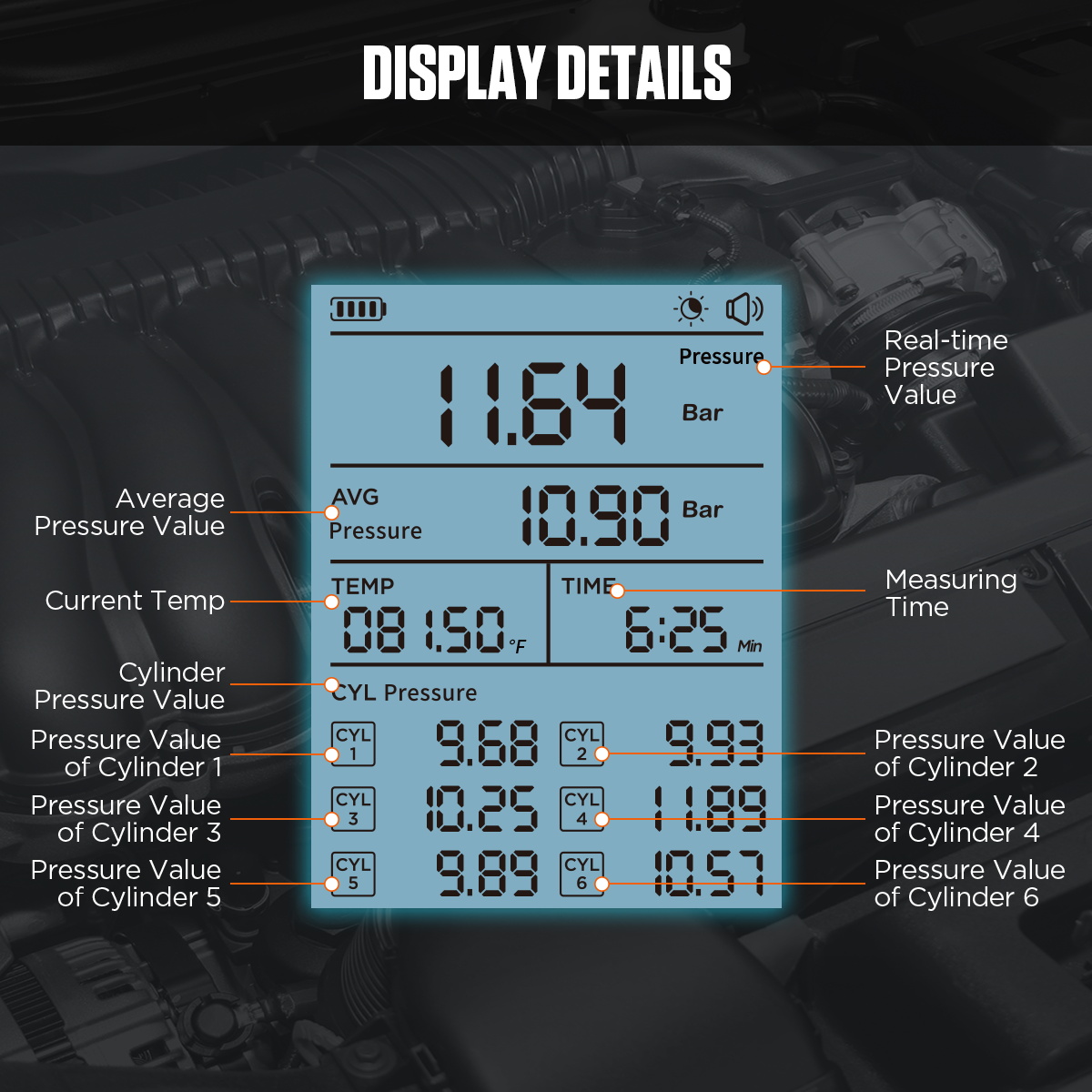

PT610 provides digital cylinder pressure readings, average pressure, cylinder temperature, measuring time, multi-cylinder data, unit switching, quick pressure release, and a compact handheld interface.
| Measurement | |
| Product | AUTOOL PT610 Digital Cylinder Pressure Gauge |
| Main Application | Engine cylinder compression pressure testing |
| Pressure Range | 0-426.6 PSI / 0-29.4 Bar / 0-30 kg/cm² |
| Display Resolution | 0.01 |
| Pressure Units | PSI, Bar, kg/cm² |
| Temperature Units | °C and °F |
| Display And Data | |
| Screen | 2.8-inch HD backlit display |
| Displayed Data | Real-time pressure value, average pressure value, current temperature, measuring time, and cylinder pressure values |
| Data Storage | Up to 6 sets of cylinder pressure data |
| Data Functions | Save cylinder data, lock interface, clear interface data, and pressure zeroing |
| Hardware And Operation | |
| Adapter Material | Selected riveted copper material |
| Hose | 78.7-inch reinforced rubber hose |
| Quick Release | Quick-release valve button for fast pressure release |

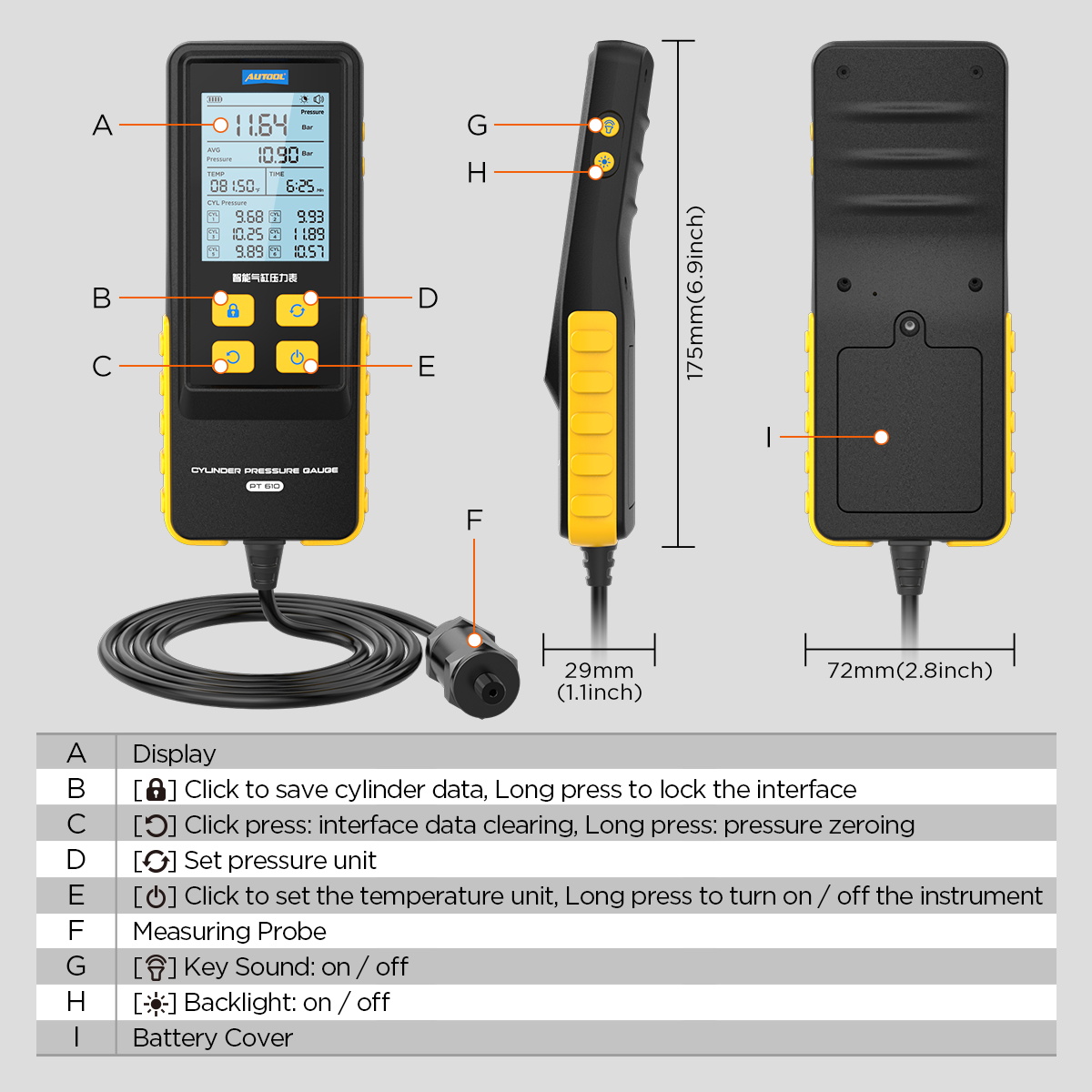

| Main Dimensions | 175mm × 72mm × 29mm / 6.9in × 2.8in × 1.1in |
| Key Functions | Save / lock, data clear / zeroing, pressure unit setting, temperature unit setting, power on / off, key sound on / off, backlight on / off |
| Support | |
| Warranty | 3-year warranty support for eligible non-human damage cases |
| Maintenance | Lifetime maintenance support according to AUTOOL service policy |
Click to enlargeMeasurement
ProductAUTOOL PT610 Digital Cylinder Pressure Gauge
Main ApplicationEngine cylinder compression pressure testing
Pressure Range0-426.6 PSI / 0-29.4 Bar / 0-30 kg/cm²
Display Resolution0.01
Pressure UnitsPSI, Bar, kg/cm²
Temperature Units°C and °F
Display And Data
Screen2.8-inch HD backlit display
Displayed DataReal-time pressure value, average pressure value, current temperature, measuring time, and cylinder pressure values
Data StorageUp to 6 sets of cylinder pressure data
Data FunctionsSave cylinder data, lock interface, clear interface data, and pressure zeroing
Hardware And Operation
Adapter MaterialSelected riveted copper material
Hose78.7-inch reinforced rubber hose
Quick ReleaseQuick-release valve button for fast pressure release
Main Dimensions175mm × 72mm × 29mm / 6.9in × 2.8in × 1.1in
Key FunctionsSave / lock, data clear / zeroing, pressure unit setting, temperature unit setting, power on / off, key sound on / off, backlight on / off
Support
Warranty3-year warranty support for eligible non-human damage cases
MaintenanceLifetime maintenance support according to AUTOOL service policy

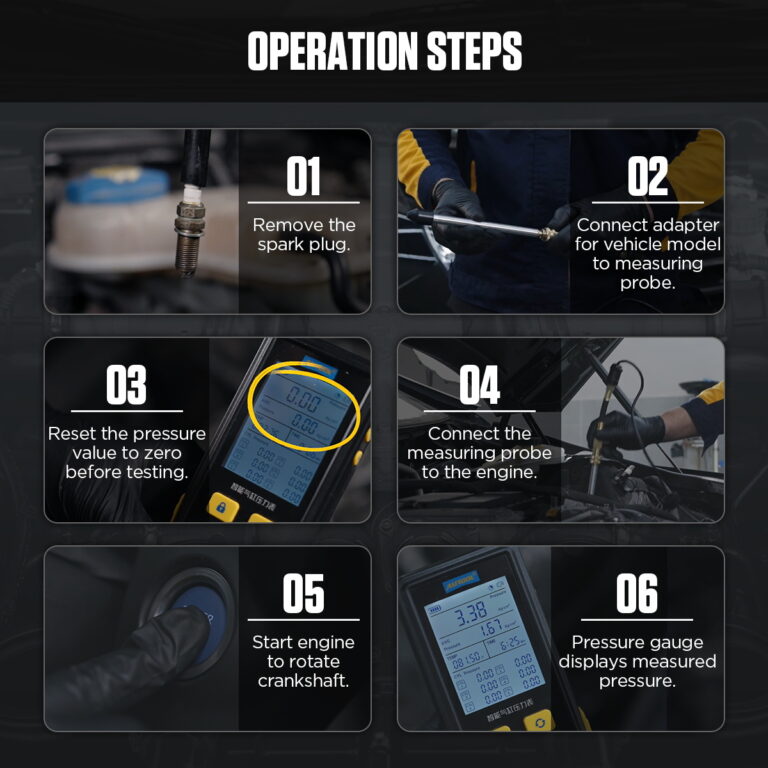

How To Use
How To Use
Use the correct adapter for the vehicle model, reset the gauge before testing, connect the measuring probe securely, crank the engine, and read the measured pressure on the digital display.
Remove The Spark Plug
Remove the spark plug from the cylinder that needs to be tested.
Connect The Adapter
Select the correct adapter for the vehicle model and connect it to the measuring probe.
Reset To Zero
Reset the pressure value to zero before testing to prepare the gauge for a new measurement.
Install The Probe
Connect the measuring probe to the engine securely before cranking.
Crank The Engine
Start the engine to rotate the crankshaft according to the test requirement.
Read And Save Data
The pressure gauge displays the measured pressure. Save cylinder pressure data when comparison is needed.
Use Notes
- Use the adapter that matches the cylinder test port before measurement.
- Reset the pressure value to zero before each new test.
- Use the quick-release valve button for fast pressure release after testing.
- Save up to 6 cylinder pressure results when cylinder-by-cylinder comparison is needed.
Click to enlargeWhat Is In The Box

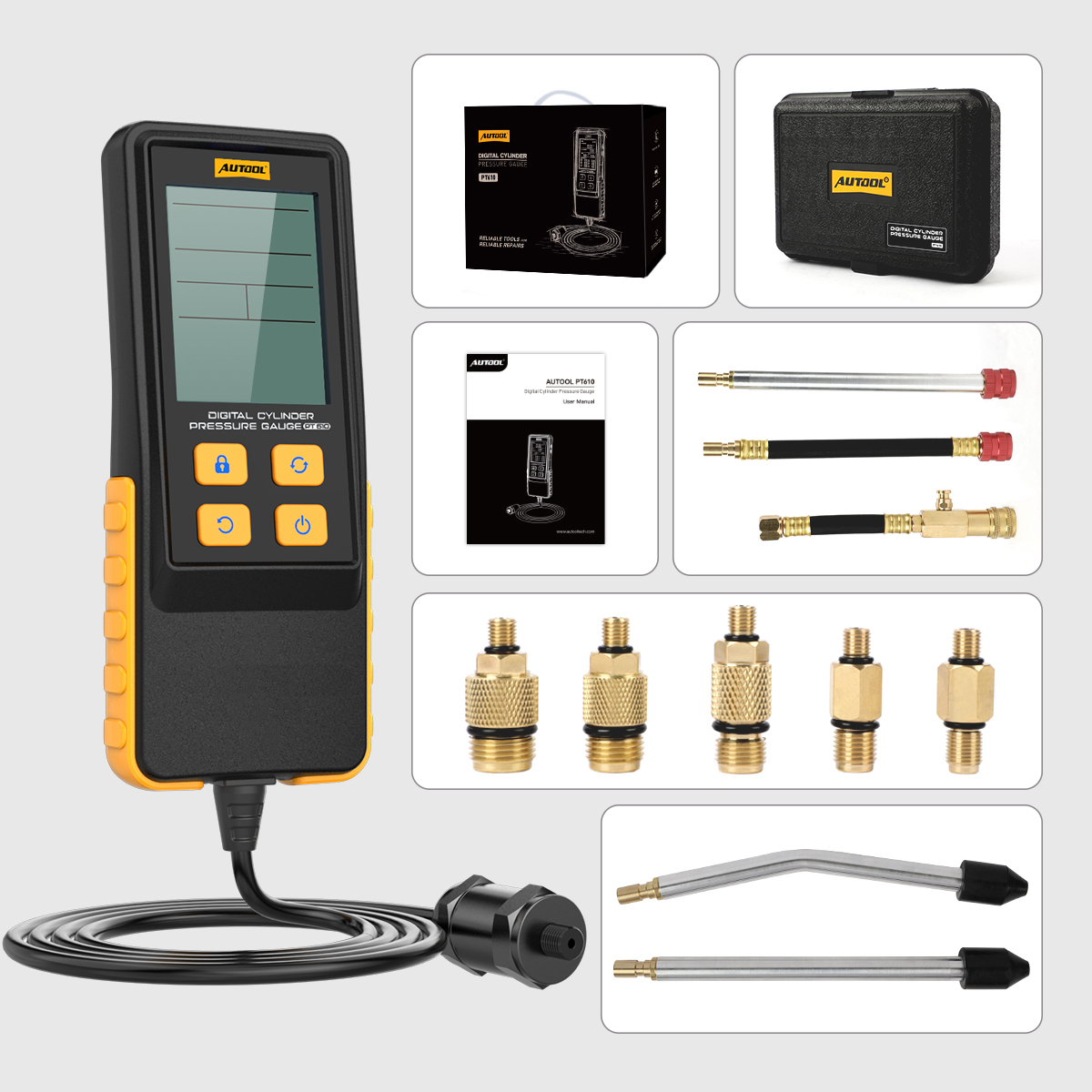

What Is In The Box

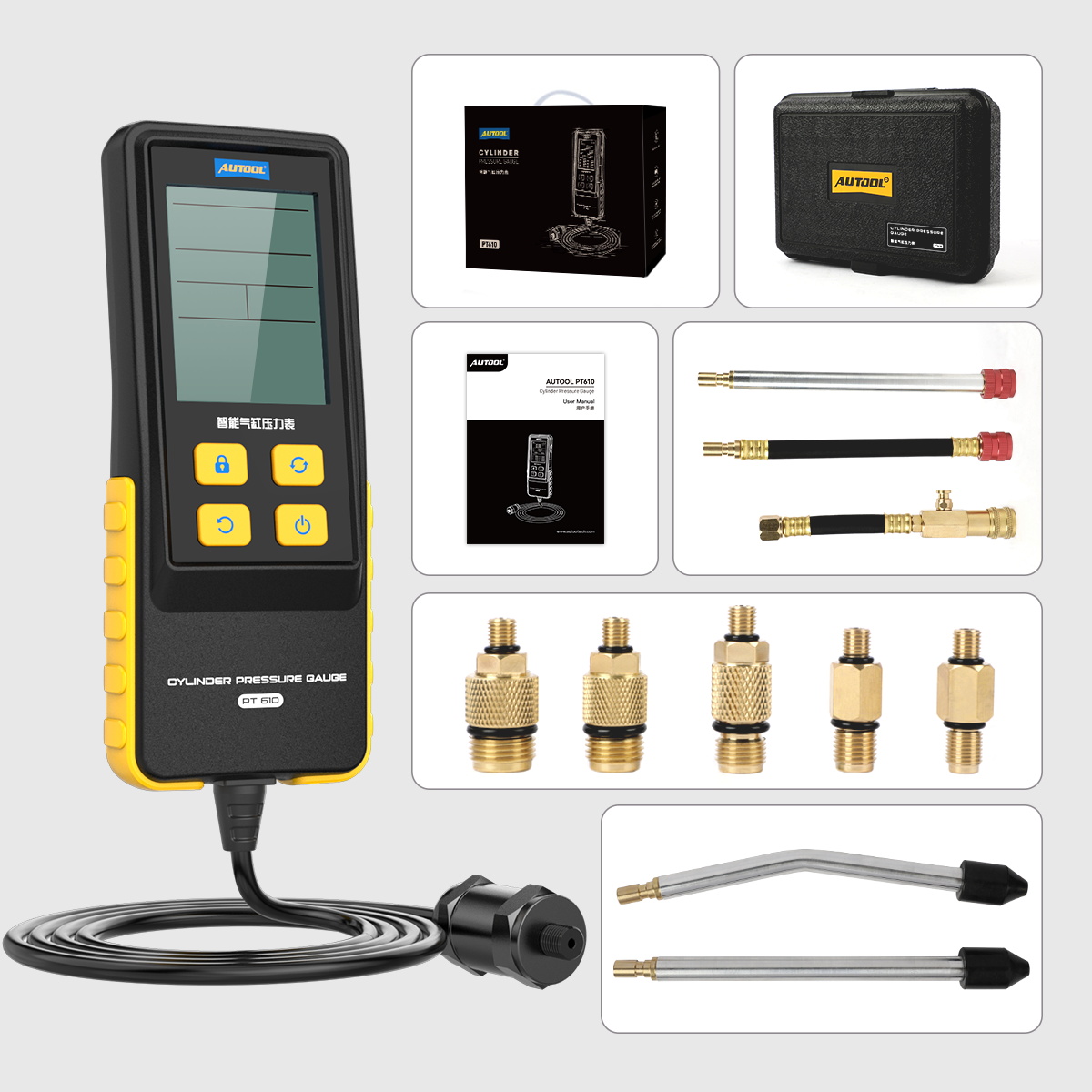

The packing list image shows the PT610 main unit, retail box, carrying case, user manual, connection lines, adapters, and bent / straight test lines. Final package contents should be checked against the package image and official product configuration.
Main UnitAUTOOL PT610 digital cylinder pressure gauge

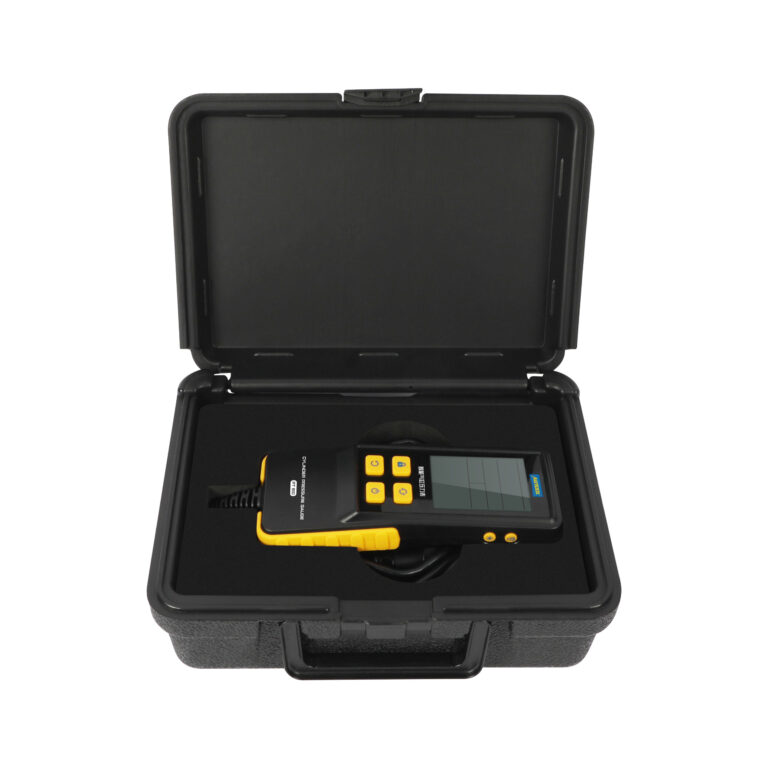

StorageCarrying case and retail box
DocumentationUser manual

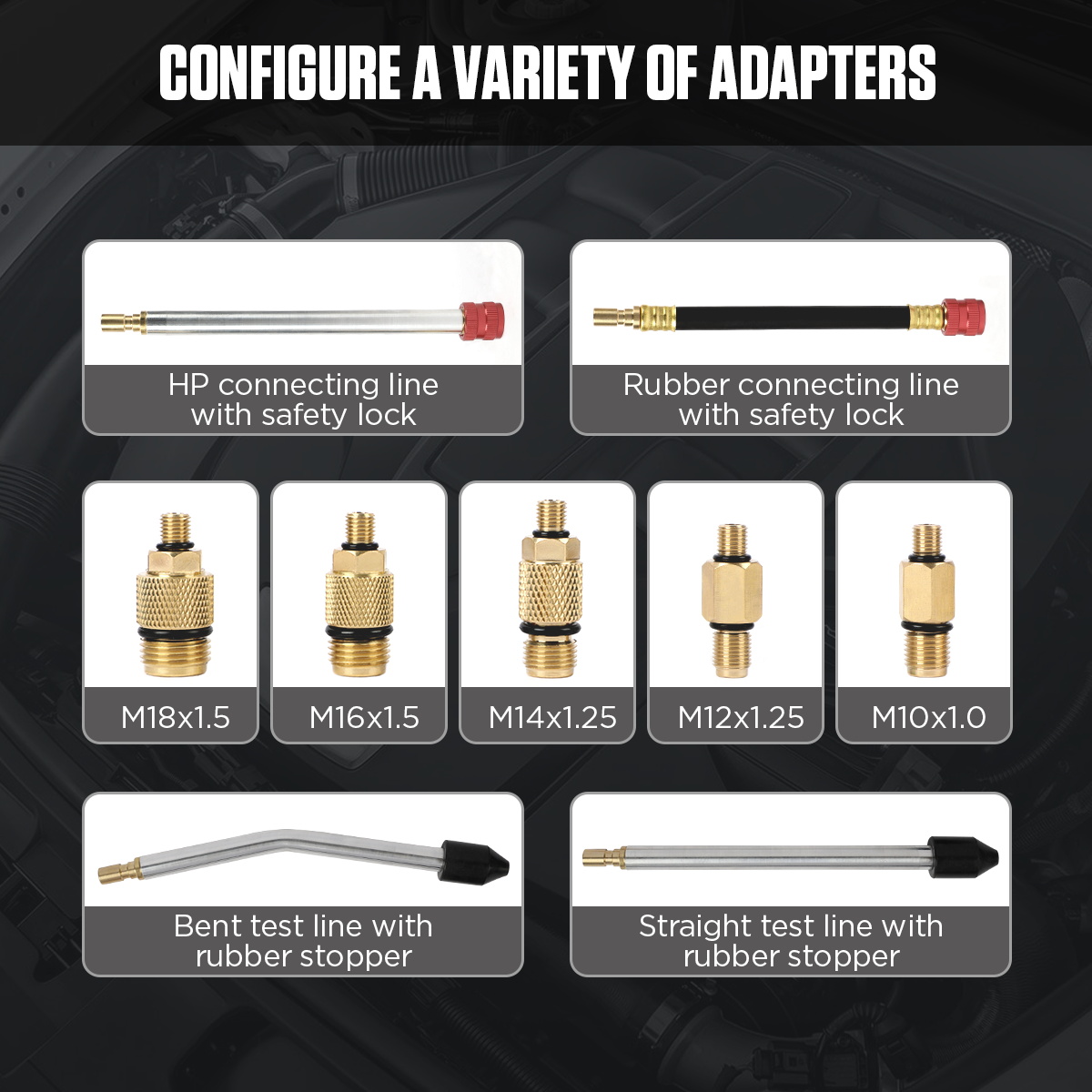

Connection LinesHP connecting line with safety lock, rubber connecting line with safety lock, and related hose accessories shown in the package image

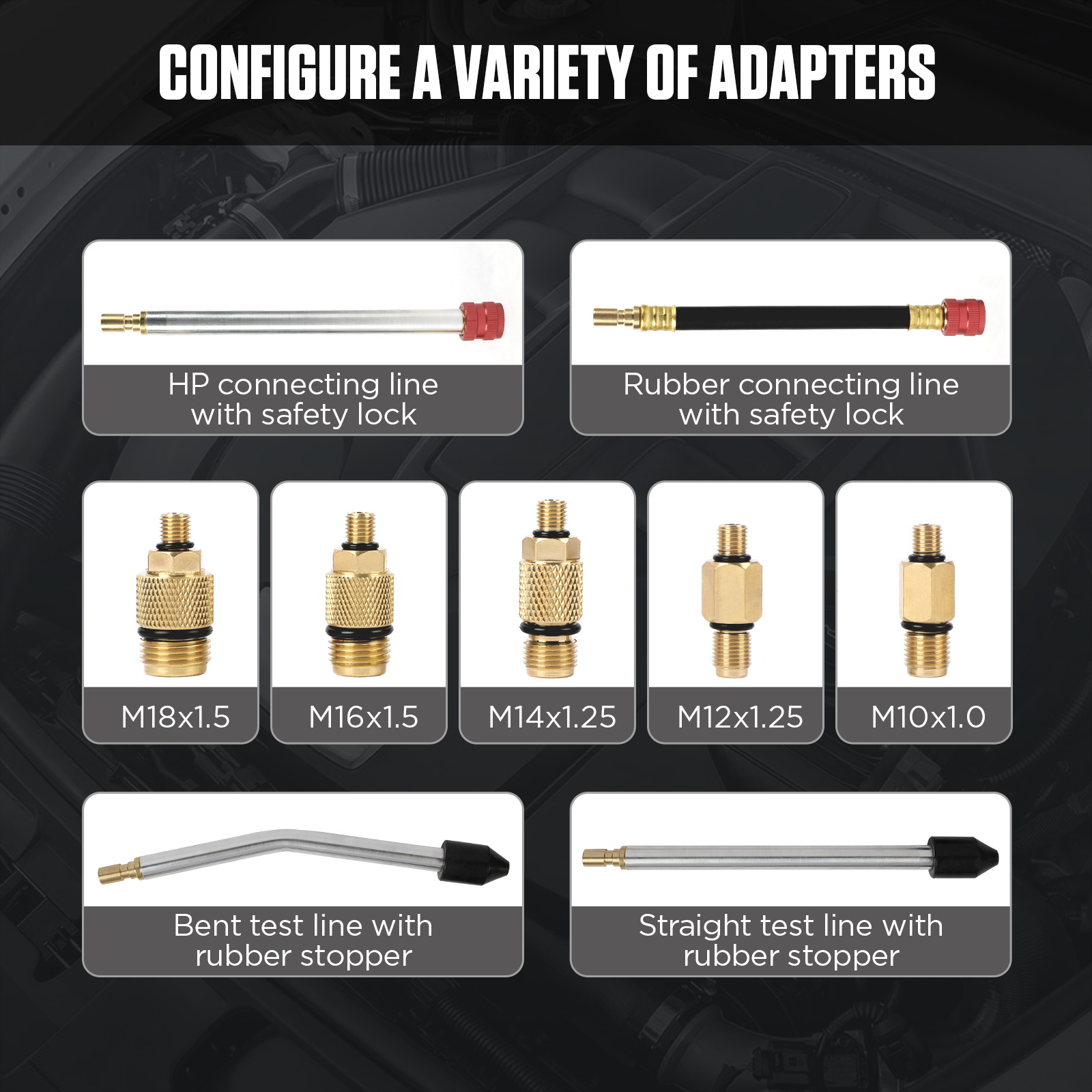

AdaptersM18×1.5, M16×1.5, M14×1.25, M12×1.25, and M10×1.0 adapters shown in the package image
Test LinesBent test line with rubber stopper and straight test line with rubber stopper
Related Products
Related Products
Compare related AUTOOL digital pressure testers for cylinder compression, engine oil pressure, fuel pressure, GDI fuel pressure, transmission oil pressure, and other automotive pressure testing needs.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT610 Cylinder Pressure Gauge Automotive Tool
From US$119.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT620 Engine Oil Pressure Gauge with Digital Display
From US$179.00 - Select options This product has multiple variants. The options may be chosen on the product page

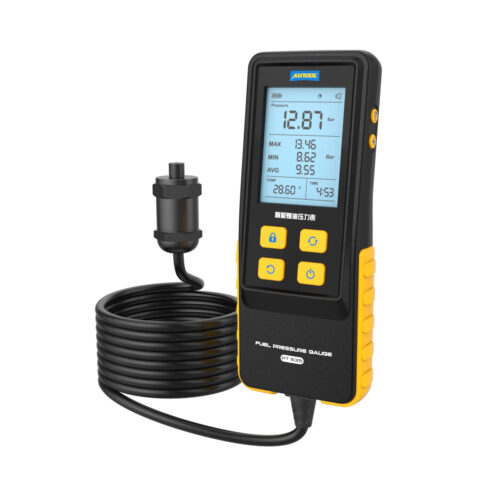

AUTOOL PT635 Fuel Pressure Gauge(Hight-end Version) 0-426 PSI Digital Display Automotive Tool for Motorcycle Car Truck
From US$259.00 - Select options This product has multiple variants. The options may be chosen on the product page

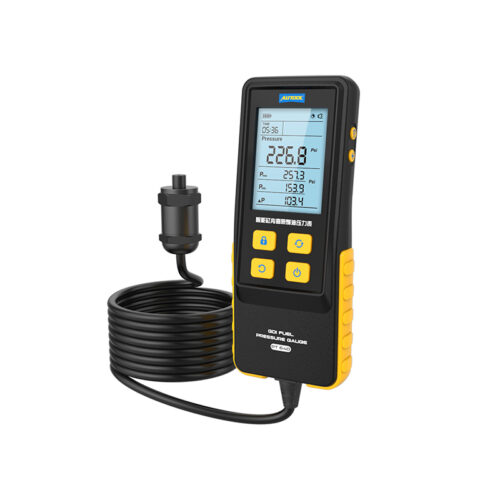

AUTOOL PT640 GDI Fuel Pressure Gauge 0-360Bar Digital Measurement Pressure Gauge
From US$189.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT650 ATF Exchanger Transmission Oil Pressure Gauge
From US$119.00
Manual And Downloads
Manual And Downloads
Download the PT610 manual for setup, adapter connection, display reference, button functions, operation guidance, and product use details.

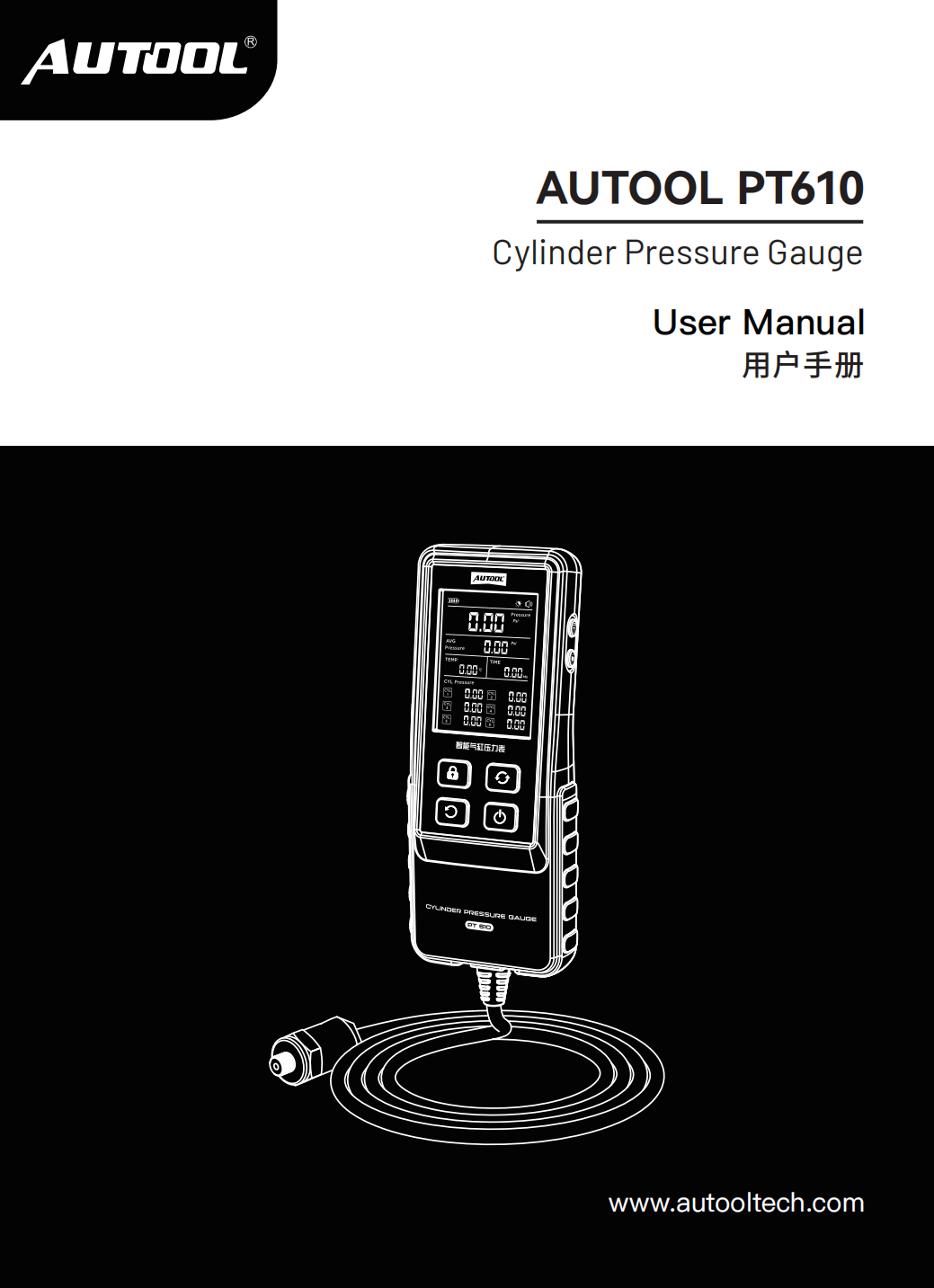

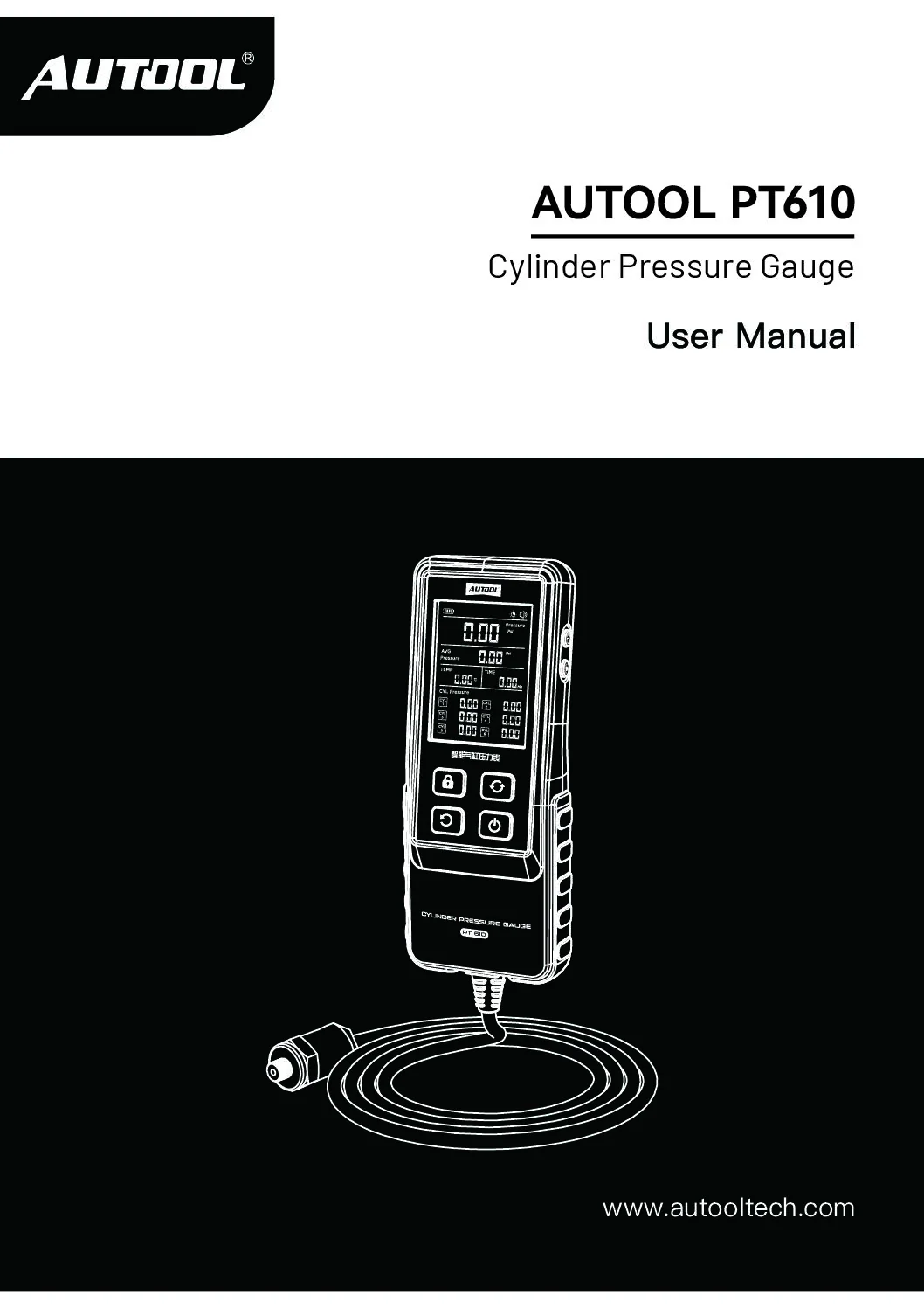

Click to enlargeAUTOOL PT610 User Manual
Open the PDF manual for PT610 setup, adapter selection, button functions, measurement display, and safe-use reference.
Download ManualNeed Product Confirmation?
Contact AUTOOL Store if you need help confirming adapter fitment, test setup, pressure units, package contents, data storage, or whether PT610 is the correct model for your application.
Questions And Answers
These answers cover PT610 application, pressure range, display data, data storage, adapters, operation steps, model selection, and warranty support.
PT610 is designed for engine cylinder compression pressure testing. It helps display real-time pressure value, average pressure value, cylinder current temperature, measuring time, and cylinder pressure values for comparison.
PT610 can be used for motorcycle, car, and truck cylinder pressure testing when the correct adapter is selected for the vehicle model and test port.
The pressure range is 0-426.6 PSI, 0-29.4 Bar, and 0-30 kg/cm². Pressure units can be switched among PSI, Bar, and kg/cm². Temperature units can be switched between °C and °F.
PT610 can save up to 6 sets of cylinder pressure data. This helps users record, query, and compare pressure values cylinder by cylinder during diagnosis.
Refer to the Packing List image for the final package contents. The image shows the PT610 main unit, retail box, carrying case, user manual, HP connecting line, rubber connecting line, M18×1.5, M16×1.5, M14×1.25, M12×1.25, M10×1.0 adapters, and bent / straight test lines with rubber stoppers.
Remove the spark plug, connect the correct adapter to the measuring probe, reset the pressure value to zero, connect the measuring probe to the engine, crank the engine, and read the measured pressure on the display. Save cylinder data when comparison is needed.
PT610 is for engine cylinder compression testing. PT620 is for engine oil circulation system pressure testing. PT630 and PT635 are for automotive fuel system pressure testing. PT640 is for GDI direct injection fuel pressure testing. PT650 is for automotive transmission pressure testing. PT660 is for internal fluid pressure testing of the brake system.
AUTOOL provides 3-year warranty support for eligible damage caused by non-human factors and lifetime maintenance support according to service policy. For setup, adapter selection, package contents, or after-sales questions, contact AUTOOL Store support.
Warranty And Contact
Warranty And Contact
For PT610 setup, adapter selection, pressure unit switching, cylinder data storage, package confirmation, model comparison, warranty support, or replacement parts, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming whether PT610 is suitable for your cylinder compression test application, which adapter to use, how to read or save cylinder data, or whether another AUTOOL pressure tester model is a better fit.
- 3-year warranty support for eligible non-human damage cases
- Lifetime maintenance support according to AUTOOL service policy
- Adapter and package contents confirmation
- Pressure range, pressure units, and temperature unit support
- 6-cylinder data storage and display reading help
- PT610 / PT620 / PT630 / PT635 / PT640 / PT650 / PT660 model selection
- Replacement parts and after-sales troubleshooting support
