AUTOOL ATL-4.5D ATL-4.5DW Two Post Car Lift 4500KG Load Capacity

AUTOOL ATL-4.5D ATL-4.5DW Two Post Car Lift 4500KG Load Capacity

Price range: US$1,899.00 through US$1,999.00

Key Features
  • Single-Side Control
  • Stable Synchronized Lift
  • Advanced Safety Design
Key Features
☰ REQUEST BULK / B2B QUOTERequest B2B Quote
Secure checkoutFast supportBulk ready
AUTOOL ATL-4.5D / ATL-4.5DW

Product Overview

AUTOOL ATL-4.5D / ATL-4.5DW EU Standard Gantry Lift is a high-performance two-post car lift with 4500KG load capacity. Designed for professional automotive workshops, it combines reinforced structural strength, precision manufacturing, direct-drive hydraulic lifting, synchronized wire rope balance, and advanced mechanical safety systems for smooth, stable, and reliable vehicle lifting.

The lift is built for a wide range of workshop vehicles, including sports cars and low-chassis models. The minimum height is 95mm, the maximum lifting height is 1990mm, and the total lift height is 3900mm. ATL-4.5D and ATL-4.5DW mainly differ in installation width, allowing workshops to choose between standard and wider-column layouts.

4500KG Load EU Standard Direct-Drive Hydraulic Low-Chassis Friendly
95mmMin Height
1990mmMax Lift
50sLift Time
2.2kWMotor

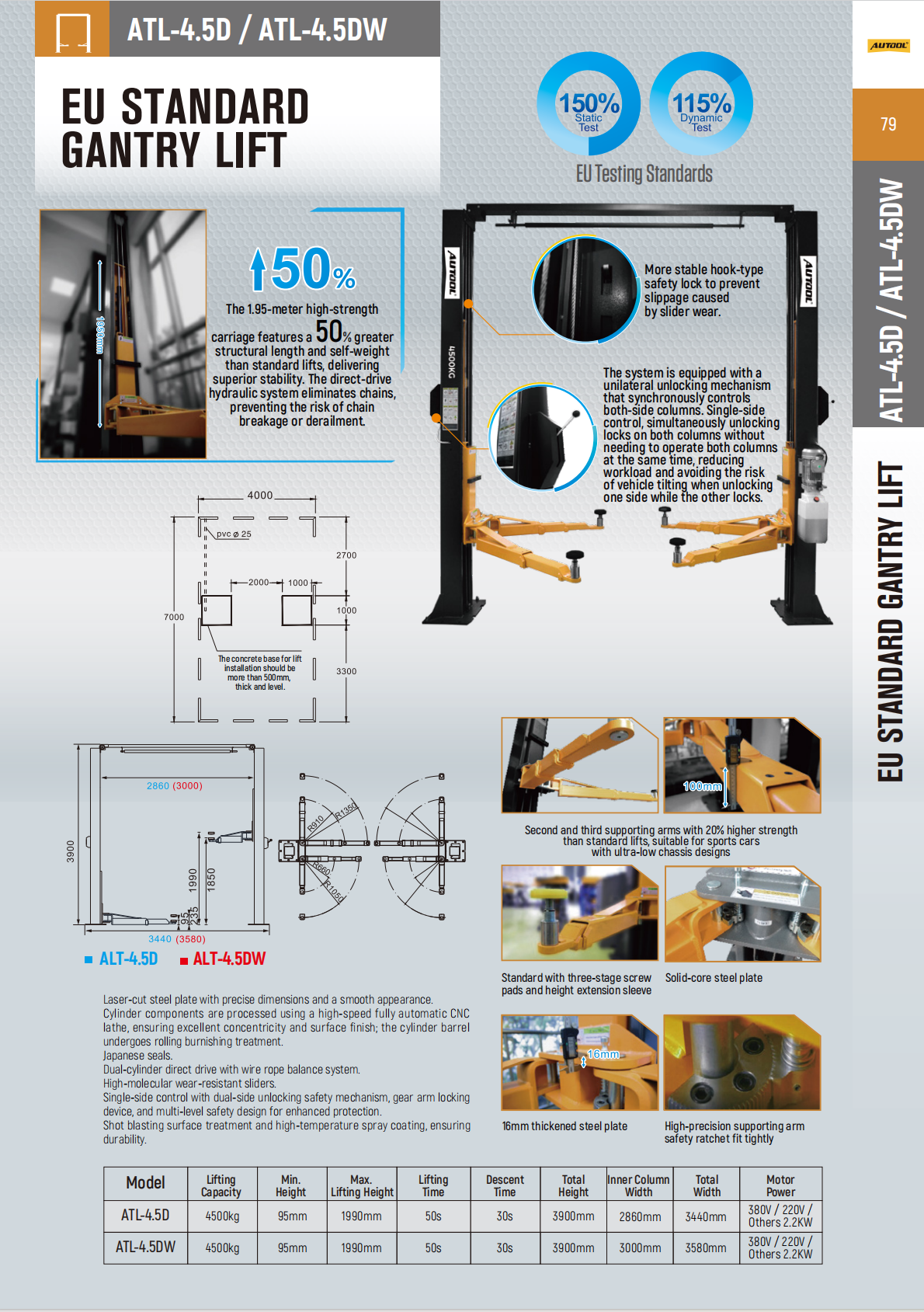

AUTOOL ATL-4.5D and ATL-4.5DW EU standard gantry lift specifications, safety structure, installation dimensions, and model comparison Click to enlarge
Key Features

Key Features

The ATL-4.5D / ATL-4.5DW focuses on structural strength, stable synchronized lifting, wear resistance, hydraulic durability, safety protection, and corrosion-resistant finishing.

Precision Manufacturing

Laser-cut steel plates and CNC-machined cylinders ensure accurate dimensions, excellent concentricity, and smooth surface finish.

Durable Hydraulic System

Rolling burnished cylinder barrels combined with high-quality Japanese seals provide long service life and reliable sealing performance.

Stable Synchronized Lifting

Dual-cylinder direct-drive hydraulic system with wire rope balance mechanism helps both sides lift smoothly and synchronously.

Enhanced Wear Resistance

High-molecular wear-resistant sliders reduce friction and extend operational lifespan during repeated workshop lifting cycles.

Multi-Level Safety Design

Single-side control, dual-side safety unlocking, hook-type safety lock, gear-type arm locking, and multi-level protection improve operator safety.

Corrosion-Resistant Finish

Shot blasting and high-temperature spray coating deliver strong corrosion resistance and long-term surface durability.

Product Comparison

Product Comparison

ATL-4.5D and ATL-4.5DW share the same lifting capacity, height range, lifting time, descent time, total height, and motor power. The main selection difference is installation width.

ATL-4.5D FocusStandard-width version with 2860mm inner column width and 3440mm total width.
ATL-4.5DW FocusWider version with 3000mm inner column width and 3580mm total width.
Shared CapacityBoth models support 4500kg lifting capacity with 95mm minimum height and 1990mm maximum lifting height.
Decision CheckCompare inner column width, total width, workshop floor space, ceiling height, vehicle width, and power option before ordering.
AUTOOL ATL-4.5D and ATL-4.5DW comparison, installation drawing, and structural details Click to enlarge
Specifications

ATL-4.5D / ATL-4.5DW Specifications

Review lifting capacity, height range, installation width, motor power, and model-width differences before confirming workshop layout and ordering.

Model Specifications
ItemATL-4.5DATL-4.5DW
Lifting Capacity4500kg4500kg
Minimum Height95mm95mm
Max Lifting Height1990mm1990mm
Lifting Time50s50s
Descent Time30s30s
Total Height3900mm3900mm
Inner Column Width2860mm3000mm
Total Width3440mm3580mm
Motor Power380V / 220V / Others, 2.2kW380V / 220V / Others, 2.2kW
Shared Specifications
Lifting Capacity4500kg
Minimum Height95mm
Max Lifting Height1990mm
Lifting Time50s
Descent Time30s
Total Height3900mm
Motor Power380V / 220V / Others, 2.2kW
Width Difference
ATL-4.5D Inner Column Width2860mm
ATL-4.5D Total Width3440mm
ATL-4.5DW Inner Column Width3000mm
ATL-4.5DW Total Width3580mm
Installation And Setup

Installation And Setup

Confirm ceiling height, installation width, concrete foundation, power option, freight dimensions, and unloading equipment before ordering a two-post car lift.

Workshop Height

Total lift height is 3900mm. Confirm workshop ceiling height and overhead clearance before ordering.

Width Selection

ATL-4.5D total width is 3440mm, while ATL-4.5DW total width is 3580mm. Choose according to workshop layout and vehicle width.

Concrete Base

The concrete base should be more than 500mm thick and level. Confirm floor strength and installation conditions before purchase.

Power Confirmation

Motor power supports 380V / 220V / other options with 2.2kW motor power. Confirm voltage and electrical setup before ordering.

Before You Order And Use

Before You Order And Use

The ATL-4.5D / ATL-4.5DW uses mechanical locking, synchronized unlocking, reinforced support arms, and high-strength structure to improve workshop lifting safety.

Hook-Type Safety Lock

More stable hook-type safety lock helps prevent slippage caused by slider wear and improves mechanical holding safety.

Dual-Side Safety Unlocking

The unilateral unlocking mechanism synchronously unlocks both side columns from one control side, reducing workload and improving safety.

Gear-Type Arm Locking

Gear-type arm locking helps keep support arms stable during lifting and positioning.

Reinforced Supporting Arms

Second and third supporting arms have 20% higher strength than standard lifts, making the lift more suitable for sports cars and ultra-low chassis designs.

Related Products

Related Products

Use these related AUTOOL lift, alignment, and tire-service products to build a more complete workshop workflow around ATL-4.5D / ATL-4.5DW.

Related Guides

Related Guides

Use these related articles to compare lift structures, confirm installation requirements, and choose the right garage or workshop lift setup.

What Is In The Box

What Is In The Box

Current source content provides package data as text only. No dedicated packing list image is available, so this module keeps the packaging details in a compact text layout.

Main And Auxiliary Units

383 × 44 × 72 cm, 671 kg

Electrical Control Box

83 × 28 × 31 cm, 20 kg

Accessories Box

40 × 40 × 25 cm, 15 kg

Shipping Confirmation

  • Confirm final package dimensions and weight before shipping.
  • Confirm sea freight, warehouse handling, forklift unloading, and installation site access before purchase.
  • If a dedicated packing list image becomes available, use only the most relevant single image in this module.
Before You Order And Use

Before You Order And Use

Two-post lifts require careful confirmation of workshop size, floor condition, voltage, shipping access, and installation requirements before purchase.

Purchase And Installation Notes

  • Confirm workshop ceiling height before ordering; total lift height is 3900mm.
  • Confirm total installation width: ATL-4.5D is 3440mm, ATL-4.5DW is 3580mm.
  • Confirm inner column width requirement: ATL-4.5D is 2860mm, ATL-4.5DW is 3000mm.
  • Confirm concrete base thickness and flatness before installation.
  • The concrete base should be more than 500mm thick and level.
  • Confirm voltage option before ordering: 380V, 220V, or other power options may be available.
  • For ATL-4D, ATL-4.5D, and ATL-4.5DW models that require electronic unlocking, additional budget may be required. Contact AUTOOL Store for confirmation.
  • Professional installation is recommended for two-post car lifts.
  • Confirm shipping dimensions, package weight, unloading equipment, and installation site access before purchase.

Questions And Answers

These answers cover model differences, vehicle suitability, workshop height, concrete base, lifting capacity, power options, electronic unlocking budget, and installation requirements before ordering.

Warranty And Contact

Warranty And Contact

For ATL-4.5D / ATL-4.5DW model selection, workshop height and width confirmation, concrete base requirement, voltage option, electronic unlocking budget, shipping dimensions, package weight, and installation preparation, contact AUTOOL Store before ordering.

Pre-Sales And Technical Confirmation

Use support to confirm whether ATL-4.5D or ATL-4.5DW fits your workshop layout, vehicle type, concrete foundation, electrical setup, and shipping / unloading conditions.

  • ATL-4.5D / ATL-4.5DW model selection
  • Workshop height and width confirmation
  • Concrete base requirement confirmation
  • Voltage option confirmation
  • Electronic unlocking consultation
  • Shipping size / package weight confirmation
  • Installation preparation support
