AUTOOL CT160 Heated 4-Cylinder Fuel Injector Cleaning Machine & Tester
Original price was: US$379.00.US$245.00Current price is: US$245.00.
Key Features
- Heated Cleaning for Four Injectors
- See Differences Side by Side
- Verify the Cleaning Result
- Test Across Operating Conditions
- Heated Cleaning for Four Injectors: Clean compatible standard 12 V gasoline injectors in a 2,000 mL ultrasonic tank heated up to 45°C.
- See Differences Side by Side: Compare leaks, spray pattern, spray volume, and relative flow across up to four injectors before deciding what needs further service.
- Verify the Cleaning Result: Repeat the same test settings after ultrasonic cleaning to see whether imbalance, restriction, or spray quality improves.
- Test Across Operating Conditions: Check injector behavior through idle, medium-speed, high-speed, acceleration, and variable-speed simulations.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support

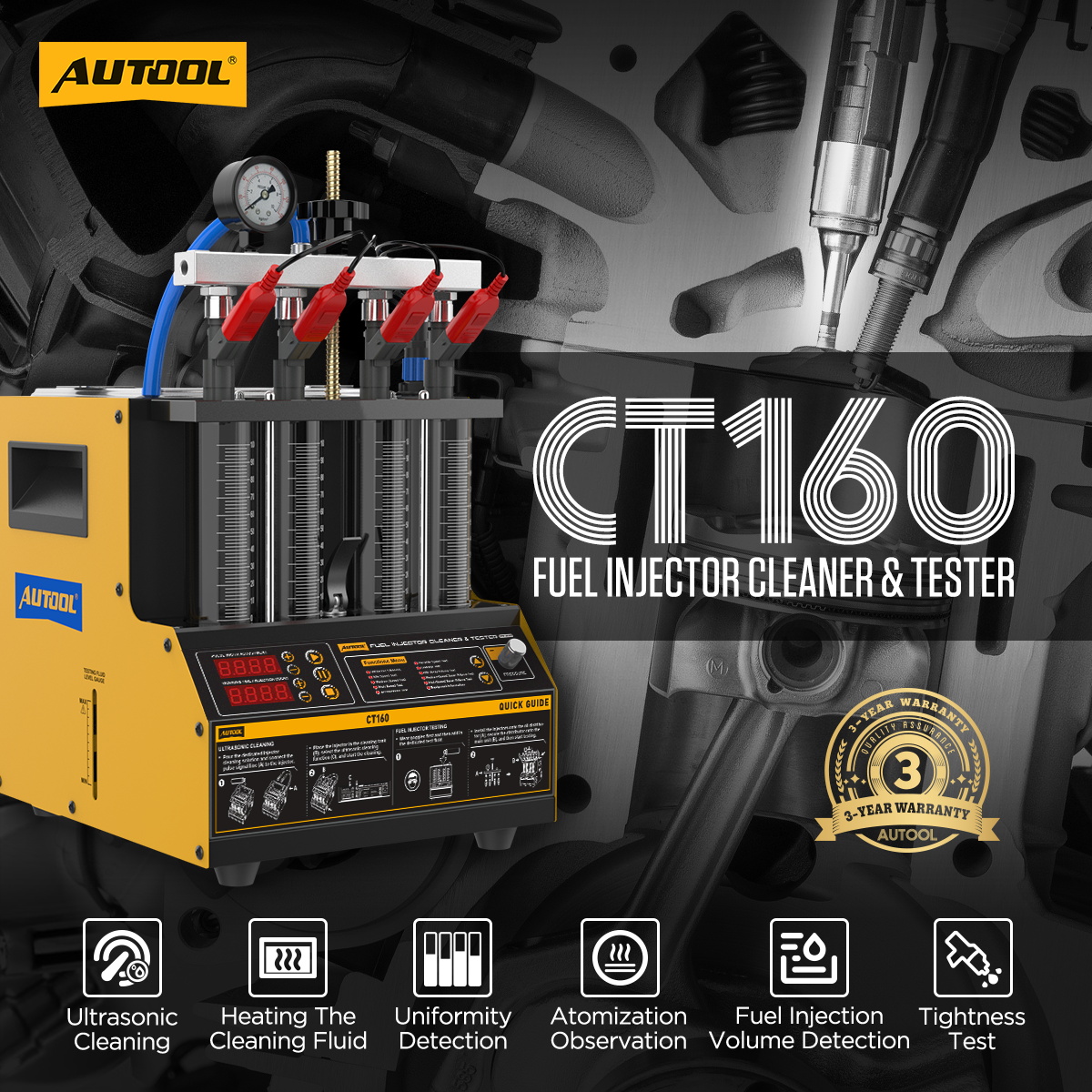

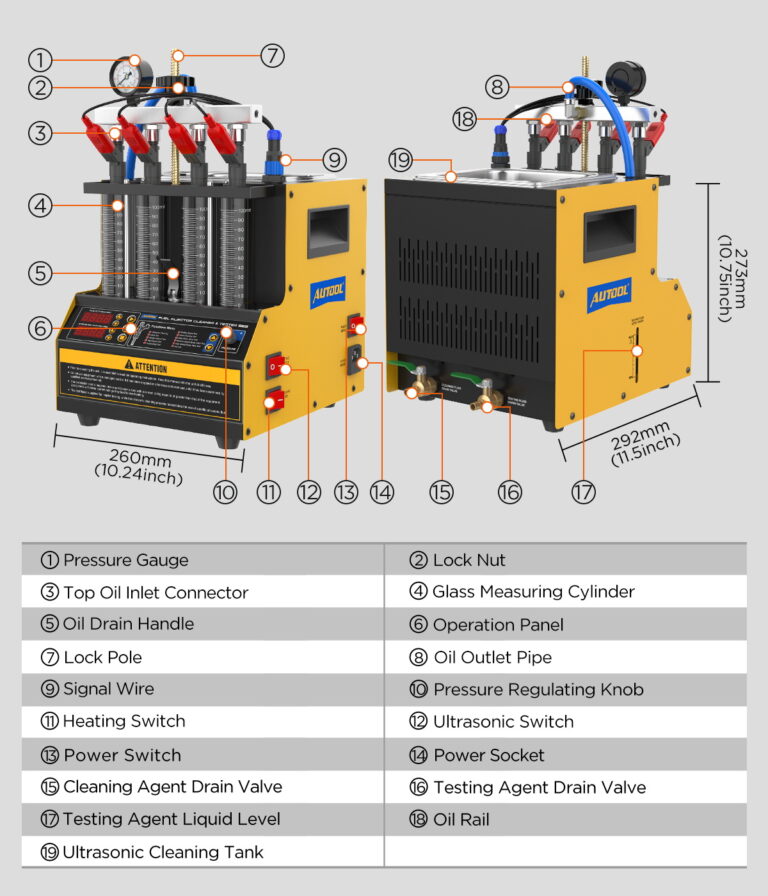

AUTOOL CT160 · 4-cylinder heated ultrasonic injector service bench
Heated 4-Cylinder Fuel Injector Cleaning and Testing

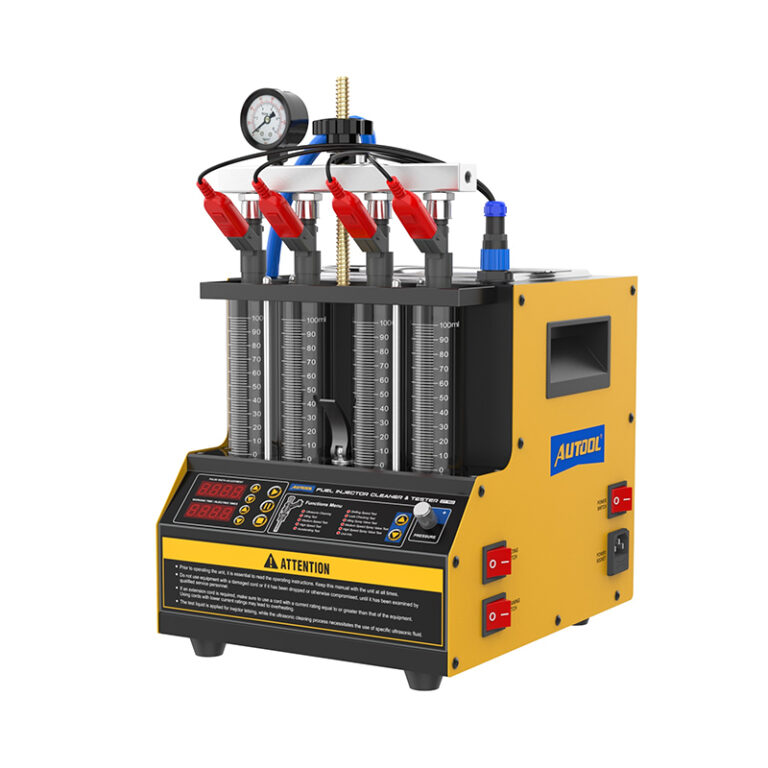

The AUTOOL CT160 is a 4-cylinder ultrasonic fuel injector cleaner and tester for standard 12V gasoline injectors. It supports ultrasonic cleaning, heated cleaning fluid up to 45°C, leakage testing, spray-pattern observation, spray-volume comparison, and multiple simulated working-condition tests for cars and compatible motorcycles. Cleaning and testing help identify injector condition, improve idle and throttle response, reduce stalling caused by dirty injectors, and reduce unnecessary injector replacement.
- 4-Cylinder Testing
- 45°C Heating
- Ultrasonic Cleaning
- Spray / Flow / Leak Tests
Core service capabilities
Key Features
CT160 combines heated ultrasonic cleaning, four-injector testing, adjustable pressure, drain valves, and an English-labeled control panel in one compact unit.

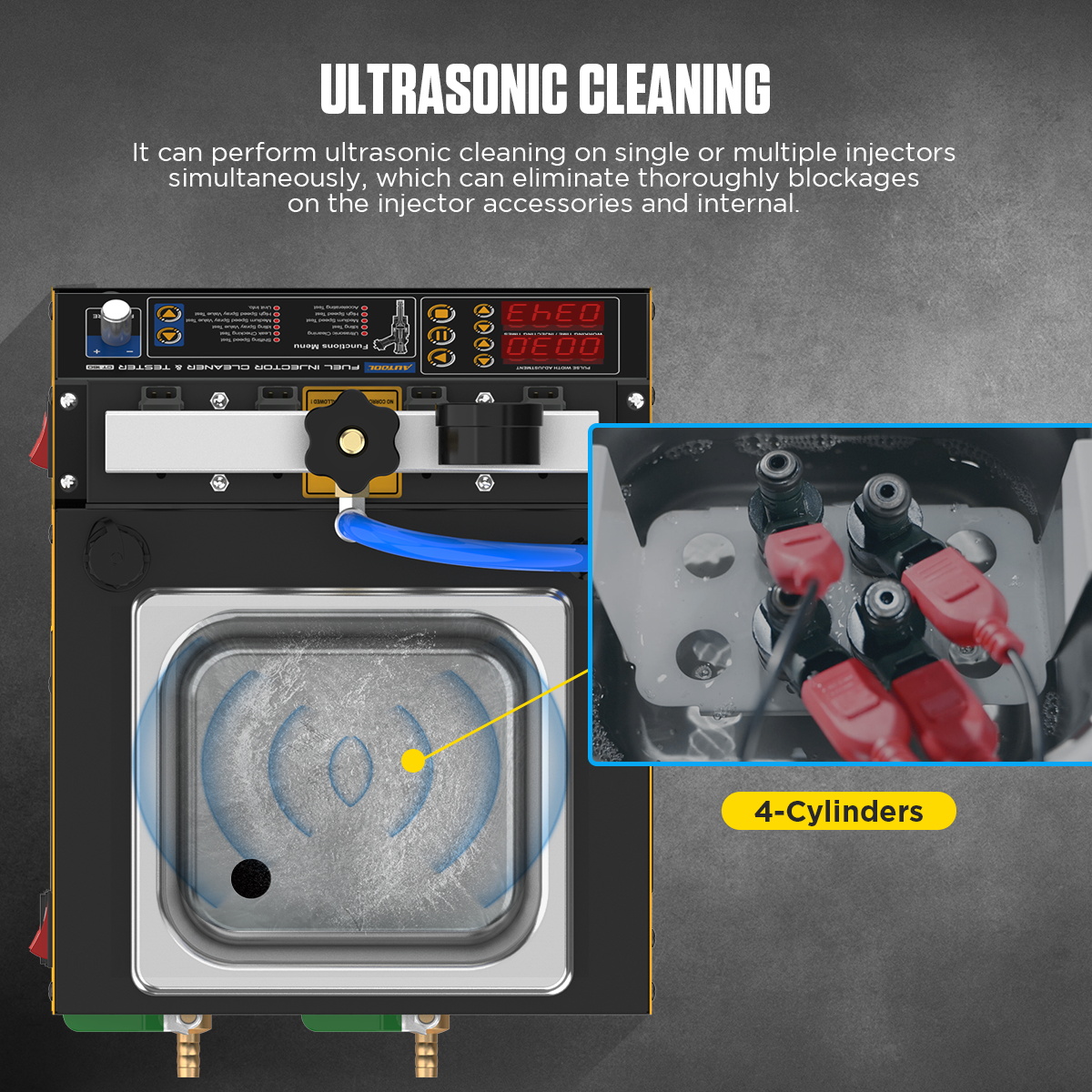

Ultrasonic Cleaning
CT160 can clean one or more compatible injectors and help loosen deposits inside the injectors.

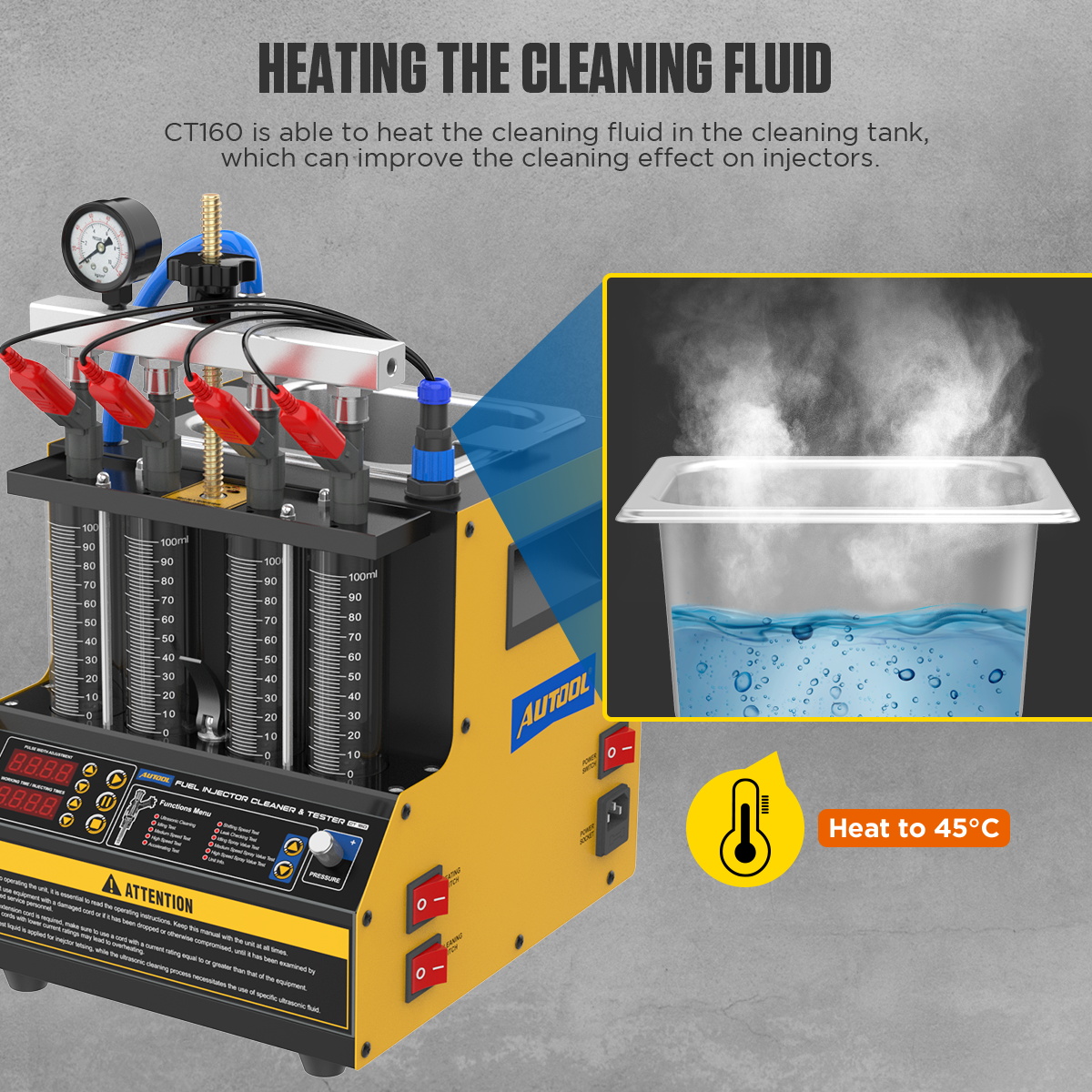

45°C Heated Cleaning Fluid

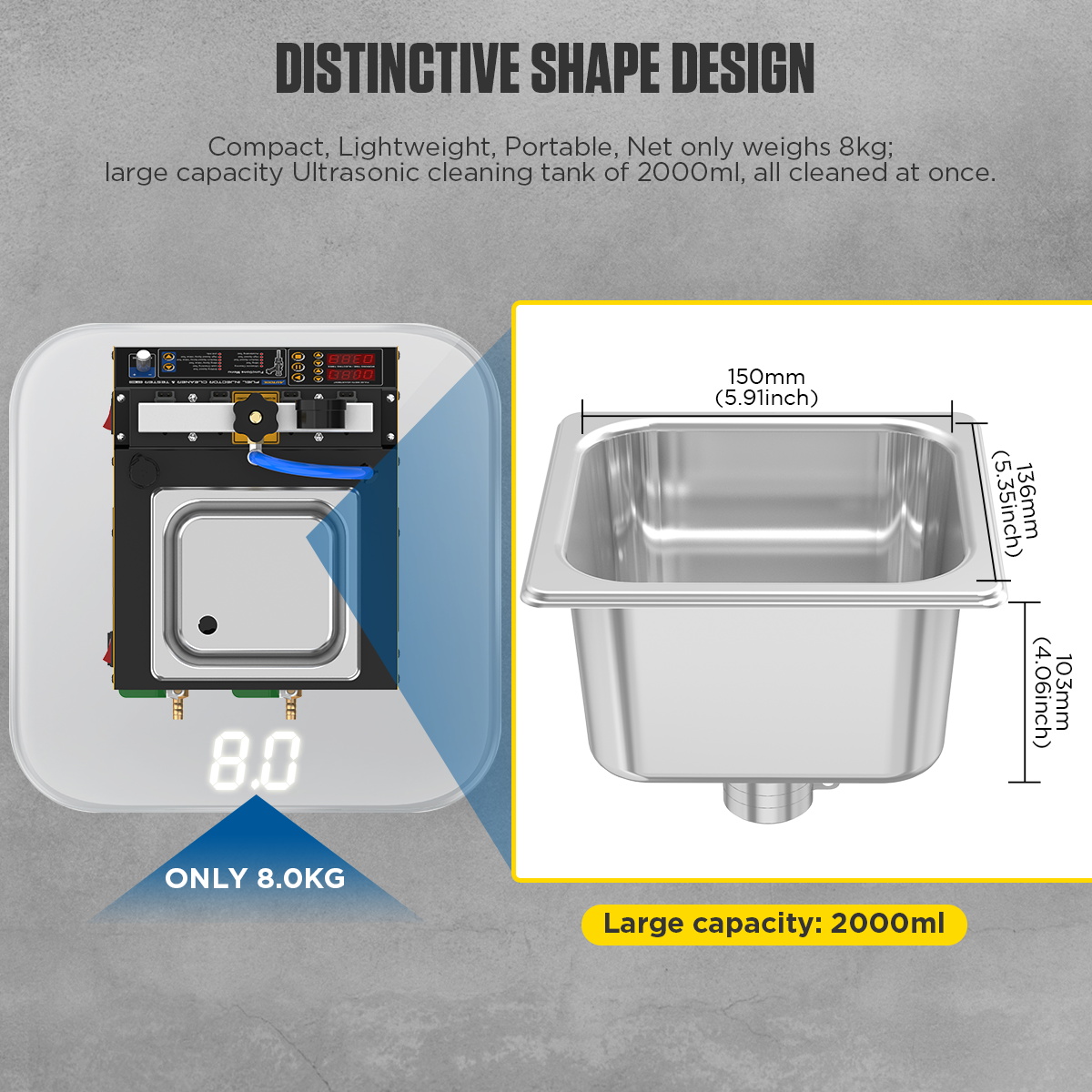

The 2,000 mL tank heats the cleaning fluid to 45 °C to support ultrasonic cleaning.
4-Cylinder Visual Testing
Up to four compatible injectors can be tested together for side-by-side spray-pattern and spray-volume comparison.
12 Cleaning And Testing Functions

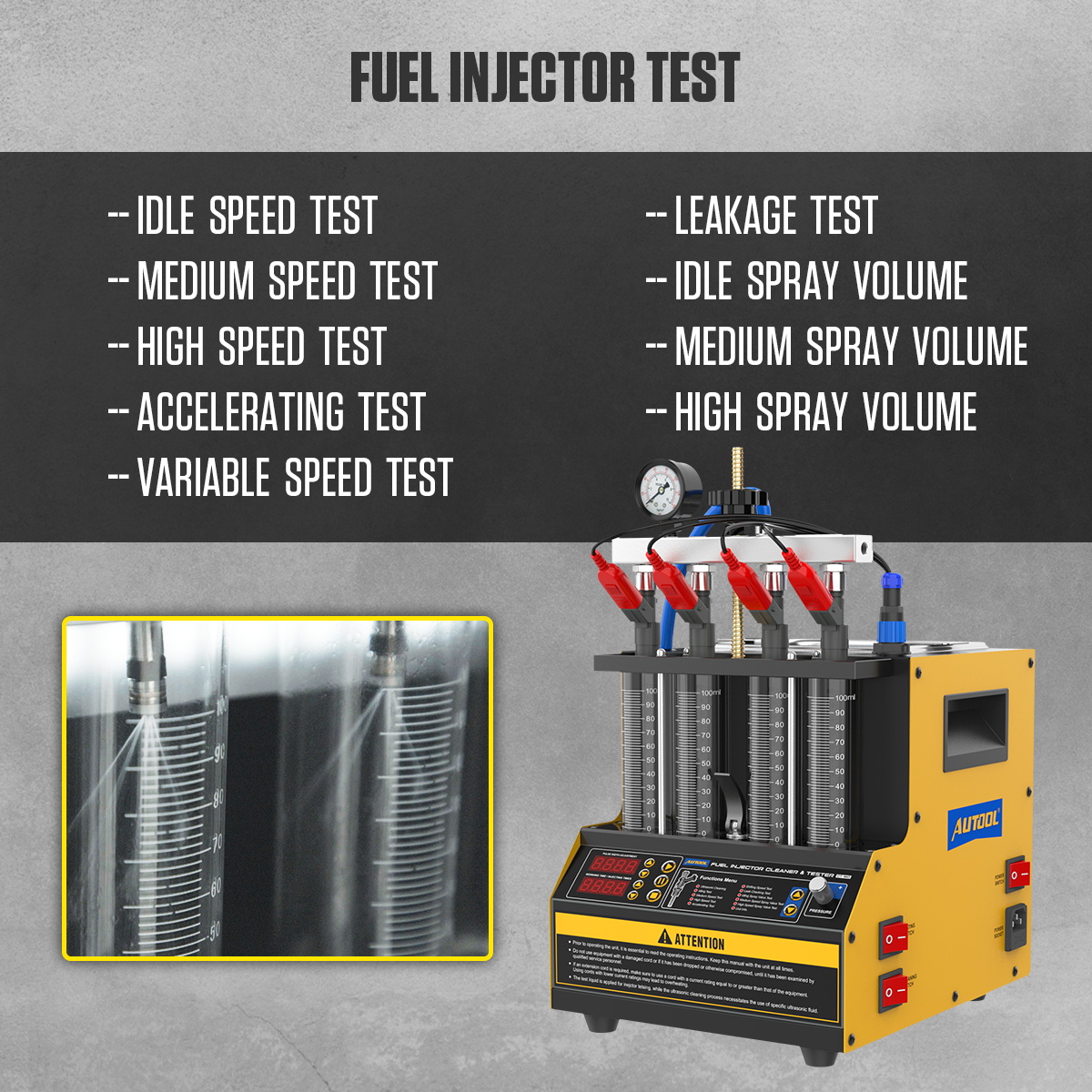

Includes 3 cleaning modes and 9 test modes, including idle, medium-speed, high-speed, acceleration, variable-speed, leak, and spray-volume tests.
Leakage, Spray, And Flow Diagnosis
Use CT160 to compare spray quality and flow, and to check for leaks or blockages.

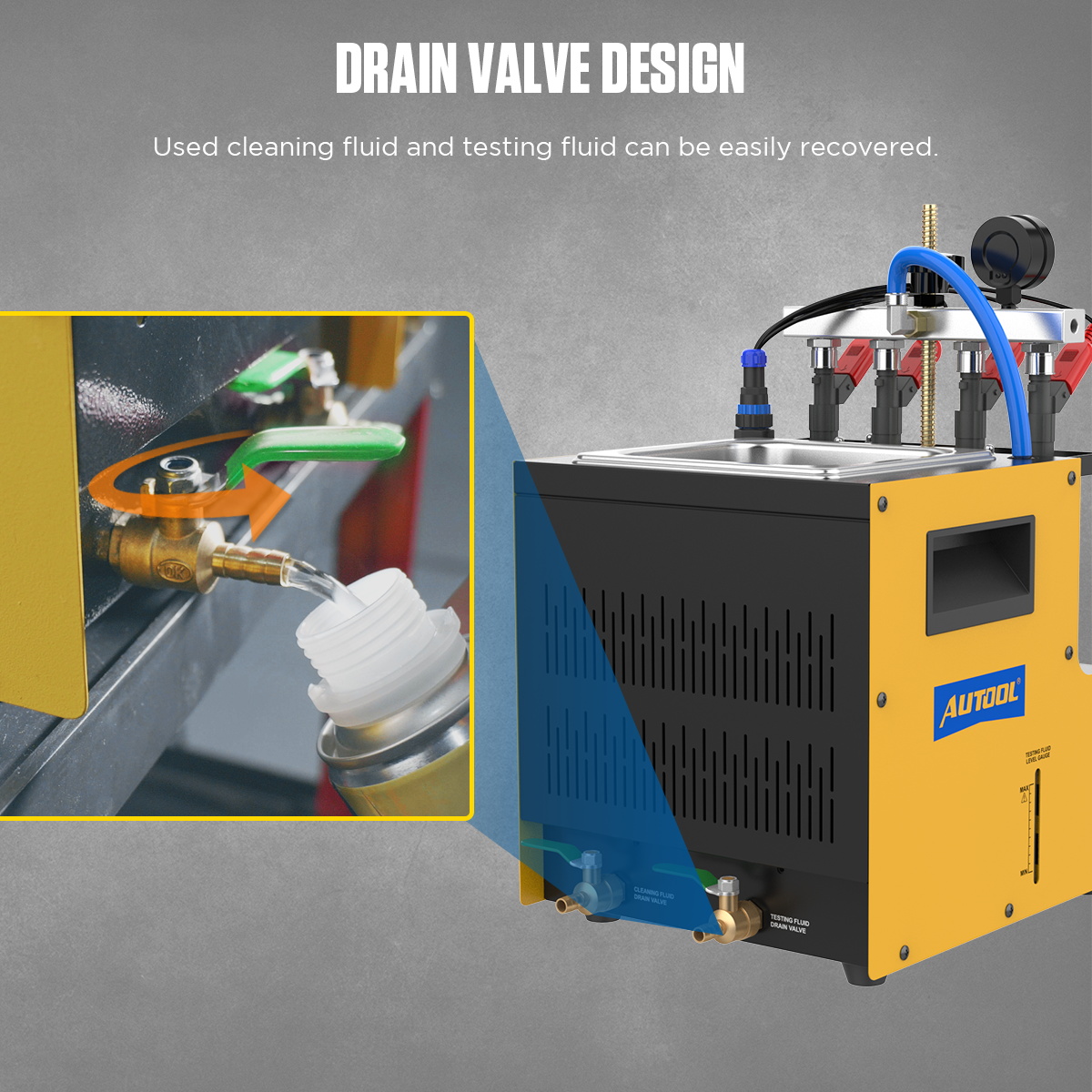

Drain Valve Design
Used cleaning fluid and testing fluid can be recovered through drain valves for easier fluid handling and maintenance.

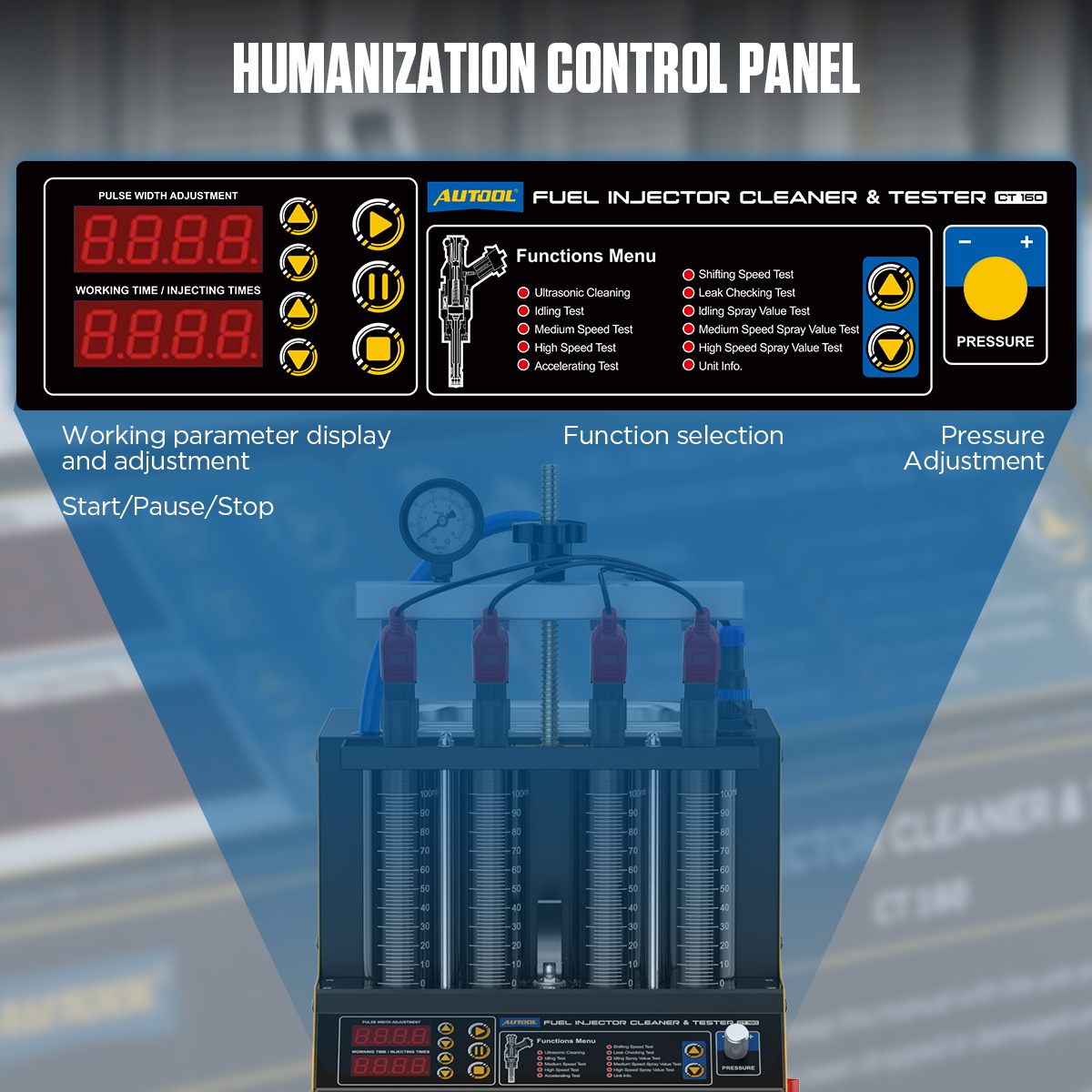

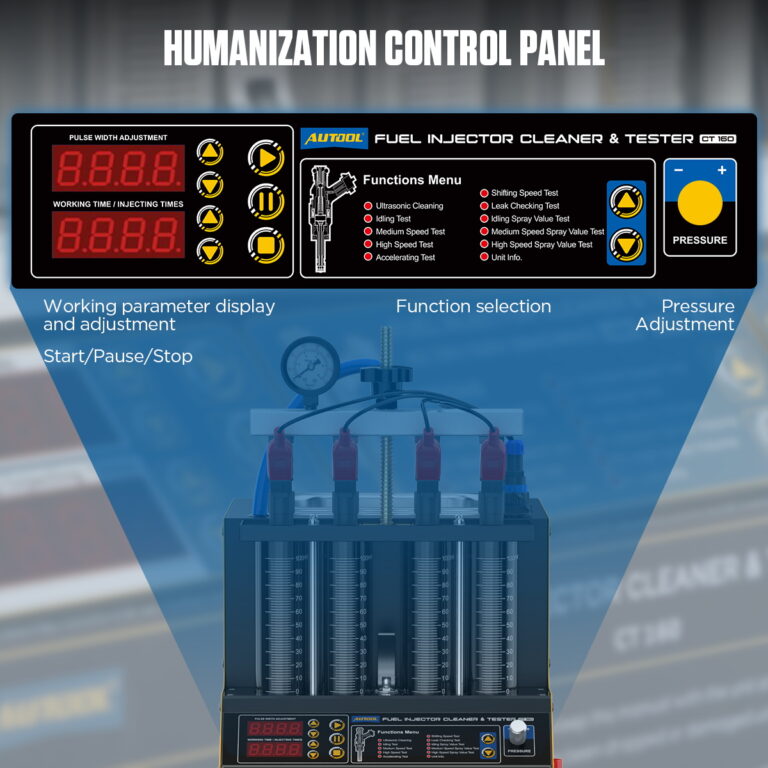

English Control Panel
The panel supports working-parameter display and adjustment, function selection, pressure adjustment, and Start / Pause / Stop operation.
Motorcycle, Spark Plug, And Optional Service
The ultrasonic tank can clean spark plugs. Compatible motorcycle injectors require the correct adapters, and cleaning injectors without removal requires optional accessories.
3 Years Warranty Support
Main unit: 3-year warranty. Standard accessories: 1-year warranty. Warranty Policy.

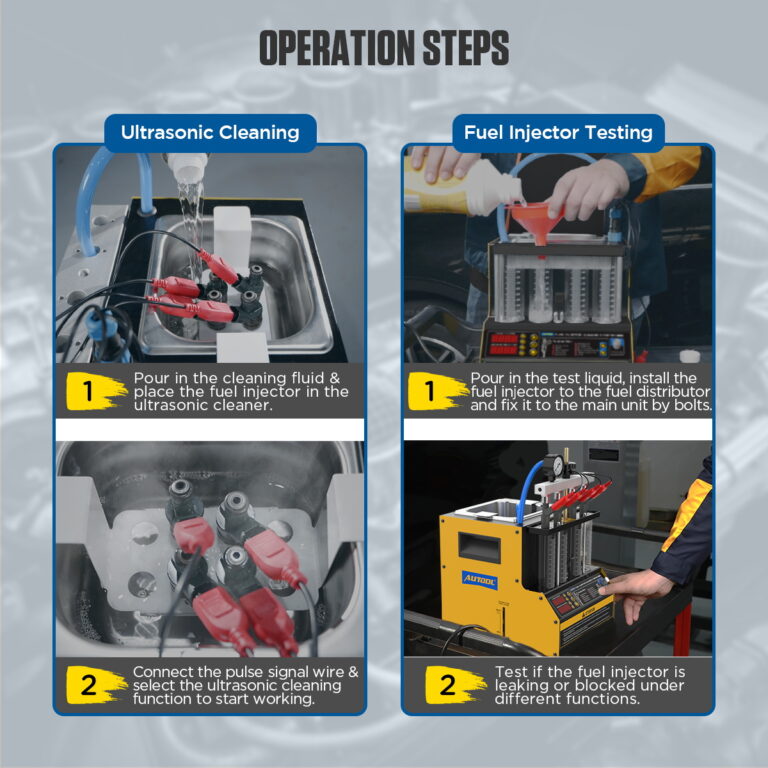

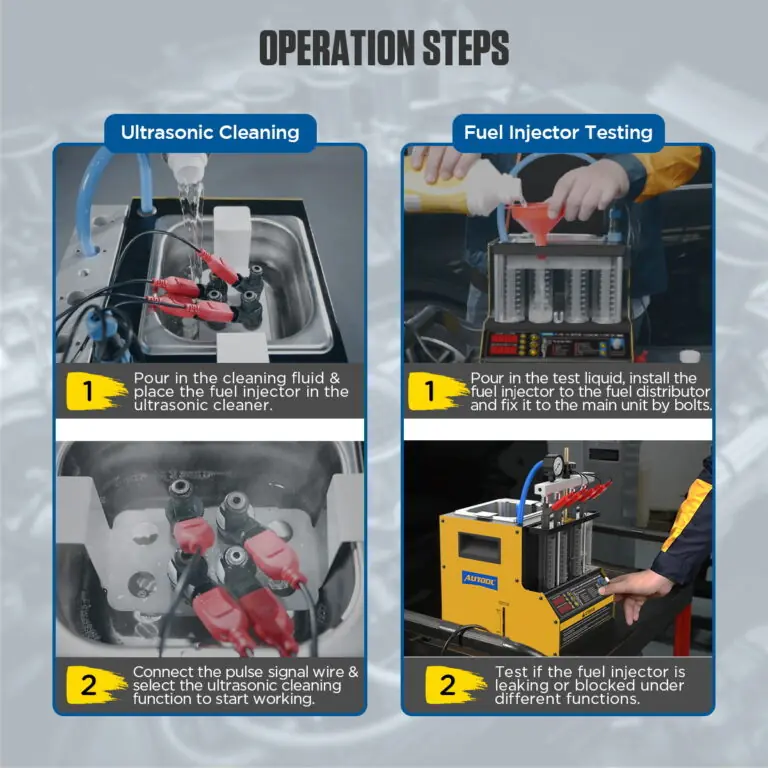

Step-by-step injector service workflow
Step-by-Step Workflow

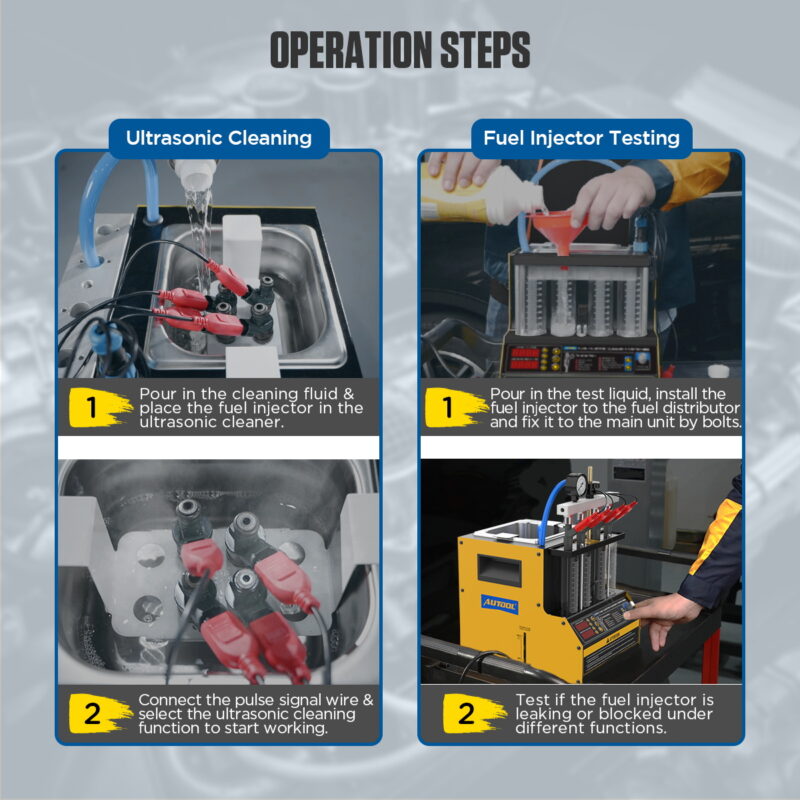

Follow the CT160 sequence: clean the injector exterior, run heated ultrasonic cleaning, install injectors on the main unit, add test fluid, and perform leakage, spray-pattern, and flow-rate tests.
01
Step 01
Clean Injector Exterior
Clean the injector exterior with cleaning liquid before using the machine, then place the injectors in the ultrasonic tank after loose dirt is removed.
02
Step 02
Add Fluid And Run Heated Ultrasonic Injector Cleaning
Add the cleaning fluid specified in the manual and keep it below the electrical pulse connector. Connect the pulse cable, select ultrasonic cleaning, and set heating up to 45 °C only when the procedure requires it.
03
Step 03
Install Injectors For Testing
Secure the injectors on the main unit, check resistance, shorts, and current draw as needed, then add test liquid to about half of the glass tube.
04
Step 04
Run Leakage, Spray, And Flow Tests
Perform leakage, spray-pattern, and flow-rate tests, then retest full injector function after cleaning under the same settings.
Result interpretation
How To Read Test Results
Keep pressure, pulse width, test time, fluid, injector installation, and selected operating mode identical for every comparison. Review each row in sequence so the observed result leads directly to a retest, cleaning, diagnosis, or replacement decision.
| What You Observe | What It May Mean | Recommended Next Step |
|---|---|---|
| Drips while closed | Contamination, valve-seat wear, or a sealing fault | Clean and re-test; refer or replace if leakage remains |
| One measuring cylinder fills much less | Restriction, installation leak, channel issue, or injector fault | Check pressure and sealing, swap channels, then clean and repeat |
| Deflected, split, coarse, or dripping spray | Deposit, nozzle damage, or internal mechanical issue | Clean and re-test; use specialist service if unchanged |
| Difference becomes smaller after cleaning | A recoverable restriction may have been reduced | Record the result, renew applicable seals, and verify on the vehicle |
| No measurable improvement | The injector may already be clean or have electrical / mechanical damage | Stop repeated cleaning and continue diagnosis, specialist testing, or replacement |
| Bench results look balanced but the vehicle still misfires | The root cause may be outside the injector system | Check ignition, compression, intake leakage, fuel pressure, and control signals |
Important: Repeat any abnormal result under the same settings before making a final decision. Heating supports ultrasonic cleaning, but injector condition must still be checked with spray-pattern, flow, leak, and simulated operating tests. Use the injector specification, vehicle service procedure, or CT160 manual for final acceptance limits.
Fluid, compatibility, and operating limits
Safety & Compatibility
Correct fluid selection is critical for CT160. Use cleaning fluid only in the ultrasonic tank and test fluid only in the injector testing circuit, and follow the compatibility rules for standard gasoline, motorcycle, and diesel injectors.
Use Proper Cleaning Fluid
Use professional fuel injector cleaning fluid formulated for ultrasonic tanks or professional engine carbon cleaning fluid. If professional fluid is unavailable, 75%+ medical alcohol can be used, although cleaning performance may be weaker.
Use Proper Test Fluid
Use professional fuel injector test fluid. If it is not available locally, 75%+ medical alcohol can be used as an alternative test fluid.
Do Not Test With Cleaning Fluid
Corrosive cleaning fluid may damage internal components and rubber parts, cause leaks, and damage the machine when used in the testing circuit.
Do Not Run The Tank Dry
Add the correct cleaning fluid before ultrasonic cleaning or heating. Do not run the ultrasonic tank dry; doing so may damage the ultrasonic system.
Diesel Injectors: Clean Only
CT160 can ultrasonically clean diesel injectors, but it cannot test diesel injectors. Testing is for compatible gasoline injectors.
Compatibility And Optional Accessories
CT160 is designed for standard 12V gasoline injectors. CT160 does not test GDI injectors. Some motorcycle applications and cleaning without removing the injectors require optional accessories.
Compare models
Compare AUTOOL Injector Tester Models
Compare CT160 with other AUTOOL fuel injector cleaner and tester machines before choosing cylinder capacity, heating, injector type support, language setting, pump count, and advanced testing capability.
Compare models
Choose one or more models. CT160 is selected by default.
1 model selected
No model is selected. Choose a model to compare.

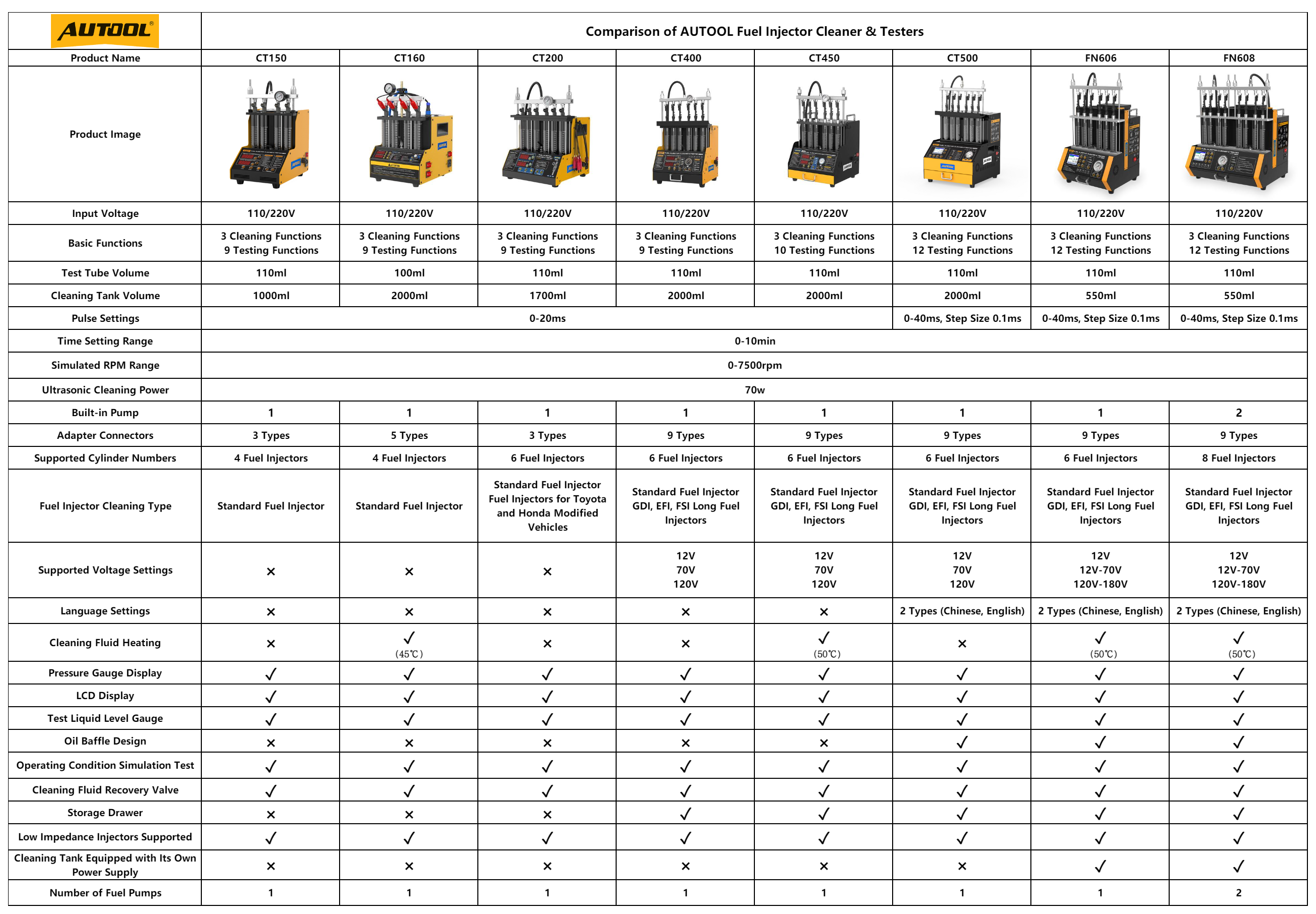

| Specification | Model 1AUTOOL CT150 | Model 2AUTOOL CT160 | Model 3AUTOOL CT200 | Model 4AUTOOL CT400 | Model 5AUTOOL CT450 | Model 6AUTOOL CT500 | Model 7AUTOOL FN606 | Model 8AUTOOL FN608 |
|---|---|---|---|---|---|---|---|---|
| Core capacity and control | ||||||||
| Power input | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V |
| Cleaning and test modes | 3 Cleaning Functions 9 Testing Functions | 3 Cleaning Functions 9 Testing Functions | 3 Cleaning Functions 9 Testing Functions | 3 Cleaning Functions 9 Testing Functions | 3 Cleaning Functions 10 Testing Functions | 3 Cleaning Functions 12 Testing Functions | 3 Cleaning Functions 12 Testing Functions | 3 Cleaning Functions 12 Testing Functions |
| Measuring-tube capacity | 110ml | 100ml | 110ml | 110ml | 110ml | 110ml | 110ml | 110ml |
| Ultrasonic tank capacity | 1000ml | 2000ml | 1700ml | 2000ml | 2000ml | 1000ml | 550ml | 550ml |
| Pulse-width range | 0-20ms | 0-20ms | 0-20ms | 0-20ms | 0-20ms | 0-40ms Step Size 0.1ms | 0-40ms Step Size 0.1ms | 0-40ms Step Size 0.1ms |
| Time setting range | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min |
| Simulated speed range | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm |
| Ultrasonic cleaning power | 70w | 70w | 70w | 70w | 70w | 70w | 70w | 70w |
| Built-in pump | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Adapter types | 3 Types | 5 Types | 3 Types | 9 Types | 9 Types | 9 Types | 9 Types | 9 Types |
| Injectors tested at once | 4 Fuel Injectors | 4 Fuel Injectors | 6 Fuel Injectors | 6 Fuel Injectors | 6 Fuel Injectors | 6 Fuel Injectors | 6 Fuel Injectors | 8 Fuel Injectors |
| Injector coverage and settings | ||||||||
| Supported injector types | Standard Fuel Injector | Standard Fuel Injector | Standard Fuel Injector | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors |
| Injector drive-voltage settings | ×Not included | ×Not included | ×Not included | 12V 70V 120V | 12V 70V 120V | 12V 70V 120V | 12V 12V-70V 120V-180V | 12V 12V-70V 120V-180V |
| Menu language options | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | 2 Types (Chinese, English) | 2 Types (Chinese, English) | 2 Types (Chinese, English) |
| Workshop features | ||||||||
| Heated ultrasonic cleaning | ×Not included | ✓Included · 45℃ | ×Not included | ×Not included | ✓Included · 50℃ | ×Not included | ✓Included · 50℃ | ✓Included · 50℃ |
| Pressure gauge | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Display | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Test-fluid level indicator | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Splash guard | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included | ✓Included |
| Operating-condition simulations | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Fluid drain/recovery valve | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Storage drawer | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Low-impedance injector support | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Detachable Cleaning Tank | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included |
| Fuel pumps | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
Model guide
Use this overview to identify the models you want to compare in detail.
AUTOOL CT150
Four-position standard gasoline injector cleaning and visual testing without ultrasonic cleaning-fluid heating.
AUTOOL CT160
Standard 12 V gasoline injector service with a 2,000 mL ultrasonic tank and heating up to 45 °C.
AUTOOL CT200
Standard 12 V gasoline injector service with six test positions, a 1,700 mL ultrasonic tank, and 3 cleaning / 9 testing functions.
AUTOOL CT400
Six-position service for standard, GDI, EFI, and FSI long injectors with 12 V / 70 V / 120 V selection, a 2,000 mL tank, and a storage drawer.
AUTOOL CT450
Six-position GDI / EFI / FSI service with cleaning-fluid heating up to 50 °C and 10 testing functions.
AUTOOL CT500
Six-position advanced control with 0–40 ms pulse adjustment in 0.1 ms steps, Chinese / English settings, an oil baffle, and 12 testing functions for standard and direct-injection service.
AUTOOL FN606
Combines GDI support, heating up to 50 °C, extended injector-voltage ranges, a detachable 550 mL tank, advanced pulse control, and one fuel pump.
AUTOOL FN608
Extends the detachable heated platform to eight injectors and two fuel pumps while retaining advanced pulse and GDI voltage control.
Manual and support
Manual And Downloads
Download the CT160 manual for setup, ultrasonic cleaning, fluid selection, injector testing, accessories, operation steps, and safe-use instructions.

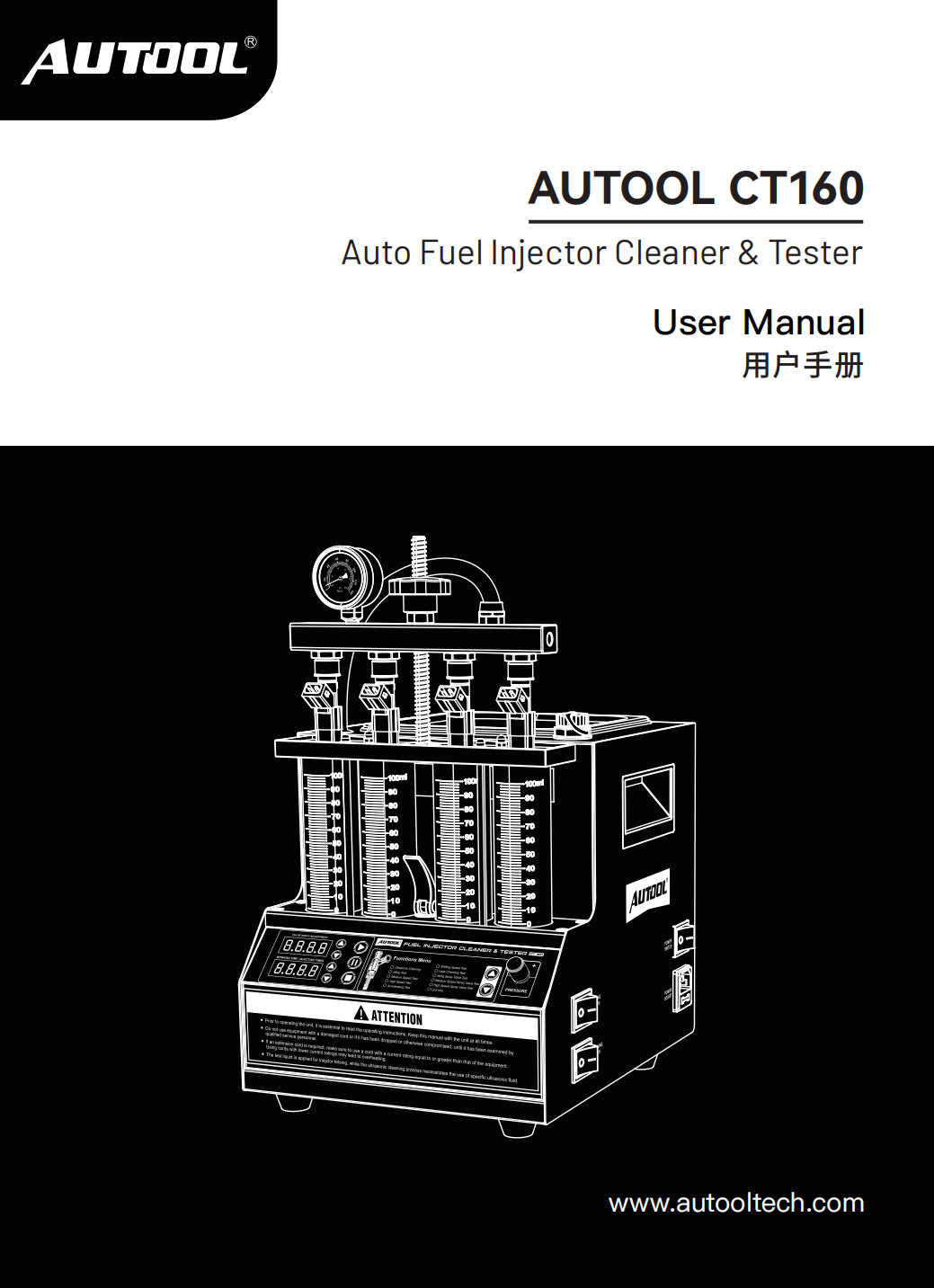

AUTOOL CT160 User Manual
Open the multilingual PDF manual for CT160 setup, operation, accessories, and maintenance guidance.
What Is In The Box
What Is In The Box

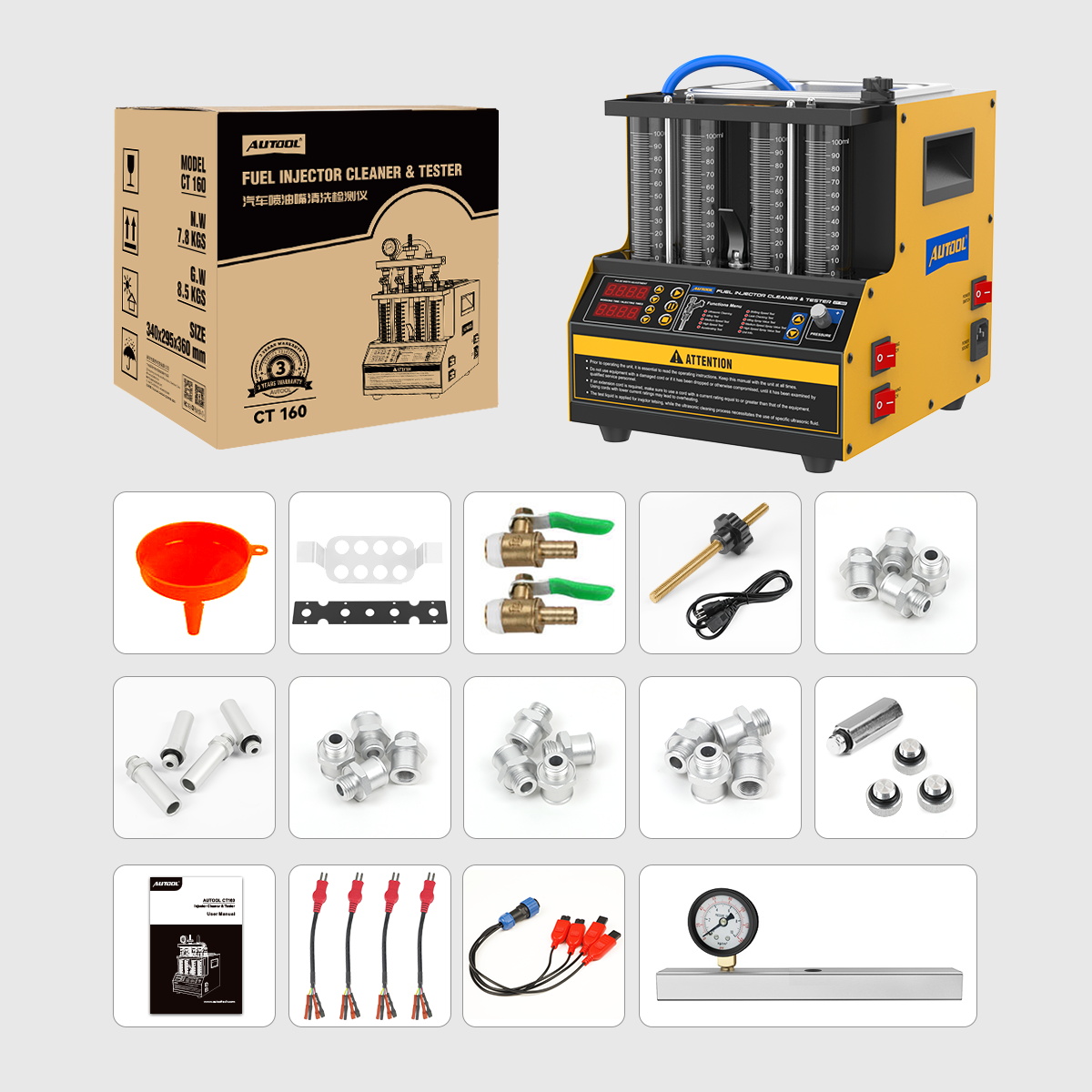

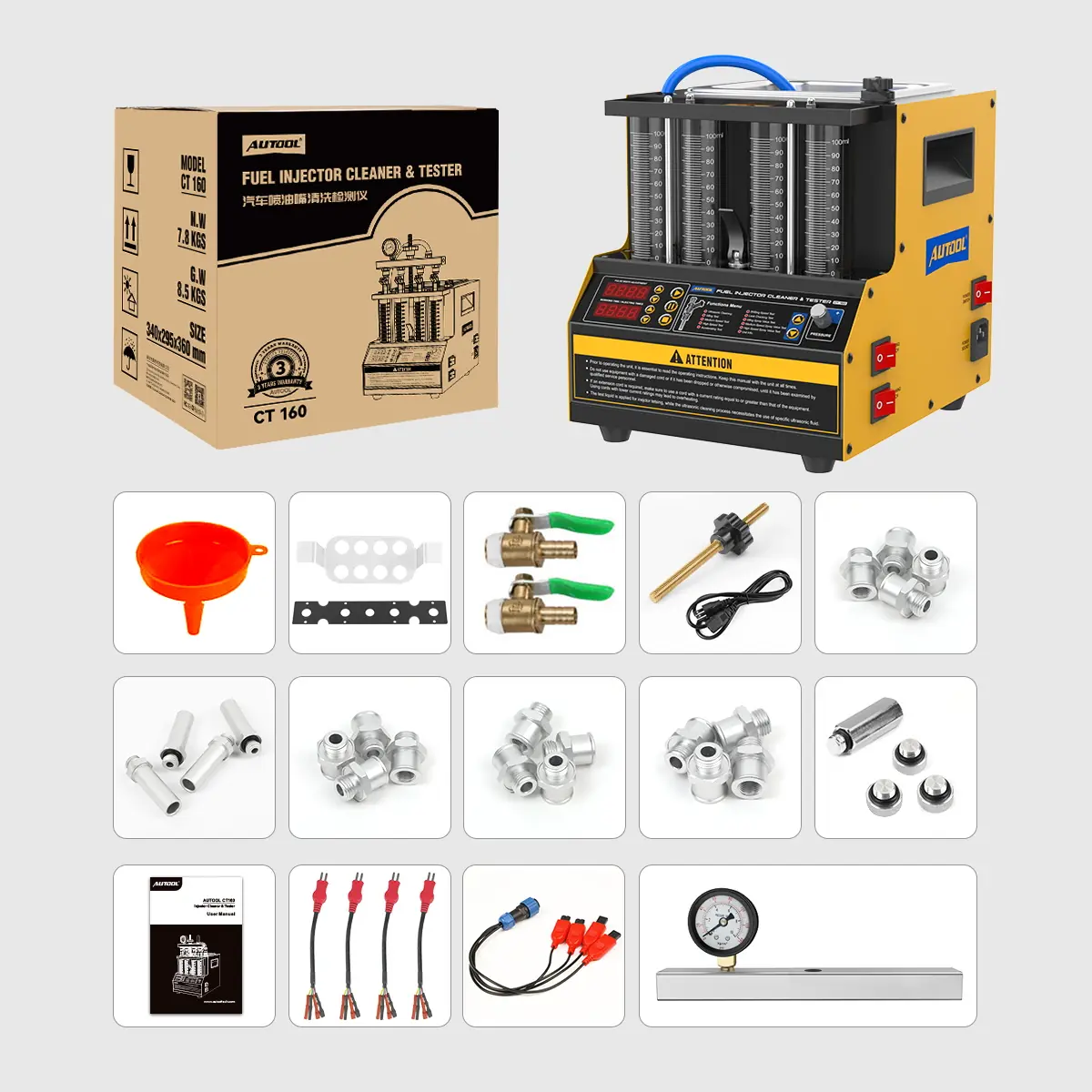

The packing list image shows the CT160 main unit, retail box, manual, injector adapters, test cables, pressure gauge assembly, and accessory sets. Package contents may vary by order option. Confirm the included accessories and quantities before ordering.
- Main UnitAUTOOL CT160 fuel injector cleaner and tester
- Retail BoxCT160 product package box
- Fluid toolsFunnel, drain-valve parts, and fluid-handling accessories
- Injector adaptersAdapter plates, connector sets, injector adapters, and plugs
- Test cablesInjector test cables and pulse-signal cable set
- Pressure assemblyPressure gauge and fuel-rail assembly
- DocumentationUser manual
- FluidsCleaning and test fluids are not included unless the selected option states otherwise.
Frequently asked questions
Questions And Answers
These answers cover injector compatibility, diesel injector limits, GDI support, fluid selection, model comparison, single injector testing, accessories, and safe operation.
What Injectors Can CT160 Clean And Test?
CT160 is designed for cleaning and testing standard 12V gasoline fuel injectors. It supports up to 4 compatible injectors at the same time and can be used for cars and compatible motorcycles when the proper adapters and accessories are used.
Can CT160 Clean And Test Diesel Injectors?
CT160 can clean diesel injectors with the ultrasonic cleaning function, but it cannot test diesel injectors. Use the testing functions only for compatible gasoline injectors.
Can CT160 Test GDI High-Pressure Injectors?
No. CT160 is not recommended for GDI high-pressure injector testing. If you need GDI, EFI, FSI, or broader high-pressure injector compatibility, choose CT400, CT450, CT500, FN606, or FN608 according to the required injector type and testing capacity.
What Cleaning Fluid Should I Use?
For ultrasonic cleaning, use professional engine carbon cleaning fluid or professional injector ultrasonic cleaning fluid. 75%+ medical alcohol can be used as an alternative if professional cleaning fluid is not available, but the cleaning effect may not be as strong.
What Test Fluid Should I Use?
For injector testing, use professional automotive injector test fluid. The test fluid should be colorless, odorless, and non-corrosive so it can simulate injector working states without damaging the machine. If professional test fluid is not available, 75%+ medical alcohol can be used as an alternative.
Can I Use Cleaning Fluid To Test Injectors?
No. Do not use cleaning fluid to test injectors. Cleaning fluid may corrode internal components and rubber seals, cause leaks, and result in repair costs not treated as a normal machine failure.
How Do I Test A Single Injector With CT160?
When testing a single injector, plug the other 3 unused test positions. CT160 includes 3 plugs for this setup so the unused cylinders can be blocked during testing.
How Do I Set The Test Parameters?
For basic testing, you do not need complex parameter setup. Select the function number and set the test time according to the test you need. The control panel provides function selection, working parameter display and adjustment, pressure adjustment, and Start / Pause / Stop operation.
What Is The Difference Between CT150, CT160, And CT200?
CT150 and CT160 are both designed for cleaning and testing fuel injectors of 4-cylinder gasoline engines. The main difference is that CT160 adds an ultrasonic heating function, while CT150 does not have this feature. Compared with CT150, CT200 adds two additional test positions for up to six injectors at once, while the other basic functions remain similar.
What Is The Difference Between CT400, CT450, And CT500?
CT450 adds a Pulse Injection Test compared with CT400. CT500 further adds Wide Pulse Injection Test and Continuous Injection Test compared with CT450. For cleaning and heating, CT450 features ultrasonic cleaning with heating up to 50°C, while CT400 and CT500 do not have the same heating function in this comparison.
What Is The Difference Between FN608 And FN606?
FN608 supports testing for 8 cylinders, while FN606 supports testing for 6 cylinders. FN608 also uses two independent fuel pumps, each corresponding to a separate left or right fuel rail. If one pump fails, only the corresponding rail is affected, while the other can continue working. FN606 uses a single fuel pump, so a pump failure stops the whole system until the pump is replaced.
What Is The Difference Between FN608 And CT500?
FN608 supports 8 cylinders, while CT500 supports 6 cylinders. FN608 has a heated cleaning tank that can maintain up to 50 °C, supports wider voltage ranges including 12 V, 12–70 V, and 120–180 V, and its cleaning tank can be used independently or together with the main unit. CT500 supports 12V, 70V, and 120V, and its cleaning tank is integrated with the main body. FN608 also uses two independent fuel pumps, while CT500 uses a single fuel pump.
Customer Reviews
Leave A Review
crewchief244 (verified owner) –
Worth the money
If you get one you need to purchase injection flow fluid, can be found on eBay. For the ultrasonic cleaning there are a few things that work well, purple power, extreme simple green, and then sharpertek makes some specific injector cleaning solutions.
Freddy Enrique Valera M (verified owner) –
Calidad
Recess delivery
CAR Auto Care, Inc. (verified owner) –
Very pleased
This unit works well on many injectors. I have used it on GM and Ford so far. Very repeatable. After giving each injector multiple pulses to verify, I would say each one gave identical results so there was no worries as to the units quality and effectiveness. Bad injector gave the same PSI rating each time as did the good ones. It does not work on GDI injectors but for the price its a must have tool.
