AUTOOL SVB308 Car Inspection Camera Articulating Borescope

(28 customer reviews)

Original price was: US$319.00.Current price is: US$205.00.

Secure checkoutFast supportBulk ready
AUTOOL SVB308

Product Overview

The AUTOOL SVB308 car inspection camera is a four-way articulating automotive borescope designed for precise non-destructive inspection in tight, curved, and dark spaces. It features a joystick-controlled 360° articulating probe, 1080P HD camera, 6 LED lights, 4.3-inch display, 2600mAh battery, detachable screen and hose design, magnetic base, built-in storage, photo / video recording, and 10-language support for professional automotive inspection work.

360° Articulation 1080P HD Camera 6 LED Lights 2600mAh Battery
6.2mmProbe
4.3-inchScreen
20-100mmDepth Of Field
3 YearsWarranty

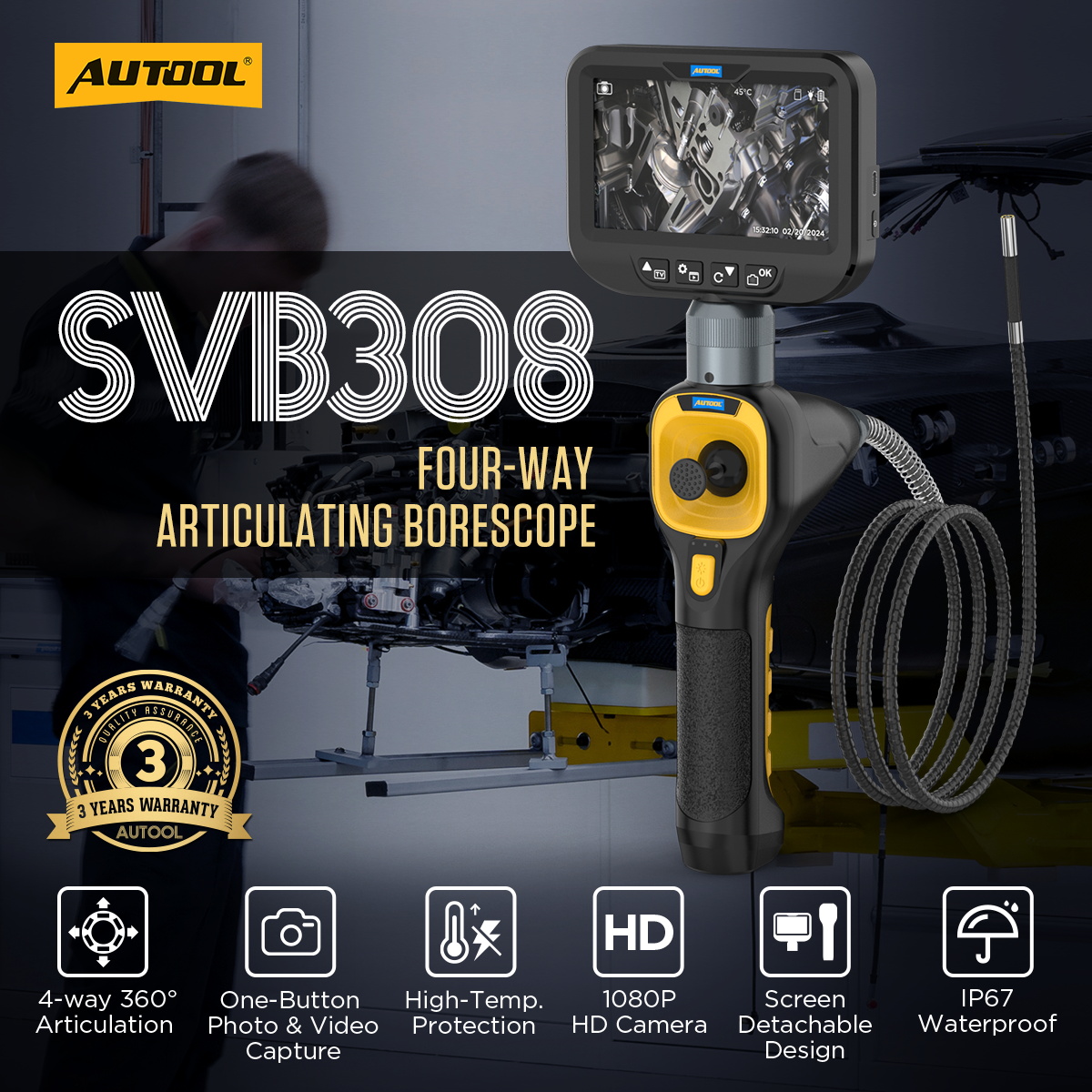

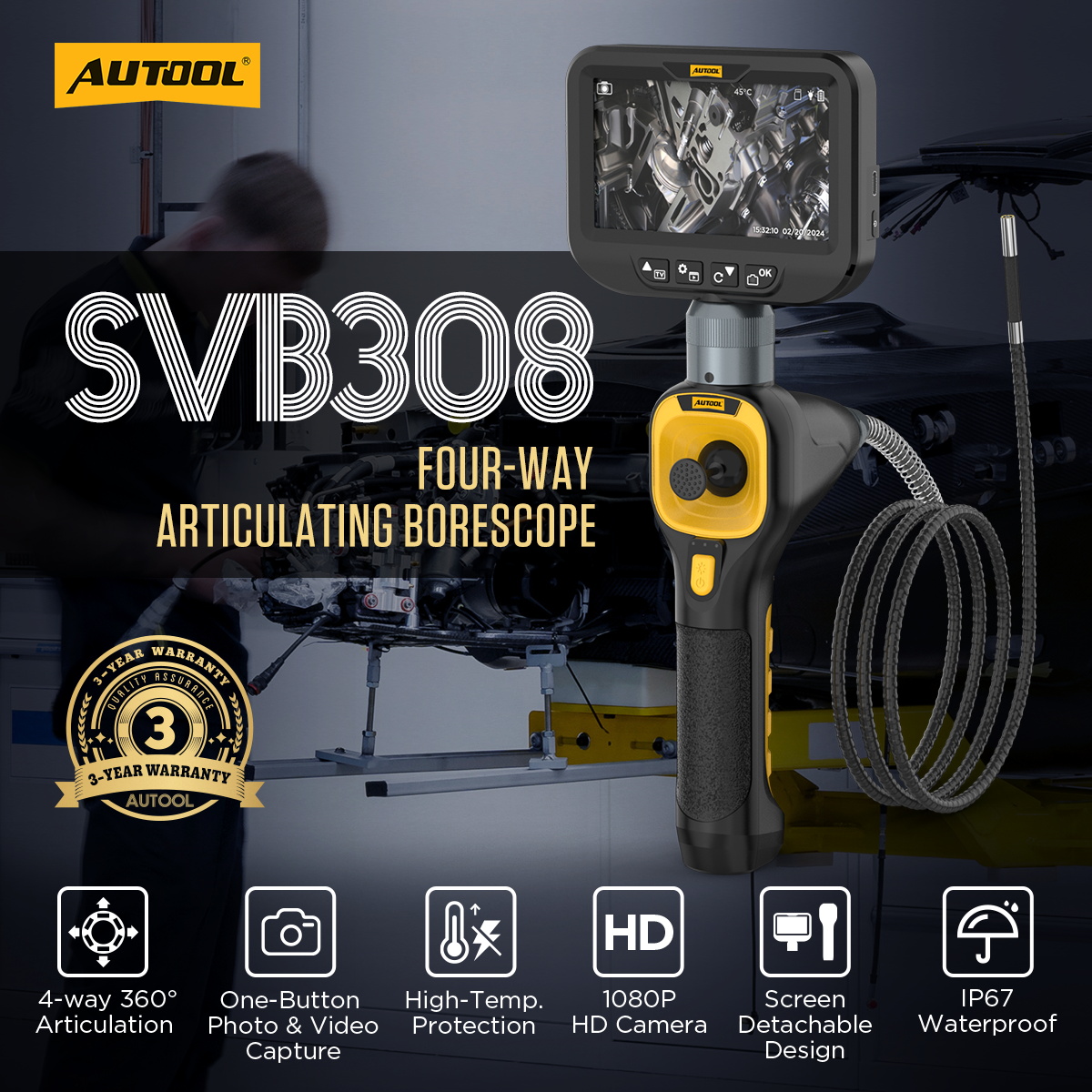

AUTOOL SVB308 car inspection camera four-way articulating borescope main product image Click to enlarge
Key Features

Key Features

SVB308 combines four-way articulation, HD imaging, adjustable LED lighting, detachable design, probe-side waterproof protection, and high-temperature protection for engine, pipe, wiring, and hidden-space inspection.

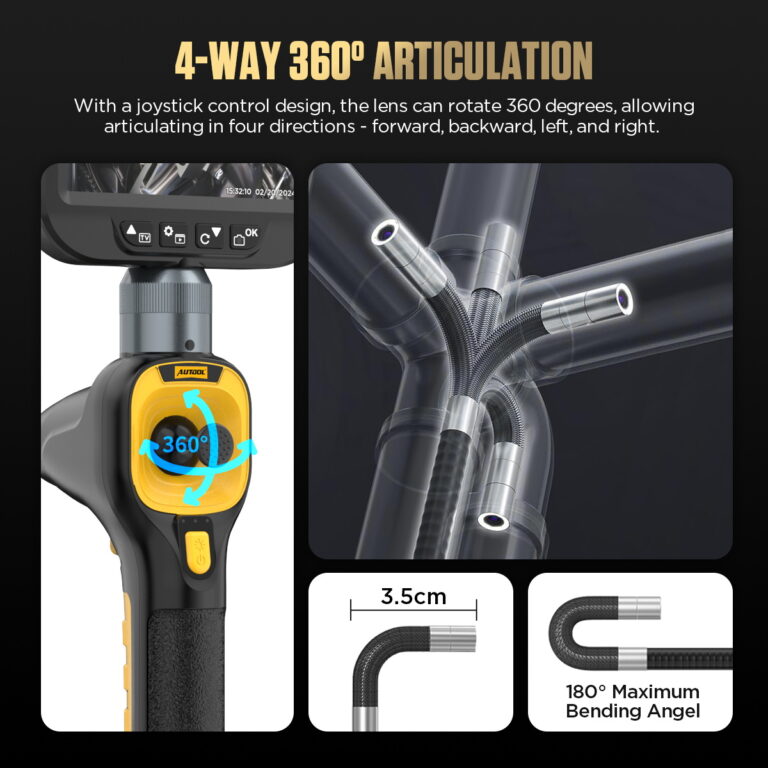

360° Four-Way Articulation

The joystick-controlled 360° four-way rotating lens helps the probe enter narrow, curved, and hard-to-reach spaces inside engines, pipes, combustion chambers, and hidden structures.

1080P HD Camera With 6 LED Lights

1080P imaging, 6 LED lights, and adjustable brightness improve visibility in dark engine compartments, wet pipes, internal passages, and low-light inspection areas.

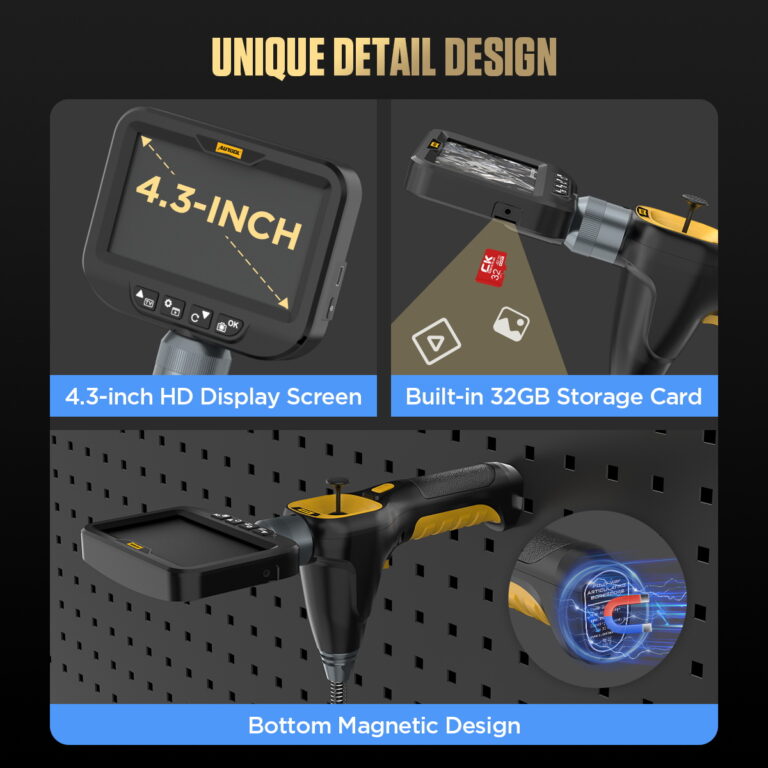

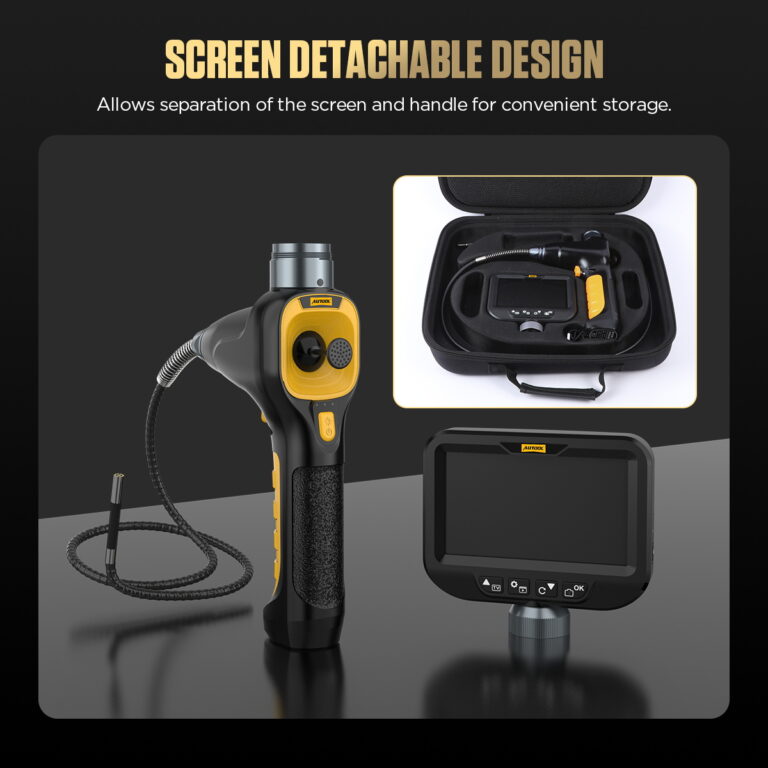

Detachable Screen And Hose Design

The screen and flexible hose are detachable for storage, portability, and easier accessory replacement. The flexible hose can be removed by unscrewing the screw near the AUTOOL logo.

Magnetic Base And Portable Storage

A strong magnetic base helps attach the device to magnetic surfaces during inspection, improving hands-free convenience and storage after use.

IP67 Probe For Wet Pipes

The probe / camera side supports IP67 waterproof and oil-resistant use in wet pipes. The screen and main unit are not waterproof and must be protected from liquid.

High-Temperature Protection

SVB308 includes high-temperature protection, but users should still wait until the engine fully cools before inspection to avoid camera and hose damage.

AUTOOL SVB308 1080P HD camera and 6 LED lights feature image Click to enlarge
AUTOOL SVB308 IP67 waterproof and oil-resistant probe feature image Click to enlarge
AUTOOL SVB308 high temperature protection feature image Click to enlarge

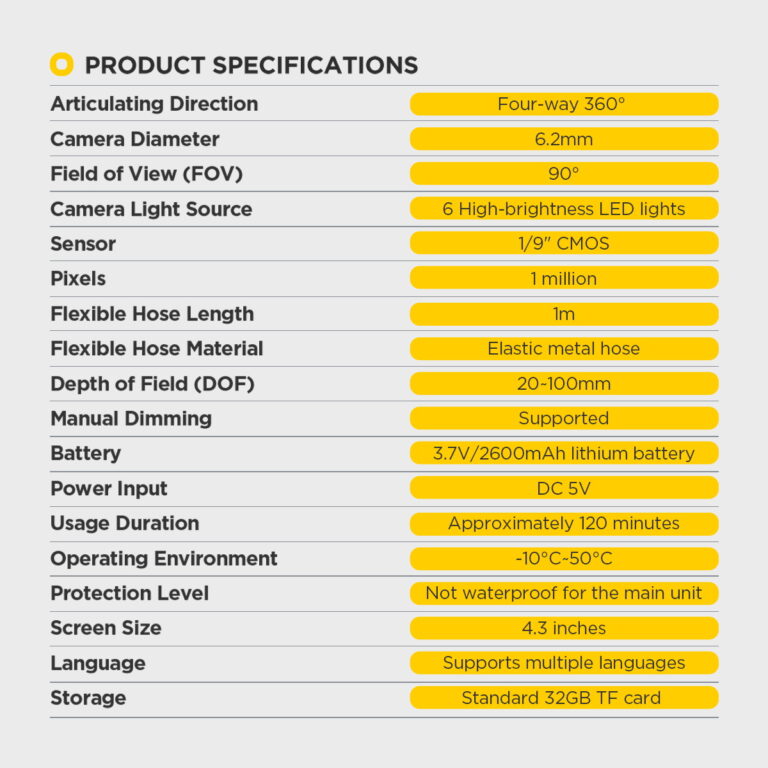

Specifications

SVB308 Specifications

Review the camera diameter, field of view, LED light source, screen size, depth of field, battery, storage, language support, and protection notes before ordering.

1>
Camera And Probe
ProductAUTOOL SVB308 Four-Way Articulating Borescope
Articulating DirectionFour-way 360° articulation
Camera Diameter6.2mm
Field Of View90°
Light Source6 high-brightness LED lights
Sensor1/9" CMOS
Depth Of Field20-100mm
Flexible Hose Length1m
Flexible Hose MaterialElastic metal hose
Display, Power And Storage
Screen Size4.3 inches
Manual DimmingSupported
Image / VideoJPG image and AVI video recording supported

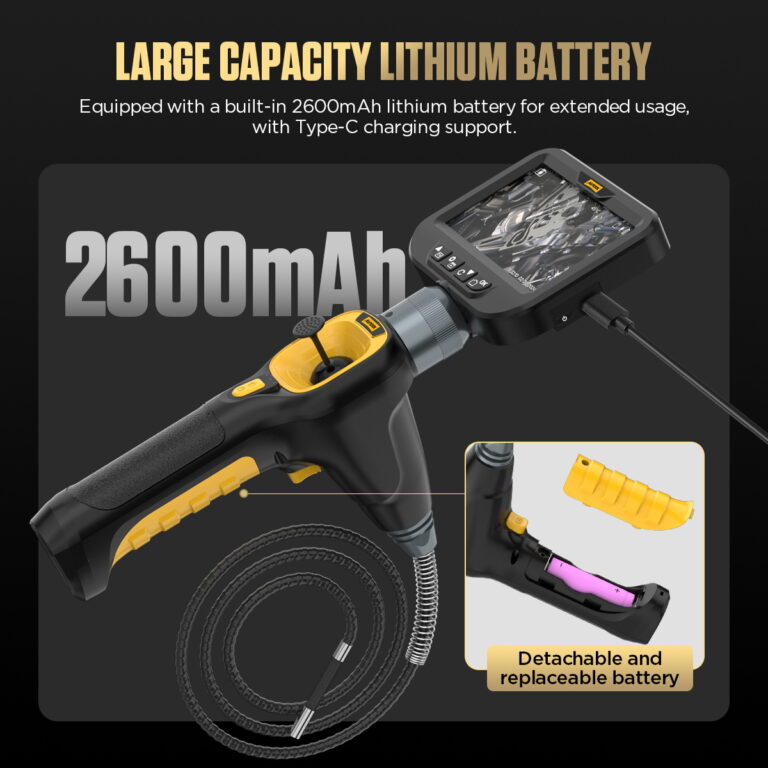

Battery3.7V / 2600mAh lithium battery
ChargingDC 5V / Type-C charging
Usage DurationApproximately 120 minutes
StorageCurrent product content and specification image show standard 32GB TF card
Language And Protection

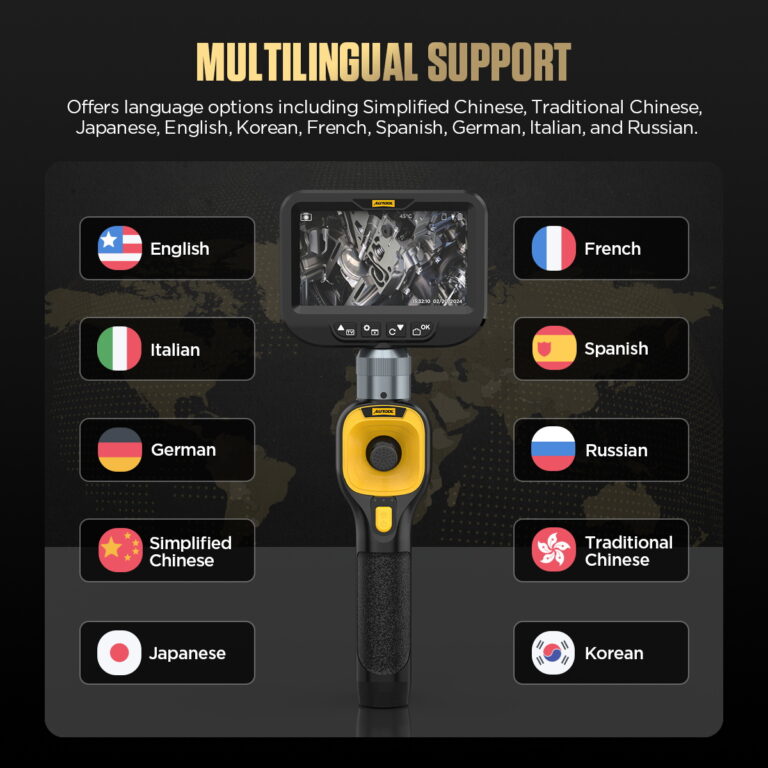

LanguagesEnglish, French, Spanish, Russian, Traditional Chinese, Korean, Italian, German, Simplified Chinese, and Japanese
Operating Environment-10°C to 50°C
Probe ProtectionProbe / camera side supports IP67 waterproof and oil-resistant use
Main Unit NoteThe screen and main unit are not waterproof; do not allow liquid to enter the device
Warranty3-year warranty for eligible non-human damage cases

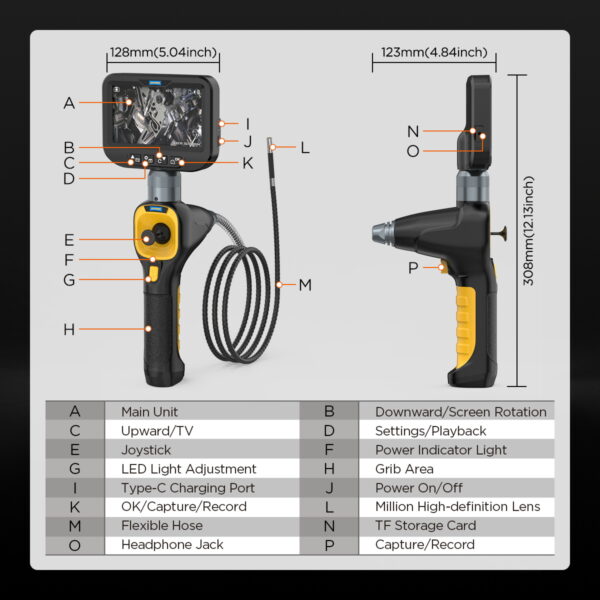

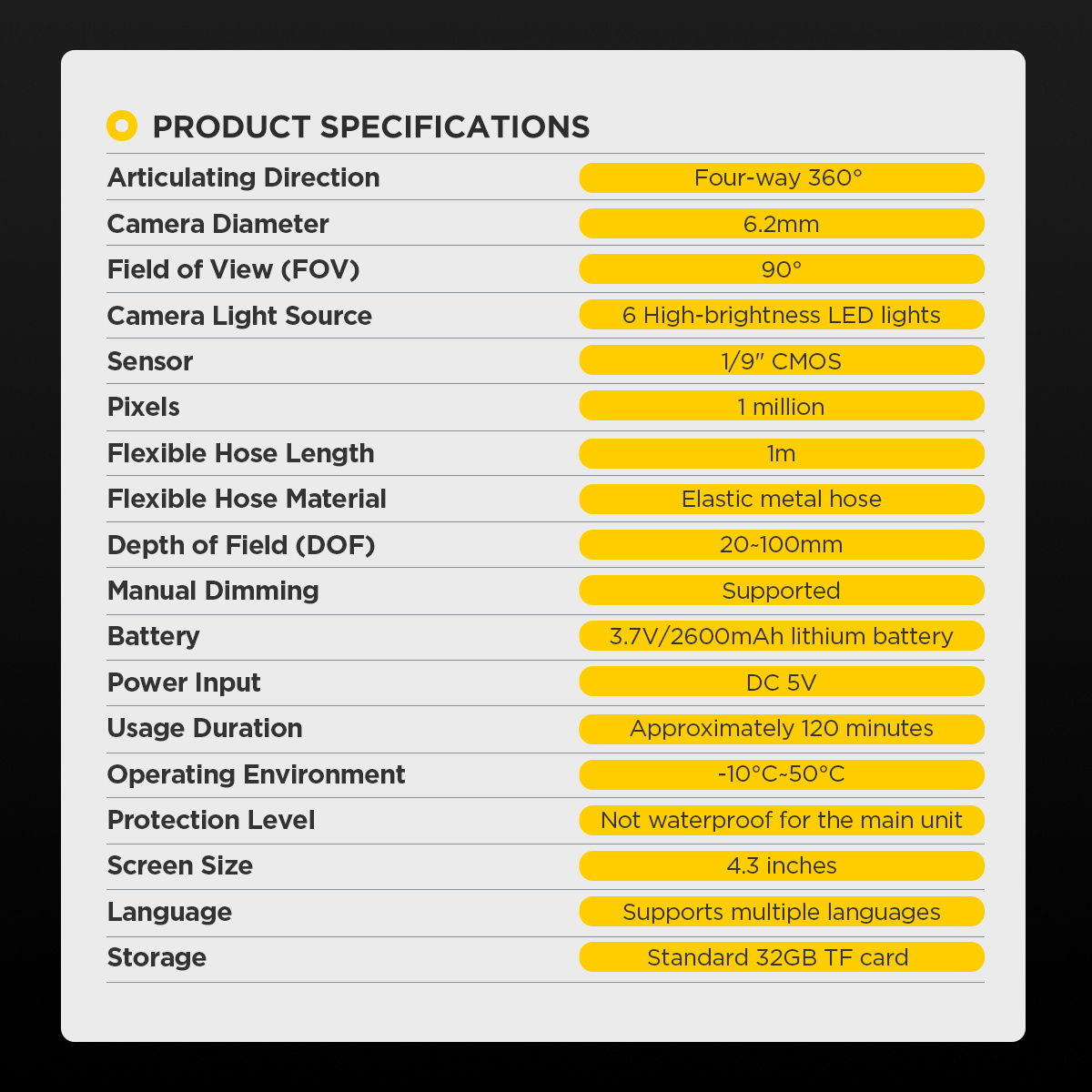

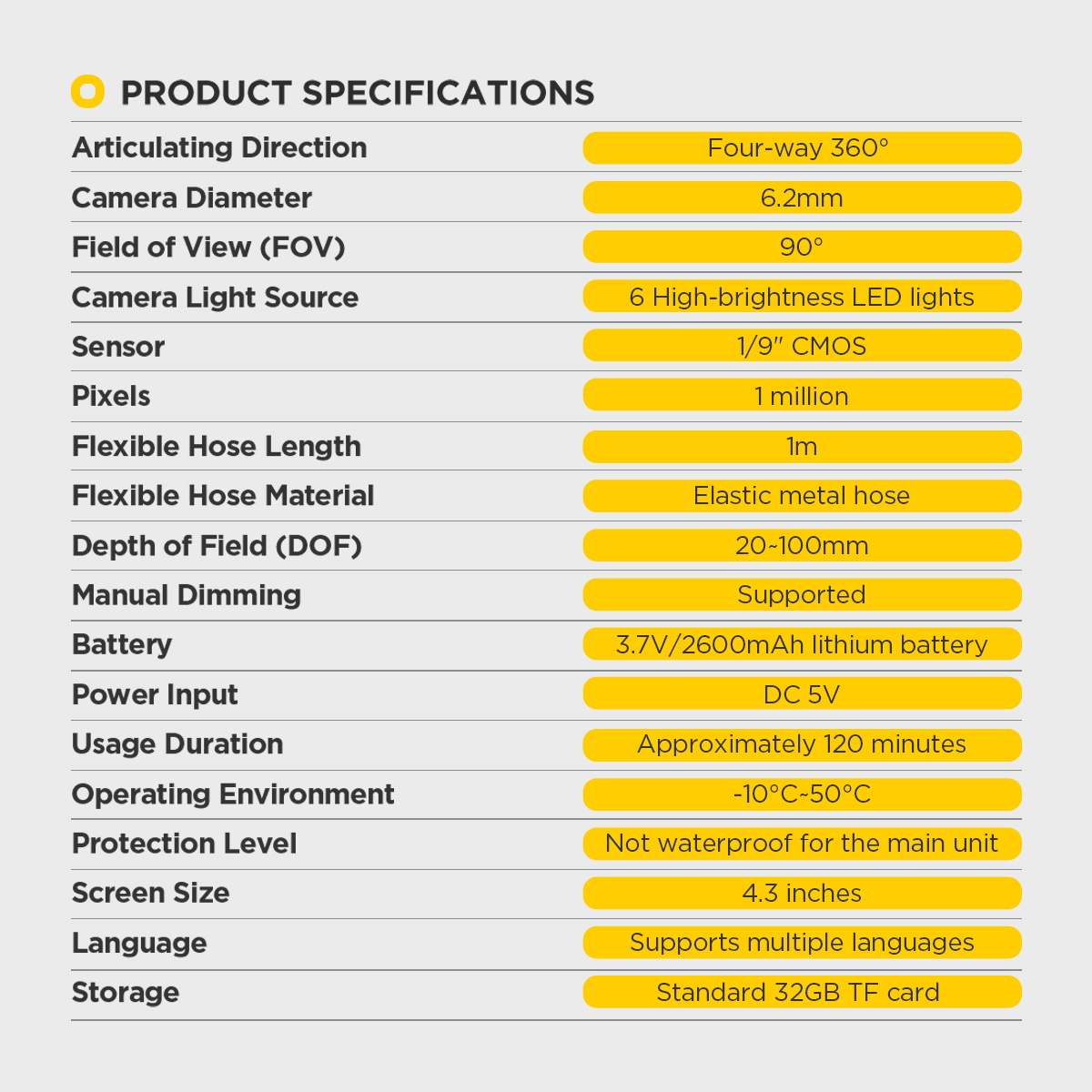

AUTOOL SVB308 product specification image Click to enlarge
Camera And Probe
ProductAUTOOL SVB308 Four-Way Articulating Borescope
ArticulationFour-way 360°
Camera Diameter6.2mm
Field Of View90°
LED Lights6 high-brightness LED lights
Depth Of Field20-100mm
Hose1m elastic metal hose
Display, Power And Storage
Screen4.3 inches
Image / VideoJPG image and AVI video recording supported
Battery3.7V / 2600mAh lithium battery
ChargingDC 5V / Type-C charging
Usage DurationApproximately 120 minutes
StorageCurrent product content and specification image show standard 32GB TF card
Language And Protection
LanguagesEnglish, French, Spanish, Russian, Traditional Chinese, Korean, Italian, German, Simplified Chinese, and Japanese
Operating Environment-10°C to 50°C
Probe ProtectionProbe / camera side supports IP67 waterproof and oil-resistant use
Main Unit NoteThe screen and main unit are not waterproof
Warranty3-year warranty for eligible non-human damage cases
How To Use

How To Use

Use SVB308 only after the engine or inspection area has cooled. Adjust the LED brightness, insert the probe gently, control bending with the joystick, and capture images or videos when needed.

Power On And Open Cover

Press and hold the power button, then open the camera protective cover before inspection.

Adjust LED Brightness

Adjust the lighting level first so the target area can be inspected clearly in dark or low-light environments.

Insert The Probe

Insert the probe into the engine, pipe, combustion chamber, evaporator area, or other target area only after the engine has cooled.

Control Direction With Joystick

Use the joystick to adjust camera direction. Do not force the camera head or bending section manually.

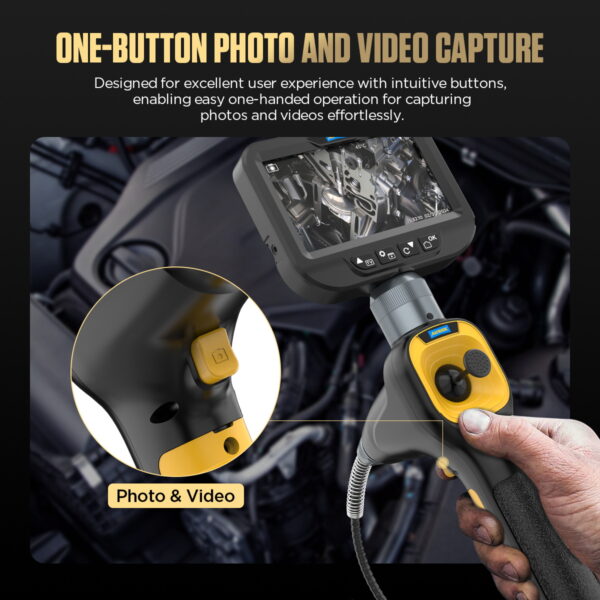

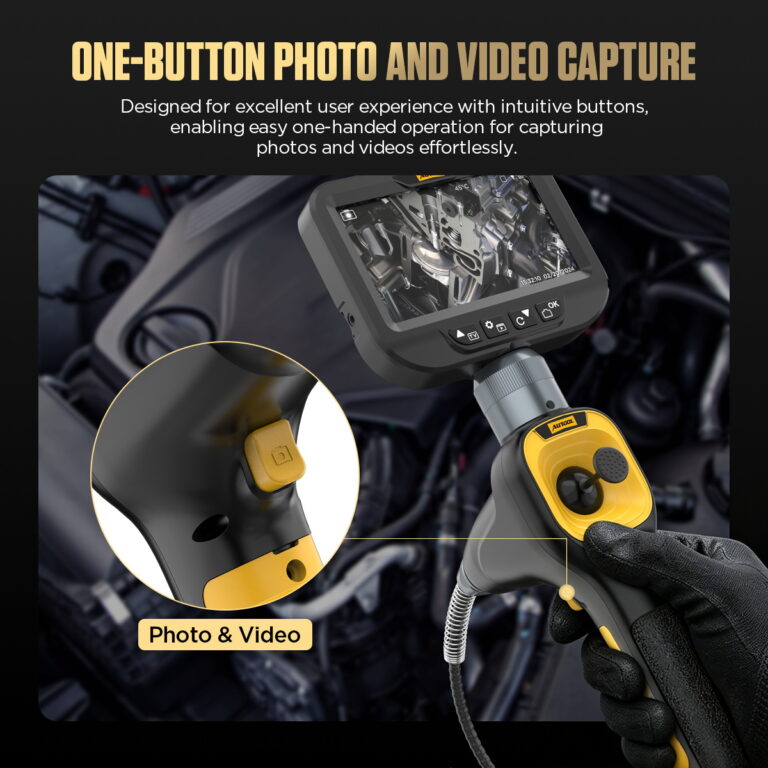

Capture Photos Or Videos

Use the screen buttons and handle photo button to zoom, rotate / invert the image, take pictures, or record videos.

Use Notes

  • Do not use immediately after the vehicle stops or while the engine is still hot.
  • Wait until the engine has completely cooled down, usually 1-2 hours.
  • Do not allow the flexible hose to enter high-temperature environments.
  • Do not allow motor oil, liquid, or other fluid to enter the screen or main unit.
  • Do not pull, twist, or manually force the camera head; use the joystick to control bending.
  • Do not keep the joystick at maximum bending angle for a long time.
  • After use, return the joystick to its natural position before storage.
Product Comparison

Product Comparison

Compare SVB308 with other AUTOOL borescope models before choosing the right steering angle, lens diameter, screen size, resolution, depth of field, battery capacity, storage, and language support.

SVB308 FocusFour-way 360° articulating borescope with 6.2mm probe, 1080P HD camera, 4.3-inch screen, 2600mAh battery, magnetic design, detachable design, and current product content showing 32GB storage
SVB305 vs SVB308SVB305 has 210° two-way articulation and 2000mAh battery. SVB308 upgrades to 360° four-way articulation, 2600mAh battery, magnetic base, and detachable screen / handle design
SVB403 / SVB405 / SVB408SVB403 has dual lenses and 210° bidirectional articulation. SVB405 and SVB408 are four-way 360° models; SVB408 has a thinner 3.9mm probe
SVB302 / SVB303SVB302 is a phone / tablet compatible model. SVB303 adds four-way articulating borescope structure with magnetic / detachable-style advantages
Decision CheckCompare steering angle, lens diameter, resolution, display, depth of field, zoom, battery capacity, detachable design, storage, and supported languages before ordering
AUTOOL SVB series articulating borescope comparison chart Click to enlarge
Manual And Downloads

Manual And Downloads

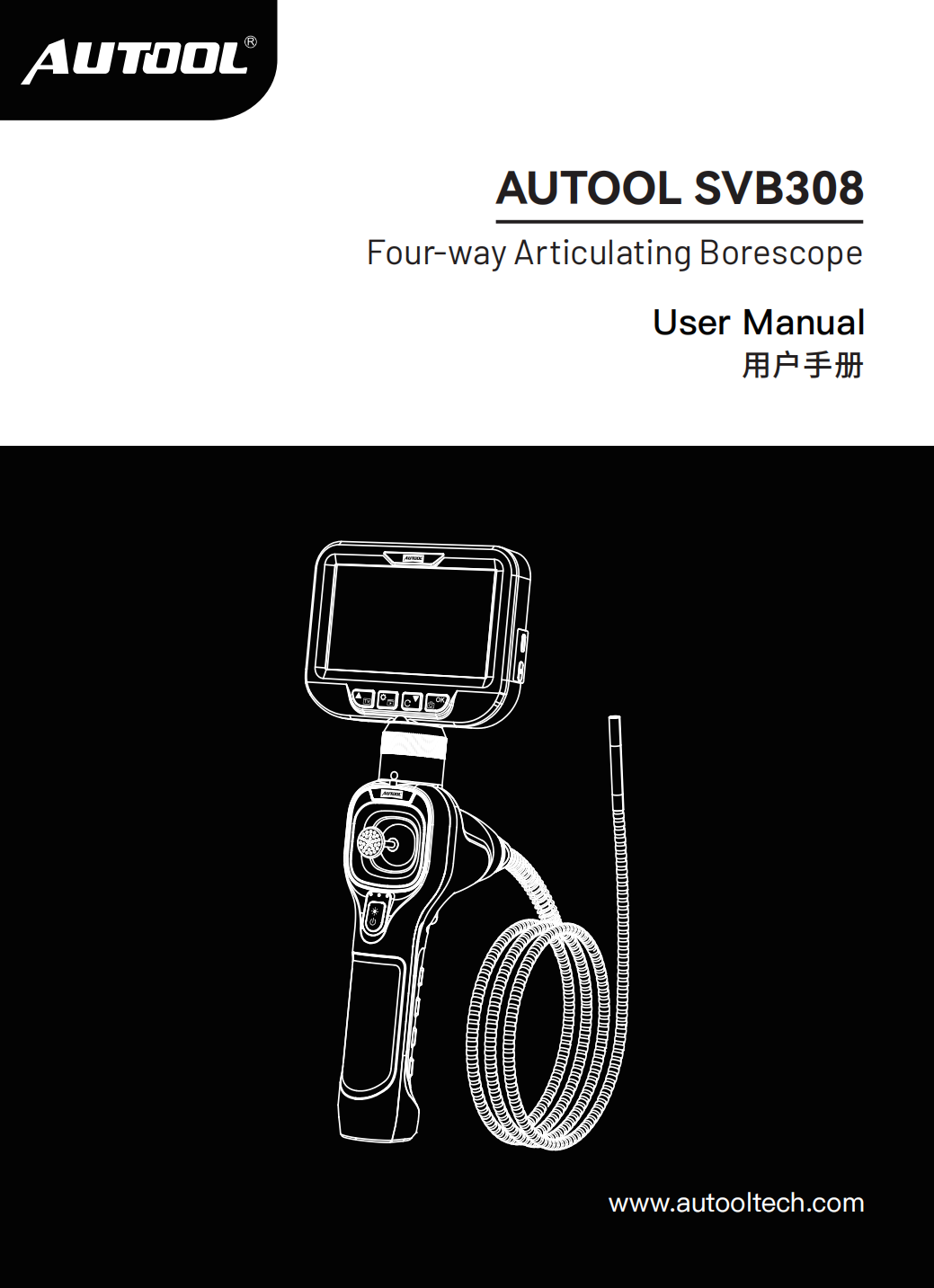

Download the AUTOOL SVB308 manual for cautions, product parameters, structure diagram, operation guide, icon status, troubleshooting, maintenance, warranty, and return / exchange information.

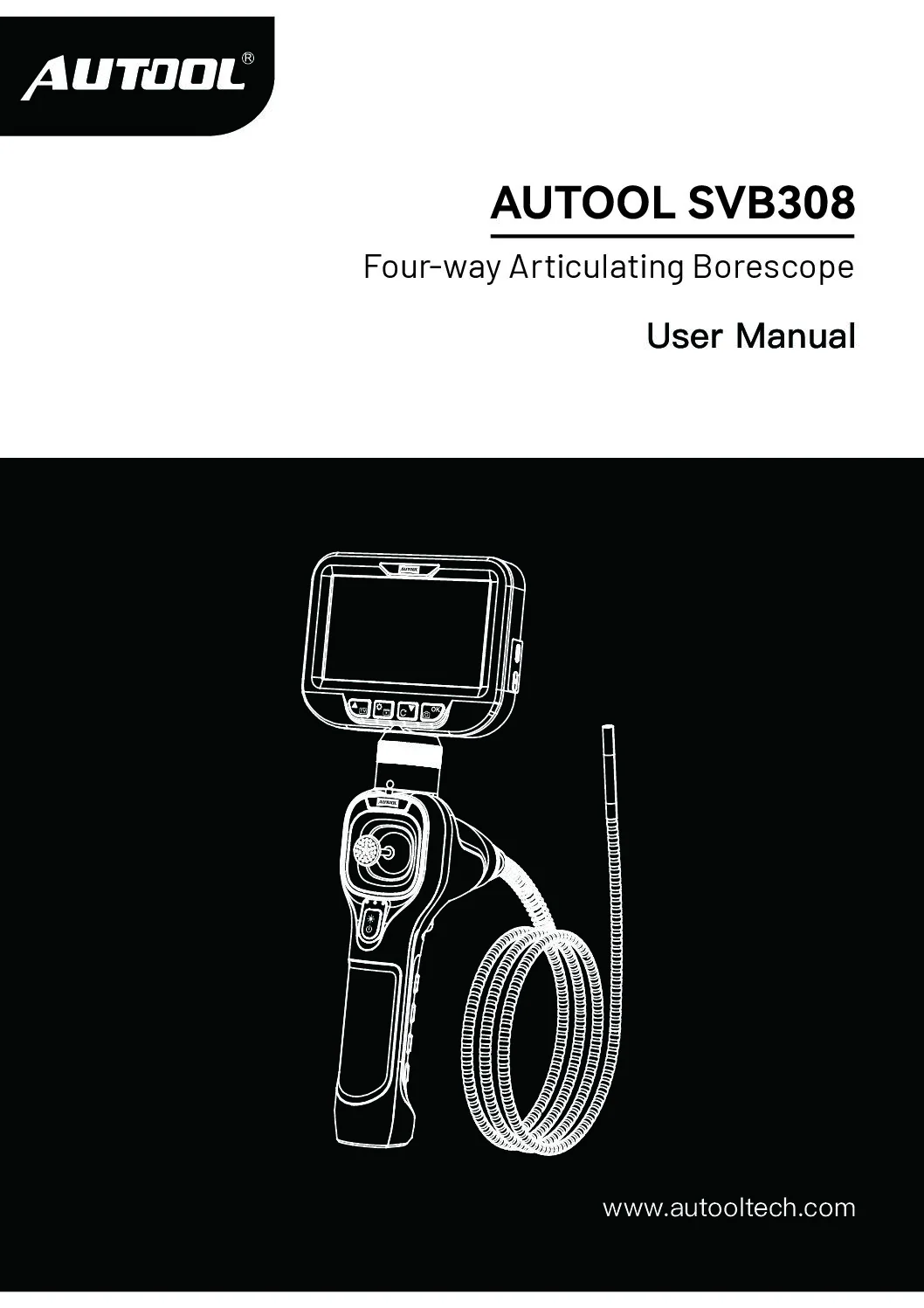

AUTOOL SVB308 four-way articulating borescope user manual preview Click to enlarge

AUTOOL SVB308 Manual

Open the PDF manual for safe use, product parameters, operation, icon status, troubleshooting, maintenance, and warranty information.

Download Manual

Need Setup Confirmation?

Contact AUTOOL Store before ordering if you need help with SVB308 model comparison, snake tube replacement, screen protection, high-temperature inspection risk, or manual confirmation.

Related Products

Related Products

Compare related AUTOOL automotive inspection cameras and articulating borescopes before choosing the right lens diameter, steering angle, display, resolution, and price range.

Before You Order And Use

Before You Order And Use

SVB308 is designed for automotive inspection, but the camera probe, flexible hose, screen, and main unit must be protected from heat, liquid, forced bending, and unsuitable inspection environments.

Safety And Operation Notes

  • Wait until the engine has completely cooled down before inspection; this usually takes 1-2 hours.
  • Do not use the probe immediately after the car has stopped or when the engine is still hot.
  • The manual warns not to expose the flexible hose to temperatures above 70°C.
  • The original product warm tips mention avoiding environments above 75°C to prevent damage.
  • Product feature images show high-temperature protection around 90°C, but this should be treated as protection, not normal operating permission.
  • Engine temperatures can reach 80-100°C or higher after shutdown, which may damage the camera.
  • If high-temperature damage occurs, replacement of the snake tube / camera kit may require extra cost.
  • The flexible hose is removable and can be replaced by unscrewing the screw near the AUTOOL logo.
  • Do not allow liquid, motor oil, or other fluid to enter the screen or main unit.
  • The probe / camera side supports IP67 waterproof and oil-resistant use, but the main unit and screen are not waterproof.
  • Do not force the camera probe by hand; use the joystick to control bending.
  • Do not keep the joystick at maximum bending angle for a long time.
  • Do not use this device to inspect humans or animals.
  • Do not use or store it in explosive, flammable, corrosive, or strong electromagnetic environments.

Questions And Answers

These answers cover SVB308 model differences, waterproof protection, hot-engine inspection, safe temperature limits, hose replacement, TF card configuration, and SVB series comparison questions.

Related Guides

Related Guides

Use this related article to understand why automotive endoscope cameras are useful for engine, pipe, hidden wiring, and hard-to-reach area inspection.

Automotive Endoscope Camera-Important Tool guide image
Guide / 2024-07-03

Automotive Endoscope Camera-Important Tool

With the rapid development of automotive endoscope cameras, the role and importance of endoscope cameras in automobile maintenance have become increasingly.

Warranty And Contact

Warranty And Contact

For SVB308 setup, model selection, snake tube / camera kit replacement, screen liquid damage, high-temperature damage confirmation, manual requests, or warranty support, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming SVB308 features, comparing SVB305 / SVB308 / SVB403 / SVB405 / SVB408, replacing the flexible hose, preventing screen damage, or confirming whether your inspection environment is safe for the probe.

  • SVB308 setup and operation support
  • Snake tube / camera kit replacement support
  • Screen liquid damage support
  • High-temperature damage confirmation
  • Model comparison: SVB305 / SVB308 / SVB403 / SVB405 / SVB408
  • Manual request and 3-year warranty support for eligible non-human damage cases

Customer Reviews

  1. 5
    (28 customer reviews)
    100% of customers recommend this product.
    5 Stars100%4 Stars0%3 Stars0%2 Stars0%1 Star0%
  2. Customer

    Item exactly as described. Nicely packaged for shipping. Excellent seller. Thank You!!

    0 of 0 found this review helpful
  3. Easy

    Love this product, and very easy to use. Nice quality picture, with good quality construction. Worth the buy, fun to use, and handy for seeing the spots you can’t easily see what’s going on.

    0 of 0 found this review helpful
  4. Byron Gold

    After comparing automotive steering borescopes on the market, I finally settled on AUTOOL’s svb308, which is perfect, with a large display, 360¡ã rotation, memory card, and portability. After looking at other models, I finally chose it and shared it with my friends immediately after I received it, I hope AUTOOL does better!

    0 of 0 found this review helpful
  5. Autoservis i autodijelovi ?ugec (verified owner)

    Top

    0 of 0 found this review helpful
  6. Prettylyn

    I’ve wanted to get a new borescope for quite some time, but was waiting to find one that met all the requirements I had. I wanted something that had a long cable that’s somewhat rigid yet still flexible, 1080P picture quality and the ability to move the camera when in position. This unit checked all those boxes and was well worth the price.

    0 of 0 found this review helpful
  7. Kerwin Meg

    Blitzversand und eine unkomplizierte Abwicklung. Und Dank der hervorragenden Verpackungsweise ist es unbeschadet angekommen. Vorbildlich. Artikel wie beschrieben. Gutes qualitatives und verl?ssliches Ger?t. Nur zu empfehlen. Gerne wieder. The steering endoscope is very flexible to use, the examination is very comprehensive and I am very satisfied.

    0 of 0 found this review helpful
  8. Shabaz Mohammed (verified owner)

    I have been looking for one of these for some time and was worried about yhe quality of this unit being that ir was cheaper than our local products.
    I was pleasantly surprised. This is a top product with the benefit of excellent service from Autool.
    It is also my second product purched, the first being a smoke leak detector.. And I have just ordered an oil pressure tester.

    0 of 0 found this review helpful
  9. Parsa Haghi

    The quality is very good. One thing you need to pay attention to is that it cannot be used in a high temperature environment. Wait for the engine to cool down for two hours before using it.

    0 of 0 found this review helpful
  10. Manuel Schuwerk (verified owner)

    Very kind customer support via WhatsApp and the product works also perfect. Product: SVB308 endoscop camera.

    0 of 0 found this review helpful
  11. Placeholder

    I’ve used it several times when working in tight inaccessible places and it works well. Picture is clear and the light works well

    0 of 0 found this review helpful
  12. jennie

    This is my second scope, and I vastly prefer this one over the other one. This one has a big, beautiful display that is quite clear and easy to see. The scope line is on the shorter side (my other one has a 15′ line), but that will be fine for 95% of the uses I have for it.

    0 of 0 found this review helpful
  13. fUNWiThTyPiNg

    The machine actually works very well too, thank you so much for their online support, very happy shopping!

    0 of 0 found this review helpful
  14. BIKER CLASSIC

    The quality is very good, the camera sees very clearly, I like this product

    0 of 0 found this review helpful
  15. Justin Cacho

    Unexpectedly, the quality is very good, the camera is very clear

    0 of 0 found this review helpful
  16. Thomas D.

    Works fine. Seems pretty well built. Decent picture quality.

    0 of 0 found this review helpful
  17. Baldwin Evan

    Very well built, good lighting and super clear camera.
    This a very good quality device, definitely get the fish tape they recommend on the site to guide the probe. The fish tape they recommend on the product page really helps to make the probe cam go down a pipe smoothly.

    0 of 0 found this review helpful
  18. mario vergano

    The delivery was fast, the quality was good, the image was clear, and it allowed me to use it in a small space

    0 of 0 found this review helpful
  19. Amanda Emmie

    The screen display is great, easy to operate, and the quality is great, totally exceeding expectations!

    0 of 0 found this review helpful
  20. Steven

    This is a great camera every shop should own. With its flexibility it’s able to go wherever you need it to be. The lens is small enough to look through the valves of an engine.

    The battery is long lasting and the product has a good quality in its own.

    The rotation of the lens is a bit tricky at first. With enough exercise you can easily navigate it to the place of destination.

    The resolution is really good and the picture is sharp.

    I can really recommend the product.

    0 of 0 found this review helpful
  21. jeffrey Perez

    Well, the borescope is nice and that’s a big help. You don’t need to crawl any further to see what’s wrong with the engine.

    0 of 0 found this review helpful
  22. Alexandros Boutos

    I was recommended AUTOOL’s products by a friend, and I have to say, I¡¯m really impressed. I¡¯ll definitely be buying more.

    0 of 0 found this review helpful
  23. Ethan

    Doesn’t need to be connected to your phone, but it’s easy to sync on your iPhone/iPad. Very easy to test spark plug holes and the camera can be adjusted for brightness, which I love!

    0 of 0 found this review helpful
  24. stef veenis (verified owner)

    Echt goed

    0 of 0 found this review helpful
  25. Dudley

    The product packaging is complete, the quality of the touch is very good, the actual use of the process is also very satisfied, can help me look at the survey of the situation in the pipeline, this product is too good!

    0 of 0 found this review helpful
  26. Ula Clare

    This scope is super handy! I really like the bendable camera¡ªbeing able to control the angle with the joystick makes it so much easier to see hard-to-reach spots.

    0 of 0 found this review helpful
  27. Paddy Bert

    The AUTOOL articulating borescope is impressively flexible. Its bendable probe easily navigates tight engine spaces and complex areas without the need to disassemble parts. This flexibility makes inspections quicker and more efficient, saving both time and effort. A must-have tool for any mechanic dealing with hard-to-reach spots.

    0 of 0 found this review helpful
  28. Weisz Vilmos (verified owner)

    The delivery was fast, the quality is good, the picture is clear!

    0 of 0 found this review helpful
  29. Robert (verified owner)

    Great camera at an affordable and competitive price

    0 of 0 found this review helpful
Leave A Review

Your email address will not be published. Required fields are marked *

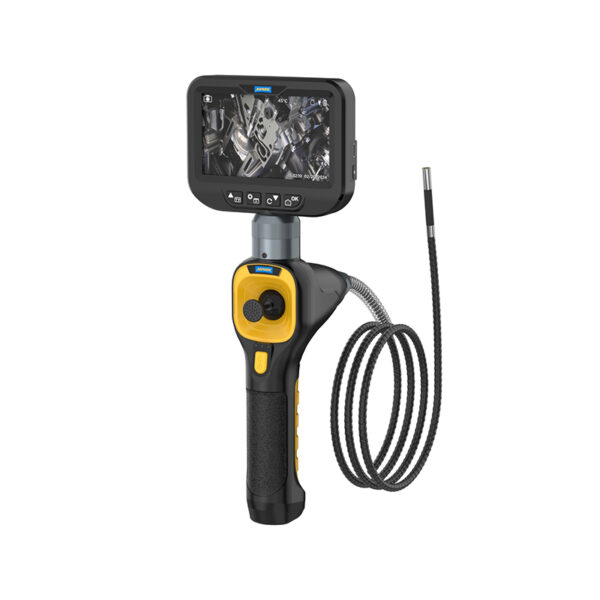

AUTOOL SVB308 Car Inspection Camera Articulating Borescope
AUTOOL SVB308 Car Inspection Camera Articulating Borescope

Original price was: US$319.00.Current price is: US$205.00.

Add to cart This product has multiple variants. The options may be chosen on the product page
