AUTOOL ATL-4.5DA Asymmetric Structure Electric Unlocking Gantry Car Lift two post vehicle lift
Price range: US$3,099.00 through US$3,199.00
Key Features
- Asymmetric Vehicle Access
- Chainless Direct Drive
- Synchronized Safe Unlocking
- Asymmetric Vehicle Access: The asymmetric structure and stronger support arms are positioned for easier loading and better fit with low-chassis vehicles.
- Chainless Direct Drive: The direct-drive hydraulic system avoids chain-related breakage or derailment risks during lifting.
- Synchronized Safe Unlocking: Single-side control together with the hook-type safety lock is designed to reduce tilt and slippage risk.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support
AUTOOL ATL-4.5DA
Product Overview

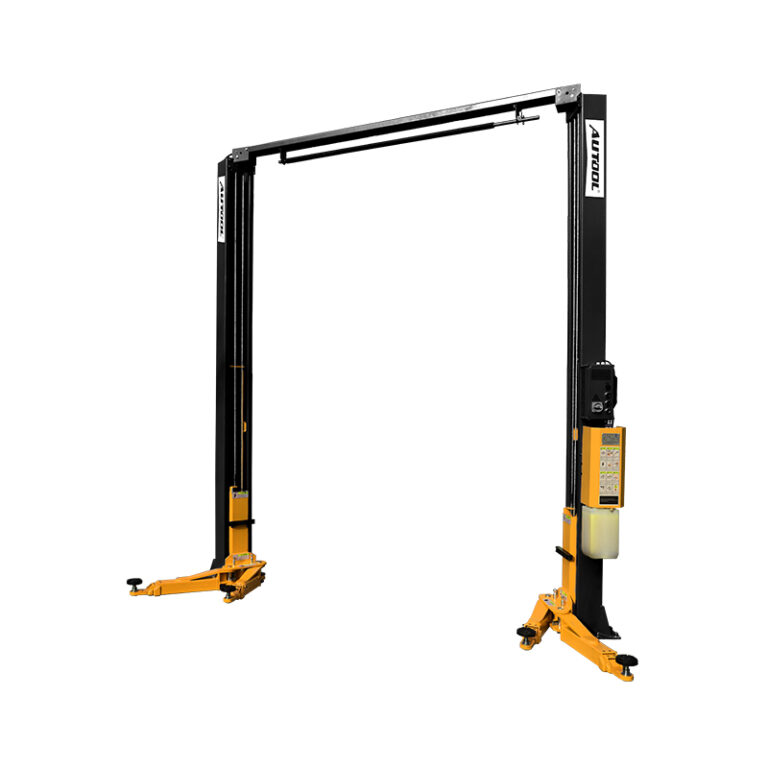

The AUTOOL ATL-4.5DA asymmetric structure two post vehicle lift is a professional 4500kg gantry lift designed for automotive repair shops, service centers, and busy workshop environments. It combines an electric control system, one-side synchronous unlocking operation, dual-side safety locking, direct-drive hydraulic lifting, hook-type safety lock protection, reinforced support arms, and a high-strength carriage structure to deliver safer, more stable, and more efficient vehicle lifting for daily repair work.
4500kg Capacity Electric Unlocking Asymmetric Structure Direct-Drive Hydraulic
4500kgLifting Capacity
95mmMinimum Height
1990mmMax Lifting Height
2.2kWMotor Power
Key Features
Key Features
The ATL-4.5DA is built for high-frequency professional vehicle lifting, combining reinforced steel structure, chain-free hydraulic drive, hook-type safety locking, asymmetric access, and low-chassis vehicle support.
Reinforced 1.95m Carriage
The 1.95m high-strength carriage is 50% longer and heavier than standard lift carriages, improving lifting stability for professional workshop use.
Direct-Drive Hydraulic System
The direct-drive hydraulic system eliminates chains, reducing risks related to chain breakage, derailment, and long-term chain maintenance.
Hook-Type Safety Lock
The stable hook-type safety lock helps prevent slippage caused by slider wear, improving safety during lifting operations.
One-Side Synchronous Unlocking
One-sided operation can synchronously control both side locking columns, reducing workload and helping avoid vehicle tilt caused by unlocking only one side.
Low-Chassis Vehicle Support
The enhanced second and third support arms are 20% stronger than standard lift arms and are designed for sports cars and ultra-low chassis vehicles.
Adjustable Screw Pads
Standard three-stage screw pads and height adjustment sleeves provide flexible contact height adjustment for different vehicle models.
Thickened Steel Structure
Solid steel plates and 16mm thickened steel plates improve load-bearing capacity, rigidity, and long-term durability.
Ratchet And Support Arm Safety
High-precision support arms and tightly fitted safety ratchets help ensure accurate positioning and reliable locking during lifting.
Click to enlargeProduct Details
Product Details

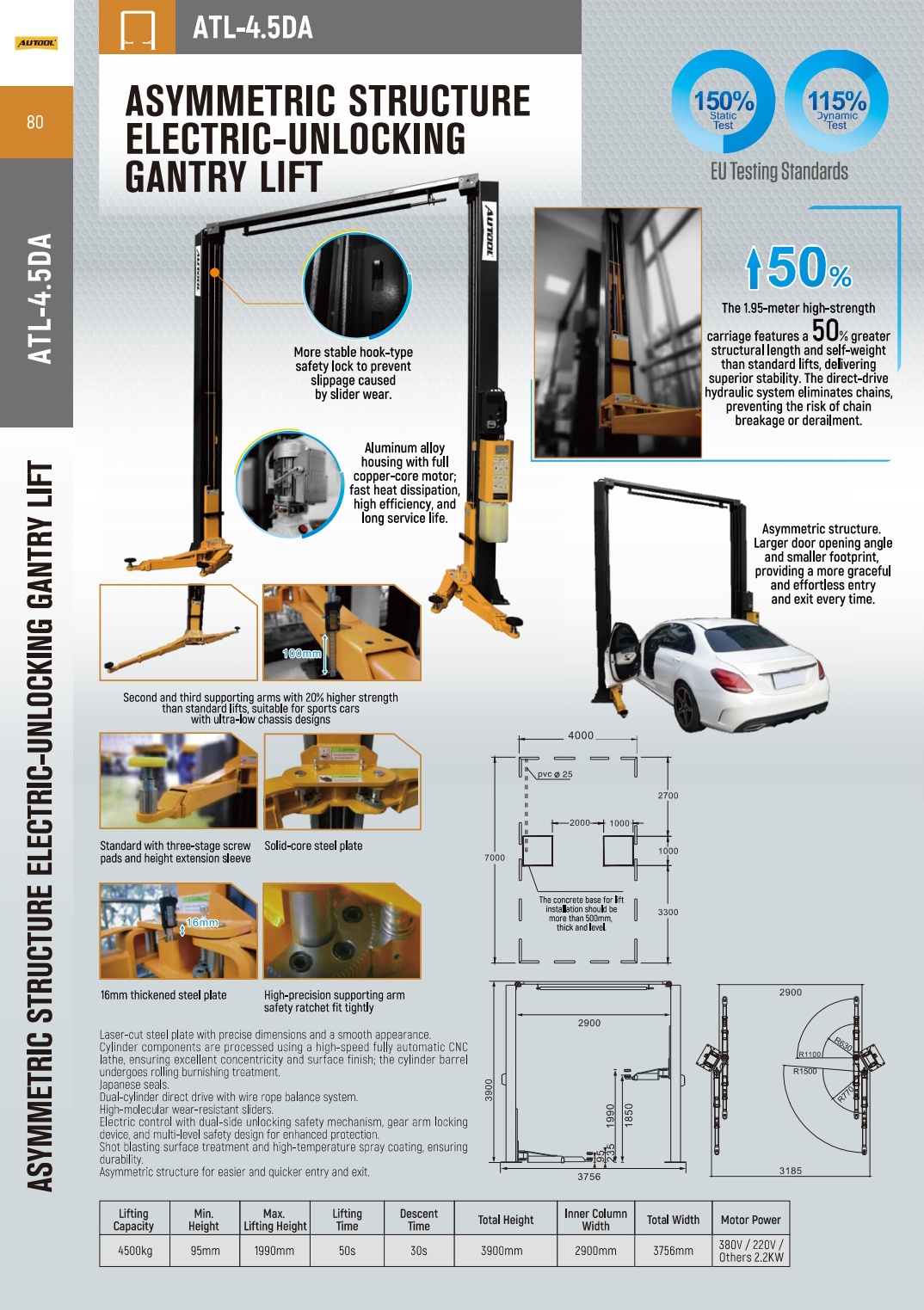

The detailed view image shows the ATL-4.5DA asymmetric gantry structure, hook-type safety lock, hydraulic motor, reinforced support arms, screw pads, thickened steel plates, installation dimensions, lifting data, and EU testing references.
Specifications
ATL-4.5DA Specifications
Review lifting performance, installation dimensions, motor options, structure type, unlocking method, and safety configuration before ordering.
| Lifting Performance | |
| Lifting Capacity | 4500kg |
| Minimum Height | 95mm |
| Maximum Lifting Height | 1990mm |
| Lifting Time | 50s |
| Descent Time | 30s |
| Dimensions | |
| Total Height | 3900mm |
| Inner Column Width | 2900mm |
| Total Width | 3756mm |
| Installation Reference | Refer to the detailed view image for installation center, column spacing, clearance and foundation reference dimensions. |
| Power And Structure | |
| Motor Power | 380V / 220V / others, 2.2kW |
| Structure Type | Asymmetric gantry two post vehicle lift |
| Unlocking | Electric unlocking with one-side synchronous operation |
| Hydraulic System | Direct-drive hydraulic system without chains |
| Safety And Support | |
| Safety Lock | Hook-type safety lock |
| Support Arms | Enhanced second and third support arms for low-chassis vehicles |
| Screw Pads | Standard three-stage screw pads and height adjustment sleeves |
| Steel Plate | Solid steel plates and 16mm thickened steel plates |
| Testing Reference | EU testing standards; detailed view image shows 150% static test and 115% dynamic test references. |
Lifting Performance
Lifting Capacity4500kg
Minimum Height95mm
Maximum Lifting Height1990mm
Lifting Time50s
Descent Time30s
Dimensions
Total Height3900mm
Inner Column Width2900mm
Total Width3756mm
Installation ReferenceRefer to the detailed view image for installation center, column spacing, clearance and foundation reference dimensions.
Power And Structure
Motor Power380V / 220V / others, 2.2kW
Structure TypeAsymmetric gantry two post vehicle lift
UnlockingElectric unlocking with one-side synchronous operation
Hydraulic SystemDirect-drive hydraulic system without chains
Safety And Support
Safety LockHook-type safety lock
Support ArmsEnhanced second and third support arms for low-chassis vehicles
Screw PadsStandard three-stage screw pads and height adjustment sleeves
Steel PlateSolid steel plates and 16mm thickened steel plates
Testing ReferenceEU testing standards; detailed view image shows 150% static test and 115% dynamic test references.
Related Products
Related Products
Use these related AUTOOL lift and alignment products to build a more complete workshop workflow around ATL-4.5DA.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATL-4.5DA Asymmetric Structure Electric Unlocking Gantry Car Lift two post vehicle lift
From US$3,099.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATL-4.5D ATL-4.5DW Two Post Car Lift 4500KG Load Capacity
From US$2,839.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATL-4D Two Post Car Lift 4000KG Load Capacity
From US$2,699.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATL-4.5F Four Post Lift
From US$4,099.00 AUTOOL ATL-4SH Four-wheel Alignment Twin Scissor Car Lift
US$5,199.00
Related Guides
Related Guides
Use these related articles to compare lift structures, confirm installation requirements, and choose the right workshop lift setup.
A Worthwhile Investment for Auto Repair Shops — Car Lift Equipment
Review how lift equipment improves workflow, safety, and productivity in a professional auto repair shop.
[AUTOOL Full Series Car Lift Analysis] Which One Should You Choose?
Compare the AUTOOL car lift lineup and decide which configuration is suitable for your workshop tasks.
How to Pick the Safe and Right Lift for Your Garage
Use this garage-lift guide to match lift type, access height, and installation needs before ordering.
Smart Lift and Wheel Alignment Machines Selection for Your Shop
Pair lift equipment with alignment machines for a smoother workshop setup and better service flow.
What Is In The Box
What Is In The Box
The available packing information includes the main and auxiliary units, pump station, and accessories box. No separate packing list image is provided, so this module is displayed as compact package cards.
Main And Auxiliary Units
Dimensions: 383 × 44 × 72cm
Weight: 647kg
Pump Station
Dimensions: 75 × 23 × 33cm
Weight: 19kg
Accessories Box
Dimensions: 40 × 40 × 25cm
Weight: 14kg
Before You Order And Use
Before You Order And Use
A two post vehicle lift is an installation-type workshop machine. Confirm ceiling height, concrete foundation, power supply, installation space, and technician installation requirements before ordering.
Installation And Safety Notes
- Confirm workshop ceiling height, floor space, and installation foundation before ordering.
- The ATL-4.5DA total height is 3900mm and total width is 3756mm.
- Refer to the detailed view image for installation center, column spacing, and foundation reference dimensions.
- The lift should be installed on a smooth, thick, and level concrete foundation.
- Confirm local power supply before ordering: 380V / 220V / other motor options may require confirmation.
- Installation should be performed by qualified personnel.
- Do not exceed the 4500kg rated lifting capacity.
- Always confirm that safety locks are engaged before working under a vehicle.
- Use the correct support arm and screw pad position for the vehicle lifting points.
Questions And Answers
These answers cover lifting capacity, lifting height, installation dimensions, motor options, asymmetric structure, chain-free hydraulic drive, low-chassis vehicle support, packing information, and professional installation.
The AUTOOL ATL-4.5DA rated lifting capacity is 4500kg.
The maximum lifting height is 1990mm, with a minimum height of 95mm.
The total height is 3900mm, the inner column width is 2900mm, and the total width is 3756mm.
The motor power options shown in the source image are 380V / 220V / others, 2.2kW. Confirm the required voltage before ordering.
The asymmetric structure provides a larger door-opening angle, smaller footprint, and more convenient vehicle entry and exit, making it suitable for busy repair shops and workshops.
No. The direct-drive hydraulic system eliminates chains, reducing chain breakage or derailment risks.
Yes. The second and third support arms are designed with 20% higher strength than standard lift arms and are suitable for sports cars with ultra-low chassis designs.
The package information includes main and auxiliary units, pump station, and accessories box. Main and auxiliary units are 383 × 44 × 72cm / 647kg; pump station is 75 × 23 × 33cm / 19kg; accessories box is 40 × 40 × 25cm / 14kg.
Yes. A two post vehicle lift should be installed by qualified personnel on a suitable level concrete foundation. Confirm workshop height, floor space, foundation, voltage, and installation requirements before ordering.
Warranty And Contact
Warranty And Contact
Contact AUTOOL Store before ordering to confirm voltage option, workshop dimensions, foundation requirements, shipping package size, installation details, and price quotation.
Pre-Sales And Product Support
Use support if you need help confirming ATL-4.5DA installation space, ceiling height, power supply, foundation requirements, package dimensions, shipping weight, safety configuration, or whether this asymmetric two post lift is suitable for your workshop.
- ATL-4.5DA price inquiry and quotation support
- Voltage option confirmation: 380V / 220V / other motor options
- Workshop height, total width, and installation space confirmation
- Foundation and installation requirement confirmation
- Package size, weight, and shipping confirmation
- Support arm, screw pad, safety lock, and low-chassis vehicle support confirmation
