AUTOOL PT650 ATF Exchanger Transmission Oil Pressure Gauge
US$119.00

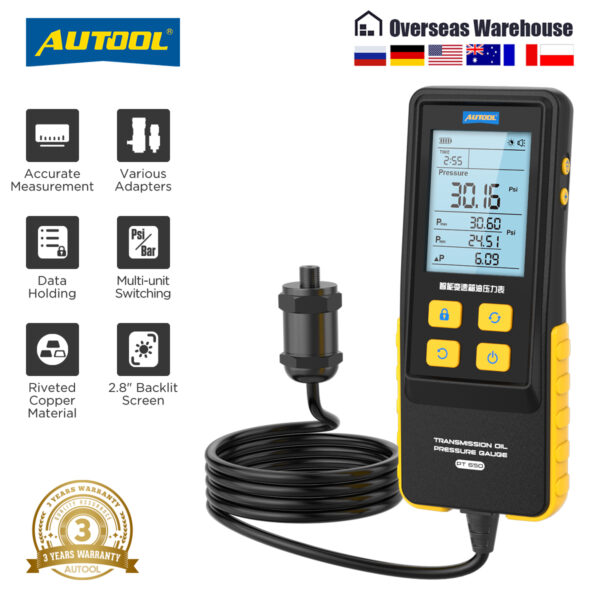

Key Features
- Data Lock
- Multi-Unit Switch
- Corrosion-Resistant Build
- Data Lock: Locks in test data so results stay available for review.
- Multi-Unit Switch: Switch between pressure units during diagnostics.
- Corrosion-Resistant Build: Made from high-end materials for longer service life.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support
AUTOOL PT650
Product Overview

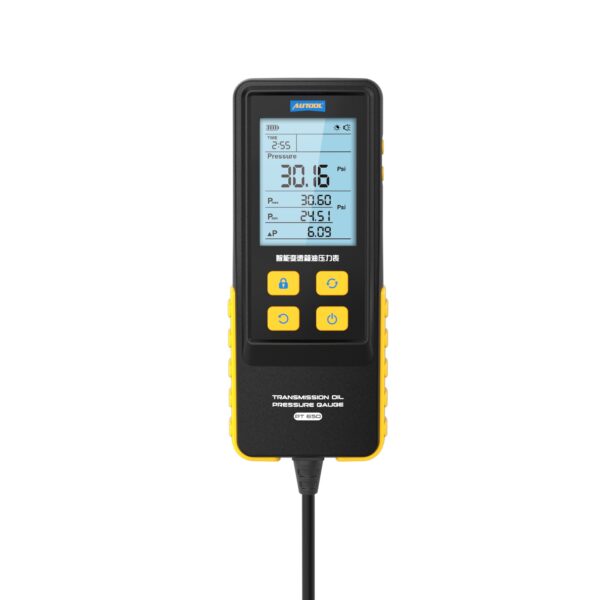

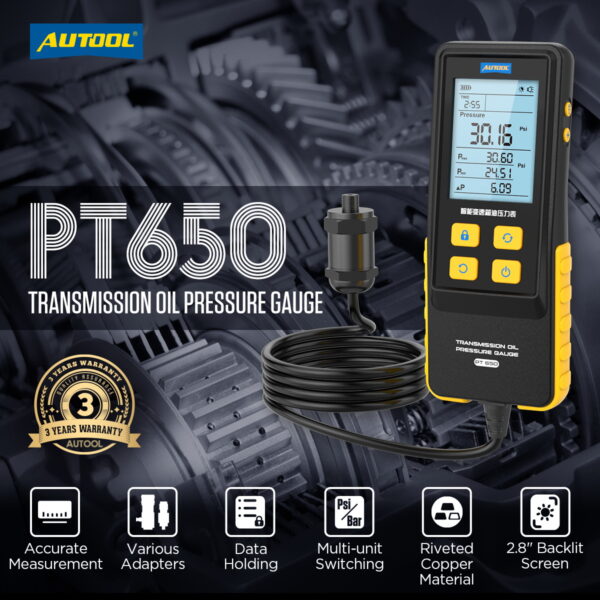

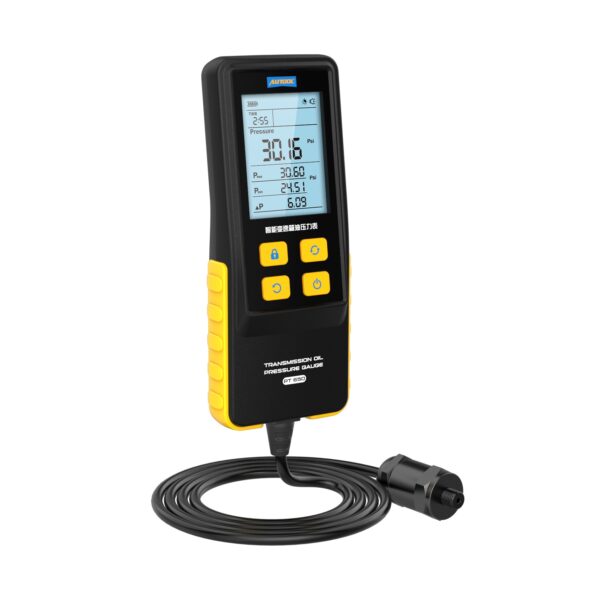

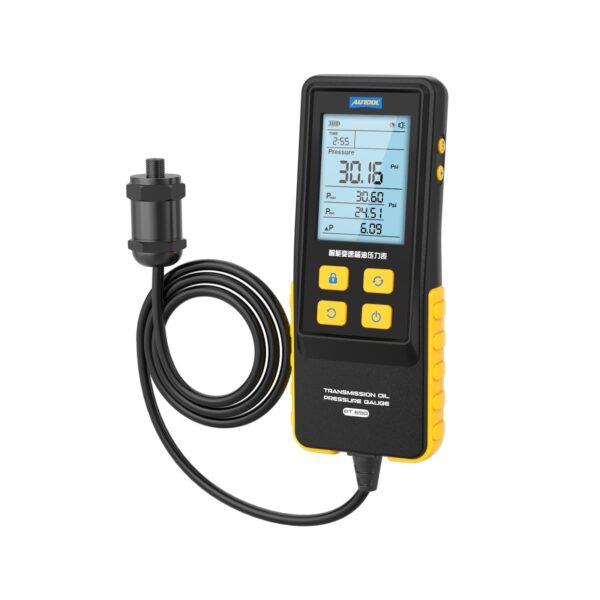

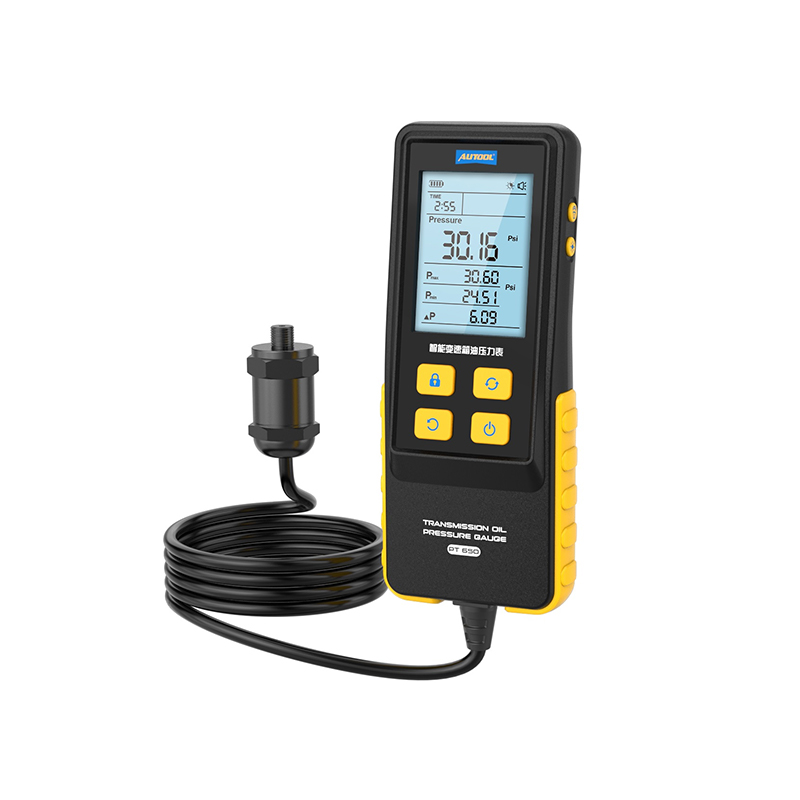

The AUTOOL PT650 is a digital transmission oil pressure gauge for checking automatic transmission oil pressure during vehicle diagnosis and maintenance. It combines a 2.8-inch backlit display, multi-unit pressure readings, data holding, interface lock, zeroing, and a durable adapter and hose set for clearer workshop testing.
Transmission Oil Pressure 0-426.6 PSI 2.8″ Backlit Screen Data Holding
0-30 barManual Range
0.5% FSAccuracy
0.01Resolution
4 × AAABattery Type
Click to enlarge
Click to enlargeProduct Comparison
Product Comparison
PT650 is the transmission oil pressure gauge in the AUTOOL PT pressure tester range. Compare the test system, pressure range, connector set, display size, data function, toolbox, and application before choosing a model.
PT650 FocusDesigned for automotive transmission pressure system testing with a 2.8-inch display, 0-30 bar class range, 12-type connector set, equipped toolbox, and data lock / clear / record function.
PT610Cylinder pressure gauge for engine cylinder pressure testing, with 6 sets of data storage and 10 types of accessory connectors.
PT620Engine oil pressure gauge kit for engine oil circulation system testing, with 18 types of accessory connectors.
PT630 / PT635Fuel pressure gauge options for automotive fuel system testing. PT635 is the high-end fuel pressure gauge version with more connector types.
PT640 / PT660PT640 is for GDI fuel pressure testing up to 0-360 bar. PT660 is for internal brake system fluid pressure testing and supports dual-channel brake pressure measurement.
Decision CheckChoose by test system first: cylinder, engine oil, fuel, GDI fuel, transmission oil, or brake system. Do not use PT650 as a substitute for fuel, GDI, cylinder, or brake pressure tools.
Click to enlargeKey Features
Key Features

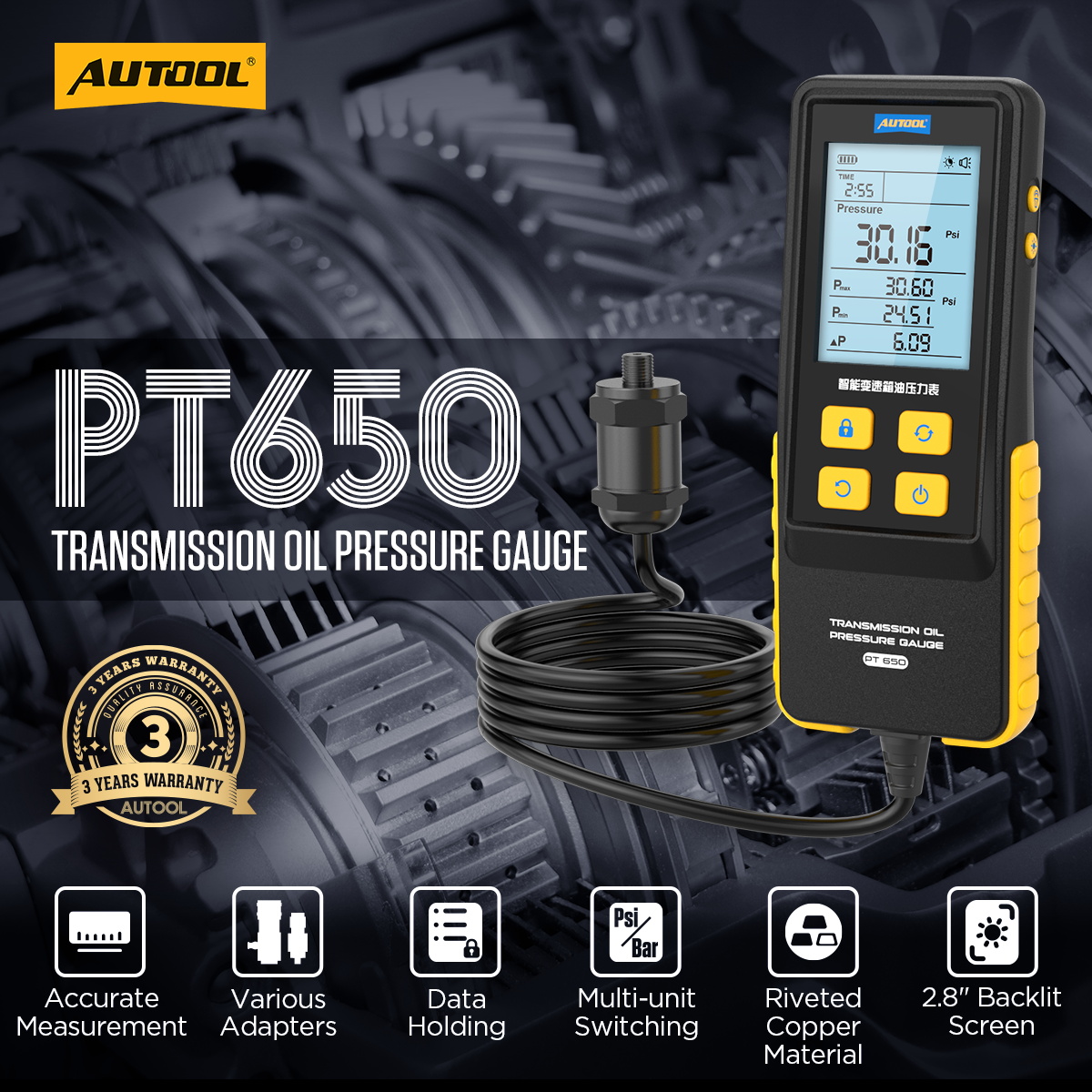

PT650 focuses on transmission oil pressure diagnosis with digital pressure measurement, clear display information, multiple pressure units, data holding, zeroing, and a connector set for transmission pressure test points.

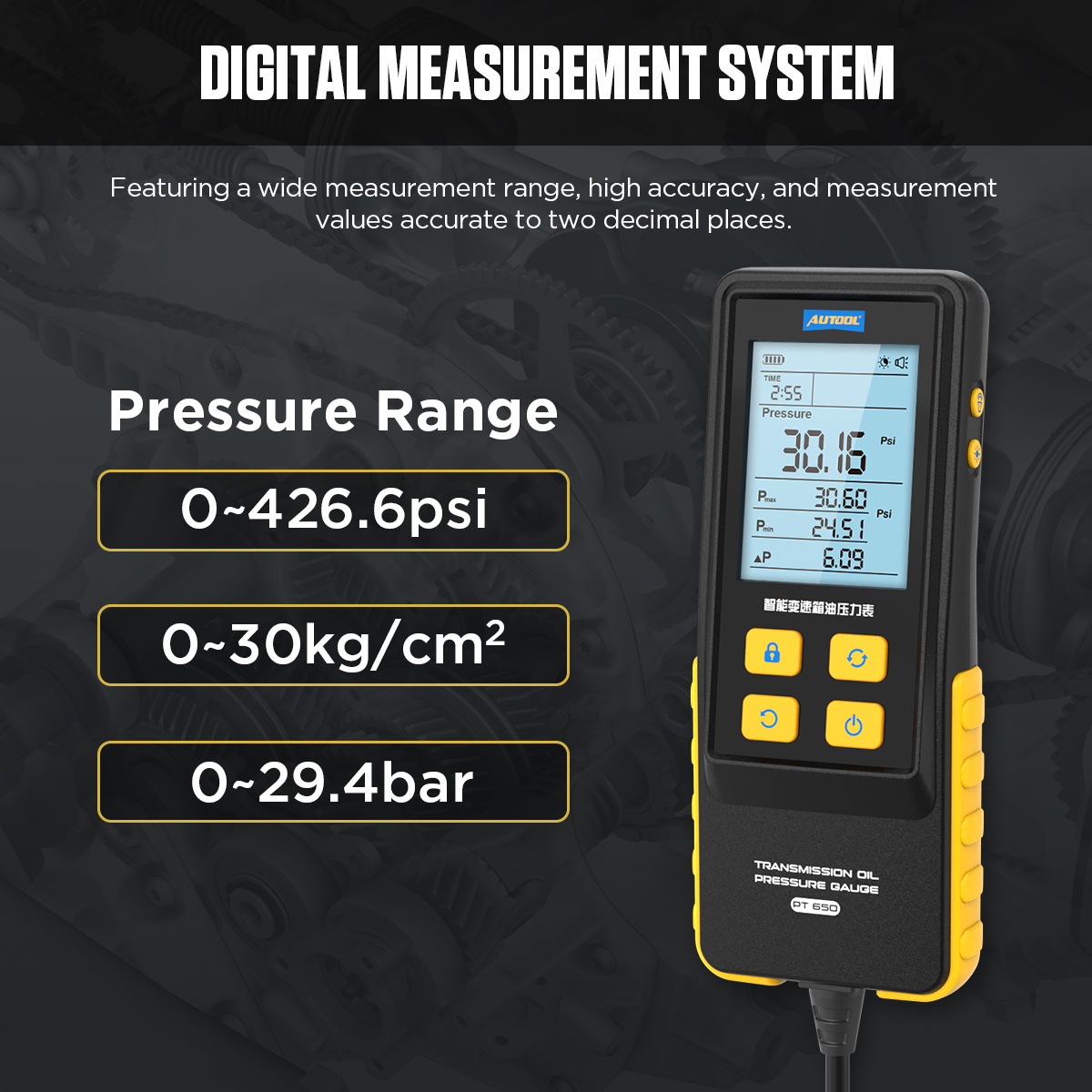

Digital Pressure Measurement
Measures transmission oil pressure with a manual-listed 0-30 bar range, 0.5% FS accuracy, and 0.01 display resolution for workshop diagnosis.

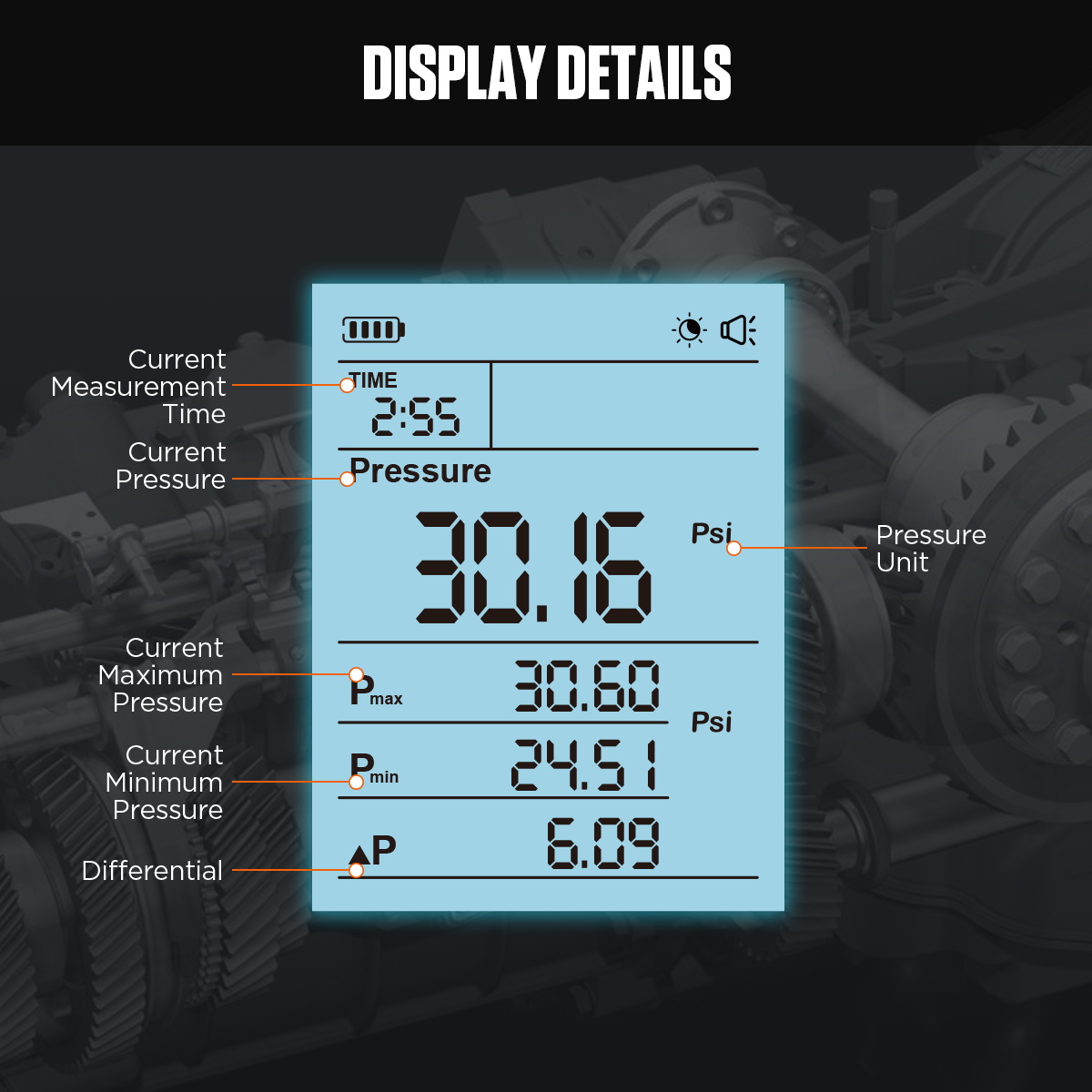

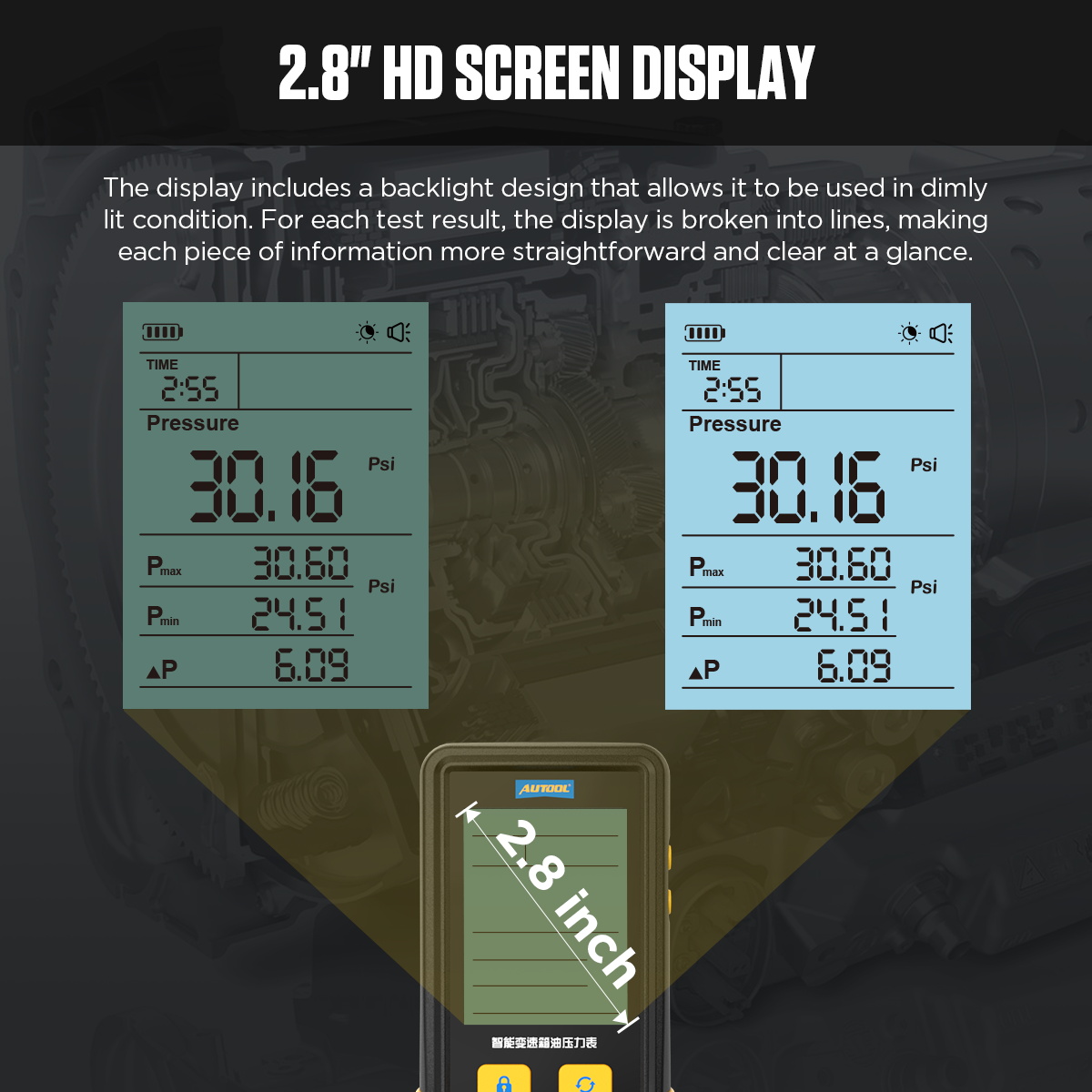

2.8″ Backlit Display
The screen shows current pressure, measurement time, pressure unit, maximum pressure, minimum pressure, and differential pressure in a clear layout.

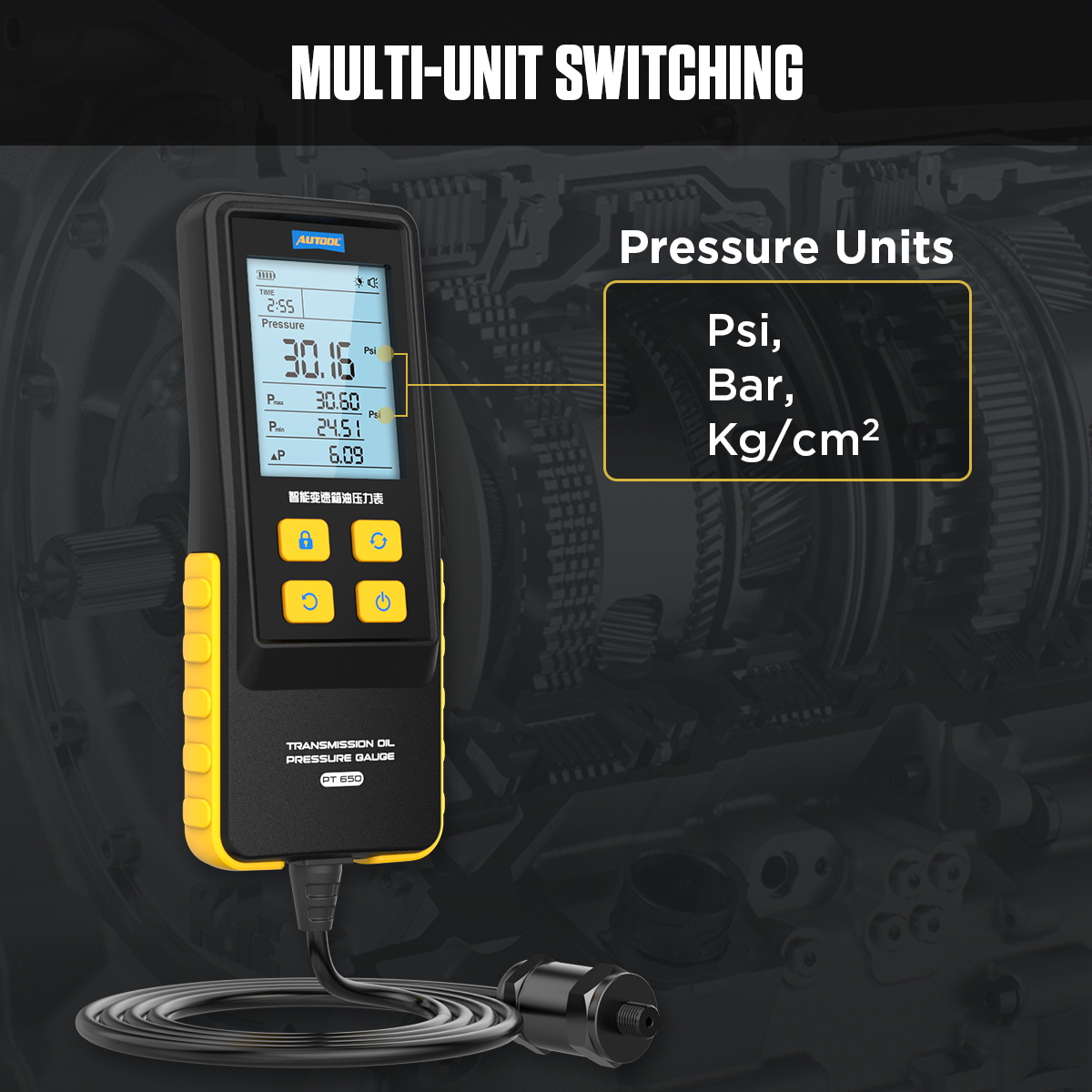

Multi-Unit Switching
Switch between PSI, Bar, and Kg/cm² to match different service habits and test references.

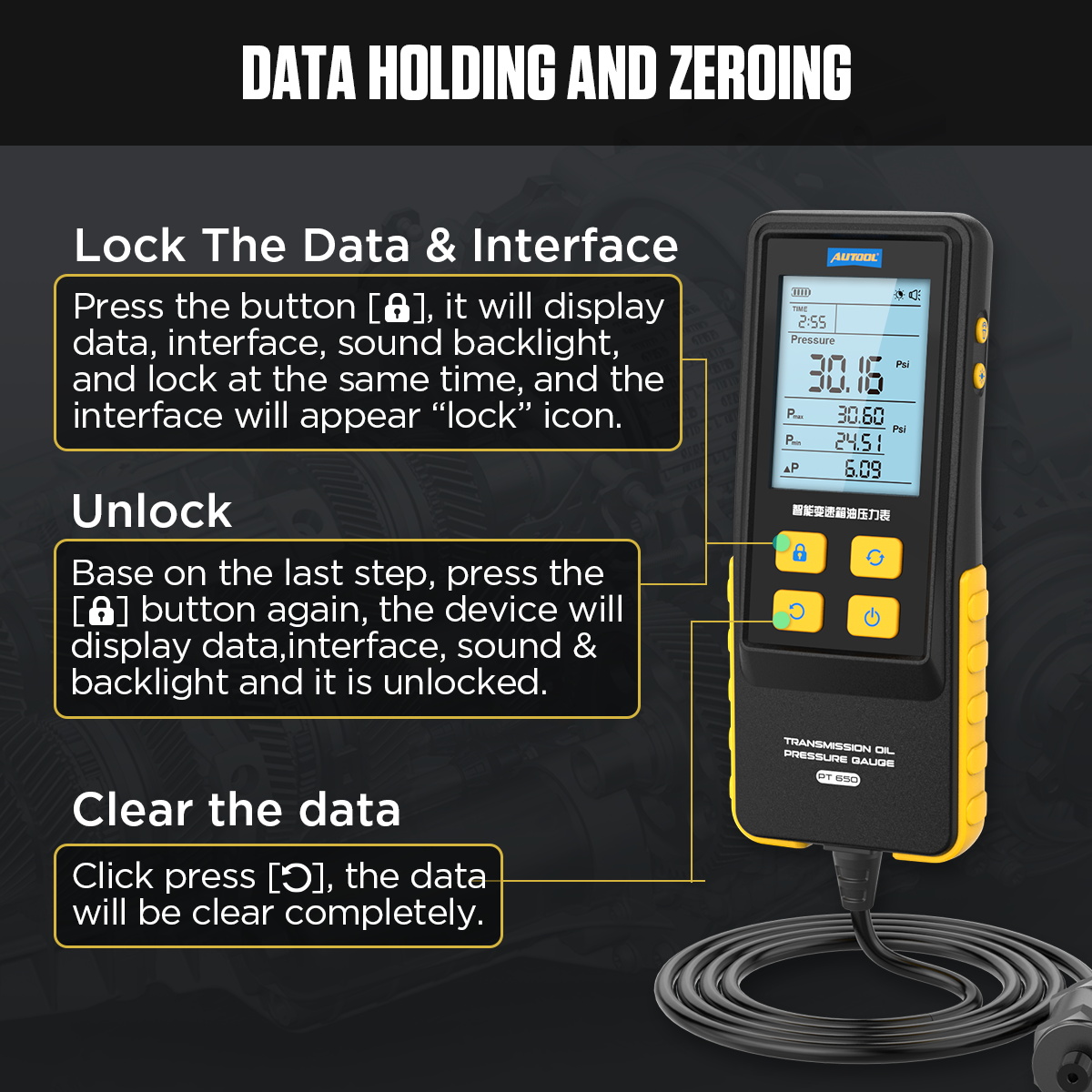

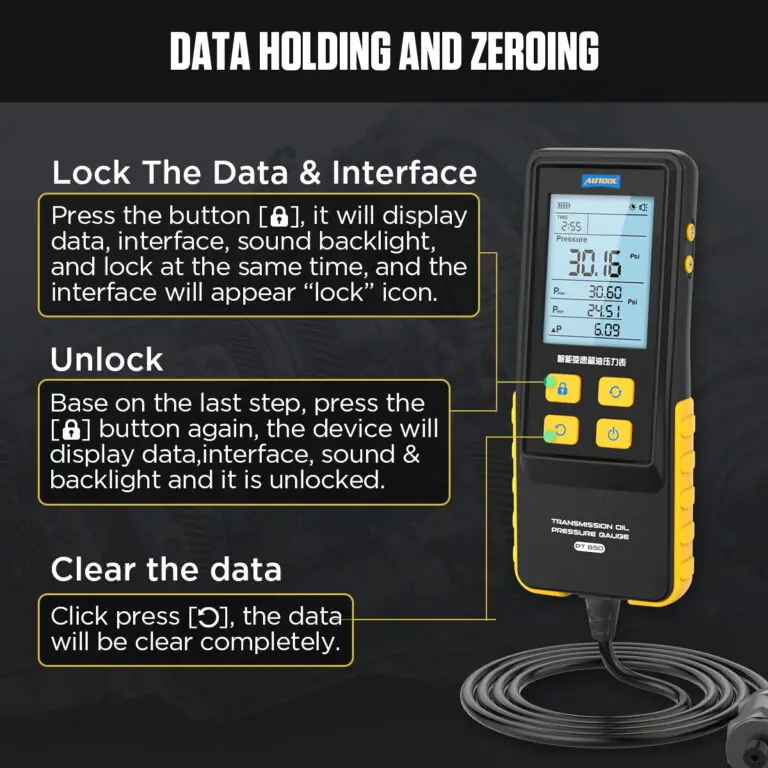

Data Holding And Zeroing
Supports interface lock, data holding, clear data, test time reset, and pressure zeroing before measurement.

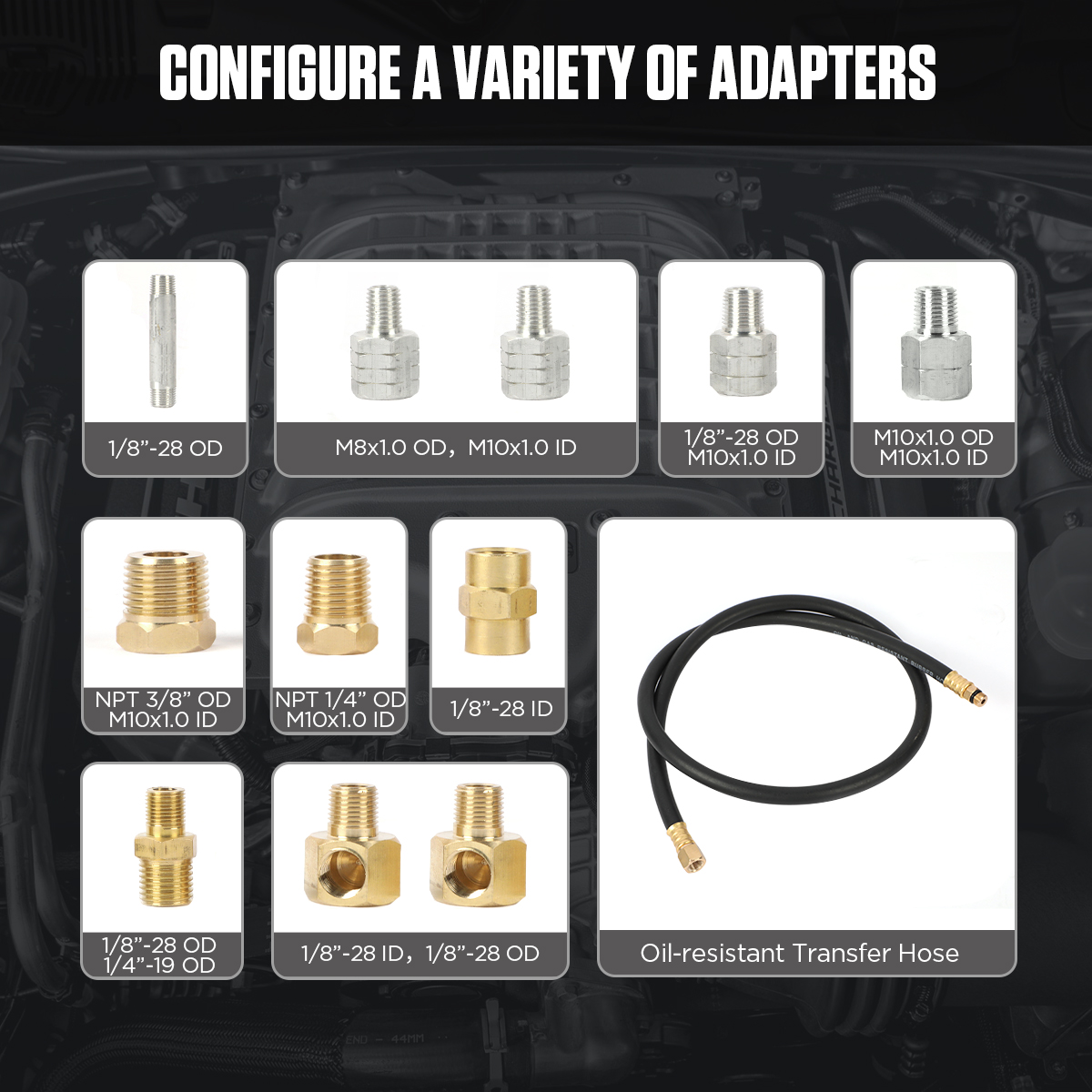

Riveted Copper Adapters
The included adapter set uses riveted copper fittings with high hardness, wear resistance, and oxidation resistance.
Oil-Resistant Transfer Hose
The hose set is designed for transmission pressure connection work and is shown with the connector kit in the package image.
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlargeSpecifications
AUTOOL PT650 Product Specifications
PT650 uses four AAA batteries, supports Bar / Kg/cm² / PSI pressure units, and provides a backlit display with current pressure, maximum pressure, minimum pressure, differential pressure, and measurement time.
| Measurement | |
| Product | AUTOOL PT650 Transmission Oil Pressure Gauge |
| Application | Automotive transmission pressure system testing |
| Manual Range | 0-30 bar |
| Feature Image Range | 0-426.6 psi / 0-30 kg/cm² / 0-29.4 bar |
| Pressure Units | Bar, Kg/cm², PSI |
| Accuracy | 0.5% FS |
| Resolution | 0.01 bar / 0.01 kg/cm² / 0.01 PSI |
| Overload Pressure | 40 bar |
| Power And Display | |
| Operating Voltage | 6V |
| Battery Type | Four AAA batteries |
| Display Screen | 2.8-inch backlit display |
| Operating Temperature | -10°C to 60°C |
| Interface Display | Current pressure, current maximum pressure, current minimum pressure, differential pressure, pressure unit, and measurement time |

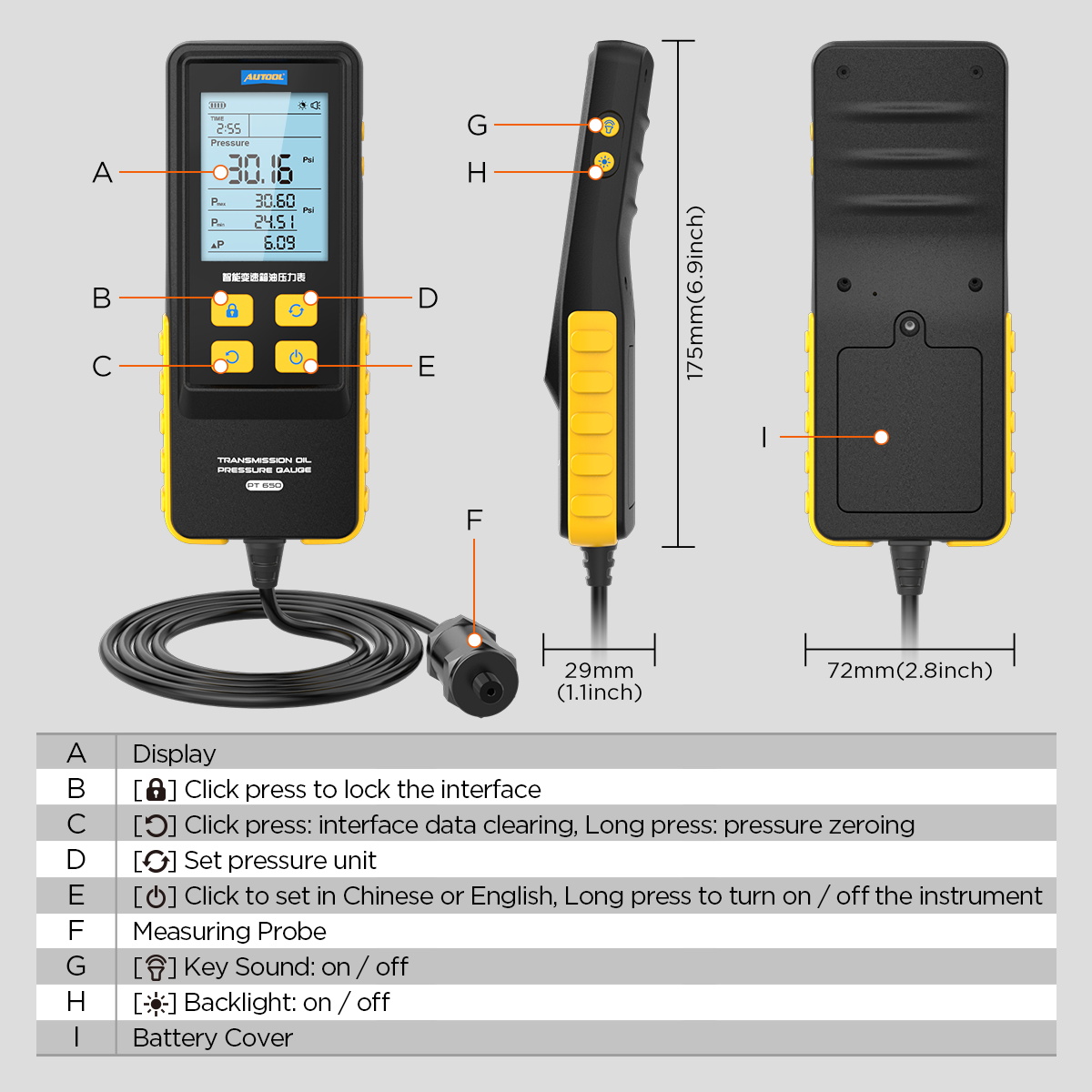

| Structure And Controls | |
| A | Display |
| B | Click to lock / unlock the interface |
| C | Click to clear interface data; long press for pressure zeroing |
| D | Set pressure unit |
| E | Click to switch Chinese / English; long press to turn the instrument on / off |
| F | Measuring probe |
| G | Key sound on / off |
| H | Backlight on / off |
| I | Battery cover |
Click to enlargeMeasurement
ProductAUTOOL PT650 Transmission Oil Pressure Gauge
ApplicationAutomotive transmission pressure system testing
Manual Range0-30 bar
Feature Image Range0-426.6 psi / 0-30 kg/cm² / 0-29.4 bar
Pressure UnitsBar, Kg/cm², PSI
Accuracy0.5% FS
Resolution0.01 bar / 0.01 kg/cm² / 0.01 PSI
Overload Pressure40 bar
Power And Display
Operating Voltage6V
Battery TypeFour AAA batteries
Display Screen2.8-inch backlit display
Operating Temperature-10°C to 60°C
Interface DisplayCurrent pressure, current maximum pressure, current minimum pressure, differential pressure, pressure unit, and measurement time
Structure And Controls
ADisplay
BClick to lock / unlock the interface
CClick to clear interface data; long press for pressure zeroing
DSet pressure unit
EClick to switch Chinese / English; long press to turn the instrument on / off
FMeasuring probe
GKey sound on / off
HBacklight on / off
IBattery cover

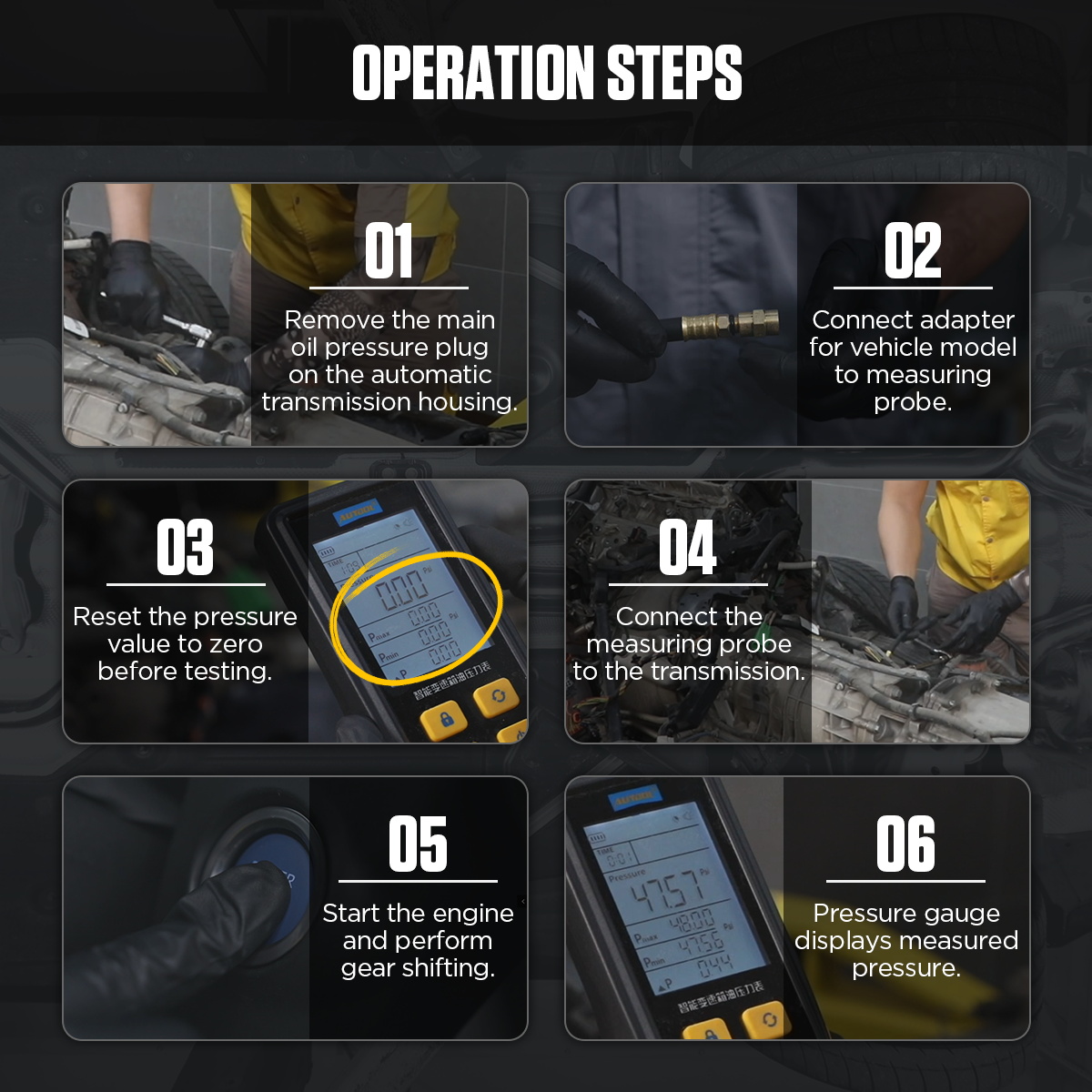

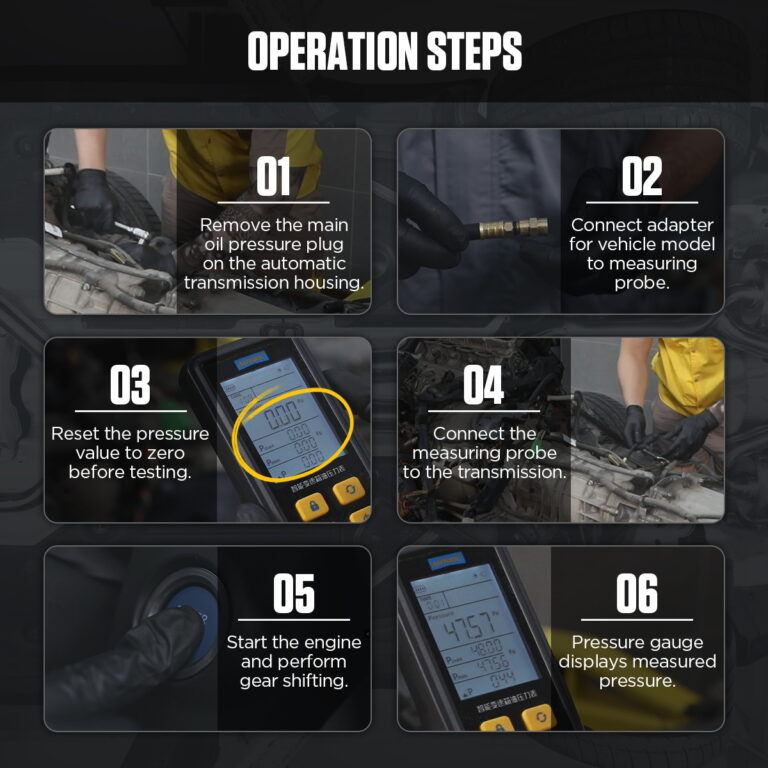

How To Use
How To Use
Use the PT650 with the correct transmission pressure test point, suitable adapter, proper zeroing, and safe vehicle-specific test procedure. The operation image summarizes the main testing sequence.
Remove The Main Oil Pressure Plug
Remove the main oil pressure plug on the automatic transmission housing according to the vehicle service procedure.
Connect The Adapter
Select the adapter that matches the vehicle model and connect it to the measuring probe.
Zero The Pressure
Reset the pressure value to zero before testing to help keep the reading reliable.
Connect To The Transmission
Connect the measuring probe to the transmission pressure test point securely.
Start And Shift
Start the engine and perform gear shifting as required by the vehicle test process.
Read The Pressure
The pressure gauge displays measured pressure and related readings for diagnosis.
Use Notes
- Insert four 1.5V AAA batteries and confirm correct polarity before operation.
- Long press the power / language button for more than 2 seconds to start the instrument.
- Zero the pressure before testing, and select the desired pressure unit before reading the result.
- After measurement, shut down the unit under atmospheric pressure.
- The device automatically powers off after 5 minutes of inactivity when no pressure is applied.
Click to enlargeBefore You Order And Use
Before You Order And Use
Review the PT650 battery, zeroing, pressure range, overload, shutdown, and storage requirements before testing transmission oil pressure.
Use Four AAA Batteries
PT650 uses four AAA batteries and 6V operating voltage. Install batteries with correct polarity and close the battery cover securely.
Zero Before Testing
Perform pressure zero setting before measurement. The real-time pressure should display as 0 before testing begins.
Do Not Overload
The manual lists 40 bar overload pressure. Do not use PT650 beyond its intended pressure range or in unsuitable systems.
Use The Correct Tool
PT650 is for transmission pressure testing. Use PT610, PT620, PT630 / PT635, PT640, or PT660 for cylinder, engine oil, fuel, GDI fuel, or brake pressure systems.
Power Off Correctly
After measurement, long press the power button for 2 seconds to shut down, and do this under atmospheric pressure.
Store Dry
Check tightened and connected parts regularly, avoid corrosive liquids, and store the product in a dry, ventilated place when not in use.
Maintenance Reminder
- Avoid rubbing or wearing the product against rough surfaces, especially the housing.
- Tighten loose connected parts in time to help ensure safe operation.
- Parts that contact chemical media should be maintained to improve corrosion resistance.
- Replace aging wires or worn parts if they affect safe use.
- Do not store the product in hot, humid, or non-ventilated places.
Click to enlargeWhat Is In The Box

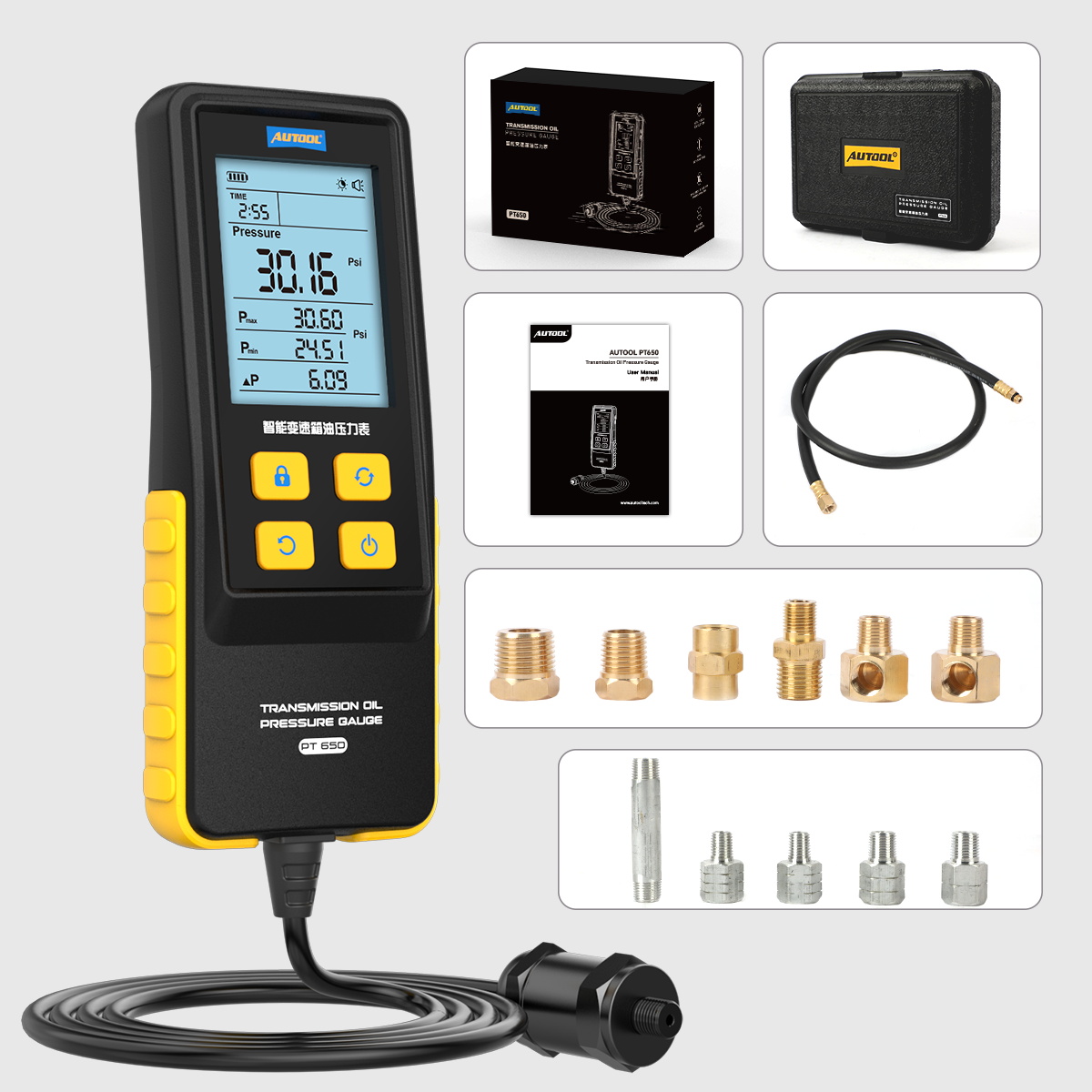

What Is In The Box
The packing list image shows the PT650 main unit, carrying case, retail box, user manual, oil-resistant transfer hose, and connector set. Final accessories should follow the package image and actual product configuration.
Main UnitAUTOOL PT650 transmission oil pressure gauge with measuring probe

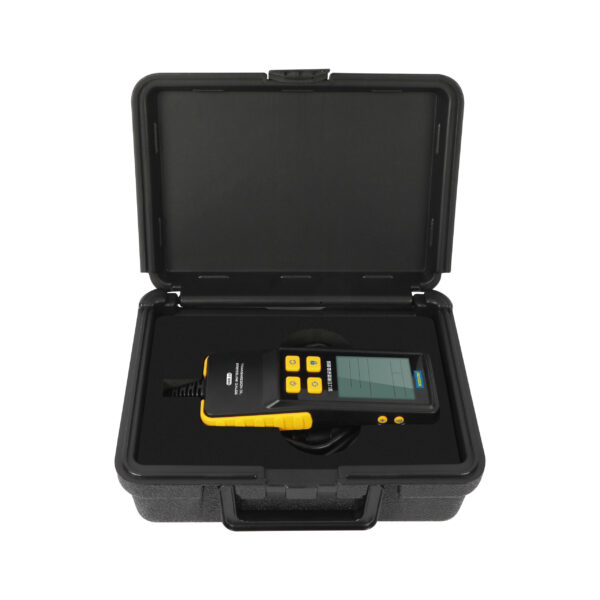

ToolboxEquipped carrying case shown in the package image
ManualAUTOOL PT650 user manual
Transfer HoseOil-resistant transfer hose shown in the package image
Connector Set12-type accessory connector set shown in the comparison and package images
Retail BoxAUTOOL PT650 product packaging shown in the image
Related Products
Related Products
Compare related AUTOOL pressure testers for cylinder, engine oil, fuel, GDI fuel, transmission oil, and brake system pressure diagnosis.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT610 Cylinder Pressure Gauge Automotive Tool
From US$119.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT620 Engine Oil Pressure Gauge with Digital Display
From US$179.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT635 Fuel Pressure Gauge(Hight-end Version) 0-426 PSI Digital Display Automotive Tool for Motorcycle Car Truck
From US$259.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT640 GDI Fuel Pressure Gauge 0-360Bar Digital Measurement Pressure Gauge
From US$189.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT650 ATF Exchanger Transmission Oil Pressure Gauge
From US$119.00
Manual And Downloads
Manual And Downloads
Download the PT650 user manual for technical specifications, structure, interface display, battery installation, operation, maintenance, warranty, and return information.

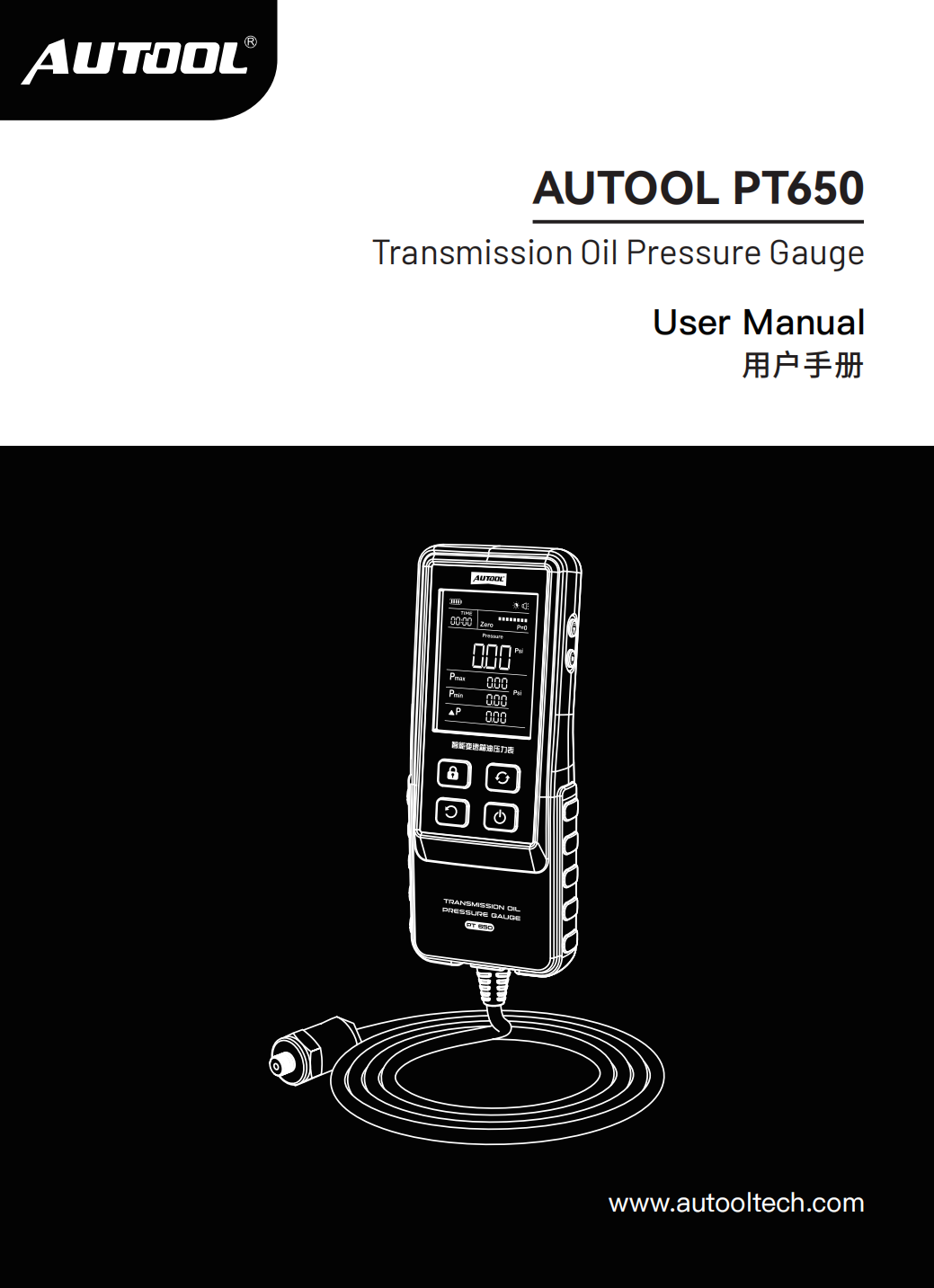

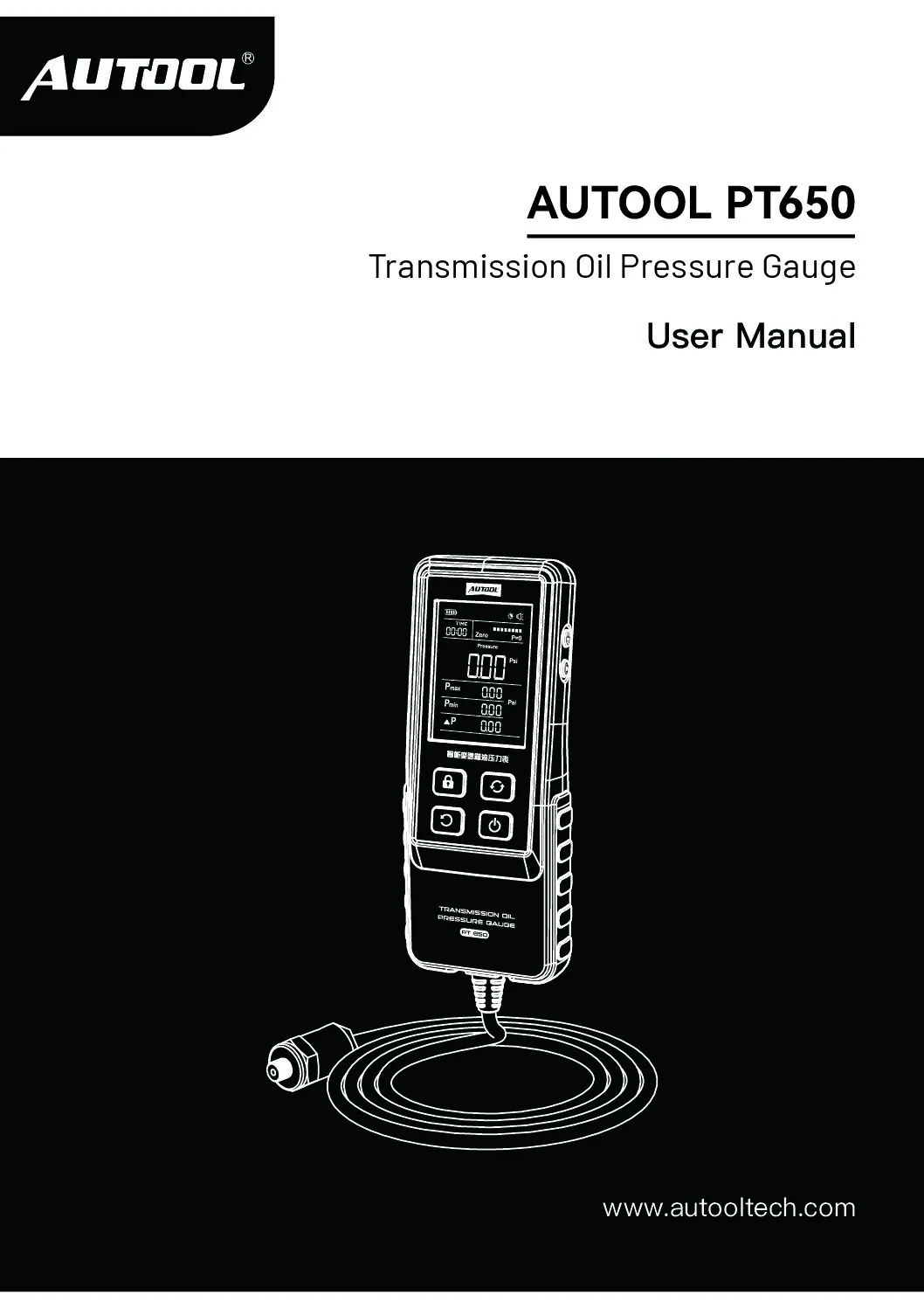

Click to enlargeAUTOOL PT650 User Manual
Open the PDF manual for PT650 setup, battery installation, operating instructions, data lock, zeroing, maintenance, and warranty details.
Download ManualNeed Model Confirmation?
Contact AUTOOL Store before ordering if you need to confirm transmission pressure testing, adapter matching, PT series model selection, or package contents.
Questions And Answers
These answers cover PT650 application, pressure range, units, battery type, data holding, zeroing, adapters, PT series selection, shutdown, and warranty.
AUTOOL PT650 is used for automotive transmission pressure system testing. It is intended for transmission oil pressure diagnosis and should not be used as a substitute for cylinder, engine oil, fuel, GDI fuel, or brake pressure testers.
The manual lists a 0-30 bar range, 0.5% FS accuracy, 0.01 bar / 0.01 kg/cm² / 0.01 PSI resolution, and Bar, Kg/cm², and PSI units. The product feature image also presents equivalent display ranges of 0-426.6 psi, 0-30 kg/cm², and 0-29.4 bar.
No. PT650 supports data holding, interface lock, clear data, and pressure zeroing. The PT series comparison chart marks PT650 data storage as unavailable, while the 6-set data storage feature belongs to PT610 in the comparison chart.
PT650 uses four AAA batteries and has a 6V operating voltage. Open the battery cover on the back of the device, insert four 1.5V AAA batteries with correct polarity, and close the cover securely before use.
Long press the zero / clear button for pressure zero setting before measurement. The real-time pressure display should show 0 before you begin the transmission pressure test.
Refer to the Packing List image for the final package contents. The image shows the PT650 main unit, carrying case, retail box, user manual, oil-resistant transfer hose, and connector set. The comparison chart lists PT650 with 12 types of accessory connectors.
PT650 is for automotive transmission pressure testing. For other systems, choose the corresponding PT series model: PT610 for cylinder pressure, PT620 for engine oil pressure, PT630 / PT635 for fuel pressure, PT640 for GDI fuel pressure, and PT660 for brake system pressure.
After measurement is complete, long press the power button for 2 seconds to shut down. The manual states that shutdown should be conducted under atmospheric pressure. The device also automatically powers off after 5 minutes of inactivity when no pressure is applied.
The manual states that the main unit is covered by a three-year warranty from the date of receipt, while included accessories are covered by a one-year warranty. Warranty handling depends on the actual breakdown situation and purchase channel.
Warranty And Contact
Warranty And Contact
For PT650 transmission pressure testing setup, adapter confirmation, manual download, pressure range questions, PT series model selection, warranty, or troubleshooting, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming PT650 compatibility with your transmission pressure test point, selecting an adapter, comparing PT series pressure testers, downloading the manual, or checking warranty and replacement accessory options.
- Transmission pressure testing setup support
- Adapter and connector confirmation
- PT610 / PT620 / PT630 / PT635 / PT640 / PT650 / PT660 model selection
- Battery, zeroing, unit switching, data holding, and display operation support
- Packing List and accessory confirmation
- Main unit warranty and included accessory warranty support
