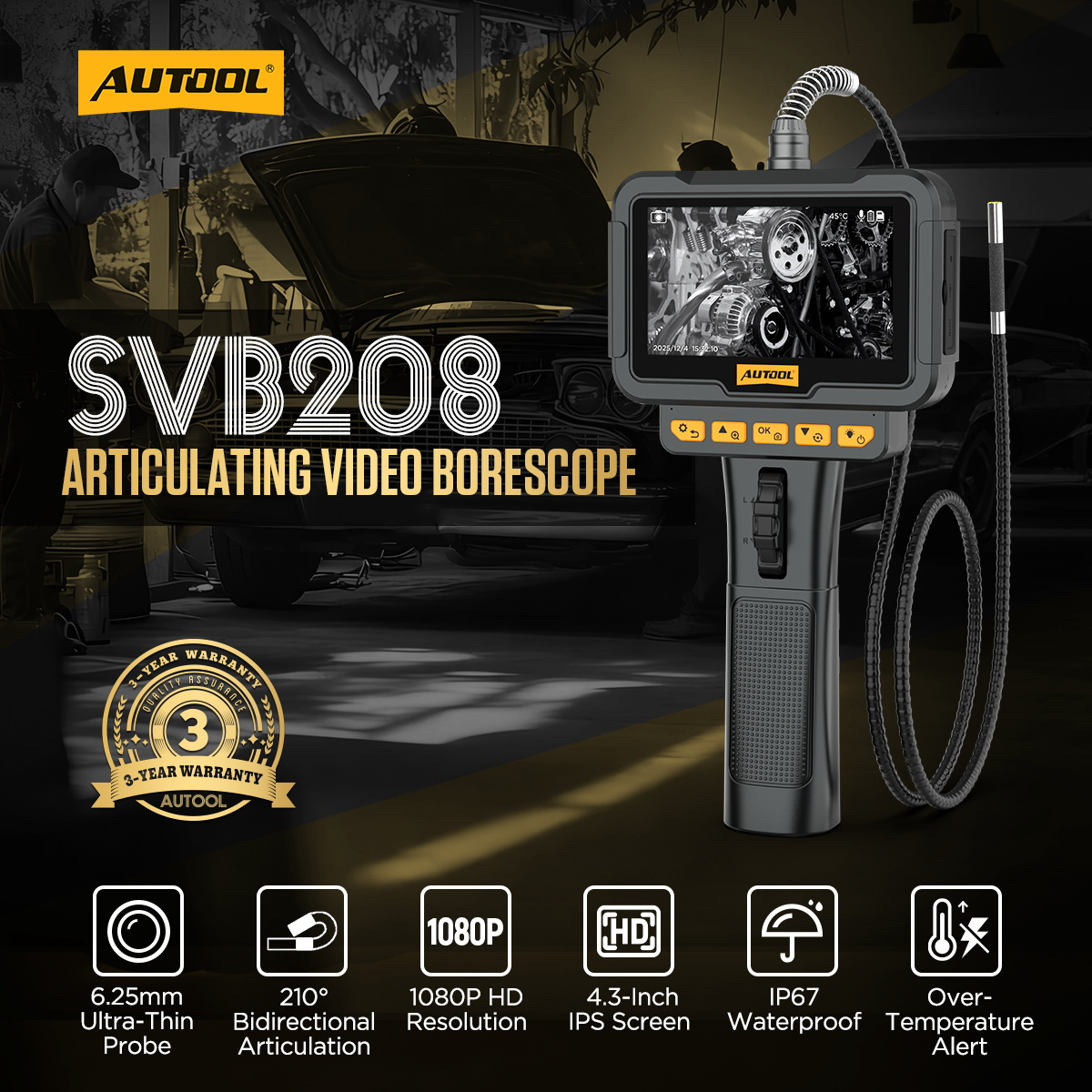

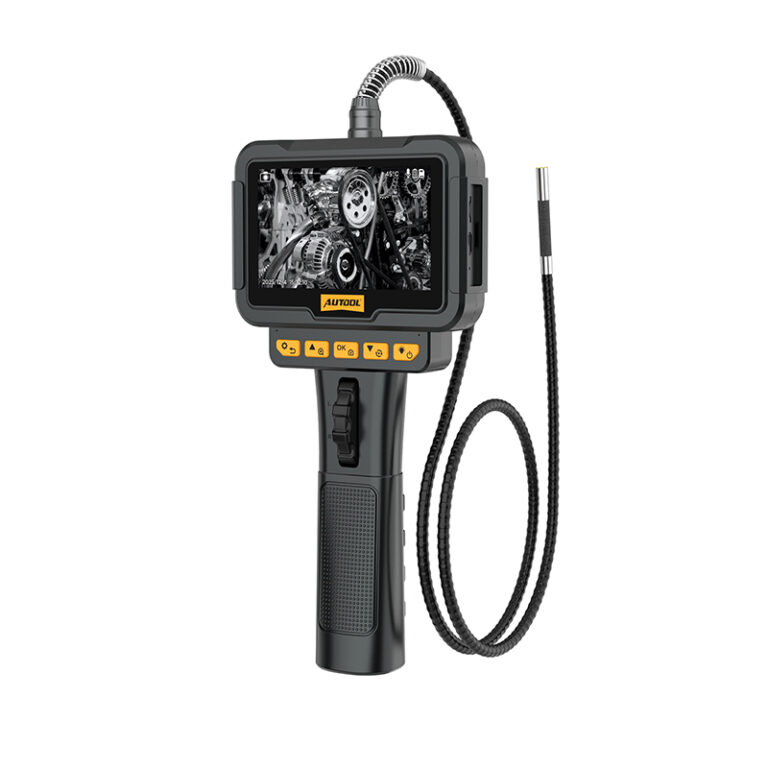

The AUTOOL SVB208 is a compact articulating automotive borescope camera for inspecting engines, combustion chambers, evaporators, pipes, and hidden components without unnecessary disassembly. Its 210° two-way steering lens, 6.25mm ultra-thin probe, 4.3-inch IPS screen, 8x digital zoom, IP67 probe, built-in 32GB storage, and up to 180 minutes of runtime help technicians inspect narrow, curved, and hard-to-reach areas more efficiently.
SVB208 is designed for automotive visual inspection, but the lens, probe, and articulating cable must be protected from excessive heat, improper coiling, long exposure to liquids, corrosive materials, and direct sunlight.
Use Below 75°C
The camera lens is not designed for high-temperature inspection. Use SVB208 below 75°C and inspect only after the target area has cooled.
Wait For Engine Cooldown
After the engine stops, internal temperature may reach 80°C to 100°C or higher. Wait about 1–2 hours before inspection.
85°C Alarm Is A Warning
The 85°C alarm is an over-temperature warning, not a recommended working temperature. Do not use it as a normal operating target.
High Heat Damage Is Not Free Warranty
Camera damage caused by use above the recommended temperature range is considered abnormal damage and is not covered by free warranty.
Protect The Steering Cable
Do not operate the steering dial while coiling the flexible hose. This may break, deform, or damage the articulating pull wire.
Keep The Probe Clean
The probe is IP67 rated, but the device should still be kept clean. Avoid prolonged sunlight exposure and direct contact with water, oil, or corrosive liquids.
Key Features
Key Features
SVB208 combines a slim articulating probe, live HD viewing, zoom, lighting, storage, magnetic placement support, and multilingual operation for automotive inspection work.

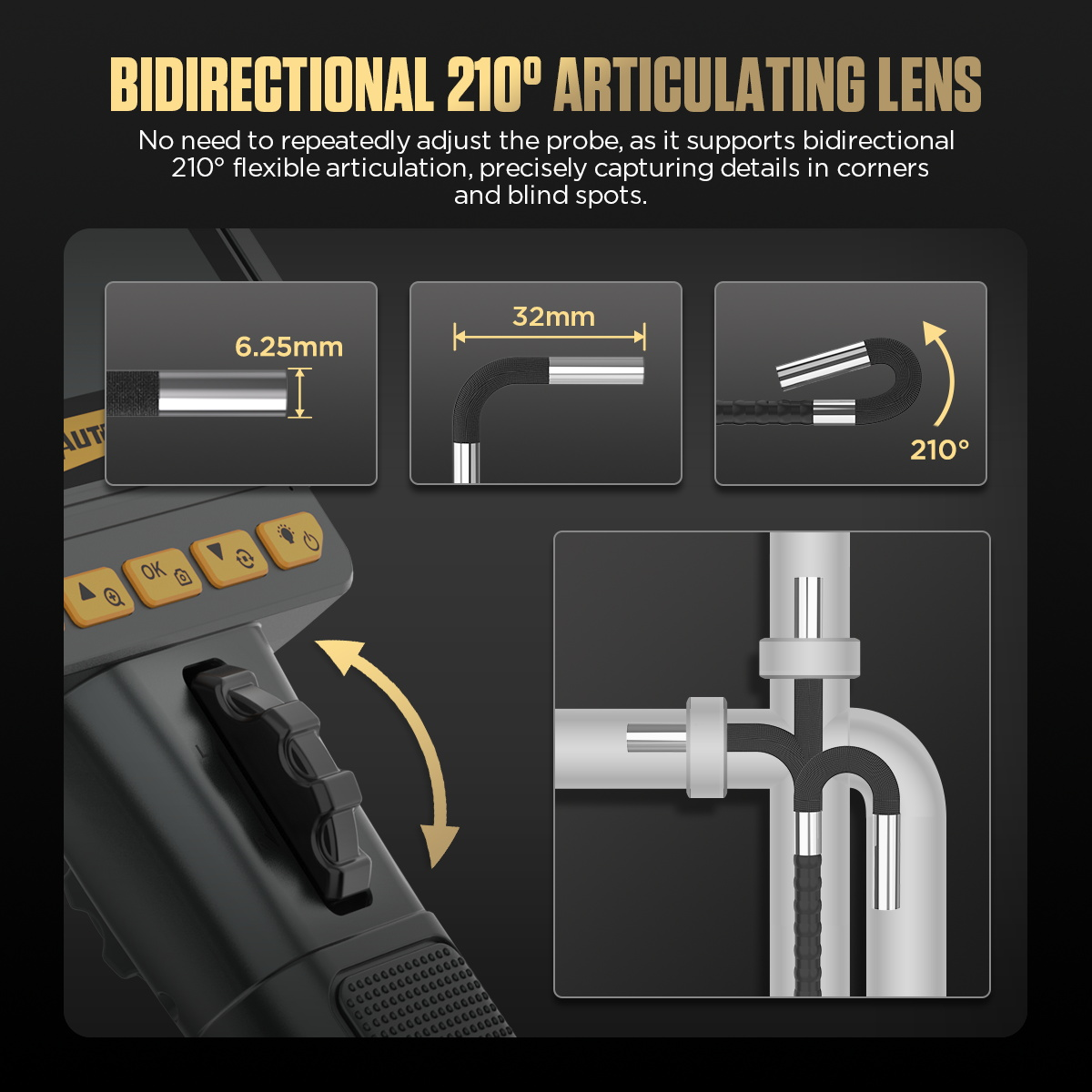

210° Two-Way Steering Lens
The 210° bidirectional articulating lens helps users inspect narrow and curved spaces through rotating push-button steering control.

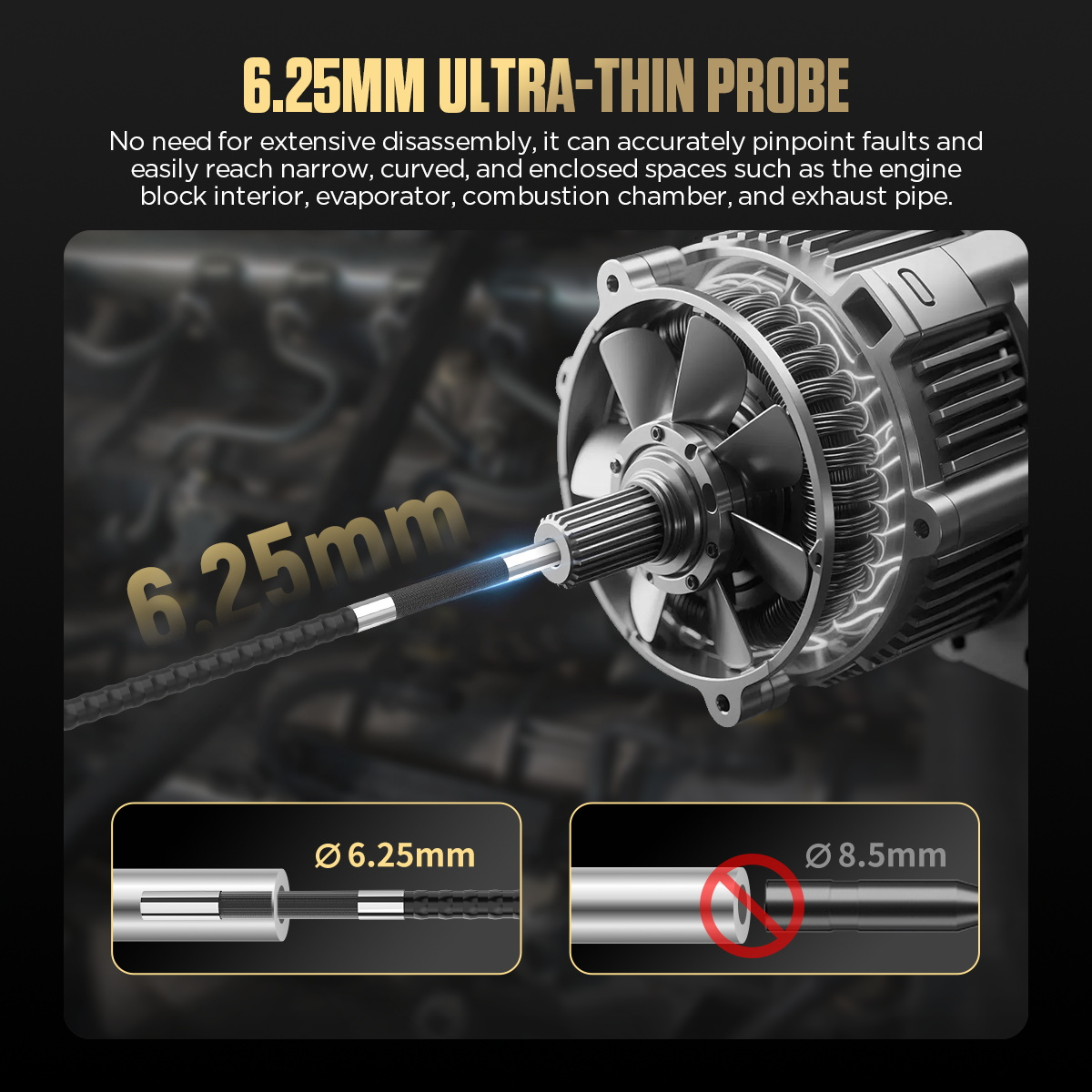

6.25mm Ultra-Thin Probe
The slim 6.25mm probe enters engine gaps, evaporators, pipes, combustion chambers, and other confined automotive spaces.

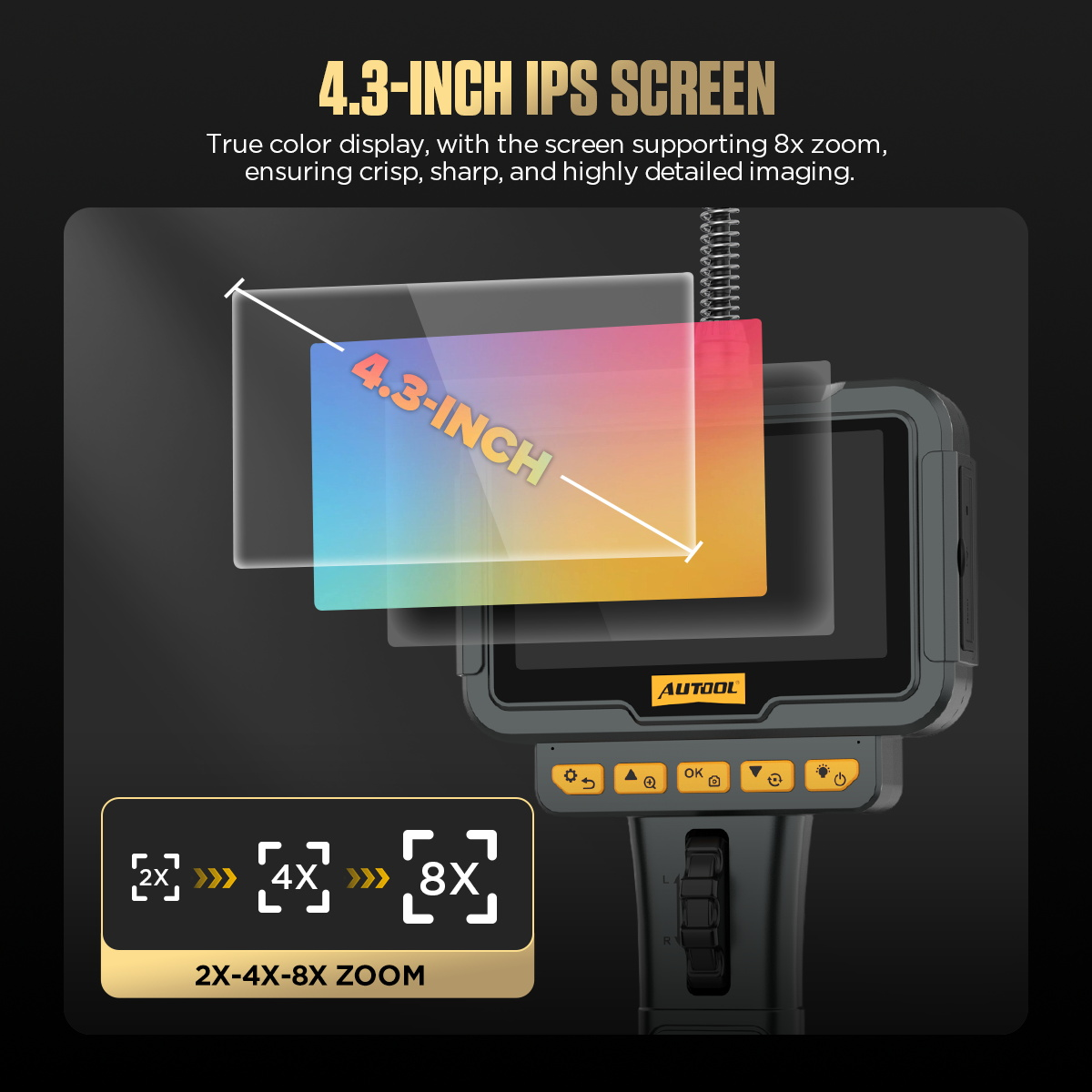

4.3-Inch IPS Screen With 8x Zoom
The built-in 4.3-inch IPS screen shows live inspection images without an external monitor, while 2x, 4x, and 8x zoom help enlarge details.
1920×1080 Imaging
The 1MP camera supports 1920×1080 image display for inspecting deposits, cracks, threads, corrosion, blockage, and internal component conditions.

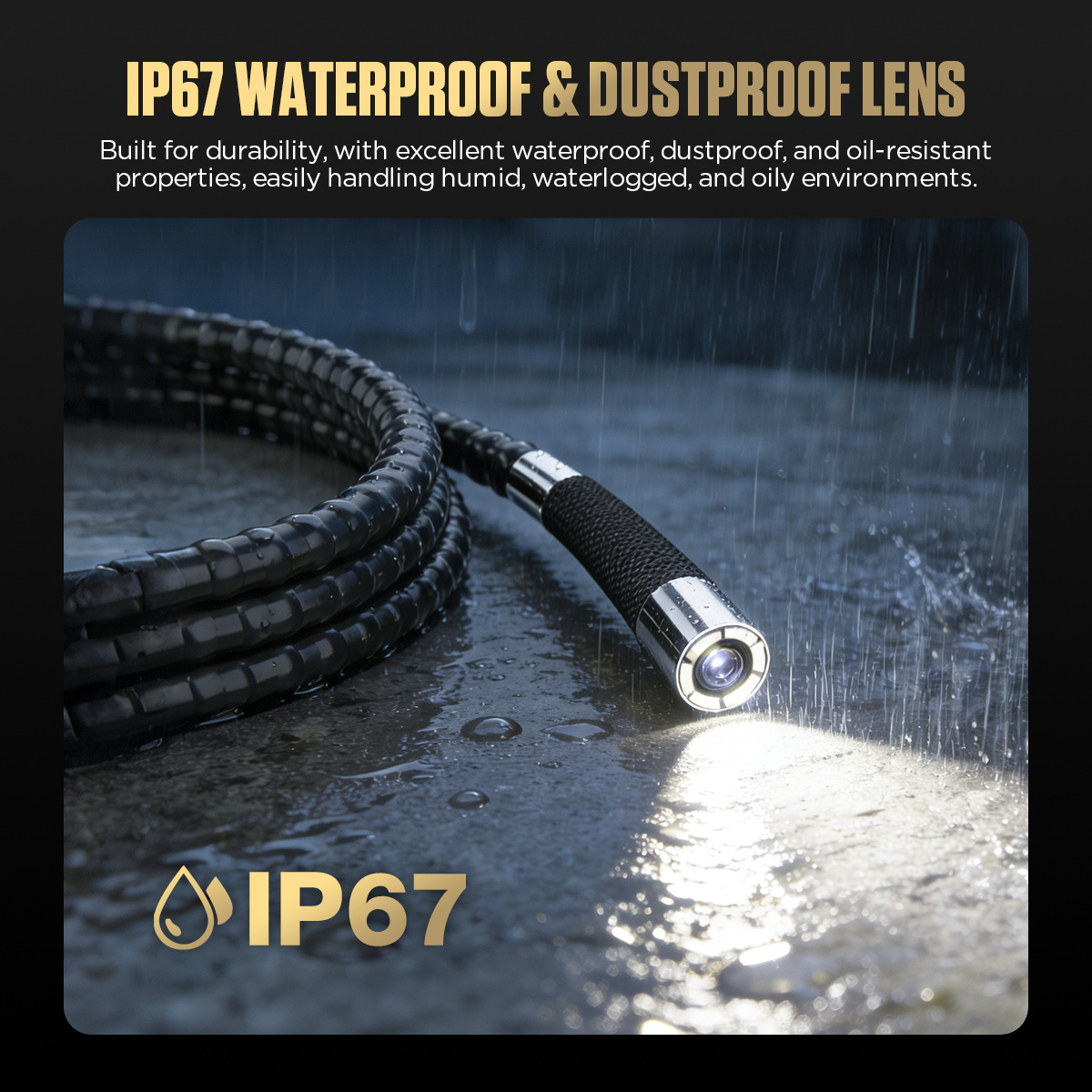

IP67 Probe And Durable Hose
The IP67 waterproof and dustproof probe works with a tungsten wire braided flexible hose for narrow, wet, or complex inspection environments.

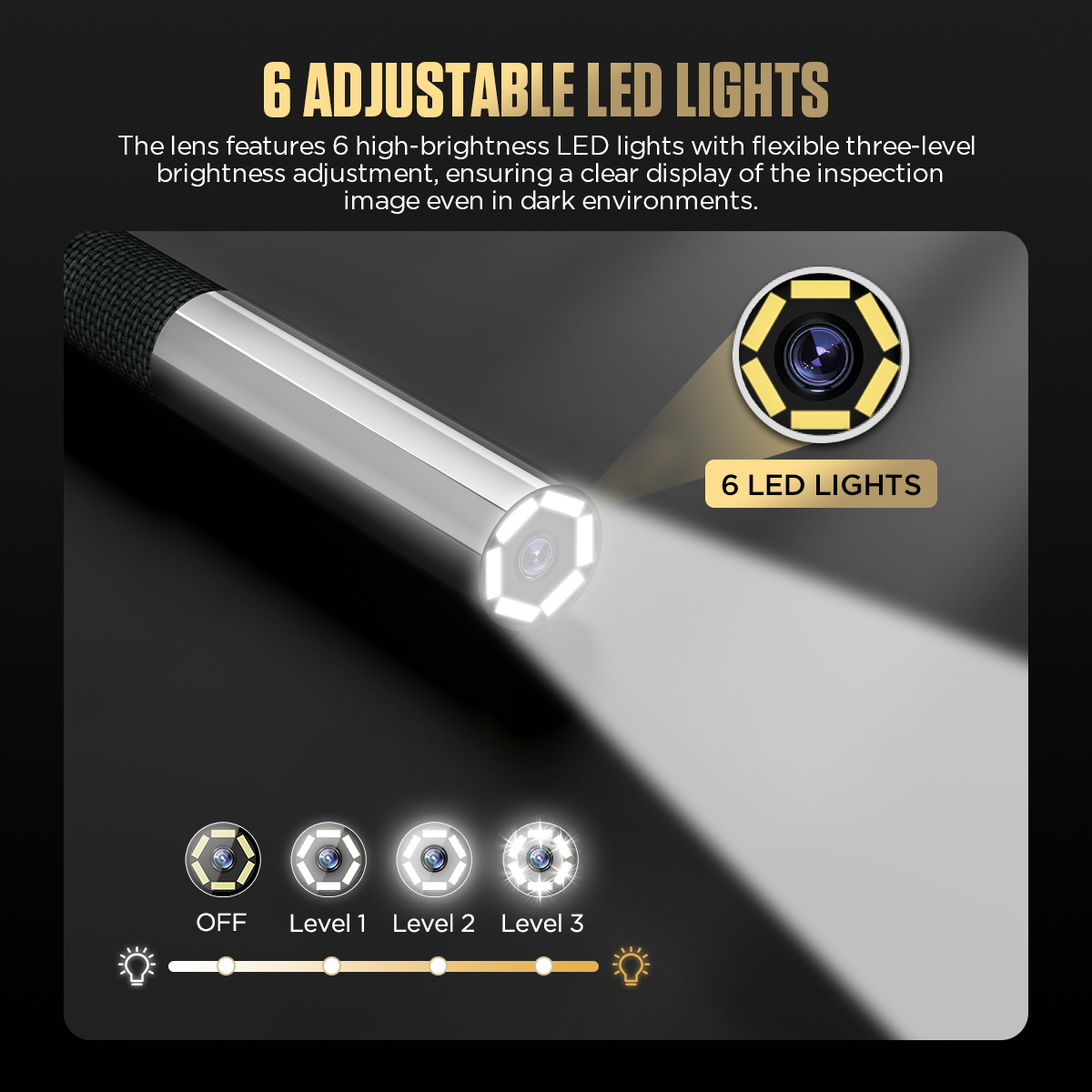

Six Adjustable LED Lights
Six high-brightness LED lights support three brightness levels, helping provide stable illumination in dark pipes, chambers, and hidden spaces.

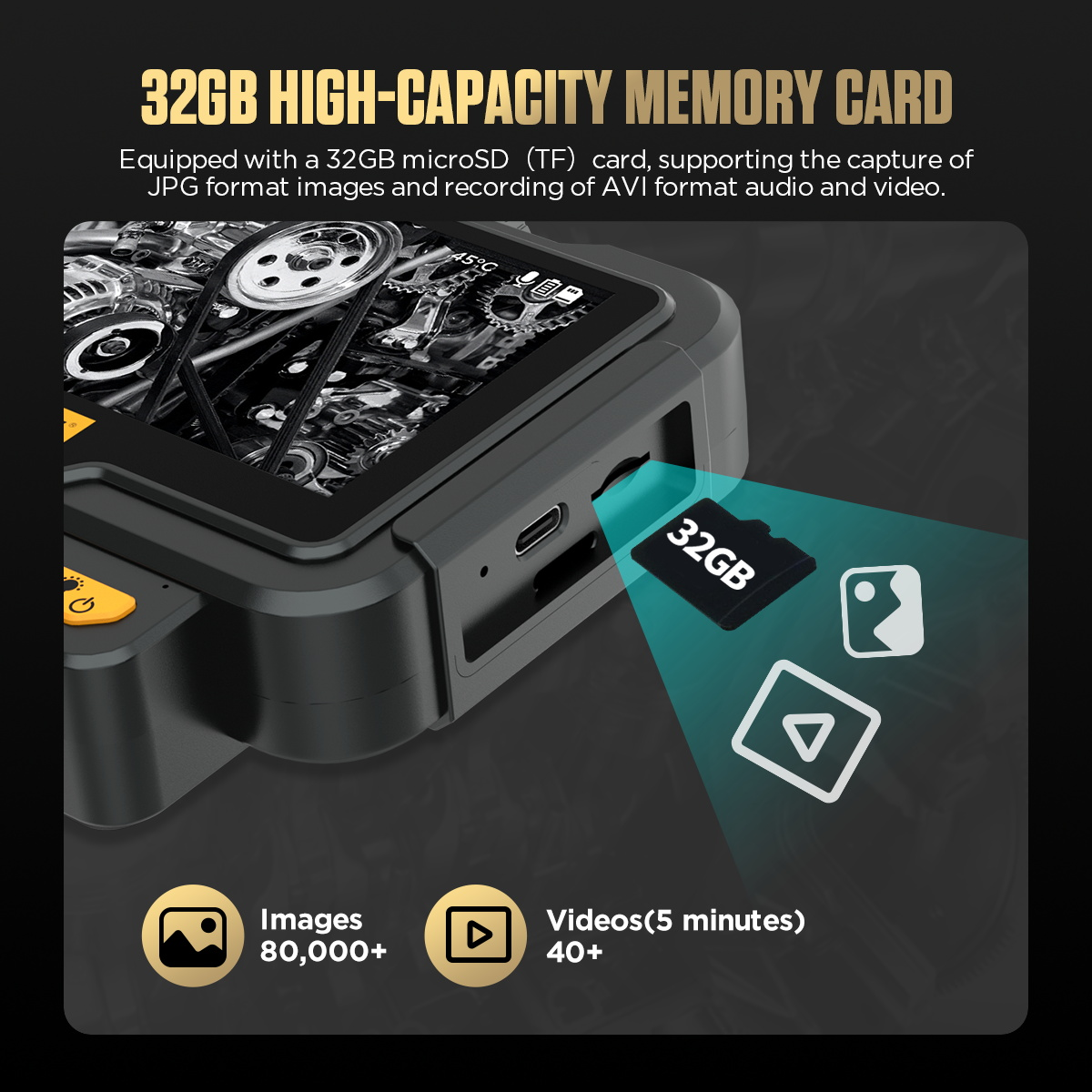

32GB Storage And 2000mAh Battery
Built-in 32GB storage can save over 80,000 images or about 40 videos. The 2000mAh lithium battery supports up to 180 minutes of continuous use.

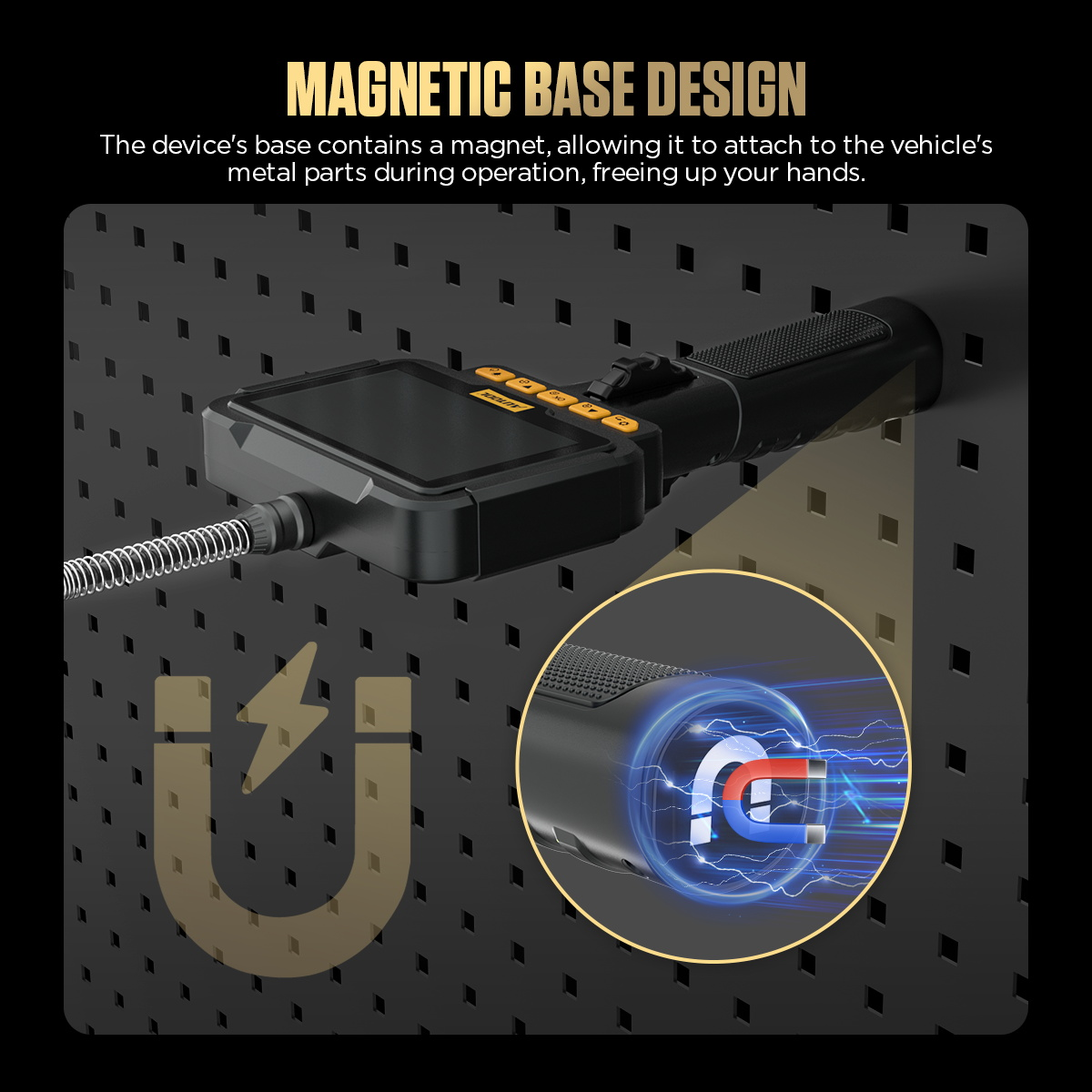

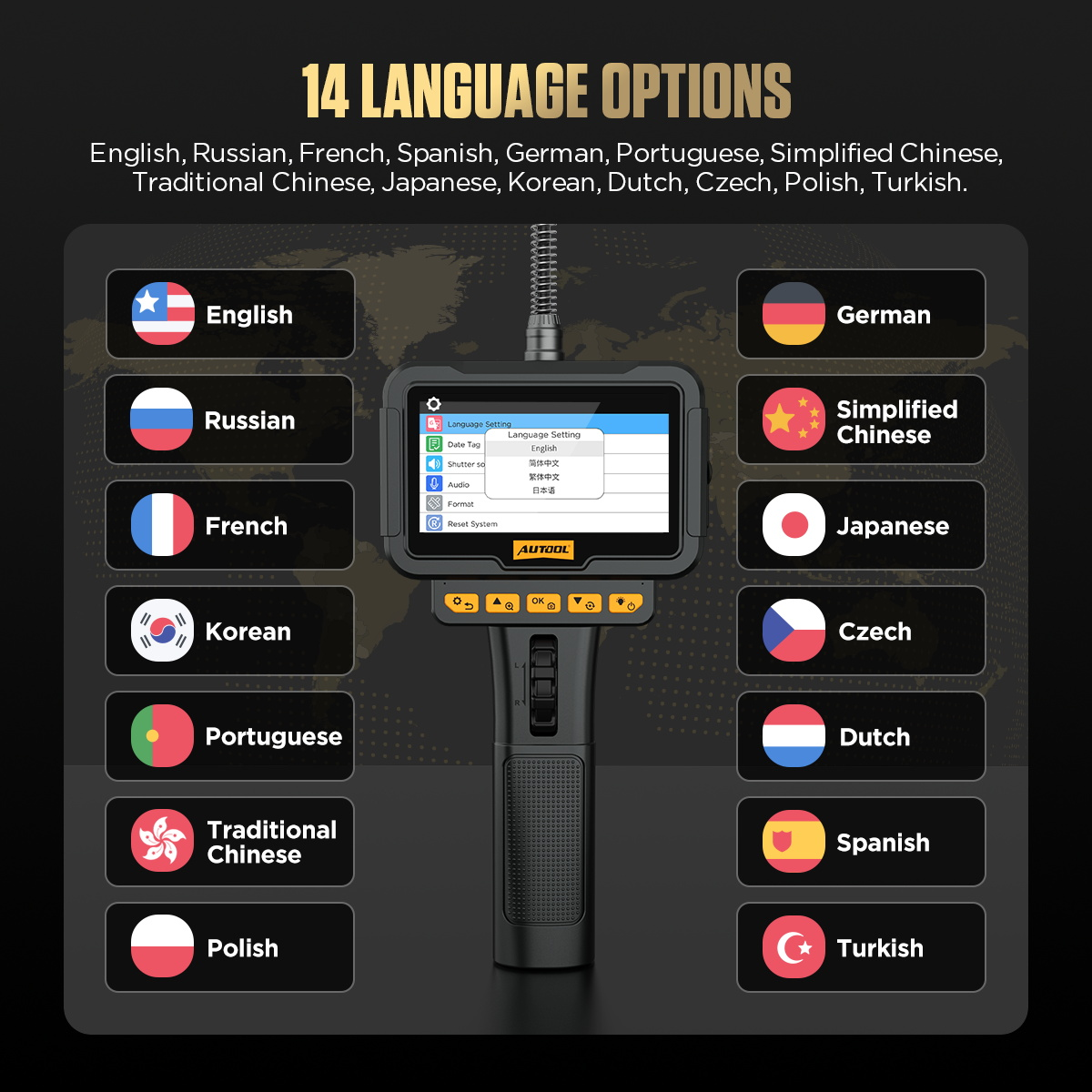

Magnetic Base And 14 Languages
The magnetic design helps place the unit during inspection, while 14 system languages support users in different workshop environments.
Click to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlarge

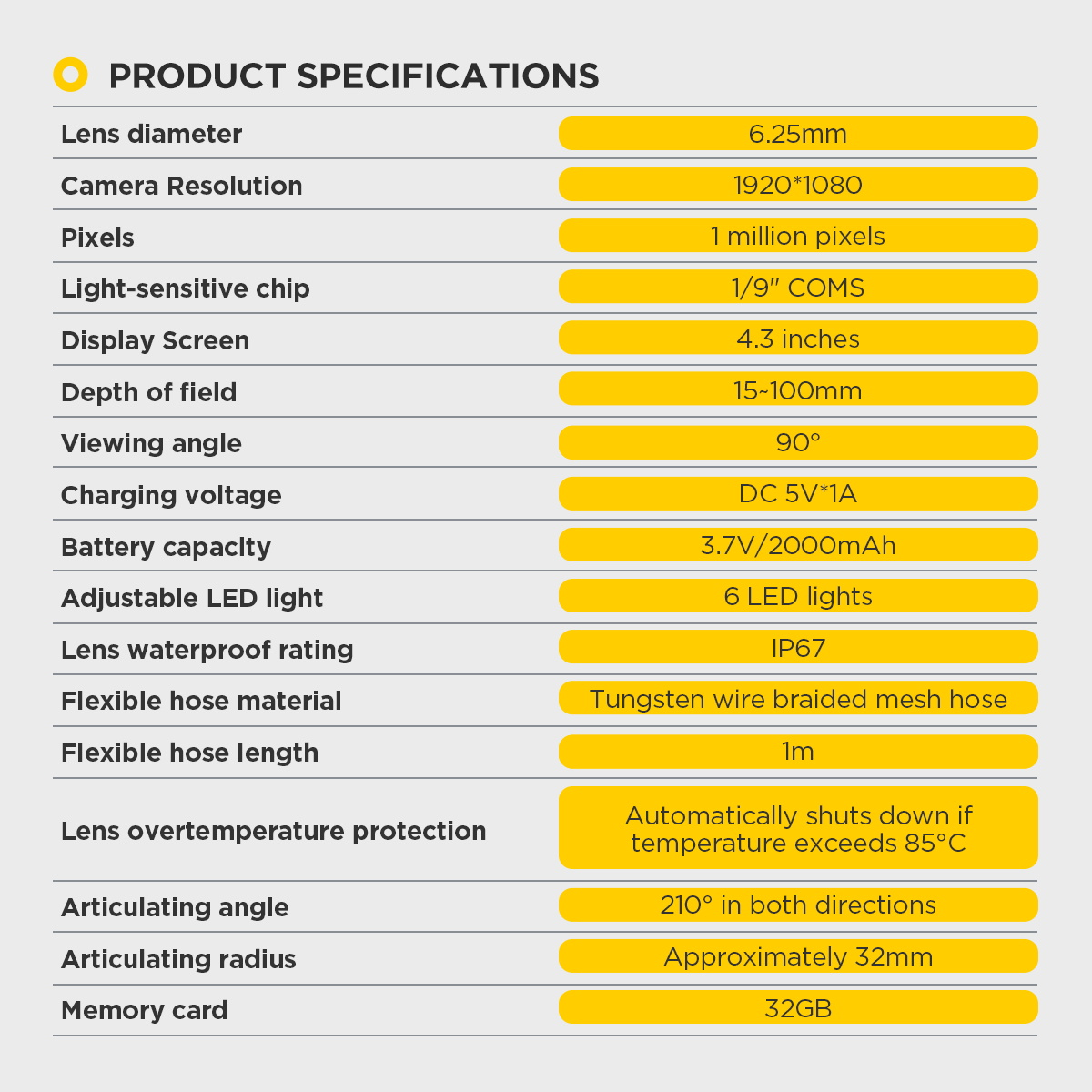

Specifications
AUTOOL SVB208 Product Specifications
Review the imaging, display, probe, steering, battery, storage, temperature, magnetic design, and language details before ordering.
Imaging And Display
Product
AUTOOL SVB208 Automotive Borescope Camera
Display Screen
4.3-inch IPS HD screen
Image Resolution
1920 × 1080
Camera Pixels
1 million pixels / 1MP
Light-Sensitive Chip
1/9" sensor
Digital Zoom
2x / 4x / 8x digital zoom
Field Of View
90°
Depth Of Field
15–100mm
Lighting
Six high-brightness LED lights with three adjustable brightness levels
Probe And Steering
Steering Type
210° two-way articulating lens
Probe Diameter
6.25mm
Probe Rating
IP67 waterproof and dustproof
Flexible Hose Length
1m
Flexible Hose Material
Tungsten wire braided mesh hose
Minimum Articulating Radius
Approx. 32mm
Magnetic Design
Yes
Power And Storage
Battery
3.7V / 2000mAh lithium battery
Charging Voltage
DC 5V / 1A
Continuous Use
Up to 180 minutes
Storage
Built-in 32GB high-speed memory card
Storage Reference
Over 80,000 images or about 40 videos
Safety, Language And Support
Recommended Use Temperature
Below 75°C
Over-Temperature Alarm
85°C alarm / protection warning
Languages
English, Russian, French, Spanish, German, Portuguese, Simplified Chinese, Traditional Chinese, Japanese, Korean, Dutch, Czech, Polish, and Turkish
Warranty
3-year warranty for eligible non-artificial damage
Click to enlarge
Imaging And Display
Screen4.3-inch IPS HD screen
Image Resolution1920 × 1080
Camera Pixels1MP
Digital Zoom2x / 4x / 8x
Field Of View90°
Depth Of Field15–100mm
LightingSix LEDs with three brightness levels
Probe And Steering
Steering210° two-way articulating lens
Probe Diameter6.25mm
Probe RatingIP67 waterproof and dustproof
Hose Length1m
Hose MaterialTungsten wire braided mesh hose
Articulating RadiusApprox. 32mm
Magnetic DesignYes
Power, Storage And Safety
Battery3.7V / 2000mAh
Charging VoltageDC 5V / 1A
Continuous UseUp to 180 minutes
StorageBuilt-in 32GB memory card
Use TemperatureBelow 75°C
Alarm85°C over-temperature alarm
Warranty3-year warranty for eligible non-artificial damage
Applications
Applications
Use SVB208 for non-destructive visual inspection where direct viewing is difficult and disassembly would increase time, risk, or cost.
Engine And Combustion Chambers
Inspect cylinders, combustion chambers, spark plug holes, valves, carbon deposits, and internal engine areas after the engine cools.
A/C Evaporators And Ducts
The slim 6.25mm probe helps inspect evaporators, air-conditioning ducts, and other restricted HVAC areas.
Pipes And Curved Passages
Check narrow pipes, curved passages, blockage, corrosion, cracks, hidden component damage, and deep pipe defects.
Hard-To-Reach Automotive Areas
Use visual image detection for transmission-related spaces, exhaust areas, and other automotive locations that are difficult to view directly.
Non-Destructive Diagnosis
Inspect internal issues without removing unnecessary parts, helping reduce labor time, disassembly risk, and additional repair cost.
Repair Documentation
Capture images or videos for repair records, customer communication, before/after evidence, and diagnostic documentation.
Click to enlargeClick to enlarge

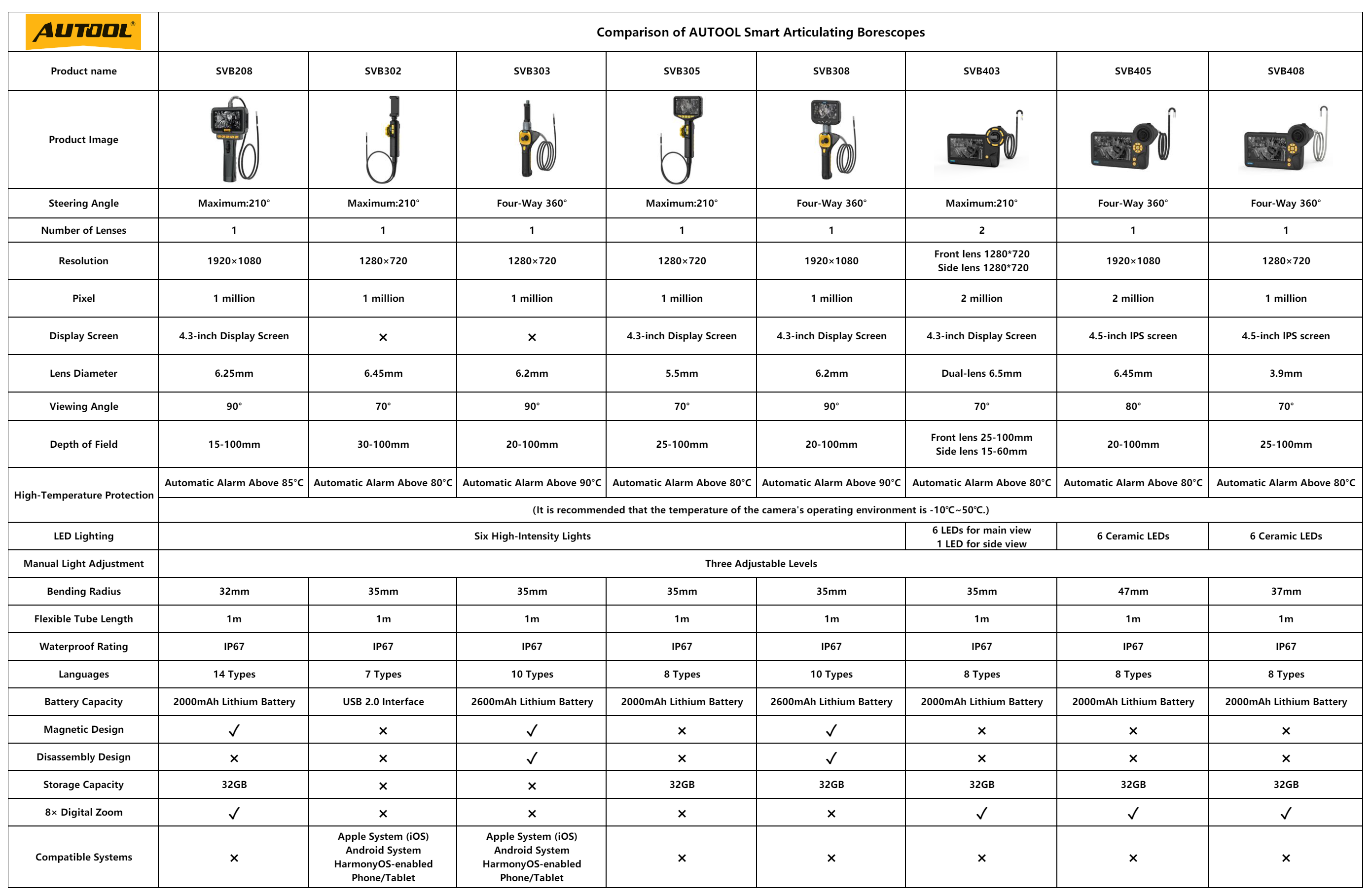

Product Comparison
Product Comparison
Compare AUTOOL automotive borescope models before choosing the right steering direction, lens size, image quality, screen size, bending radius, battery capacity, magnetic base, detachable design, and language support.
SVB208 FocusChoose SVB208 if you need a compact 210° two-way articulating borescope with a 6.25mm probe, 4.3-inch screen, 1920×1080 imaging, 32GB storage, magnetic design, and 14 languages.
Need 360° Four-Way Rotation?Choose SVB303, SVB308, SVB405, or SVB408 if you need four-way articulation for more complex inspection angles.
SVB403 / SVB405 / SVB408SVB403 has 210° two-way steering and dual lenses. SVB405 and SVB408 offer 360° four-way rotation. SVB405 has a 2MP camera, while SVB403 and SVB408 use 1MP cameras.
SVB305 / SVB308SVB305 has 210° two-way steering, a 5.05mm lens, and 2000mAh battery. SVB308 offers 360° four-way rotation, a 6.2mm lens, 2600mAh battery, magnetic base, and detachable design.
SVB302 / SVB303SVB302 has 210° two-way steering and a 6.45mm lens. SVB303 adds 360° four-way rotation, a 6.2mm lens, magnetic base, detachable design, and more language support.
Decision CheckCompare steering direction, lens diameter, screen size, camera resolution, bending radius, battery capacity, detachable design, magnetic base, and language support before ordering.
Click to enlarge
Click to enlarge

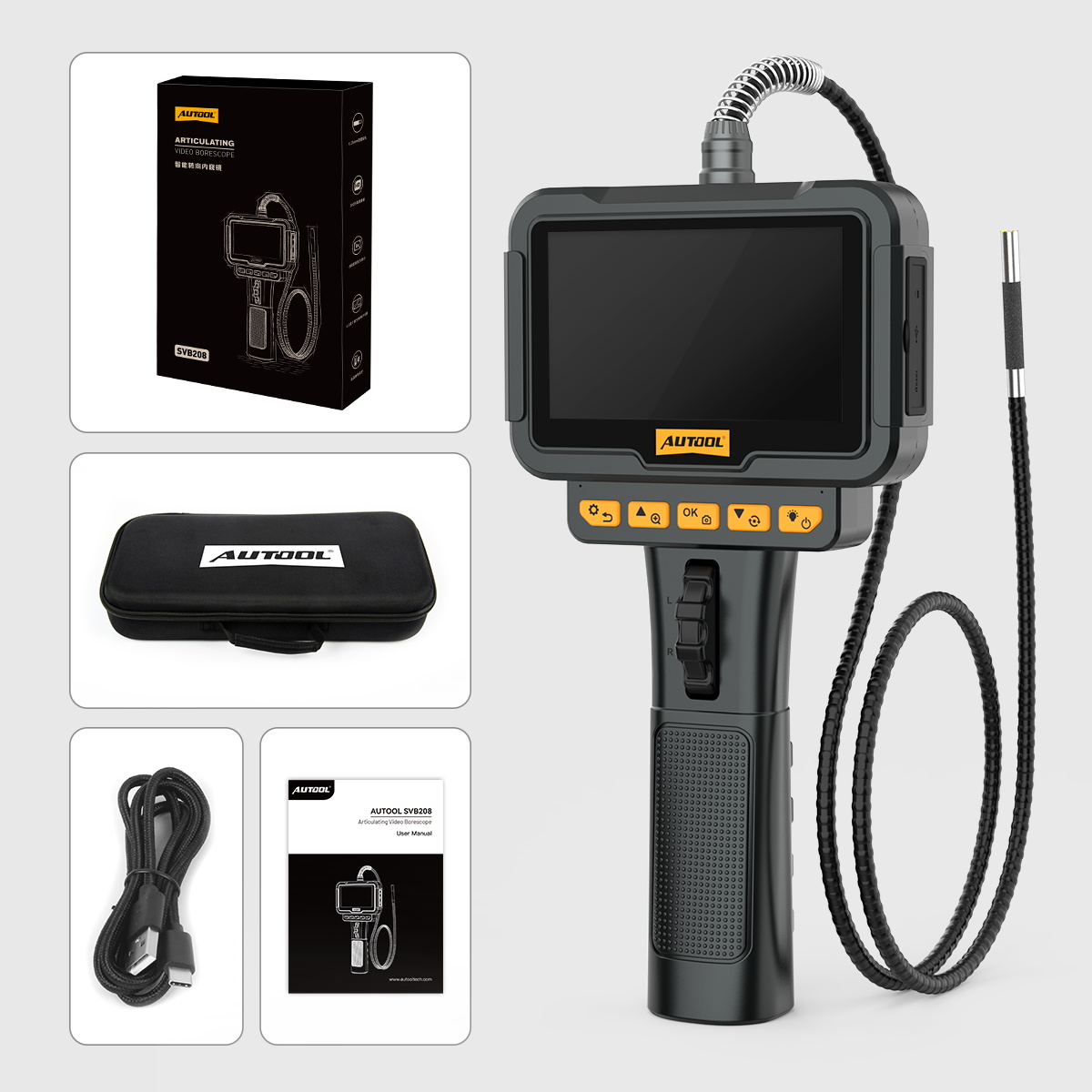

What Is In The Box
What Is In The Box
The package image shows the SVB208 main unit, articulating probe, storage case, cable, documentation, and retail box. Refer to the package image for the final included accessories.
Main UnitAUTOOL SVB208 automotive borescope camera with built-in screen
ProbeIntegrated 6.25mm articulating probe with 1m flexible hose
Carrying CaseStorage case shown in the package image
CableUSB-C cable shown in the package image

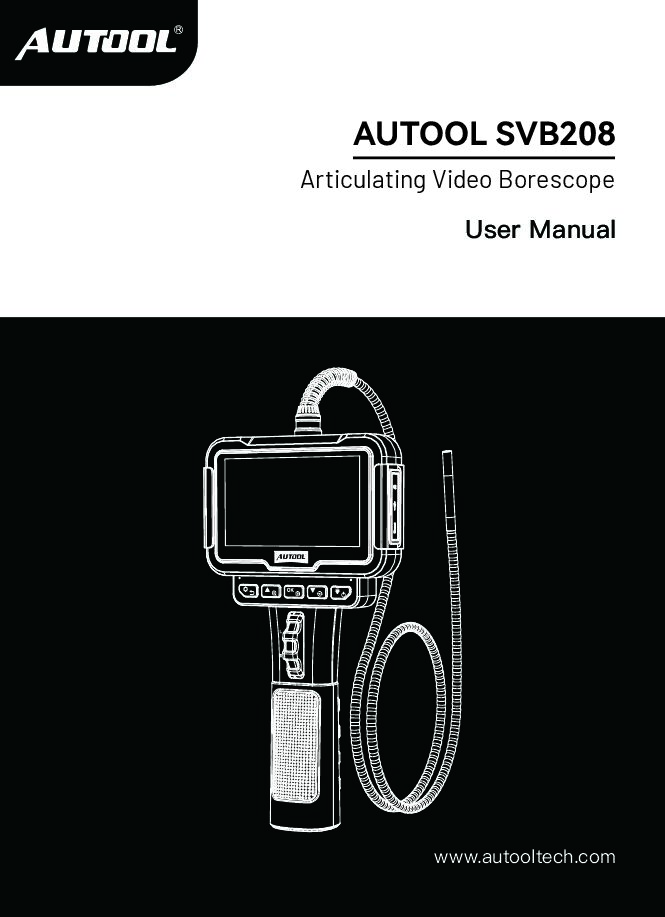

DocumentationSVB208 user manual
Retail BoxAUTOOL SVB208 product box
AccessoriesAccessories shown in the package image
Compatibility And Fitment
Compatibility And Fitment
Compare related AUTOOL automotive borescope models before choosing the right steering angle, lens diameter, image quality, screen size, detachable design, magnetic base, and inspection workflow.
SALE
Select options
This product has multiple variants. The options may be chosen on the product page
Contact AUTOOL Store before ordering if you need help confirming the manual version, setup steps, compatibility, accessories, safe-use notes, or after-sales support for this product.
These answers cover SVB208 steering type, model differences, hot-engine use, temperature warnings, warranty limits, probe waterproofing, magnetic design, and articulating cable protection.
SVB208 focuses on 210° two-way steering with a 6.25mm slim probe, 4.3-inch IPS screen, built-in 32GB storage, and magnetic design. Four-way articulating models such as SVB303, SVB308, SVB405, and SVB408 provide 360° four-way movement for more complex inspection angles.
SVB403 has a 210° two-way steering angle, while SVB405 and SVB408 offer 360° four-way rotation for improved maneuverability. SVB403 includes two lenses, a front lens and a side lens, while SVB405 and SVB408 each have one lens. SVB405 has a 2MP camera, while SVB403 and SVB408 have 1MP cameras. SVB403 has a 4.3-inch screen, while SVB405 and SVB408 come with 4.5-inch screens. The bending radius also differs: SVB403 is 35mm, SVB408 is 37mm, and SVB405 is 47mm.
SVB305 has a 210° two-way steering angle, while SVB308 offers 360° four-way rotation for more flexible inspection. SVB305 has a 5.05mm lens, while SVB308 has a 6.2mm lens. SVB305 supports eight languages: English, German, French, Italian, Spanish, Chinese, Russian, and Japanese. SVB308 supports all of these plus Traditional Chinese and Korean. SVB305 has a 2000mAh lithium battery, while SVB308 has a 2600mAh battery. SVB308 also includes a magnetic base and detachable design for hands-free use, storage, and maintenance.
SVB302 has a 210° two-way steering angle, while SVB303 supports 360° four-way rotation for greater control and visibility. SVB302 has a 6.45mm lens, while SVB303 is slightly slimmer at 6.2mm. SVB302 focuses from 30–100mm, while SVB303 focuses from 20–100mm. SVB302 supports seven languages including English, German, French, Italian, Spanish, Chinese, and Japanese. SVB303 supports these plus Traditional Chinese, Russian, and Korean, for a total of ten languages. SVB303 also adds a magnetic base and detachable design.
No. Use SVB208 below 75°C. After the engine stops, temperature may reach 80°C to 100°C or higher. Wait about 1–2 hours until the engine cools down before inspection.
The 85°C alarm is an over-temperature warning and protection reminder. It is not the recommended working temperature. For safer inspection and longer camera life, use the borescope below 75°C and wait for hot engine components to cool first.
High-temperature camera damage is considered abnormal damage. If the camera is damaged by using it above the recommended temperature range, free warranty will not be provided.
The SVB208 probe is IP67 waterproof and dustproof. However, the device should still be kept clean, and users should avoid prolonged exposure to water, oil, corrosive liquids, and direct sunlight.
Yes. SVB208 has a magnetic design that helps place the unit during inspection. This can support more convenient viewing and operation in suitable workshop conditions.
Do not operate the dial while coiling the flexible hose, because this may break or deform the articulating pull wire. Keep the borescope clean and avoid prolonged sunlight exposure or direct contact with water, oil, and corrosive liquids.
Related Guides
Related Guides
Use this related article to understand why automotive endoscope cameras are important diagnostic tools for technicians and vehicle maintenance.
With the rapid development of automotive endoscope cameras, the role and importance of endoscope cameras in automobile maintenance have become increasingly.
In automotive repair, a high-performance inspection camera is a great tool for engineers. It can reach deep into the vehicle, making repairs easier and.
When the term “endoscope” is mentioned, many people immediately think of its application in the medical field. However, in automotive repair, the.
Warranty And Contact
Warranty And Contact
For SVB208 operation, manual requests, high-temperature use confirmation, probe protection, articulating cable guidance, waterproof-use questions, model selection, or warranty support, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming whether SVB208 is suitable for your inspection task, protecting the probe and steering cable, understanding the 75°C temperature limit, downloading the manual, or comparing SVB208 with SVB302, SVB303, SVB305, SVB308, SVB403, SVB405, and SVB408.
SVB208 operation and safety support
Manual request and setup confirmation
High-temperature use and 85°C alarm explanation
Probe waterproof rating and articulating cable protection guidance
Model selection support for AUTOOL automotive borescope cameras
Packing list and included accessory confirmation
3-year warranty for eligible non-artificial damage
