AUTOOL ATL-4SH

Product Overview

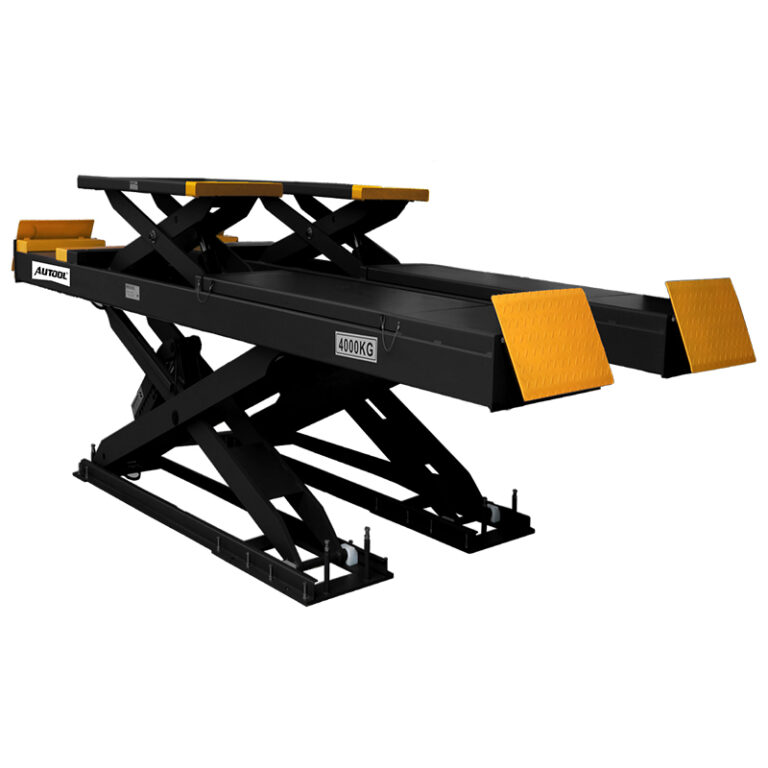

The AUTOOL ATL-4SH Four-Wheel Alignment Twin Scissor Car Lift is a high-performance main and auxiliary lift designed for precision, durability, and professional workshop use. Built with advanced Italian technology, hydraulic synchronization, dual safety devices, hydraulic locks, and a 24V safety control circuit, it provides stable lifting support for four-wheel alignment, chassis service, and automotive repair operations.

Four-Wheel Alignment Twin Scissor Lift 4000kg Capacity Hydraulic Safety
4000kgPrimary Capacity
1850mmPrimary Height
24VSafety Circuit
0.4-0.6MPaAir Pressure

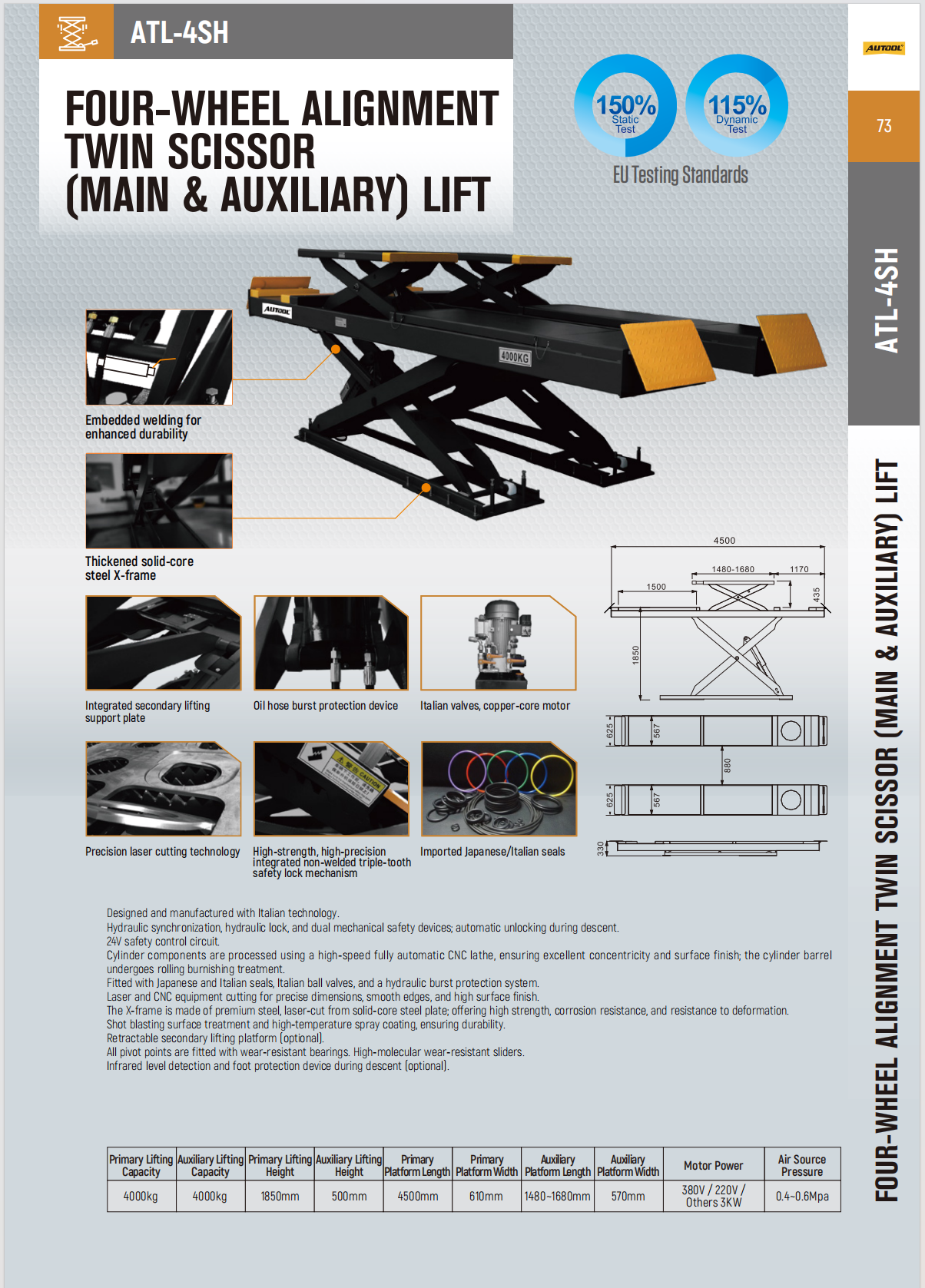

AUTOOL ATL-4SH four-wheel alignment twin scissor car lift overview, features, dimensions, and specifications Click to enlarge
Key Features

Key Features

ATL-4SH is engineered with high-quality hydraulic, sealing, machining, and structural components to support stable, reliable, long-term operation in professional automotive workshops.

Italian Technology

Built with advanced Italian technology for precise, stable, and reliable lifting performance.

Hydraulic Synchronization

Hydraulic synchronization helps keep the main and auxiliary lifting platforms stable during operation.

Precision Cylinder Components

CNC-lathed cylinders with rolling burnishing treatment improve concentricity, surface finish, durability, and lifting precision.

Premium Seals And Valves

Japanese and Italian seals, Italian ball valves, and hydraulic burst protection improve reliability and operating safety.

Laser-Cut Steel Structure

Laser and CNC cutting help ensure precise dimensions, smooth edges, and a durable premium steel X-frame.

Durable Surface Treatment

Shot blasting and high-temperature spray coating improve strength, corrosion resistance, and long-term durability.

Before You Order And Use

Before You Order And Use

ATL-4SH combines hydraulic locking, dual safety protection, automatic unlocking, low-voltage control, and optional detection devices to support safer workshop lifting operations.

Dual Safety Devices

Dual safety devices improve operational safety during lifting and lowering.

Hydraulic Locks

Hydraulic locks provide secure holding and help reduce movement risk during operation.

Automatic Unlocking During Descent

Automatic unlocking during descent helps simplify operation while maintaining safety control.

24V Safety Control Circuit

The 24V safety control circuit supports safer low-voltage operation in workshop environments.

Oil Hose Burst Protection

The hydraulic burst protection system helps reduce risk if an oil hose or hydraulic circuit issue occurs.

Optional Infrared And Foot Protection

Optional infrared level detection and foot protection device provide additional safety for professional workshops.

Specifications

ATL-4SH Specifications

Confirm lifting capacity, platform dimensions, power configuration, air pressure, and optional features before ordering or planning installation.

Product Overview
ModelAUTOOL ATL-4SH
Product TypeFour-Wheel Alignment Twin Scissor Main & Auxiliary Lift
TechnologyAdvanced Italian technology
Control Circuit24V safety control circuit
Lifting Capacity And Height
Primary Lifting Capacity4000kg
Auxiliary Lifting Capacity4000kg
Primary Lifting Height1850mm
Auxiliary Lifting Height500mm
Platform Size
Primary Platform Length4500mm
Primary Platform Width610mm
Auxiliary Platform Length1480-1680mm
Auxiliary Platform Width570mm
Power, Air And Testing
Motor Power380V / 220V / Others 3KW
Air Source Pressure0.4-0.6MPa
Testing Standard150% static test / 115% dynamic test
Optional Configuration
Secondary PlatformOptional retractable secondary lifting platform
Safety OptionsOptional infrared level detection and foot protection device
Product Structure
Structure OverviewKey structural details improve stability, service life, and safety in demanding workshop lifting environments.
Embedded WeldingEmbedded welding design improves structural integration and durability.
Thickened Solid-Core Steel X-FrameThe thickened solid-core steel X-frame improves load-bearing stability and structural strength.
Integrated Secondary Lifting Support PlateThe integrated support plate assists the auxiliary lifting platform during secondary lifting operation.
Oil Hose Burst Protection DeviceThe oil hose burst protection device adds hydraulic safety protection during lift operation.
Precision Laser Cutting TechnologyPrecision laser cutting improves dimensional accuracy, fit, and surface finish.
Wear-Resistant Bearings And SlidersAll pivot points use wear-resistant bearings and high-molecular sliders to reduce friction and improve durability.
Product Overview
ModelAUTOOL ATL-4SH
Product TypeFour-Wheel Alignment Twin Scissor Main & Auxiliary Lift
TechnologyAdvanced Italian technology
Control Circuit24V safety control circuit
Lifting Capacity And Height
Primary Lifting Capacity4000kg
Auxiliary Lifting Capacity4000kg
Primary Lifting Height1850mm
Auxiliary Lifting Height500mm
Platform Size
Primary Platform Length4500mm
Primary Platform Width610mm
Auxiliary Platform Length1480-1680mm
Auxiliary Platform Width570mm
Power, Air And Testing
Motor Power380V / 220V / Others 3KW
Air Source Pressure0.4-0.6MPa
Testing Standard150% static test / 115% dynamic test
Optional Configuration
Secondary PlatformOptional retractable secondary lifting platform
Safety OptionsOptional infrared level detection and foot protection device
Product Structure
Structure OverviewKey structural details improve stability, service life, and safety in demanding workshop lifting environments.
Embedded WeldingEmbedded welding design improves structural integration and durability.
Thickened Solid-Core Steel X-FrameThe thickened solid-core steel X-frame improves load-bearing stability and structural strength.
Integrated Secondary Lifting Support PlateThe integrated support plate assists the auxiliary lifting platform during secondary lifting operation.
Oil Hose Burst Protection DeviceThe oil hose burst protection device adds hydraulic safety protection during lift operation.
Precision Laser Cutting TechnologyPrecision laser cutting improves dimensional accuracy, fit, and surface finish.
Wear-Resistant Bearings And SlidersAll pivot points use wear-resistant bearings and high-molecular sliders to reduce friction and improve durability.
Related Products

Related Products

Use these related AUTOOL lift products to build a more complete workshop workflow around ATL-4SH.

Related Guides

Related Guides

Use these related articles to compare lift structures, confirm installation requirements, and choose the right workshop lift setup.

What Is In The Box

What Is In The Box

Confirm the package dimensions and weights before delivery planning. The available product image is a feature and specification overview, not a packing list image, so this module uses compact package information cards only.

Main & Auxiliary Units

Dimensions: 455 × 63 × 76 cm
Weight: 1813 kg

Platform

Dimensions: 123 × 54 × 47 cm
Weight: 63 kg

Electrical Control Box

Dimensions: 54 × 47 × 123 cm
Weight: 86 kg

Accessories Box

Dimensions: 40 × 40 × 25 cm
Weight: 15 kg

Before You Order And Use

Before You Order And Use

ATL-4SH is a heavy-duty workshop lift. Confirm installation conditions, power, air source, optional safety configuration, and shipping requirements before ordering.

Purchase And Installation Notes

  • Confirm workshop floor conditions and installation space before ordering.
  • Confirm local power supply requirement: 380V / 220V / other 3KW configuration.
  • Confirm air source pressure compatibility: 0.4-0.6MPa.
  • Confirm whether the optional retractable secondary platform is required.
  • Confirm whether infrared level detection and foot protection device are required.
  • Confirm shipping dimensions and total package weight before delivery.
  • Professional installation is recommended for workshop lift equipment.
  • Do not operate beyond the rated lifting capacity.
