AUTOOL BT10 EPB Release Tool

(2 customer reviews)

US$29.90

Key Features
  • One-Button Release
  • Reduced Repair Risk
  • Protected Operation
Key Features
☰ REQUEST BULK / B2B QUOTERequest B2B Quote
Secure checkoutFast supportBulk ready
AUTOOL BT10

Product Overview

The AUTOOL BT10 EPB Release Tool is designed to temporarily release or engage an electronic parking brake during EPB system failure, emergency towing, workshop vehicle movement, and rear brake maintenance. The release mode helps quickly disengage the EPB so the vehicle can exit the parked state, while the braking mode engages the EPB again to support safe parking.

Compared with forced disassembly or violent resetting methods, the BT10 EPB reset tool can help reduce repair cost, protect brake components, and save working time during troubleshooting or maintenance. It is a temporary service tool, not a permanent repair for EPB faults.

EPB Release Braking / Release Emergency Rescue 5A Fuse
DC 10V-14VOperating Voltage
<15AWorking Current
1sAuto Stop
3 YearsMain Unit Warranty

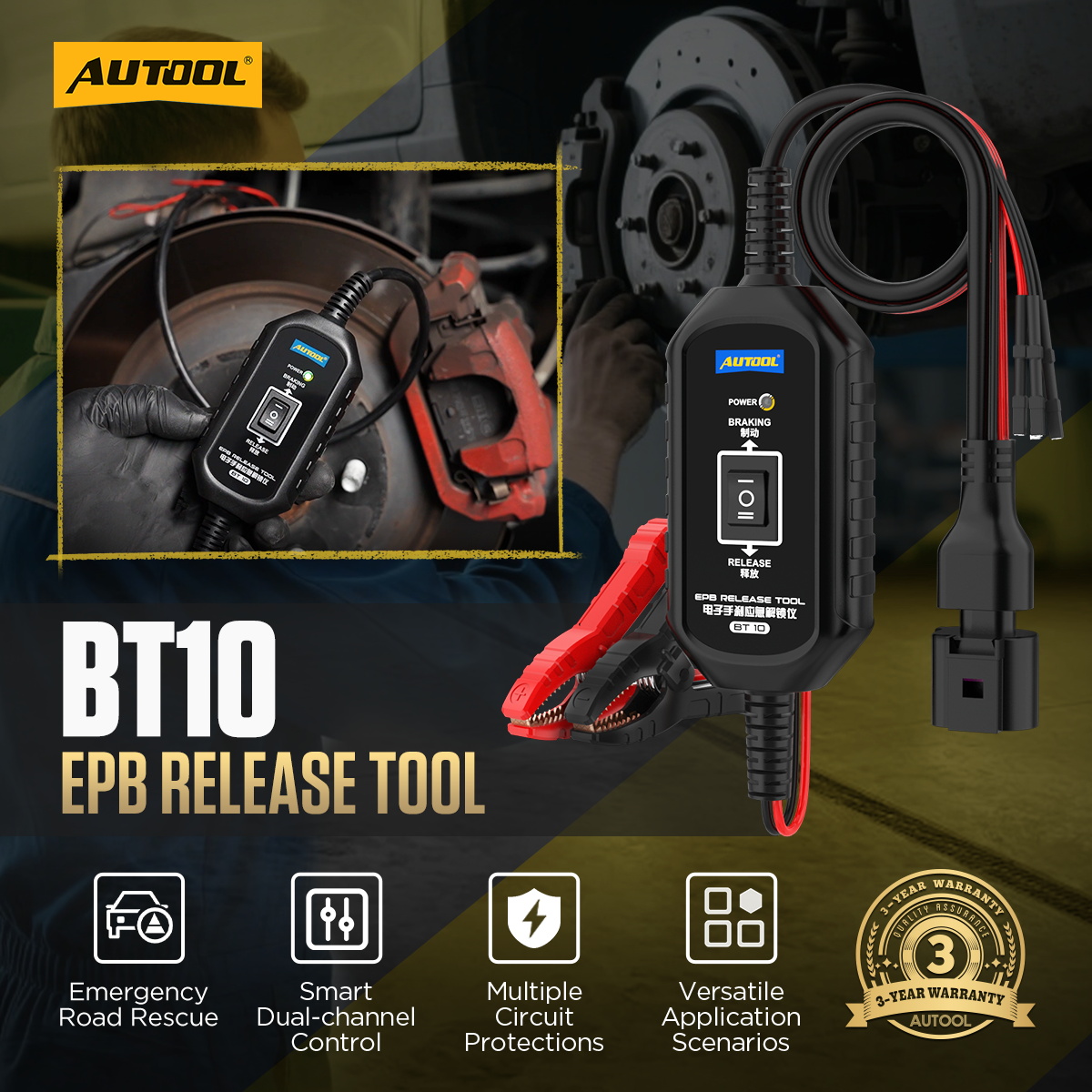

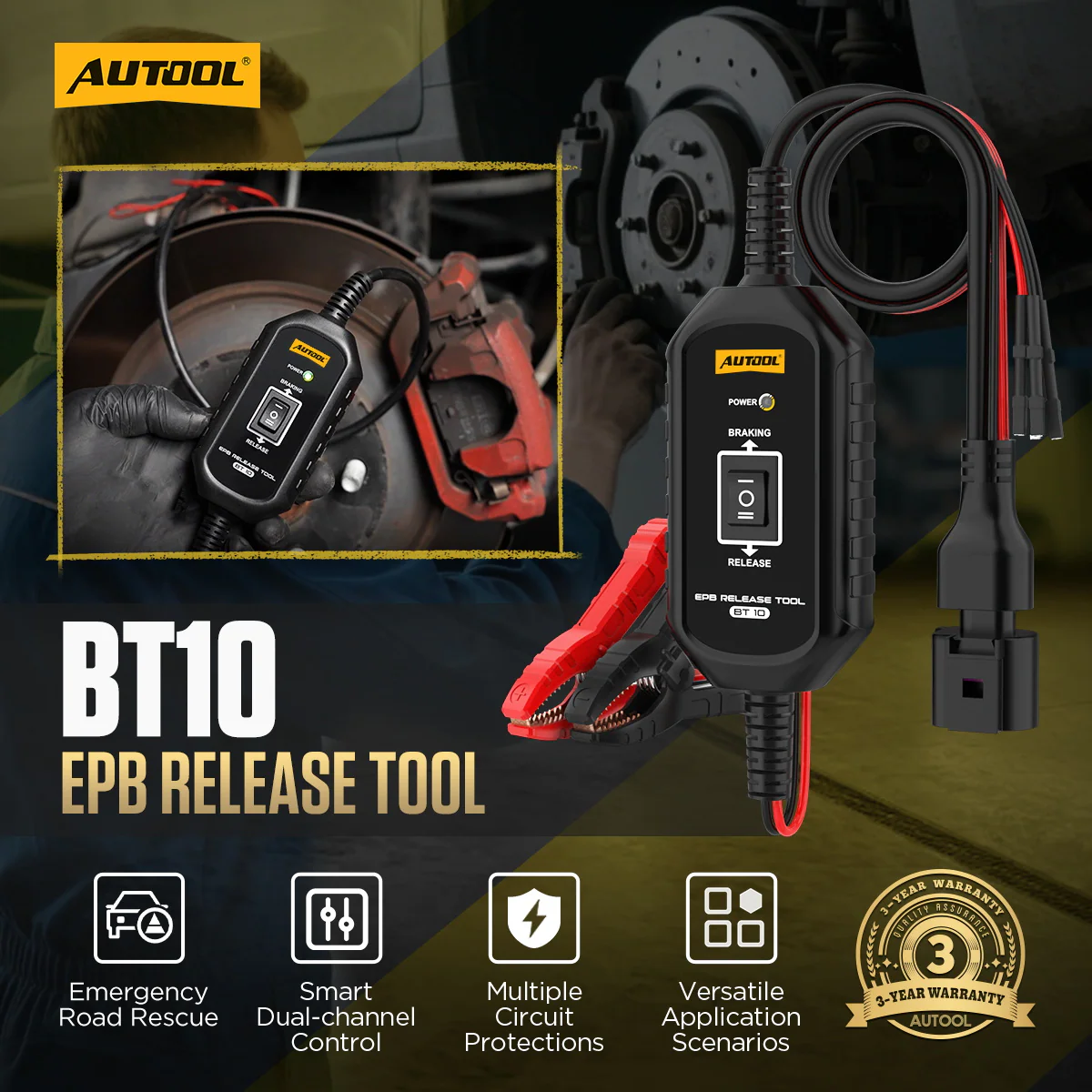

AUTOOL BT10 EPB Release Tool main product image with emergency rescue and protection highlights Click to enlarge
AUTOOL BT10 three-year warranty product image Click to enlarge
Product Comparison

Product Comparison

Use BT10 when you need temporary EPB motor release support during rescue, movement, and maintenance workflows. Compare it against full diagnostic paths before choosing the operation route.

BT10 FocusTemporary EPB motor release support with direct wiring workflow for rescue and maintenance operations.
Not A Permanent RepairBT10 helps release locked brakes; it does not permanently repair EPB control-system faults.
Electrical SafetyRequires DC 10V-14V supply, correct polarity wiring, and a verified 5A fuse before operation.
Decision CheckChoose BT10 for field release and movement scenarios; choose deeper diagnostic tools when root-cause code diagnosis is required.
AUTOOL BT10 EPB release tool comparison and application scenarios Click to enlarge
Key Features

Key Features

The BT10 combines dual-channel forward / reverse motor control, overload protection, reverse polarity protection, power-on self-check, and built-in fuse protection for safer temporary EPB release and engagement.

Dual-Channel Control

Supports forward and reverse motor control to quickly release or engage the EPB with one-button operation.

Emergency EPB Release

When the EPB cannot release because of sensor failure, control module malfunction, wiring issues, or unexpected system failure, the BT10 helps temporarily disengage the brake for repair or rescue.

Braking Mode

The reverse / braking mode can engage the EPB again after service or movement, helping support safe parking when the operation is complete.

Overload Protection

When applying or releasing the EPB, voltage output lasts for only about 1 second and then automatically stops, even if the button is held down.

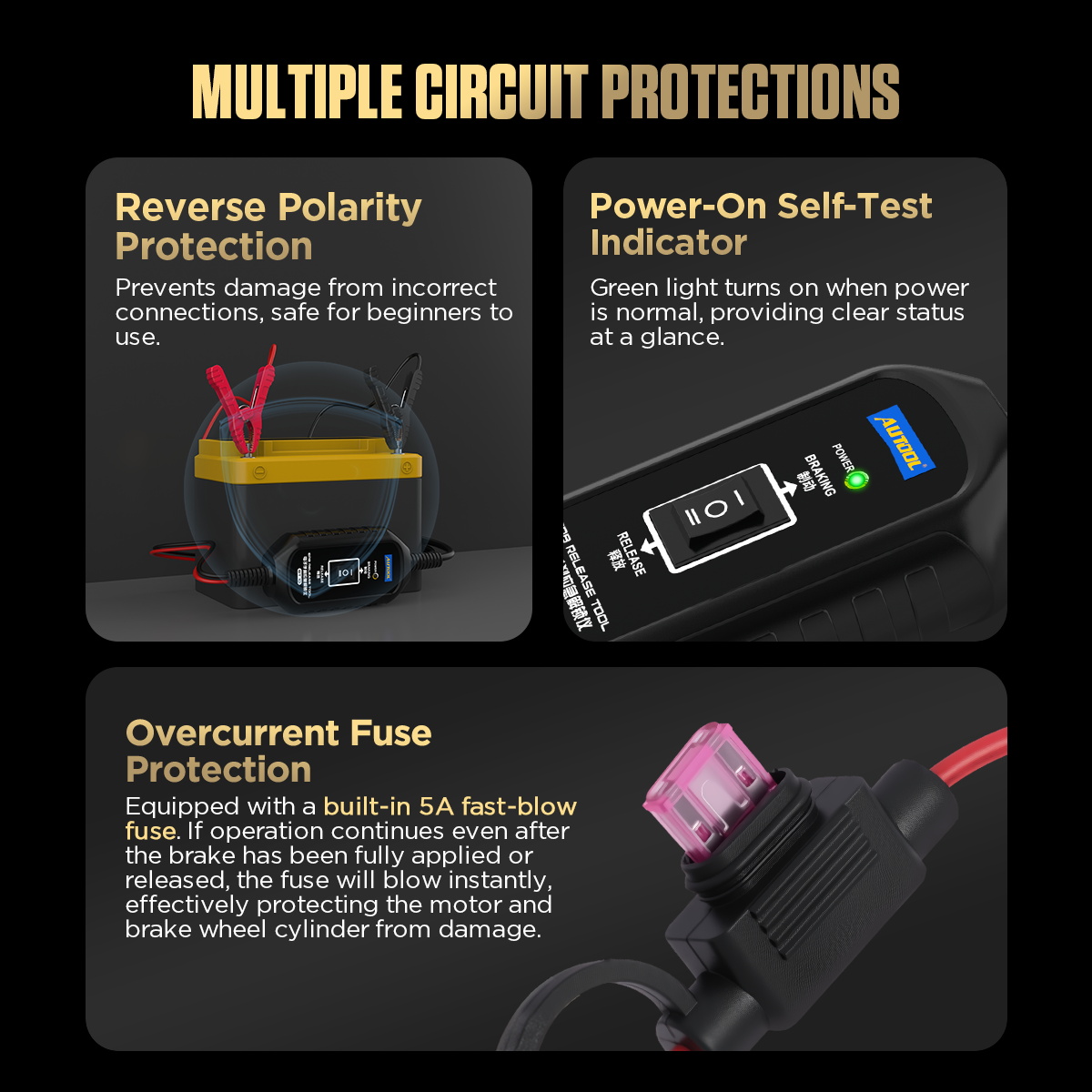

Multiple Circuit Protections

Includes reverse polarity protection, automatic power-on self-check, green operating status indicator, overcurrent protection, and a built-in 5A fast-blow fuse.

Lower Repair Risk

Helps avoid damage to the EPB motor, brake caliper, and brake wheel cylinder that may be caused by forced disassembly or violent resetting.

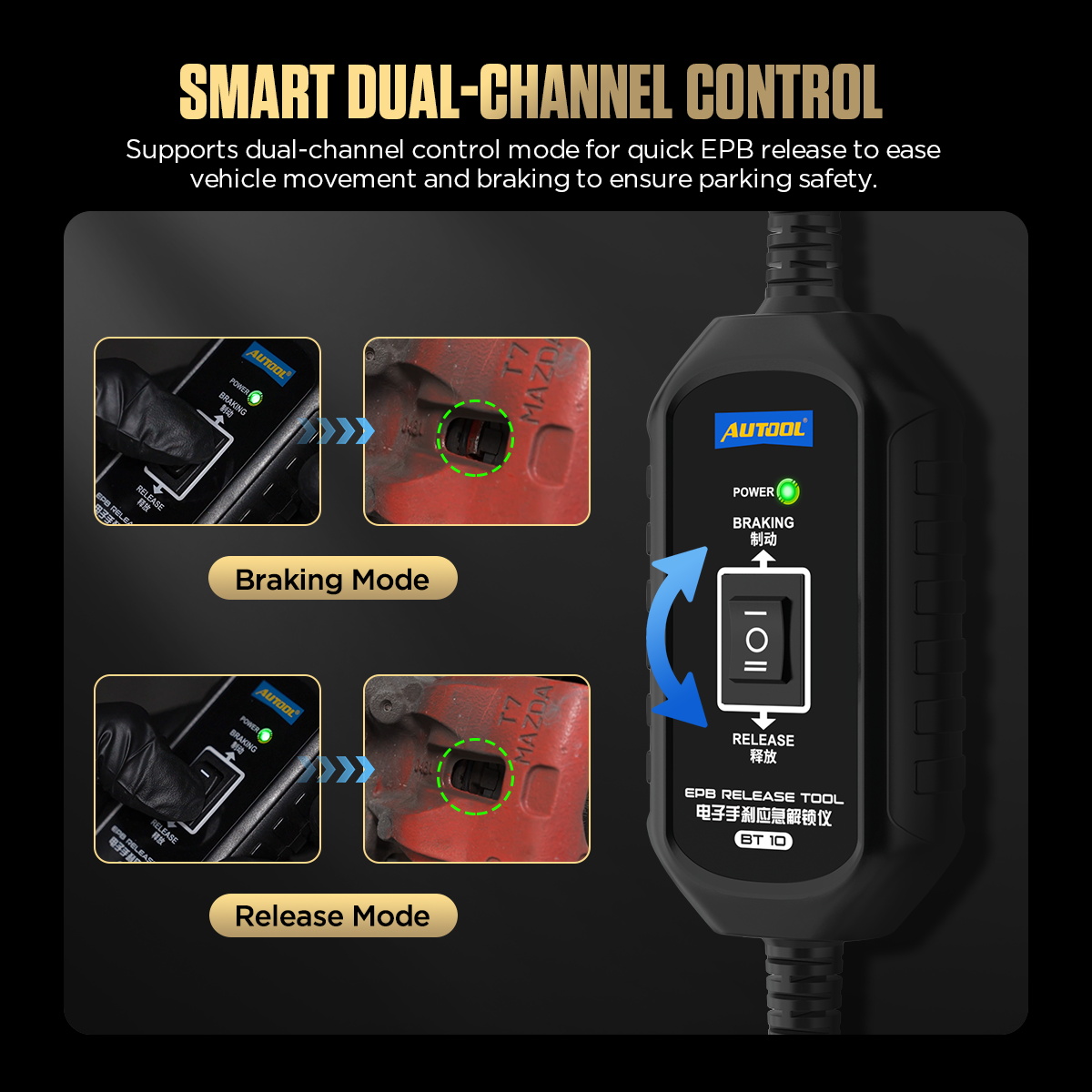

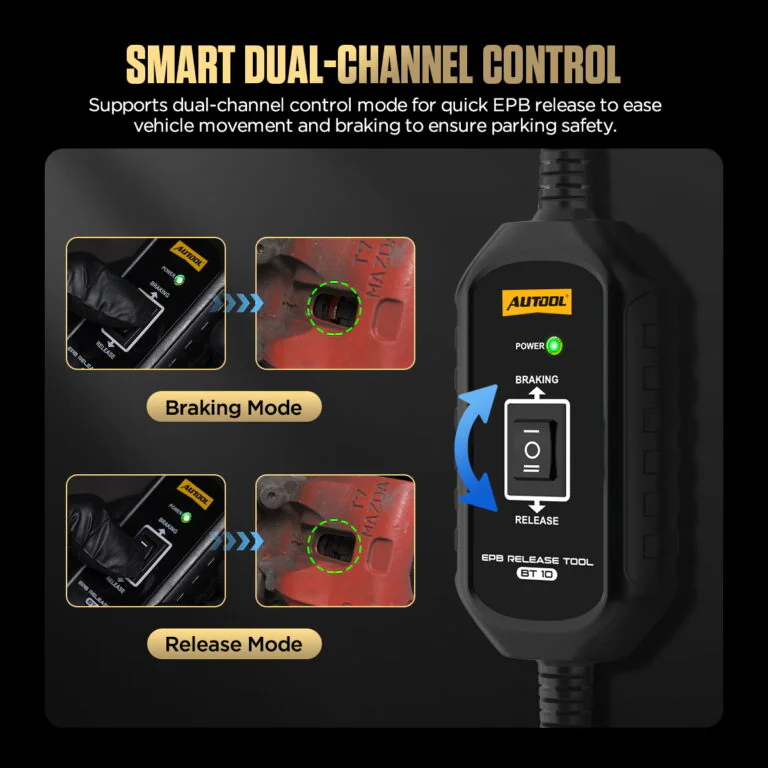

AUTOOL BT10 smart dual-channel braking and release control feature image Click to enlarge
AUTOOL BT10 multiple circuit protections feature image Click to enlarge

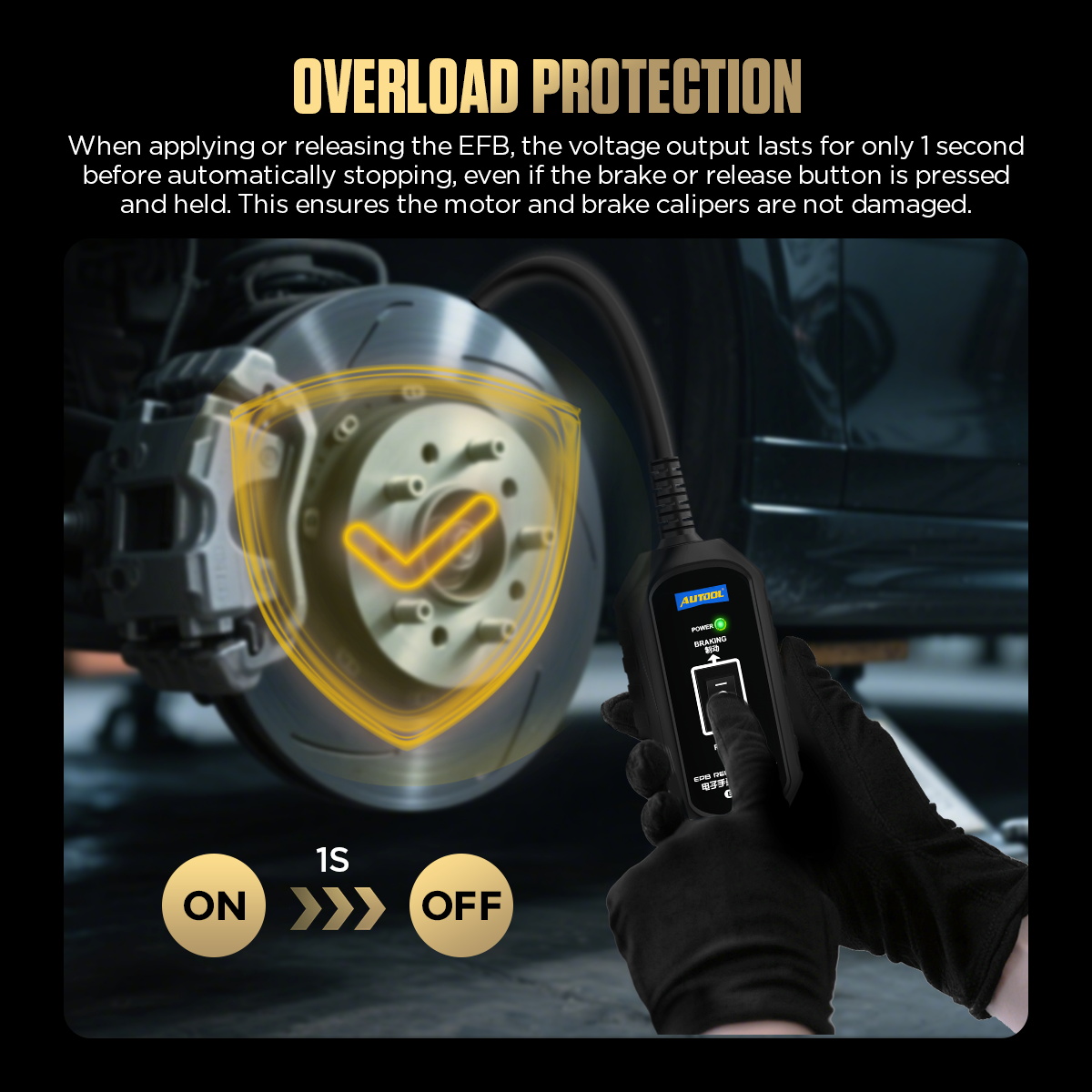

AUTOOL BT10 overload protection feature image Click to enlarge
Applications

Applications

Use the BT10 in temporary EPB release scenarios where quick brake release is needed for rescue, repair, maintenance, or vehicle movement.

EPB System Troubleshooting

If a sensor failure, control module malfunction, wiring harness fault, or other defect prevents the EPB from releasing, technicians can use the BT10 to disengage the brake during inspection and repair.

Emergency Road Rescue

When an EPB locks up after an unexpected incident, the tool can quickly release the brake so the vehicle can be moved, helping prevent tire damage caused by forced dragging.

Workshop Vehicle Movement

When an electronic handbrake locks because of power or circuit failure, the BT10 helps release the brake so the vehicle can be relocated in a workshop or dealership.

Brake Repair And Maintenance

When servicing brake calipers, replacing rear brake pads, or maintaining the brake wheel cylinder, the EPB reset tool helps release the brake and avoid forced disassembly damage.

AUTOOL BT10 versatile application scenarios including EPB troubleshooting, road rescue, workshop movement, and maintenance Click to enlarge
Specifications

AUTOOL BT10 Specifications

Confirm operating voltage, working current, control mode, fuse protection, indicator, cable length, and warranty information before use.

Product And Function
ProductAUTOOL BT10 EPB Release Tool
FunctionTemporary EPB release and engagement for repair, rescue, vehicle movement, and maintenance
Control ModeDual-channel forward / reverse motor control
OperationRocker switch braking / release operation
InterfaceElectronic parking brake terminal interface
Electrical And Protection
Operating VoltageDC 10V-14V
Working Current<15A
FuseBuilt-in 5A fast-blow fuse
ProtectionReverse polarity protection, overcurrent protection, overload protection, and power-on self-check
IndicatorPower indicator light; green light indicates normal power status
Cable And Size Reference
Power Cable Length1m battery clamp cable
Tool Cable Length0.5m upper cable
Main Unit Size Reference102mm height / 55mm width
Support
Main Unit Warranty3-year warranty for eligible non-human damage cases
Accessories WarrantyAccessories covered according to manual terms
SupportSetup, EPB terminal connection, fuse, motor direction, and warranty support

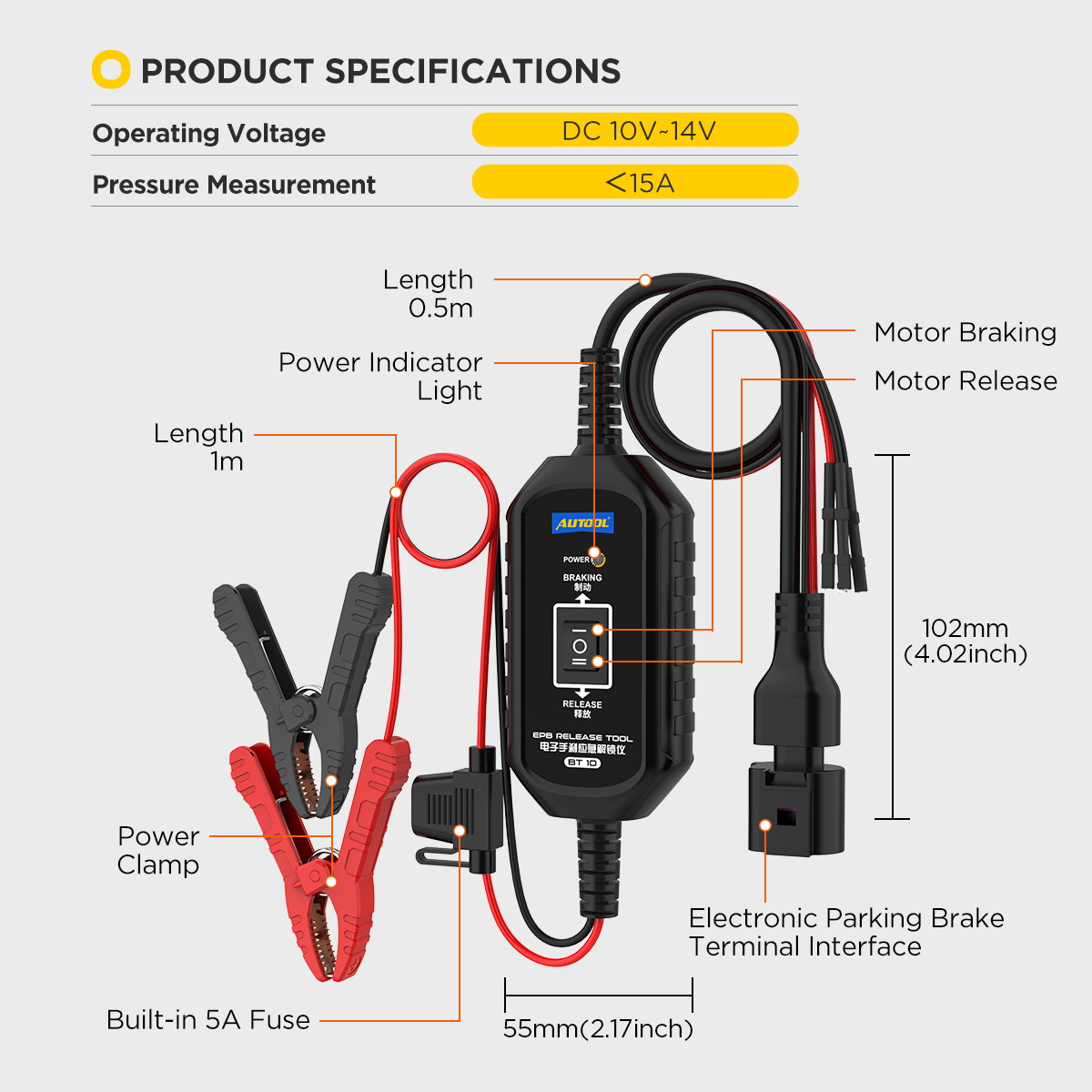

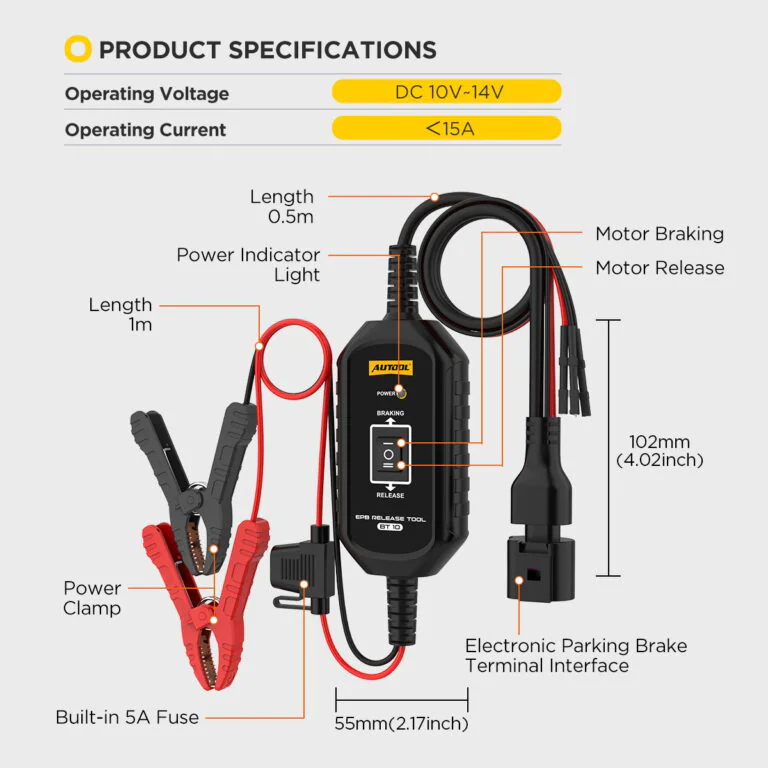

AUTOOL BT10 product specification and structure image Click to enlarge
Product And Function
ProductAUTOOL BT10 EPB Release Tool
FunctionTemporary EPB release and engagement for repair, rescue, vehicle movement, and maintenance
Control ModeDual-channel forward / reverse motor control
OperationRocker switch braking / release operation
InterfaceElectronic parking brake terminal interface
Electrical And Protection
Operating VoltageDC 10V-14V
Working Current<15A
FuseBuilt-in 5A fast-blow fuse
ProtectionReverse polarity protection, overcurrent protection, overload protection, and power-on self-check
IndicatorPower indicator light; green light indicates normal power status
Cable And Size Reference
Power Cable Length1m battery clamp cable
Tool Cable Length0.5m upper cable
Main Unit Size Reference102mm height / 55mm width
Support
Main Unit Warranty3-year warranty for eligible non-human damage cases
Accessories WarrantyAccessories covered according to manual terms
SupportSetup, EPB terminal connection, fuse, motor direction, and warranty support
How To Use

How To Use

Use BT10 only with proper DC 10V-14V power and trained operation. Stop immediately if the motor direction or EPB response does not match the expected operation.

Prepare Power

Prepare a fully charged spare battery and check that the built-in 5A fuse is intact before operation.

Connect Clamps

Connect the red clamp to the positive terminal and the black clamp to the negative terminal. When power is normal, the indicator turns on.

Connect EPB Interface

Connect the EPB terminal interface to the vehicle’s external electronic parking brake drive port before operating the rocker switch.

Release Or Brake

Use the rocker switch to select braking or release. Release the switch promptly when the brake caliper reaches the end position to avoid unnecessary drive force.

Operation Notes

  • BT10 is only for temporarily releasing or engaging the EPB during repair, rescue, or maintenance. It is not a permanent repair for EPB faults.
  • Use the device only with DC 10V-14V power.
  • Prepare a fully charged spare battery before operation.
  • Check that the built-in 5A fuse is intact before use.
  • Connect the red clamp to positive and the black clamp to negative.
  • Do not connect or disconnect test equipment while the ignition is on or the engine is running.
  • Release the rocker switch promptly after the brake caliper reaches the end position.
  • If the motor direction does not match the operation description, the forward / reverse direction may be reversed. Stop and confirm the connection and vehicle port.
Manual And Downloads

Manual And Downloads

Download the AUTOOL BT10 manual for safety rules, product structure, technical specifications, operating steps, maintenance, and warranty information.

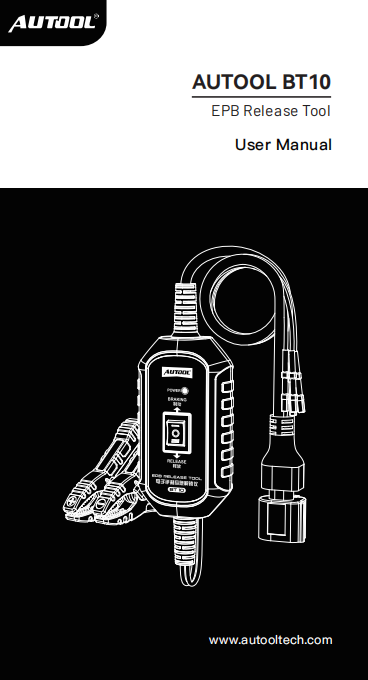

AUTOOL BT10 EPB Release Tool manual cover preview Click to enlarge

AUTOOL BT10 User Manual

Open the PDF manual for BT10 specifications, wiring, fuse checks, operation, safety rules, and warranty information.

Download Manual
Related Products

Related Products

Compare related AUTOOL test leads, circuit testers, breakout box options, and emergency power accessories before choosing the right BT10 support workflow.

Compatibility And Fitment

Compatibility And Fitment

These power supply tools are not direct EPB devices, but they are often used together with BT10 in workshop electrical diagnosis, battery support, and vehicle movement workflows.

Related Guides

Related Guides

Use these related articles to understand brake-service context, battery support, and ECU power workflows before using BT10.

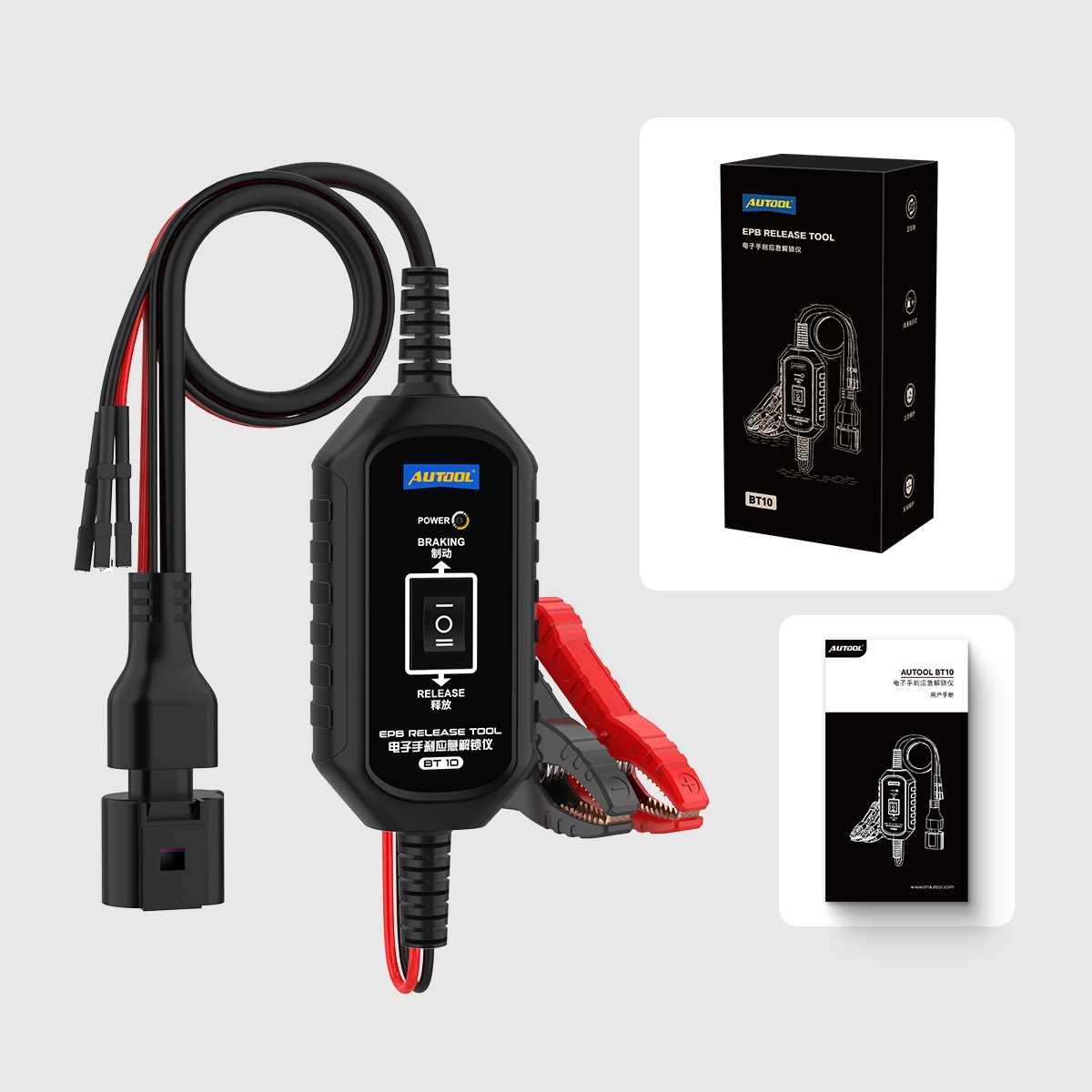

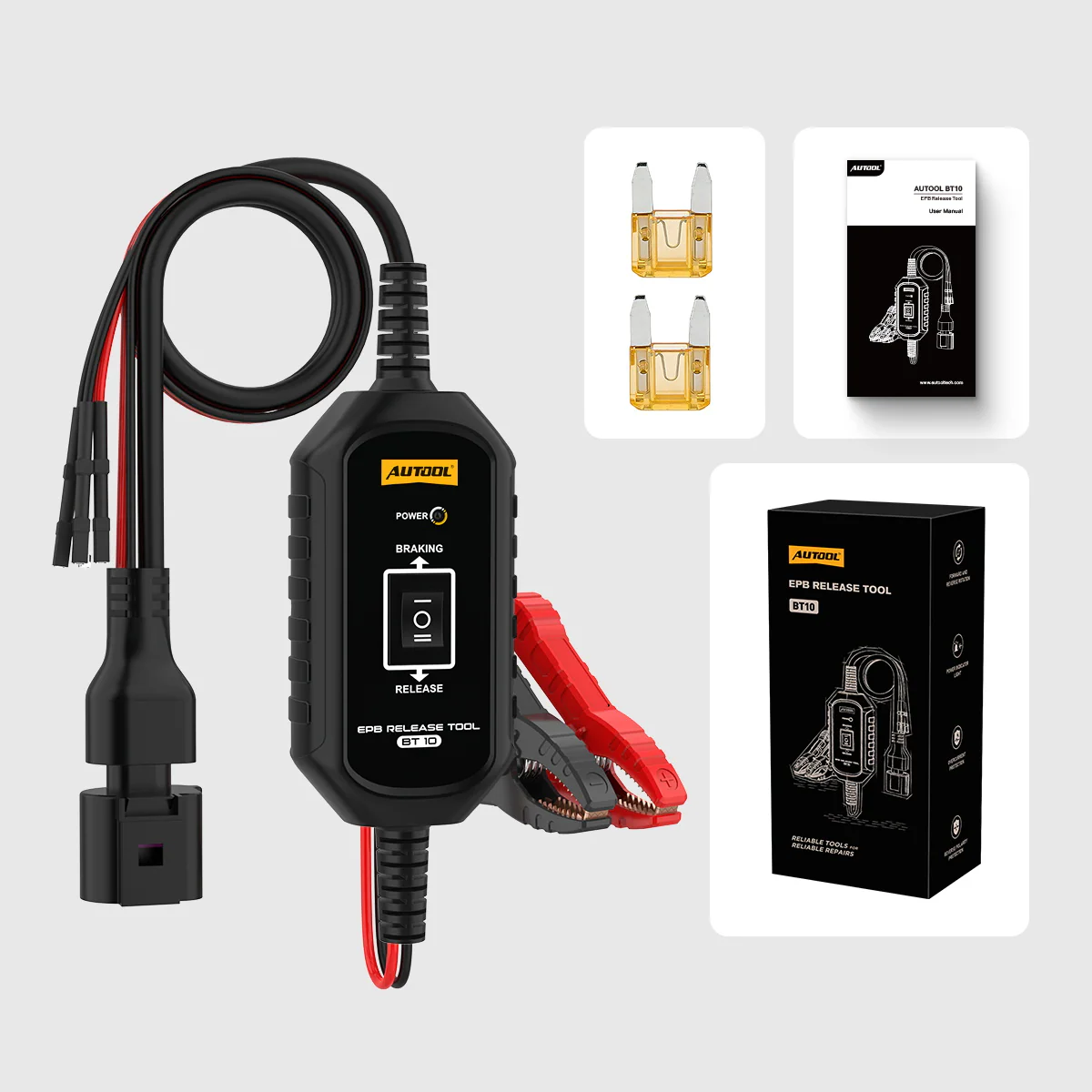

AUTOOL BT10 packing list with main unit, package box, and manual Click to enlarge
What Is In The Box

What Is In The Box

Review the package image to confirm the BT10 main unit, cable, EPB terminal interface, manual, and product box before use.

Main UnitAUTOOL BT10 EPB Release Tool
Power ClampRed / black battery clamp power cable
EPB Terminal InterfaceElectronic parking brake terminal connector
FuseBuilt-in 5A fast-blow fuse
PackageProduct box shown in image
ManualUser manual included
Before You Order And Use

Before You Order And Use

BT10 is a temporary EPB service tool. Confirm the use case, wiring, fuse, power supply, and motor direction before operation.

Safety And Use Notes

  • The AUTOOL BT10 EPB Release Tool is only for temporarily releasing the EPB to facilitate rescue, movement, inspection, repair, or maintenance.
  • BT10 does not provide a permanent solution to the vehicle’s EPB system fault.
  • Use only with DC 10V-14V power and do not overload the device.
  • Confirm that the built-in 5A fast-blow fuse is intact before use.
  • After powering on, the device performs a system self-check and visually indicates operating status with a green light.
  • Reverse polarity protection helps reduce device damage risk when the positive and negative terminals are connected incorrectly.
  • Do not connect or disconnect test equipment while the ignition is on or the engine is running.
  • Keep the device away from rain, water, damp environments, heat sources, oil, sharp edges, and moving parts.
  • Use only by trained or qualified personnel.
  • If the motor direction or EPB response does not match the operation description, stop operation and confirm the wiring and vehicle-side EPB terminal connection.

Questions And Answers

These answers cover BT10 use cases, temporary release limits, power supply, braking / release mode, pre-operation checks, protection functions, motor direction, and warranty.

Warranty And Contact

Warranty And Contact

For BT10 setup confirmation, EPB terminal connection support, fuse replacement, motor braking / release direction confirmation, temporary release guidance, emergency towing use, workshop movement support, or warranty questions, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming whether BT10 fits your EPB release scenario, checking the vehicle-side EPB terminal connection, confirming the rocker switch direction, replacing the fuse, or understanding main unit and accessory warranty coverage.

  • BT10 EPB release setup confirmation
  • EPB terminal connection support
  • Fuse replacement and protection troubleshooting
  • Motor braking / release direction confirmation
  • Warranty and replacement parts support
  • Emergency towing and workshop movement use confirmation
Email Supportsupport@autoolstore.com WhatsApp Support+86 189 2647 7404
