AUTOOL ATL-4SHU Ultra-low Twin Scissor Lift for Wheel Alignment
US$5,799.00
Key Features
- Ultra-Low Profile
- Six-Cylinder Lift System
- Triple Safety Protection
- Ultra-Low Profile: The 190 mm retracted height suits low-clearance vehicles and alignment-focused workshop setups.
- Six-Cylinder Lift System: Six hydraulic cylinders and dual hydraulic systems are positioned for strong, synchronized lifting.
- Triple Safety Protection: Wave pressure locks and three mechanical safety devices help reduce the risk of unexpected movement or sudden drop.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support
AUTOOL ATL-4SHU
Product Overview

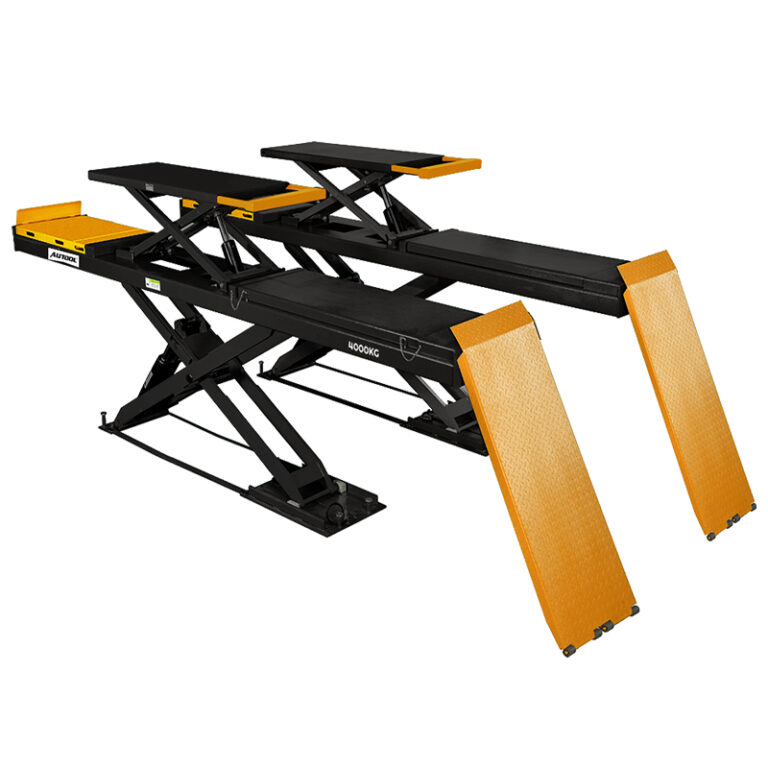

The AUTOOL ATL-4SHU Ultra-Low Twin Scissor Lift is a main and auxiliary scissor lift designed for professional wheel alignment and workshop lifting applications. With a lowered height of just 190mm, it is suitable for low-clearance vehicles and space-conscious service bays. Designed and manufactured with Italian technology, a six-cylinder hydraulic system, synchronized dual hydraulic control, and a reinforced alloy steel X-frame, the ATL-4SHU delivers stable lifting performance, long-term durability, and multiple safety protections for demanding workshop use.
190mm Low Profile 4000kg Main Lift Main & Auxiliary Lift 24V Safety Circuit
4000kgPrimary Capacity
190mmInitial Height
1680mmPrimary Lift Height
0.4-0.6MPaAir Source
Click to enlargeKey Specifications
ATL-4SHU Lifting Capacity, Platform Size And Power Requirements
Confirm lifting capacity, platform dimensions, lifting height, motor power, air source pressure, and machine weight before planning installation, delivery, and final quotation.
| Lifting Capacity | |
| Product | AUTOOL ATL-4SHU Ultra-Low Twin Scissor Lift |
| Application | Main and auxiliary lift structure for wheel alignment and professional workshop lifting applications |
| Primary Lifting Capacity | 4000kg |
| Auxiliary Lifting Capacity | 4000kg |
| Height And Platform Dimensions | |
| Initial Height | 190mm |
| Primary Lifting Height | 1680mm |
| Auxiliary Lifting Height | 500mm |
| Primary Platform Length | 4520mm |
| Auxiliary Platform Length | 1540-1750mm |
| Auxiliary Platform Width | 600mm |
| Power, Air And Weight | |
| Motor Power | 380V / 220V / others, 3kW |
| Air Source Pressure | 0.4-0.6MPa |
| Main Unit Weight | 1975kg |
| Safety Circuit | 24V safety control circuit |
| Product Structure | |
| Structure Overview | The ATL-4SHU structure is designed for strength, stability, corrosion resistance, smooth hydraulic motion, and long-term durability under repeated lifting cycles. |
| Premium Alloy Steel X-Frame | The X-frame is made from solid-core steel plate and high-quality alloy steel for high strength, corrosion resistance, and deformation resistance. |
| 3D Simulation Auxiliary Arm | The high-strength alloy auxiliary arm uses 3D dynamic simulation design to support smoother descent under full load. |
| Precision Laser And CNC Cutting | Laser and CNC equipment cut precise dimensions, smooth edges, and high surface finish for better structural consistency. |
| Shot Blasting And Spray Coating | Shot blasting and high-temperature spray coating improve surface adhesion, wear resistance, corrosion resistance, and long-term workshop durability. |
| Wear-Resistant Moving Parts | All pivot points are fitted with wear-resistant bearings, and high-molecular wear-resistant sliders help reduce friction and extend service life. |
| Precision Hydraulic Components | Cylinders are machined using high-speed fully automatic CNC lathes for concentricity and smooth finish. Japanese hydraulic seals and Italian ball valves help improve sealing and flow control reliability. |
Lifting Capacity
ProductAUTOOL ATL-4SHU Ultra-Low Twin Scissor Lift
ApplicationMain and auxiliary lift structure for wheel alignment and professional workshop lifting applications
Primary Lifting Capacity4000kg
Auxiliary Lifting Capacity4000kg
Height And Platform Dimensions
Initial Height190mm
Primary Lifting Height1680mm
Auxiliary Lifting Height500mm
Primary Platform Length4520mm
Auxiliary Platform Length1540-1750mm
Auxiliary Platform Width600mm
Power, Air And Weight
Motor Power380V / 220V / others, 3kW
Air Source Pressure0.4-0.6MPa
Main Unit Weight1975kg
Safety Circuit24V safety control circuit
Product Structure
Structure OverviewThe ATL-4SHU structure is designed for strength, stability, corrosion resistance, smooth hydraulic motion, and long-term durability under repeated lifting cycles.
Premium Alloy Steel X-FrameThe X-frame is made from solid-core steel plate and high-quality alloy steel for high strength, corrosion resistance, and deformation resistance.
3D Simulation Auxiliary ArmThe high-strength alloy auxiliary arm uses 3D dynamic simulation design to support smoother descent under full load.
Precision Laser And CNC CuttingLaser and CNC equipment cut precise dimensions, smooth edges, and high surface finish for better structural consistency.
Shot Blasting And Spray CoatingShot blasting and high-temperature spray coating improve surface adhesion, wear resistance, corrosion resistance, and long-term workshop durability.
Wear-Resistant Moving PartsAll pivot points are fitted with wear-resistant bearings, and high-molecular wear-resistant sliders help reduce friction and extend service life.
Precision Hydraulic ComponentsCylinders are machined using high-speed fully automatic CNC lathes for concentricity and smooth finish. Japanese hydraulic seals and Italian ball valves help improve sealing and flow control reliability.
Key Features
Key Features
The ATL-4SHU combines a low-profile structure, six-cylinder hydraulic power, synchronized lifting control, and extendable secondary lifting support to handle demanding service-bay applications.
Ultra-Low 190mm Entry
The lift lowers to just 190mm, making it suitable for low-clearance vehicles and compact workshop layouts.
Main & Auxiliary Lifting
The main and auxiliary structure improves lifting versatility for wheel alignment and professional maintenance work.
Six-Cylinder Hydraulic Power
The entire lift system is powered by six hydraulic cylinders, providing strong lifting force and improved stability during heavy-duty operation.
Synchronized Lifting Control
Dual hydraulic systems operate in synchronization to provide smoother lifting and lowering for workshop service operations.
Extendable Secondary Platform
The standard single-side extendable secondary scissor lift supports flexible service use. Optional dual-side extendable configuration can be confirmed before ordering.
Workshop-Grade Build
The reinforced structure, durable coating, wear-resistant parts, and precision manufacturing support long-term service in demanding workshop environments.
Before You Order And Use
Before You Order And Use
As a large workshop lift system, ATL-4SHU uses multiple safety layers to help protect operators, vehicles, and workshop equipment during lifting and lowering.
Triple Mechanical Safety Devices
Three independent mechanical safety mechanisms automatically unlock during descent and help prevent sudden drops during operation.
Wave Pressure Locks
Wave pressure locks work with the hydraulic synchronization system to reduce unexpected movement and improve lifting safety.
24V Safety Control Circuit
The 24V safety control circuit helps reduce electrical hazards and keeps the garage car lift operating safely.
Pneumatic Mechanical Safety Lock
The solid-core steel X-frame works with a pneumatic mechanical safety lock to support safer lifting and holding.
Optional Infrared Level Detection
Infrared level detection is optional and can help detect alignment issues or obstacles during descent when configured.
Optional Foot Protection Device
The optional foot protection device adds another safety layer to help reduce accidental injury during operation.
Testing And Safety Reference

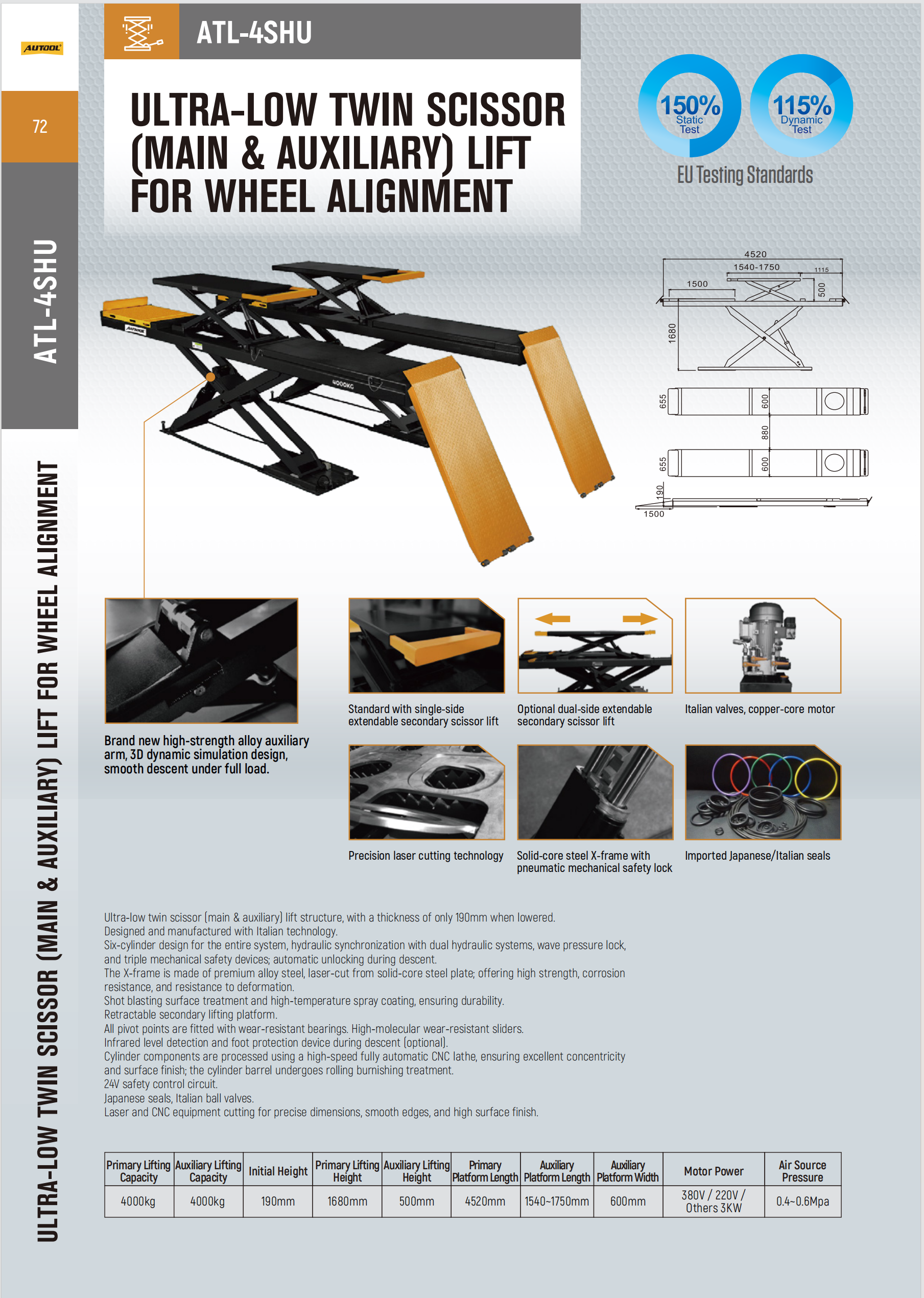

- The reference image lists EU testing standards, including 150% static testing and 115% dynamic testing.
- Confirm local installation, inspection, and operator safety requirements before use.
- Optional infrared level detection and foot protection device should be confirmed before purchase if required for your workshop.
What Is In The Box
What Is In The Box
The ATL-4SHU is shipped as a large workshop lifting system. Confirm package dimensions, weight, unloading capability, warehouse receiving conditions, and installation space before ordering.
Main & Auxiliary Units
Dimensions: 455 cm × 65 cm × 45 cm
Weight: 1975 kg
Trolley
Dimensions: 92 cm × 61 cm × 25 cm
Weight: 132 kg
Approach Ramps
Dimensions: 122 cm × 60 cm × 10 cm
Weight: 62 kg
Electrical Control Box
Dimensions: 54 cm × 47 cm × 123 cm
Weight: 86 kg
Accessories Box
Dimensions: 40 cm × 40 cm × 25 cm
Weight: 27 kg
Receiving Check
Confirm forklift or unloading capability, storage space, warehouse receiving requirements, and installation schedule before dispatch.
Before You Order And Use
Before You Order And Use
ATL-4SHU is a heavy workshop lift system. Confirm site conditions, unloading arrangements, optional safety configuration, and final quotation details before placing an order.
Important Notes
- Confirm workshop floor strength, installation space, unloading equipment, and electrical setup before ordering.
- This is a heavy workshop lift system. Confirm delivery, forklift / unloading capability, and installation arrangement in advance.
- Confirm voltage configuration, motor power configuration, and local electrical requirements before purchase.
- Confirm whether optional infrared level detection and foot protection device are required before purchase.
- Confirm whether the standard single-side extendable secondary scissor lift meets your service needs, or whether optional dual-side extendable configuration is required.
- Packing dimensions and weight should be checked before arranging international shipping or warehouse receiving.
- For final configuration, voltage, installation, shipping details, and quotation, contact AUTOOL Store before ordering.
Questions And Answers
These answers cover low-profile design, lifting capacity, main and auxiliary lifting, six-cylinder hydraulic control, safety devices, optional infrared / foot protection, shipping size, installation confirmation, and quotation support.
The ATL-4SHU has an initial lowered height of just 190mm, making it suitable for low-clearance vehicles and workshops that need a low-profile lifting solution.
The ATL-4SHU has a primary lifting capacity of 4000kg and an auxiliary lifting capacity of 4000kg. The primary lifting height is 1680mm, and the auxiliary lifting height is 500mm.
The main and auxiliary structure improves lifting versatility for wheel alignment and maintenance work. The secondary scissor lift supports additional service operations while helping the overall lift remain suitable for professional workshop layouts.
The reference information shows a standard single-side extendable secondary scissor lift and an optional dual-side extendable secondary scissor lift. Confirm the required secondary platform configuration with AUTOOL Store before ordering.
The lift system is powered by six hydraulic cylinders. This design provides strong lifting power, improved load-bearing performance, and better stability during heavy-duty workshop operation.
ATL-4SHU includes triple mechanical safety devices, hydraulic synchronization support, wave pressure locks, a pneumatic mechanical safety lock, and a 24V safety control circuit. These systems help improve lifting safety and reduce unexpected movement.
Infrared level detection and foot protection are listed as optional. Confirm with AUTOOL Store before ordering if these optional safety features are required for your installation.
The listed motor power configuration is 380V / 220V / others, 3kW. The air source pressure requirement is 0.4-0.6MPa. Confirm voltage configuration and local electrical requirements before ordering.
Confirm packing dimensions, total weight, unloading equipment, workshop floor condition, installation space, electrical setup, voltage configuration, air source pressure, and optional safety configuration before ordering.
Use the enquiry button or contact AUTOOL Store directly to confirm ATL-4SHU price, shipping cost, unloading requirements, optional safety devices, installation details, voltage configuration, and final quotation.
Warranty And Contact
Warranty And Contact
Contact AUTOOL Store to confirm ATL-4SHU final price, shipping size, unloading requirements, optional safety devices, installation conditions, voltage configuration, air source pressure, and final quotation.
Pre-Sales And Product Support
Use support if you need help confirming workshop installation requirements, shipping dimensions, unloading preparation, optional infrared level detection, optional foot protection device, secondary scissor lift configuration, electrical control configuration, or final purchase quotation.
- ATL-4SHU price and quotation confirmation
- Shipping size, package weight, and warehouse receiving support
- Optional infrared level detection and foot protection device confirmation
- Standard single-side or optional dual-side secondary scissor lift confirmation
- Installation space, workshop floor, unloading, air source, and electrical setup confirmation
- Voltage configuration and final order support
