AUTOOL OD760

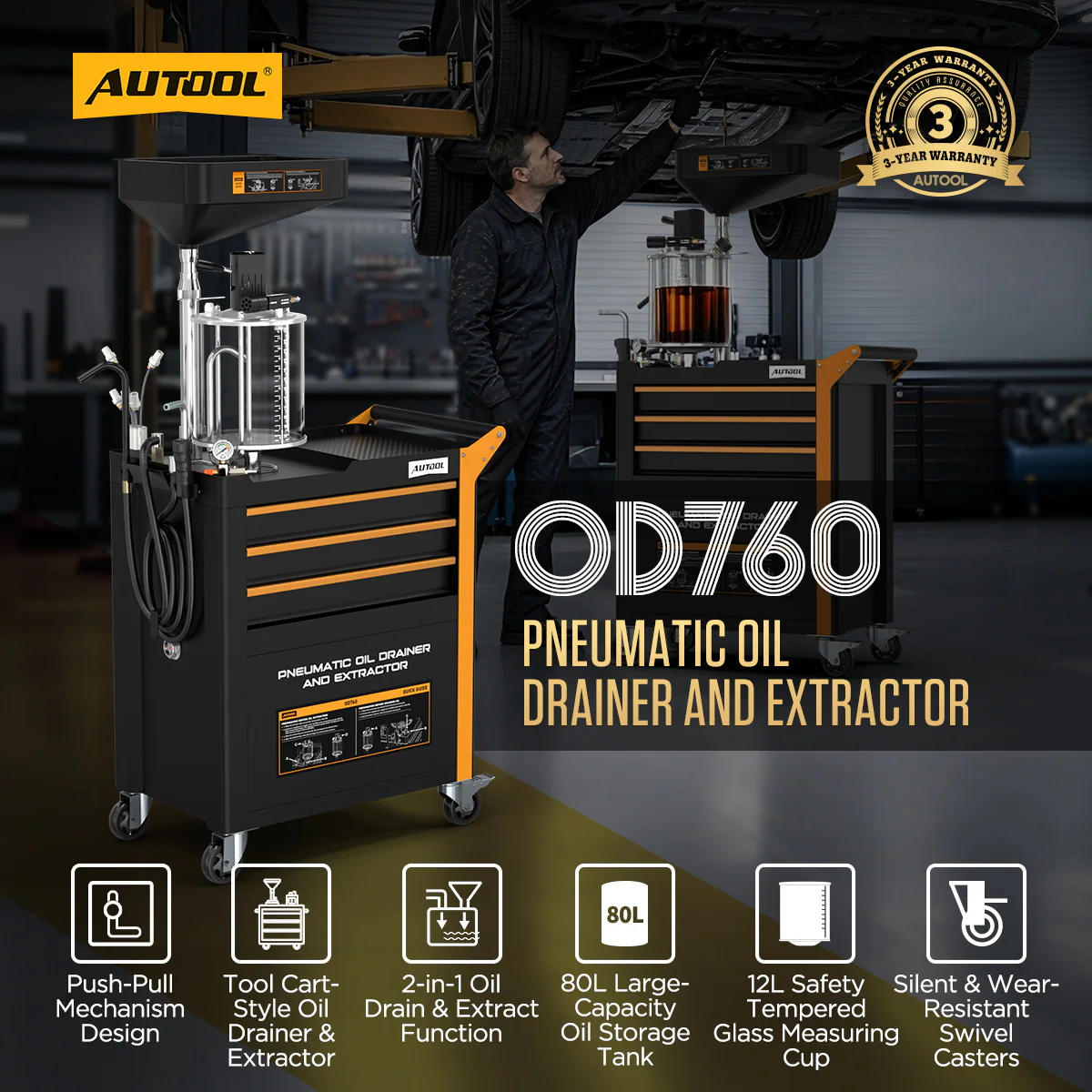

Product Overview

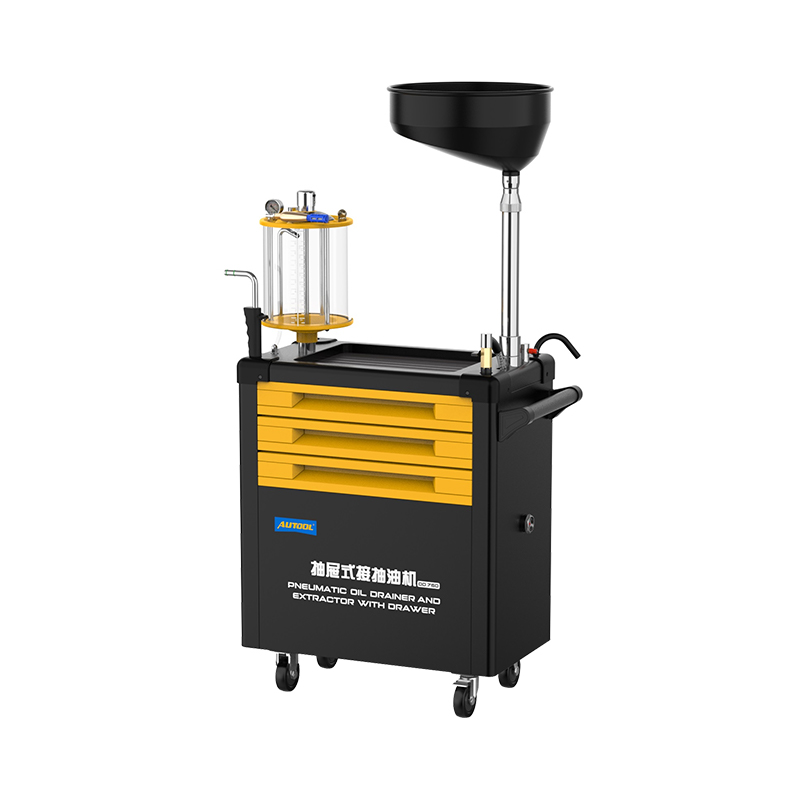

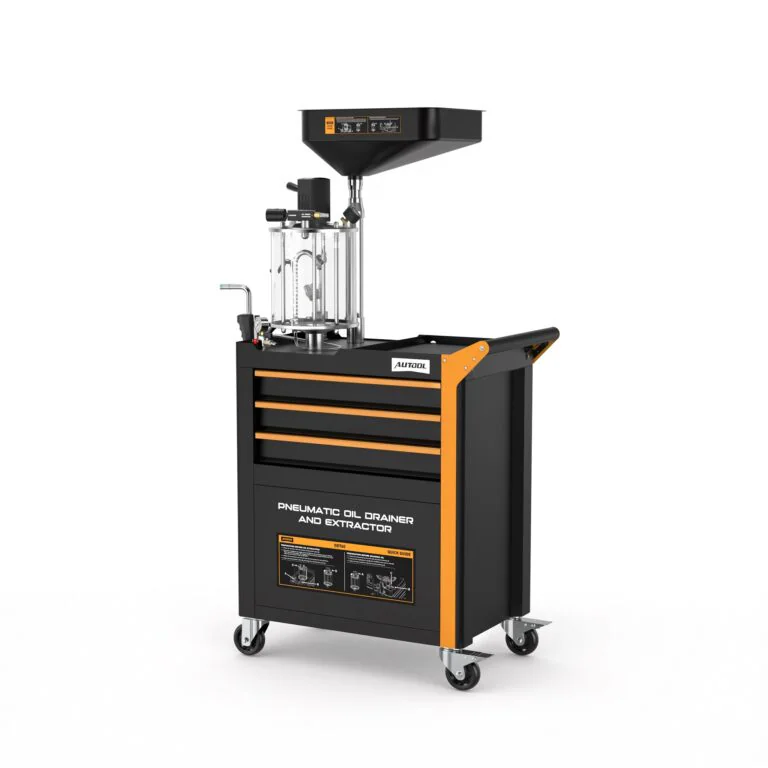

AUTOOL OD760 is a professional pneumatic oil drainer and extractor built for efficient workshop oil service. It combines vacuum oil extraction, a 20L large oil catch pan, a 10L explosion-proof tempered glass measuring cup, an 80L oil storage tank, five suction tubes, a 61-piece tool set, a multi-layer storage cabinet, and a 1.5mm thickened body into one mobile maintenance station.
With pneumatic vacuum extraction technology, OD760 can help complete oil extraction in about 3 minutes under suitable air supply conditions. The integrated drawers and tool set also help technicians keep common oil-service tools organized during daily maintenance work.
Vacuum Extraction80L Oil Tank20L Oil Pan61-Piece Tool Set
6-8barAir Supply
10LMeasuring Cup
20LOil Catch Pan
80LStorage Tank
Click to enlarge
Key Features
Key Features
OD760 combines fast extraction, visual oil inspection, large oil collection capacity, tool storage, and a thickened body for reliable daily workshop operation.

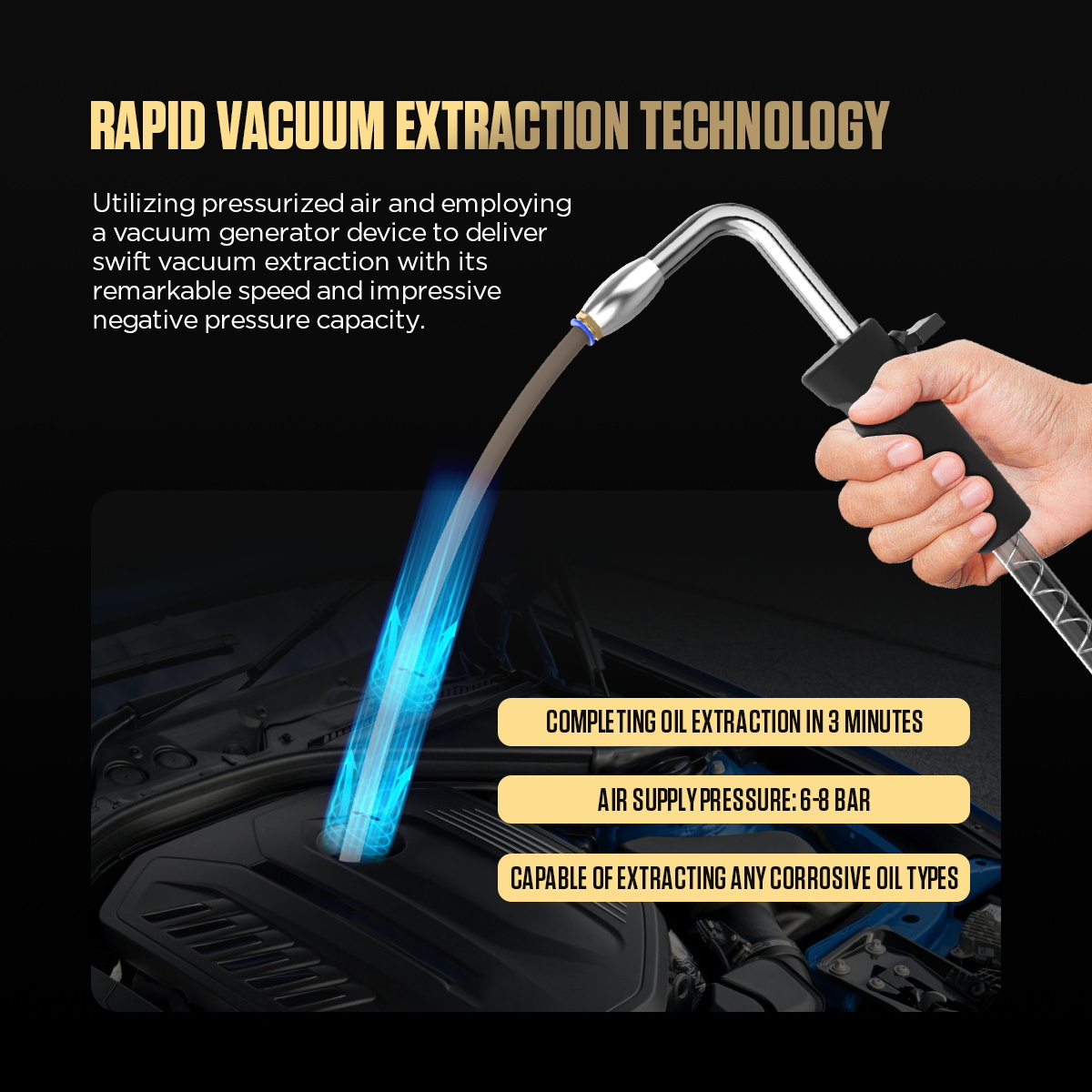

Rapid Vacuum Extraction

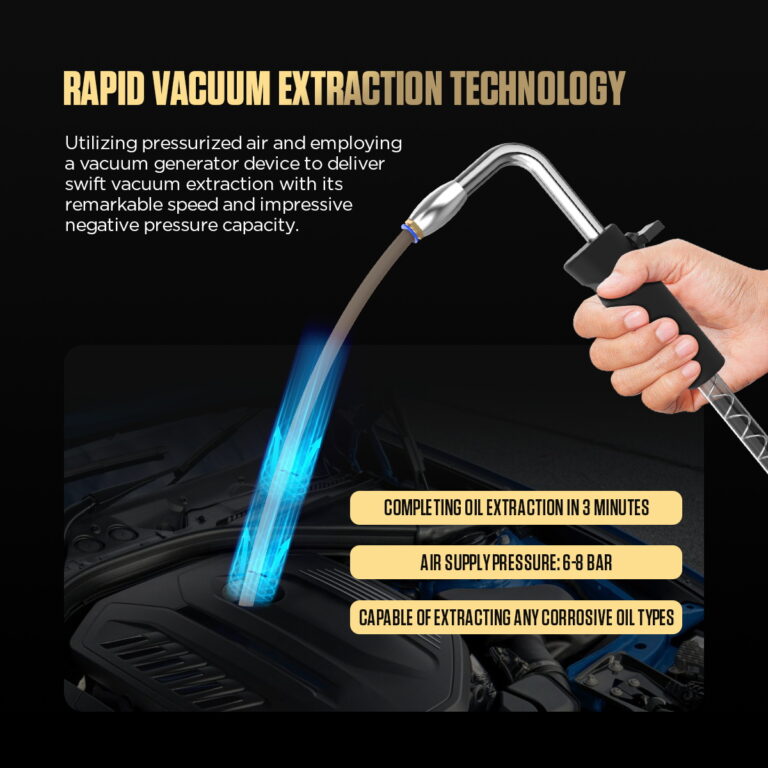

Uses pressurized air and a vacuum generator for rapid pneumatic oil extraction. With 6-8bar air supply pressure, oil extraction can be completed in about 3 minutes under suitable conditions.
10L Tempered Measuring Cup

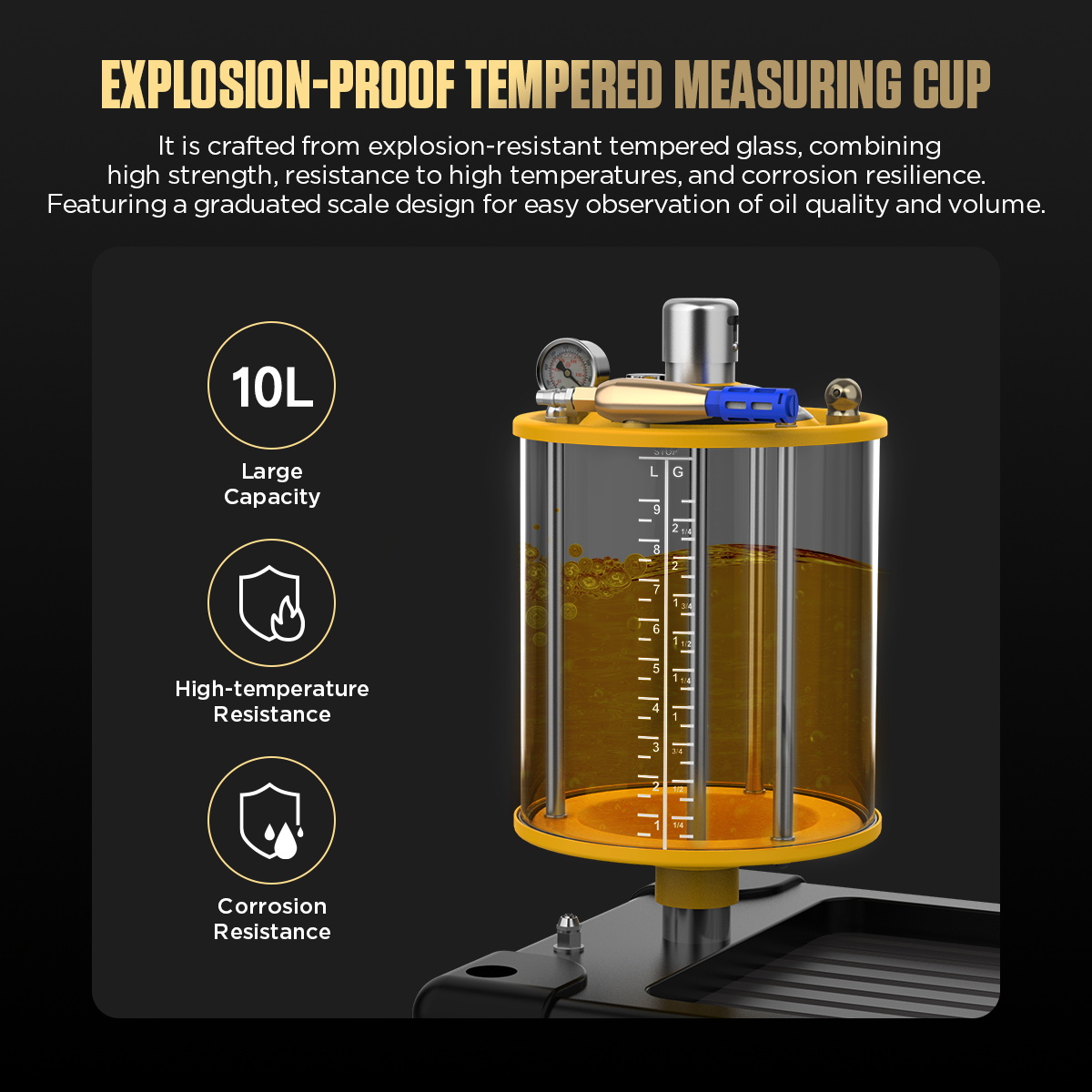

The 10L explosion-proof tempered glass measuring cup has scale markings, high-temperature resistance, corrosion resistance, and clear visibility for checking waste oil quality and quantity.

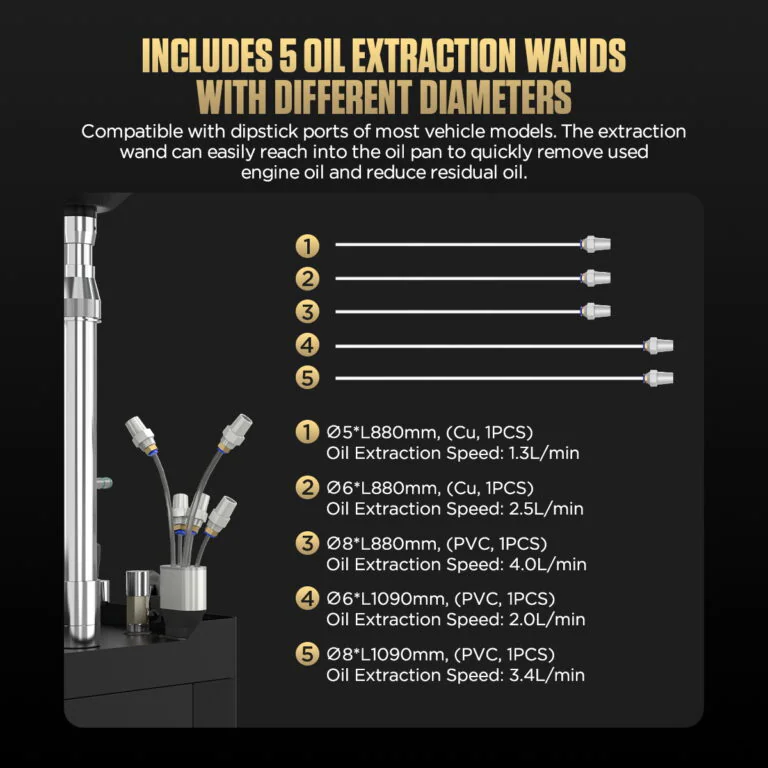

5 Vacuum Suction Tubes

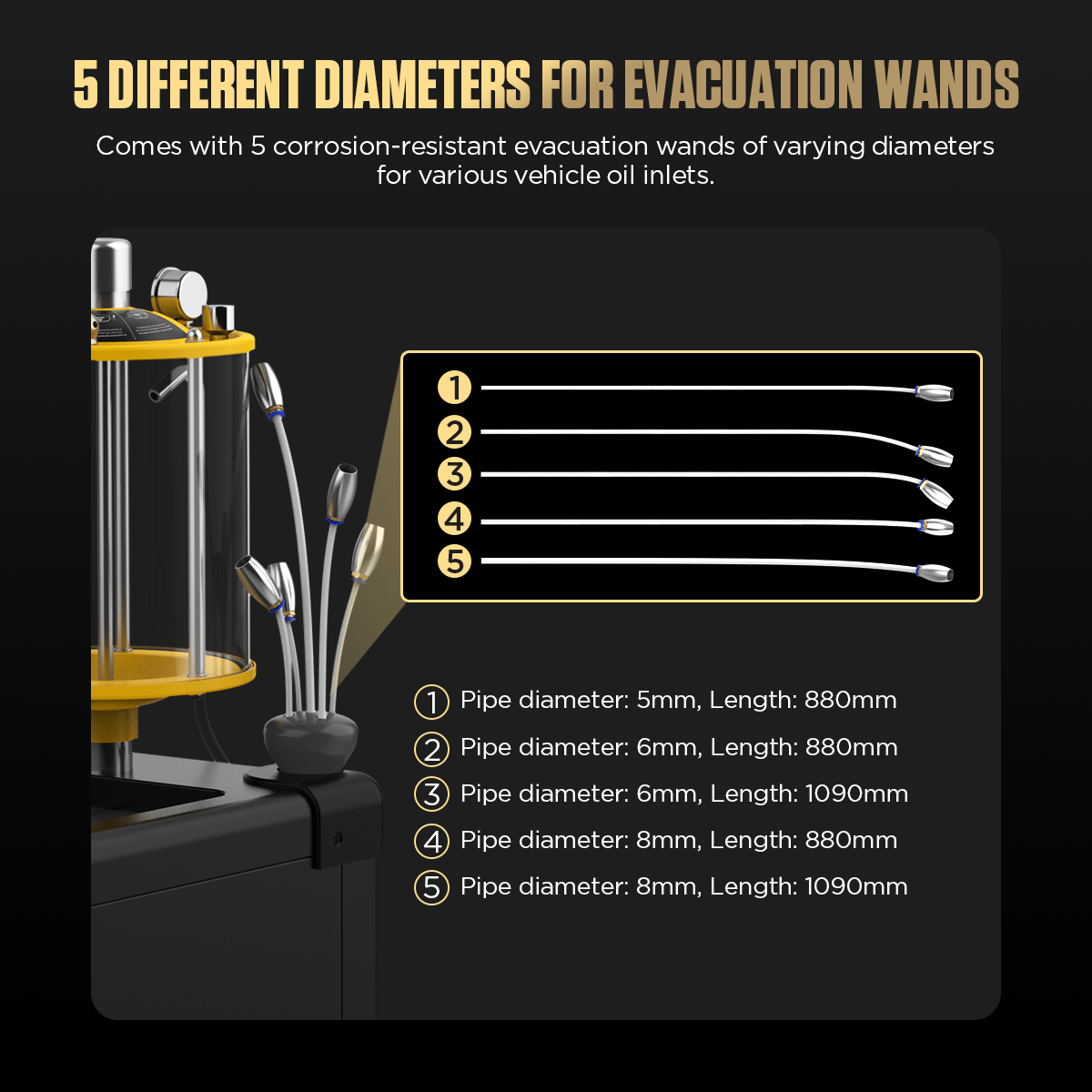

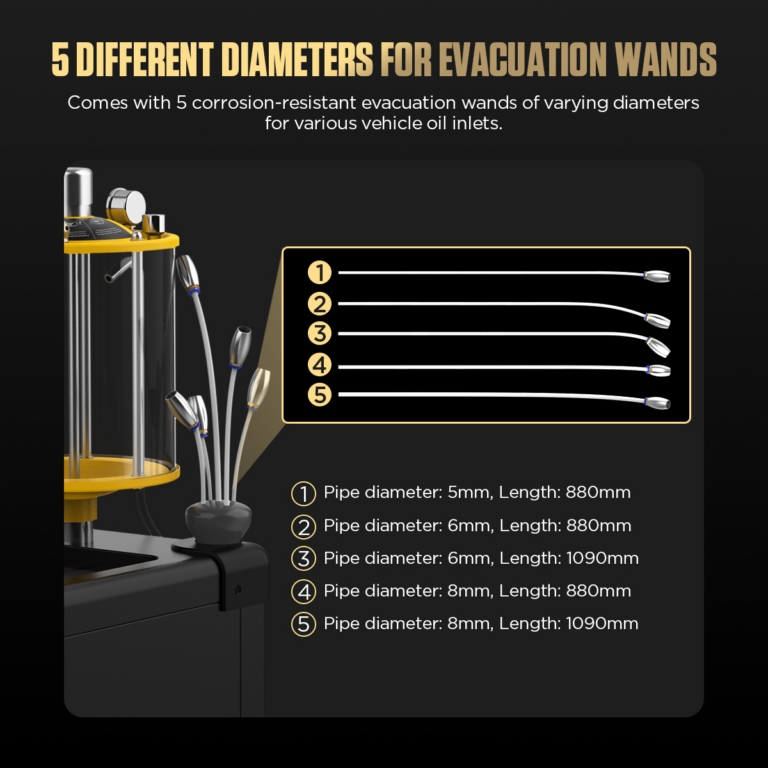

Includes five oil extraction wands for different vehicle applications: 5mm × 880mm, 6mm × 880mm, 6mm × 1090mm, 8mm × 880mm, and 8mm × 1090mm.

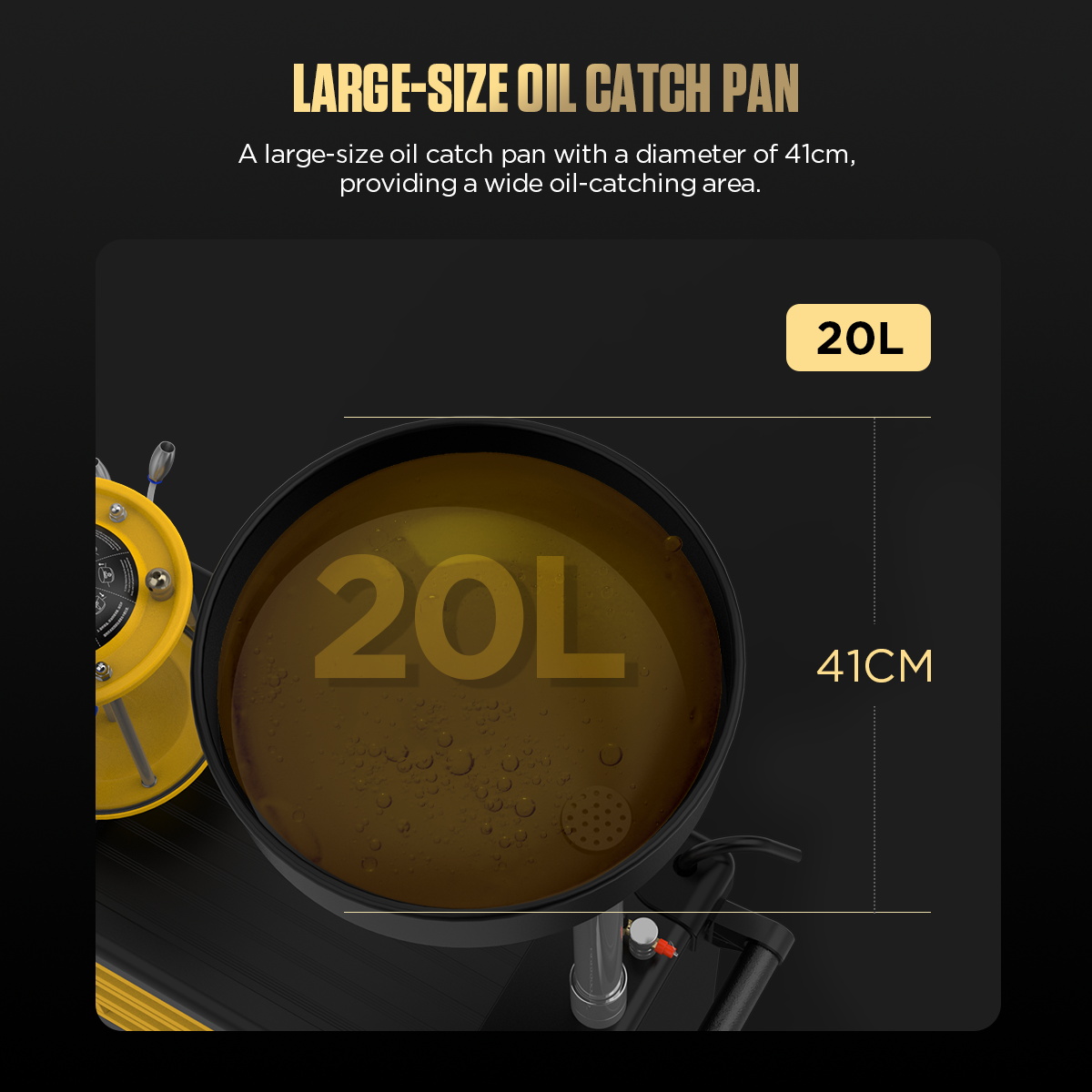

20L Large Oil Receiving Tray
The 20L oil catch pan has a 41cm diameter, providing a larger collection area for bottom oil drainage and helping reduce spills during service.

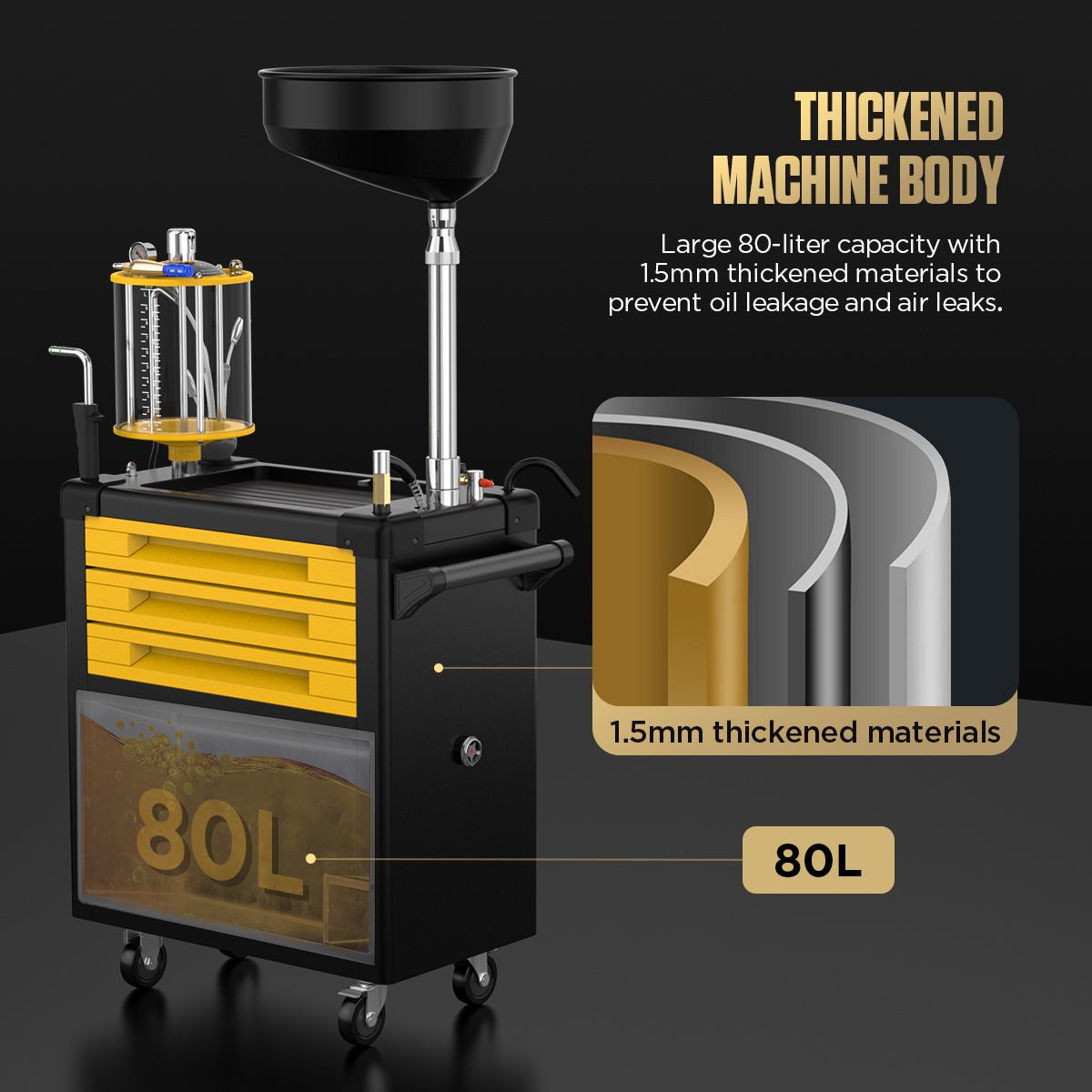

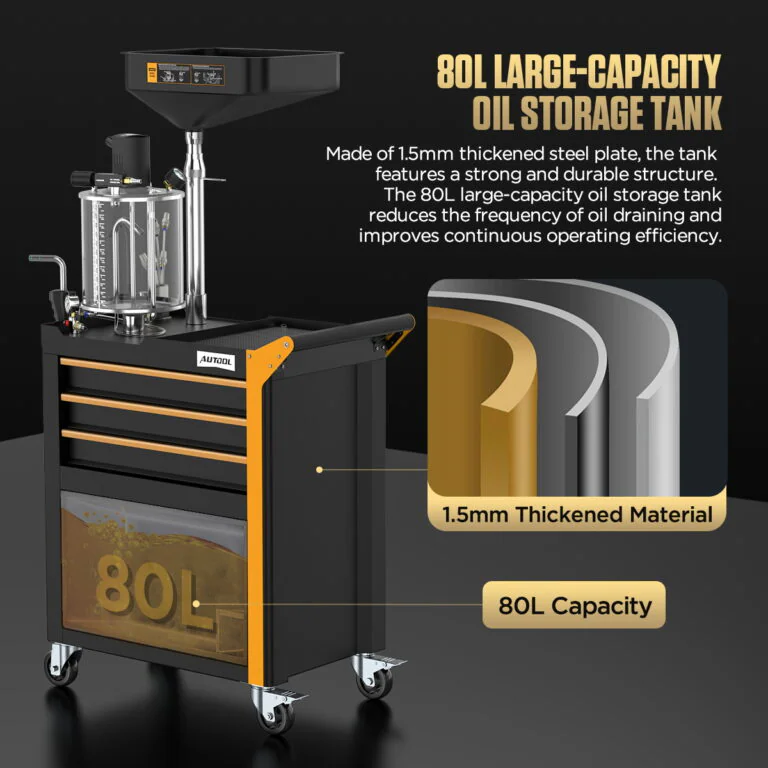

80L Thickened Oil Tank
The 80L storage tank and 1.5mm thickened body support leak-resistant and air-tight operation, improving durability for workshop use.

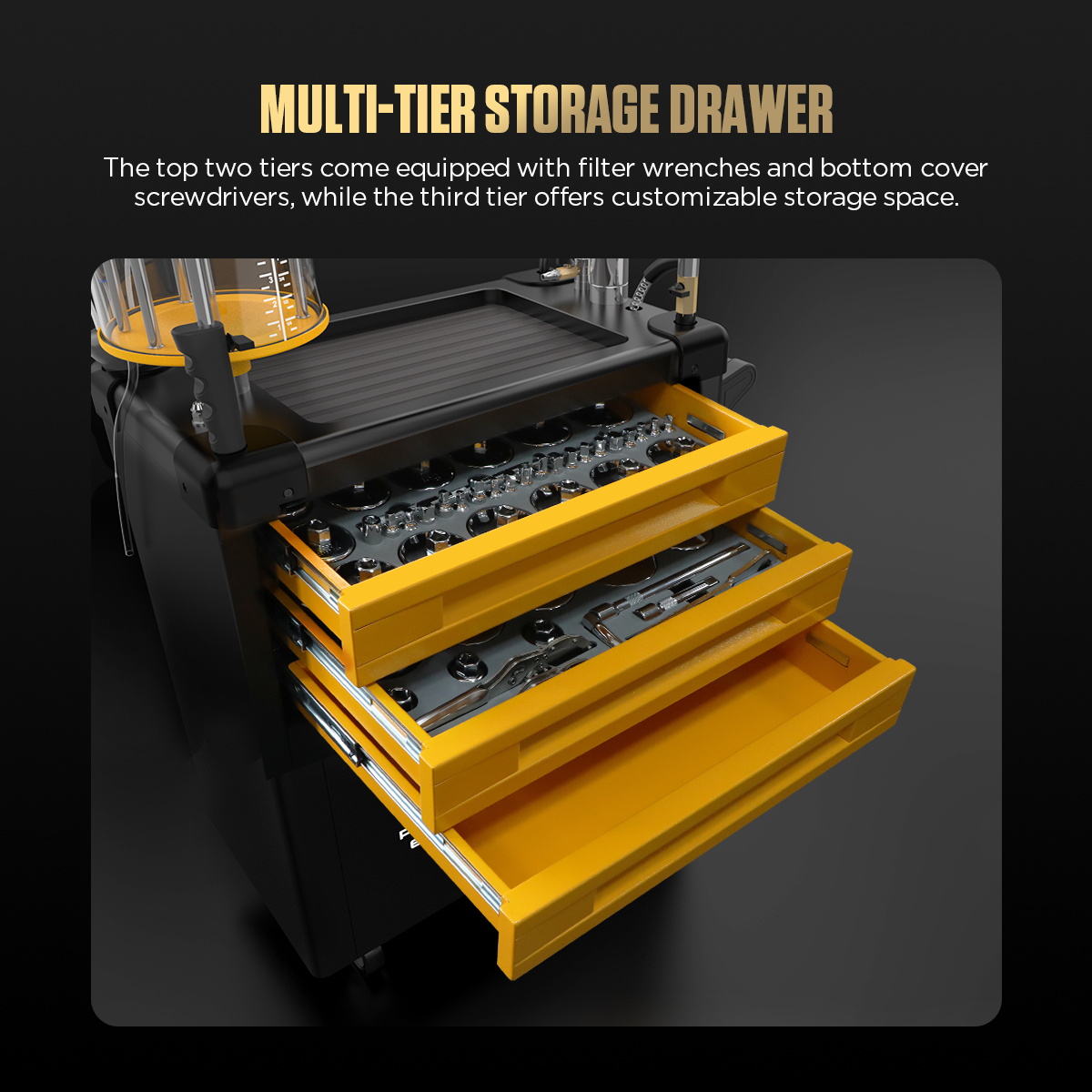

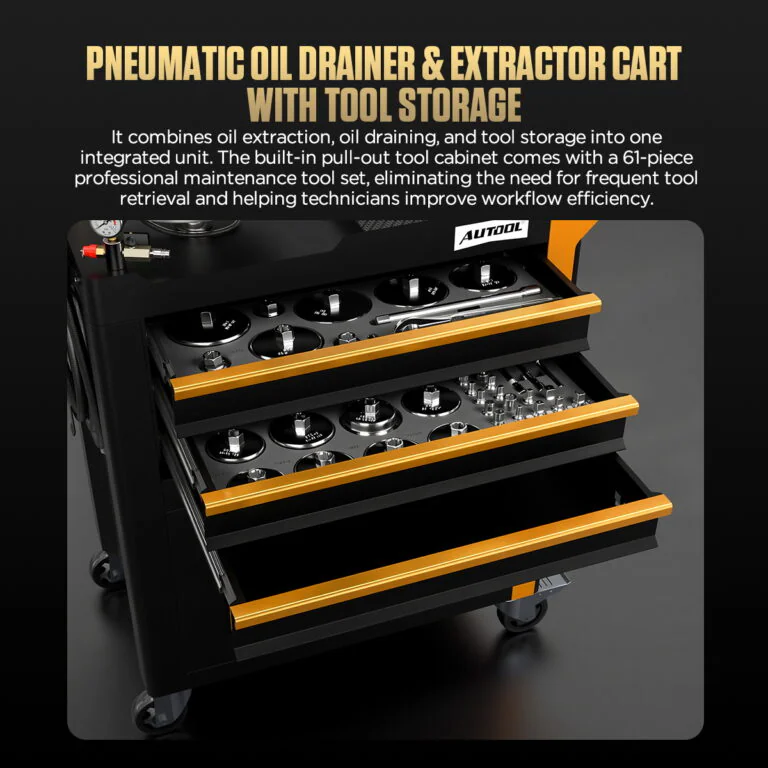

Multi-Layer Storage Cabinet
Drawer storage helps organize wrenches, bottom covers, screwdrivers, suction tubes, and daily maintenance accessories in one mobile workstation.
Click to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlarge

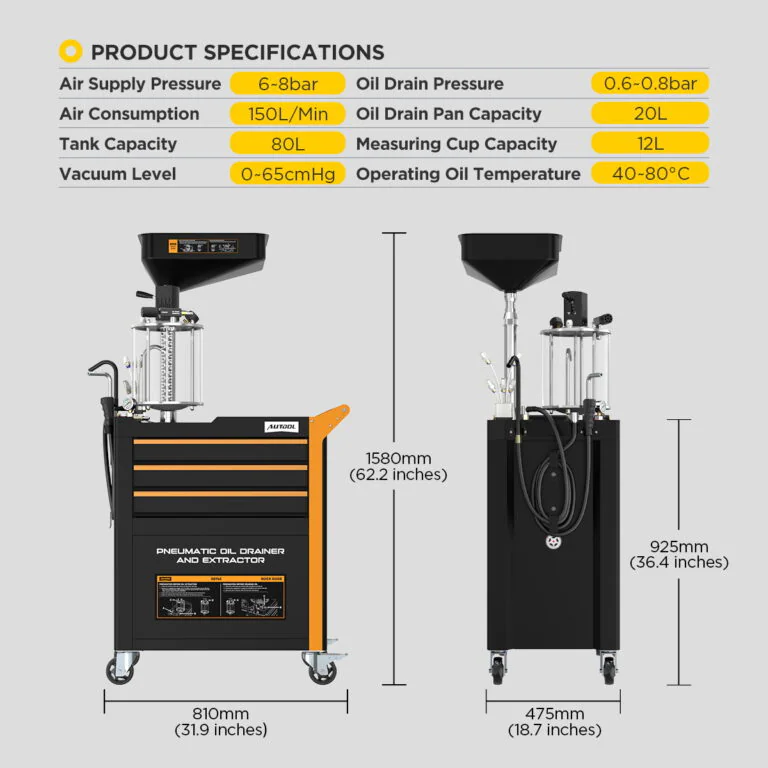

Specifications

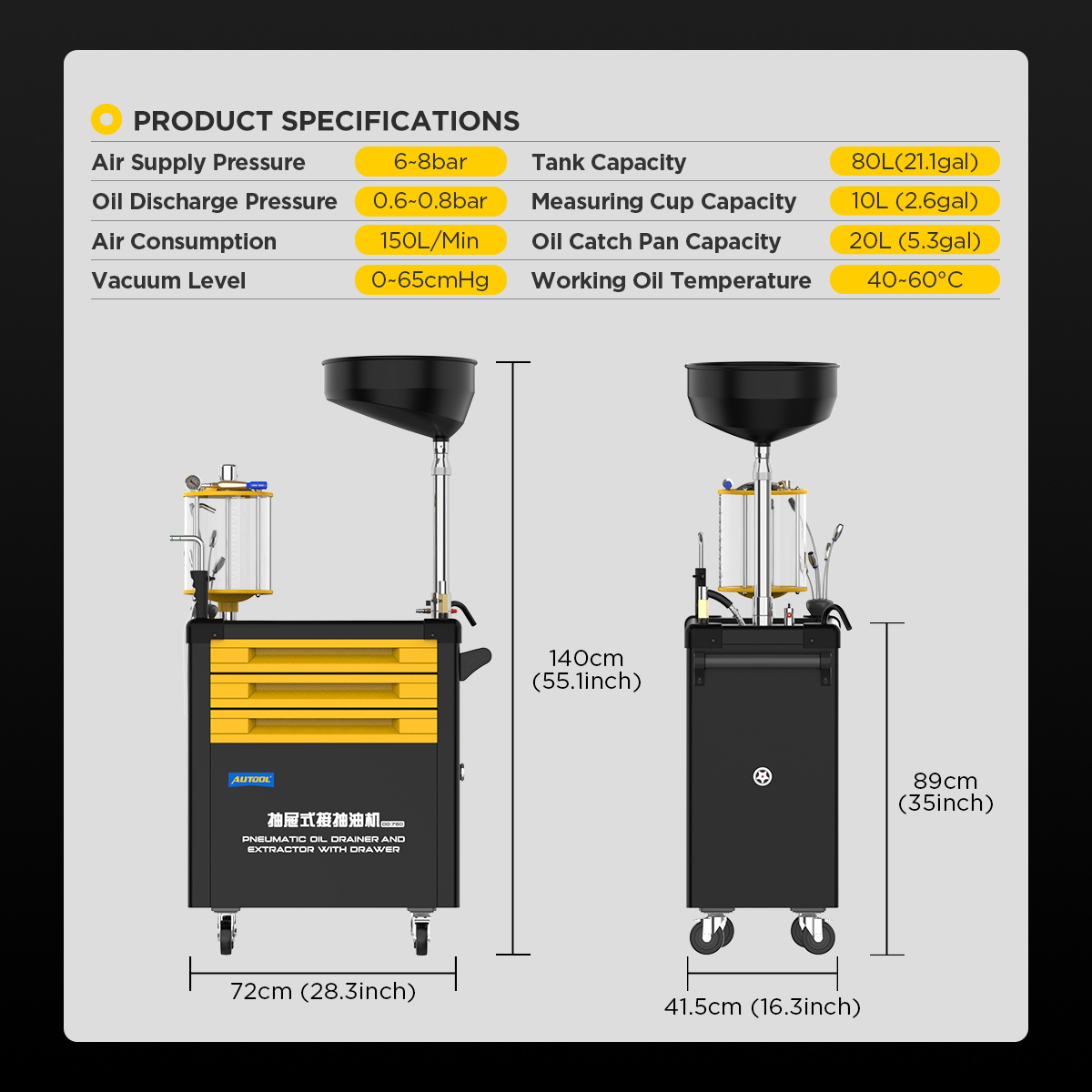

Specifications
Confirm air supply, discharge pressure, vacuum level, storage capacity, measuring cup capacity, catch pan size, working oil temperature, and body dimensions before ordering.
Pneumatic And Vacuum System
Air Supply Pressure
6-8bar
Oil Discharge Pressure
0.6-0.8bar
Air Consumption
150L/min
Vacuum Level
0-65cmHg
Extraction Reference
Rapid vacuum oil extraction in about 3 minutes under suitable conditions
Capacity
Oil Storage Tank
80L / 21.1gal
Measuring Cup
10L / 2.6gal
Oil Catch Pan
20L / 5.3gal
Oil Catch Pan Diameter
41cm
Working Oil Temperature
40-60°C
Body And Dimensions
Body Material
1.5mm thickened body
Product Height
140cm / 55.1in
Main Cabinet Height
89cm / 35in
Width
72cm / 28.3in
Depth
41.5cm / 16.3in
Click to enlarge
Pneumatic And Vacuum System
Air Supply Pressure6-8bar
Oil Discharge Pressure0.6-0.8bar
Air Consumption150L/min
Vacuum Level0-65cmHg
Extraction ReferenceRapid vacuum oil extraction in about 3 minutes under suitable conditions
Capacity
Oil Storage Tank80L / 21.1gal
Measuring Cup10L / 2.6gal
Oil Catch Pan20L / 5.3gal
Oil Catch Pan Diameter41cm
Working Oil Temperature40-60°C
Body And Dimensions
Body Material1.5mm thickened body
Product Height140cm / 55.1in
Main Cabinet Height89cm / 35in
Width72cm / 28.3in
Depth41.5cm / 16.3in
Click to enlarge
Product Details
Product Details

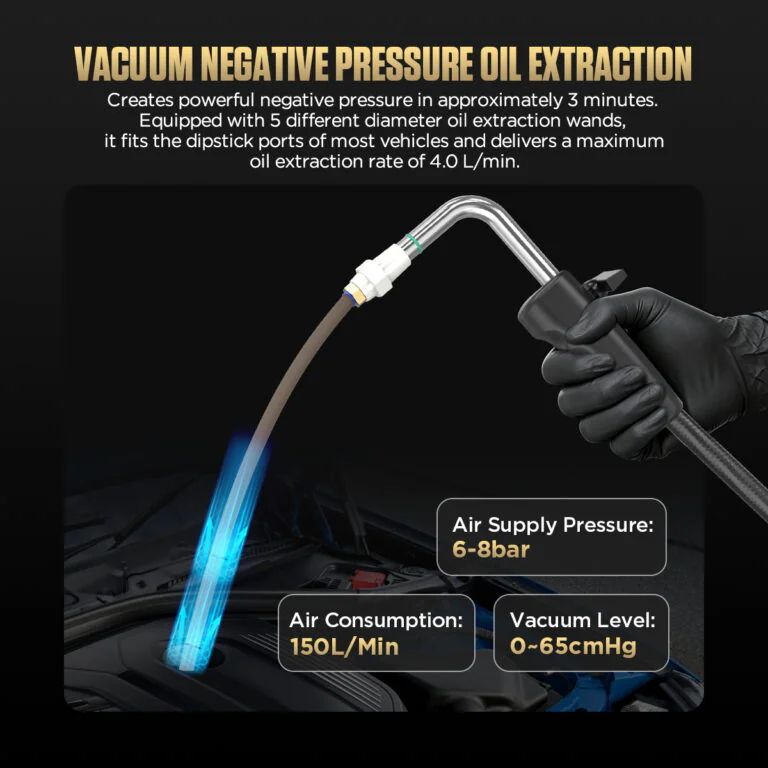

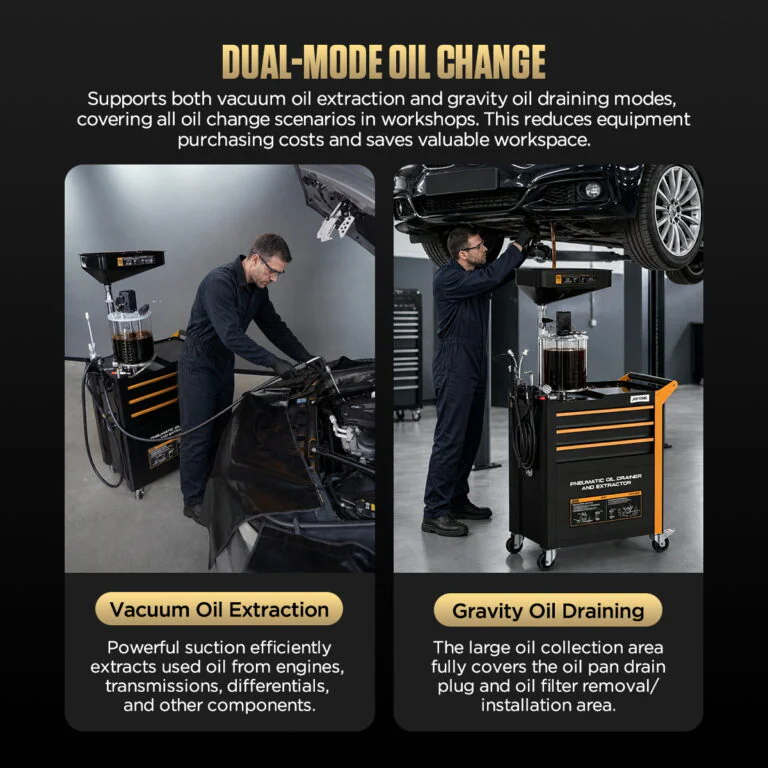

OD760 uses compressed air and a vacuum generator to create negative pressure for fast waste oil extraction. With a suitable 6-8bar air supply, the system can complete oil extraction in about 3 minutes and improve workshop efficiency compared with slow manual drainage.
Air Powered
Driven by compressed air and a vacuum generator.
Visual Check
The 10L measuring cup helps observe oil quantity and condition.
Fast Transfer
After extraction, empty waste oil from the measuring cup into the storage tank promptly.
Click to enlarge
Product Details
Product Details

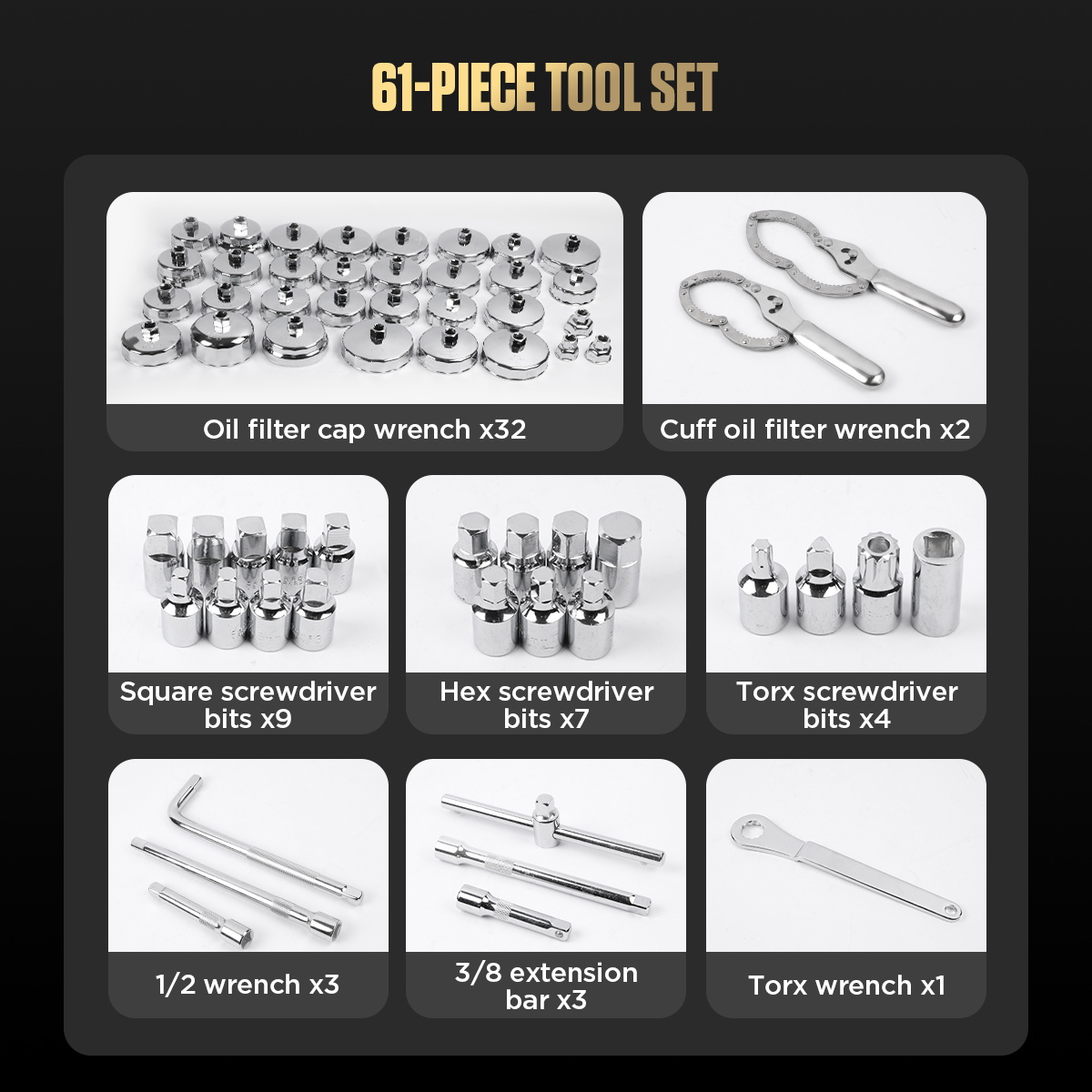

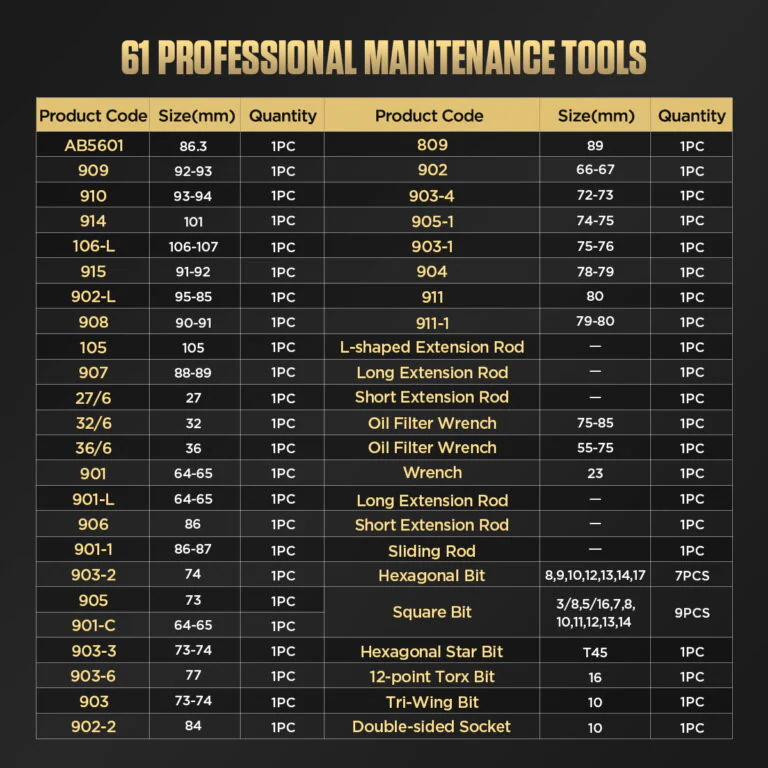

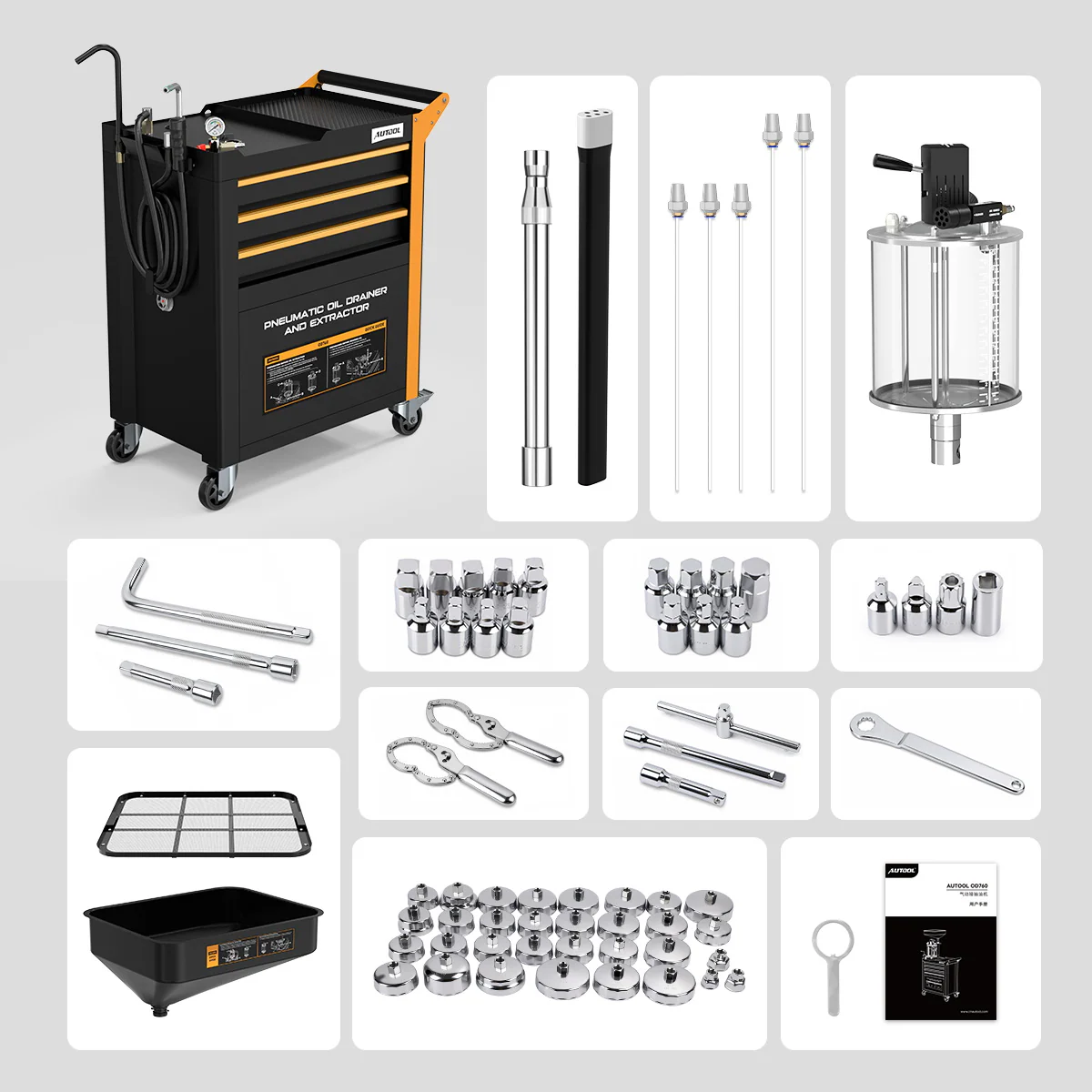

The OD760 includes a 61-piece tool set for common oil service tasks, covering oil filter cap wrenches, cuff oil filter wrenches, screwdriver bits, wrench accessories, extension bars, and torx tools.
Oil Filter Cap Wrench32 pcs
Cuff Oil Filter Wrench2 pcs
Square Screwdriver Bits9 pcs
Hex Screwdriver Bits7 pcs
Torx Screwdriver Bits4 pcs
1/2 Wrench3 pcs
3/8 Extension Bar3 pcs
Torx Wrench1 pc
Click to enlarge
Product Details
Product Details

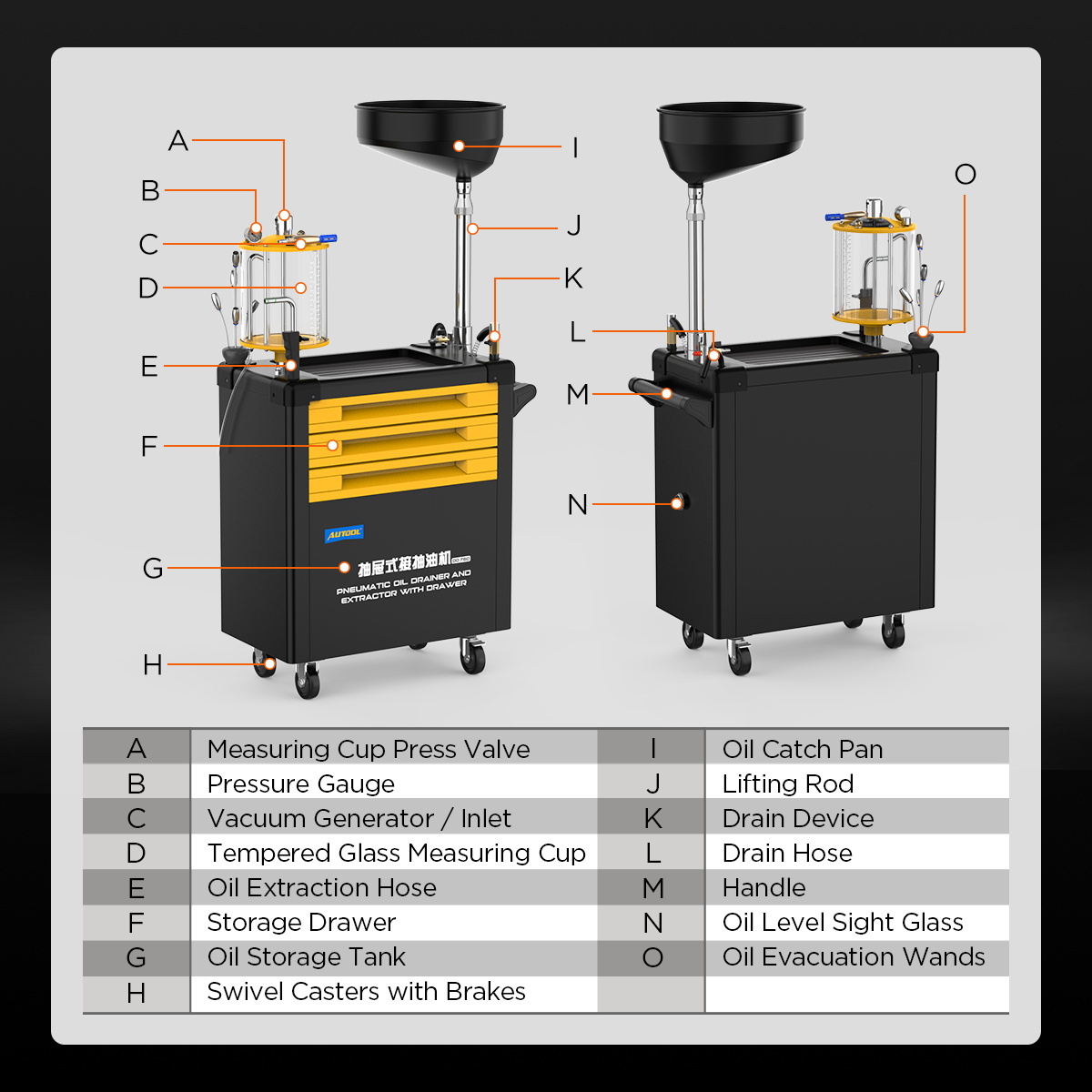

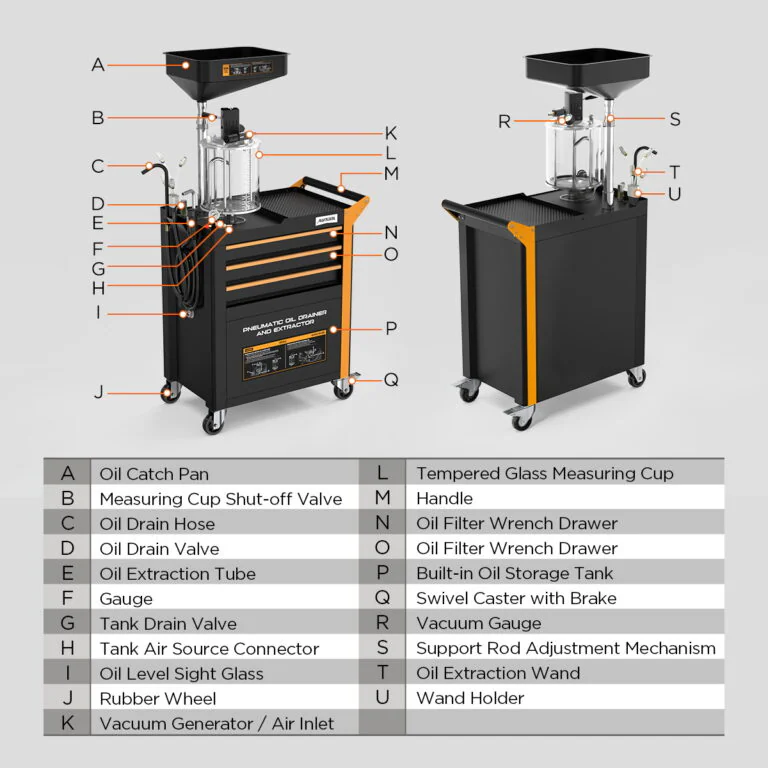

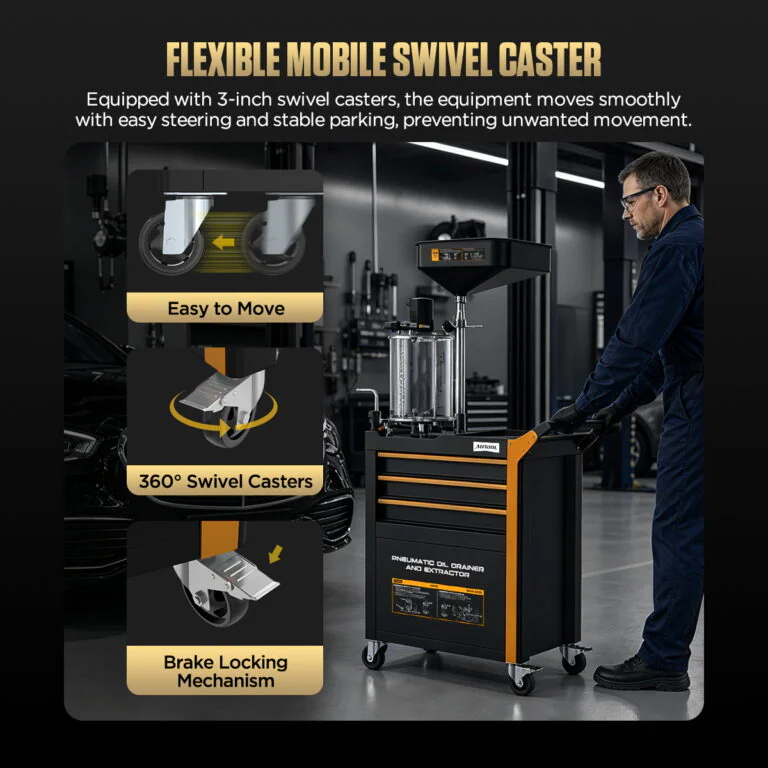

The OD760 structure integrates pneumatic control, visual measuring, drawer storage, mobile casters, catch pan, drain device, and oil extraction wands into one service station.

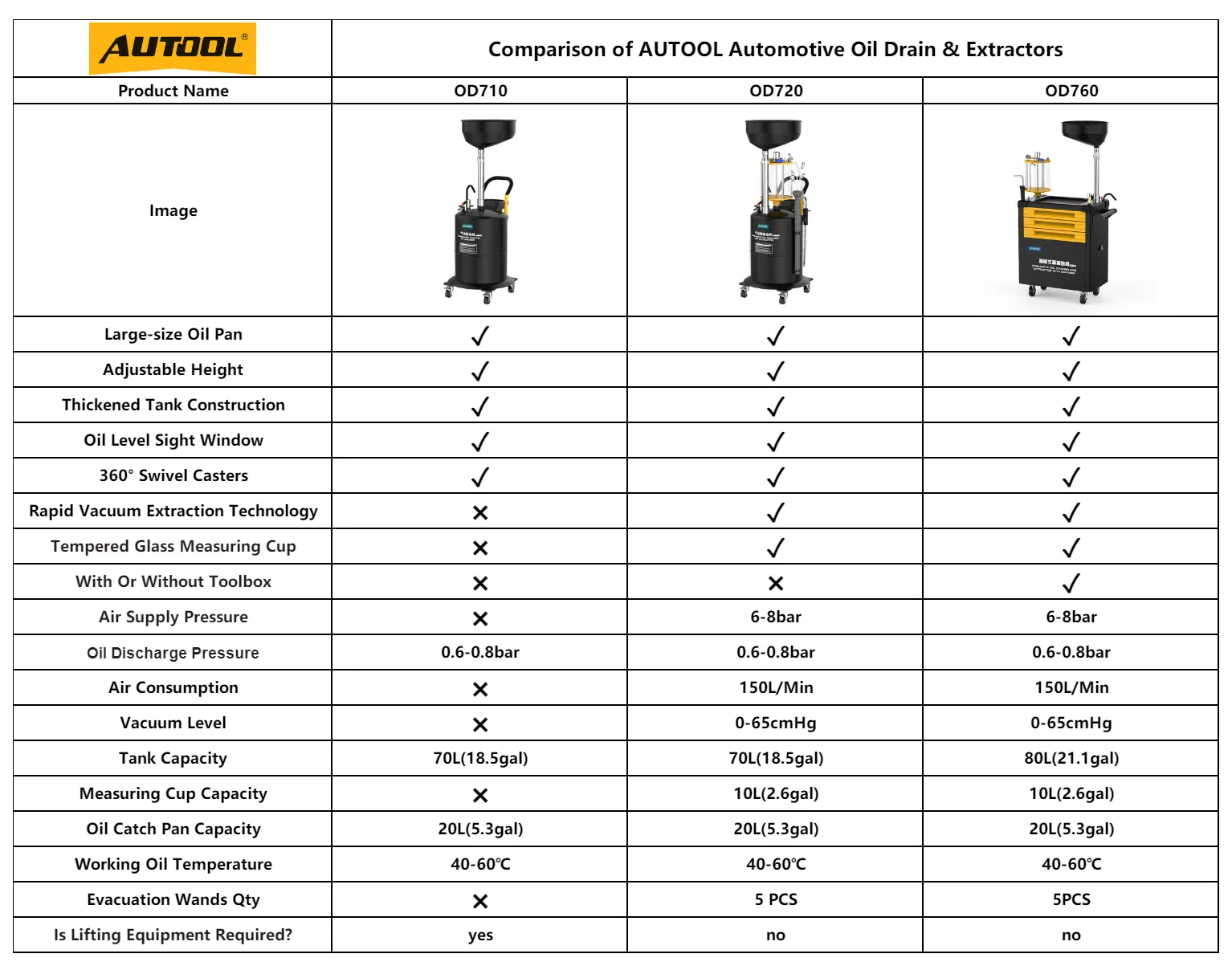

OD760 is the high-end OD series model. Compared with OD710, it adds rapid vacuum extraction, tempered glass measuring cup, 5 evacuation wands, and 6-8bar pneumatic extraction. Compared with OD720, OD760 adds an 80L tank, toolbox / drawer storage, and a more integrated workshop maintenance station design.
OD71070L tank, 20L oil catch pan, no vacuum extraction, no measuring cup, lifting equipment required
OD72070L tank, 10L measuring cup, 20L catch pan, 5 evacuation wands, 6-8bar air supply, no toolbox
Contact AUTOOL Store before ordering if you need to confirm 6-8bar air supply, suction tube fitment, waste oil temperature, prohibited liquids, OD710 / OD720 / OD760 differences, accessories, or safe operating workflow.
Compare OD710, OD720, and OD760 before choosing the right oil drain station, pneumatic extraction function, storage tank capacity, measuring cup, and workshop storage setup.
Select options
This product has multiple variants. The options may be chosen on the product page
Select options
This product has multiple variants. The options may be chosen on the product page
Before You Order And Use
Before You Order And Use
OD760 handles hot waste oil and uses compressed air. Review these safety and operation notes before using the equipment.
Warm Tips
No smoking or open flames during operation.
Keep away from high-temperature, high-pressure, flammable, and explosive areas.
If leakage occurs, shut off the air supply and inspect hoses or components immediately.
Waste oil temperature is between 40-60°C; be cautious of burns.
During operation, protect your eyes and hands. Gloves and safety goggles are recommended.
The engine must remain turned off throughout the operation.
Strictly prohibited for use with brake oil, gasoline, diesel, and other liquids containing methanol, ketones, or flammable liquids.
After completing the equipment operation, release the internal pressure and clean the equipment to avoid damage and personal injury caused by improper operation.
Do not use the equipment for functions not listed in the manual.
After extracting waste oil, promptly empty the waste oil from the measuring cup into the storage tank to better protect the measuring cup and extend its service life.
After emptying the waste oil from the measuring cup, there is no need to close the measuring cup drain valve.
Questions And Answers
These answers cover air supply, extraction speed, measuring cup care, prohibited liquids, OD760 differences, tool set, manual download, and warranty support before ordering.
OD760 requires 6-8bar air supply pressure for pneumatic vacuum extraction. Oil discharge pressure is 0.6-0.8bar, and air consumption is listed as 150L/min.
OD760 uses vacuum extraction technology and can achieve rapid oil extraction in about 3 minutes under suitable air supply and operating conditions.
The OD760 has a 10L explosion-proof tempered glass measuring cup. After extracting waste oil, promptly empty the oil from the measuring cup into the storage tank to protect the cup and extend its service life.
No. After emptying the waste oil from the measuring cup, there is no need to close the measuring cup drain valve.
No. OD760 is strictly prohibited for use with brake oil, gasoline, diesel, and other liquids containing methanol, ketones, or flammable liquids.
OD710 is the basic oil drain / oil catcher model without vacuum extraction or measuring cup. OD720 adds a 10L measuring cup, 5 evacuation wands, and 6-8bar pneumatic extraction. OD760 is the high-end model with an 80L tank, 10L measuring cup, 20L catch pan, 5 evacuation wands, toolbox / drawer storage, and integrated workshop station design.
The 61-piece tool set includes 32 oil filter cap wrenches, 2 cuff oil filter wrenches, 9 square screwdriver bits, 7 hex screwdriver bits, 4 torx screwdriver bits, 3 pieces of 1/2 wrench, 3 pieces of 3/8 extension bar, and 1 torx wrench.

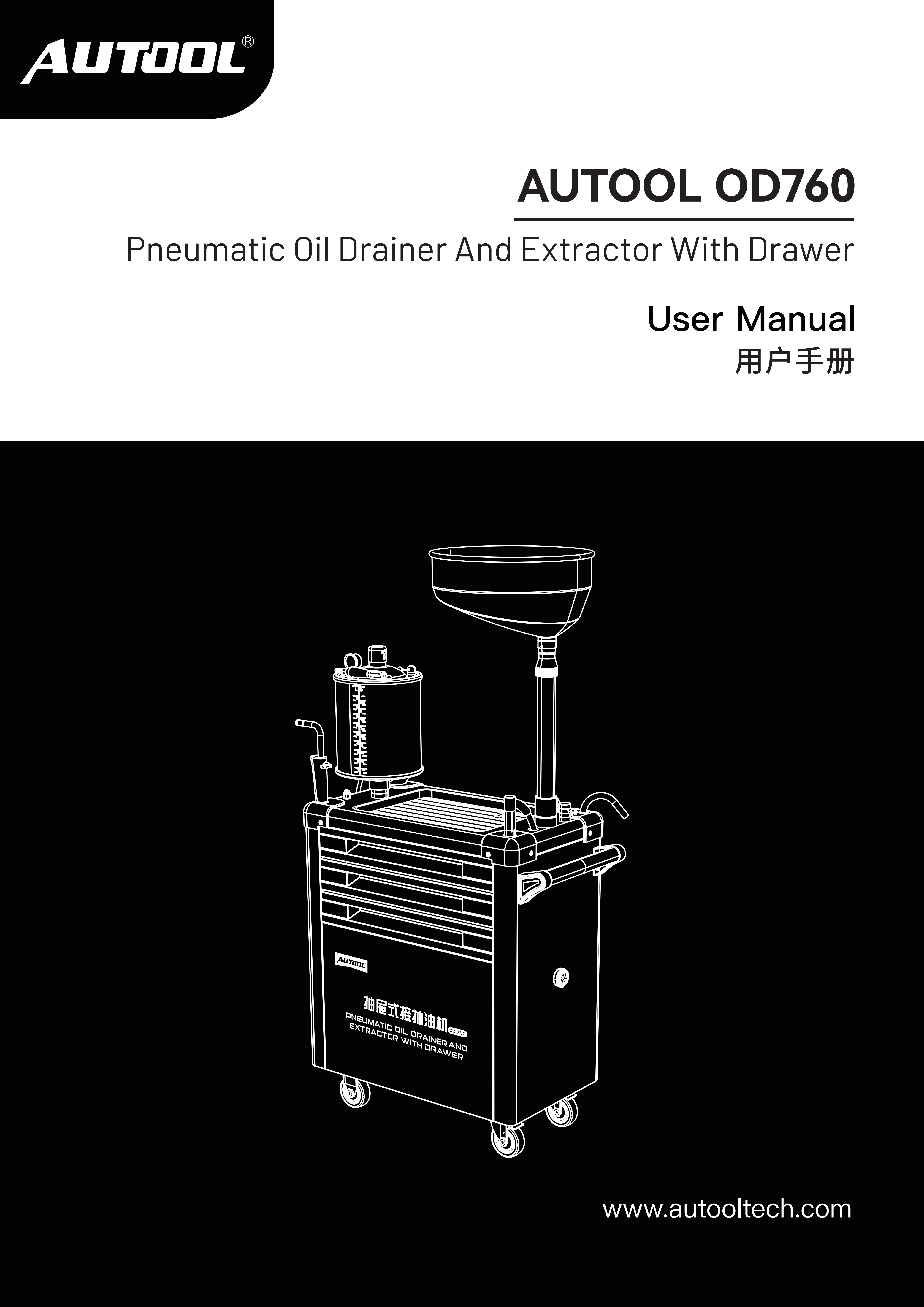

The OD760 manual can be downloaded from the Download section of this Description. The correct manual file is AUTOOL-OD760-Manual-A4-版本20240727.pdf.
AUTOOL provides a 3-year warranty and lifetime maintenance support. For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years.
Warranty And Contact
Warranty And Contact
For setup confirmation, air supply requirements, accessories, suction tube fitment, OD710 / OD720 / OD760 model selection, safety confirmation, manual support, or after-sales questions, contact AUTOOL Store directly.
3-Year Warranty And Lifetime Maintenance
For damage caused by non-human factors, AUTOOL provides free replacement parts within 3 years. For any needs, contact AUTOOL support and the team will respond as soon as possible.
3-year warranty for eligible non-human damage cases
Lifetime maintenance support
OD760 setup and safe-use confirmation
6-8bar air supply and 0.6-0.8bar oil discharge pressure support
Accessory, suction tube, tool set, and manual support
