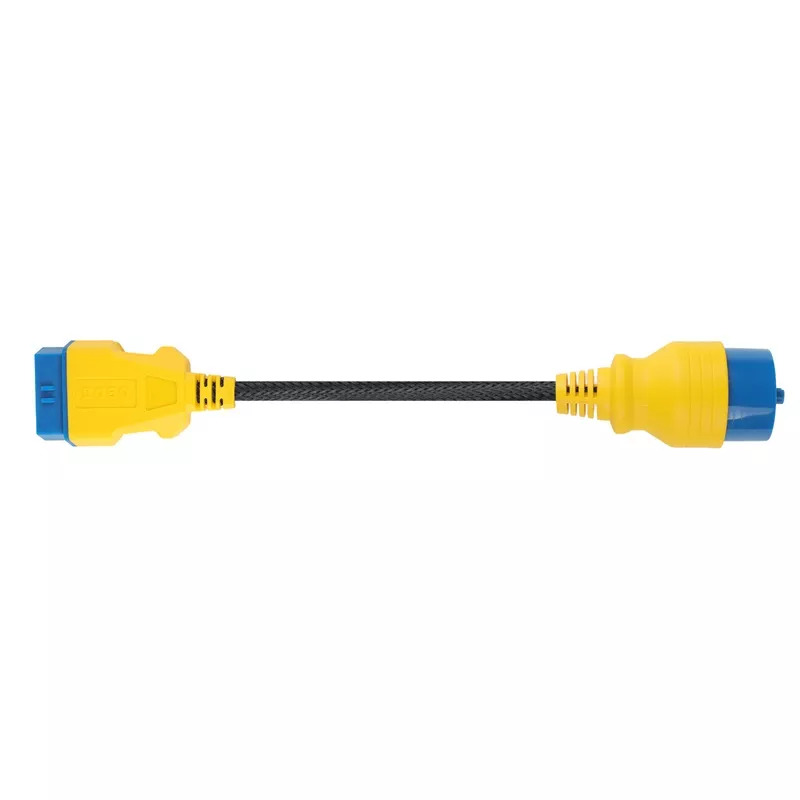

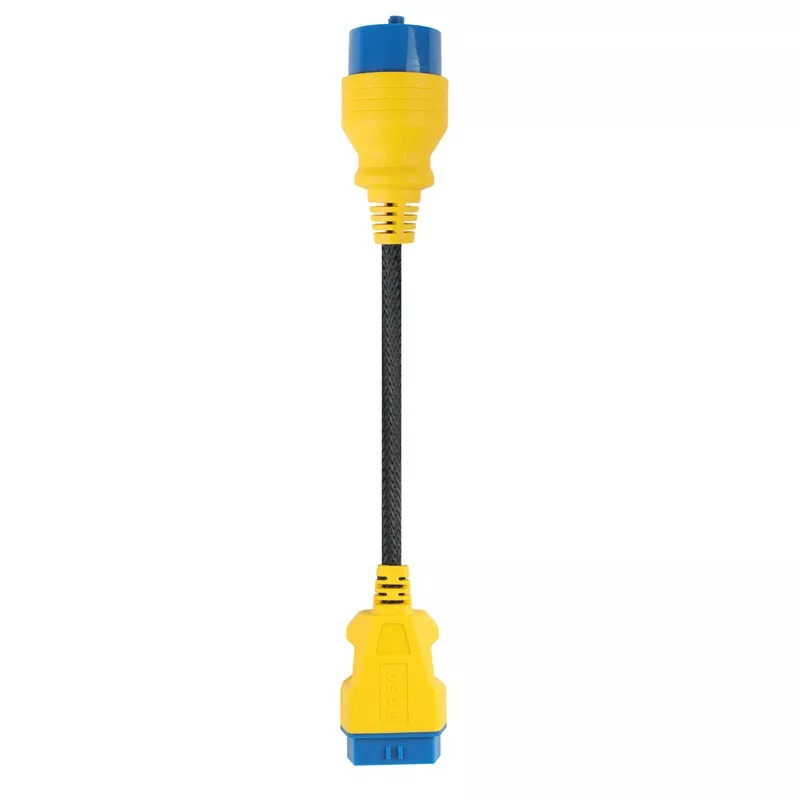

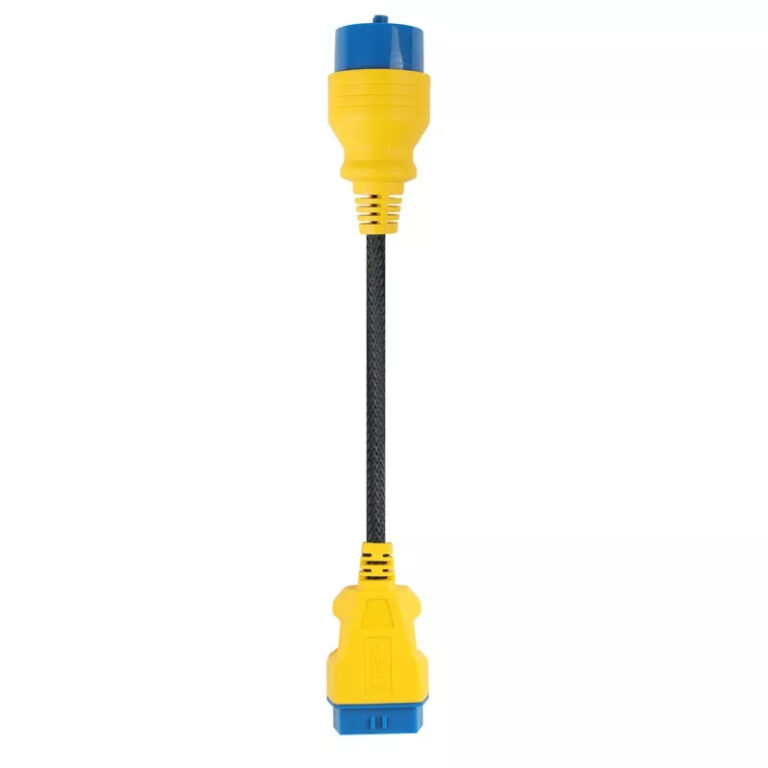

AUTOOL BMW 20-Pin to 16-Pin 40cm Braided OBD2 Adapter Cable
US$12.00
- BMW 20-Pin to 16-Pin
- Compact 40 cm Reach
- Braided Copper-Core Build
- BMW 20-Pin to 16-Pin: Connect a matching BMW 20-pin socket to a compatible 16-pin OBD2 tool through a passive pin-routing adapter.
- Compact 40 cm Reach: Keep the BMW diagnostic connection manageable with 40 cm of added reach.
- Braided Copper-Core Build: Combine pure-copper conductors, flexible insulation, and a nylon braided wear layer.
- BMW 20-Pin to 16-Pin: Connect a matching BMW 20-pin socket to a compatible 16-pin OBD2 tool through a passive pin-routing adapter.
- Compact 40 cm Reach: Keep the BMW diagnostic connection manageable with 40 cm of added reach.
- Braided Copper-Core Build: Combine pure-copper conductors, flexible insulation, and a nylon braided wear layer.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support

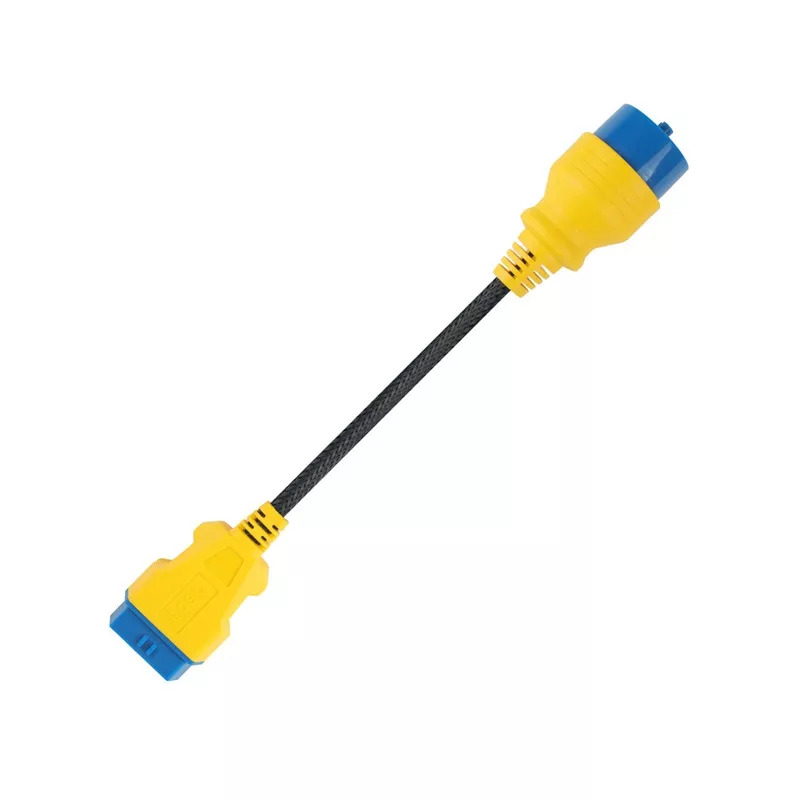

AUTOOL BMW Braided OBD-II Adapter · 20-Pin to 16-Pin, 40 cm
Add Wear Protection to BMW Port Adaptation
Connect a matching BMW 20-pin socket to a compatible 16-pin tool through a 40 cm braided copper-core adapter. It only routes existing pins and signals; protocol and diagnostic coverage still depend on the vehicle and scan tool.
- BMW 20-Pin to 16-Pin Route
- 40 cm Braided Cable
- Copper-Core Conductors
- Passive Adapter
- Single-Cable Package
Key Features
Protect the 40 cm Adapter During Repeated Handling

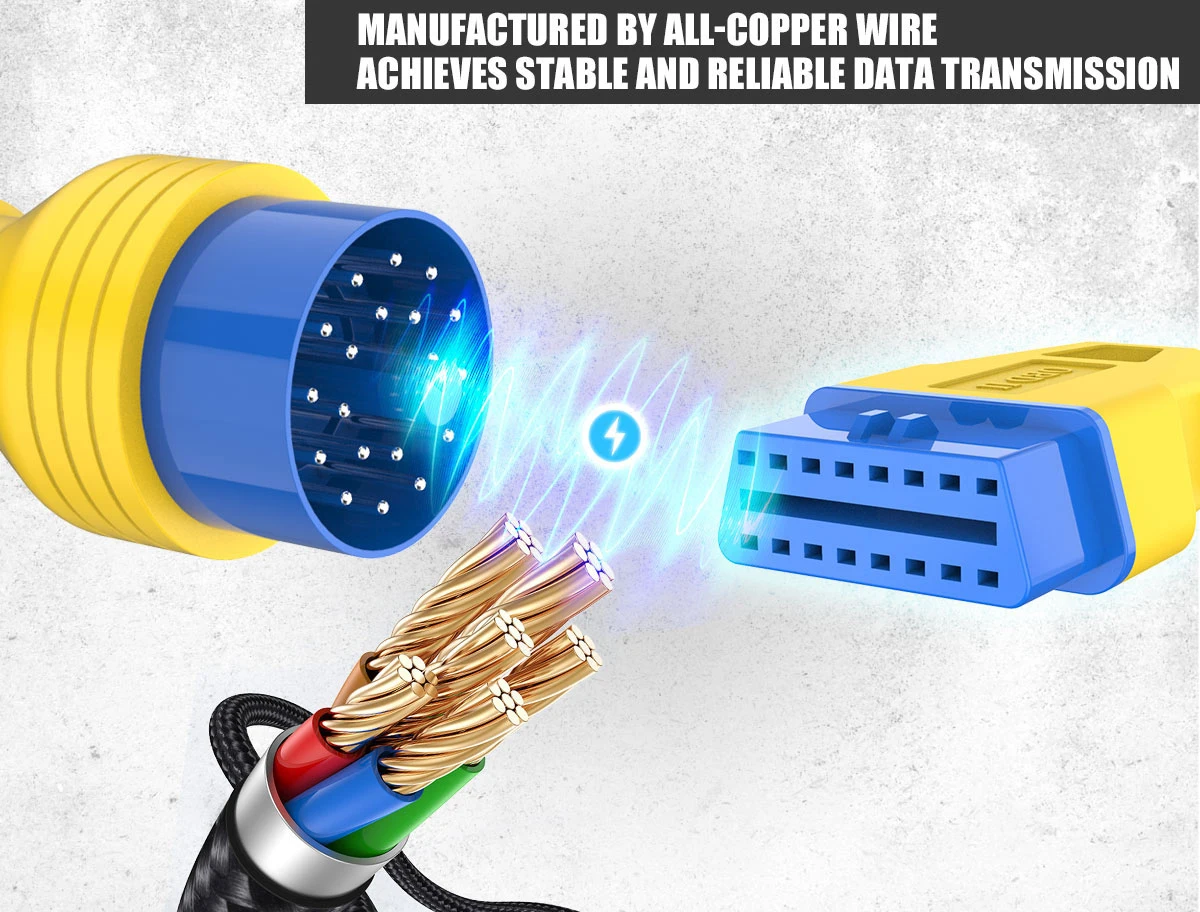

Pure Copper Core
The internal pure copper core helps provide faster data transmission and more stable diagnostic communication.

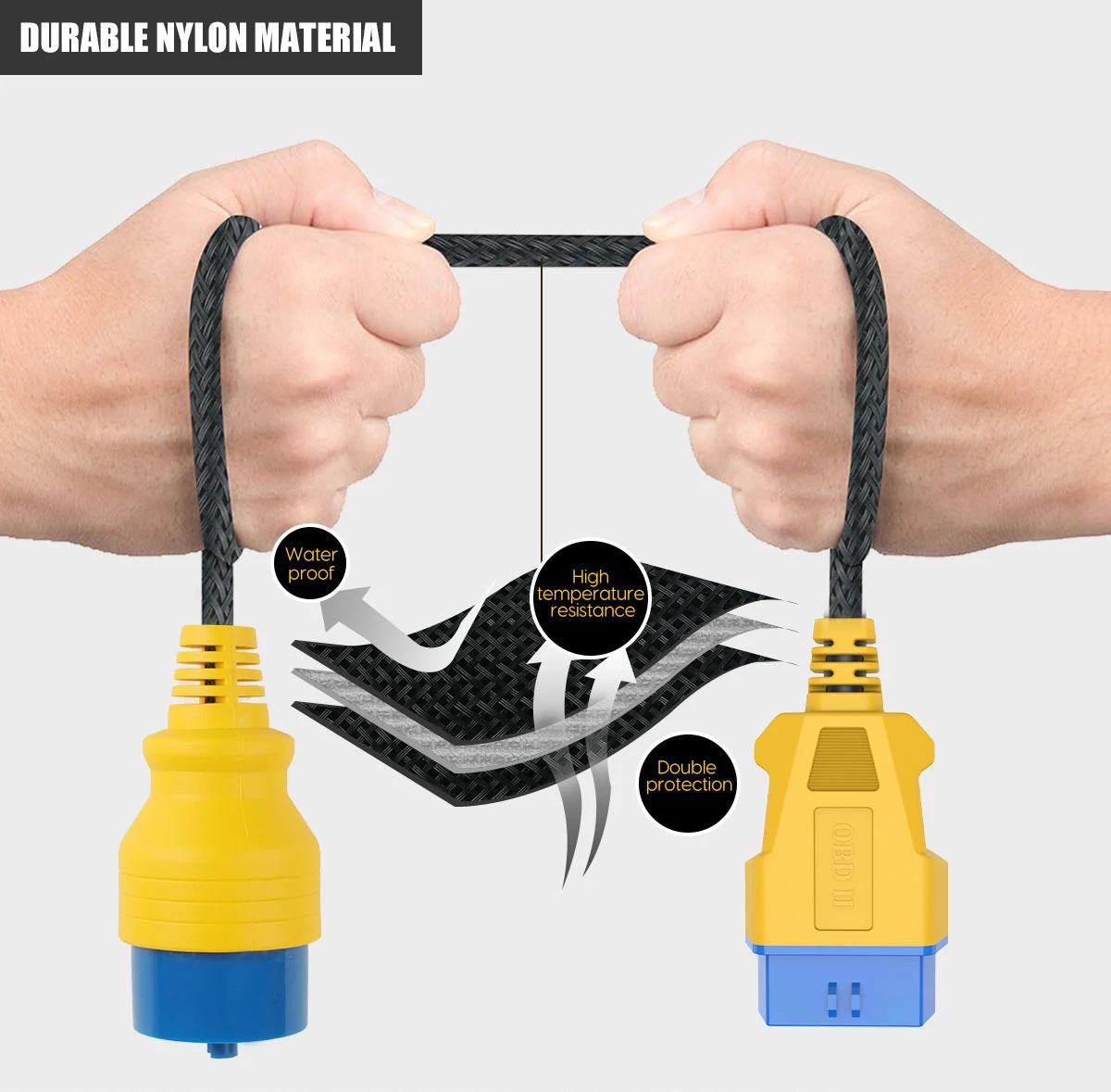

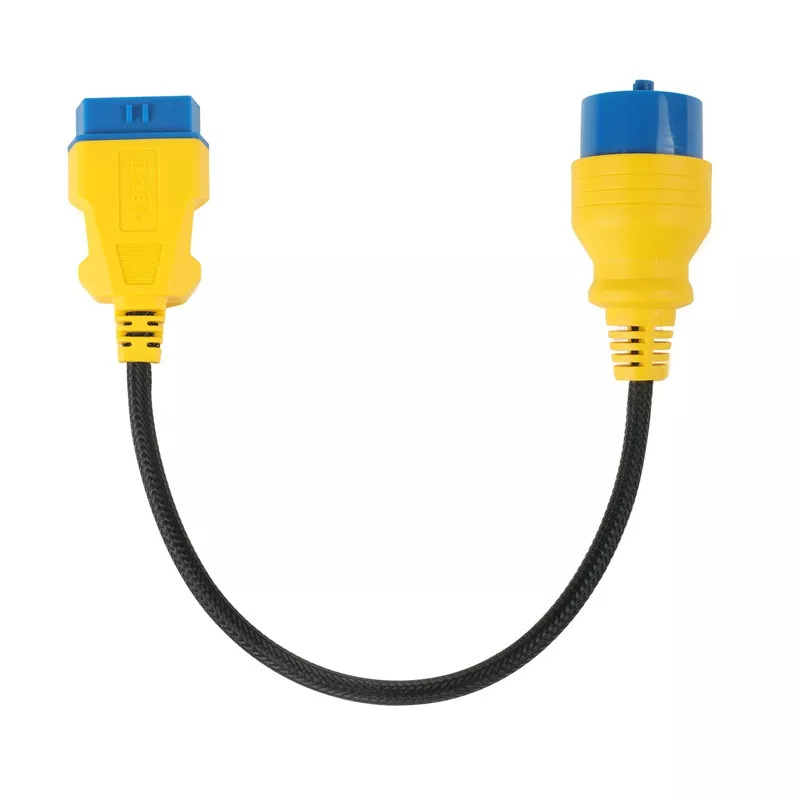

Nylon Braided Sleeve

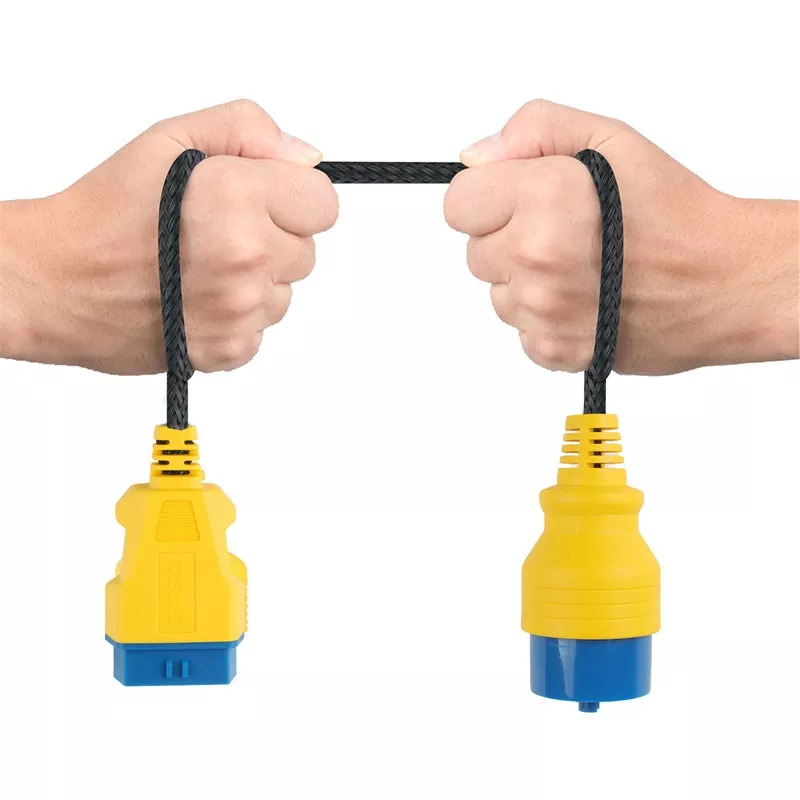

The protective nylon braided sleeve helps reduce wear from bending, pulling, and daily workshop use.
Flexible Insulated Jacket
The outer material is designed to be flexible, insulated, non-toxic, and easier to route around the vehicle during testing.
Enhanced Cable Build
AUTOOL applies automatic production technology and multiple inspection steps from injection to molding for consistent cable quality.
Frequent Plugging Design
The connector is designed for repeated diagnostic use and can be plugged more than 10,000 times under normal use conditions.
Compact 40cm Length
The 40cm cable length keeps the connection manageable while providing extra reach between the BMW 20Pin socket and the scan tool.
BMW Socket to OBD2 Tool
The adapter connects a BMW 20-pin diagnostic socket to a compatible 16-pin OBD2 connector, with a pure copper core for data transmission.
Reinforced Cable
A 7.00mm cable body supports repeated handling.
Passive Adapter Connection
Routes the stated BMW 20-pin connection to a compatible 16-pin diagnostic tool; available functions still depend on the vehicle pinout, scanner hardware, software, and protocol support.
Adapter Function Limits
This passive adapter adds no scan functions or protocol conversion and cannot diagnose a vehicle by itself.
Connector Fit Check
Check the pin type and connector direction before connecting the cable to avoid poor contact or incorrect connection.
Safe Cable Removal
When removing the cable, hold the connector body instead of pulling the wire to help protect the internal core and connector pins.

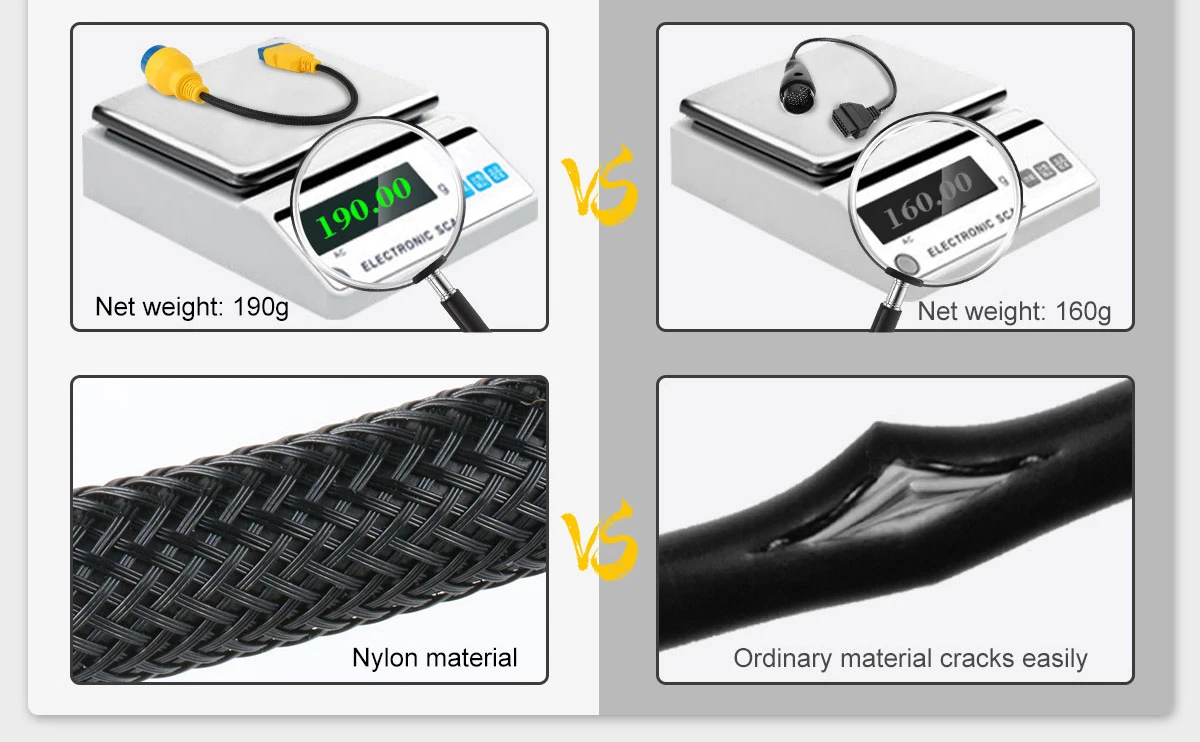

Cable Weight
Cable weight: 190g.
3 Years Warranty Support
Main unit: 3-year warranty. Standard accessories: 1-year warranty. Warranty Policy.
How to Use
Connect, Route and Check Communication
Confirm The Vehicle Port
Identify the exact vehicle connector, year, and pinout; inspect it for damage.
Confirm The Tool Chain
Verify the scanner, software, protocol, module, task, and any authorization independently of the cable.
Connect Safely
Follow the vehicle and tool procedure, align connectors correctly, and never force a mismatched plug.
Route Without Strain
Position the cable away from pedals, sharp edges, heat, moving parts, and pinched trim.
Verify Communication
Run the intended read-only connection check first. If communication changes, remove added devices or the extension and compare direct connection.
Safety & Compatibility
Check Pin Fit, Routing and Power Limits
Cable Function
Use the cable for physical connection and routing; protocol and diagnostic functions come from the vehicle and connected tool.
Match the Pinout and Tool
Match the connector and pin routing to the vehicle and diagnostic tool.
Vehicle Movement
Keep all cable and device parts clear of pedals, steering, seat tracks, doors, and driving controls.
Electrical Load
Do not attach unknown or high-current devices to vehicle diagnostic power. Follow the vehicle and tool current limits.
Disconnect If Unstable
If a tool drops connection, overheats, resets, or changes vehicle behavior, stop and return to a known direct connection.
Care and Safety Notes
Keep the connector pins clean and dry. Avoid storing the cable with heavy objects pressing on the connectors.
Specifications
Confirm Interface, Length and Quantity
| Specification | Value |
|---|---|
| Length | 40 cm |
| Connector Route | BMW 20-pin → 16-pin diagnostic tool |
| Package Quantity | 1 adapter cable |
| Function | Passive physical extension / pin routing; no protocol conversion |
Manual & Support
Confirm Port, Pinout and Tool Fit
Manual Download Center
Visit the manual download center for connected-tool guidance, then confirm BMW 20-pin fit, 16-pin connection and signal compatibility, with safe-use and troubleshooting guidance.

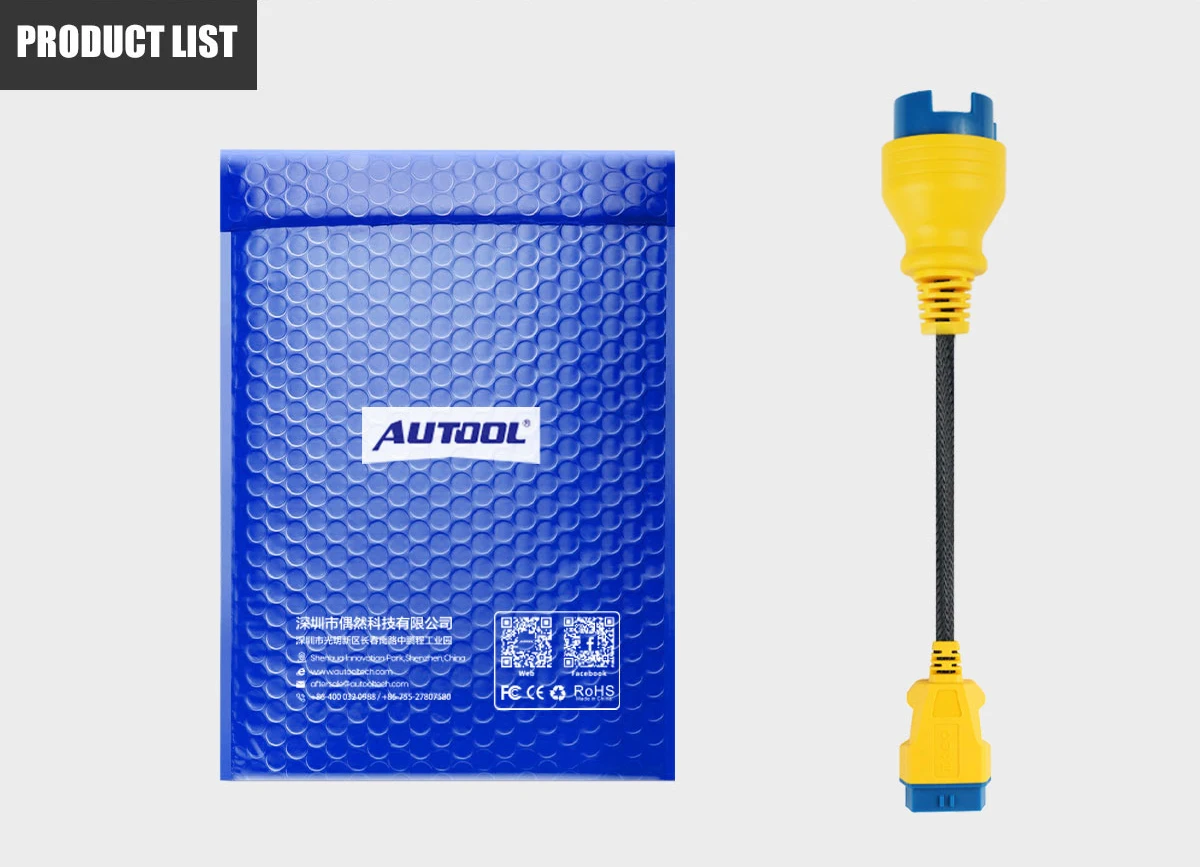

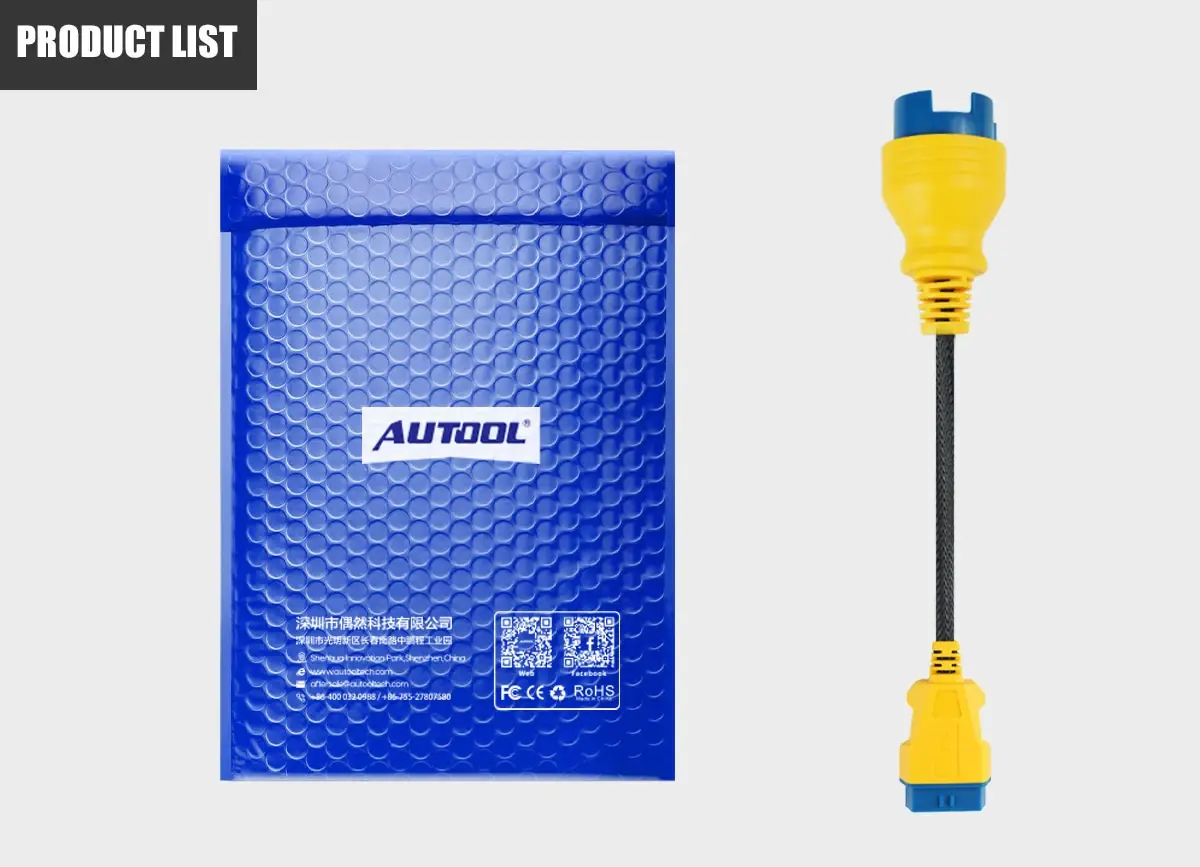

Package Contents
One Selected Cable
- Included Cable1 adapter cable; 40 cm; BMW 20-pin → 16-pin diagnostic tool.
- Not IncludedDiagnostic scanner, software, licenses, vehicle, and unlisted adapters are not included.
- Included ComponentsThe package includes one AUTOOL 40 cm BMW 20-pin to 16-pin OBD2 extension cable and its protective packing bag.
- Package TypeCable and protective packing bag
FAQs
Connector, Fit and Function Questions
Will This BMW OBD Adapter Fit Every BMW Model?

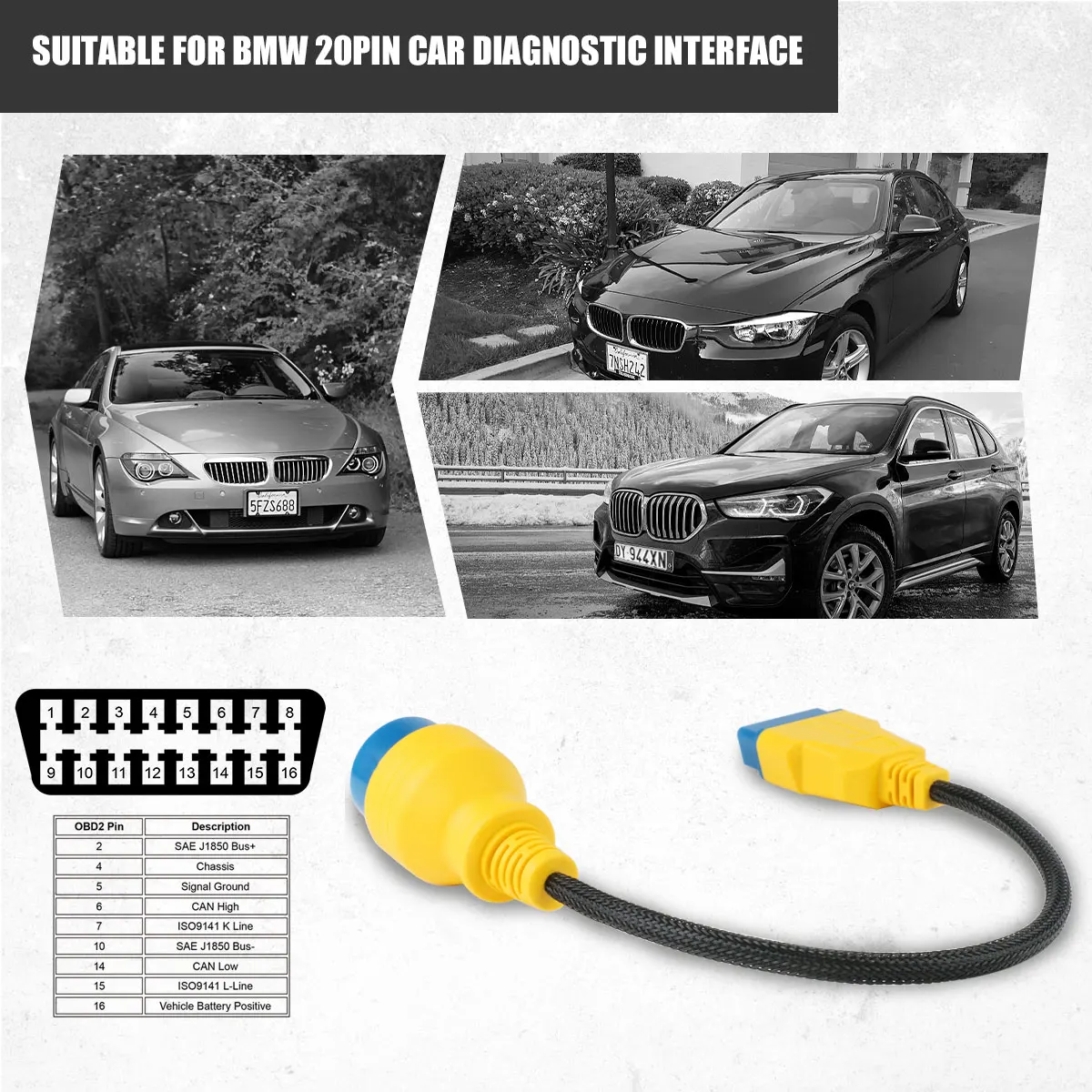

No. This cable is for BMW vehicles with a 20-pin diagnostic interface. Please check your vehicle connector before ordering.
What Connector Does It Convert?

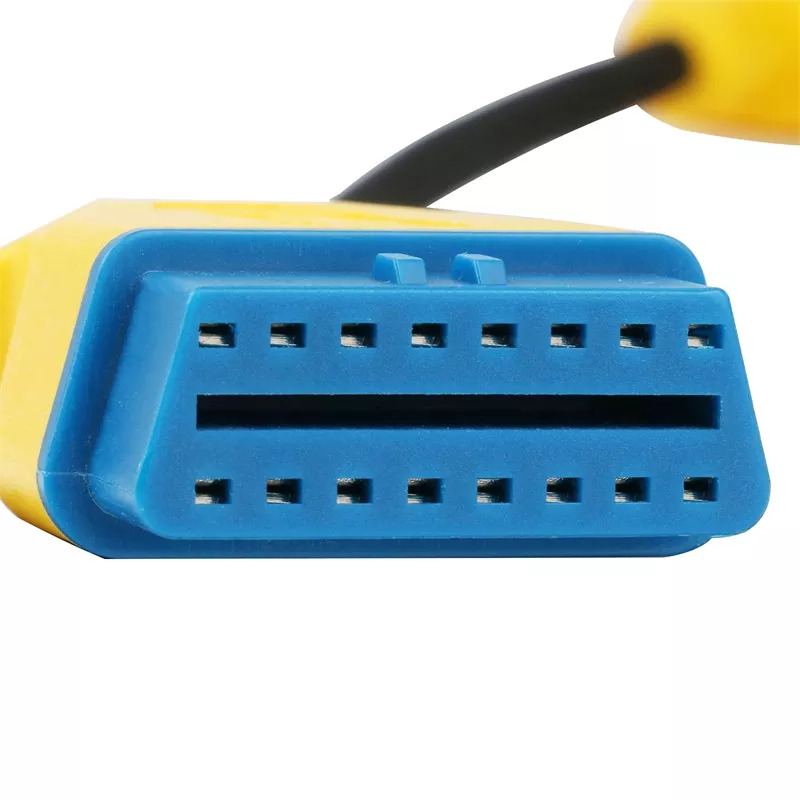

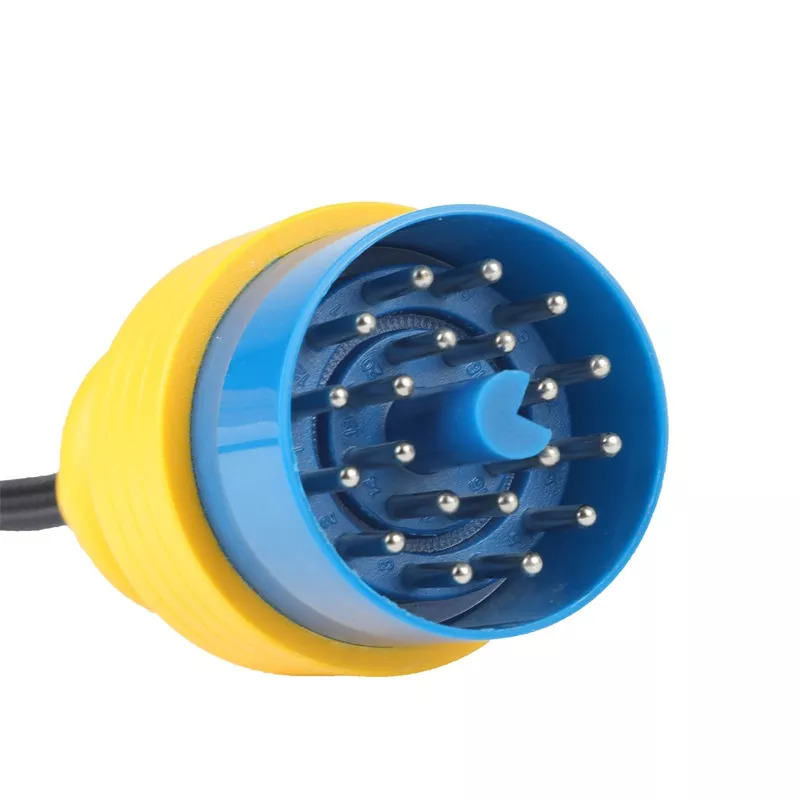

It connects a BMW 20-pin diagnostic socket to a 16-pin OBD2 diagnostic tool connector.
Does This Cable Work As A Diagnostic Scanner?
No. This product is only an adapter / extension cable. You still need a compatible diagnostic tool, and the available functions depend on the scan tool and vehicle system support.

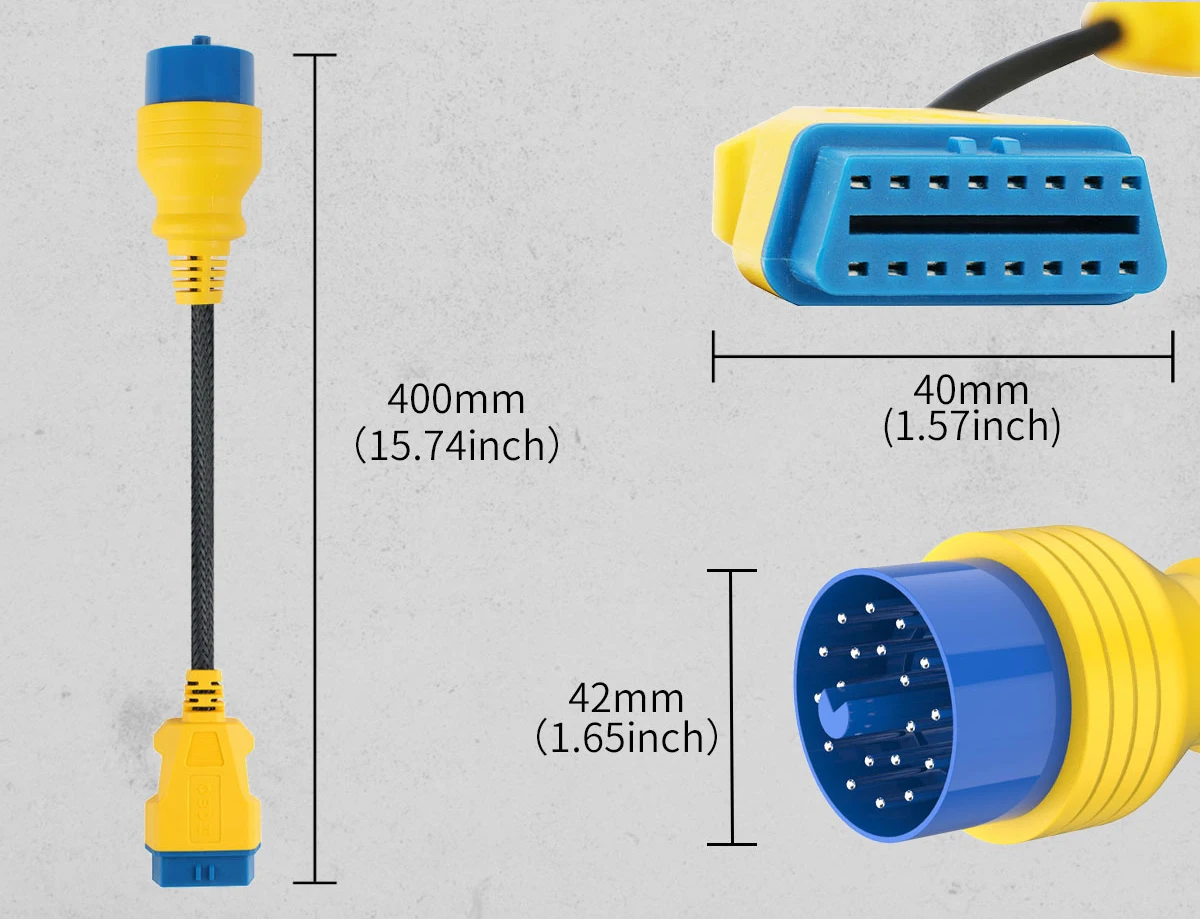

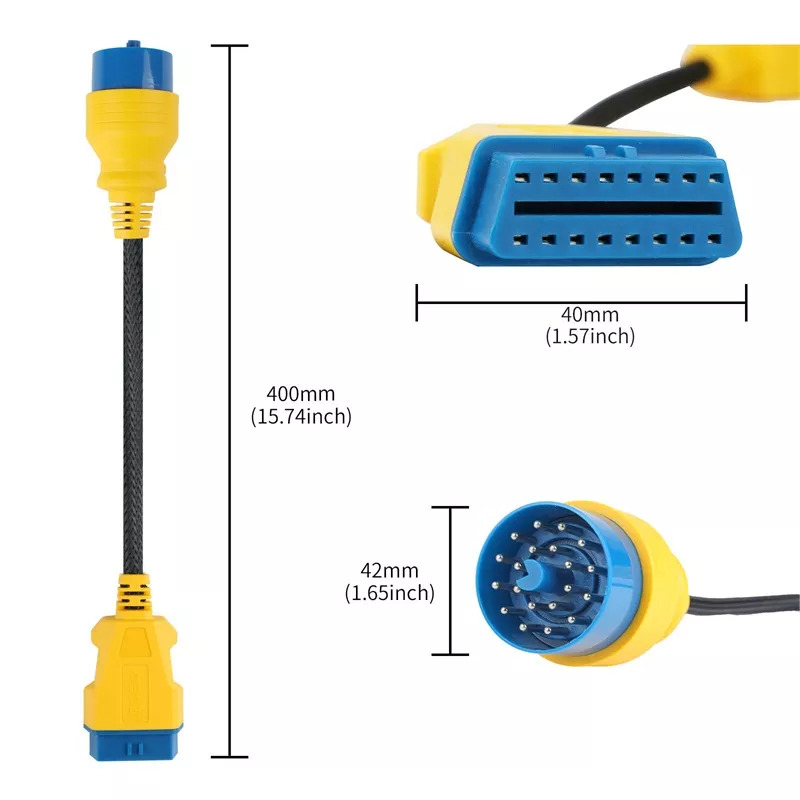

How Long Is The Cable?
The cable length is 40cm / 400mm / 15.74in.
What Materials Are Used In The Cable?
The cable uses a pure copper core for stable transmission, a flexible insulated outer jacket, and a nylon braided sleeve for added protection during repeated workshop use.
What Is Included In The Package?
The package includes 1 × AUTOOL 40cm BMW 20Pin to 16Pin OBD2 cable. No diagnostic scanner or additional diagnostic tool is included.
What Should I Check Before Buying?
Confirm that your vehicle has a BMW 20-pin diagnostic socket and that your diagnostic tool uses a 16-pin OBD2 connector. Also confirm that your scan tool supports the diagnostic functions you need for your vehicle.
Does This Cable Add Diagnostic Functions?
No. It only changes reach, routing, connector shape, or socket count. Available functions depend on the vehicle, pinout, scanner, software, protocol, and authorization.
Does The Adapter Convert The Vehicle Protocol?
No. The adapter routes a legacy vehicle connector to a 16-pin tool connection. The connected tool must support that vehicle, protocol, module, and task.
