AUTOOL SDT100 Smoke Tester for Vacuum Leaks
US$65.00
Key Features
- Built-In Air Pump
- Multi-Vehicle Use
- Vacuum Gas Oil Leaks
- Built-In Air Pump: The internal air pump removes the need for a separate external pump during smoke testing.
- Multi-Vehicle Use: Compatible with cars, motorcycles, ATVs, snowmobiles, off-road vehicles, light trucks, and speedboats.
- Vacuum Gas Oil Leaks: Designed to quickly detect vacuum, gas, and oil leaks for faster fault finding.
Secure checkoutFast supportBulk ready

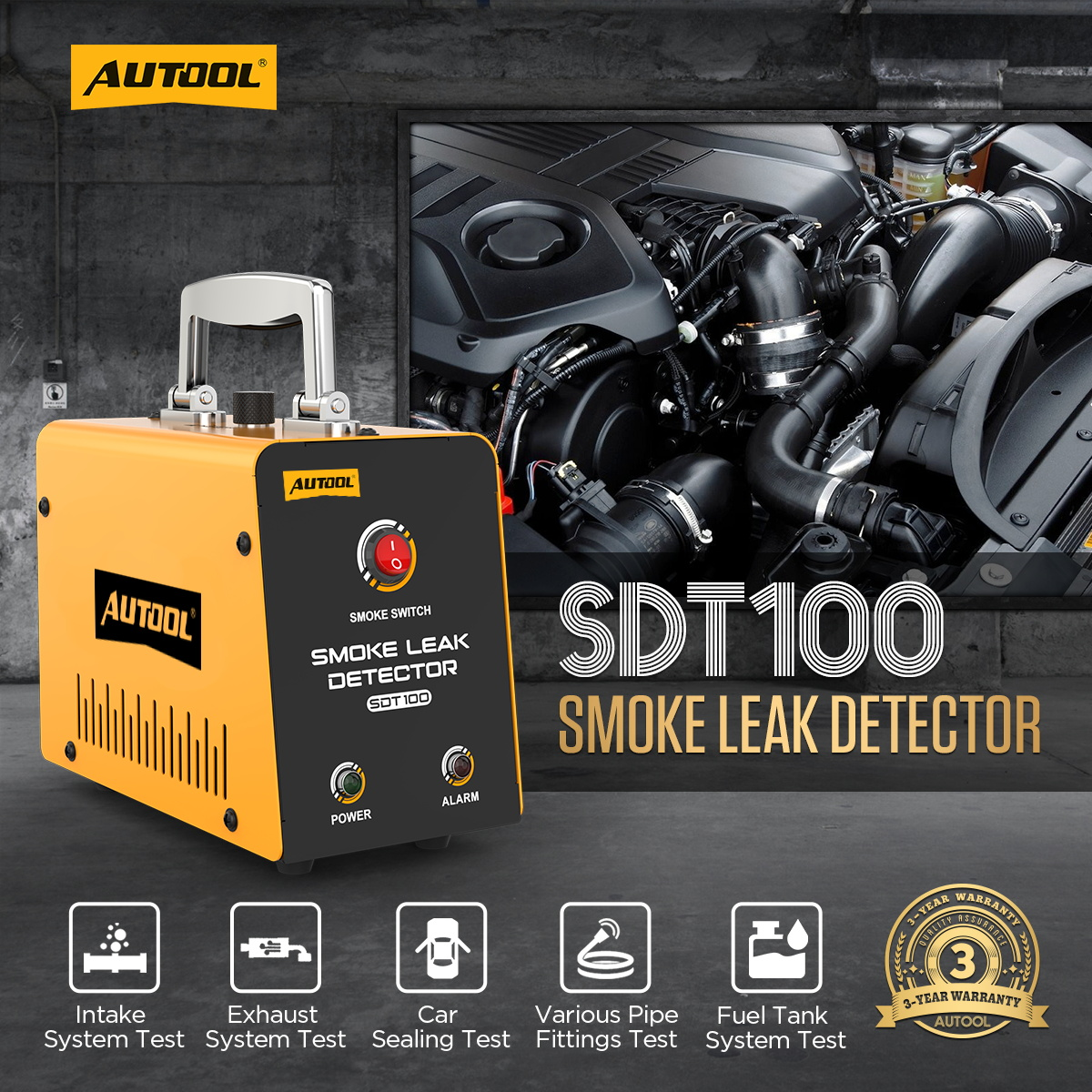

AUTOOL SDT100

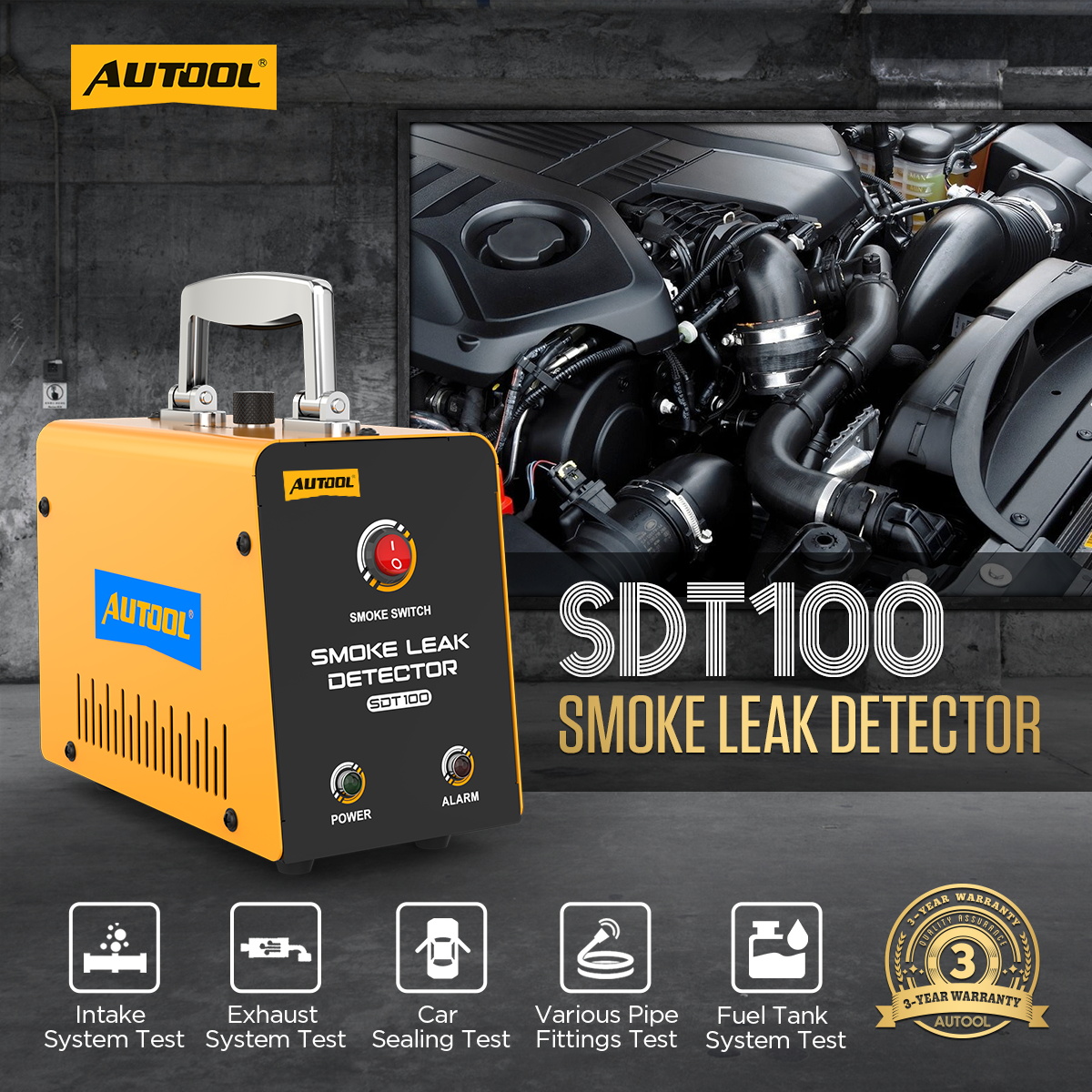

Product Overview
The AUTOOL SDT100 smoke tester is a compact automotive smoke leak detector with a built-in air pump for quickly detecting vacuum, EVAP, intake, exhaust, crankcase, fuel tank, oil seal, coolant tank, and low-pressure turbo system leaks. It runs on a DC 12V battery, uses 10-15ml liquid paraffin or baby oil as testing oil, and is suitable for cars, motorcycles, ATVs, snowmobiles, off-road vehicles, light trucks, and speedboats.
Built-In Air Pump 12V Battery EVAP / Vacuum 10-15ml Test Oil
0.1-0.15MPaRated Pressure
48WRated Power
1.6kgMain Unit
3 YearsWarranty
Click to enlarge
Click to enlargeBefore You Order And Use
Before You Order And Use
Review the 12V power requirement, testing oil rule, operating time limit, overheat protection, and hot-surface warning before using the SDT100 smoke test machine.
12V Battery Required
The SDT100 automotive smoke tester must be connected to a DC 12V battery to operate.
Testing Oil Not Included
Due to logistics restrictions, testing oil is not included. Buy liquid paraffin or baby oil locally for use as the testing fluid.
Add 10-15ml Only
Fill 10-15ml testing oil before use. Do not exceed this range, because overfilling leaves no space for smoke generation.
Refill When Smoke Becomes Thin
Only refill when smoke becomes thin. Do not add more than 15ml at a time, and drain remaining test oil before adding fresh oil.
8-Minute Use Limit
Do not operate the smoke leak detector continuously for more than 8 minutes. Allow it to rest between uses.
75°C Protection
The intelligent protection system automatically shuts off if internal temperature exceeds 75°C. Wait for the unit to cool before restarting.
Safety Reminder
- The metal round section of the smoke tester can become hot during operation. Avoid direct contact to prevent burns.
- Do not refill oil while the smoke tester is running.
- If the machine stops due to protection, cool it with the built-in air pump and restart after the temperature drops.
Key Features
Key Features
SDT100 is designed for easy low-pressure leak detection with an integrated air pump, broad system coverage, vehicle compatibility, protection functions, compact interface, and 3-year support.

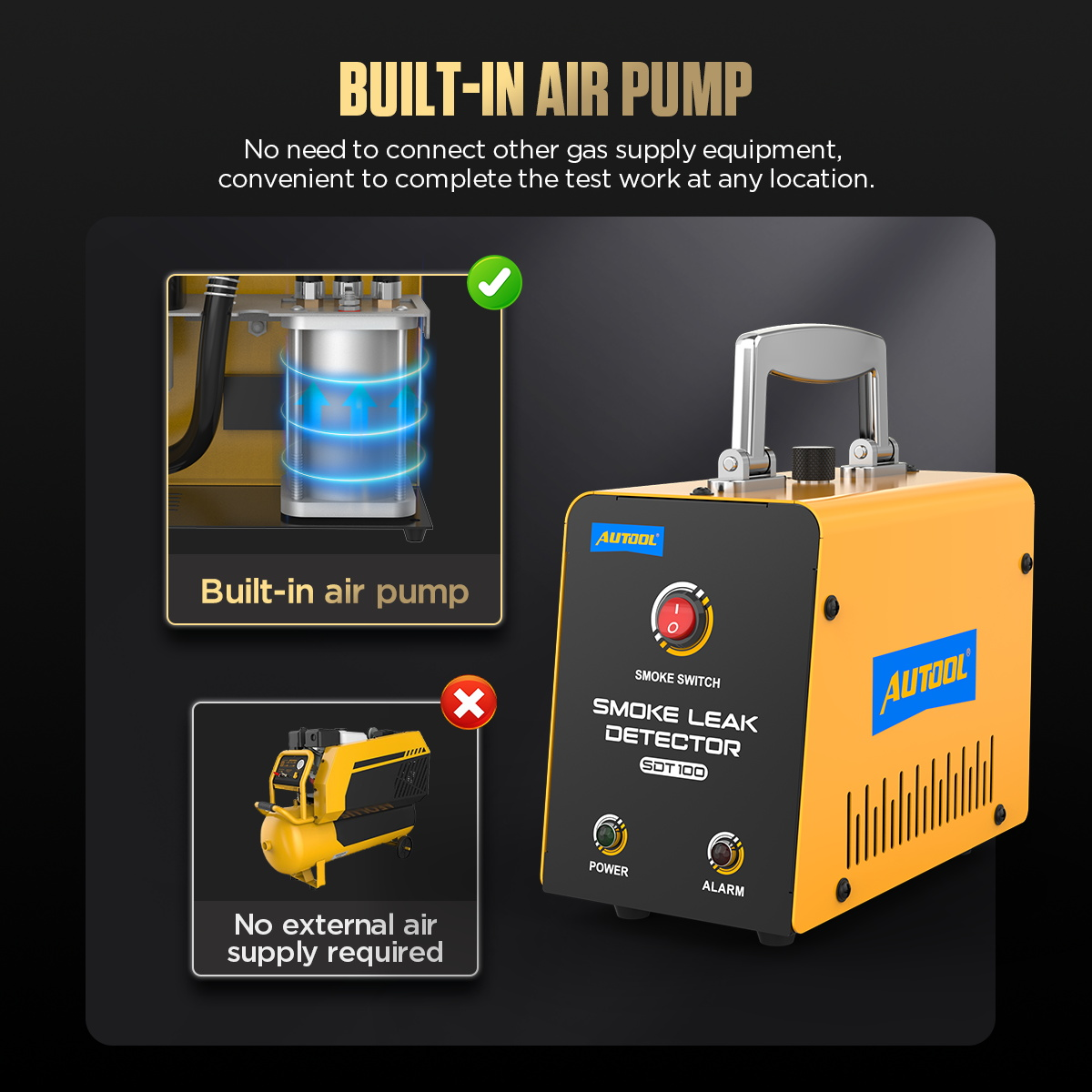

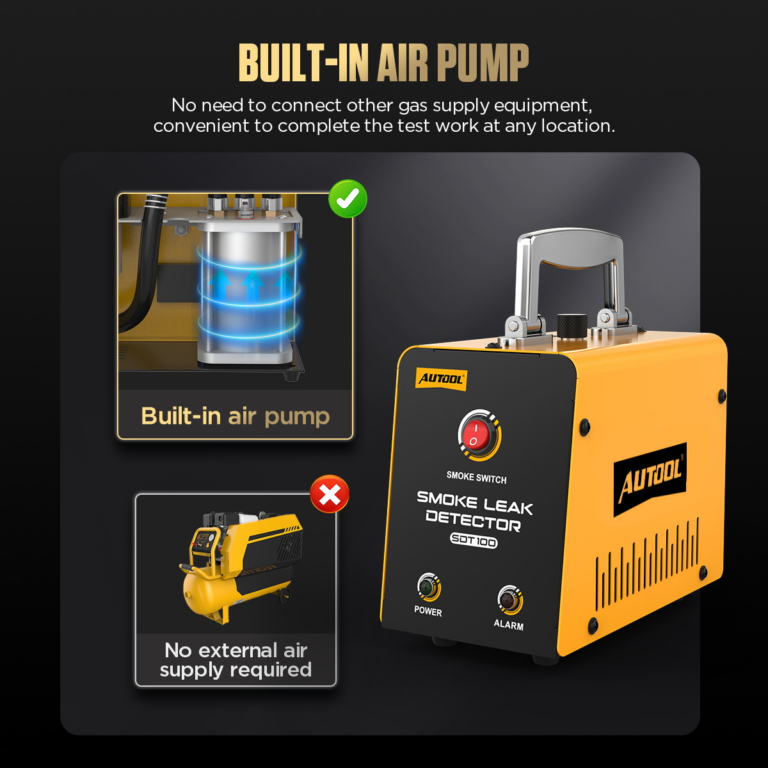

Built-In Air Pump
No extra pump is required. The built-in air pump helps save setup time and makes smoke leak detection easier for both technicians and automotive enthusiasts.
EVAP And Vacuum Leak Detection
Supports EVAP, intake, exhaust, crankcase, oil seal, intercooler air, fuel tank, coolant tank, vacuum, pipe fittings, and low-pressure turbo system leak checks.

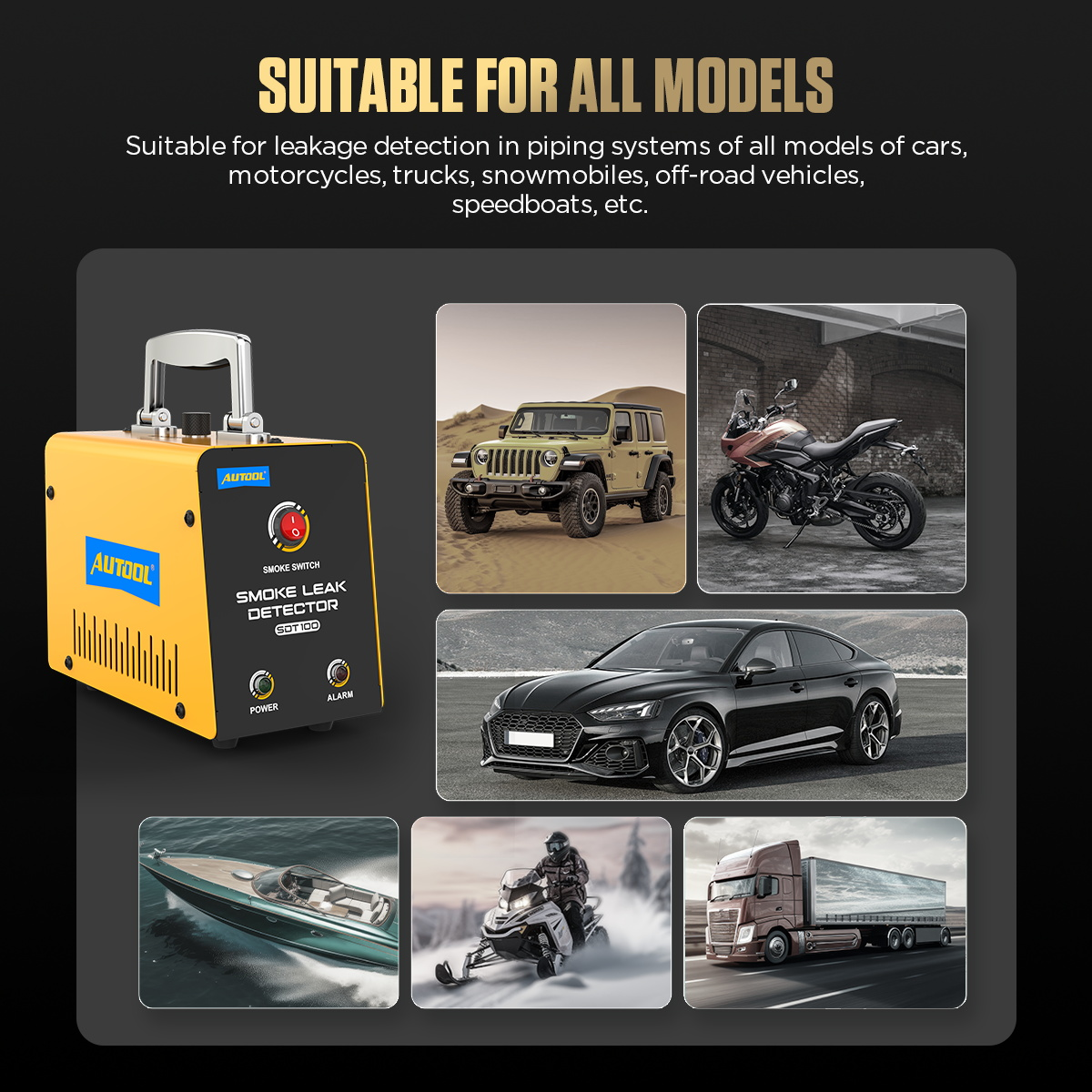

Wide Vehicle Coverage
Compatible with cars, motorcycles, ATVs, snowmobiles, off-road vehicles, light trucks, and speedboats.

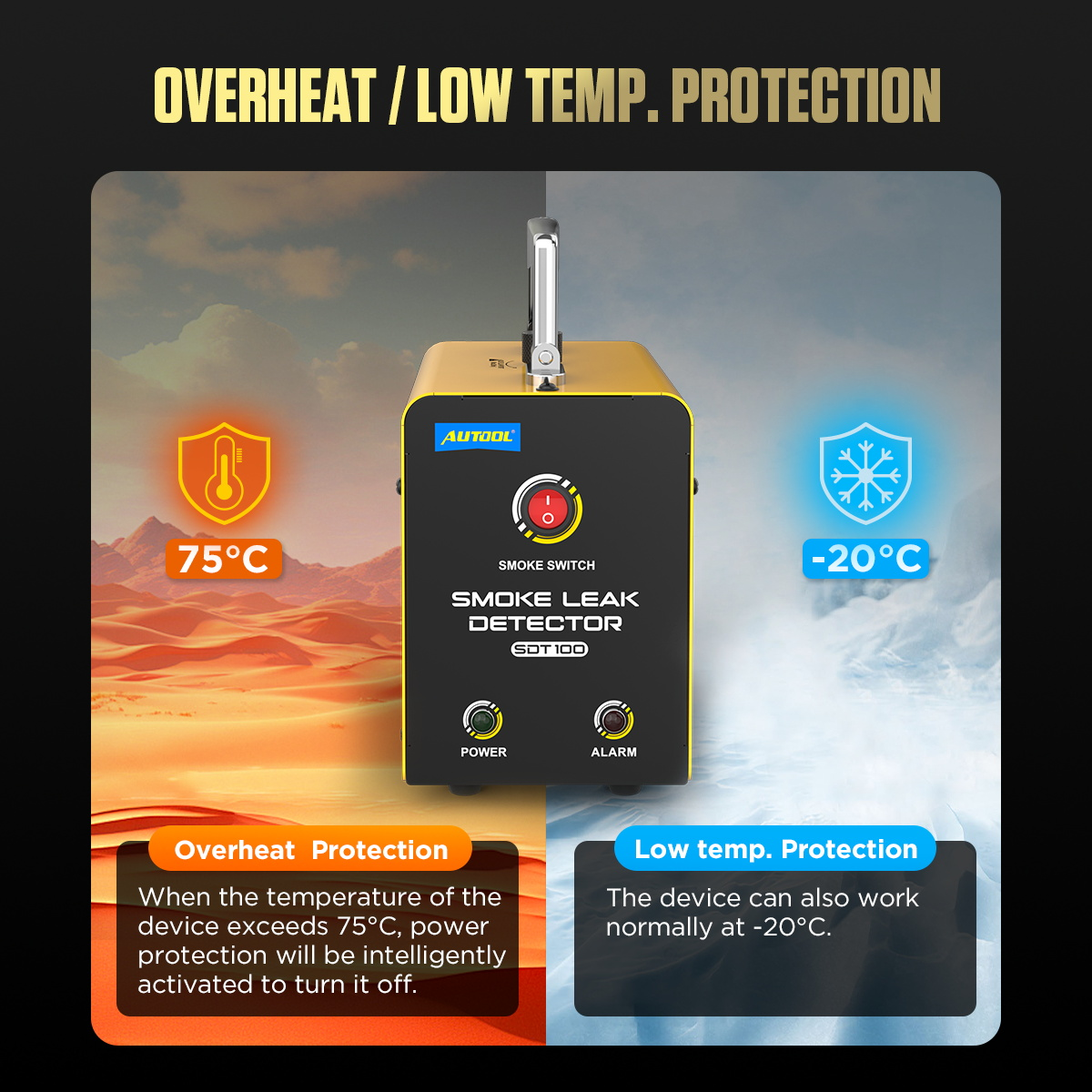

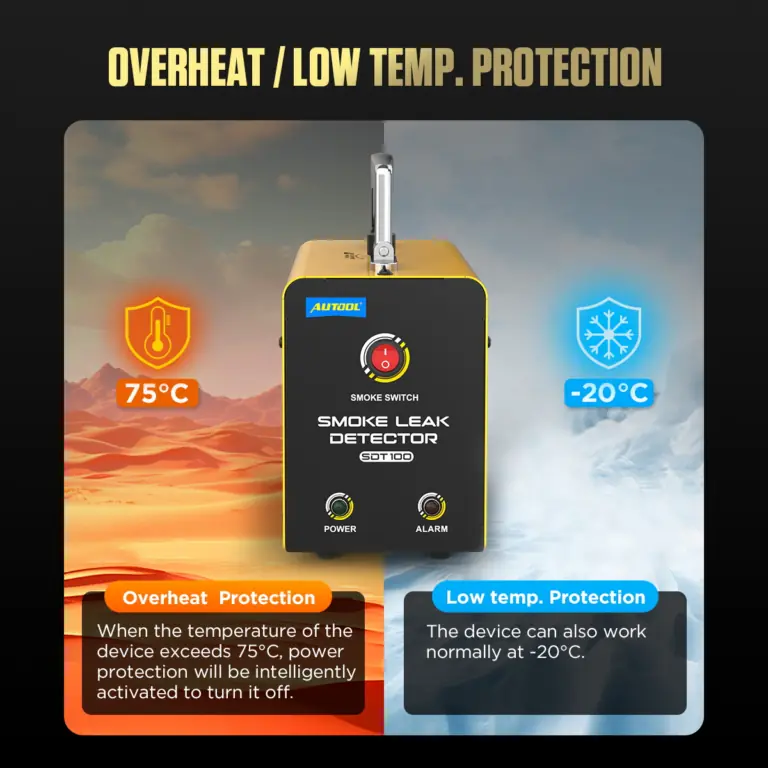

Smart Protection
Overheat and freeze protection automatically stop operation when needed. The unit supports low-temperature work down to -20°C.

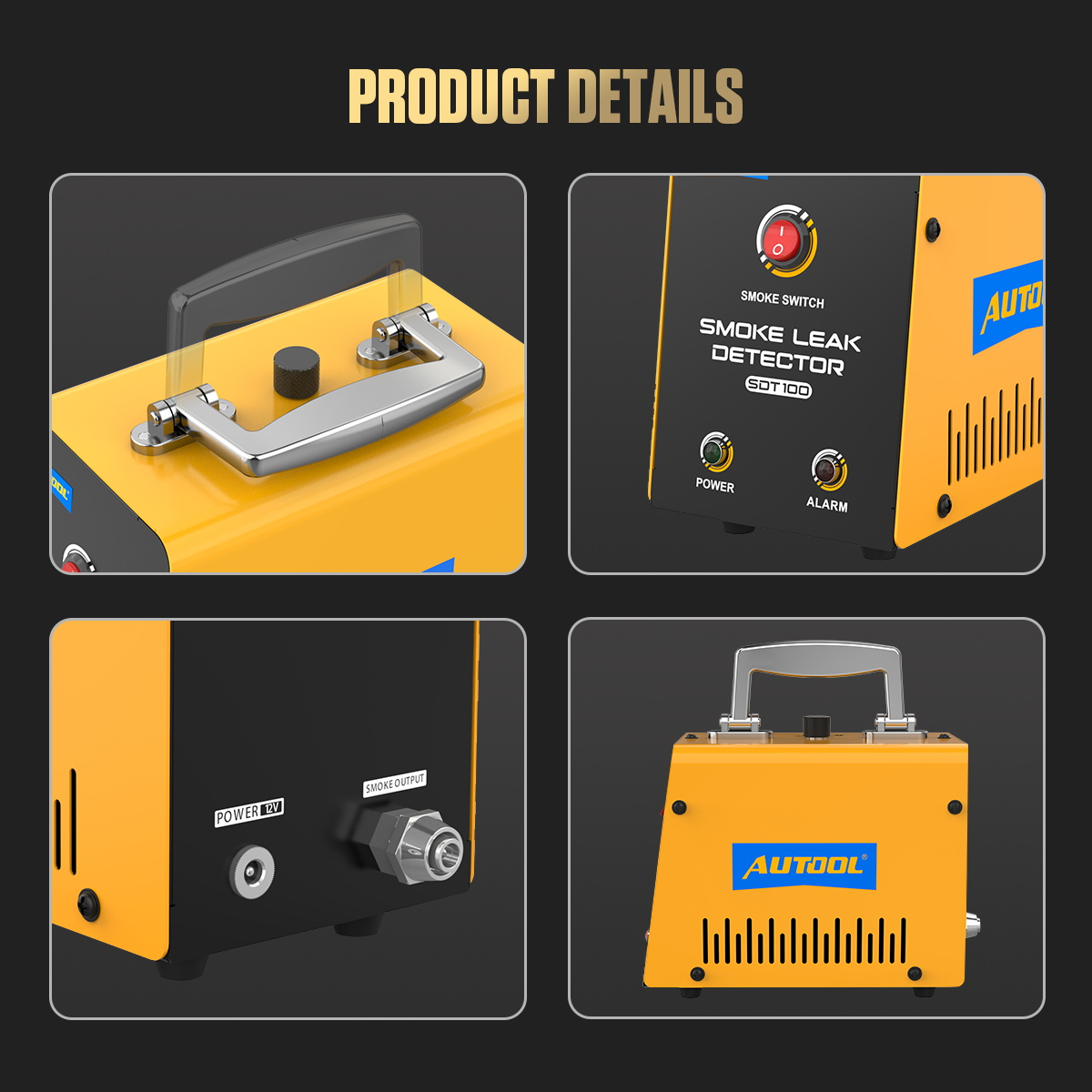

Compact Product Interface
The body integrates smoke switch, power indicator, alarm indicator, oil filler, smoke output, power socket, and handle in a compact structure.

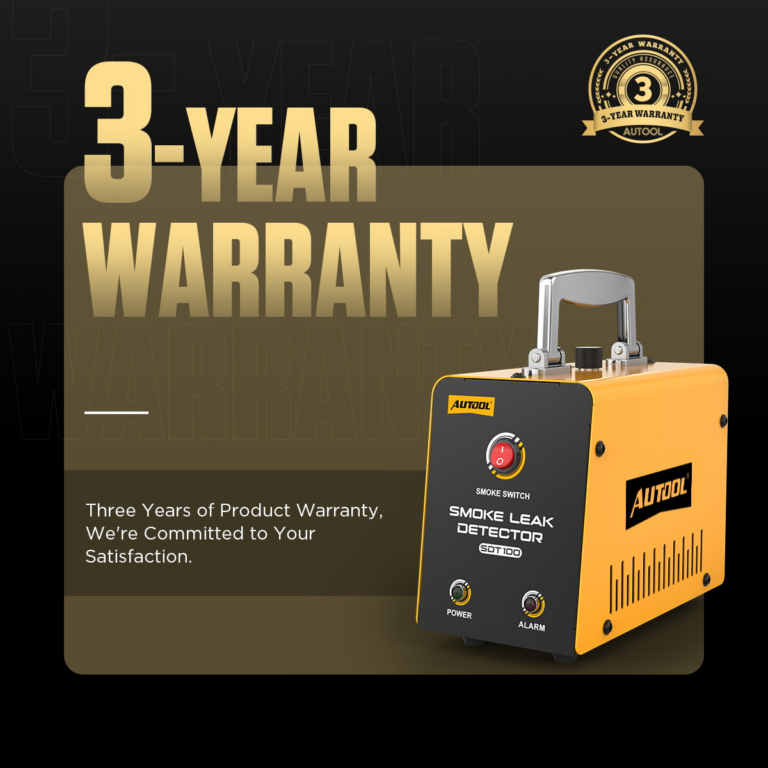

Warranty And Support
AUTOOL provides 3-year support for eligible non-human damage cases and responsive customer support for accessories, setup, and troubleshooting.
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge Click to enlargeSpecifications

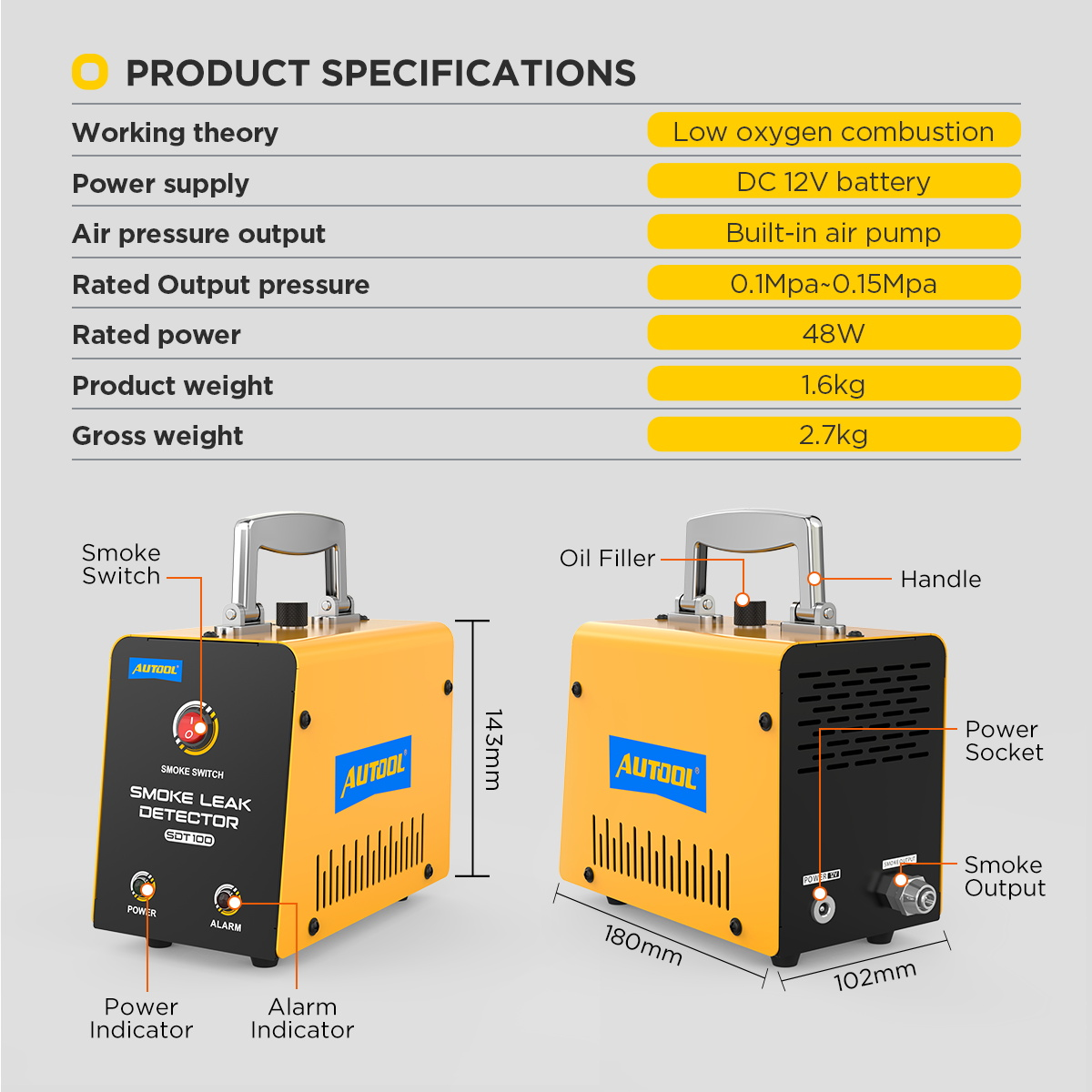

SDT100 Product Specifications
SDT100 is a lightweight built-in pump smoke leak detector with DC 12V power, low-oxygen smoke generation, 0.1-0.15MPa rated pressure, and 10-15ml test oil filling volume.
| Core Specifications | |
| Product | AUTOOL SDT100 Smoke Leak Detector |
| Working Theory | Low oxygen combustion |
| Power Supply | DC 12V battery |
| Air Pressure Output | Built-in air pump |
| Rated Output Pressure | 0.1MPa-0.15MPa |
| Rated Power | 48W |
| Product Weight | 1.6kg |
| Gross Weight | 2.7kg |
| Main Dimensions | 180 × 102 × 143mm |
| Test Oil | Liquid paraffin or baby oil |
| Suggested Oil Amount | 10-15ml |
| Protection | Stops working above 75°C |
| Low Temperature | Works at -20°C |
Click to enlargeCore Specifications
Working TheoryLow oxygen combustion
Power SupplyDC 12V battery
Air Pressure OutputBuilt-in air pump
Rated Output Pressure0.1MPa-0.15MPa
Rated Power48W
Product Weight1.6kg
Gross Weight2.7kg
Main Dimensions180 × 102 × 143mm
Suggested Oil Amount10-15ml
How To Use
How To Use
Use SDT100 with a DC 12V battery and 10-15ml liquid paraffin or baby oil. The pipe can fill with smoke in about 30 seconds, allowing visual leak detection.
Add Test Oil
Fill 10-15ml baby oil or liquid paraffin into the detector before use. Do not overfill.
Connect The Test Pipe
Open the engine cover, hang the detector if needed, then disconnect the pipe that needs testing and connect it to the smoke detector.
Connect 12V Power
Connect the detector to a DC 12V battery, then turn on the power switch so the detector starts working.
Locate Leaks
In about 30 seconds, the pipe will be filled with smoke. Check the leak points visually and use a headlamp if necessary.
Use Notes
- Testing oil is not included due to logistics restrictions.
- Use liquid paraffin or baby oil as testing oil.
- Only refill when smoke becomes thin.
- Drain remaining test oil before adding fresh test oil.
- Do not operate continuously for more than 8 minutes.
- Wait for the detector to cool down if overheat protection is triggered.

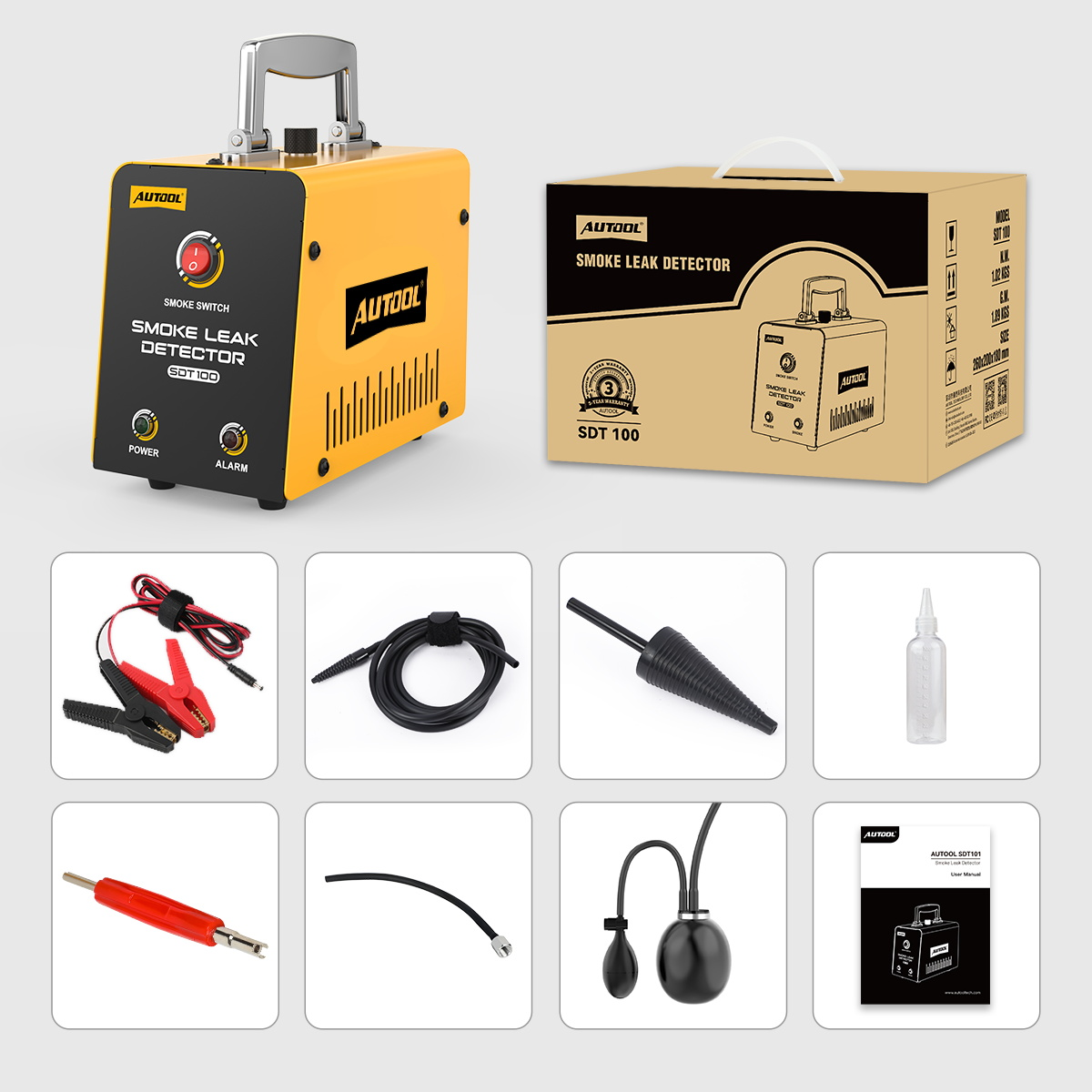

Click to enlargeWhat Is In The Box

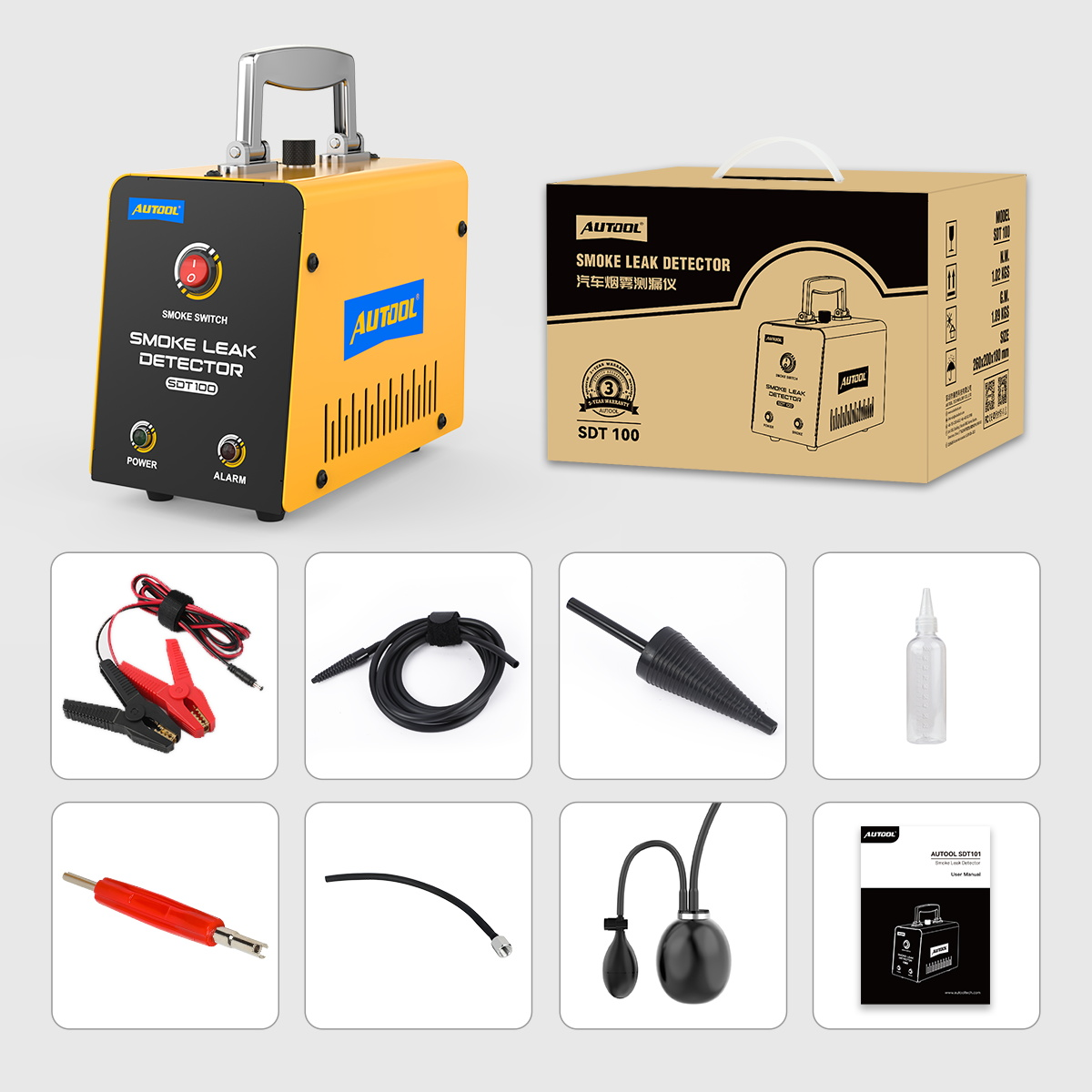

What Is In The Box
The packing list image shows the SDT100 main unit and included accessories. The oil bottle is included as an empty bottle; testing oil is not included due to logistics restrictions.
Main UnitAUTOOL SDT100 smoke leak detector
Power Cable12V battery clamp cable
Smoke HoseSmoke output hose
AdaptersCone adapter, red connector, thin hose, and airbag adapter shown in the package image
Oil BottleEmpty test oil bottle included; testing oil is not included
DocumentationUser manual and SDT100 retail box
Product Comparison
Product Comparison
Compare SDT100 with other AUTOOL smoke leak detector models before choosing the right air source, pressure, flow, operating mode, and testing range.
SDT100 FocusCompact built-in pump smoke leak detector with DC12V battery power, 10-15ml oil filling volume, 0.1-0.15MPa output pressure, 48W rated power, and 1.6kg main unit weight.
Entry EVAP ModelsSDT101 and SDT103 are EVAP-focused models around 3.2kPa and use an external air source.
Built-In Pump OptionsSDT50, SDT60, SDT100, SDT106, SDT203, SDT205, SDT205S, SDT206, and SDT208 vary by pressure gauge, air/smoke mode, flow meter, output flow, and rated pressure.
High-End OptionsSDT206 has a built-in dual air pump. SDT208 supports 35 psi high pressure mode and 10 psi low pressure mode.
Decision CheckCompare air source type, pressure gauge, output pressure, output flow, air/smoke mode, oil drain valve, flow meter, weight, and test system before ordering.
Click to enlargeRelated Products
Related Products
Compare related AUTOOL smoke leak detector models before choosing the right EVAP support, pressure range, built-in pump, air/smoke mode, and workshop function.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SDT100 Smoke Tester for Vacuum Leaks
From US$65.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SDT102 Car Smoke Tester for Vacuum Leaks EVAP DIY
From US$82.00 - Select options This product has multiple variants. The options may be chosen on the product page
Automotive Smoke Tester for EVAP System 12V- AUTOOL SDT103
From US$90.00 - Select options This product has multiple variants. The options may be chosen on the product page

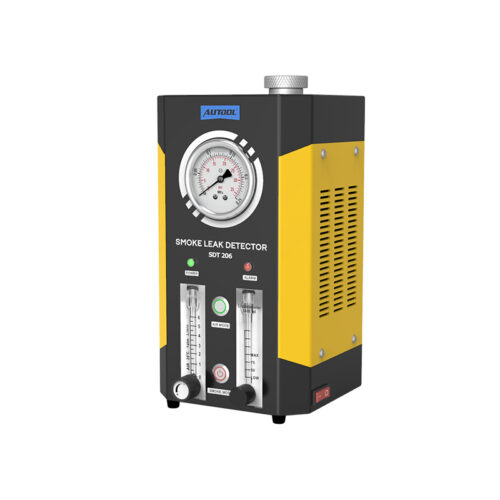

AUTOOL SDT206 Smoke Machine For Vacuum Leaks
From US$299.00
Manual And Downloads
Manual And Downloads
Download the SDT100 manual for setup, testing oil, 12V power, operation, accessories, and safe-use instructions.

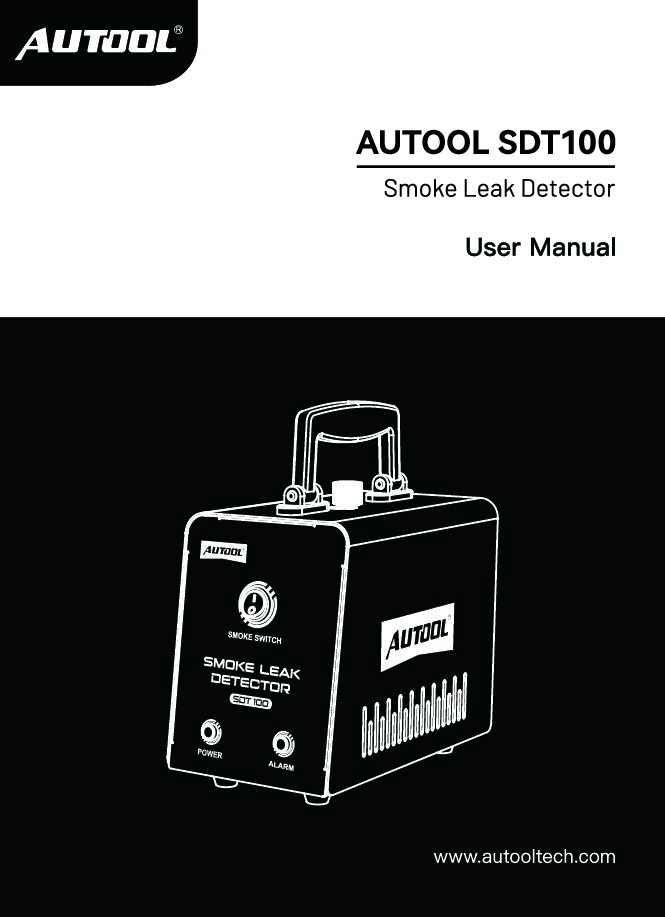

Click to enlargeAUTOOL SDT100 User Manual
Open the PDF manual for SDT100 operation and setup guidance.
Download ManualNeed Setup Confirmation?
Contact AUTOOL Store before ordering if you need to confirm testing oil, 12V power, EVAP testing, A/C auxiliary testing, accessories, package contents, or model selection.
Questions And Answers
These answers cover testing oil, oil amount, EVAP testing, A/C auxiliary testing, supported systems, power supply, fixed pressure, accessories, and warranty.
Testing oil is not included due to logistics restrictions. If professional test oil is not available, buy liquid paraffin or baby oil locally and use it as the testing oil.
Add 10-15ml testing oil before use. Do not add more than 15ml at a time. Refill only when the smoke becomes thin, and drain remaining test oil before adding fresh test oil. If too much oil is added accidentally, drain some oil out before operation.
Yes. AUTOOL smoke leak detectors can test leaks in the EVAP system. Use the proper EVAP testing tools and adapters according to the package contents and the vehicle test port.
No. The automotive A/C system operates at about 1.7-3.0MPa output pressure, while AUTOOL smoke leak detectors generate about 0.1MPa. SDT100 cannot directly pressure-test the automotive A/C system for leaks. It can only be used for segment-assisted air-conditioning pipeline checks under proper conditions.
First pressurize the air-conditioning pipeline using the proper method, then spray smoke and observe whether airflow blows the smoke. If the smoke is disturbed by airflow, the location may indicate a leak point for further repair.
SDT100 supports low-pressure leak checks for EVAP, intake, exhaust, crankcase, oil seal, intercooler air, fuel tank, coolant tank, pipe fittings, vacuum, engine airtightness, and low-pressure turbo systems.
SDT100 uses DC 12V car battery power. This makes it convenient for vehicle maintenance and easy to power in typical automotive repair environments.
Most AUTOOL smoke leak detectors use fixed pressure. SDT MASTER allows pressure adjustment. SDT100 should be used according to its fixed safe pressure setup for common maintenance and testing needs.
Refer to the Packing List image for the final package contents. SDT100 includes the main unit, 12V battery clamp cable, smoke hose, cone adapter, red connector, thin hose, airbag adapter, empty test oil bottle, user manual, and retail box. Testing oil is not included.
The AUTOOL smoke leak detector series includes SDT101 and SDT103 for EVAP systems around 3.2Kpa, SDT106 and SDT202 for beginners around 12 psi, and SDT203, SDT205, SDT205S, SDT206, and SDTMASTER as standard and higher-end models around 15 psi. SDT208 supports up to 35 psi. Compare air source, output pressure, flow, mode, and accessories before ordering.
AUTOOL provides up to 3 years of warranty support for eligible non-human damage cases. AUTOOL smoke leak detectors are sold online and offline in many countries and regions, with after-sales support for setup, accessories, and troubleshooting.
