AUTOOL SDT208 Smoke for Leak Detection
US$429.00
Key Features
- Pro EVAP Checks
- 12V/24V Support
- Pressure & Flow
- Pro EVAP Checks: The SDT208 is described as detecting leaks as small as 0.5mm with EVAP pressure protection.
- 12V/24V Support: The local text states support for 12V and 24V DC vehicles, which matters for mixed car and truck work.
- Pressure & Flow: Built-in gauge and flow control help users manage test pressure and read leak behavior more clearly.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support

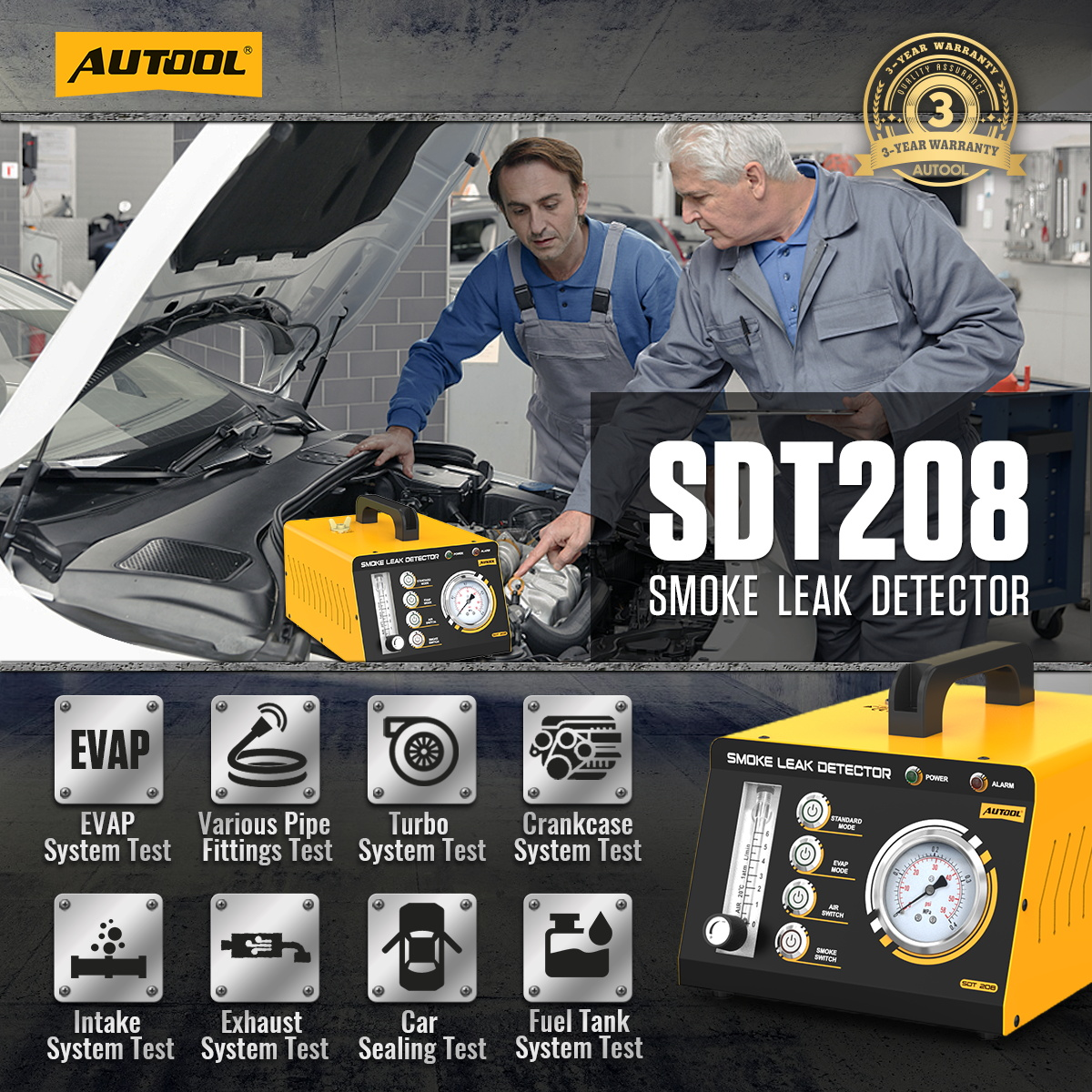

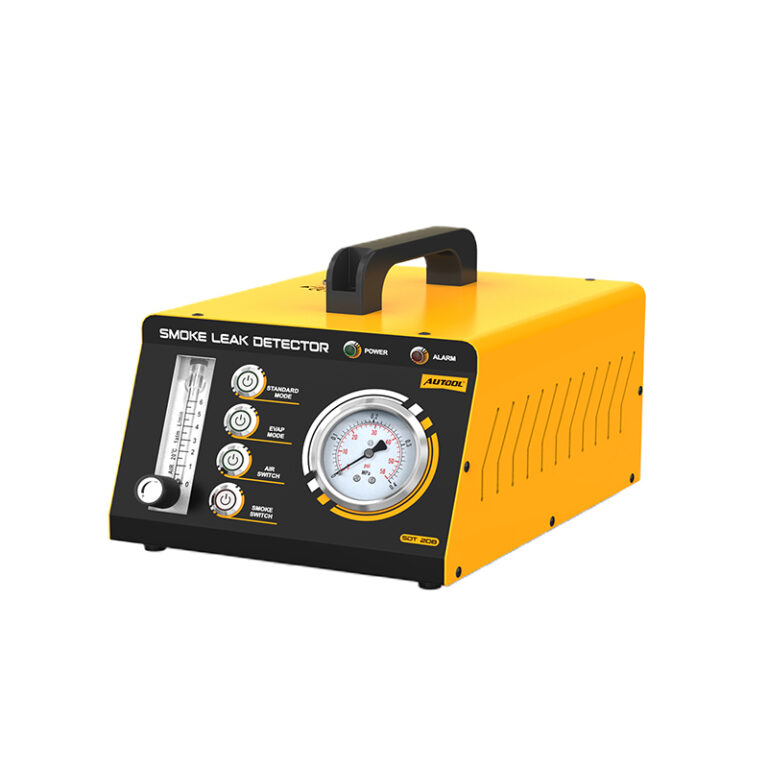

AUTOOL SDT208
Product Overview
The AUTOOL SDT208 smoke leak detector is a professional automotive pipe and vacuum leak tester for repair shops, mobile mechanics, and advanced DIY diagnostics. It combines a built-in air pump, smoke mode, air mode, Standard Mode, and EVAP Mode to help locate low-pressure leaks in EVAP systems, intake lines, exhaust pipes, crankcase systems, fuel tanks, pipe fittings, turbo-related low-pressure areas, and other sealed automotive systems.
Built-In Air Pump 12V / 24V Battery EVAP / Standard Mode Air / Smoke Mode
<10psi / 35psiPressure Modes
<15L/minOutput Flow
80WRated Power
3 YearsWarranty Support
Click to enlargeBefore You Order And Use
Before You Order And Use
Review the SDT208 power requirement, test oil rule, airflow regulator, operating time limit, high-temperature protection, and A/C testing boundary before using the smoke leak detector.
12V / 24V Battery Required
The SDT208 smoke leak detector must be connected to a DC 12V or DC 24V battery power supply before operation.
Testing Oil Not Included
Testing liquid is not included due to logistics restrictions. Use liquid paraffin or baby oil purchased locally as the testing oil.
Add 10-15ml Only
Fill 10-15ml testing oil before use. Do not overfill, and do not add more than 15ml each time.
Open Airflow Regulator
Before use, gently turn the knob to open the airflow regulator valve and prepare the air path for testing.
Refill Only When Smoke Is Thin
Add fresh oil only when the smoke becomes thin. Pour out remaining oil before adding fresh oil and replace detector oil regularly.
8-Minute Use Limit
Do not run the detector continuously for more than 8 minutes. Let the unit rest between test cycles.
75℃ Protection
If the working temperature exceeds 75℃, the intelligent protection system automatically shuts down power. Wait until the unit cools before using it again.
Hot Surface Warning
The round metal section of the detector can become hot during operation. Avoid direct contact to prevent burns.
A/C System Boundary
Do not use the smoke leak detector to directly pressure-test an automotive A/C high-pressure system. Use only for segment-assisted checks under proper conditions.
Safety Reminder
- Keep the smoke output away from smoke-sensitive parts during leak detection.
- Do not refill test oil while the detector is running.
- If the machine enters protection mode, wait for the temperature to drop before restarting.
- Use the correct adapter and mode for the test area to reduce the risk of pipe damage.
Key Features
Key Features
SDT208 is designed for efficient professional leak detection with fast smoke generation, a built-in air pump, dual pressure modes, pressure and flow monitoring, EVAP protection, and reliable workshop safety functions.
Fast Smoke Output
The smoke generator produces smoke within seconds under proper setup, helping reduce diagnostic time during pipe leak checks.
Built-In Air Pump
No additional air pump is required. The built-in pump saves setup time and makes the detector suitable for shop and mobile automotive repair use.

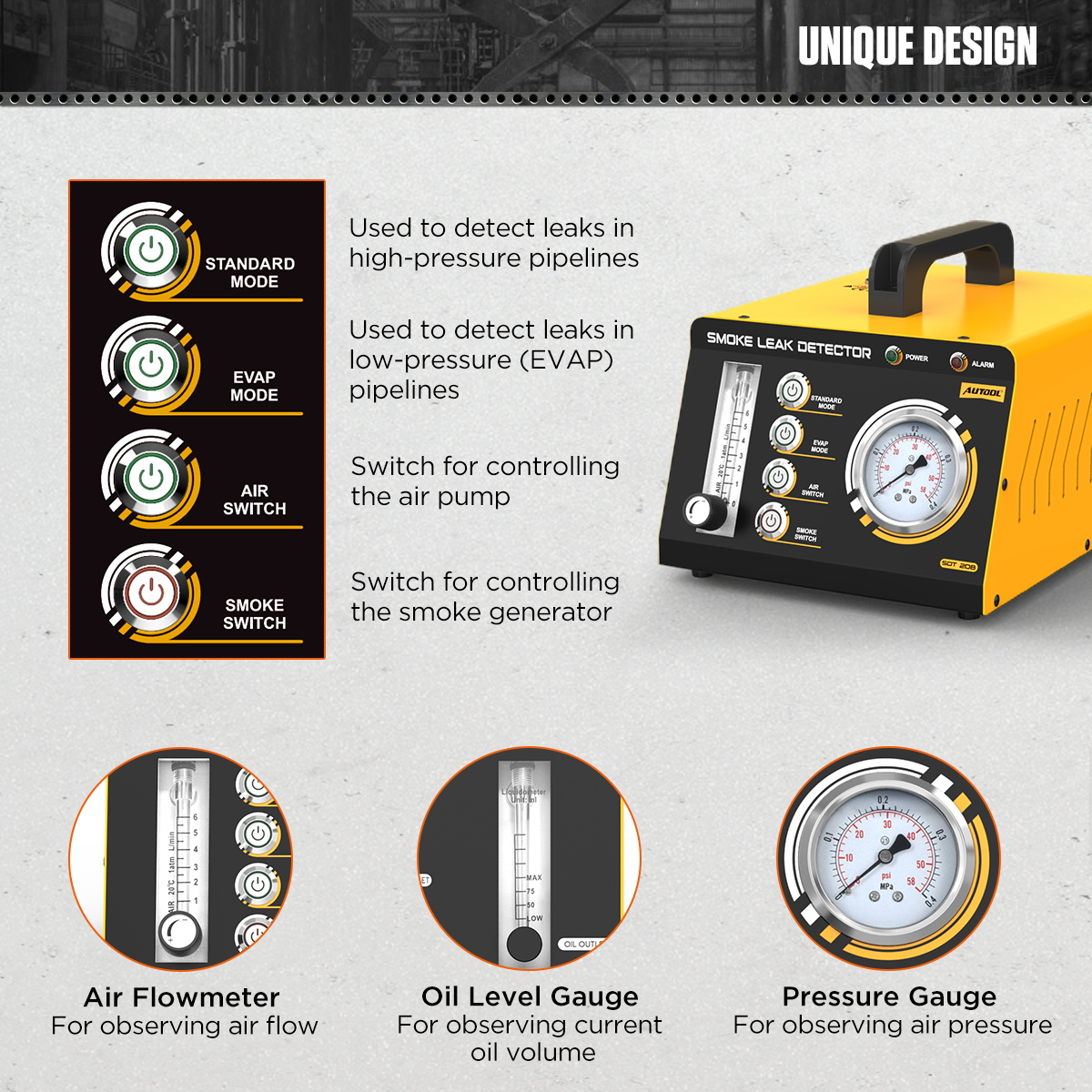

Air Mode And Smoke Mode
The SDT208 integrates an air pump and smoke generator, allowing users to switch between air testing and smoke leak detection according to the test requirement.
Standard And EVAP Modes
Standard Mode supports up to 35psi, while EVAP Mode is limited below 10psi to better protect vehicle pipes during EVAP testing.
Flow Meter And Pressure Gauge
The air flowmeter, airflow control valve, and pressure gauge help control the test pipeline and identify possible leakage by pressure and flow changes.

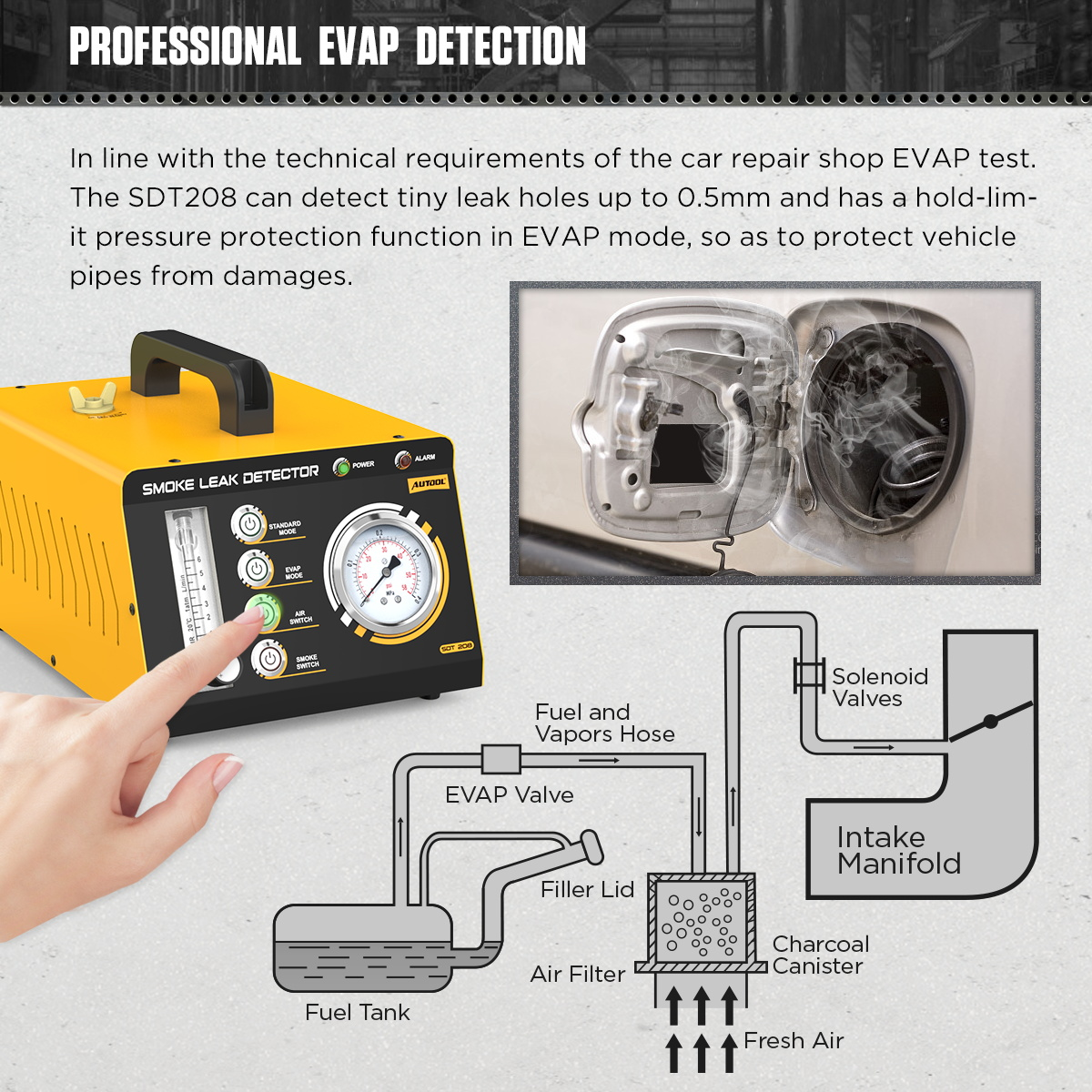

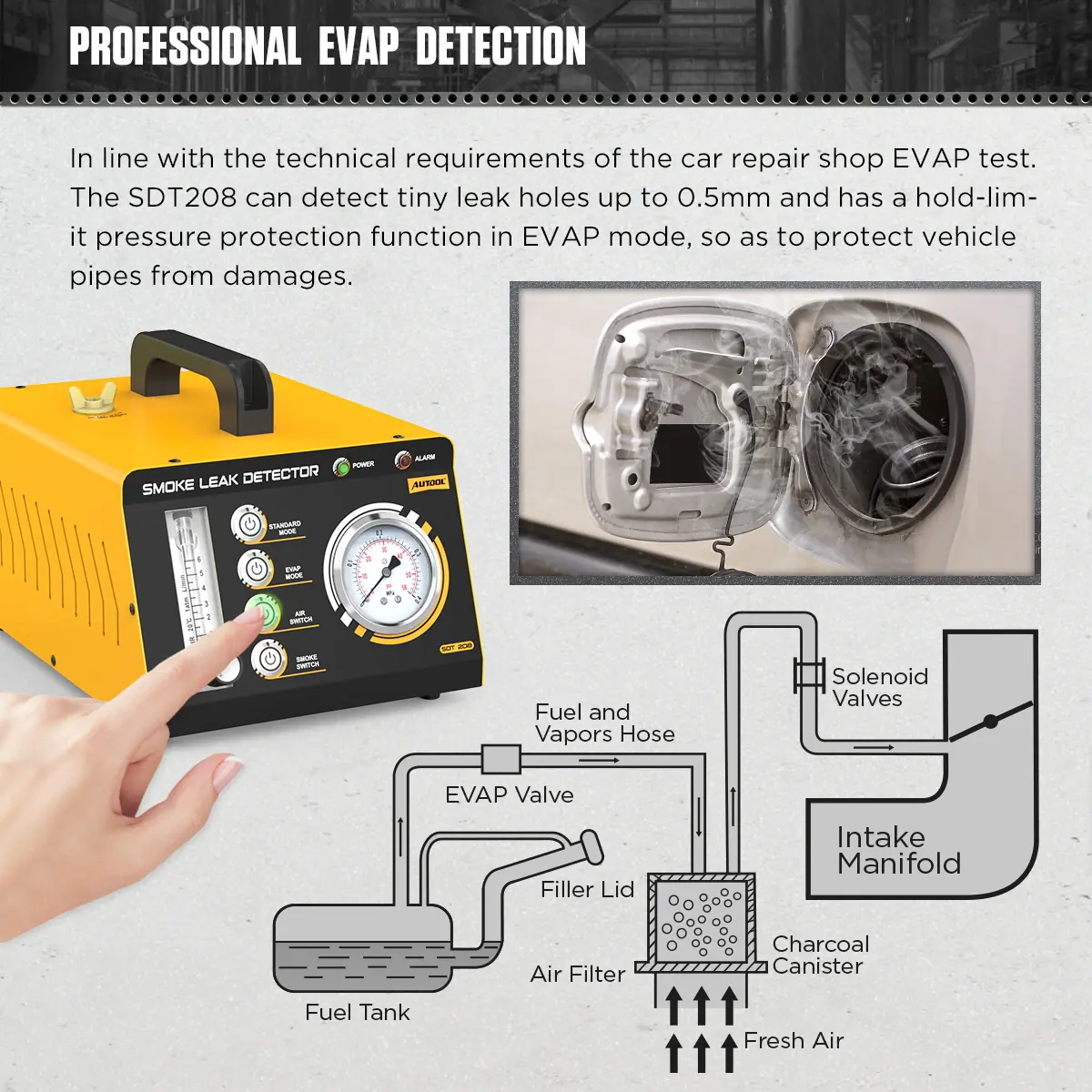

Professional EVAP Detection
The EVAP mode meets common repair shop EVAP test needs, supports tiny leak checks down to about 0.5mm, and uses pressure protection to help protect vehicle pipes.
Overheat And Anti-Freeze Protection
The intelligent protection device shuts off power above 75℃ and the unit can work in low-temperature conditions down to -20℃.
Wide Vehicle Coverage
Suitable for many 12V / 24V leak testing scenarios, including cars, motorcycles, snowmobiles, ATVs, off-road vehicles, light trucks, and speed boats.
3-Year Warranty Support
AUTOOL provides 3-year support for eligible non-human damage cases, including product setup, accessory confirmation, and troubleshooting support.
Click to enlarge
Click to enlarge
Click to enlargeApplications

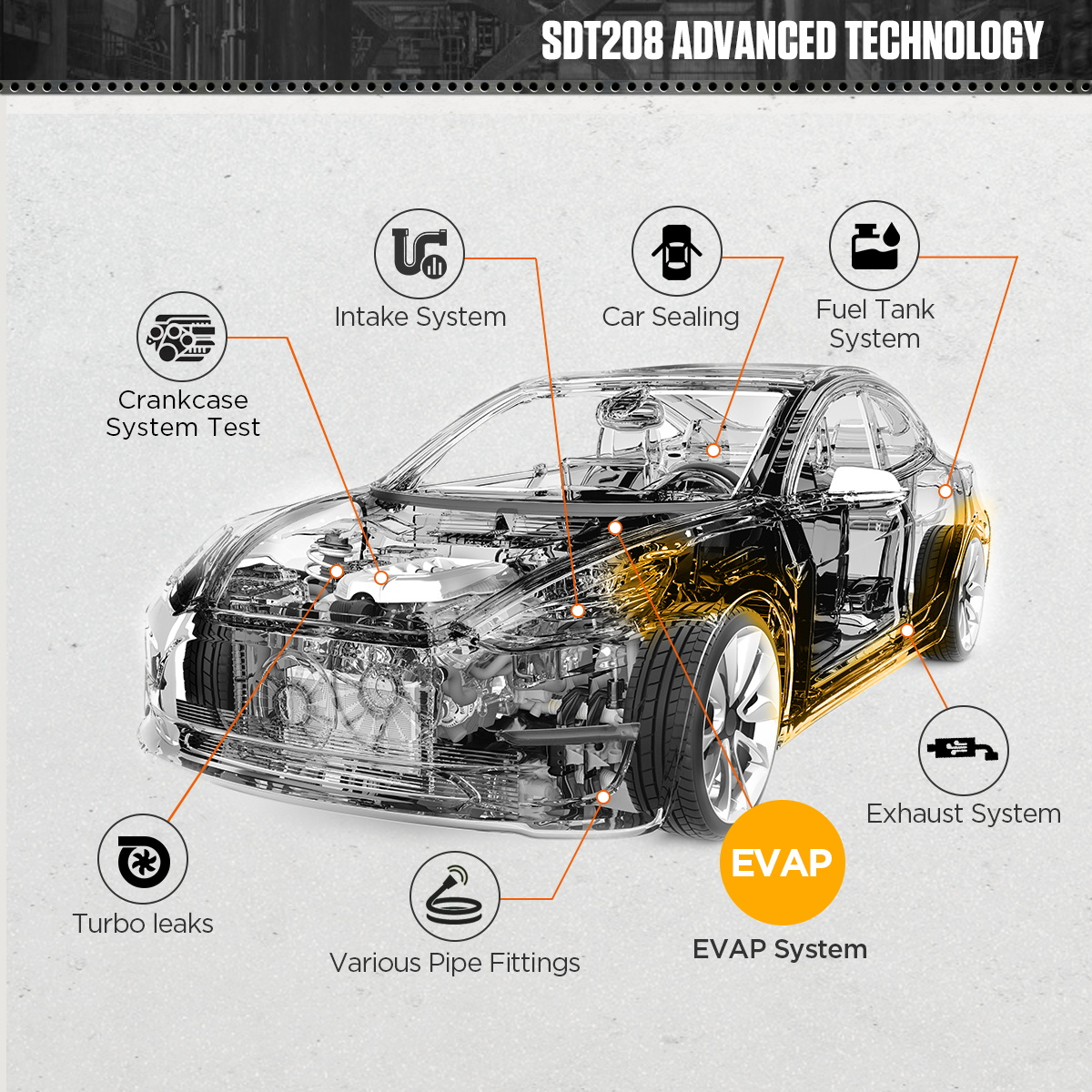

Applications
Use SDT208 for visual low-pressure leak checks across common automotive sealed systems. Select the proper adapter, pressure mode, and test method for the system being checked.
EVAP System
Use EVAP Mode and suitable EVAP tools to check evaporative emission system leaks.
Intake And Vacuum Lines
Helps locate leaks in intake pipes, throttle-related pipes, vacuum lines, and engine airtightness areas.
Exhaust And Crankcase
Supports visual leak checks for exhaust pipe sections, crankcase systems, and related pipe fittings.
Fuel Tank And Pipe Fittings
Can assist with low-pressure checks around fuel tank sealing areas and automotive pipe connections.
Turbo Low-Pressure Checks
Useful for selected low-pressure turbo, intercooler, and air path leak checks under proper conditions.
12V / 24V Vehicles
Suitable for many cars, motorcycles, snowmobiles, ATVs, off-road vehicles, light trucks, and speed boats.
Click to enlarge
Click to enlargeSpecifications

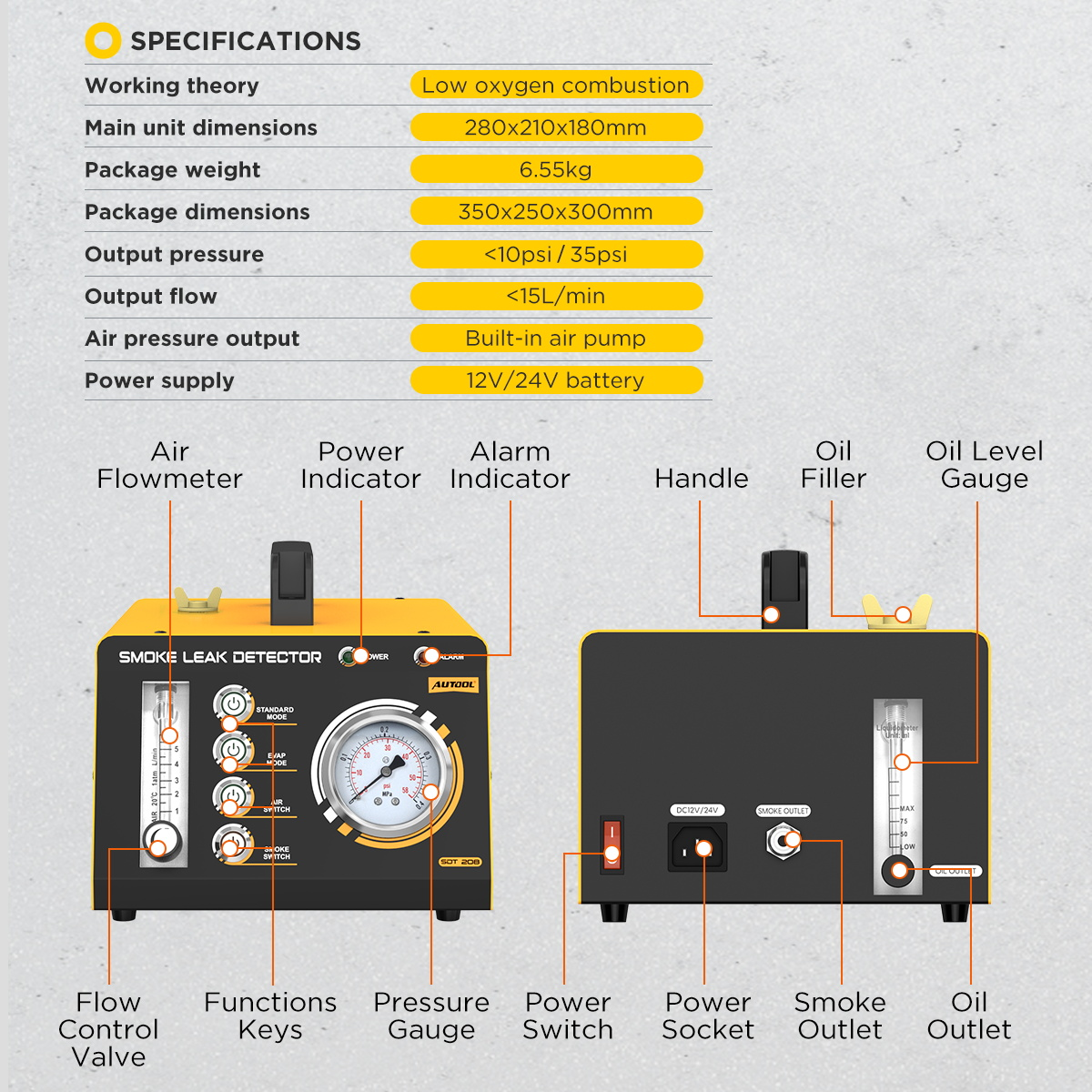

AUTOOL SDT208 Specifications And Product Details
SDT208 uses low-oxygen combustion smoke generation, DC 12V / 24V battery power, a built-in air pump, dual pressure modes, airflow control, and monitoring indicators for professional leak detection.
| Core Specifications | |
| Product | AUTOOL SDT208 Smoke Leak Detector |
| Working Theory | Low oxygen combustion |
| Power Supply | DC 12V / 24V battery |
| Air Pressure Output | Built-in air pump |
| Output Pressure | Standard Mode <35psi; EVAP Mode <10psi |
| Output Flow | <15L/min |
| Rated Power | 80W |
| Main Unit Weight | 4.2kg |
| Package Weight | 6.55kg |
| Main Unit Dimensions | 280 × 210 × 180mm |
| Package Dimensions | 350 × 250 × 300mm |
| Test Oil | Liquid paraffin or baby oil |
| Suggested Oil Amount | 10-15ml; do not overfill |
| Protection | Automatic shutdown above 75℃ |
| Low Temperature | Works at -20℃ |
| Controls And Indicators | |
| Mode Controls | Standard Mode, EVAP Mode, Air Switch, Smoke Switch |
| Monitoring | Air flowmeter, pressure gauge, oil level gauge, power indicator, alarm indicator |
| Airflow Control | Flow control valve / airflow regulator knob |
| Connections | Power socket, smoke outlet, oil filler, oil outlet |
Click to enlargeCore Specifications
ProductAUTOOL SDT208 Smoke Leak Detector
Working TheoryLow oxygen combustion
Power SupplyDC 12V / 24V battery
Air Pressure OutputBuilt-in air pump
Output PressureStandard Mode <35psi; EVAP Mode <10psi
Output Flow<15L/min
Rated Power80W
Main Unit Weight4.2kg
Package Weight6.55kg
Main Unit Dimensions280 × 210 × 180mm
Package Dimensions350 × 250 × 300mm
Test OilLiquid paraffin or baby oil
Suggested Oil Amount10-15ml; do not overfill
ProtectionAutomatic shutdown above 75℃
Low TemperatureWorks at -20℃
Controls And Indicators
Mode ControlsStandard Mode, EVAP Mode, Air Switch, Smoke Switch
MonitoringAir flowmeter, pressure gauge, oil level gauge, power indicator, alarm indicator
Airflow ControlFlow control valve / airflow regulator knob
ConnectionsPower socket, smoke outlet, oil filler, oil outlet

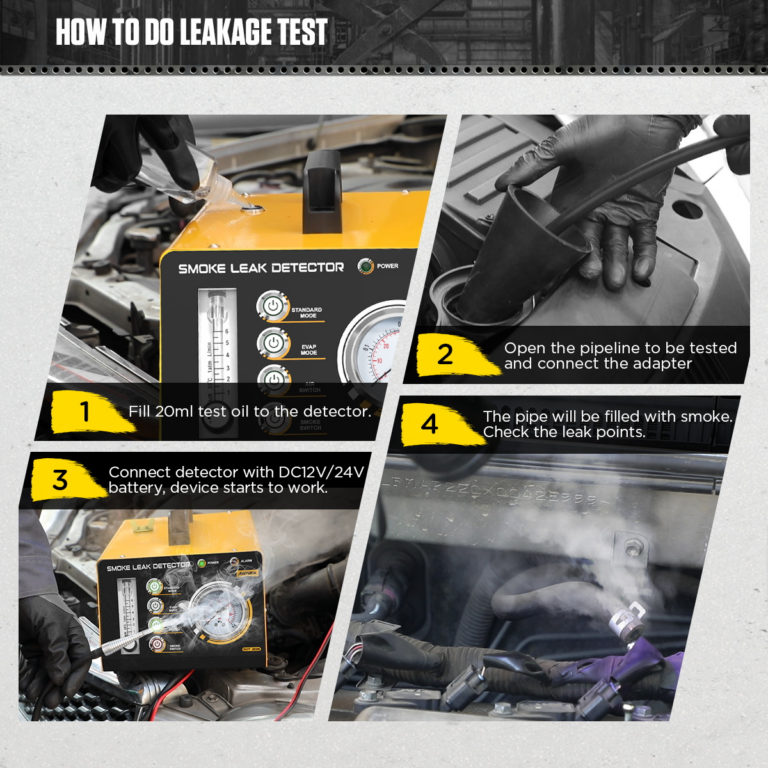

How To Use
How To Use
Use SDT208 with 10-15ml liquid paraffin or baby oil, a DC 12V / 24V battery, the proper adapter, and the correct pressure mode for the selected test system.
Add Test Oil
Fill 10-15ml baby oil or liquid paraffin into the detector before use. Do not overfill.
Open The Airflow Regulator
Gently turn the knob to open the airflow regulator valve before starting the test.
Connect The Test Pipe
Open the engine cover, hang the detector if needed, disconnect the pipe that needs testing, and connect the proper hose or adapter.
Connect 12V / 24V Power
Connect the detector to a DC 12V or 24V battery, then turn on the power switch.
Select The Mode
Choose Standard Mode, EVAP Mode, Air Mode, or Smoke Mode according to the system being tested.
Locate Leaks
Observe smoke, pressure, and airflow changes. Use a headlamp if needed to check the leak points visually.
Use Notes
- Testing oil is not included due to logistics restrictions.
- Use liquid paraffin or baby oil as testing oil.
- Refill only when smoke becomes thin.
- Drain remaining test oil before adding fresh oil.
- Do not operate continuously for more than 8 minutes.
- If the pressure gauge continues to rise, the tested pipeline may have no obvious leak. If pressure continues to drop, the pipeline may need repair.
Click to enlargeWhat Is In The Box

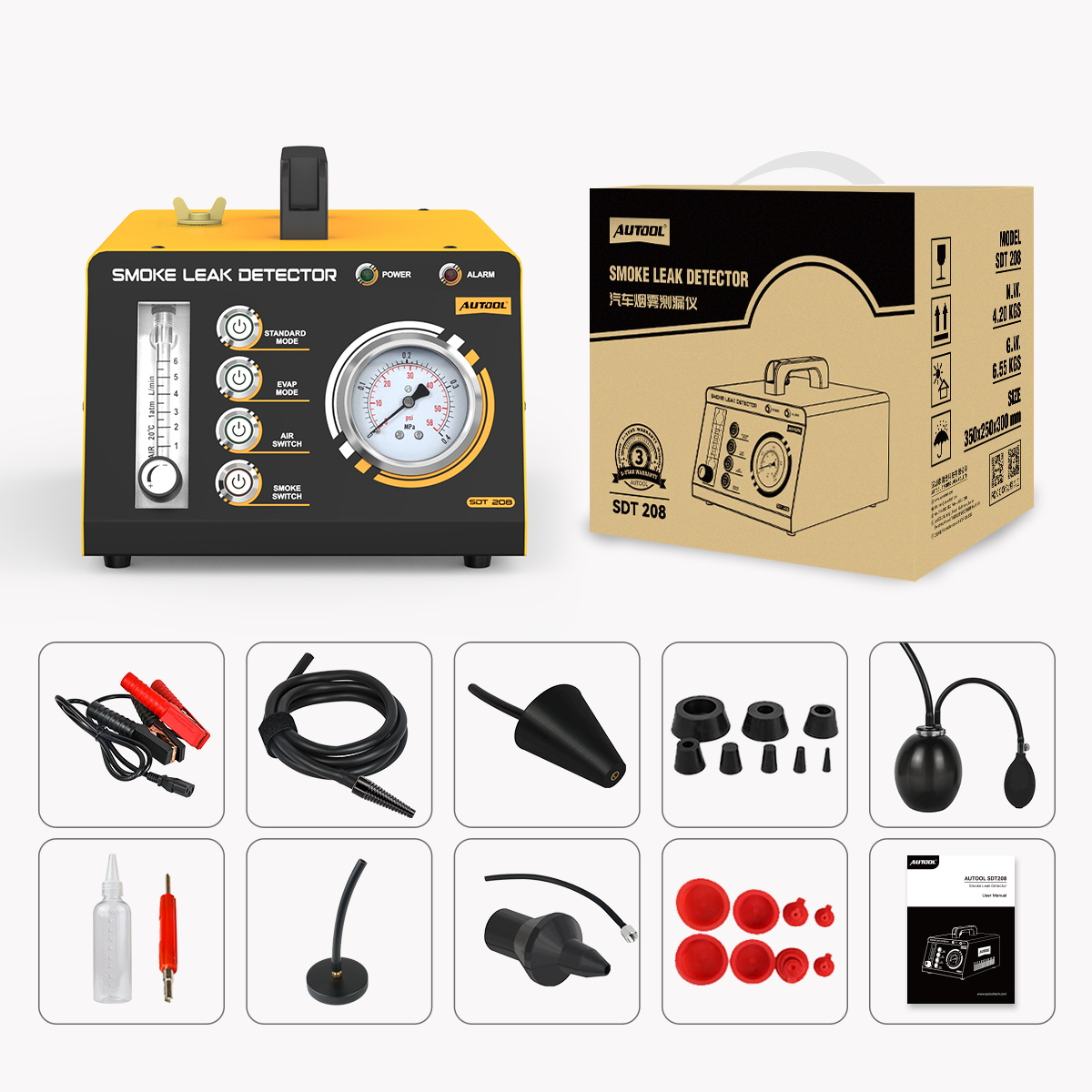

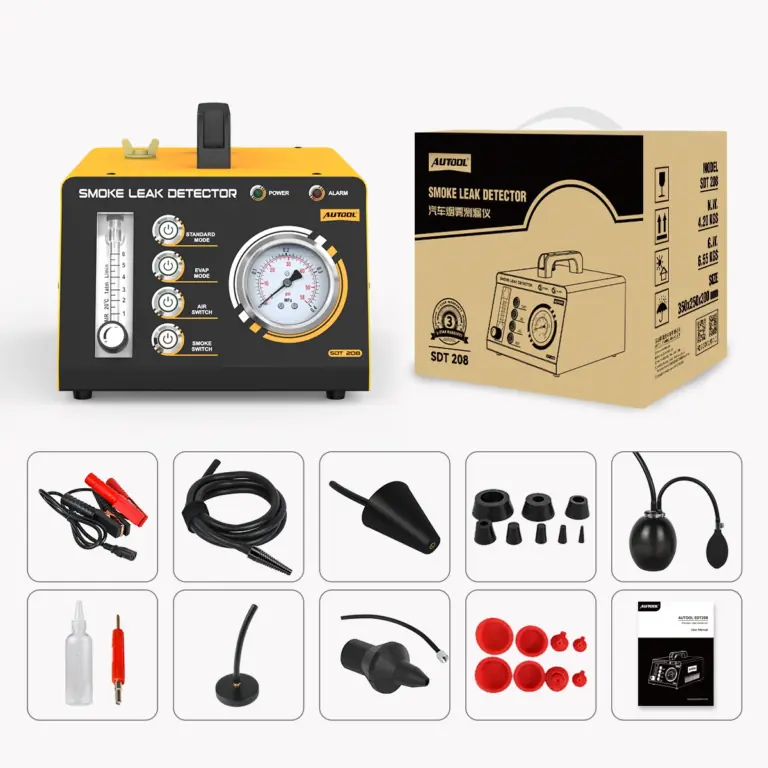

What Is In The Box
The package image shows the SDT208 main unit and included accessories. The oil bottle is included as an empty bottle; testing oil is not included due to logistics restrictions.
Main UnitAUTOOL SDT208 smoke leak detector
Power Cable12V / 24V battery power cable shown in the package image
Smoke HoseSmoke output hose for leak testing
AdaptersCone adapter, rubber caps, adapter set, and accessories shown in the package image
Oil BottleEmpty oil bottle included; testing oil is not included
DocumentationUser manual, warranty information, certificate, and retail box shown in the package image

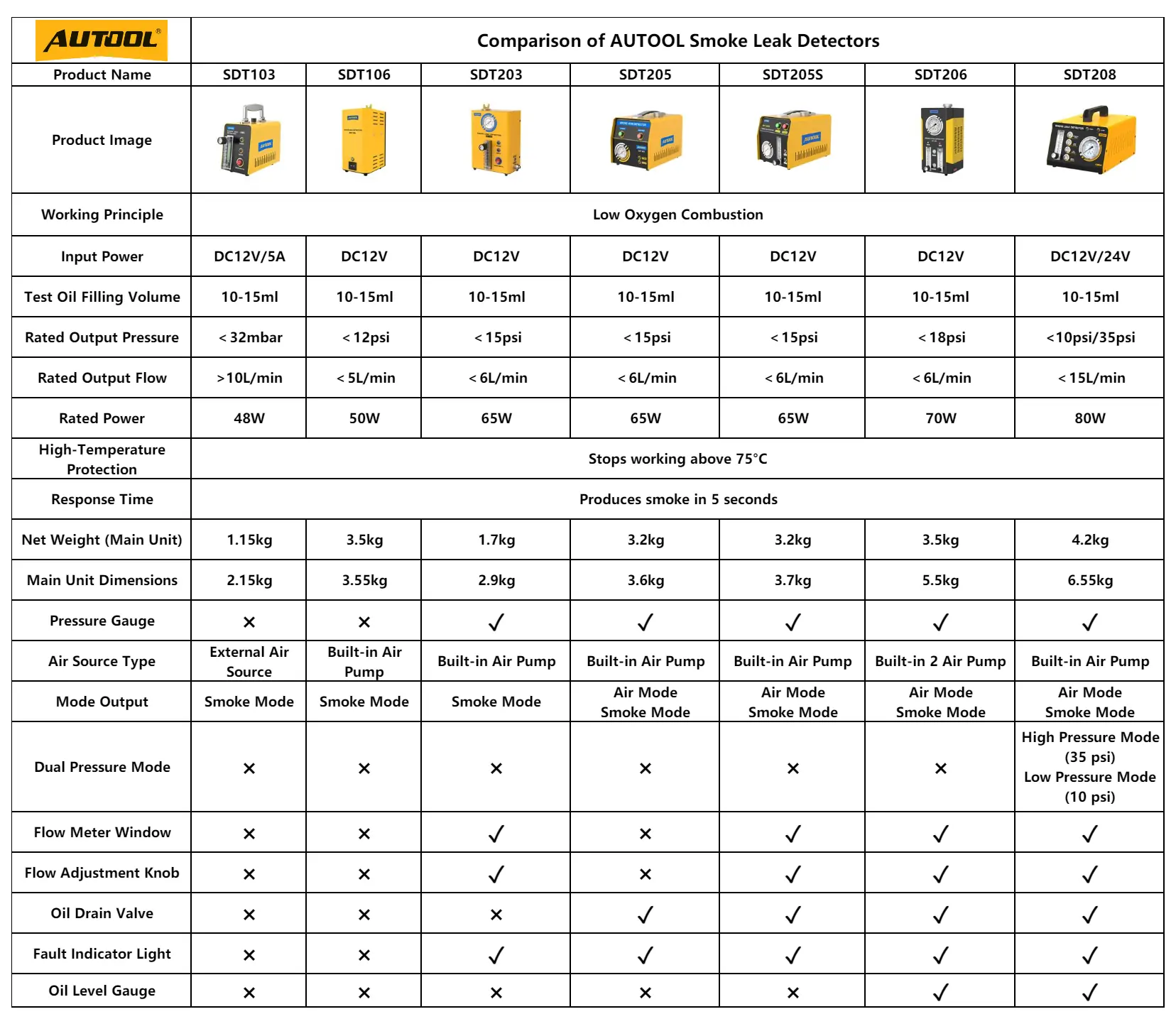

Product Comparison
Product Comparison
Compare SDT208 with other AUTOOL smoke leak detector models before choosing the right pressure range, air source, flow meter, smoke mode, EVAP support, and workshop-level function.
SDT208 FocusProfessional built-in pump model with DC12V / 24V power, Standard Mode <35psi, EVAP Mode <10psi, <15L/min output flow, 80W rated power, and 4.2kg main unit weight.
EVAP Entry ModelsSDT101 and SDT103 focus on EVAP testing around 3.2kPa and are more basic than SDT208.
Beginner ModelsSDT106 and SDT202 are beginner-oriented smoke testers around 12psi for common maintenance tasks.
Standard And High-End ModelsSDT203, SDT205, SDT205S, SDT206, and SDT MASTER are standard or higher-end models around 15psi depending on configuration.
SDT206 vs SDT208SDT206 uses a built-in dual air pump, while SDT208 stands out with Standard / EVAP dual pressure mode, 12V / 24V support, flow meter, pressure gauge, oil drain valve, and oil level gauge.
Decision CheckCompare air source type, output pressure, output flow, pressure gauge, flow meter, oil drain valve, airflow adjustment, oil level gauge, working voltage, and test system before ordering.
Click to enlargeRelated Products
Related Products
Compare related AUTOOL smoke leak detector models before choosing EVAP support, built-in pump, pressure mode, flow meter, oil drain valve, and workshop-level functions.
- Select options This product has multiple variants. The options may be chosen on the product page
Automotive Smoke Leak Detector for EVAP Smoke Tests SDT60
From US$95.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SDT203 EVAP Smoke Machine Vacuum Smoke Tester
From US$159.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SDT206 Smoke Machine For Vacuum Leaks
From US$299.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SDT106 Auto EVAP Leakage Smoke Test Machine
From US$129.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SDT205 Automotive Smoke Machine Leak Detector
From US$199.00 - Select options This product has multiple variants. The options may be chosen on the product page
Smoke Machine Leak Detector For leak test-AUTOOL SDT50
From US$85.00 - Select options This product has multiple variants. The options may be chosen on the product page
Auto Smoke Leak Detector For EVAP System-AUTOOL SDT101
From US$80.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL SDT205S Smoke Leak Detector
From US$249.00
Manual And Downloads
Manual And Downloads
Download the SDT208 manual for setup, 12V / 24V battery connection, oil filling, mode selection, leak testing, accessories, and safe-use instructions.

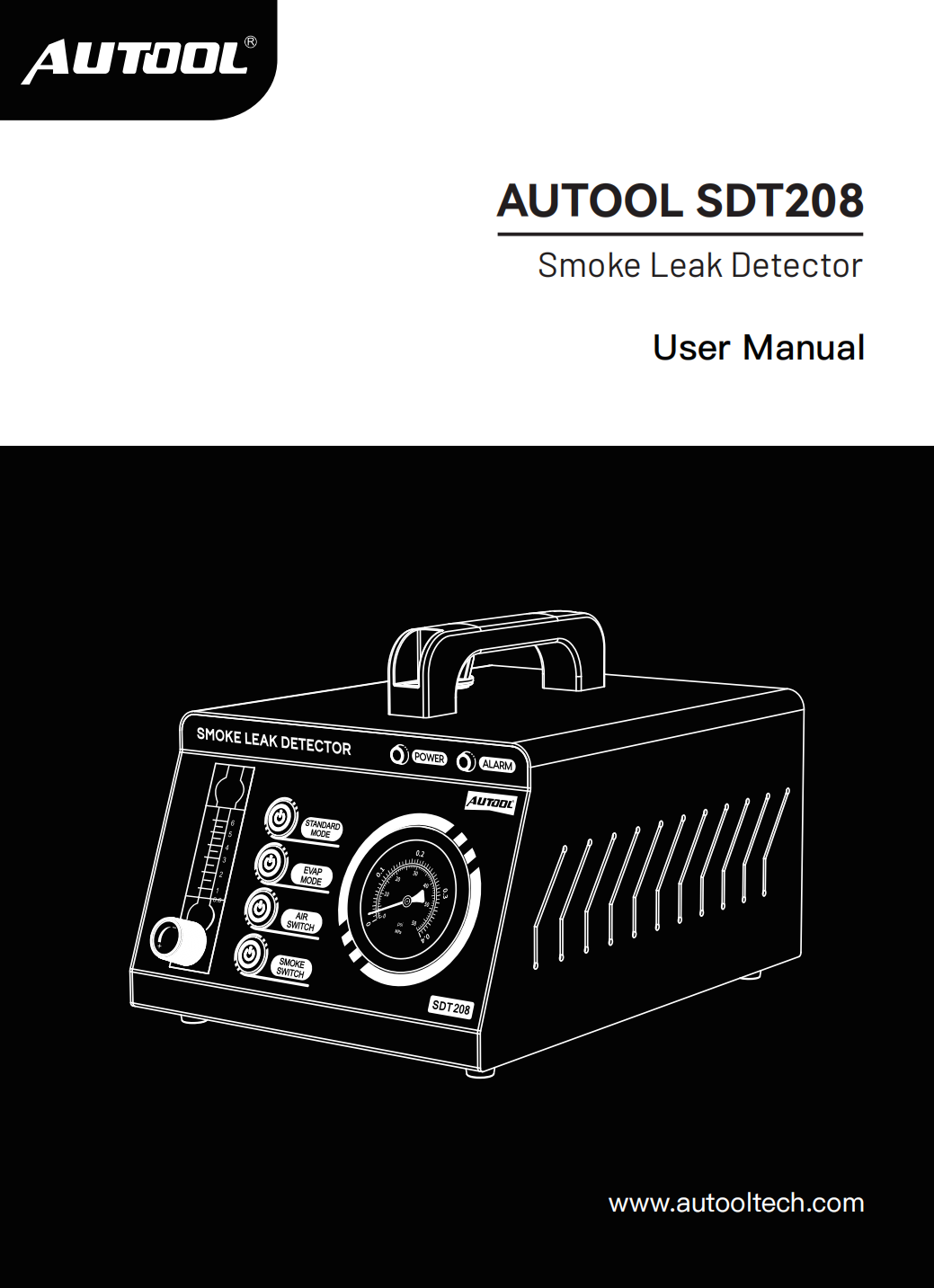

Click to enlargeAUTOOL SDT208 User Manual
Open the PDF manual for SDT208 setup, operation, oil filling, mode use, and safety guidance.
Download ManualNeed Setup Confirmation?
Contact AUTOOL Store before ordering if you need to confirm 12V / 24V power, testing oil, oil filling volume, EVAP mode, Standard mode, A/C auxiliary testing, accessories, packing list, or model selection.
Questions And Answers
These answers cover testing oil, oil amount, 12V / 24V power, EVAP testing, Standard Mode, A/C auxiliary testing, supported systems, pressure and flow reading, accessories, troubleshooting, and warranty.
Testing oil is not included due to logistics restrictions. If professional test oil is not available, buy liquid paraffin or baby oil locally and use it as the testing oil.
Add 10-15ml testing oil before use. Do not add more than 15ml each time. Refill only when the smoke becomes thin, and drain the remaining test oil before adding fresh oil. If too much oil is added accidentally, drain some oil out before operation.
SDT208 requires a DC 12V or DC 24V battery power supply. Connect the detector correctly before turning on the machine.
Yes. SDT208 can be used for EVAP leak checks. Use EVAP Mode and choose the proper EVAP testing tools and adapters according to the package contents and the vehicle test port.
Standard Mode supports testing up to 35psi for suitable low-pressure systems. EVAP Mode is limited below 10psi to help protect EVAP pipes during testing. Always select the mode according to the system being tested.
No. The automotive A/C system operates at about 1.7-3.0MPa output pressure, while smoke leak detectors generate much lower pressure. SDT208 cannot directly pressure-test the automotive A/C system for leaks. It can only be used for segment-assisted air-conditioning pipeline checks under proper conditions.
First pressurize the air-conditioning pipeline using the proper method, then spray smoke and observe whether airflow blows or disturbs the smoke. If the smoke is disturbed by airflow, that area may indicate a leak point for further repair.
SDT208 supports low-pressure leak checks for EVAP systems, intake pipes, exhaust pipes, crankcase systems, fuel tanks, pipe fittings, vacuum lines, vehicle sealing areas, and selected turbo or intercooler low-pressure paths under proper conditions.
The pressure gauge and flow meter help you monitor the test pipeline. In general, if the pressure gauge continues to rise and stabilize, the tested pipeline may have no obvious leak. If the pressure continues to decrease, the pipeline may have a leak that needs further inspection and repair.
SDT208 provides Standard Mode and EVAP Mode, plus airflow adjustment through the regulator. It is not designed as an arbitrary high-pressure tester. Use the correct mode and avoid applying smoke pressure to systems that are not suitable for smoke testing.
Refer to the Packing List image for the final package contents. The SDT208 package image shows the main unit, power cable, smoke hose, adapters, rubber caps, oil bottle, manual, warranty information, certificate, retail box, and accessories shown in the package image. Testing oil is not included.
First check whether the detector has 10-15ml testing oil, whether the power supply is connected, whether the airflow regulator is open, and whether the correct switch or mode is selected. If smoke becomes thin, drain remaining oil and add fresh testing oil. If the detector has overheated, wait for it to cool before restarting. Contact support if the issue remains.
The AUTOOL smoke leak detector series includes SDT101 and SDT103 for EVAP systems around 3.2kPa, SDT106 and SDT202 for beginner-level testing around 12psi, and SDT203, SDT205, SDT205S, SDT206, and SDT MASTER as standard or higher-end models around 15psi depending on configuration. SDT208 supports up to 35psi in Standard Mode and below 10psi in EVAP Mode. Compare power supply, air source, pressure range, flow meter, pressure gauge, oil drain valve, airflow adjustment, and accessories before ordering.
AUTOOL provides up to 3 years of warranty support for eligible non-human damage cases. AUTOOL smoke leak detectors are sold online and offline in many countries and regions, with after-sales support for setup, accessories, and troubleshooting.
