AUTOOL TR401 Digital Anemometer, Handheld Wind Speed Meter For Measuring Wind Speed, Temperature In Automotive Air Conditioning System
US$29.00
Key Features
- Sensitive Detection
- Unit Switching
- Wind Scale
- Sensitive Detection: The meter is described to detect even light breezes, which is useful for subtle airflow checks.
- Unit Switching: Multiple wind speed and temperature units make the tool easier to use across different preferences.
- Wind Scale: A 12-level wind force rating gives buyers another way to interpret airflow results quickly.
Secure checkoutFast supportBulk ready
AUTOOL TR401
Product Overview

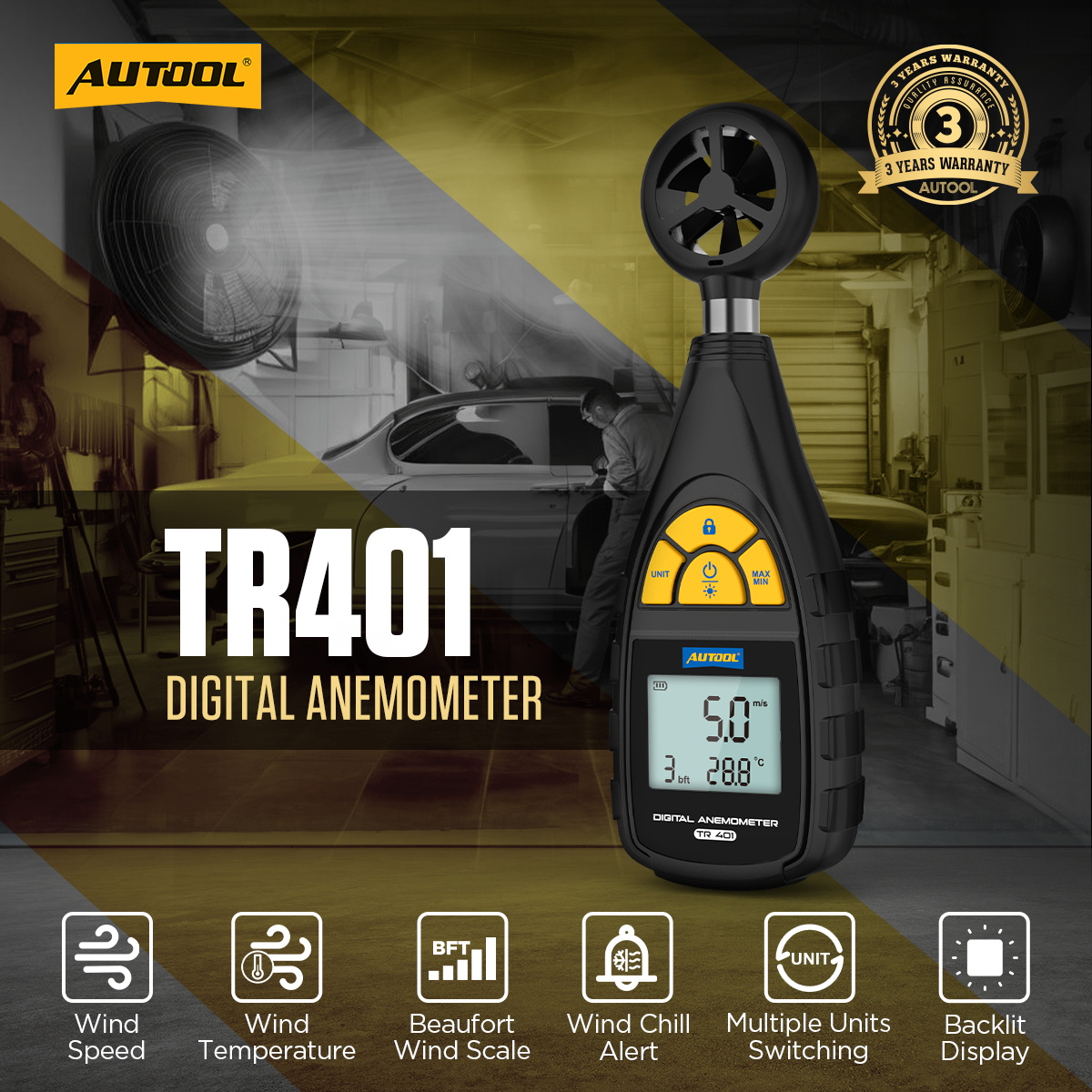

The AUTOOL TR401 is a handheld digital anemometer for measuring wind speed, air temperature, Beaufort wind force level, and wind chill warning conditions. It supports multiple wind speed and temperature units, a backlit 1.6-inch display, high-sensitivity wind wheel sensing, Max/Min readings, Data Hold, and auto power-off for automotive AC airflow checks, ventilation systems, outdoor activities, fan manufacturing, maritime use, and wind energy applications.
Wind Speed Air Temperature Beaufort Scale Wind Chill Alert
0-30m/sWind Speed Range
-10~45°CTemperature Range
0.5sSampling Rate
3 YearsWarranty Support
Click to enlarge
Click to enlargeKey Features
Key Features
TR401 keeps airflow and temperature measurement simple with a sensitive wind wheel sensor, clear display, multiple units, quick reading refresh, automatic shut-off, wind chill warning, and Beaufort wind force reference.

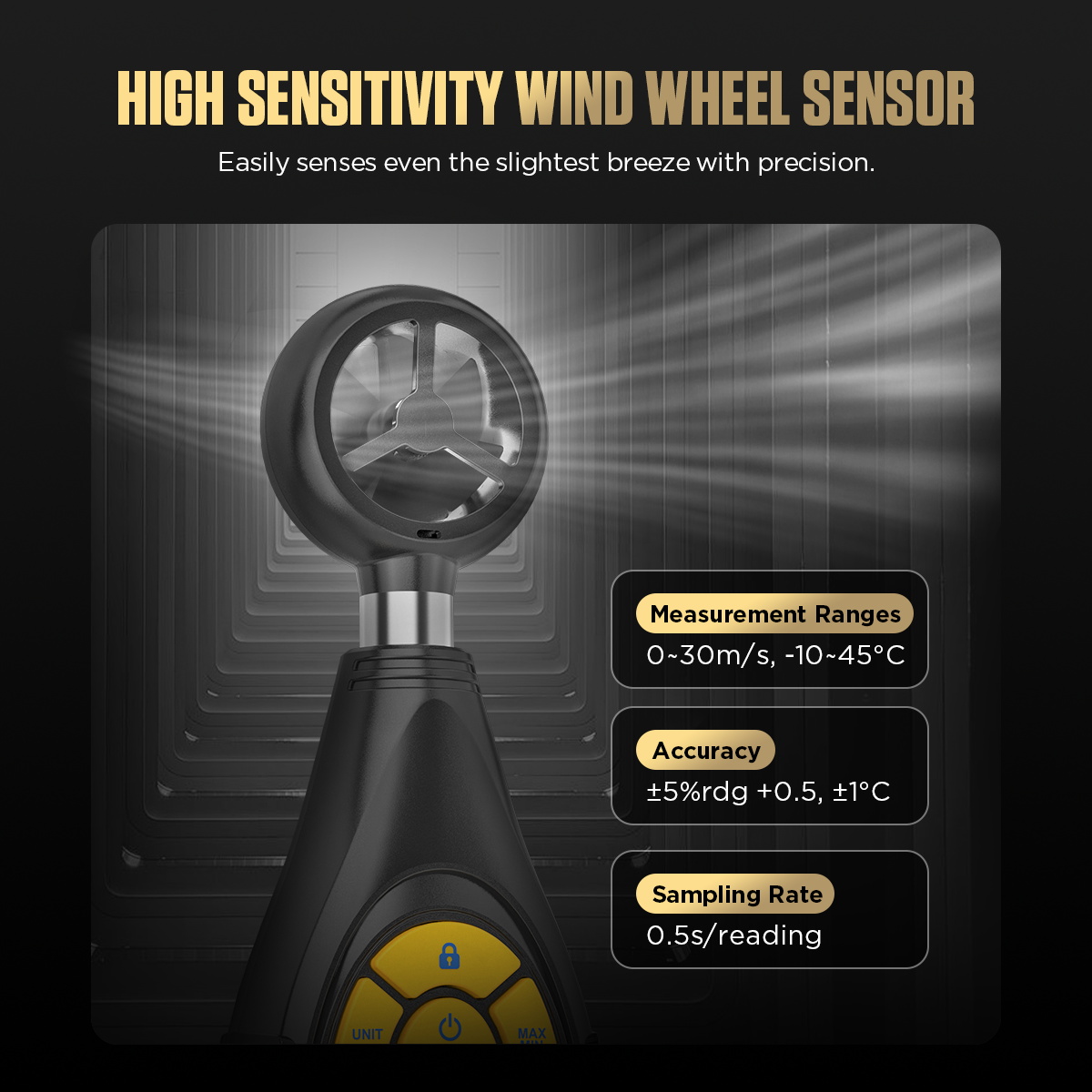

High-Sensitivity Wind Wheel Sensor
The wind wheel sensor helps detect light airflow and supports wind speed measurement from 0 to 30m/s with 0.1m/s resolution.

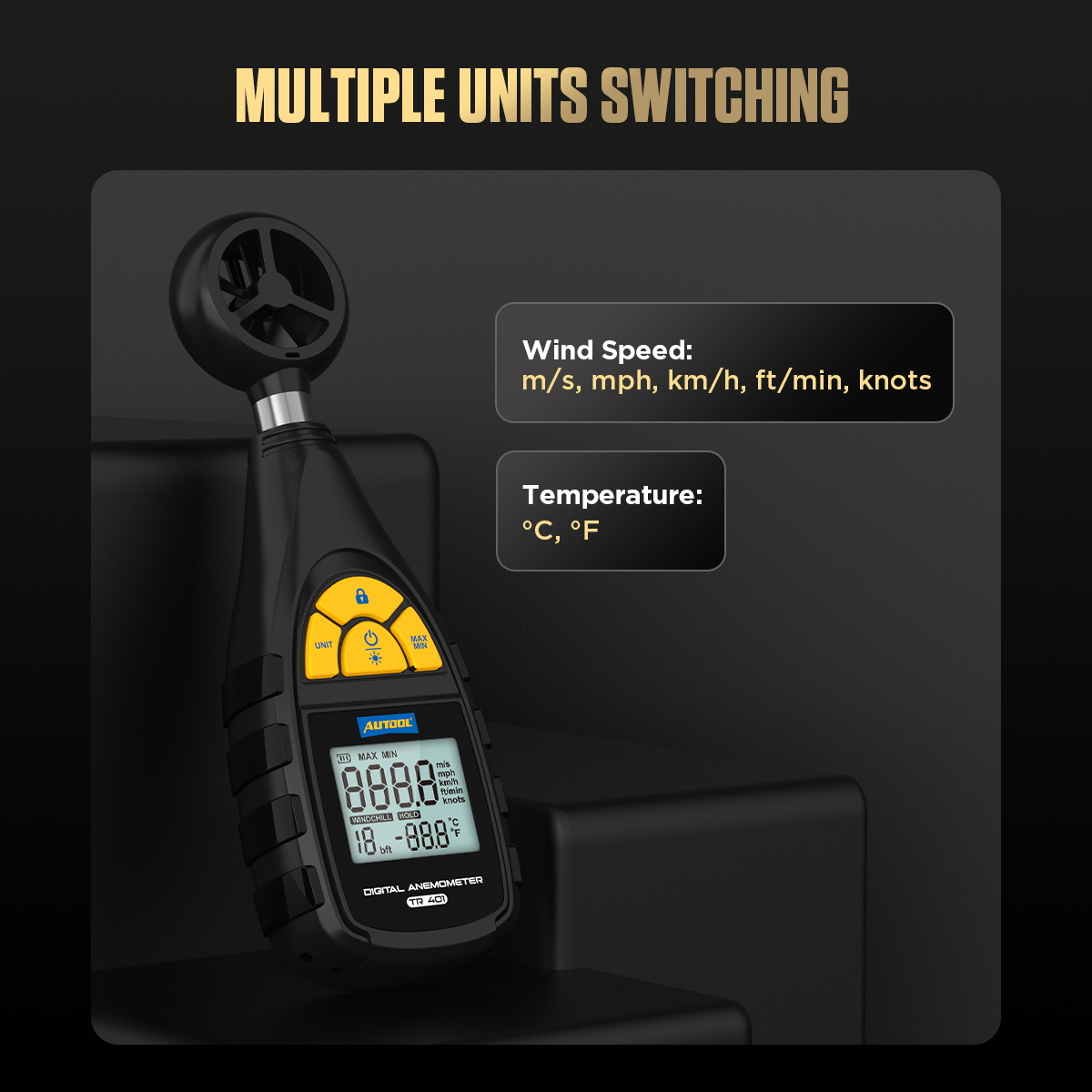

Multiple Unit Switching
Switch wind speed units among m/s, mph, km/h, ft/min, and knots. Long press the unit key to switch temperature between °C and °F.

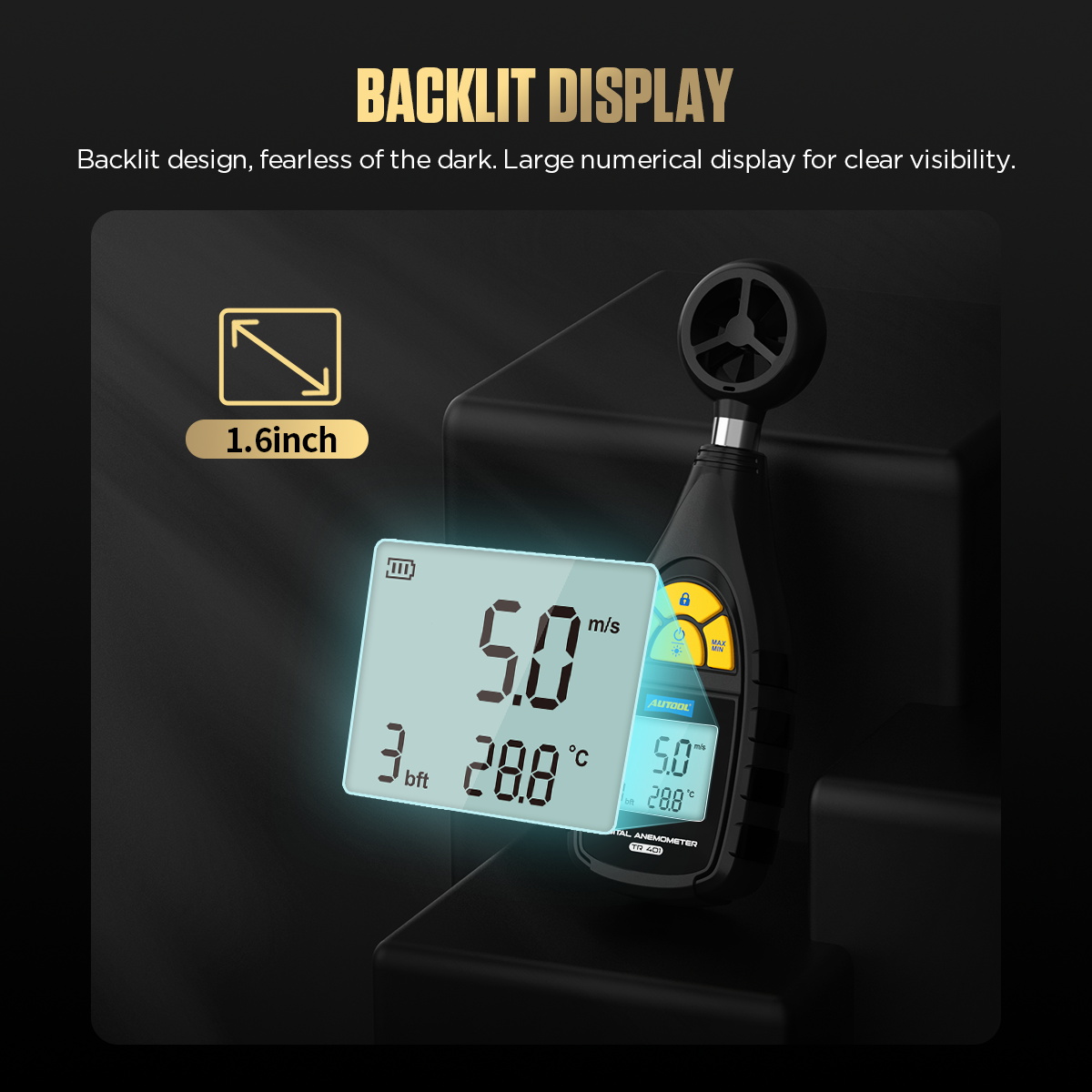

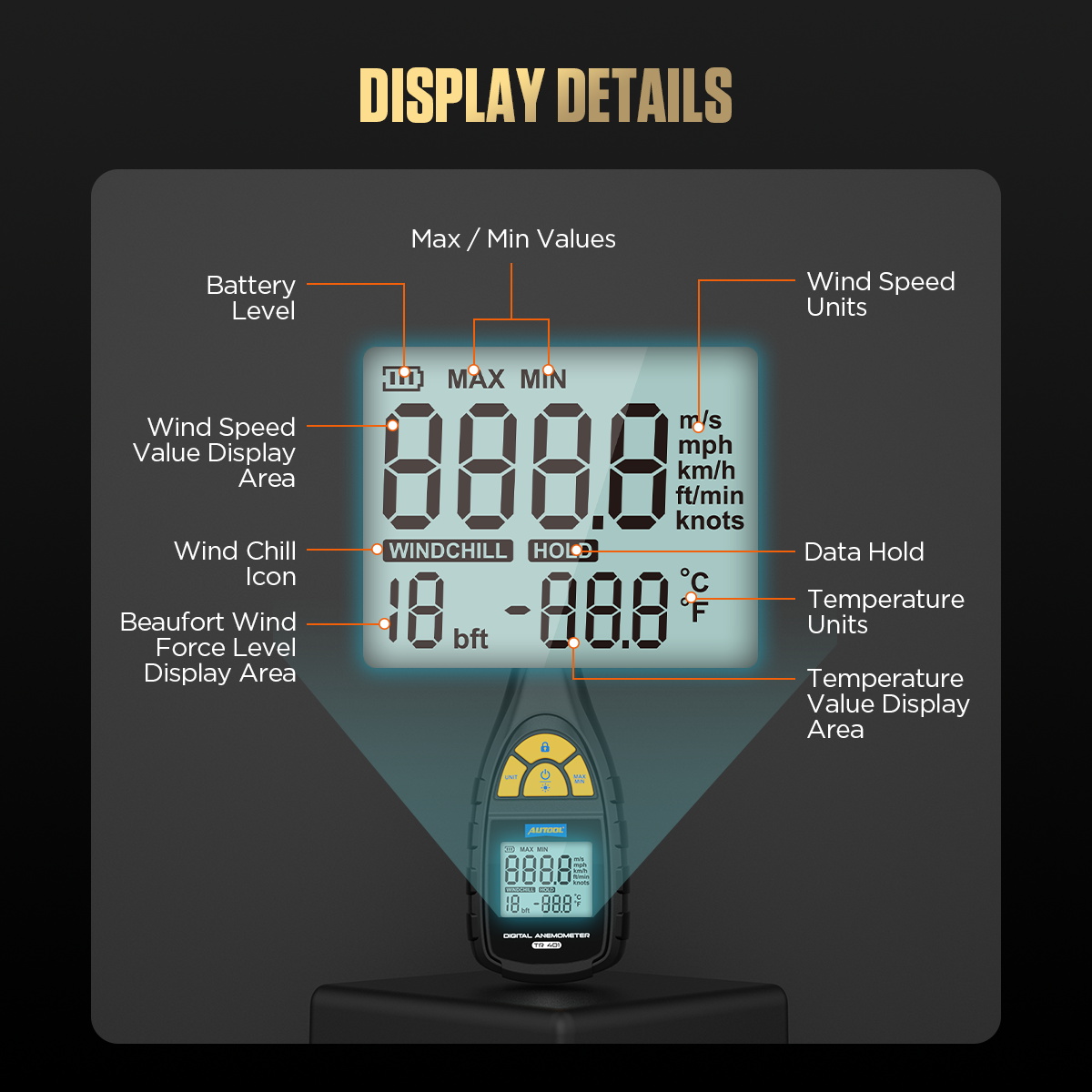

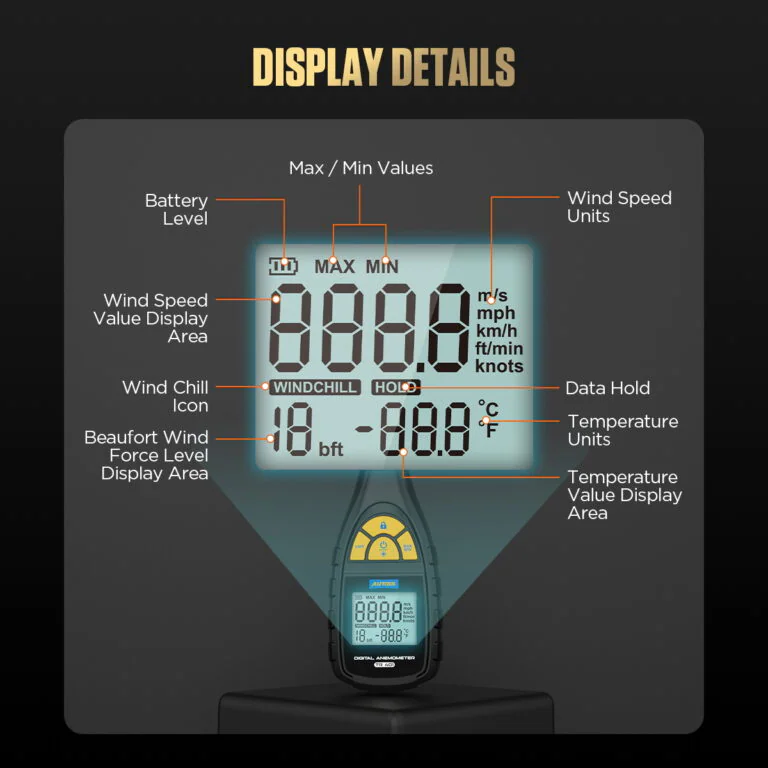

1.6-Inch Backlit Display
The large numerical display and backlight make readings easier to view in dim environments or workshop conditions.
Max / Min And Data Hold
Use Max/Min mode to track changing airflow readings, or Data Hold to lock the current displayed value for easier recording.

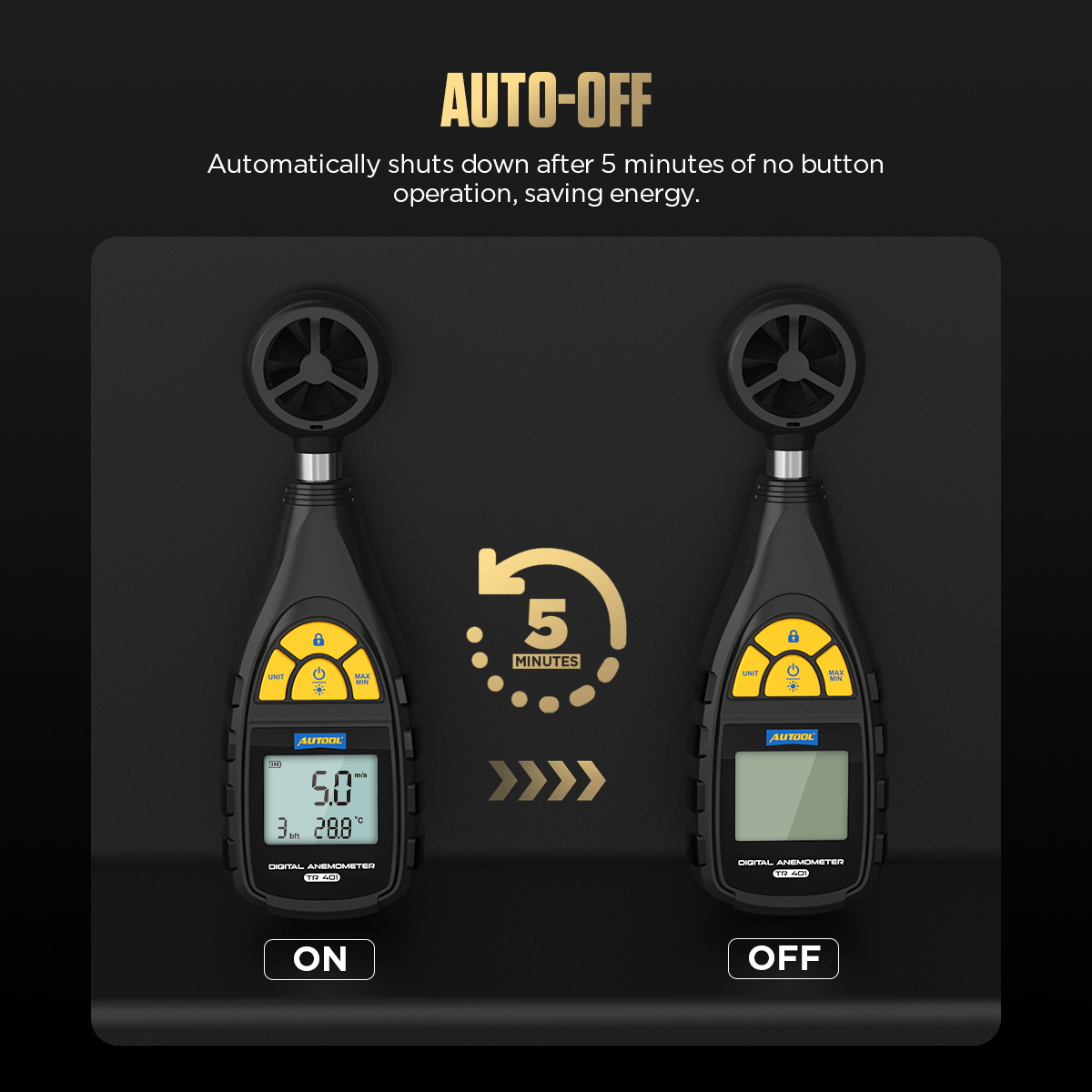

5-Minute Auto Power-Off
The anemometer automatically powers off after about 5 minutes of no key operation to help save battery power.

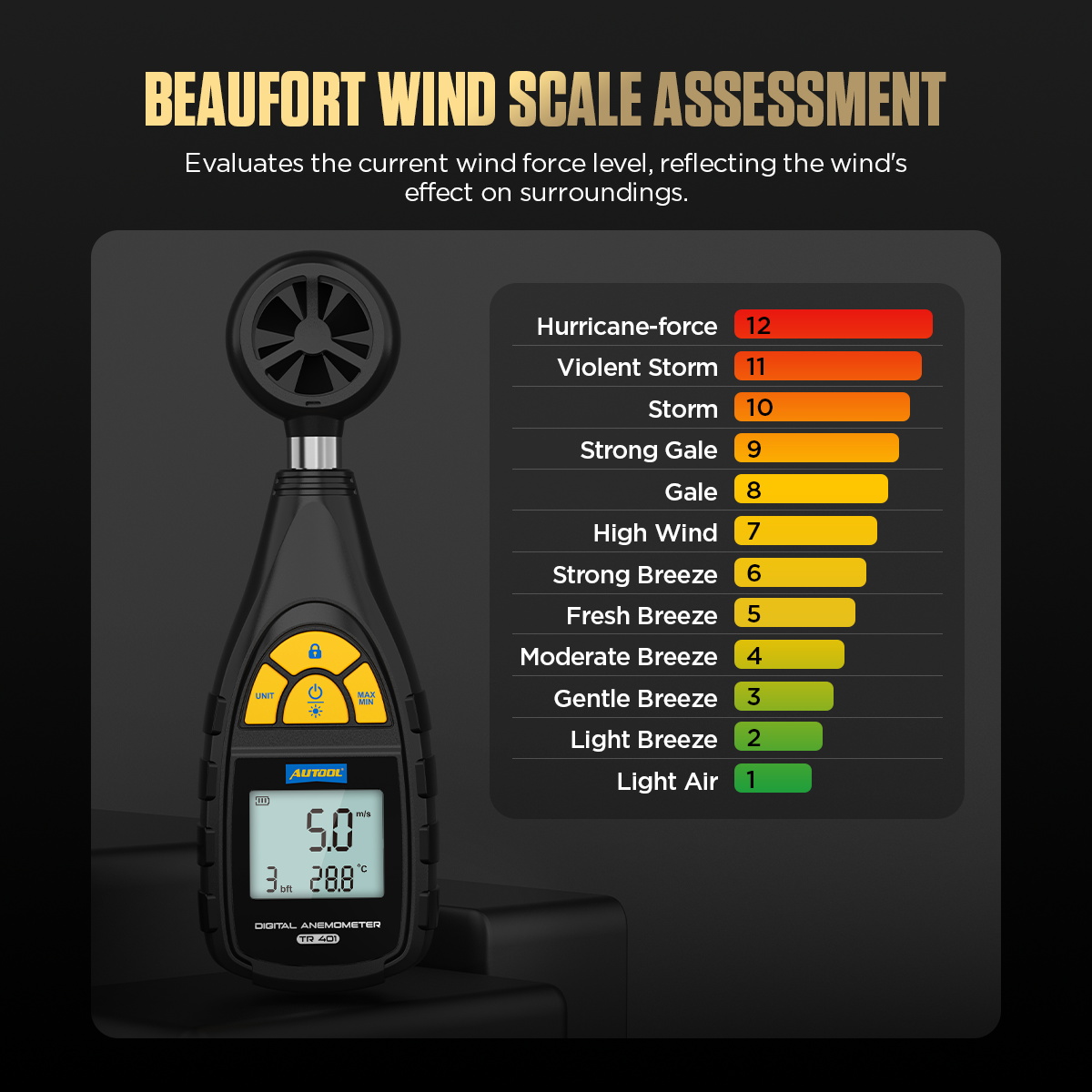

Wind Chill And Beaufort Scale
TR401 displays a 0-12 Beaufort wind force level and can prompt a Wind Chill warning in low-temperature, high-wind conditions.
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlargeSpecifications

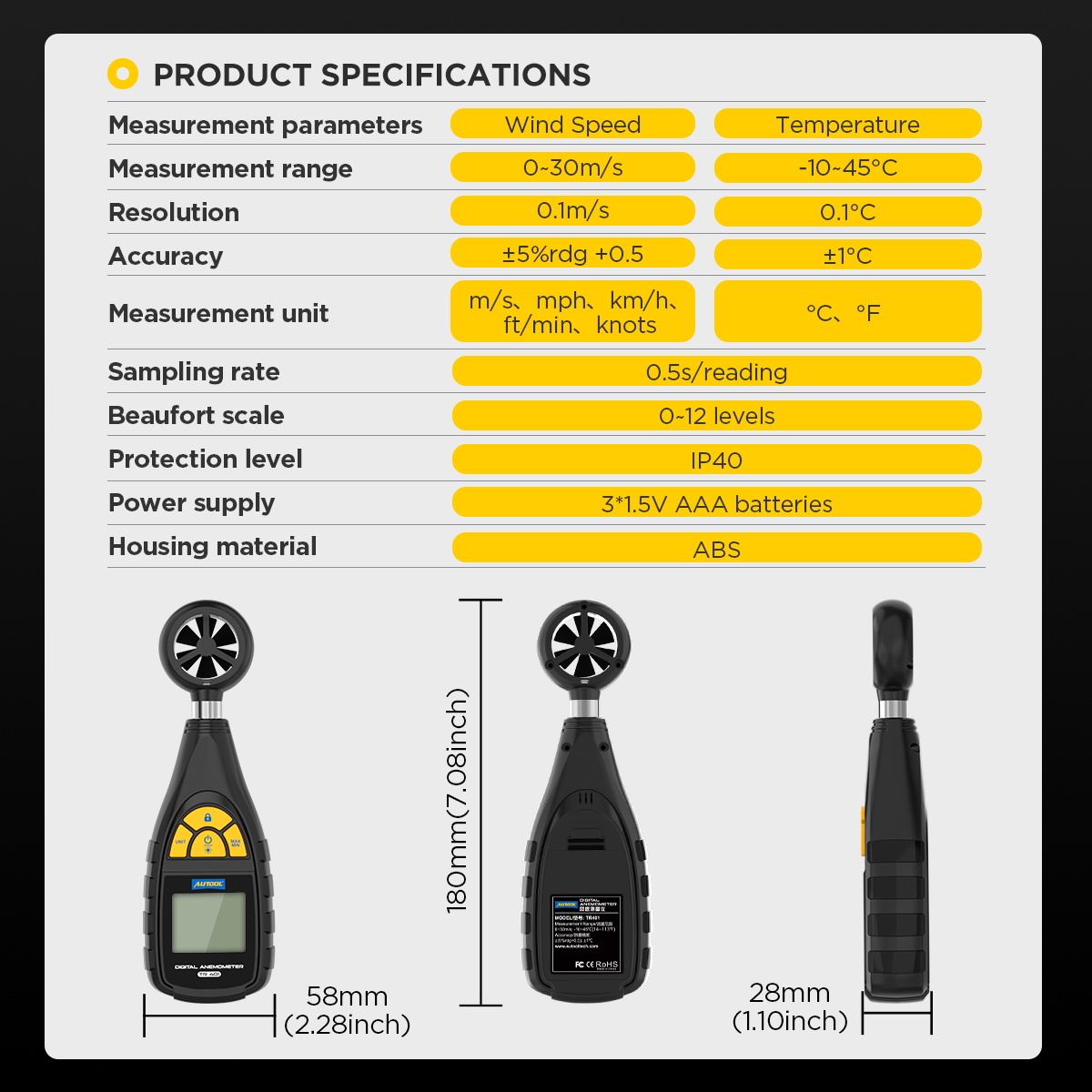

AUTOOL TR401 Product Specifications
TR401 measures wind speed and temperature with selectable units, 0.5s reading refresh, Beaufort scale display, IP40 protection level, and 3 AAA alkaline battery power.
| Measurement | |
| Product | AUTOOL TR401 Digital Anemometer |
| Wind Speed Range | 0-30m/s |
| Wind Speed Resolution | 0.1m/s |
| Wind Speed Accuracy | ±5%rdg + 0.5 |
| Wind Speed Units | m/s, mph, km/h, ft/min, knots |
| Temperature Range | -10~45°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±1°C |
| Temperature Units | °C, °F |
| Sampling Rate | 0.5s/reading |
| Beaufort Scale | 0-12 levels |
| Device And Environment | |
| Display | 1.6-inch backlit LCD screen |
| Functions | Max/Min, Data Hold, unit switching, key beep, auto power-off, wind chill warning |
| Protection Level | IP40 |
| Power Supply | 3 AAA × 1.5V alkaline batteries |
| Housing Material | ABS |
| Operating Environment | Temperature -10°C~45°C; humidity ≤80%RH |
| Warranty Support | 3-year support for eligible non-human damage cases; accessories may have separate coverage |
Measurement
Wind Speed Range0-30m/s
Wind Speed Accuracy±5%rdg + 0.5
Wind Speed Unitsm/s, mph, km/h, ft/min, knots
Temperature Range-10~45°C
Temperature Accuracy±1°C
Sampling Rate0.5s/reading
Beaufort Scale0-12 levels
Device And Environment
Display1.6-inch backlit LCD
Protection LevelIP40
Power Supply3 AAA × 1.5V alkaline batteries
Housing MaterialABS
Operating Environment-10°C~45°C; ≤80%RH
How To Use
How To Use
Install the batteries, power on the meter, select the needed units or measurement mode, and read or hold the airflow and temperature values on the backlit display.
Install Batteries
Open the battery compartment, insert 3 AAA 1.5V alkaline batteries according to the positive and negative marks, then close the battery cover securely.
Power On
Press the power key to turn on the instrument. Long press the power key to turn it off. Press the power key during use to switch the backlight on or off.
Select Units And Mode
Press the Unit key to toggle wind speed units. Long press it to switch °C and °F. Press the mode key to switch real-time, Max, and Min measurement modes.
Read Or Hold Data
Face the wind wheel toward airflow and read the value. Use Data Hold when you need to lock the displayed reading for recording.
Operation Notes
- Replace the batteries promptly when the low-battery icon appears.
- Remove the batteries when the instrument will not be used for an extended period.
- Auto power-off is enabled by default and turns the instrument off after approximately 5 minutes of no key operation.

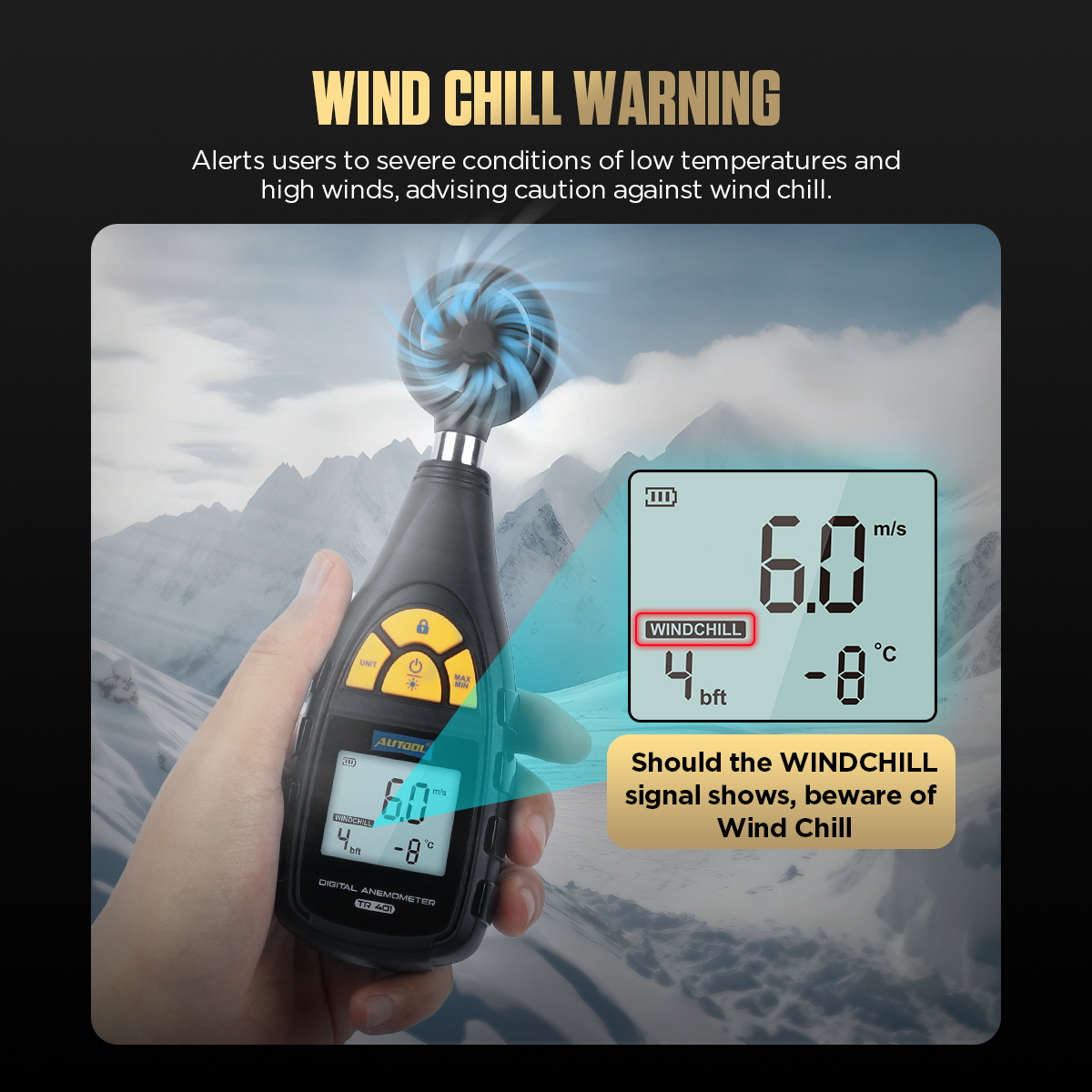

- Wind Chill warning appears when the temperature is below 0°C and wind speed is greater than 5m/s.
Applications
Applications
TR401 is suitable for checking airflow and temperature in automotive, workshop, outdoor, ventilation, fan, maritime, and wind-related environments within its rated measurement range.
Automotive AC
Check outlet airflow and air temperature when inspecting automotive air-conditioning performance.
Ventilation Systems
Measure airflow at vents, ducts, fans, and workshop ventilation points.
Outdoor Activities
Monitor wind speed, temperature, and wind chill conditions for outdoor use.
Fan Manufacturing
Use for basic fan airflow checks during product inspection or comparison.
Maritime Operations
Measure local wind speed in marine and boating environments when conditions are within the device rating.
Wind Energy Production
Use as a portable wind speed reference tool for basic site or equipment checks.
Click to enlargeProduct Comparison
Product Comparison
TR401 is the wind speed and temperature meter in the AUTOOL handheld surveyor instrument lineup. Compare it with light, sound, temperature, and humidity meters before choosing.
TR401Digital anemometer for wind speed and temperature. Range: 0-30m/s. Units: m/s, mph, km/h, ft/min, knots.
TE301Digital illuminance meter for light measurement in Lux and Fc.
TN201Digital sound level meter for sound measurement in dB.
TM101Thermo-hygrometer for temperature and humidity checks.
Decision CheckChoose TR401 when the main task is airflow, wind speed, air temperature, Beaufort level, or wind chill monitoring.
Click to enlargeRelated Products
Related Products
Compare TR401 and related AUTOOL handheld measuring tools for wind speed, light, sound, temperature, and humidity checks.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL TR401 Digital Anemometer, Handheld Wind Speed Meter For Measuring Wind Speed, Temperature In Automotive Air Conditioning System
From US$29.00
Click to enlargeWhat Is In The Box
What Is In The Box

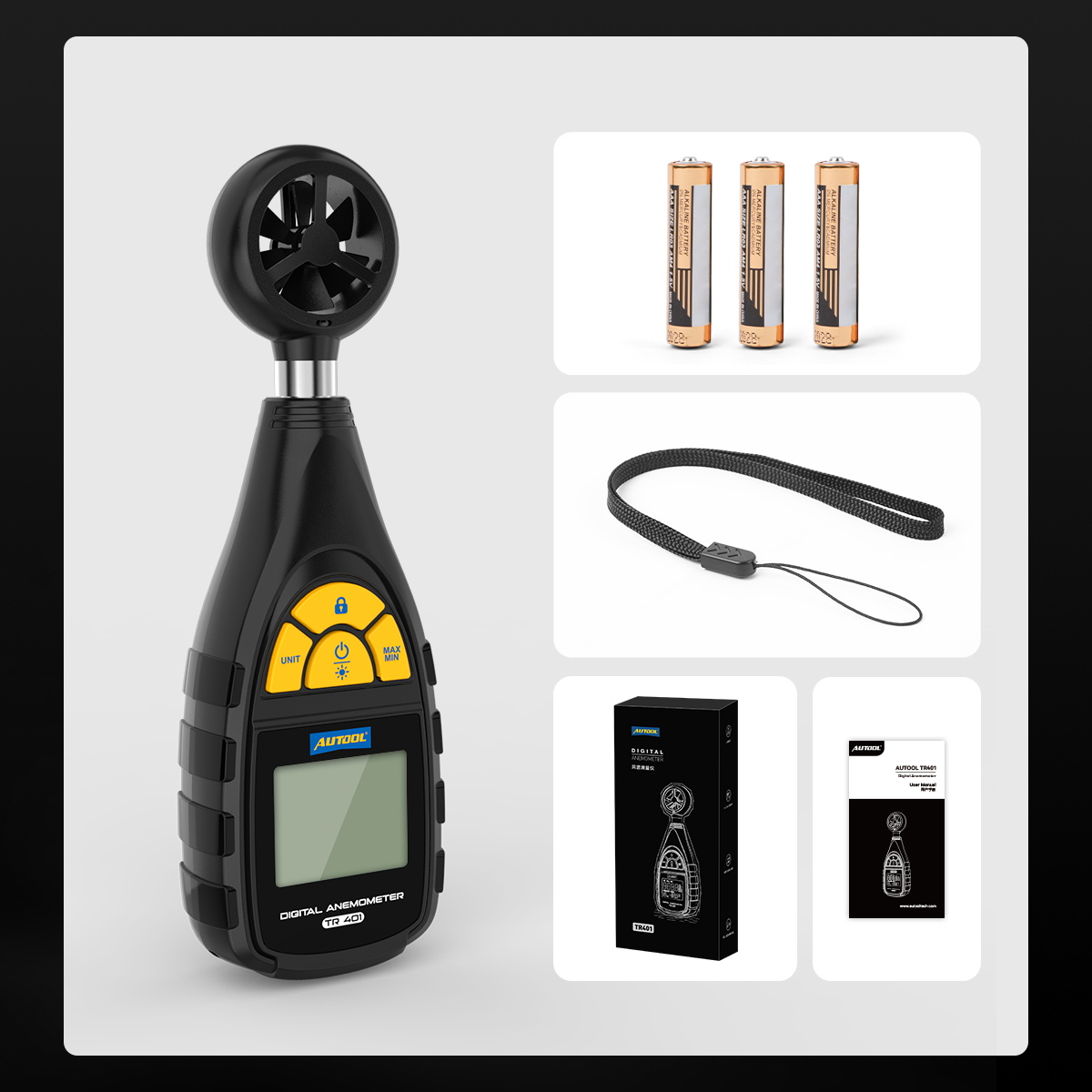

The packing list image shows the TR401 main unit and included accessories. Packing List uses only the most relevant package image to keep the page compact.
Main UnitAUTOOL TR401 digital anemometer
Batteries3 AAA 1.5V alkaline batteries shown in the package image
Wrist StrapHand strap for portable use
DocumentationUser manual shown in the package image
PackagingAUTOOL TR401 retail box
Manual And Downloads
Manual And Downloads
Download the TR401 manual for precautions, parameters, screen interface, battery installation, unit switching, backlight, Data Hold, auto power-off, Max/Min mode, Wind Chill warning, maintenance, and warranty information.

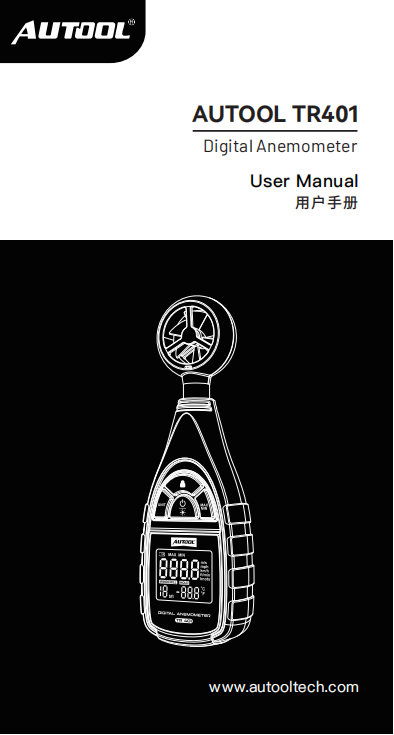

Click to enlargeAUTOOL TR401 Digital Anemometer User Manual
Open the PDF manual before use if you need the full operating instructions and safety notes.
Download ManualNeed Measurement Confirmation?
Contact AUTOOL Store if you need help confirming wind speed units, battery setup, application fit, environmental limits, or whether TR401 is the right measuring tool for your task.
Before You Order And Use
Before You Order And Use
Review these notes before using or storing TR401. They help protect the instrument and keep readings within the intended operating conditions.
Use Within Rated Conditions
Use the device within the specified environment: -10°C~45°C and humidity ≤80%RH.
Avoid Harsh Environments
Do not store or use the instrument in high-temperature, high-humidity, flammable, or explosive environments.
Avoid Strong Interference
Keep the device away from strong electromagnetic radiation during use and storage to reduce possible measurement interference.
Clean Carefully
Avoid corrosive chemicals. If exterior cleaning is needed, use a neutral cleaning agent.
Do Not Disassemble
Unauthorized disassembly is not recommended and may affect safe operation or warranty support.
Store Dry
Store the product in a dry place when not in use. Remove batteries before long-term storage.
Capability Boundary
- TR401 measures wind speed, air temperature, Beaufort level, and wind chill warning conditions.
- TR401 does not measure illuminance, sound level, humidity, pressure, or refrigerant system leakage.
- For illuminance, sound level, temperature and humidity, compare TE301, TN201, and TM101 in the Quick Search section.
Questions And Answers
These answers cover TR401 measurement functions, units, batteries, Wind Chill warning, display controls, auto-off, package contents, related instruments, and warranty support.
TR401 measures wind speed, air temperature, Beaufort wind force level, and wind chill warning conditions. It is suitable for airflow and temperature checks such as automotive AC outlets, ventilation systems, outdoor use, fan manufacturing, maritime operations, and wind energy applications.
TR401 supports wind speed units m/s, mph, km/h, ft/min, and knots. It supports temperature units °C and °F. Press the Unit key to switch wind speed units, and long press the Unit key to switch temperature units.
TR401 uses 3 AAA 1.5V alkaline batteries. Insert the batteries according to the positive and negative marks inside the battery compartment. Replace them promptly when the low-battery icon appears, and remove the batteries before long-term storage.
The Wind Chill warning appears when the temperature is below 0°C and the wind speed is greater than 5m/s. When the WINDCHILL signal appears, pay attention to low-temperature and high-wind conditions.
Press the power/backlight key during operation to turn the backlight on or off. Press the Data Hold key to lock or unlock the current displayed reading. Press the measurement mode key to switch among real-time, Max, and Min reading modes.
Yes. During normal operation, TR401 automatically turns off after approximately 5 minutes of no key operation to save power. Auto power-off can be disabled from the power-off state by using the key combination described in the user manual.
No. TR401 is designed for wind speed and temperature measurement. For illuminance, choose TE301. For sound level, choose TN201. For temperature and humidity, choose TM101. TR401 is not a pressure tester or refrigerant leak detector.
The package image shows the TR401 digital anemometer main unit, 3 AAA batteries, wrist strap, retail box, and user manual. Refer to the Packing List image for the final package contents.
AUTOOL provides 3-year support for eligible non-human damage cases. For setup, measurement range confirmation, application questions, warranty, accessories, or related instrument selection, contact AUTOOL Store support.
Warranty And Contact
Warranty And Contact
For TR401 setup, battery installation, wind speed unit switching, Wind Chill warning, application confirmation, package contents, manual download, warranty, or related measuring instrument selection, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming whether TR401 fits your airflow measurement task, or whether TE301, TN201, or TM101 is more suitable for light, sound, temperature, or humidity measurement.
- 3-year support for eligible non-human damage cases
- Wind speed and temperature measurement range confirmation
- Battery, backlight, unit switching, Data Hold, and Max/Min mode guidance
- Wind Chill warning and Beaufort scale explanation
- Packing List and accessory confirmation
- TR401 / TE301 / TN201 / TM101 measuring instrument selection
