AUTOOL ATF705 Automatic Transmission Fluid ATF Exchanger

(22 customer reviews)

Original price was: US$1,595.00.Current price is: US$1,399.00.

Secure checkoutFast supportBulk ready
AUTOOL ATF705

Product Overview

The AUTOOL ATF705 is an electronic-control automatic transmission fluid exchanger for gasoline and diesel vehicles with automatic transmissions. It supports oil inlet/outlet direction recognition, new/old oil equal-volume exchange, circulating cleaning, one-click draining, new and used oil level monitoring, and connector-based service for mainstream European, American, Japanese, Korean, and Chinese vehicle models.

Equal-Volume Exchange Oil Direction Recognition 5-Inch IPS Screen 20L Oil Tank
AC 110V / 220VPower Supply
<0.2kgExchange Error
>90%Oil Exchange Rate

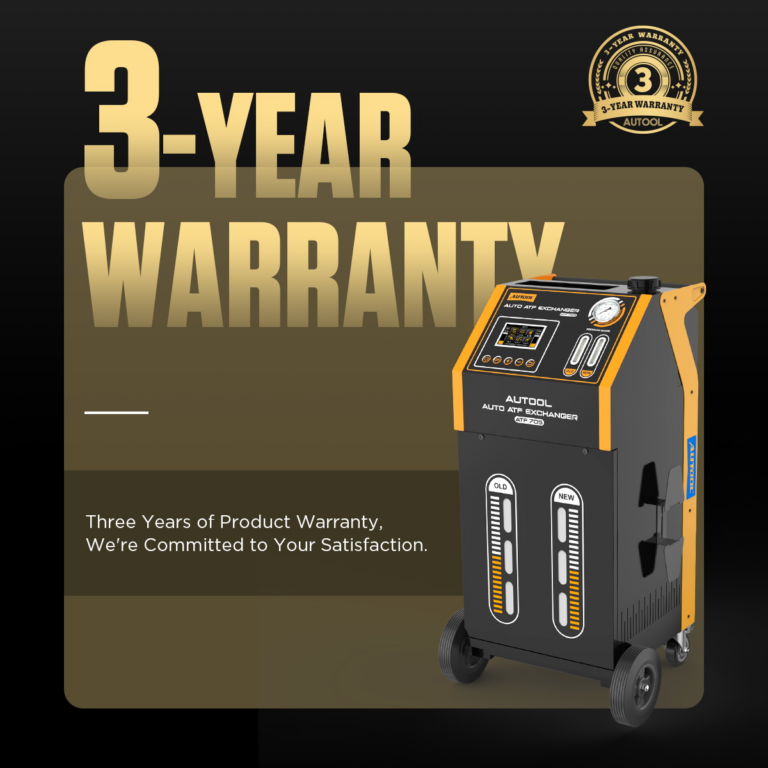

3 YearsWarranty Support

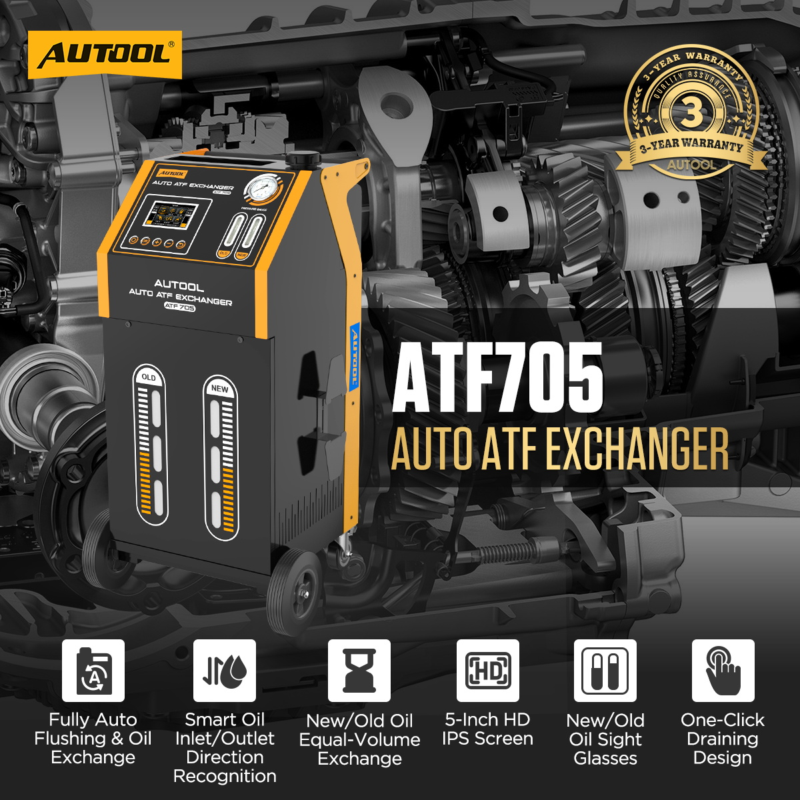

AUTOOL ATF705 automatic transmission fluid exchanger main product image Click to enlarge

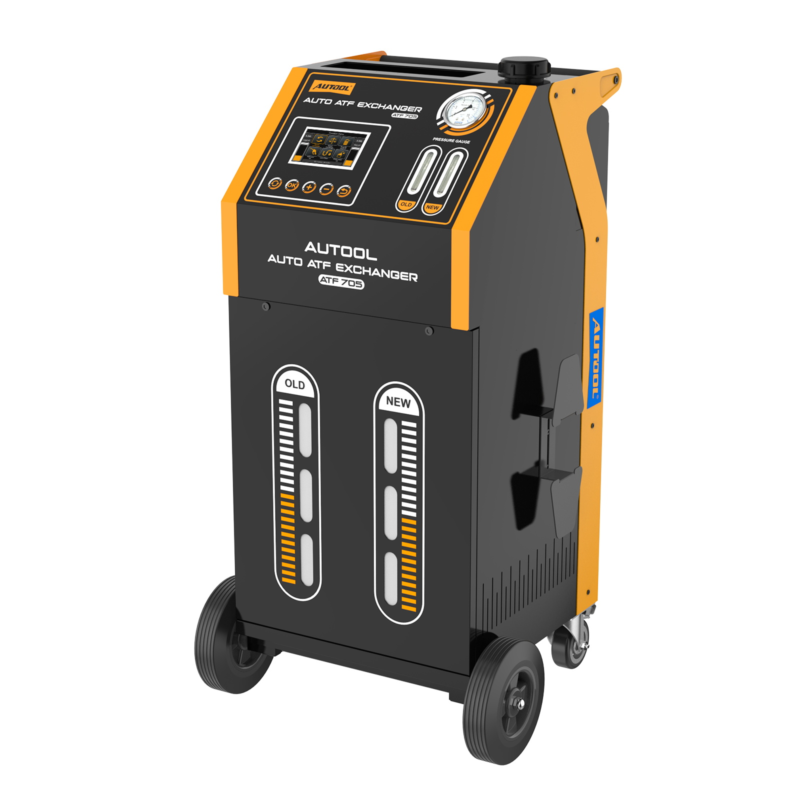

AUTOOL ATF705 automatic transmission fluid exchanger standalone product view Click to enlarge
Key Features

Key Features

Automatic transmissions are precise and complex. A controlled ATF exchange helps replace more used oil from the transmission, torque converter, cooler, and lines while reducing the risk of incomplete manual service.

Manual Draining Leaves Old Oil

Traditional oil changes may remove only part of the old transmission fluid. Residual oil, sludge, and metal debris can remain inside the transmission system and mix with new ATF.

Old Fluid Affects Performance

Contaminated transmission fluid may contribute to slow acceleration, gear-shift vibration, overheating, higher fuel consumption, and reduced service life if maintenance is ignored.

Equal Exchange Helps Reduce Filling Errors

ATF705 helps balance used-oil output and new-oil input, reducing the risk of overfilling or insufficient filling caused by improper manual valve control.

Key Features

Key Features

ATF705 combines automatic flow-direction recognition, equal-volume exchange, cycle cleaning, visual monitoring, connector compatibility, and a mobile cabinet design to make transmission fluid service more efficient and controllable.

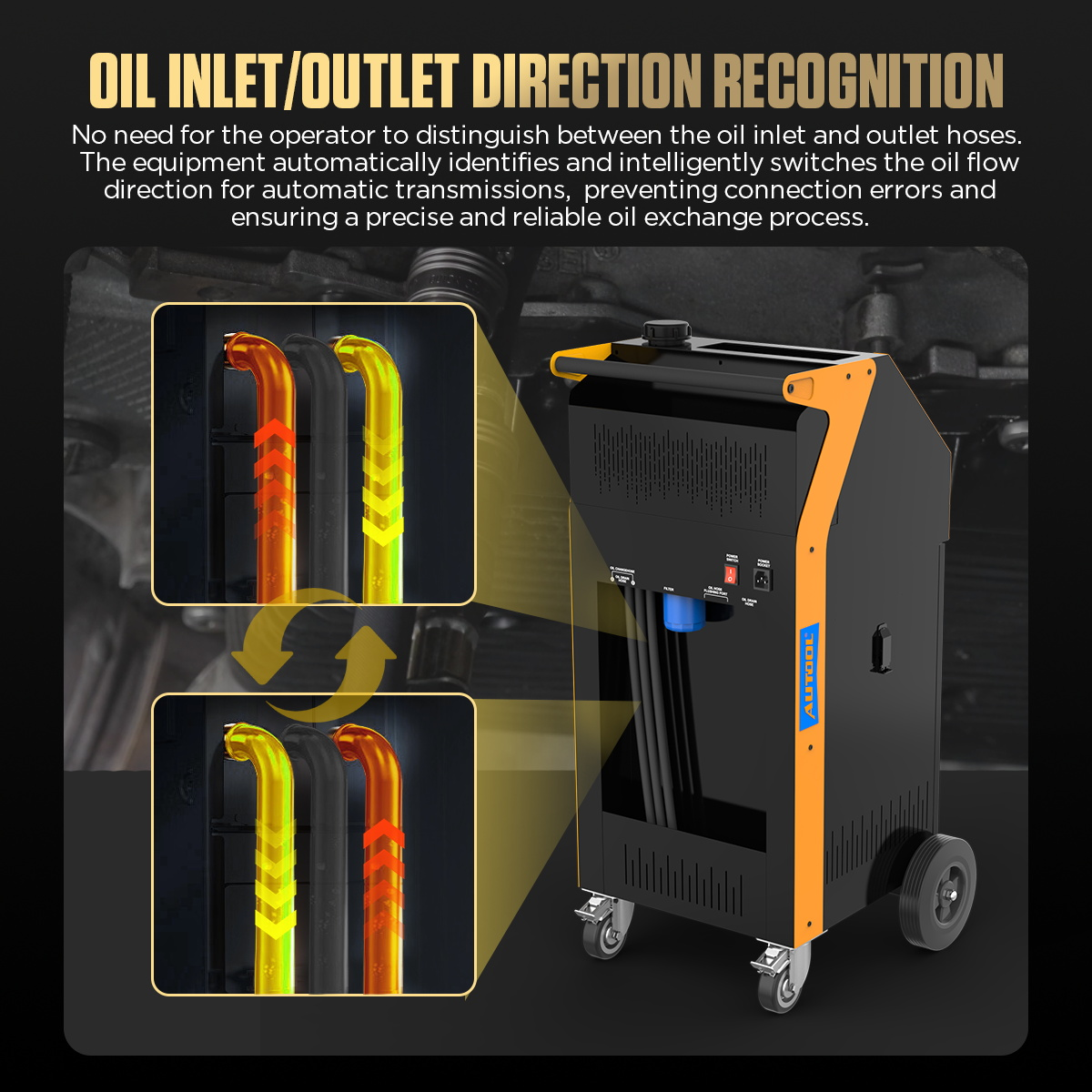

Automatic Oil Direction Recognition

The system identifies the oil inlet and outlet direction automatically, so the operator does not need to manually distinguish the transmission oil flow direction before service.

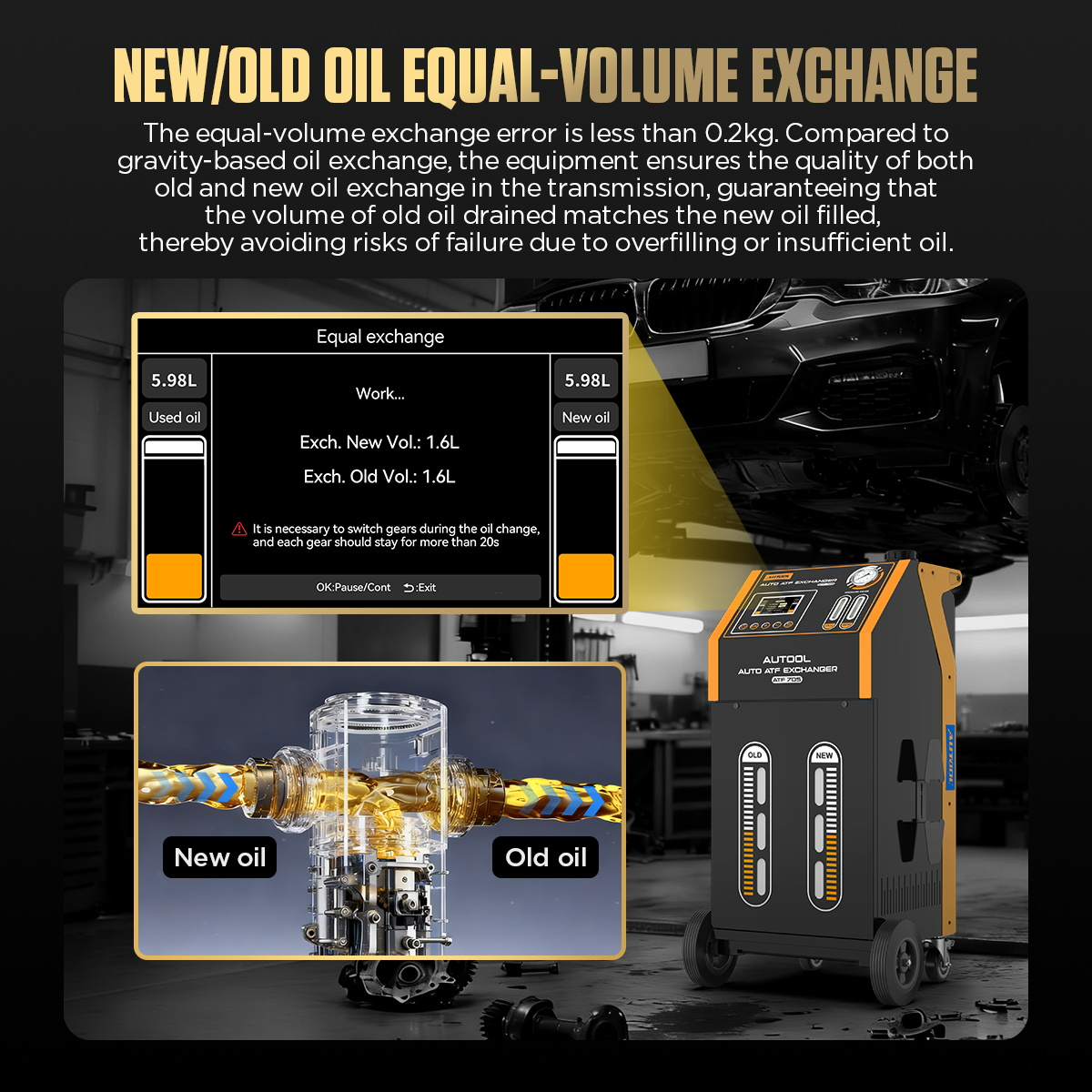

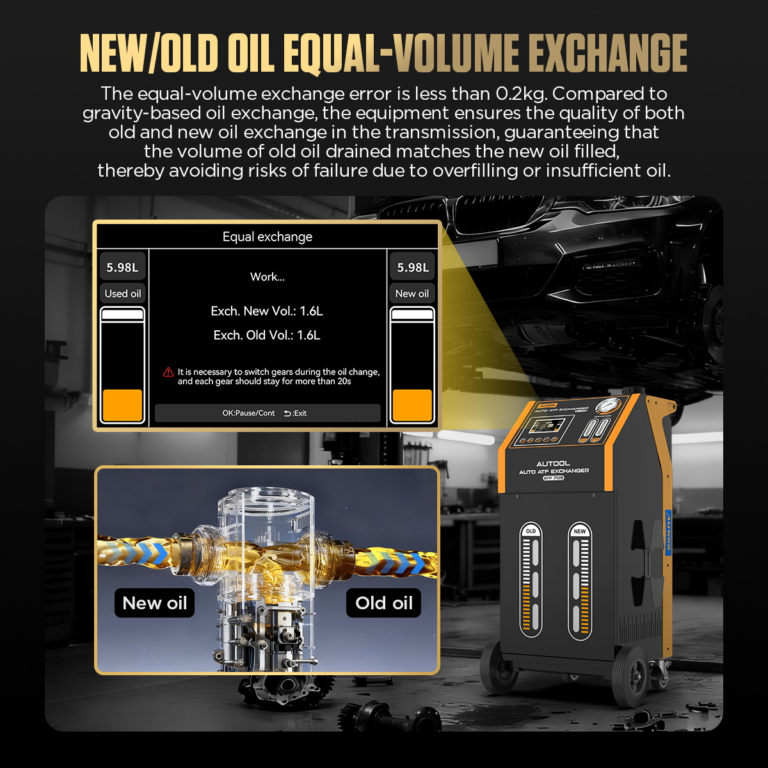

New / Old Oil Equal-Volume Exchange

The machine balances used oil output and new ATF input with an exchange error of less than 0.2kg, helping avoid service risks caused by overfilling or insufficient oil.

Automatic Transmission Cyclic Cleaning

Cycle cleaning helps remove sludge, metal chips, and old-oil impurities from the transmission, torque converter, transmission cooler, and oil lines.

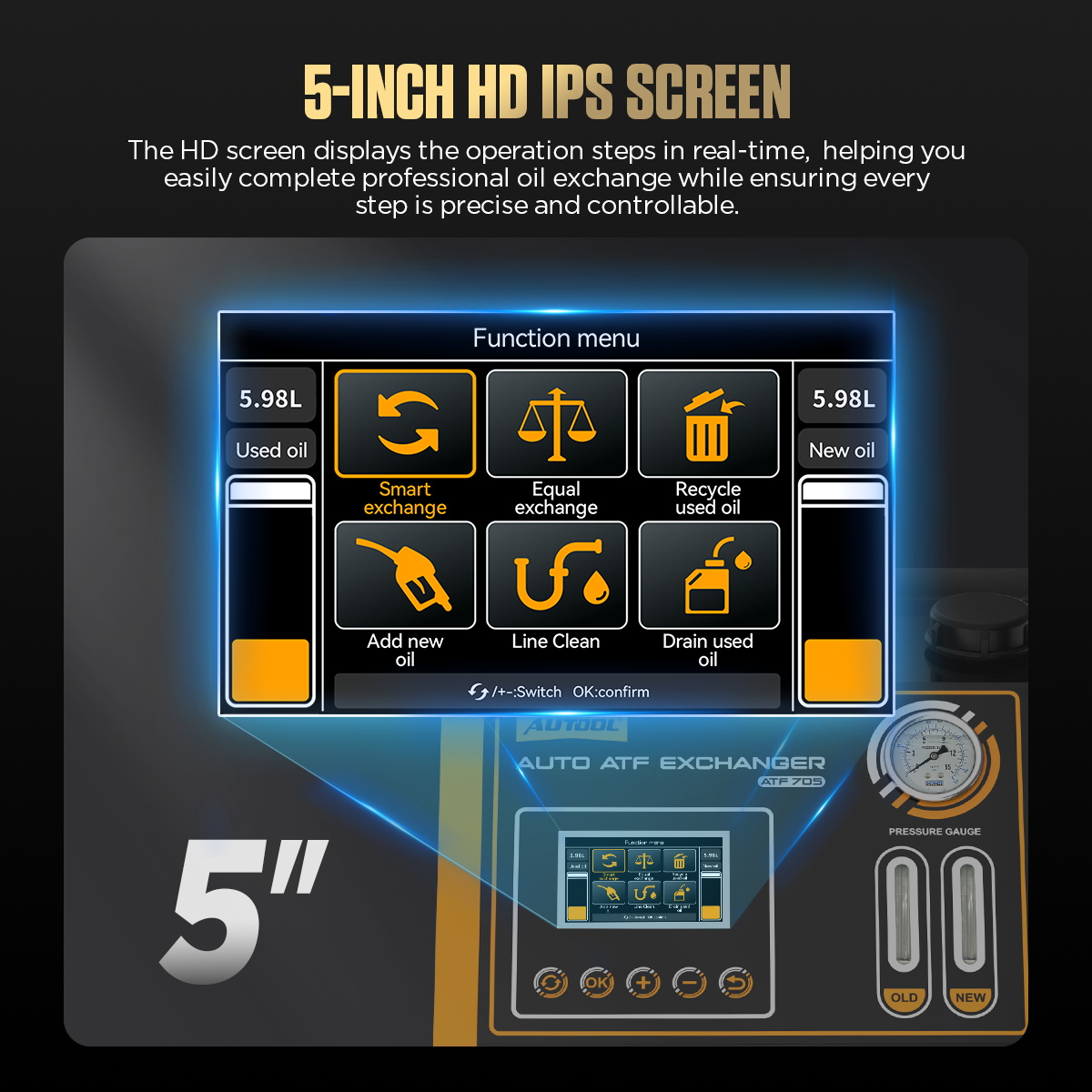

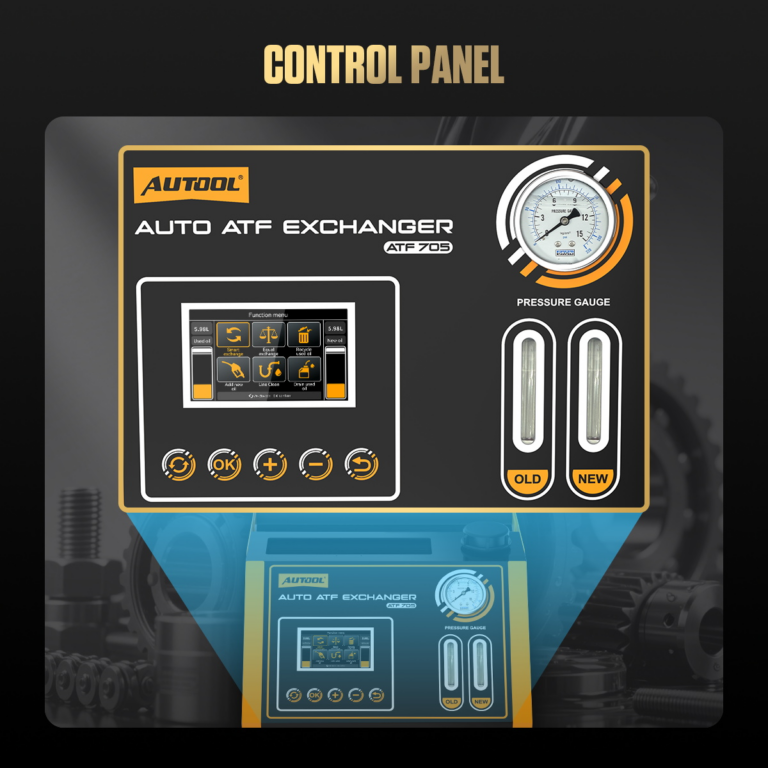

5-Inch HD IPS Screen

The screen displays operating menus and service steps in real time, including smart exchange, equal exchange, recycle used oil, add new oil, line clean, and drain used oil.

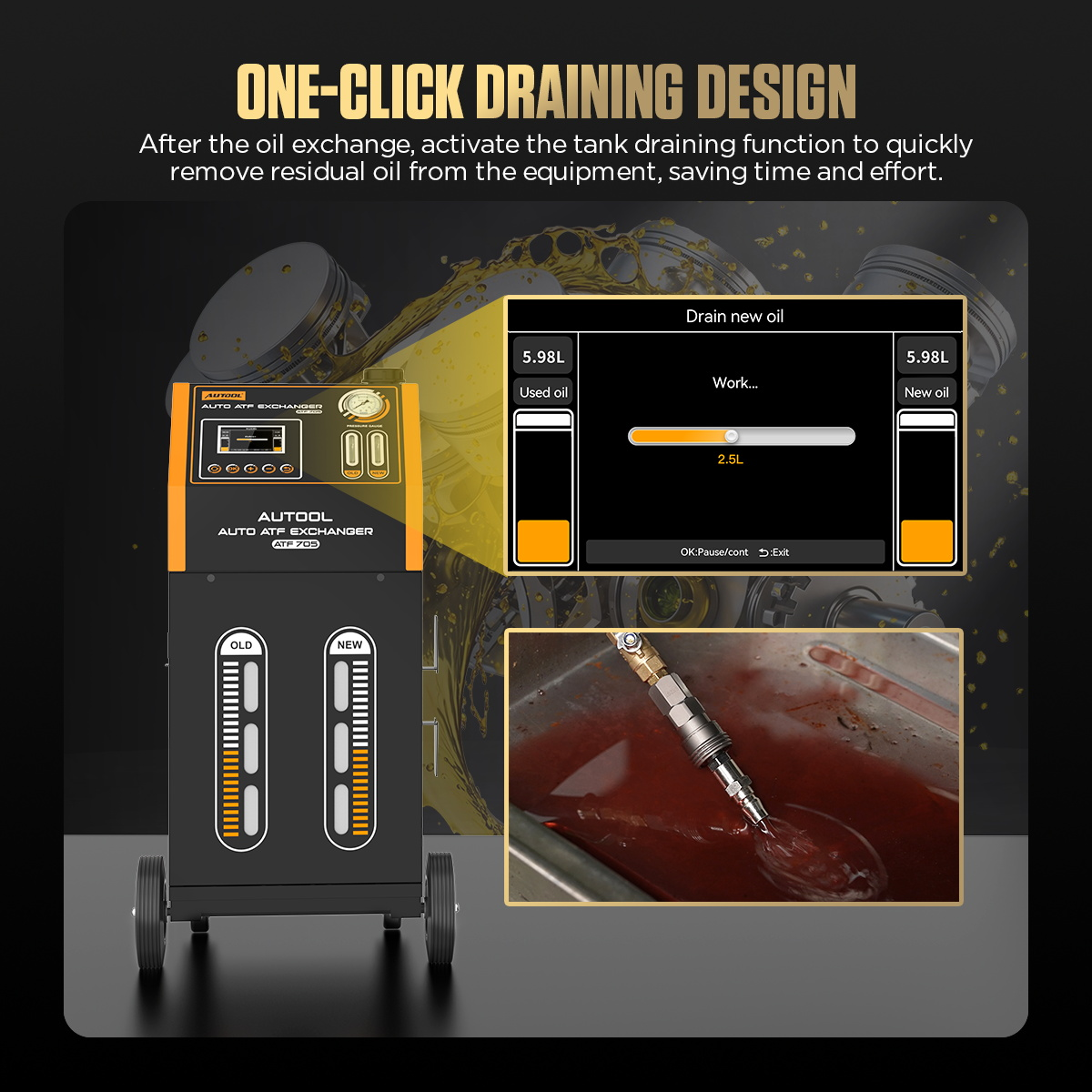

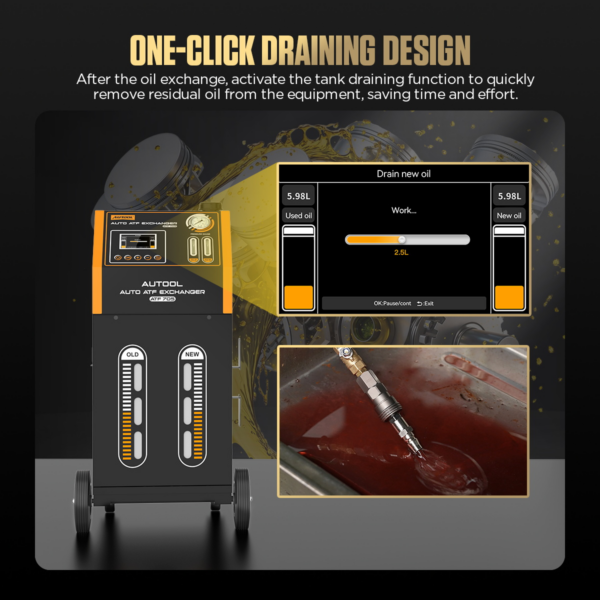

One-Click Draining Design

After the exchange, activate the tank-draining function to remove residual oil from the equipment and save time during workshop cleanup.

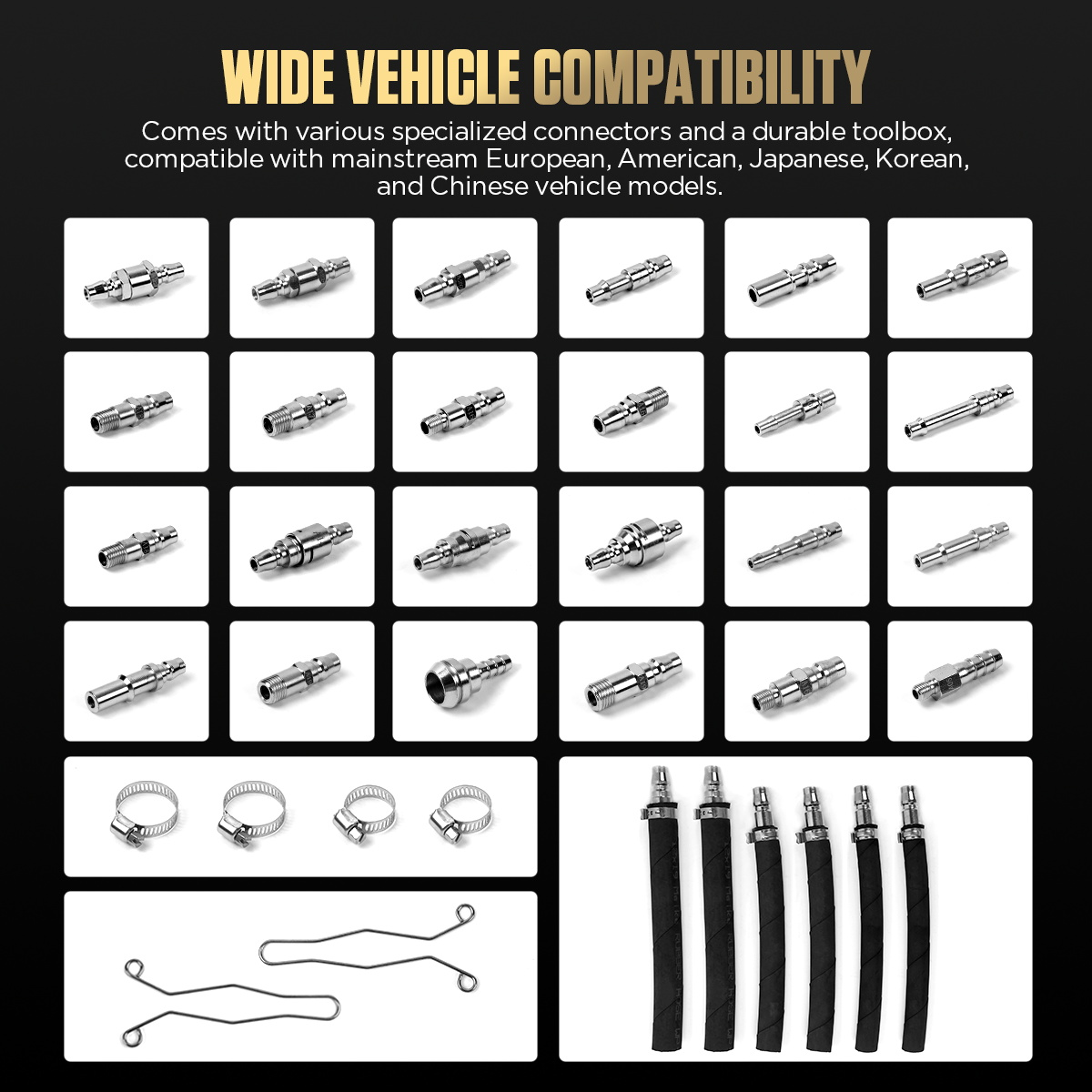

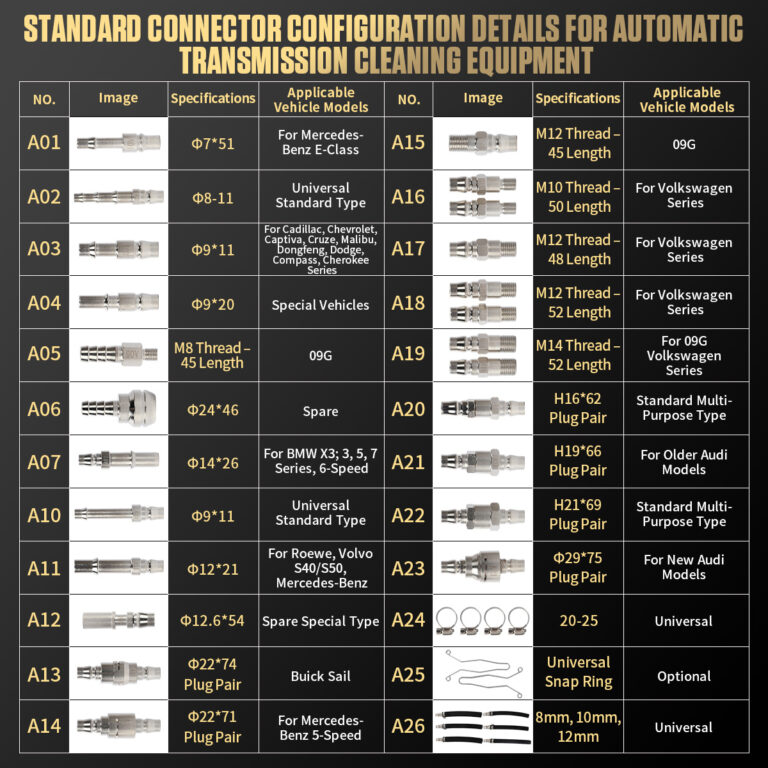

Wide Connector Compatibility

The connector toolbox supports service on many mainstream automatic transmissions from European, American, Japanese, Korean, and Chinese vehicle models.

No Major Disassembly Required

ATF705 connects to the transmission oil circuit through quick-connect fittings and transmission pipeline access points, reducing the need for unnecessary disassembly.

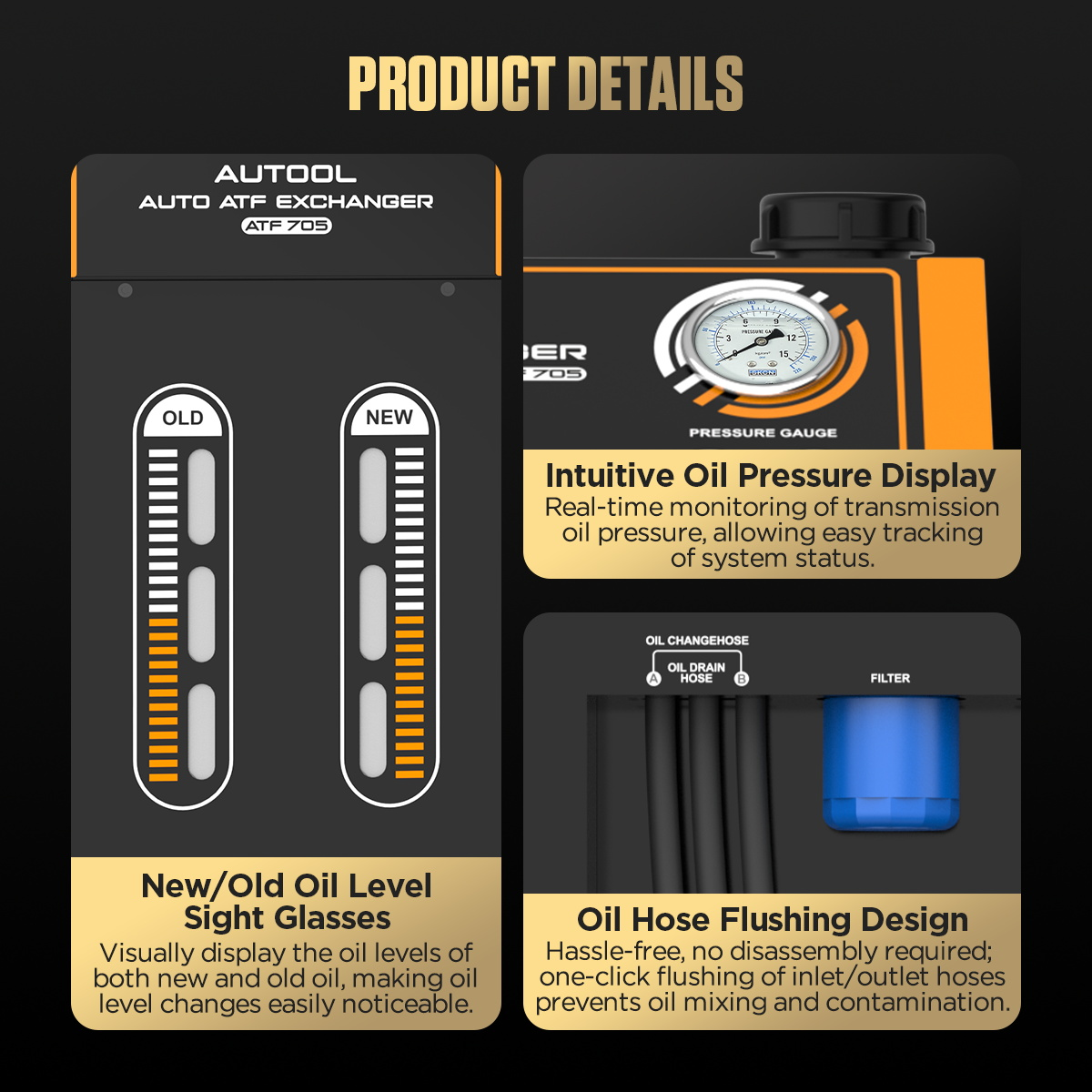

Visual Monitoring

New and used oil sight glasses, oil level windows, and a mechanical pressure gauge help technicians monitor oil status during the exchange process.

Mobile Workshop Design

The wheeled cabinet, push handle, and organized hose layout make the machine easier to move and position around a workshop lift.

How It Works

How It Works

ATF705 uses the transmission oil-circuit flow and the machine exchange system to inject new fluid while removing old fluid, helping complete a safer and more thorough service than simple manual draining.

1. Connect To Oil Lines

Select the appropriate adapters from the connector box and connect the machine hoses to the transmission oil pipe access points.

2. Identify Flow Direction

The equipment automatically recognizes oil inlet and outlet directions, reducing connection confusion during setup.

3. Balance Oil Volume

During exchange, old oil is removed while new oil is filled in a controlled equal-volume process.

4. Flush And Drain

Cycle cleaning helps remove impurities, and the tank-draining function removes residual oil from the equipment after service.

Specifications

AUTOOL ATF705 Product Specifications

Confirm voltage, tank capacity, hose length, pressure gauge range, size, and exchange accuracy before ordering or setting up the ATF705 in your workshop.

1>
Core Specifications
ProductAUTOOL ATF705 Automatic Transmission Fluid Exchanger
Operation MethodElectronic control
Operation GuideSupported by 5-inch IPS screen
Power SupplyAC 110V / 220V; confirm the correct voltage version before ordering
Maximum Power<150W
Noise<70dB
Oil Tank20L
Oil Exchange Hose2.5m
Oil Return Hose2.5m
Oil Drain Hose1.5m
Power Cord3m
Pressure Gauge1 mechanical pressure gauge, 10kg/cm²
Exchange Error<0.2kg
Dimensions600 × 510 × 1045mm
Supported Functions
Oil Direction IdentificationAutomatic identification of oil inlet and outlet
Equal-Volume Oil ExchangeAutomatic circulating oil exchange
Used Oil RecoveryAutomatic
New Oil RefillAutomatic
New Oil Tank EmptyingAutomatic
Old Oil Tank EmptyingAutomatic
New Oil Tank Electric RefillingManual
Language SettingsChinese, English, Spanish, French, German, Russian, Portuguese, Vietnamese, Malaysian

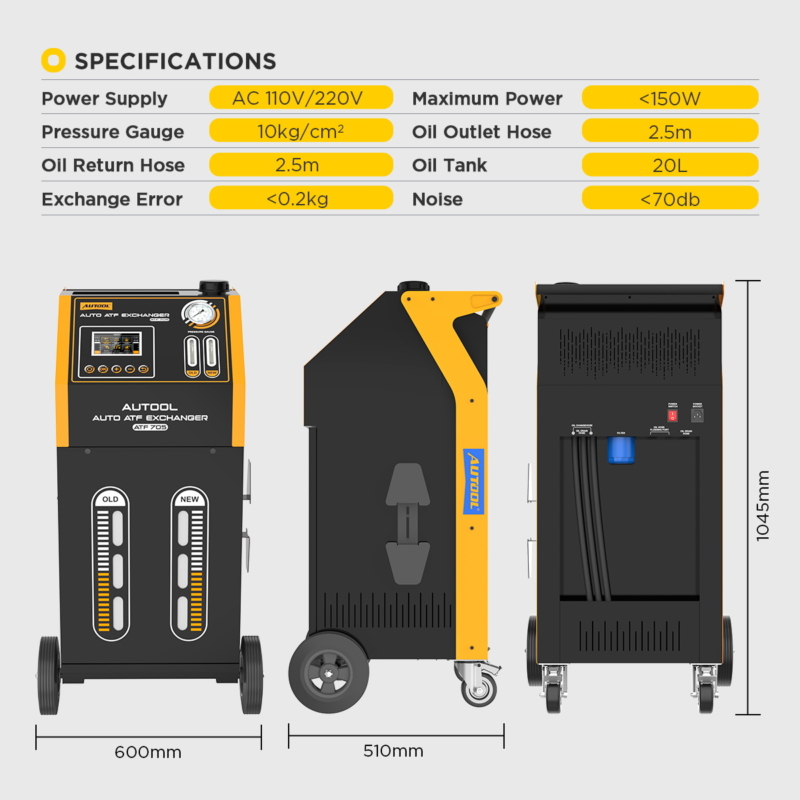

AUTOOL ATF705 product specifications including AC 110V 220V power supply 20L oil tank and 600 by 510 by 1045 millimeter dimensions Click to enlarge
Core Specifications
Power SupplyAC 110V / 220V
Maximum Power<150W
Oil Tank20L
Exchange Error<0.2kg
Pressure Gauge10kg/cm²
Noise<70dB
Dimensions600 × 510 × 1045mm
Service Functions
Oil Direction IdentificationAutomatic
Equal-Volume ExchangeAutomatic
Used Oil RecoveryAutomatic
New Oil RefillAutomatic
Tank EmptyingAutomatic
New Oil Tank Electric RefillingManual

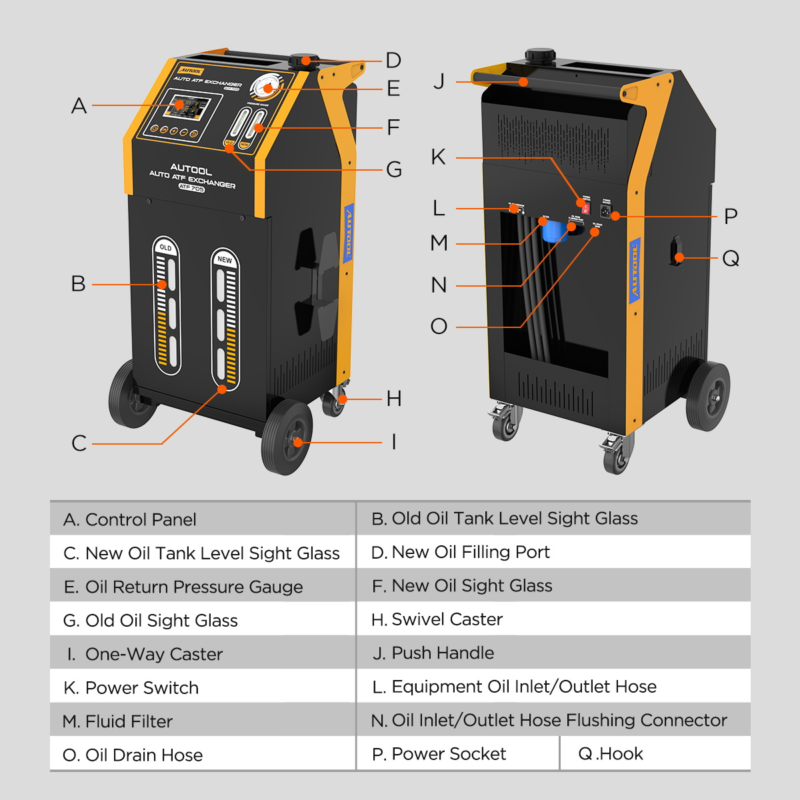

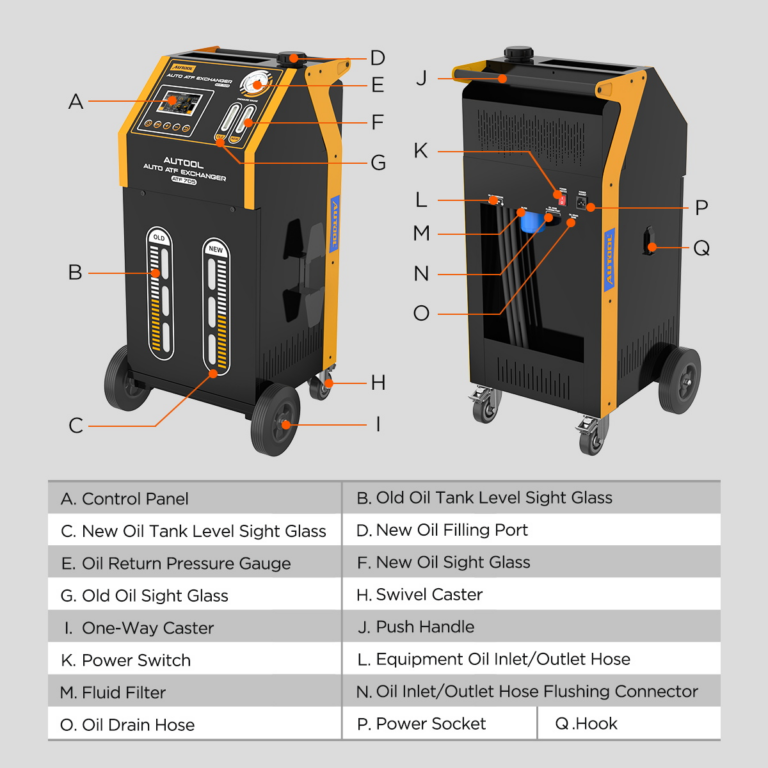

AUTOOL ATF705 product component diagram showing control panel oil level sight glasses pressure gauge hoses filter power switch and casters Click to enlarge
Product Details

Product Details

The ATF705 body integrates the control panel, old and new oil tank level sight glasses, new oil filling port, pressure gauge, power switch, oil hoses, fluid filter, drain hose, power socket, push handle, casters, and storage hook.

Front InterfaceControl panel, pressure gauge, old oil sight glass, new oil sight glass, and oil tank level windows.
Rear InterfacePower switch, power socket, oil inlet/outlet hose, oil drain hose, filter, and hose flushing connector.
MobilityPush handle, one-way casters, swivel casters, and side hook for workshop movement and storage.
Control PanelSupports visual menu operation for smart exchange, equal exchange, used oil recycle, new oil adding, line cleaning, and used oil draining.
How To Use

How To Use

Use the ATF705 only after confirming the correct voltage version, vehicle stability, connector match, oil type, hose connection, and safe workshop setup. Follow the manual and the vehicle service procedure during operation.

Prepare Power And ATF

Confirm the correct AC 110V / 220V version for your region and prepare the correct automatic transmission fluid required by the vehicle manufacturer.

Lift And Secure The Vehicle

Raise the vehicle so the drive wheels are suspended at least 20cm. Engage the handbrake and place wheel chocks in front of and behind the non-drive wheels.

Connect Transmission Hoses

Find the connection oil pipe between the transmission and radiator, disconnect the accessible line, select suitable connectors, and connect the device hoses to the transmission oil pipe connectors.

Check For Leaks

Start the engine according to the service procedure, check whether the pipe connections leak, and only continue after confirming the connection is secure.

Start Exchange Or Cleaning

Use the screen menu to select smart exchange, equal exchange, cycle cleaning, line clean, oil recovery, new oil refill, or draining functions as required.

Cycle Gears Carefully

During cycle cleaning, keep the engine running when required and switch through gears as directed. Stay in each gear for about one minute when the service procedure calls for it.

Use Notes

  • For best cleaning results, set the cycle-cleaning time to more than 20 minutes when the service procedure requires extended cleaning.

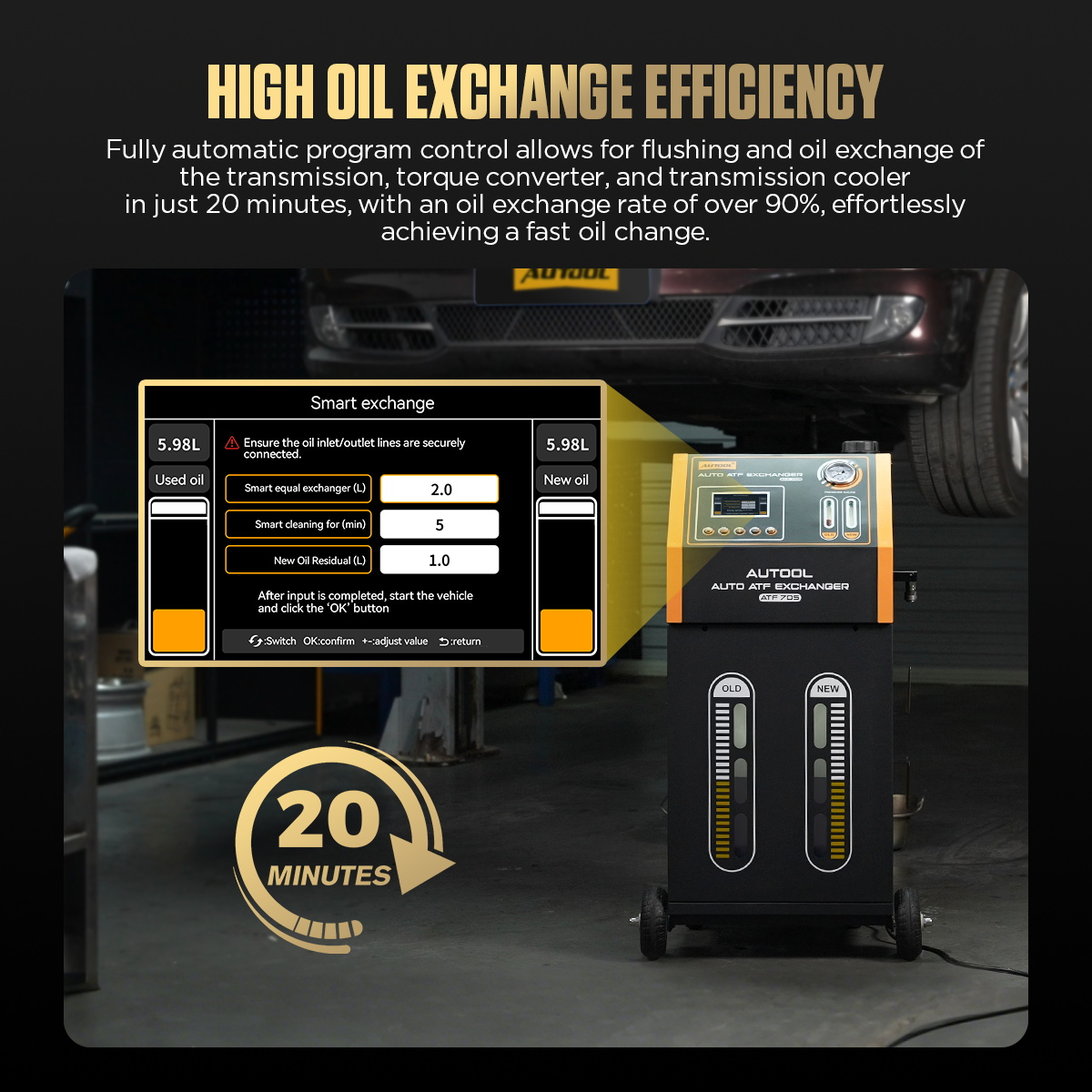

  • A typical exchange can be completed around 20 minutes under proper conditions, but actual time depends on the vehicle, oil condition, and service steps.
  • Only perform high-speed gear simulation when the vehicle is safely lifted, the drive wheels are suspended, and trained workshop safety procedures are followed.
  • The original service guidance mentions high-speed oil-route cycling around 60km/h or above; do not perform this on public roads or without proper lift safety.
  • Use only the ATF type specified by the vehicle manufacturer.
  • Do not continue operation if hoses leak, connectors are loose, the vehicle is unstable, or the wrong voltage version is connected.
Before You Order And Use

Before You Order And Use

ATF705 is a workshop service machine. Confirm voltage, fluid type, connector compatibility, vehicle stability, and hose connection before operation.

Confirm Voltage Version

The ATF705 specification chart lists AC 110V / 220V. Confirm the correct voltage version before ordering and before connecting power.

Power-Connection Reminder

Some older text mentions power-polarity recognition. Because ATF705 materials also list AC power, follow the actual unit label and user manual for power connection.

Secure Vehicle First

Lift the vehicle properly, suspend the drive wheels, engage the handbrake, and use wheel chocks before gear-cycling procedures.

Check Hoses Before Starting

Start operation only after confirming that all oil pipe connectors and hoses are secure and leak-free.

Use Correct ATF

Transmission fluid specifications vary by vehicle. Use the ATF recommended by the vehicle manufacturer and do not mix unsuitable fluids.

Avoid Incorrect Filling

Improper overfilling or insufficient filling may damage an automatic transmission. Monitor the exchange process and follow the screen prompts and manual.

Product Comparison

Product Comparison

Compare ATF705 with ATF702, ATF802, and ATF805 before choosing the right control method, screen, oil pump, exchange mode, and workshop functions.

ATF702Mechanical control, DC12V power, no screen, single oil pump, 20L oil tank, and more manual exchange workflow.
ATF705Electronic control, AC 110V / 220V, 5-inch IPS screen, single oil pump, automatic oil direction identification, automatic equal-volume exchange, buzzer alert, and oil exchange window.
ATF802Electronic control, AC 110V / 220V, 5-inch IPS screen, dual oil pump, automatic equal-volume exchange, oil filter reminder, and more automatic oil tank functions.
ATF805Higher-end electronic model with 7-inch IPS screen, dual oil pump, electronic pressure gauge, data printing, oil temperature display, smart cleaning exchange, and filter reminder.
Decision CheckChoose ATF705 if you need electronic control, a 5-inch screen, automatic equal exchange, automatic oil direction recognition, and a balanced function set without requiring ATF805-level printing or oil temperature display.
AUTOOL ATF702 ATF705 ATF802 and ATF805 automatic transmission fluid exchanger comparison chart Click to enlarge

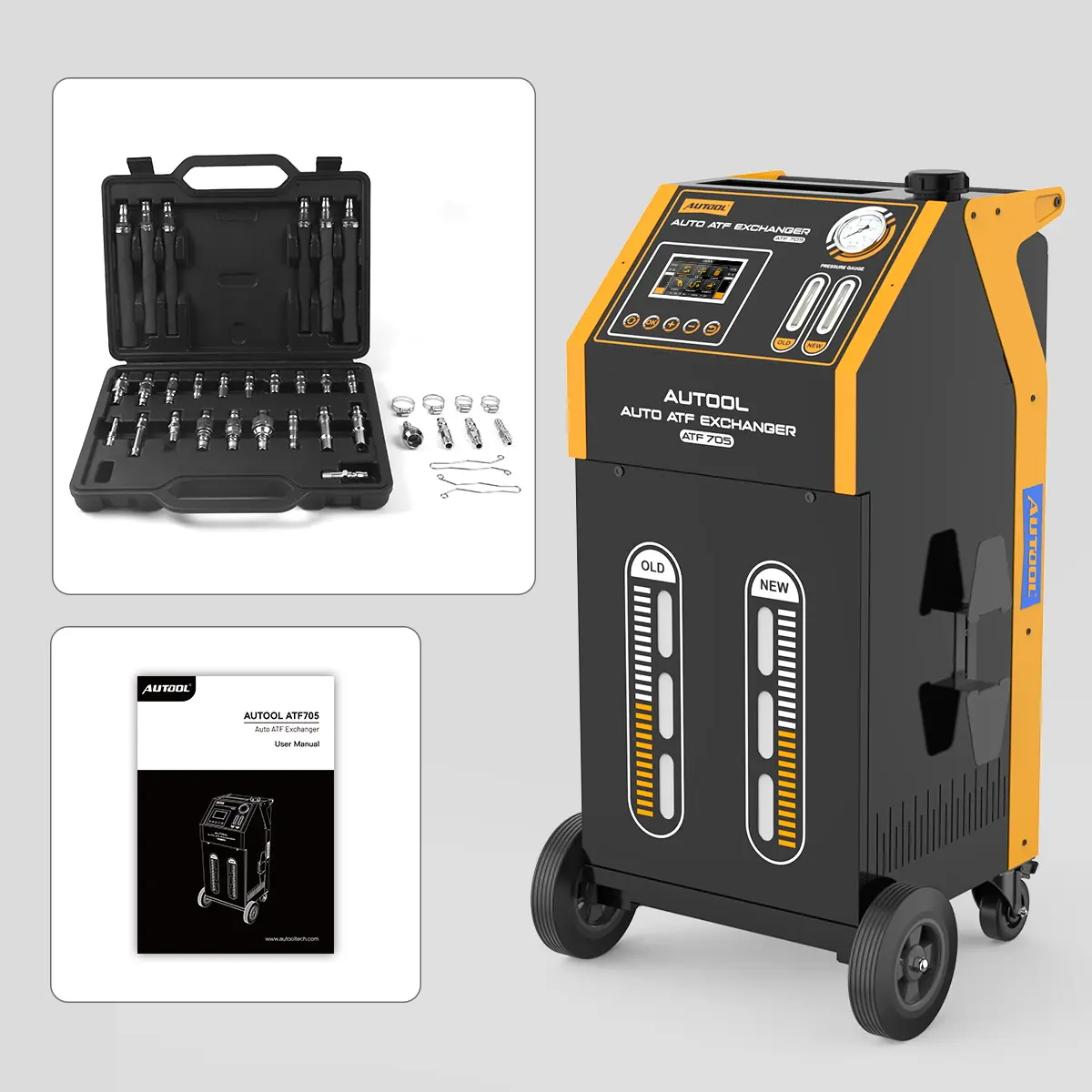

AUTOOL ATF705 packing list with main unit connector toolbox and user manual Click to enlarge
What Is In The Box

What Is In The Box

The packing image shows the ATF705 main unit, connector toolbox, and user manual. The exact connector configuration should be confirmed against the current package image and order version.

Main UnitAUTOOL ATF705 automatic transmission fluid exchanger
Connector ToolboxSpecialized connectors and accessories shown in the package image
User ManualAUTOOL ATF705 user manual
Package ConfirmationConfirm connector compatibility with your vehicle model before ordering if you are unsure.
Manual And Downloads

Manual And Downloads

Download the ATF705 manual for setup, connection, ATF exchange, cycle cleaning, draining, safety checks, and troubleshooting guidance.

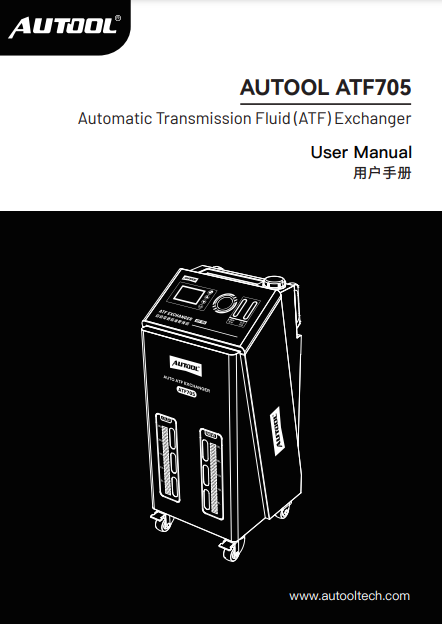

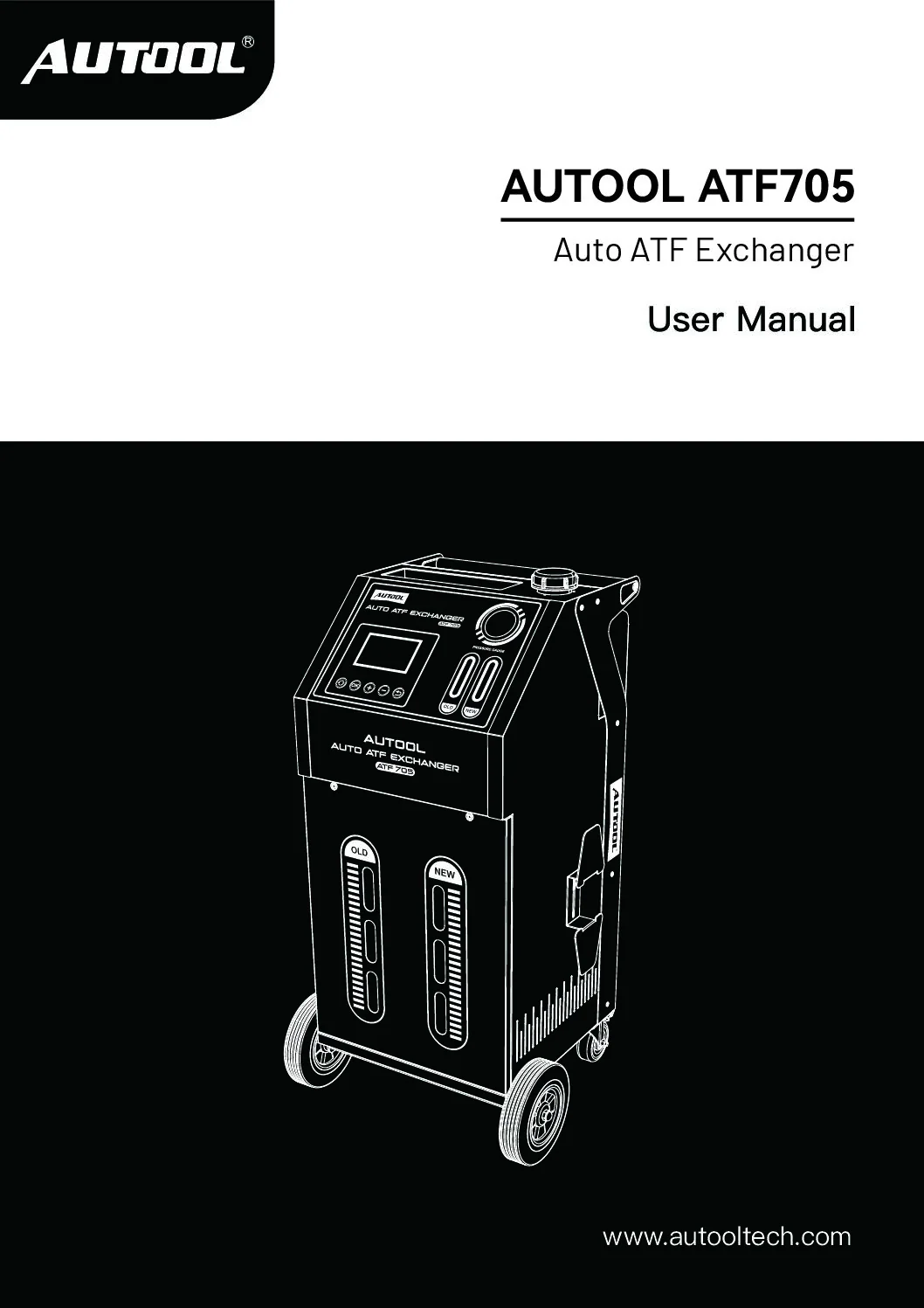

AUTOOL ATF705 automatic transmission fluid exchanger user manual preview Click to enlarge

AUTOOL ATF705 Manual PDF

Open the PDF manual before setup to confirm voltage, connector use, oil line connection, cycle cleaning, and draining steps.

Download Manual
Related Products

Related Products

Compare ATF705 with related AUTOOL transmission-fluid service tools. Price cards are retained for quick product access, while less related engine oil and brake fluid testers are removed to save space.

Related Guides

Related Guides

Use these related ATF exchanger articles to understand service efficiency and why ATF705 may be a better choice for controlled automatic transmission fluid exchange.

AUTOOL ATF705 auto ATF exchanger efficiency guide image
Guide / 06-24-2025

How ATF Exchanger Improve Efficiency

If your workshop is still using traditional methods—such as gravity draining or suction pumps—to replace transmission fluid, you’re likely facing issues like.

AUTOOL ATF705 auto ATF exchanger selection guide image
Guide / 07-18-2024

ATF Exchanger – Why To Choose AUTOOL ATF705

In automotive repair and maintenance, transmission fluid plays a crucial role. It not only lubricates the internal components of the transmission but also aids in.

ATF Exchanger-Why To Choose AUTOOL ATF705 guide image
Guide / 2024-07-18

ATF Exchanger-Why To Choose AUTOOL ATF705

In automotive repair and maintenance, transmission fluid plays a crucial role. It not only lubricates the internal components of the transmission but also.

How ATF Exchanger Improve Efficiency guide image
Guide / 2025-06-24

How ATF Exchanger Improve Efficiency

If your workshop is still using traditional methods—such as gravity draining or suction pumps—to replace transmission fluid, you’re likely facing issues.

Questions And Answers

These answers cover ATF705 model selection, equal-volume exchange, voltage, vehicle compatibility, operation notes, package contents, and warranty support.

Warranty And Contact

Warranty And Contact

For ATF705 voltage version confirmation, connector compatibility, ATF705 vs ATF702 / ATF802 / ATF805 selection, packing list confirmation, manual setup, operation questions, or after-sales troubleshooting, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming ATF705 voltage, connector set, ATF compatibility, service procedure, screen operation, oil line connection, cycle cleaning setup, package contents, warranty, or replacement parts.

  • 3-year warranty support for eligible non-human damage cases
  • Lifetime maintenance support
  • Voltage version and power setup confirmation
  • Connector compatibility and packing list confirmation
  • ATF705 / ATF702 / ATF802 / ATF805 model selection
  • Operation, cycle cleaning, oil exchange, and draining support
  • Accessories, troubleshooting, and after-sales service
