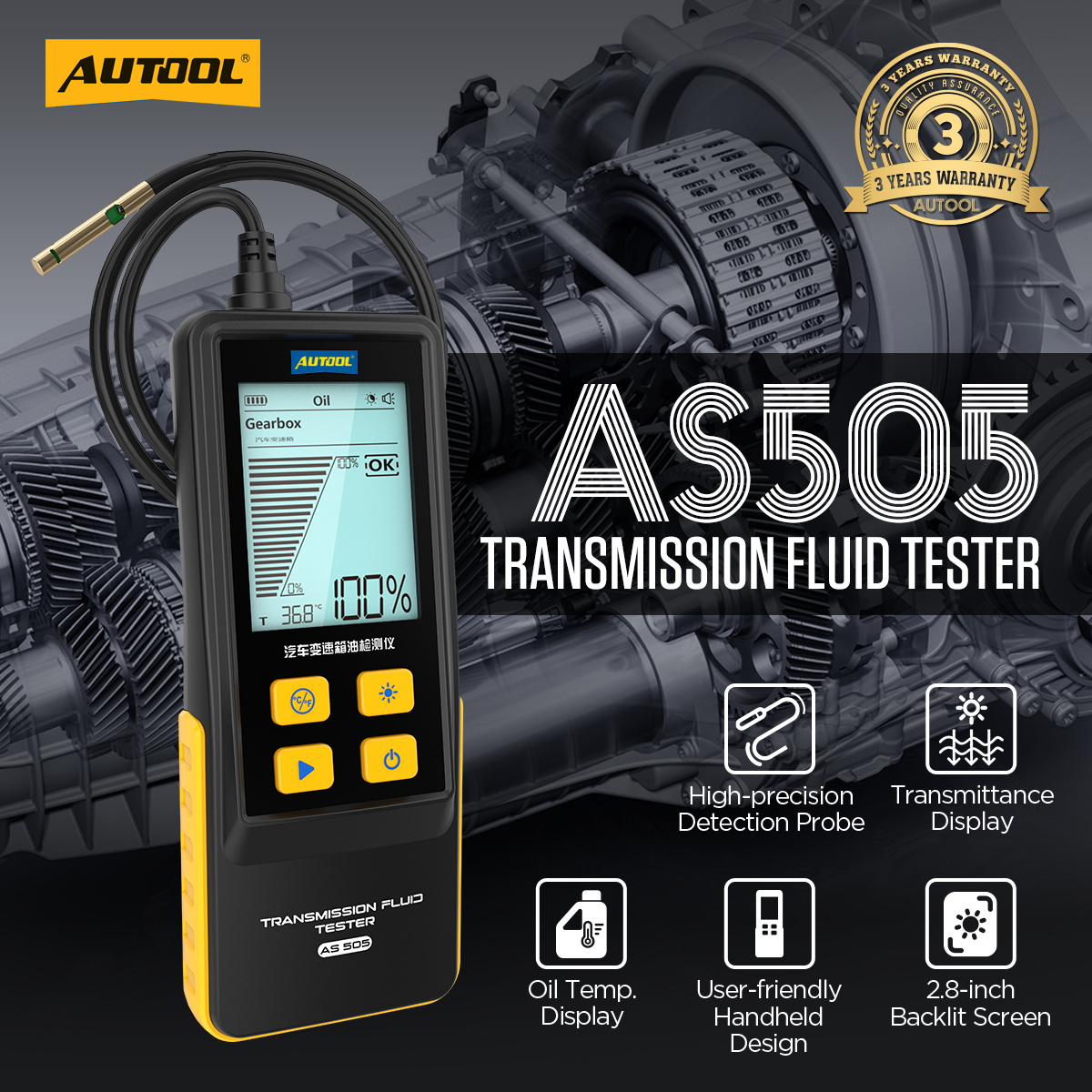

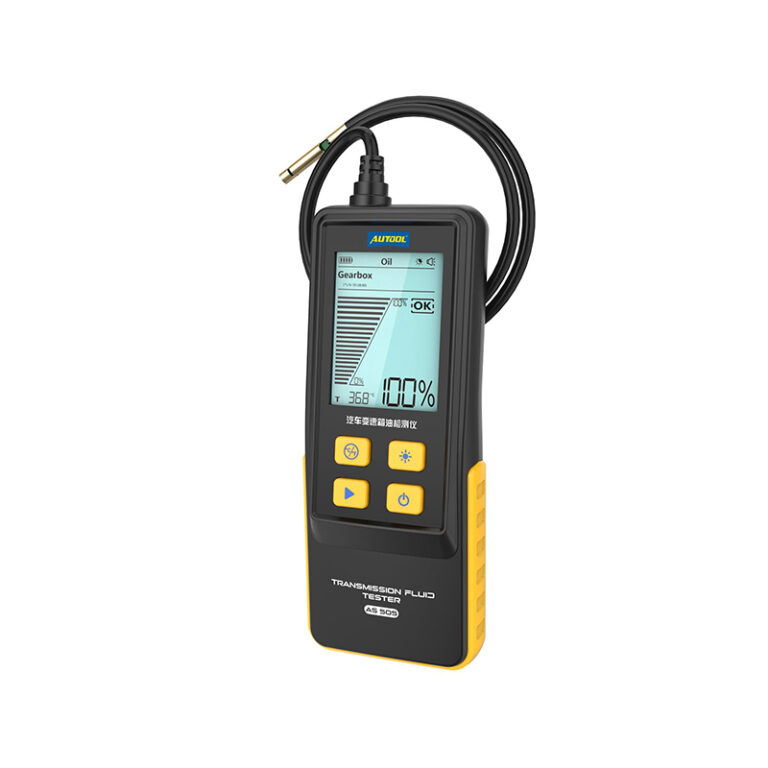

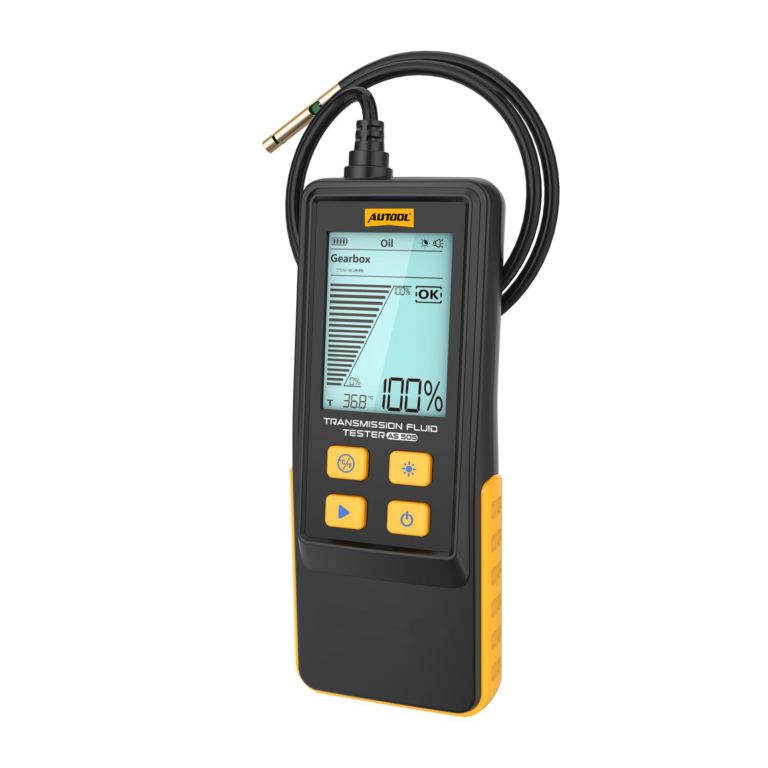

The AUTOOL AS505 is a handheld transmission fluid tester for gasoline and diesel vehicle transmission service checks. It uses optical probe technology and a 2.8-inch backlit LCD to help assess transmission fluid transmittance, oil temperature, possible contamination, deposits, and service condition before maintenance decisions.
Use AS505 as a transmission fluid transmittance and temperature tester. Clean the probe, check the vehicle condition, and read the result indicators carefully before judging whether transmission fluid service may be needed.
Transmission Fluid Testing
AS505 is mainly used to test automotive transmission fluid transmittance and oil temperature. Reduced transmittance may be related to impurities, deposits, or metal contamination in the fluid.
Suggested Test Interval
It is recommended to check transmission fluid condition every 5,000-10,000 km, especially before deciding whether transmission fluid service is needed.
Clean The Probe First
Wipe the test probe clean before each measurement. Residual oil, dirt, or contamination on the probe may affect the reading.
Engine Below 60°C
Before testing, make sure the engine temperature is below 60°C. This helps keep the measurement process within the recommended operating condition.
6V Battery Power
The tester uses 4 × 1.5V AAA batteries for a 6V operating voltage. Install batteries with the correct polarity before powering on.
Auto Power-Off
The tester automatically powers off after about 5 minutes of no activity. Long press the power key to turn the tester on or off manually.
Measurement Reminder
AS505 helps judge transmission fluid condition through transmittance and temperature; it does not replace full transmission diagnosis.
If the result indicates warning or replacement, combine the reading with vehicle mileage, service history, driving symptoms, and workshop inspection.
Do not use AS505 as a brake fluid, engine oil, boiling point, or power steering fluid tester. Choose the matching AUTOOL AS model for those fluids.
Product Comparison
Product Comparison
AS505 belongs to the AUTOOL automotive oil and fluid analyzer series. Compare the test object, detection technology, screen, temperature range, test cable length, and power supply before choosing the correct model.
AS501 / AS502Brake fluid testers for water content. AS501 uses a 1.8-inch display and 3V power; AS502 uses a 2.8-inch display and 6V power.
AS503Engine oil quality tester for gasoline and diesel engine oil transmittance, using optical probe technology, 80cm test cable, and 10s response.
AS505Transmission fluid tester for automotive transmission fluid transmittance, with optical probe technology, 2.8-inch backlit display, °C/°F switching, 6V power, and 80cm Teflon hose.
AS506Brake fluid boiling point tester using flash point heating technology, 12V power, 4cm test cable, and 16s response.
AS507Power steering fluid tester for automotive steering fluid transmittance, using optical probe technology, 80cm test cable, and 10s response.
Click to enlarge
Key Features
Key Features
AS505 combines an optical probe, 800mm Teflon hose, oil temperature reading, LCD display, result indicators, and handheld design for practical transmission fluid condition checks.

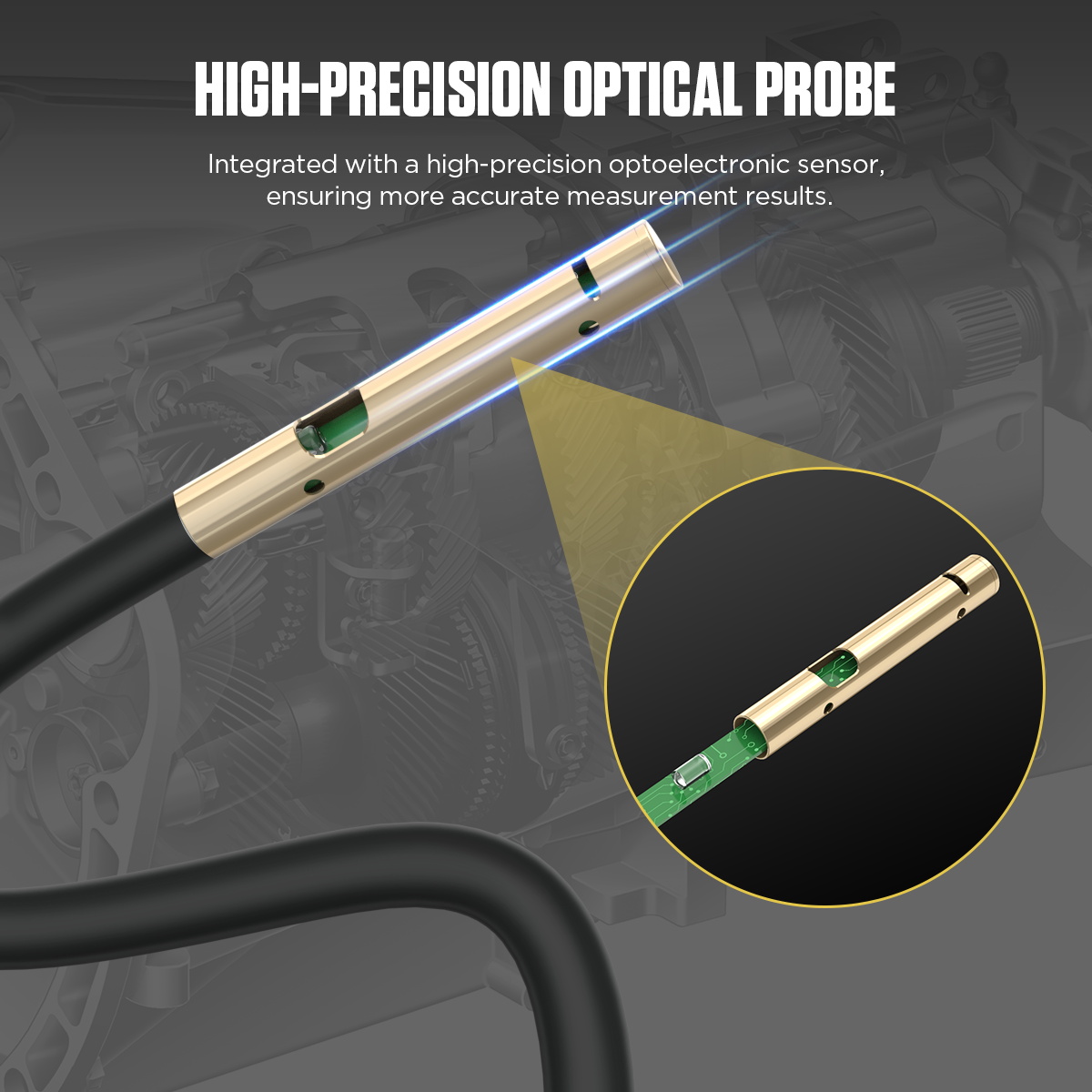

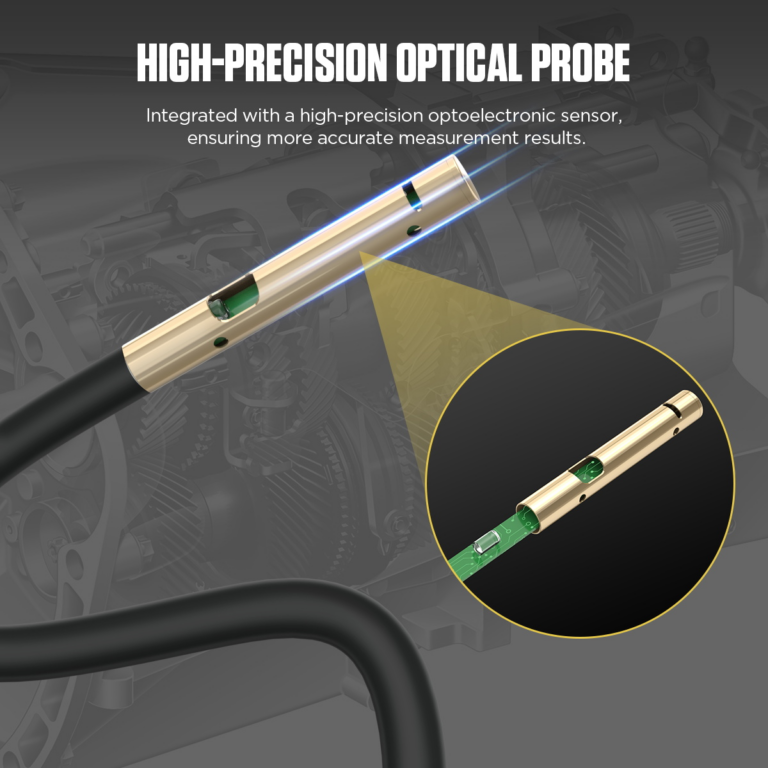

High-Precision Optical Probe
The integrated photoelectric transceiver sensor probe helps provide stable measurement feedback when checking transmission fluid transmittance.

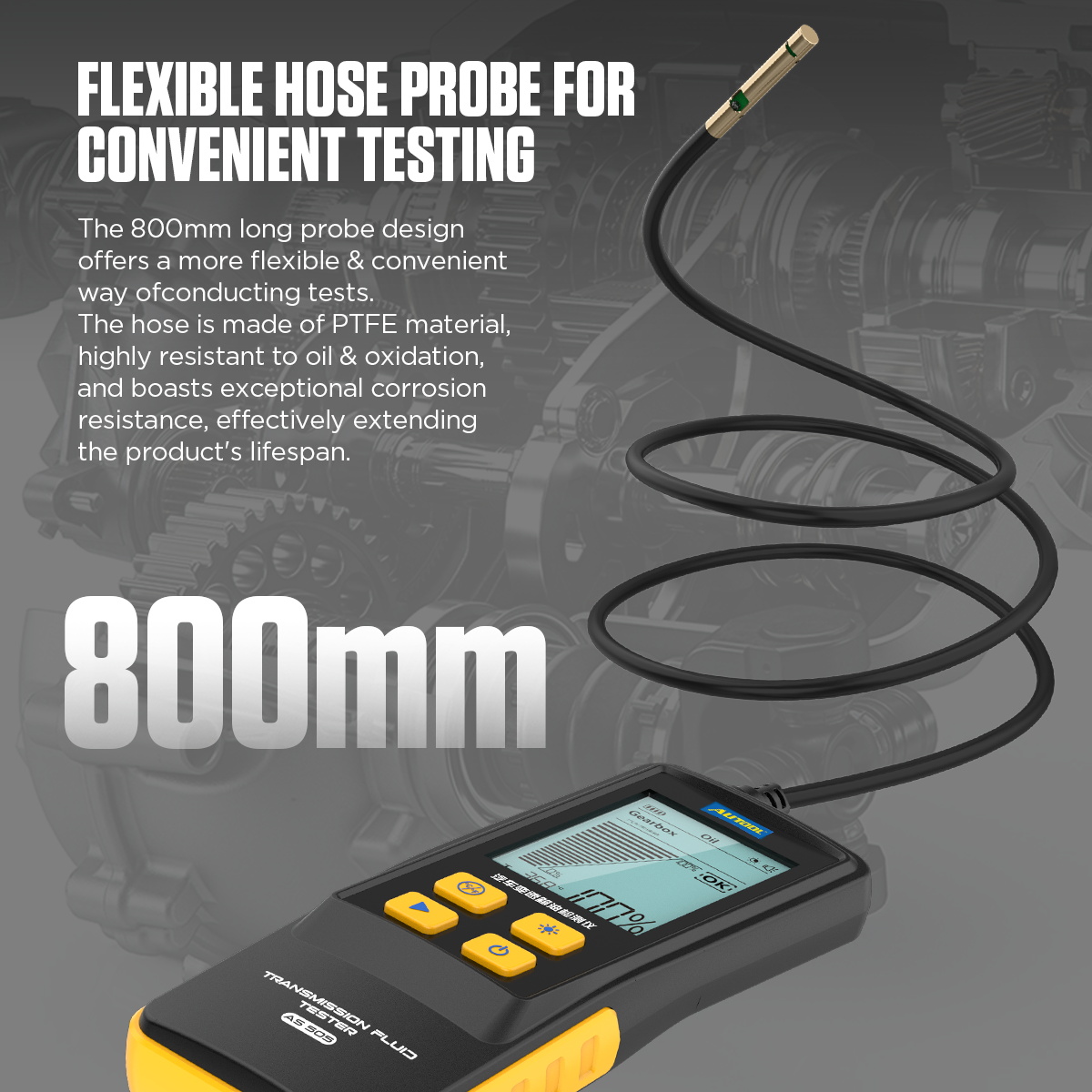

800mm Flexible Hose Probe
The 800mm Teflon hose probe offers flexible access during testing and is resistant to oil, oxidation, and corrosion for longer service life.

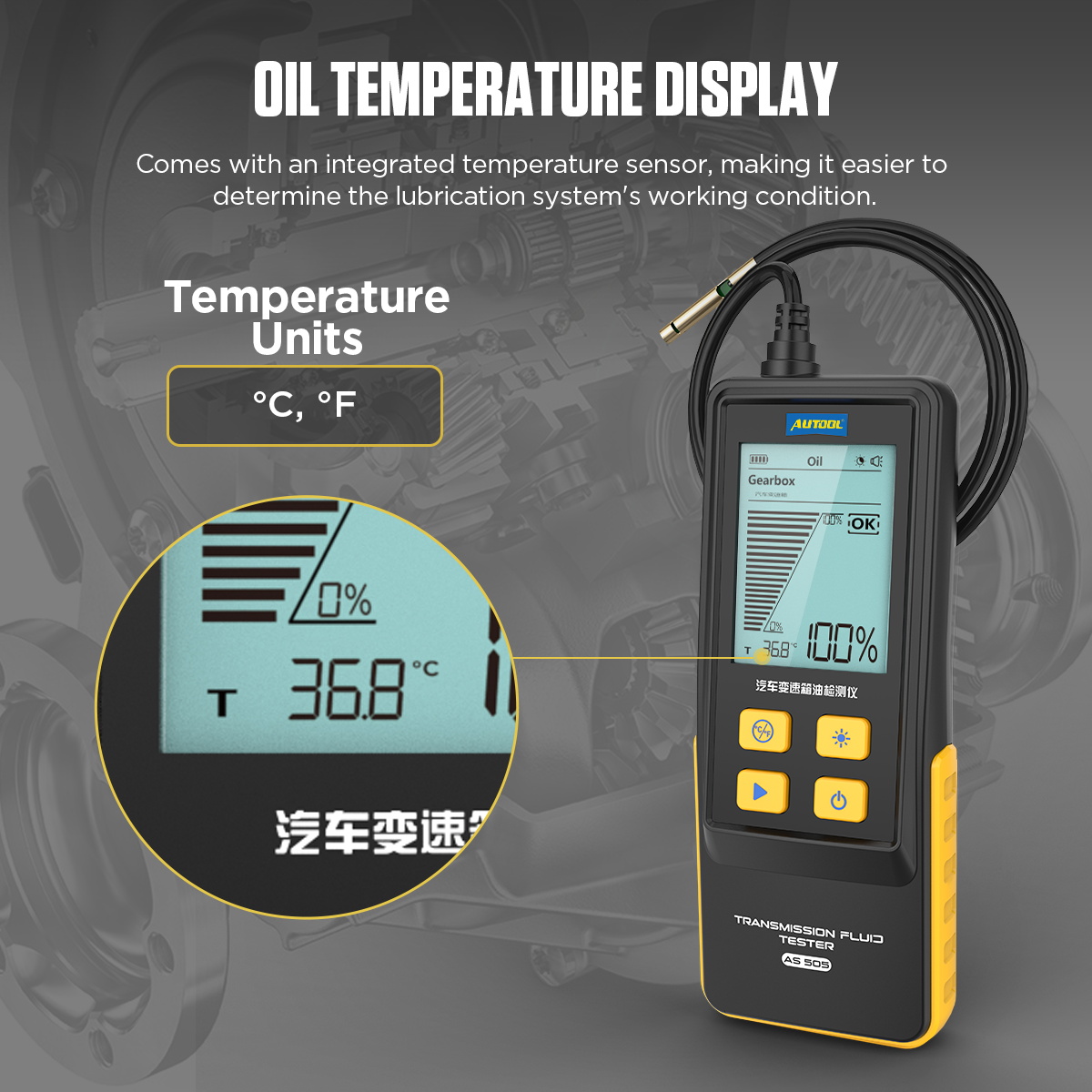

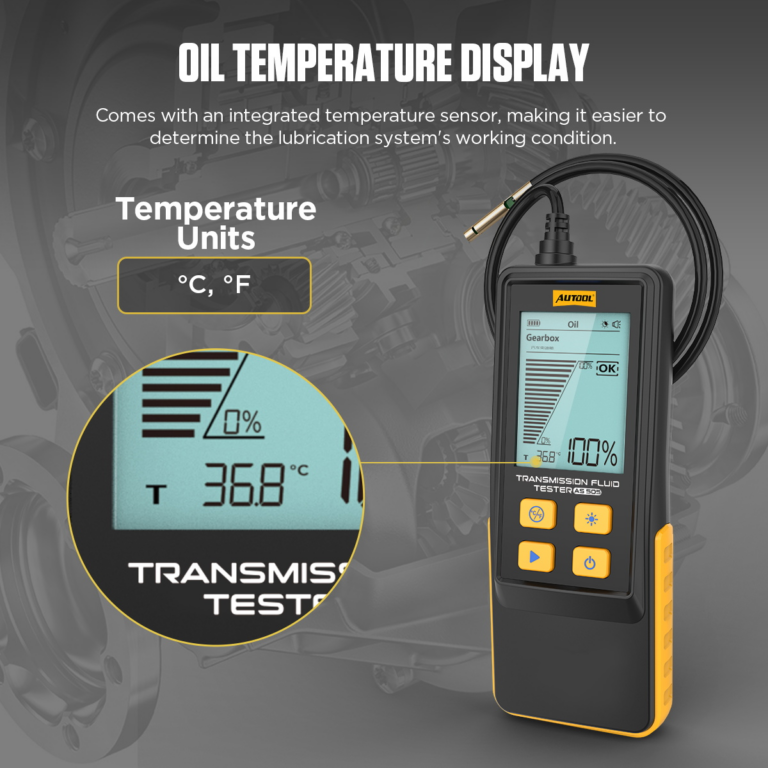

Oil Temperature Display
The built-in temperature sensor displays the current transmission fluid temperature and supports °C / °F unit switching.

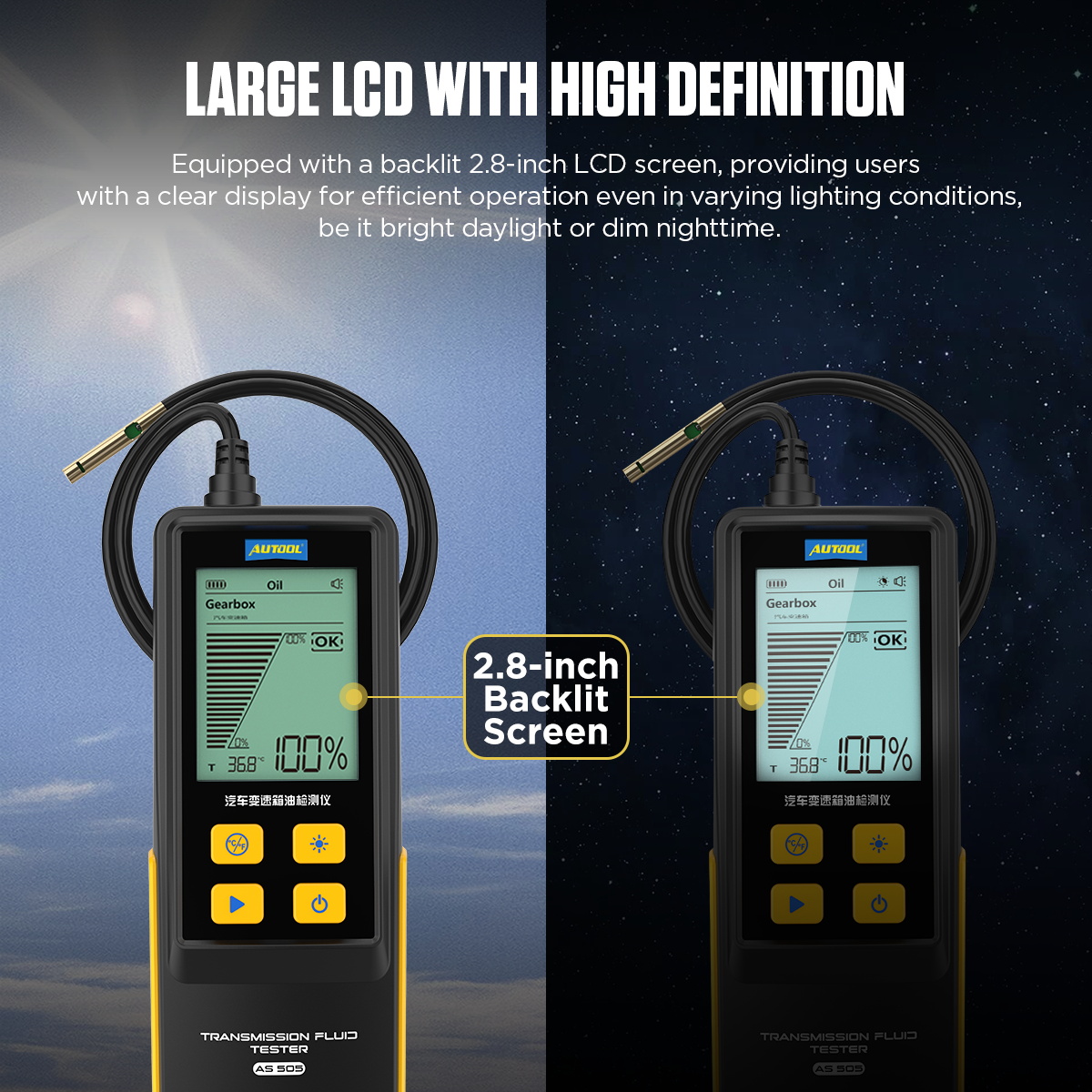

2.8-inch Backlit LCD
The high-definition backlit LCD makes readings easier to view in daylight, dim workshop areas, or nighttime conditions.
Clear Result Indicators
The screen shows transmittance, analog bar graph, OK, warning, and suggested replacement indicators to help users interpret the result quickly.

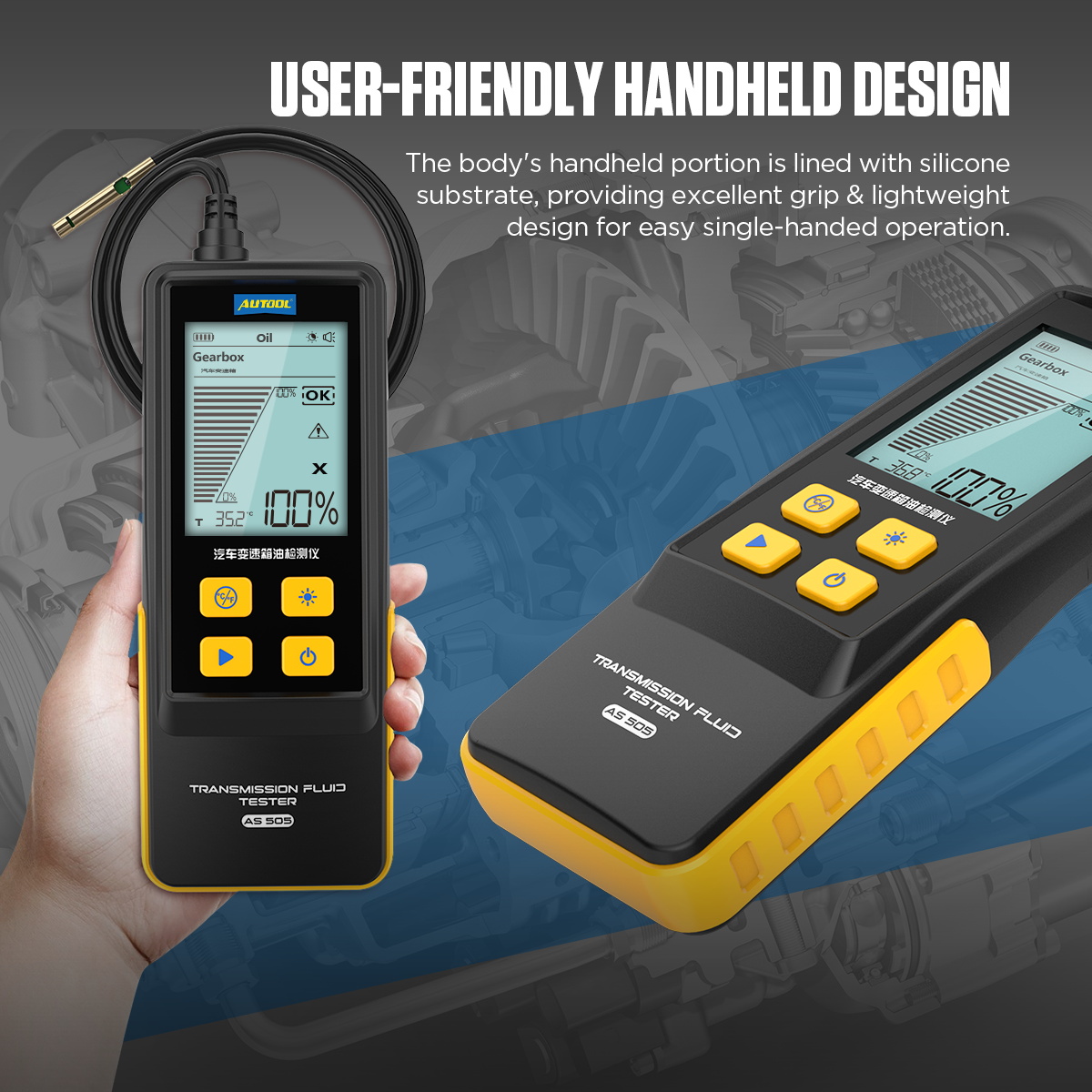

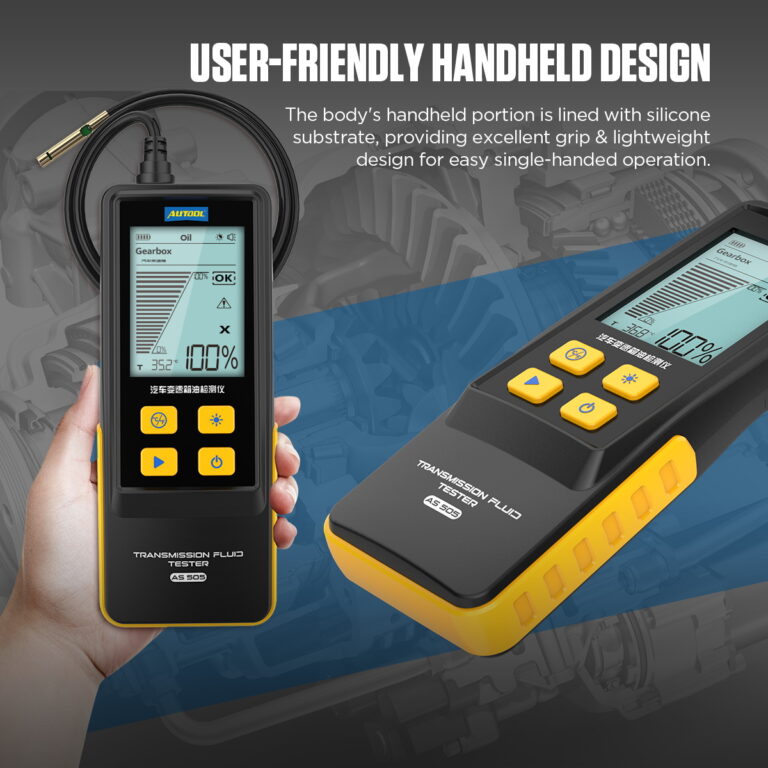

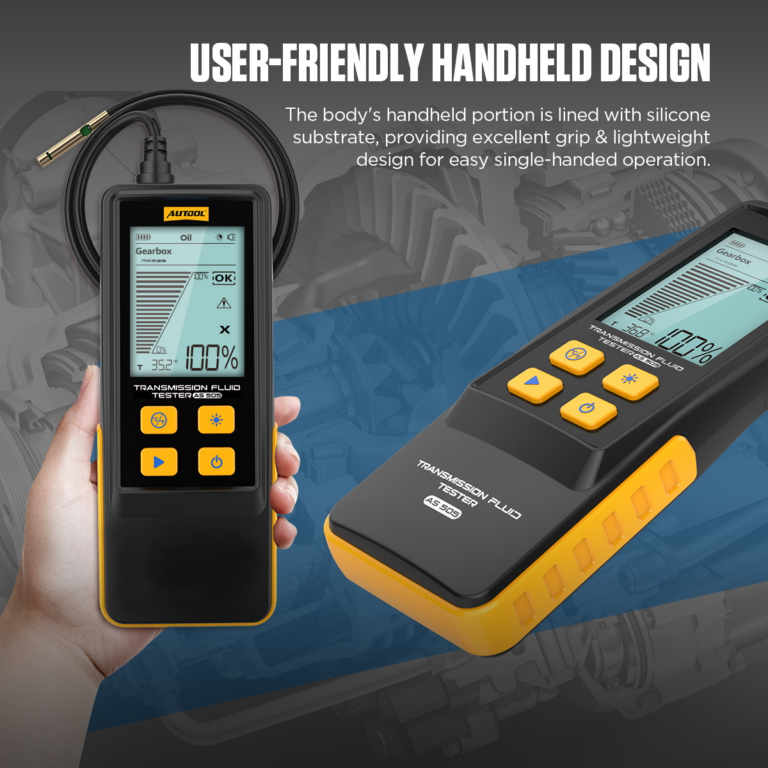

Comfortable Handheld Design
The silicone-lined handheld portion provides a comfortable grip, while the lightweight body supports easy single-handed operation.
Click to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlarge

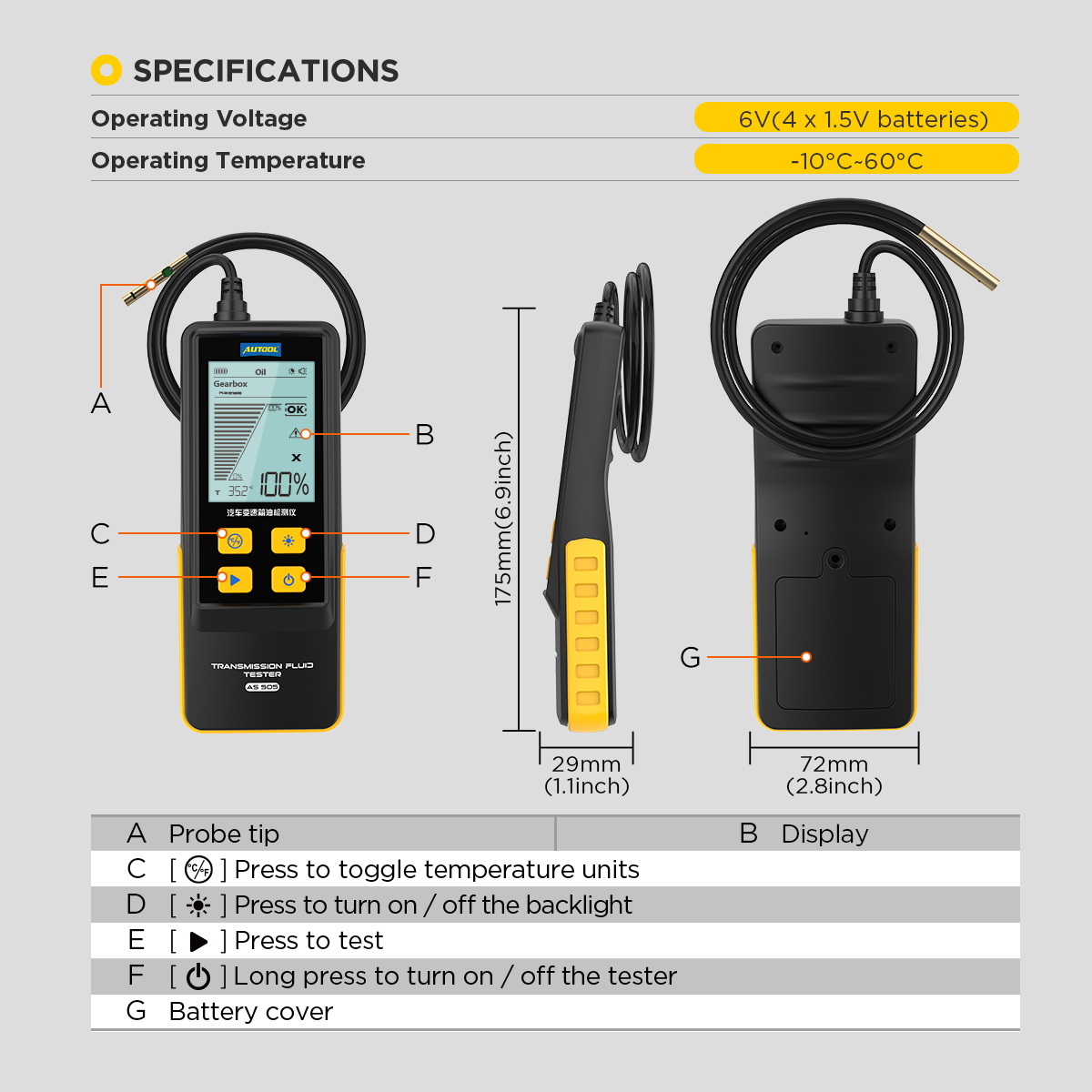

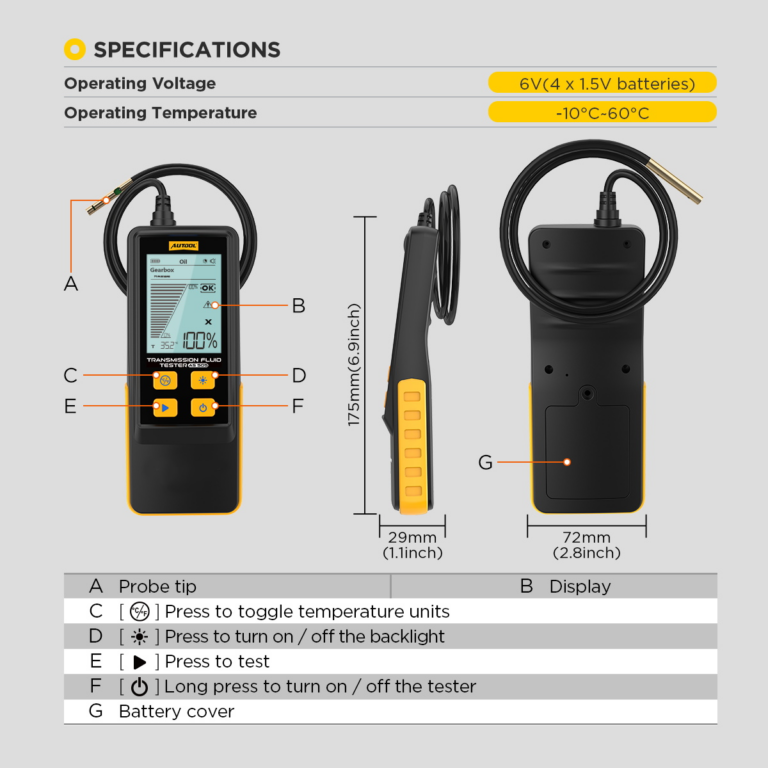

Specifications
AS505 Product Specifications And Controls
The AS505 uses optical probe technology, a 6V battery power supply, an 80cm Teflon test cable, and a 2.8-inch display for automotive transmission fluid transmittance and temperature checks.

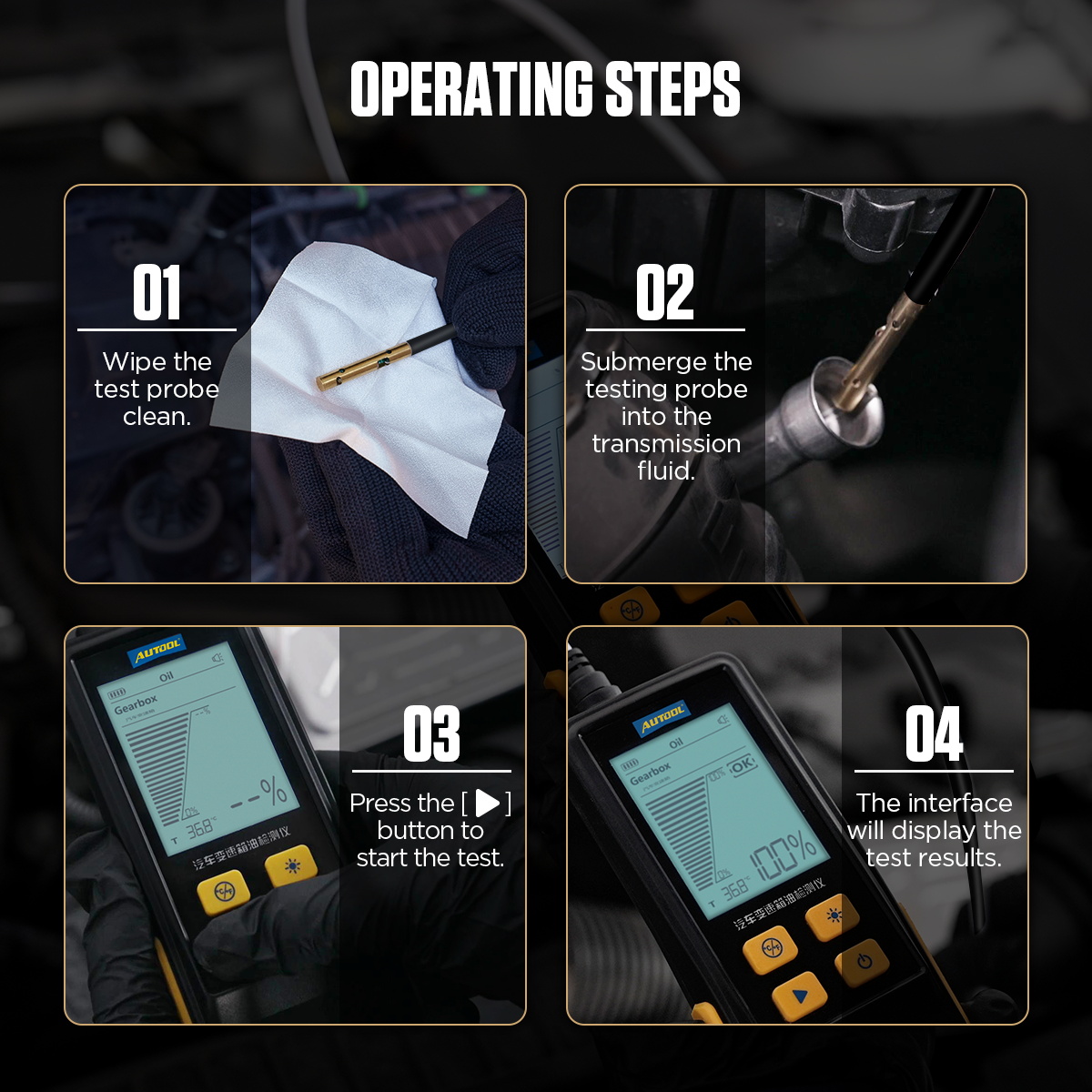

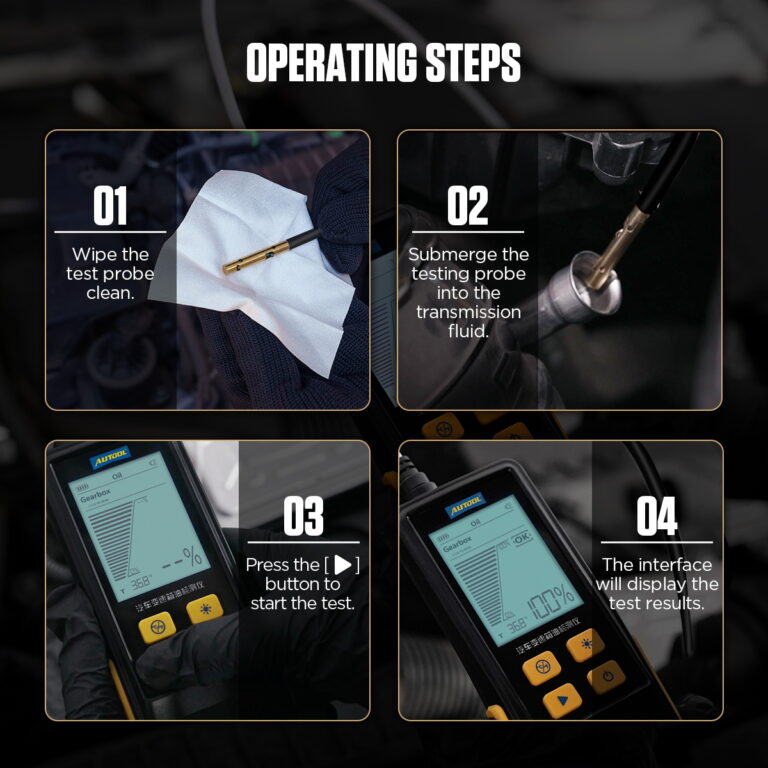

Clean the probe, confirm the engine temperature is below 60°C, insert the probe into transmission fluid, press the test key, and read the transmittance and temperature result on the display.
Install Batteries And Power On
Open the rear battery cover, install 4 × 1.5V AAA batteries with correct polarity, then long press the power key for more than 2 seconds.
Wipe The Probe Clean
Before each measurement, wipe the probe tip clean so old oil or dirt does not affect the transmittance reading.
Check Temperature Condition
Make sure the engine temperature is below 60°C. Press the temperature key if you need to switch between °C and °F.
Submerge The Probe
Place the testing probe into the transmission fluid. Keep the probe properly immersed during measurement.
Press Test And Read Result
Press the test button. The interface displays the transmission fluid transmittance and current fluid temperature.
Click to enlarge
Use Notes
The tester displays OK when transmittance is between 100% and 50%.
The warning indicator appears when transmittance is between 50% and 30%.
The suggested replacement indicator appears when transmittance is below 30%.
After measurement, long press the power key for about 2 seconds to shut down the tester.
The tester automatically powers off after 5 minutes without operation.
Click to enlarge

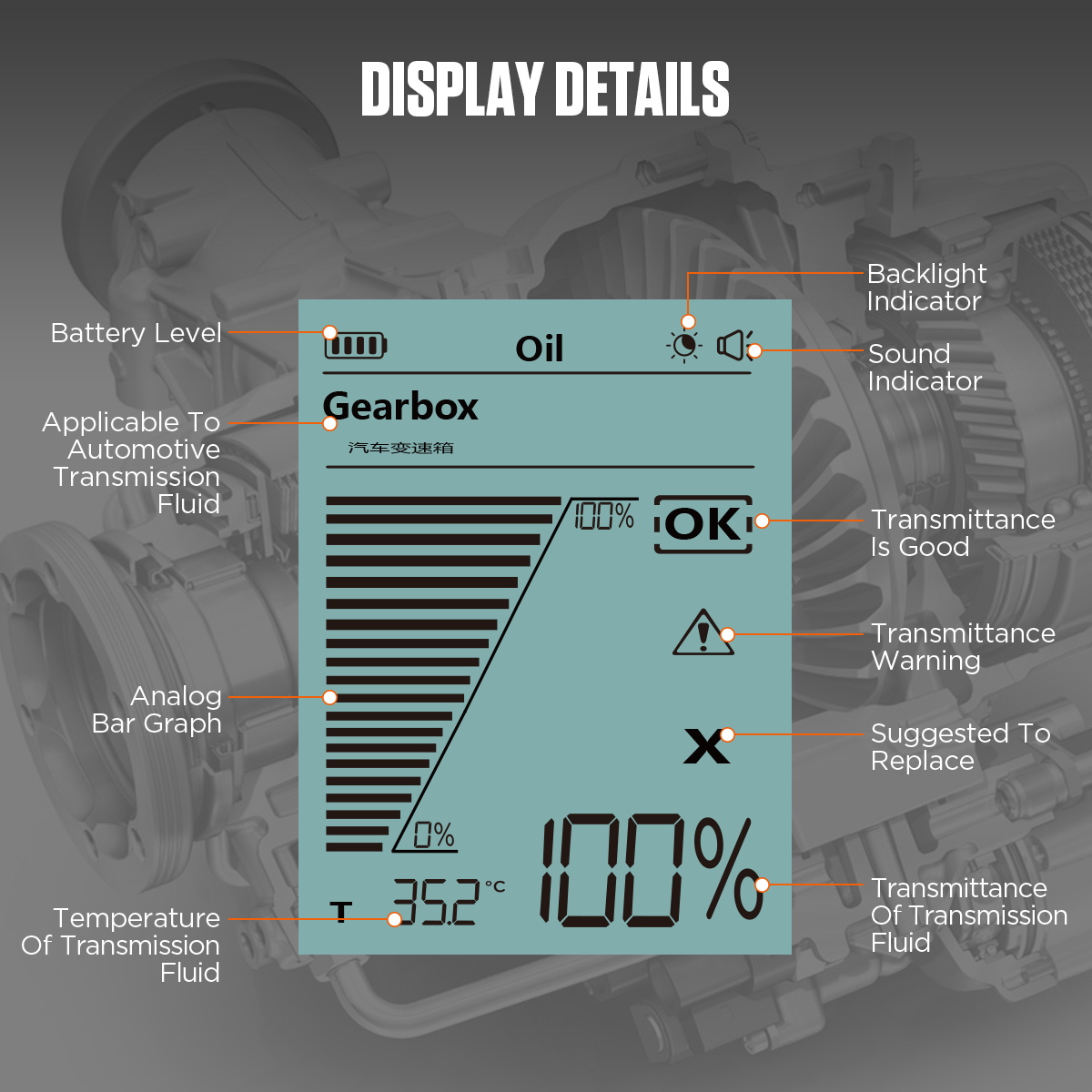

Measurement And Reading Guide
Measurement And Reading Guide
The AS505 screen displays transmittance, fluid temperature, battery status, backlight status, sound indicator, and result icons. Use the result as a service reference together with vehicle condition and maintenance history.
OKTransmittance is good. The measured transmission fluid condition is within the good display range.
WarningTransmittance warning. Check the fluid condition and consider vehicle symptoms, mileage, and maintenance history.
Suggested To ReplaceLow transmittance may indicate the fluid needs service attention or replacement under proper workshop judgment.
Transmittance %Shows the measured transmittance value of the transmission fluid.
TemperatureShows the current transmission fluid temperature during testing.
Battery / Backlight / SoundShows battery level, backlight indicator, and sound indicator for easier operation.
Click to enlarge

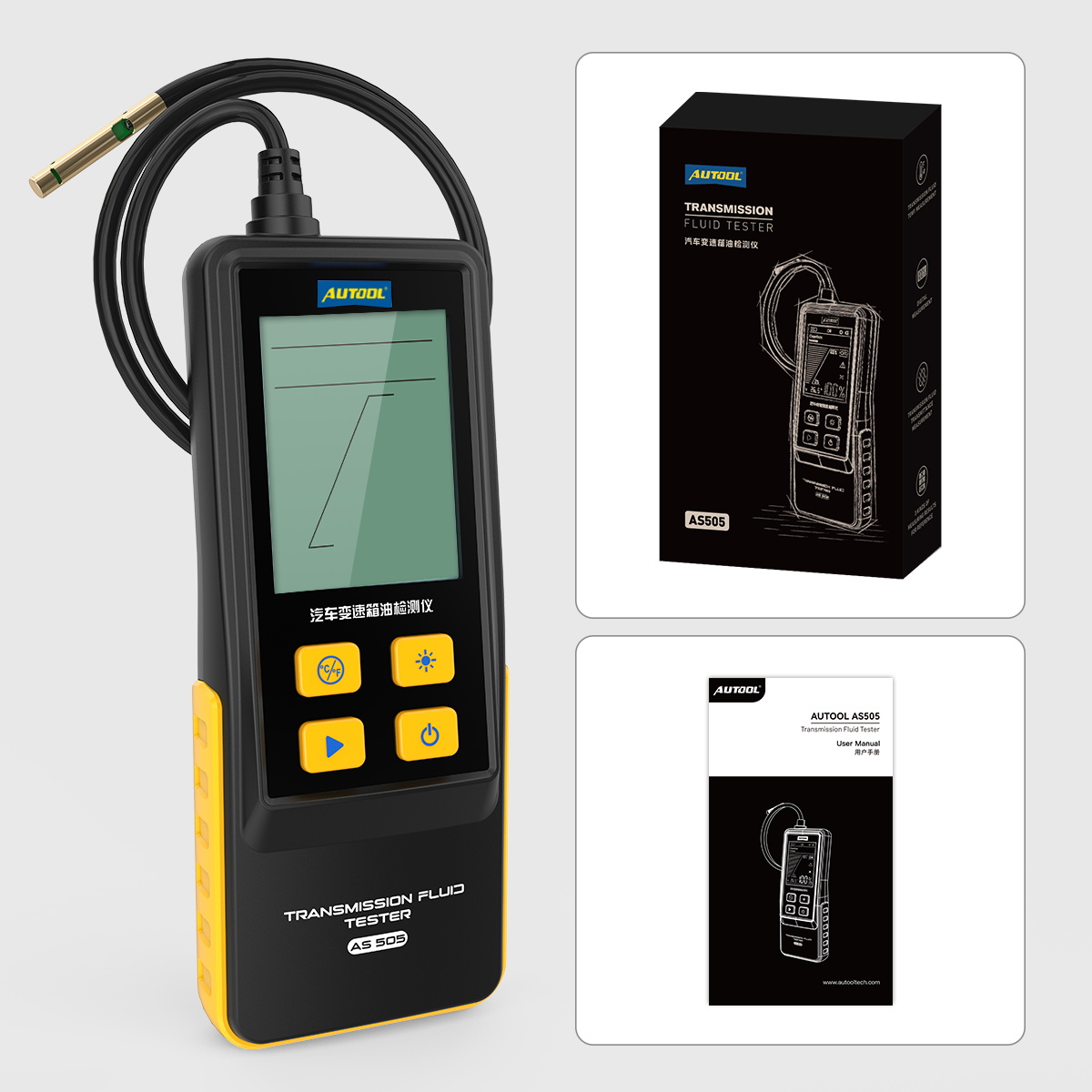

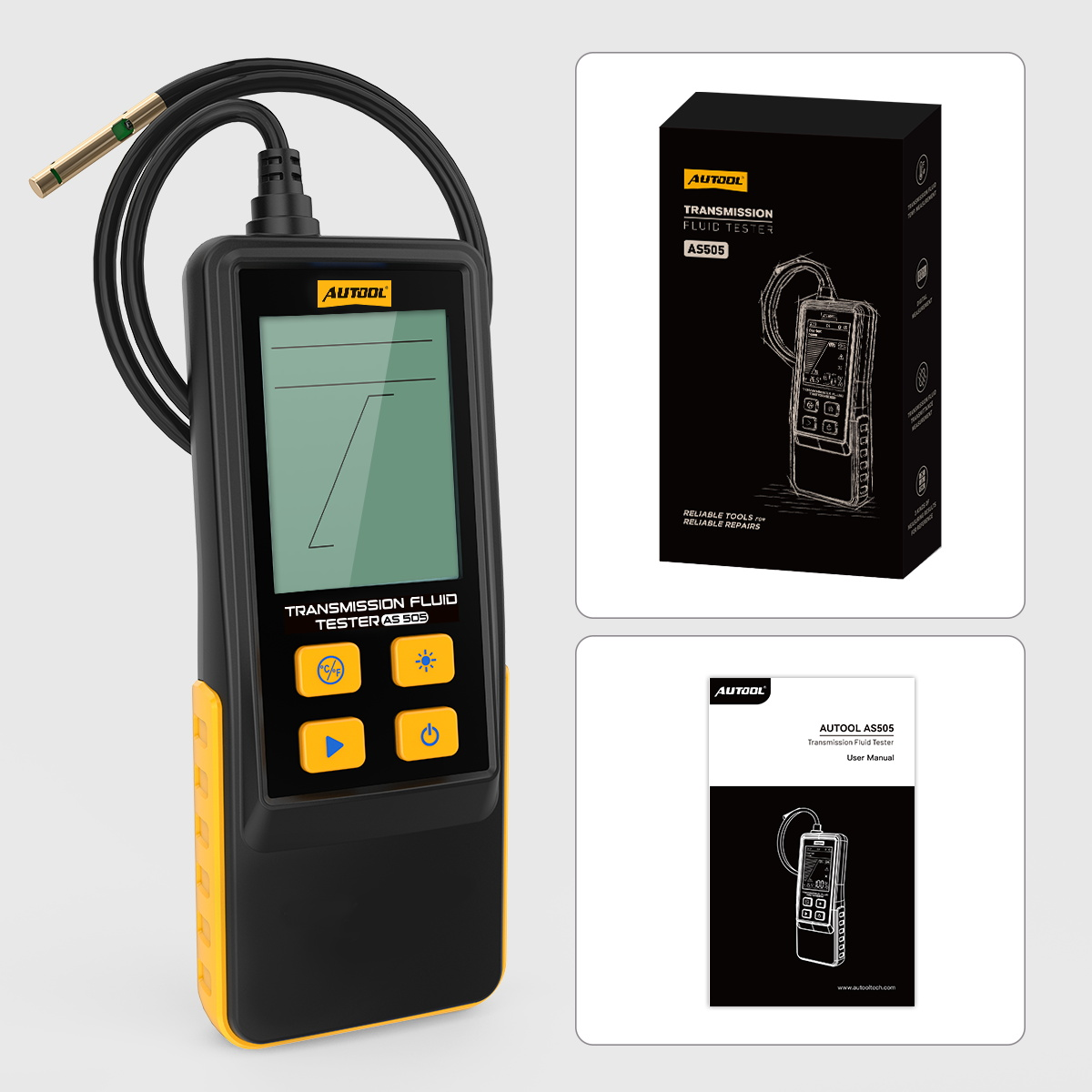

What Is In The Box
What Is In The Box
The package image shows the AS505 main unit, retail box, and user manual. Refer to the final package image and actual shipment for included items.
Main UnitAUTOOL AS505 transmission fluid tester with integrated 800mm probe
Retail BoxAUTOOL AS505 product package box shown in the package image
User ManualAUTOOL AS505 user manual for setup, display, battery installation, operation, and warranty information
Package NoteAccessories shown in the package image. Batteries are not listed in the package image, so prepare 4 × 1.5V AAA batteries if needed.
Manual And Downloads
Manual And Downloads
Download the AS505 manual for product structure, display description, battery installation, operating instructions, result interpretation, and warranty information.
Click to enlarge

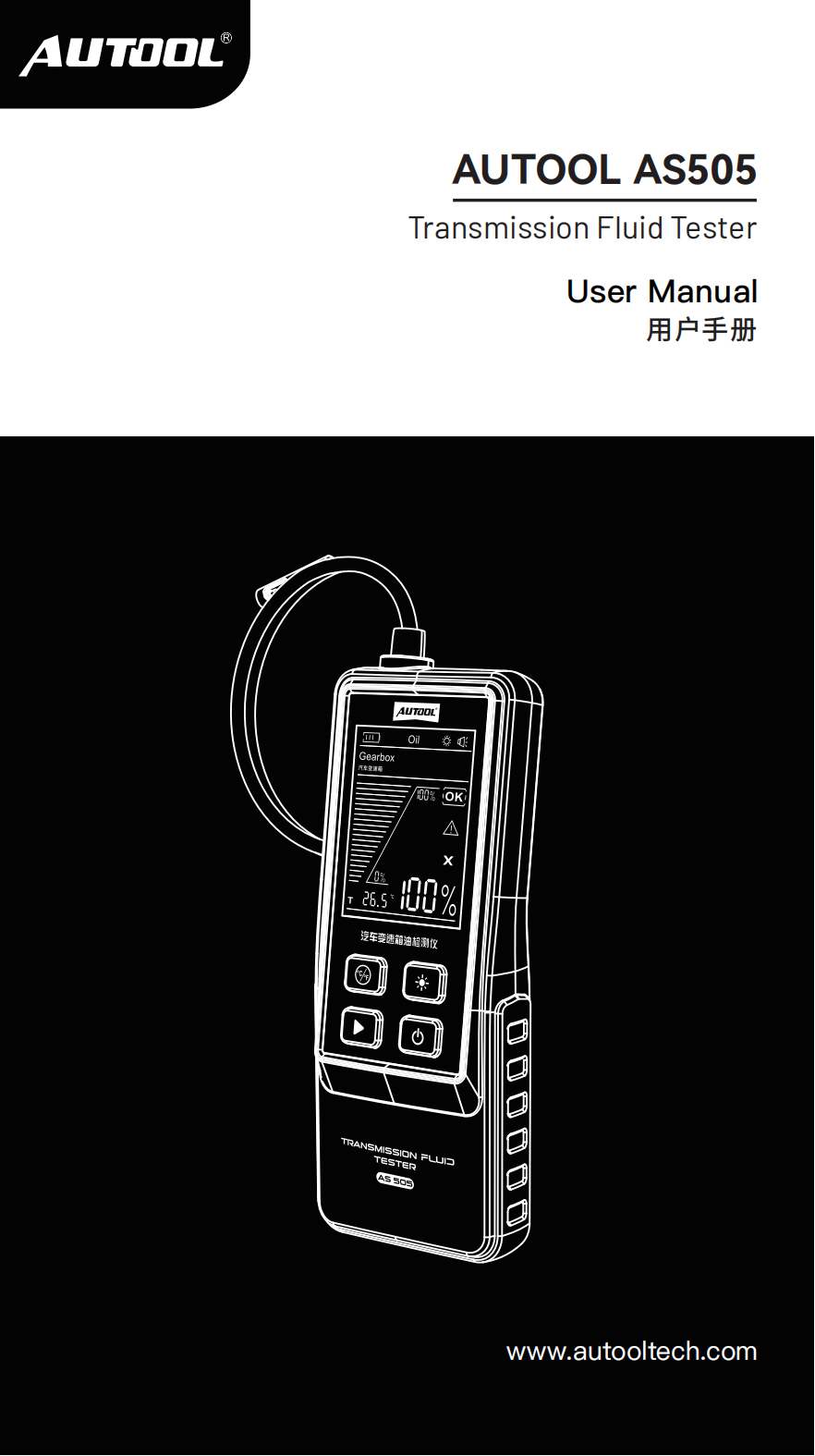

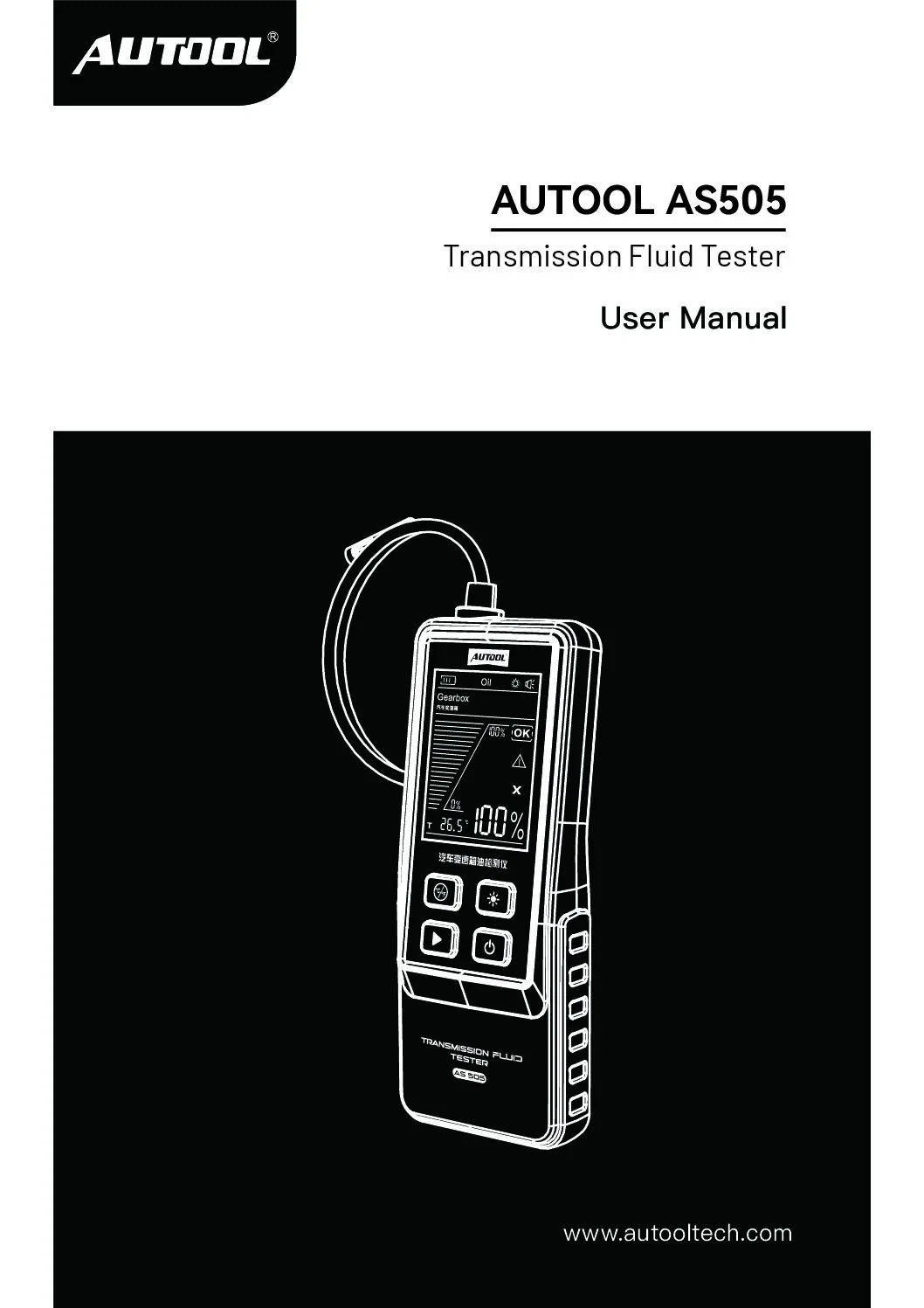

AUTOOL AS505 User Manual
Open the PDF manual for AS505 setup, battery installation, interface display, operation, transmittance result reading, and warranty guidance.
Contact AUTOOL Store before ordering if you need to confirm whether AS505 is suitable for your transmission fluid testing, probe use, temperature reading, result interpretation, or AS series model selection.
Compare related AUTOOL oil and fluid testers for brake fluid water content, engine oil quality, transmission fluid transmittance, brake fluid boiling point, and power steering fluid transmittance.
Select options
This product has multiple variants. The options may be chosen on the product page
Select options
This product has multiple variants. The options may be chosen on the product page
Questions And Answers
These answers cover AS505 test purpose, transmission fluid use, result reading, operating steps, temperature limits, power supply, package contents, model selection, and warranty support.
AS505 tests automotive transmission fluid transmittance and displays transmission fluid temperature. It helps users assess fluid clarity, possible contamination, deposits, and whether service attention may be needed.
AS505 is a transmission fluid tester. It is used to check transmission fluid transmittance and temperature. It does not exchange, flush, drain, or refill transmission fluid.
It is recommended to test transmission fluid once every 5,000-10,000 km. Testing frequency can also depend on vehicle mileage, driving conditions, transmission behavior, and maintenance schedule.
Install batteries, power on the tester, wipe the probe clean, confirm the engine temperature is below 60°C, submerge the probe into transmission fluid, press the test button, and read the transmittance and temperature result on the LCD.
OK indicates transmittance is between 100% and 50%. Warning indicates transmittance is between 50% and 30%. Suggested replacement appears when transmittance is below 30%. Use these results as a service reference together with vehicle condition and workshop judgment.
AS505 is designed for automotive transmission fluid testing. For engine oil transmittance, choose AS503. For brake fluid water content, choose AS501 or AS502. For brake fluid boiling point, choose AS506. For power steering fluid transmittance, choose AS507.
The tester operating temperature is -10°C-60°C. The transmission fluid temperature display supports 0-85°C / 0-185°F. Before measurement, the engine temperature should be below 60°C.
AS505 uses 6V power from 4 × 1.5V batteries. Open the rear battery cover, install the batteries with correct polarity, and close the cover securely before use.
The packing list image shows the AS505 main unit, retail box, and user manual. The built-in probe is attached to the tester. Refer to the package image and actual shipment for final package contents.
The optical probe reads fluid transmittance. Oil residue, dirt, or contamination left on the probe may affect measurement feedback, so the probe should be wiped clean before each measurement.
AUTOOL provides 3-year support for the AS505 main unit under eligible non-human damage conditions. Accessories may have separate warranty coverage according to the manual and after-sales policy. Contact AUTOOL Store for warranty, replacement parts, and lifetime maintenance support.
Contact AUTOOL Store if you need help with AS505 setup, transmission fluid testing, result interpretation, package confirmation, or choosing between AS502, AS503, AS505, AS506, and AS507.
Warranty And Contact
Warranty And Contact
For AS505 transmission fluid testing, probe cleaning, battery setup, display reading, package confirmation, AS series model selection, or warranty support, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming whether AS505 fits your transmission fluid testing needs, how to interpret transmittance results, how to use the 800mm probe, or which AUTOOL oil and fluid analyzer model to choose.
AS505 transmission fluid transmittance and temperature testing support
Probe cleaning, battery installation, and operating step confirmation
Display reading explanation for OK, warning, and suggested replacement indicators
