AUTOOL BT460 Car Battery Load Tester for 12V 24V

(26 customer reviews)

US$69.99

Key Features
  • 12V/24V Support
  • Max Load Test
  • Built-In Printer
Key Features
☰ REQUEST BULK / B2B QUOTERequest B2B Quote
Secure checkoutFast supportBulk ready
AUTOOL BT460

Product Overview

The AUTOOL BT460 battery system tester helps check lead-acid battery health, cold cranking capability, cranking performance, charging system status, and maximum load behavior for cars, motorcycles, vans, trucks, and workshop battery service. It supports 12V / 24V rated battery systems, 8–30V voltage testing, common global test standards, a 2.8-inch color screen, 14 languages, reverse polarity protection, and Type-C software upgrade.

Battery Test Cranking Test Charging Test Maximum Load Test
12V / 24VRated Battery
8–30VVoltage Range
30–2000 CCACCA Range
3 YearsWarranty Support
AUTOOL BT460 battery system tester main feature image for battery cranking charging load testing reverse polarity protection and HD color screen Click to enlarge

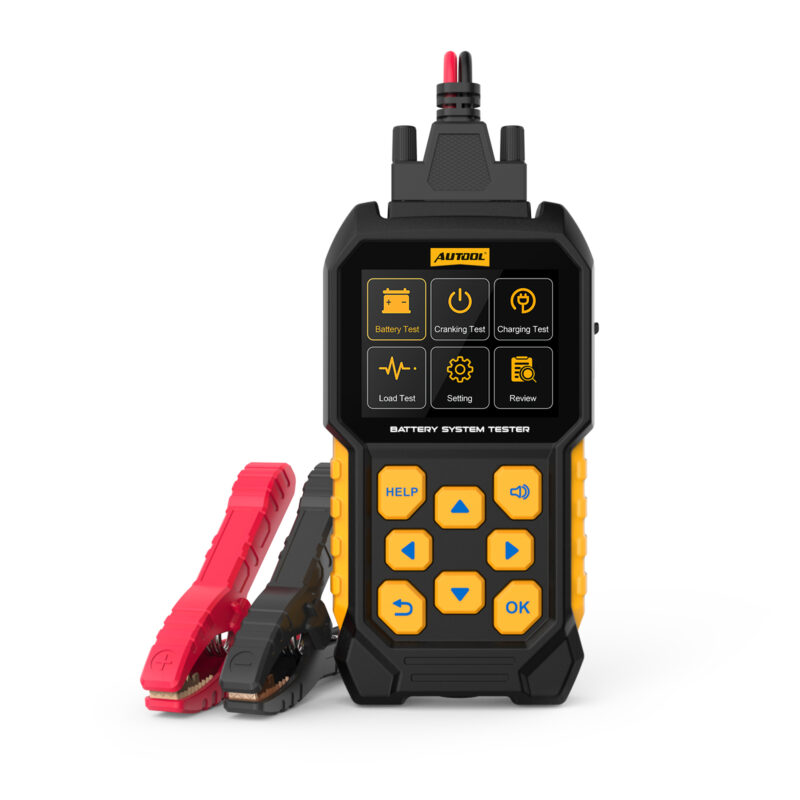

AUTOOL BT460 battery system tester front view with red and black battery clamps Click to enlarge
Before You Order And Use

Before You Order And Use

Review the version notice, printing-function limitation, battery compatibility, voltage rules, clamp connection, and basic safety requirements before ordering or using the BT460 battery tester.

New And Old Versions Shipped Randomly

New and old versions of this product may be shipped randomly. Appearance, packaging, button layout, interface style, or accessory details may vary by batch.

Confirm Printing Before Ordering

Current BT-series comparison information marks BT460 data printing as not supported, while some manual text may contain printer-related wording. If printing is required, confirm the exact version before ordering.

Lead-Acid Battery Tester

BT460 is intended for common automotive cranking lead-acid batteries, including Regular Flooded, AGM Flat Plate, AGM Spiral, GEL, and EFB batteries.

Not For Lithium Batteries

Do not describe BT460 as a lithium battery tester. The comparison chart shows lithium battery support only on BT960.

Not A Battery Charger

BT460 is a battery and charging-system tester, not a charger or repair power supply. The comparison chart marks Battery Charge as not supported for BT460.

Clamp Connection Matters

Connect the red clamp to the positive pole and the black clamp to the negative pole. Shake the clamps slightly to make sure they are firmly connected before testing.

Low Voltage Retest Reminder

If battery voltage is too low, the tester may not complete a normal judgment and may prompt a charge or retest workflow. Charge the battery when needed before testing again.

High Voltage Reminder

If the vehicle is running or the voltage is too high during the wrong test stage, stop the engine and follow the on-screen prompt before continuing.

Keep The Tester Protected

Do not disassemble the tester, immerse it in water, bend or over-stretch the wires, expose it to high temperature, or use it as a toy for children.

Compatibility And Fitment

Compatibility And Fitment

BT460 is suitable for 12V / 24V rated lead-acid battery systems used in cars, vans, trucks, motorcycles, and similar vehicles. It helps users select the correct battery type, test standard, and test range before running the battery analysis.

Supported Battery Types

Regular Flooded, AGM Flat Plate, AGM Spiral, GEL, and EFB lead-acid batteries.

Supported Vehicles

Suitable for battery testing on cars, vans, trucks, motorcycles, and other vehicles that use compatible lead-acid batteries.

Common Test Standards

Supports CCA, IEC, EN, DIN, JIS, GB, and other common battery measurement standards used worldwide.

12V / 24V Rated Batteries

Applicable battery rated voltage is 12V / 24V, with an 8–30V voltage measurement range.

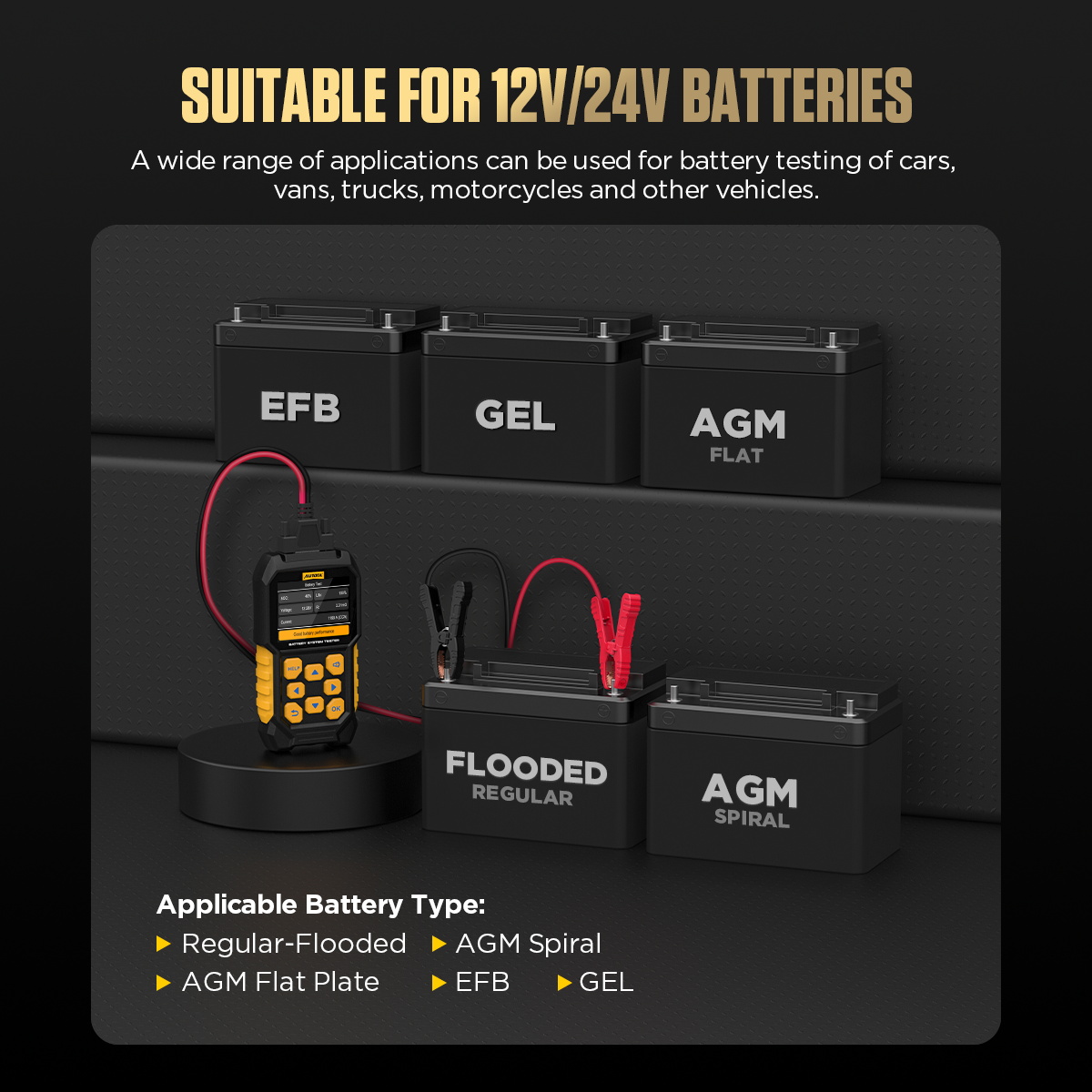

AUTOOL BT460 supported 12V 24V battery types including Regular Flooded AGM Flat AGM Spiral EFB and GEL Click to enlarge
Key Features

Key Features

BT460 combines battery health analysis, starting-system testing, charging-system testing, load testing, multi-standard battery selection, protection functions, data review, and Type-C software upgrade in one compact tester.

Battery Health Test

Analyzes battery health, state of charge, internal resistance, voltage, cold cranking ability, and aging condition to help determine whether the battery should be serviced or replaced.

Cranking Test

Helps evaluate starting motor performance by checking cranking voltage and cranking current while following the on-screen engine-start prompt.

Charging System Test

Checks the charging system, including generator output, rectifier status, diode behavior, and charging voltage condition to help identify overcharge or incomplete-charge risks.

Maximum Load Test

Helps observe battery voltage behavior under vehicle electrical load by turning on electrical appliances and following the tester prompt.

Multiple Data Tests

Supports voltage, current, resistance, state of health, state of charge, ripple analysis, cranking, charging, and load-related test data.

2.8-Inch HD Color Screen

The color display presents menus and measurement results clearly, making the tester easier to read in daily service environments.

14 Languages

Supports English, Spanish, German, French, Italian, Portuguese, Chinese, Polish, Turkish, Russian, Japanese, Traditional Chinese, Thai, and Korean. Contact support for special language needs.

Reverse Polarity Protection

Reverse polarity protection helps prevent tester, battery, and vehicle damage if the positive and negative clamps are connected incorrectly.

Type-C Software Upgrade

Connect the tester to a computer with a USB data cable through the Type-C interface for software upgrade when available.

Data Review

The Review menu helps users check saved or recent test information when supported by the current software version.

Power-Shortage Battery Handling

BT460 can help test batteries with insufficient power under proper voltage conditions, but extremely low voltage may still require charging before a reliable judgment.

3-Year Support

AUTOOL provides up to 3 years of support for eligible non-human damage cases, with parts or service assistance according to policy.

AUTOOL BT460 multiple data tests for voltage current resistance state of health state of charge ripple cranking charging and load test Click to enlarge

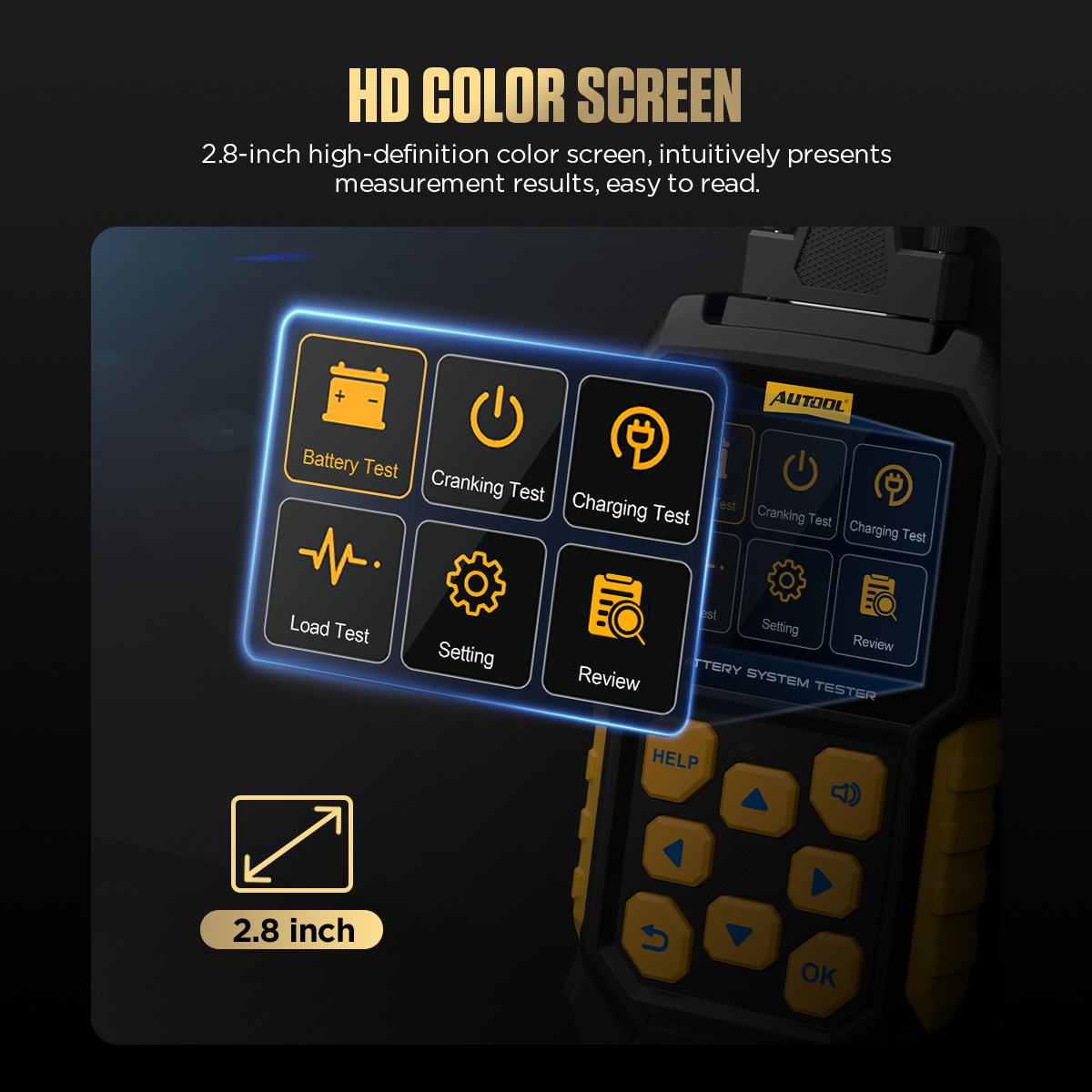

AUTOOL BT460 2.8 inch HD color screen feature Click to enlarge
AUTOOL BT460 14 language settings including English Spanish French German Italian Russian Portuguese Turkish Thai Japanese Korean Polish and Chinese Click to enlarge

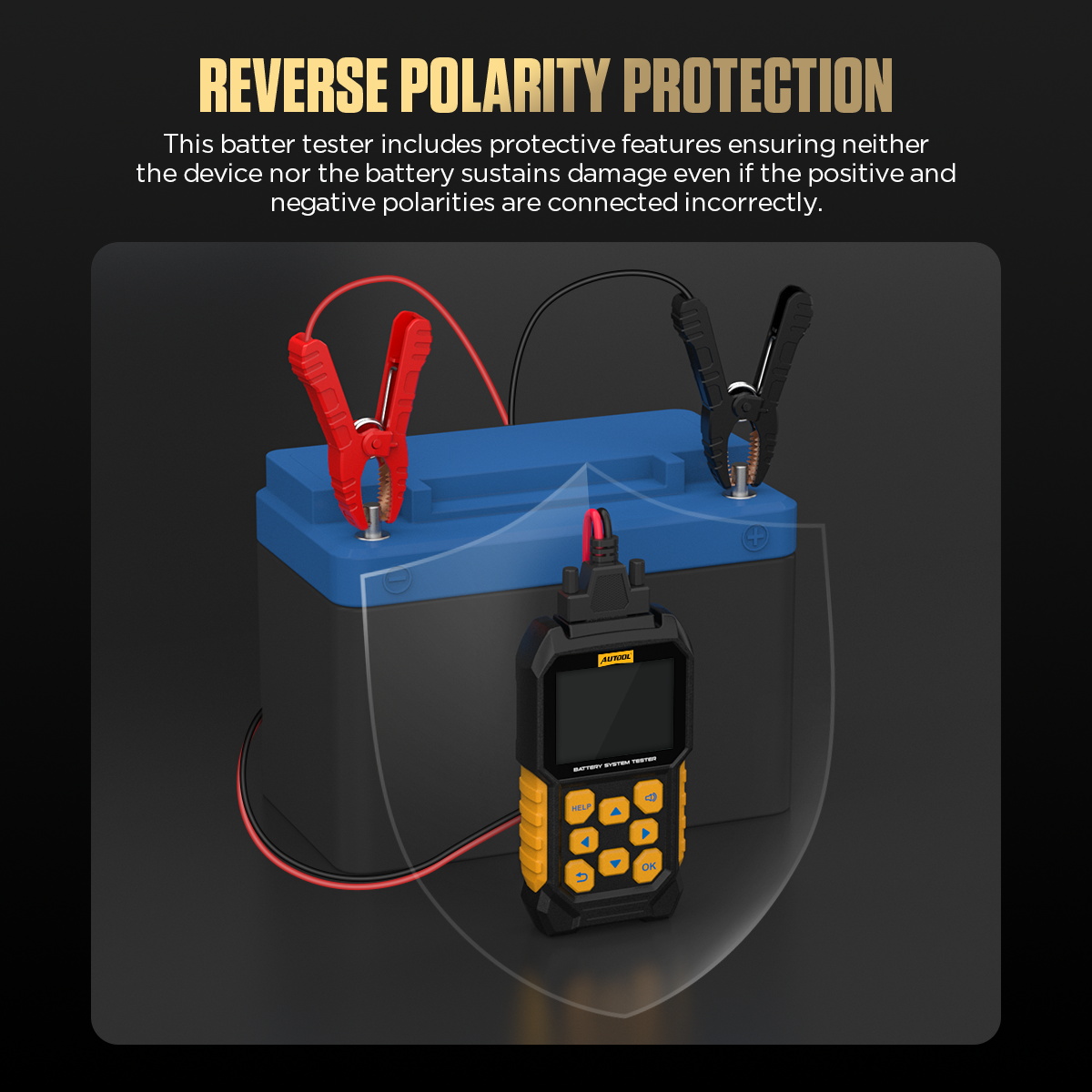

AUTOOL BT460 reverse polarity protection battery clamp safety image Click to enlarge

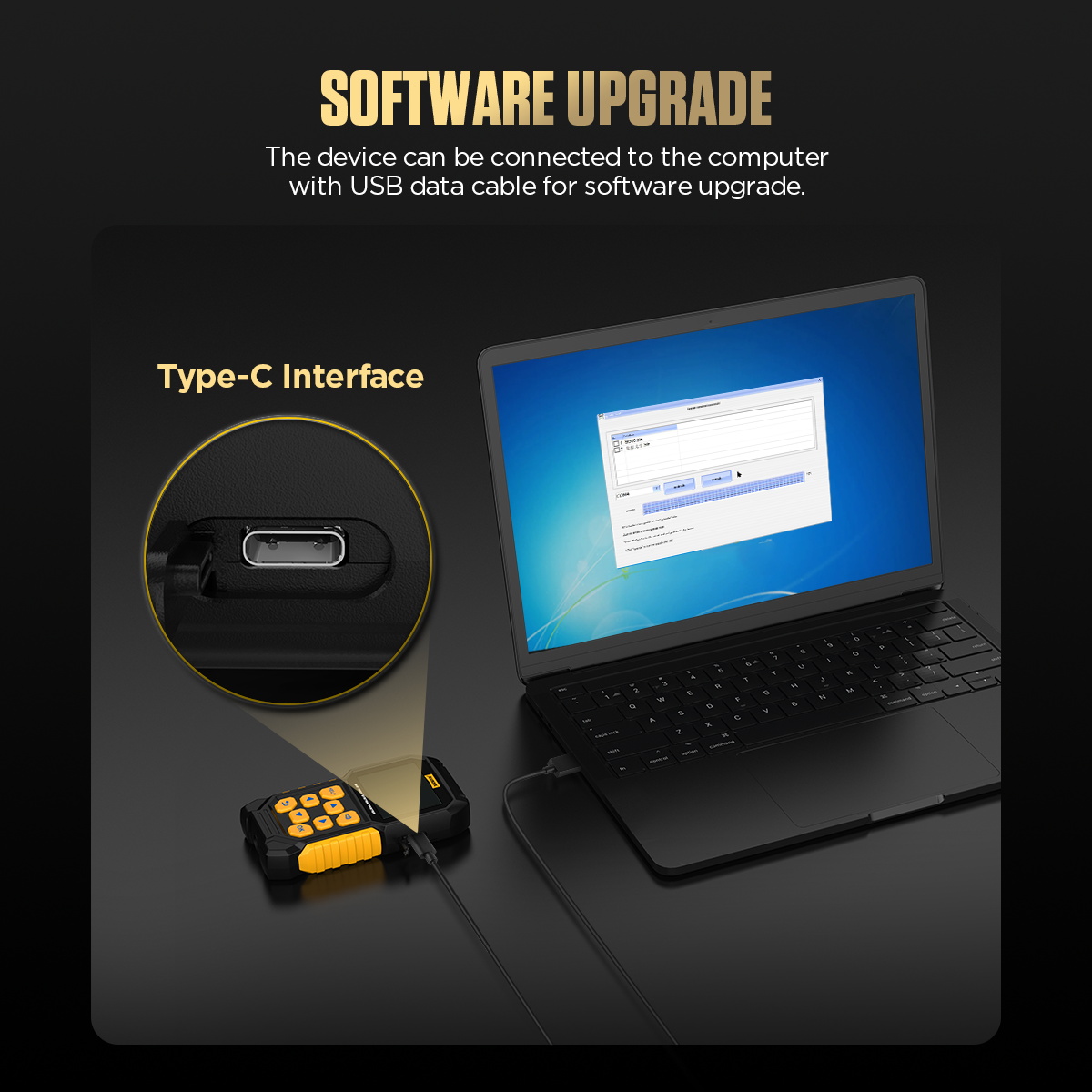

AUTOOL BT460 Type-C software upgrade with computer USB cable Click to enlarge
Applications

Applications

BT460 is suitable for routine battery diagnosis, workshop troubleshooting, battery service counters, and training scenarios where users need a fast battery and vehicle charging-system check.

Car Owners

Use BT460 for daily battery condition checks before long trips, seasonal maintenance, or battery replacement decisions.

Repair Workshops

Quickly check customer battery health, starting performance, charging output, and load behavior during service intake.

Battery Stores

Use battery test results to support battery sales, warranty evaluation, and replacement recommendations.

Training And Education

Suitable for teaching basic battery condition judgment, cranking test logic, and charging-system diagnosis.

Specifications

AUTOOL BT460 Product Specifications

BT460 supports 12V / 24V rated battery systems, 8–30V voltage measurement, 15mA–5A current measurement, multiple global battery test standards, and a compact tester body with Type-C interface.

Core Specifications
ProductAUTOOL BT460 Battery System Tester
Applicable Battery Rated Voltage12V / 24V
Voltage Measurement Range8–30V
Current Measurement Range15mA–5A
Operating Temperature-20°C–50°C (-4°F–122°F)
Screen2.8-inch HD color screen
InterfaceType-C interface
Product Size152 × 82 × 30mm / 5.98 × 3.22 × 1.18in
Measurement Standards And Ranges
CCA30–2000
IEC30–2500
EN30–3000
DIN30–2500
JIS26A17R–N135
GB30–300AH
Supported Battery Types
Regular FloodedSupported
AGM Flat PlateSupported
AGM SpiralSupported
GELSupported
EFBSupported
Lithium BatteryNot supported on BT460
Product Structure
Display ScreenColor screen for test menus and results
Electric ClampsRed and black battery clamps
ButtonsHelp, sound, direction, OK confirm, and return buttons
Software UpgradeType-C computer connection for software upgrade

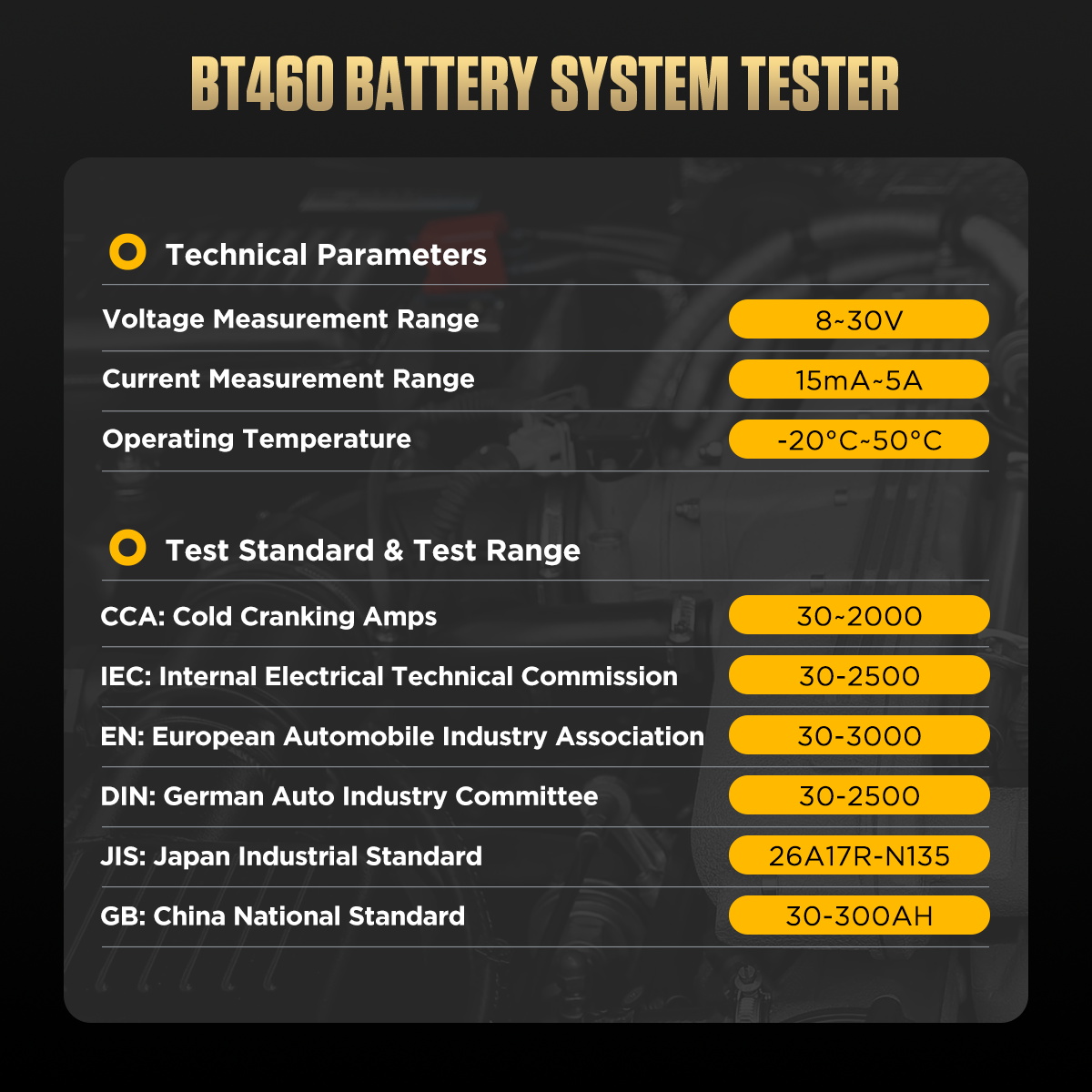

AUTOOL BT460 technical parameters and test standards including voltage current operating temperature CCA IEC EN DIN JIS and GB Click to enlarge

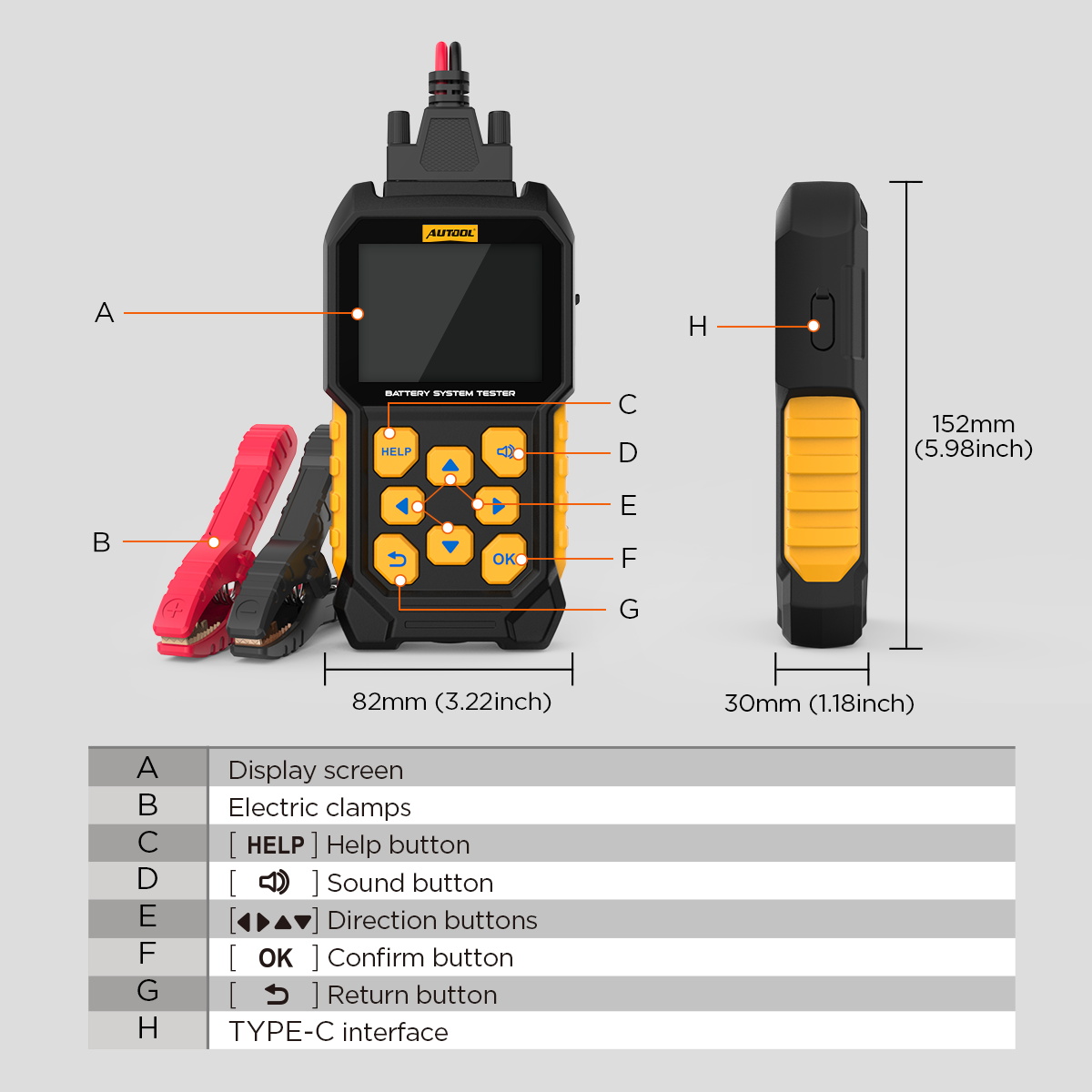

AUTOOL BT460 product structure dimensions display screen electric clamps buttons and Type-C interface Click to enlarge
Core Specifications
ProductAUTOOL BT460 Battery System Tester
Applicable Battery Rated Voltage12V / 24V
Voltage Measurement Range8–30V
Current Measurement Range15mA–5A
Operating Temperature-20°C–50°C (-4°F–122°F)
Screen2.8-inch HD color screen
InterfaceType-C interface
Product Size152 × 82 × 30mm / 5.98 × 3.22 × 1.18in
Measurement Standards And Ranges
CCA30–2000
IEC30–2500
EN30–3000
DIN30–2500
JIS26A17R–N135
GB30–300AH
Supported Battery Types
Regular FloodedSupported
AGM Flat PlateSupported
AGM SpiralSupported
GELSupported
EFBSupported
Lithium BatteryNot supported on BT460
Product Structure
Display ScreenColor screen for test menus and results
Electric ClampsRed and black battery clamps
ButtonsHelp, sound, direction, OK confirm, and return buttons
Software UpgradeType-C computer connection for software upgrade
How To Use

How To Use

Connect the clamps securely, select the correct battery type and test standard, then follow the on-screen prompts for battery, cranking, charging, and maximum load tests.

Connect The Clamps

Connect the red clamp to the positive battery pole and the black clamp to the negative pole. Shake the clamps slightly to confirm a firm connection before testing.

Select Battery Test

Choose the battery type, test standard, and test range according to the battery label. The tester will provide results within a few seconds under normal conditions.

Run Cranking Test

Enter the Cranking Test function and follow the prompt to start the engine. The tester checks the starting motor through cranking voltage and current behavior.

Run Charging Test

Enter Charging Test, follow the prompt to increase engine speed to about 2500 RPM for 5 seconds, then press OK to complete the test.

Run Maximum Load Test

Select Max Load Test, turn on the vehicle electrical appliances, start the engine as instructed, then press OK to observe battery behavior under load.

Use Notes

  • Select the language from the Language menu before testing if needed.
  • Loose clamp contact may stop the test or cause unreliable results.
  • For a basic battery test, follow the tester prompt and avoid testing at the wrong engine state.
  • For charging tests, follow the 2500 RPM prompt and do not skip the on-screen instructions.
  • If the battery voltage is too low, charge the battery first when the tester prompts charge or retest.
  • BT460 is a tester, not a battery charger, repair mode power supply, or lithium battery analyzer.

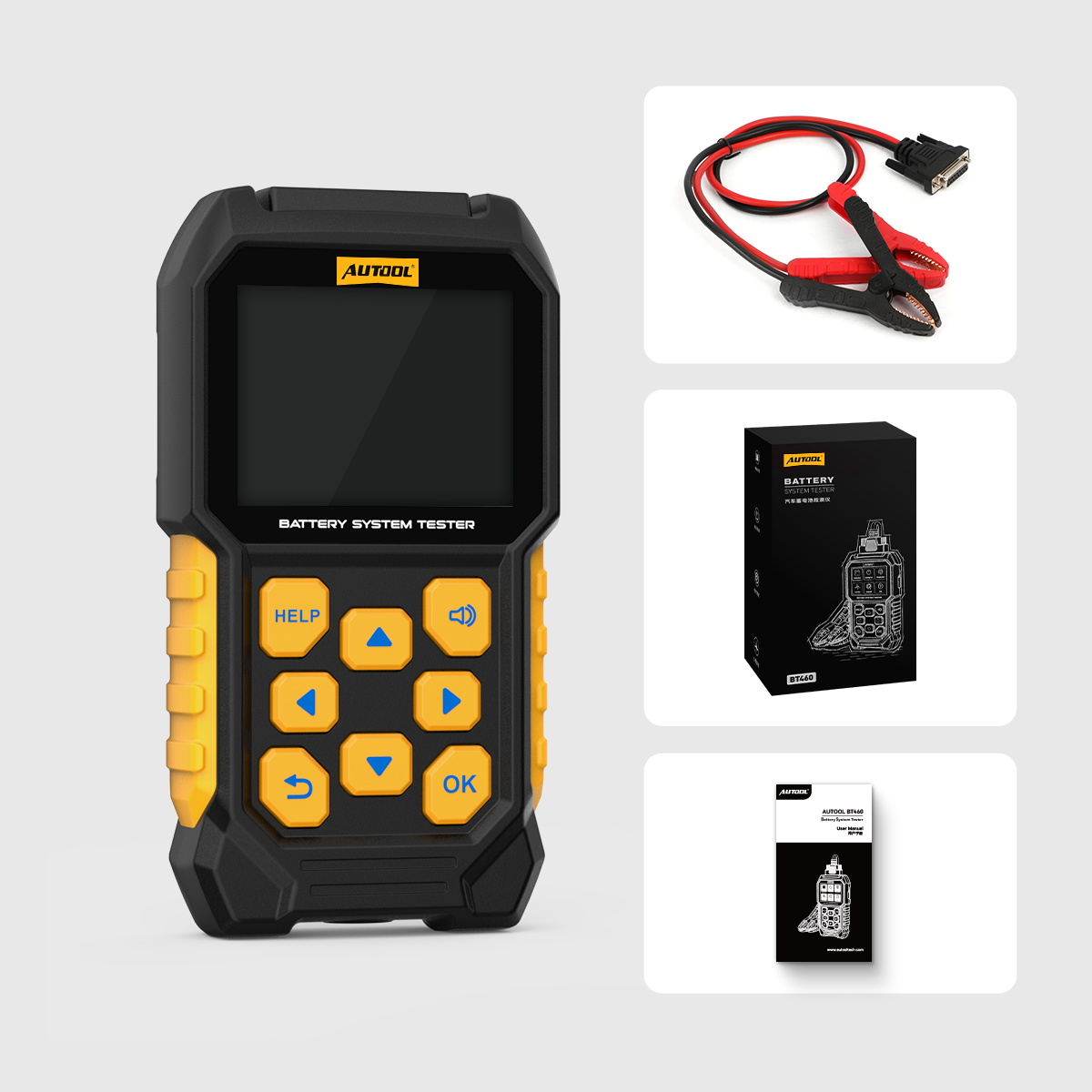

AUTOOL BT460 packing list showing battery tester main unit battery clamp cable user manual and retail box Click to enlarge
What Is In The Box

What Is In The Box

The package image shows the BT460 main unit, battery clamp cable, user manual, and retail box. New and old versions may be shipped randomly, so accessory appearance may vary slightly by batch.

Main UnitAUTOOL BT460 battery system tester
Clamp CableRed and black battery clamp cable shown in the package image
DocumentationUser manual
PackagingBT460 retail box
Version NoticeNew and old versions are shipped randomly; final appearance follows the received product
Product Comparison

Product Comparison

Compare BT360, BT460, BT760, BT880, and BT960 before choosing. BT460 sits above BT360 by adding maximum load testing and a 2.8-inch screen, but it does not include data printing, thermal monitoring, leakage current monitoring, battery charging, or lithium battery support.

BT360Entry model with battery test, cranking test, charging system test, reverse polarity protection, data records, software upgrade, 2.4-inch color screen, 14 languages, 12V / 24V rated battery support, and 8–29V voltage range. It does not support maximum load test.
BT460Adds maximum load test, 2.8-inch screen, 12V / 24V rated battery support, 8–30V voltage range, 30–2000 CCA range, and 14 languages. It does not support data printing, thermal monitoring, leakage current monitoring, lithium battery testing, or battery charging.
BT760Adds data printing and a 3.2-inch screen while keeping battery, cranking, charging, maximum load, data records, software upgrade, and conventional lead-acid battery support.
BT880Adds thermal monitor, leakage current monitoring, data printing, 18 languages, 3.2-inch screen, and 8–30V voltage range. It still does not support lithium batteries.
BT960Adds lithium battery support, thermal monitor, leakage current monitoring, data printing, 0–80V voltage test range, and a dry-cell battery Type-C power supply option in addition to 12V battery connection.
Decision CheckChoose by maximum load test, screen size, printing, lithium battery support, leakage current monitoring, thermal monitoring, voltage range, and language needs.
AUTOOL BT360 BT460 BT760 BT880 BT960 battery system tester comparison chart Click to enlarge
Related Products

Related Products

Compare related AUTOOL battery tester models before choosing the right screen size, maximum load test, printing function, leakage current monitoring, thermal monitoring, and lithium battery support.

Manual And Downloads

Manual And Downloads

Download the BT460 manual for product overview, product parameters, structure diagram, clamp connection, language selection, battery test, cranking test, charging test, load test, maintenance service, and warranty information.

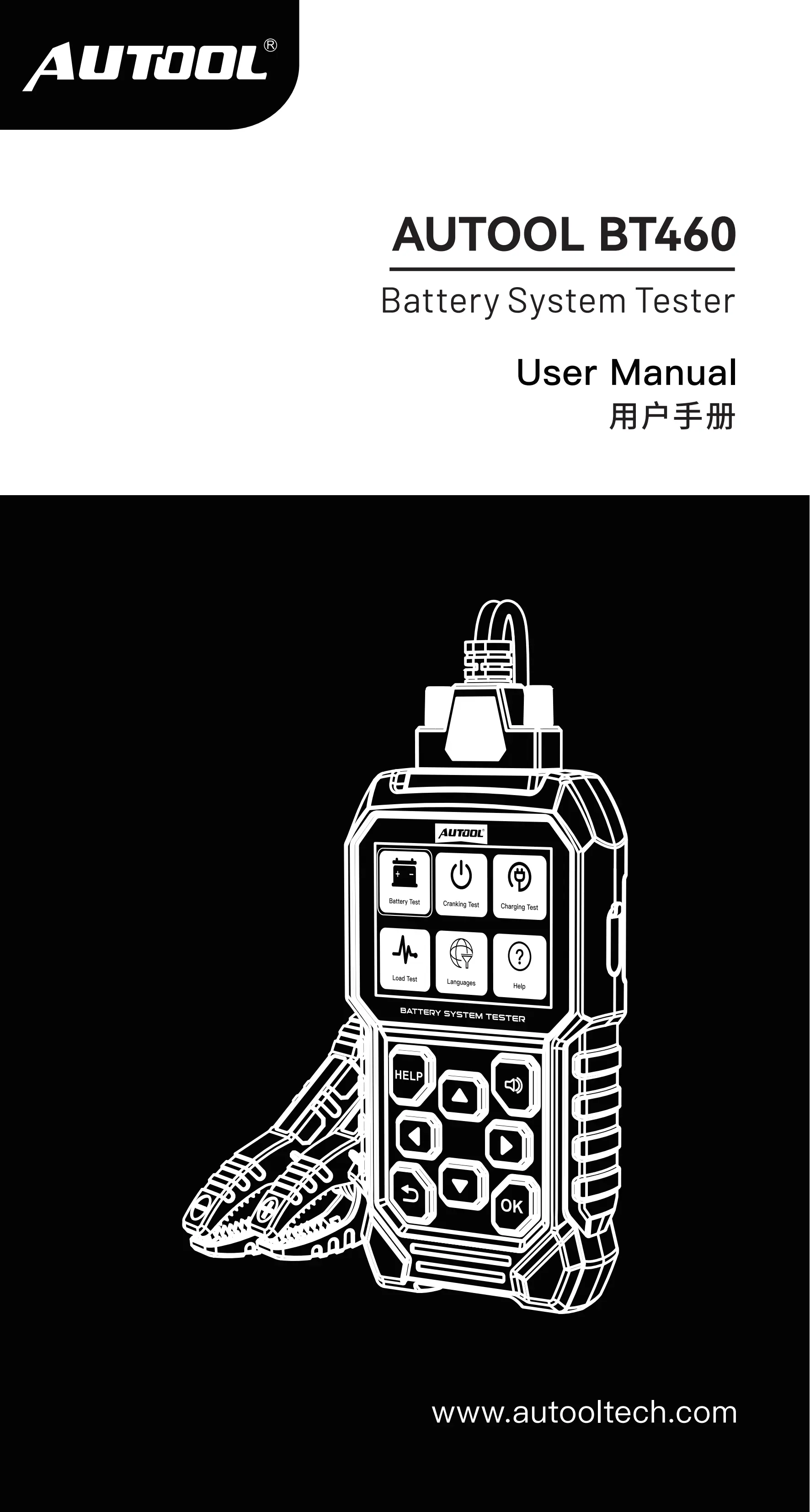

AUTOOL BT460 Battery System Tester Manual preview Click to enlarge

AUTOOL BT460 Battery System Tester Manual

Open the official BT460 PDF manual for setup and operation guidance. The manual preview image from the old content is not used here because the supplied preview image belongs to another BT model.

Download Manual

Need Version Confirmation?

Contact AUTOOL Store before ordering if you need to confirm BT460 version, data printing, battery type support, package contents, software upgrade, 12V / 24V use, or the best BT-series model for your work.

Emailsupport@autoolstore.com WhatsApp+86 189 2647 7404

Questions And Answers

These answers cover 12V / 24V support, battery types, lithium battery limitations, data printing, model differences, charging-system testing, low-voltage prompts, package contents, language support, software upgrade, and warranty support.

Warranty And Contact

Warranty And Contact

For BT460 version confirmation, printing-function confirmation, battery type compatibility, test standard selection, software upgrade, packing list confirmation, troubleshooting, or BT-series model selection, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming whether BT460 is the right battery tester for your vehicle, workshop, battery service, or comparison with BT360, BT760, BT880, and BT960.

  • 3-year warranty support for eligible non-human damage cases
  • New and old version confirmation before ordering
  • Data printing and function confirmation
  • 12V / 24V lead-acid battery compatibility check
  • CCA / IEC / EN / DIN / JIS / GB test standard guidance
  • Software upgrade and Type-C interface support
  • Packing List and accessory confirmation
  • BT360 / BT460 / BT760 / BT880 / BT960 model selection
Email Supportsupport@autoolstore.com WhatsApp Support+86 189 2647 7404

Customer Reviews

  1. 5
    (26 customer reviews)
    100% of customers recommend this product.
    5 Stars100%4 Stars0%3 Stars0%2 Stars0%1 Star0%

  2. Marlon –

    Very satisfied

    0 of 0 found this review helpful

  3. Samson Crona –

    I am very satisfied

    0 of 0 found this review helpful

  4. Isabella Greenfelder –

    Good!?

    0 of 0 found this review helpful

  5. Samson Crona –

    Great shipping speed

    0 of 0 found this review helpful

  6. Rene Vasquez –

    Good qulity.

    0 of 0 found this review helpful

  7. Broderick Halvorson –

    All right

    0 of 0 found this review helpful

  8. Dena Effertz –

    qualitatively

    0 of 0 found this review helpful

  9. SanKraN –

    Quickly

    0 of 0 found this review helpful

  10. Keon Jacobson –

    very satisfied

    0 of 0 found this review helpful

  11. Patrick Wintheiser –

    All good!

    0 of 0 found this review helpful

  12. Eda Cummerata –

    good

    0 of 0 found this review helpful

  13. Edgar Naranjo-Vazquez –

    works

    0 of 0 found this review helpful

  14. Elroy Weber –

    Everything is fine

    0 of 0 found this review helpful

  15. Haleigh Deckow –

    quickly came

    0 of 0 found this review helpful

  16. Keely Nicolas –

    like it very much

    0 of 0 found this review helpful

  17. Naomie Witting –

    Thank you

    0 of 0 found this review helpful

  18. Gao xuhui –

    Very good

    0 of 0 found this review helpful

  19. Arantes –

    I like products with displays!

    0 of 0 found this review helpful

  20. Handsome Ge –

    Get it , it¡¯s simple and it works for personal use

    0 of 0 found this review helpful

  21. Harlan Fred –

    The Autool BT460 is a lightweight, compact auto battery tester. The unit quickly identified a failed battery in my wife’s SUV. I couldn’t test the battery under load, as the car would not crank. However, a new battery was tested as such, including a load test during cranking. This unit is lighter and smaller than many others as there is no load resistor in the unit. It relies upon the auto’s loads to test under usage. The tool features an easy-to-view display and intuitive button controls.

    0 of 0 found this review helpful

  22. Chapman Newton –

    This AUTOOL BT460 is really the most satisfying battery tester I have used so far! Support 12V and 24V, private cars at home and the company’s heavy trucks can be used, very practical. Large color screen display is clear, Chinese interface is simple to operate, a look will be, fast and accurate testing, can see the battery voltage, internal resistance, starting current, and other data.
    What’s more, it can also do the test of the starting system and the charging system, more comprehensive diagnosis. The workmanship is solid, and the wire is thick, not afraid of high current. Whether you use it for yourself, or it is a must-have for auto repair stores and truck fleets, it is a great value! Recommended!

    0 of 0 found this review helpful

  23. Bernard Moulton –

    When I attached it the first time it said my 5yr old lead acid battery had 30% SOC, which was news to me because it had been on a trickle charger all night. The unit is easy to use and tests for internal resistance, state of charge, the charging system, and the voltage drop while cranking. I like it!

    0 of 0 found this review helpful

  24. Bran D. –

    The product packaging was intact, all items were complete, and the delivery was very fast. If I have any other needs in the future, I will definitely choose to purchase from here again.

    0 of 0 found this review helpful

  25. James –

    This BT460 battery system tester perfectly meets my needs. It successfully diagnosed damaged batteries with low battery life and correctly diagnosed tested, good batteries. It can also diagnose starting and charging systems under load. I confirmed this with a 100-amp battery load tester.
    As a budding auto mechanic, I use it frequently in my shop with excellent results.
    I highly recommend this reliable, high-quality product.

    0 of 0 found this review helpful

  26. Harry E. –

    I used this battery tester immediately after receiving it. It met my expectations. It can test the health of the battery and also perform battery charging tests.Is a good product.

    0 of 0 found this review helpful

  27. surfsidebill –

    The AUTOOL BT460 is a very practical car battery tester. It supports multiple test modes, including battery health test and load test, and can comprehensively judge the battery’s usage status. The user interface is clear, with a large color screen, and the data is intuitive and easy to read.

    0 of 0 found this review helpful
Leave A Review

Your email address will not be published. Required fields are marked *

AUTOOL BT460 Car Battery Load Tester for 12V 24V
AUTOOL BT460 Car Battery Load Tester for 12V 24V

US$69.99

Add to cart This product has multiple variants. The options may be chosen on the product page
