AUTOOL ATL-4S Small Platform Scissor Car Lift Square Tube Type 4000KG
US$3,099.00
Key Features
- Hydraulic Safety System
- Adjustable Platform
- 24V Control Circuit
- Hydraulic Safety System: Hydraulic synchronization, locks, dual safety devices, and automatic unlocking are designed to keep lifting controlled.
- Adjustable Platform: The platform length adjusts to fit different vehicle sizes for more flexible workshop use.
- 24V Control Circuit: The low-voltage control circuit is positioned to improve day-to-day operating safety and reliability.
Secure checkoutFast supportBulk ready
AUTOOL ATL-4S
Product Overview

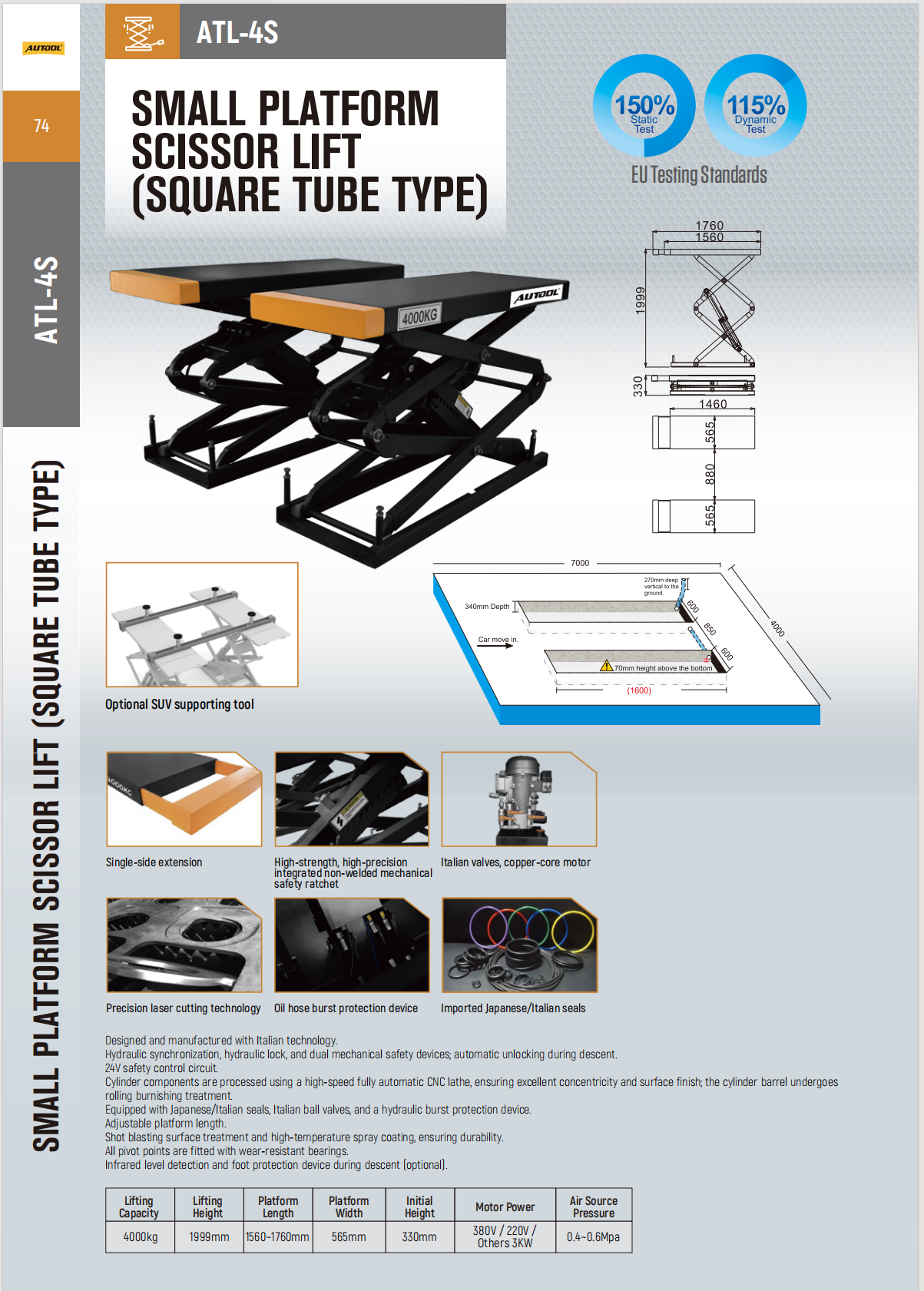

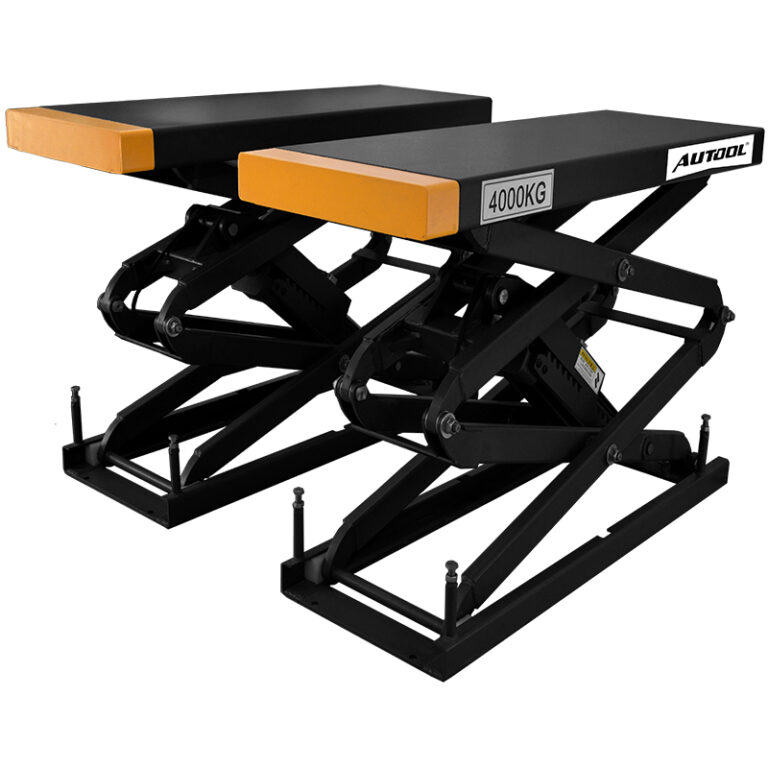

The AUTOOL ATL-4S Small Platform Scissor Car Lift is a 4000kg square tube type lift designed for automotive workshops. Built with Italian technology, hydraulic synchronization, dual mechanical safety devices, hydraulic locks, and a 24V safety control circuit, it delivers stable lifting, safer descent, and reliable vehicle maintenance support. The adjustable platform length helps accommodate different vehicle sizes, while premium seals, precision cylinder processing, and durable surface treatment improve long-term performance.
4000KG Capacity Hydraulic Synchronization 24V Safety Circuit Adjustable Platform
1999mmLifting Height
1560-1760mmPlatform Length
3kWMotor Power
0.4-0.6MPaAir Pressure
Click to enlargeKey Features
Key Features
ATL-4S combines Italian technology, hydraulic synchronization, precision cylinder processing, durable surface treatment, and multiple safety devices for reliable vehicle maintenance work.
Italian Technology Design
Designed with Italian technology for stable structure, reliable performance, and precise workshop lifting operation.
Hydraulic Synchronization And Safety
Hydraulic synchronization supports smooth lifting, while hydraulic locks, dual mechanical safety devices, and automatic unlocking during descent help prevent accidental movement.
24V Safety Control Circuit
The 24V control circuit helps reduce electrical hazards and improves operational safety during lifting and lowering.
Precision Cylinder And Durable Treatment
CNC-lathed cylinders provide high precision and smooth surface finish, while rolling burnishing improves wear resistance and service life.
Premium Hydraulic Components
Japanese and Italian seals support leak-proof operation, Italian ball valves improve hydraulic control, and the oil hose burst protection device adds extra safety.
Adjustable And Long-Life Structure
Adjustable platform length fits different vehicle sizes, while shot blasting, high-temperature spray coating, and wear-resistant bearings improve durability.
Specifications
ATL-4S Specifications
Confirm rated capacity, lifting range, platform size, motor configuration, air pressure, safety circuit, and optional accessories before ordering.
| Product Overview | |
| Product | AUTOOL ATL-4S Small Platform Scissor Car Lift |
| Type | Square tube type small platform scissor lift |
| Application | Automotive workshop vehicle maintenance and lifting support |
| Design | Italian technology design with hydraulic synchronization |
| Core Parameters | |
| Lifting Capacity | 4000kg |
| Lifting Height | 1999mm |
| Platform Length | 1560-1760mm adjustable platform length |
| Platform Width | 565mm |
| Initial Height | 330mm |
| Motor Power | 380V / 220V / others, 3kW |
| Air Source Pressure | 0.4-0.6MPa |
| Testing And Safety | |
| Static Test | 150% |
| Dynamic Test | 115% |
| Safety Circuit | 24V safety control circuit |
| Safety Devices | Hydraulic locks, dual mechanical safety devices, and automatic unlocking during descent |
| Oil Hose Protection | Oil hose burst protection device |
| Optional Accessories | |
| SUV Supporting Tool | Optional; confirm before ordering |
| Infrared Level Detection | Optional; improves lifting precision |
| Foot Protection Device | Optional; adds safety during descent |
Product Overview
ProductAUTOOL ATL-4S Small Platform Scissor Car Lift
TypeSquare tube type small platform scissor lift
ApplicationAutomotive workshop vehicle maintenance and lifting support
DesignItalian technology design with hydraulic synchronization
Core Parameters
Lifting Capacity4000kg
Lifting Height1999mm
Platform Length1560-1760mm adjustable platform length
Platform Width565mm
Initial Height330mm
Motor Power380V / 220V / others, 3kW
Air Source Pressure0.4-0.6MPa
Testing And Safety
Static Test150%
Dynamic Test115%
Safety Circuit24V safety control circuit
Safety DevicesHydraulic locks, dual mechanical safety devices, and automatic unlocking during descent
Oil Hose ProtectionOil hose burst protection device
Optional Accessories
SUV Supporting ToolOptional; confirm before ordering
Infrared Level DetectionOptional; improves lifting precision
Foot Protection DeviceOptional; adds safety during descent
Before You Order And Use
Before You Order And Use
ATL-4S uses hydraulic, mechanical, electrical, and optional foot protection to help support safer vehicle lifting and descent.
Hydraulic Lock
Hydraulic lock structure helps maintain stable position during lifting operation.
Dual Mechanical Safety
Dual mechanical safety devices help prevent accidental descent or unwanted movement.
Automatic Unlocking
Automatic unlocking during descent improves operating convenience and supports safer lowering workflow.
24V Low-Voltage Control
The 24V safety control circuit helps reduce electrical risk during workshop use.
Oil Hose Burst Protection
The oil hose burst protection device adds an additional safety layer in hydraulic operation.
Optional Foot Protection
The optional foot protection device helps reduce safety risks during descent.
Installation And Setup
Installation And Setup
Before ordering, confirm the workshop floor space, platform length, installation depth, lifting height, air supply, and power configuration. The product overview image includes key dimension references and installation layout information for ATL-4S.
Workshop Space
Confirm available installation space, vehicle access, lifting area clearance, and technician working space before ordering.
Power And Air Supply
Confirm whether 380V, 220V, or another 3kW motor configuration is required, and make sure 0.4-0.6MPa air source pressure is available.
Optional Accessory Check
Confirm whether the optional SUV supporting tool, infrared level detection, or foot protection device is required before placing an order.
Related Products
Related Products
Use these related AUTOOL lift products to build a more complete workshop workflow around ATL-4S.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATL-4S Small Platform Scissor Car Lift Square Tube Type 4000KG
From US$3,099.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATL-3.6SU Heavy-Duty Ultra-Low Small Platform Scissor Car Lift 3600KG
From US$3,899.00 AUTOOL ATL-4SH Four-wheel Alignment Twin Scissor Car Lift
US$5,199.00- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATL-4SHU Ultra-low Twin Scissor Lift for Wheel Alignment
From US$5,799.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATL-4D Two Post Car Lift 4000KG Load Capacity
From US$2,699.00
Related Guides
Related Guides
Use these related articles to compare lift structures, confirm installation requirements, and choose the right workshop lift setup.
A Worthwhile Investment for Auto Repair Shops — Car Lift Equipment
Review how lift equipment improves workflow, safety, and productivity in a professional auto repair shop.
[AUTOOL Full Series Car Lift Analysis] Which One Should You Choose?
Compare the AUTOOL car lift lineup and decide which configuration is suitable for your workshop tasks.
How to Pick the Safe and Right Lift for Your Garage
Use this garage-lift guide to match lift type, access height, and installation needs before ordering.
Smart Lift and Wheel Alignment Machines Selection for Your Shop
Pair lift equipment with alignment machines for a smoother workshop setup and better service flow.
What Is In The Box
What Is In The Box
The current content provides packing dimensions and weights. No dedicated Packing List image is available, so this section uses compact packing cards instead of reusing the product overview image.
Main & Auxiliary Units
Dimensions: 172 cm (L) × 64 cm (W) × 77 cm (H)
Weight: 685 kg
Electrical Control Box
Dimensions: 54 cm (L) × 47 cm (W) × 123 cm (H)
Weight: 77 kg
Accessories Box
Dimensions: 40 cm (L) × 40 cm (W) × 25 cm (H)
Weight: 13 kg
Before You Order And Use
Before You Order And Use
Confirm workshop installation conditions, power configuration, air pressure, optional accessories, rated capacity, and maintenance requirements before ordering.
Purchase, Installation And Operation Notes
- Confirm workshop floor space and installation dimensions before ordering.
- Confirm whether 380V, 220V, or another motor power configuration is required.
- Confirm air source pressure availability: 0.4-0.6MPa.
- Confirm whether the optional SUV supporting tool is required.
- Confirm whether optional infrared level detection is required.
- Confirm whether the optional foot protection device is required.
- Installation and operation should be performed by trained professionals.
- Do not exceed the 4000kg rated lifting capacity.
- Check hydraulic lines, seals, safety locks, and moving parts regularly.
- Keep the lifting area clear during lifting and descent.
Questions And Answers
These answers cover rated capacity, lifting height, platform size, power configuration, air pressure, safety locks, optional accessories, and packing information before ordering.
The AUTOOL ATL-4S has a rated lifting capacity of 4000kg.
The lifting height is 1999mm.
The platform length is adjustable from 1560mm to 1760mm, and the platform width is 565mm.
The product image lists 380V / 220V / others with 3kW motor power. Confirm the required power configuration before ordering.
The required air source pressure is 0.4-0.6MPa.
Yes. The lift includes hydraulic locks and dual mechanical safety devices, with automatic unlocking during descent.
Yes. ATL-4S uses a 24V safety control circuit to improve operational safety.
They are optional features. Confirm with AUTOOL Store before ordering if these functions are required.
The image lists the SUV supporting tool as optional. Confirm whether it is included or needs to be purchased separately before ordering.
The packing information includes main and auxiliary units, an electrical control box, and an accessories box, with separate dimensions and weights.
