AUTOOL ATL-3.6SU 3600 kg Low-Profile Full-Rise Scissor Car Lift
US$3,899.00
- 3,600 kg Low-Entry Lift
- 1,480–2,090 mm Extendable Platform
- Synchronized Hydraulic Safety
- 24 V Control Circuit
- 3,600 kg Low-Entry Lift: Lift rated loads up to 3,600 kg from a 110 mm initial height to a 1,880 mm lifting height.
- 1,480–2,090 mm Extendable Platform: Extend the platform from 1,480 to 2,090 mm to support a wider range of wheelbases.
- Synchronized Hydraulic Safety: Dual synchronized hydraulic systems work with hydraulic locks and three mechanical safety devices.
- 24 V Control Circuit: Operate lifting and lowering through a 24 V low-voltage control circuit.
- 3,600 kg Low-Entry Lift: Lift rated loads up to 3,600 kg from a 110 mm initial height to a 1,880 mm lifting height.
- 1,480–2,090 mm Extendable Platform: Extend the platform from 1,480 to 2,090 mm to support a wider range of wheelbases.
- Synchronized Hydraulic Safety: Dual synchronized hydraulic systems work with hydraulic locks and three mechanical safety devices.
- 24 V Control Circuit: Operate lifting and lowering through a 24 V low-voltage control circuit.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support

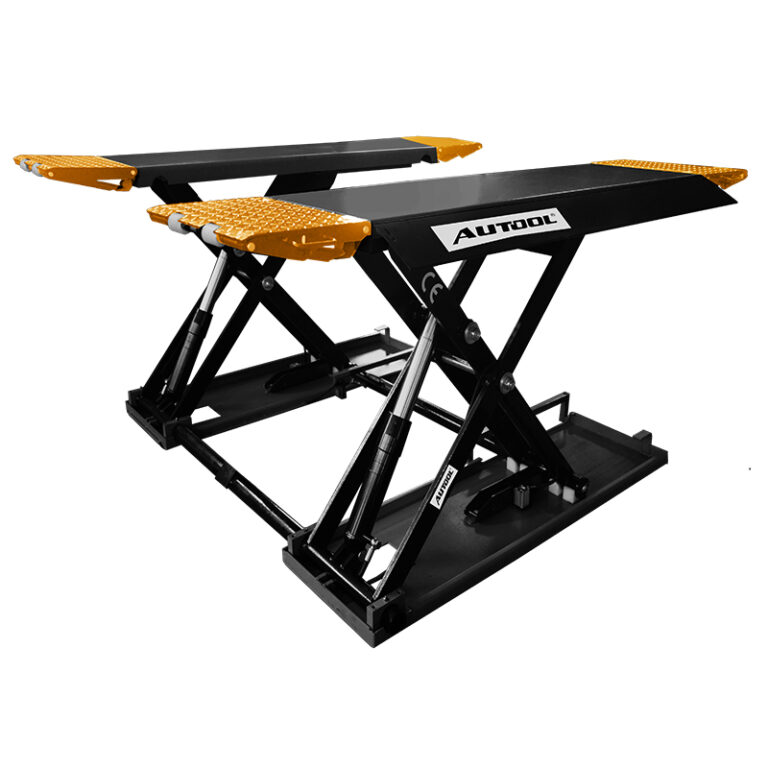

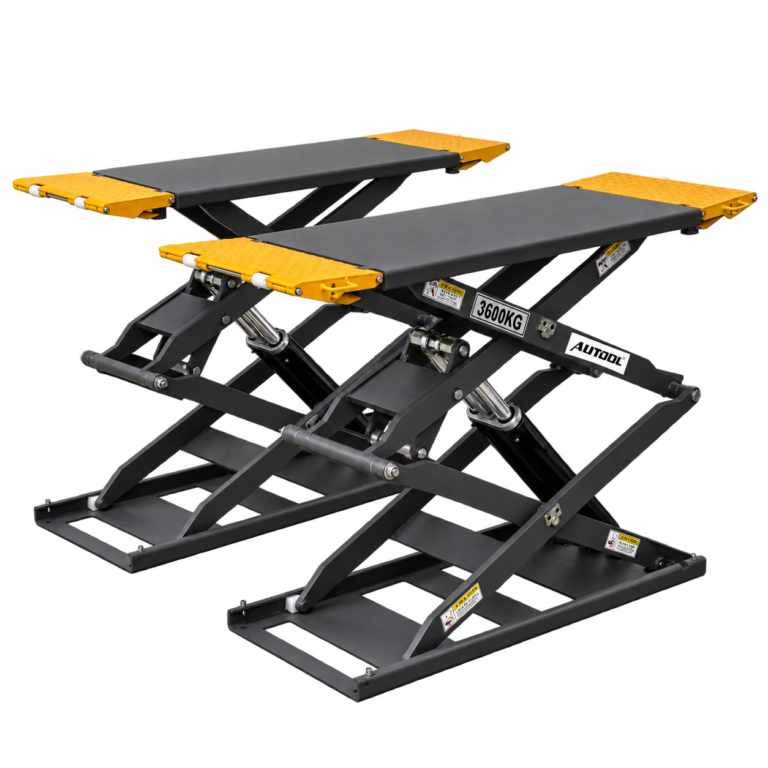

AUTOOL ATL-3.6SU · 3,600 kg Ultra-Low Scissor Lift
Reach Low-Chassis, Long-Wheelbase Vehicles
Reach low-chassis and long-wheelbase vehicles with a 110 mm entry height and expandable guide ramps. This 3,600 kg ultra-low scissor lift combines synchronized dual hydraulics with an alloy-steel X-frame for chassis inspection, tire and brake service, and underbody repair.
- 3,600 kg Rated Capacity
- 110 mm Entry Height
- 1,480–2,090 mm Platforms
- 1,880 mm Lift Height
- Synchronized Dual Hydraulics
Key Features
Pair 110 mm Entry with Extendable Ramps
110 mm Ultra-Low Entry
Only 110mm initial height makes the lift suitable for ultra-low chassis vehicles and easier vehicle access.
Italian Engineering
Advanced Italian design and craftsmanship help ensure superior performance, stable operation, and professional build quality.
Dual Synchronized Hydraulic Systems
Equipped with dual synchronized hydraulic systems, hydraulic locks, and triple mechanical safety devices. Automatic unlocking during descent enhances operational safety.
24V Safety Control Circuit
The 24V safety control circuit provides secure, reliable, and lower-risk operation in workshop environments.
Precision Hydraulic Cylinders
Hydraulic cylinders are manufactured with high-speed fully automatic CNC lathes. Cylinder barrels undergo rolling burnishing to improve durability, concentricity, sealing, and surface quality.
Premium Seals And Valves
Japanese / Italian seals, Italian ball valves, and a hydraulic burst protection device help improve hydraulic system reliability.
Laser And CNC Cutting Technology
Laser and CNC cutting technology ensures precise dimensions, smooth edges, and excellent surface finish for key structural parts.
Strong X-Frame Construction
The X-frame is made from premium alloy steel and laser-cut for high strength, corrosion resistance, and deformation resistance.
Expandable Guide Ramps
Expandable guide ramps fit a wider range of long-wheelbase vehicles and can also work as extension plates for improved vehicle support.
Durable Surface Treatment
Shot blasting and high-temperature powder coating provide corrosion resistance, surface durability, and longer service life.
Wear-Resistant Bearings
Wear-resistant bearings are installed on all pivot points to reduce friction and extend overall service life.
Optional Safety Features
Optional infrared leveling detection and foot protection devices during descent can be selected for enhanced operational safety.
Workshop Applications
The ATL-3.6SU car scissor lift combines a 110mm initial height and 3,600kg lifting capacity with synchronized hydraulic systems and expandable guide ramps.
Low Chassis Vehicles
The 110mm initial height helps low chassis vehicles access the lift more easily.
Long-Wheelbase Vehicles
Expandable guide ramps and 1480-2090mm platform length support a wider range of long-wheelbase vehicles.
Professional Car Workshops
3600kg lifting capacity, 1880mm lifting height, and strong X-frame construction make it suitable for frequent workshop use.
Inspection And Maintenance Work
Suitable for chassis inspection, tire service, brake system maintenance, underbody work, and general repair lifting operations.
3 Years Warranty Support
Main unit: 3-year warranty. Standard accessories: 1-year warranty. Warranty Policy.
How to Use
Position, Raise, Lock and Lower the Vehicle
Qualify the Installation Site
Before vehicle lift installation, confirm the lift drawing, concrete strength and thickness, anchors, ceiling and door clearance, power, air where required, and vehicle approach space.
Inspect Before Use
Check anchors, columns or platforms, arms, pads, hoses, cables, cylinders, locks and synchronization components before loading a vehicle.
Position the Vehicle
Center the vehicle within the model geometry and keep doors, tires and bodywork clear of columns, platforms and moving parts.
Set Approved Pickup Points
Use the vehicle manufacturer’s approved pickup points and match arm, pad, platform and extension placement to the actual wheelbase and load distribution.
Raise and Check Stability
Lift only enough to take the load, stop and verify all contact points and vehicle balance, then continue while watching both sides.
Engage and Verify Locks
Lower onto the mechanical locks and confirm both sides are engaged before anyone enters the work area below the vehicle.
Clear and Lower
Remove tools and people, raise enough to release the locks as designed, lower through the controlled descent and check the lift after the vehicle exits.
Safety & Compatibility
Qualify the Bay Before the First Lift
Stay Within the Rated Configuration
Do not exceed the model’s rated load, and do not assume the capacity alone proves fit for a particular vehicle or load distribution.
Use the Required Foundation
Install and anchor the lift only to the specified concrete foundation and layout; obtain the model installation drawing before site work.
Use Approved Vehicle Pickup Points
Match arms, pads or platforms to the vehicle manufacturer’s lift points and keep the vehicle balanced.
Keep Clear of Moving and Pinch Zones
Keep people, tools, hoses and body parts away from arms, platforms, locks, cables and scissor mechanisms during movement.
Verify Locks Before Working Below
Confirm the mechanical locks are fully and evenly engaged before entering beneath the raised vehicle.
Inspect Hydraulic and Synchronizing Parts
Stop use if hoses, cylinders, cables, chains, seals, anchors or synchronization behavior show damage, leakage or abnormal movement.
Confirm Optional Equipment
Infrared, foot, arm or other optional protection is present only when it is included in the ordered configuration.
Site and Power Check
Confirm workshop floor condition, installation space, and power supply before ordering.
Qualified Installation and Operation
Installation and operation should be handled by qualified personnel.

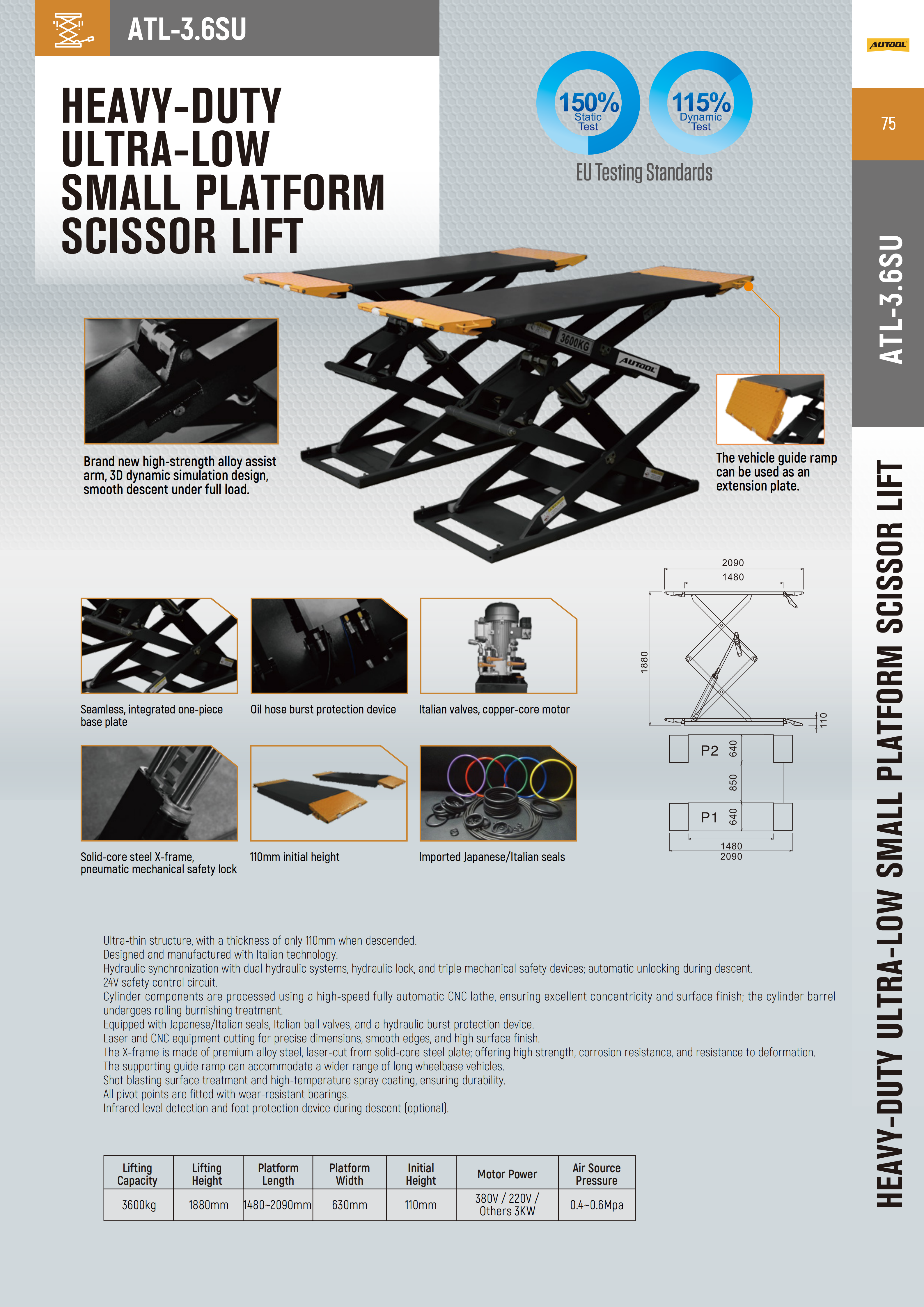

Specifications
Lift Height, Platform Width and Utility Requirements
| Specification | Value |
|---|---|
| Lifting Height | 1880 mm |
| Platform Width | 630 mm |
| Motor Power | 3 kW |
| Air Supply | 0.4–0.6 MPa |
| Rated Capacity | 3,600 kg |
| Initial Height | 110 mm |
| Platform Length | 1,480–2,090 mm |
| Power Configuration | 380 V / 220 V / Others, 3 kW; order-specific. |
Manual & Support
Confirm Installation and Ordered Configuration
AUTOOL ATL-3.6SU Manual & Guides
Visit the manual download center to find ATL-3.6SU guidance for low-profile access, synchronized lifting and guide-ramp setup, plus operating safety and troubleshooting support.
Package Contents
Verify the Supplied Lift Package
- Package ConfigurationConfirm the exact included items for the selected order configuration.
FAQs
Vehicle, Bay and Installation Questions
What Vehicles Is ATL-3.6SU Suitable For?
ATL-3.6SU is suitable for low chassis vehicles, long-wheelbase vehicles, and professional workshop service vehicles within its rated lifting capacity. The 110mm initial height helps low vehicles access the platform, while the expandable guide ramps support a wider range of wheelbases.
What Is The Lifting Capacity?
The ATL-3.6SU lifting capacity is 3600kg. Do not exceed the rated lifting capacity during operation.
What Is The Initial Height?
The initial height is 110mm, making the ATL-3.6SU suitable for ultra-low chassis vehicles.
What Are The Platform Dimensions?
The platform length is 1480-2090mm, and the platform width is 630mm. Confirm vehicle wheelbase and contact points before use.
What Power Configuration Is Available?
The product data lists motor power as 380V / 220V / Others 3KW. Confirm your required power configuration before ordering.
What Air Pressure Is Required?
The required air source pressure is 0.4-0.6MPa.
Does It Include Optional Safety Features?
Optional infrared leveling detection and foot protection devices during descent can be selected for enhanced safety. Confirm these options with AUTOOL Store before ordering.
What Are The Packing Dimensions And Weight?
The package dimensions are 205 × 115 × 23 cm, and the weight is 706 KG.
