AUTOOL Two Post Car Lift ATL-4.5C Single-Sided Control 4.5T
US$2,799.00
Key Features
- Dual-Cylinder Drive
- Synchronized Balance
- Multi-Level Safety
- Dual-Cylinder Drive: Direct-drive hydraulics are presented as providing stable power for smooth lifting.
- Synchronized Balance: The wire-rope balancing system helps both sides rise together and reduces the risk of vehicle tilt.
- Multi-Level Safety: Arm locks plus mechanical and hydraulic protection systems are meant to safeguard lifting operations.
Secure checkoutFast supportBulk ready

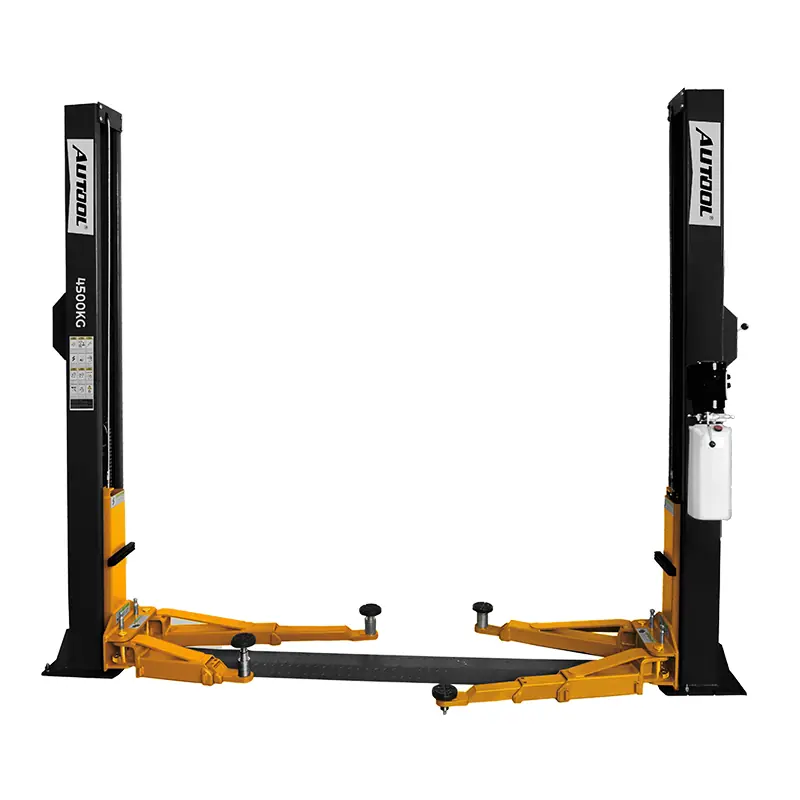

AUTOOL ATL-4.5C
Product Overview
The AUTOOL ATL-4.5C is a 4.5-ton hydraulic two-post car lift with single-sided control, designed for automotive repair, maintenance, and inspection workstations. Built with high-standard industrial manufacturing processes, it balances high load capacity, safety performance, and long-term structural stability, making it a practical choice for professional repair shops.
4.5T Capacity Two Post Lift Single-Side Unlocking Hydraulic Drive
4500 kgRated Capacity
95-1930 mmLift Range
50sLifting Time
2.2 kWMotor Power
Click to enlargeKey Features
Key Features
The ATL-4.5C combines dual-cylinder hydraulic power, synchronized wire-rope balancing, laser-cut steel structure, mechanical safety locks, low-maintenance sliders, imported seals, and durable surface treatment for long-term workshop operation.
Hydraulic Direct-Drive System
Dual-cylinder direct-drive hydraulic system delivers stable power output for smooth, seamless lifting during repair, maintenance, and inspection work.
Wire Rope Balancing
The wire rope balancing system keeps both columns synchronized and helps prevent vehicle tilt during lifting and lowering.
Laser-Cut Steel Structure
Columns and primary load-bearing components are fabricated from laser-cut steel plates for precise dimensions, smooth edges, and reliable structural stability.
Mechanical Safety Lock
A gear-type arm lock mechanism plus hook-type mechanical safety structure helps prevent slippage even when sliders experience wear over long-term use.
Low-Maintenance Wear-Resistant Sliders
Polymer wear-resistant sliders help reduce operational noise, minimize wear, and lower long-term maintenance costs.
Imported Seals And Durable Coating
Japanese / Italian imported critical seals help prevent oil leakage, while sandblasting and high-temperature electrostatic spraying improve coating adhesion, wear resistance, and corrosion resistance.
Specifications
Core Performance Parameters
Confirm lifting capacity, lift height, machine dimensions, power option, and motor power before purchase and installation planning.
| Product And Control | |
| Product | AUTOOL ATL-4.5C Two Post Car Lift |
| Control Type | Single-sided control |
| Lift Type | Hydraulic two-post car lift |
| Lifting Performance | |
| Rated Lifting Capacity | 4500 kg |
| Minimum Lifting Height | 95 mm |
| Maximum Lift Height | 1930 mm |
| Lifting Time | 50 seconds |
| Lowering Time | 30 seconds |
| Dimensions And Power | |
| Overall Height | 2820 mm |
| Column Inner Width | 2860 mm |
| Overall Width | 3440 mm |
| Power Supply | 380V / 220V optional |
| Motor Power | 2.2 kW |
Product And Control
ProductAUTOOL ATL-4.5C Two Post Car Lift
Control TypeSingle-sided control
Lift TypeHydraulic two-post car lift
Lifting Performance
Rated Lifting Capacity4500 kg
Minimum Lifting Height95 mm
Maximum Lift Height1930 mm
Lifting Time50 seconds
Lowering Time30 seconds
Dimensions And Power
Overall Height2820 mm
Column Inner Width2860 mm
Overall Width3440 mm
Power Supply380V / 220V optional
Motor Power2.2 kW
Safety And Installation Notes
Safety And Installation Notes
The ATL-4.5C is designed around synchronized lifting, mechanical lock protection, hydraulic safety protection, and durable structural manufacturing for professional repair shop environments.
Synchronized Lifting
The wire rope balancing system improves left-right synchronization and reduces vehicle tilt risk during lifting.
Mechanical Locking Protection
Gear-type arm lock and hook-type mechanical safety structure provide physical protection during lifting and maintenance work.
Hydraulic Safety Protection
Multi-level mechanical and hydraulic safety protections are designed to comply with EU standards and safeguard both equipment and personnel.
Stable Long-Term Operation
Imported seals, laser-cut steel plates, polymer sliders, and anti-corrosion coating work together to improve durability and reduce long-term maintenance needs.
Before You Order And Use
Before You Order And Use
Confirm space, power, vehicle weight, shipping, and installation requirements before placing an order.
Workshop Space Check
Confirm workshop ceiling height before ordering. The overall height is 2820 mm. Confirm available bay width before ordering. The overall width is 3440 mm.
Vehicle And Lift Point Check
Confirm vehicle lifting points and rated vehicle weight before use. The rated lifting capacity of this model is 4500 kg.
Power Supply Check
Confirm the required 380V / 220V power option before purchase so the lift matches your workshop electrical setup.
Quote And Installation Confirmation
Contact AUTOOL Store before ordering if you need installation, power supply, workshop space, floor condition, or shipping confirmation.
Product Details
Product Details
Use the detail card to review the product price reference, the $4000 Large Item Ocean Freight checkout charge, power option, and pre-order confirmation with AUTOOL Store.
Price Reference
ProductAUTOOL ATL-4.5C Two Post Car Lift
Reference Price$1799.00
Shipping$4000 Large Item Ocean Freight at checkout
Power Option380V / 220V optional
Confirm Final Quote
For power option, delivery appointment, unloading requirements, installation confirmation, or questions about the $4000 Large Item Ocean Freight checkout charge, contact AUTOOL Store before placing the order.
Questions And Answers
These answers cover rated lifting capacity, lift height, power supply, ocean freight shipping, safety structure, and pre-order confirmation.
The rated lifting capacity of AUTOOL ATL-4.5C is 4500 kg.
The maximum lift height is 1930 mm. The minimum lifting height is 95 mm.
The power supply is 380V / 220V optional. Confirm the required version before ordering so it matches your workshop electrical setup.
No. The product price excludes freight. Checkout should show $4000 Large Item Ocean Freight as a separate shipping charge before payment. Contact AUTOOL Store if you need to confirm delivery appointment, unloading, or installation requirements before ordering.
ATL-4.5C uses a gear-type arm lock, hook-type mechanical safety structure, wire rope balancing system, and multi-level mechanical / hydraulic safety protections designed to comply with EU standards.
Confirm workshop height, bay width, power supply, vehicle weight range, installation requirements, floor condition, the $4000 Large Item Ocean Freight checkout charge, and final order details before placing an order.
Warranty And Contact
Warranty And Contact
For ATL-4.5C quote confirmation, power option, the $4000 Large Item Ocean Freight checkout charge, workshop dimensions, installation planning, lifting capacity, or safety structure questions, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming 380V / 220V power, workshop space, ocean freight delivery requirements, installation details, floor condition, vehicle capacity, or final order details before ordering.
- ATL-4.5C order and ocean freight confirmation
- 380V / 220V power option confirmation
- Workshop height and width planning support
- Installation and floor condition confirmation
- Safety structure and lifting capacity questions
