AUTOOL PT635 Fuel Pressure Gauge(Hight-end Version) 0-426 PSI Digital Display Automotive Tool for Motorcycle Car Truck
US$259.00
Key Features
- Fuel Temp Monitor
- Dual Readout
- Combustion Control
- Fuel Temp Monitor: Measures fuel temperature alongside pressure for better system tracking.
- Dual Readout: Monitors pressure and temperature in the same test.
- Combustion Control: Helps you avoid running fuel at unsuitable temperatures.
Secure checkoutFast supportBulk ready

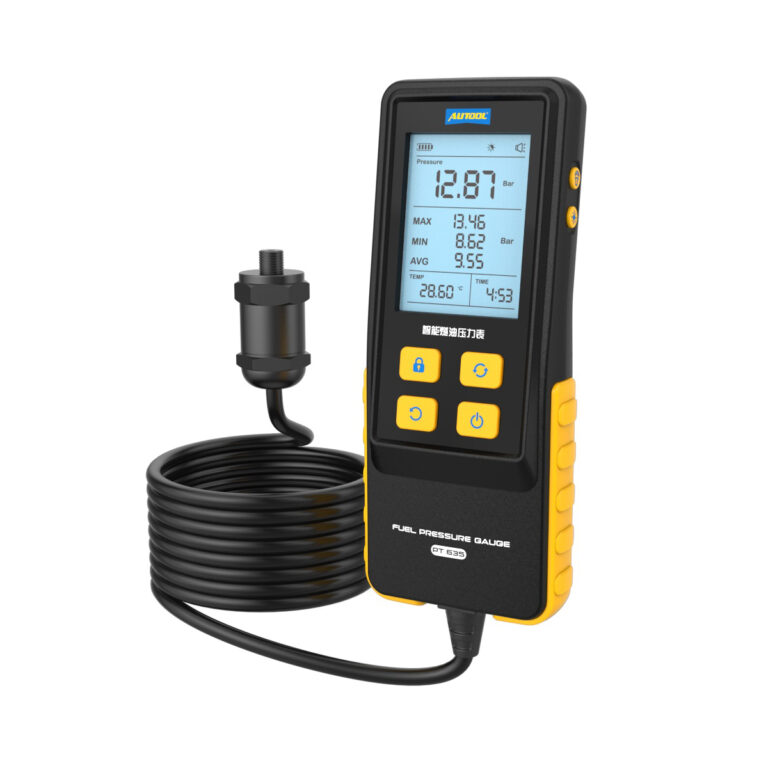

AUTOOL PT635
Product Overview
The AUTOOL PT635 is a high-end digital fuel pressure gauge kit for checking automotive fuel system pressure and fuel temperature. Compared with PT630, PT635 adds broader adapter coverage and temperature monitoring, helping users read real-time pressure, maximum pressure, minimum pressure, average pressure, fuel temperature, and measurement time on a 2.8-inch backlit display.
Fuel Pressure Test Fuel Temperature 2.8″ Backlit Display Multi-Unit Switching
0-426.6 PSIPressure Range
0.01Display Resolution
31 TypesAdapter Coverage
3 YearsMain Unit Warranty
Click to enlargeBefore You Order And Use
Before You Order And Use
PT635 is designed for automotive fuel system pressure checks. Review the application range, adapter requirements, battery power, and safety checks before use.
Automotive Fuel System Focus
Use PT635 for automotive fuel pressure and fuel temperature checks. It is not the model for cylinder, engine oil, transmission, or brake pressure testing.
Not For GDI High-Pressure Testing
For gasoline direct injection high-pressure fuel pump testing, compare PT640 instead. PT635 is for standard automotive fuel system pressure checks.
Choose The Correct Adapter
Select the connector that matches the vehicle fuel line interface before connecting the measuring probe.
Zero Before Testing
Reset the pressure value to zero before measurement so the pressure reading starts from the correct baseline.
AAA Battery Powered
The gauge uses 6V power from four 1.5V AAA batteries. Install batteries with the correct polarity before operation.
Fuel System Safety
Follow the vehicle fuel system service procedure before disconnecting fuel lines. Check each connection for tightness and leakage before starting the engine.
Important Use Reminders
- Do not overload the gauge. The manual lists 40 bar as overload pressure.
- Use PT635 only with compatible fuel system adapters and secure hose connections.
- Avoid contact with corrosive liquids and store the tool in a dry place when not in use.
- The device can automatically power off after 5 minutes of inactivity when no pressure is applied.
Product Comparison
Product Comparison
Compare PT635 with related AUTOOL PT series pressure testers before choosing the right tool for cylinder, oil, fuel, GDI fuel, transmission, or brake pressure checks.
PT635 FocusHigh-end automotive fuel pressure gauge with fuel temperature display, 2.8-inch screen, 31 adapter types, data lock / clear / record functions, and equipped toolbox.
PT630 DifferencePT630 is also for automotive fuel systems, but PT635 adds stronger adapter coverage and fuel temperature monitoring for more complete fuel system checks.
PT640 DifferencePT640 is the GDI fuel pressure gauge for fuel injection pump pressure in automotive direct injection systems, with a much higher pressure range up to 0-360 bar.
Other PT ModelsPT610 is for engine cylinders, PT620 is for engine oil circulation, PT650 is for transmission pressure, and PT660 is for brake system internal fluid pressure.
Decision CheckChoose by applicable system, pressure range, adapter quantity, display size, data function, and whether the model includes a toolbox.
Click to enlargeKey Features
Key Features
PT635 combines digital pressure measurement, fuel temperature display, data lock and clearing, multi-unit switching, durable copper adapters, and a backlit screen for clearer fuel system diagnosis.

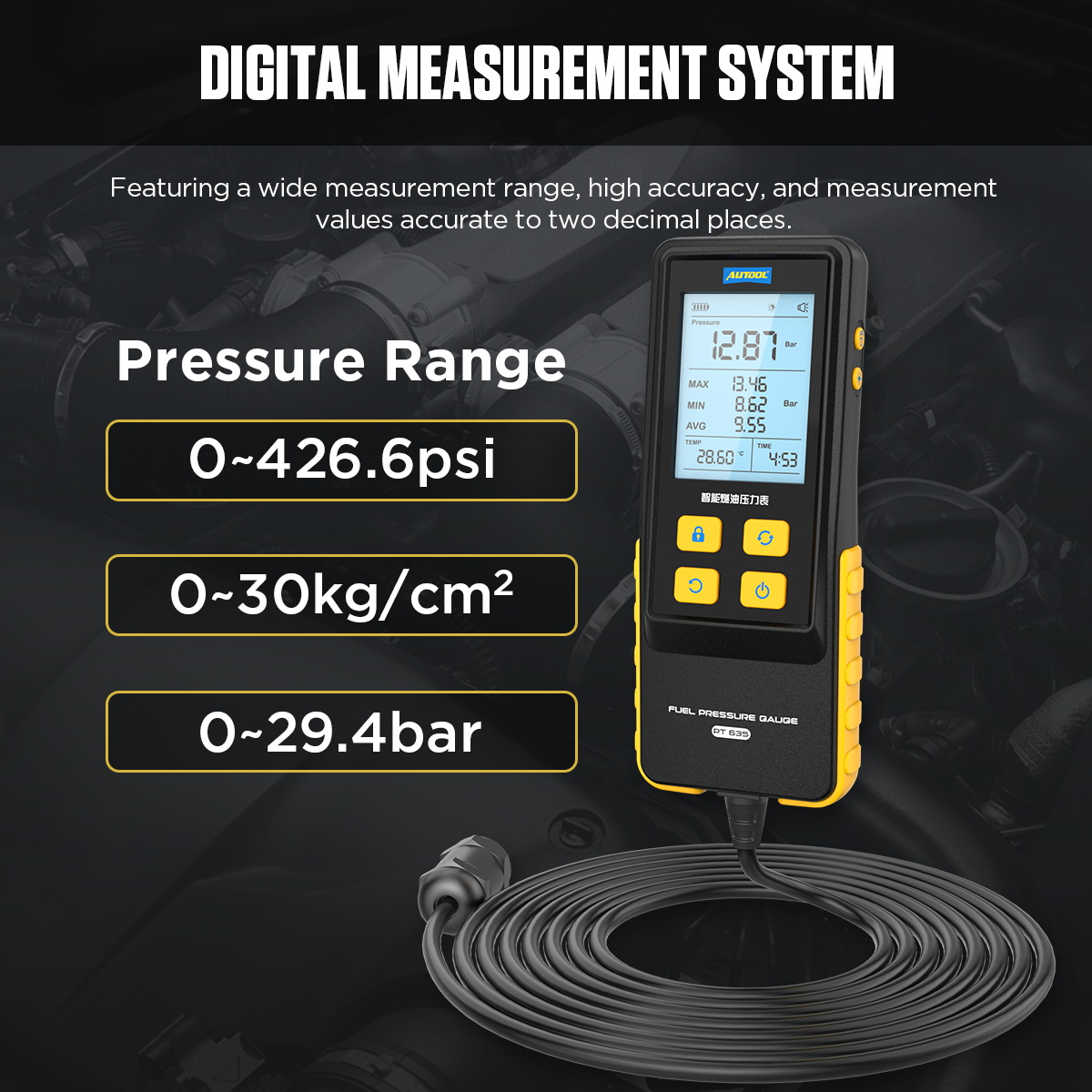

Digital Pressure Measurement
Measures fuel pressure across a wide range with values shown to two decimal places for easier reading and comparison.
Fuel Temperature Detection
Displays current fuel temperature so users can monitor pressure and temperature changes during fuel system checks.

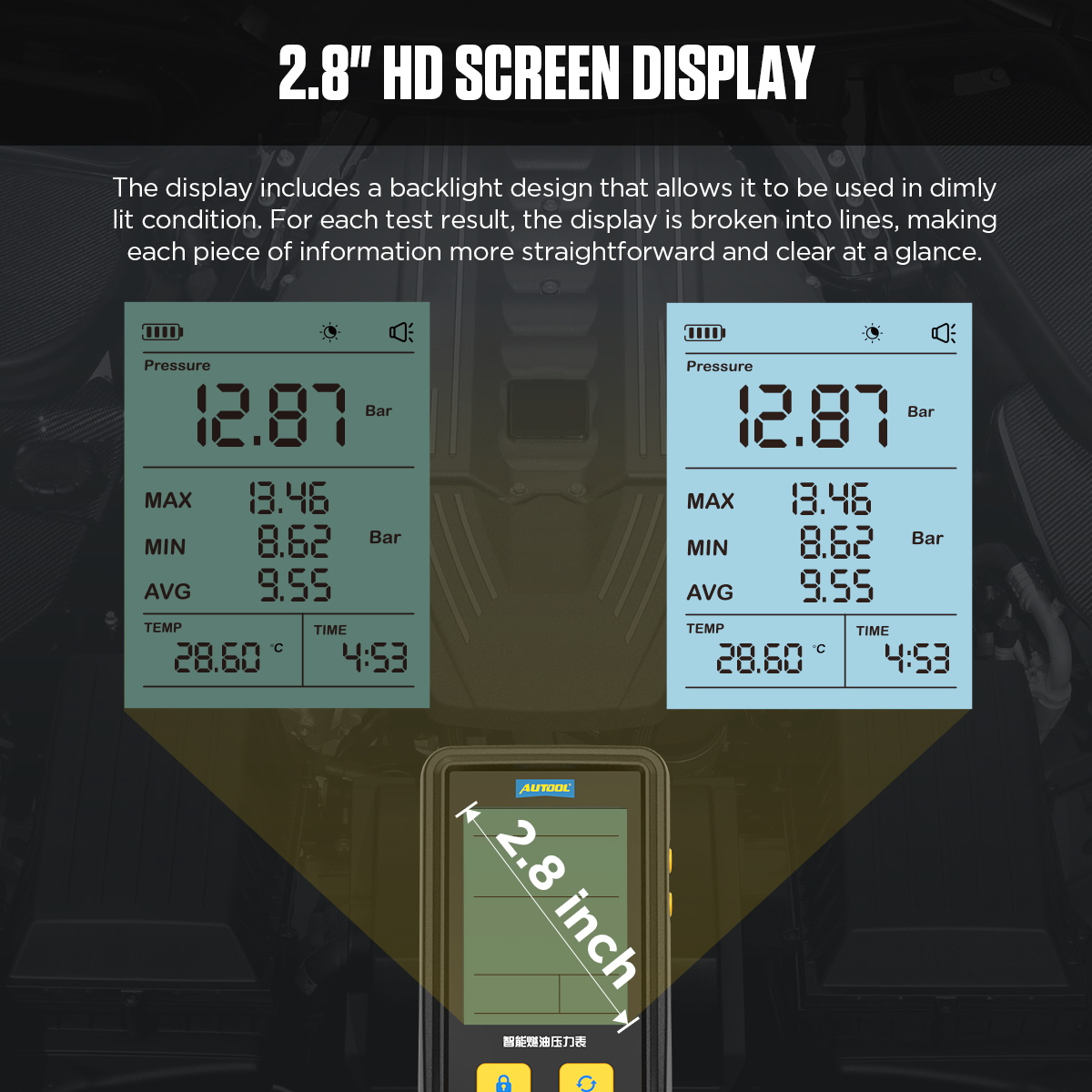

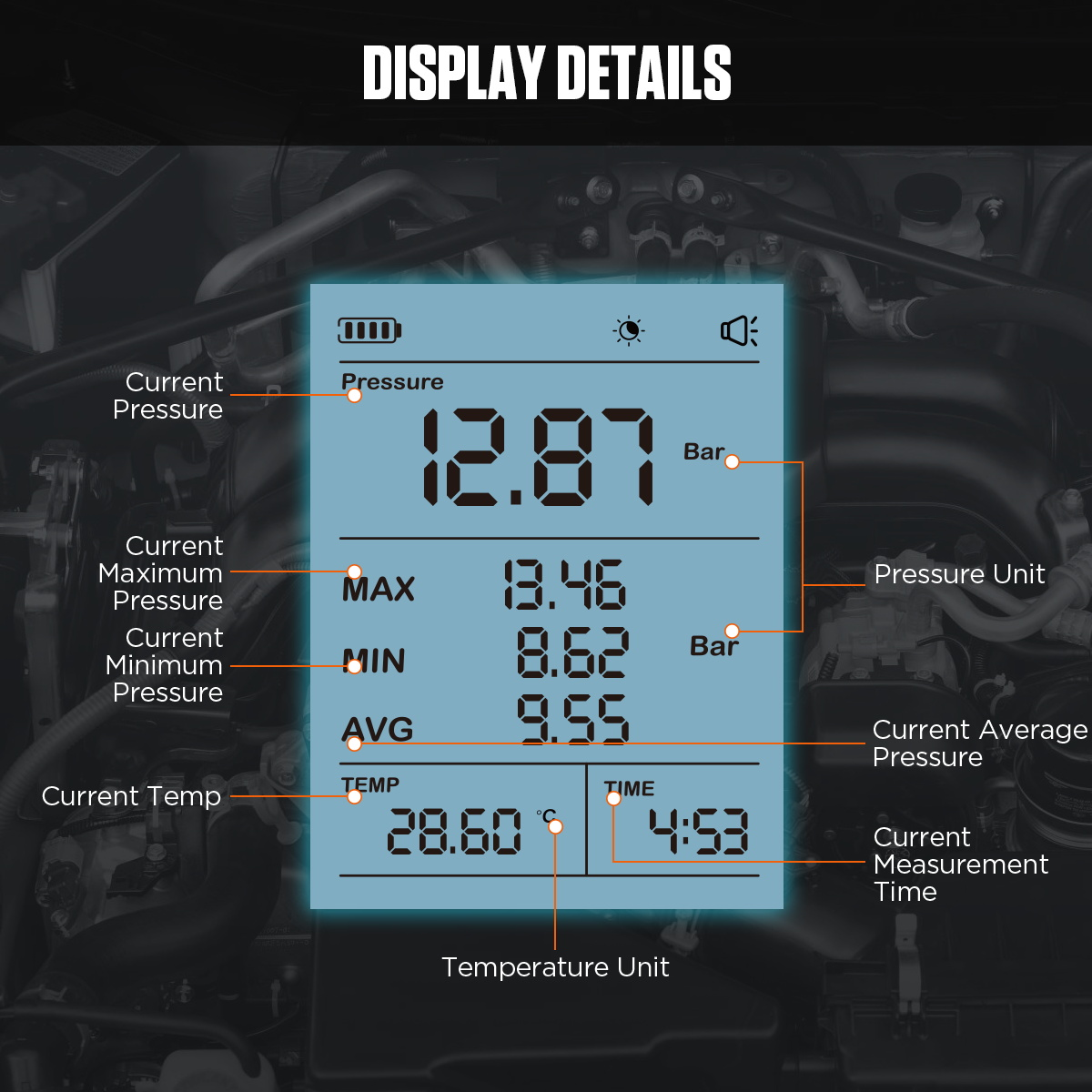

2.8-Inch Backlit Display
The screen separates pressure, max, min, average, temperature, time, and units into clear display areas for quick reading in dim conditions.

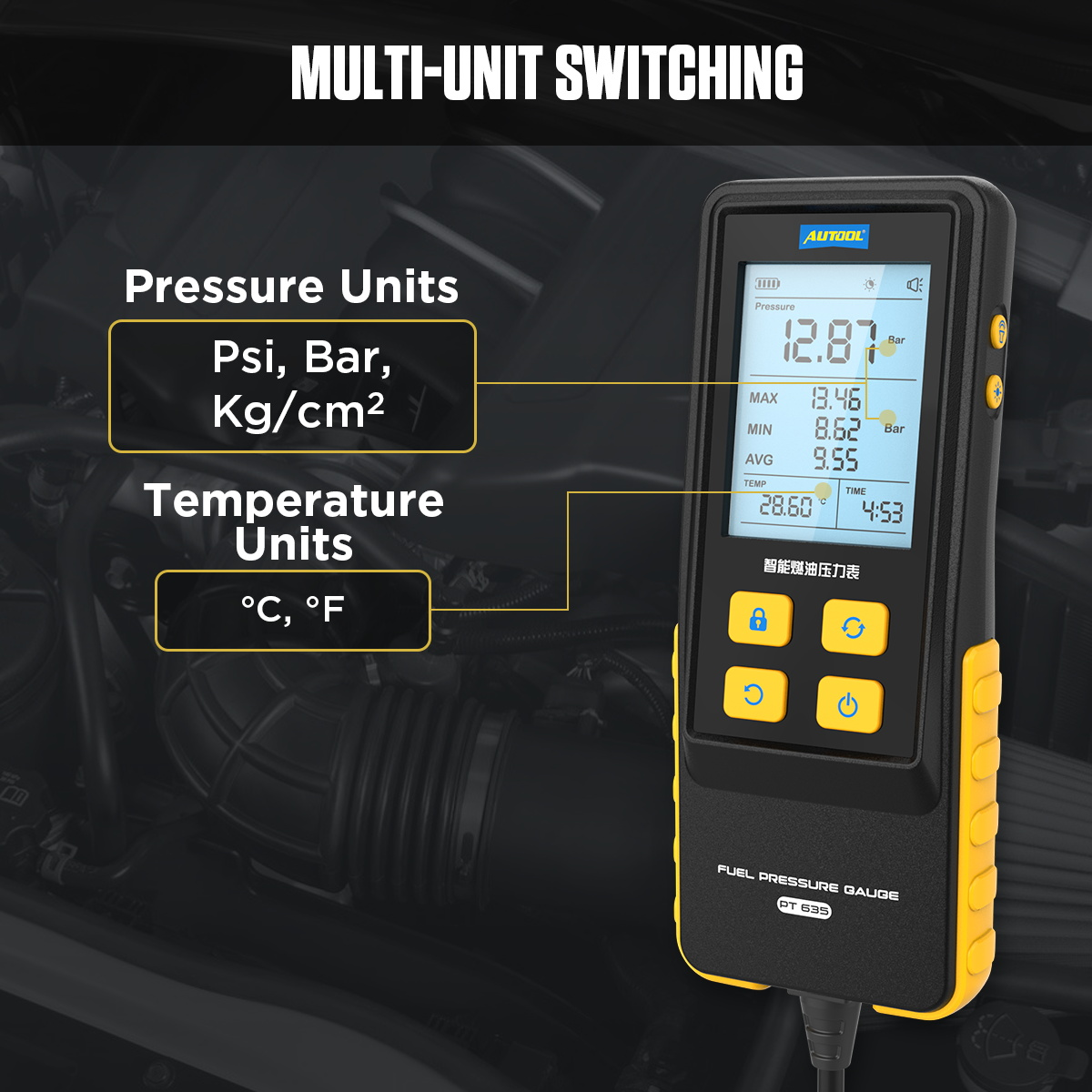

Multi-Unit Switching
Switch pressure units between PSI, bar, and kg/cm². Temperature units can be switched between Celsius and Fahrenheit.

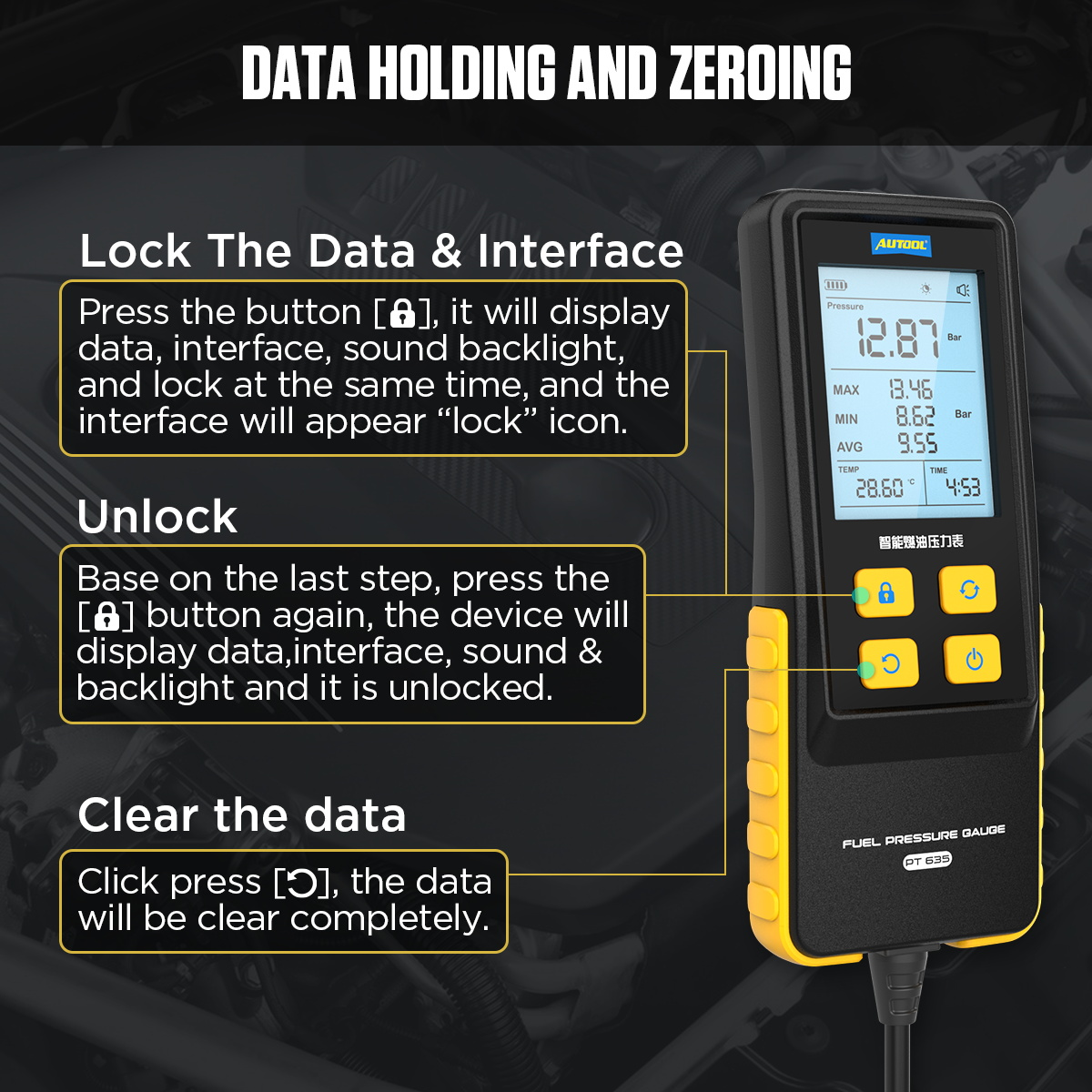

Data Lock, Clear And Zeroing
Lock the display for easier reading, clear data and timing after measurement, and long press to zero pressure before testing.
Riveted Copper Adapters
The included fittings use selected riveted copper material for hardness, wear resistance, and oxidation resistance. The hoses are designed for pressure and fuel system service.
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlargeSpecifications
PT635 Product Specifications And Interface Details
Review the PT635 pressure range, display units, temperature units, battery power, accuracy, resolution, operating range, and button functions before testing.
| Core Specifications | |
| Product | AUTOOL PT635 Fuel Pressure Gauge Kit |
| Application | Automotive fuel system pressure and fuel temperature checks |
| Pressure Range | 0-426.6 psi / 0-30 kg/cm² / 0-29.4 bar |
| Manual Range Reference | 0-30 bar |
| Pressure Units | PSI / bar / kg/cm² |
| Temperature Units | °C / °F |
| Accuracy | 0.5% FS |
| Resolution | 0.01 bar / 0.01 kg/cm² / 0.01 PSI |
| Overload Pressure | 40 bar |
| Operating Temperature | -10°C to 60°C |
| Operating Voltage | 6V |
| Battery Type | Four AAA batteries |
| Display | 2.8-inch backlit display |
| Displayed Data | Real-time pressure, max pressure, min pressure, average pressure, fuel temperature, and measurement time |
| Adapter Coverage | 31 types shown in the comparison chart and package image |
| Warranty | 3-year warranty for the main unit; accessory coverage follows official warranty terms |
Click to enlargeCore Specifications
ProductAUTOOL PT635 Fuel Pressure Gauge Kit
ApplicationAutomotive fuel system pressure and fuel temperature checks
Pressure Range0-426.6 psi / 0-30 kg/cm² / 0-29.4 bar
Manual Range Reference0-30 bar
Pressure UnitsPSI / bar / kg/cm²
Temperature Units°C / °F
Accuracy0.5% FS
Resolution0.01 bar / 0.01 kg/cm² / 0.01 PSI
Overload Pressure40 bar
Operating Temperature-10°C to 60°C
Operating Voltage6V
Battery TypeFour AAA batteries
Display2.8-inch backlit display
Displayed DataReal-time pressure, max pressure, min pressure, average pressure, fuel temperature, and measurement time
Adapter Coverage31 types shown in the comparison chart and package image
Warranty3-year warranty for the main unit; accessory coverage follows official warranty terms

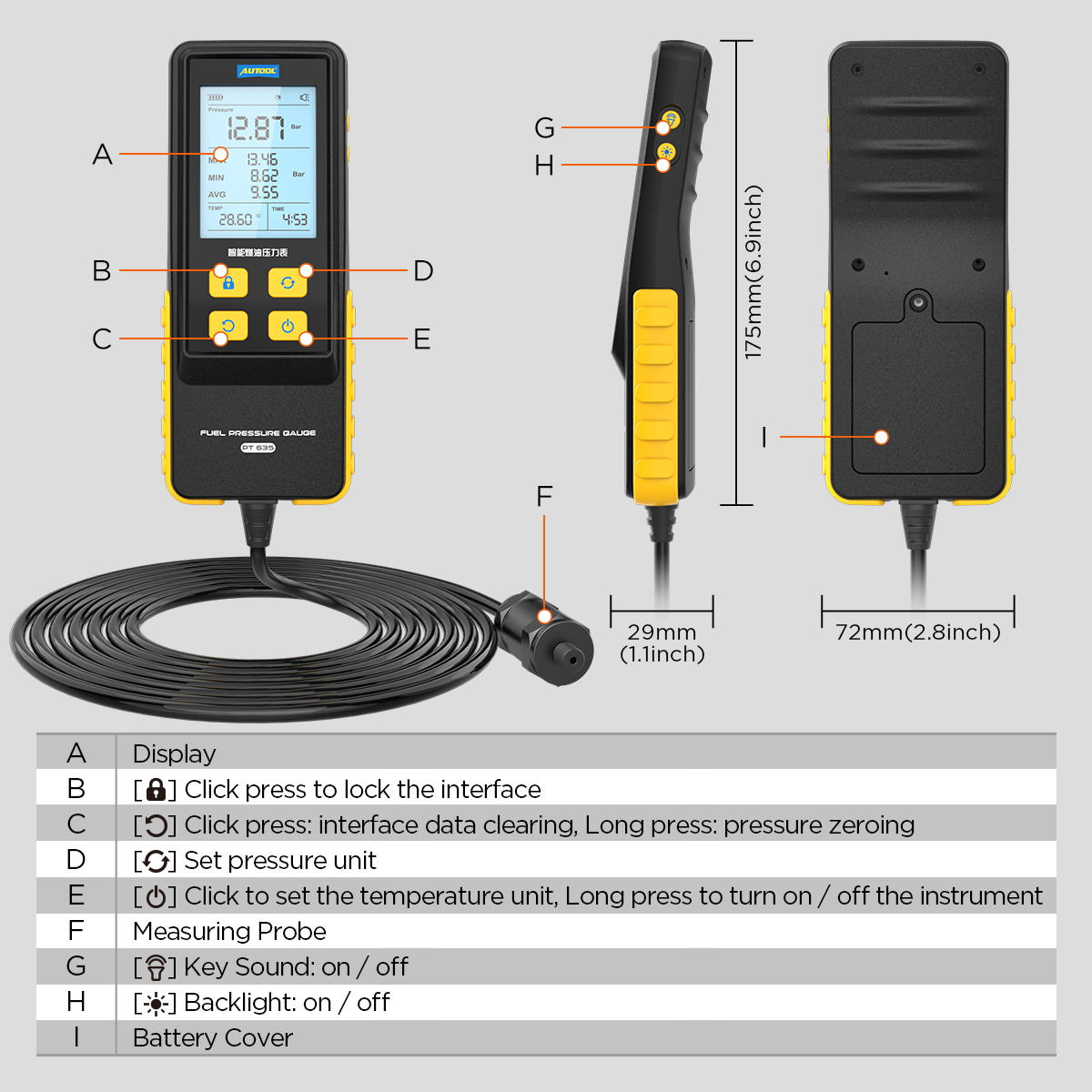

Product Details
Product Details

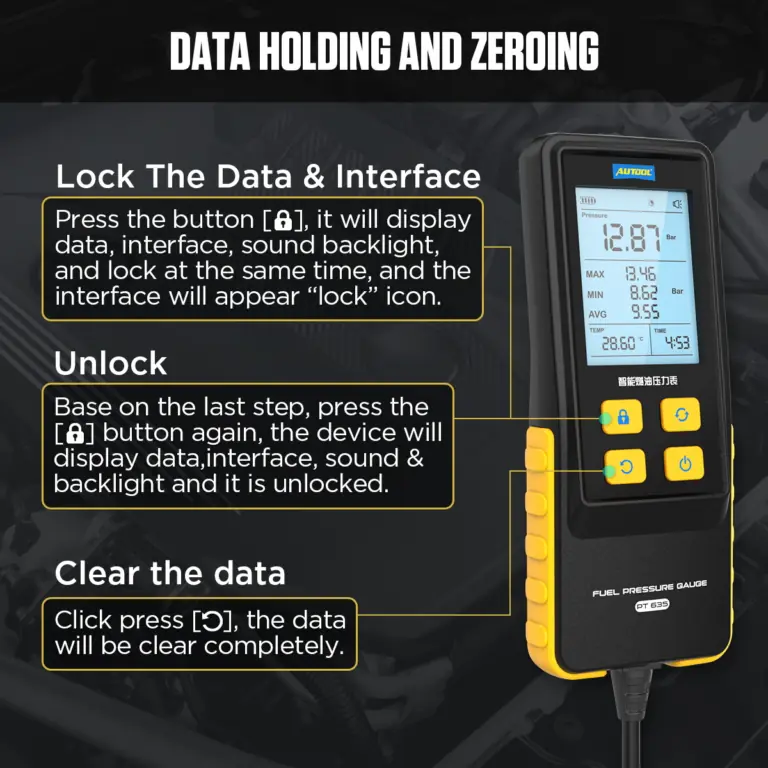

Interface Lock
Press the lock button to lock or unlock the display interface for easier reading during measurement.
Clear And Zero
Click the clear button to clear interface data. Long press to zero pressure before testing.
Unit And Backlight Control
Use the side and front buttons to set pressure units, temperature units, key sound, backlight, and power on or off.

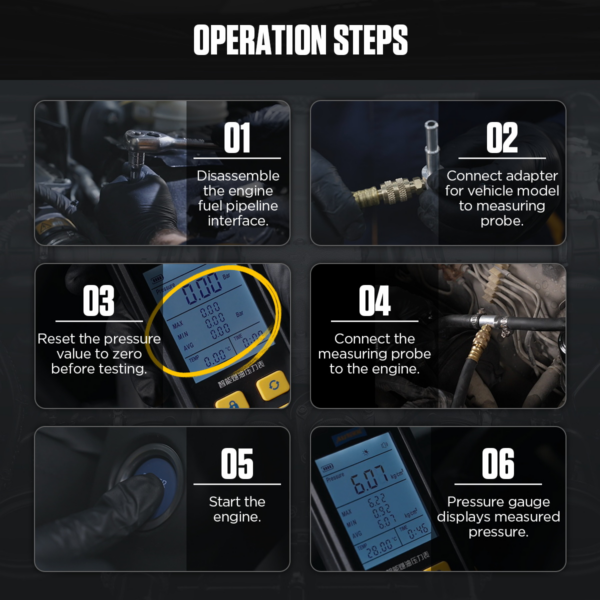

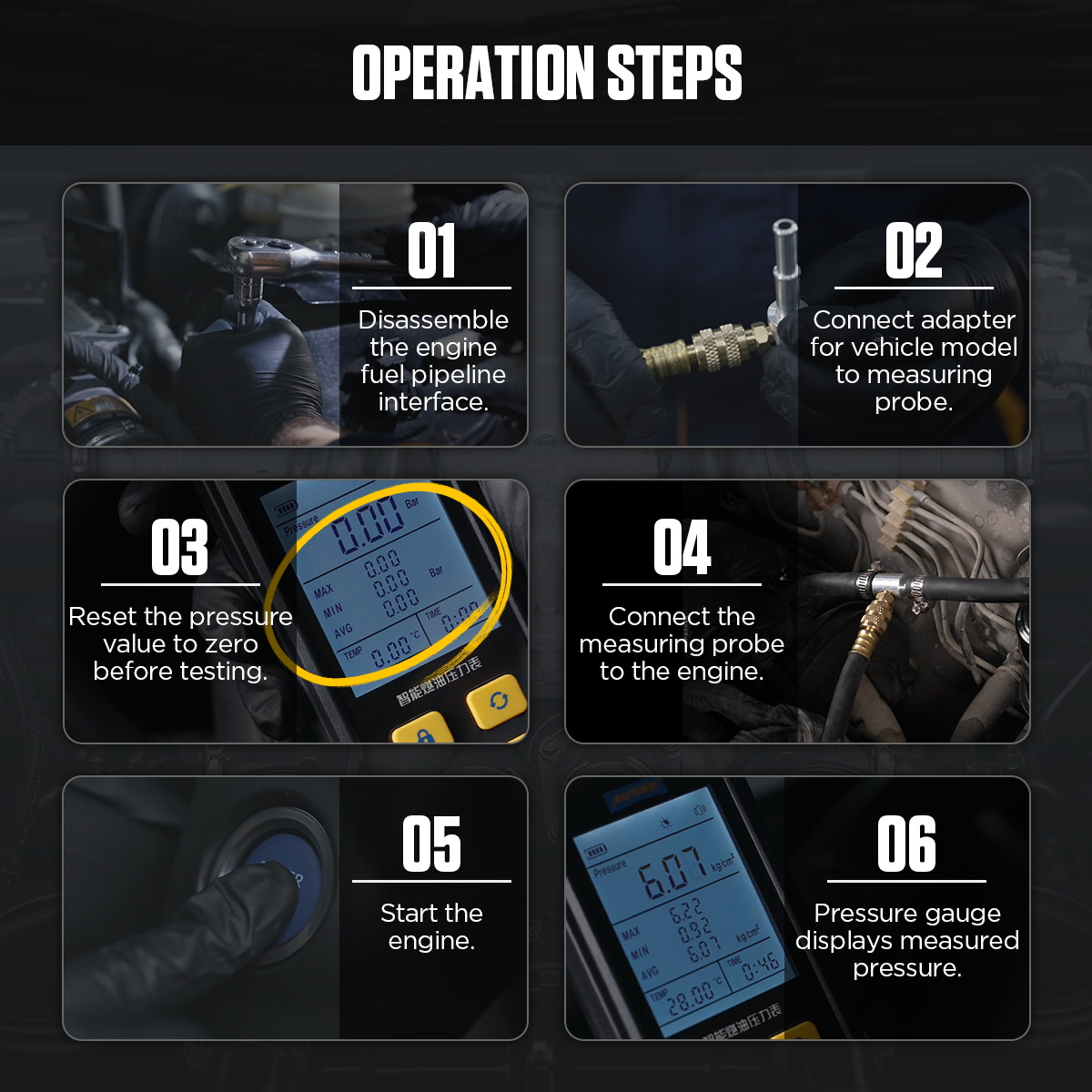

How To Use
How To Use
Use the correct vehicle adapter, zero the gauge before testing, connect the measuring probe securely, then start the engine and read the measured fuel pressure and temperature.
Disconnect Fuel Line
Disassemble the engine fuel pipeline interface according to the vehicle service procedure.
Choose Adapter
Connect the adapter that matches the vehicle model to the measuring probe.
Zero The Gauge
Reset the pressure value to zero before testing.
Connect Probe
Connect the measuring probe to the engine fuel system securely.
Start Engine
Start the engine only after the adapter and hose connections are secure.
Read Pressure
The pressure gauge displays the measured fuel pressure and related measurement data.
Use Notes
- Long press the power button for more than 2 seconds to start the instrument.
- Long press the zero button for pressure zero setting before measurement.
- Click the clear button to clear data and timing after measurement.
- Press the pressure unit button to switch between PSI, bar, and kg/cm².
- Press the temperature unit button to switch between °C and °F.
- After measurement, long press the power button for 2 seconds to shut down under atmospheric pressure.
Click to enlarge
Click to enlargeWhat Is In The Box

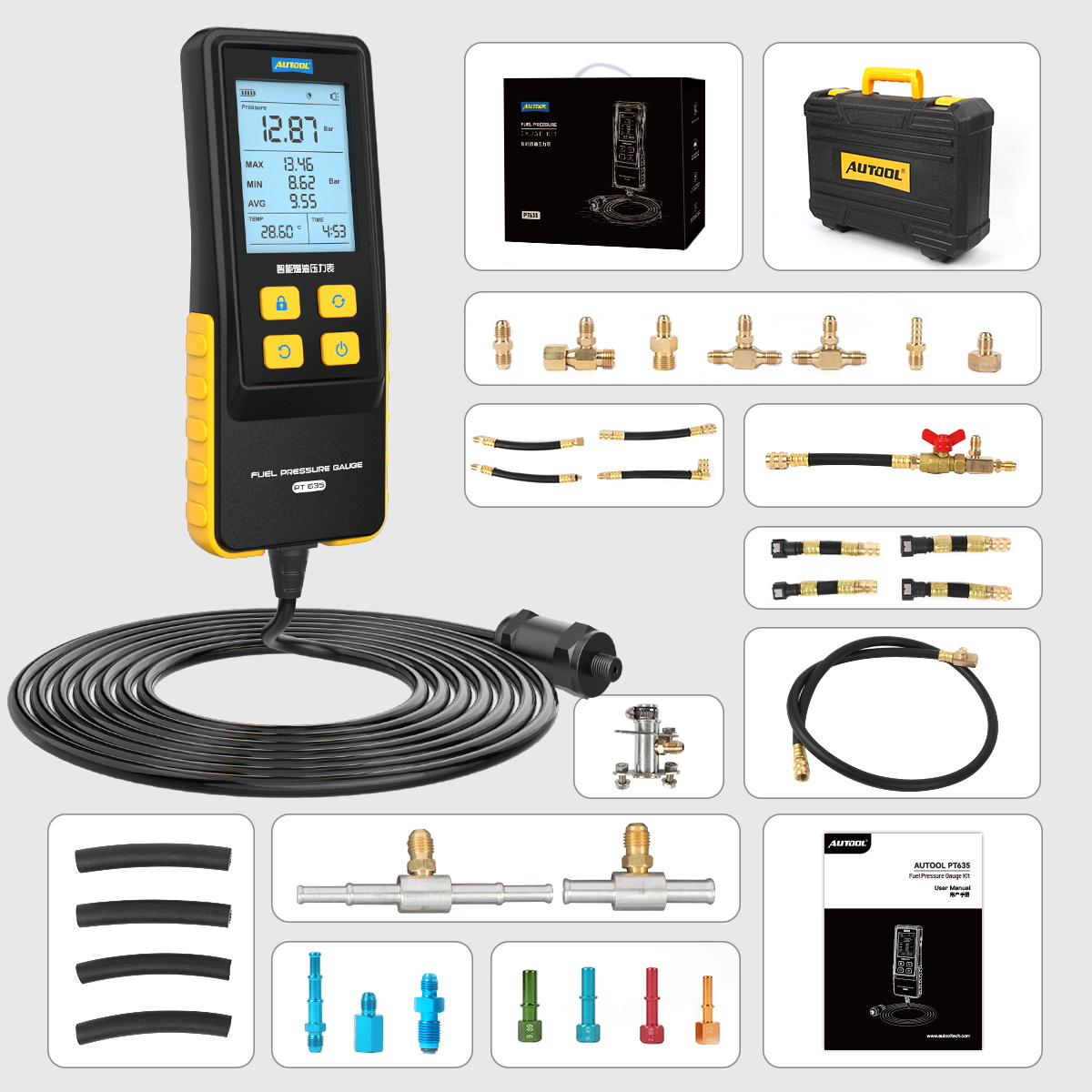

What Is In The Box

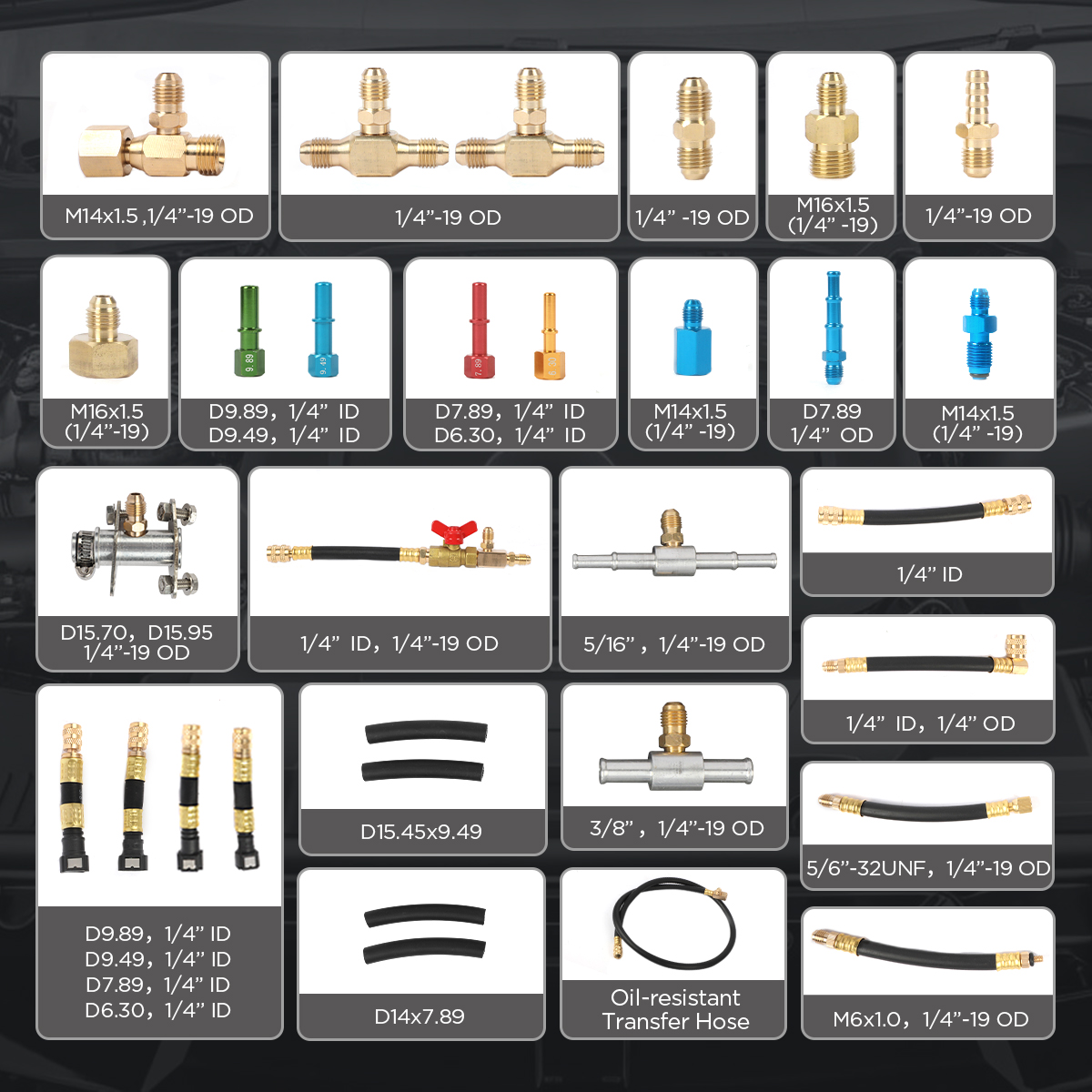

The package image shows the PT635 main unit, carrying case, product box, user manual, measuring probe, fuel hoses, adapters, and accessories. Packing List uses one complete package image to keep the page clear and space-efficient.
Main UnitAUTOOL PT635 digital fuel pressure gauge with measuring probe
Carrying CaseStorage toolbox shown in the package image
AdaptersFuel pressure adapters, connectors, and fittings shown in the package image
HosesFuel-resistant hoses and transfer hose shown in the package image
DocumentationAUTOOL PT635 user manual / product documentation
PackageProduct box and accessories shown in the package image
Related Products
Related Products
Compare related AUTOOL PT series pressure testers before choosing the right tool for cylinder pressure, engine oil pressure, fuel pressure, GDI fuel pressure, or transmission pressure checks.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT610 Cylinder Pressure Gauge Automotive Tool
From US$119.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT620 Engine Oil Pressure Gauge with Digital Display
From US$179.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT635 Fuel Pressure Gauge(Hight-end Version) 0-426 PSI Digital Display Automotive Tool for Motorcycle Car Truck
From US$259.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT640 GDI Fuel Pressure Gauge 0-360Bar Digital Measurement Pressure Gauge
From US$189.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT650 ATF Exchanger Transmission Oil Pressure Gauge
From US$119.00
Manual And Downloads
Manual And Downloads
Download the PT635 manual for technical specifications, interface display, battery installation, operation steps, maintenance guidance, and warranty information.

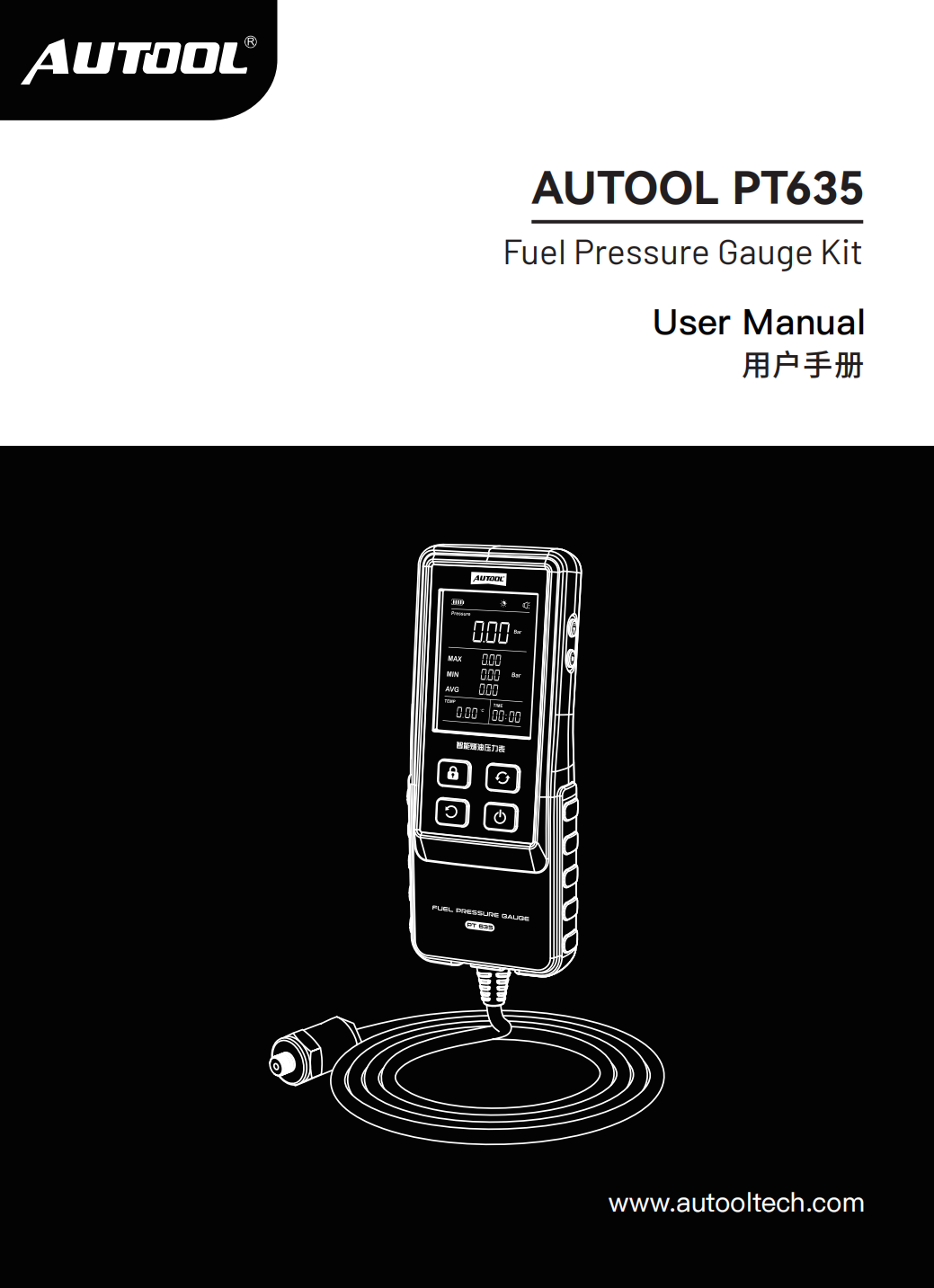

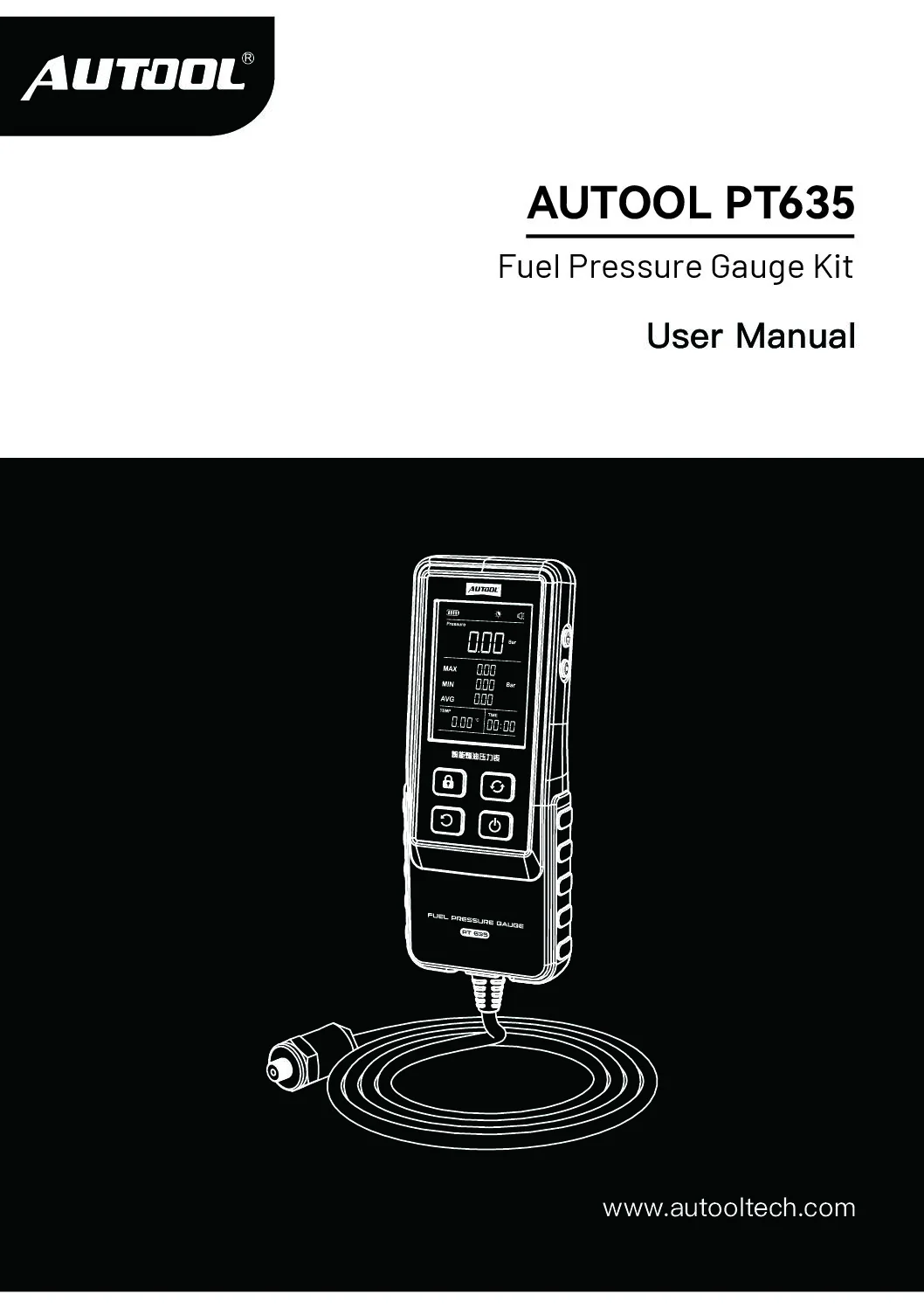

Click to enlargeAUTOOL PT635 User Manual
Open the PT635 PDF manual for setup, adapter connection, pressure zeroing, unit switching, fuel temperature display, maintenance, and warranty details.
Download ManualNeed Adapter Or Model Confirmation?
Contact AUTOOL Store before ordering if you need to confirm fuel system compatibility, adapter coverage, PT630 vs PT635 differences, or whether PT640 is required for GDI high-pressure testing.
Questions And Answers
These answers cover PT635 application range, PT630 / PT640 selection, pressure units, fuel temperature detection, data functions, batteries, adapter use, operation steps, maintenance, and warranty support.
AUTOOL PT635 is used for automotive fuel system pressure checks and fuel temperature monitoring. It is suitable for users who need to read real-time pressure, maximum pressure, minimum pressure, average pressure, fuel temperature, and measurement time on one digital display.
Both PT630 and PT635 are for automotive fuel system pressure checks. PT635 is the higher-end option, with broader adapter coverage shown as 31 types in the comparison chart and added fuel temperature monitoring, making it better for users who want more complete fuel system checking capability.
PT635 is for standard automotive fuel system pressure checks. If you need to test gasoline direct injection high-pressure fuel pump pressure, compare PT640 instead, because PT640 is the GDI fuel pressure gauge with a much higher pressure range.
PT635 displays pressure in PSI, bar, and kg/cm². The product image lists 0-426.6 psi, 0-30 kg/cm², and 0-29.4 bar, while the manual technical specification lists a 0-30 bar range. The display resolution is 0.01.
Yes. PT635 supports fuel temperature display, and temperature units can be switched between Celsius and Fahrenheit. This helps users observe pressure and temperature changes during fuel system checks.
The 2.8-inch display can show current pressure, pressure units, current maximum pressure, current minimum pressure, current average pressure, current temperature, temperature unit, and current measurement time.
PT635 supports data lock, interface lock, data clearing, and record-related display functions. Based on the model comparison chart, PT635 should not be treated as a long-term multi-set data logger. Use the lock and clear functions for reading and managing current measurement data.
PT635 uses 6V operating voltage from four 1.5V AAA batteries. Open the battery cover on the back of the device, insert the batteries with the correct polarity, and close the cover securely before use.
Long press the power button for more than 2 seconds to start the instrument. Before testing, long press the zero function so the real-time pressure display returns to zero.
Disconnect the engine fuel pipeline interface, connect the correct vehicle adapter to the measuring probe, reset pressure to zero, connect the measuring probe to the engine, start the engine, then read the measured pressure on the gauge.
Refer to the Packing List image for the final package contents. The image shows the PT635 main unit, carrying case, product box, user manual, measuring probe, fuel hoses, adapters, connectors, and related accessories.
Regularly check parts that need tightening and connection. If anything is loose, tighten it in time. Avoid contact with corrosive liquids, do not store the tool in hot, humid, or non-ventilated places, and keep the product dry when not in use.
Yes. The manual notes that the device can automatically power off after 5 minutes of inactivity when no pressure is being applied. After measurement, it can also be shut down by long pressing the power button for about 2 seconds under atmospheric pressure.
AUTOOL provides a 3-year warranty for the main unit under eligible warranty conditions. The manual states that included accessories are covered by a one-year warranty. For non-human damage cases, contact support with details, photos, or video for confirmation.
Warranty And Contact
Warranty And Contact
For PT635 model selection, adapter compatibility, fuel system connection, PT630 vs PT635 comparison, PT640 GDI selection, data lock / zeroing operation, packing list confirmation, or warranty support, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming whether PT635 fits your vehicle fuel system, whether the package adapters match your fuel line interface, or whether another PT series pressure tester is more suitable for your test system.
- PT635 / PT630 / PT640 model selection support
- Fuel pressure adapter and connector confirmation
- Pressure unit, temperature unit, zeroing, and data lock guidance
- Packing List and accessory confirmation
- Warranty, replacement parts, and troubleshooting support
- 3-year main unit warranty support for eligible cases
