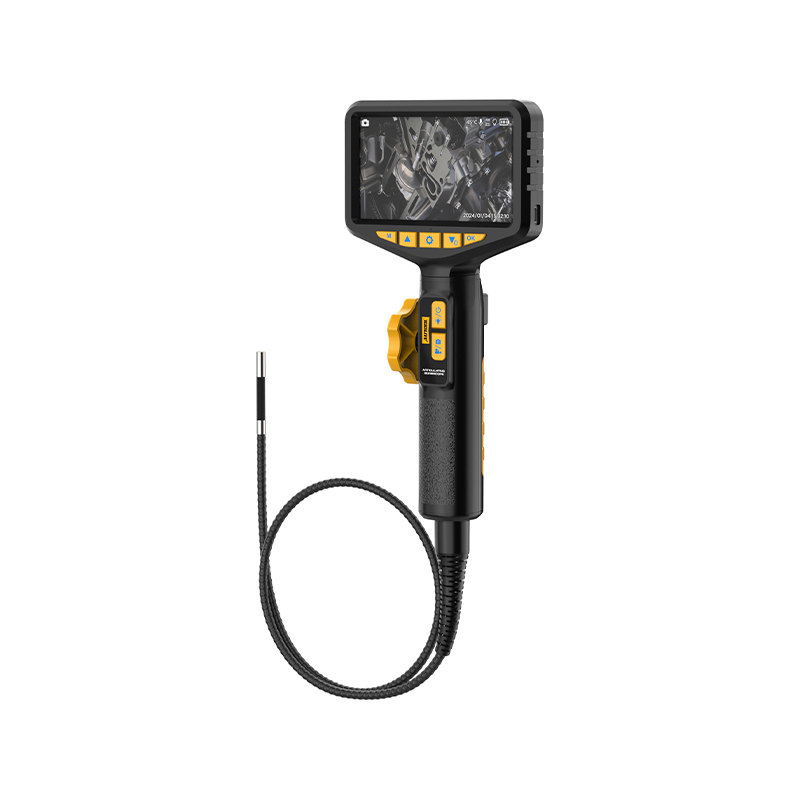

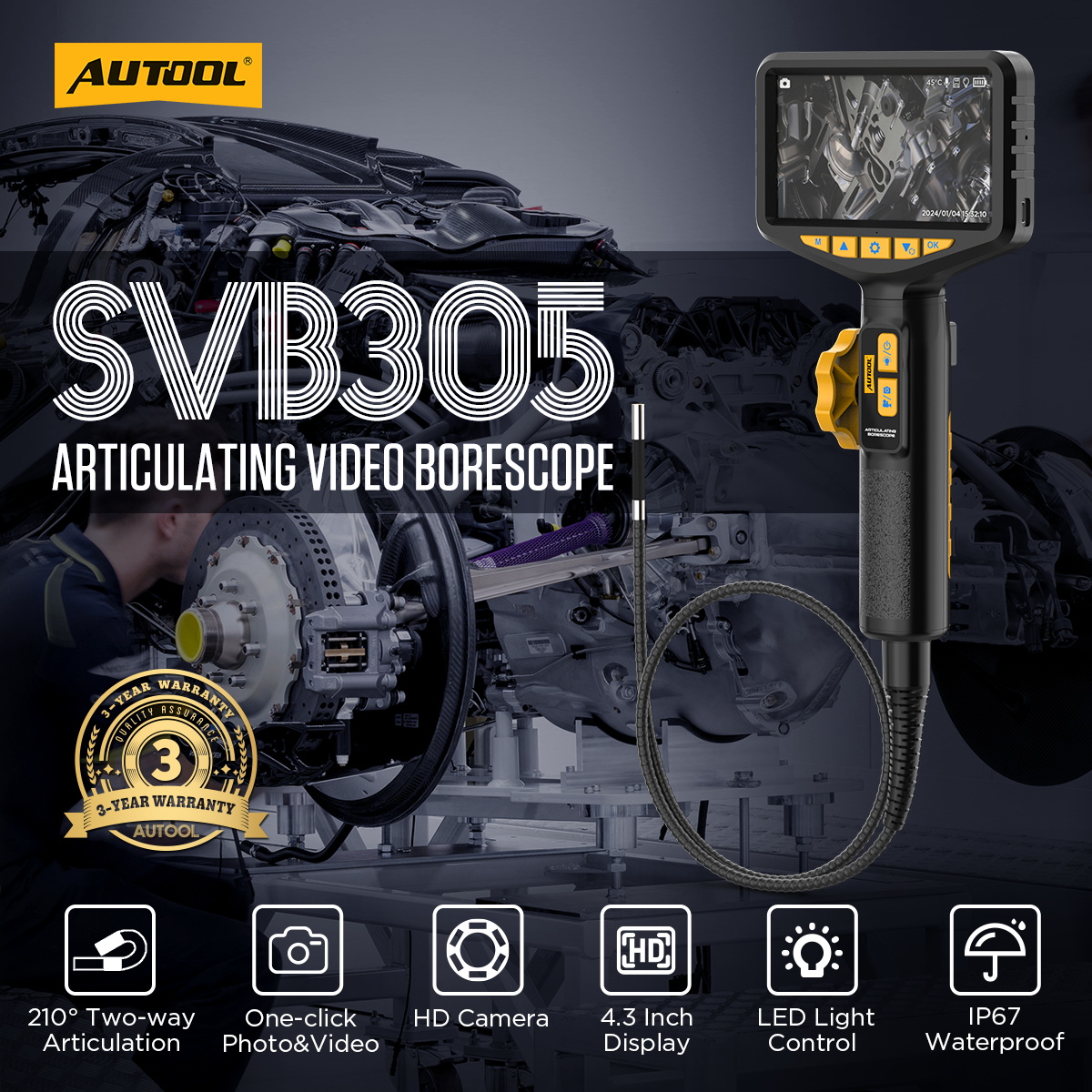

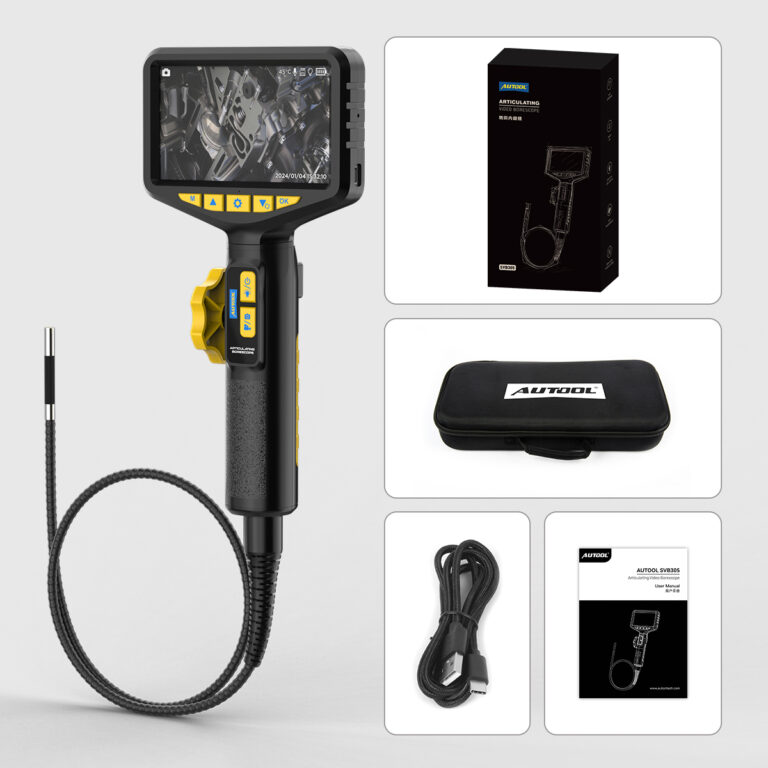

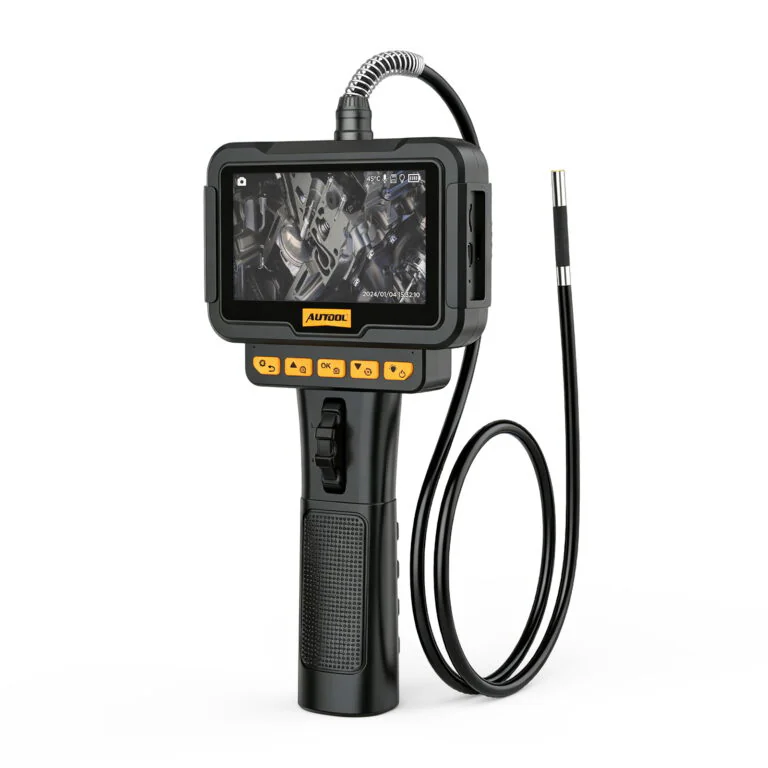

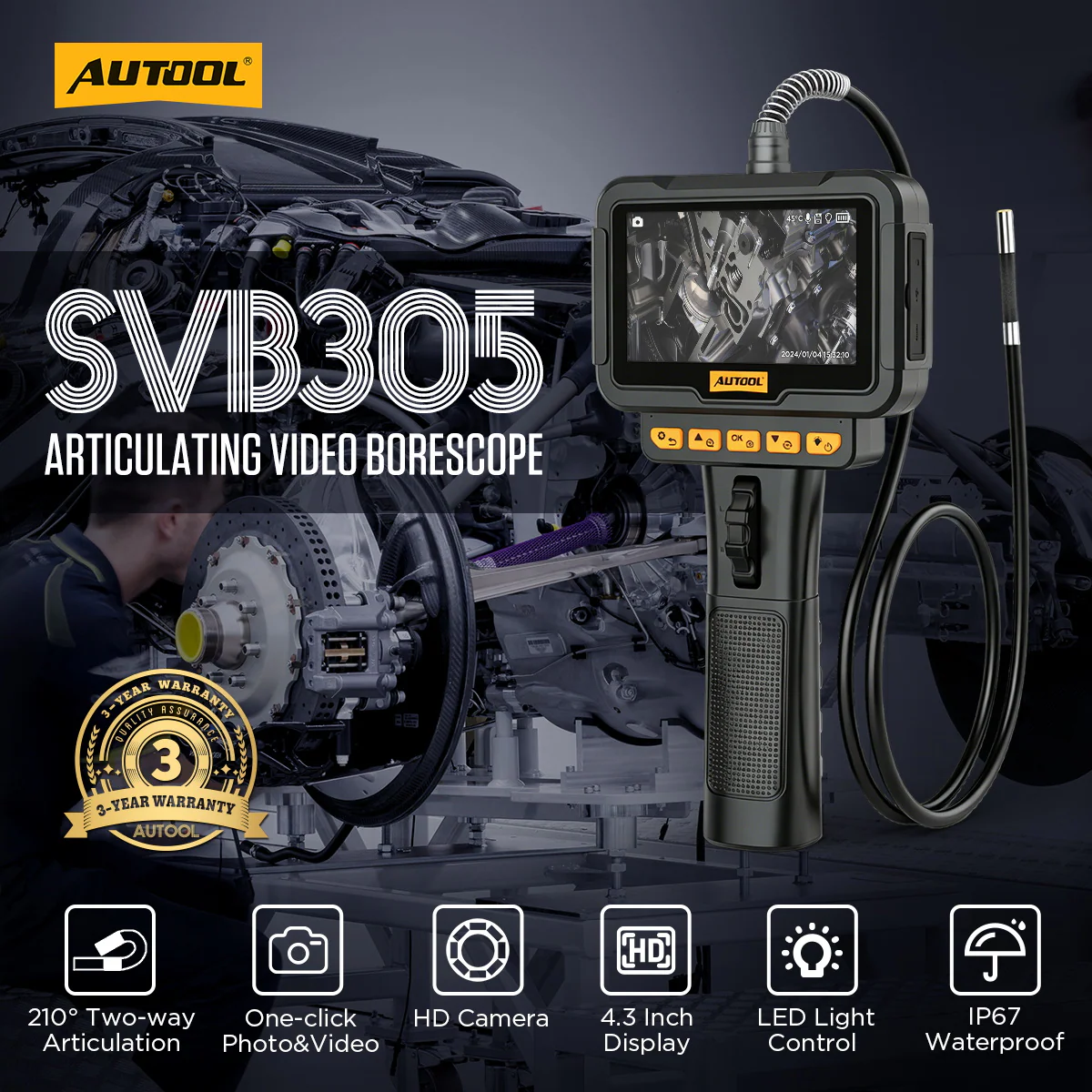

The AUTOOL SVB305 automotive inspection camera is a mid-to-high-end articulating video borescope for precise vehicle, engine, pipe, wiring, and narrow-space inspections. It combines a 4.3-inch built-in display, 210° two-way articulating probe, 5.5mm camera diameter, adjustable LED lighting, IP67 probe protection, built-in 32GB storage, and a 2000mAh rechargeable lithium battery for standalone inspection without relying on a phone screen.
210° Two-Way Articulation4.3-Inch Display5.5mm ProbeIP67 Camera Probe
1280×720Resolution
25-100mmDepth Of Field
2000mAhBattery
32GBStorage
Click to enlargeClick to enlarge
Before You Order And Use
Before You Order And Use
Read these notes before using the SVB305 snake camera around recently stopped engines, wet pipes, oily areas, and narrow vehicle spaces.
Cool The Engine First
Engine areas can remain very hot after shutdown. Wait until the engine has fully cooled before inserting the probe; in many cases this may take about 1-2 hours.
Avoid High Heat Around The Probe
Do not place the probe, hose, or camera cable into high-temperature areas above 75°C. The specification image lists an operating environment of -10°C to 80°C, but avoiding heat above 75°C is the safer customer-use rule.
Heat Damage Is Not Normal Warranty Damage
If artificial heat damages the camera, camera replacement may require a paid service fee. The original service note listed a $45 replacement charge; confirm the current cost with support before ordering parts.
IP67 Applies To The Camera Probe
The camera probe is IP67 rated and can work in wet pipes and oily environments. Do not treat the entire display body as fully waterproof.
SVB305 Has A Built-In Screen
SVB305 uses a 4.3-inch built-in display. SVB302 does not have a built-in screen and is designed for phone or tablet display connection.
Cable Difference From SVB302
SVB302 is supplied with three port cables and one USB cable according to the original note, while SVB305 uses a simpler built-in-screen design with one USB cable.
How To Choose
How To Choose
Use these quick selection cards to decide whether SVB305 is the right model or whether another AUTOOL articulating borescope better matches your inspection need.
Need A Standalone Screen?
Choose SVB305 if you want a 4.3-inch built-in display and do not want to rely on a phone or tablet during inspection.
Need 210° Two-Way Steering?
SVB305 is suitable when a two-way 210° articulating probe is enough for engine, pipe, cylinder, wiring, and hidden-area checks.
Need 360° Four-Way Articulation?
Consider SVB303, SVB308, SVB405, or SVB408 if you need four-way 360° steering instead of SVB305’s two-way steering design.
Need An Ultra-Thin Probe?
Consider SVB408 if a thinner 3.9mm probe is more important than SVB305’s 5.5mm probe diameter.
Need Phone Or Tablet Display?
Compare SVB302 or SVB303 if you prefer a model that works with Apple iOS, Android system, HarmonyOS-enabled phone, or tablet display.
Need Detachable Or Magnetic Design?
Choose SVB308 or SVB303 if detachable design or magnetic placement matters. SVB305 does not use a magnetic or detachable screen design.
Product Comparison
Product Comparison
Compare SVB305 with other AUTOOL SVB inspection camera models before choosing by screen type, steering angle, lens diameter, resolution, temperature protection, storage, battery, and phone compatibility.
SVB305 Focus4.3-inch built-in display, 210° two-way articulation, 5.5mm lens diameter, 1280×720 resolution, 1 million pixels, 25-100mm depth of field, 32GB storage, and 2000mAh lithium battery.
SVB403 / SVB405 / SVB408SVB403 uses dual front and side lenses with 210° steering. SVB405 uses four-way 360° steering and 1920×1080 / 2MP imaging. SVB408 uses four-way 360° steering and a 3.9mm ultra-thin probe.
SVB302 / SVB303SVB302 has no built-in screen and uses phone / tablet display connection. SVB303 adds four-way 360° steering, 2600mAh battery, magnetic design, and detachable design.
Decision CheckChoose by steering angle, screen type, probe diameter, resolution, depth of field, high-temperature alarm, storage, battery capacity, and whether phone / tablet compatibility is required.
Click to enlarge
Key Features
Key Features
SVB305 is designed for clear visual inspections in tight vehicle spaces with a built-in display, articulating lens, adjustable LEDs, image / video recording, storage, battery power, and IP67 probe protection.

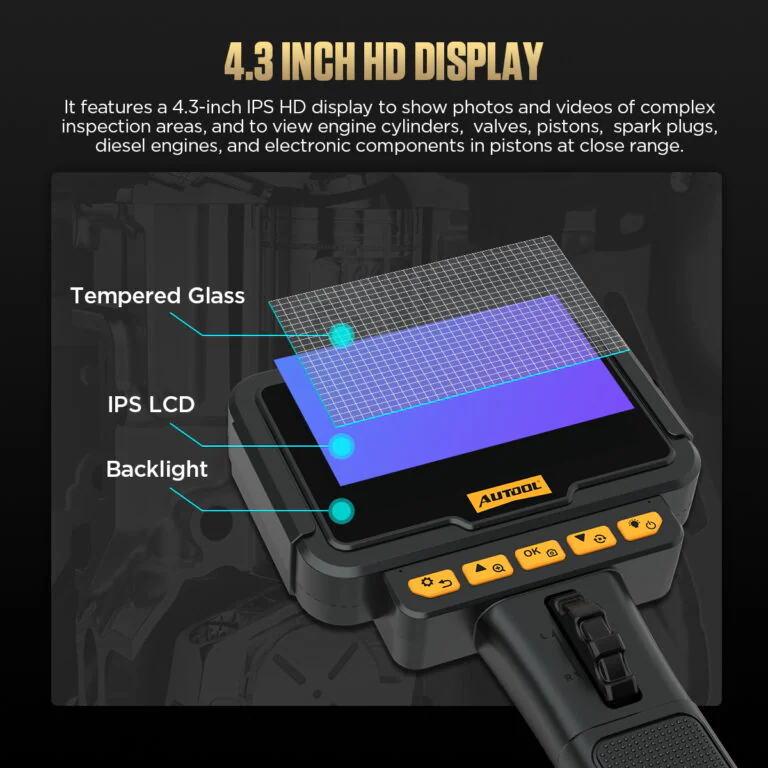

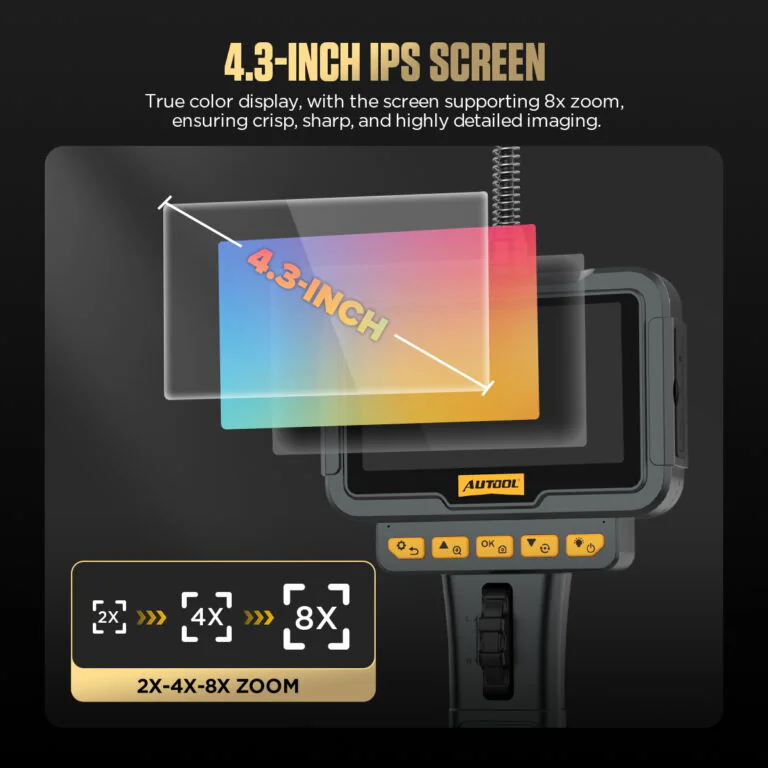

4.3-Inch HD Display
The built-in 4.3-inch display lets you inspect engine areas, pipes, components, and hidden spaces directly without connecting a phone.

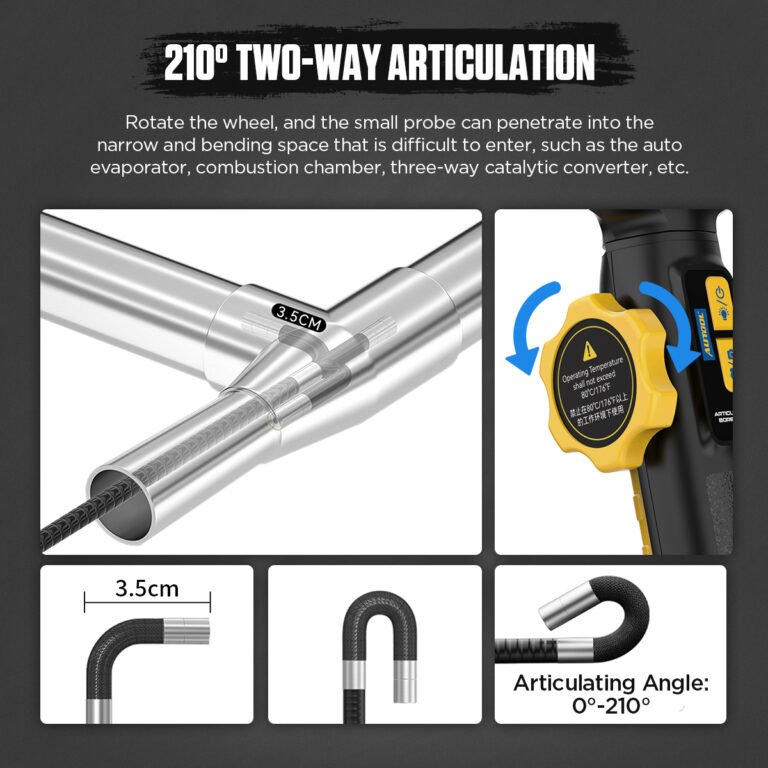

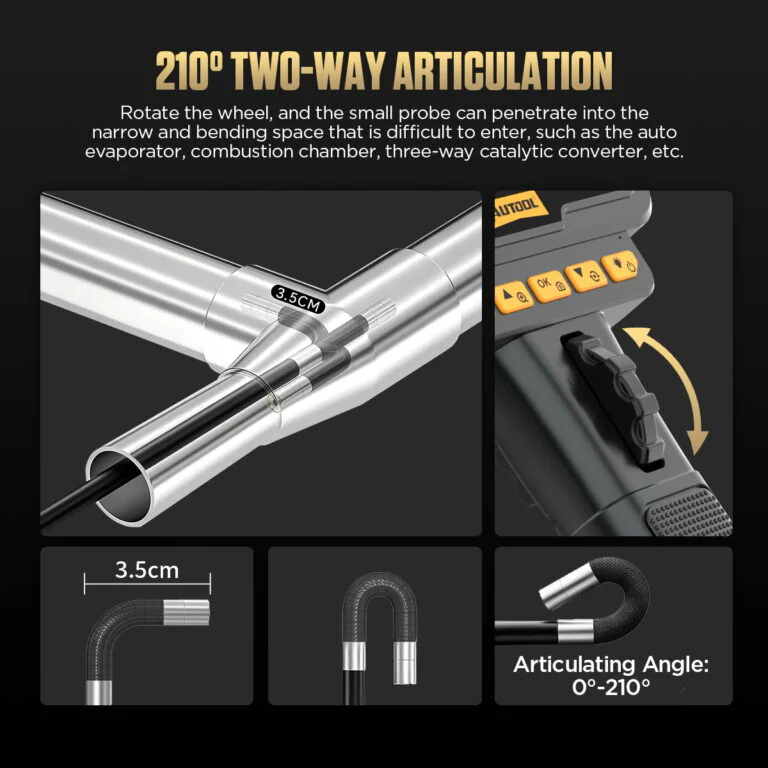

210° Two-Way Steering Lens
The articulating lens can rotate up to 210° in two directions, helping the probe reach curved, narrow, and hard-to-see inspection points.

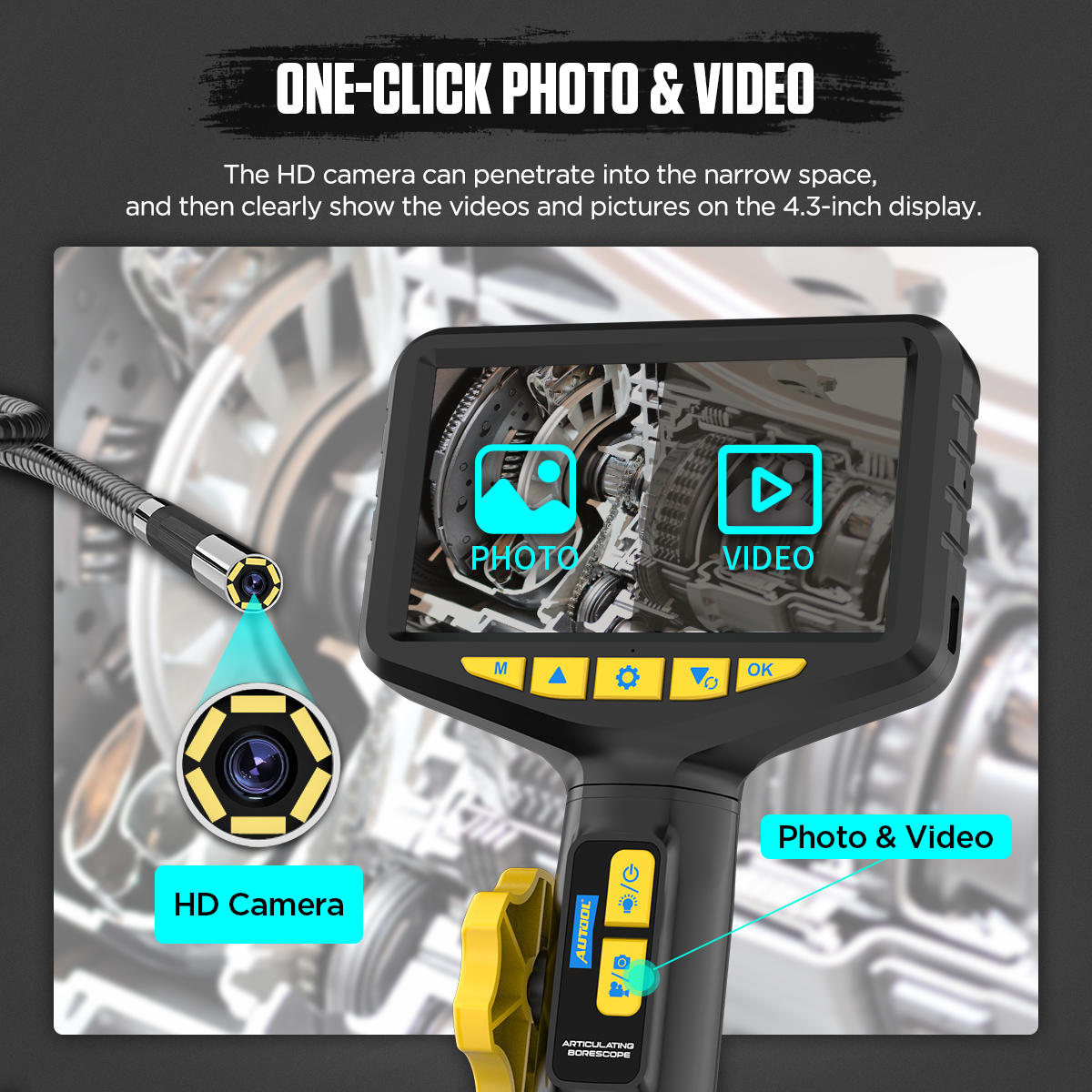

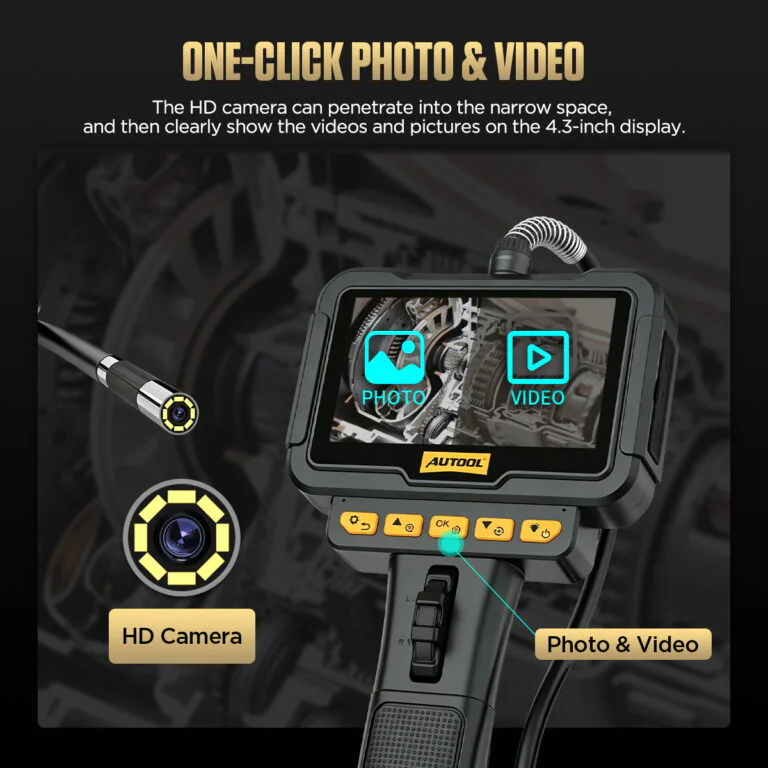

One-Click Photo And Video
Use the handle photo / video button to capture inspection evidence. The device supports JPG image recording and AVI video recording.

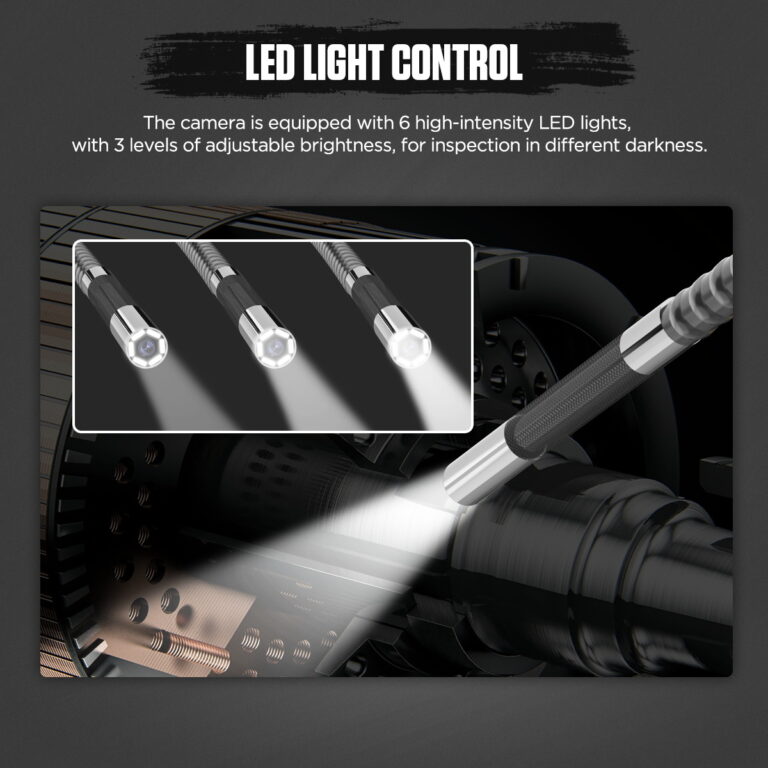

Adjustable LED Lighting
Six LED lights support three brightness levels, making it easier to inspect dark engine cavities, pipes, and enclosed spaces.

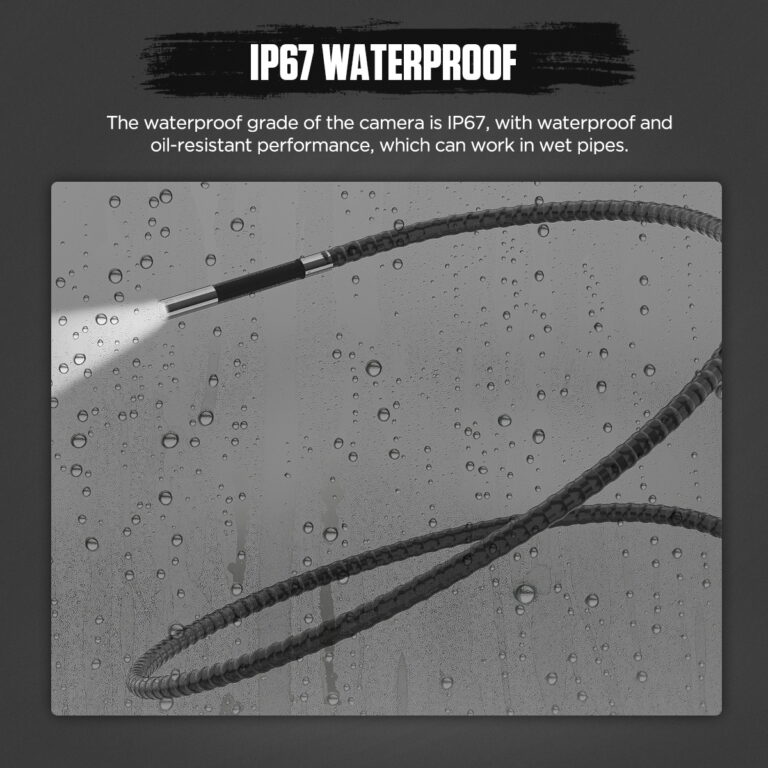

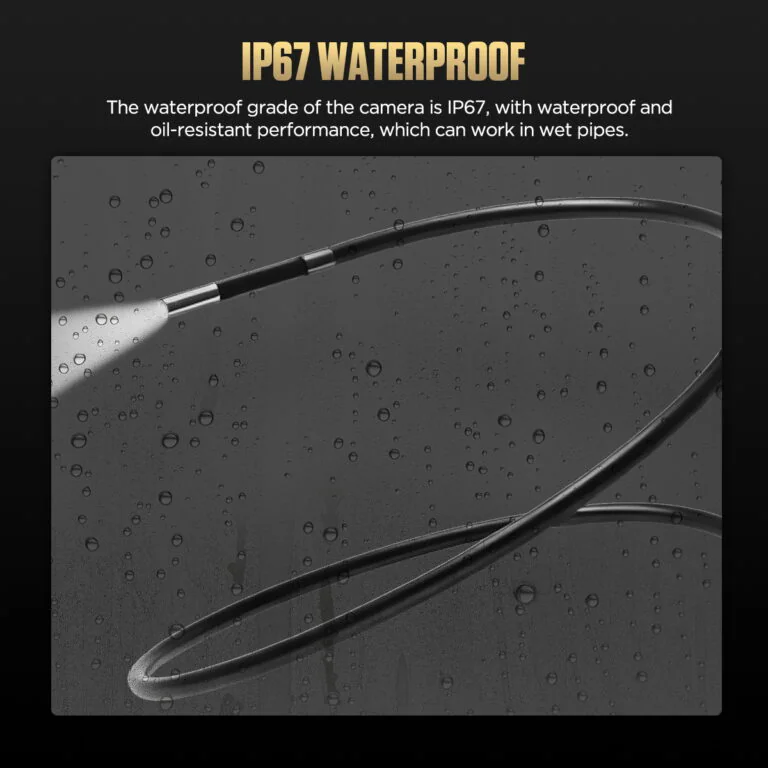

IP67 Waterproof Probe
The probe is rated IP67 with waterproof and oil-resistant performance, suitable for wet pipes and oily vehicle inspection environments.

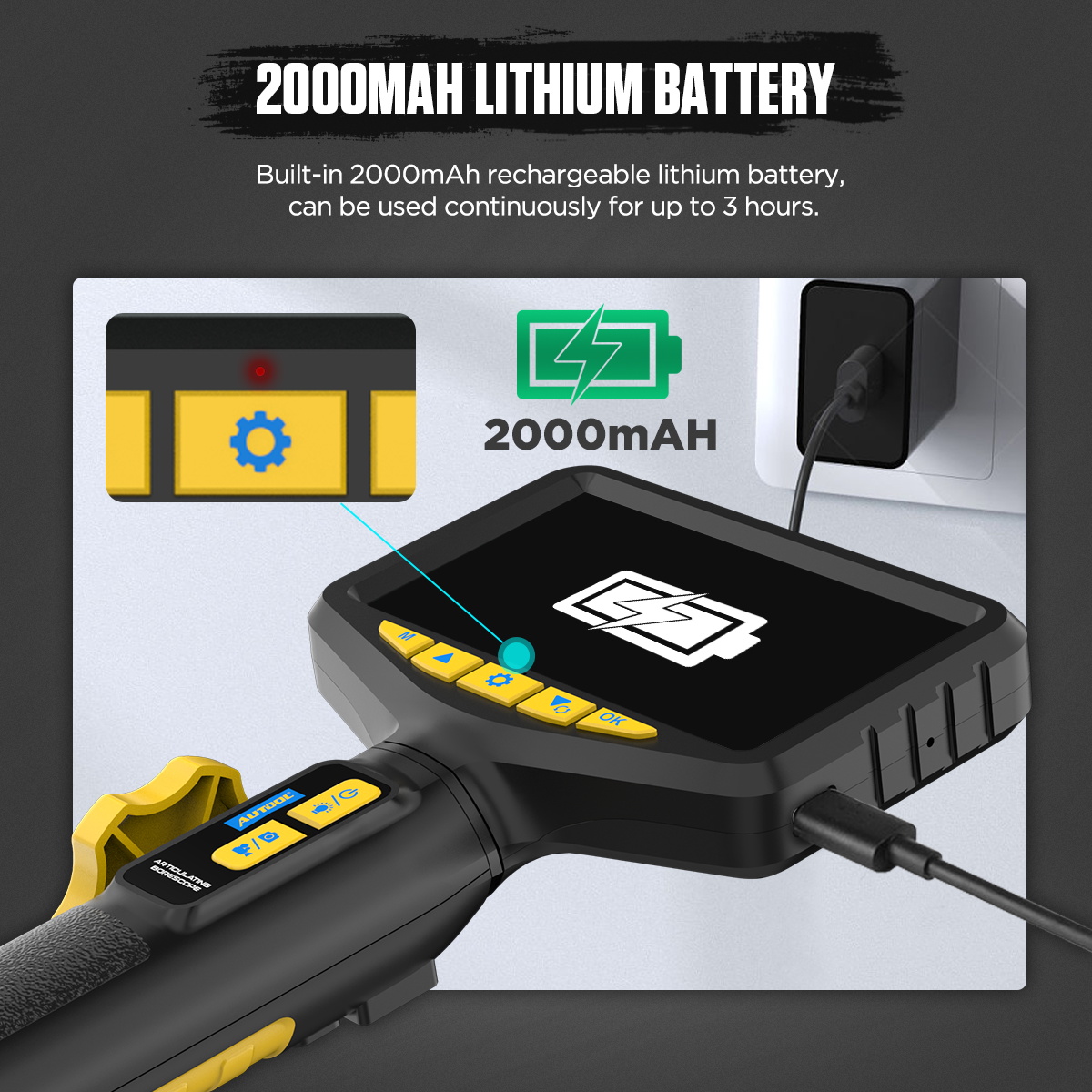

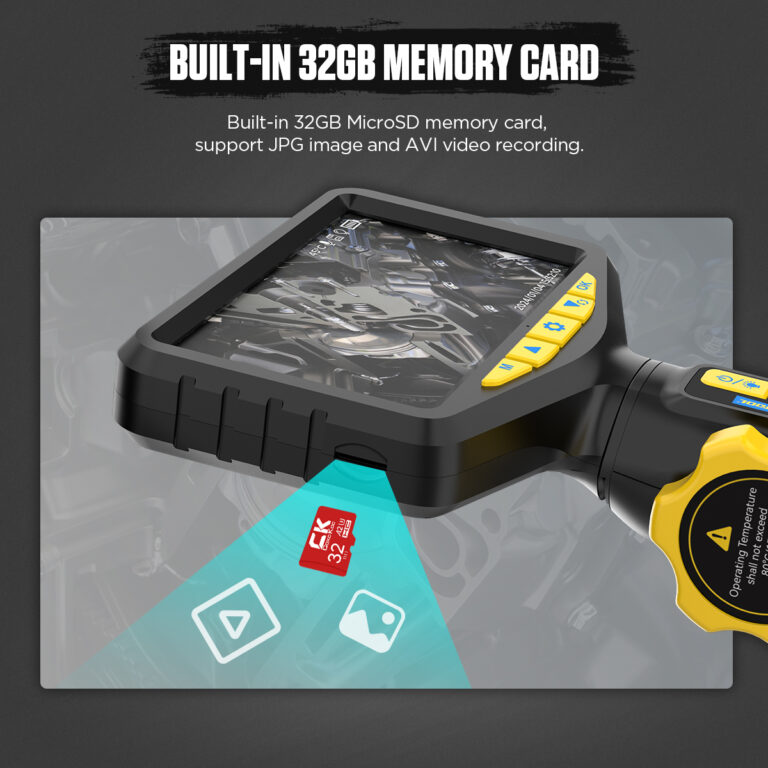

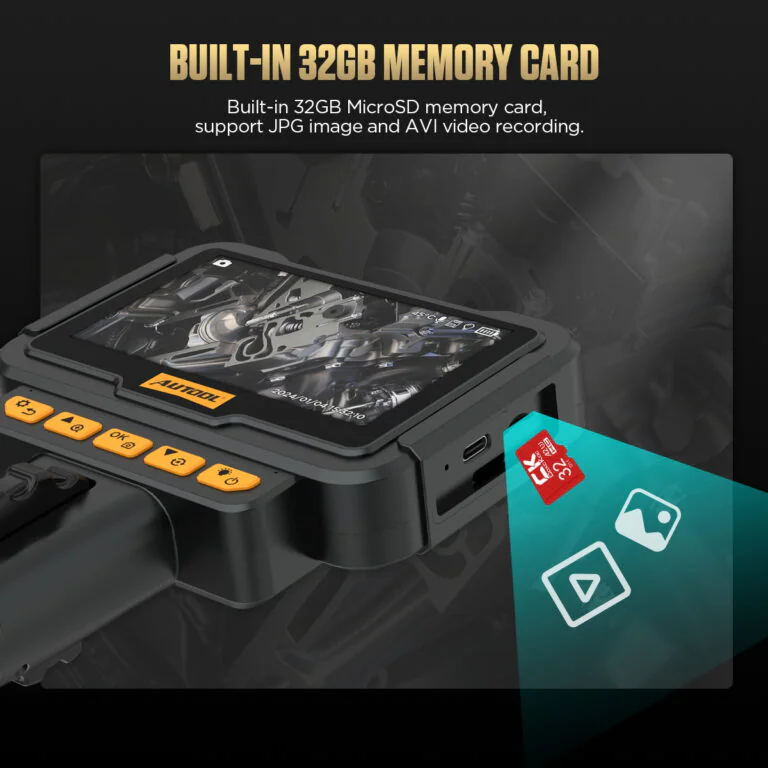

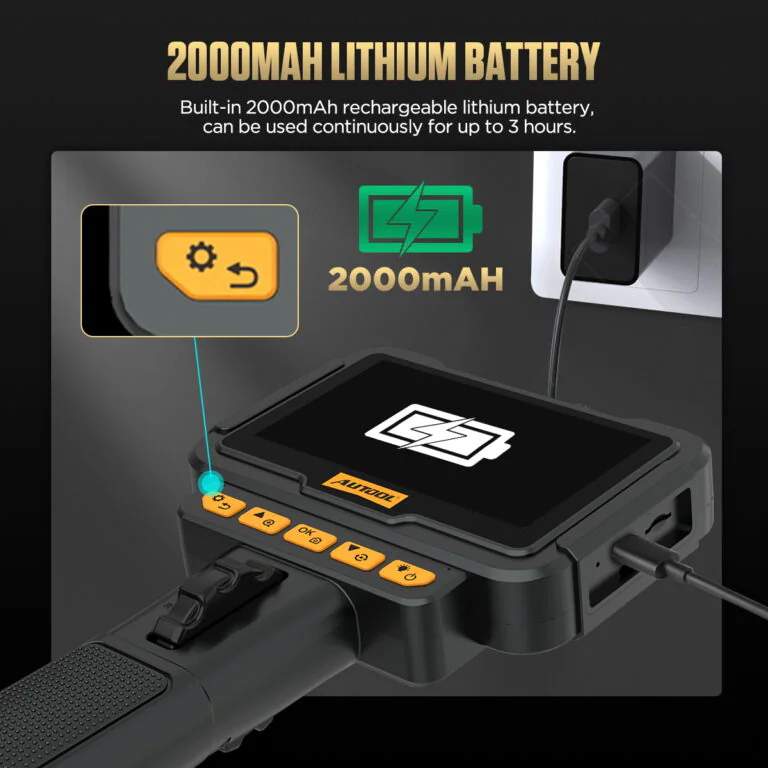

32GB Storage And 2000mAh Battery
SVB305 includes built-in 32GB storage and a 2000mAh rechargeable lithium battery that can work up to 3 hours depending on brightness and recording use.
Click to enlargeClick to enlarge
Compatibility And Fitment
Compatibility And Fitment
SVB305 uses optical and electronic imaging technologies to illuminate, capture, transmit, display, and record images from areas that are difficult to inspect directly.
LED Illumination
The front probe uses a miniature camera and LED light source to illuminate the target inspection area in dark vehicle spaces.
Image Capture
The probe captures real-time images of engine wear, pipe blockage, hidden wiring, component surfaces, and other internal structures.
Signal Display
The image signal is transmitted through the probe cable and displayed on the built-in screen after decoding.
Articulating Access
The flexible probe and 210° steering design help access curved and narrow structures for efficient, non-destructive inspection.
Applications
Applications
SVB305 is suitable for many visual inspection tasks, as long as the probe is used within safe temperature limits and is not forced into tight passages.
Automotive Inspection
Use it for engine, cylinder, intake, component cavity, and hidden vehicle inspection where visual access is limited.
Use the waterproof probe for suitable wet pipe, chemical pipeline, construction, and power facility inspection tasks.
Security And Hidden Areas
Check concealed wiring, enclosed spaces, and hard-to-view areas for monitoring, maintenance, and troubleshooting.

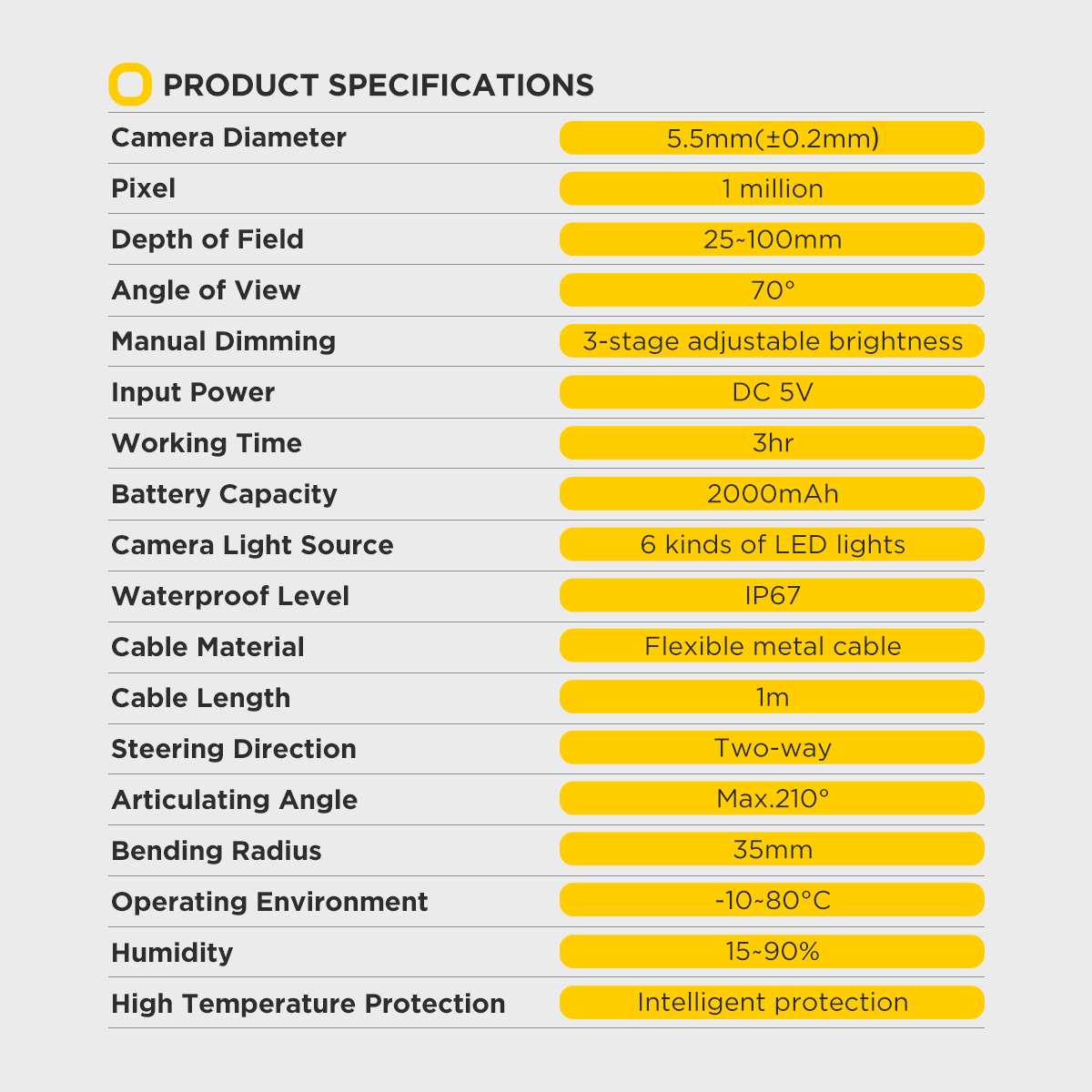

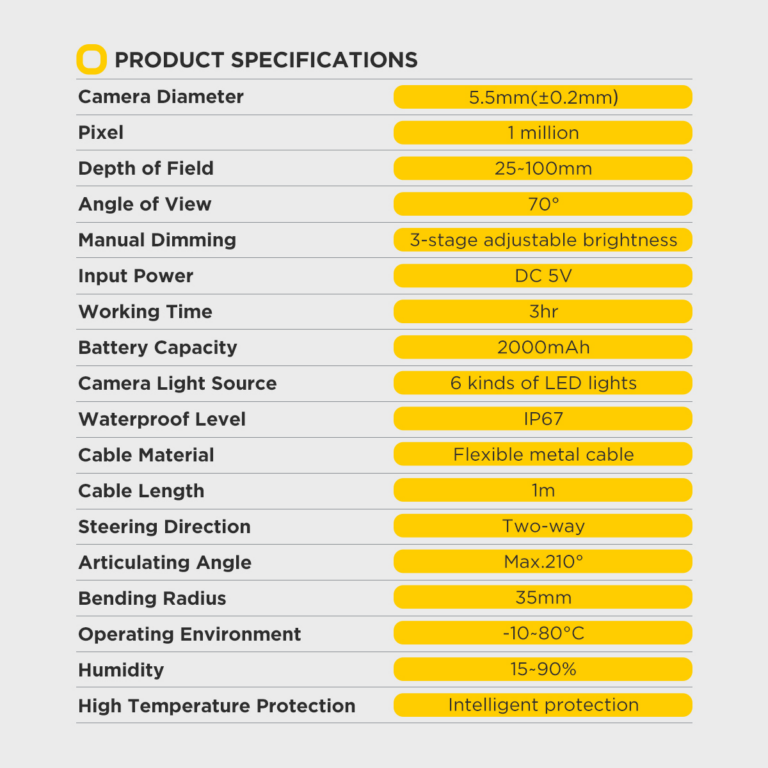

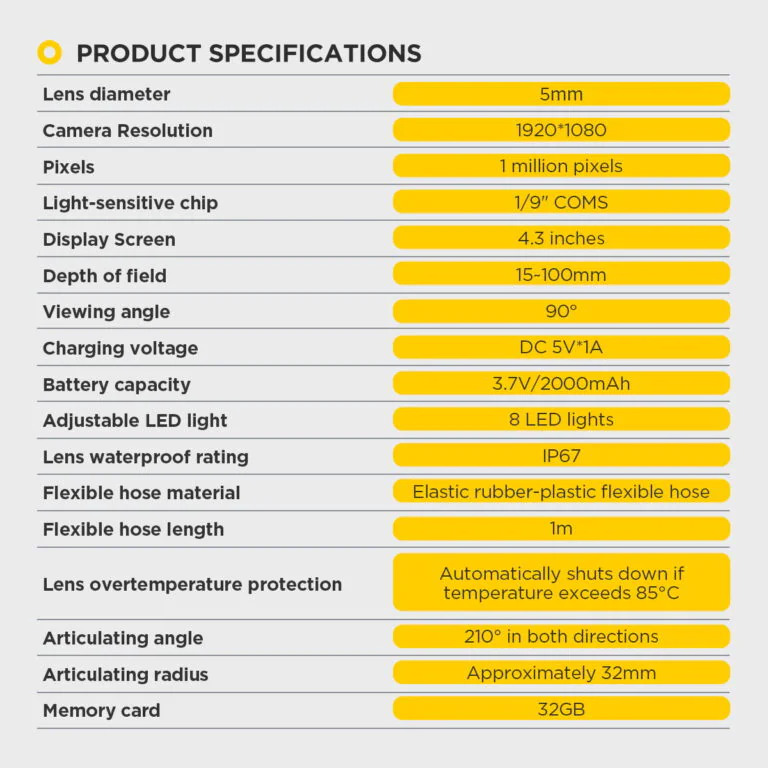

Specifications
SVB305 Product Specifications And Interface
The specification data below consolidates the SVB305 parameter image, comparison chart, and original product content, while correcting obvious conflicts such as the screen size, lens diameter, and resolution.
Display And Imaging
Product
AUTOOL SVB305 Articulating Video Borescope
Display
4.3-inch built-in display
Resolution
1280 × 720
Pixel
1 million
Camera Diameter
5.5mm ±0.2mm
Depth Of Field
25-100mm
Angle Of View
70°
Photo Format
JPG image recording
Video Format
AVI video recording
Probe And Lighting
Steering Direction
Two-way
Articulating Angle
Maximum 210°
Bending Radius
35mm
Cable Length
1m
Cable Material
Flexible metal cable
Camera Light Source
6 LED lights
Manual Dimming
3-stage adjustable brightness
Waterproof Level
IP67 camera probe
Power, Storage And Language
Input Power
DC 5V
Battery Capacity
2000mAh rechargeable lithium battery
Working Time
Up to 3 hours depending on brightness and recording use
Storage Capacity
Built-in 32GB storage card
Languages
8 languages: English, German, French, Italian, Spanish, Chinese, Russian, and Japanese
Environment And Protection
Operating Environment
-10°C to 80°C according to the specification image
Safe-Use Heat Reminder
Do not place the probe or hose in environments above 75°C; allow hot engines to cool before inspection
Humidity
15-90%
High Temperature Protection
Intelligent protection
Warranty
3-year warranty support for eligible non-human damage cases
Working TimeUp to 3 hours depending on brightness and recording use
Storage CapacityBuilt-in 32GB storage card
Languages8 languages: English, German, French, Italian, Spanish, Chinese, Russian, and Japanese
Environment And Protection
Operating Environment-10°C to 80°C according to the specification image
Safe-Use Heat ReminderDo not place the probe or hose in environments above 75°C; allow hot engines to cool before inspection
Humidity15-90%
High Temperature ProtectionIntelligent protection
Warranty3-year warranty support for eligible non-human damage cases

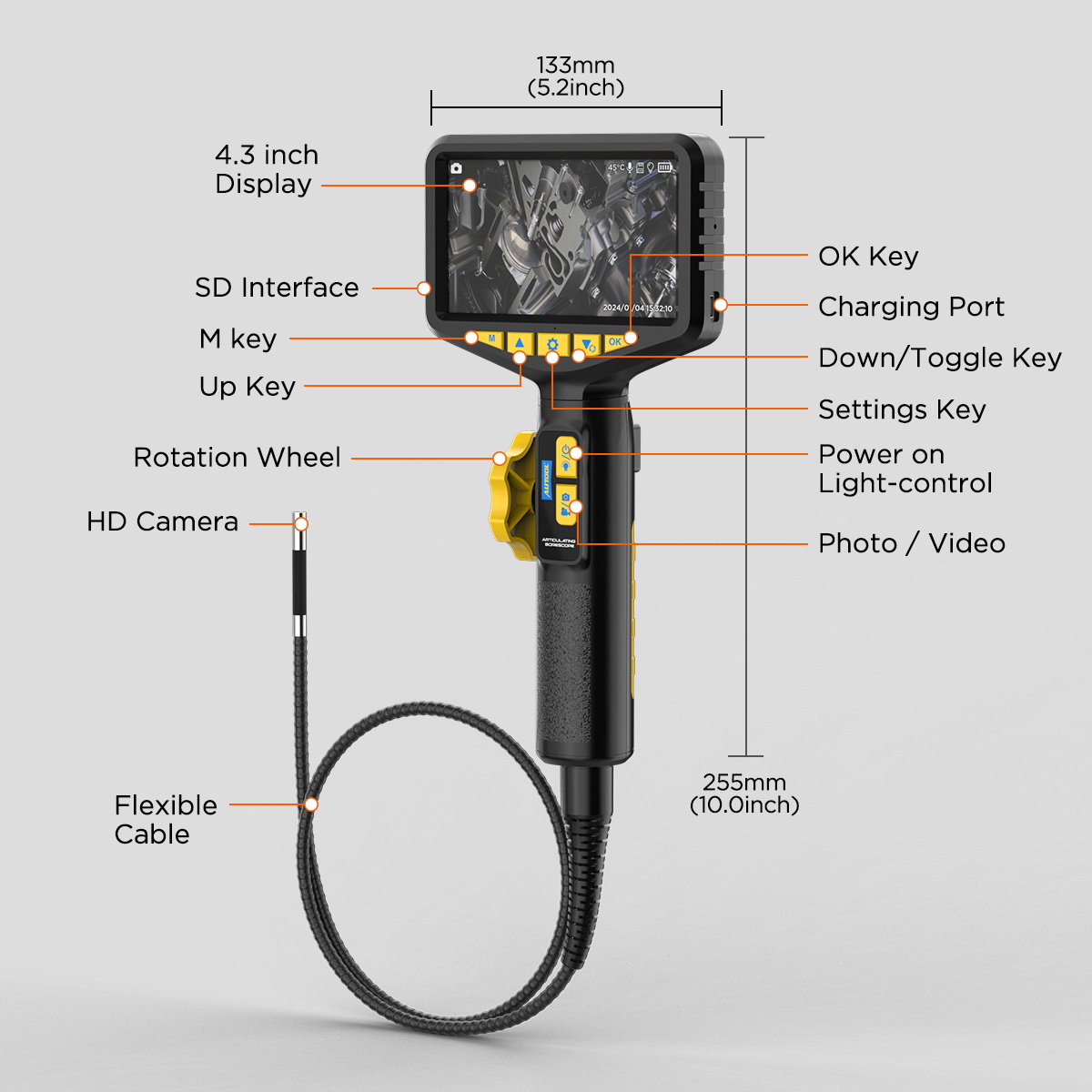

Product Details
Product Details

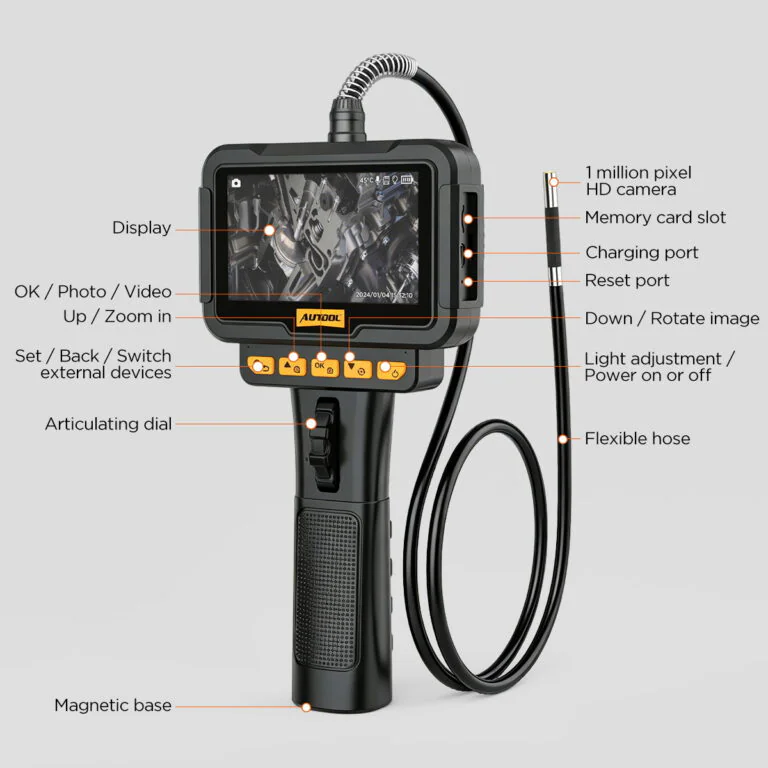

The SVB305 detail view identifies the screen area, handle controls, articulating probe control, camera cable, charging port, and body dimensions shown in the product interface diagram.
Display Area4.3-inch display with SD interface, M key, up key, settings key, down / toggle key, OK key, and charging port.
Handle ControlsPower on / light-control button and photo / video button are placed on the handle for quick operation.
Probe ControlThe rotation wheel controls the articulating camera direction during inspection.
Probe And CableHD camera probe with flexible cable for narrow-space inspection.
Body DimensionsApprox. 135mm / 5.2 inch screen width and 255mm / 10.0 inch body height shown in the interface image.
How To Use
How To Use
Follow these basic steps when using SVB305 for automotive, pipe, mechanical, or hidden-area inspection. Always confirm the inspection area is cool enough before inserting the probe.
Power On
Press and hold the power button, then open or remove the camera protective cover before inspection.
Adjust Lighting
Adjust the ideal LED brightness before inserting the probe into the inspection area.
Insert The Probe
Insert the probe into the engine, pipe, or hidden space only after the area has cooled to a safe temperature.
Control The Direction
Use the joystick or rotation wheel to adjust the camera direction and inspect curved or hard-to-see spaces.
Zoom, Invert, Capture Or Record
Use the screen buttons to zoom or invert images where supported, and use the handle photo / video button to take pictures or record videos.
Use Notes
Do not use the borescope immediately after turning off a hot engine.
Wait about 1-2 hours when needed so the engine area cools to a safe temperature.
Do not place the probe, hose, or cable in environments above 75°C.
Do not force the probe into very tight passages; excessive force may damage the cable or lens.
Clean and dry the probe after wet, oily, or dirty inspections.
Use the 32GB storage for inspection records, then export files as needed according to the manual.
Compatibility And Fitment
Compatibility And Fitment
Compare related AUTOOL SVB inspection camera models by screen type, articulation direction, probe diameter, resolution, storage, magnetic design, and inspection use. Product prices are retained from the original page content and should be confirmed on the product page before checkout.
Select options
This product has multiple variants. The options may be chosen on the product page
Select options
This product has multiple variants. The options may be chosen on the product page
Manual And Downloads
Manual And Downloads
Download the SVB305 user manual for setup, operation, button control, image / video recording, storage, charging, safety reminders, and troubleshooting support.
Click to enlarge

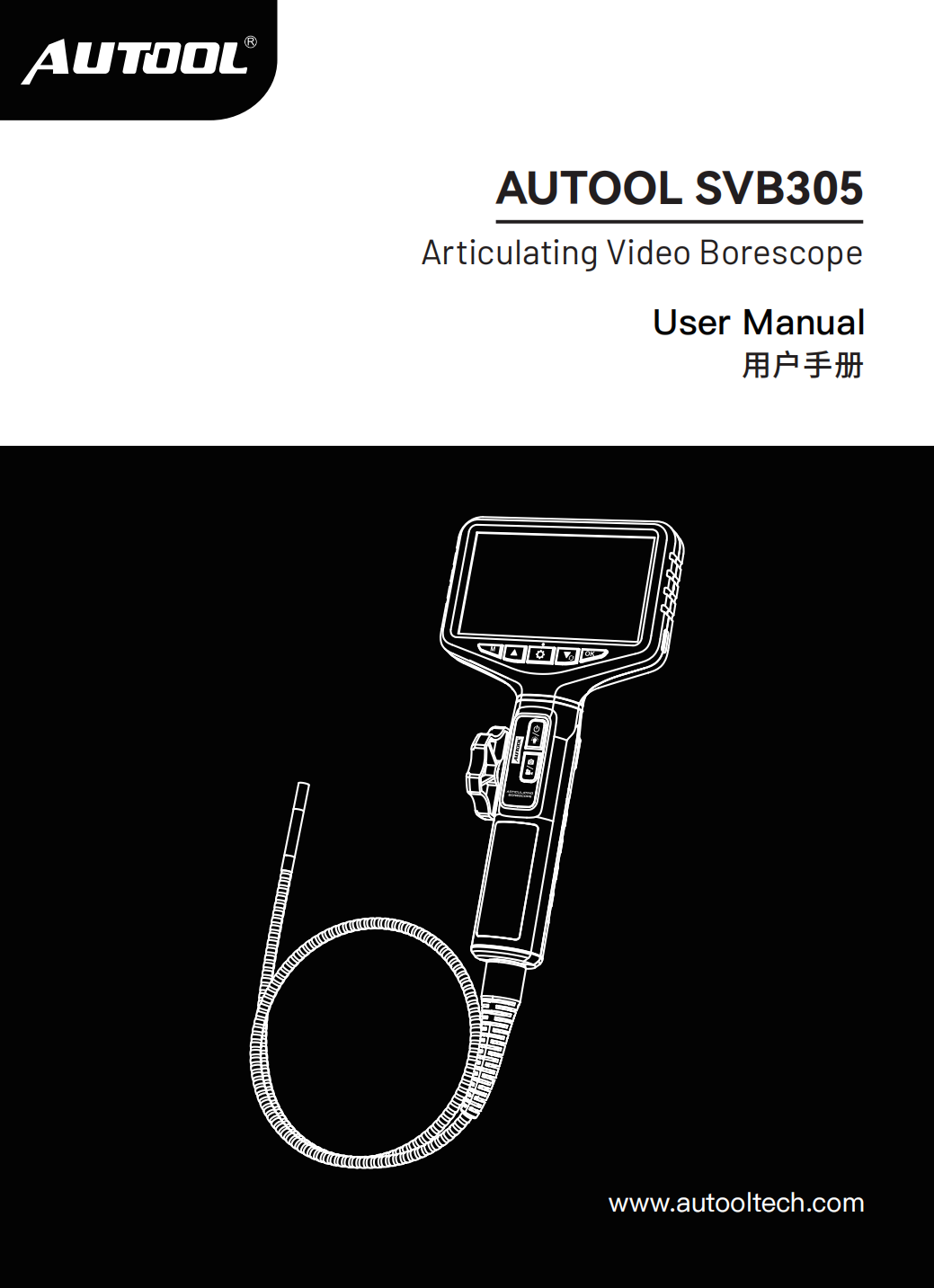

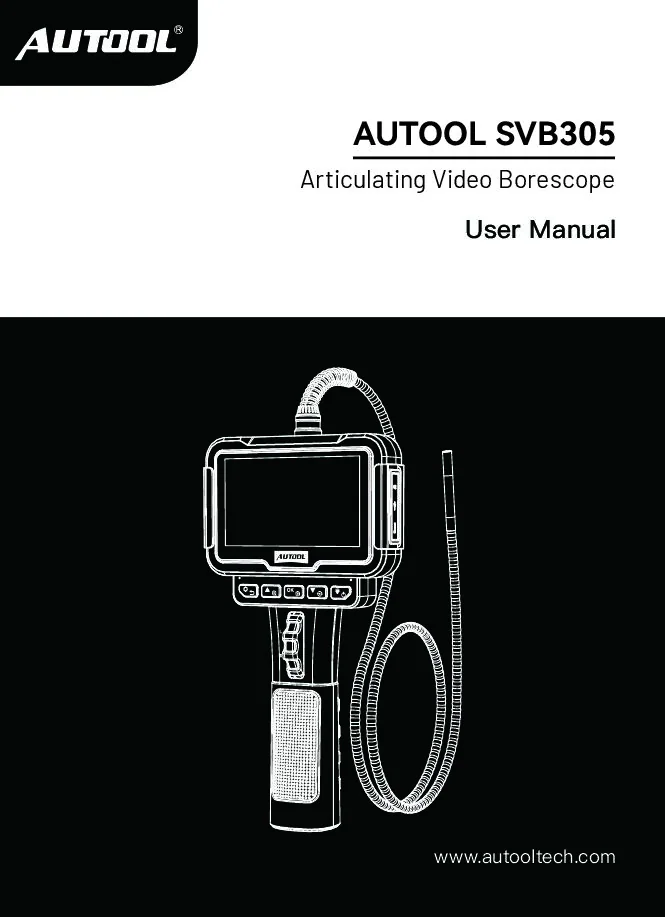

AUTOOL SVB305 User Manual
Open the PDF manual for SVB305 operation, storage, charging, inspection, and safe-use guidance.
Contact AUTOOL Store before ordering if you need to confirm SVB305 screen size, probe diameter, temperature use, storage, battery, SVB302 / SVB308 comparison, or replacement camera support.
These answers cover SVB305 screen size, lens diameter, steering angle, storage, photo / video recording, waterproof probe use, heat safety, model differences, and warranty support.
SVB305 has a 4.3-inch built-in display. The original warm-tip text mentioned 5 inches, but the product image, interface image, and comparison chart show SVB305 as a 4.3-inch display model.
SVB305 uses a 5.5mm ±0.2mm camera diameter, 1280 × 720 resolution, and 1 million pixels. The older FAQ text that listed the lens as 505mm is treated as a typo and should not be used.
No. SVB305 supports maximum 210° two-way articulation. If you need four-way 360° steering, compare SVB303, SVB308, SVB405, or SVB408.

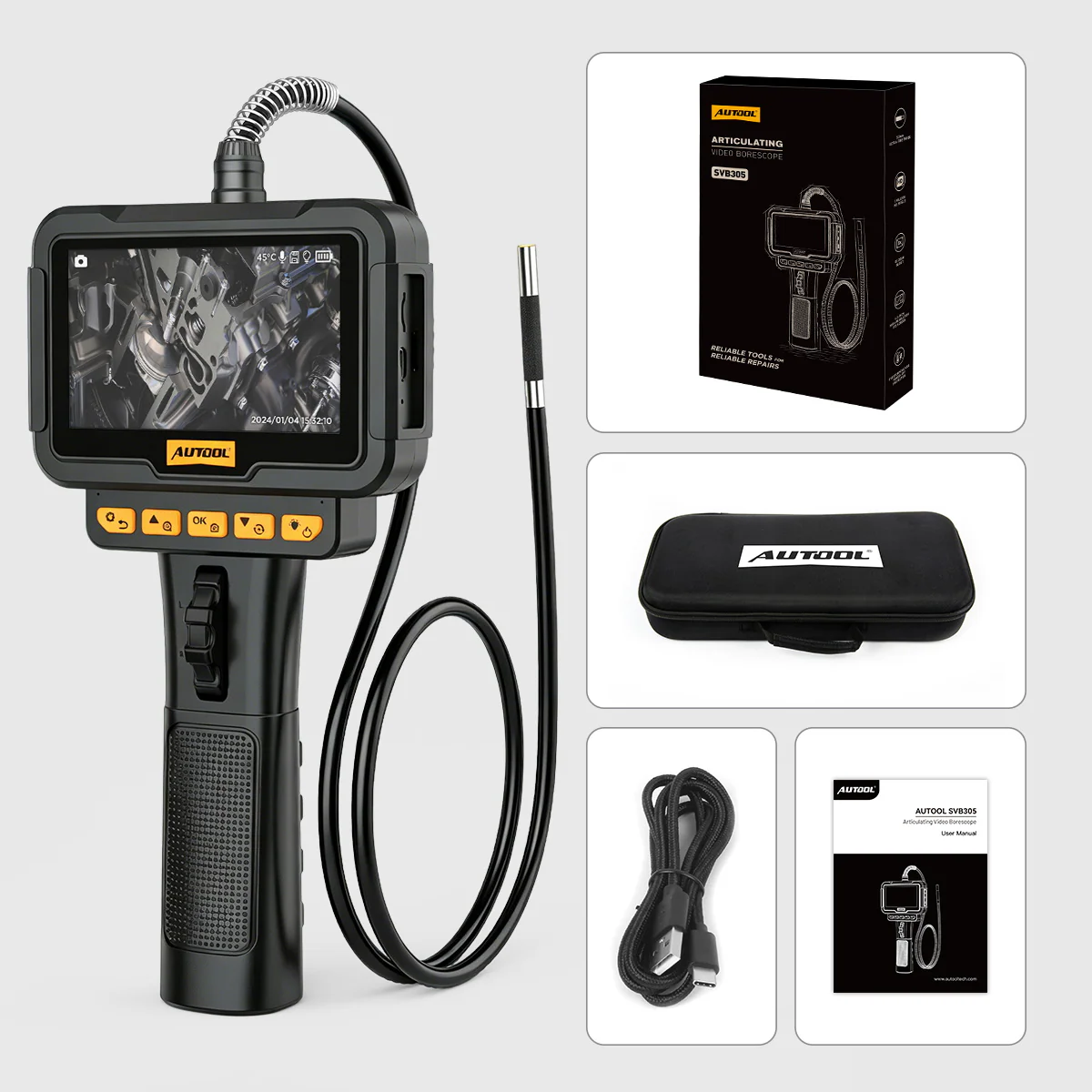

SVB305 has a built-in 4.3-inch display, 32GB storage, 2000mAh battery, and does not require a phone display. SVB302 has no built-in screen and is designed for phone / tablet display connection. The original note also states that SVB302 has three port cables and one USB cable, while SVB305 uses one USB cable.
SVB305 has 210° two-way articulation, a 5.5mm lens, 1280 × 720 resolution, 8 languages, 2000mAh battery, and 32GB storage. SVB308 has four-way 360° articulation, a 6.2mm lens, 1920 × 1080 resolution, 10 languages, a 2600mAh battery, magnetic design, and detachable screen / handle design.
SVB403 uses 210° bidirectional articulation with two lenses: front lens and side lens. SVB405 and SVB408 use four-way 360° articulation with one lens. SVB405 has 1920 × 1080 / 2 million pixel imaging and a 4.5-inch IPS display. SVB408 has a 3.9mm ultra-thin lens diameter, 1280 × 720 / 1 million pixel imaging, a 4.5-inch IPS display, and a 37mm bending radius. SVB405 and SVB408 support 8× digital zoom, while SVB403 also supports 8× digital zoom according to the comparison chart.
SVB302 is a phone / tablet compatible model with maximum 210° steering, 6.45mm lens diameter, 30-100mm depth of field, and 7 languages. SVB303 is also phone / tablet compatible but adds four-way 360° steering, 6.2mm lens diameter, 20-100mm depth of field, 10 languages, 2600mAh lithium battery, magnetic design, and detachable design.
It is not recommended. Engine temperatures can reach 80°C to 100°C or more when the car has just stopped. Let the engine cool completely before use; in many cases, waiting about 1-2 hours is safer.
Do not place the hose, probe, or camera in an environment above 75°C. The product specification image lists -10°C to 80°C operating environment, but the safer customer-use rule is to avoid hot areas above 75°C, especially near recently stopped engines.
Yes. SVB305 supports one-click photo and video recording. It supports JPG images and AVI video files, with recording saved to the built-in 32GB storage card.
The camera probe is IP67 rated with waterproof and oil-resistant performance, making it suitable for wet pipes and oily environments. Do not immerse or wash the display body as if the entire unit were waterproof.
SVB305 can be used for auto inspection, mechanical maintenance, construction industry checks, power facility inspection, chemical pipeline inspection, security monitoring, hidden wiring observation, and other visual inspection tasks where the probe can be used safely.
AUTOOL provides 3-year warranty support for eligible non-human damage cases. Heat damage caused by inserting the camera into overly hot engine areas may require paid replacement service instead of normal warranty coverage.
