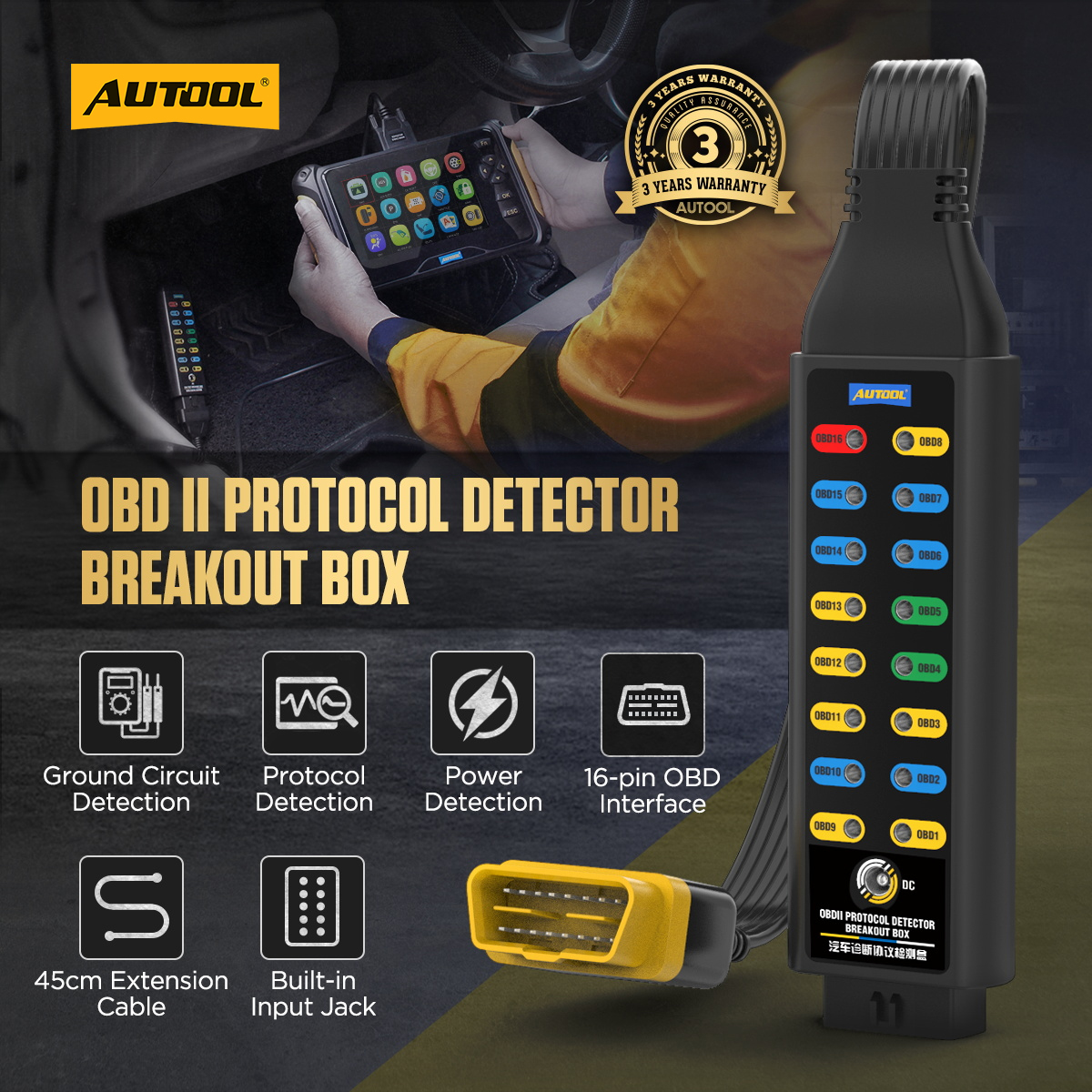

AUTOOL OBD2 Breakout Box Protocol Detector Basic Version
US$59.00
Key Features
- 16-Pin OBD2 Fit
- Scope Ready
- 8-30V Supply
- 16-Pin OBD2 Fit: The unit is described as compatible with vehicles using a 16-pin OBD2 interface.
- Scope Ready: The full analog 16-pin connector allows follow-up checks with a multimeter or oscilloscope.
- 8-30V Supply: Connectable 8-30V power support helps with ECU power-supply tasks during battery-related service work.
Secure checkoutFast supportBulk ready

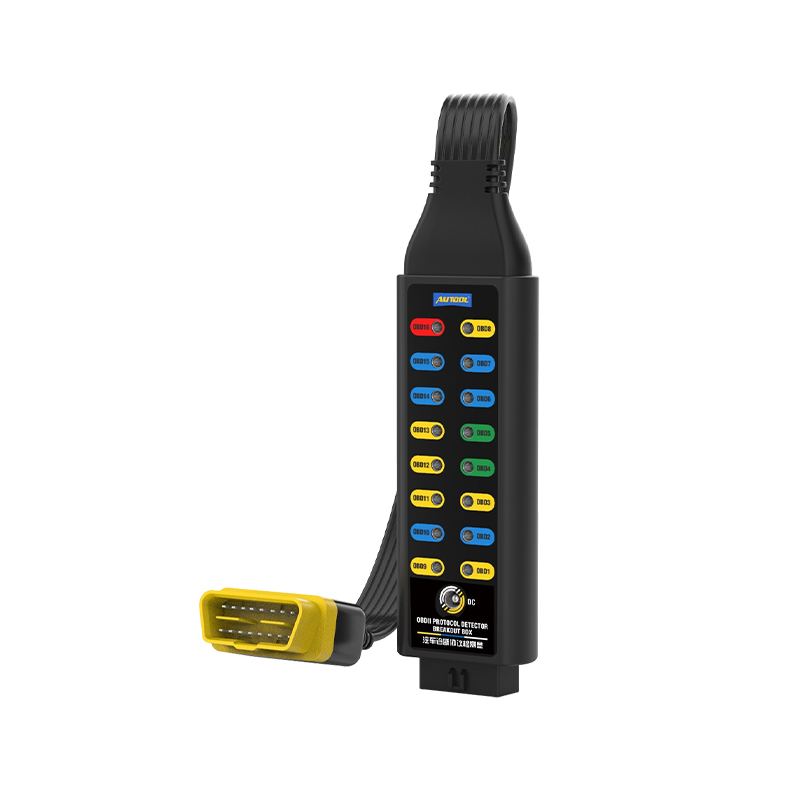

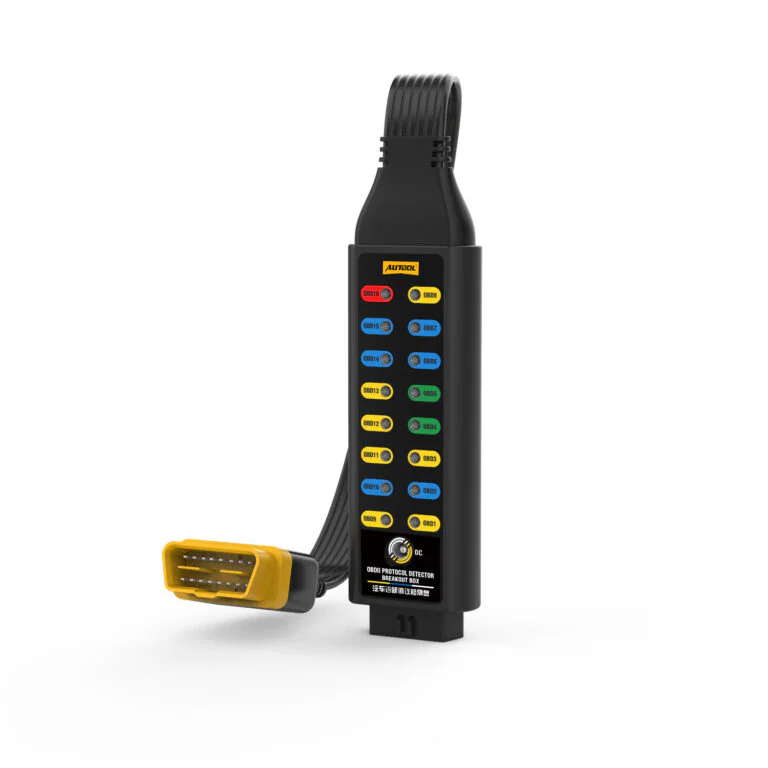

AUTOOL OBD2 Breakout Box · Basic Version
Product Overview
The AUTOOL OBD2 Protocol Detector Auto Car Breakout Box Basic Version is an automotive diagnostic connector detector for the OBD2 diagnostic link connector. It gives technicians convenient and safer access to the vehicle OBD2 port, making it easier to monitor protocol signals, power, and ground circuits. When an unconfirmed signal is detected, the breakout box can be connected to a multimeter or oscilloscope for further testing.
OBD2 Breakout Box
Protocol Detection
Power / Ground Check
Multimeter Ready
DC 8-30VWorking Voltage
2.0ALoad
45cmOBD II Cable
3 YearsWarranty

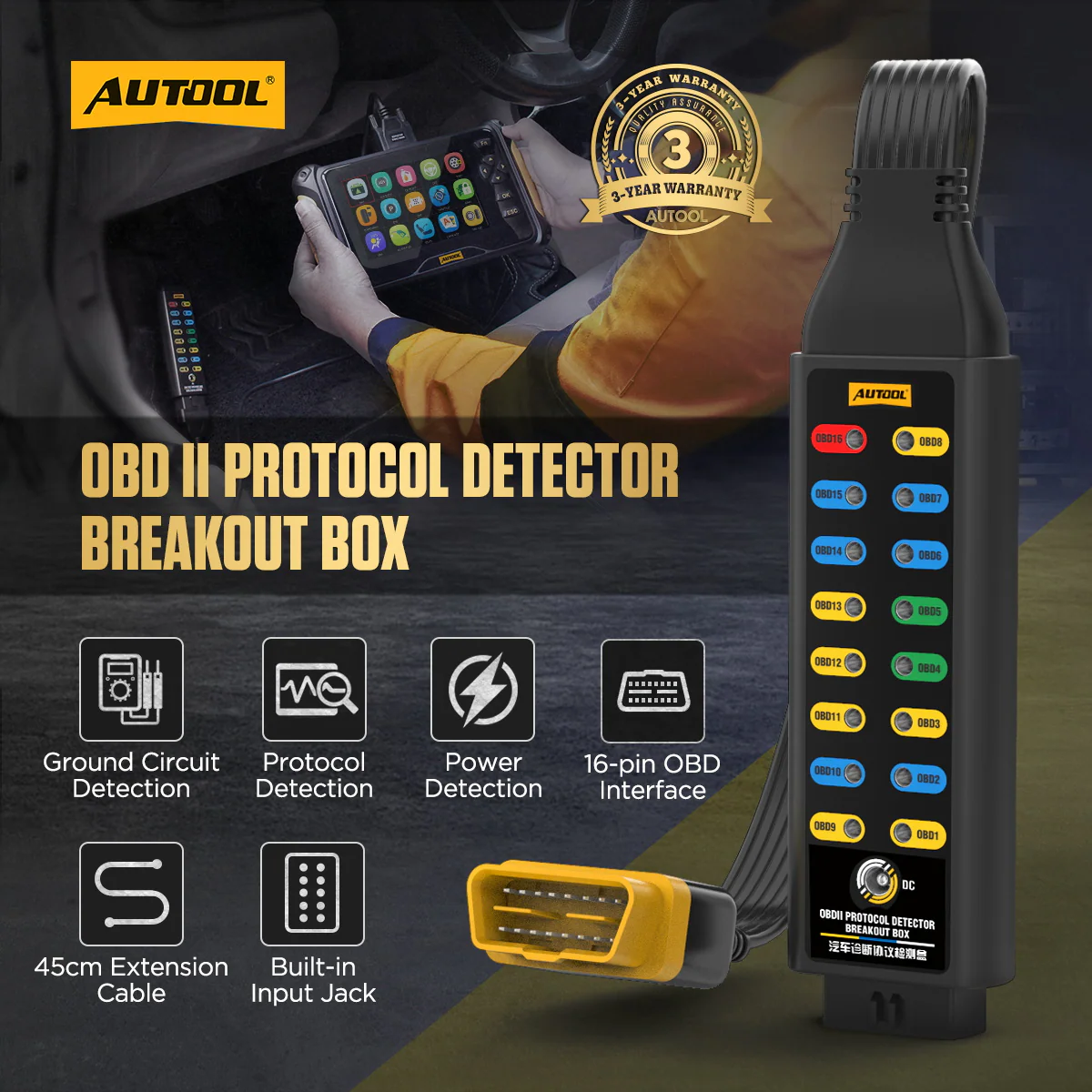

Click to enlargeKey Features
Key Features
The Basic Version focuses on essential OBD2 breakout testing: 16-pin access, diagnostic interface connection, multimeter / oscilloscope testing, DC power input, TPU extension cable, and protocol / power / ground signal access.

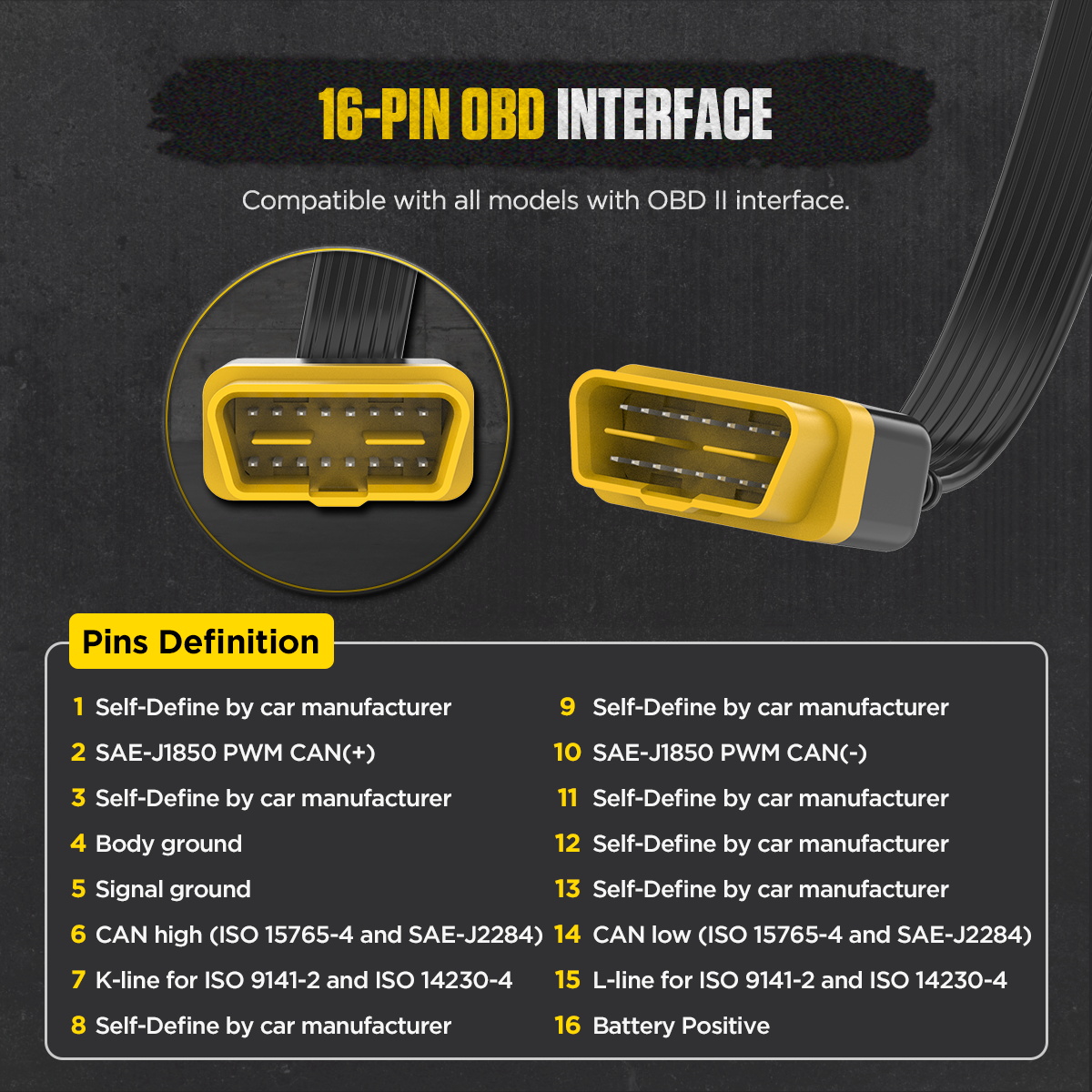

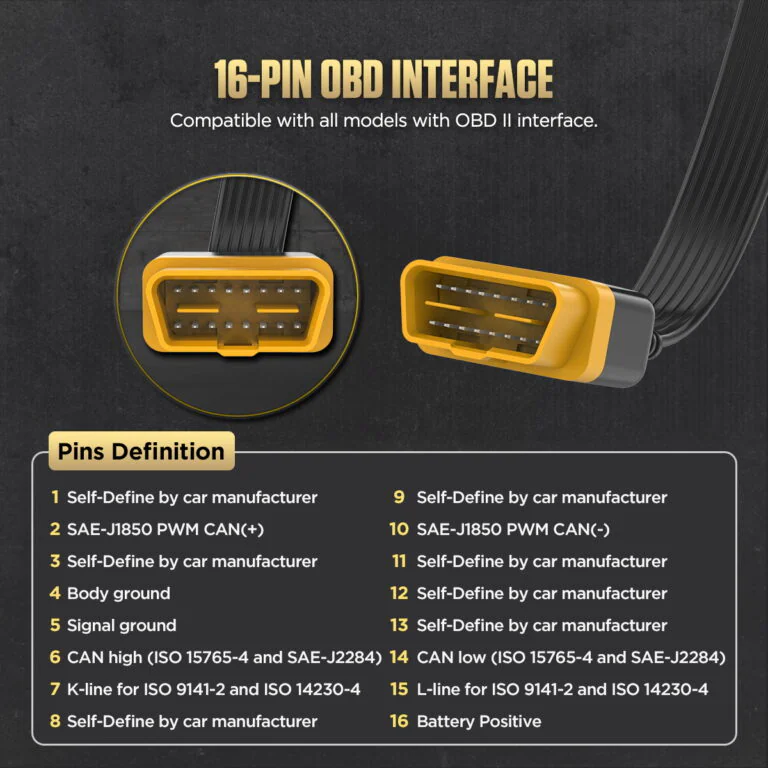

Click to enlarge16-pin OBD Interface
Compatible with vehicles equipped with an OBD II interface, giving users access to the full 16-pin diagnostic connector and pin definition.

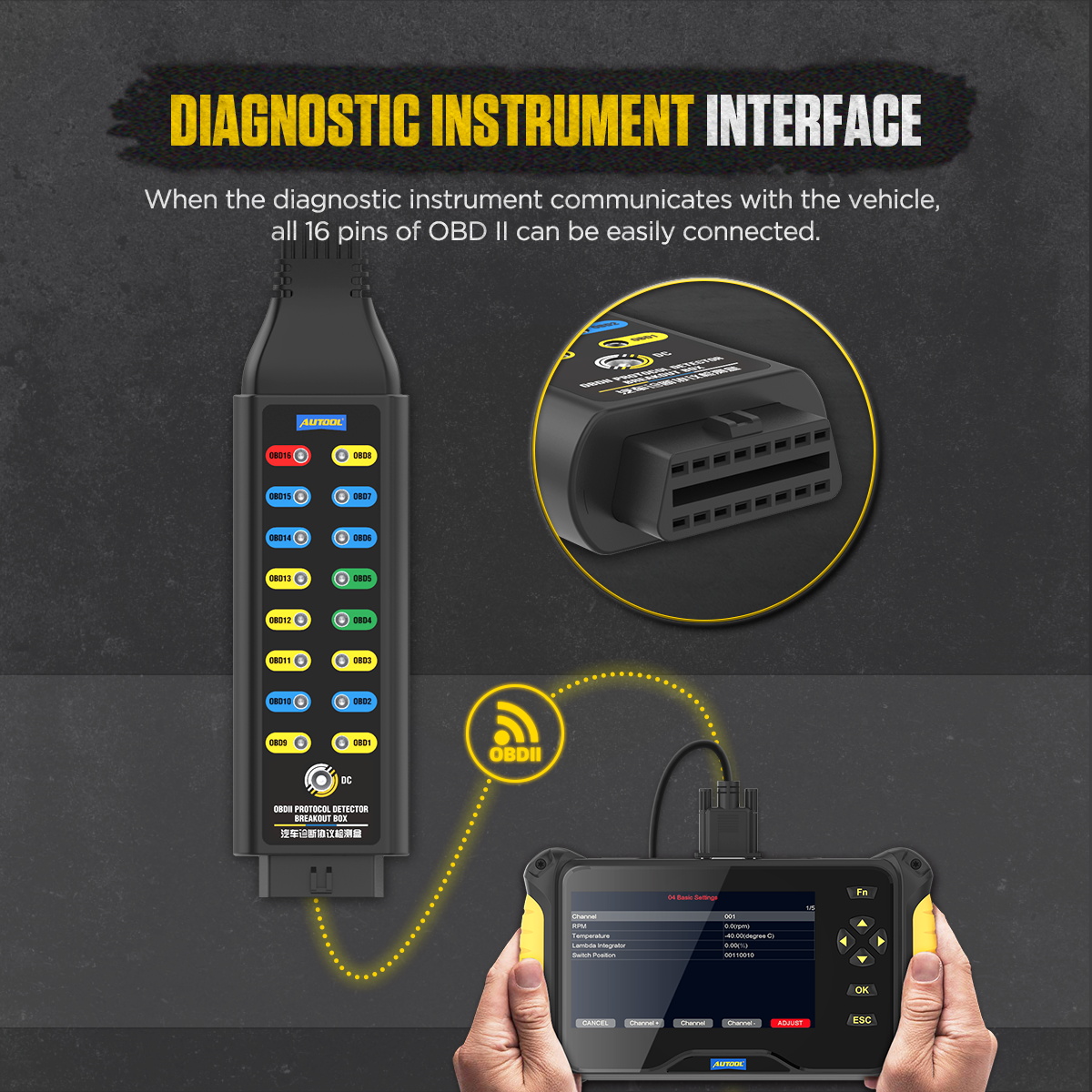

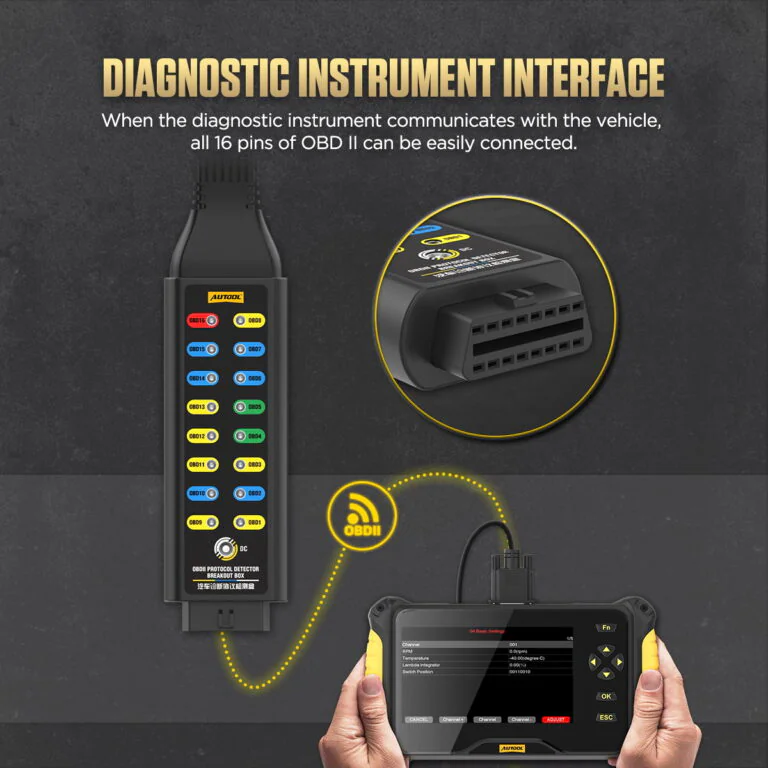

Click to enlargeDiagnostic Instrument Interface
Allows the diagnostic instrument to communicate through the breakout box while making the OBD II pins easier to access for testing.

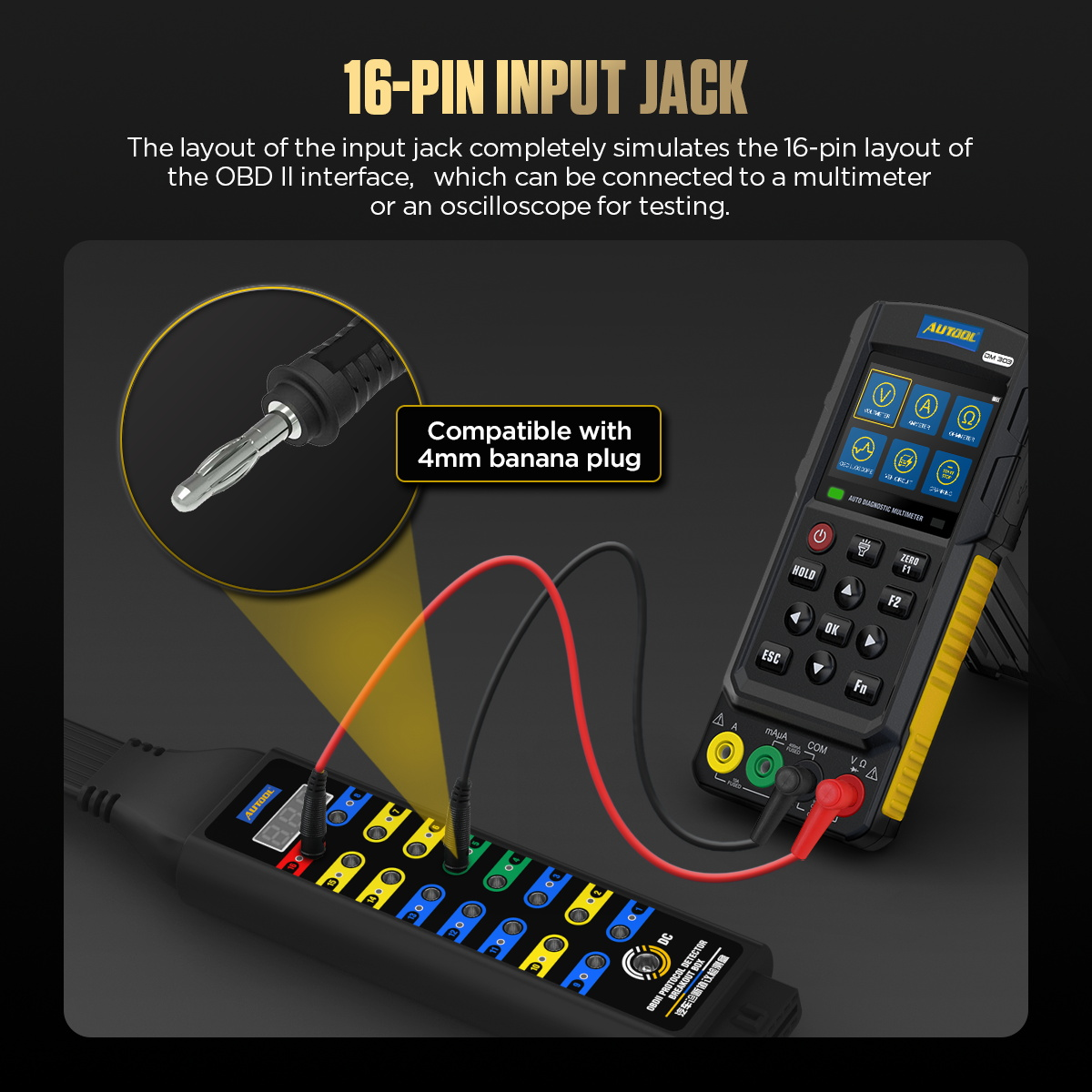

Click to enlargeBuilt-in 16-pin Input Jack
The input jack layout simulates the OBD II 16-pin connector and can be connected to a multimeter, oscilloscope, or 4mm banana plug test lead for further signal testing.

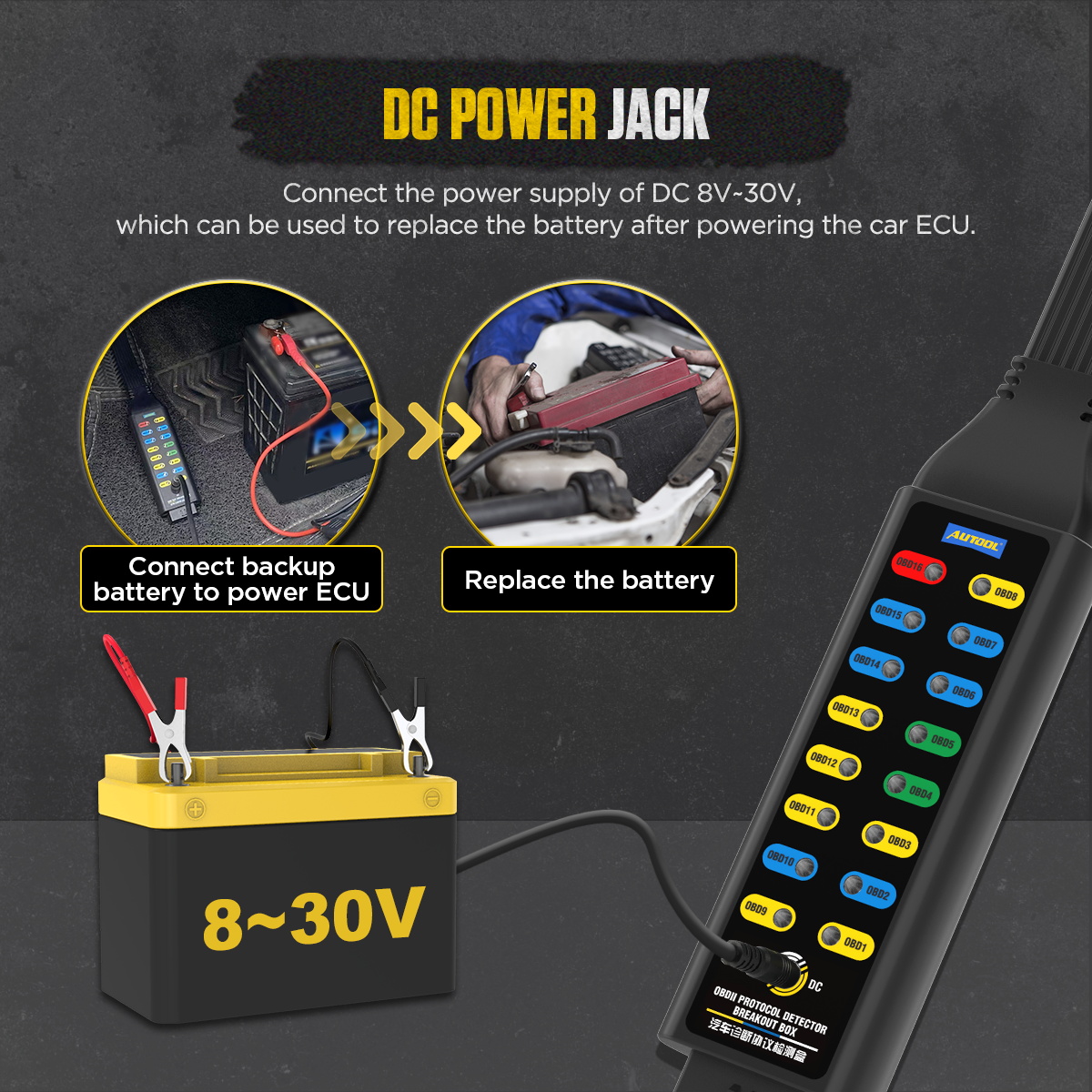

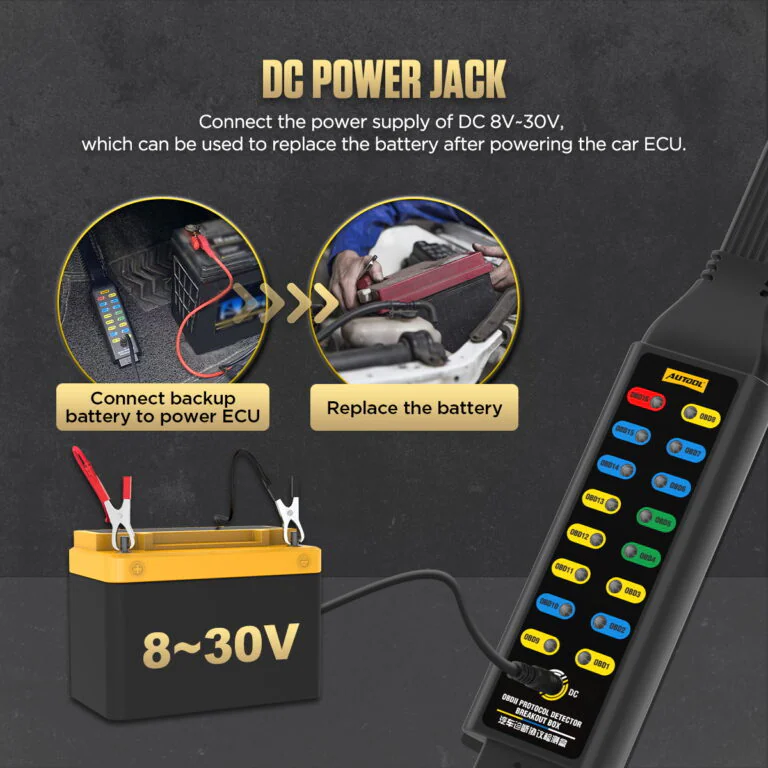

Click to enlargeDC 8-30V Power Jack
The DC power jack can connect to an 8-30V power supply, making the breakout box useful for ECU backup power support during battery replacement when the circuit is confirmed safe.

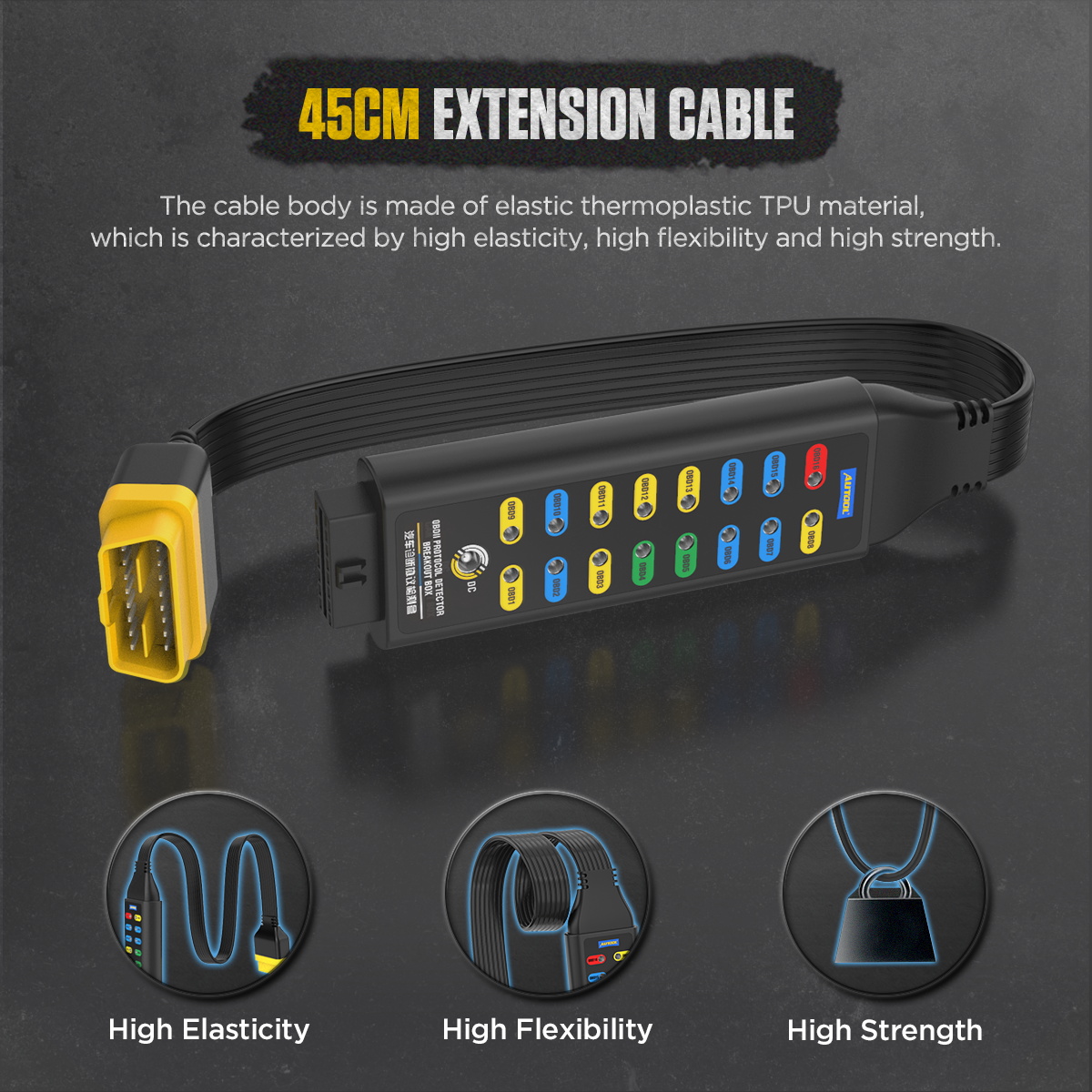

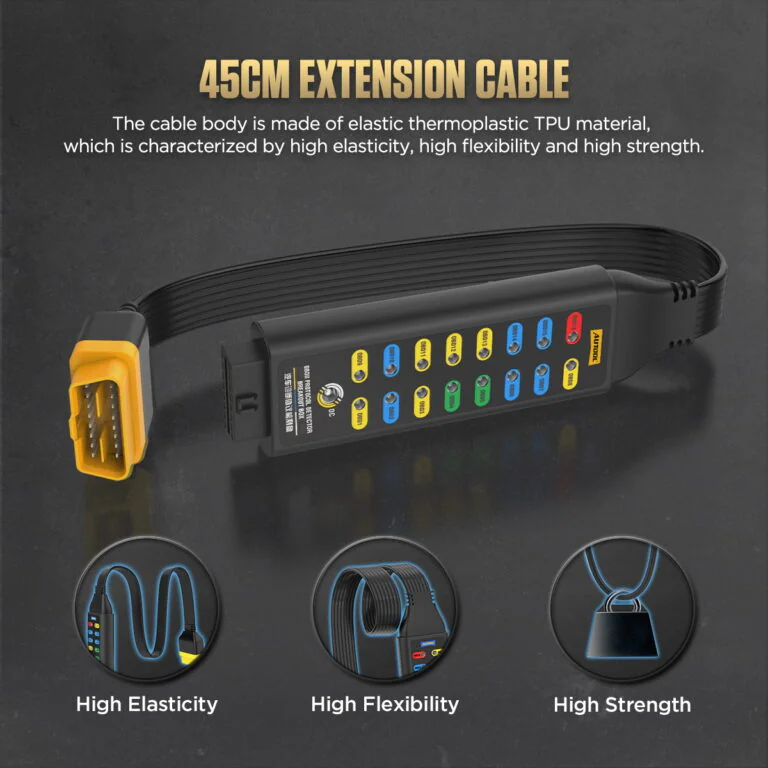

Click to enlarge45cm TPU Extension Cable
The OBD II extension cable is made of elastic thermoplastic TPU material for high elasticity, flexibility, and strength.
Click to enlargeProtocol / Power / Ground Detection
Supports protocol signal access, power detection, and ground circuit detection for safer OBD2 diagnostic troubleshooting.

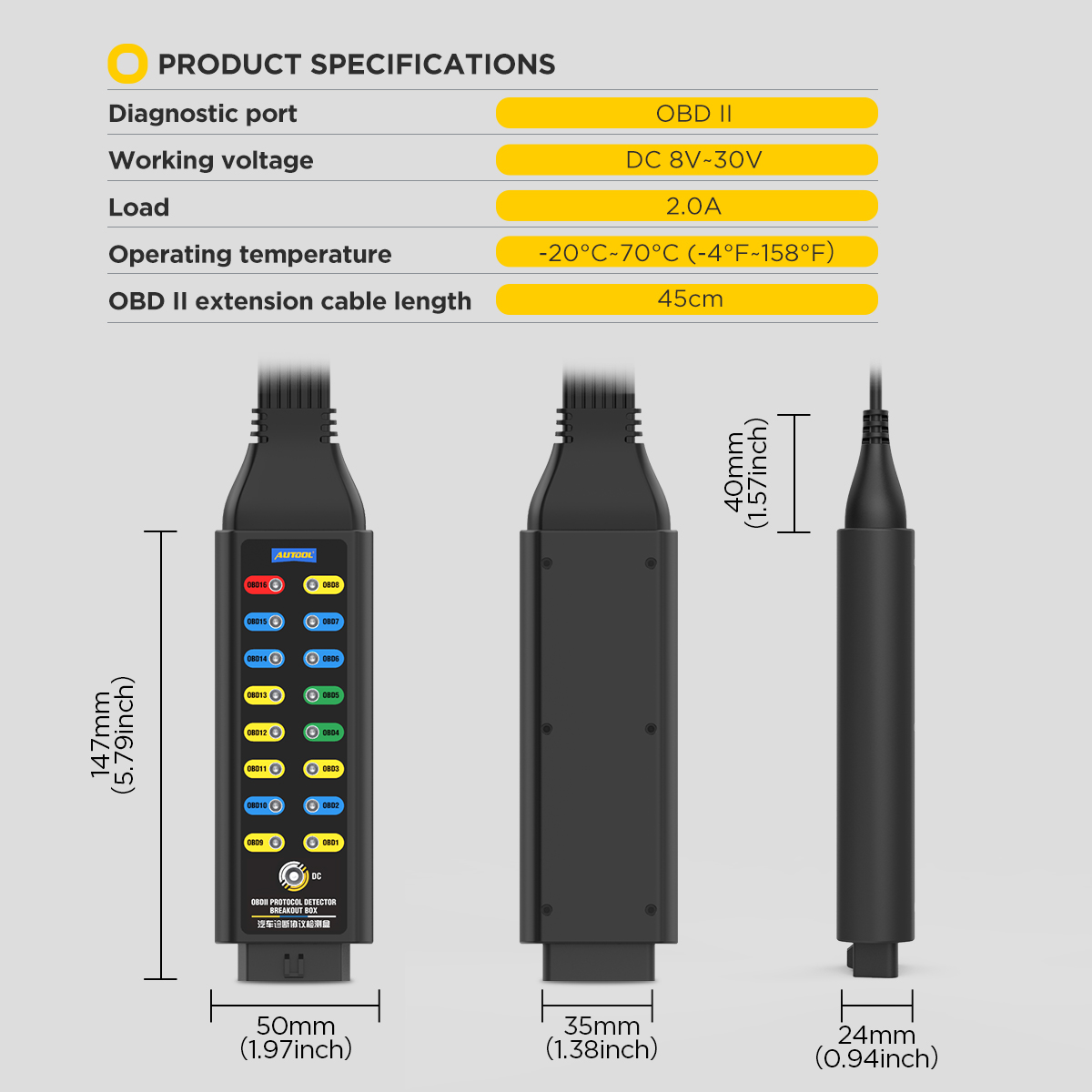

Specifications
Specifications
Confirm the diagnostic port, voltage range, load limit, operating temperature, extension cable length, and testing support before use.
| Main Specifications | |
| Product | AUTOOL OBD2 Protocol Detector Breakout Box Basic Version |
| Diagnostic Port | OBD II |
| Working Voltage | DC 8V-30V |
| Load | 2.0A |
| Operating Temperature | -20°C-70°C / -4°F-158°F |
| OBD II Extension Cable Length | 45cm |
| Connector Access | Full analog OBD2 16-pin connector |
| Testing Support | Multimeter / oscilloscope testing through input jacks |
| Warranty | Three-year warranty and lifetime maintenance support for eligible non-human damage cases |
Click to enlargeProduct Comparison
Product Comparison

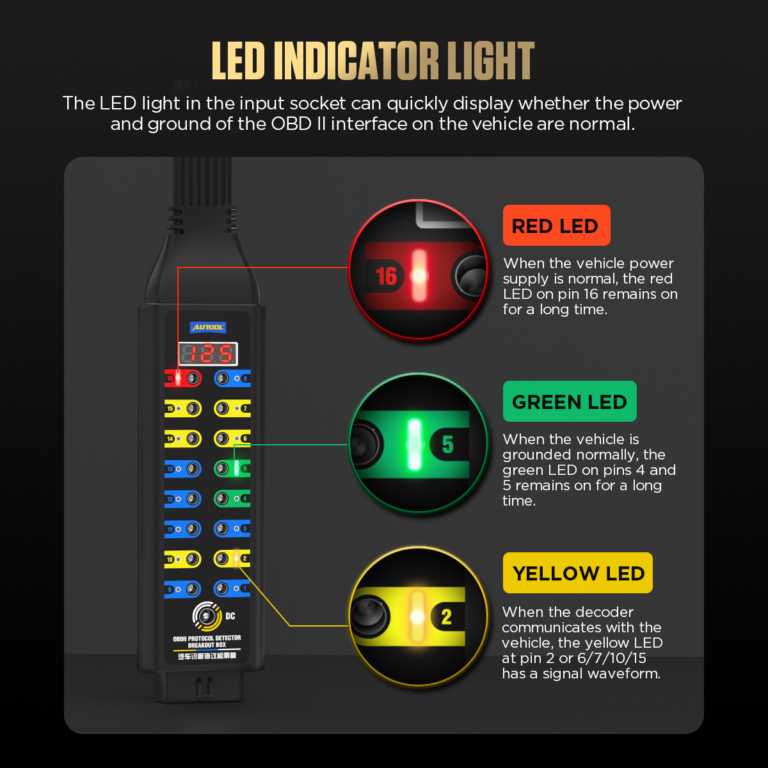

Choose the Basic Version for essential OBD2 breakout testing, the Upgraded Version for voltage display and LED indication, or the Premium Version when wider voltage coverage and 120Ω resistor mode are required.
Basic VersionDC 8V-30V working voltage, 2.0A load, 45cm cable, protocol detection, power detection, ground circuit detection, 16-pin OBD interface, and built-in input jack. No OBD voltage display, LED indicator light, power cable, or 120Ω resistor mode.
Upgraded VersionDC 8V-16V working voltage, 2.0A load, 45cm cable, OBD voltage display, LED indicator light, power cable, protocol / power / ground detection, 16-pin OBD interface, and built-in input jack.
Premium VersionDC 6V-30V working voltage, 2.0A load, 45cm cable, OBD voltage display, LED indicator light, power cable, protocol / power / ground detection, 16-pin OBD interface, built-in input jack, and 120Ω series resistor mode.
Decision CheckChoose by voltage range, OBD voltage display, LED indicator, power cable, and 120Ω resistor mode needs.
Click to enlargeManual And Downloads
Manual And Downloads
Download the user manual before using the breakout box, especially if you are not familiar with vehicle data link circuits, OBD2 pin testing, ECU backup power, or multimeter / oscilloscope signal checking.

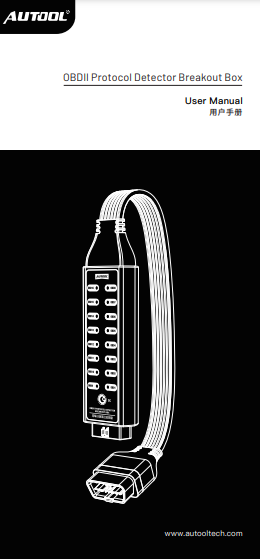

Click to enlargeAUTOOL OBD2 Protocol Detector Manual
Open the PDF manual for setup, OBD2 connection, electrical safety, pin testing, and basic operation guidance.
Download ManualNeed Help Choosing A Version?
Contact AUTOOL Store if you need to confirm Basic / Upgraded / Premium differences, OBD2 pin testing, DC backup power use, multimeter / oscilloscope connection, or safety limitations before ordering.
Before You Order And Use
Before You Order And Use
This product connects directly to the vehicle data link. Use it only when the target circuit, OBD2 pin, and test operation are understood and confirmed safe.
Connect To Vehicle DLC
Connect the breakout box directly to the vehicle OBD2 diagnostic link connector to access the diagnostic communication pins.
Monitor Signal Access
Check protocol, power, and ground access through the 16-pin breakout interface during diagnosis.
Test With Multimeter / Oscilloscope
When an uncertain signal is detected, connect a multimeter or oscilloscope through the input jack for further testing.
Use DC Power Carefully
Use the DC 8-30V jack for ECU backup power only when the vehicle circuit and operation are confirmed safe.
Warm Tips
- This product directly connects to the vehicle data link.
- Improper use may damage the vehicle data communication system, related circuits, or systems.
- When you are not sure whether your operation will cause problems, stop using this product immediately.
- When you are not sure about the electrical circuit on the car, do not use a jumper to short-circuit the input jack of this product.
- Do not use this product to connect a load device with a power exceeding 1 ampere.
- Do not directly short-circuit the 16th pin, the 4th pin, and the 5th pin of this product.
Related Products
Related Products
Related diagnostic tools for OBD2 signal access, multimeter testing, automotive test leads, and ECU backup power support.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL OBD2 Breakout Box Protocol Detector Basic Version
From US$59.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL OBD2 Breakout Box Protocol Detector Upgraded Version
From US$109.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL DM303 Digital Multimeter Car Circuit Tester
From US$190.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL 92PCS Automotive Circuit Test Leads Kit, Multimeter Test Leads Kit with Carrying Case, Electrical Testers Wire Connectors Adapter Cables with Alligator Clips
From US$109.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL BT30 ECU Emergency Power Supply Cable Includes 3A Fuse
From US$29.00

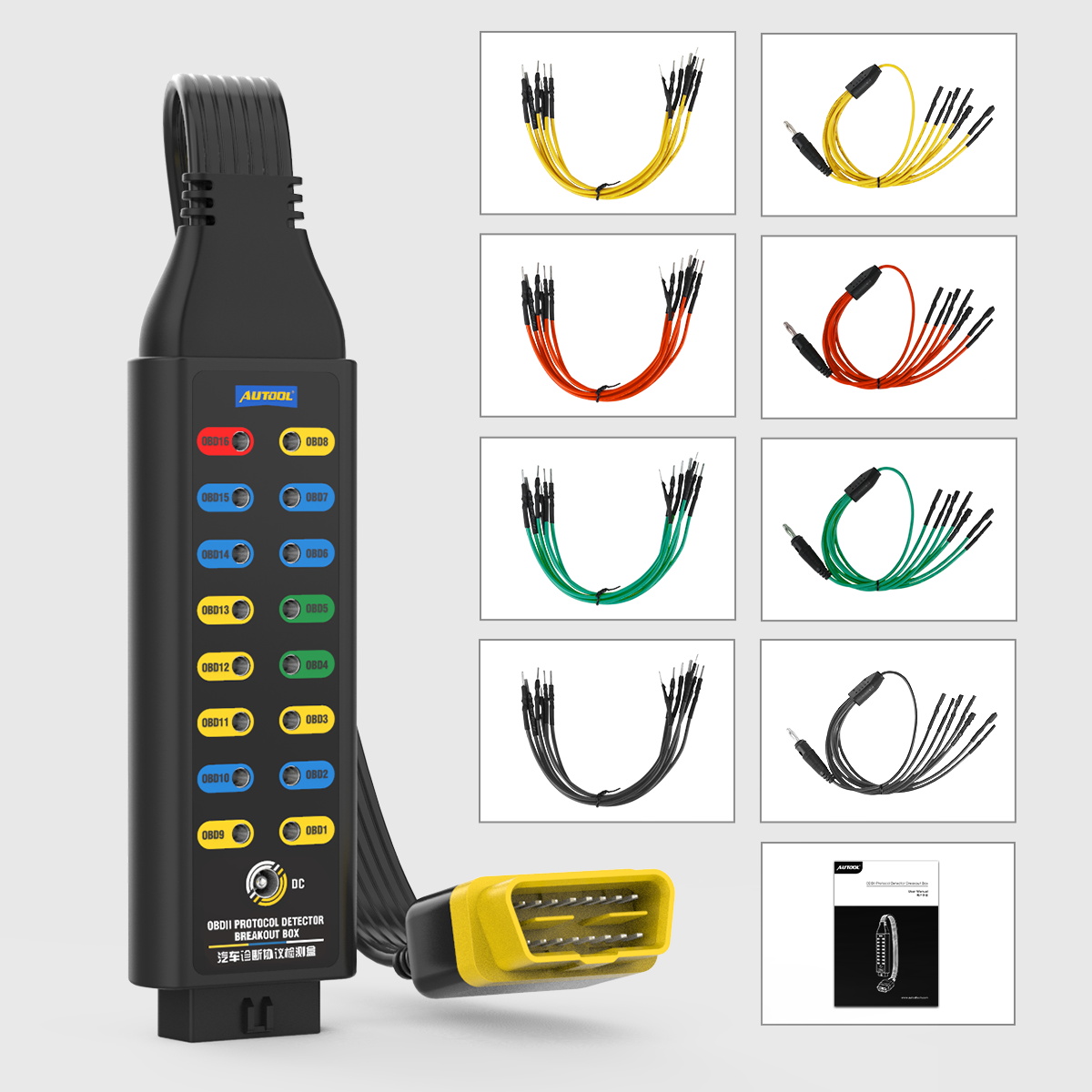

Click to enlargeWhat Is In The Box
What Is In The Box
The packing image shows the OBD2 protocol detector breakout box, color-coded test leads / banana plug leads, and user manual. Packing List is shown with one most relevant package image only.
Main UnitAUTOOL OBD2 Protocol Detector Breakout Box Basic Version
Test LeadsColor-coded leads / banana plug leads shown in the package image
DocumentationUser manual shown in the package image
Use WithMultimeter, oscilloscope, diagnostic tool, and confirmed-safe DC backup power operation
Questions And Answers
These answers cover OBD2 breakout box use, multimeter / oscilloscope connection, Basic Version limits, working voltage, ECU backup power, short-circuit safety, and Basic / Upgraded / Premium version differences.
It provides convenient access to the OBD2 diagnostic link connector, allowing users to monitor protocol signals, power, and ground circuits during automotive diagnostic work.
Yes. The built-in 16-pin input jack can be connected to a multimeter or oscilloscope for further signal testing when an unconfirmed signal needs to be checked.
No. According to the comparison chart, the Basic Version does not include OBD voltage display or LED indicator light. These features are available on the Upgraded and Premium versions.
The Basic Version works with DC 8V-30V.
Yes. The DC power jack supports DC 8V-30V power input for ECU backup power. Use this function only when the vehicle circuit and operation are confirmed safe.
Do not use jumpers to short-circuit unknown circuits, do not connect a load device exceeding 1A, and do not directly short-circuit pin 16, pin 4, or pin 5. If you are not sure whether an operation may cause damage, stop using the product immediately.
Basic covers essential protocol, power, ground, 16-pin interface, and input jack testing. Upgraded adds OBD voltage display, LED indicator light, and power cable. Premium adds wider DC 6V-30V support and 120Ω resistor mode.
