AUTOOL PT502 Vaccum Pressure Gauge

(2 customer reviews)

US$29.90

Key Features
  • Vacuum Fault Diagnosis
  • Wide Negative Range
  • Temperature Compensation
Key Features
☰ REQUEST BULK / B2B QUOTERequest B2B Quote
Secure checkoutFast supportBulk ready
AUTOOL PT502

Product Overview

The AUTOOL PT502 is a digital vacuum pressure gauge designed for automotive negative-pressure diagnosis. With a measurement range of -101kPa to 0kPa and ±1%FS accuracy, it helps technicians measure vacuum pressure in key systems such as the engine intake manifold, crankcase, EGR / exhaust valve, exhaust system, turbocharger vacuum line, and A/C ventilation system. By monitoring pressure data, PT502 helps locate engine sealing problems, pipeline leaks, system blockages, and concealed vacuum-related faults more efficiently.

-101–0kPa ±1%FS 12V Vehicle Power Negative Pressure Only
DC 10–14VPower Supply
<35mAWorking Current
-10°C–60°CWorking Temp
3 YearsWarranty

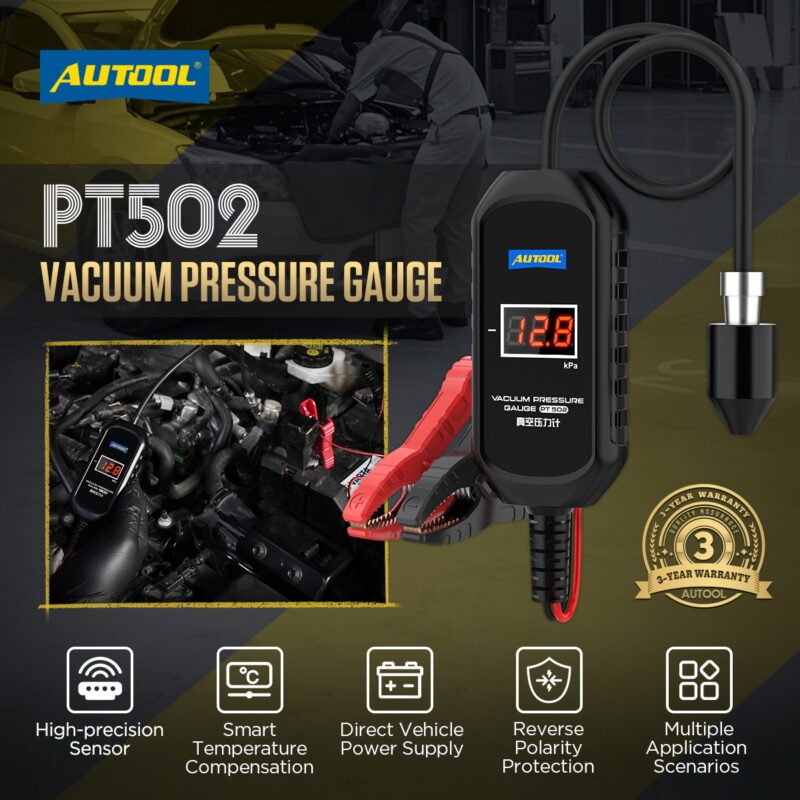

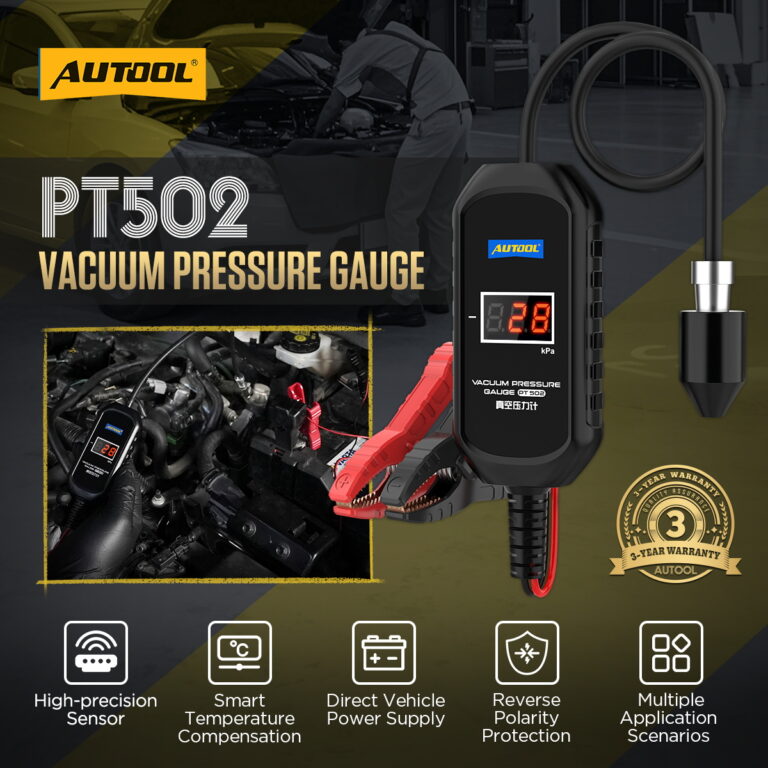

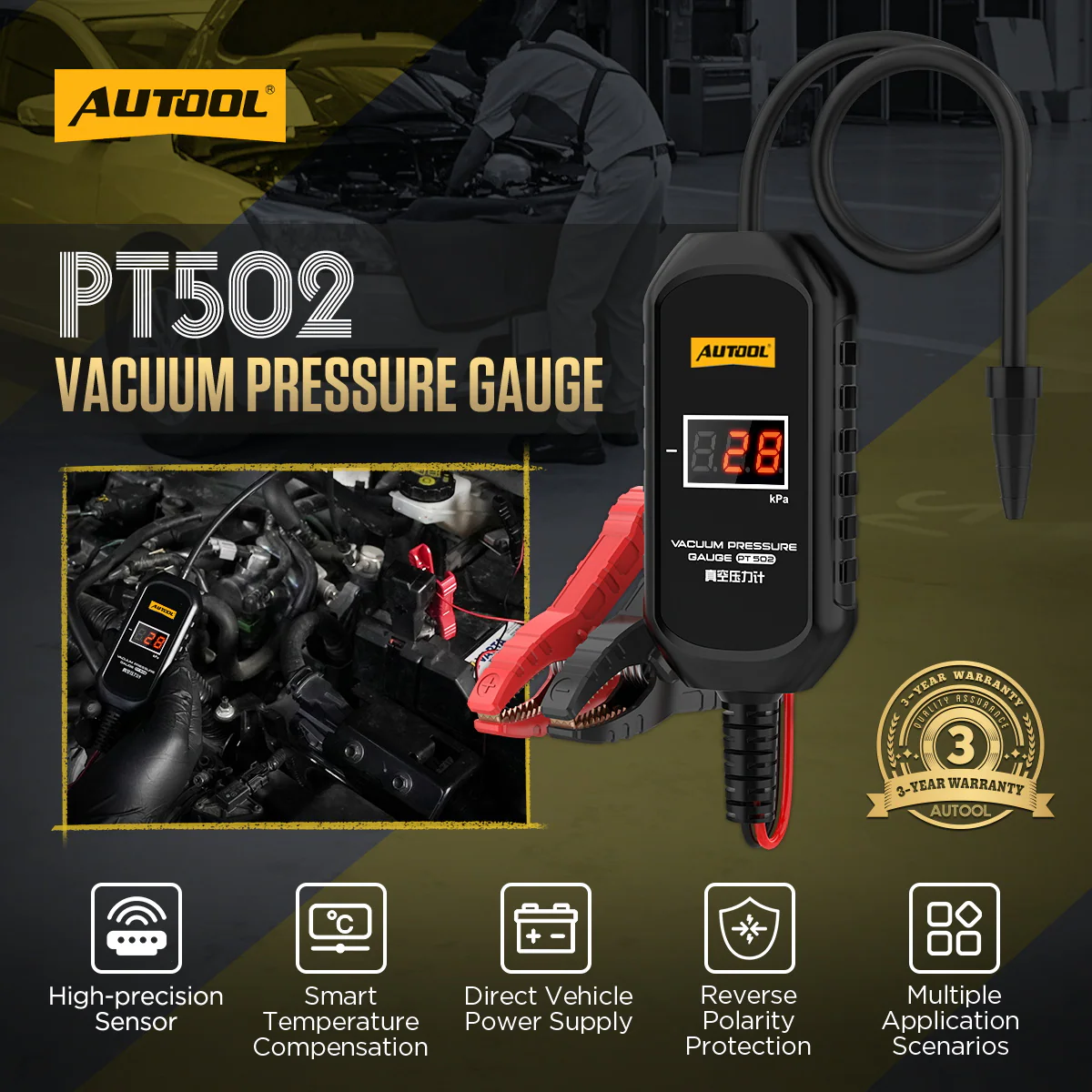

AUTOOL PT502 vacuum pressure gauge overview with main functions Click to enlarge
Key Features

Key Features

PT502 combines a high-precision pressure sensor, smart temperature compensation, direct vehicle power, and reverse polarity protection for reliable vacuum-pressure diagnosis in automotive repair work.

High-Precision Sensor

The built-in high-precision pressure sensor quickly captures pressure changes and provides real-time measurement results across the -101kPa to 0kPa working range with ±1%FS accuracy.

Smart Temperature Compensation

The built-in temperature sensor monitors ambient temperature changes and automatically corrects measurement deviations, improving stability in -10°C to 60°C environments.

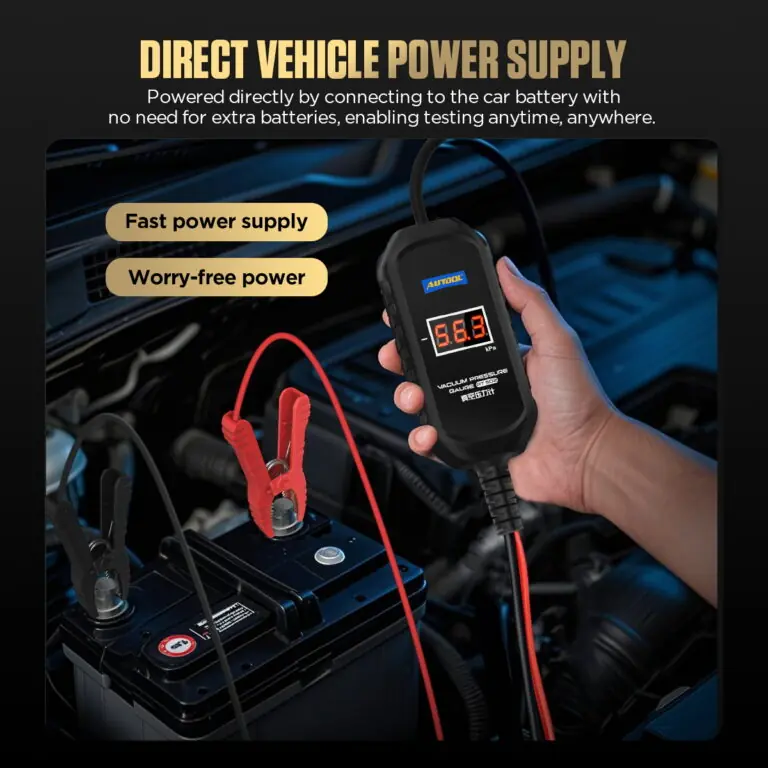

Direct Vehicle Power Supply

PT502 connects directly to the vehicle’s 12V power supply, providing worry-free power for continuous diagnosis without a separate internal battery.

Reverse Polarity Protection

If the positive and negative terminals are connected incorrectly, reverse polarity protection automatically cuts off current to help safeguard the gauge and vehicle battery.

Vacuum Fault Diagnosis

Pressure data helps identify sealing issues, pipeline leak points, system blockages, and hidden vacuum faults in multiple automotive systems.

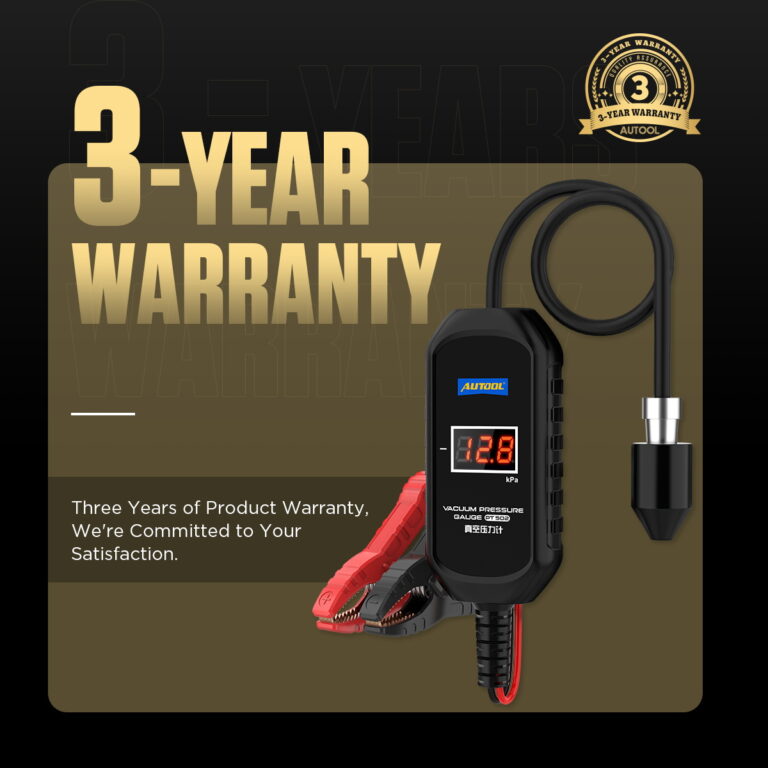

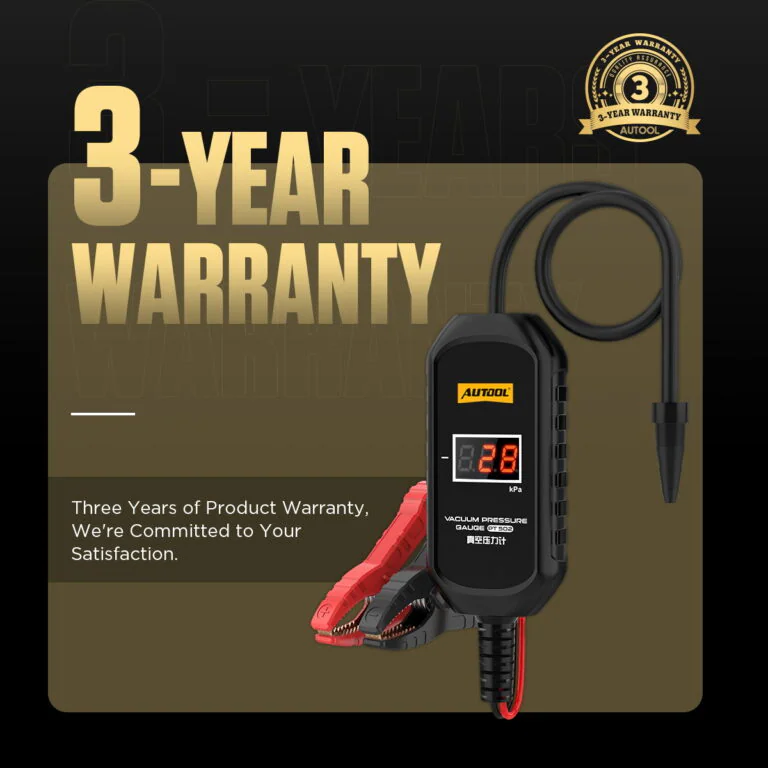

Three-Year Warranty

For eligible non-human damage cases, AUTOOL provides 3-year warranty support and long-term maintenance assistance.

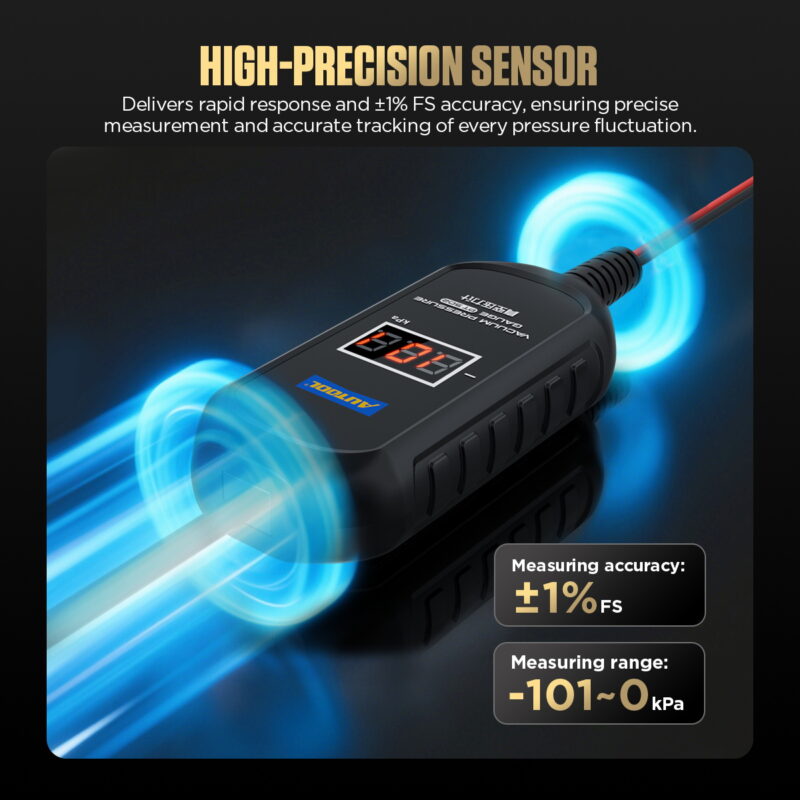

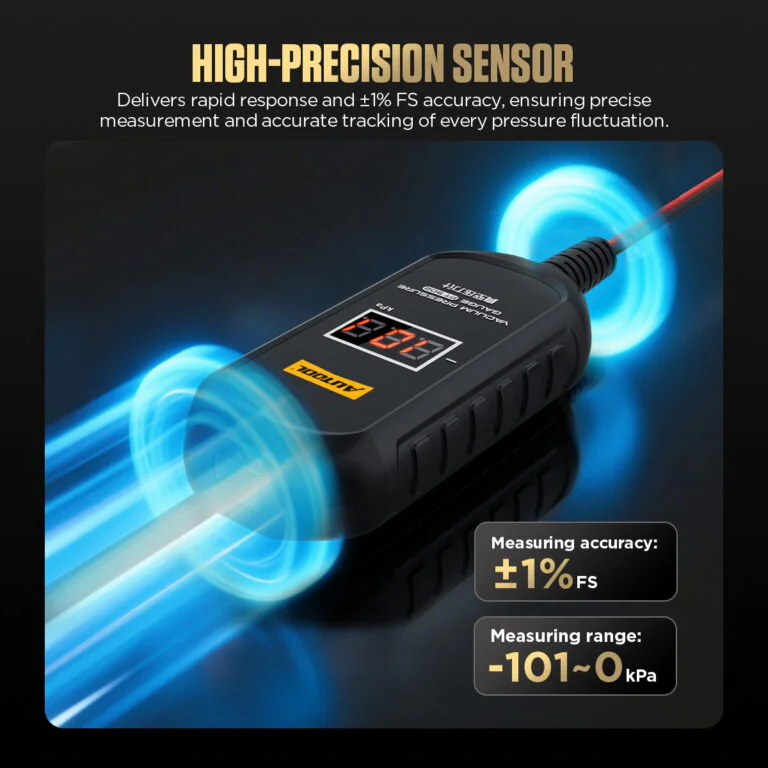

AUTOOL PT502 high precision sensor measurement range and accuracy Click to enlarge

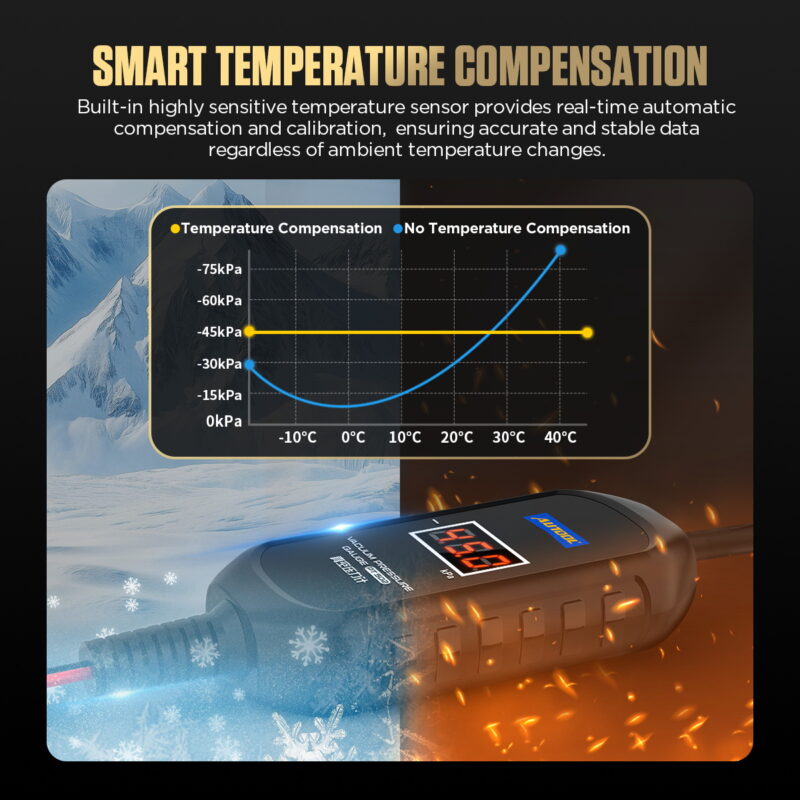

AUTOOL PT502 smart temperature compensation feature Click to enlarge

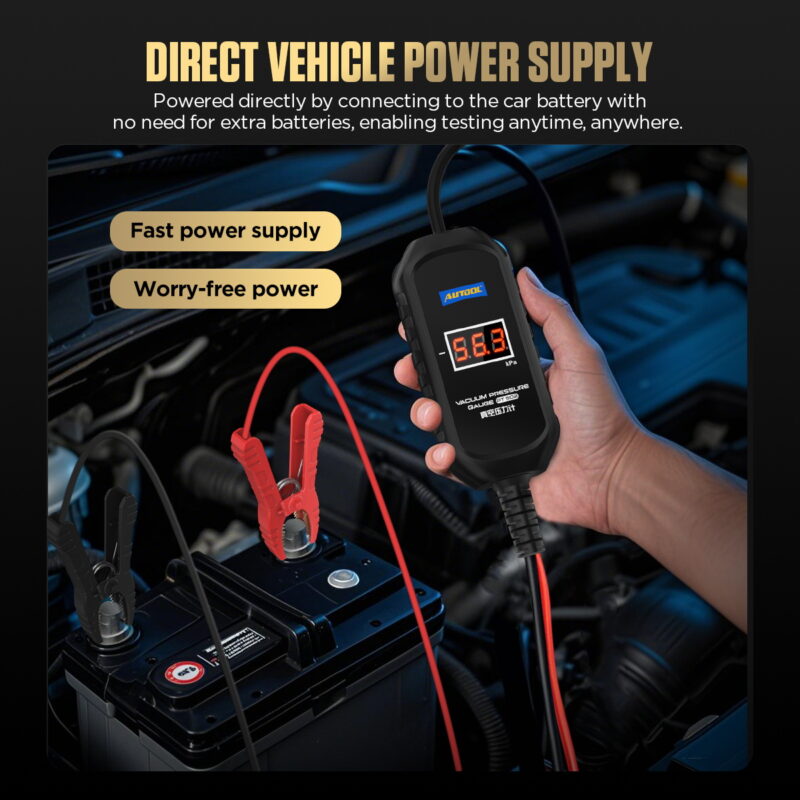

AUTOOL PT502 direct vehicle power supply feature Click to enlarge

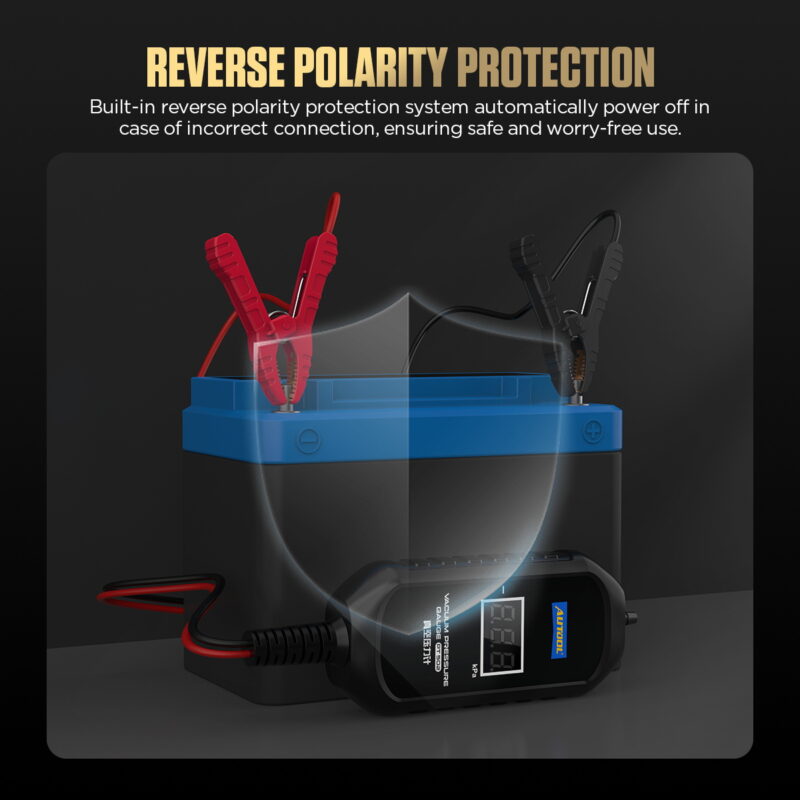

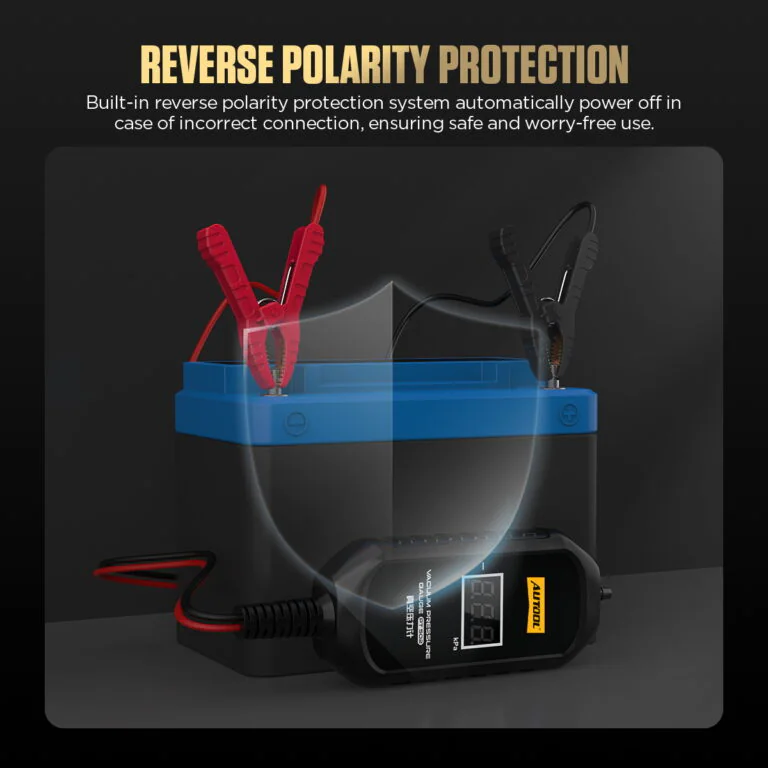

AUTOOL PT502 reverse polarity protection feature Click to enlarge
AUTOOL PT502 vacuum pressure gauge application scenarios Click to enlarge
Applications

Applications

Use PT502 for negative-pressure diagnosis in key automotive systems where vacuum data helps reveal leaks, blockage, sealing failure, or abnormal pressure behavior.

Intake Manifold

Check intake manifold vacuum conditions during engine diagnosis.

Brake Pump / Brake Booster

Assist vacuum-related checks around brake assistance systems.

Exhaust Pipe

Support exhaust-system vacuum-related fault inspection.

Exhaust Valve / EGR Valve

Help diagnose valve-related vacuum pressure abnormalities.

Crankcase

Measure crankcase ventilation vacuum for hidden fault diagnosis.

Gas Pipeline / Vacuum Hose

Locate pipeline leak points, sealing problems, and blockage symptoms.

A/C Ventilation System

Assist ventilation-system vacuum checks where negative pressure measurement is required.

Specifications

PT502 Specifications

Confirm the measurement range, accuracy, voltage, current, temperature range, cable length, and negative-pressure-only limitation before use.

1>
Measurement
ProductAUTOOL PT502 Vacuum Pressure Gauge
Pressure TypeNegative pressure only
Pressure Measurement-101kPa to 0kPa
Accuracy±1%FS
Measurement UnitkPa
Power And Environment
Operating VoltageDC 10V–14V
Operating Current<35mA
Operating Temperature-10°C to 60°C
Power SupplyDirect vehicle power supply
ProtectionReverse polarity protection
Cable And Size
Main Cable Length1.5m
Probe / Hose Length0.4m
Body Size Reference102mm × 48mm
Support3-year warranty for eligible non-human damage cases

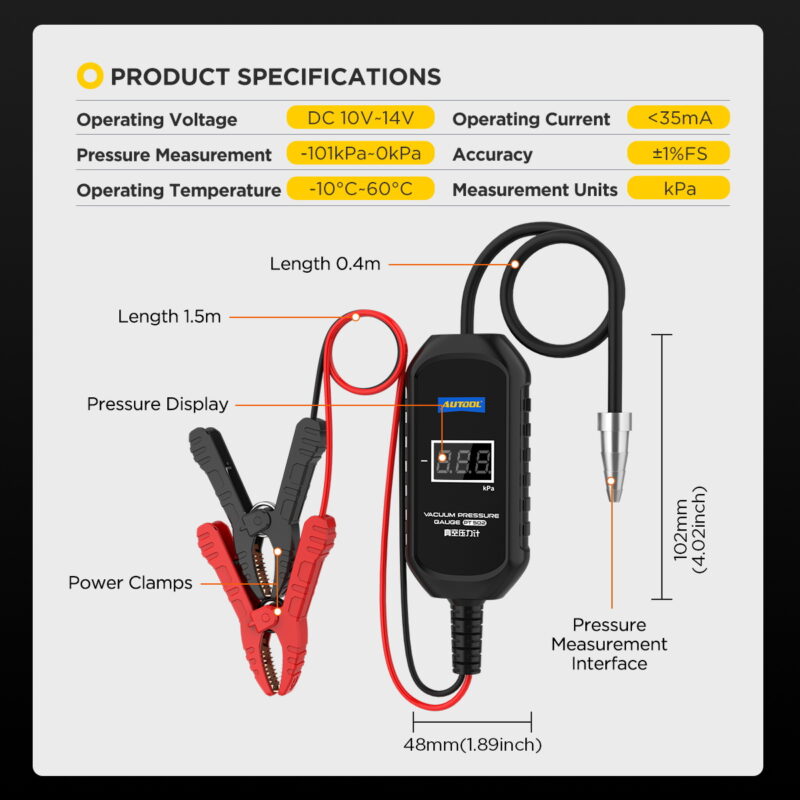

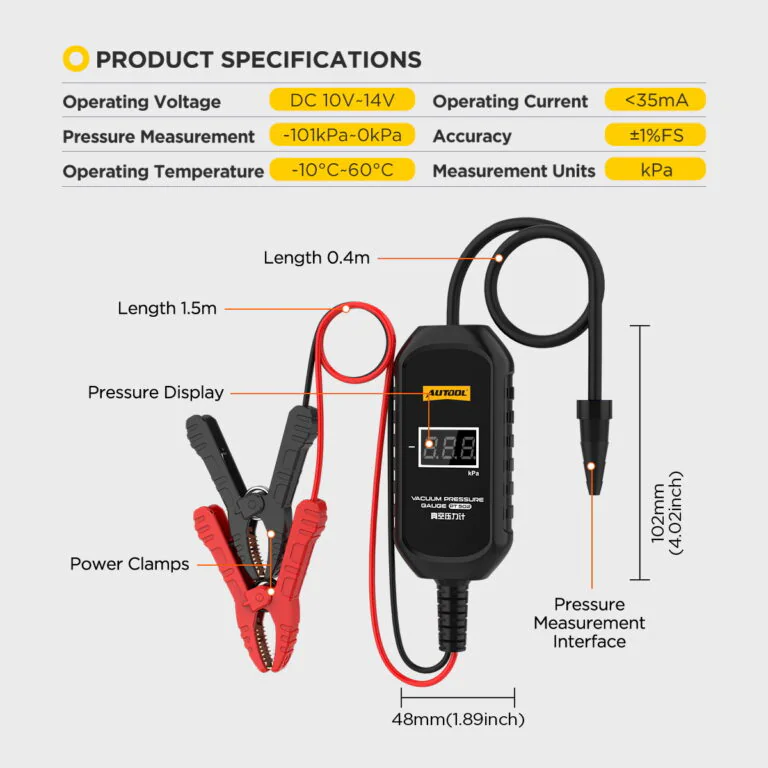

AUTOOL PT502 vacuum pressure gauge specification image Click to enlarge
Measurement
ProductAUTOOL PT502 Vacuum Pressure Gauge
Pressure TypeNegative pressure only
Pressure Measurement-101kPa to 0kPa
Accuracy±1%FS
Measurement UnitkPa
Power And Environment
Operating VoltageDC 10V–14V
Operating Current<35mA
Operating Temperature-10°C to 60°C
Power SupplyDirect vehicle power supply
ProtectionReverse polarity protection
Cable And Size
Main Cable Length1.5m
Probe / Hose Length0.4m
Body Size Reference102mm × 48mm
Support3-year warranty for eligible non-human damage cases
Before You Order And Use

Before You Order And Use

PT502 is a negative-pressure-only diagnostic gauge. Review the zeroing and pressure-use limitations before testing.

Negative Pressure Only

PT502 only supports negative pressure / vacuum pressure measurement. Do not use it for positive pressure testing.

Do Not Power On Under Pressure

Do not turn on the vacuum pressure gauge while pressure is already applied. Powering on under pressure may affect zeroing and measurement accuracy.

Connect 12V Power Correctly

Connect the clamps correctly to the vehicle DC 10V–14V power supply. Reverse polarity protection helps protect the device, but correct connection is still required.

Confirm The Target System

Before testing, confirm that the target system is a vacuum / negative pressure system and that PT502’s -101kPa to 0kPa range is suitable.

Manual And Downloads

Manual And Downloads

Download the PT502 manual for setup, 12V power connection, negative pressure measurement, zeroing notes, and safe-use instructions.

AUTOOL PT502 vacuum pressure gauge manual cover Click to enlarge

AUTOOL PT502 Manual EN-DE

Open the PDF manual for PT502 connection, measurement, and safe-use guidance.

Download Manual
Related Products

Related Products

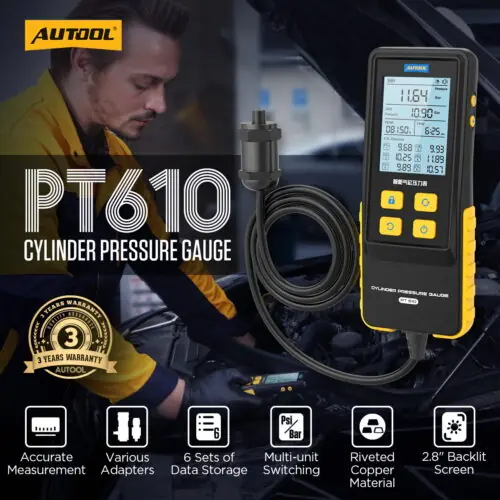

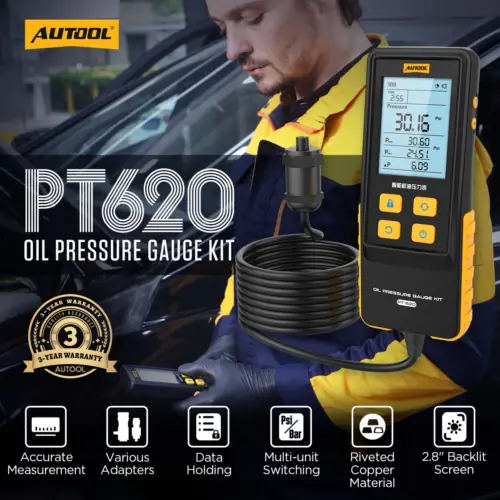

Compare related AUTOOL pressure testing tools before choosing the right gauge for vacuum pressure, differential pressure, brake pressure, oil pressure, or cylinder pressure diagnosis.

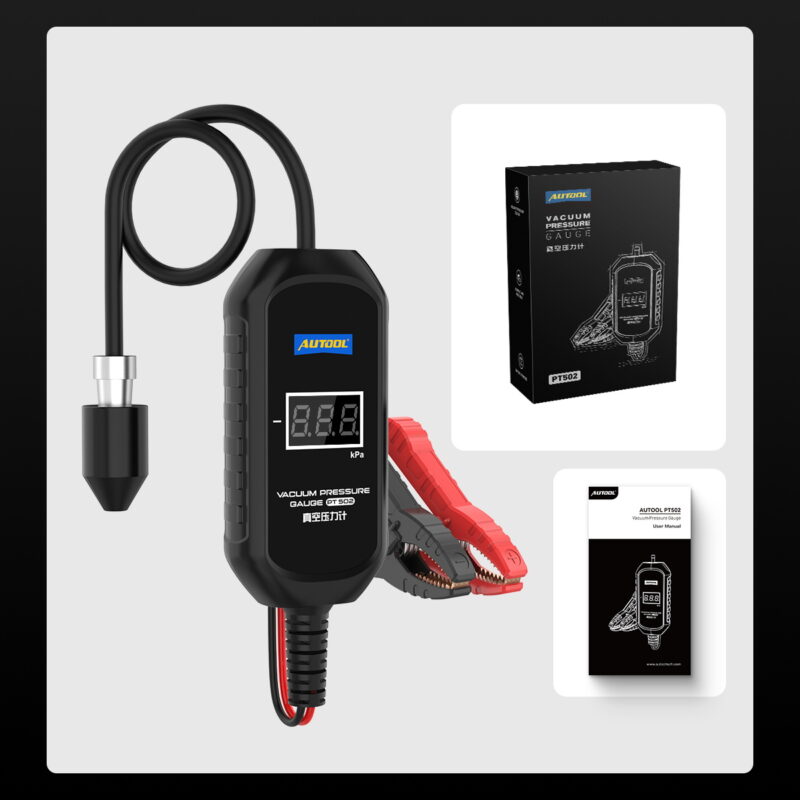

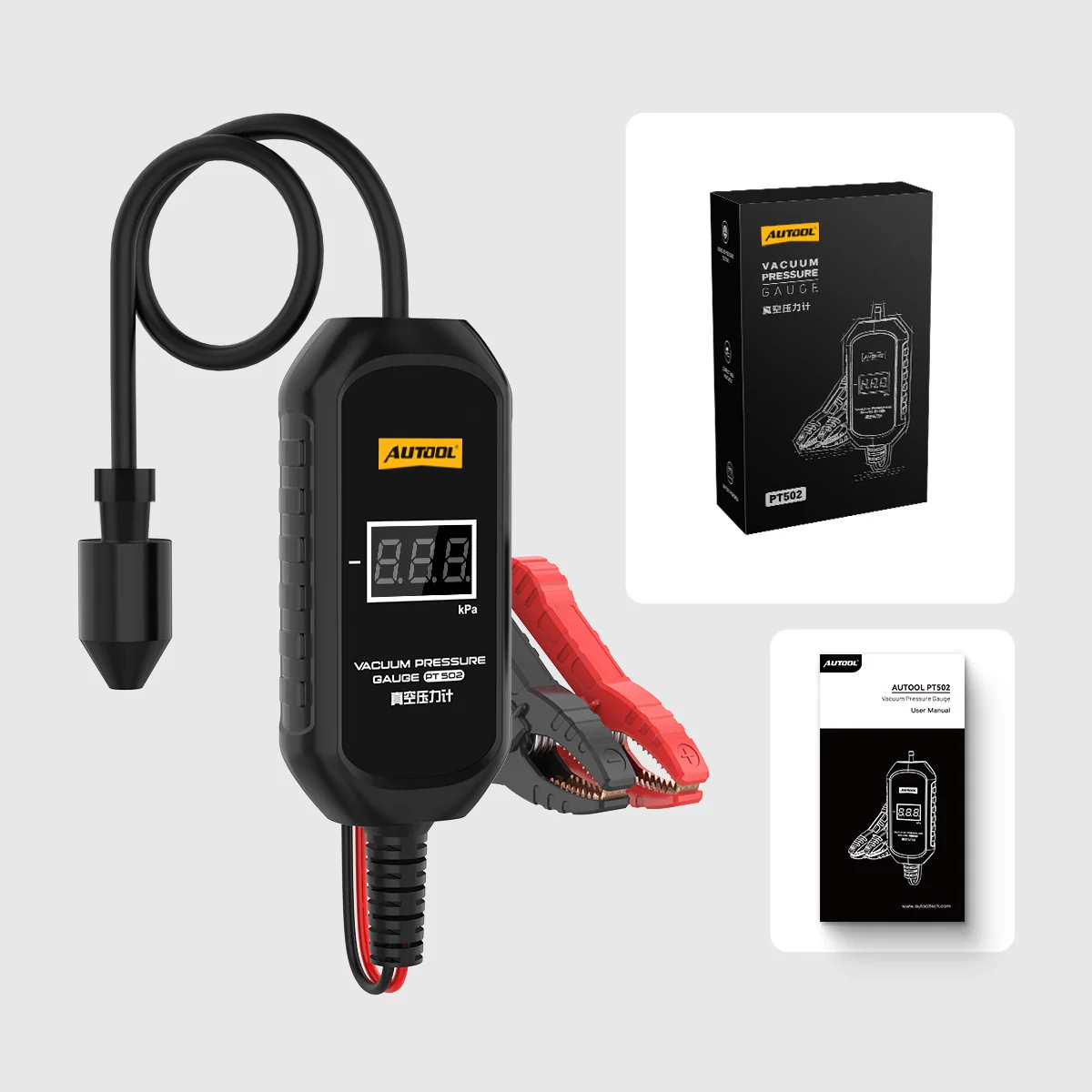

AUTOOL PT502 vacuum pressure gauge packing list Click to enlarge
What Is In The Box

What Is In The Box

Review the package image to confirm the PT502 gauge, power connection, pressure interface, packaging, and manual before ordering.

Main UnitAUTOOL PT502 Vacuum Pressure Gauge
Power ClampsVehicle battery clamp power cable
Pressure InterfaceVacuum pressure measurement probe / interface shown in the package image
PackagingProduct box shown in the package image
DocumentationPT502 user manual shown in the package image

Questions And Answers

These answers cover negative-pressure-only use, measurement range, power-on precautions, applications, 12V power, reverse polarity protection, accuracy, and temperature compensation.

Warranty And Contact

Warranty And Contact

For PT502 product support, application confirmation, manual requests, negative-pressure-only confirmation, measurement accuracy, zeroing support, power clamp connection, or reverse polarity protection questions, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming whether PT502 is suitable for your vacuum-pressure test scenario, whether your target system is negative pressure, how to connect DC 10V–14V power, or how to avoid power-on-under-pressure measurement issues.

  • 3-year warranty for eligible non-human damage cases
  • Negative pressure measurement confirmation
  • Application confirmation before purchase
  • Manual and setup support
  • Measurement accuracy and zeroing support
  • Power clamp and reverse polarity support
