AUTOOL XC505 3D Wheel Aligner Machine Tire Alignment

AUTOOL XC505 3D Wheel Aligner Machine Tire Alignment

Rated 5.00 out of 5 based on 8 customer ratings

(8 customer reviews)

US$6,399.00

Key Features

Full Geometry
50,000+ Models
Short-Roll Check

Voltage

Ship From

Clear

☰ REQUEST BULK / B2B QUOTE

Secure checkoutFast supportBulk ready

AUTOOL XC505

Product Overview

The AUTOOL XC505 is a professional 3D wheel alignment and tire alignment machine for workshops, tire shops, and automotive service centers. It measures wheel and body alignment parameters, references vehicle manufacturer data, and helps technicians adjust wheels to reduce abnormal tire wear, improve driving stability, and support repeatable alignment service revenue.

3D Camera Measurement Vehicle Database Voice & LED Guidance 3-Year Warranty

80,000+Database Models*

13"-23"Standard Rim Range

8-12cmShort Rolling Compensation

AC110V/220VPower Supply

*The original product description mentions 106 car brands and 50,000+ models, while newer XC series materials show 80,000+ database support. Database coverage depends on the installed software and update package.

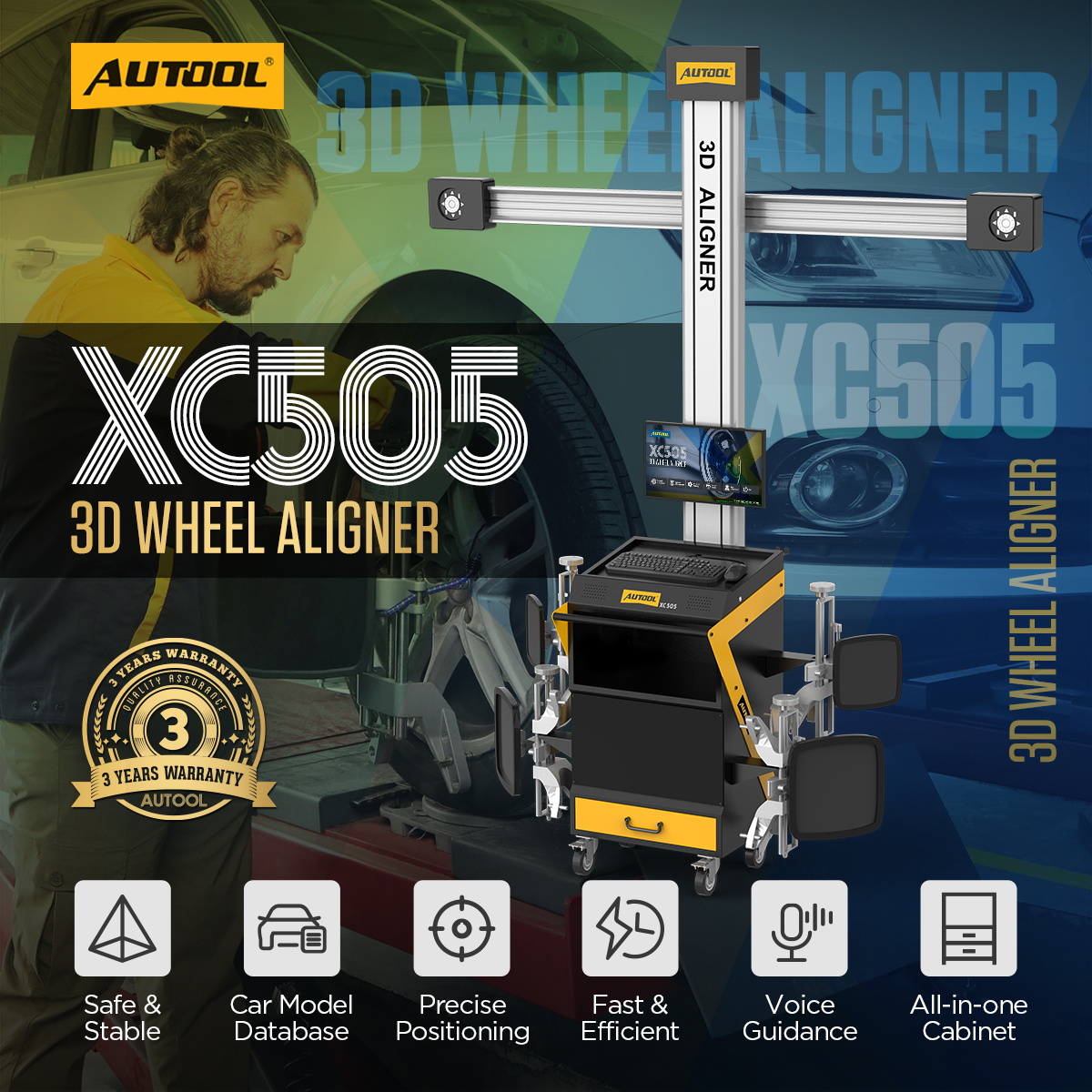

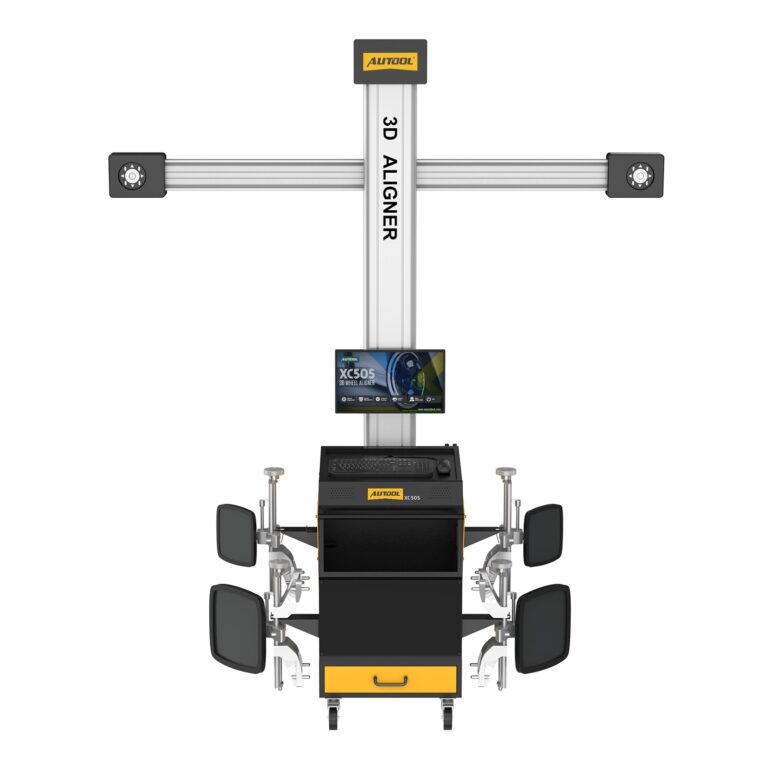

AUTOOL XC505 3D wheel aligner machine main product image

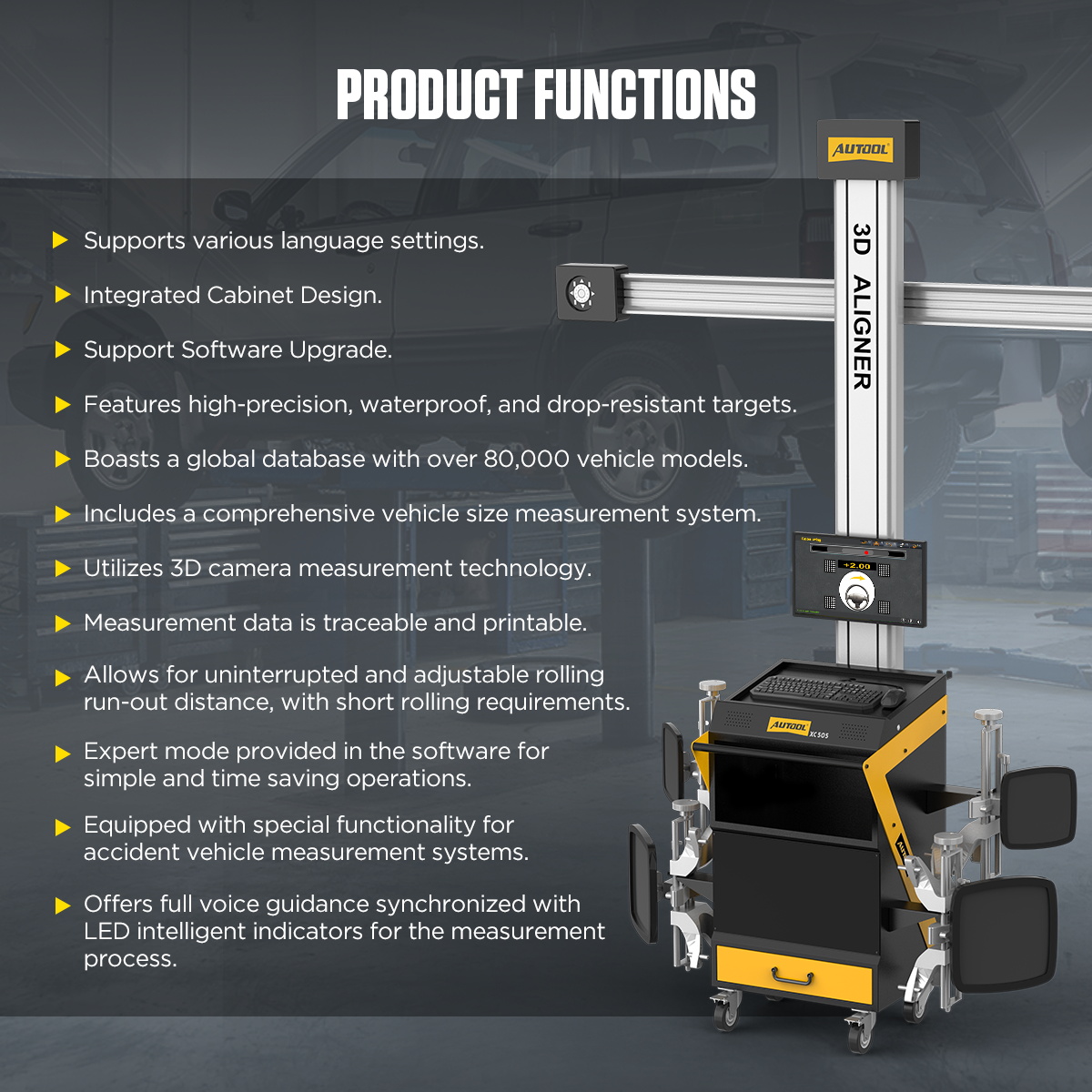

AUTOOL XC505 product functions overview image

Before You Order And Use

Modern vehicles need regular wheel alignment to reduce tire and suspension wear, maintain safe driving, and help repair shops build a sustainable repeat service. Before choosing XC505, confirm your workshop space, vehicle type, technician workflow, and expected return on investment.

Workshop Space

Confirm that your workshop has enough space for the aligner, vehicle movement, lift area, and the recommended measuring distance between the machine and vehicle.

Vehicle Types

Consider the vehicles you usually service, such as consumer cars, SUVs, off-road vehicles, light trucks, or fleet vehicles, before choosing an alignment machine.

Technician Skill Level

XC505 supports voice guidance and LED operation guidance to help technicians complete measurements more efficiently and reduce operation difficulty.

Revenue & ROI

Wheel alignment service can become a repeatable income source for tire shops and repair centers, improving customer satisfaction and return visits.

Setup Distance

Depending on the vehicle model, the measuring distance between the XC505 and the vehicle can be adjusted to about 2m-2.2m.

Online Support Scope

Local on-site repair service is not currently provided in every country. AUTOOL provides online technical support, video guidance, parts support, and 3-year warranty service for eligible cases.

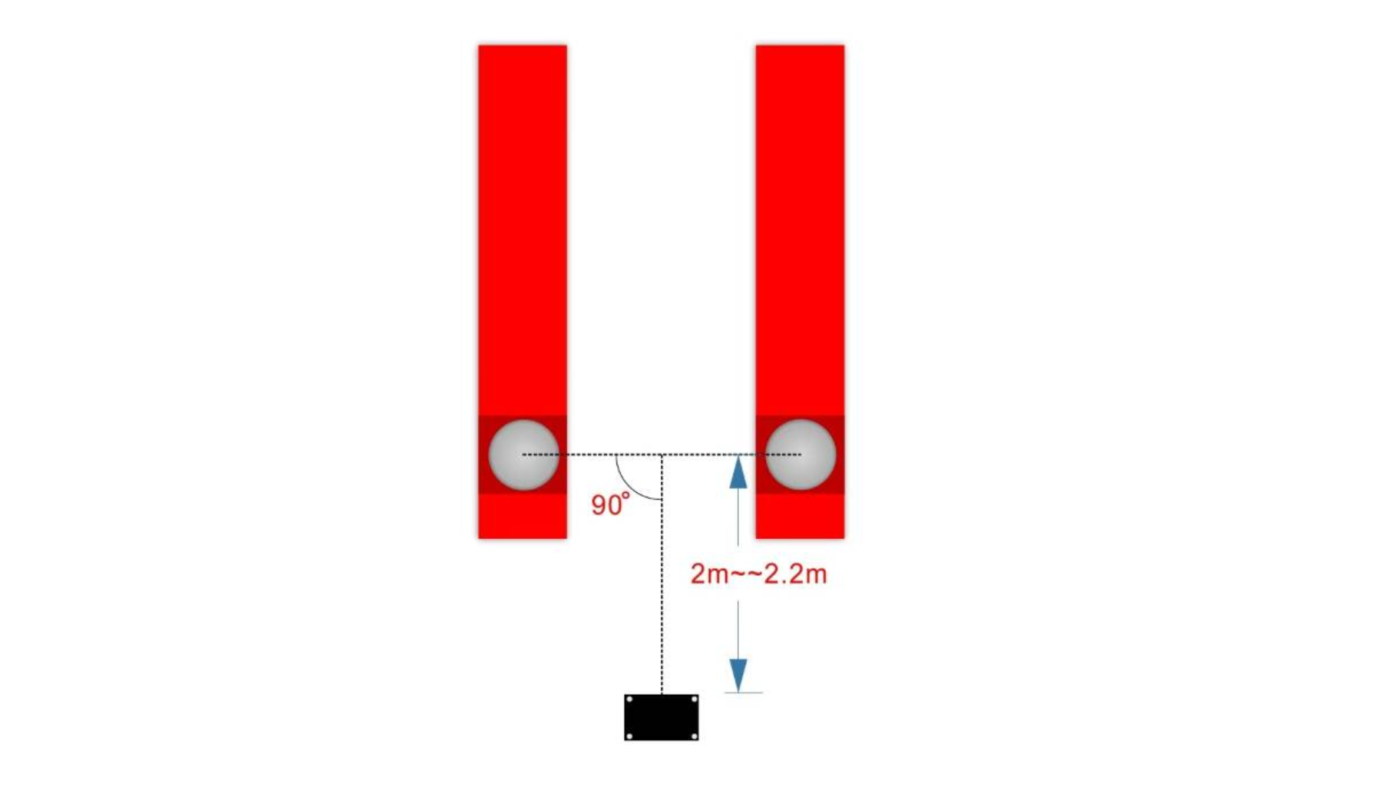

AUTOOL XC505 recommended 2m to 2.2m distance between aligner and vehicle

Product Comparison

XC505 is the mid-range XC series model for workshops that need a mobile workstation, drawer storage, 3D camera measurement, voice guidance, database updates, and professional alignment functions without moving up to the XC508 intelligent elevator tracking system.

XC503Entry XC series 3D aligner with 80,000+ database support, 3D camera measurement, voice guidance, mobile workstation, and software/database updates. It does not include a drawer or built-in printer.

XC505Recommended middle option with the XC series core functions, mobile workstation, drawer, professional measurement level, short-distance run-out compensation, printer features, and review test data support.

XC508Higher-end option with dual 19-inch displays, built-in printer, smart elevator tracking system, and stronger light condition tolerance when no strong infrared light directly illuminates the camera.

Shared FunctionsAll three models support high-precision waterproof and drop-proof targets, voice light operation guidance, latest 3D camera measurement technology, body size measurement, multi-language support, and free software/database updates.

Decision CheckCompare display setup, drawer, built-in printer, smart elevator tracking, light condition requirements, workshop budget, and service volume before ordering.

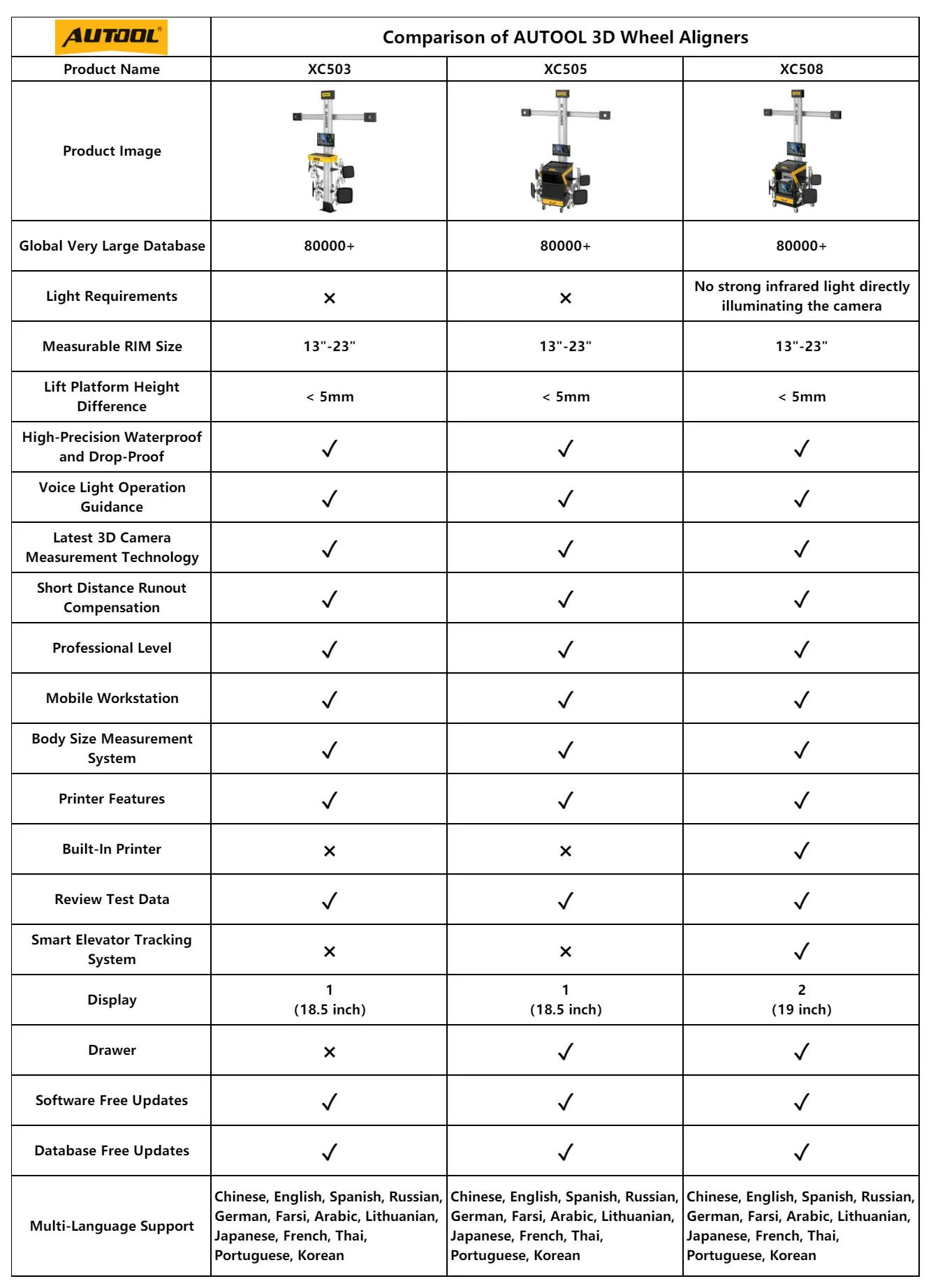

AUTOOL XC503 XC505 XC508 3D wheel aligner comparison chart

Latest 3D Camera Measurement

The optical measurement system uses a 1.3MP industrial-grade HD lens with a camera-to-turntable distance of about 1500-2800mm. The camera does not need to be moved during normal use.

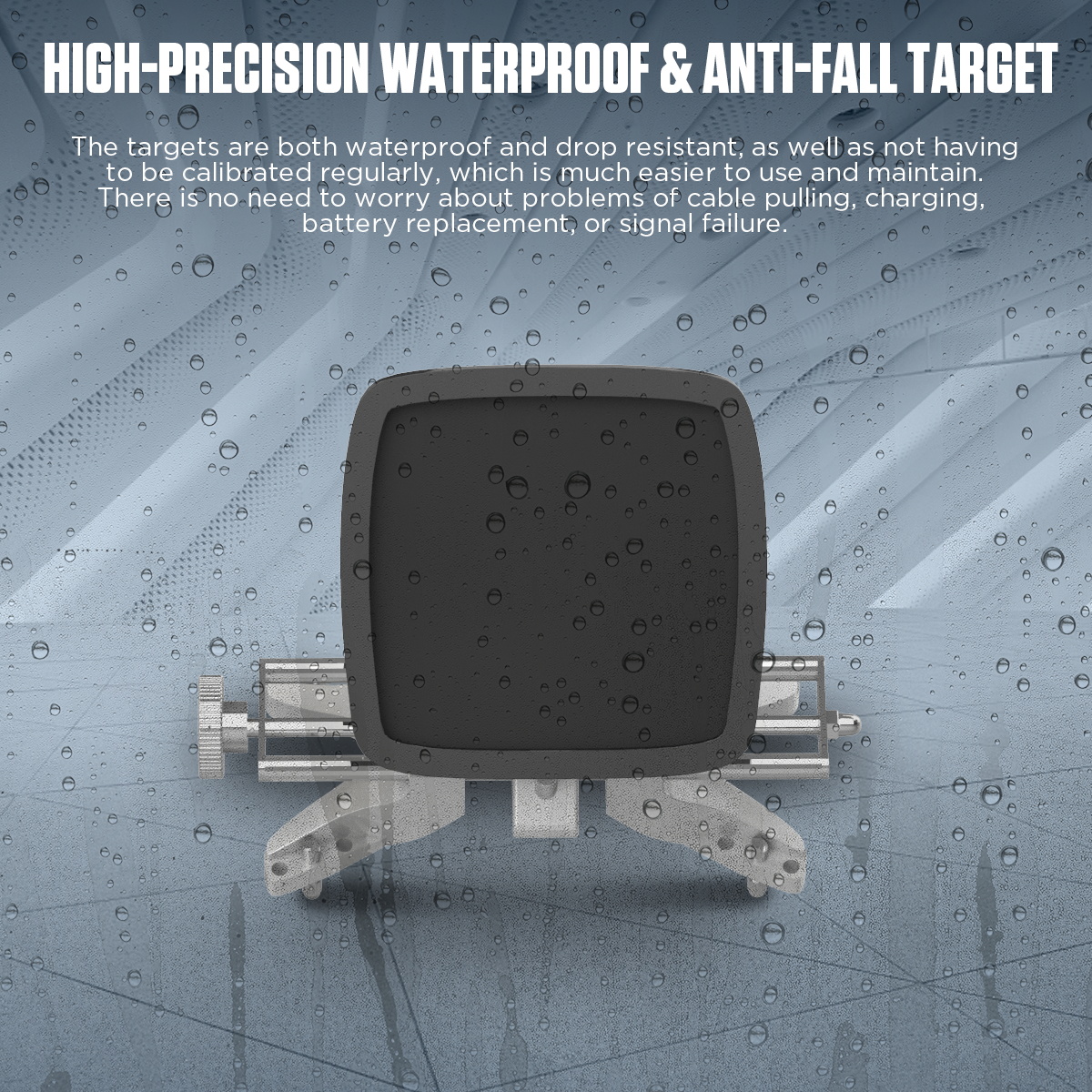

Waterproof & Drop-Resistant Targets

The targets are designed for high precision, repeatability, and reliability. They do not require cable dragging, charging, battery replacement, or regular signal-device maintenance.

Global Vehicle Database

The software supports brand, series, model, and year search. Users can also add custom models and use the built-in help system to quickly query vehicle adjustment plans.

Full Body Dimension Measurement

Supports toe-in, camber, steering axle inclination, caster, thrust angle, wheelbase, wheelbase difference, track width, track width difference, and diagonal measurement.

Short Rolling Run-Out Compensation

Push the vehicle backward or forward over a short 8-12cm distance to collect measurement data and perform rolling offset compensation without stopping.

Voice & Light Guidance

The measurement process is guided by voice synchronization and intelligent LED indicators, helping technicians follow direction prompts during setup and measurement.

Expert Mode

Expert mode is designed for simple and time-saving operation. It can improve workflow efficiency when used by trained technicians under proper operating conditions.

Reports Can Be Traced And Printed

Measurement data can be reviewed, traced, and printed. XC505 supports printer features, but the comparison chart shows the built-in printer is reserved for XC508.

Multi-Language Support

Supports Chinese, English, Spanish, Russian, German, Farsi, Arabic, Lithuanian, Japanese, French, Thai, Portuguese, and Korean.

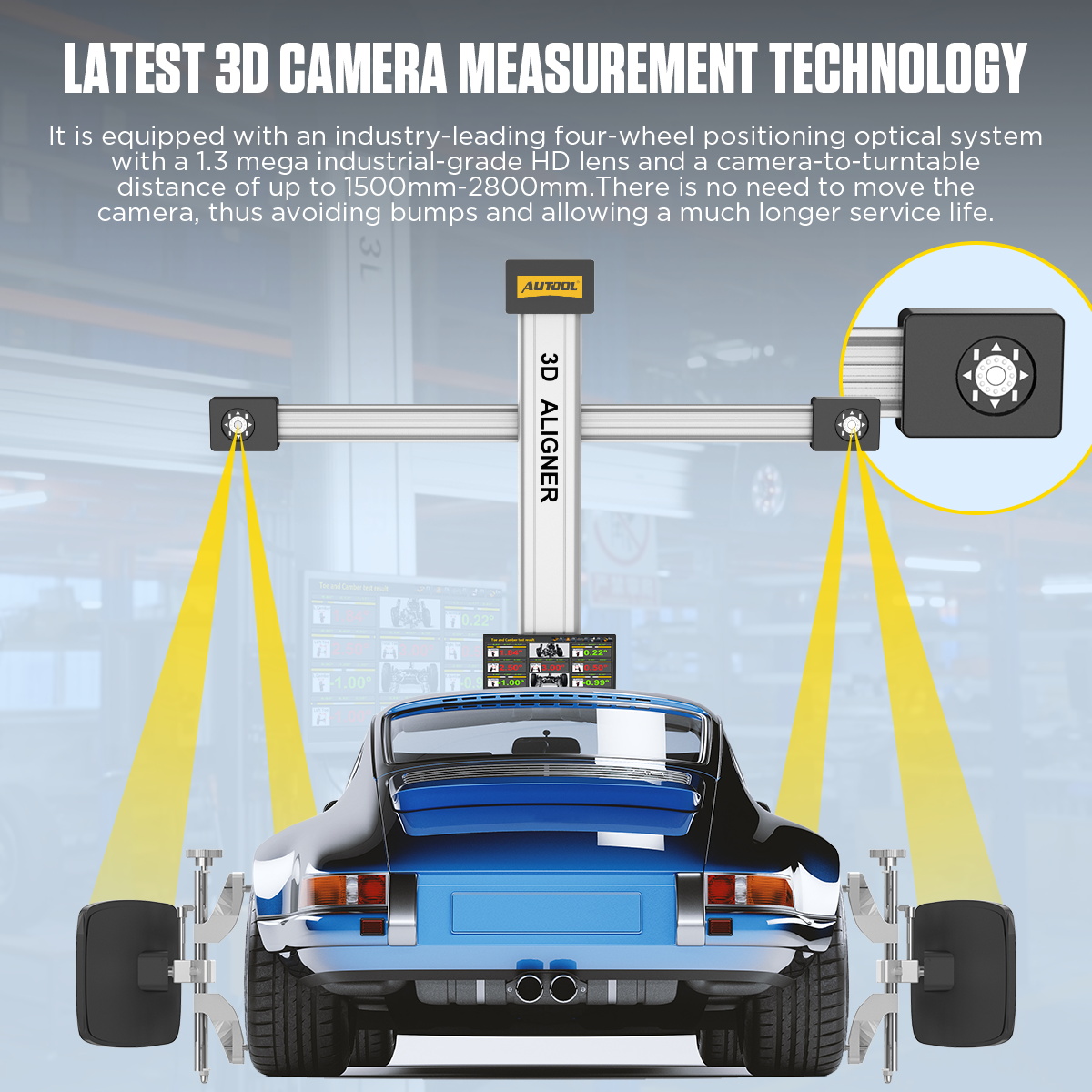

AUTOOL XC505 latest 3D camera measurement technology

AUTOOL XC505 waterproof and anti-fall target

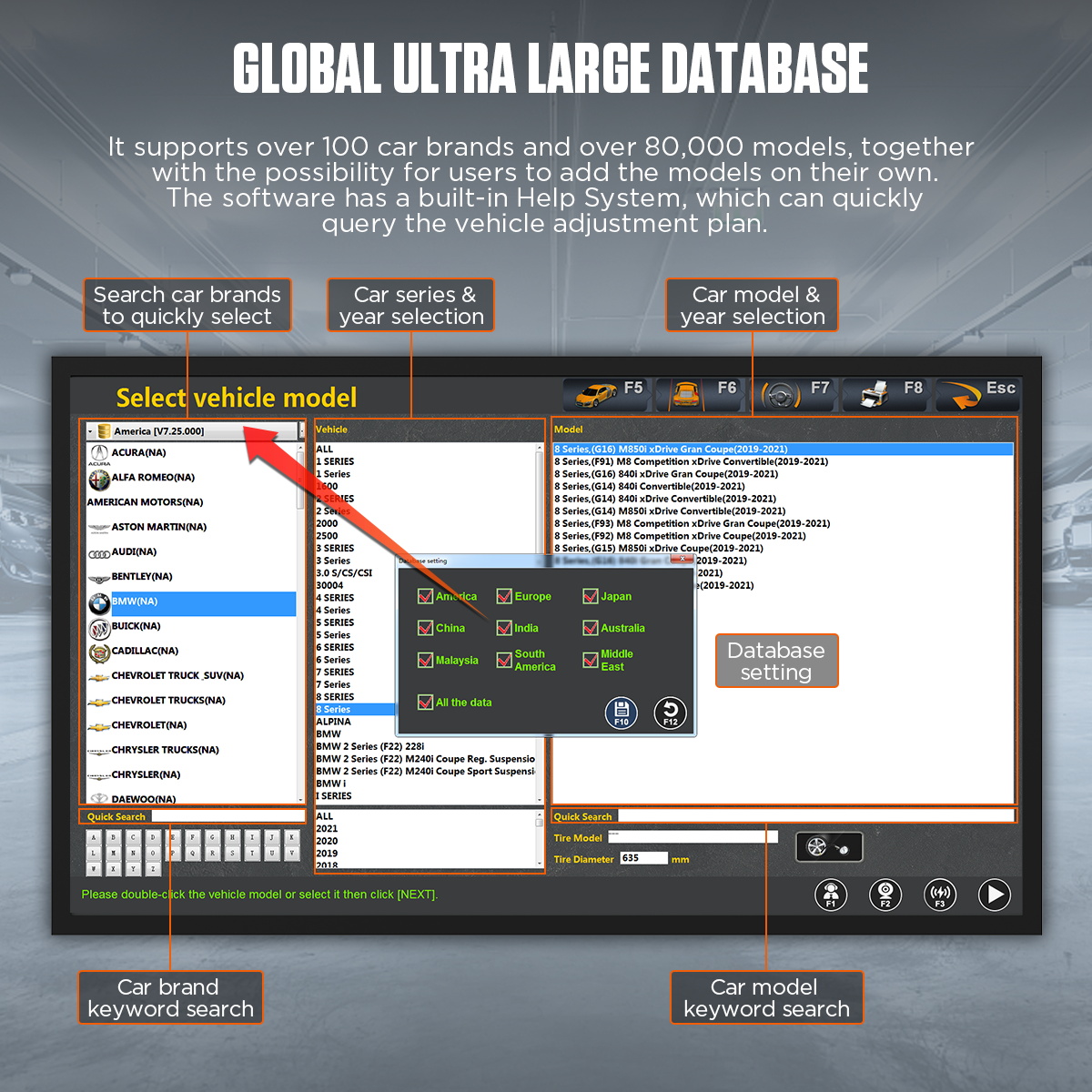

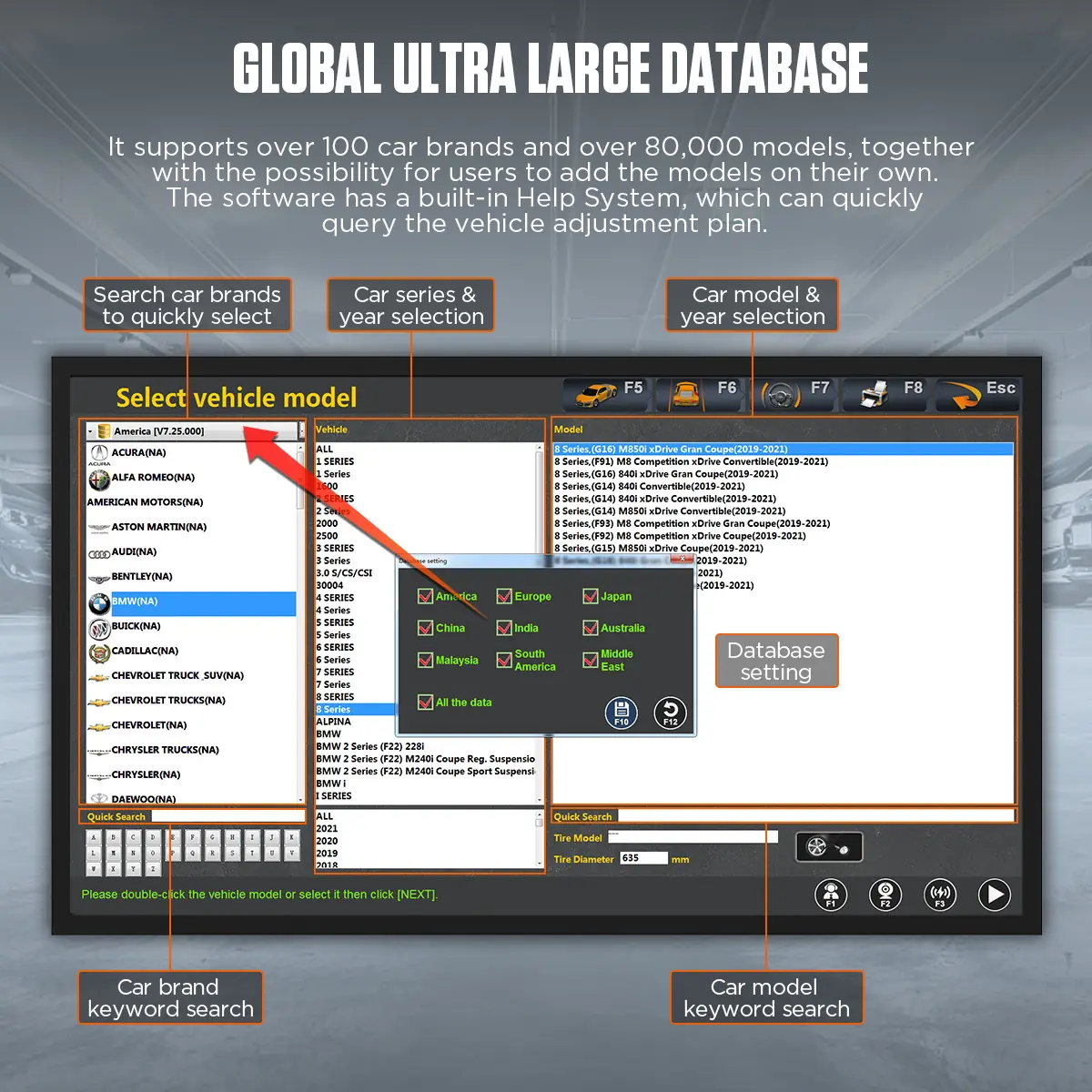

AUTOOL XC505 global vehicle database search interface

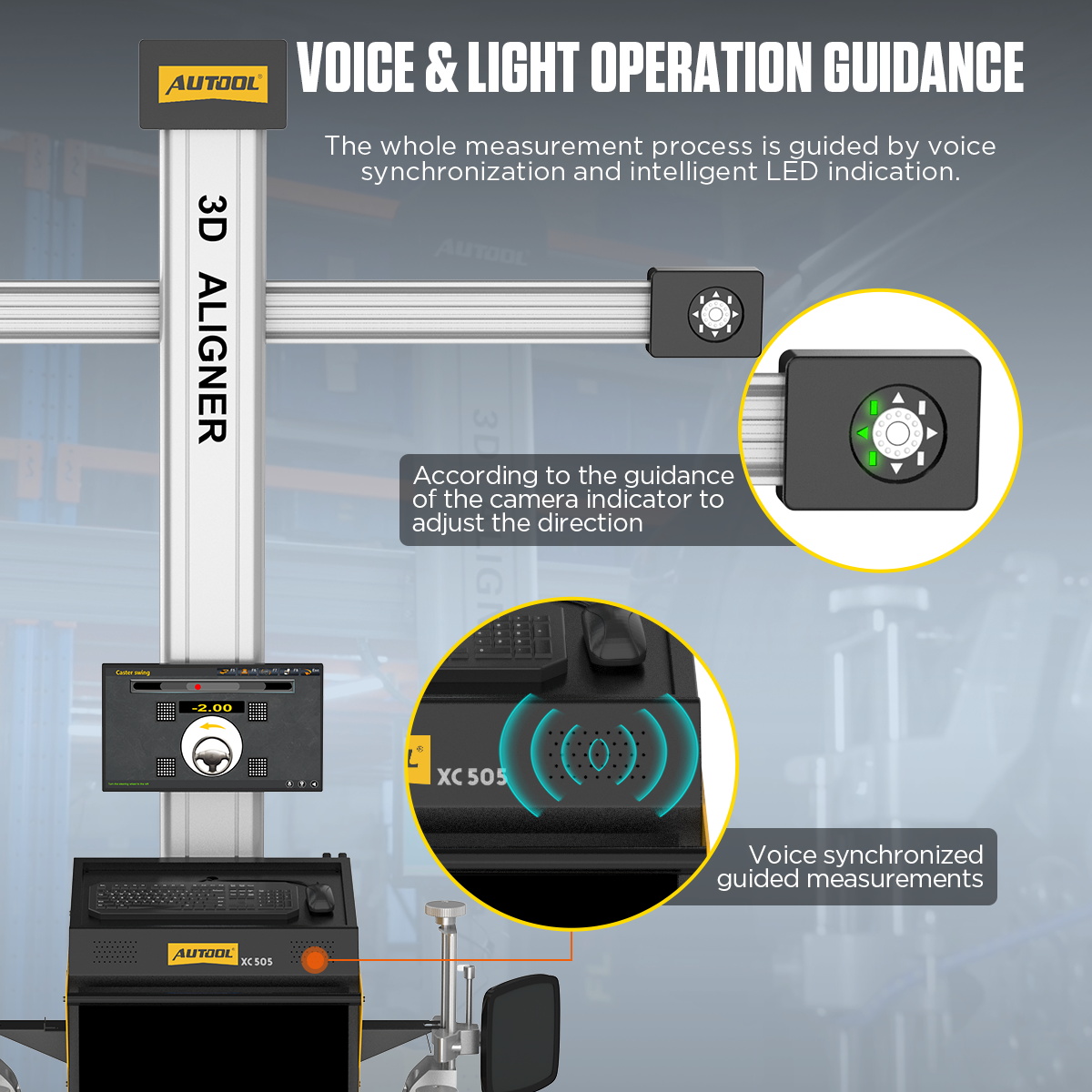

AUTOOL XC505 voice and light operation guidance

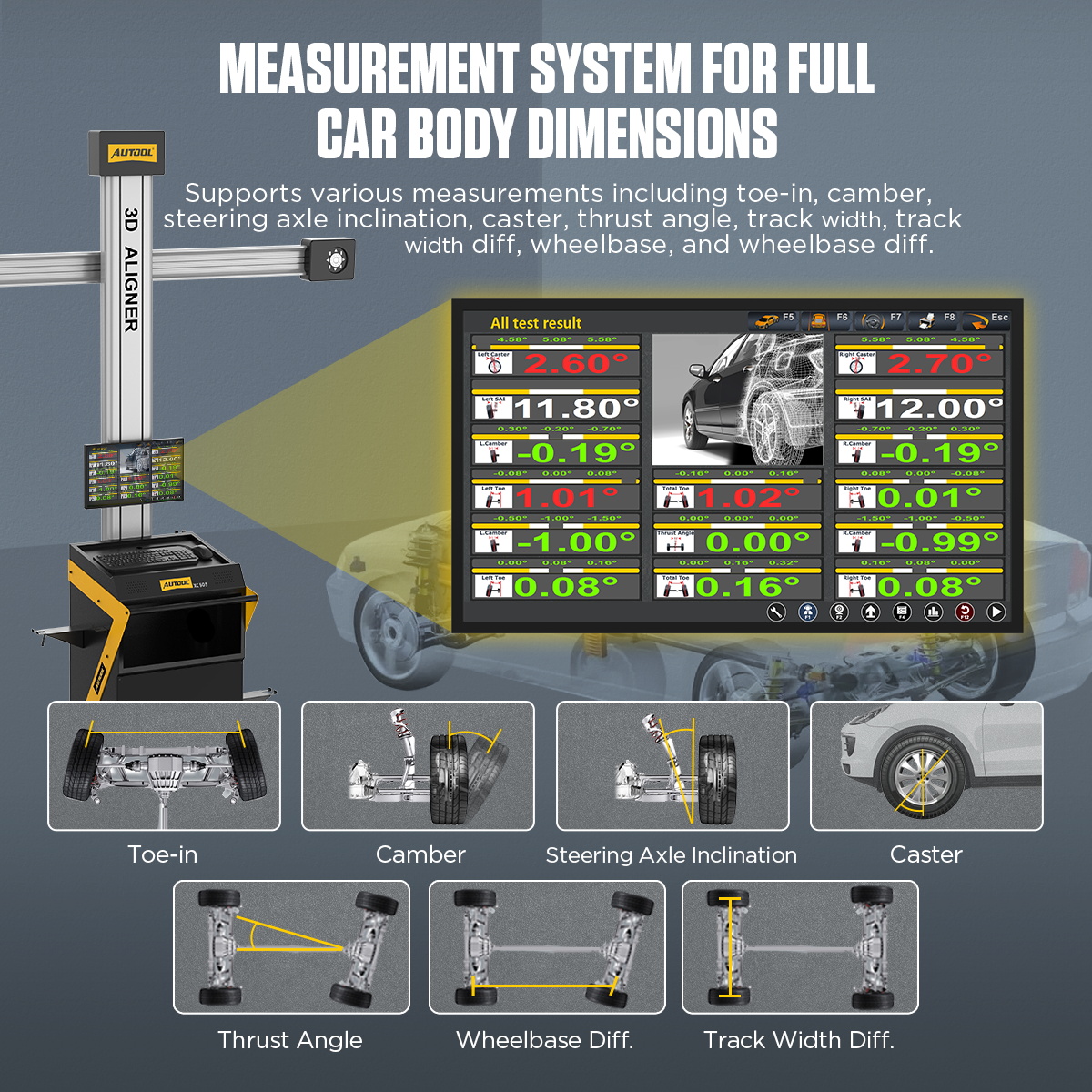

AUTOOL XC505 full car body dimension measurement system

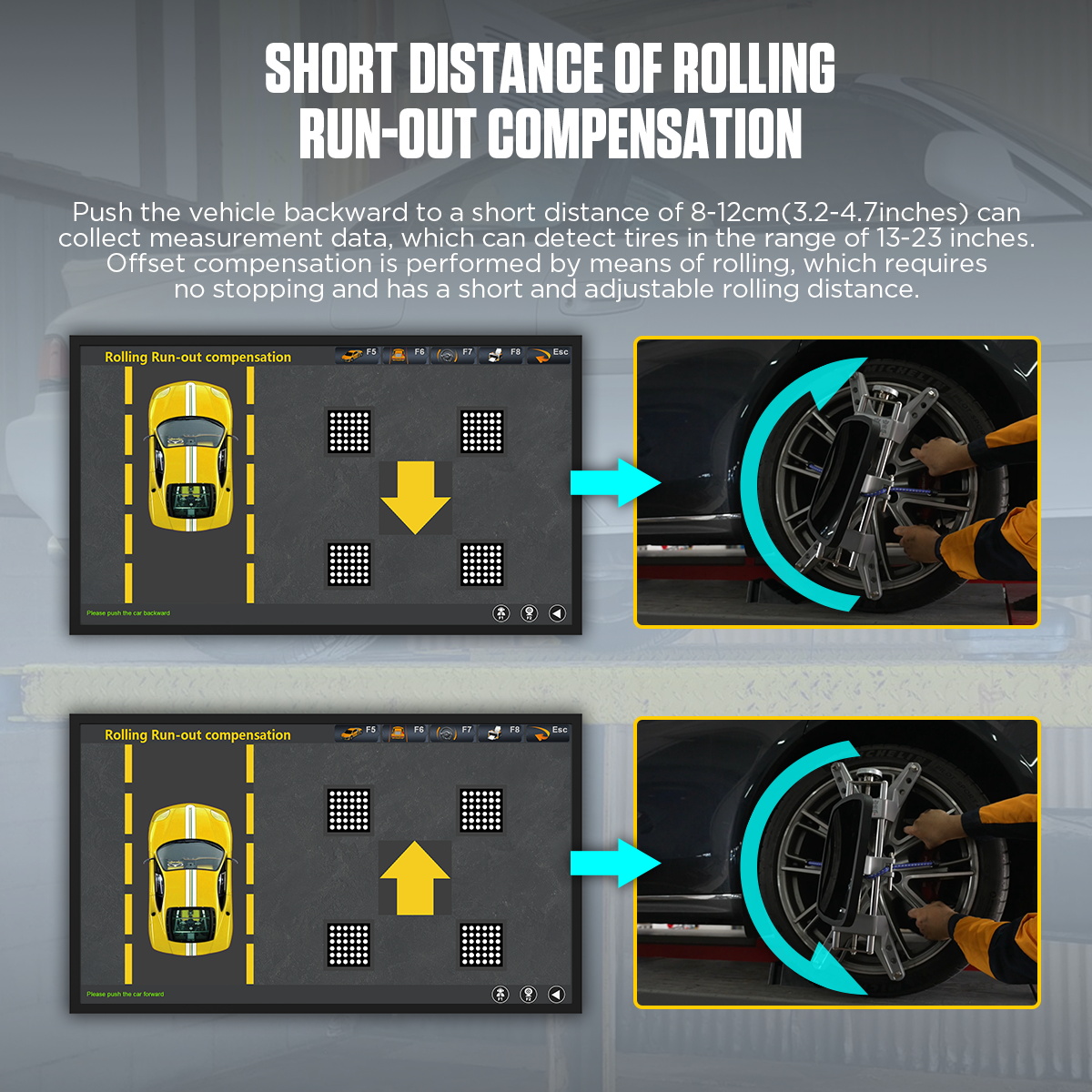

AUTOOL XC505 short distance rolling run-out compensation

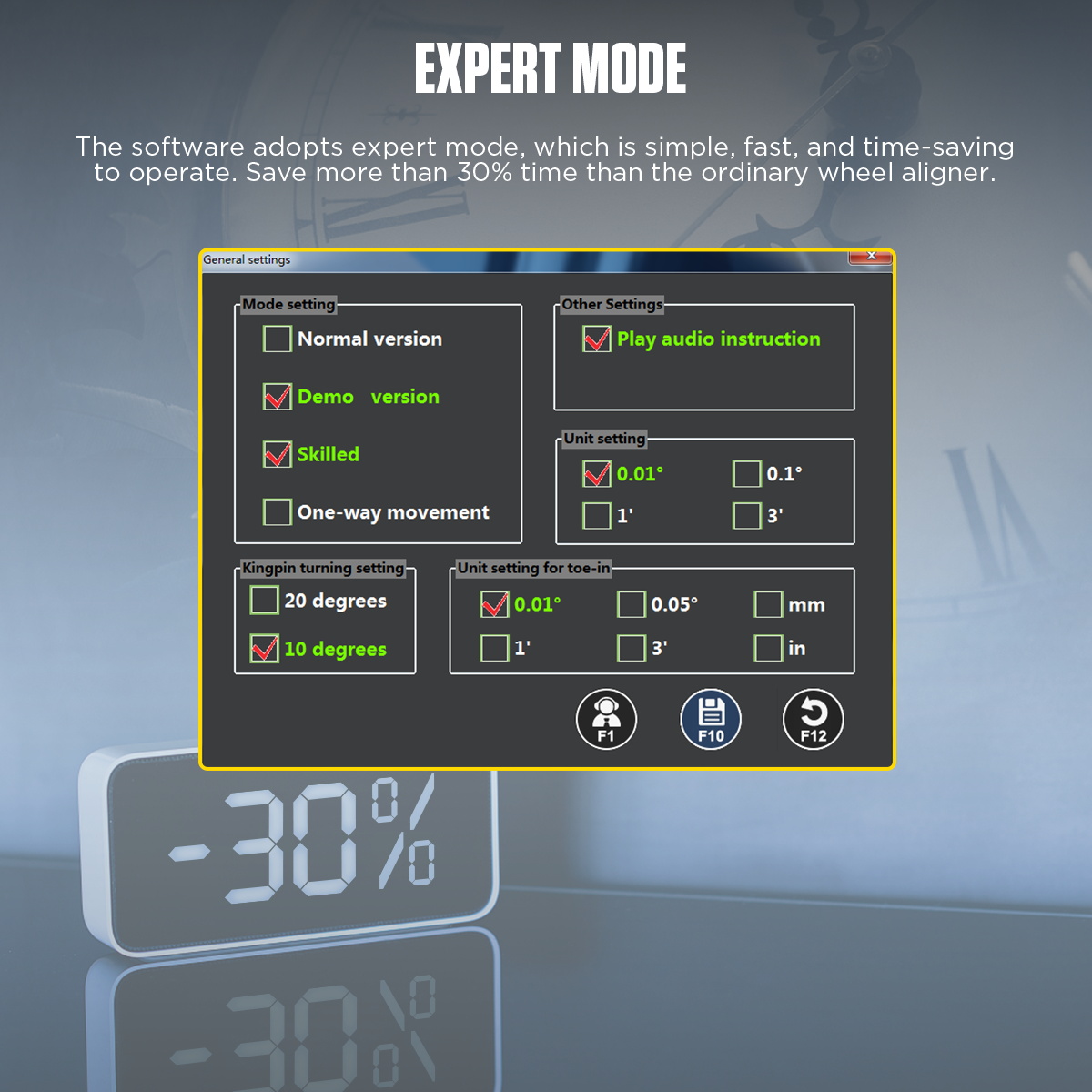

AUTOOL XC505 expert mode software interface

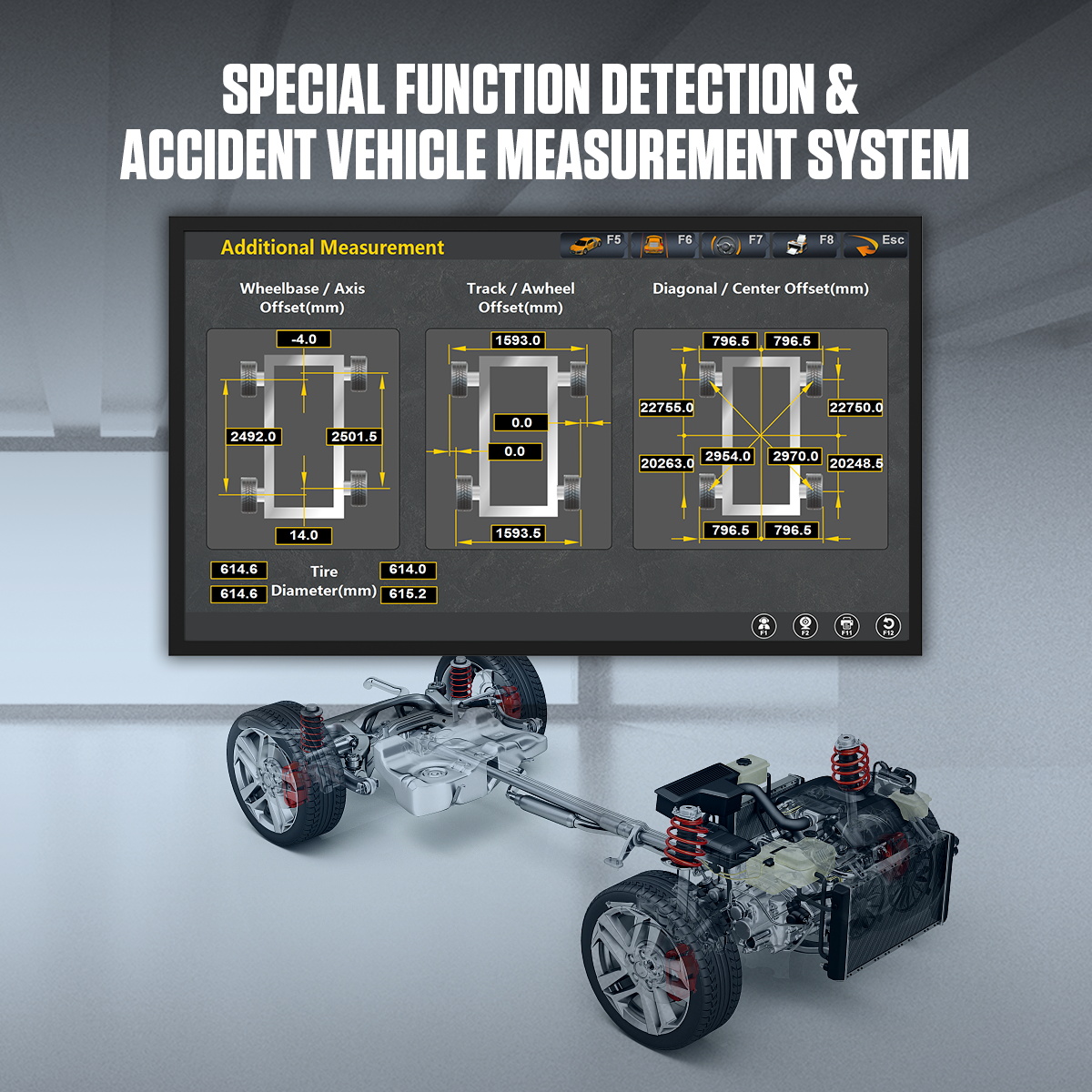

AUTOOL XC505 special function detection and accident vehicle measurement system

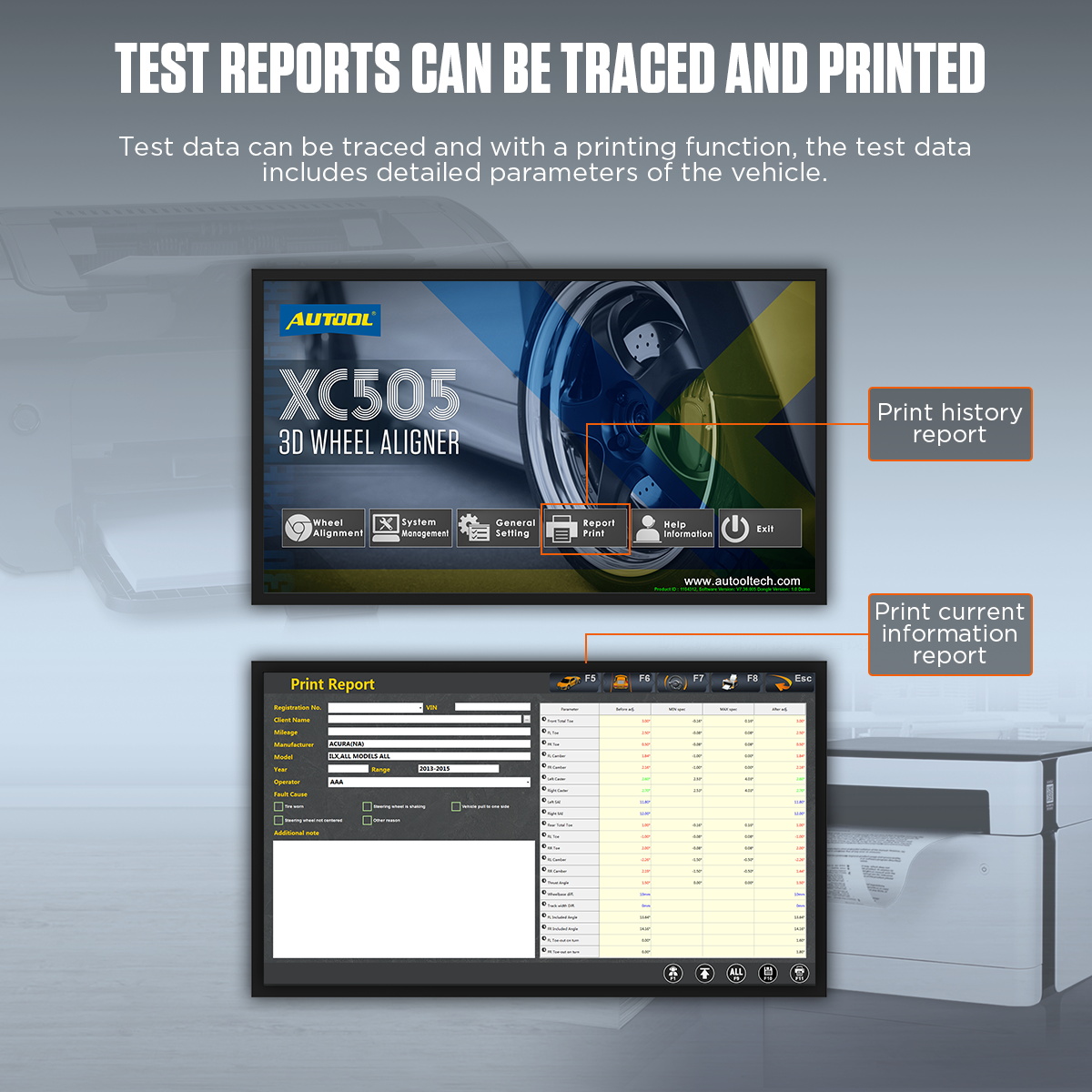

AUTOOL XC505 test reports can be traced and printed

Specifications

XC505 Specifications And Measurement Accuracy

XC505 is designed for professional 3D wheel alignment with AC110V/220V power, 19-inch display, 1920 × 1080px resolution, 0-50°C working environment, and high-precision angle measurement.

System Specifications
Product	AUTOOL XC505 Export Mode 3D Wheel Aligner Machine
Power Supply	AC110V / 220V ±10%, 50/60Hz
Monitor	19-inch color monitor; XC comparison chart lists XC505 as 1 × 18.5-inch display, so confirm final display configuration before ordering if this matters.
Resolution	1920 × 1080px
Light Condition	No direct infrared light to the targets; avoid strong infrared interference near the camera.
Lift / Lane Height Difference	Specification image shows left and right difference <5cm; XC series comparison chart shows lift platform height difference <5mm. Use a level setup when possible and confirm requirements with support for your lift.
Rim Diameter	Common materials show 10"-23", 13"-23", and 13"-23.5". FAQ mentions 23-inch and 24-inch calibration support; confirm 24-inch applications with AUTOOL support before ordering.
Relative Humidity	≤85%
Ambient Temperature	0-50°C / 32-122°F
Machine Size Shown	Approx. 2600mm height × 2500mm width
Measurement Precision
Toe-In	Precision ±0.01°, precision range ±2°, maximum test range ±20°
Camber Angle	Precision ±0.01°, precision range ±2°, maximum test range ±20°
SAI / Kingpin	Precision ±0.02°, precision range ±15°, maximum test range ±20°
Caster	Precision ±0.02°, precision range ±10°, maximum test range ±20°
Thrust Angle	Precision ±0.02°, precision range ±2°, maximum test range ±10°

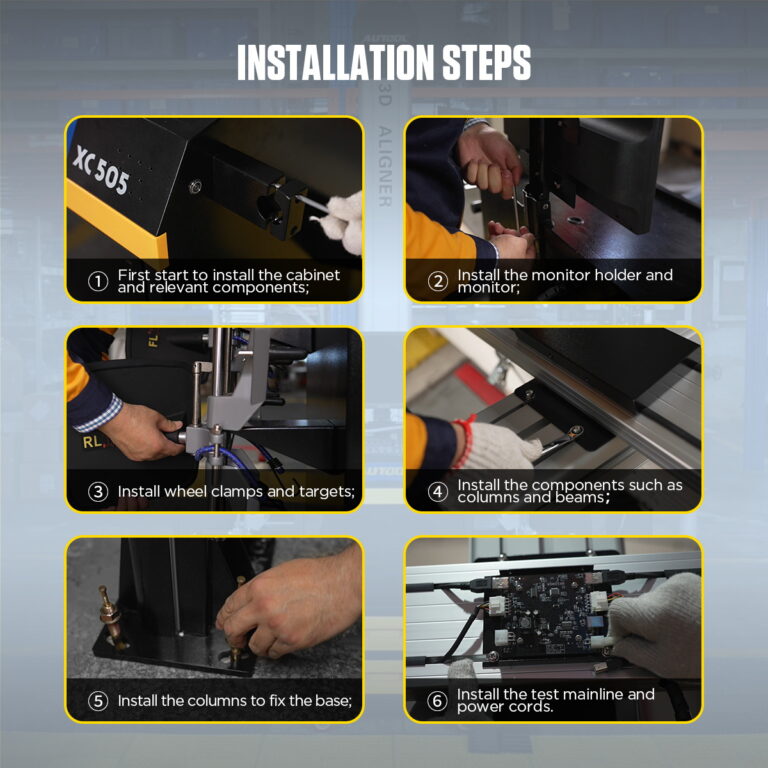

Product Structure
Structure Overview	The XC505 integrates the column assembly, lateral beam assembly, cameras, monitor, computer host, audio system, keyboard, mouse, targets, clamps, wheel clamp hangers, and mobile cabinet into a workshop-ready structure.
Column & Beam	Column assembly and lateral beam assembly support the 3D measurement camera system.
Camera System	Camera modules read target data for 3D wheel alignment measurement.
Monitor & Computer	Monitor, computer host, audio, keyboard, and mouse support software operation and guided workflow.
Targets & Clamps	Wheel targets, clamps, and clamp hangers support measurement setup around the vehicle.
Cabinet	The integrated mobile cabinet helps organize the workstation and included accessories.

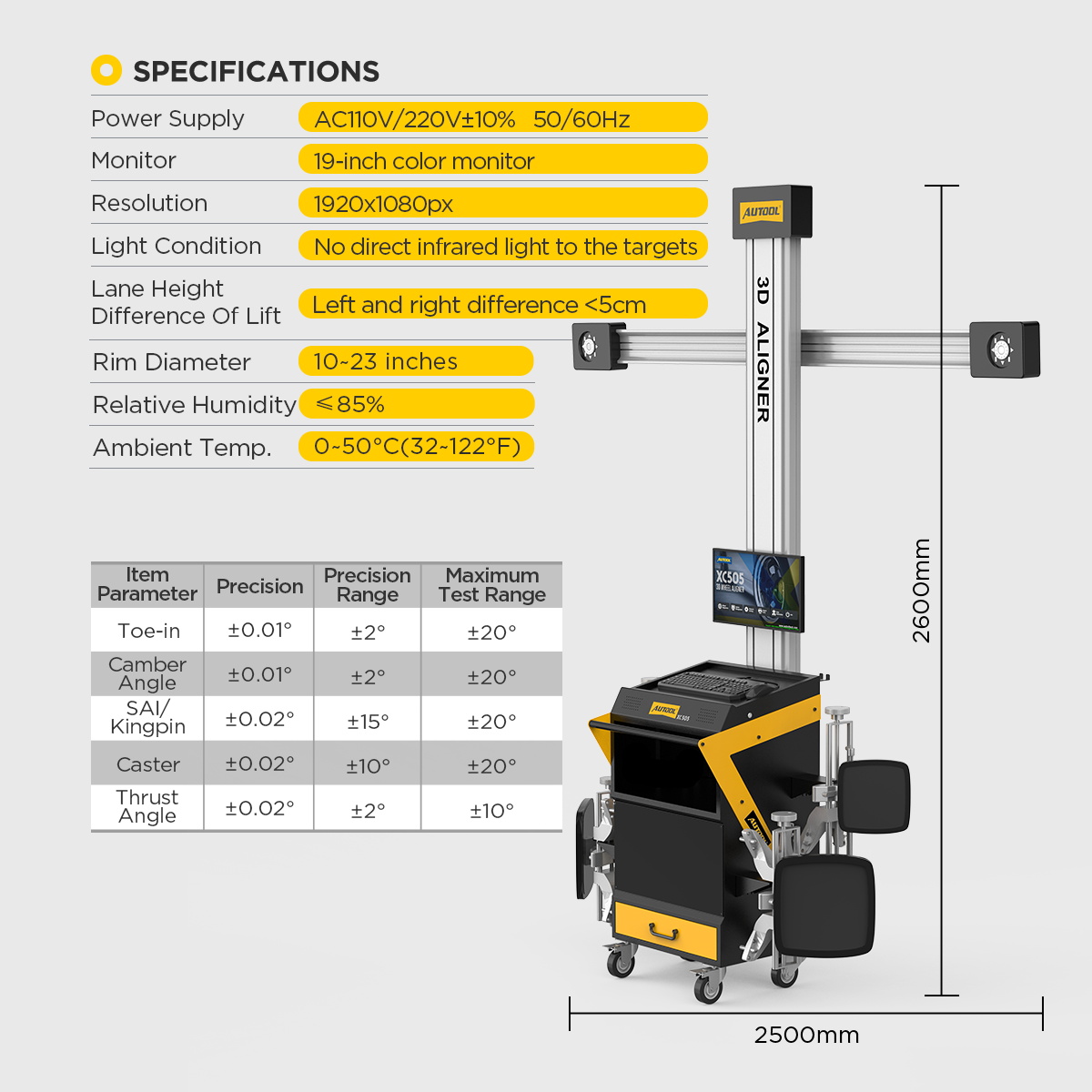

AUTOOL XC505 specifications and measurement accuracy image

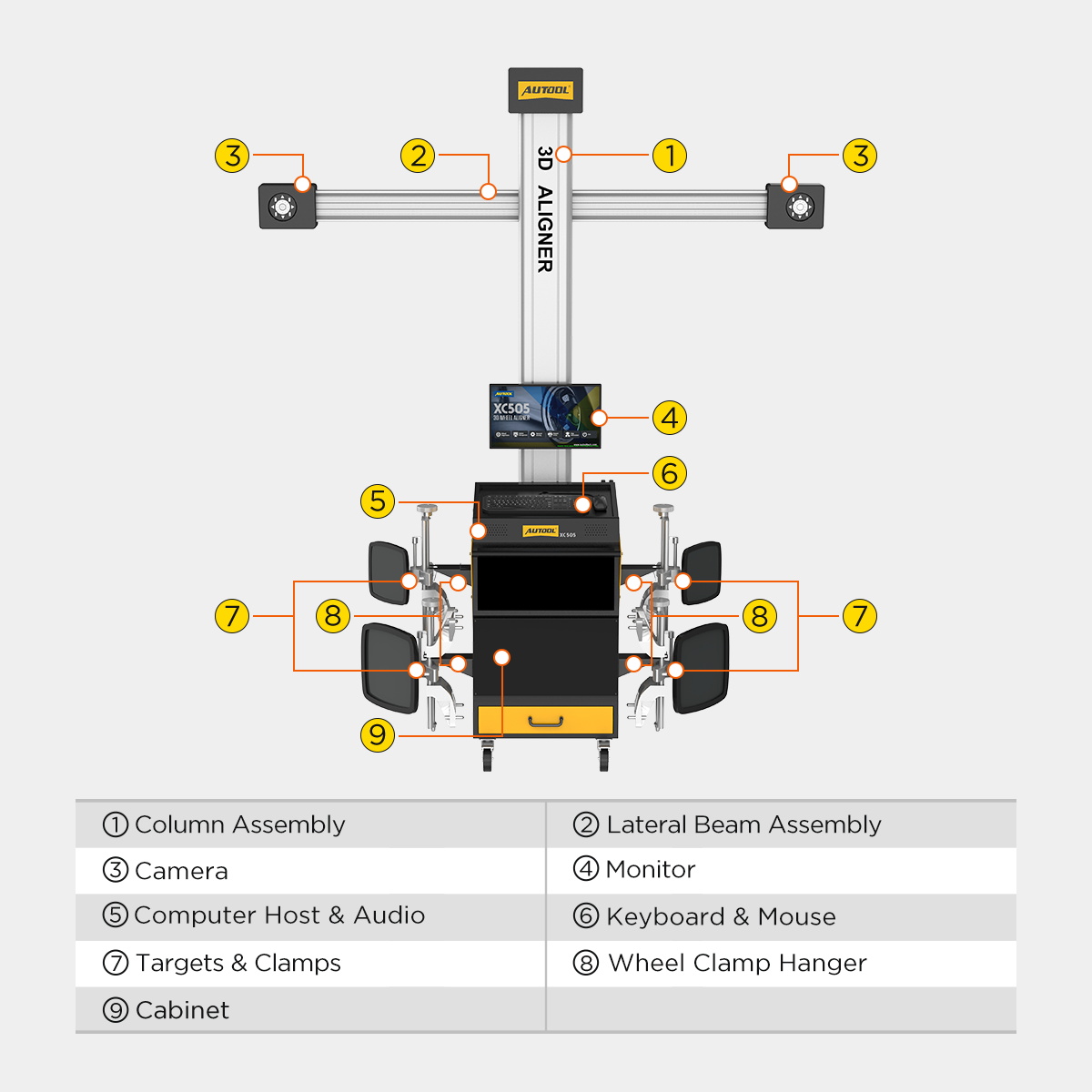

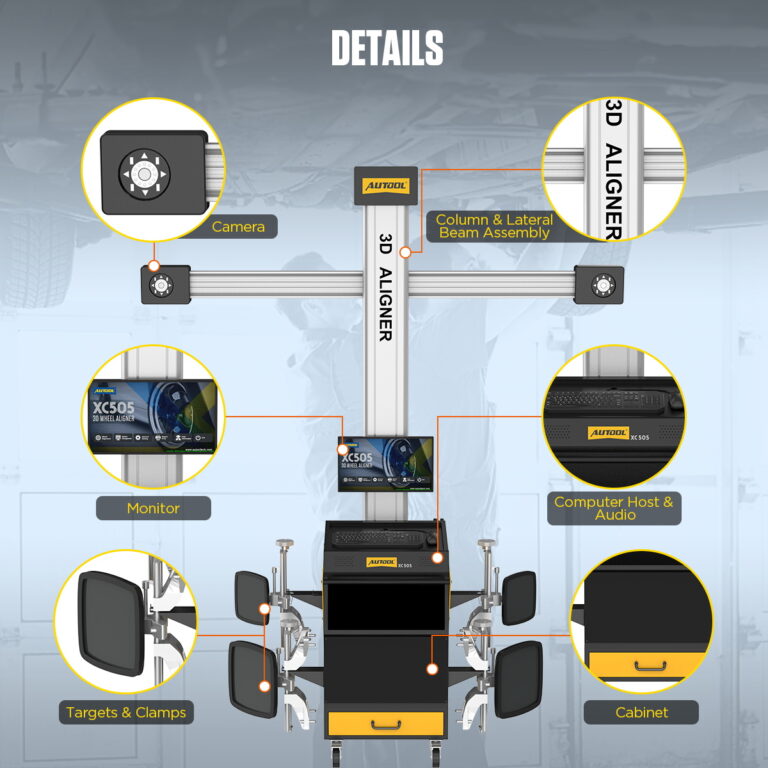

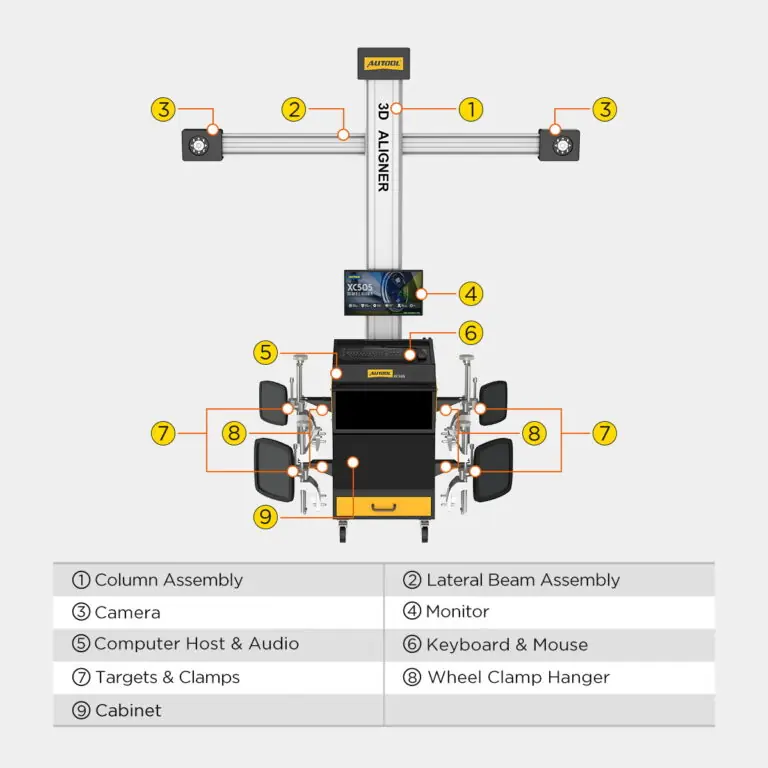

AUTOOL XC505 main components labeled diagram

System Specifications

ProductAUTOOL XC505 Export Mode 3D Wheel Aligner Machine

Power SupplyAC110V / 220V ±10%, 50/60Hz

Monitor19-inch color monitor; XC comparison chart lists XC505 as 1 × 18.5-inch display, so confirm final display configuration before ordering if this matters.

Resolution1920 × 1080px

Light ConditionNo direct infrared light to the targets; avoid strong infrared interference near the camera.

Lift / Lane Height DifferenceSpecification image shows left and right difference <5cm; XC series comparison chart shows lift platform height difference <5mm. Use a level setup when possible and confirm requirements with support for your lift.

Rim DiameterCommon materials show 10"-23", 13"-23", and 13"-23.5". FAQ mentions 23-inch and 24-inch calibration support; confirm 24-inch applications with AUTOOL support before ordering.

Relative Humidity≤85%

Ambient Temperature0-50°C / 32-122°F

Machine Size ShownApprox. 2600mm height × 2500mm width

Measurement Precision

Toe-InPrecision ±0.01°, precision range ±2°, maximum test range ±20°

Camber AnglePrecision ±0.01°, precision range ±2°, maximum test range ±20°

SAI / KingpinPrecision ±0.02°, precision range ±15°, maximum test range ±20°

CasterPrecision ±0.02°, precision range ±10°, maximum test range ±20°

Thrust AnglePrecision ±0.02°, precision range ±2°, maximum test range ±10°

Product Structure

Structure OverviewThe XC505 integrates the column assembly, lateral beam assembly, cameras, monitor, computer host, audio system, keyboard, mouse, targets, clamps, wheel clamp hangers, and mobile cabinet into a workshop-ready structure.

Column & BeamColumn assembly and lateral beam assembly support the 3D measurement camera system.

Camera SystemCamera modules read target data for 3D wheel alignment measurement.

Monitor & ComputerMonitor, computer host, audio, keyboard, and mouse support software operation and guided workflow.

Targets & ClampsWheel targets, clamps, and clamp hangers support measurement setup around the vehicle.

CabinetThe integrated mobile cabinet helps organize the workstation and included accessories.

Workflow

XC505 helps technicians select the vehicle model, mount targets, perform short rolling compensation, read measurement data, adjust the vehicle, and print or save service reports.

Select Vehicle Data

Use brand keyword search, model keyword search, series selection, and year selection to choose the correct vehicle data. Custom vehicle models can also be added.

Mount Targets And Clamps

Install the wheel clamps and targets properly, then follow the software, voice prompts, and LED guidance to prepare the measurement process.

Perform Run-Out Compensation

Push the vehicle over a short 8-12cm distance so XC505 can collect measurement data and compensate wheel run-out by rolling.

Adjust From The Rear

Start proper alignment from the rear axle. Establish the geometric centerline and thrust line first, then move forward for front wheel adjustments.

Review And Print Reports

Review test data, track historical reports, and print current information reports when an external printer setup is available.

Workflow Notes

Use the correct vehicle model, year, and tire diameter data before measurement.
Avoid strong direct infrared light on the targets or camera area.
For uneven lift or floor conditions, use compensation carefully and contact support if setup accuracy is uncertain.
For 24-inch wheel applications, confirm the vehicle and rim setup with AUTOOL support before ordering.

Manual And Downloads

Download the XC503 / XC505 user manual and XC series software update package. Keep the vehicle database updated for domestic, overseas China region, North America, South America, Europe, and other supported regions.

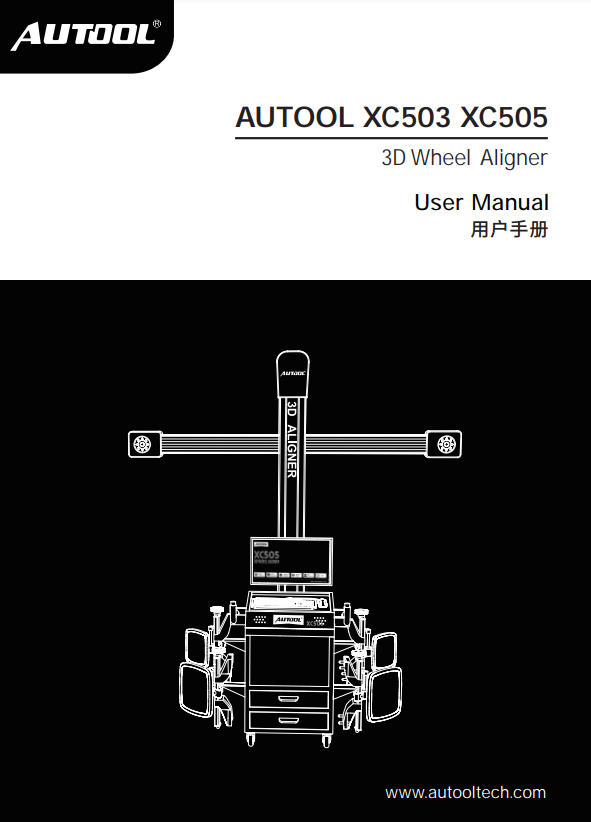

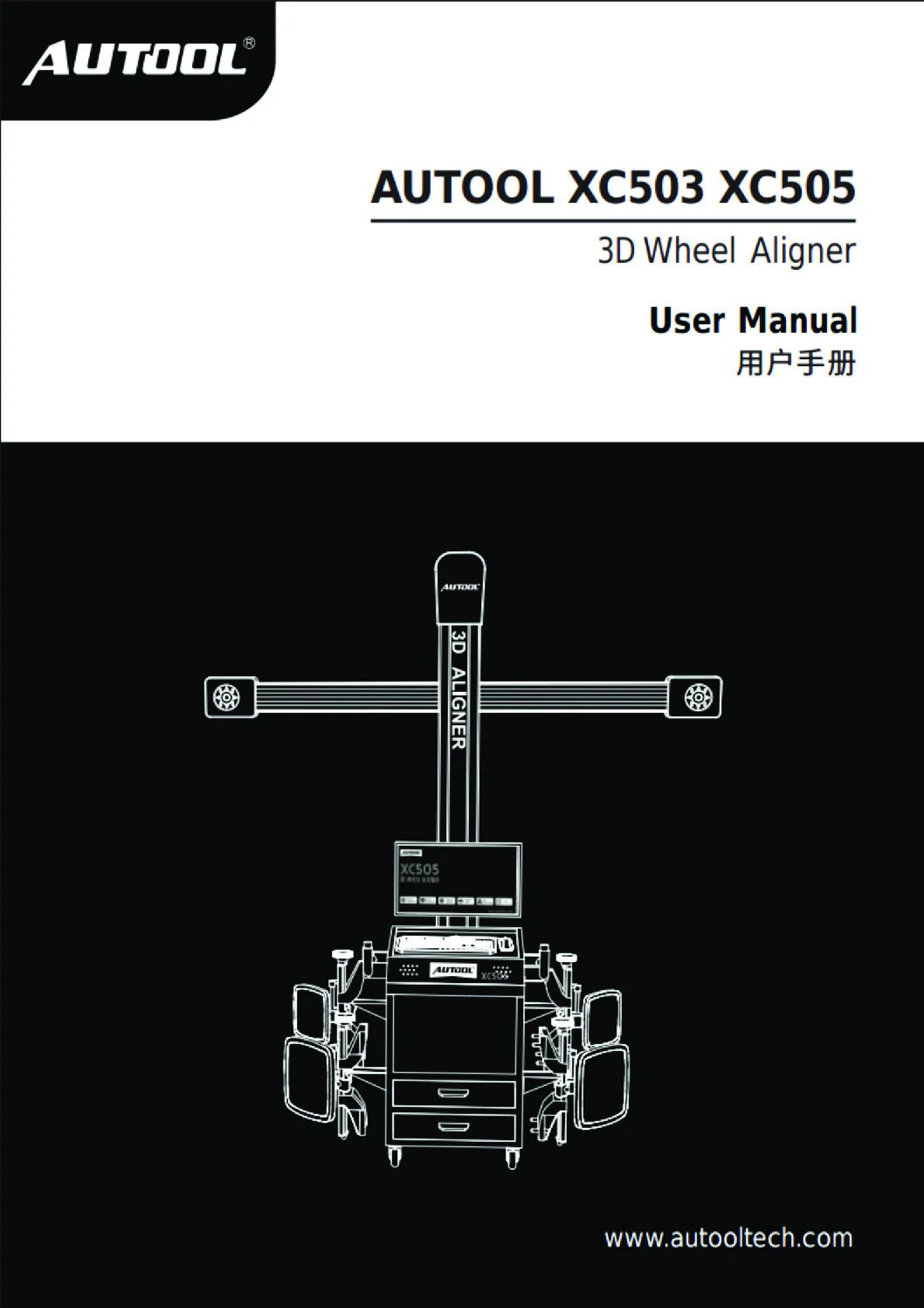

AUTOOL XC503 XC505 3D wheel aligner user manual preview

AUTOOL XC503 / XC505 User Manual

Open the PDF manual for XC505 setup, software operation, alignment workflow, troubleshooting, and safe-use guidance.

Download Manual

Need Setup Confirmation?

Contact AUTOOL Store before ordering if you need help confirming the manual version, setup steps, compatibility, accessories, safe-use notes, or after-sales support for this product.

Emailsupport@autoolstore.com WhatsApp+86 189 2647 7404

AUTOOL XC Series Software Update – Oct. 2025

Latest listed software highlight: V7.47.000. Updated vehicle data for domestic, overseas China region, and other regions.

Download Database Installation Kit

AUTOOL XC Series Software Update History
2025.10.22	V7.47.000	Updated vehicle data for domestic, overseas China region, and other regions.
2025.08.15	V7.46.100	Updated vehicle data for BYD in the domestic market, and added data for Geely, Glory, Maxus, BAIC, and other vehicle manufacturers in the overseas China region.
2025.07.15	V7.46.000	Updated data for domestic, overseas China region, North America, South America, and Europe regions.
2025.03.25	V7.44.000	Updated data for domestic and overseas China region.
2025.01.03	V7.42.000	Updated data for domestic, overseas China region, and North America region.
2024.10.21	V7.41.000	Updated data for domestic, overseas China region, North America, South America, and Europe regions.
2024.06.28	V7.39.003	Updated data for domestic, overseas China region, North America, South America, and Europe regions.
2024.03.27	V7.39.000	Updated data for domestic and North America regions, optimized data for other regions.

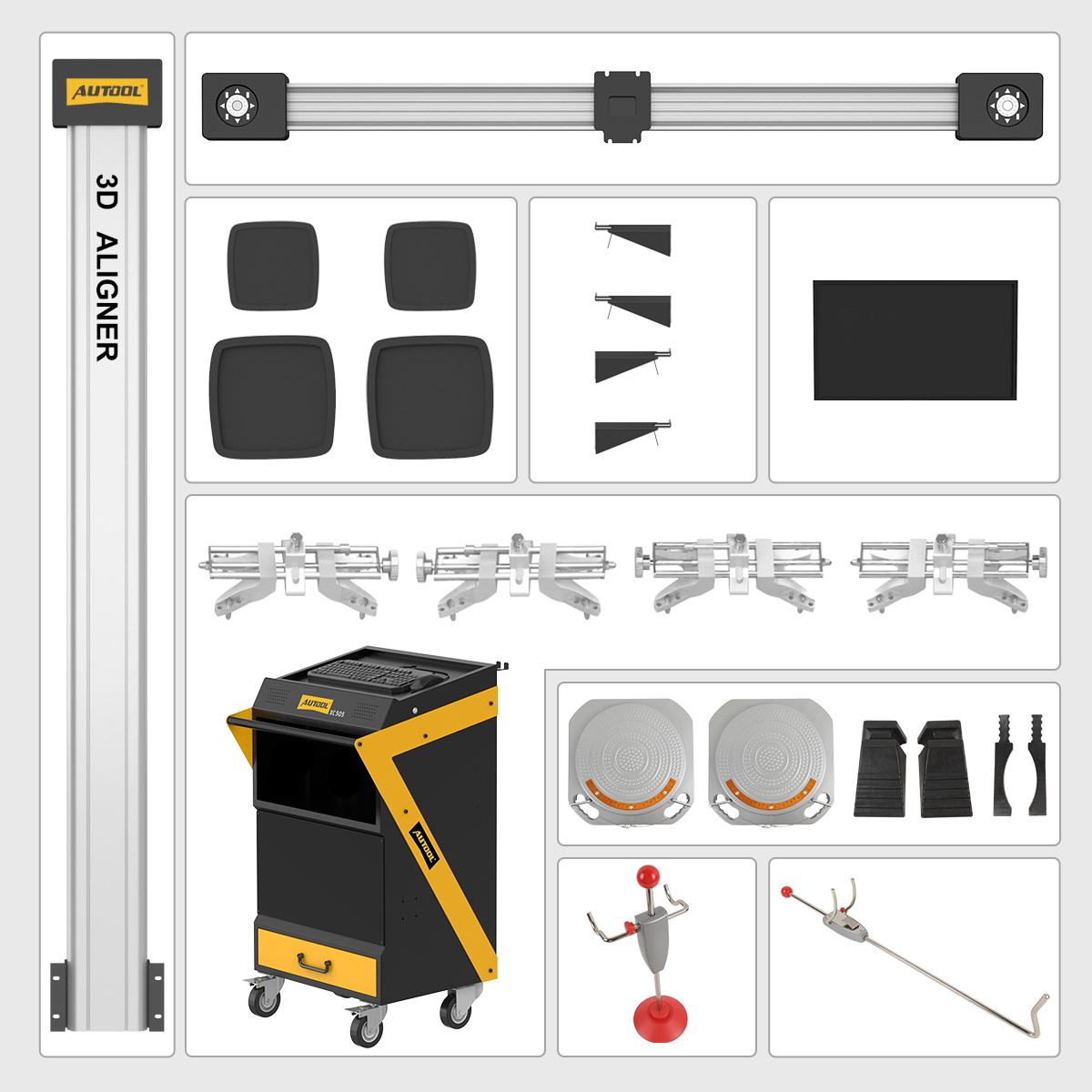

AUTOOL XC505 packing list and included accessories

What Is In The Box

The packing list image shows the XC505 main unit, column, beam, targets, clamps, turntables, wheel chocks, tools, and accessories. Final package contents should be confirmed with AUTOOL support before shipment if your order requires special configuration.

Main StructureColumn assembly, lateral beam assembly, and mobile cabinet shown in the package image.

Measurement SystemCamera modules, monitor, computer host, audio, keyboard, and mouse shown in the package image.

Targets & ClampsTargets, wheel clamps, and wheel clamp hangers shown in the package image.

Alignment AccessoriesTurntables, wheel chocks, steering wheel holder / brake pedal related tools, and accessories shown in the package image.

DocumentationManual and software resources are available in the Download section.

Questions And Answers

These answers cover workshop setup distance, wheel size support, floor and lift conditions, online support, alignment order, computer issues, Windows desktop issues, keyboard and mouse problems, printer troubleshooting, and wheel aligner software startup problems.

What Should Be The Distance Between The XC505 Wheel Aligner And The Car?

Are 23-Inch And 24-Inch Wheels Supported For Calibration?

My Workshop Floor Is Not Perfectly Level. Will This Affect Calibration?

Do You Have Local Technicians For On-Site Training Or Repair In My Country?

Does The Vehicle Adjustment Order Matter?

What Should I Check If The Computer Cannot Boot?

What May Cause The Machine To Fail To Enter The Windows 7 Desktop?

What Should I Check If The Mouse Or Keyboard Is Not Functional?

What Should I Check If The Printer Is Not Functional?

What May Cause The Wheel Aligner Software To Fail To Run?

How Long Is The Warranty?

Related Guides

Use these related articles to understand wheel alignment service timing, XC series upgrade options, and run-out measurement concepts.

Guide / 12-11-2024

How often should I get wheel alignment?

How do you know if your car needs a wheel alignment? If you’re not sure, or if you feel like your car isn’t driving as smoothly anymore, it might be time to check your.

AUTOOL XC508 3D wheel alignment machine guide image

Guide / 07-13-2024

2024 Best 3D Wheel Alignment Machine – AUTOOL XC508

In the automotive repair industry, choosing the right tools is key to efficient work and happy customers. This article highlights the professional-grade AUTOOL XC508.

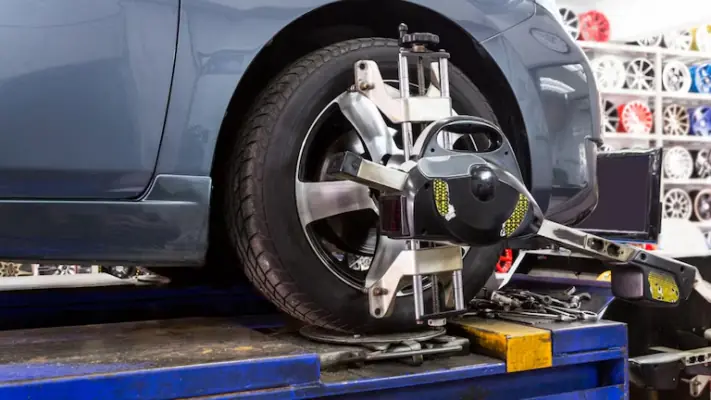

Wheel Alignment Guide

Guide / 12-09-2024

Say goodbye to runout! Important role of Wheel alignment machine!

Wheel alignment machine plays an important and indispensable role in the process of automobile repair and maintenance. It accurately detects the angle and position of.

December 17, 2025

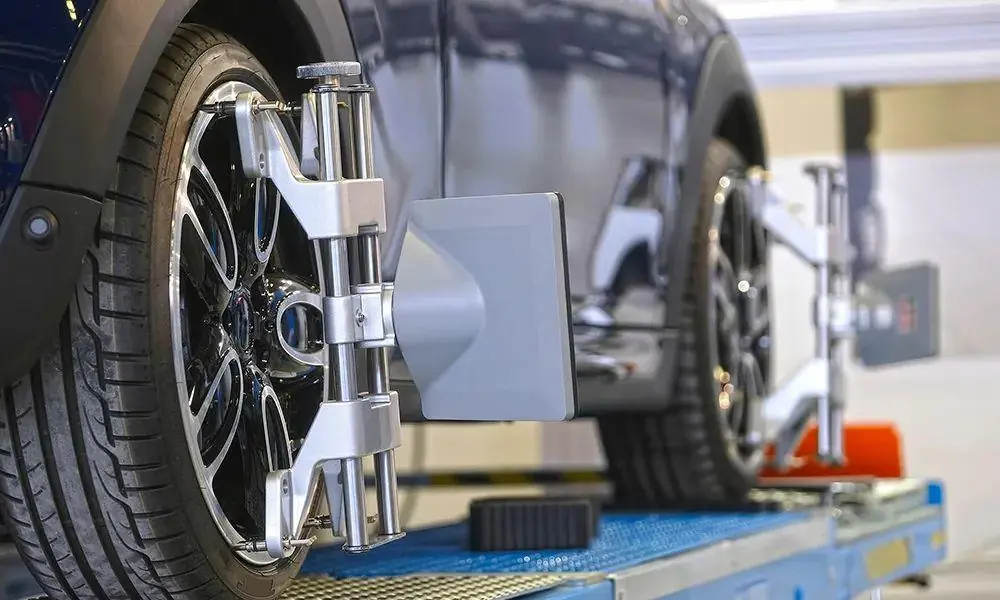

Smart Lift and Wheel Alignment Machines Selection for Your Shop

In the automotive repair industry, more workshops are emphasizing wheel alignment because precise alignment improves customer satisfaction and brings more consistent.

Warranty And Contact

For XC505 model selection, workshop setup distance, 23-inch or 24-inch wheel confirmation, database update, software installation, manual support, online training, troubleshooting, package confirmation, or warranty service, contact AUTOOL Store directly.

Pre-Sales And Technical Support

Use support if you need help confirming whether XC505, XC503, or XC508 is the better choice for your shop, or if you need guidance for installation, software/database updates, measurement setup, report printing, and troubleshooting.

XC503 / XC505 / XC508 model selection
Workshop space and 2m-2.2m measuring distance confirmation
23-inch and 24-inch wheel application confirmation
Manual, database update, and software installation support
Online technical support and video guidance
Computer, monitor, printer, mouse, keyboard, and software troubleshooting
3-year warranty support for eligible non-human damage cases
Packing list and accessory confirmation before shipment

Email Supportsupport@autoolstore.com WhatsApp Support+86 189 2647 7404

Customer Reviews

5

Rated 5.00 out of 5 based on 8 customer ratings
(8 customer reviews)

100% of customers recommend this product.
5 Stars100%4 Stars0%3 Stars0%2 Stars0%1 Star0%
Rated 5 out of 5

Tharsos – February 12, 2023

delivery very fast

0 of 0 found this review helpful
Rated 5 out of 5

Stuart – March 14, 2023

Good!

0 of 0 found this review helpful
Rated 5 out of 5

Archibald Weimann – April 8, 2023

Very surprised

0 of 0 found this review helpful
Rated 5 out of 5

Lazaro Jones – May 14, 2023

Super Fast Shipping!

0 of 0 found this review helpful
Rated 5 out of 5

Rocio Ryan – June 14, 2023

I recommend

0 of 0 found this review helpful
Rated 5 out of 5

Yanar – November 7, 2023

I really like the quality of the AUTOOL, it may require me to assemble it manually

0 of 0 found this review helpful
Rated 5 out of 5

Herman Carmen – January 20, 2025

his wheel alignment system is fantastic¡ªeasy to use, accurate, and with a sleek, modern interface. It makes the whole process smooth, reliable, and even enjoyable!

0 of 0 found this review helpful
Rated 5 out of 5

Herman Carmen – January 20, 2025

his wheel alignment system is fantastic¡ªeasy to use, accurate, and with a sleek, modern interface. It makes the whole process smooth, reliable, and even enjoyable!

0 of 0 found this review helpful

Leave A Review
