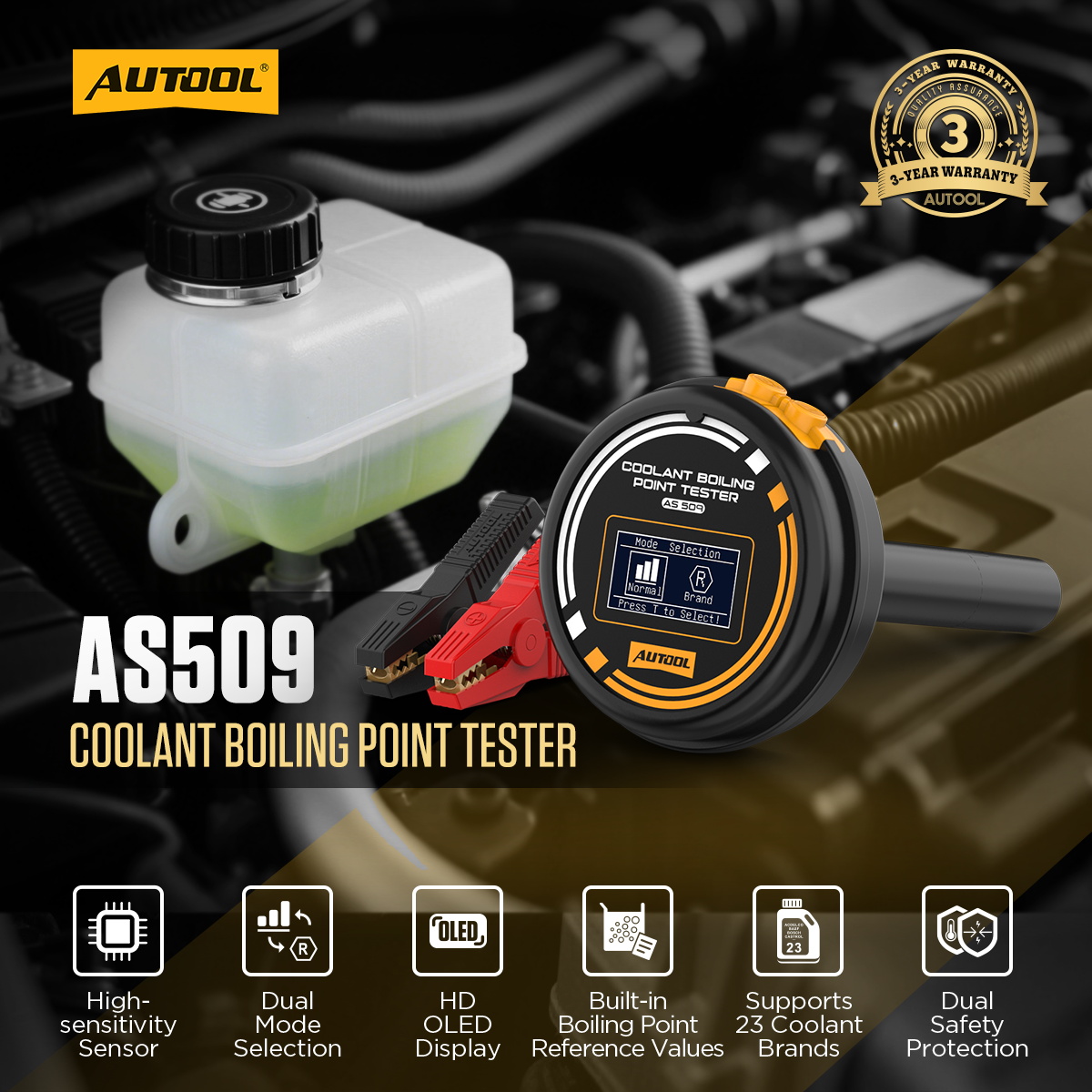

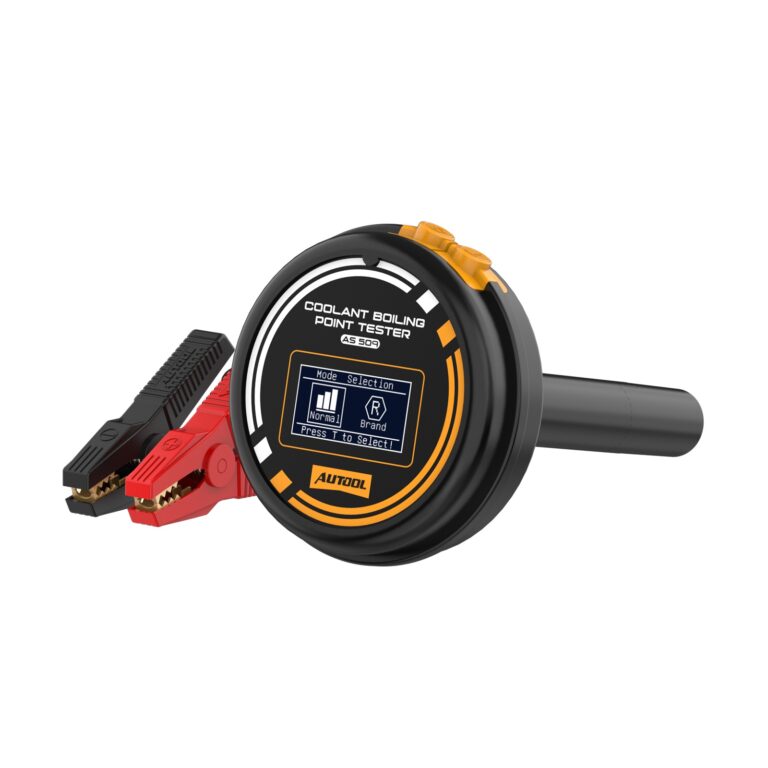

The AUTOOL AS509 Automotive Coolant Boiling Point Tester is a handheld vehicle diagnostic device that determines whether coolant replacement is needed by measuring the coolant boiling point. It supports Normal Mode for general testing and Brand Mode for reference-based testing across 23 popular coolant brands, helping technicians quickly compare measured boiling point results with built-in manufacturer reference values.
Coolant Boiling PointNormal / Brand Mode23 Coolant Brands12V Power
±3%Accuracy
20-40sTesting Time
10-14VOperating Voltage
3 YearsWarranty
Click to enlargeClick to enlarge
Key Features
Key Features
AS509 combines a high-sensitivity sensor, dual test modes, 23 coolant brand data, OLED display, built-in reference values, and dual safety protection to help users judge coolant condition more confidently.
Click to enlarge

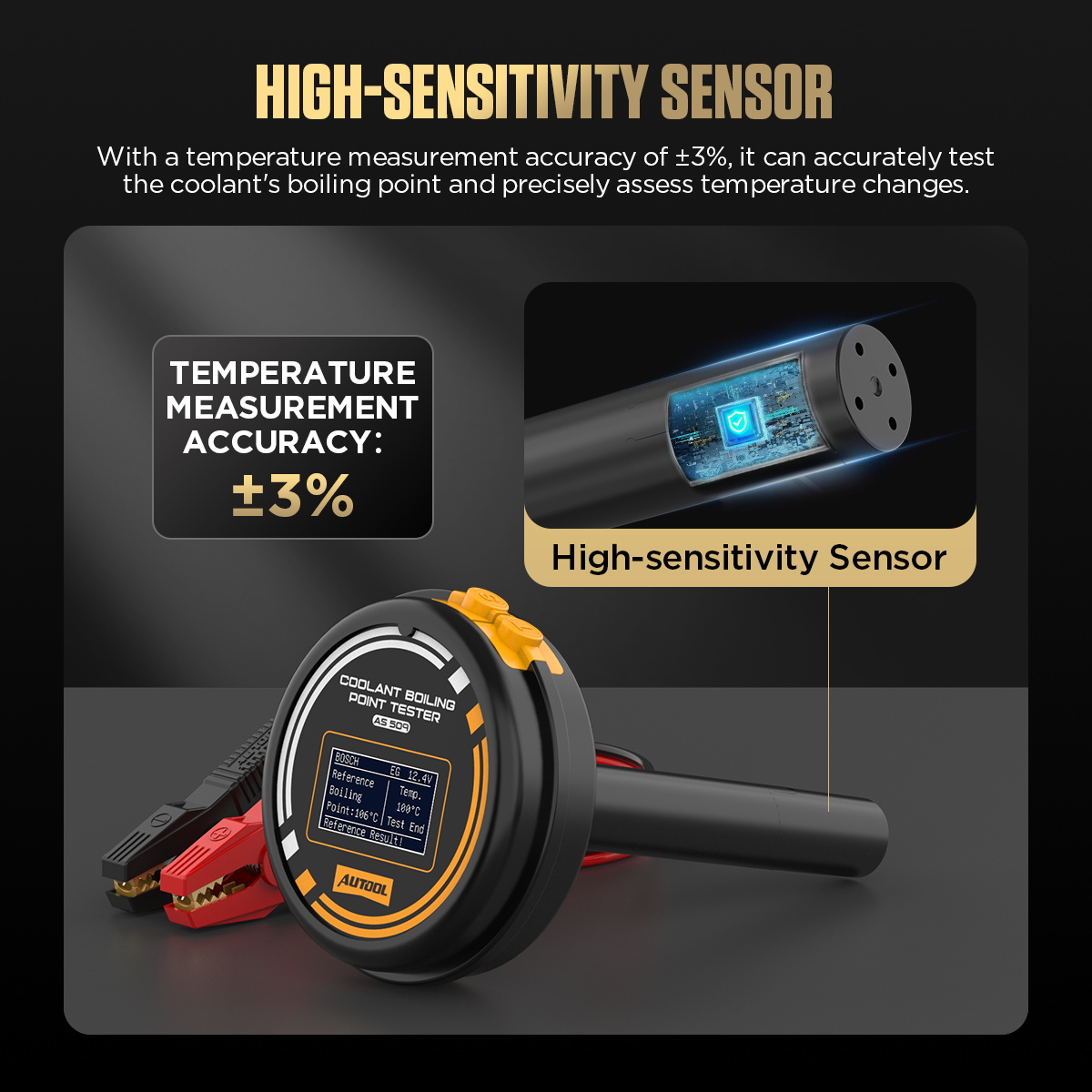

High-Sensitivity Sensor
With temperature measurement accuracy of ±3%, AS509 can accurately test coolant boiling point and assess temperature changes during coolant condition checks.
Click to enlarge

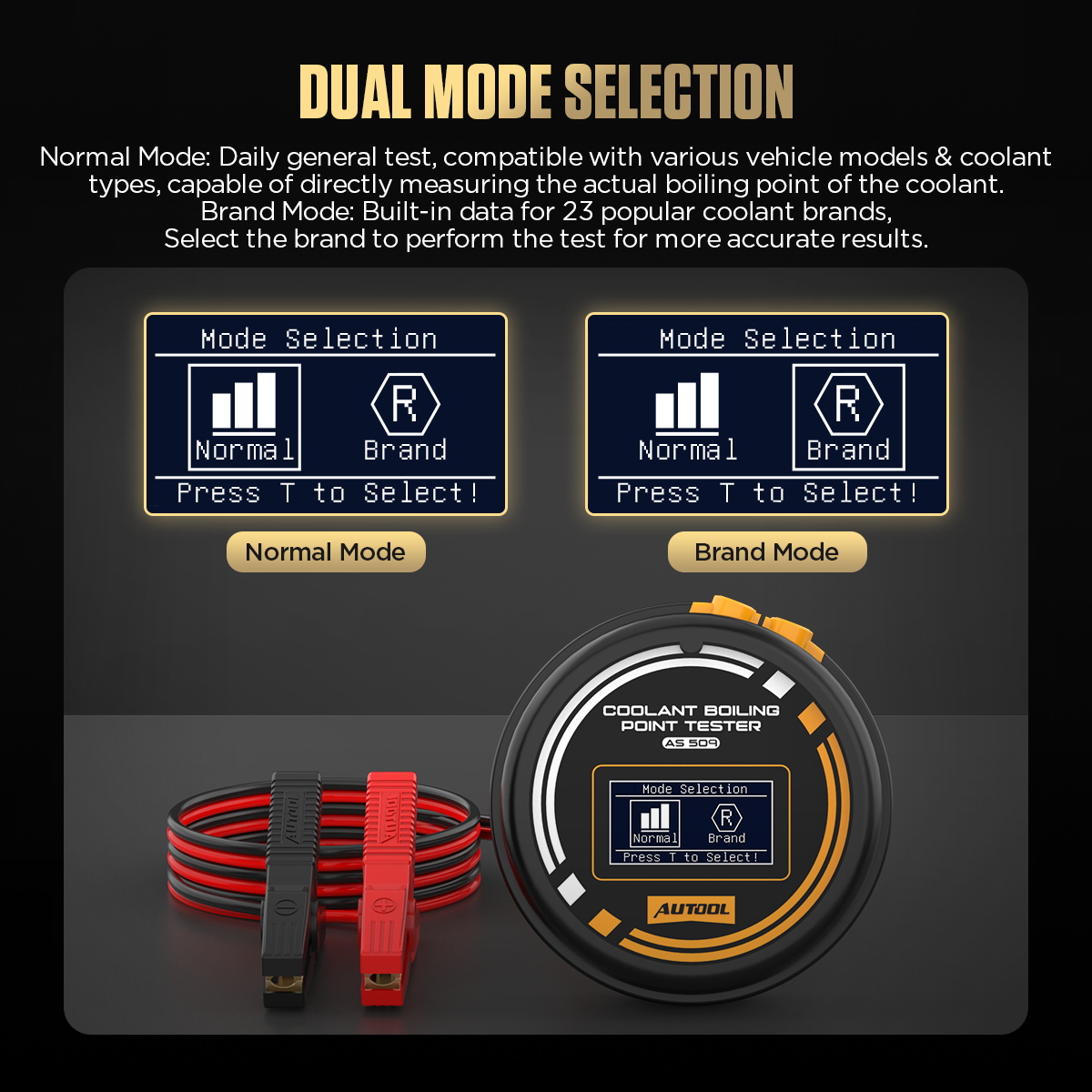

Dual Mode Selection

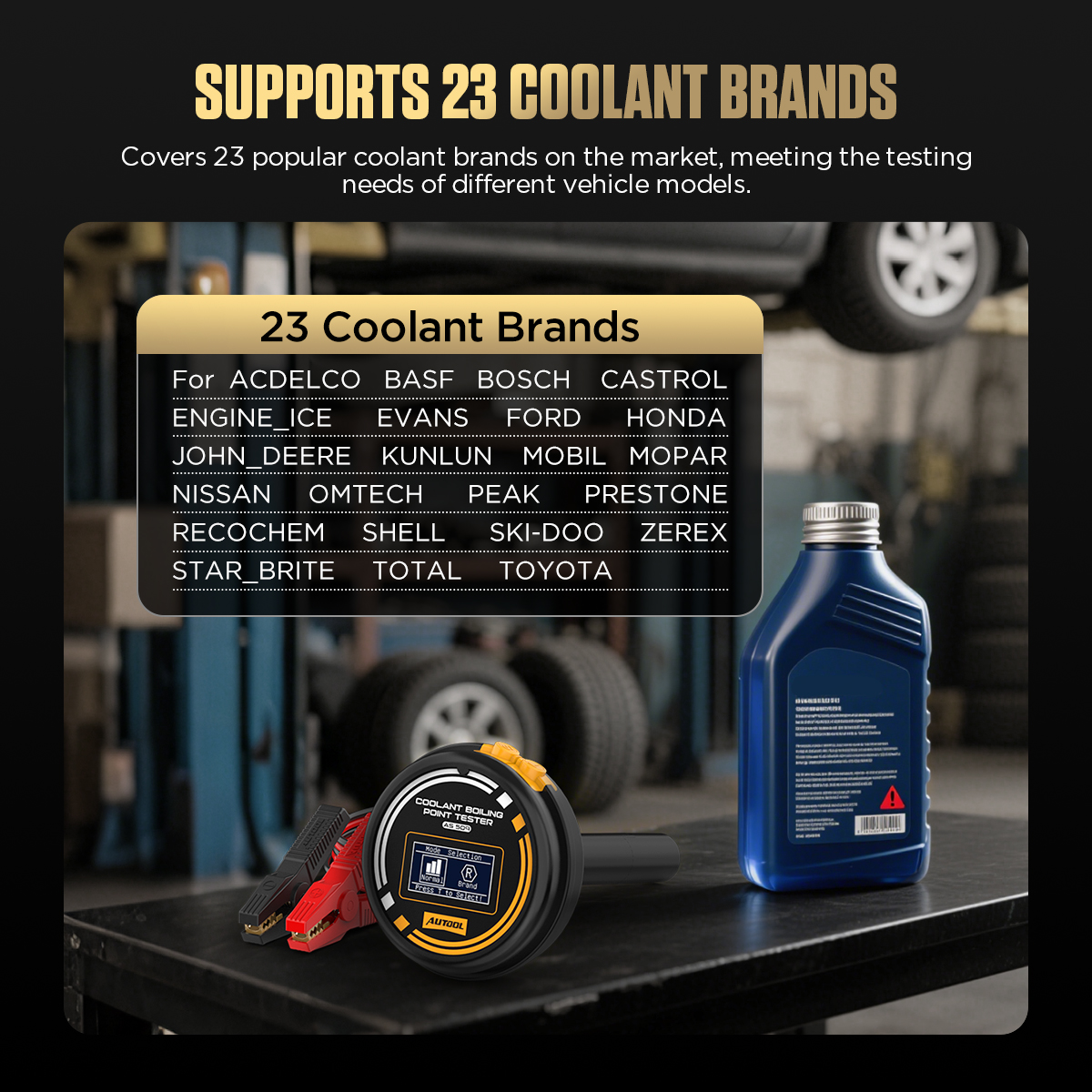

Normal Mode supports daily general tests across vehicle models and coolant types. Brand Mode uses built-in brand data to perform reference-based testing for more accurate judgment.

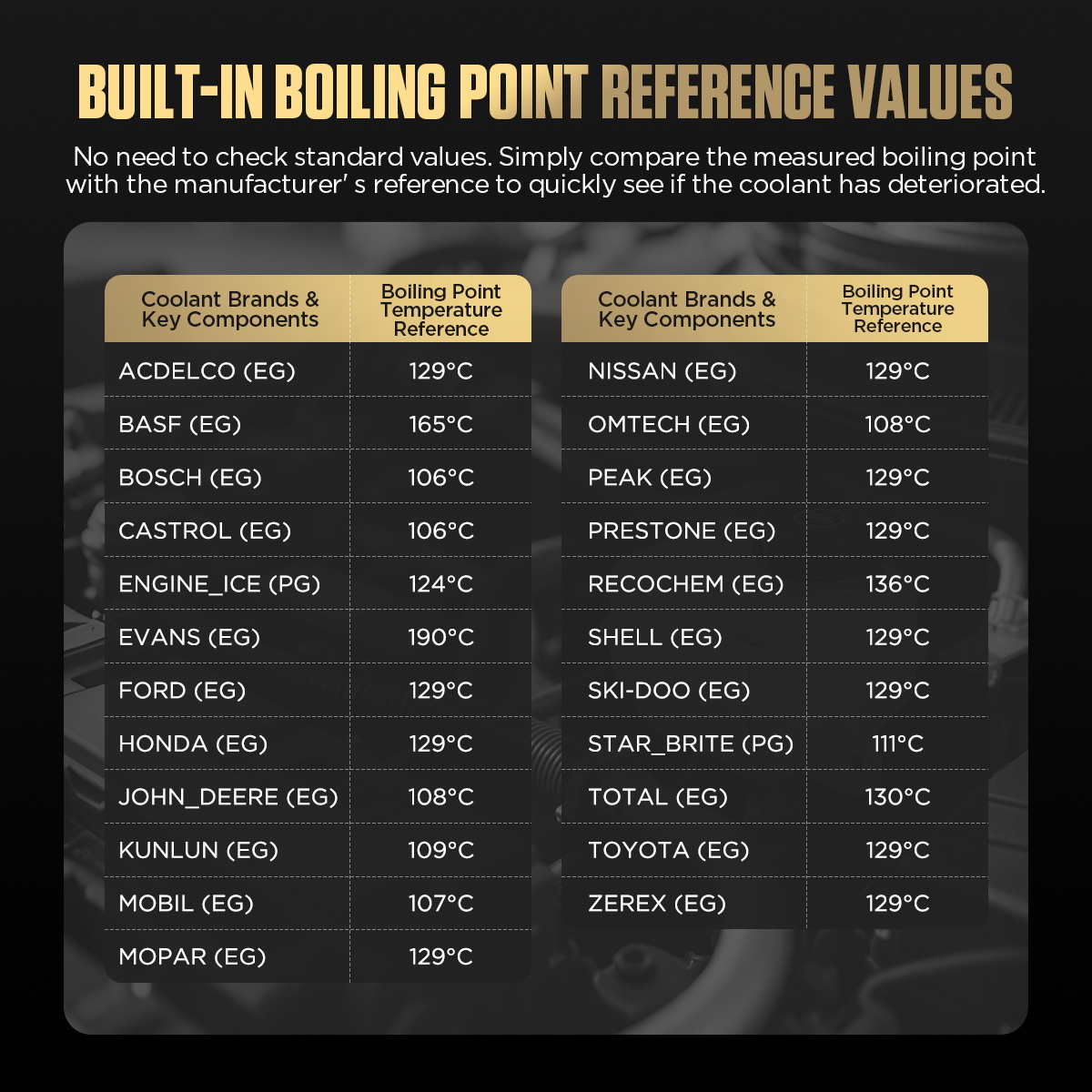

No need to manually check standard values. Compare the measured boiling point with the built-in manufacturer reference values to quickly judge whether the coolant has deteriorated.
Click to enlarge

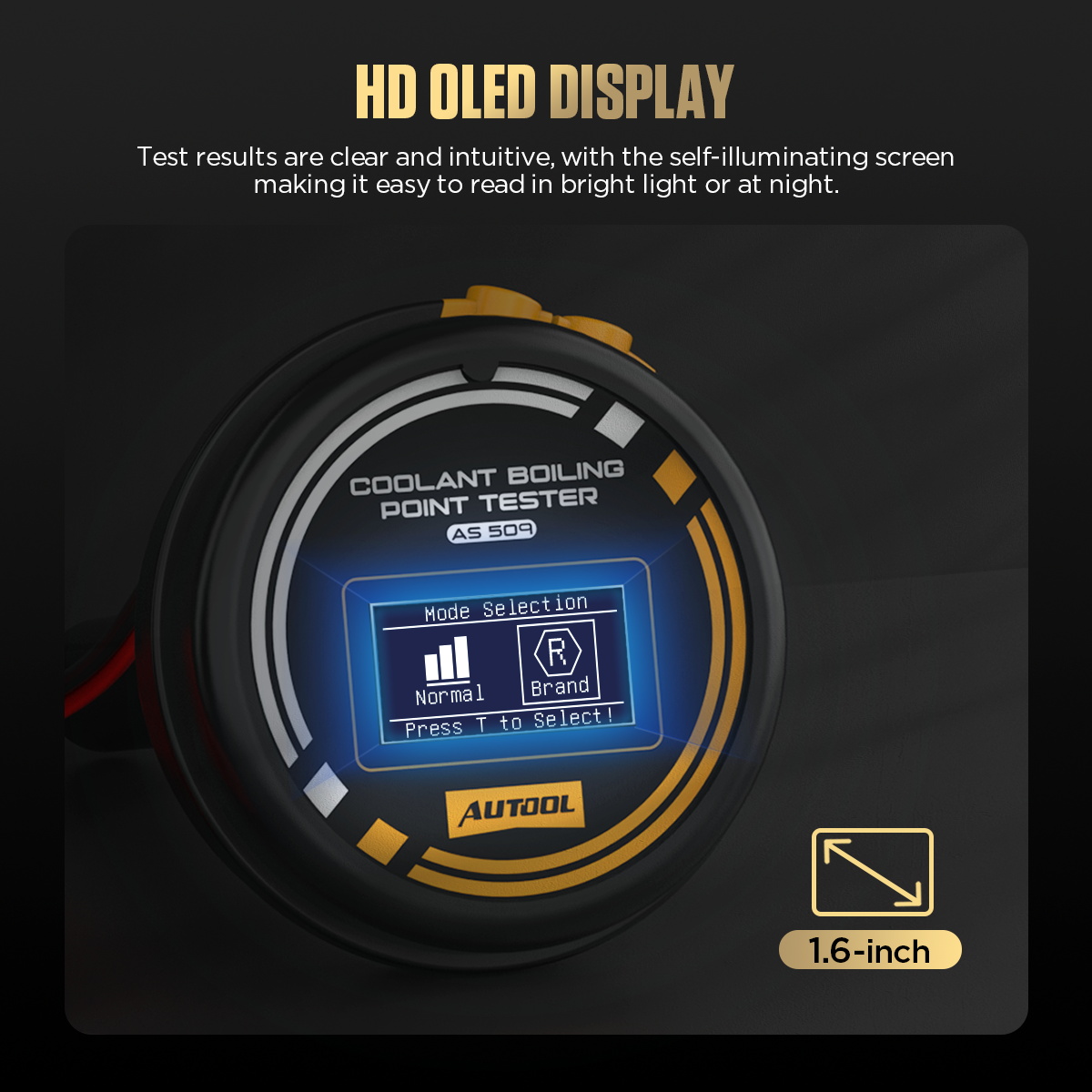

1.6-Inch HD OLED Display
The self-illuminating OLED screen makes test results clear and intuitive, helping users read the result in bright light, dim workshops, or night-time conditions.
Click to enlarge

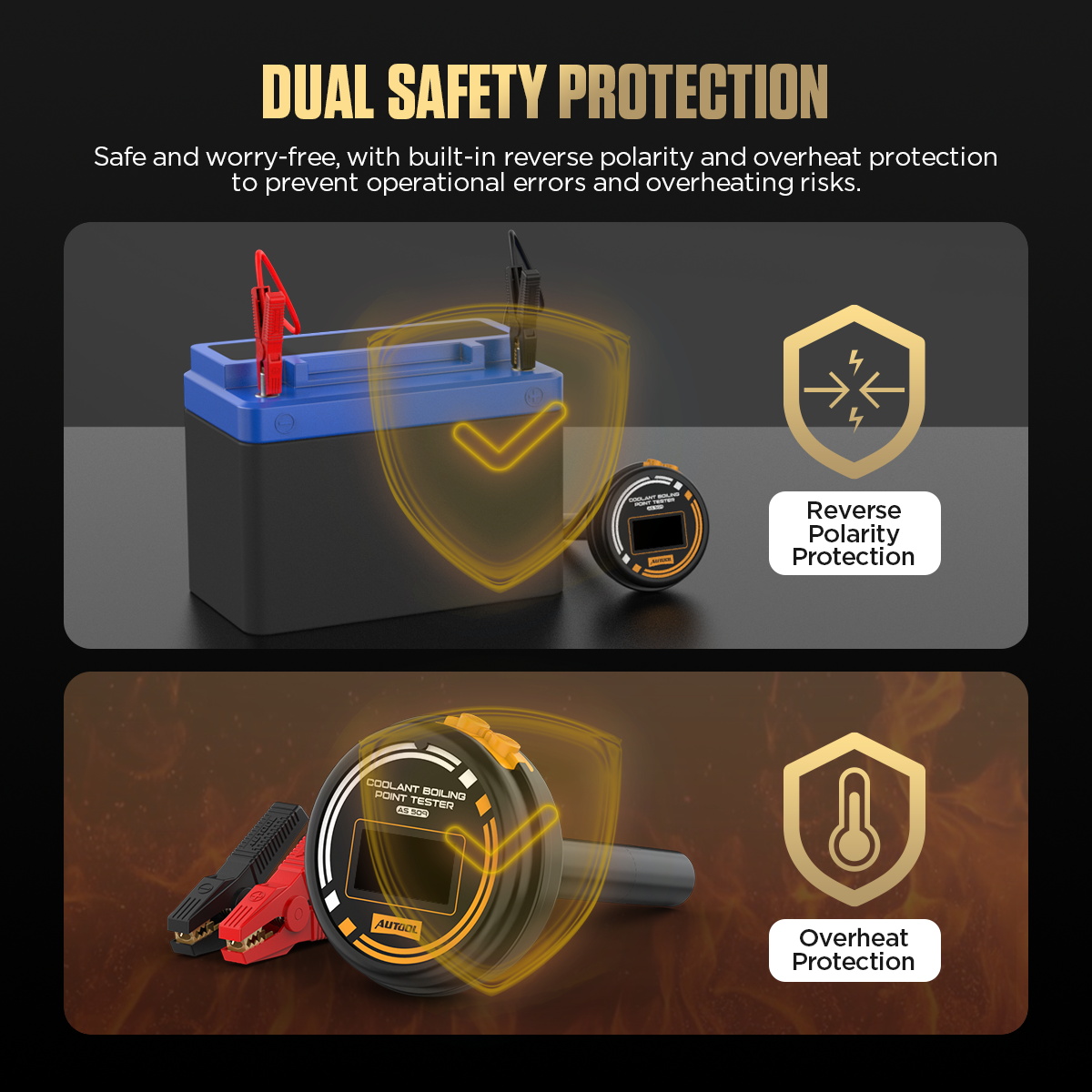

Dual Safety Protection
Built-in reverse polarity protection and overheat protection help reduce operational errors, connection mistakes, and overheating risks during testing.

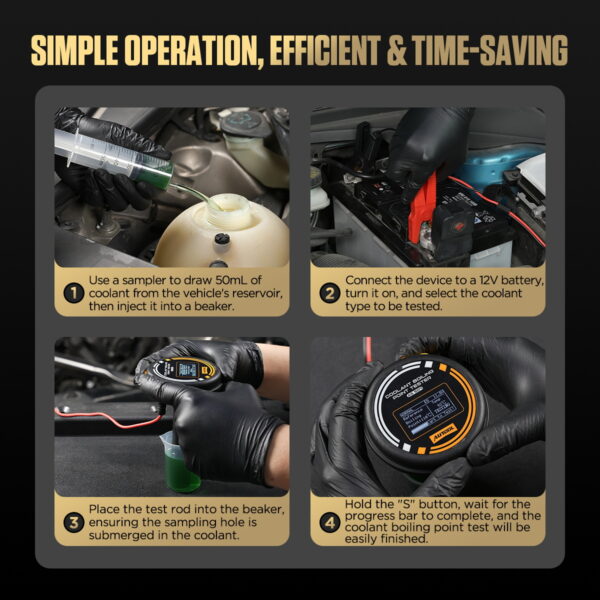

How To Use
How To Use
AS509 uses a coolant sample, 12V battery power, test rod immersion, and one-button test operation to measure the coolant boiling point in approximately 20-40 seconds.

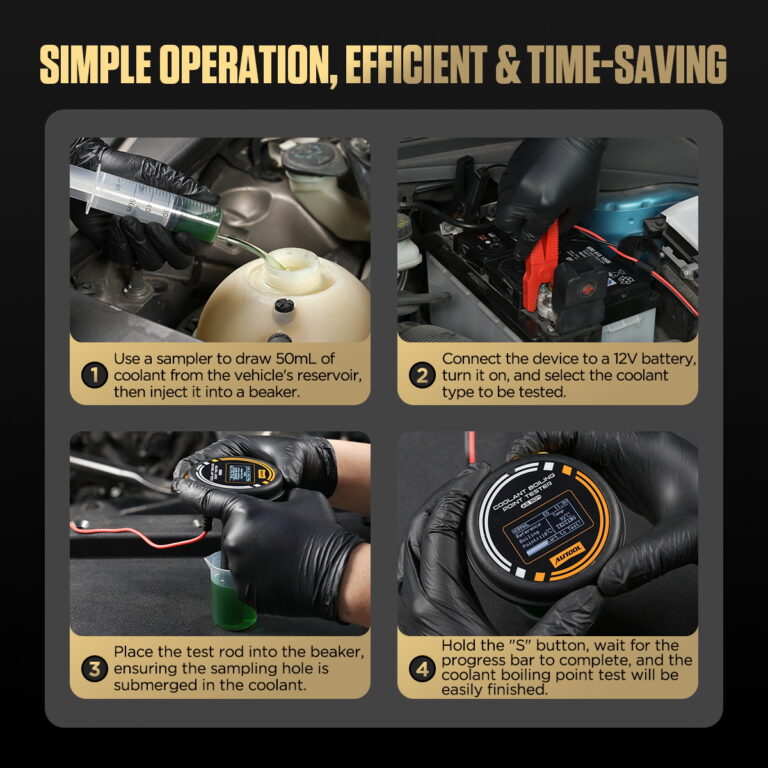

Draw Coolant Sample
Use the sampler to draw 50ml of coolant from the vehicle reservoir, then inject the sample into the beaker.

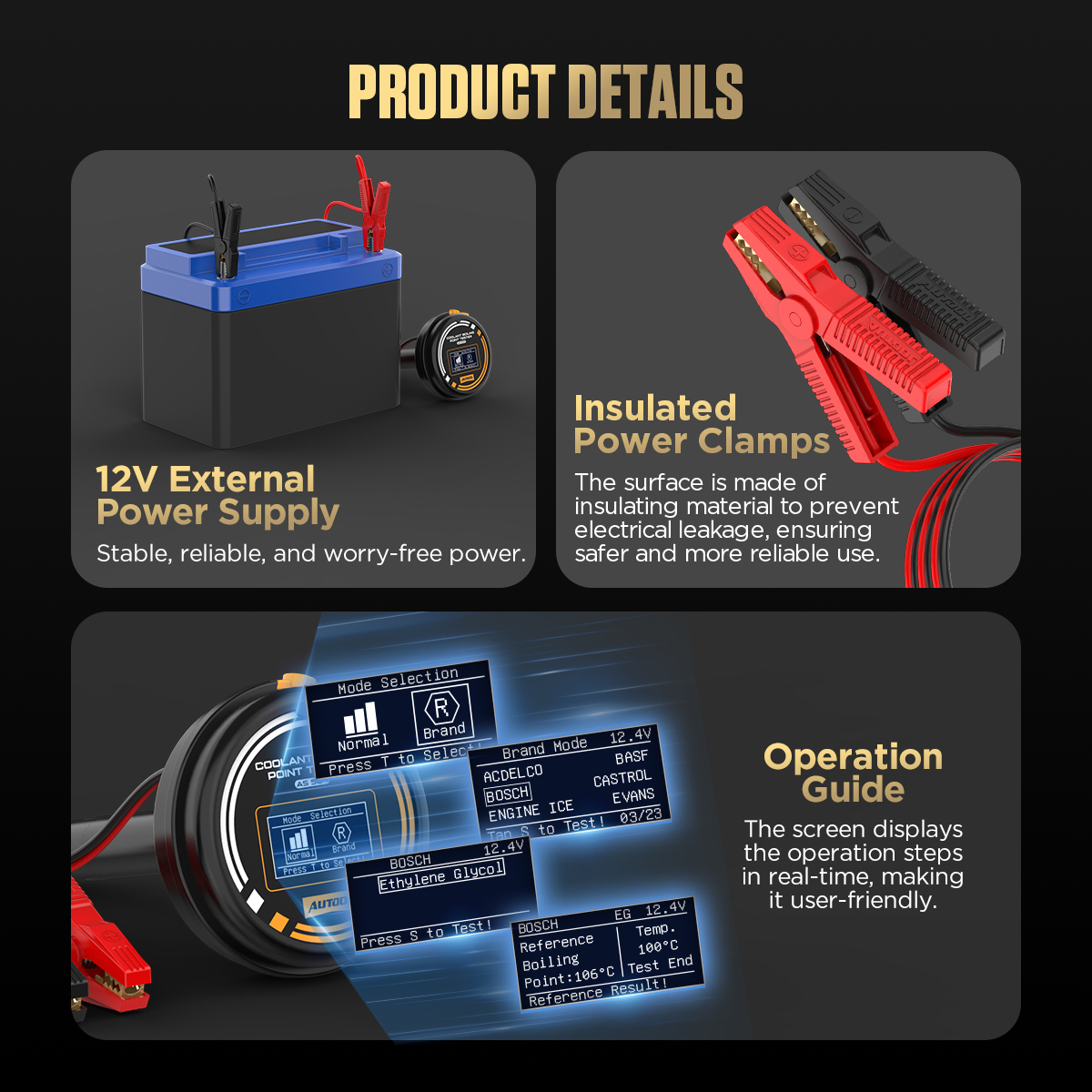

Connect 12V Power
Connect the AS509 to a 12V battery, turn on the tester, and select the coolant type or Brand Mode according to your test target.
Insert Test Rod
Place the test rod into the beaker and make sure the sampling hole is fully submerged in the coolant sample.
Start Test
Hold the “S” button, wait for the progress bar to complete, then read the boiling point result on the OLED display.
Use Notes
Use a 50ml coolant sample for testing.
Connect the tester to a 12V battery power source before operation.
Make sure the test rod sampling hole is fully submerged in the coolant sample.
Use Normal Mode for general testing and Brand Mode when testing one of the supported coolant brands.
Compare the measured boiling point with the reference value to judge whether the coolant may need replacement.

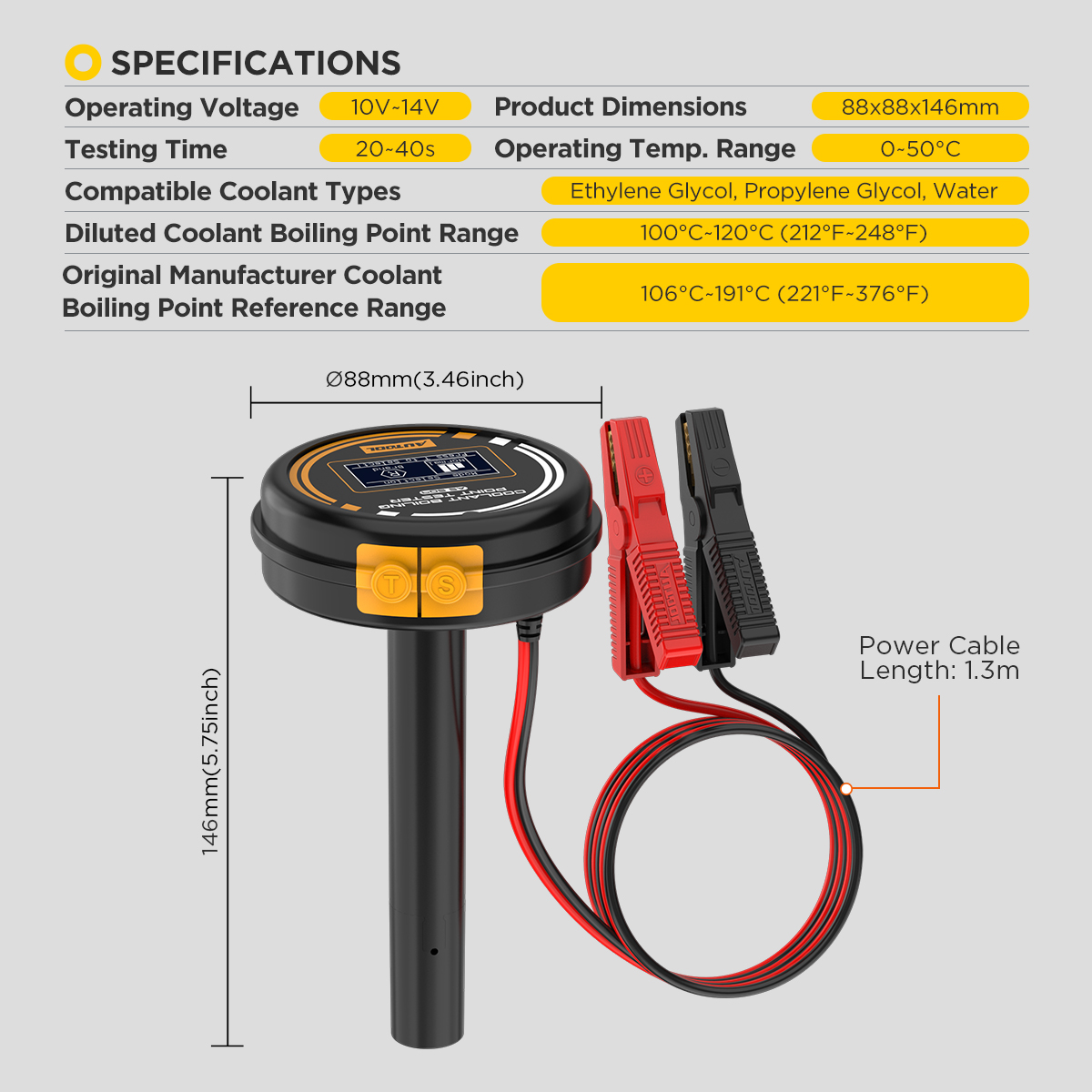

Specifications
Specifications
Confirm the operating voltage, test time, coolant compatibility, boiling point range, cable length, display, and main part layout before use.
Basic Information
Product
AUTOOL AS509 Automotive Coolant Boiling Point Tester
Test Purpose
Measure coolant boiling point and help determine whether coolant replacement is needed
Test Modes
Normal Mode and Brand Mode
Supported Brands
23 coolant brands in Brand Mode
Display
1.6-inch OLED display
Power And Testing
Operating Voltage
10-14V
Power Source
12V external battery power via power clamps
Testing Time
20-40 seconds
Product Dimensions
88×88×146mm
Operating Temperature Range
0-50°C
Power Cable Length
1.3m / 130cm
Coolant Compatibility
Compatible Coolant Types
Ethylene Glycol, Propylene Glycol, and Water
Diluted Coolant Boiling Point Range
100-120°C / 212-248°F
Original Manufacturer Reference Range
106-191°C / 221-376°F

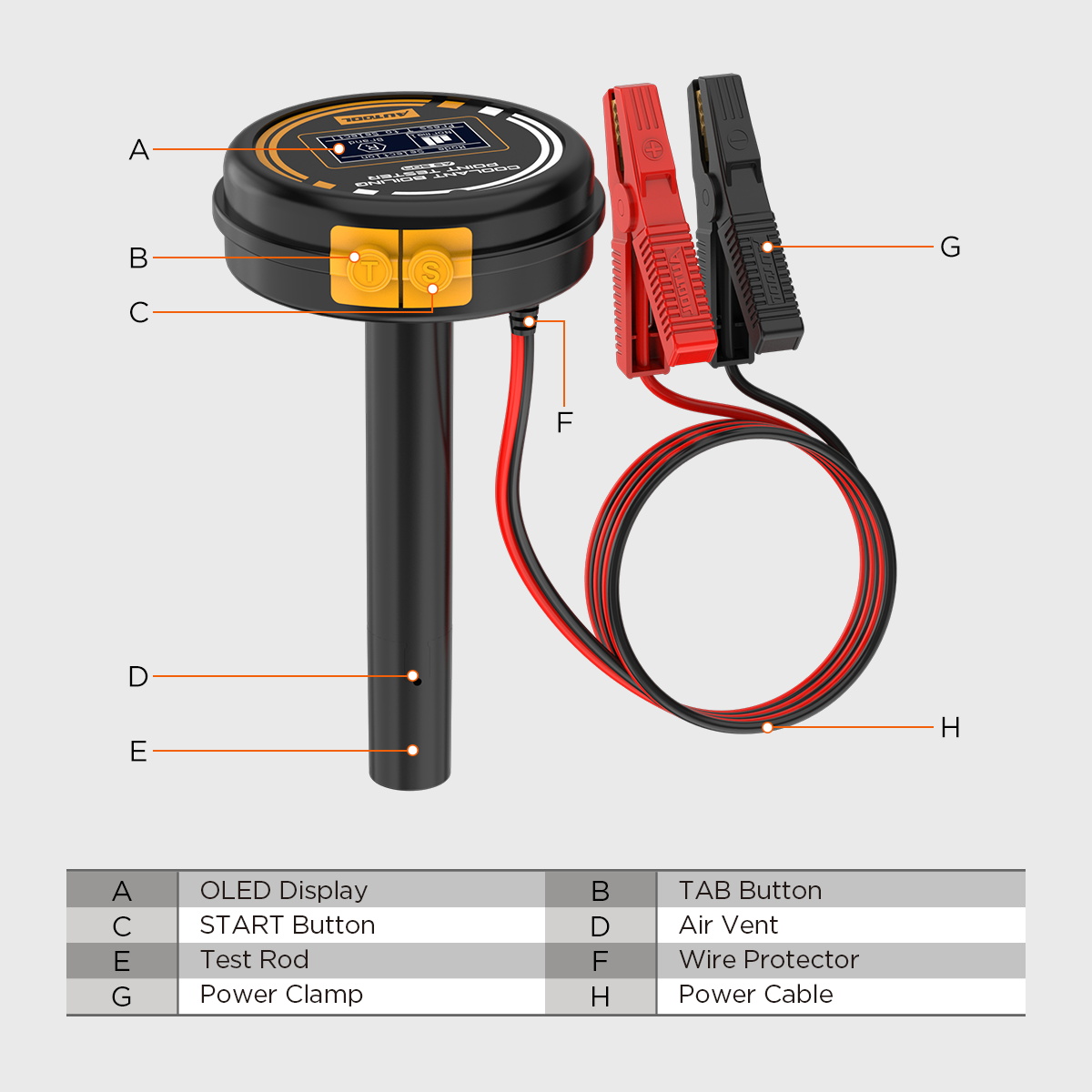

Structure
Main Parts
OLED Display, TAB Button, START Button, Air Vent, Test Rod, Wire Protector, Power Clamp, and Power Cable
Protection
Reverse polarity protection and overheat protection
Support
3-year warranty for eligible non-human damage cases and lifetime maintenance support
Click to enlargeClick to enlargeClick to enlarge
Basic Information
ProductAUTOOL AS509 Automotive Coolant Boiling Point Tester
Test PurposeMeasure coolant boiling point and help determine whether coolant replacement is needed
Test ModesNormal Mode and Brand Mode
Supported Brands23 coolant brands in Brand Mode
Display1.6-inch OLED display
Power And Testing
Operating Voltage10-14V
Power Source12V external battery power via power clamps
Testing Time20-40 seconds
Product Dimensions88×88×146mm
Operating Temperature Range0-50°C
Power Cable Length1.3m / 130cm
Coolant Compatibility
Compatible Coolant TypesEthylene Glycol, Propylene Glycol, and Water
Diluted Coolant Boiling Point Range100-120°C / 212-248°F
Original Manufacturer Reference Range106-191°C / 221-376°F
Structure
Main PartsOLED Display, TAB Button, START Button, Air Vent, Test Rod, Wire Protector, Power Clamp, and Power Cable
ProtectionReverse polarity protection and overheat protection
Support3-year warranty for eligible non-human damage cases and lifetime maintenance support

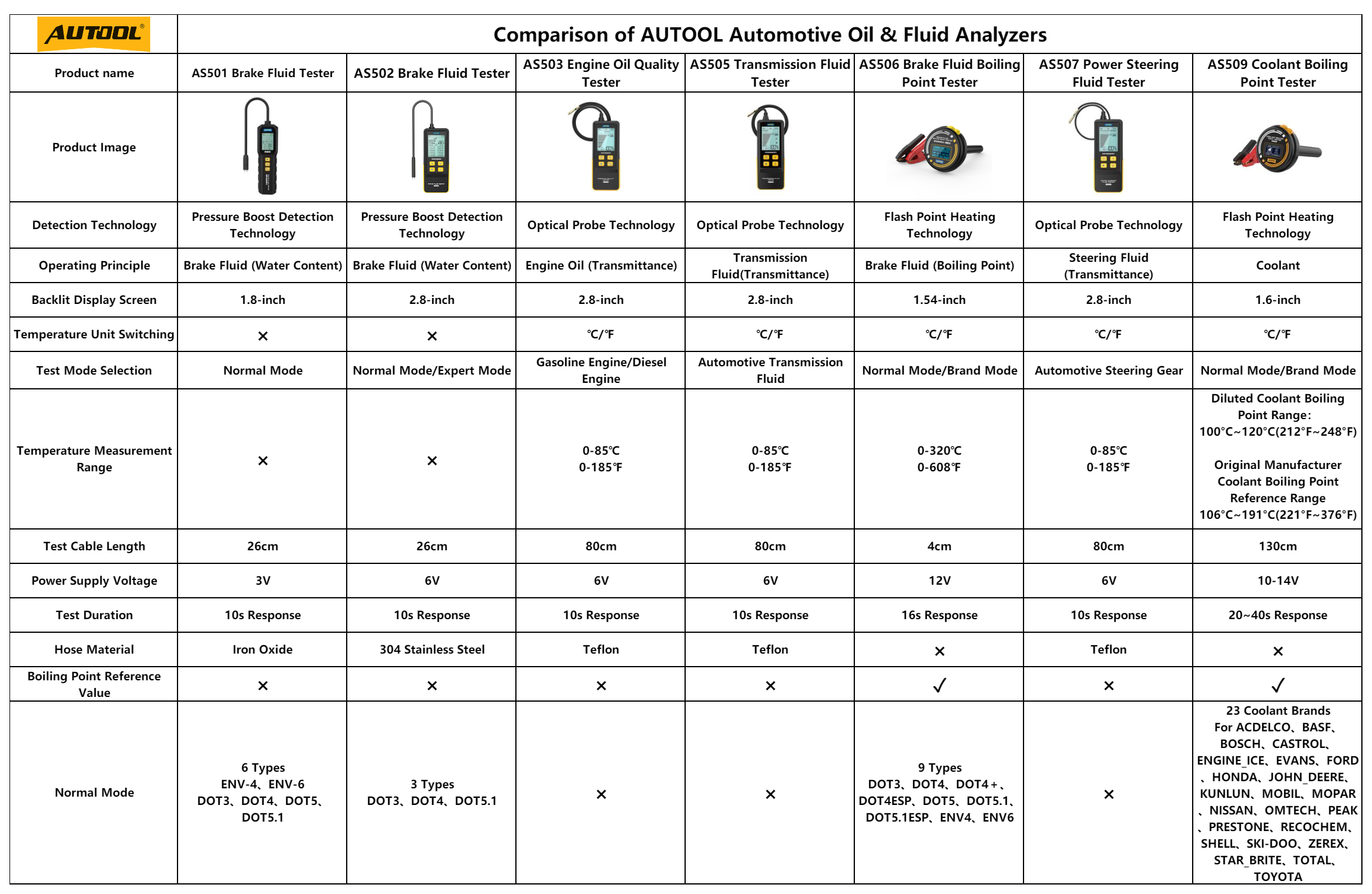

Product Comparison
Product Comparison
Use the AS series comparison to choose the right AUTOOL fluid analyzer for brake fluid, engine oil, transmission fluid, power steering fluid, or coolant condition testing.

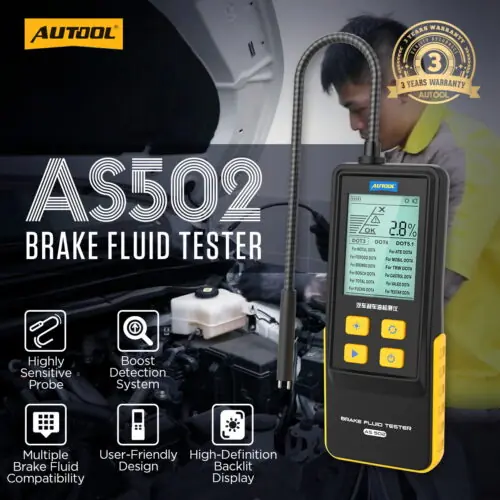

AS501 / AS502Brake fluid testers for brake fluid water content testing
AS503Engine oil quality tester using transmittance-based evaluation

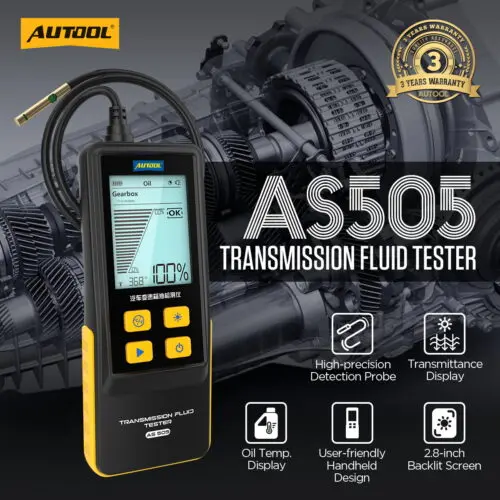

AS505Transmission fluid tester for transmission oil condition checking

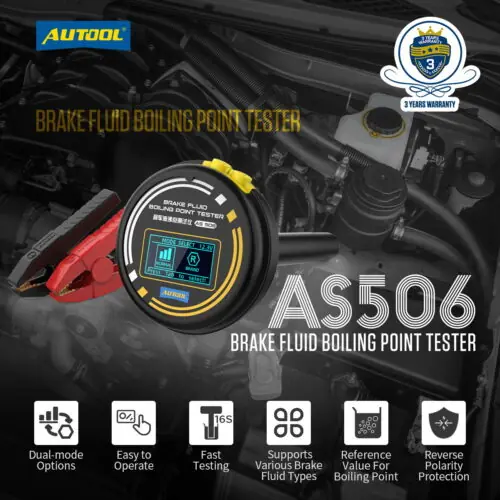

AS506Brake fluid boiling point tester for DOT brake fluid condition checks

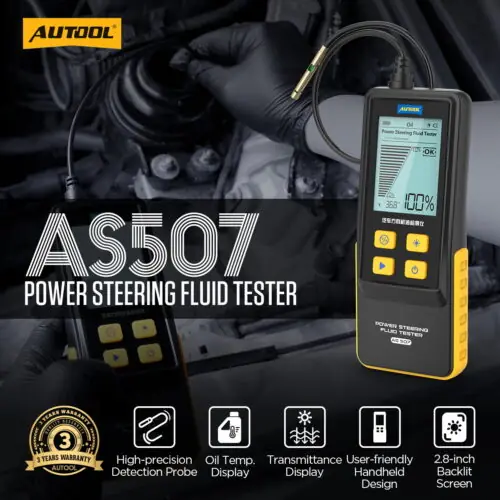

AS507Power steering fluid tester for steering fluid condition testing
AS509Coolant boiling point tester with Flash Point Heating Technology, Normal / Brand Mode, and 23 coolant brand support
Click to enlarge
Related Products
Related Products
Browse related AUTOOL fluid testers with the global product card style and the same mobile slider behavior used across current product pages.
SALE
Select options
This product has multiple variants. The options may be chosen on the product page
Contact AUTOOL Store if you need help confirming coolant brand mode, boiling point reference values, 12V power connection, manual use, or after-sales support.

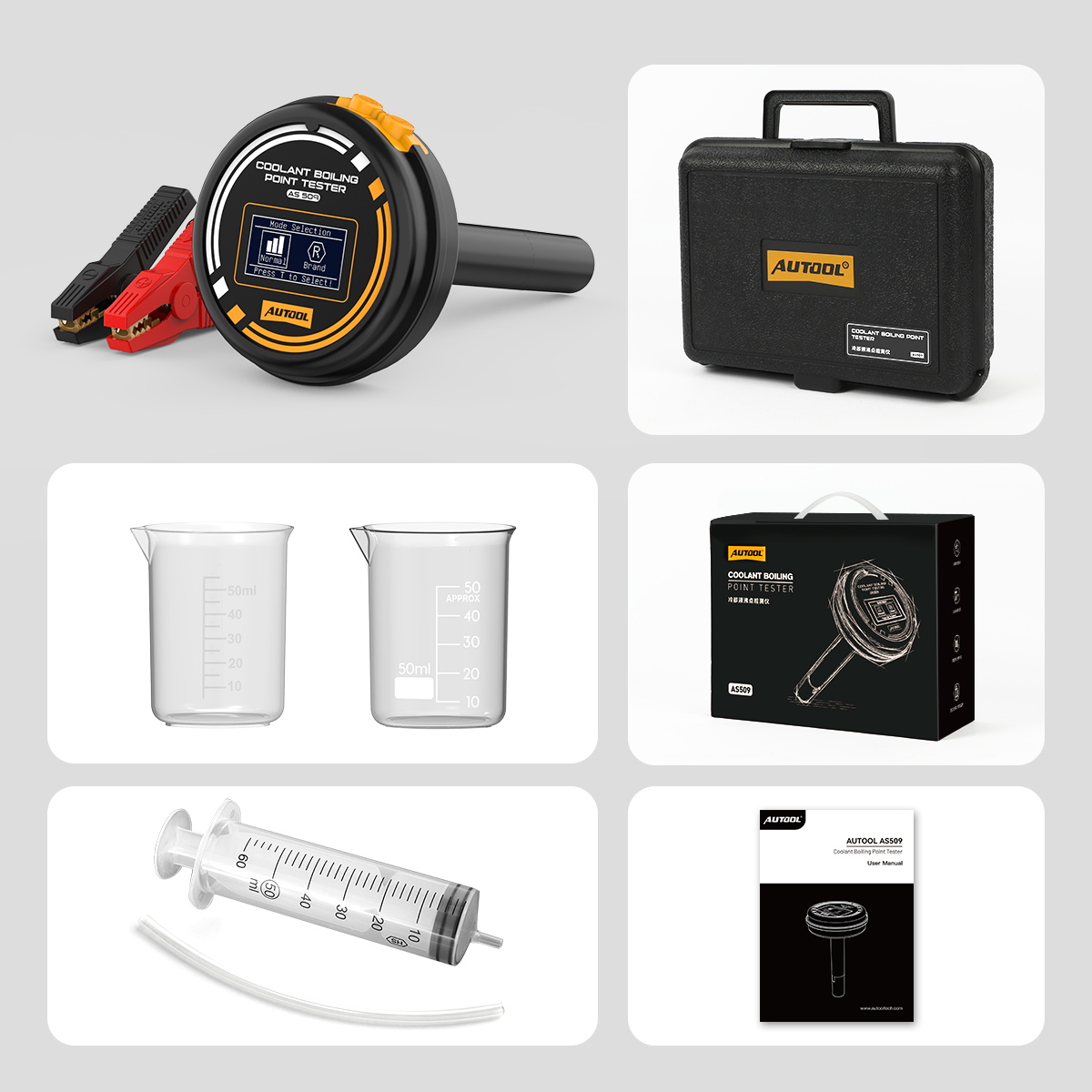

The packing list uses one most relevant package image to show the AS509 tester and included accessories.
Main UnitAUTOOL AS509 Coolant Boiling Point Tester
Carrying CaseProtective storage case shown in the package image
Sampling ToolsBeaker, syringe, and tube shown in the package image
Power12V battery clamps and power cable
DocumentationUser manual
PackageRetail box shown in the package image
Questions And Answers
These answers cover coolant compatibility, Normal Mode, Brand Mode, sample volume, 12V power, supported brands, and boiling point reference values before use.
AS509 is compatible with Ethylene Glycol, Propylene Glycol, and Water coolant types. It is designed to measure coolant boiling point and help determine whether coolant replacement is needed.
Normal Mode is for daily general testing and can directly measure the actual boiling point of coolant across vehicle models and coolant types. Brand Mode uses built-in data for 23 popular coolant brands and compares results with brand reference values for more accurate judgment.
Use a sampler to draw 50ml of coolant from the vehicle reservoir, then inject it into the beaker for testing.
Yes. AS509 uses 12V external battery power through power clamps. Its operating voltage range is 10-14V.
The built-in boiling point reference value is used for comparison with the measured coolant boiling point. This helps users quickly judge whether coolant has deteriorated and whether coolant replacement may be needed.
The AS509 testing time is approximately 20-40 seconds, depending on the test condition and coolant sample.
AS509 includes reverse polarity protection and overheat protection to reduce operational error and overheating risks during coolant boiling point testing.
