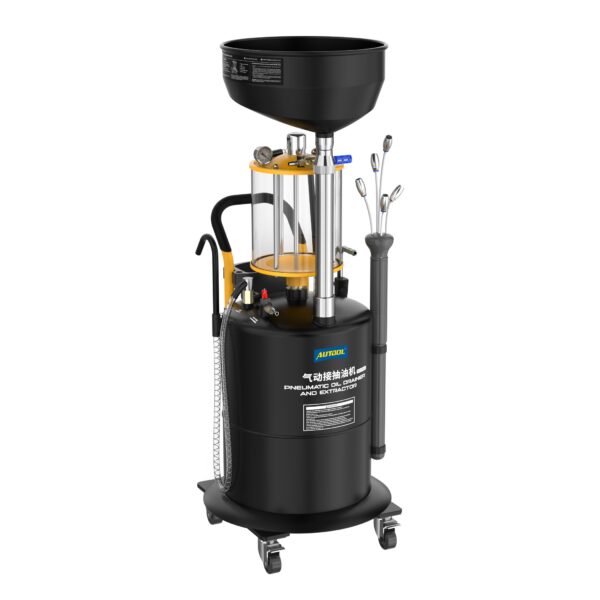

AUTOOL OD720 Oil Pumping Machine

AUTOOL OD720

Product Overview

The AUTOOL OD720 Pneumatic Oil Drainer And Extractor is a compressed-air powered waste oil drainer and vacuum oil extraction machine for workshop engine oil service. Its patented vacuum generation structure evacuates the tempered measuring cup or oil storage tank, allowing external air pressure to draw waste oil through the evacuation wand into the measuring cup or tank. It is suitable for measuring cup extraction, oil catch pan recovery, and storage tank discharge under the specified air pressure and safety conditions.

Pneumatic Vacuum Extraction 70L Storage Tank 10L Measuring Cup 5 Evacuation Wands

6-8barAir Supply

0-65cmHgVacuum Level

20LOil Catch Pan

3 YearsWarranty

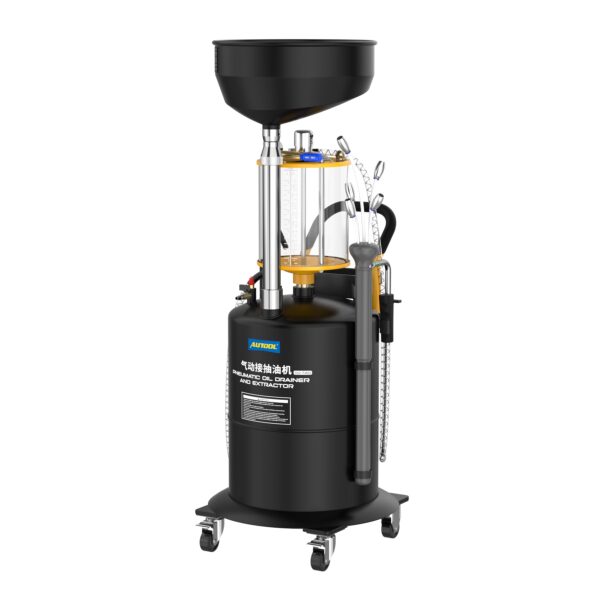

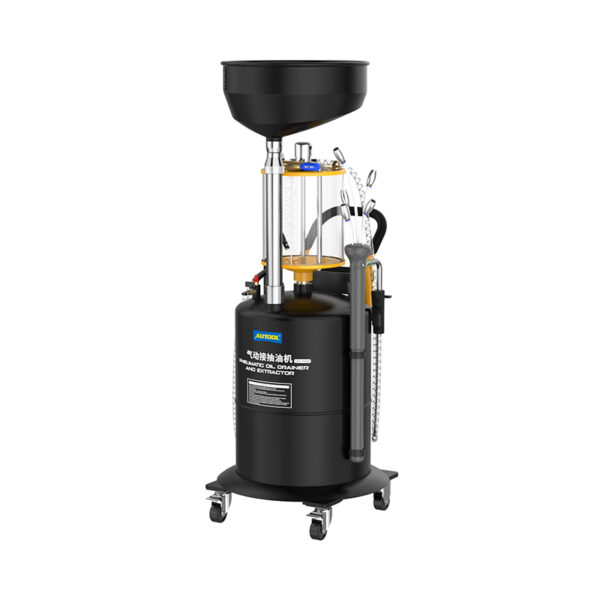

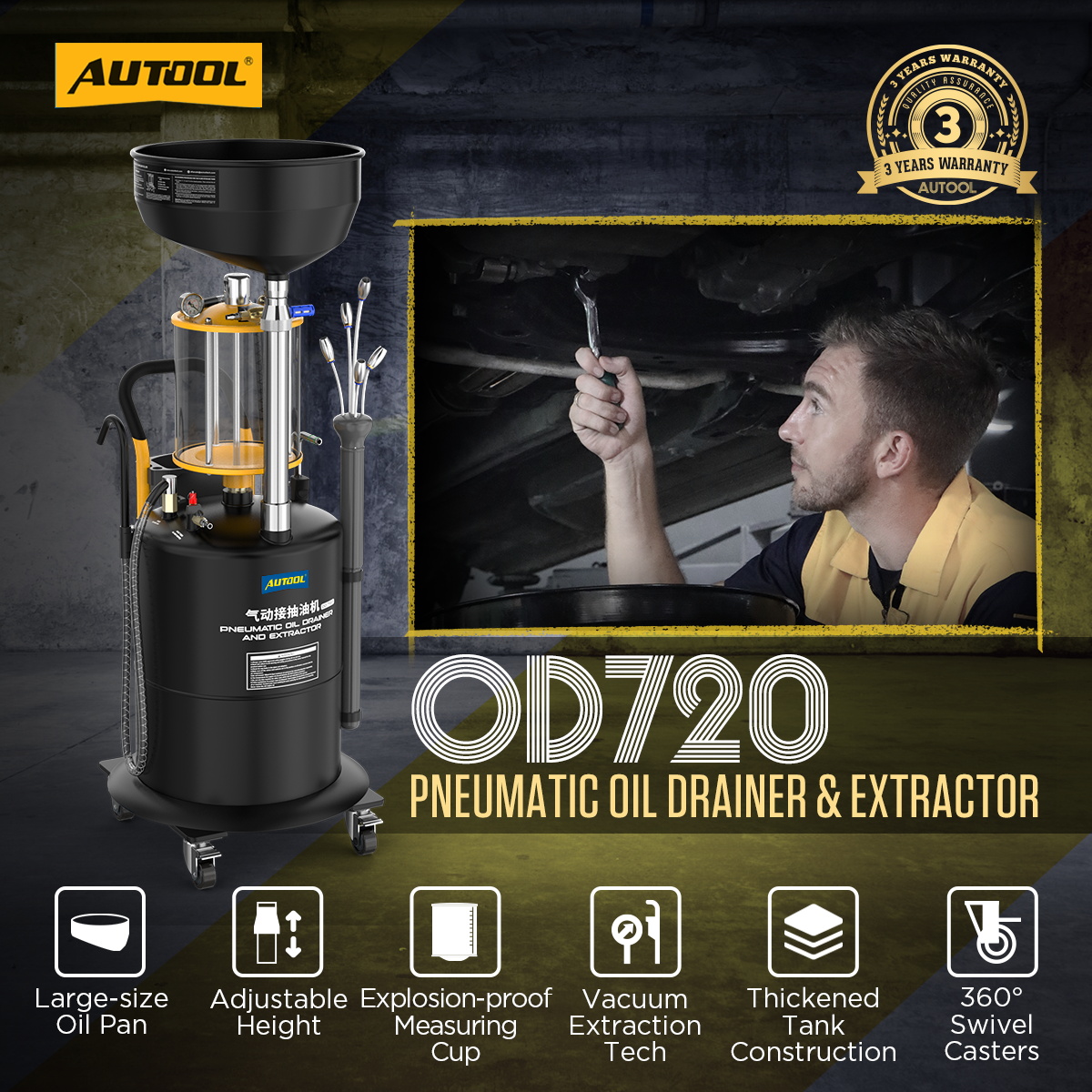

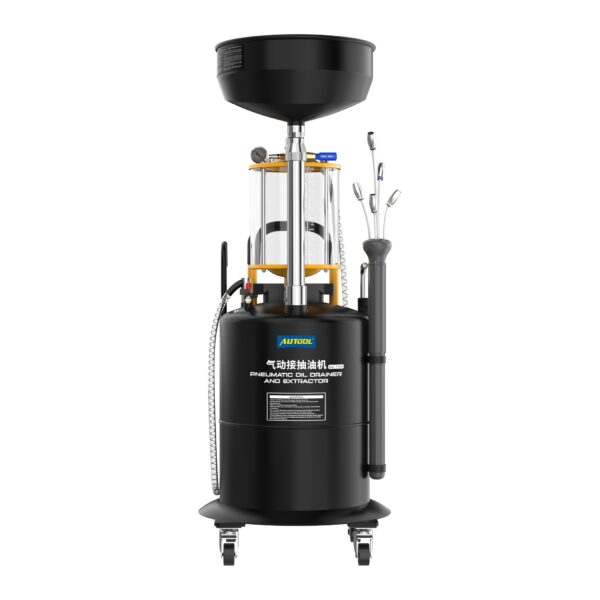

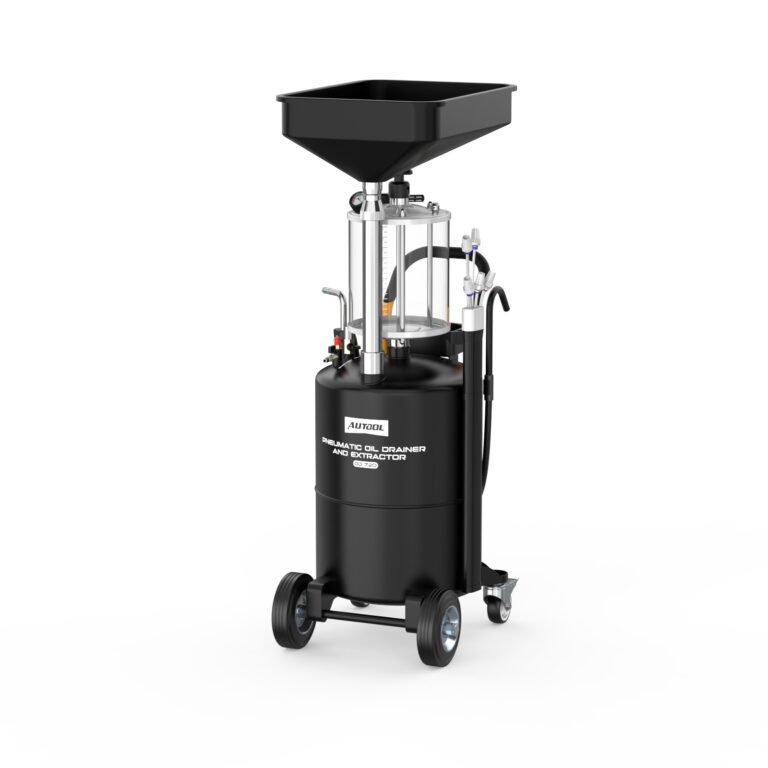

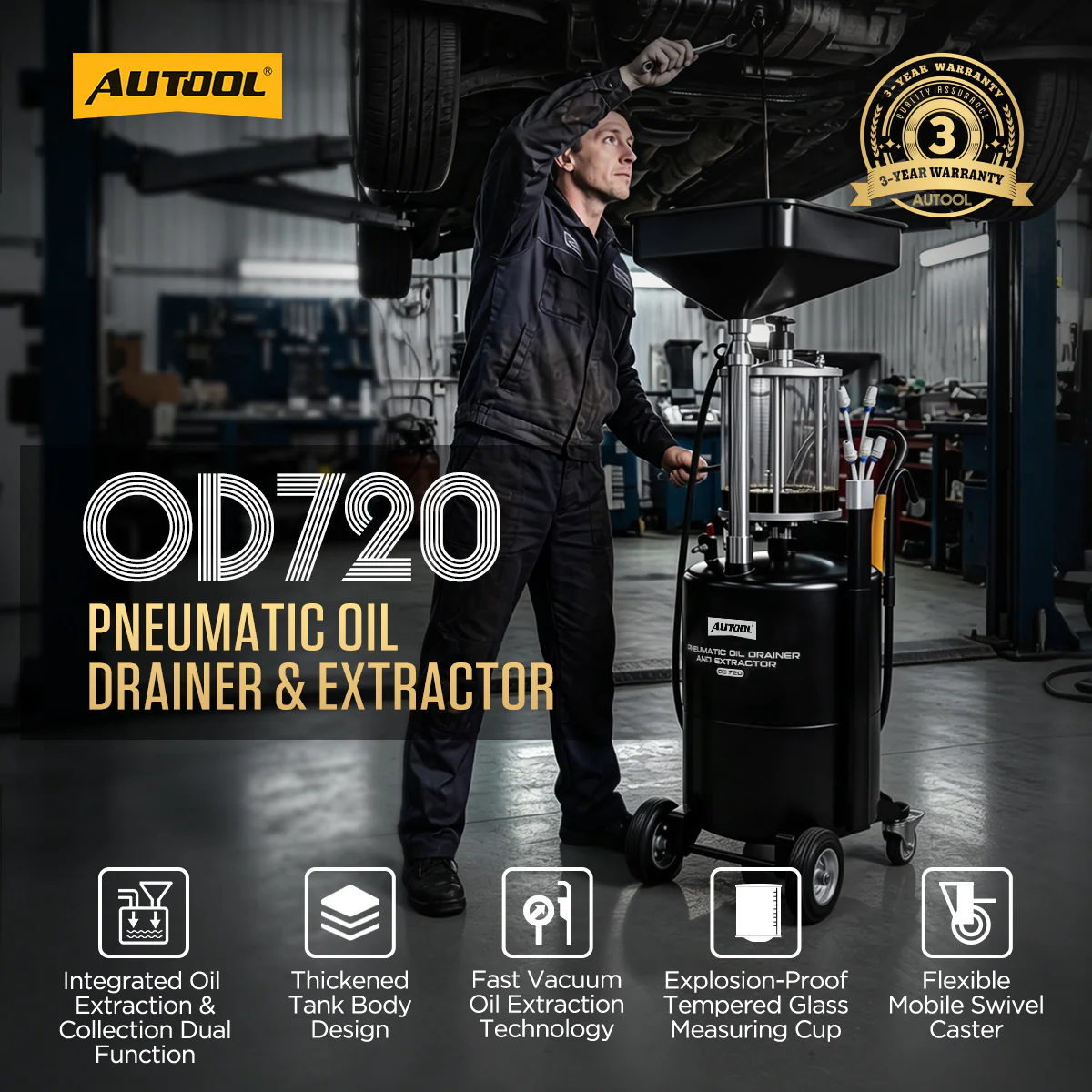

AUTOOL OD720 pneumatic oil drainer and extractor main product image

AUTOOL OD720 pneumatic oil drainer and extractor three years warranty image

Before You Order And Use

Review the air pressure range, oil temperature limit, prohibited liquids, engine-off rule, pressure release, and personal protection requirements before using the OD720 waste oil extractor.

Use 6-8bar Air Supply

The air source pressure must stay within the specified range. Do not operate below or above the required pressure, otherwise normal operation and safety may be affected.

Do Not Use With Flammable Liquids

OD720 is strictly prohibited for brake oil, gasoline, diesel, methanol, ketone, and other flammable liquids. Use it only for functions listed in the manual.

Engine Must Stay Off

The engine must remain turned off throughout the operation. Do not operate the equipment around smoking, open flames, high-temperature, high-pressure, flammable, or explosive areas.

40-60°C Waste Oil Range

Waste oil is handled at 40-60°C. Be careful of burns. Waste oil above 60°C may damage equipment components.

Wear Eye And Hand Protection

Wear gloves and safety goggles during operation to protect your hands and eyes from hot waste oil and splashes.

Release Pressure After Use

After completing operation, release internal pressure and clean the equipment to reduce equipment damage and personnel injury caused by improper operation.

Safety Reminder

If hoses or components leak during operation, immediately shut off the air supply and inspect the equipment carefully.
Do not use the height-adjustable lifting rod as a handle for moving the machine. Tighten adjustment screws if they become loose.
Promptly empty waste oil from the measuring cup into the storage tank after extraction to better protect the measuring cup and extend its service life.
After emptying the measuring cup, there is no need to close the measuring cup drain valve unless required by the specific operation step.
Dispose of or recycle waste oil according to local regulations and relevant authorities.
Do not attempt unauthorized disassembly, modification, or self-repair. Contact authorized service support when maintenance is needed.

Key Features

OD720 combines pneumatic vacuum extraction, a 10L tempered measuring cup, a 70L thickened tank, a 20L large oil catch pan, adjustable working height, and multiple evacuation wands for workshop oil service.

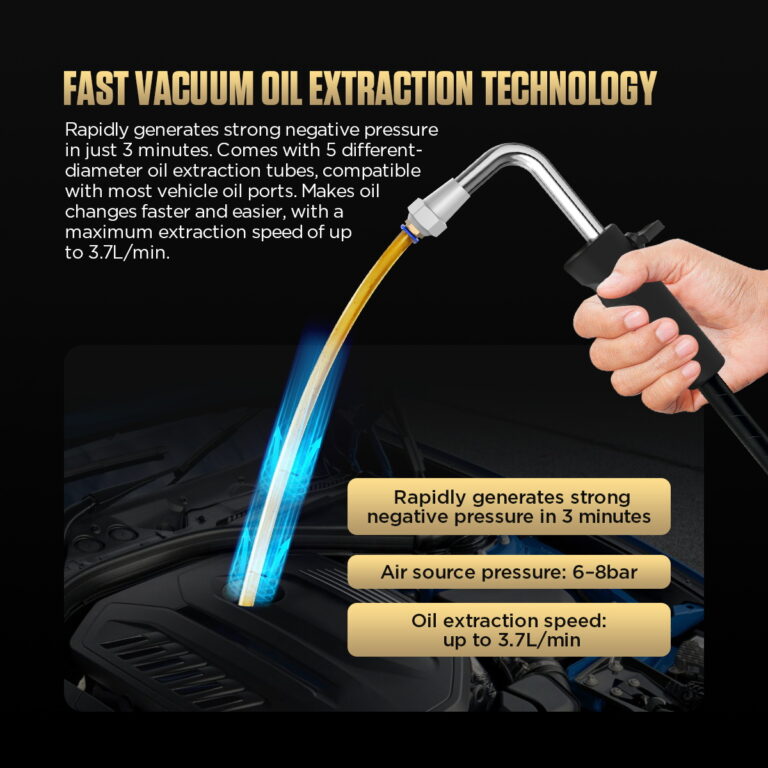

Rapid Vacuum Extraction

Using pressurized air and a vacuum generator, OD720 creates strong negative pressure for fast waste oil extraction through the evacuation wand.

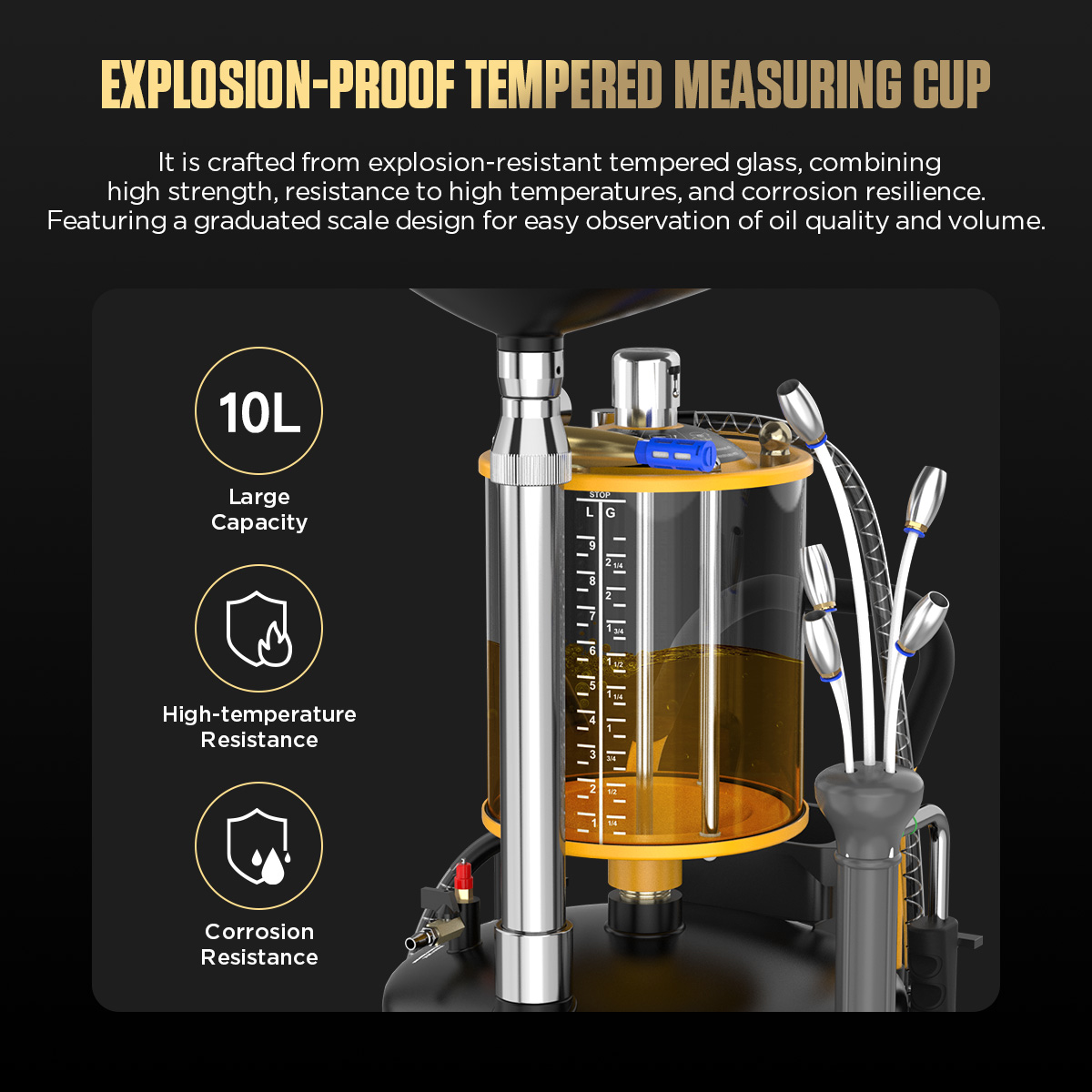

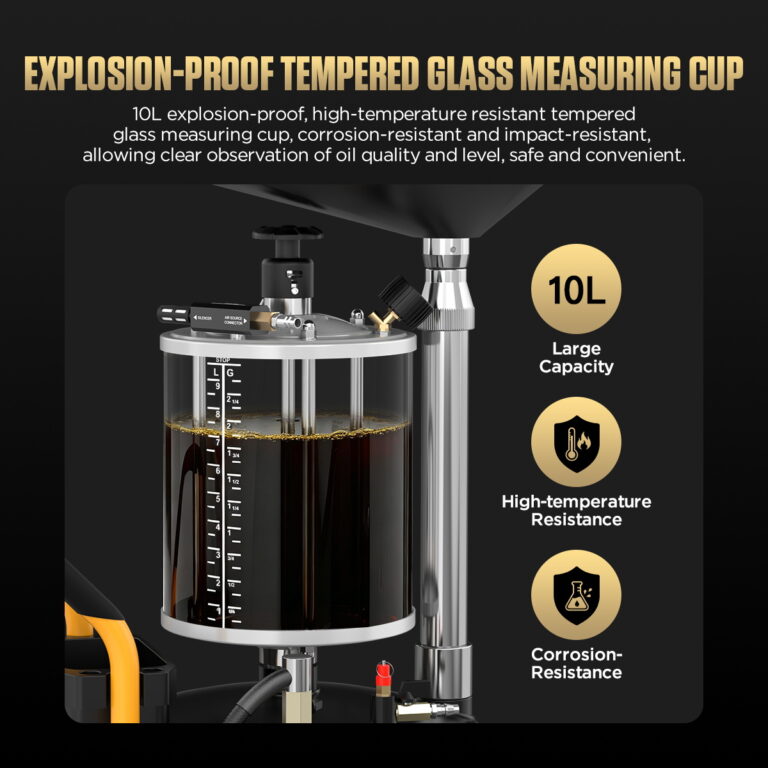

10L Tempered Measuring Cup

The transparent hardened measuring cup is designed for strength, clarity, heat resistance, weather durability, and corrosion resistance. Its scale marks help observe oil quality and quantity.

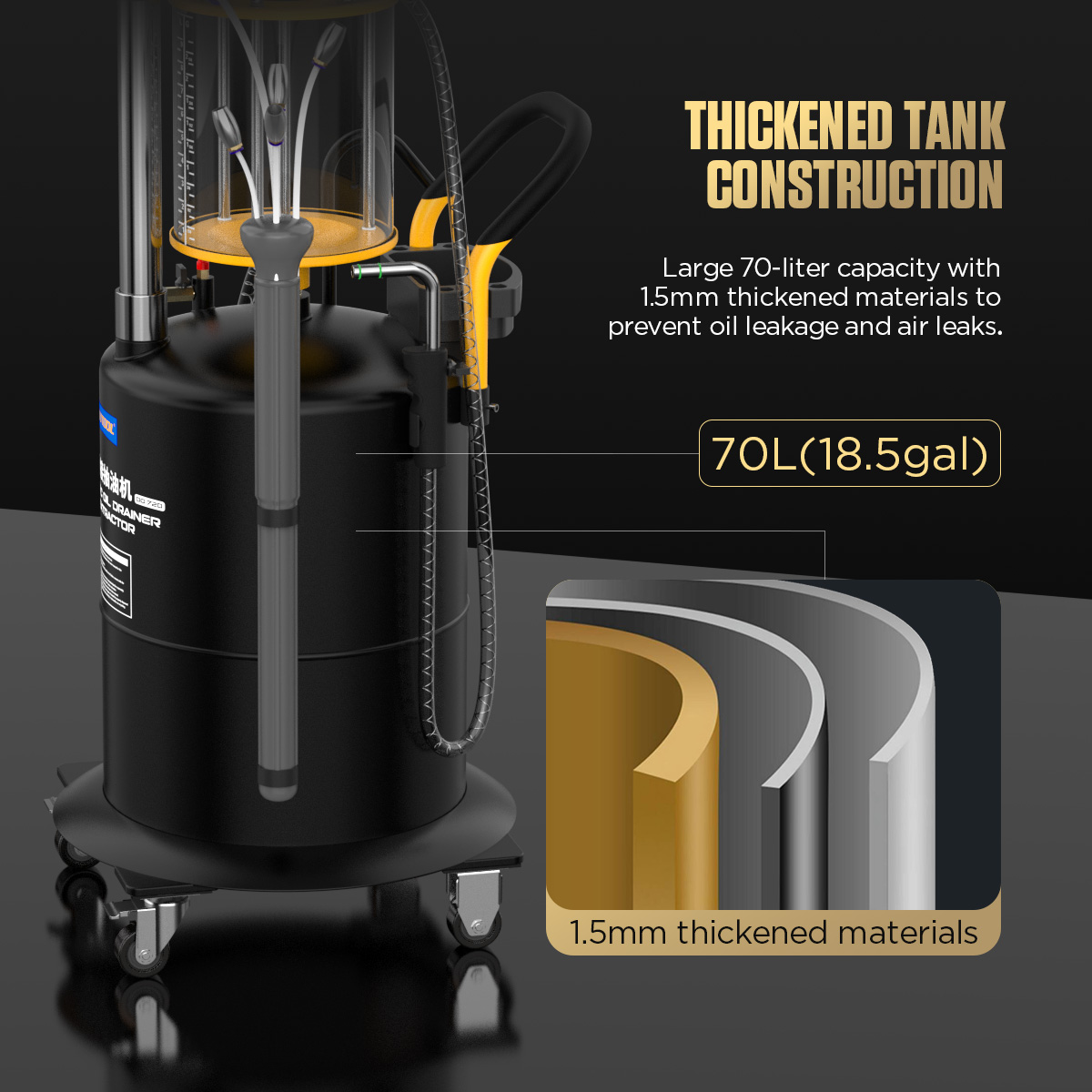

70L Thickened Storage Tank

The 70L storage tank uses 1.5mm thickened material to help reduce oil leakage and air leakage during waste oil recovery.

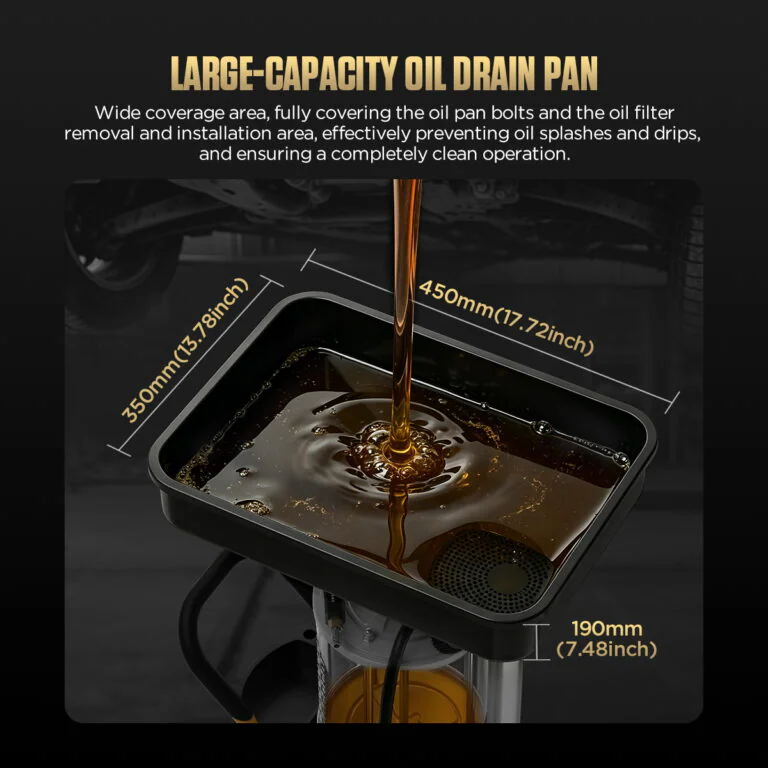

20L Large Oil Catch Pan

The 41cm large-size oil catch pan provides a wider oil-catching area and a 20L capacity for gravity waste oil recovery.

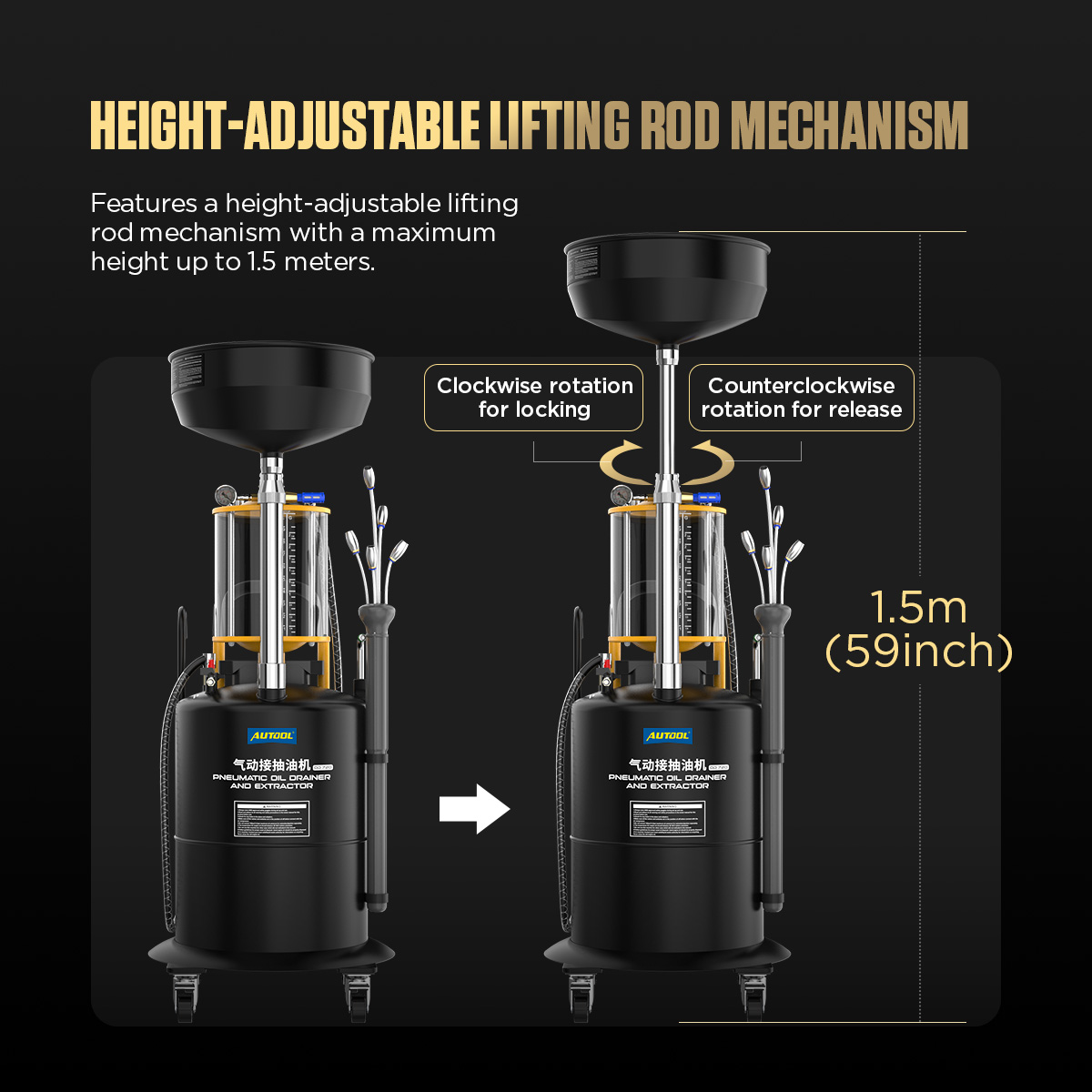

Adjustable Height To 1.5m

The height-adjustable lifting rod mechanism allows the oil pan height to be adjusted up to 1.5m for different working conditions.

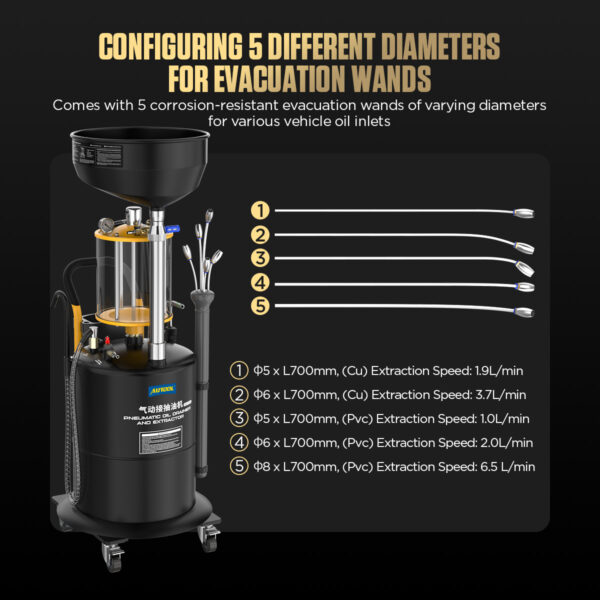

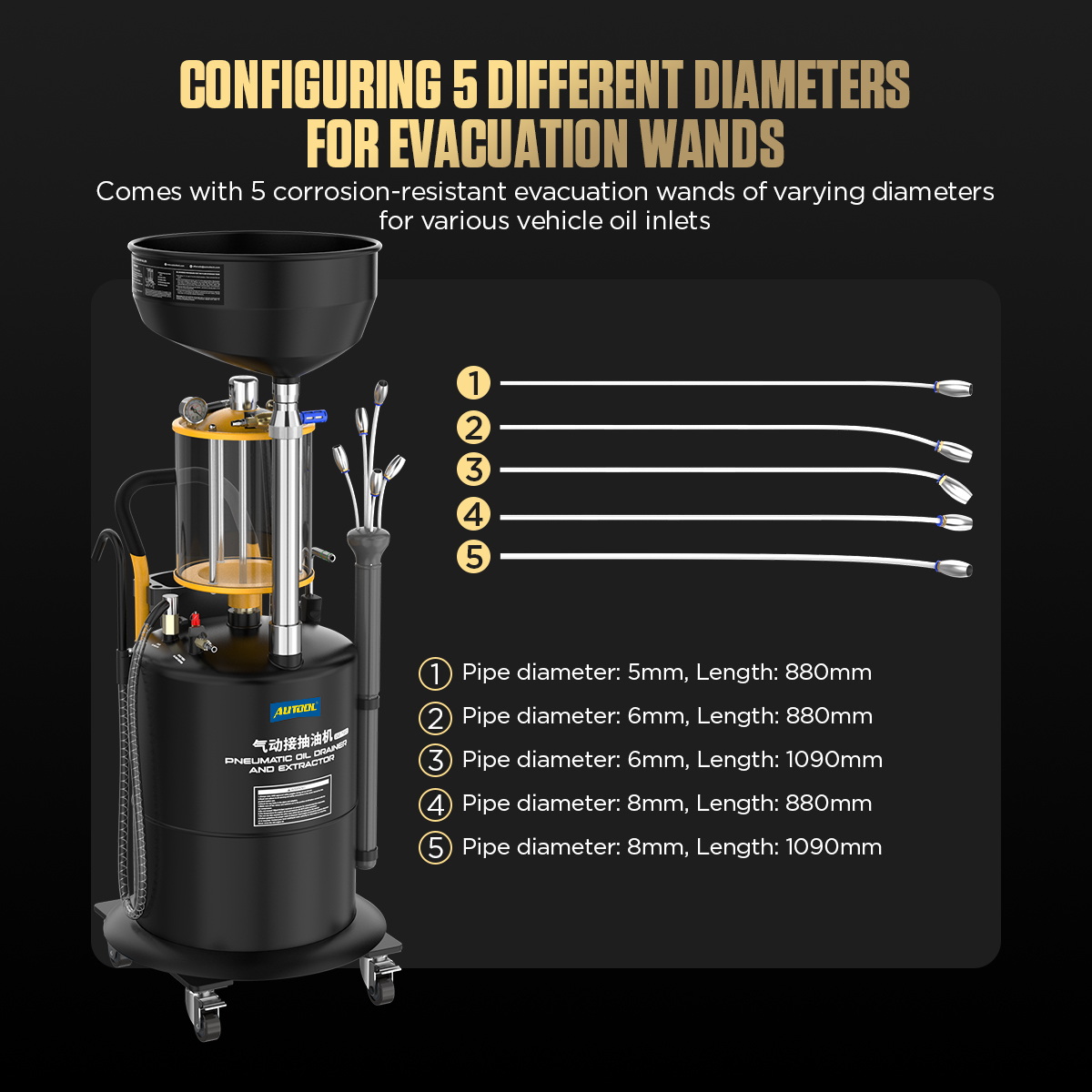

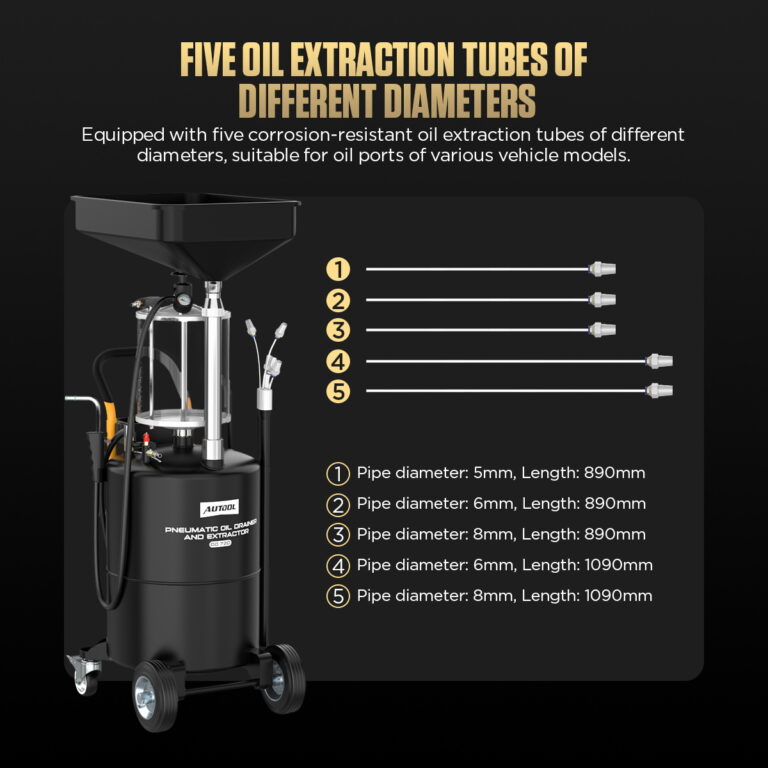

5 Evacuation Wands

OD720 includes 5 corrosion-resistant evacuation wands of different diameters for different vehicle oil inlets and service needs.

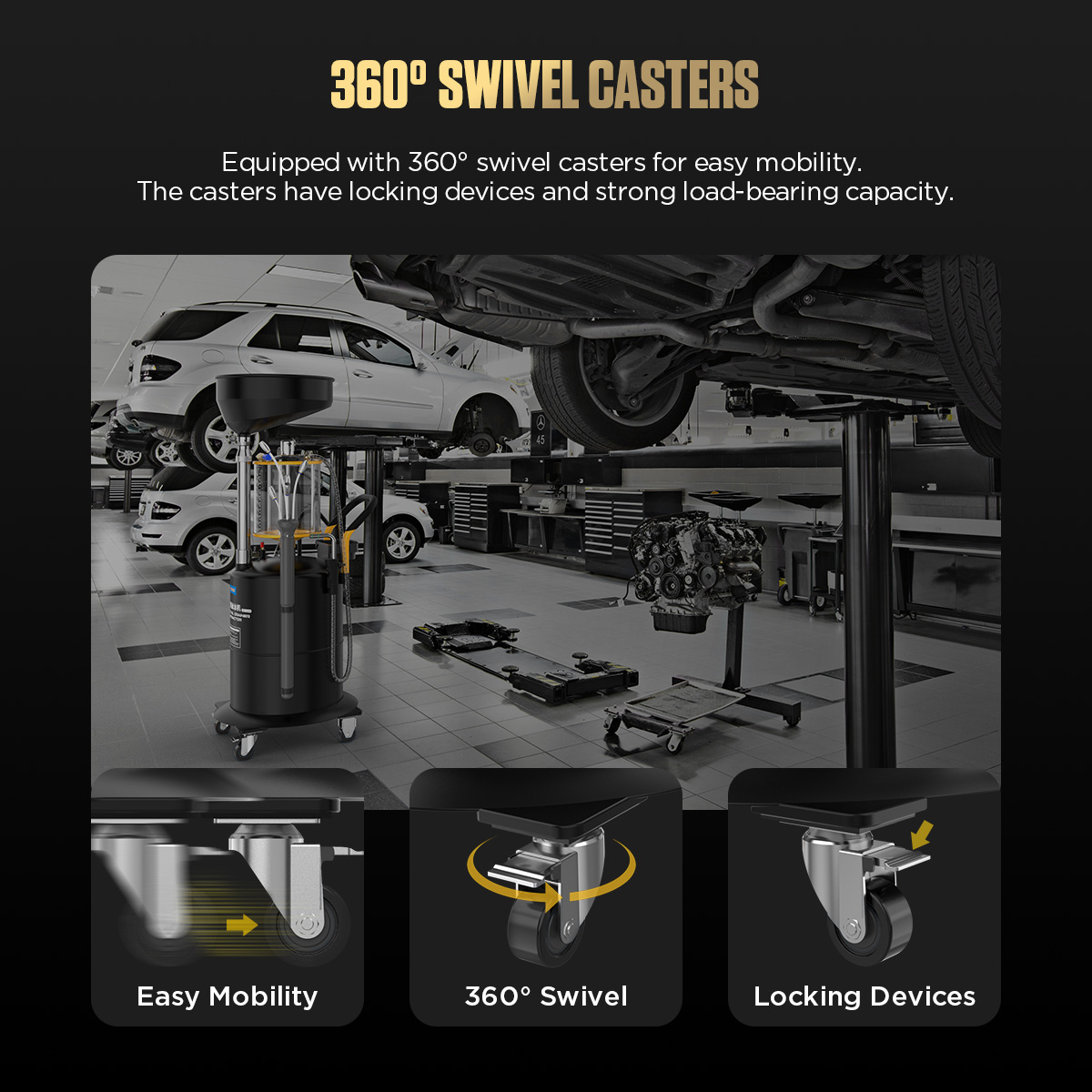

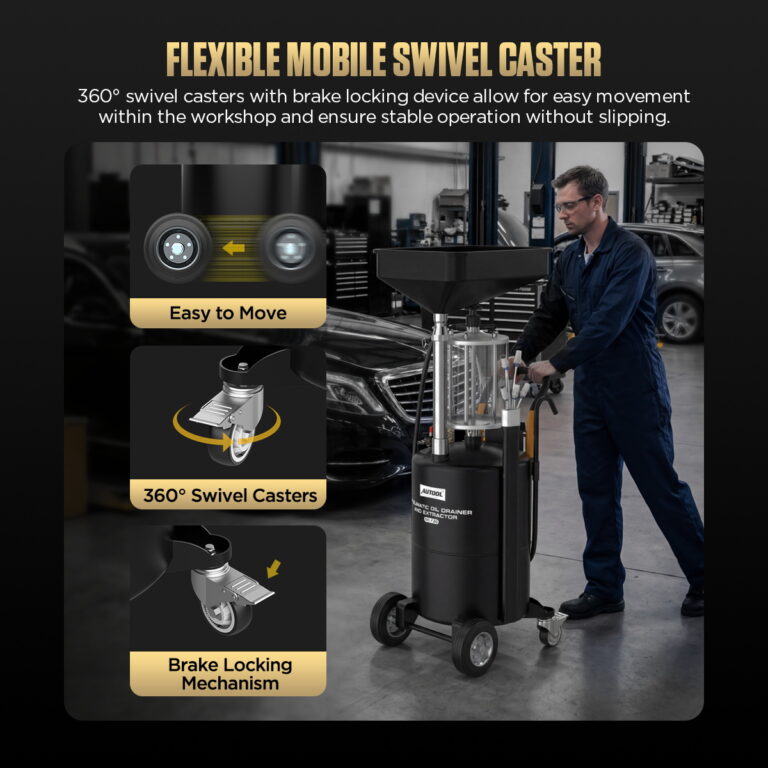

360° Swivel Casters

The machine is equipped with 360° swivel casters for easier movement. The casters include locking devices for more stable workshop positioning.

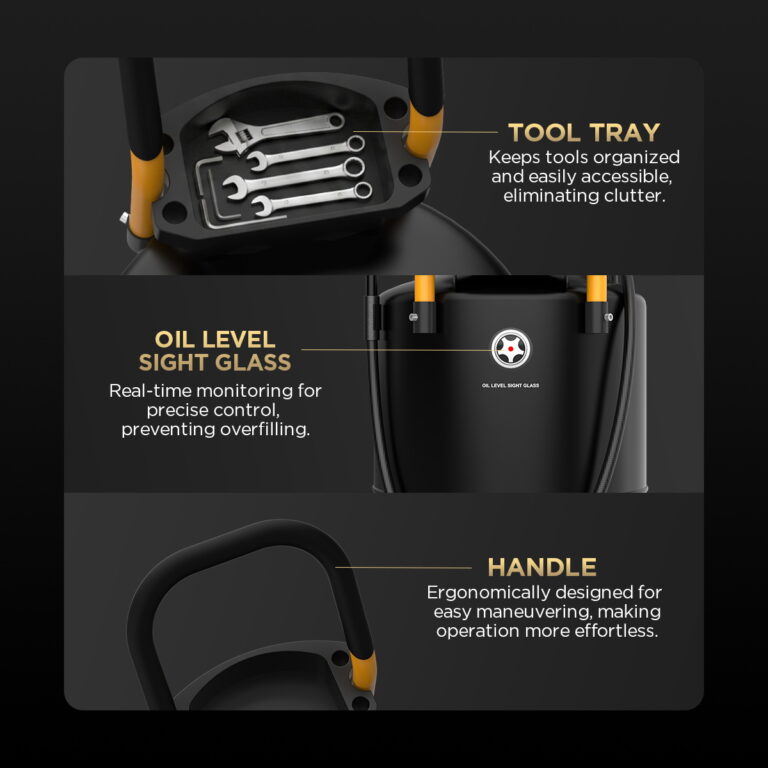

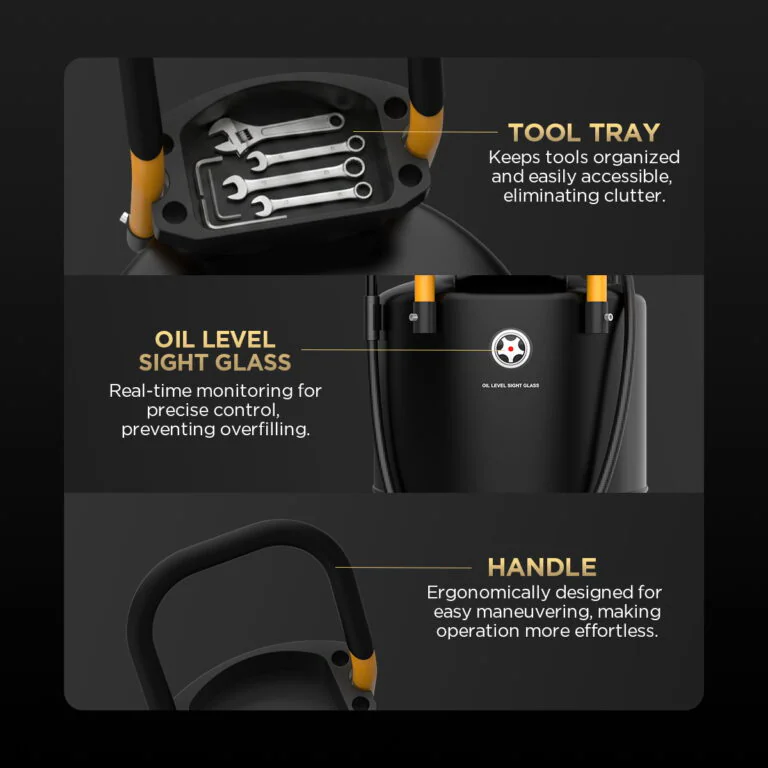

Sight Window And Tool Tray

The oil level sight window helps monitor waste oil recovery, while the tool tray provides a convenient area for small tools during service.

Warranty And Lifetime Maintenance

AUTOOL provides 3-year support for eligible non-human damage cases and lifetime maintenance support for setup, accessories, and troubleshooting.

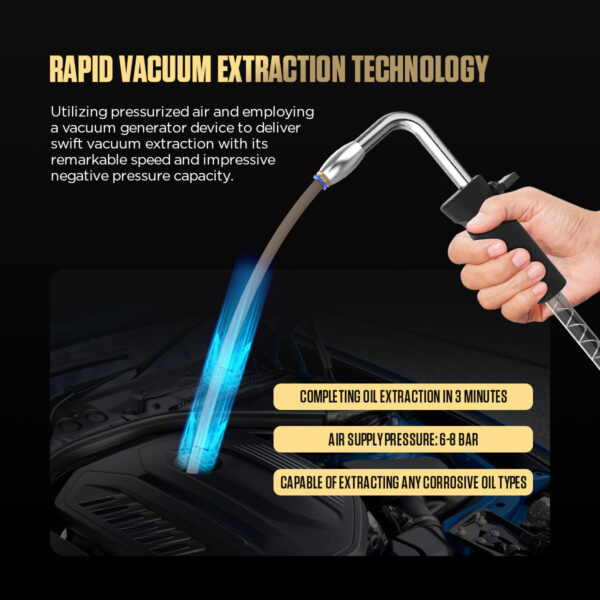

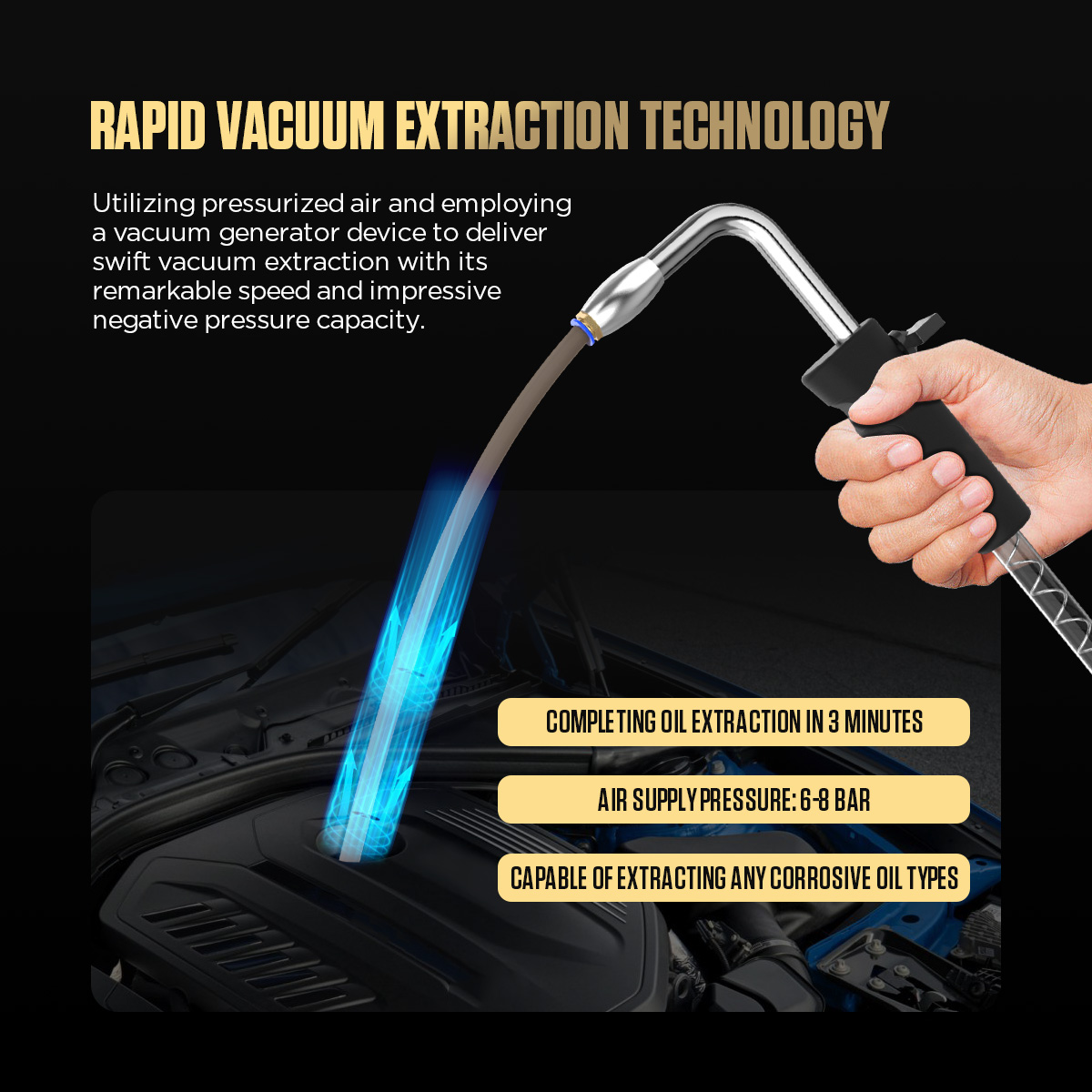

AUTOOL OD720 rapid vacuum extraction technology with 6 to 8 bar air supply

AUTOOL OD720 10 liter tempered measuring cup with scale markings

AUTOOL OD720 five evacuation wands with different diameters and lengths

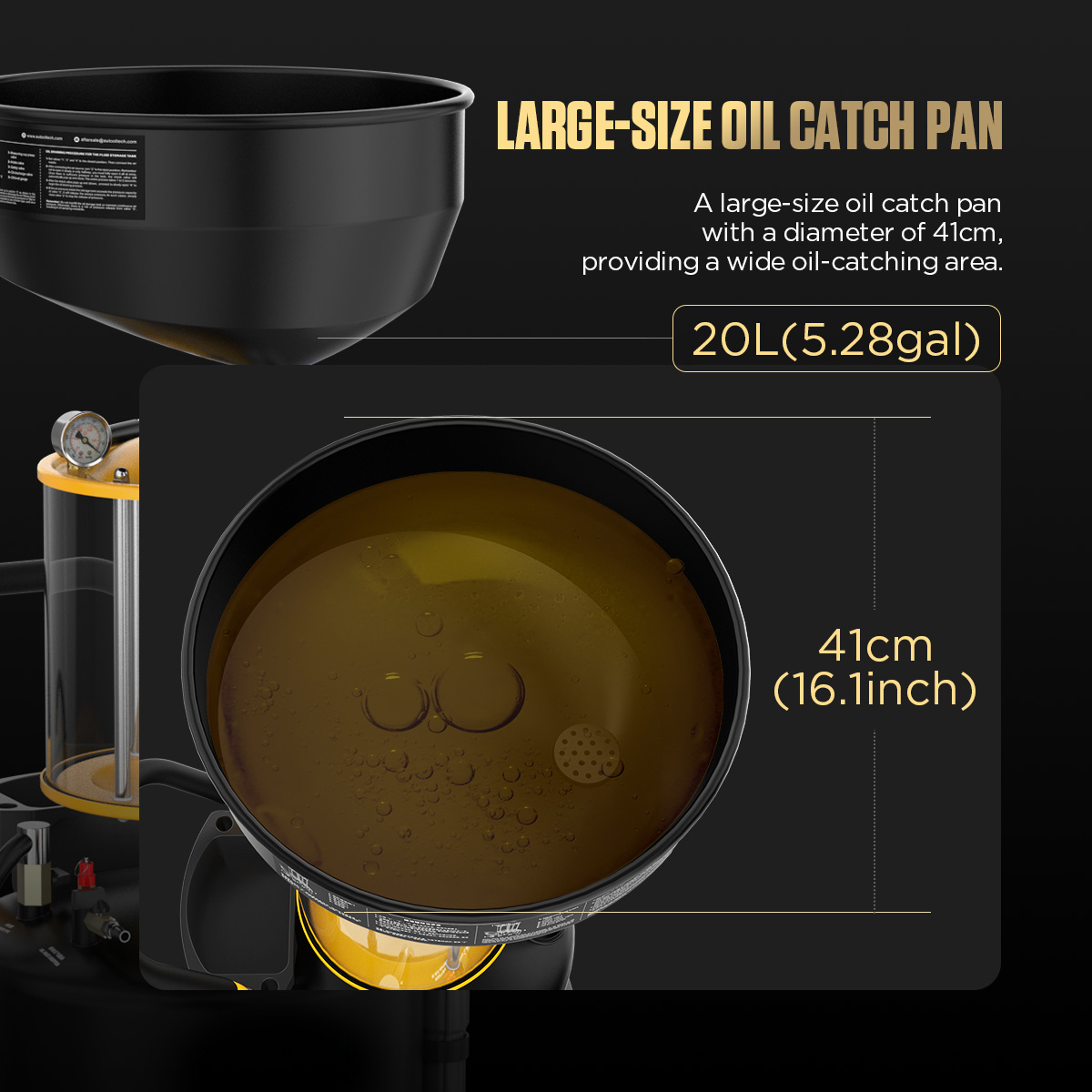

AUTOOL OD720 41 centimeter 20 liter large oil catch pan

AUTOOL OD720 height adjustable lifting rod mechanism up to 1.5 meters

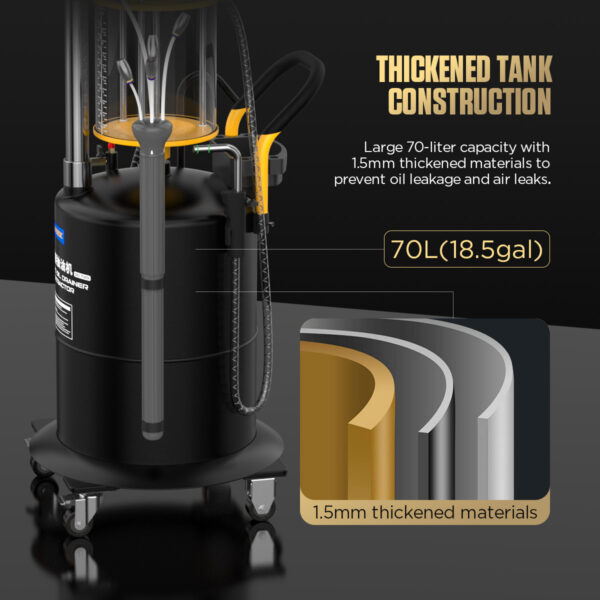

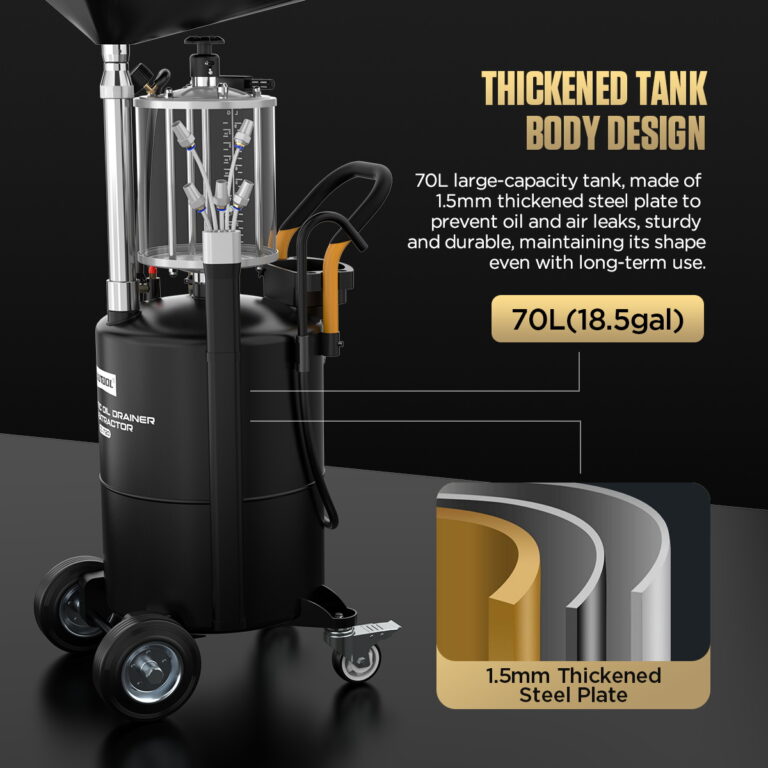

AUTOOL OD720 70 liter thickened tank construction with 1.5 millimeter material

AUTOOL OD720 360 degree swivel casters with locking devices

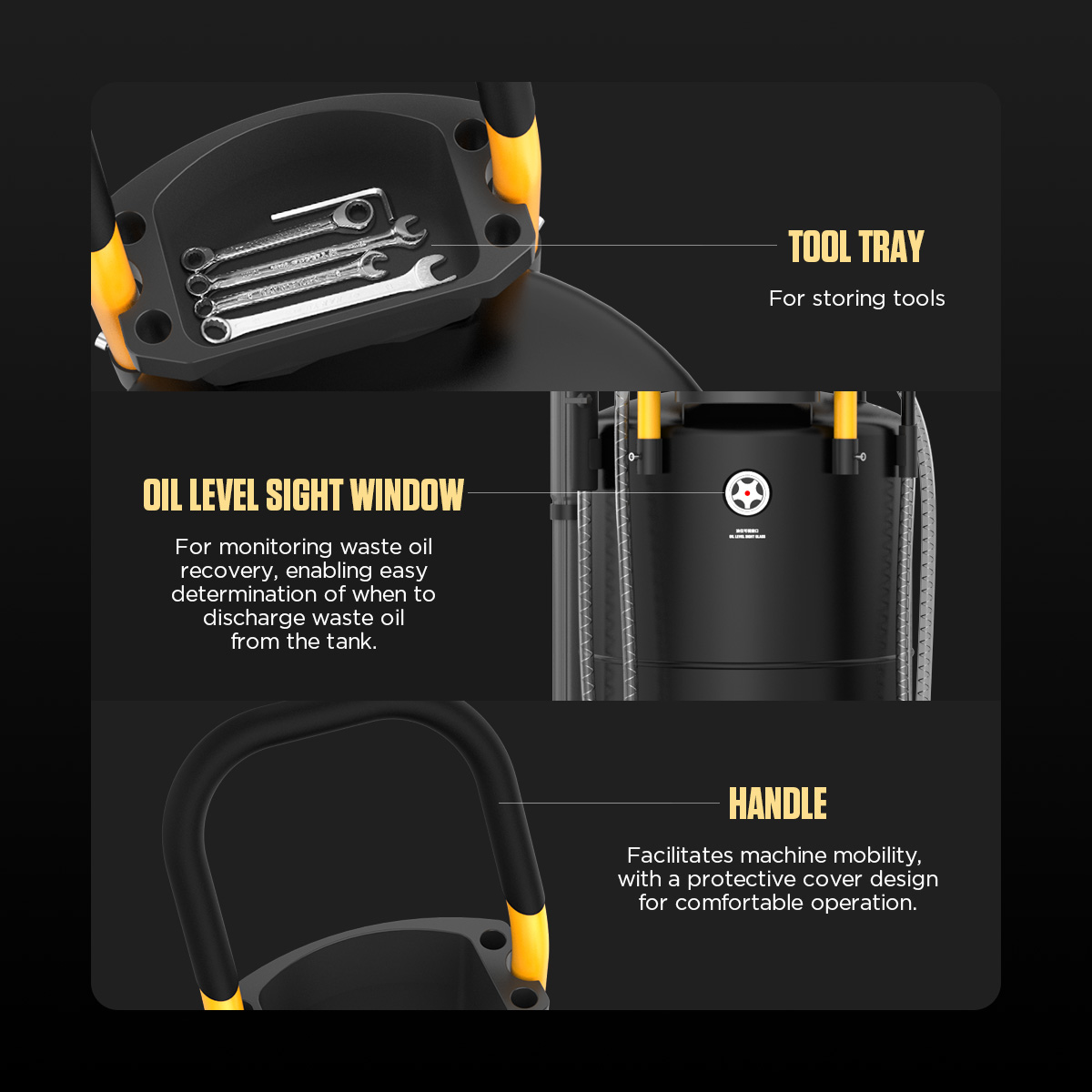

AUTOOL OD720 tool tray oil level sight window and handle details

How It Works

OD720 uses compressed air to generate vacuum inside the measuring cup or storage tank, then pulls waste oil through the extraction wand into the cup or tank under the correct operating conditions.

Compressed Air Input

Connect the air supply to the vacuum generator or tank inlet valve according to the required operation. The specified air supply range is 6-8bar.

Vacuum Generation

The vacuum generator evacuates the tempered measuring cup or oil storage tank, creating negative pressure for suction extraction.

Oil Extraction

External air pressure draws waste oil through the selected oil evacuation wand and oil extraction hose into the measuring cup or storage tank.

Oil Recovery Through Pan

For gravity recovery, lift the vehicle, align the oil catch pan with the engine drain hole, and allow waste oil to flow into the storage tank.

Tank Discharge

When discharging the storage tank, pressurize the tank through the oil tank inlet valve, then slowly open the drain valve after pressure builds.

Safety Control

The oil tank safety valve releases pressure when tank pressure exceeds 1.0bar. Always cut off the air supply after discharging oil.

Specifications

OD720 Product Specifications

The OD720 specification set covers air supply, oil discharge pressure, vacuum level, capacities, working oil temperature, evacuation wands, and machine dimensions.

Air And Vacuum
Air Supply Pressure	6-8bar
Oil Discharge Pressure	0.6-0.8bar
Air Consumption	150L/min
Vacuum Level	0-65cmHg
Capacity
Oil Storage Tank Capacity	70L / 18.5gal
Measuring Cup Capacity	10L / 2.6gal
Oil Catch Pan Capacity	20L / 5.3gal
Operation
Working Oil Temperature	40-60°C
Oil Evacuation Wands	5 PCS
Use Restriction	Do not use with brake oil, gasoline, diesel, methanol, ketone, or flammable liquids
Size
Product Dimensions	570 × 500 × 1307mm
Packaging Dimensions	53 × 53 × 100cm
Support
Main Unit Warranty	3 years
Included Accessories Warranty	1 year
Product Structure
Structure Overview	The structure diagram identifies the main working parts used for oil catch pan recovery, measuring cup extraction, vacuum generation, tank discharge, movement, and storage.
A / B / C	Oil catch pan, measuring cup press valve, and safety valve
D / E / F	Vacuum generator and inlet, tempered glass measuring cup, and tool tray
G / H / I	Handle, drain hose, and drain device
J / K / L	Oil tank safety valve, oil tank inlet valve, and swivel casters with brakes
M / N / O	Height-adjustable lifting rod mechanism, oil evacuation wands, and oil extraction hose
P / Q / R	Wands holder, check valve assembly, and oil storage tank

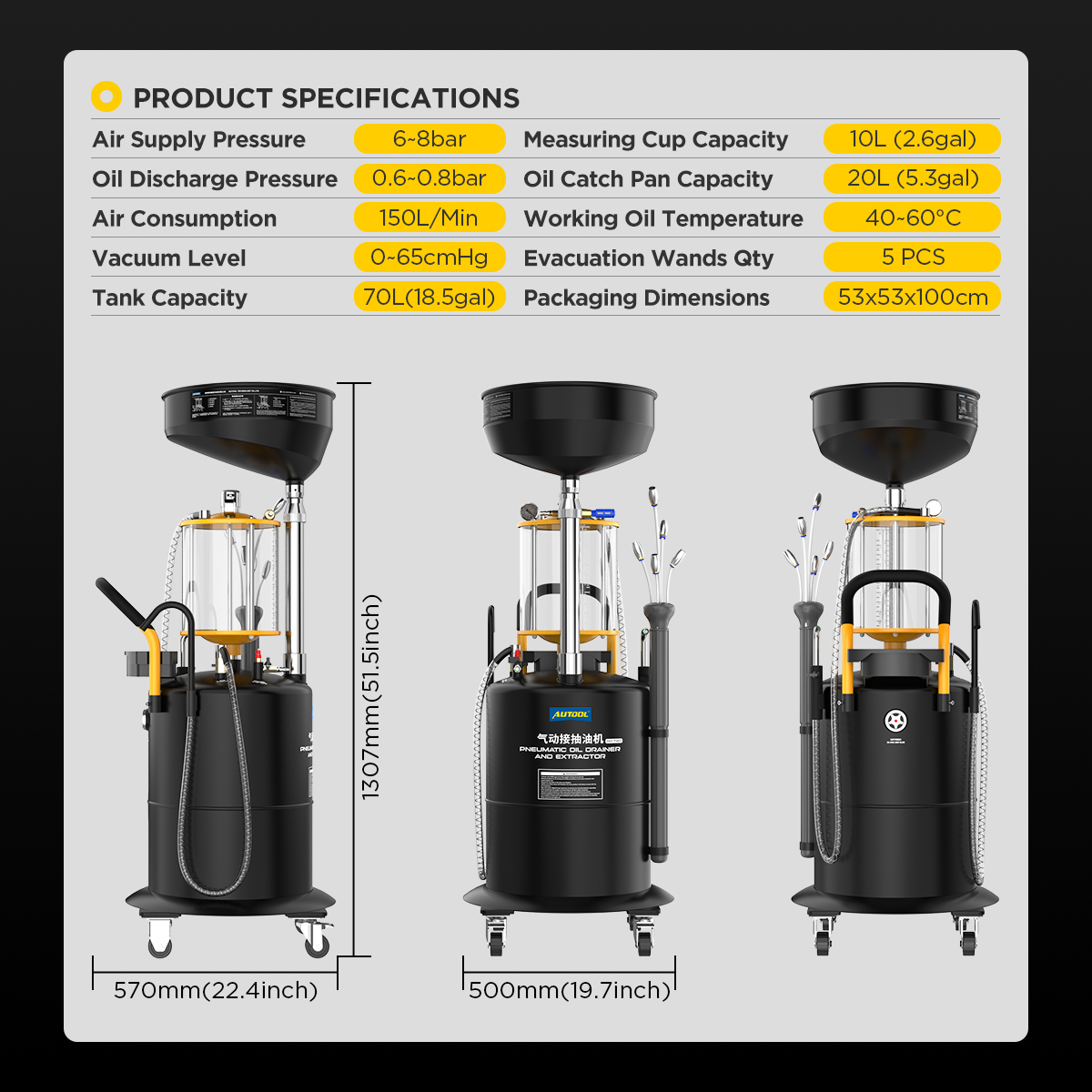

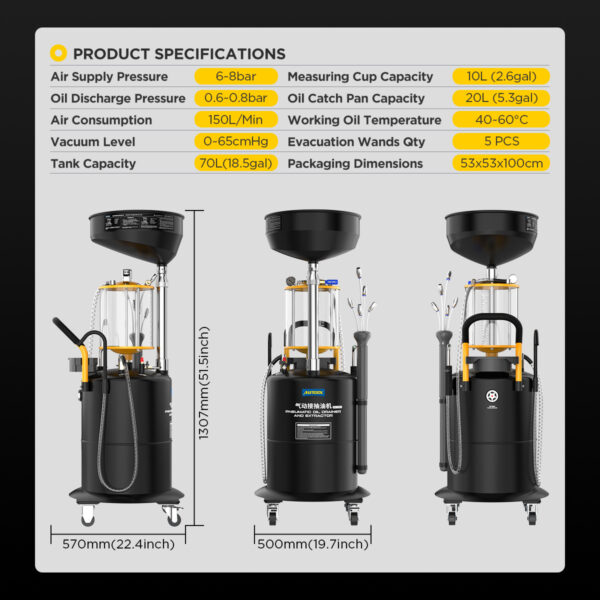

AUTOOL OD720 product specifications image with air pressure vacuum level capacity and dimensions

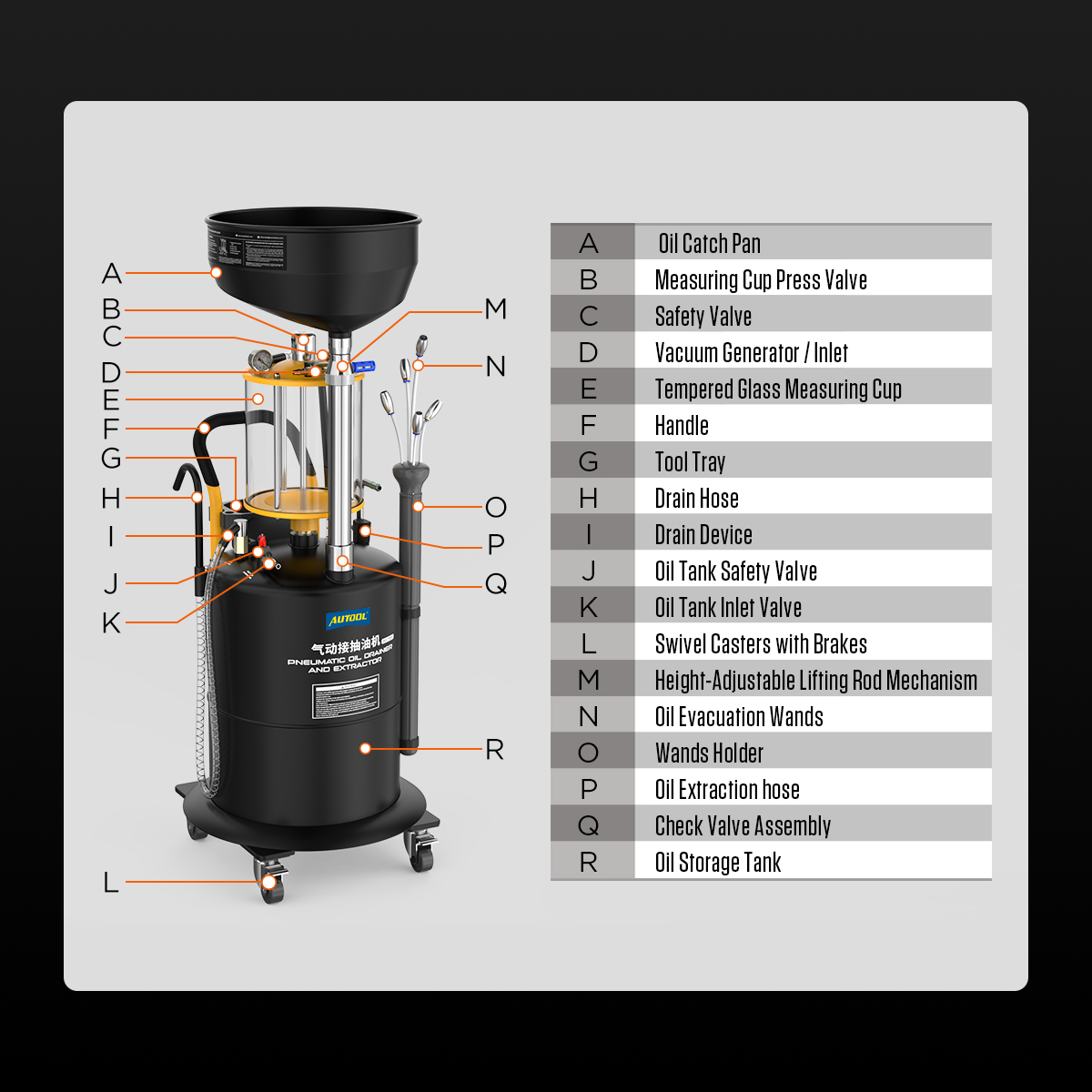

AUTOOL OD720 product structure diagram showing oil catch pan measuring cup safety valve vacuum generator tool tray drain hose and storage tank

Air And Vacuum

Air Supply Pressure6-8bar

Oil Discharge Pressure0.6-0.8bar

Air Consumption150L/min

Vacuum Level0-65cmHg

Capacity

Oil Storage Tank Capacity70L / 18.5gal

Measuring Cup Capacity10L / 2.6gal

Oil Catch Pan Capacity20L / 5.3gal

Operation

Working Oil Temperature40-60°C

Oil Evacuation Wands5 PCS

Use RestrictionDo not use with brake oil, gasoline, diesel, methanol, ketone, or flammable liquids

Size

Product Dimensions570 × 500 × 1307mm

Packaging Dimensions53 × 53 × 100cm

Support

Main Unit Warranty3 years

Included Accessories Warranty1 year

Product Structure

Structure OverviewThe structure diagram identifies the main working parts used for oil catch pan recovery, measuring cup extraction, vacuum generation, tank discharge, movement, and storage.

A / B / COil catch pan, measuring cup press valve, and safety valve

D / E / FVacuum generator and inlet, tempered glass measuring cup, and tool tray

G / H / IHandle, drain hose, and drain device

J / K / LOil tank safety valve, oil tank inlet valve, and swivel casters with brakes

M / N / OHeight-adjustable lifting rod mechanism, oil evacuation wands, and oil extraction hose

P / Q / RWands holder, check valve assembly, and oil storage tank

How To Use

Use OD720 with the correct air supply, valve positions, evacuation wand, and oil temperature range. The machine supports measuring cup extraction, measuring cup draining, oil pan recovery, and oil storage tank discharge.

1. Install The Main Assemblies

Rotate the measuring cup assembly clockwise to secure it onto the positioning seat of the oil storage tank. Fix the lifting rod and oil pan funnel by rotating clockwise. Confirm the measuring cup assembly direction, lock it in place, and keep the lifting rod vertical to the equipment.

Turn the lifting rod adjustment device counterclockwise to adjust the oil pan height.
Turn it clockwise to tighten after adjustment.

2. Extract Oil Through The Measuring Cup

Set the measuring cup valve to the middle slot position so the valve is closed. Close the oil extraction hose valve and connect the correct vehicle-specific oil evacuation wand.

Connect the air supply to the vacuum generator inlet and open the air supply valve.
Adjust the vacuum pressure gauge needle to the rated negative pressure of 50-65cmHg.
Insert the oil evacuation wand into the engine compartment, then open the oil extraction hose valve to start extracting waste oil.

3. Drain The Measuring Cup Into The Tank

When the oil level in the measuring cup reaches the warning line, drain the waste oil in the measuring cup into the oil storage tank below.

Press and rotate the measuring cup valve to the top left or right slot position so the valve is open.
Waste oil inside the measuring cup will automatically flow into the oil storage tank.
To extend the service life of the measuring cup assembly, do not close the measuring cup drain valve when not emptying oil into the storage tank.
Do not use waste oil above 60°C, as it may damage equipment components.

4. Recover Waste Oil Through The Oil Pan

Use lifting equipment to raise the vehicle to a suitable height before oil pan recovery. In a safe workplace, move OD720 under the vehicle engine and align the oil pan funnel with the engine oil drain hole.

Unscrew the vehicle engine oil drain plug.
Waste oil will discharge into the storage tank through the oil pan funnel.
Suction extraction may support no-lift or trench working conditions when suitable. Oil pan recovery still requires lifting the vehicle to align the pan safely.

5. Discharge Waste Oil From The Storage Tank

Close the measuring cup push-button valve, close the oil discharge pipe valve, and close the oil tank inlet valve. Connect the air supply to the oil tank inlet valve.

Open the oil tank inlet valve and pressurize the tank.
Once pressure reaches a certain level, the check valve will automatically close.
When pressure inside the oil tank exceeds 1.0bar, the safety valve will automatically release pressure.
After 5 seconds, slowly open the oil drain valve.
After discharging oil, cut off the air supply.

Operation Notes

Always keep the engine off during operation.
Do not smoke or use open flames near the equipment.
Keep the air source within the specified 6-8bar range.
Do not extract brake oil, gasoline, diesel, methanol, ketone, or flammable liquids.
Wear gloves and safety goggles when handling waste oil.
Release internal pressure and clean the equipment after use.

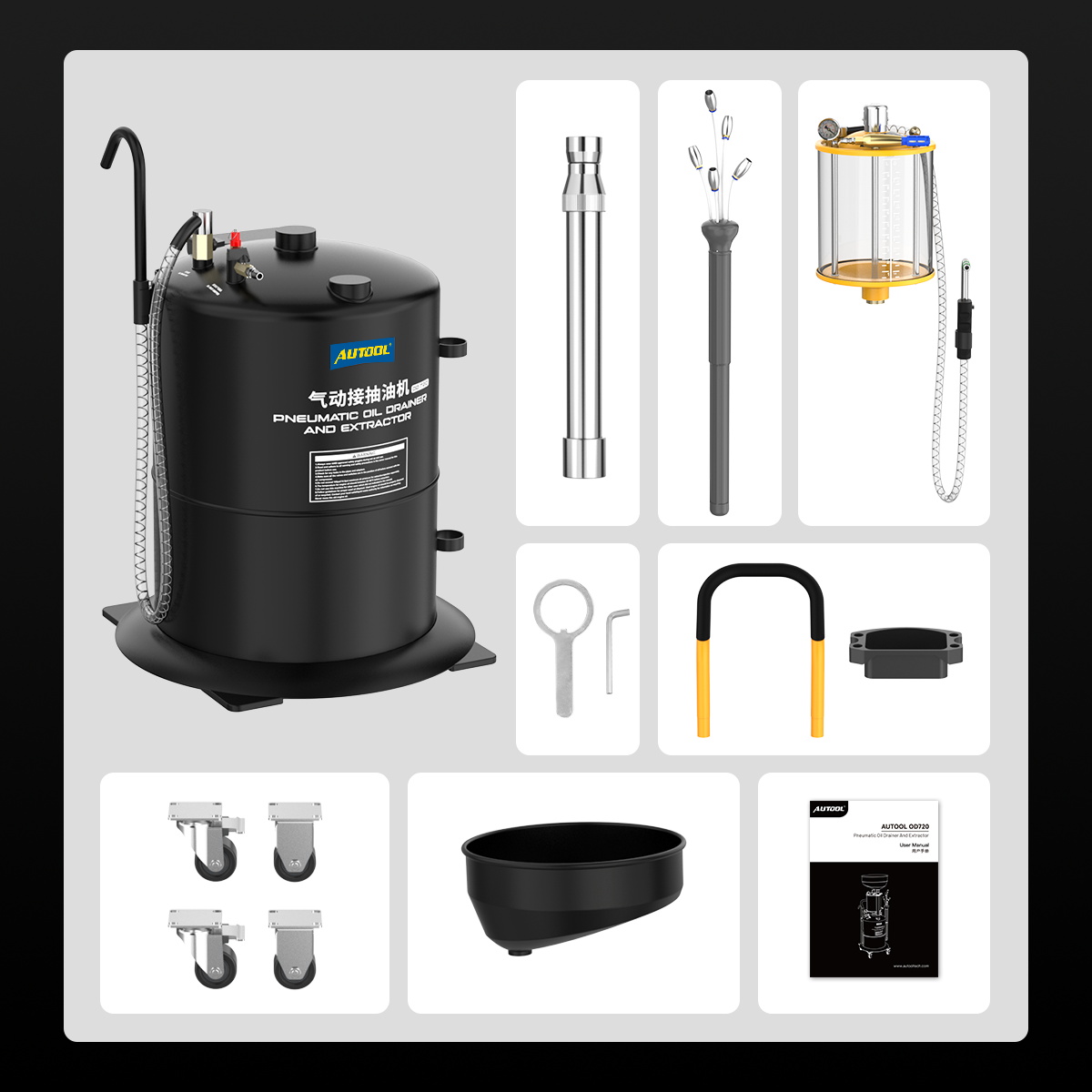

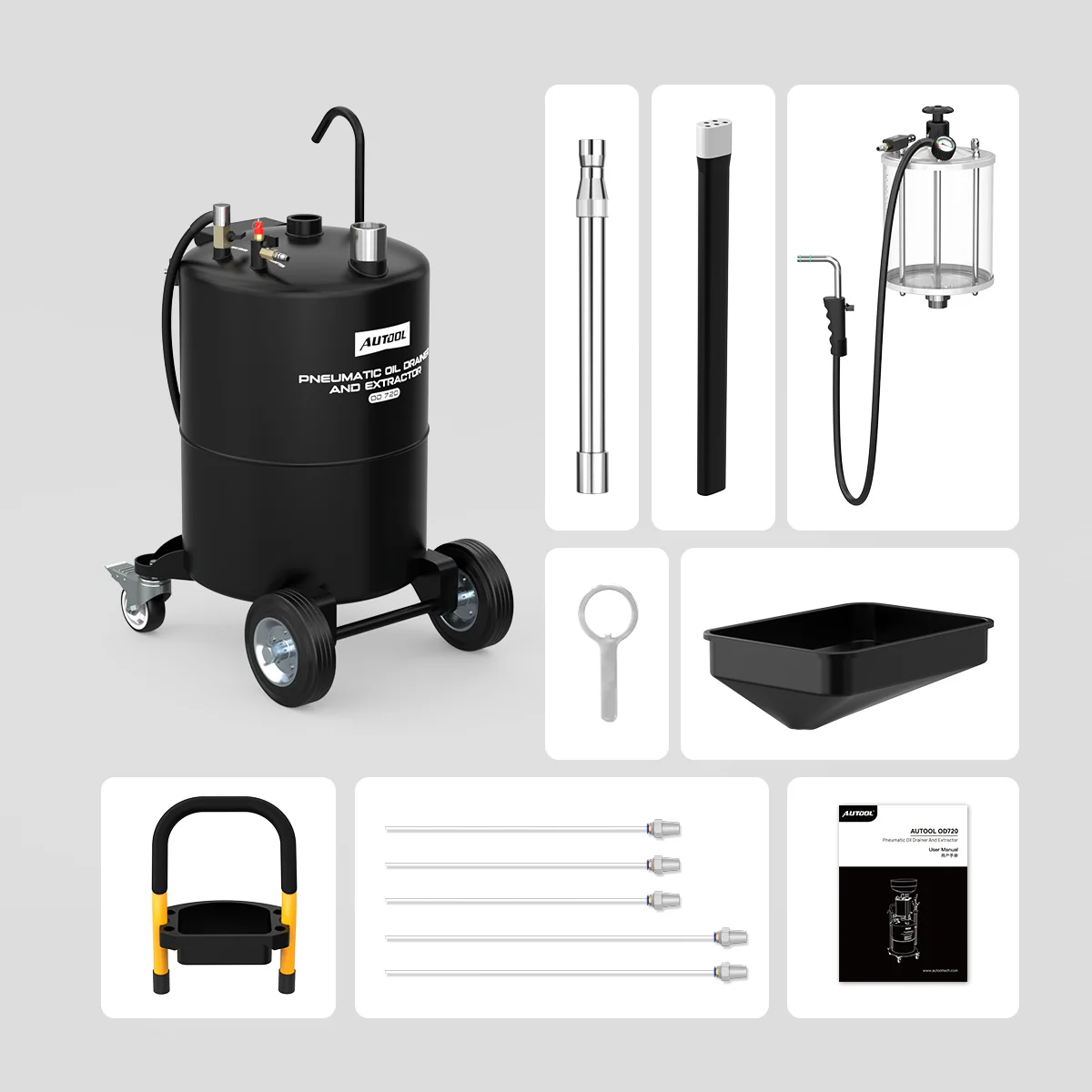

AUTOOL OD720 packing list showing oil storage tank measuring cup assembly oil catch pan lifting rod evacuation wands casters handle and manual

What Is In The Box

The official packing list image shows the OD720 main oil storage tank and included accessories. Package details should be confirmed according to the final packing list image and actual shipped product.

Main BodyOD720 oil storage tank assembly with drain hose and tank valves

Measuring CupTempered glass measuring cup assembly with related hose component shown in the image

Oil Pan And RodOil catch pan and height-adjustable lifting rod mechanism

Evacuation WandsOil evacuation wand set and wands holder shown in the package image

Movement PartsSwivel caster set with brakes and handle/tool tray parts shown in the package image

Tools And ManualSmall tools and AUTOOL OD720 user manual shown in the package image

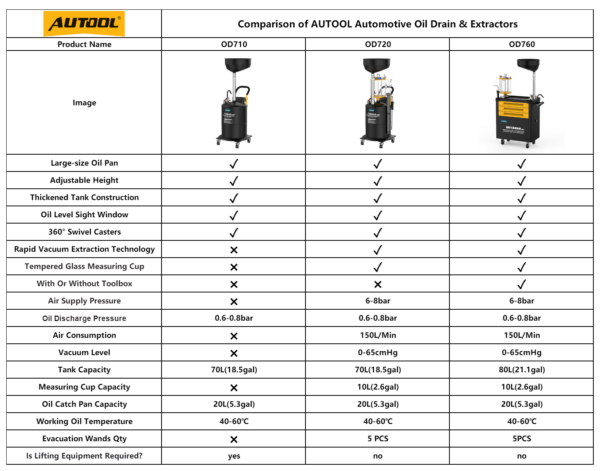

Product Comparison

Compare the OD series before choosing the right waste oil drainer for catch pan recovery, vacuum extraction, measuring cup use, toolbox storage, tank capacity, and lift requirement.

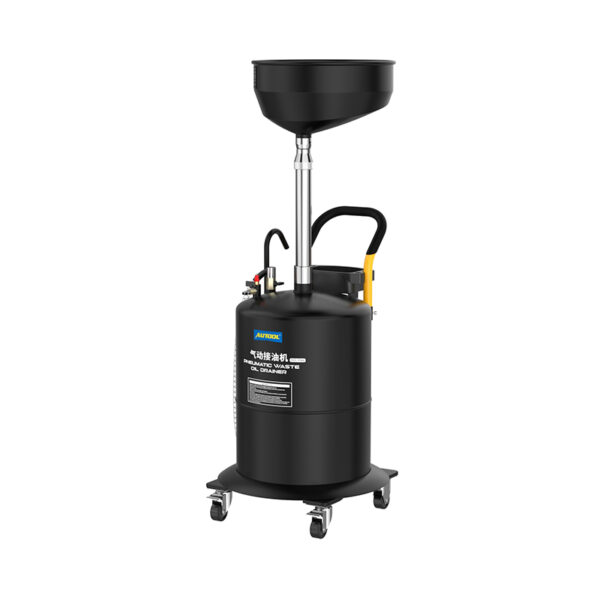

OD710 FocusBasic 70L pneumatic waste oil drainer with large oil pan, adjustable height, thickened tank construction, oil level sight window, and 360° swivel casters. It does not include vacuum extraction, measuring cup, or evacuation wands.

OD720 FocusBalanced pneumatic oil drainer and extractor with 70L tank, 20L oil catch pan, 10L tempered measuring cup, rapid vacuum extraction, 5 evacuation wands, 6-8bar air supply, 150L/min air consumption, and 0-65cmHg vacuum level.

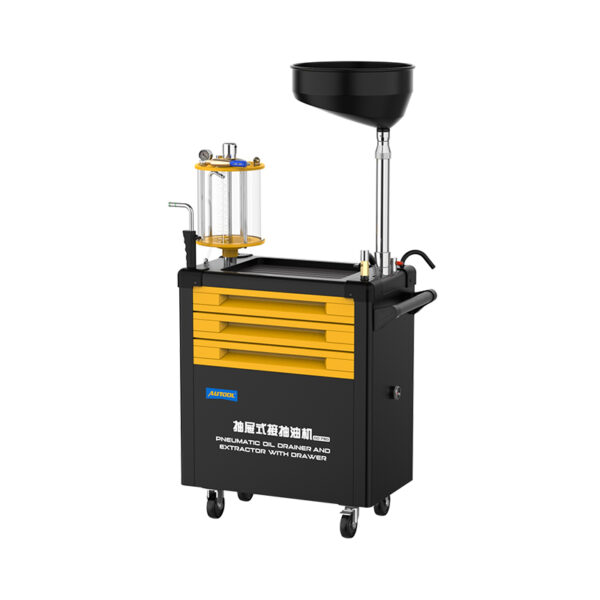

OD760 FocusHigher-end oil drainer and extractor with drawer structure, 80L tank, 10L measuring cup, rapid vacuum extraction, 5 evacuation wands, and toolbox-style workshop storage.

Lift RequirementThe comparison chart lists OD710 as requiring lifting equipment, while OD720 and OD760 are marked as not requiring lifting equipment for suitable vacuum extraction work. Oil pan recovery still requires safe vehicle lifting and pan alignment.

Decision CheckChoose by tank capacity, vacuum extraction need, measuring cup requirement, toolbox storage, air supply, evacuation wand support, and available workshop space.

AUTOOL OD710 OD720 OD760 automotive oil drain and extractor comparison chart

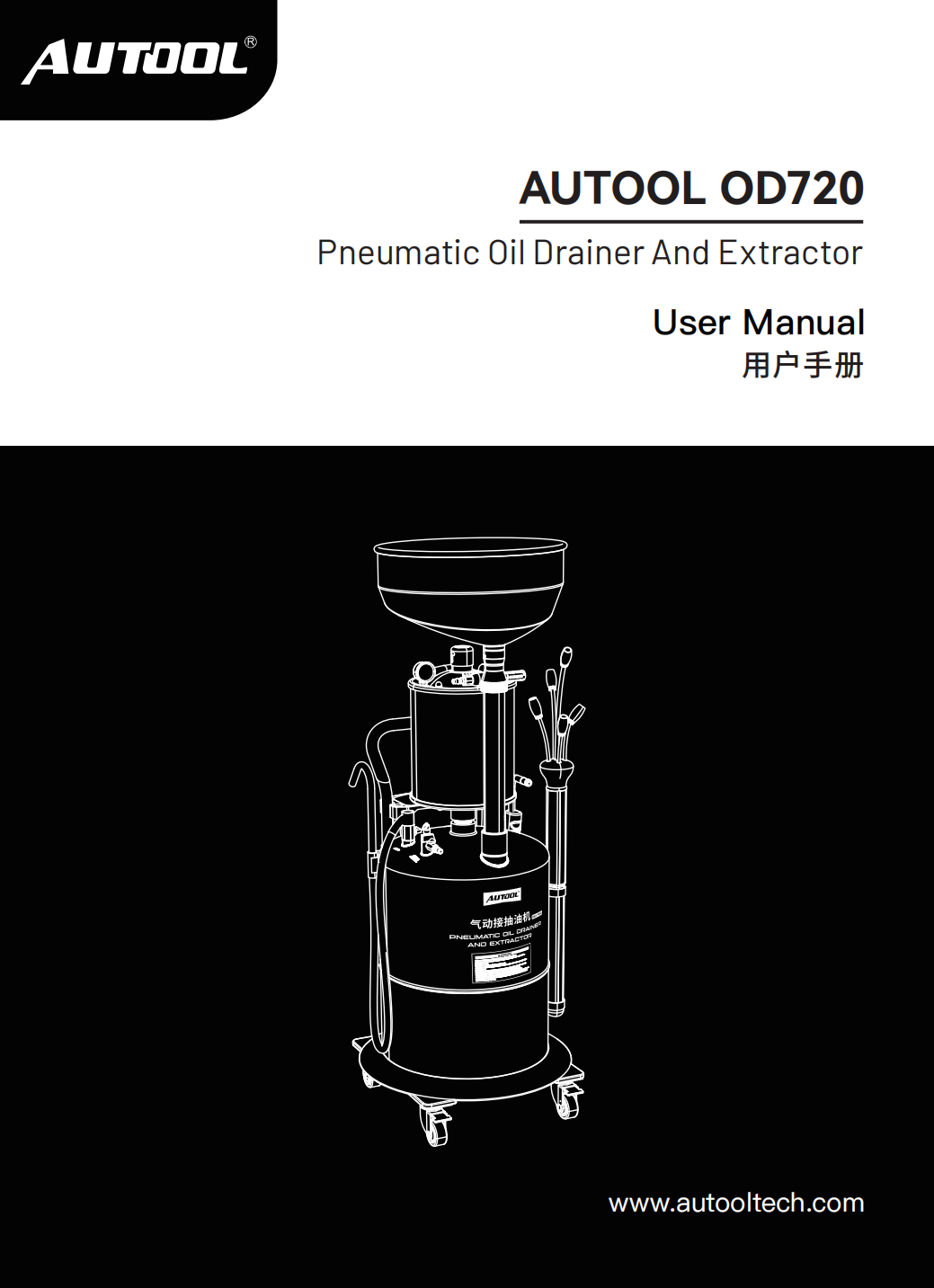

AUTOOL OD720 User Manual

Open the official OD720 PDF manual for setup, operation, maintenance, and safe-use instructions.

Download Manual

Need Setup Confirmation?

Contact AUTOOL Store before ordering if you need to confirm air pressure, prohibited liquids, waste oil temperature, OD710 / OD720 / OD760 selection, package contents, accessories, or operation steps.

Emailsupport@autoolstore.com WhatsApp+86 189 2647 7404

Questions And Answers

These answers cover air pressure, safe fluids, working oil temperature, no-lift use conditions, OD series model selection, measuring cup drainage, storage tank discharge, package contents, and warranty.

What Air Supply Pressure Does OD720 Need?

Can OD720 Be Used Without Lifting Equipment?

Can OD720 Extract Brake Oil, Gasoline, Or Diesel?

What Is The Working Oil Temperature Range?

What Is The Difference Between OD710, OD720, And OD760?

When Should I Drain The Measuring Cup?

How Do I Discharge Waste Oil From The Storage Tank?

What Happens If Tank Pressure Exceeds 1.0bar?

What Accessories Are Included?

How Long Is The Warranty?

How Should I Maintain OD720 After Use?

Warranty And Contact

For OD720 setup, air pressure confirmation, prohibited liquid checks, OD series model selection, operation guidance, package contents, accessories, tank discharge troubleshooting, or warranty support, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming whether OD720 is suitable for your workshop, whether OD710 / OD720 / OD760 is the better option, or how to safely use measuring cup extraction, oil catch pan recovery, and storage tank discharge.

OD710 / OD720 / OD760 model selection
6-8bar air supply and 0-65cmHg vacuum level confirmation
Allowed and prohibited liquids confirmation
40-60°C waste oil temperature and burn-risk reminders
Packing List and accessory confirmation
Measuring cup extraction, cup draining, oil pan recovery, and tank discharge guidance
Maintenance, replacement parts, and warranty support

Email Supportsupport@autoolstore.com WhatsApp Support+86 189 2647 7404
