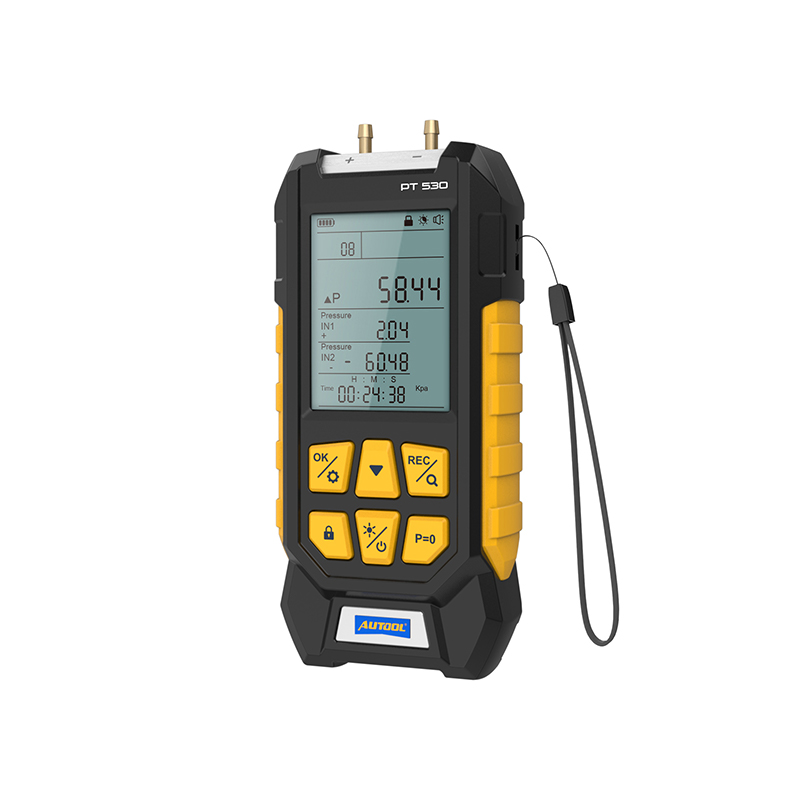

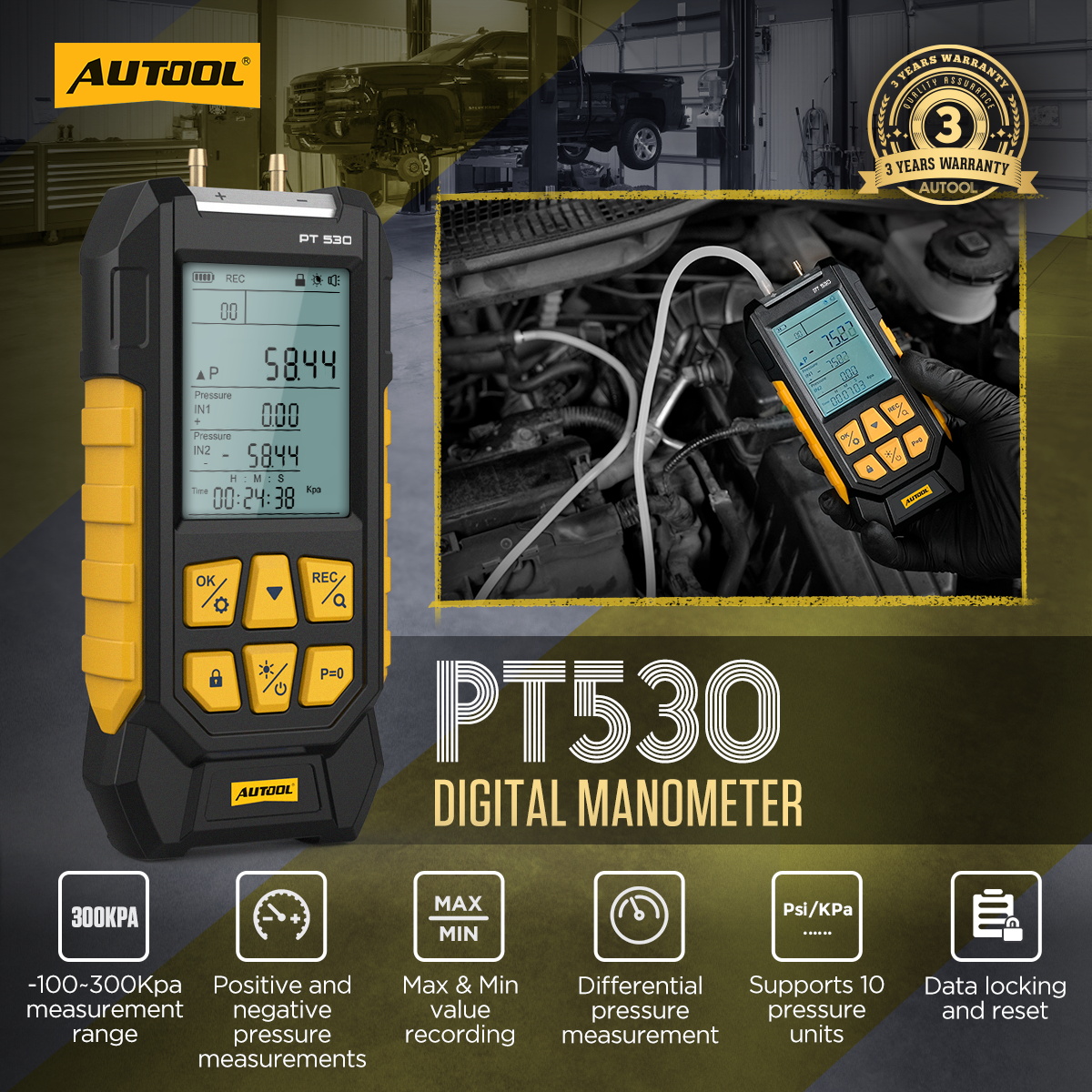

AUTOOL PT530 is a dual-port digital manometer for automotive pressure and vacuum testing. It is suitable for brake booster pressure checking, crankcase negative pressure checking, exhaust valve negative pressure checking, intake manifold vacuum testing, and differential pressure measurement. With a -100~300kPa range, ±0.25%FS accuracy, magnetic back plate, flashlight, backlit buttons, and 29 sets of data storage, it is built for workshop diagnostics and on-site pressure recording.
Dual-Port Testing-100~300kPa29 Data SetsMagnetic Back
±0.25%FSAccuracy
10 UnitsSwitchable
4×AAAPower Supply
3 YearsWarranty
Click to enlargeClick to enlarge

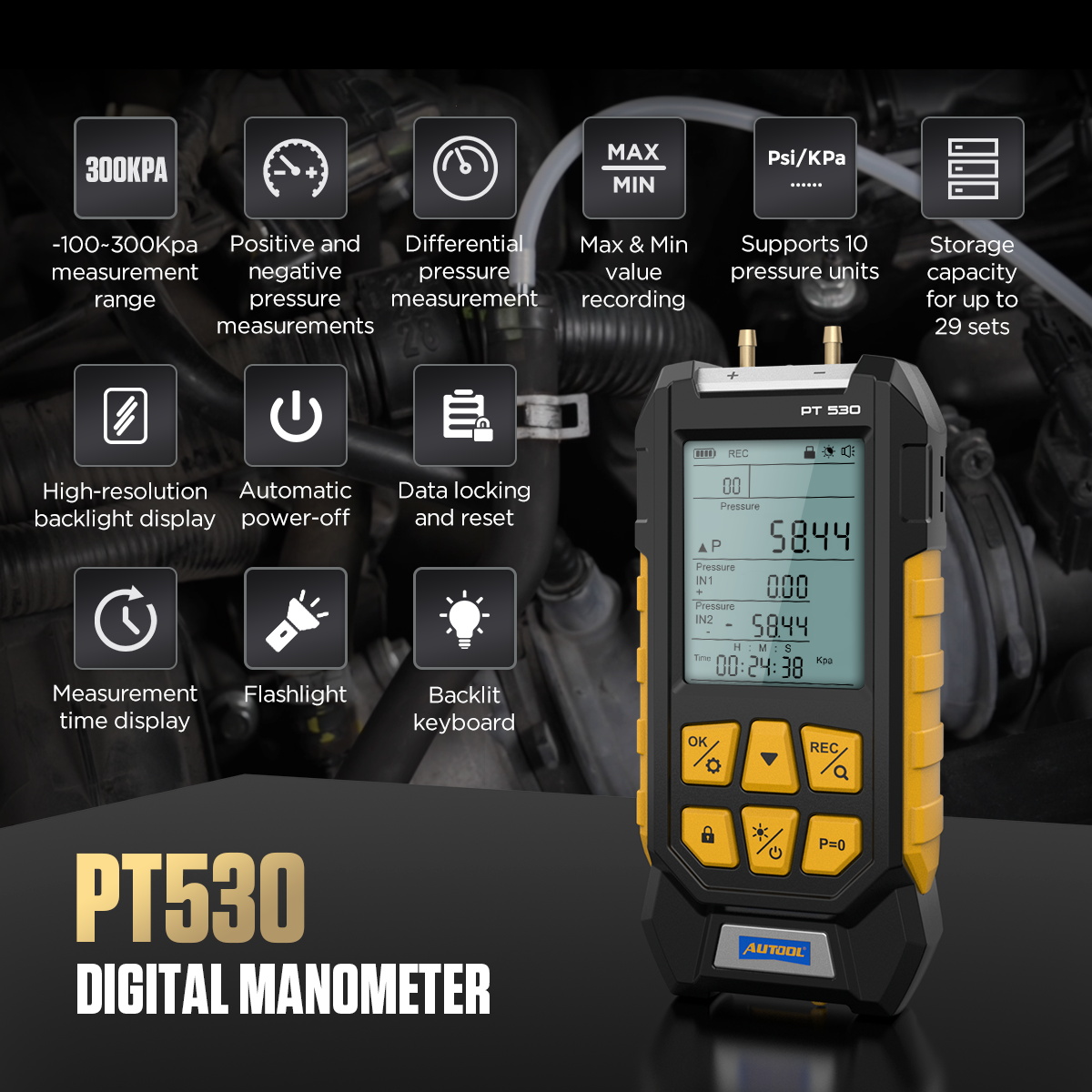

Key Features
Key Features
PT530 combines dual-port pressure testing, high accuracy, multi-unit switching, data storage, low-light operation, magnetic mounting, and drop-resistant casing for automotive and workshop pressure diagnosis.
Dual-Port Differential Pressure Test
Simultaneously measure IN1, IN2, and differential pressure for faster comparison during pressure and vacuum diagnosis.
Wide Measurement Range
Supports -100~300kPa / -1000~3000hPa pressure range for both low-pressure and higher-pressure diagnostic environments.

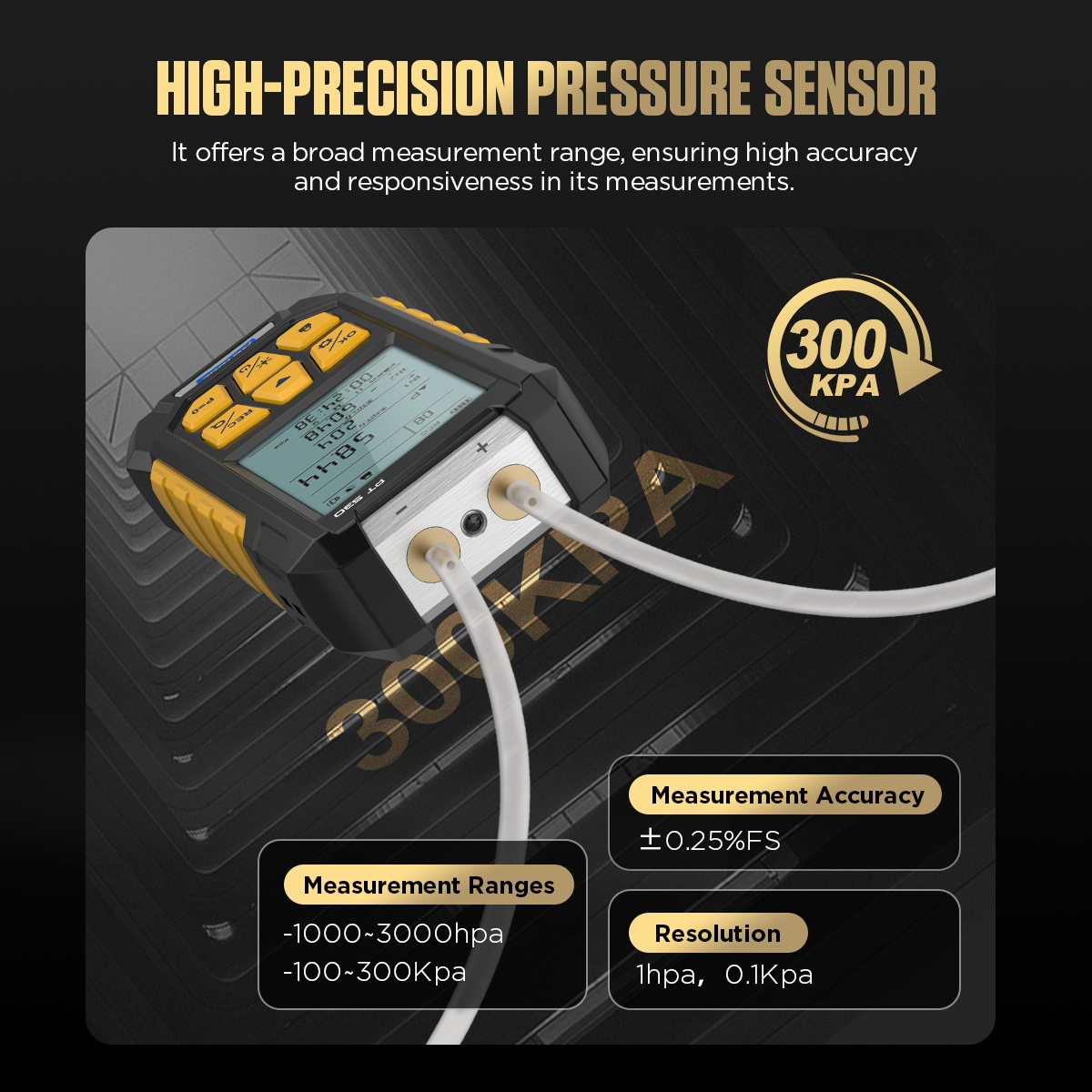

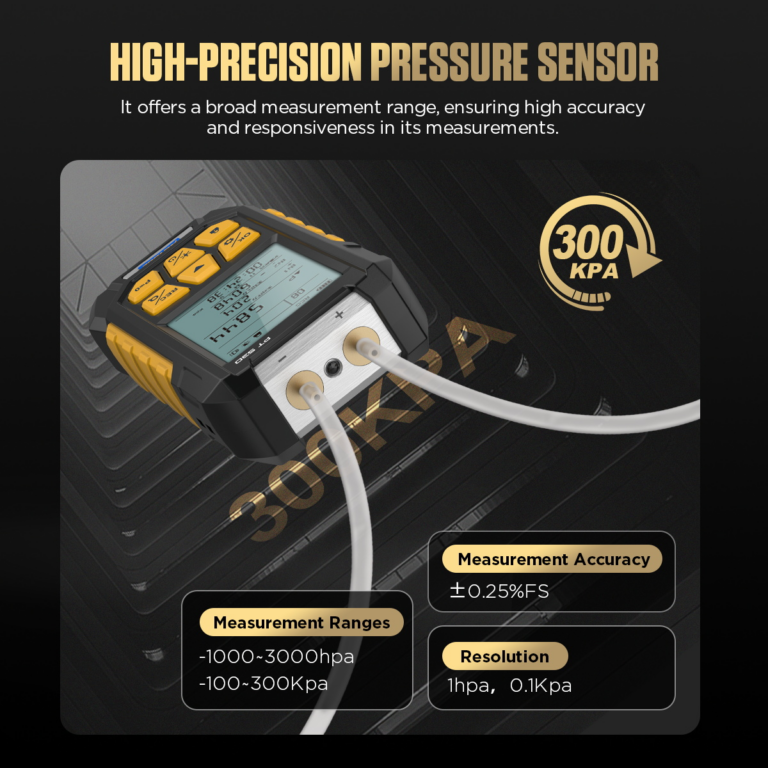

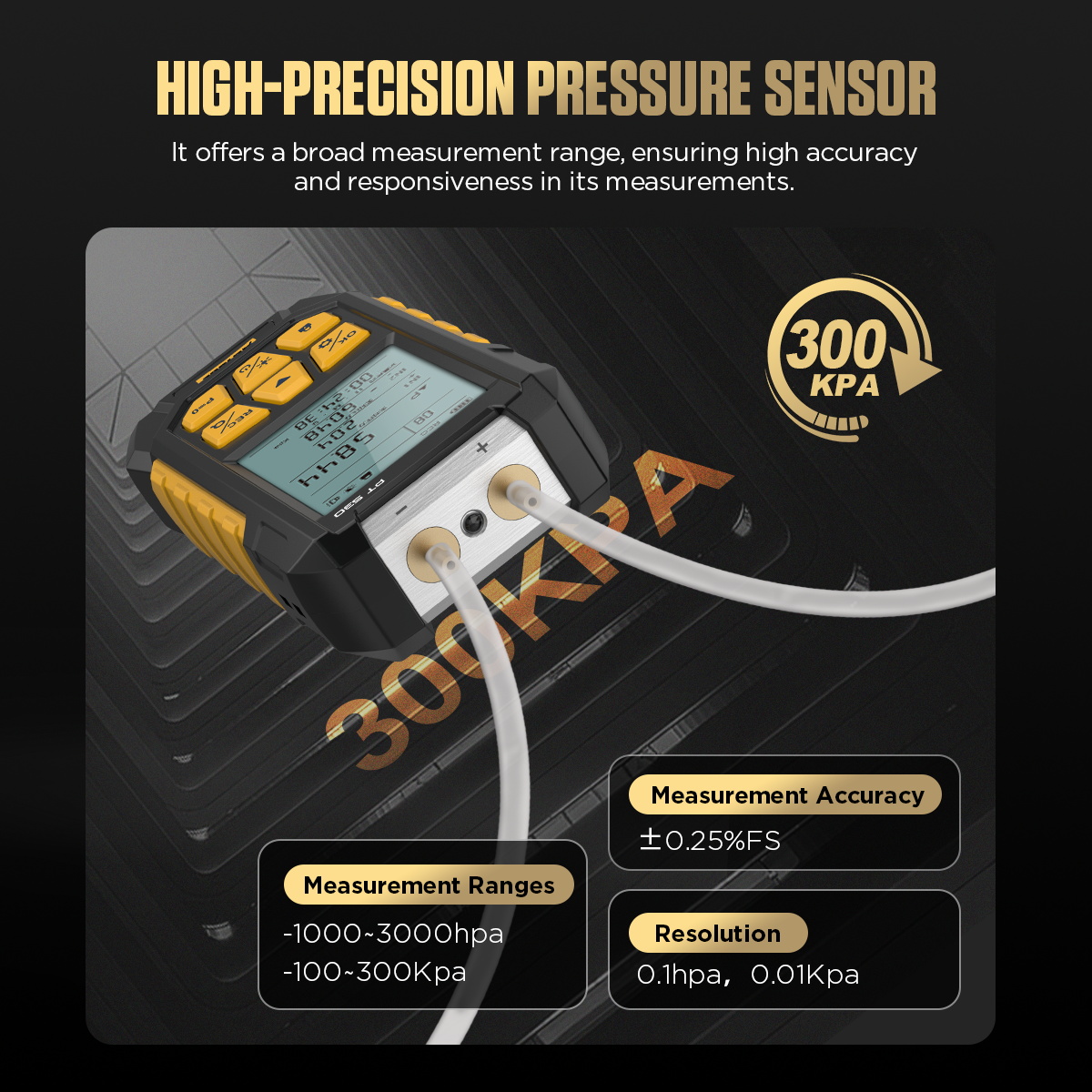

High Accuracy Sensor
±0.25%FS accuracy with temperature compensation helps provide more stable results, even in cold regions.
10 Pressure Units
Switch between kPa, hPa, Torr, mbar, inHg, mmHg, inH₂O, mmH₂O, psi, and kg/cm². Pa display is no longer supported.

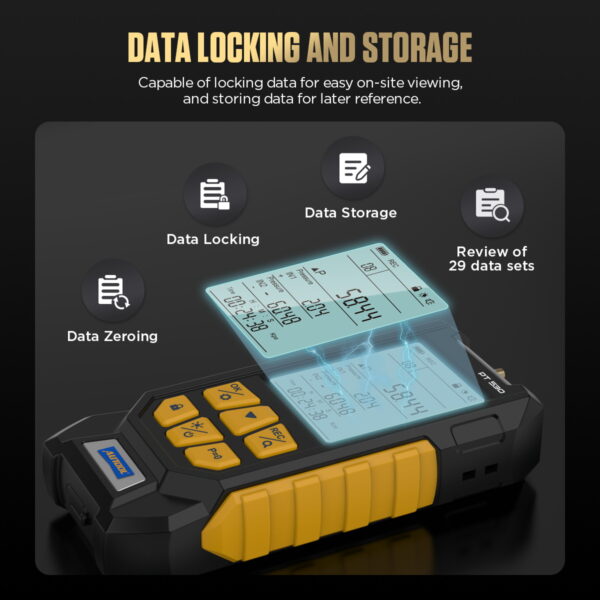

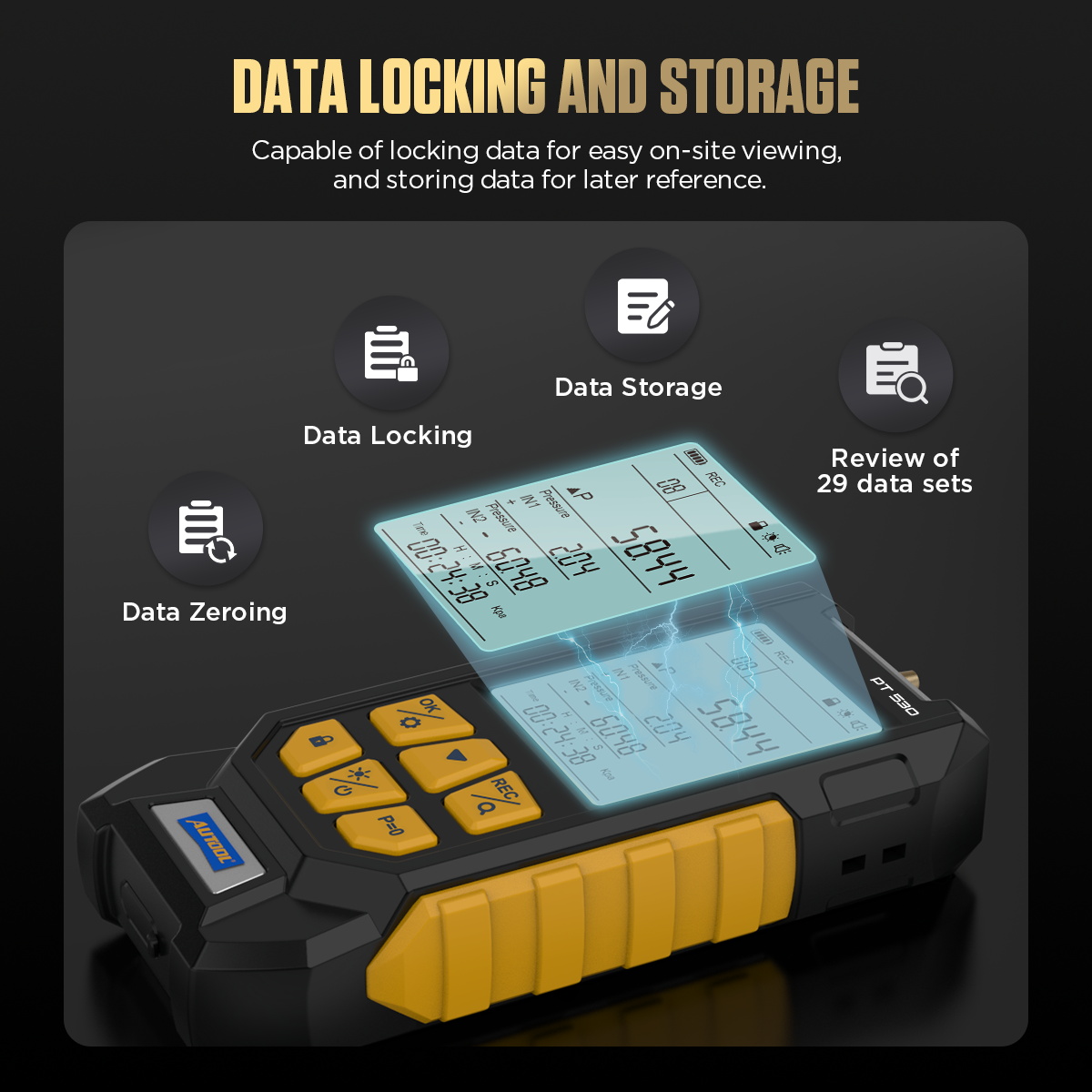

Data Locking And Storage
Lock current readings, perform zeroing, store records, and review up to 29 data sets for on-site checks and later recording.

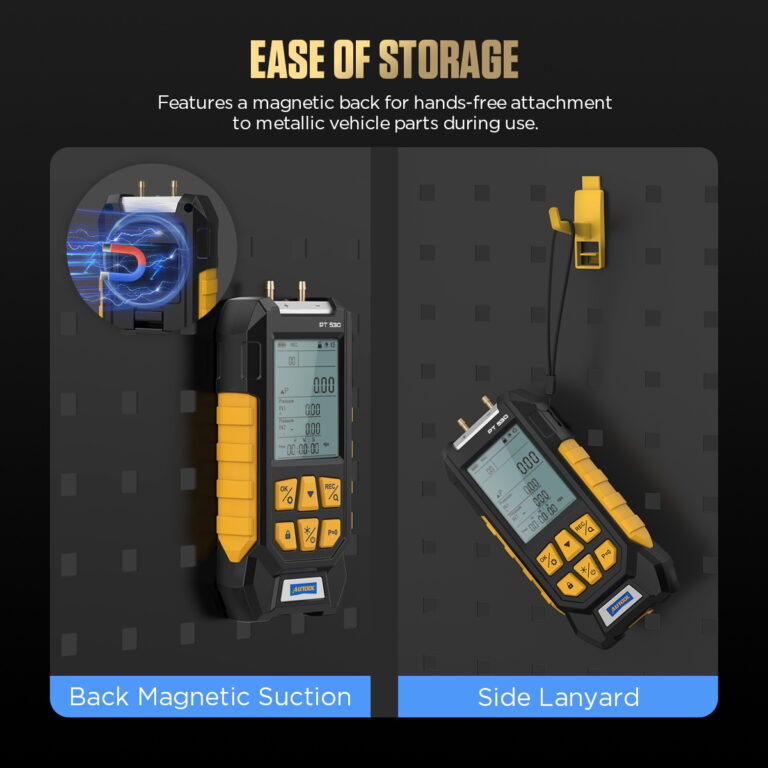

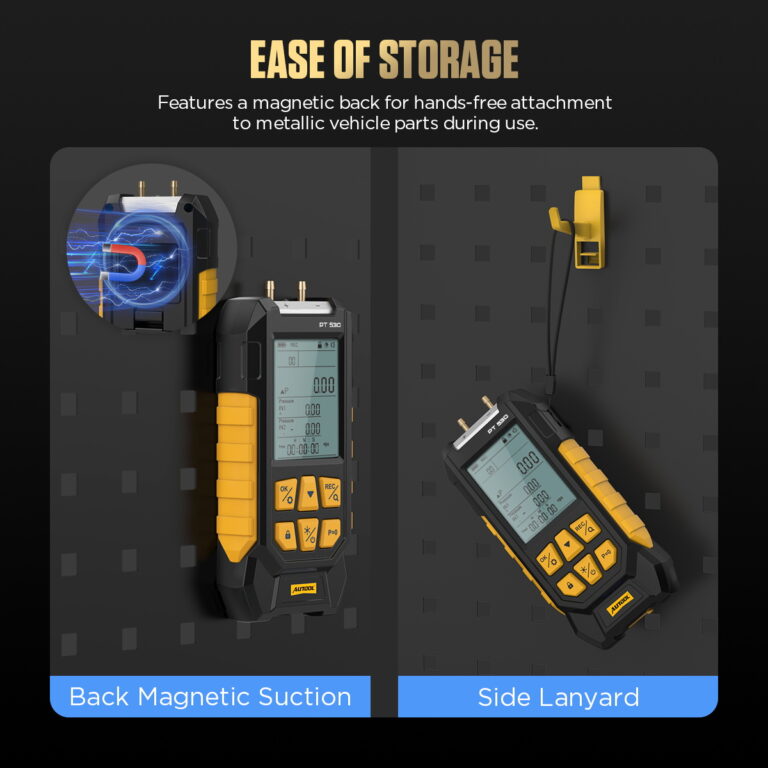

Magnetic Back Plate
The magnetic backing easily attaches to metallic vehicle components, supporting hands-free measurement during workshop work.

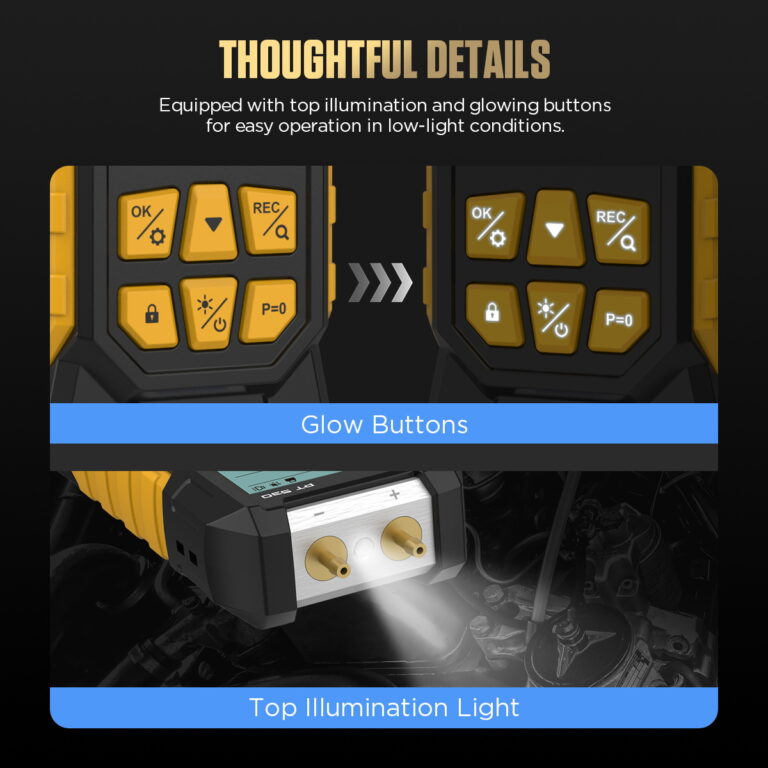

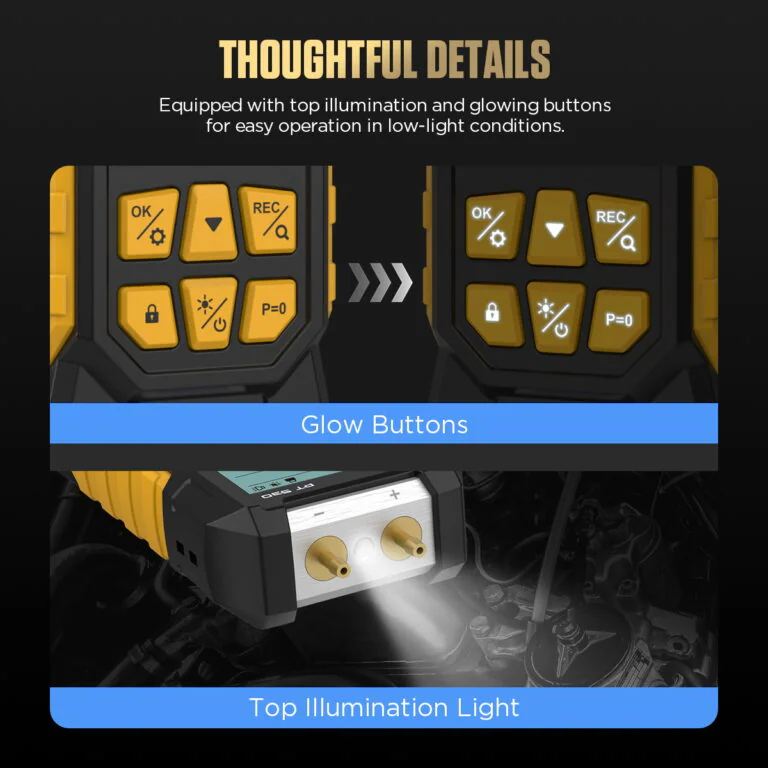

Backlight And Flashlight
Backlit screen, illuminated buttons, and built-in flashlight help users read and operate the meter in dark environments.
Drop-Resistant Casing
Lead elements are added to the casing to improve impact resistance and help protect the machine if accidentally dropped.
Click to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlarge

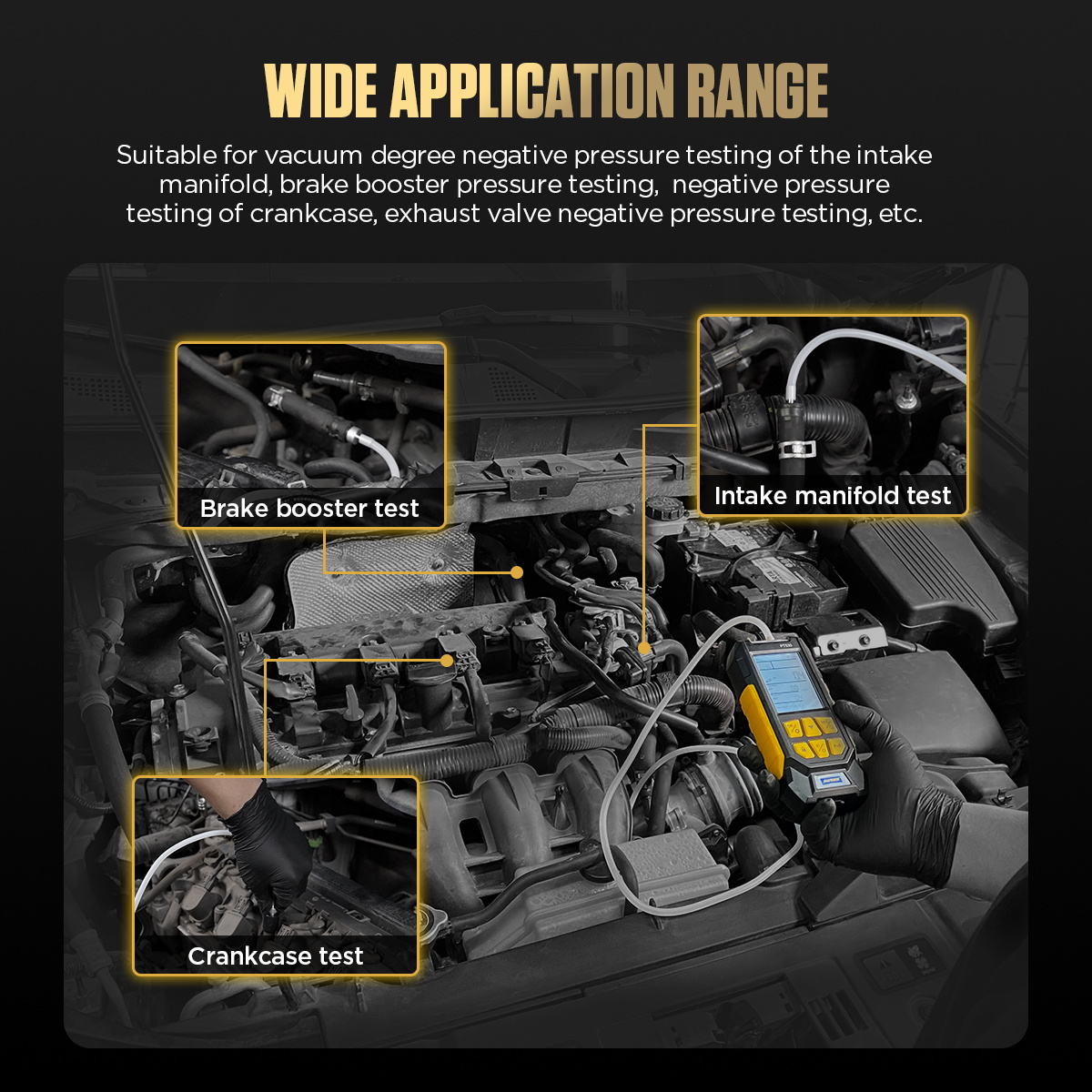

Applications
Applications
PT530 supports pressure testing and vacuum testing in intake pipes, brake boosters, crankcases, exhaust valves, and multiple non-corrosive pressure-measurement scenarios.
Brake Booster Pressure Checking
Measure pressure or vacuum conditions in the brake booster system.
Crankcase Negative Pressure Checking
Support crankcase pressure or negative pressure checks during engine diagnosis.
Exhaust Valve Negative Pressure Checking
Assist exhaust valve-related negative pressure checks and pressure comparison.
Intake Manifold Vacuum Testing
Check intake manifold vacuum and related pressure conditions.

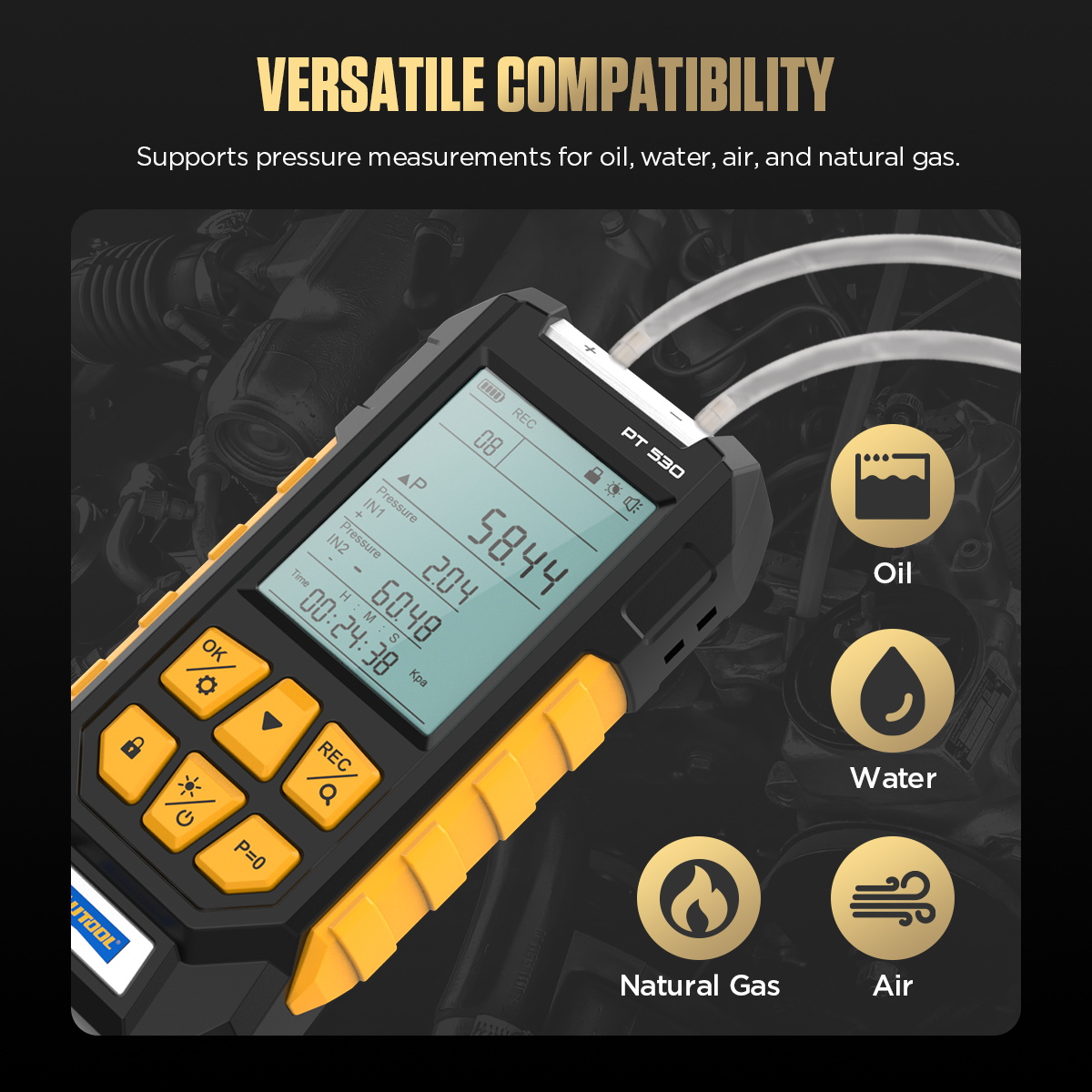

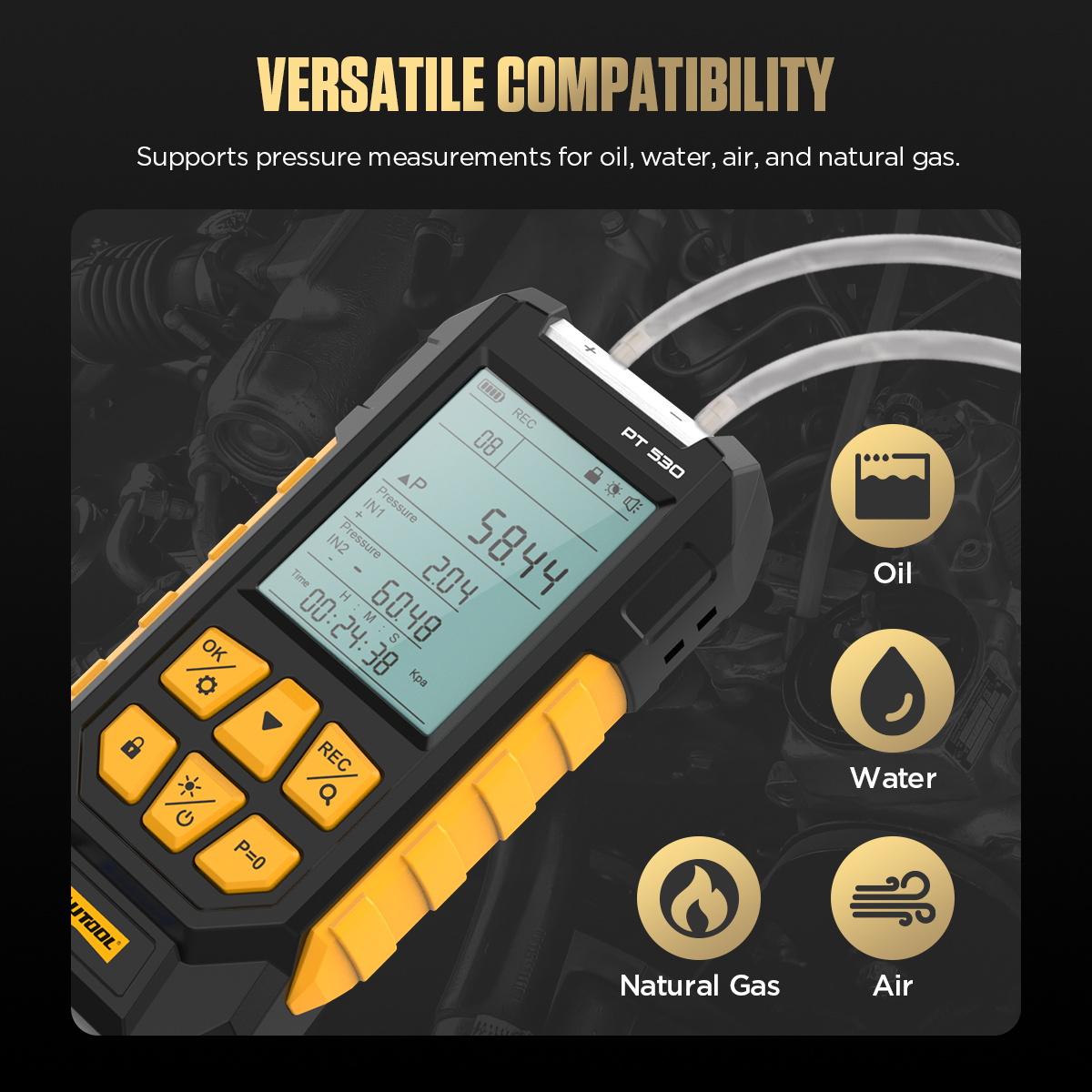

Oil / Water / Air / Natural Gas
Suitable for non-corrosive oil, water, air, and natural gas pressure measurement.
Click to enlargeClick to enlarge

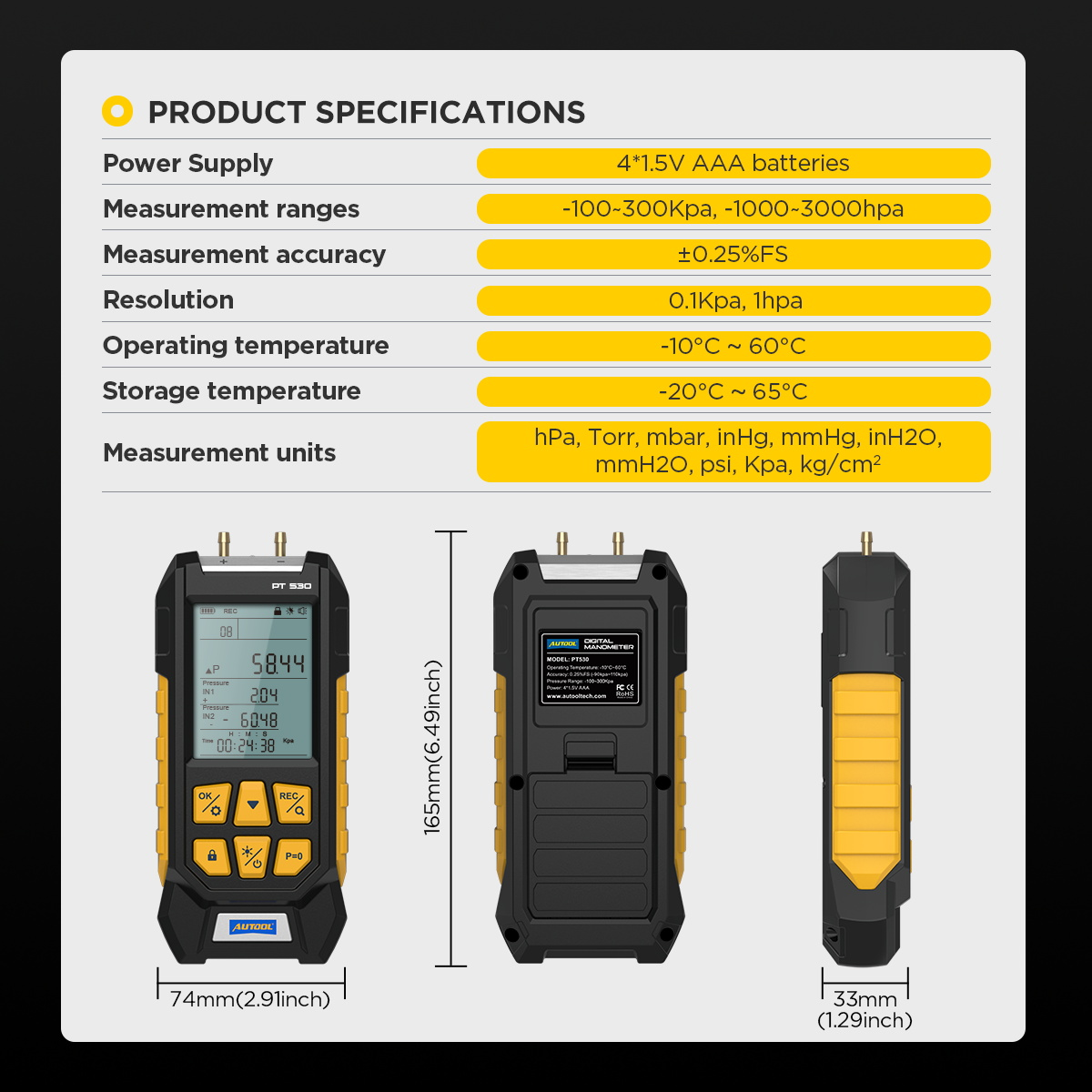

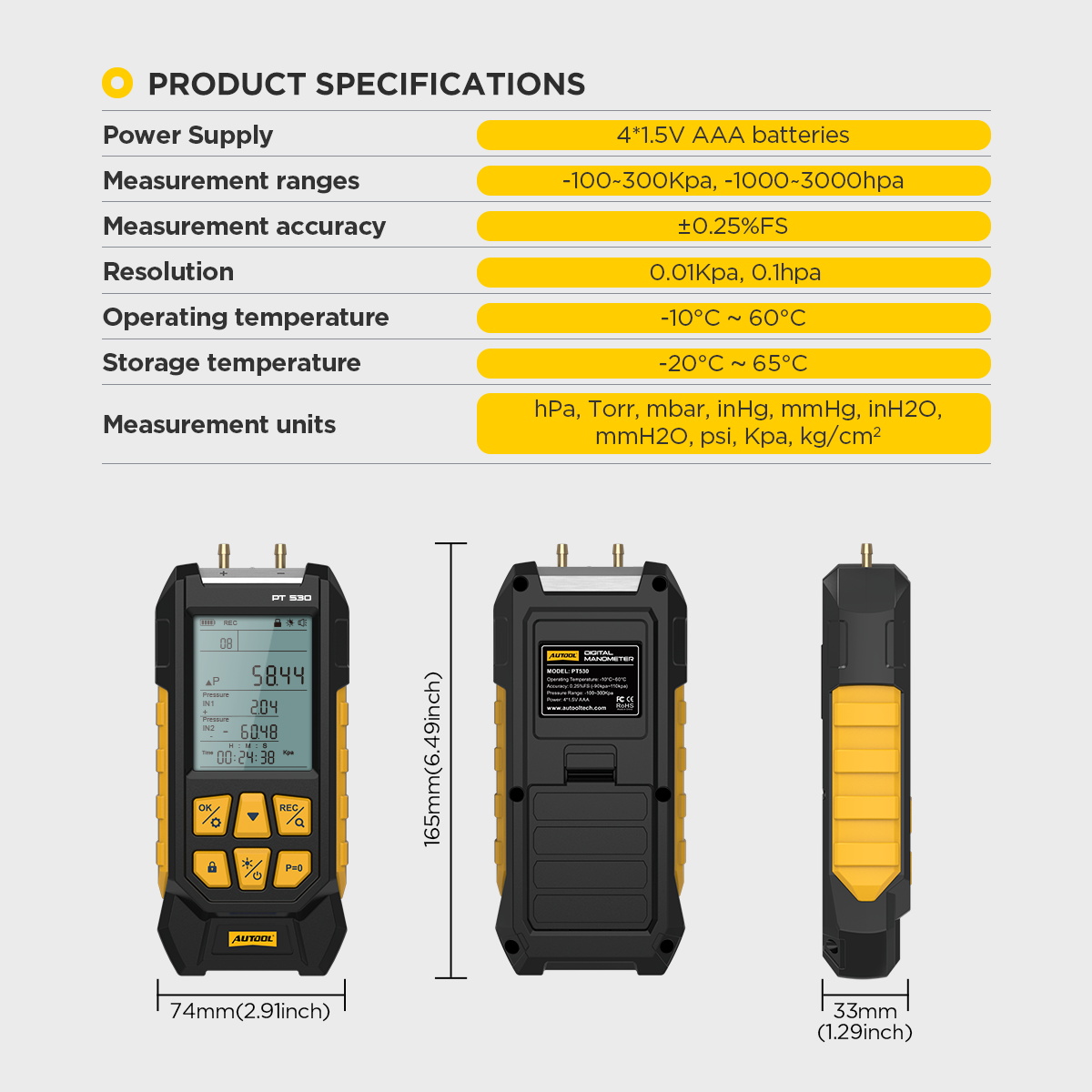

Specifications
Specifications
Review the PT530 measurement range, units, power supply, structure, operating temperature, and support details before ordering.
Measurement
Product
AUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
Measurement Range
-100~300kPa / -1000~3000hPa
Measurement Accuracy
±0.25%FS
Resolution
0.1kPa / 1hPa
Dual Port
IN1 / IN2 / Differential pressure
Data Storage
Stores and reviews up to 29 data sets

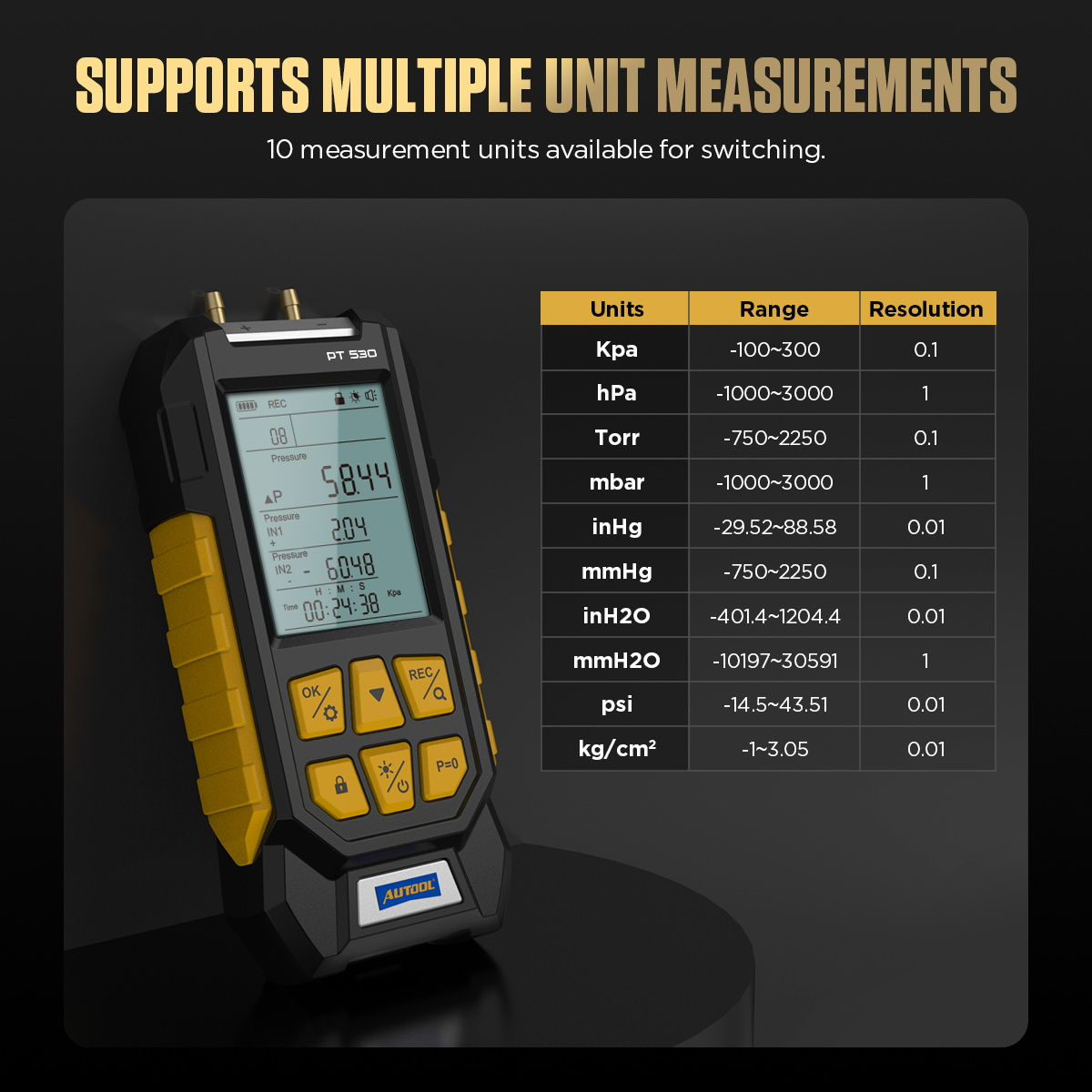

Pressure Units
kPa
-100~300, resolution 0.1
hPa
-1000~3000, resolution 1
Torr
-750~2250, resolution 0.1
mbar
-1000~3000, resolution 1
inHg
-29.52~88.58, resolution 0.01
mmHg
-750~2250, resolution 0.1
inH₂O
-401.4~1204.4, resolution 0.01
mmH₂O
-10197~30591, resolution 1
psi
-14.5~43.51, resolution 0.01
kg/cm²
-1~3.05, resolution 0.01
Power And Structure
Power Supply
4×1.5V AAA batteries
Interface
Type-C interface
Product Size
165×74×33mm / 6.49×2.91×1.29in
Magnetic Back
Yes
Flashlight
Yes
Button Light
Yes
Backlit Display
Yes
Operating Temperature
-10°C~60°C
Storage Temperature
-20°C~65°C
Support
Manual
PT530 Manual PDF available for download
Warranty
3-year warranty and lifetime maintenance support
Important Unit Note
Pa unit display is no longer supported in the current version
Click to enlargeClick to enlarge
Measurement
ProductAUTOOL PT530 Digital Manometer Dual Port Pressure Gauge
Measurement Range-100~300kPa / -1000~3000hPa
Measurement Accuracy±0.25%FS
Resolution0.1kPa / 1hPa
Dual PortIN1 / IN2 / Differential pressure
Data StorageStores and reviews up to 29 data sets
Pressure Units
kPa-100~300, resolution 0.1
hPa-1000~3000, resolution 1
Torr-750~2250, resolution 0.1
mbar-1000~3000, resolution 1
inHg-29.52~88.58, resolution 0.01
mmHg-750~2250, resolution 0.1
inH₂O-401.4~1204.4, resolution 0.01
mmH₂O-10197~30591, resolution 1
psi-14.5~43.51, resolution 0.01
kg/cm²-1~3.05, resolution 0.01
Power And Structure
Power Supply4×1.5V AAA batteries
InterfaceType-C interface
Product Size165×74×33mm / 6.49×2.91×1.29in
Magnetic BackYes
FlashlightYes
Button LightYes
Backlit DisplayYes
Operating Temperature-10°C~60°C
Storage Temperature-20°C~65°C
Support
ManualPT530 Manual PDF available for download
Warranty3-year warranty and lifetime maintenance support
Important Unit NotePa unit display is no longer supported in the current version
Reference Values
Reference Values
Click to enlarge
Product Comparison
Product Comparison
Compare PT503, PT520, and PT530 before choosing the right pressure tester for range, accuracy, screen size, data storage, magnetic mounting, lighting, and workshop accessory needs.
PT503 FocusCompact 1.8-inch model with -100~200kPa range, ±0.5%FS accuracy, 7 connector types, and basic data lock
PT520 Focus2.8-inch model with -100~200kPa range, ±0.3%FS accuracy, 29 data sets, flashlight, and dual-channel testing
PT530 FocusHigher-accuracy 2.8-inch model with -100~300kPa range, ±0.25%FS accuracy, magnetic back, button light, flashlight, toolbox, and 29 data sets
Decision CheckChoose PT530 if you need wider pressure range, higher accuracy, magnetic mounting, better low-light operation, data storage, and workshop-ready accessories
Click to enlarge
Manual And Downloads
Manual And Downloads

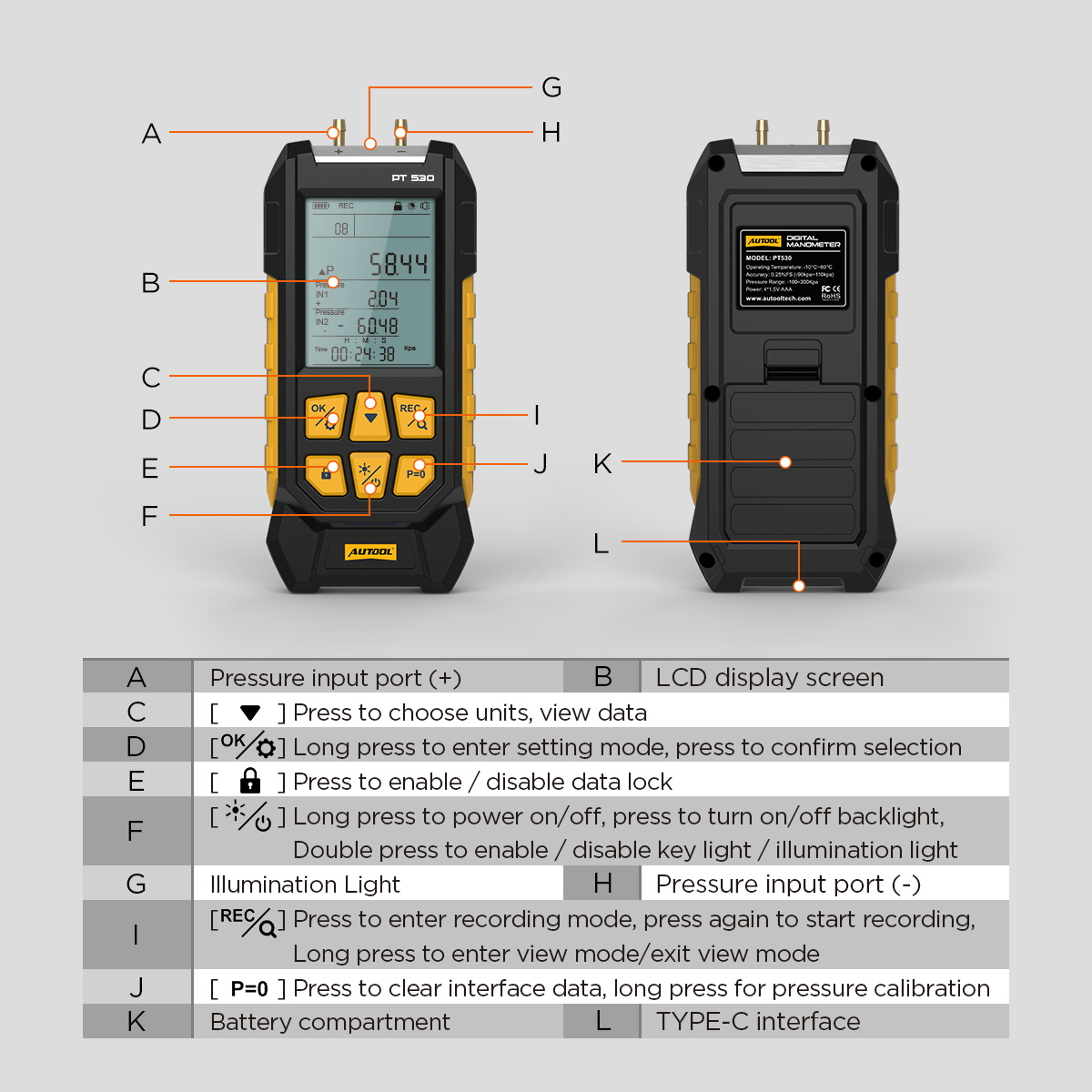

Download the PT530 manual for button functions, unit switching, zeroing, recording, data review, pressure calibration, and safe measurement guidance.
Click to enlarge

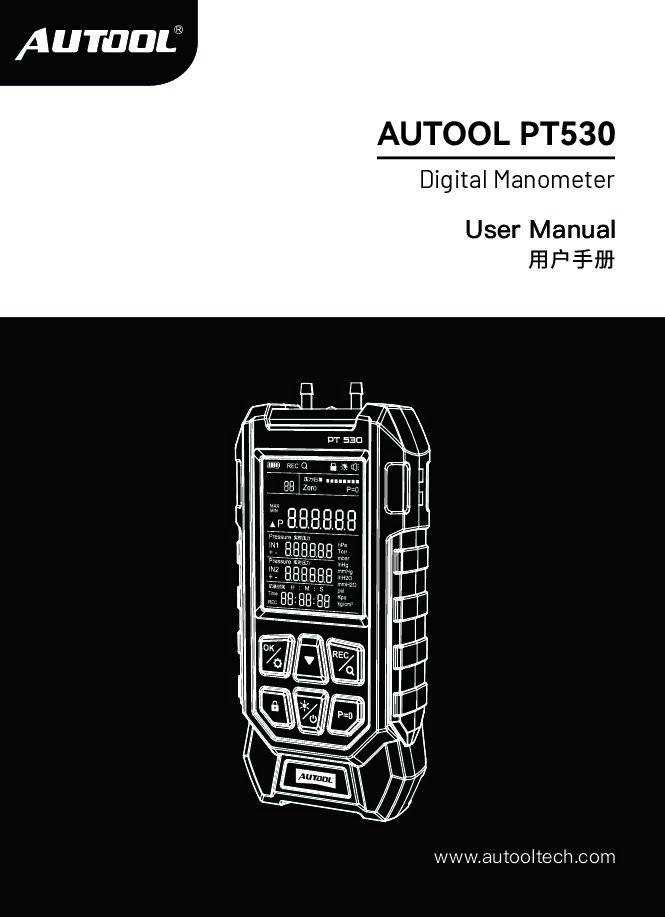

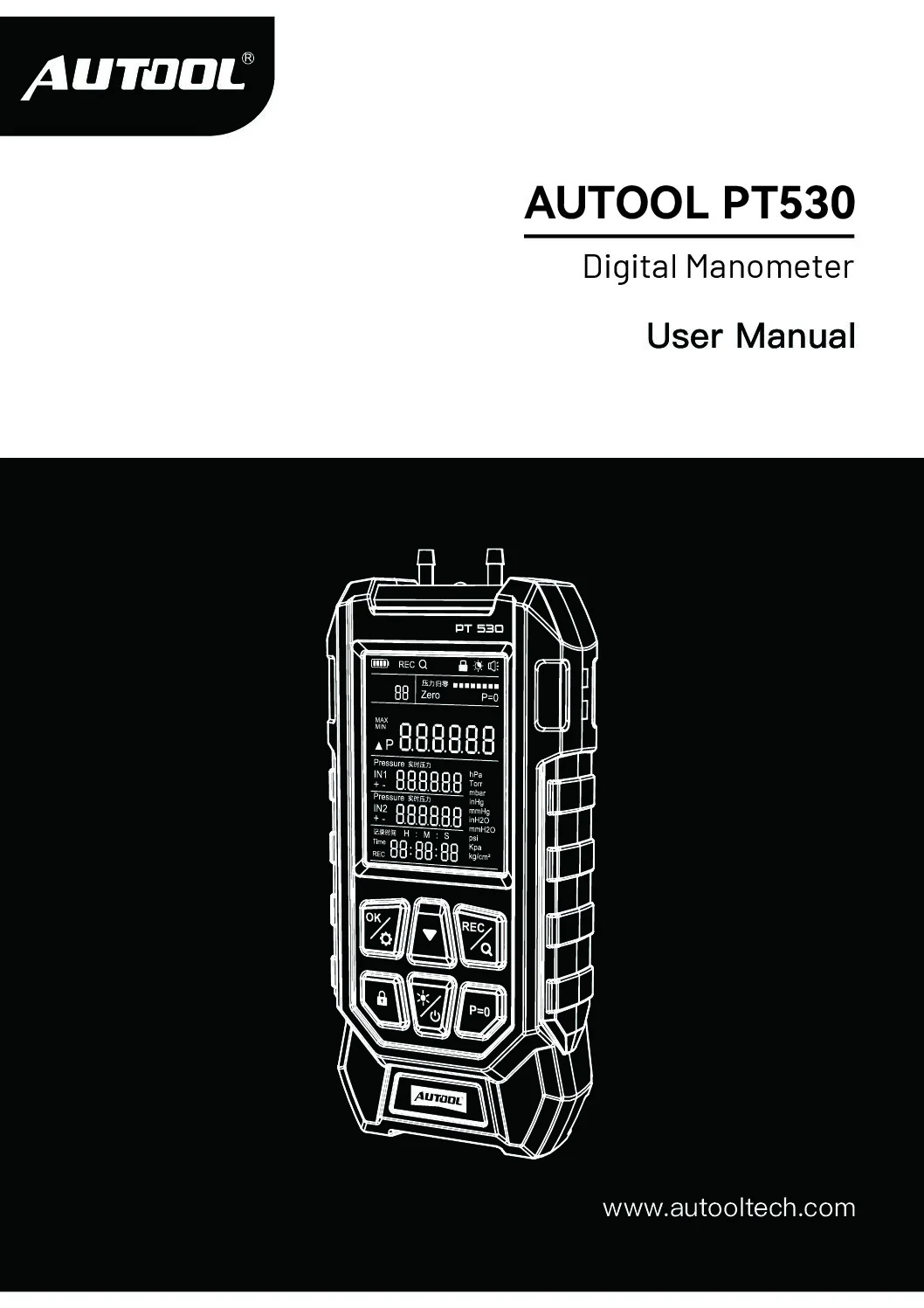

AUTOOL PT530 Manual PDF
Use the manual to confirm measurement modes, dual-port operation, data storage, unit switching, zeroing, and calibration instructions before use.
Contact AUTOOL Store before ordering if you need to confirm Pa unit support, pressure range, connector selection, data storage, calibration, or product compatibility.
Compare AUTOOL differential pressure gauges and automotive pressure tester tools before choosing the right diagnostic tester for brake, cylinder, oil, fuel, GDI, ATF, and transmission pressure work.
Select options
This product has multiple variants. The options may be chosen on the product page
Select options
This product has multiple variants. The options may be chosen on the product page
Click to enlarge

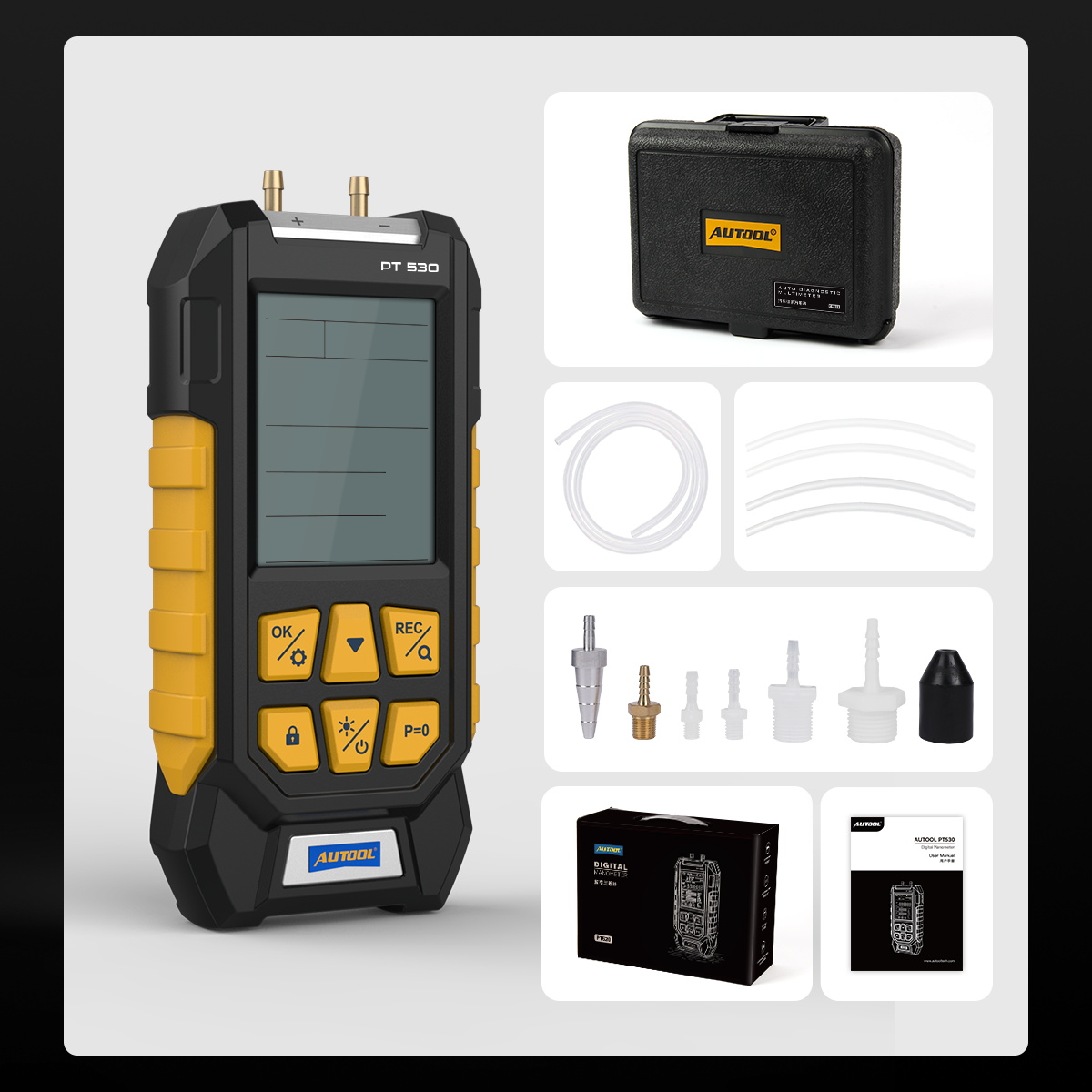

What Is In The Box
What Is In The Box

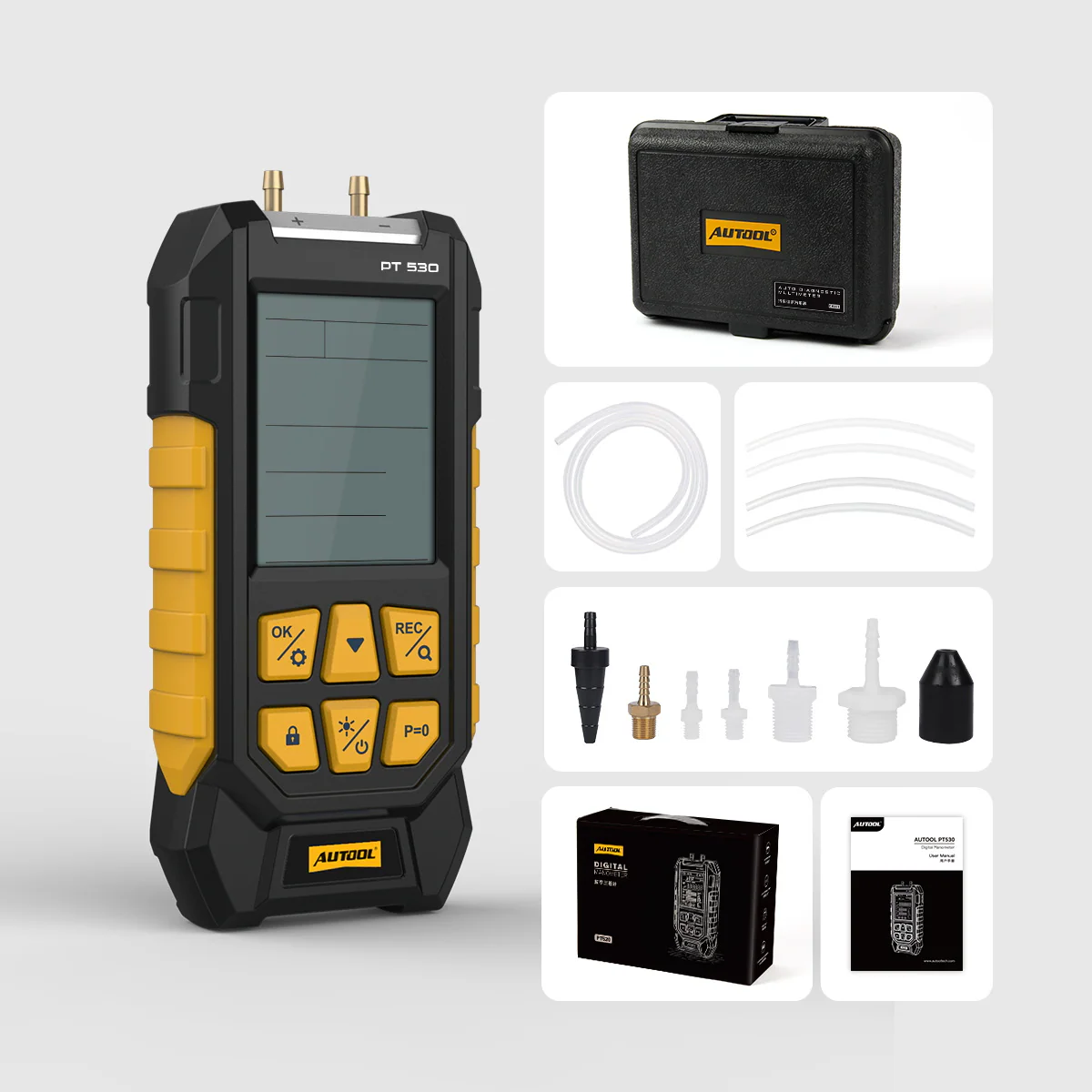

The packing list image shows the PT530 main unit, protective carrying toolbox, hoses, adapters, product box, and user manual. This is the most complete package image for PT530 and is kept as the only Packing List image.
Main UnitAUTOOL PT530 digital manometer
StorageCarrying case / toolbox
HosesTransparent pressure testing hoses

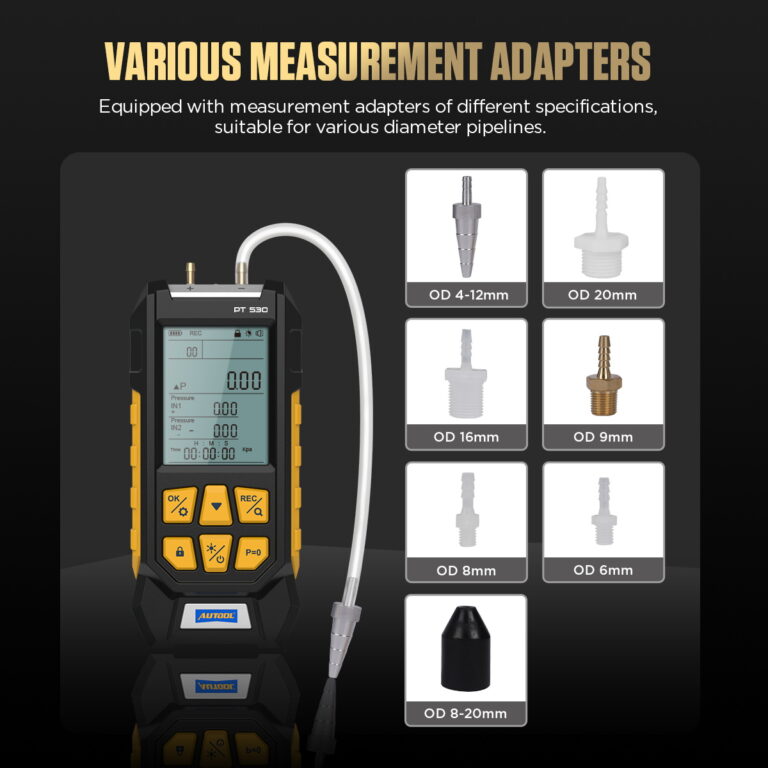

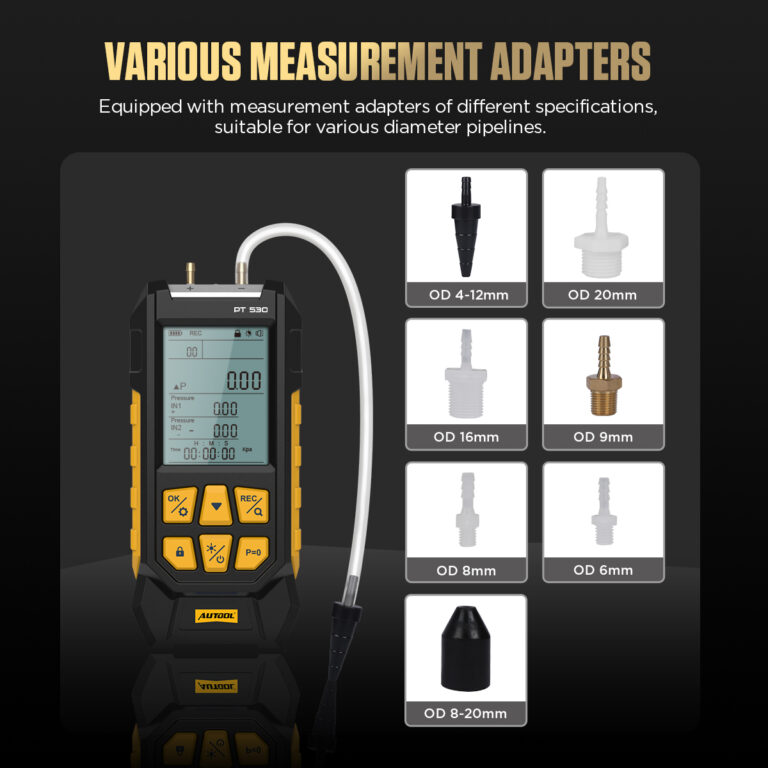

AdaptersMultiple connector adapters and rubber cone adapter shown in the package image
DocumentationUser manual
PackagingProduct box shown in the package image
Before You Order And Use
Before You Order And Use
Review unit support, pressure range, medium compatibility, battery requirement, zeroing, and manual guidance before using PT530.
Unit And Range Notes
Pa unit display is no longer supported in the current version.
PT530 supports 10 pressure units, but Pa is not included in the current version.
Confirm the pressure range before testing: -100~300kPa / -1000~3000hPa.
Do not use the device beyond the supported pressure range.
Measurement And Operation Notes
Use the correct connector and hose according to the tested pipe or pressure source.
The device is suitable for non-corrosive oil, water, air, and natural gas pressure measurements.
Before measurement, perform zeroing if the display does not return to zero.
Use the flashlight, backlight, and button light when testing in dark environments.
Install 4×1.5V AAA batteries before use.
Use the manual for pressure calibration, data recording, and unit switching instructions.
Questions And Answers
These answers cover Pa unit support, measurement range, accuracy, data storage, differential pressure testing, applications, power supply, and package contents.
No. Pa unit display is no longer supported in the current version. PT530 still supports 10 pressure units: kPa, hPa, Torr, mbar, inHg, mmHg, inH₂O, mmH₂O, psi, and kg/cm².
PT530 supports a measurement range of -100~300kPa and -1000~3000hPa.
PT530 has ±0.25%FS measurement accuracy. The added temperature compensation module helps maintain more stable readings in cold regions.
PT530 can store and review up to 29 data sets, making it useful for on-site viewing and post-event recording.
Yes. PT530 can measure the pressure of two ports and display the differential pressure between them.
PT530 is suitable for intake manifold vacuum testing, brake booster pressure checking, crankcase pressure checking, exhaust valve pressure checking, and pressure measurement of non-corrosive oil, water, air, and natural gas.
PT530 uses 4×1.5V AAA batteries.
The package image shows the PT530 main unit, carrying toolbox, transparent hoses, multiple adapters, rubber cone adapter, product box, and user manual. Please refer to the final product package and listing for the exact included accessories.
Warranty And Contact
Warranty And Contact
For PT530 setup, manual requests, pressure range confirmation, unit switching, Pa unit support, connector selection, zeroing, calibration, data storage, or differential pressure test support, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming PT530 pressure range, data storage, unit switching, hose and connector selection, calibration, zeroing, differential pressure testing, warranty, or package contents.
3-year warranty for eligible non-human damage cases
Lifetime maintenance support
Manual request and setup support
Pressure range / unit switching / Pa unit support confirmation
Connector and hose selection support
Calibration, zeroing, data storage, and differential pressure test support
