AUTOOL XC503 Export Mode car 3D Wheel Alignment Machine Equipment Wheel Aligner

(8 customer reviews)

US$4,499.00

Key Features
  • 3D Imaging
  • Printable Reports
  • Expert Mode
Key Features
☰ REQUEST BULK / B2B QUOTERequest B2B Quote
Secure checkoutFast supportBulk ready
AUTOOL XC503

Product Overview

AUTOOL XC503 is an export-mode 3D wheel alignment machine for workshops that need camera-based wheel alignment measurement, body-size measurement, voice and LED operation guidance, report review and printing, and a continuously updated vehicle database. It is designed for flexible workshop installation, but it still requires proper setup distance, stable power, suitable light conditions, and trained operation.

3D Camera Measurement 80,000+ Vehicle Database Voice & LED Guidance Report Review & Printing
19 inColor Monitor
1920×1080Resolution
0.01°Toe / Camber Precision
3 YearsWarranty Support

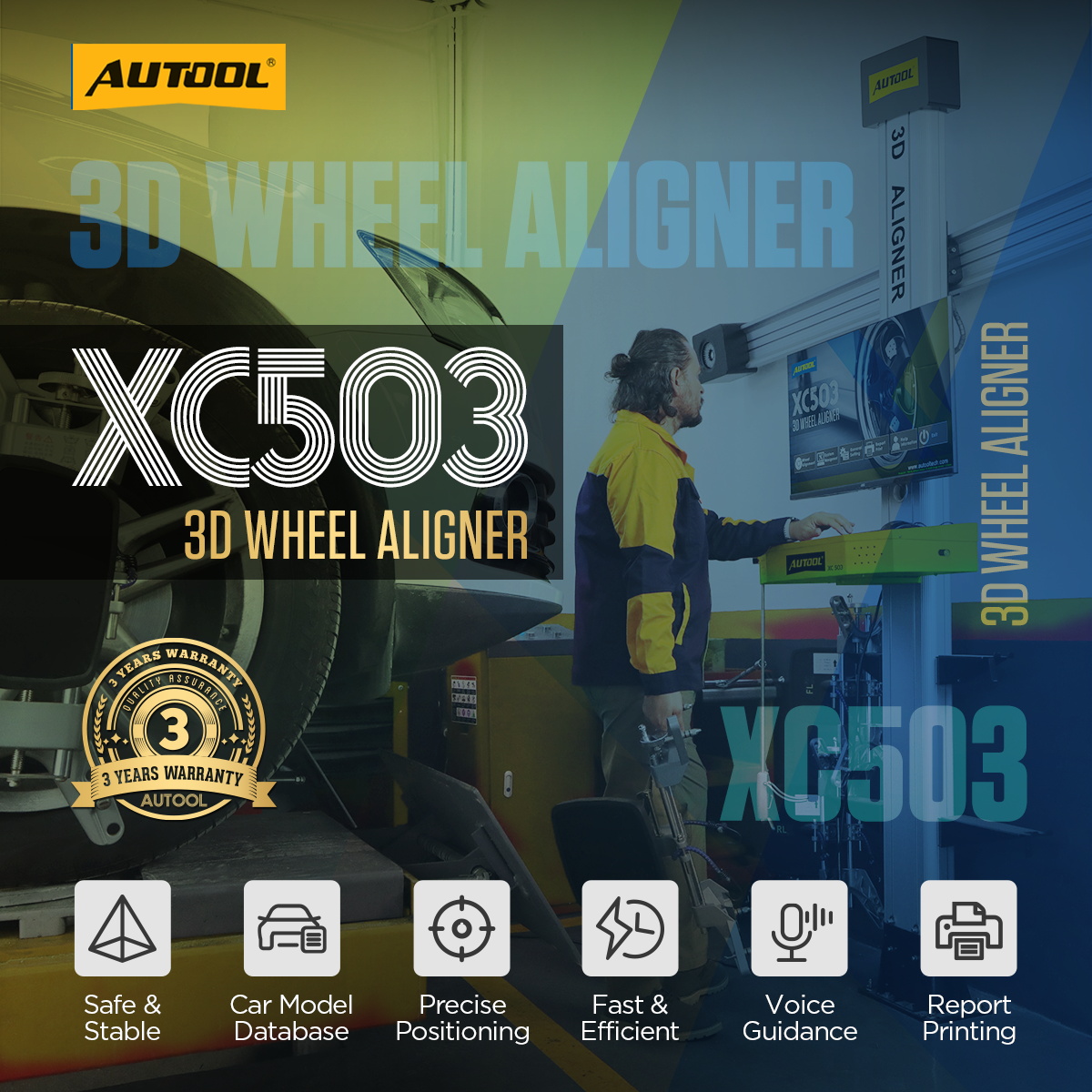

AUTOOL XC503 3D wheel aligner main product image with database precise positioning voice guidance and report printing highlights Click to enlarge

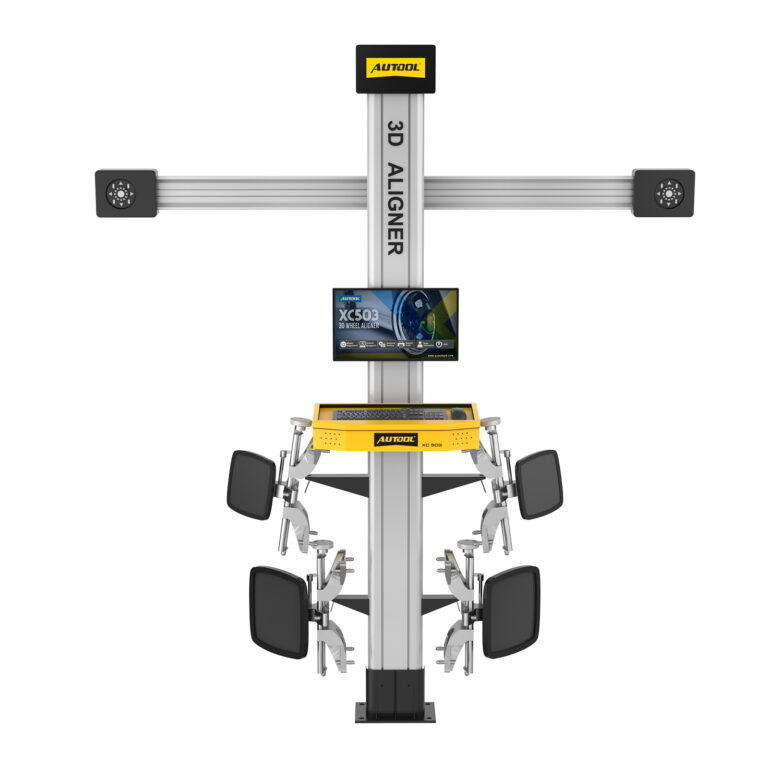

AUTOOL XC503 3D wheel alignment machine product structure on white background Click to enlarge
Applications

Applications

Modern vehicles require regular alignment service to reduce tire and suspension wear, improve driving safety, and create a repeatable service opportunity for repair shops, tire shops, and vehicle service centers.

For Tire Shops

A 3D wheel aligner helps tire shops complete alignment checks quickly and convert tire service into an additional recurring revenue stream.

For Repair Workshops

Suitable for local mechanics and automotive workshops that need repeatable alignment measurement, data review, and printed service reports.

For Vehicle Variety

The database and measurement workflow support common passenger cars, SUVs, off-road vehicles, and light trucks within the supported rim-size and setup conditions.

How To Choose

How To Choose

XC503, XC505, and XC508 share core 3D alignment functions, but their workstation structure and high-end convenience features are different. Do not treat XC508-only features as XC503 standard features.

Choose XC503

Choose XC503 if you need the core 3D camera alignment system, waterproof and drop-resistant targets, voice guidance, report review, database updates, and a fixed-column structure at a lower entry cost.

Choose XC505

Choose XC505 if you want the same main 3D measurement capability with a cabinet-style mobile workstation and drawer for a more integrated shop layout.

Choose XC508

Choose XC508 if you need higher-end convenience features such as built-in printer, smart elevator tracking system, dual 19-inch displays, drawer, and mobile workstation structure.

Product Comparison

Product Comparison

Compare the XC series before ordering. The chart shows shared alignment functions, database support, measurable rim-size information, display differences, drawer configuration, printer configuration, and elevator tracking differences.

Shared XC Series Functions80,000+ database, latest 3D camera measurement technology, voice and light operation guidance, short-distance run-out compensation, professional level measurement, body size measurement, review test data, software free updates, and database free updates.
XC503 FocusFixed-column model with one 18.5-inch display, no drawer, no built-in printer, and no smart elevator tracking system.
XC505 DifferenceAdds a drawer and cabinet-style mobile workstation while keeping one 18.5-inch display and no built-in printer.
XC508 DifferenceAdds built-in printer, smart elevator tracking system, two 19-inch displays, drawer, and mobile workstation features.
Rim-Size CheckThe comparison chart lists 13"-23". The XC503 specifications image lists 10-23 inches. For 24-inch wheel applications mentioned in the original FAQ, confirm with support before ordering or service use.
AUTOOL XC503 XC505 XC508 3D wheel aligner model comparison chart Click to enlarge
Key Features

Key Features

XC503 focuses on precision 3D camera measurement, practical shop operation, traceable service reports, database support, and reduced daily maintenance compared with cable-based target systems.

3D Camera Measurement

The system uses an optical four-wheel positioning method with industrial-grade HD camera measurement to capture target images and calculate alignment data.

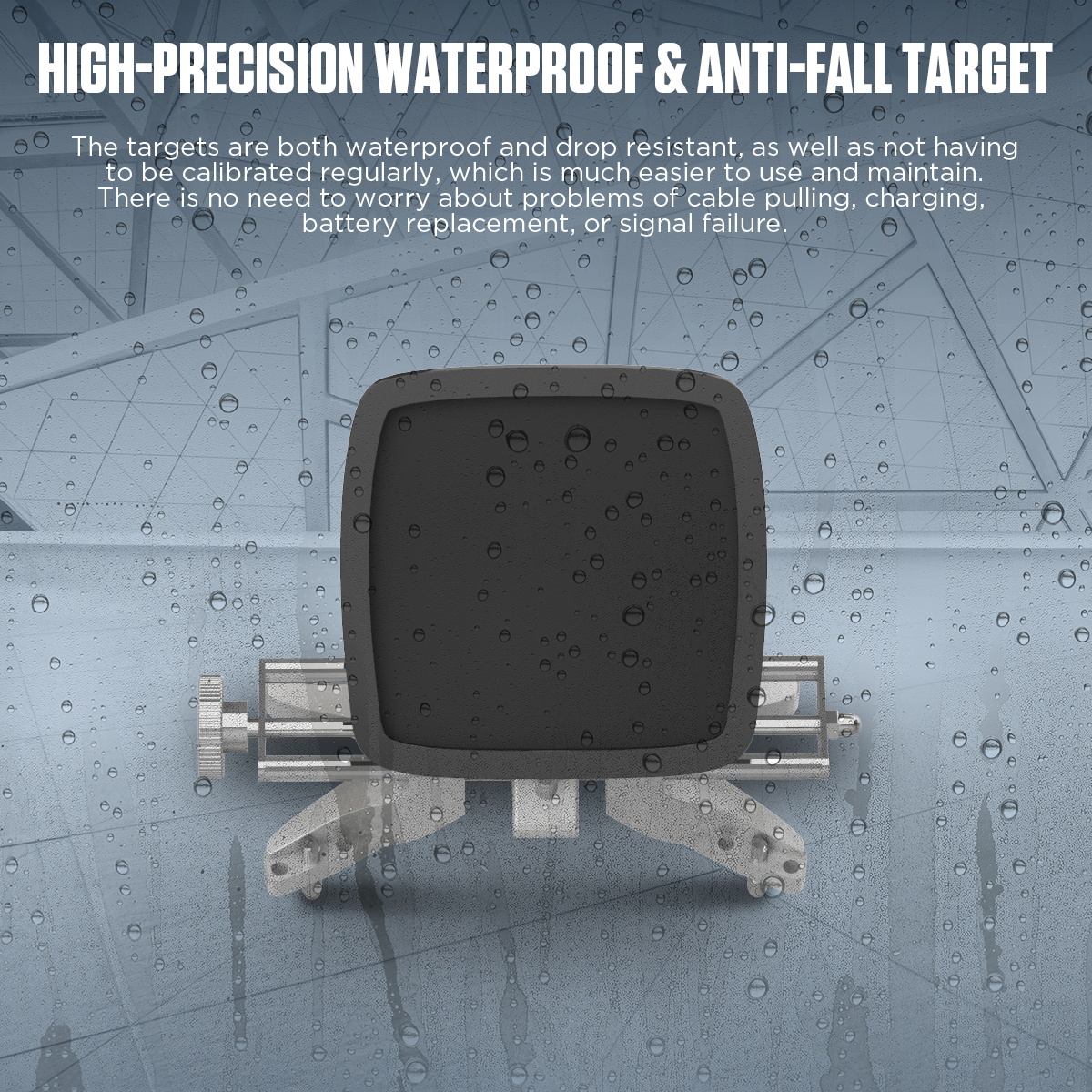

Waterproof Anti-Fall Targets

The target design avoids cable dragging, charging, battery replacement, and signal-failure problems common with active target systems.

80,000+ Vehicle Database

The software supports over 100 car brands and more than 80,000 vehicle models, with quick search and user-added model support.

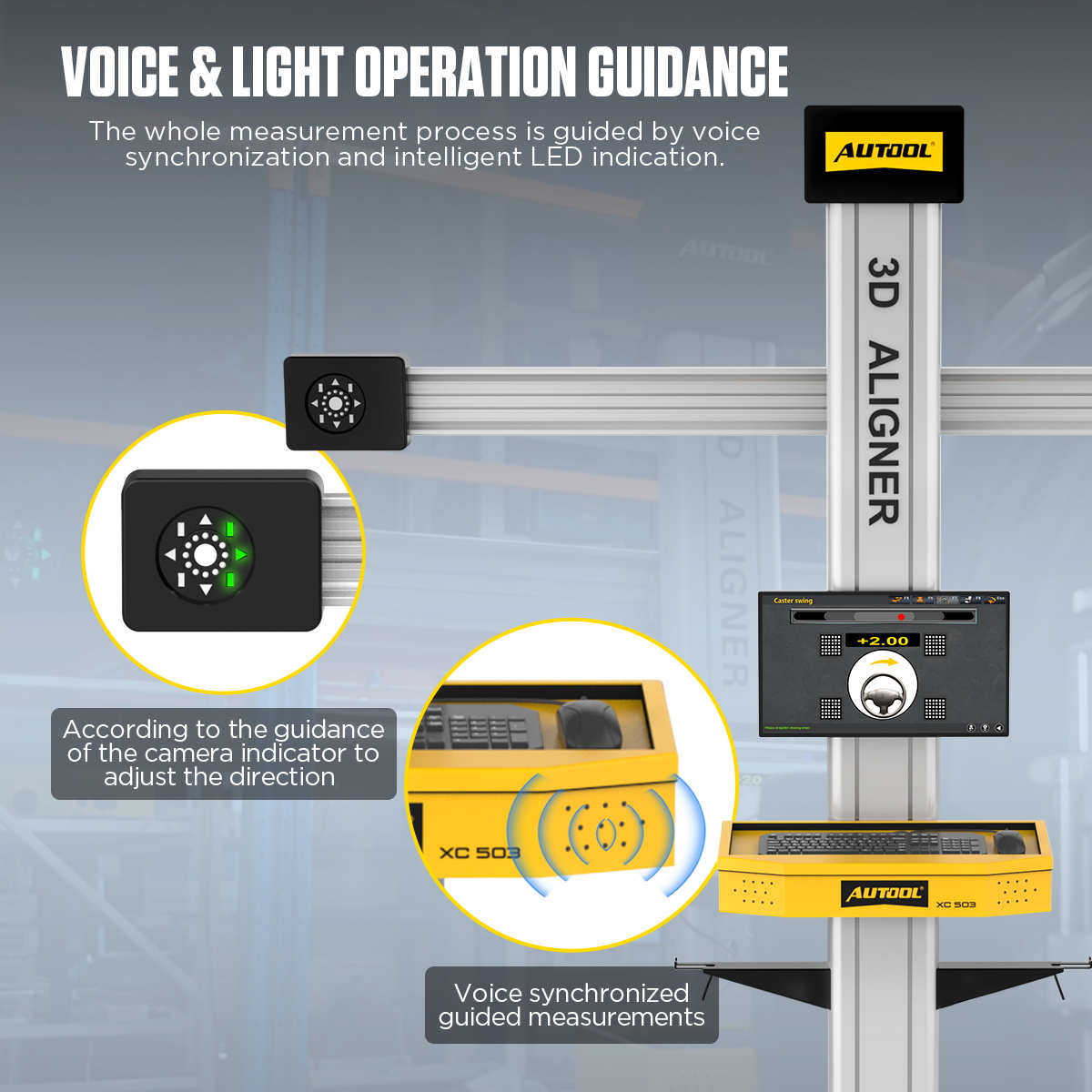

Voice And LED Guidance

Voice synchronization and LED indicators guide the measurement process so technicians do not need to keep watching the monitor during every adjustment.

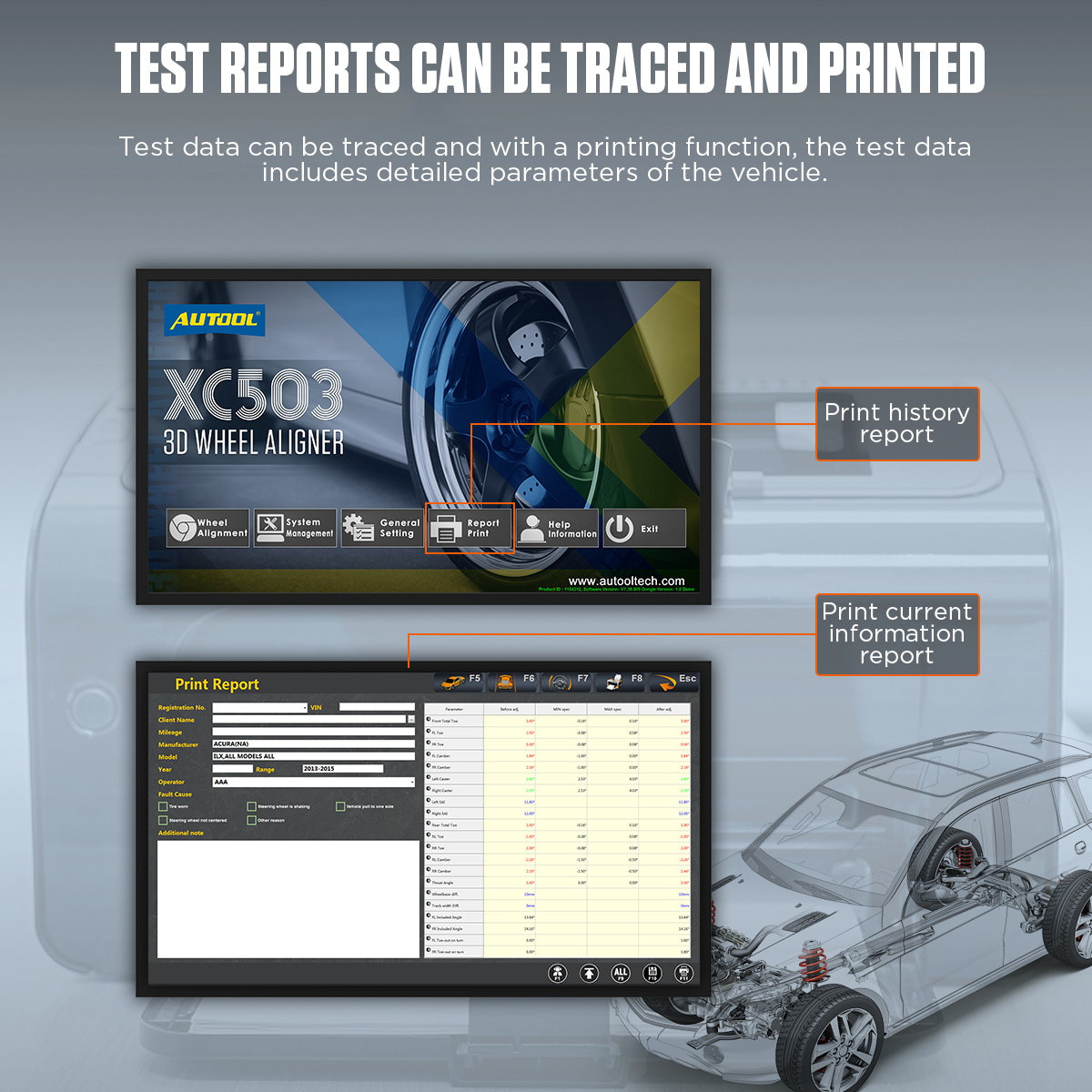

Traceable Test Reports

The software can review historical data, save reports, print current information reports, and provide detailed vehicle parameter records.

Short Rolling Run-Out Compensation

The system supports short-distance rolling run-out compensation, helping collect measurement data without repeated long rolling movement.

Expert Mode

The software includes expert mode settings for faster operation and can save more than 30% of time compared with ordinary wheel aligner workflows under suitable conditions.

Multi-Language Support

Supports Chinese, English, Spanish, Russian, German, Farsi, Arabic, Lithuanian, Japanese, French, Thai, Portuguese, and Korean.

3-Year Warranty Support

For eligible non-human damage cases, AUTOOL provides 3-year support and parts assistance according to the warranty policy.

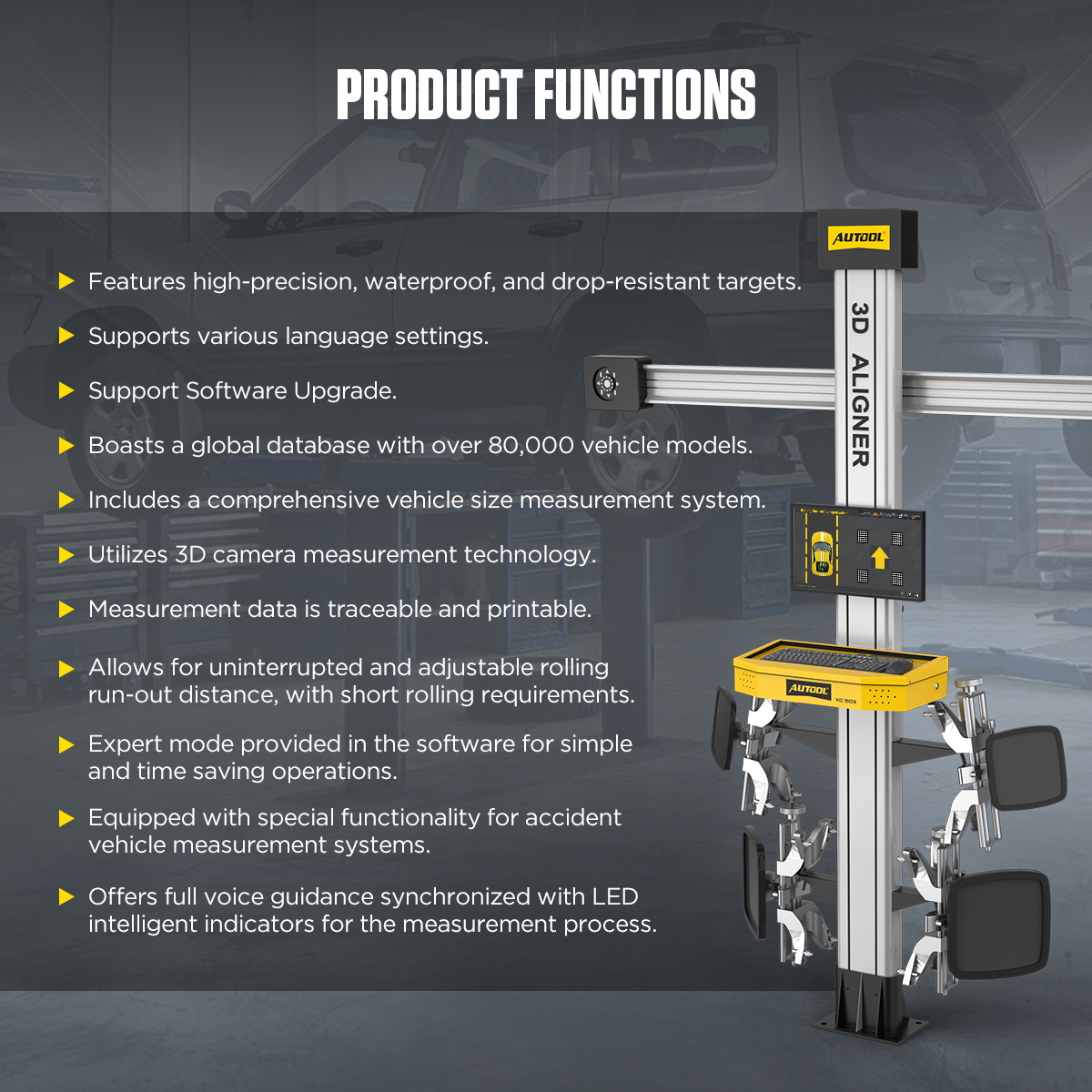

AUTOOL XC503 product functions overview with database voice guidance report printing and 3D camera features Click to enlarge

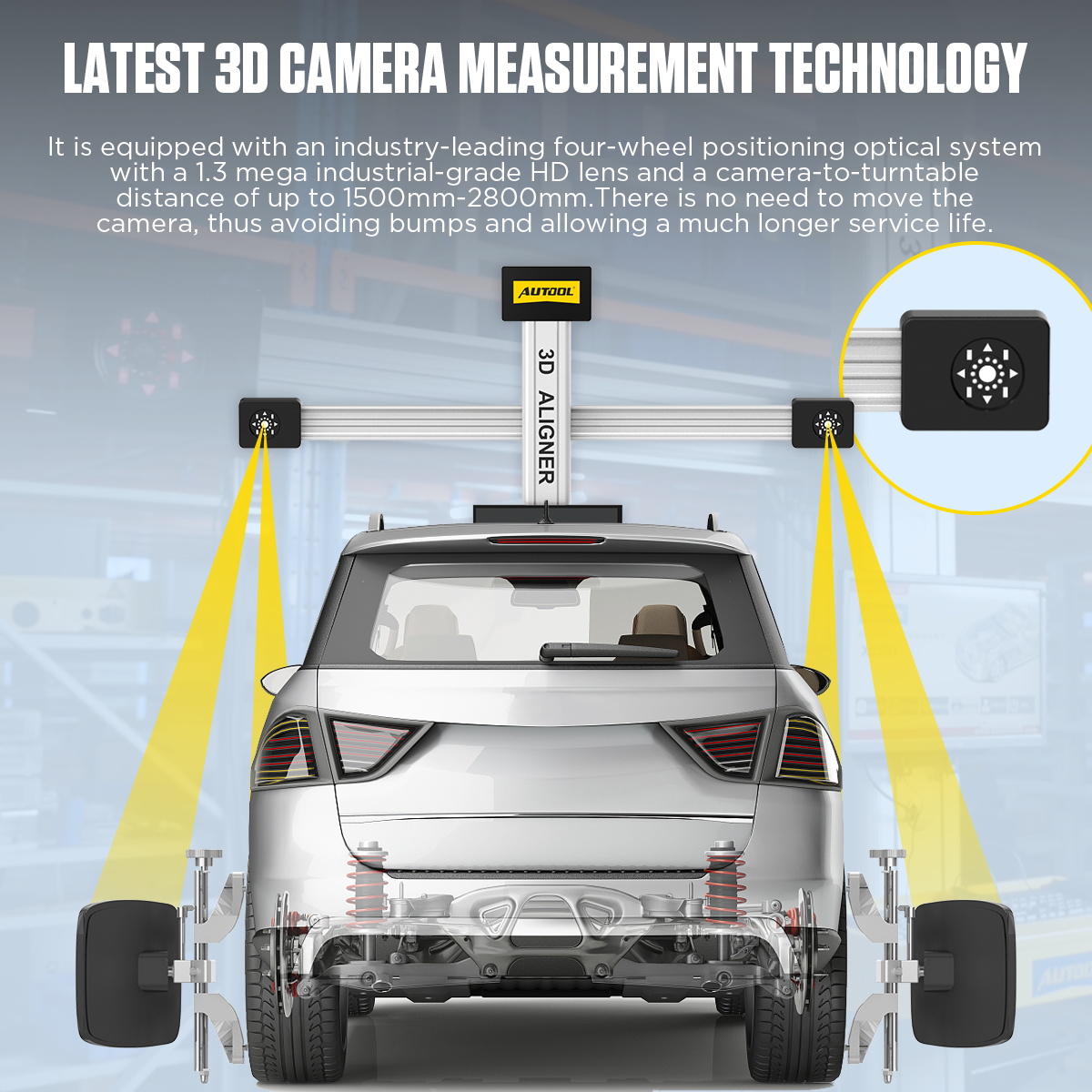

AUTOOL XC503 latest 3D camera measurement technology image Click to enlarge
AUTOOL XC503 waterproof and anti-fall target feature image Click to enlarge

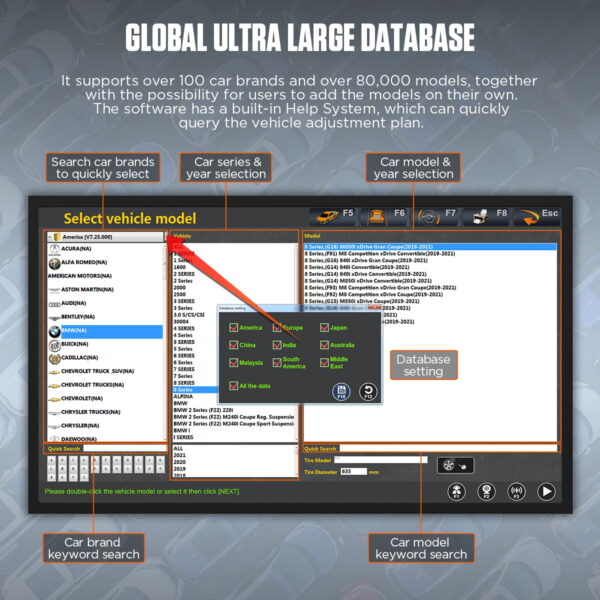

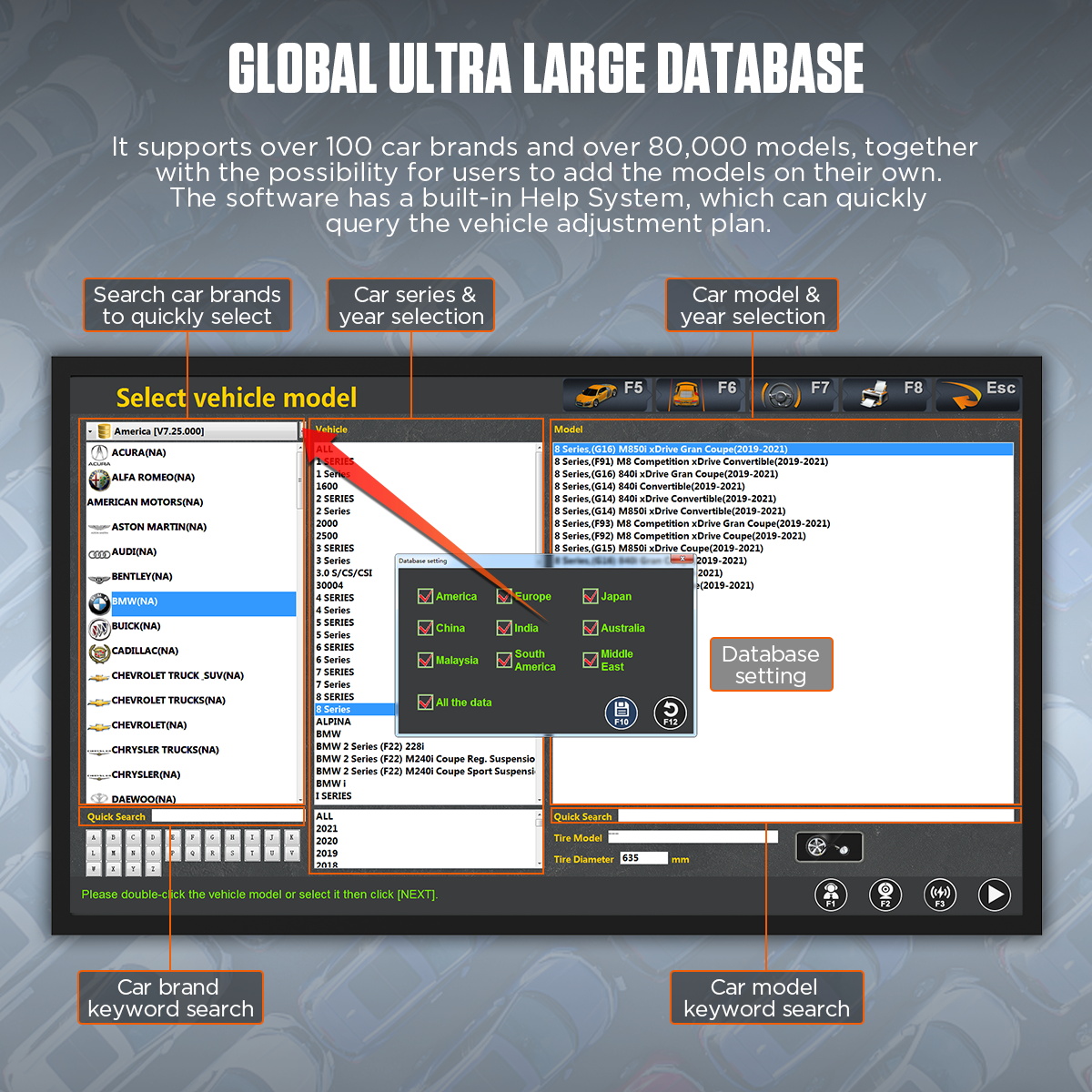

AUTOOL XC503 global vehicle database and quick search software image Click to enlarge
AUTOOL XC503 voice and light operation guidance image Click to enlarge

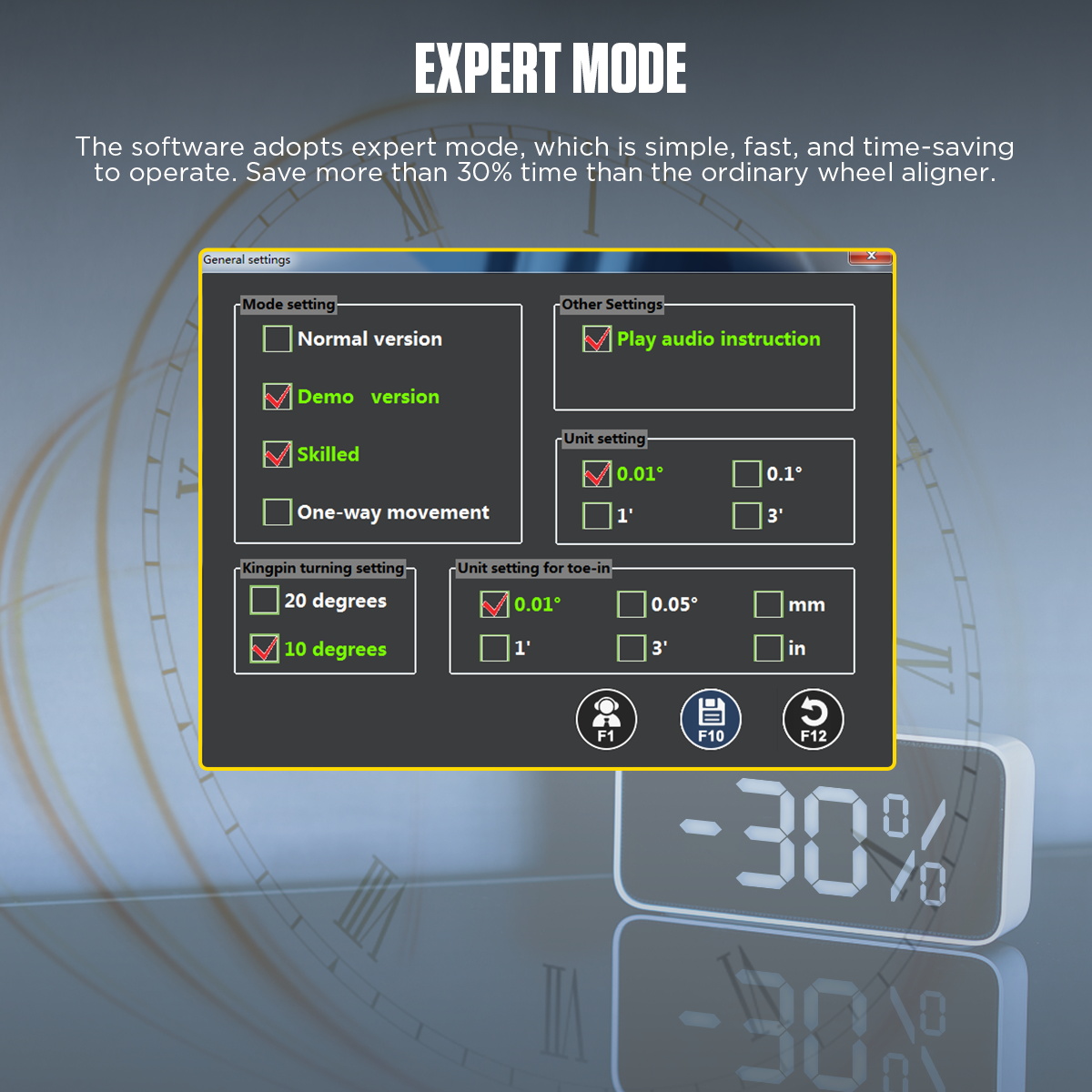

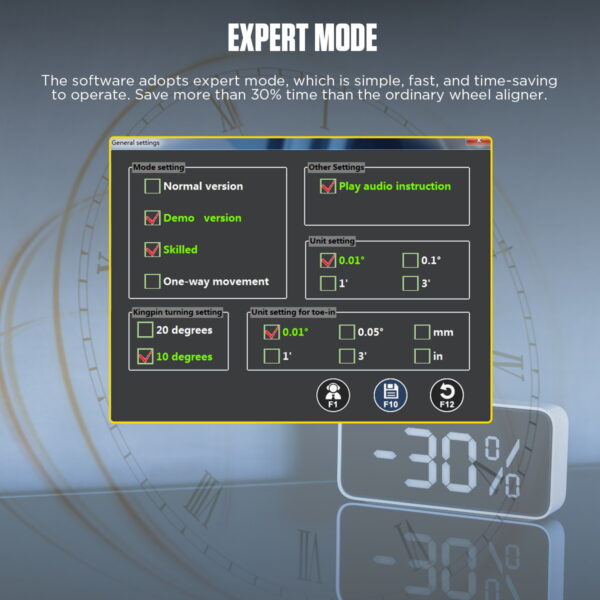

AUTOOL XC503 expert mode settings image Click to enlarge
AUTOOL XC503 traceable and printable test report image Click to enlarge
AUTOOL XC503 multi-language support image Click to enlarge

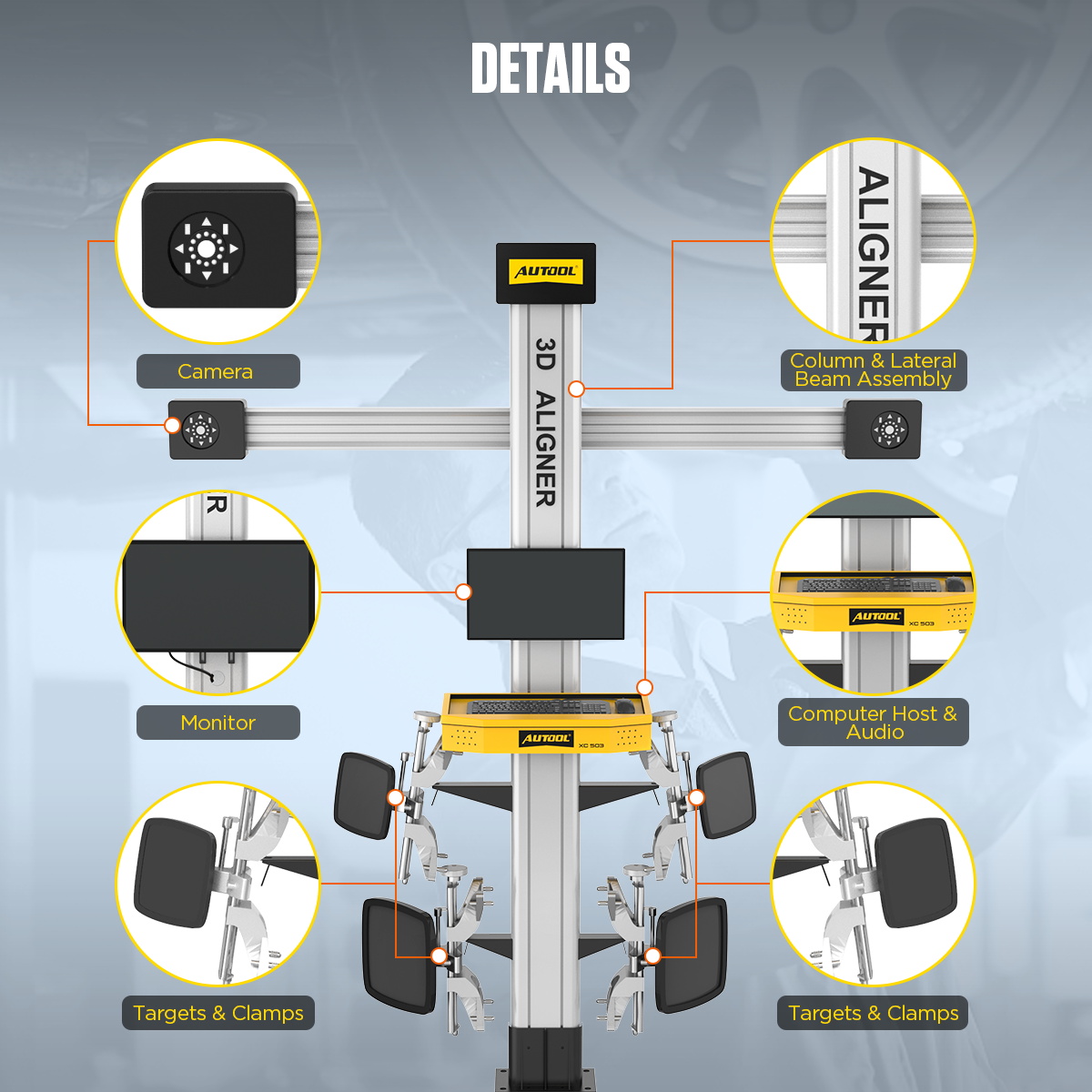

AUTOOL XC503 product details showing camera column monitor host targets and clamps Click to enlarge
How It Works

How It Works

The XC503 workflow combines database vehicle selection, passive target capture, rolling run-out compensation, full body dimension measurement, and report output.

Select Vehicle Data

Select vehicle brand, series, model, and year from the built-in database. The software also includes database setting and keyword search functions.

Capture Target Images

The 3D camera system records the target images installed on the wheels and calculates alignment values through image sensing.

Compensate Run-Out

Push the vehicle backward or forward for a short 8-12cm rolling distance to collect compensation data under the supported setup range.

Review And Print

Review toe-in, camber, caster, SAI, thrust angle, wheelbase difference, track width difference, and other measurement data, then save or print reports.

AUTOOL XC503 vehicle database selection and quick search workflow Click to enlarge

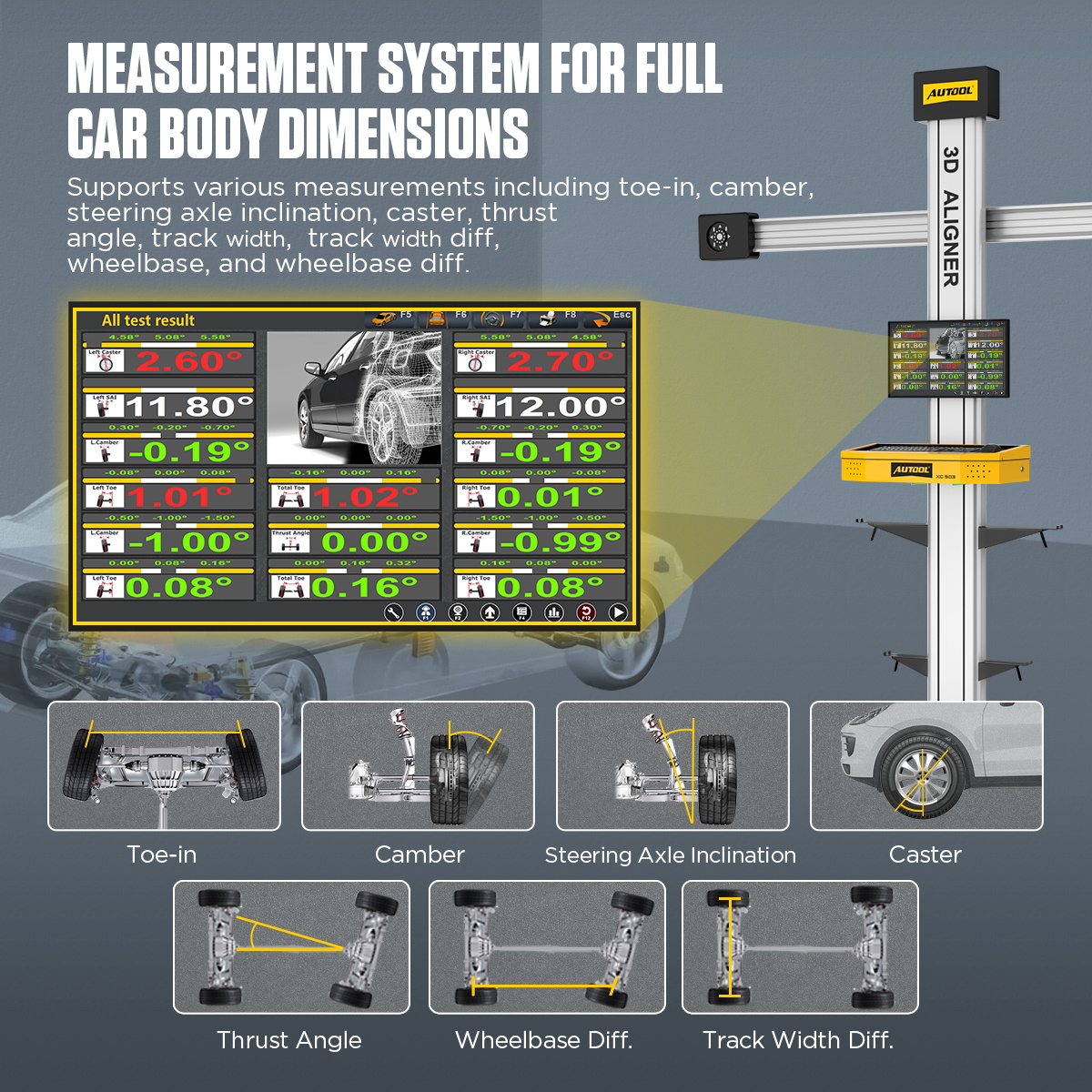

AUTOOL XC503 full car body dimension measurement image showing toe camber caster thrust angle wheelbase and track width Click to enlarge

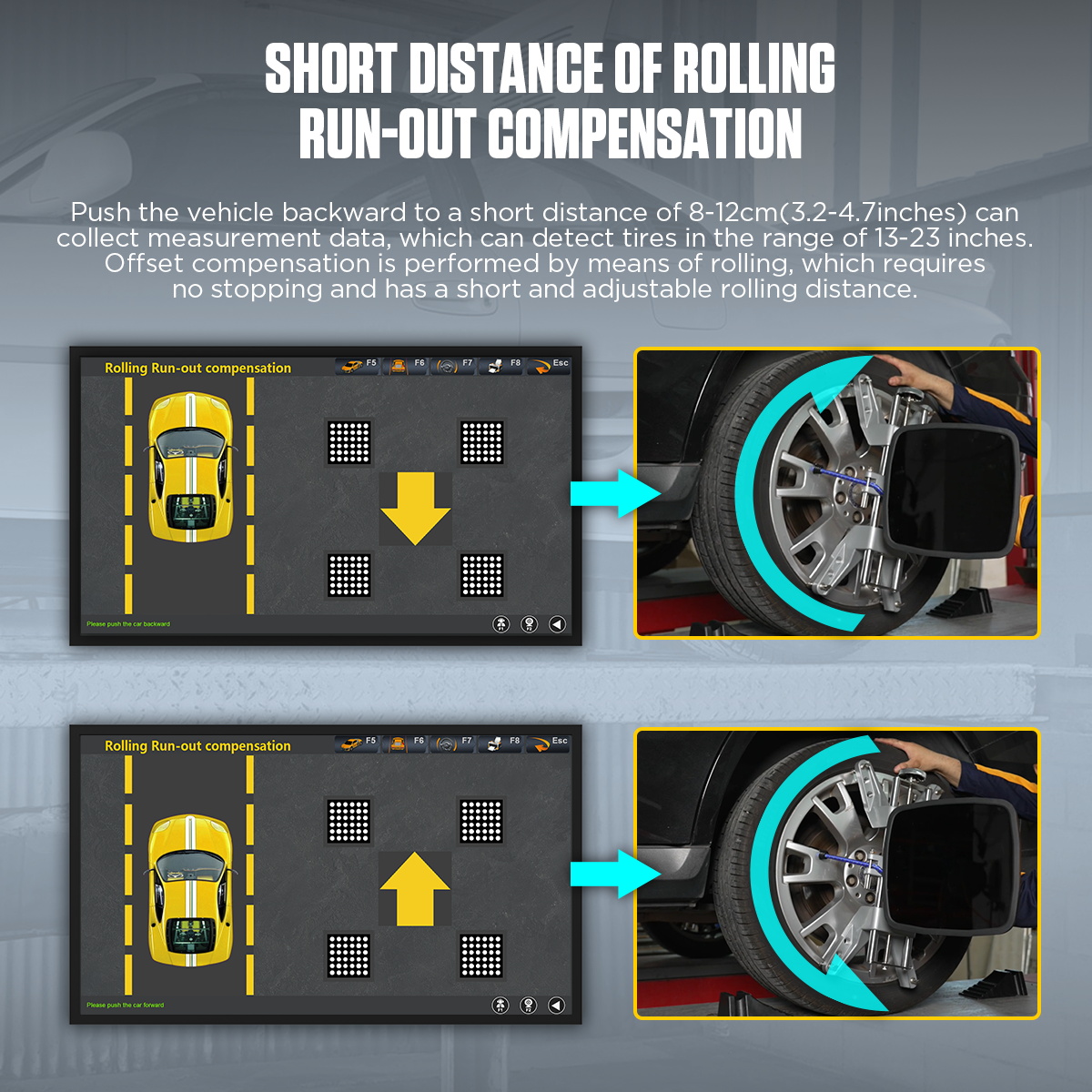

AUTOOL XC503 short distance rolling run-out compensation image Click to enlarge

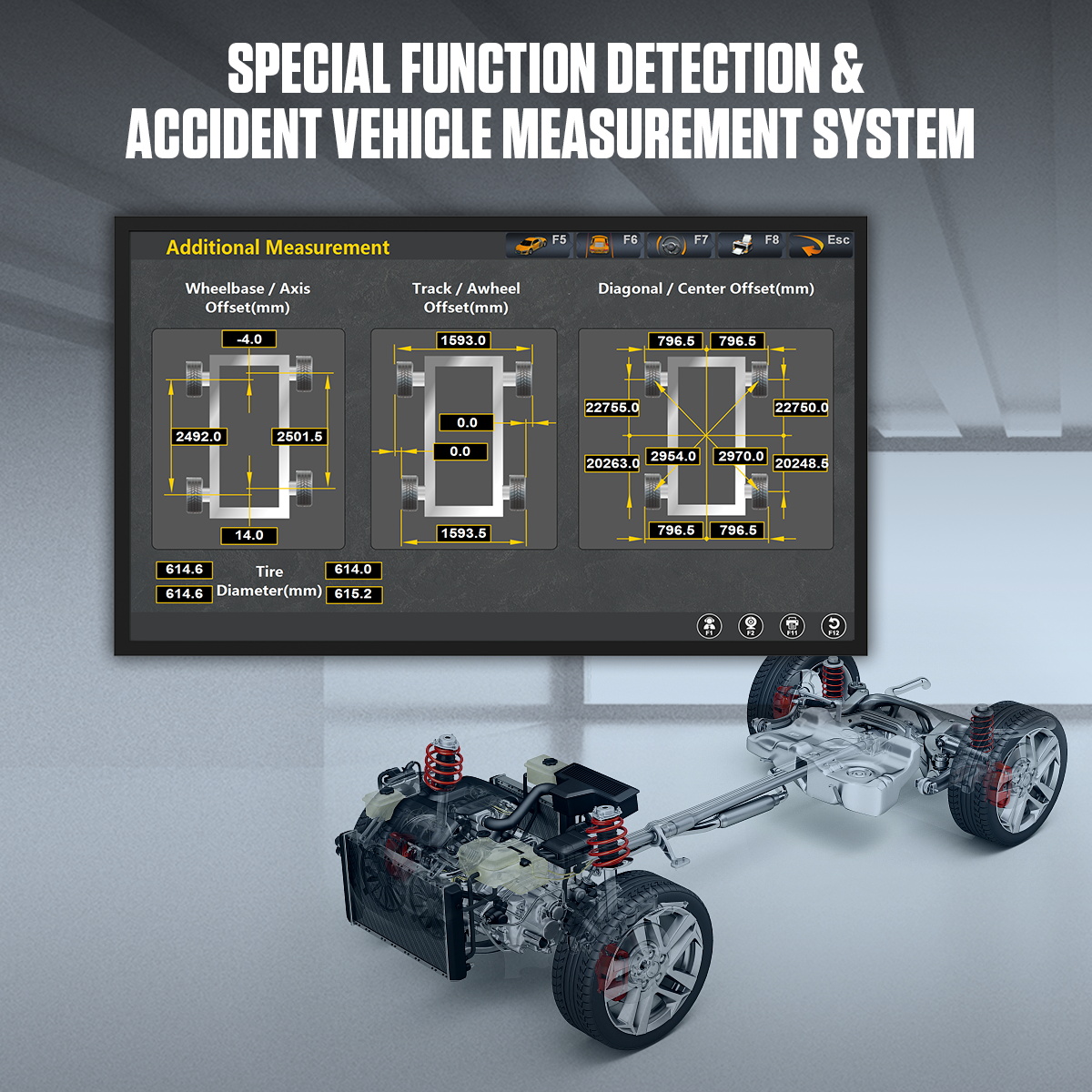

AUTOOL XC503 accident vehicle additional measurement system image Click to enlarge

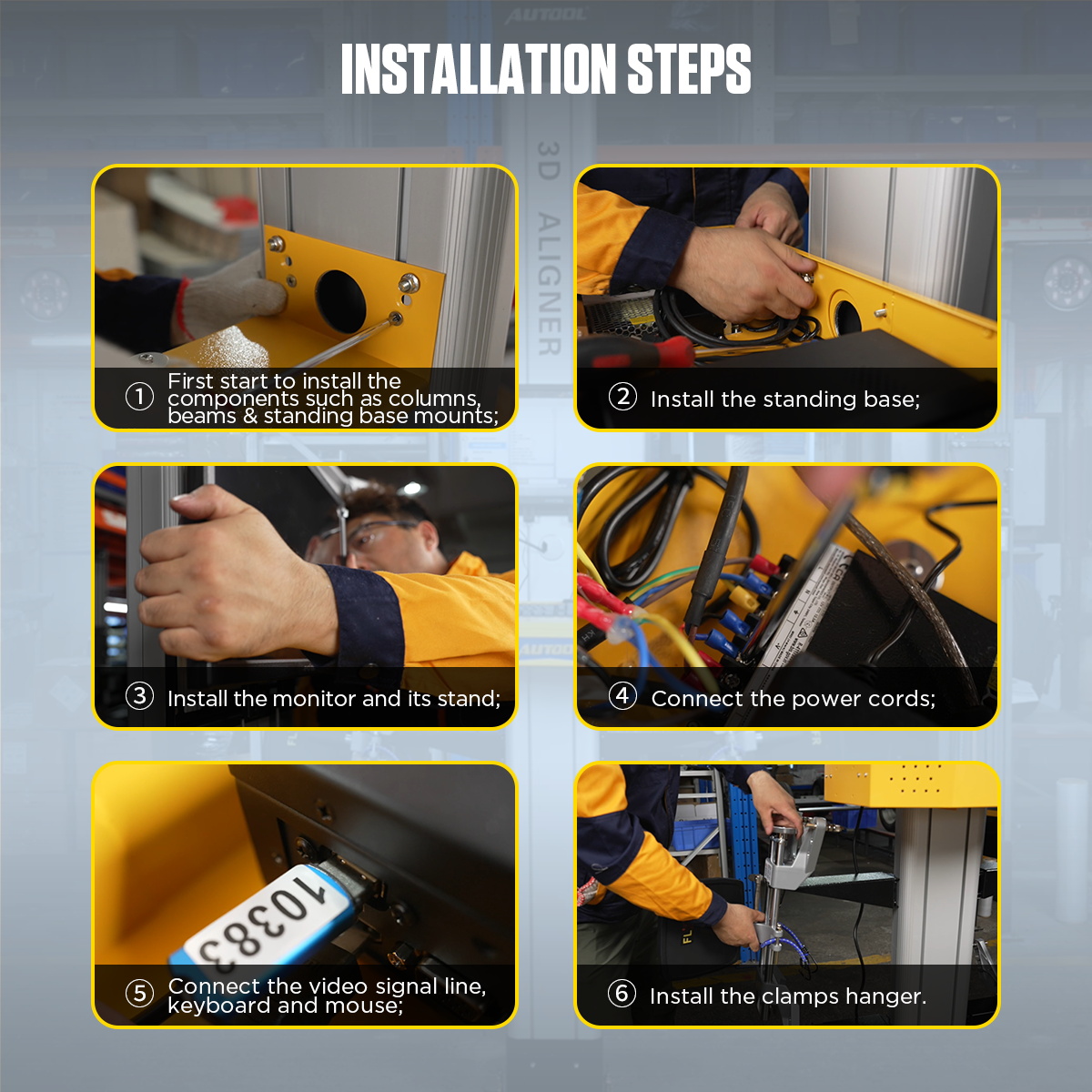

Installation And Setup

Installation And Setup

XC503 is a high-precision alignment system. Install it according to the manual and confirm workshop distance, light condition, lift levelness, and power supply before operation.

Step 1Install the column, beams, and standing base mounts.
Step 2Install the standing base.
Step 3Install the monitor and its stand.
Step 4Connect the power cords with a grounded and stable power source.
Step 5Connect the video signal line, keyboard, and mouse.
Step 6Install the clamps hanger and confirm all bolts and parts are secure.
AUTOOL XC503 wheel aligner installation steps image Click to enlarge

2m-2.2m Setup Distance

Depending on the vehicle model, keep the wheel aligner about 2m-2.2m from the vehicle and maintain the correct 90° measuring position.

Control Light Conditions

Avoid direct infrared light, direct sunlight, and strong reflective light hitting the targets or cameras during measurement.

Keep Lift Level

The original FAQ states minor floor unevenness up to 5mm can be compensated. Use the stricter setup requirement when values conflict and confirm lift levelness before service.

AUTOOL XC503 distance setup diagram showing 2m to 2.2m and 90 degree position Click to enlarge

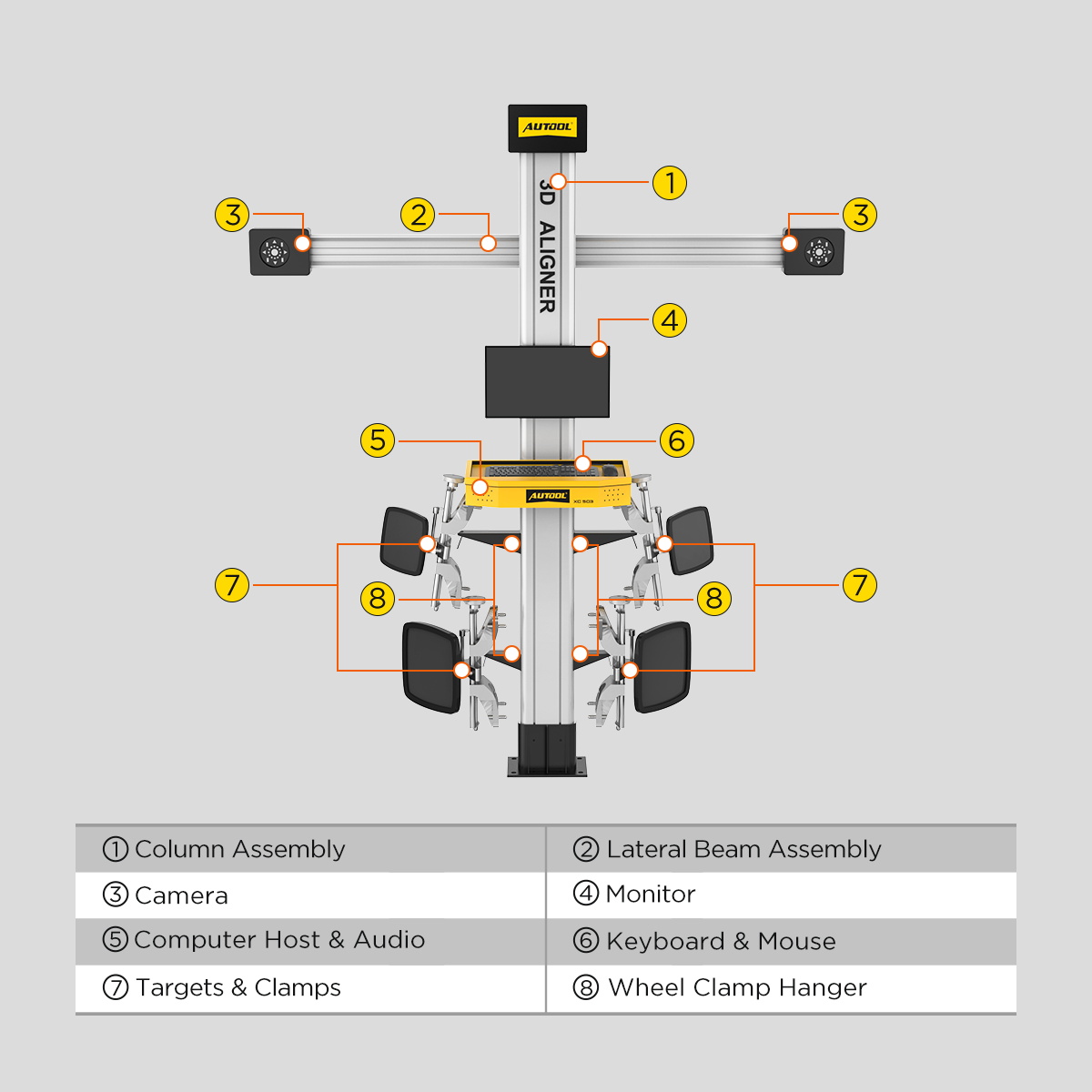

AUTOOL XC503 product structure with column lateral beam camera monitor computer host keyboard targets clamps and wheel clamp hanger Click to enlarge

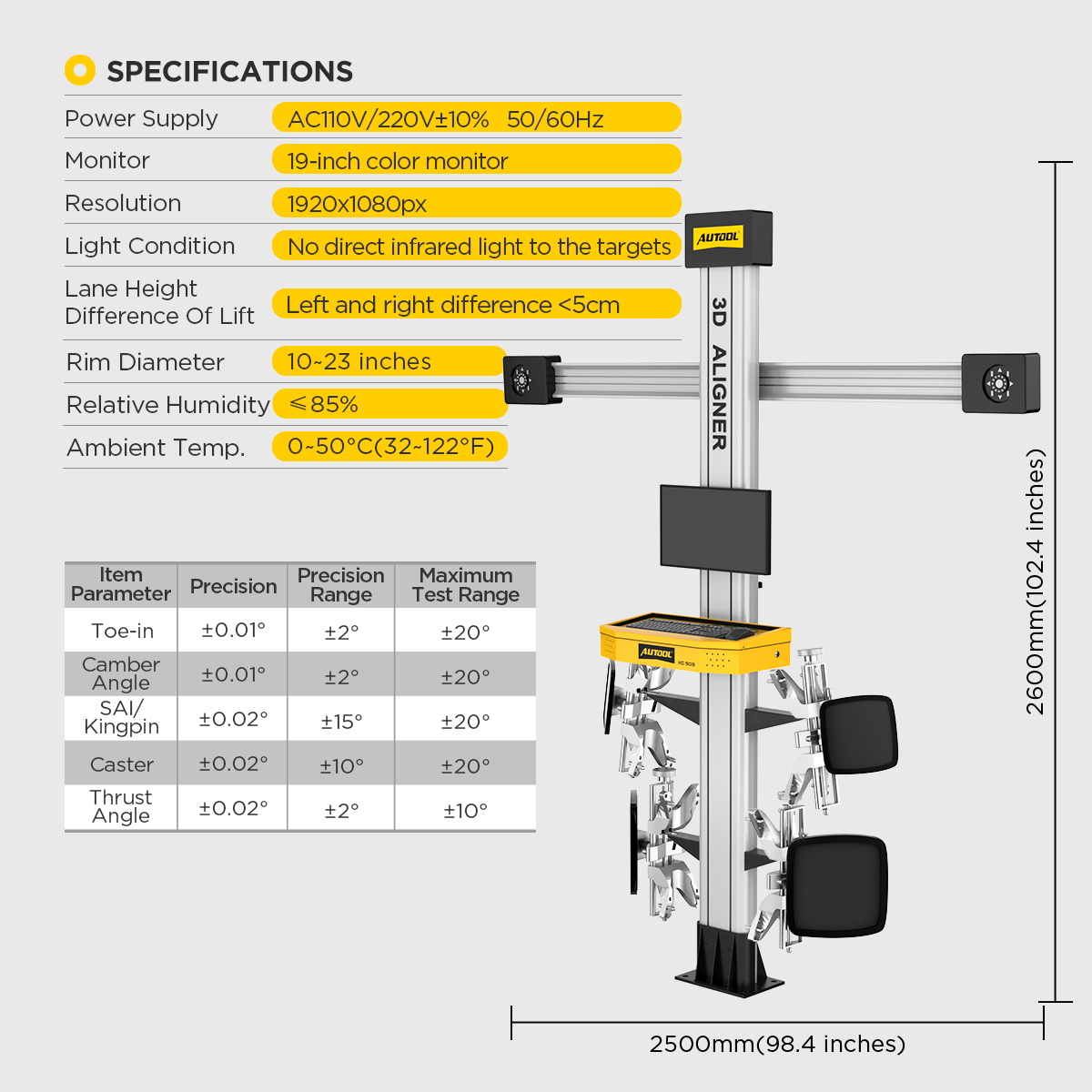

Specifications

AUTOOL XC503 Product Specifications

Use the specifications as a setup reference and confirm voltage, plug type, rim-size applications, lift condition, and local installation needs before ordering.

Power And Display
ProductAUTOOL XC503 Export Mode 3D Wheel Alignment Machine
Power SupplyProduct image: AC110V / 220V ±10%, 50 / 60Hz. Manual caution: AC110-240V ±10%, 50 / 60Hz. Confirm local voltage and plug configuration before ordering.
Monitor19-inch color monitor
Resolution1920 × 1080px
Workshop Environment
Light ConditionNo direct infrared light to the targets; avoid direct sunlight and reflective light affecting target images.
Lift / Floor RequirementKeep the lift and measuring area level. Use the stricter 5mm guidance where setup references differ, and confirm with support for special workshops.
Relative Humidity≤85%
Ambient Temperature0-50°C / 32-122°F
Measurement And Size
Rim DiameterSpecs image shows 10-23 inches. Comparison chart shows 13"-23". Confirm 24-inch applications with support before use.
Short Rolling Compensation8-12cm rolling distance shown in the run-out compensation image.
Overall SizeAbout 2600mm height × 2500mm width shown in product specifications image.
Toe-In Precision±0.01°; precision range ±2°; maximum test range ±20°
Camber Angle Precision±0.01°; precision range ±2°; maximum test range ±20°
SAI / Kingpin Precision±0.02°; precision range ±15°; maximum test range ±20°
Caster Precision±0.02°; precision range ±10°; maximum test range ±20°
Thrust Angle Precision±0.02°; precision range ±2°; maximum test range ±10°
AUTOOL XC503 specifications image with power monitor resolution rim diameter humidity temperature and precision table Click to enlarge
Power And Display
Power SupplyAC110V / 220V ±10%, 50 / 60Hz shown; manual notes AC110-240V ±10%
Monitor19-inch color monitor
Resolution1920 × 1080px
Measurement
Rim Diameter10-23 inches shown in specs image; comparison chart lists 13"-23"
Rolling Compensation8-12cm
Toe / Camber±0.01° precision
SAI / Caster / Thrust±0.02° precision
Environment
LightNo direct infrared light to targets
Humidity≤85%
Temperature0-50°C / 32-122°F
Before You Order And Use

Before You Order And Use

Review the installation environment, voltage, light condition, lift condition, operator skill level, and support method before ordering or operating the XC503 wheel aligner.

Confirm Workshop Space

XC503 supports flexible workshop setup, but it is not a no-space device. Keep the proper 2m-2.2m vehicle distance and enough space around the lift for safe operation.

Confirm Voltage And Plug

The source materials show AC110V / 220V ±10% and manual caution text notes AC110-240V ±10%. Confirm local voltage and plug configuration before ordering.

Avoid Strong Light

Do not let direct sunlight, direct infrared light, or reflective light hit the targets or cameras, because image sensing depends on clean target recognition.

Qualified Technicians Only

Only trained technicians with basic wheel-alignment and computer operation knowledge should operate the wheel aligner.

Protect Calibration

The machine is calibrated before shipment. Do not move the column, open the camera, or adjust the camera without guidance, or warranty coverage may be affected.

Keep Equipment Dry And Stable

Do not place the wheel aligner on a vibrating object or oblique surface. Avoid moisture and water splashing on the system.

Check Rim-Size Applications

Different source images list 10-23 inches and 13"-23". Confirm 24-inch use cases with support before ordering or service use.

Online Support First

Local on-site training or repair may not be available in every country. Use online support, installation guidance, video guidance, and parts support when needed.

Check Packing Before Install

Check the packing list before installation. Contact support if any part is missing, damaged, or unclear before assembling the unit.

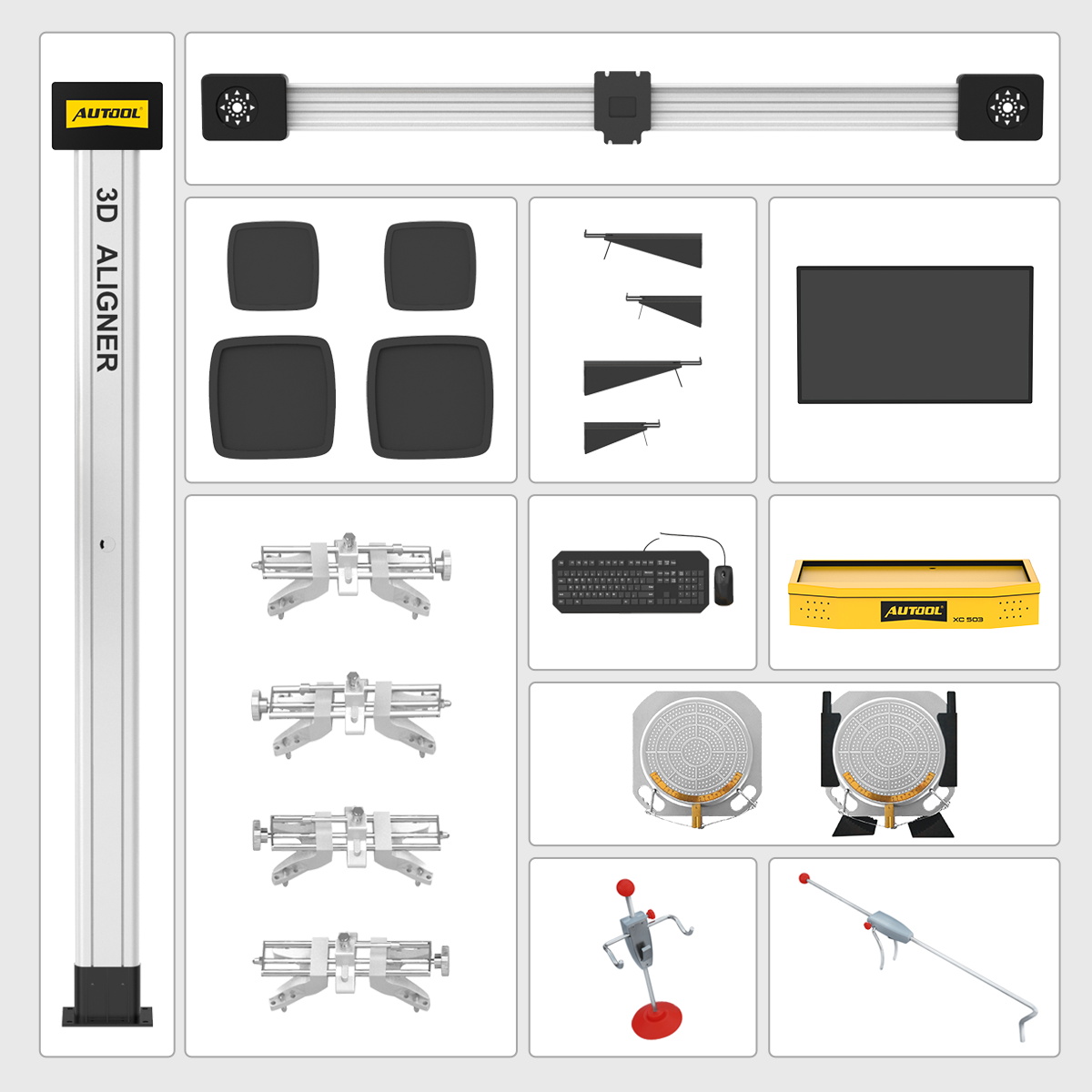

AUTOOL XC503 packing list showing column lateral beam cameras monitor host keyboard mouse targets clamps turntables and alignment accessories Click to enlarge
What Is In The Box

What Is In The Box

The packing list uses one complete package image only. Check the final package contents against the image before installation.

Main StructureColumn assembly, lateral beam assembly, cameras, monitor, and XC503 computer host / audio unit shown in the package image.
Input DevicesKeyboard and mouse shown in the package image.
Wheel ToolsTargets and clamps, wheel clamp hangers, and wheel clamp assemblies shown in the package image.
Turntables / PlatesTurntable-style plates and related wheel alignment accessories shown in the package image.
Holding ToolsBrake pedal depressor / steering wheel holder style tools shown in the package image.
Final CheckAccessories shown in the package image are the visual reference. Contact support if you need confirmation before shipment or installation.
Manual And Downloads

Manual And Downloads

Download the XC503 / XC505 manual for installation, safety, operating procedure, software operation, FAQ, maintenance, and warranty details. Use the XC series database installation kit to update supported vehicle data.

AUTOOL XC503 XC505 3D wheel aligner user manual preview Click to enlarge

AUTOOL XC503 / XC505 User Manual

Open the PDF manual for cautions, installation, target and clamp information, operation procedure, software operation, troubleshooting, maintenance, warranty access, and return / exchange information.

Download Manual

AUTOOL XC Series Software Update – Oct. 2025

Software Highlights: V7.47.000. Updated vehicle data for domestic, overseas China region, and other regions.

Download Database Kit

Software Update History

2025.10.22 / V7.47.000Updated vehicle data for domestic, overseas China region, and other regions.
2025.08.15 / V7.46.100Updated BYD data in the domestic market and added data for Geely, Glory, Maxus, BAIC, and other overseas China region manufacturers.
2025.07.15 / V7.46.000Updated data for domestic, overseas China region, North America, South America, and Europe regions.
2025.03.25 / V7.44.000Updated data for domestic and overseas China region.
2025.01.03 / V7.42.000Updated data for domestic, overseas China region, and North America region.
2024 Updates2024.10.21 V7.41.000, 2024.06.28 V7.39.003, and 2024.03.27 V7.39.000 updated or optimized data for domestic, overseas China region, North America, South America, Europe, and other regions.
Related Products

Related Products

Compare related XC series models before choosing the right workstation style, display setup, built-in printer, drawer, and smart elevator tracking requirement.

Questions And Answers

These answers cover rim size, setup distance, floor level, alignment sequence, online support, computer startup, Windows desktop, mouse / keyboard / printer issues, software startup, database updates, and warranty support.

Related Guides

Related Guides

Use these related articles to understand wheel alignment service timing, XC series model selection, and the role of wheel alignment machines in reducing runout and improving service quality.

Wheel alignment clamp on vehicle wheel guide image
Guide / 12-11-2024

How often should I get wheel alignment?

How do you know if your car needs a wheel alignment? If you’re not sure, or if you feel like your car isn’t driving as smoothly anymore, it might be time to check your.

Warranty And Contact

Warranty And Contact

For XC503 setup, voltage confirmation, rim-size confirmation, XC503 / XC505 / XC508 model selection, database update, software operation, installation guidance, packing list confirmation, or troubleshooting, contact AUTOOL Store support.

Pre-Sales And Technical Support

Use support before ordering if you need to confirm local voltage, plug configuration, workshop distance, lift condition, 24-inch wheel application, model comparison, or database version. Use support after delivery for installation, software, Windows, printer, mouse / keyboard, camera protection, and warranty questions.

  • XC503 / XC505 / XC508 model selection
  • Workshop space, setup distance, lift level, and lighting confirmation
  • Voltage, plug, and power supply confirmation
  • Manual, installation, and training video guidance
  • Database update and software operation assistance
  • Computer, Windows desktop, printer, mouse / keyboard, and software troubleshooting
  • Packing list, accessories, replacement parts, and warranty support
  • 3-year warranty support for eligible non-human damage cases
Email Supportsupport@autoolstore.com WhatsApp Support+86 189 2647 7404

Customer Reviews

  1. 5
    (8 customer reviews)
    100% of customers recommend this product.
    5 Stars100%4 Stars0%3 Stars0%2 Stars0%1 Star0%

  2. Josiane Rempel –

    Checked, works,

    0 of 0 found this review helpful

  3. Darion Schmitt –

    satisfied

    0 of 0 found this review helpful

  4. Lyric VonRueden –

    many thanks

    0 of 0 found this review helpful

  5. Abraham Luettgen –

    Perfect

    0 of 0 found this review helpful

  6. Darby Bergnaum –

    Works.

    0 of 0 found this review helpful

  7. Rich X. –

    The machine was received in perfect condition and Tina, who was contacted by the machine’s functions that would not work, was very responsive in helping me with the process.

    0 of 0 found this review helpful

  8. ken –

    I have been looking for a reliable and easy to use wheel alignment machine. We bought this wheel alignment machine a few months ago and it has exceeded our expectations.

    0 of 0 found this review helpful

  9. Darlene Jefferson –

    I’m a race car workshop user and have purchased two XC503s. I’m very satisfied with AUTOOL’s product and service. I compared the old and new models and can’t say enough, AUTOOL is constantly improving, striving for better quality and more features. I’m very satisfied!

    0 of 0 found this review helpful
Leave A Review

Your email address will not be published. Required fields are marked *

AUTOOL XC503 Export Mode car 3D Wheel Alignment Machine Equipment Wheel Aligner
AUTOOL XC503 Export Mode car 3D Wheel Alignment Machine Equipment Wheel Aligner

US$4,499.00

Add to cart This product has multiple variants. The options may be chosen on the product page
