AUTOOL ATL-4.5F

Product Overview

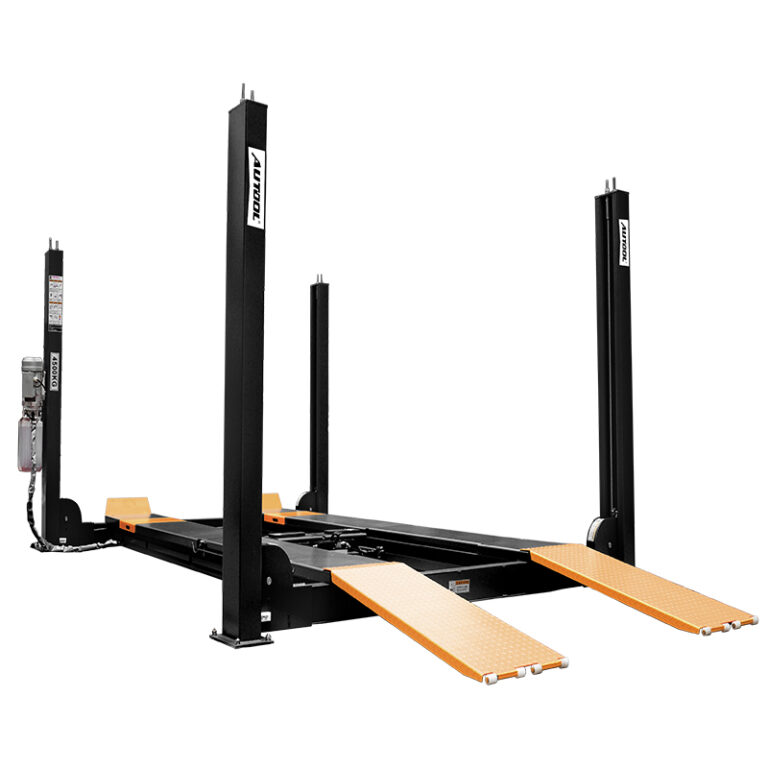

The AUTOOL ATL-4.5F Four Post Lift is a professional 4-post car hoist for wheel alignment and auto repair workshop lifting applications. It features precision-machined cylinder components, Japanese-made seals, a stable wire rope-driven electro-hydraulic system, and a shot-blasted high-temperature coated surface for long-term durability. With manual / automatic unlocking versions, 220V / 380V power options, a solid steel X-frame, wire rope breakage protection, and a standard auxiliary lifting trolley, it is designed for demanding professional workshop scenarios.

4500kg Capacity Wheel Alignment 220V / 380V Options Secondary Lifting Trolley
4500kgLifting Capacity
1700mmMax. Lifting Height
0.6-0.8MPaAir Source Pressure
2.2kWMotor Power
Key Features

Key Features

ATL-4.5F combines manual or automatic unlocking versions, a stable lifting structure, professional control system, wire rope safety protection, and an auxiliary lifting trolley for wheel alignment and repair work.

Manual / Automatic Unlocking

The lift supports both manual and automatic unlocking versions. Automatic unlocking during descent is available on the automatic version for easier operation.

Full Copper-Core Motor

The aluminum alloy motor housing includes a built-in full copper-core motor for reliable output and long-term workshop performance.

Solid Steel X-Frame Structure

The robust solid steel X-shaped frame improves stability, support strength, and load-bearing performance during lifting operations.

EU-Standard Control Box

The fully automatic control box follows EU standards and supports safe, convenient operation for professional auto repair scenarios.

Wire Rope Breakage Protection

An integrated wire rope breakage safety device helps reduce accident risk if abnormal wire rope failure occurs during use.

Secondary Lifting Trolley Included

An EU-standard auxiliary lifting trolley is included as standard. It is fixed under load and easy to move when unloaded for ergonomic workshop use.

Specifications

AUTOOL ATL-4.5F Specifications

The image below contains the ATL-4.5F structure diagram, feature details, installation base requirements, platform dimensions, EU testing information, and product specification table.

Lifting Performance
Lifting Capacity4500kg
Min. Height210mm
Max. Lifting Height1700mm
Secondary Lifting Capacity2000kg
Secondary Lifting Height480mm
Dimensions And Power
Total Height2218mm
Inner Column Width2830mm
Air Source Pressure0.6-0.8MPa
Motor Power220V / 380V, 2.2kW
Structure And Configuration
Lift TypeFour-post lift / 4-post car hoist for wheel alignment
Unlocking ModeManual and automatic unlocking; automatic unlocking during descent on the automatic version
Drive SystemWire rope-driven electro-hydraulic system
Auxiliary LiftEU-standard secondary lifting trolley included as standard
Optional ControlIndustrial-grade wireless remote control available as an optional accessory

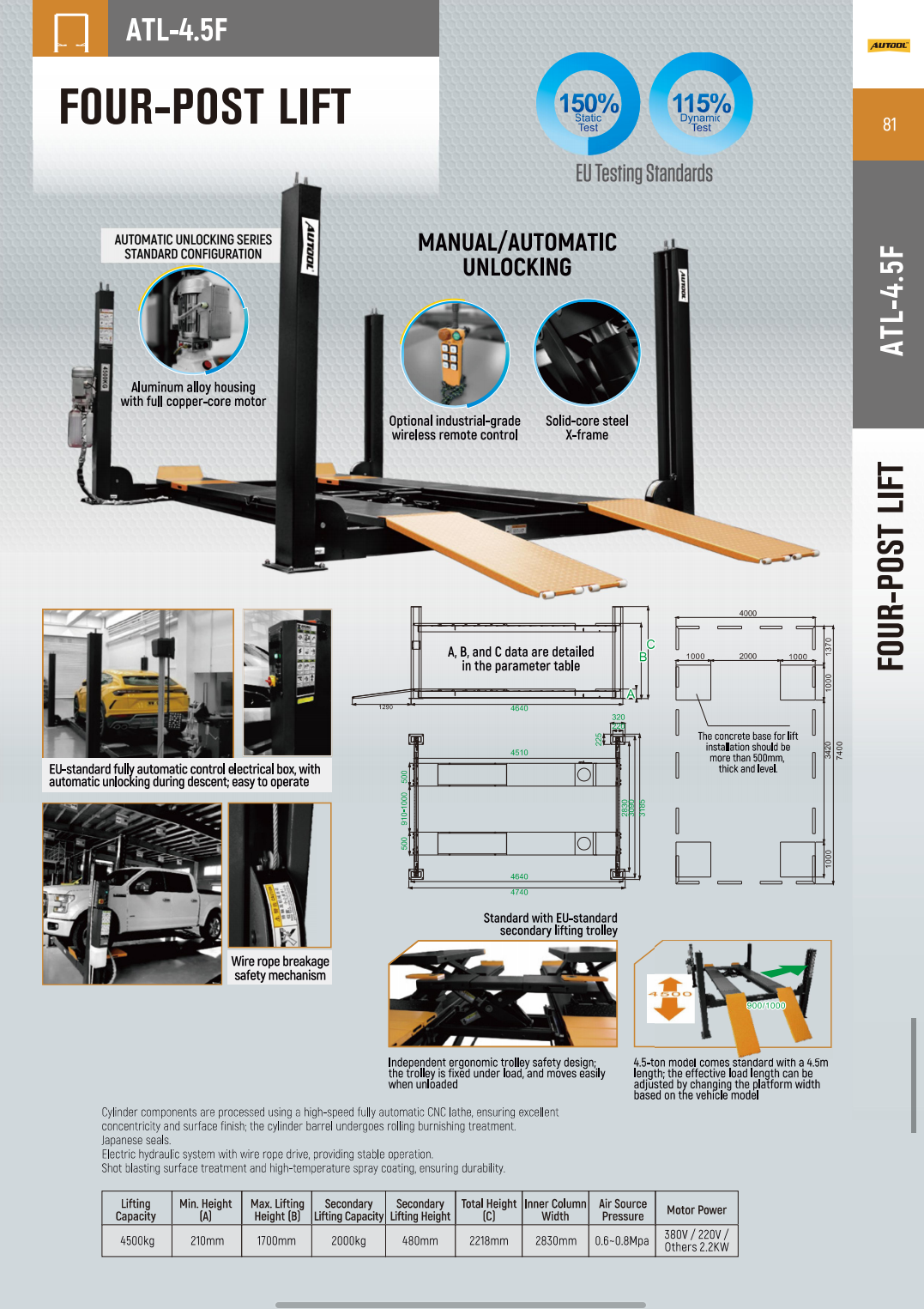

AUTOOL ATL-4.5F four post lift product structure dimensions installation and specification data Click to enlarge
Lifting Performance
Lifting Capacity4500kg
Min. Height210mm
Max. Lifting Height1700mm
Secondary Lifting Capacity2000kg
Secondary Lifting Height480mm
Dimensions And Power
Total Height2218mm
Inner Column Width2830mm
Air Source Pressure0.6-0.8MPa
Motor Power220V / 380V, 2.2kW
Structure And Configuration
Lift TypeFour-post lift / 4-post car hoist for wheel alignment
Unlocking ModeManual and automatic unlocking; automatic unlocking during descent on the automatic version
Drive SystemWire rope-driven electro-hydraulic system
Auxiliary LiftEU-standard secondary lifting trolley included as standard
Optional ControlIndustrial-grade wireless remote control available as an optional accessory
Before You Order And Use

Before You Order And Use

For a four-post lift, structure and safety systems are as important as lifting capacity. ATL-4.5F includes multiple safety and stability elements for professional workshop use.

150% Static / 115% Dynamic Test

The product detail image shows EU testing standards with 150% static test and 115% dynamic test references for safety validation.

Wire Rope Safety Mechanism

The wire rope breakage protection mechanism is designed to prevent accidents and improve safety during abnormal wire rope conditions.

Stable X-Frame Construction

The solid-core steel X-frame structure improves lift stability and load support during vehicle lifting and wheel alignment work.

Manual / Automatic Unlocking During Descent

The automatic unlocking version improves convenience during descent while reducing the manual steps required during lift operation.

Installation And Setup

Installation And Setup

Confirm workshop floor, power, air source, and space conditions before ordering and installation.

Concrete Foundation

The concrete base for lift installation should be more than 500mm thick and level. Confirm workshop floor conditions before installation.

Power Confirmation

Confirm the available power supply before ordering. The product data lists 220V / 380V power options with 2.2kW motor power.

Air Source Confirmation

Confirm air source pressure before installation. ATL-4.5F requires 0.6-0.8MPa air source pressure.

Workshop Space

Confirm workshop space according to platform length, inner column width, total height, vehicle size, and wheel alignment workflow requirements.

What Is In The Box

What Is In The Box

The current source content provides package dimensions and weight. No dedicated Packing List image is provided, so this module uses compact text cards only.

Package Dimensions

454 × 71 × 85 cm

Package Weight

1228 KG

Before You Order And Use

Before You Order And Use

Review installation, power, air source, platform length, optional remote, and inspection requirements before purchasing this four-post lift.

Purchase And Installation Notes

  • Confirm workshop floor conditions before installation.
  • The concrete base should be more than 500mm thick and level.
  • Confirm available power supply before ordering: 220V / 380V power options are shown in the product data.
  • Confirm air source pressure: 0.6-0.8MPa.
  • Confirm workshop space according to platform length, inner column width, total height, and vehicle size.
  • The 4.5-ton model comes with a 4.5m standard length.
  • Effective load length can be adjusted by changing the platform width based on different vehicle models.
  • Optional industrial-grade wireless remote control is available if additional operation convenience is needed.
  • Professional installation and routine safety inspection are recommended.
  • Before use, confirm that unlocking, lifting, secondary lifting trolley, and wire rope safety mechanisms are functioning properly.

Questions And Answers

These answers cover lifting capacity, wheel alignment use, 220V / 380V power options, unlocking system, secondary lifting trolley, foundation requirement, and package size before ordering.

Warranty And Contact

Warranty And Contact

For ATL-4.5F model confirmation, manual / automatic unlocking selection, 220V / 380V power options, installation foundation requirements, air source pressure, workshop space, package shipping, optional wireless remote, or wheel alignment application questions, contact AUTOOL Store before ordering.

Confirm Before Ordering

Use support if you need help confirming floor thickness, leveling requirements, motor voltage, air pressure, workshop layout, platform length, secondary lifting trolley configuration, shipping conditions, or optional wireless remote control.

  • Installation foundation and workshop floor confirmation
  • 220V / 380V power option confirmation
  • 0.6-0.8MPa air source pressure confirmation
  • Workshop space and vehicle size confirmation
  • Package dimensions and shipping weight confirmation
  • Optional industrial-grade wireless remote support
  • Wheel alignment and professional workshop application support
