AUTOOL BT360 Digital Automotive Diagnostic Battery Tester Analyzer Charging Scanner Tool

US$39.00

Key Features
  • Battery Health Tests
  • 12V Battery Types
  • Global Standards
Key Features
☰ REQUEST BULK / B2B QUOTEOfficial Quote Request
Secure checkoutFast supportBulk ready
AUTOOL BT360

Product Overview

The AUTOOL BT360 is a digital automotive battery system tester for 12V/24V lead-acid starting batteries. It helps technicians and DIY users check battery health, cranking performance, and charging system status with quick on-screen results, data records, reverse polarity protection, and support for common global battery test standards.

Battery Test Cranking Test Charging System Test Reverse Polarity Protection
12V / 24VRated Battery Voltage
8-29VVoltage Test Range
4-300AhBattery Range
3 YearsWarranty Support

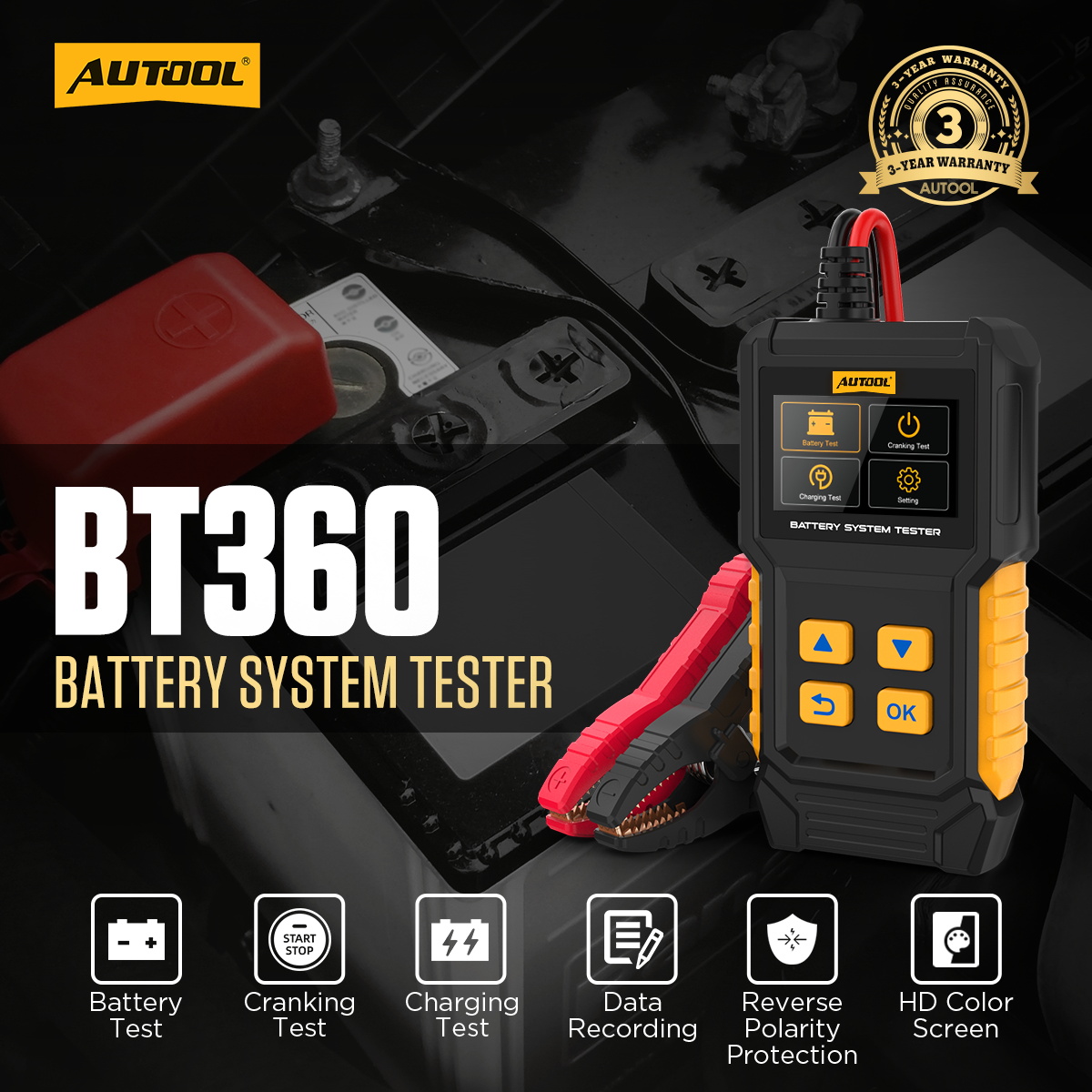

AUTOOL BT360 battery system tester main product image with battery test cranking test charging test and reverse polarity protection icons Click to enlarge
AUTOOL BT360 battery system tester 3 year warranty image Click to enlarge
Before You Order And Use

Before You Order And Use

BT360 is a battery system tester, not a battery charger. Review version shipment, lithium battery limits, load test limits, and safe connection rules before ordering or testing.

New And Old Versions Ship Randomly

BT360 new and old versions may be shipped randomly. The functions are the same; only the color screen and LED screen appearance are different.

Tester, Not Charger

BT360 can run a charging system test, but it does not charge batteries. It is not a battery charger or battery maintainer.

Lithium Batteries Not Supported

BT360 is intended for supported lead-acid starting batteries. Choose BT960 if lithium battery support is required.

No Maximum Load Test

BT360 supports Battery Test, Cranking Test, and Charging System Test. It does not support Maximum Load Test.

Correct Clamp Connection

Connect the red clip to the positive terminal and the black clip to the negative terminal. Reverse polarity protection helps protect the tester, vehicle, and battery, but correct connection is still recommended.

Battery Test With Vehicle Off

When performing a battery test, make sure the vehicle is off first. Follow the device prompts for cranking and charging tests.

Safety Reminder

  • Keep the work area dry, clean, bright, and well ventilated.
  • Do not use the tester if the power cable or connection cable is damaged.
  • Do not connect or disconnect test equipment while the ignition switch is on or the engine is running unless the test procedure requires it.
  • Place the transmission in Park or Neutral, engage the handbrake, and avoid leaving the vehicle unattended during testing.
Product Comparison

Product Comparison

Compare BT360 with higher-level AUTOOL battery system testers before choosing lithium battery support, maximum load test, data printing, thermal monitoring, or leakage current monitoring.

BT360 FocusBattery Test, Cranking Test, Charging System Test, reverse polarity protection, data records, software upgrade, 14 languages, 2.4-inch color screen, 8-29V voltage test range.
BT460 UpgradeAdds Maximum Load Test while keeping the main 12V/24V battery, cranking, and charging system test functions.
BT760 UpgradeAdds data printing and a larger 3.2-inch screen, suitable when printed battery reports are needed.
BT880 UpgradeAdds thermal monitor and leakage current monitoring, with 18 language options and data printing.
BT960 UpgradeSupports lithium batteries and wider testing capability. Choose BT960 if lithium battery support is required.
Decision CheckBT360 does not support Battery Charge, Maximum Load Test, Thermal Monitor, Leakage Current Monitoring, Data Printing, or Lithium Batteries.
AUTOOL BT360 BT460 BT760 BT880 BT960 battery system tester comparison chart Click to enlarge
Key Features

Key Features

BT360 helps evaluate battery health, cranking voltage, and charging system performance with conductive testing technology, clear screen prompts, multi-language menus, and safe clamp protection.

Battery Health Test

Checks key battery information such as voltage, capacity status, CCA, internal resistance, remaining life, and test result suggestions.

Cranking Ability Test

After selecting Cranking Test, follow the prompt to start the engine. BT360 helps evaluate the vehicle battery’s cranking voltage capability.

Charging System Test

After entering Charging Test, follow the prompt to increase speed to about 2500 RPM for 5 seconds, then press OK to complete the test.

Data Records And Waveform

Supports history records and voltage waveform viewing, helping users review battery test information after testing.

14 Language Options

Supports English, Portuguese, Spanish, French, German, Italian, Russian, Turkish, Thai, Japanese, Traditional Chinese, Simplified Chinese, Korean, and Polish.

Software Upgrade Support

BT360 can be connected to a computer with a USB data cable for software upgrade when applicable.

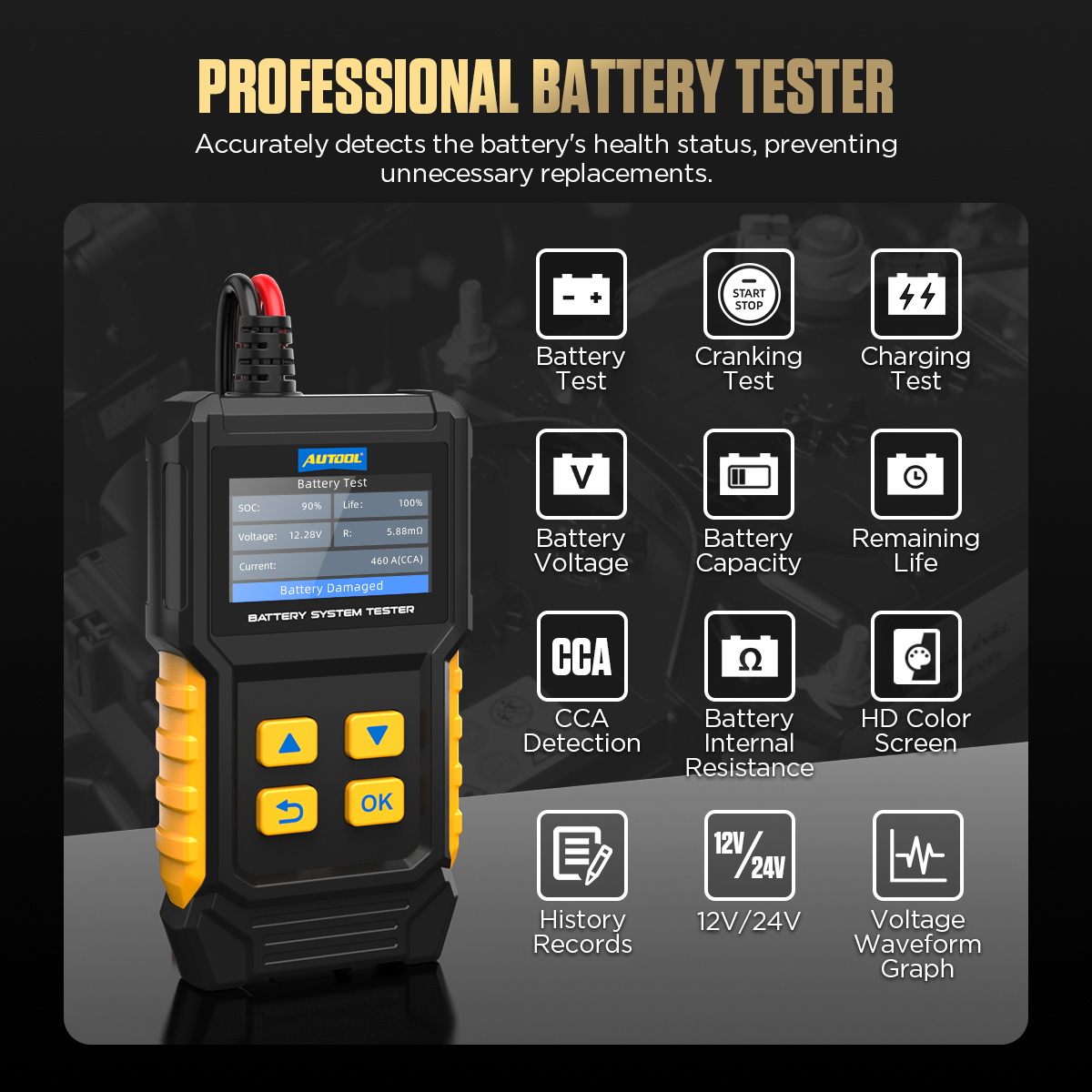

AUTOOL BT360 professional battery tester functions including battery test cranking test charging test CCA internal resistance and history records Click to enlarge

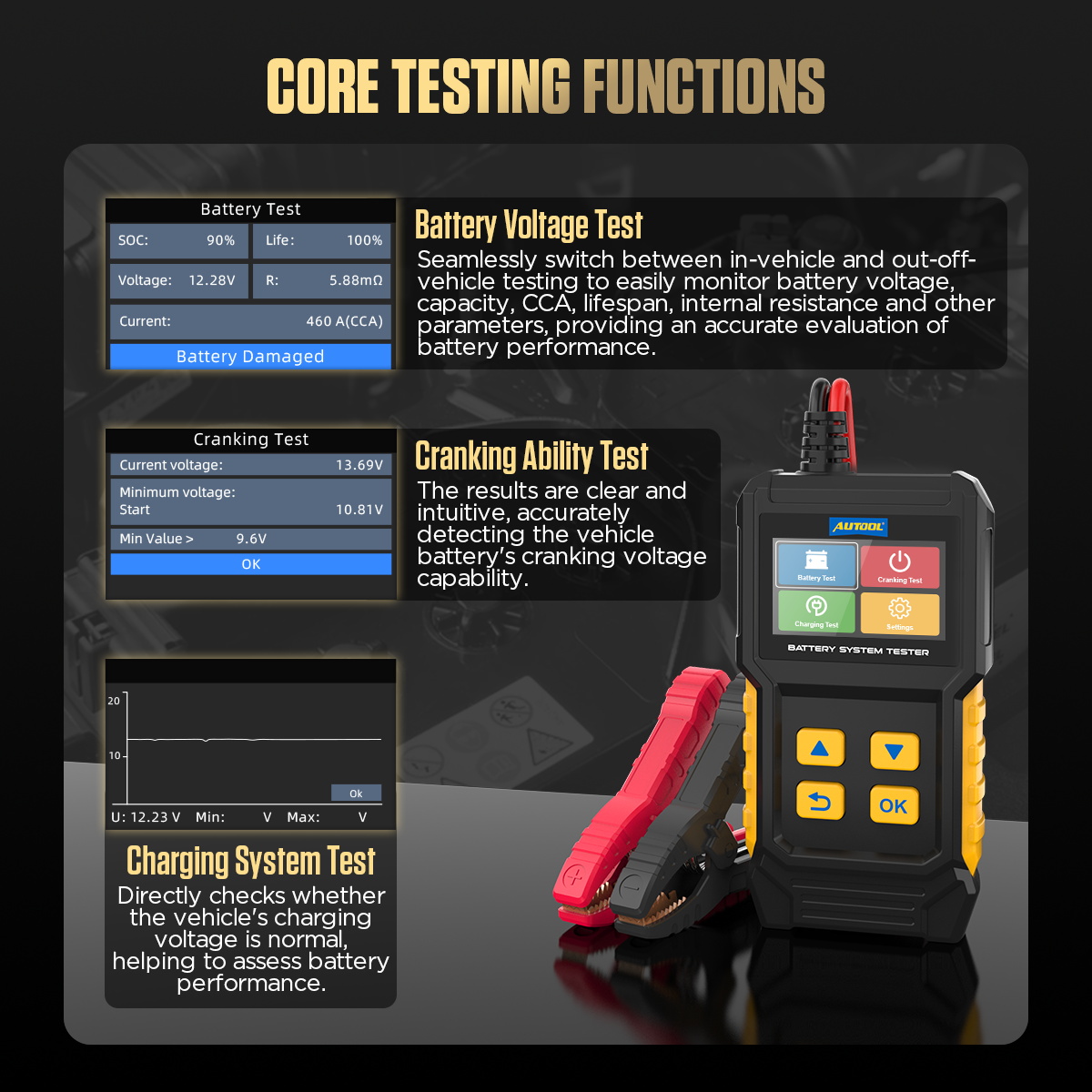

AUTOOL BT360 core testing functions battery voltage test cranking ability test and charging system test Click to enlarge

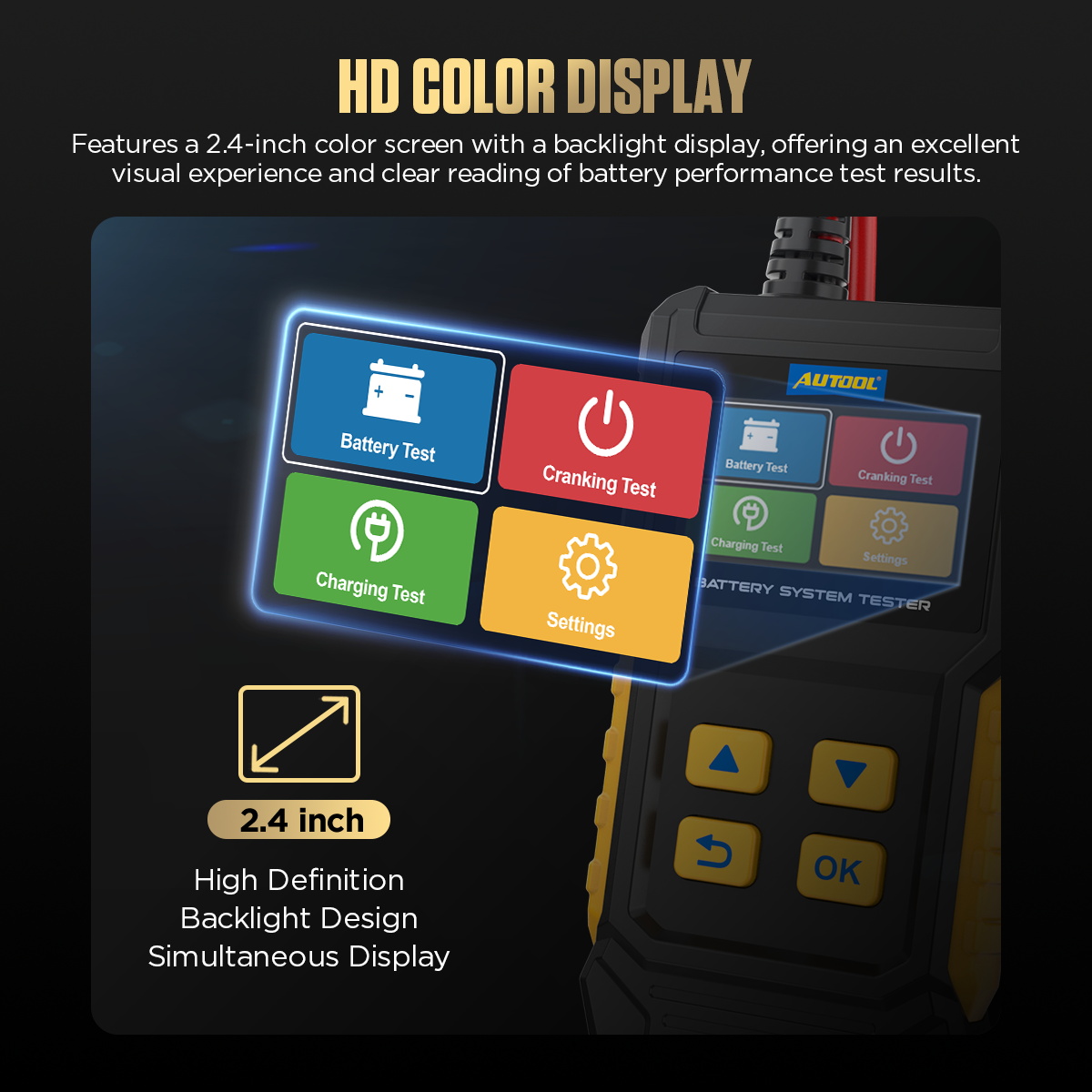

AUTOOL BT360 2.4 inch color display with backlight Click to enlarge

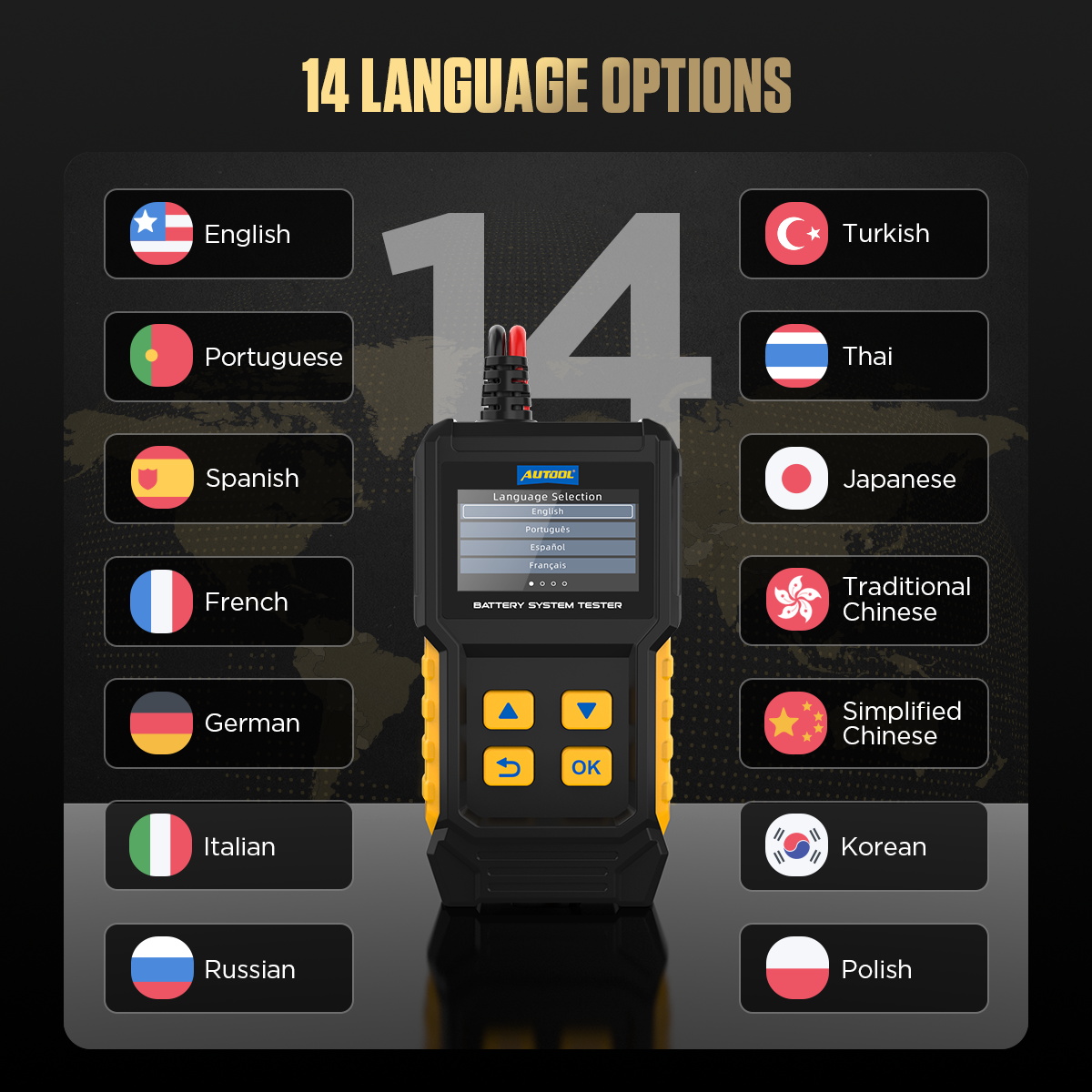

AUTOOL BT360 14 language options image Click to enlarge

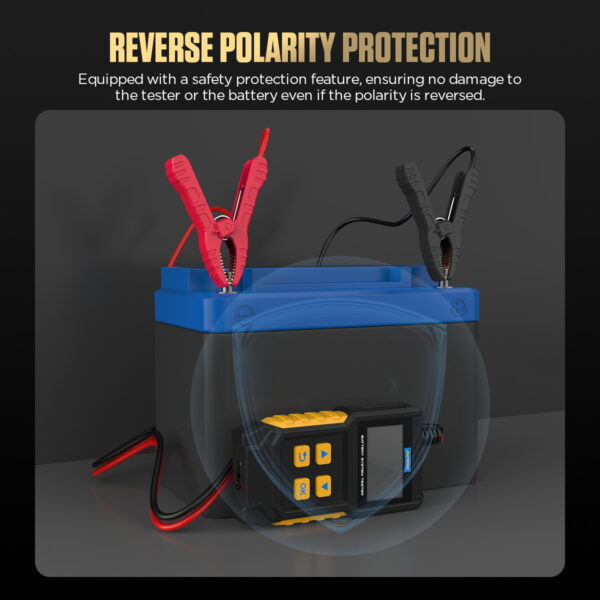

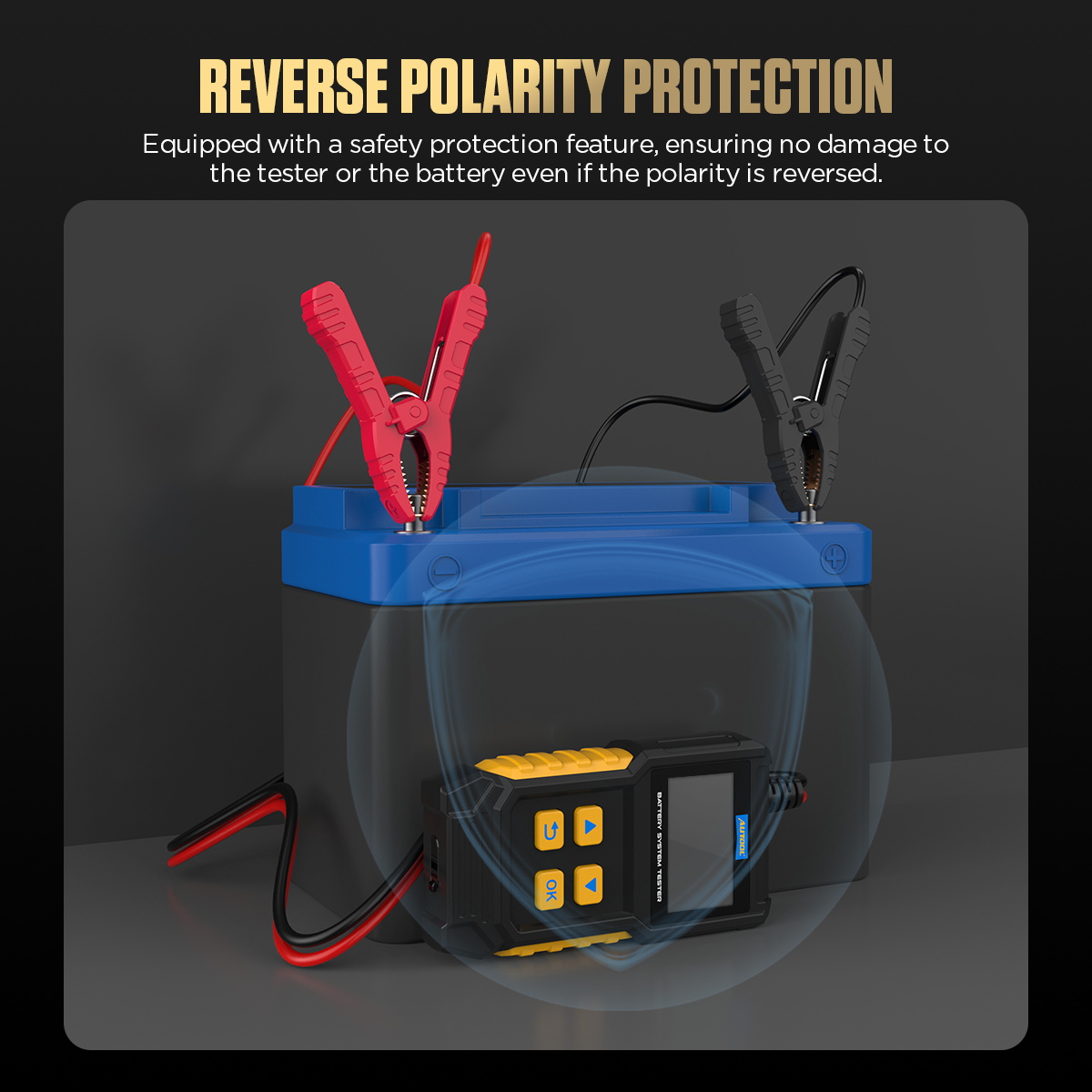

AUTOOL BT360 reverse polarity protection image Click to enlarge

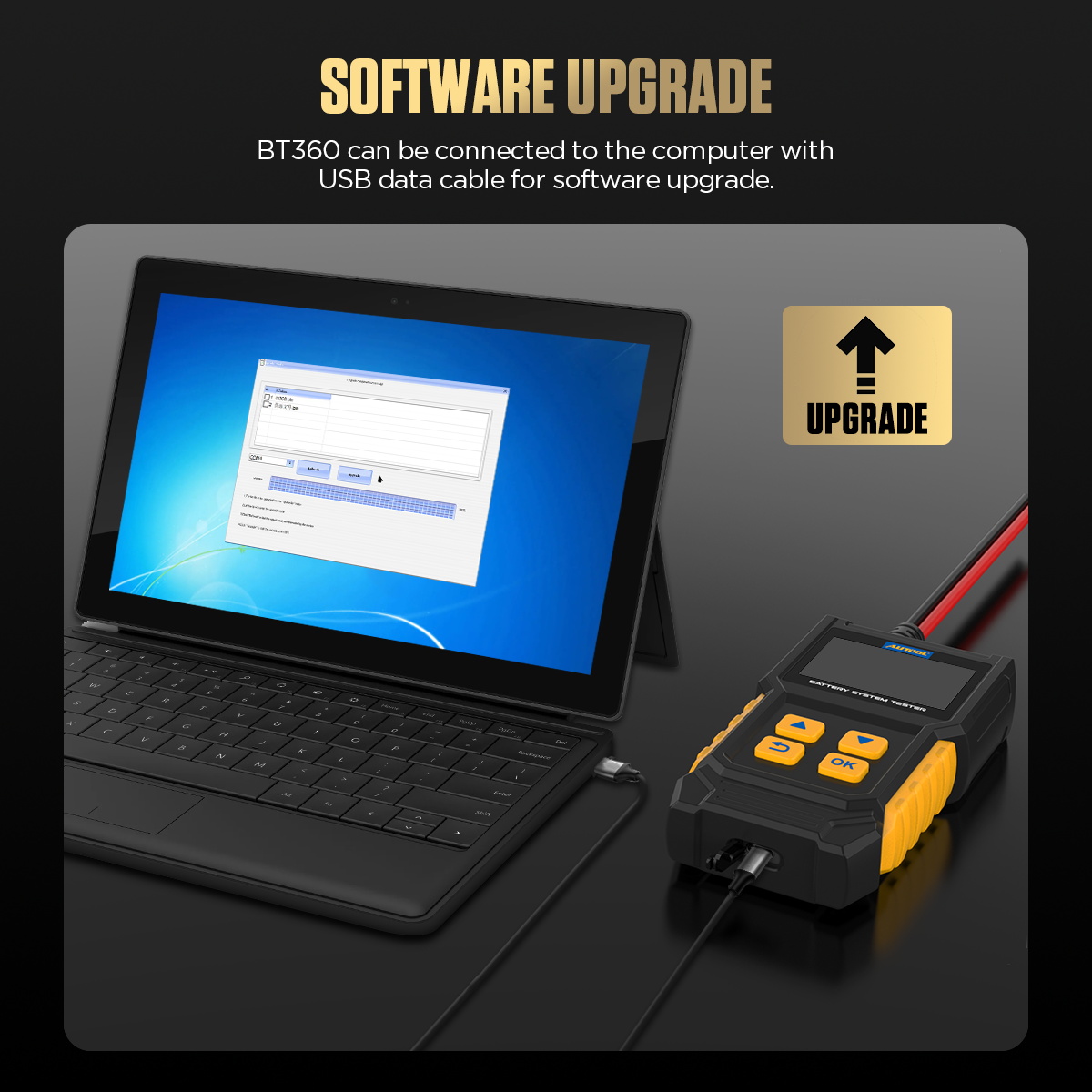

AUTOOL BT360 software upgrade with USB data cable image Click to enlarge
Compatibility And Fitment

Compatibility And Fitment

BT360 is designed for supported 12V/24V lead-acid starting batteries and covers common test standards including CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB.

Battery Compatibility
Supported Battery TypesRegular flooded lead-acid, AGM flat plate, AGM spiral, GEL, and EFB batteries
Not SupportedLithium batteries
Applicable Rated Voltage12V / 24V
Voltage Test Range8-29V
Battery Range4-300Ah
Applicable Vehicle TypesCars, trucks, motorcycles, boats, and ATVs when the battery type and voltage are compatible

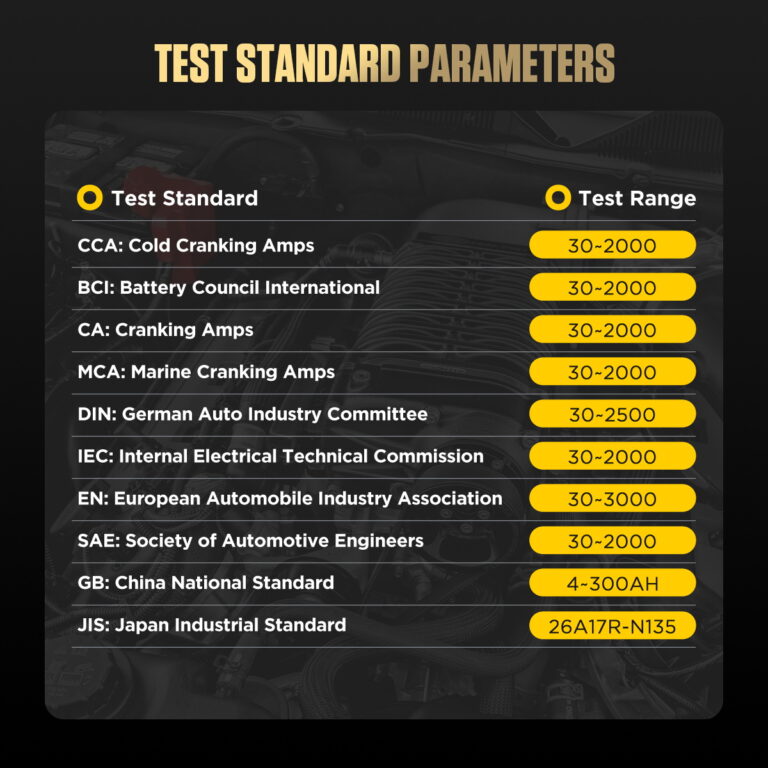

Measurement Standards And Ranges
CCA30-2000
BCI30-2000
CA30-2000
MCA30-2000
DIN30-2500
IEC30-2000
EN30-3000
SAE30-2000
GB4-300Ah
JIS26A17R-N135

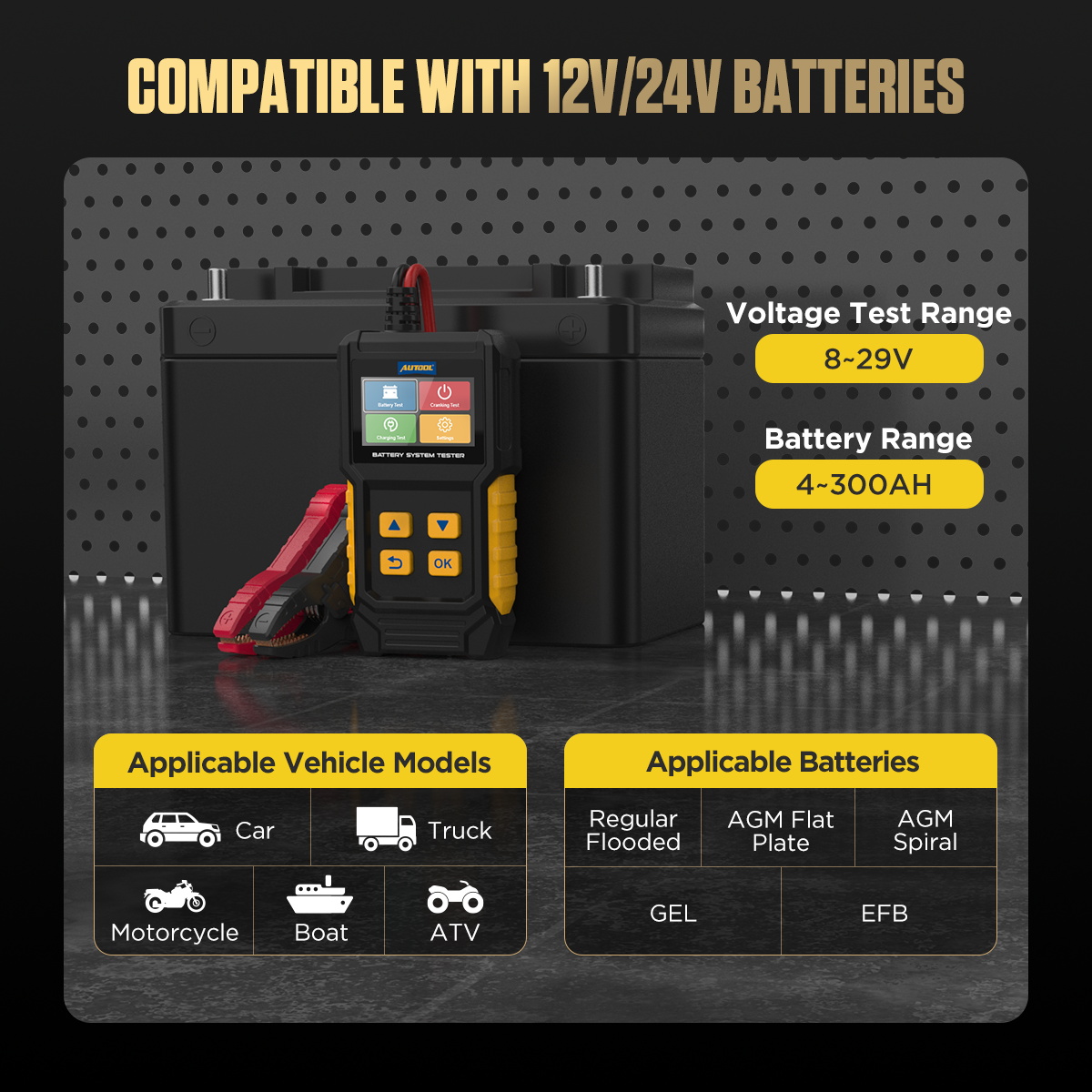

AUTOOL BT360 compatible with 12V and 24V batteries voltage range 8 to 29V and battery range 4 to 300Ah Click to enlarge

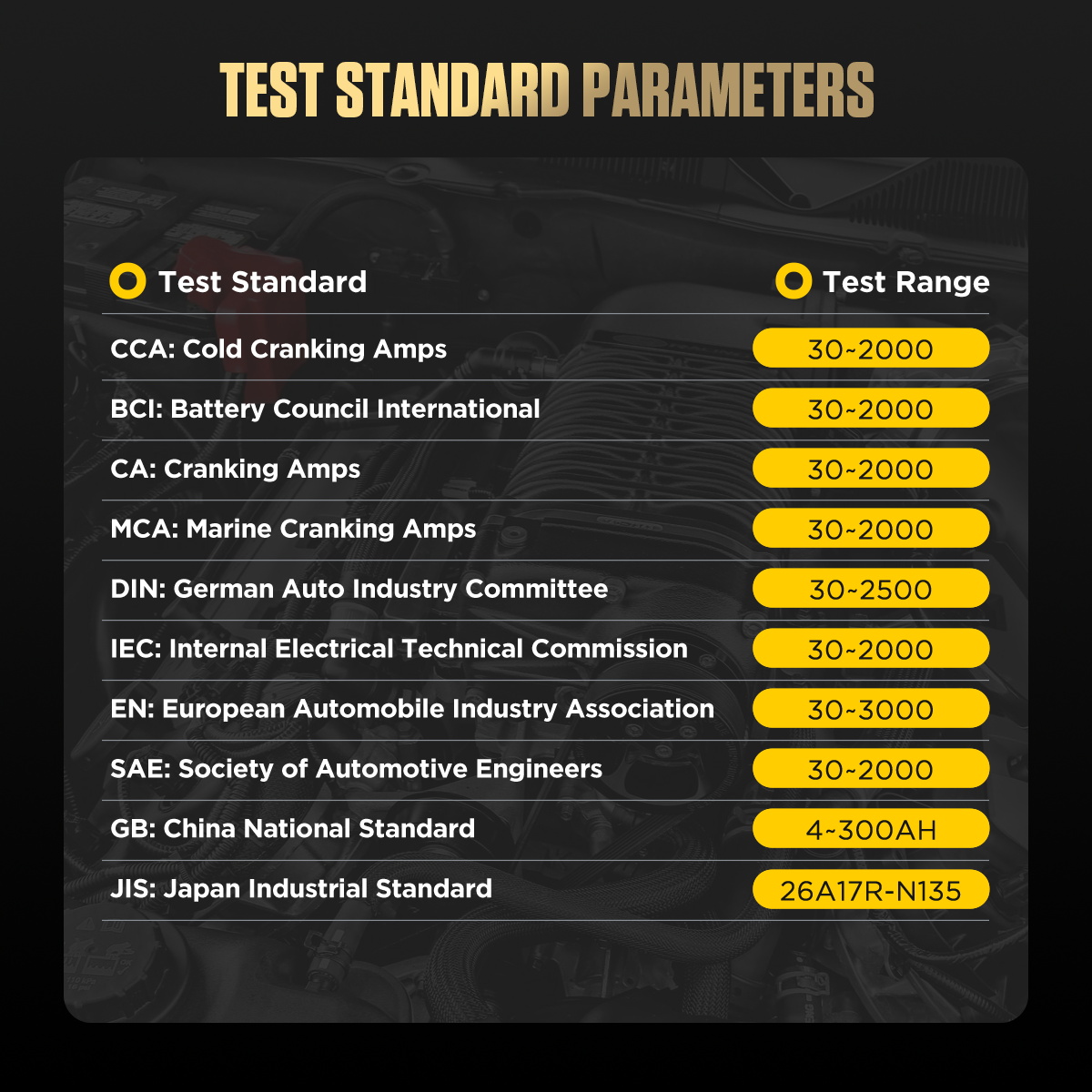

AUTOOL BT360 test standard parameters CCA BCI CA MCA DIN IEC EN SAE GB JIS Click to enlarge
Battery Compatibility
SupportedRegular flooded, AGM flat, AGM spiral, GEL, EFB
Not SupportedLithium batteries
Rated Voltage12V / 24V
Voltage Range8-29V
Battery Range4-300Ah
Test Standards
30-2000CCA / BCI / CA / MCA / IEC / SAE
DIN30-2500
EN30-3000
GB4-300Ah
JIS26A17R-N135
How It Works

How It Works

BT360 uses conductance testing technology to estimate battery condition and help identify common starting and charging system faults.

Measure Conductance

The tester measures the battery’s electrical conductance, which reflects the chemical reaction ability of the battery plates.

Compare Reference Values

BT360 compares the measured conductance with standard values expected from a battery in good condition.

Estimate Condition

The result helps estimate battery health, capacity change, cold cranking capability, and whether further inspection or replacement may be needed.

How To Use

How To Use

Connect BT360 directly to the battery clamps, select the correct battery type, test standard, and range, then follow the on-screen prompts for Battery Test, Cranking Test, and Charging Test.

Prepare The Vehicle

For Battery Test, make sure the vehicle is off. Keep the vehicle secure, engage the handbrake, and work in a dry and safe area.

Connect The Battery

Connect the red clip to the positive battery terminal and the black clip to the negative battery terminal.

Select Test Settings

Choose the battery type, the correct test standard, and the test range according to the battery label.

Run Battery Test

After setup, BT360 displays the battery test result within a few seconds and provides suggested result information.

Run Cranking Or Charging Test

For Cranking Test, follow the prompt to start the engine. For Charging Test, follow the prompt to raise speed to about 2500 RPM for 5 seconds, then press OK.

Use Notes

  • Selecting the wrong battery type, standard, or range may affect the test result.
  • Use the battery label to confirm CCA, CA, MCA, DIN, EN, SAE, GB, JIS, or other applicable standard before testing.
  • If the result looks abnormal, recheck the clamp connection and settings, then test again.
  • Contact support with photos or a short video if the issue remains.
Specifications

BT360 Product Specifications

BT360 combines a compact handheld design, 2.4-inch color display, dual-conductor Kelvin clamps, 8-29V voltage range, 4-300Ah battery range, and common global test standards.

Core Specifications
ProductAUTOOL BT360 Battery System Tester
Main FunctionsBattery Test, Cranking Test, Charging System Test
Testing TechnologyConductance testing technology
Applicable Battery Rated Voltage12V / 24V
Voltage Range8-29V
Battery Range4Ah-300Ah
ScreenLCD material with LED backlight, 2.4-inch color screen
Testing ClampsDual-conductor Kelvin clamps
Casing MaterialAcid-resistant ABS plastic
CablePVC material, 20AWG / 4-core wire, approximately 50cm
Dimensions138.6 × 76.8 × 30mm
Languages14 language options
ProtectionReverse polarity protection
DataData records and voltage waveform graph
SoftwareSoftware upgrade support by USB data cable when applicable
Warranty3-year warranty support for eligible non-human damage cases

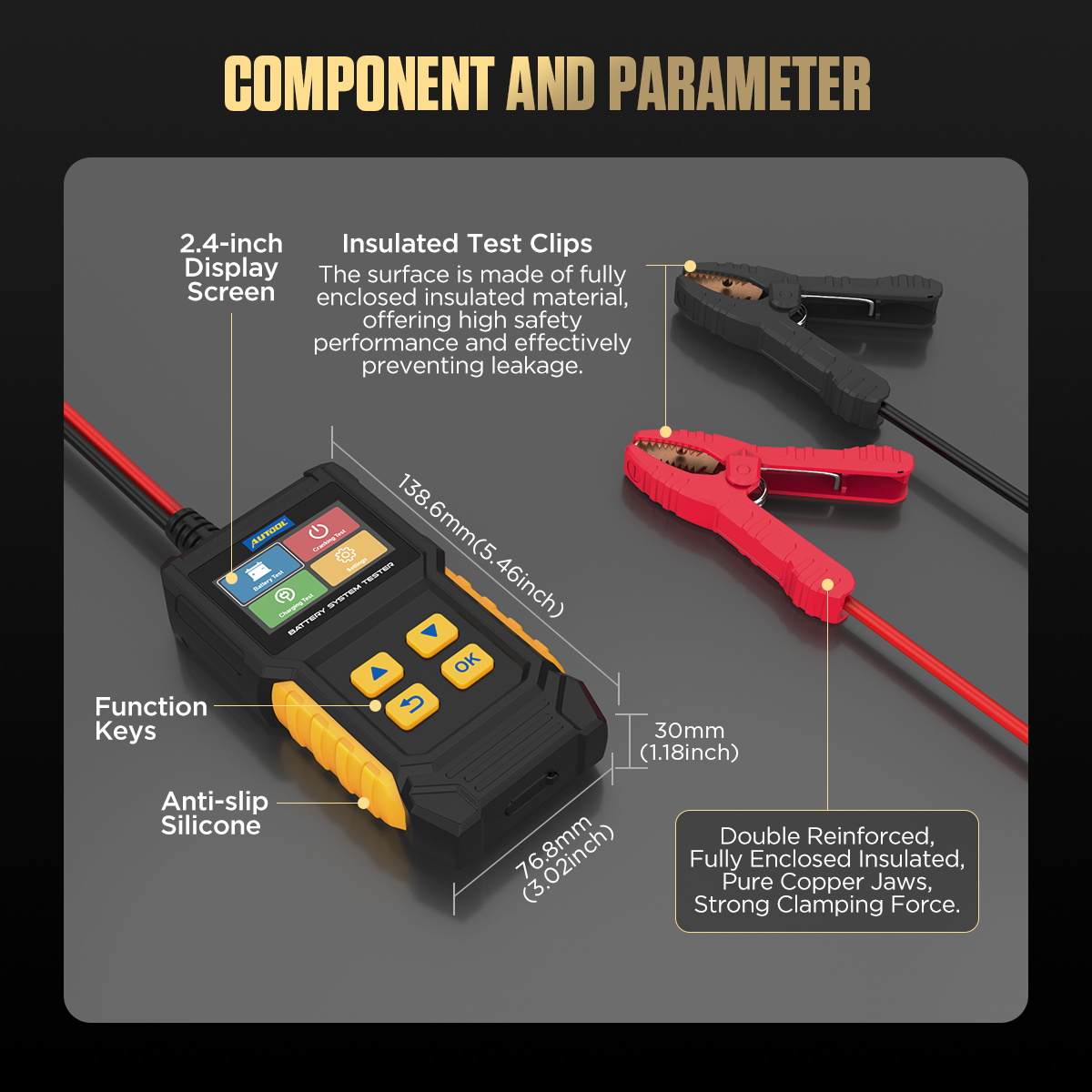

AUTOOL BT360 component and parameter image with 2.4 inch screen insulated test clips and 138.6 by 76.8 by 30 millimeter dimensions Click to enlarge
Core Specifications
ProductAUTOOL BT360 Battery System Tester
Main FunctionsBattery Test, Cranking Test, Charging System Test
Testing TechnologyConductance testing technology
Applicable Battery Rated Voltage12V / 24V
Voltage Range8-29V
Battery Range4Ah-300Ah
ScreenLCD material with LED backlight, 2.4-inch color screen
Testing ClampsDual-conductor Kelvin clamps
Casing MaterialAcid-resistant ABS plastic
CablePVC material, 20AWG / 4-core wire, approximately 50cm
Dimensions138.6 × 76.8 × 30mm
Languages14 language options
ProtectionReverse polarity protection
DataData records and voltage waveform graph
SoftwareSoftware upgrade support by USB data cable when applicable
Warranty3-year warranty support for eligible non-human damage cases

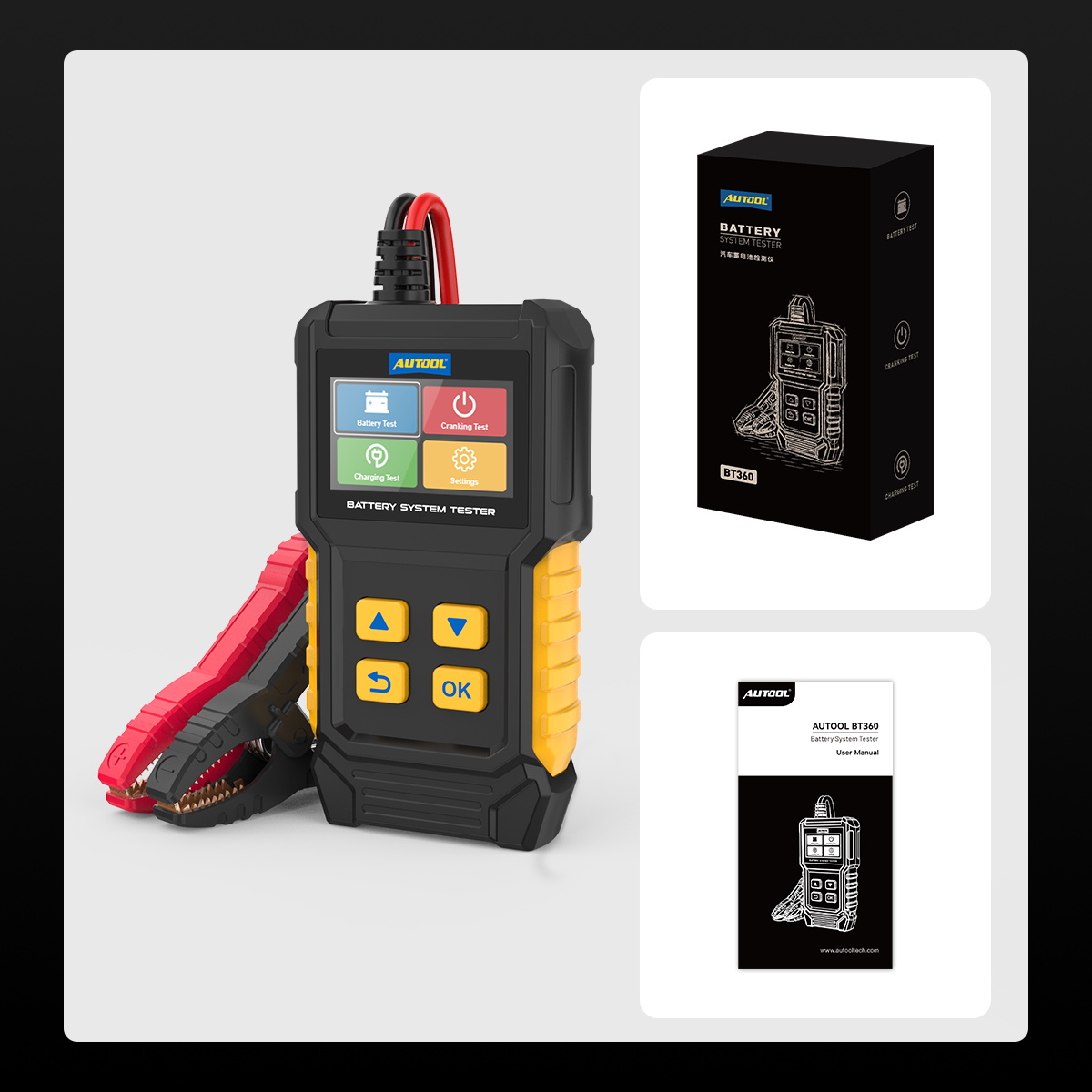

AUTOOL BT360 packing list image with battery system tester retail box and user manual Click to enlarge
What Is In The Box

What Is In The Box

The package image shows the BT360 main unit, retail box, and user manual. Final package contents should follow the package image and selected product option.

Main UnitAUTOOL BT360 battery system tester
Clamp CableIntegrated red and black battery clamp cable shown with the tester
DocumentationUser manual shown in the package image
PackagingBT360 retail box shown in the package image
ReminderNo extra accessories are added here unless they are shown in the package image or selected product option.
Manual And Downloads

Manual And Downloads

Download the BT360 manual for safety rules, product parameters, operating procedures, battery test, cranking test, charging test, settings, maintenance, and warranty information.

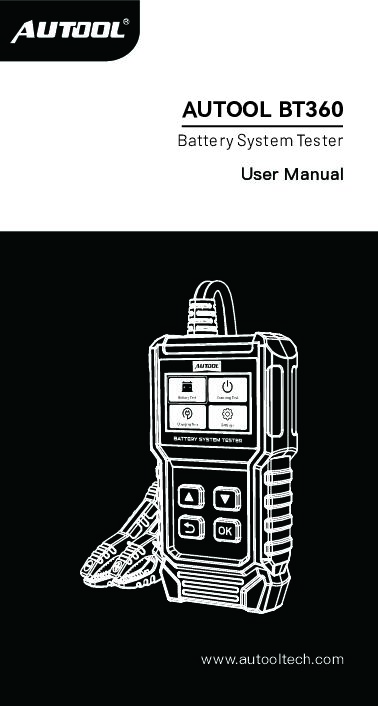

AUTOOL BT360 battery system tester user manual preview Click to enlarge

AUTOOL BT360 EN / DE Manual

Open the PDF manual for setup, safety, test procedure, product structure, and warranty guidance.

Download Manual

Need Help Before Testing?

Contact AUTOOL Store if you need help confirming battery type, test standard, lithium battery support, version shipment, test results, or BT360 / BT460 / BT760 / BT880 / BT960 model selection.

Email[email protected] WhatsApp+86 189 2647 7404
Related Products

Related Products

Compare related AUTOOL battery testers if you need lithium battery support, maximum load test, data printing, thermal monitoring, leakage current monitoring, or higher-level workshop functions.

Questions And Answers

These answers cover BT360 functions, battery compatibility, lithium battery limits, screen version shipment, charging test meaning, maximum load test limits, test standards, operation, troubleshooting, and warranty.

Warranty And Contact

Warranty And Contact

For BT360 setup, battery type confirmation, test standard selection, screen version questions, lithium battery support, abnormal readings, package confirmation, or comparison with other BT series battery testers, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming whether BT360 fits your battery type, whether you need BT460 / BT760 / BT880 / BT960 instead, or how to interpret battery, cranking, and charging system test results.

  • 3-year warranty support for eligible non-human damage cases
  • BT360 new and old version shipment explanation
  • Battery type, voltage range, and test standard confirmation
  • Lithium battery, maximum load test, and data printing model selection
  • Abnormal test result troubleshooting with photos or video
  • Package contents and user manual support
Email Support[email protected] WhatsApp Support+86 189 2647 7404
