AUTOOL BT160 Automotive Circuit Tester Circuit Checker
US$33.00
Key Features
- 9-30V Support
- Continuity Check
- Polarity Test
- 9-30V Support: The stated 9-30V DC range suits common 12V cars and 24V heavy-truck electrical checks.
- Continuity Check: Continuity testing helps trace open, closed, virtual, and real circuits during electrical diagnosis.
- Polarity Test: Positive and negative polarity indication speeds up wiring checks when probing unknown circuits.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support
AUTOOL BT160
Product Overview

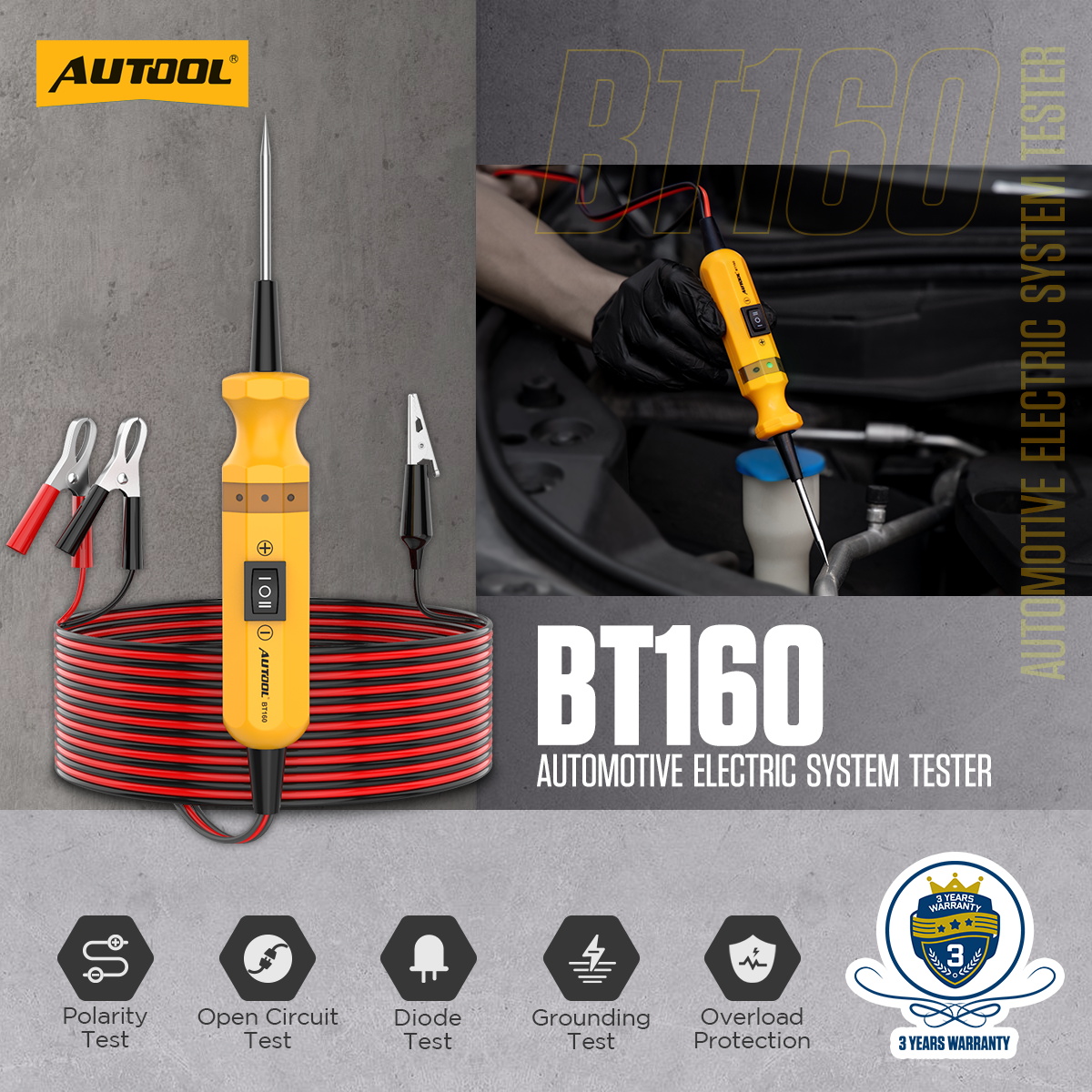

The AUTOOL BT160 automotive circuit tester helps reduce diagnostic time when checking 6-24V DC vehicle electrical systems. After connecting the red and black clips to the vehicle battery, technicians can probe circuits, identify positive, negative, or open states with LED feedback, activate selected components through the power switch, check bad ground contacts, and follow short circuits more efficiently.
6-24V DC Polarity Test Open Circuit Test 10A Protection
4m / 13ftLead Length
10AOverload Protection
220mmMain Unit Length
3 YearsWarranty Support
Click to enlargeBefore You Order And Use
Before You Order And Use
BT160 is designed for automotive 6-24V DC circuits. Review the power limitation, spark warning, inspection checks, probe safety, and overload behavior before testing.

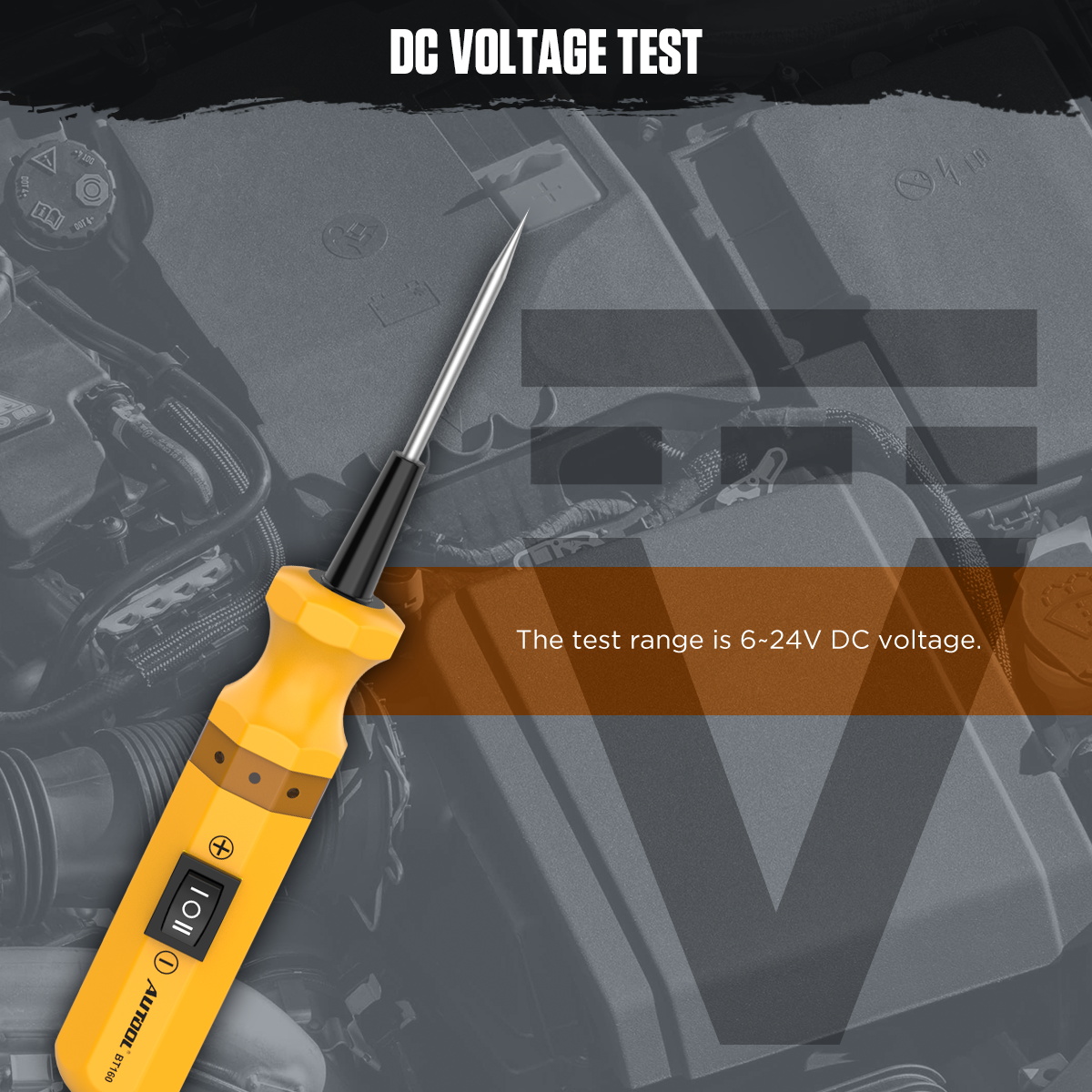

6-24V DC Only
Use BT160 only with 6-24V DC automotive electrical systems, including common 12V cars and 24V heavy trucks.
Do Not Use On AC Power
BT160 is not designed for 110V / 220V AC household current or any system above 24V DC.
Spark Warning
Sparks may occur at the probe tip during use. Do not operate in areas with combustible gas, dust, or explosive conditions.
Inspect Before Use
Check the case, probe tip, clips, and leads before use. Do not use the tester if cracks, exposed wires, or visible damage are found.
Sharp Probe Tip
The probe is sharp. Use and store it carefully, and keep the tool away from children.
Do Not Open The Tool
Do not disassemble BT160. Opening the tool voids the warranty, and repairs should be handled by authorized service support.
Protection Reminder
- BT160 is overload protected by disconnecting the circuit and sounding a beeping alarm.
- If the LED changes color with a buzzer during component activation, stop testing and check whether the component is defective or its rated current is higher than the tester can support.
- Read the manual before using jumper lead operation, component activation, or short circuit locating.
Product Comparison
Product Comparison
Compare BT160 with other AUTOOL circuit tester models before choosing voltage range, screen display, cable length, measurement functions, and advanced diagnostic modes.
BT160 FocusEntry automotive electric system tester for 6-24V DC systems, 4m lead length, 10A overload protection, polarity test, grounding test, continuity test, diode test, DC voltage detection mode, and short circuit following.
BT210 UpgradeChoose BT210 if you need 9-30V operation, a simple digital display, LED light, temperature test, and basic voltage readout support.
BT250 / BT260Choose BT250 or BT260 if you need a TFT color display, AC / DC voltage measurement, resistance measurement, 9 languages, diode test, grounding test, and current measurement up to 10A. BT260 offers a longer 12m cable.
BT280 High-EndChoose BT280 if you need advanced functions such as smart test, multimeter mode, oscilloscope mode, relay test, injector test, component activation, 0-5V power supply, 14 languages, online update, and up to 18A current measuring range.
Decision CheckBT160 is suitable when you need a compact, no-screen, quick circuit checker. Choose a higher model if you need numerical voltage, resistance, AC voltage, display, injector, relay, or oscilloscope functions.
Click to enlargeKey Features
Key Features
BT160 focuses on fast visual circuit checks, polarity recognition, open circuit and continuity testing, diode status checking, grounding confirmation, short circuit following, and overload protection.

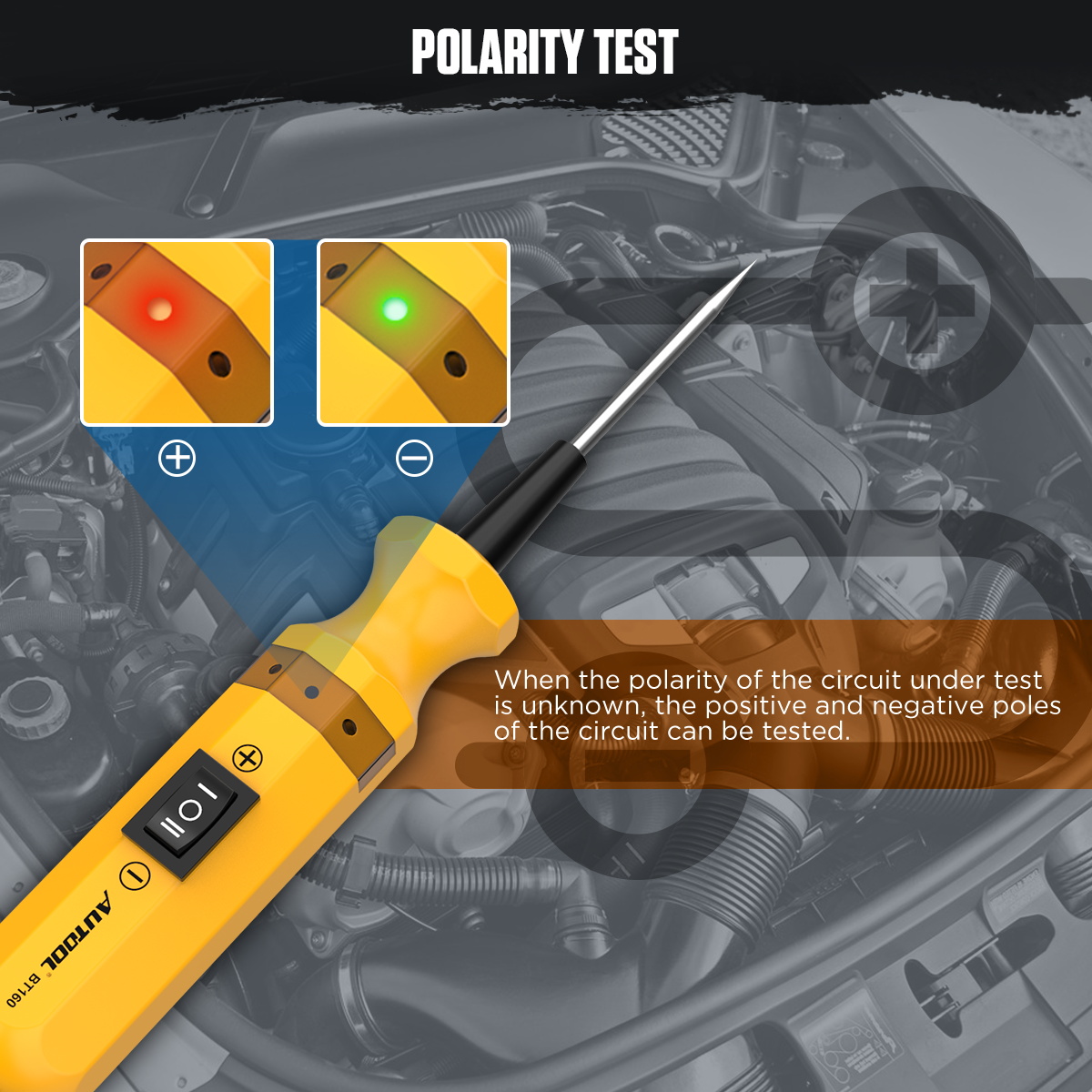

Polarity Test
Probe an unknown contact to identify circuit polarity. The red LED indicates positive voltage, and the green LED indicates negative voltage.

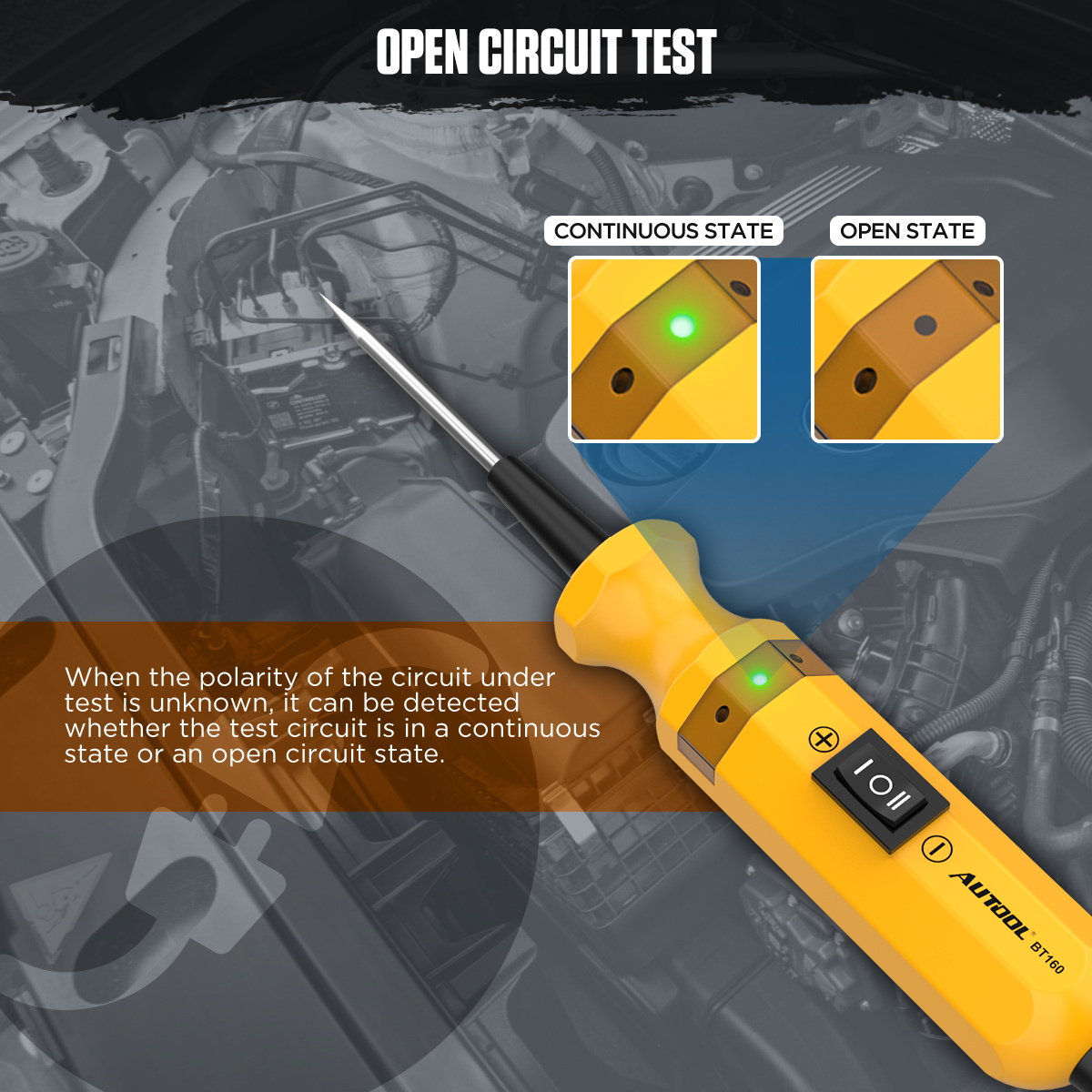

Continuity And Open Circuit Test
Check whether a tested wire, fuse, relay, switch, or circuit path is continuous or open by using the auxiliary ground lead and probe tip.

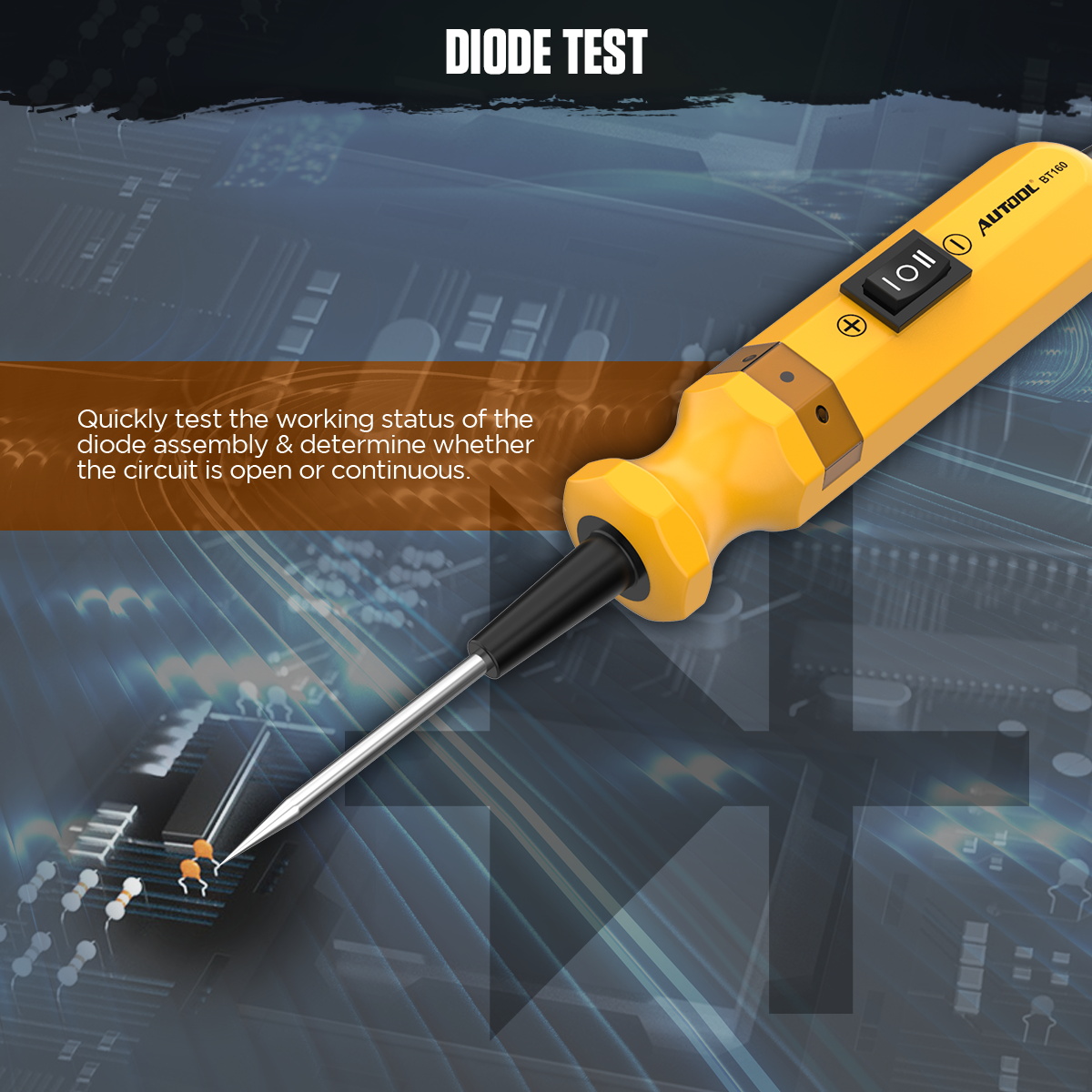

Diode Test Mode
Quickly test the working status of a diode assembly and determine whether the circuit is open or continuous.

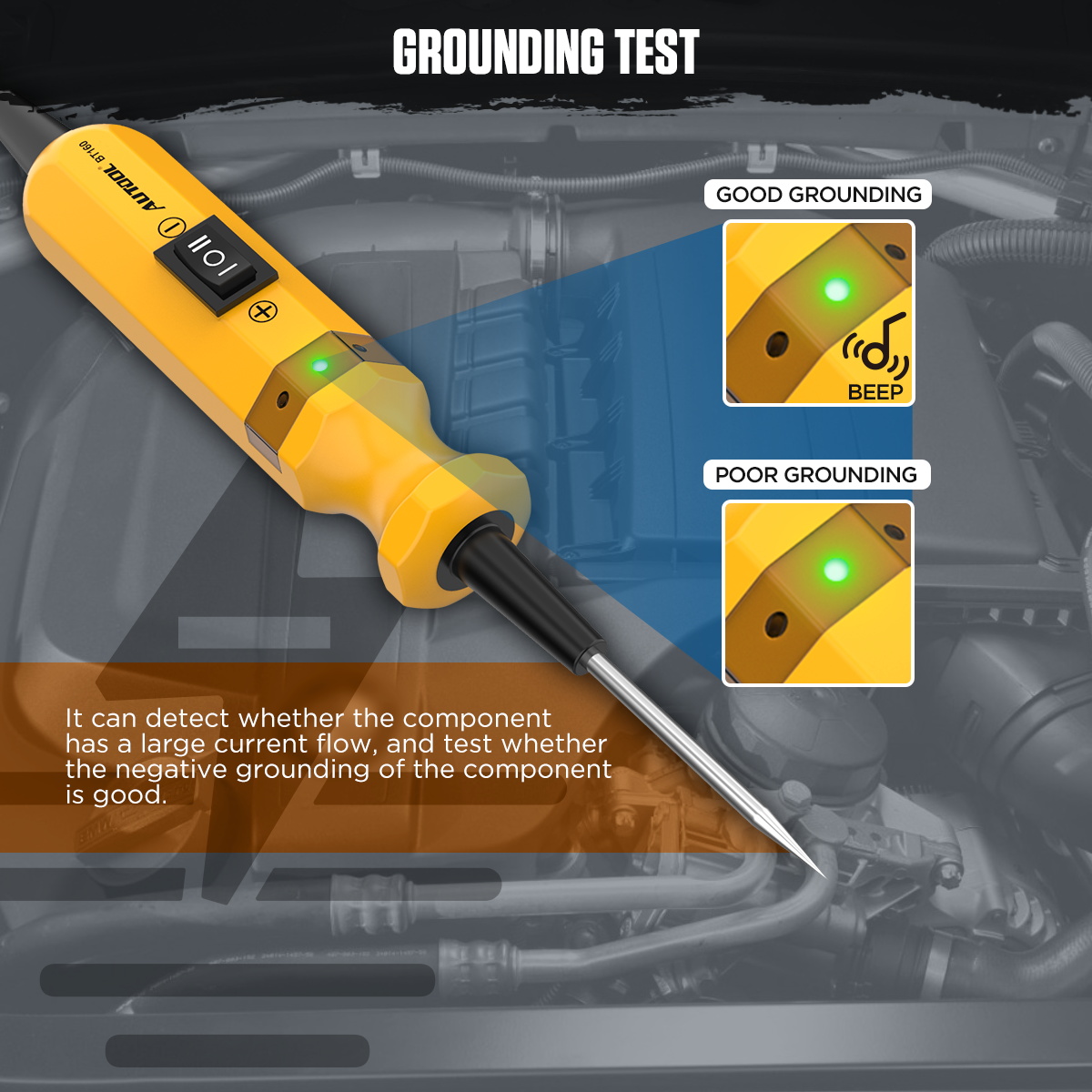

Grounding Test
Check whether the negative grounding of a component is good. Green LED with buzzer feedback indicates good grounding under the correct test setup.
Short Circuit Following
After removing the blown fuse, use the probe to help follow the wiring harness and locate the shorted side or overloaded component.

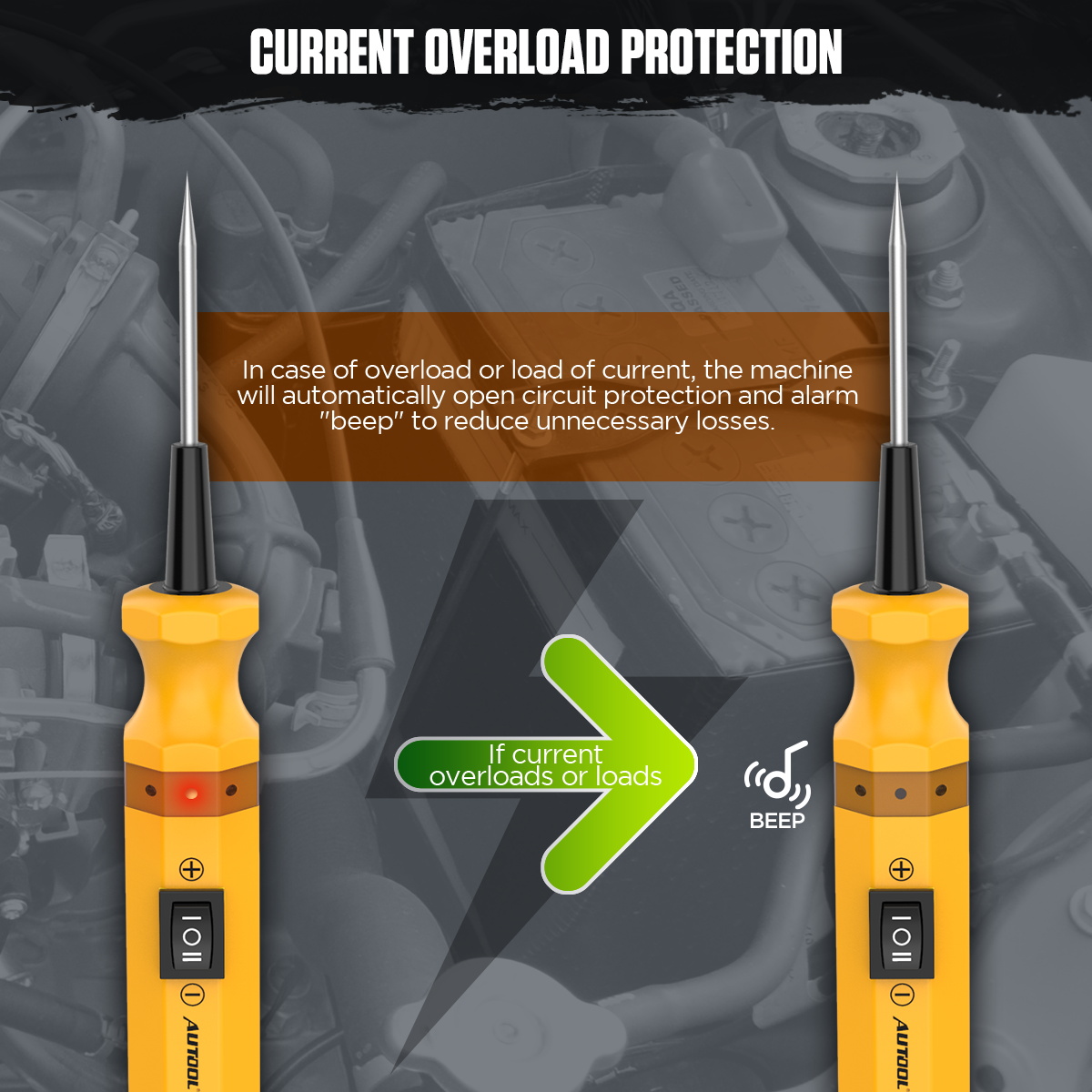

Current Overload Protection
When overload or excessive current is detected, BT160 automatically opens circuit protection and beeps to reduce unnecessary losses.
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlargeSpecifications

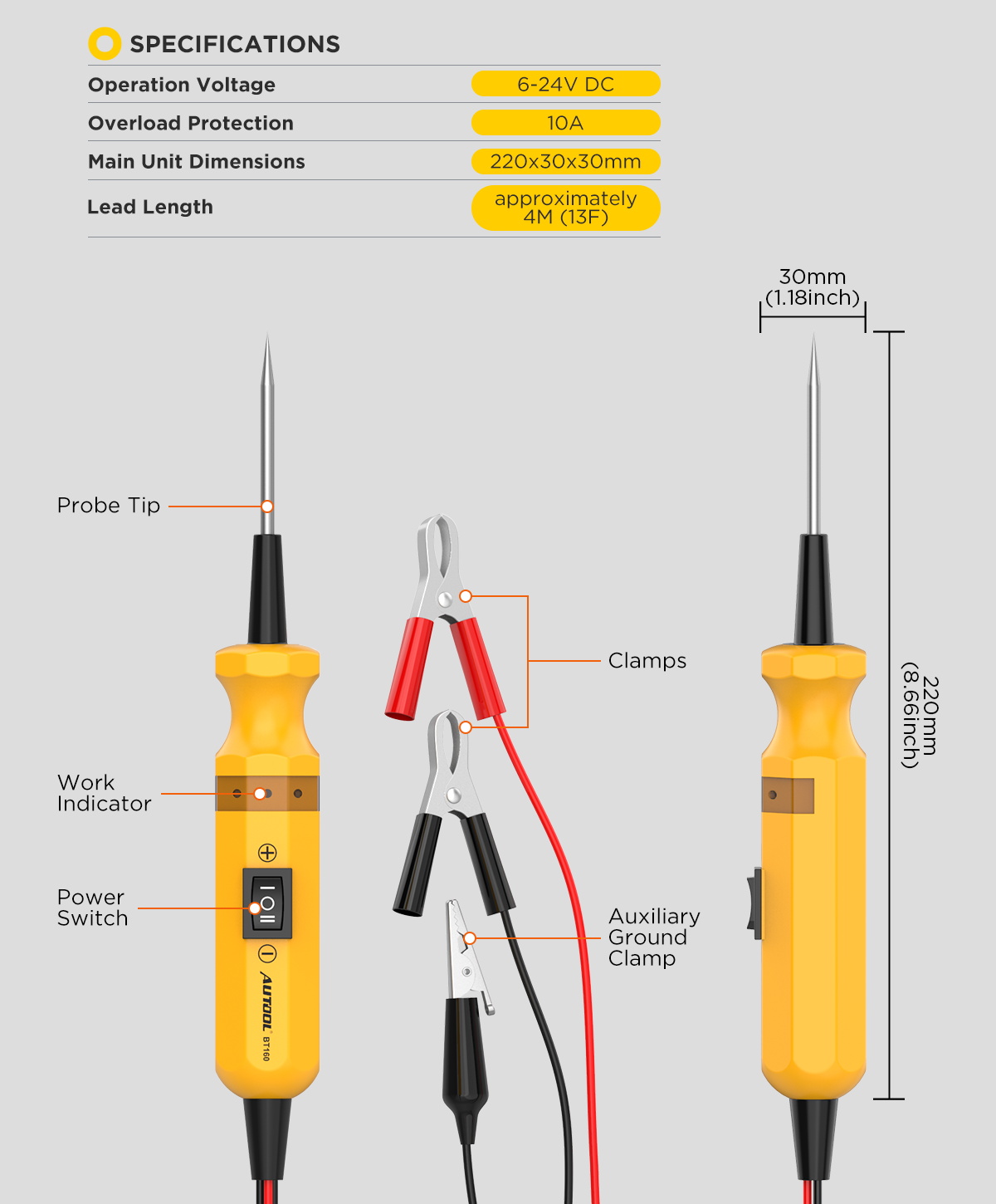

BT160 Product Specifications

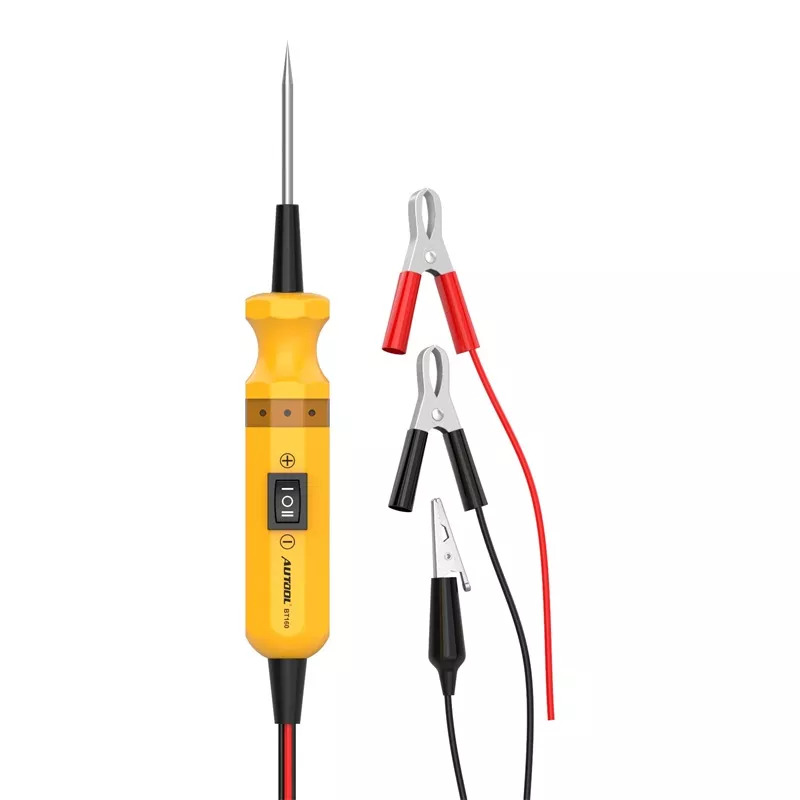

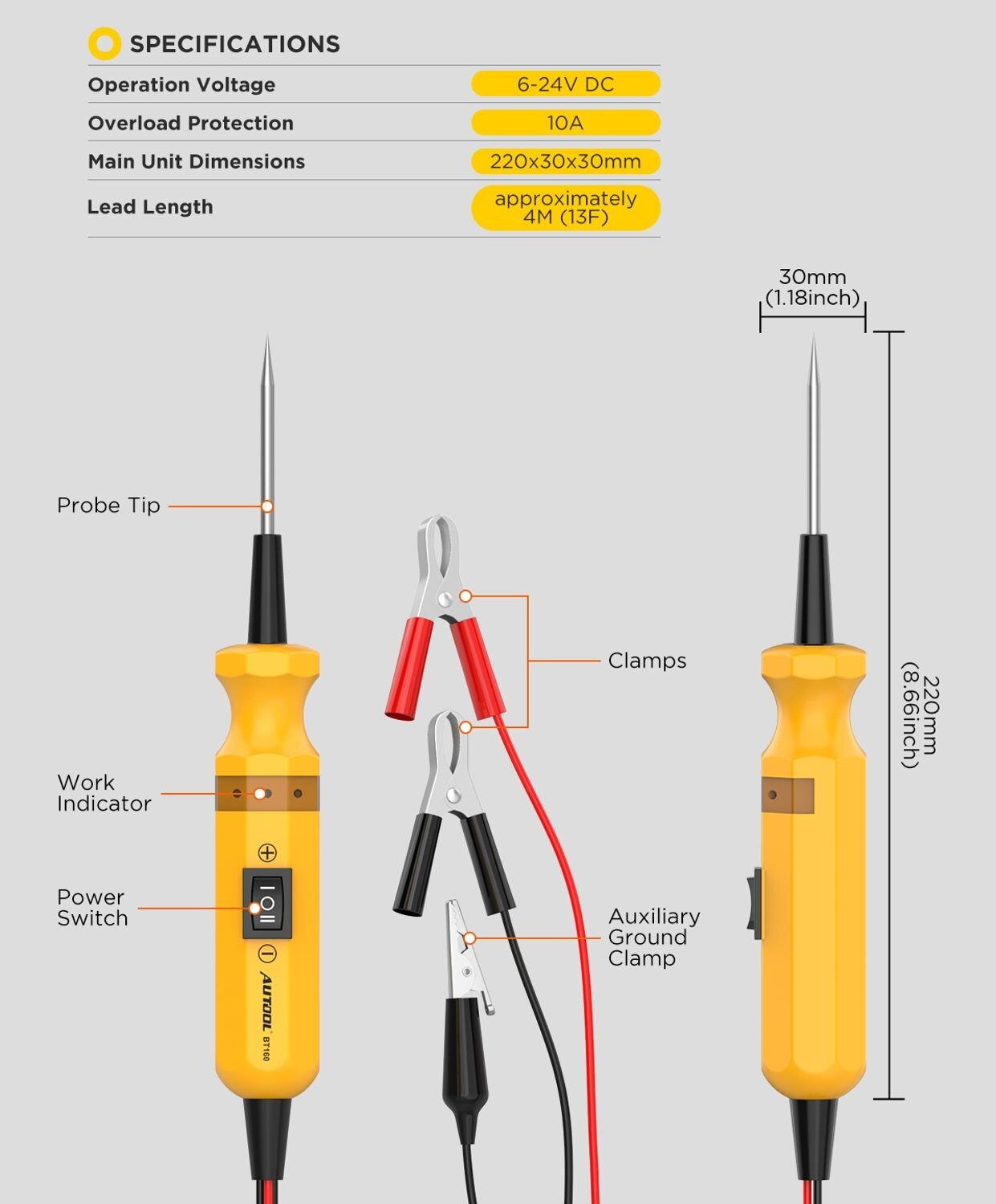

BT160 uses a simple probe-style layout with battery clips, auxiliary ground clamp, LED indicator, power switch, 4m lead length, and 10A overload protection for 6-24V DC automotive systems.
| Core Specifications | |
| Product | AUTOOL BT160 Automotive Electric System Tester |
| Operation Voltage | 6-24V DC |
| Overload Protection | 10A |
| Lead Length | Approximately 4m / 13ft |
| Main Unit Dimensions | 220 × 30 × 30mm |
| Positive Indicator | Red LED |
| Negative Indicator | Green LED |
| Power Switch | Press “-” side to output positive voltage; press “=” side to output negative voltage |
| Main Structure | Probe tip, red clip, black clip, auxiliary ground clamp, LED indicator, and power switch |
| Supported Use | 6-24V DC automotive electrical checks for cars, trucks, motorcycles, and similar vehicle systems |
| Warranty Support | 3-year warranty support for eligible non-human damage cases |
Click to enlargeCore Specifications
ProductAUTOOL BT160 Automotive Electric System Tester
Operation Voltage6-24V DC
Overload Protection10A
Lead LengthApproximately 4m / 13ft
Main Unit Dimensions220 × 30 × 30mm
Positive IndicatorRed LED
Negative IndicatorGreen LED
Power SwitchPress “-” side to output positive voltage; press “=” side to output negative voltage
Main StructureProbe tip, red clip, black clip, auxiliary ground clamp, LED indicator, and power switch
Supported Use6-24V DC automotive electrical checks for cars, trucks, motorcycles, and similar vehicle systems
Warranty Support3-year warranty support for eligible non-human damage cases
How To Use
How To Use
Connect BT160 to the vehicle battery, select the appropriate test method, observe LED and buzzer feedback, and stop testing if overload protection is triggered.
Connect To Battery
Unroll the leads. Connect the red clip to the positive terminal of the vehicle battery and the black clip to the negative terminal.
Run A Quick Self-Test
Press the switch to confirm LED feedback. Red indicates positive voltage and green indicates negative voltage.
Probe The Circuit
Touch the probe tip to the circuit contact, wire, fuse, relay, diode, or component terminal according to the selected test mode.
Read LED And Buzzer Feedback
Use LED color, buzzer behavior, and circuit response to identify positive, negative, open, continuous, grounded, overloaded, or shorted conditions.

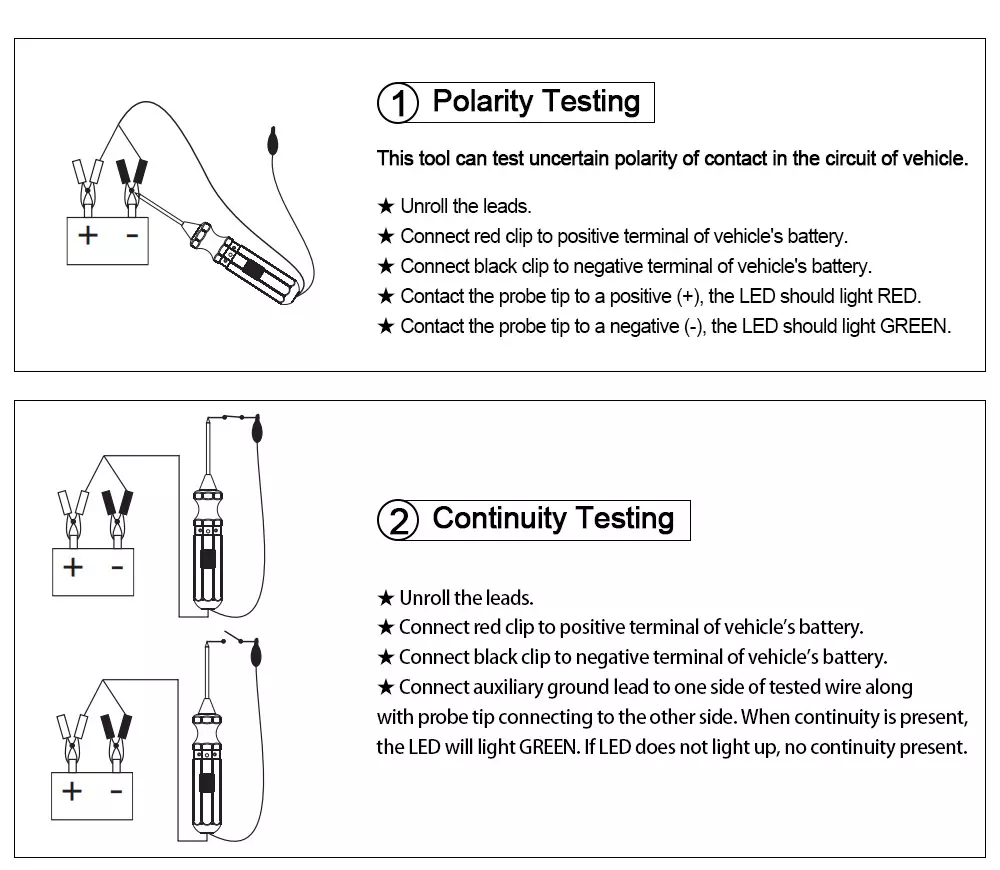

Polarity Testing
Contact the probe tip to the tested point. A positive contact lights the red LED, while a negative contact lights the green LED.
Continuity Testing
Connect the auxiliary ground lead to one side of the tested wire and the probe tip to the other side. Green LED means continuity is present.

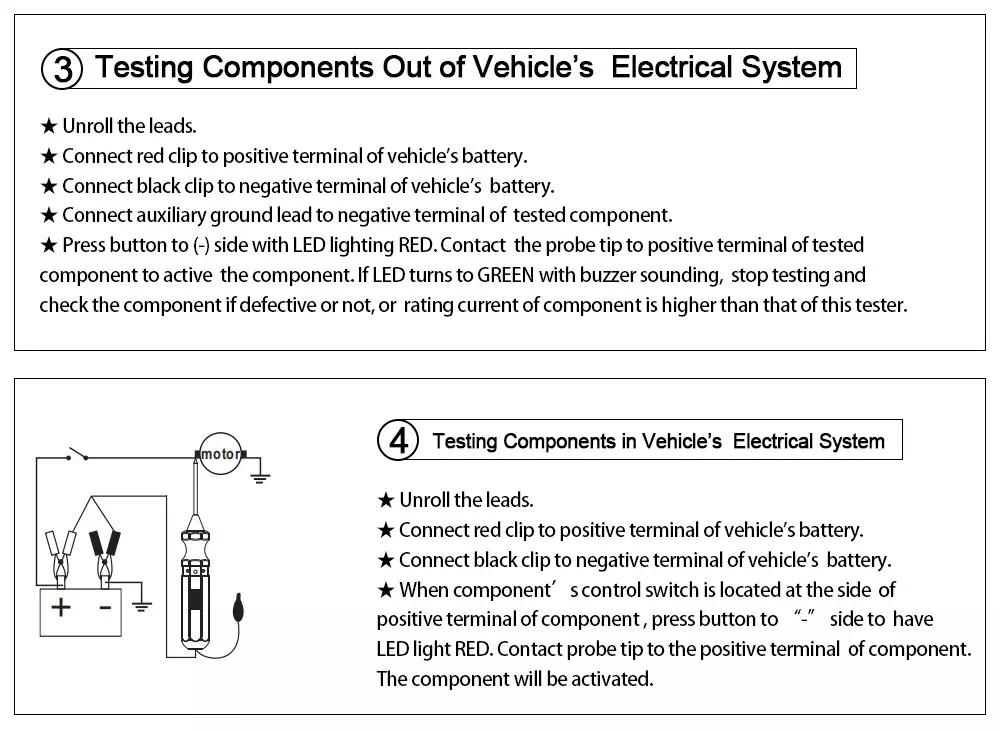

Component Activation
Use the power switch to apply positive or negative output under the correct setup. Stop immediately if the LED changes color with buzzer feedback.

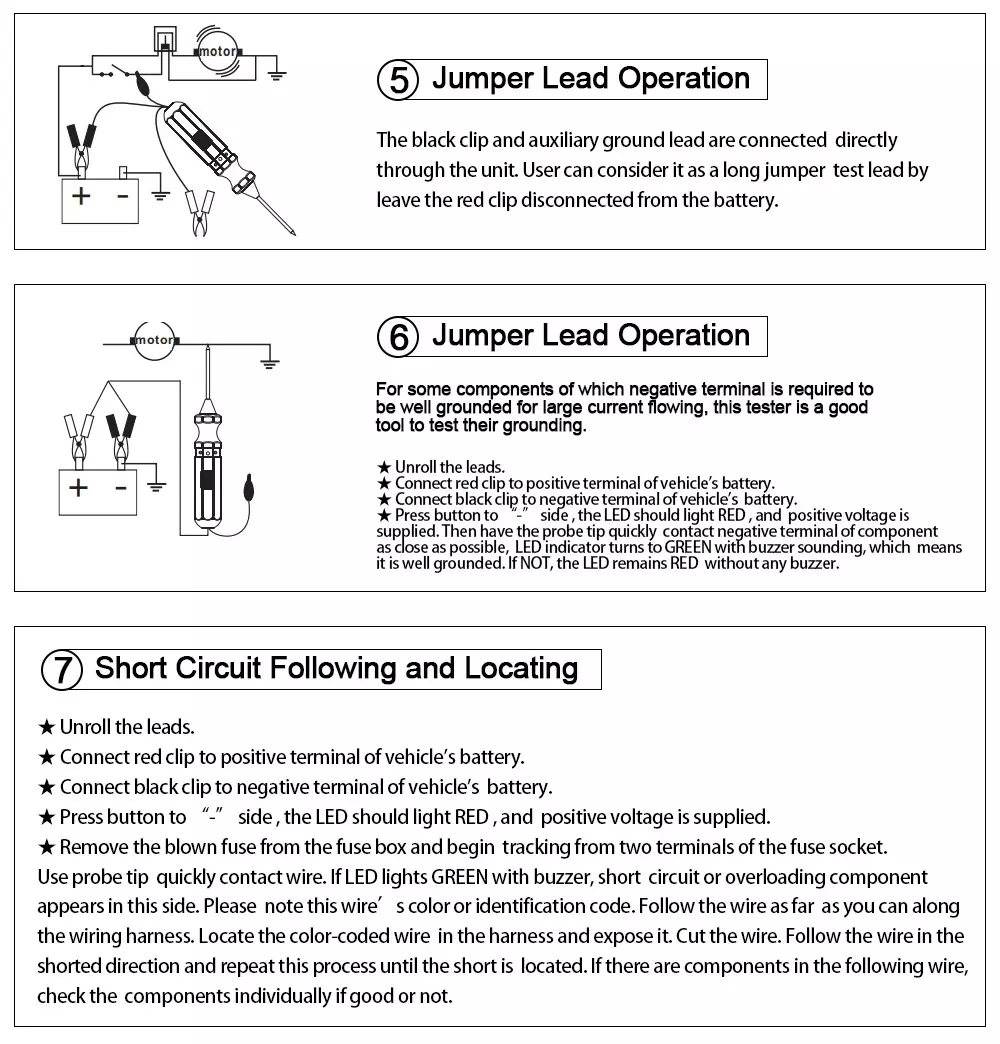

Jumper Lead Operation
The black clip and auxiliary ground lead are directly connected through the unit, allowing BT160 to work as a long jumper test lead in suitable checks.
Grounding Testing
Use grounding test mode to check whether the negative grounding of a component is good when high current flow requires reliable grounding.
Short Circuit Locating
Remove the blown fuse, start from the fuse socket, follow the wiring harness, and check the wire side where green LED with buzzer appears.
Use Notes
- Use BT160 only on 6-24V DC systems.
- Do not use BT160 with AC current or over-24V DC circuits.
- When component activation causes the LED to turn green with buzzer sound, stop testing and inspect the component or circuit load.
- For short circuit following, mark the wire color or identification code and inspect connected components individually if needed.
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlargeWhat Is In The Box

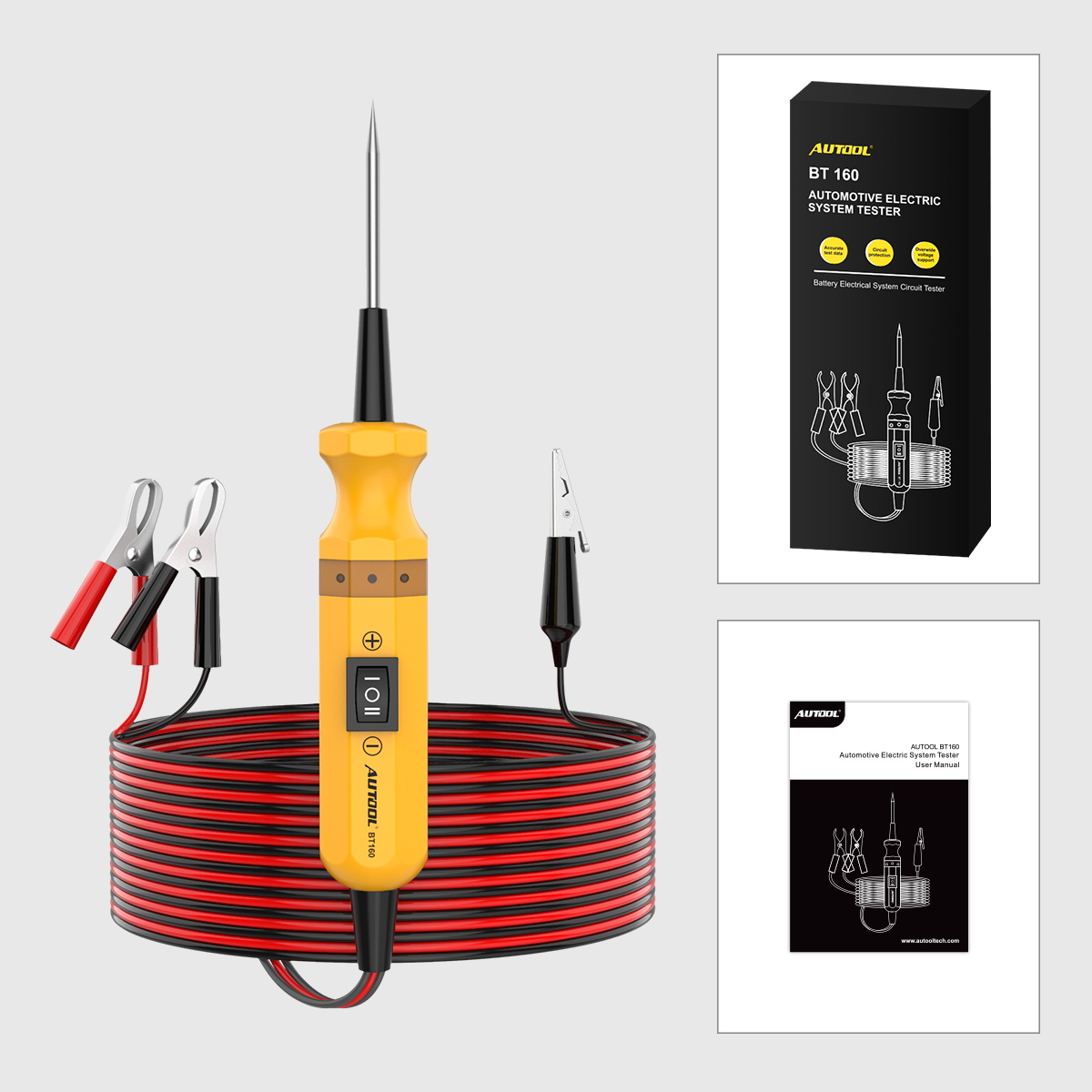

What Is In The Box

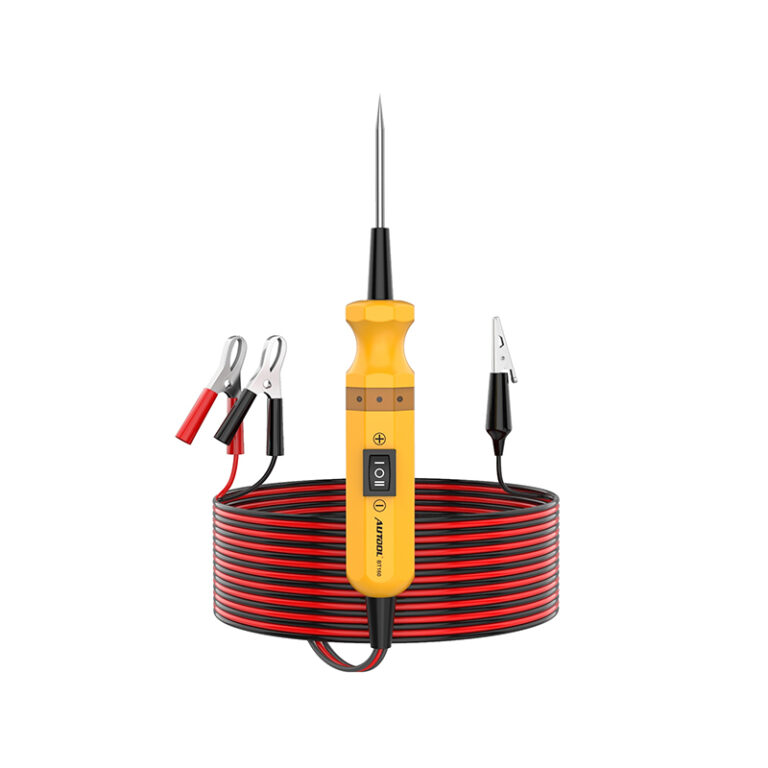

The packing list image shows the BT160 main unit, integrated cable and clips, auxiliary ground clamp, user manual, and retail box. Packing List keeps one most relevant package image only.
Main UnitAUTOOL BT160 automotive electric system tester
Power CableIntegrated 4m / 13ft lead with red and black battery clips
Auxiliary GroundAuxiliary ground clamp shown in the package image
DocumentationBT160 user manual
Retail BoxAUTOOL BT160 retail package
Final CheckAccessories shown in the package image
Related Products
Related Products
Compare related AUTOOL automotive circuit testers before choosing a simple LED tester, a digital display model, a TFT-screen tester, a longer-cable truck option, or a high-end smart diagnostic probe.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL BT210 Car Circuit Tester 9-30V Electrical Testers
From US$28.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL BT160 Automotive Circuit Tester Circuit Checker
From US$33.00
Manual And Downloads
Manual And Downloads
Download the BT160 manual for cautions, specifications, product structure, quick self-test, polarity testing, continuity testing, component activation, jumper lead operation, grounding testing, short circuit locating, maintenance, warranty, and return service information.

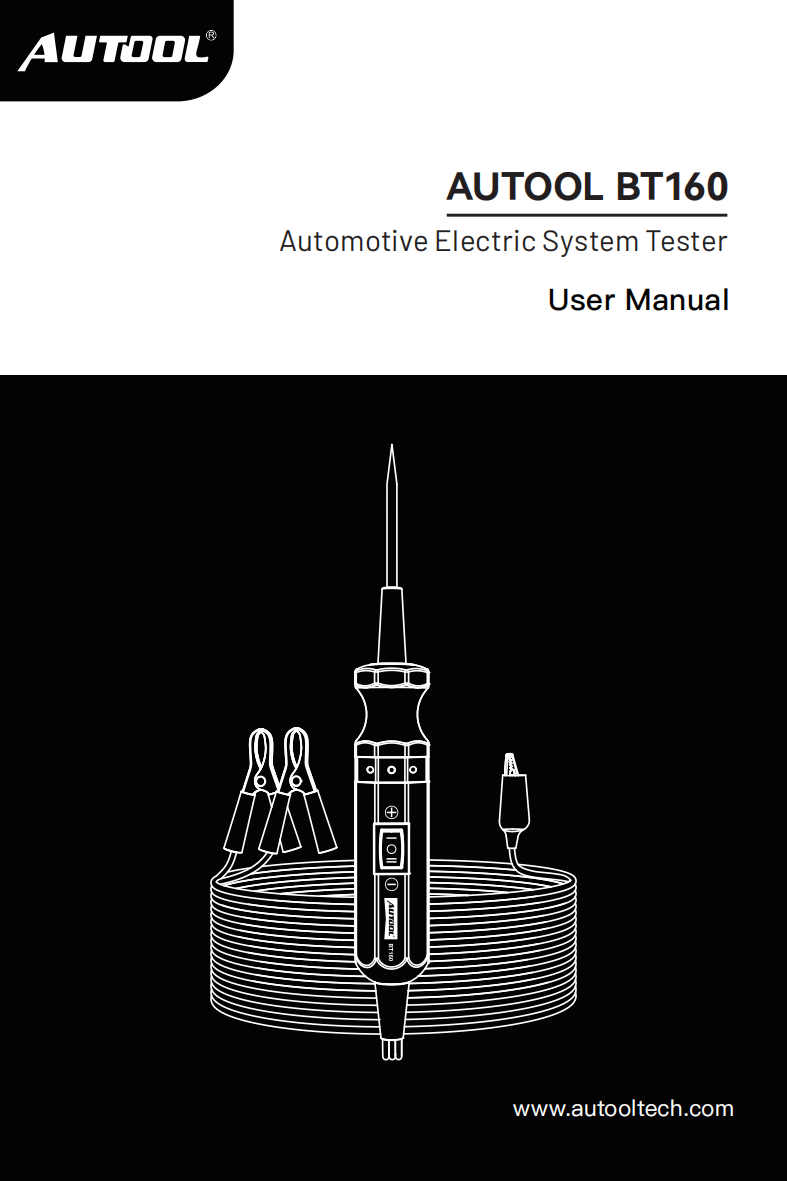

Click to enlargeAUTOOL BT160 Manual PDF
Open the manual before use, especially the 6-24V DC limitation, AC power warning, overload protection, spark warning, and short circuit locating steps.
Download ManualNeed Model Or Setup Confirmation?
Contact AUTOOL Store if you need help confirming 6-24V DC compatibility, 12V / 24V vehicle use, LED feedback, component activation, short circuit following, package contents, or differences between BT160 and other BT series testers.
Questions And Answers
These answers cover supported voltage, AC restrictions, LED meaning, voltage display limits, temperature and light functions, component activation, overload protection, package contents, and BT series model selection.
Yes. BT160 is designed for 6-24V DC systems, so it is suitable for common 12V car electrical checks and 24V heavy truck electrical checks when used within the specified range.
No. BT160 is not designed for 110V / 220V AC household current or any over-24V DC system. Use it only on 6-24V DC automotive electrical systems.
BT160 does not have a screen and is not the right choice for reading exact voltage values. It is intended for quick DC circuit presence, polarity, continuity, diode, grounding, and overload checks. Choose BT210, BT250, BT260, or BT280 if you need numerical voltage display or more measurement functions.
Red LED indicates positive voltage supplied or detected. Green LED indicates negative voltage supplied or detected. In continuity testing, green LED feedback indicates continuity is present.
BT160 is positioned as a simple 6-24V DC circuit tester and does not list temperature test or LED light as BT160 functions in the model comparison. Choose BT210 if you need temperature test and LED light support.
The power switch can be used to output voltage during suitable tests. Press the “-” side to output positive voltage and press the “=” side to output negative voltage. Follow the manual and stop if the LED changes color with buzzer feedback during component testing.
If BT160 beeps or the LED changes unexpectedly during a powered test, stop testing immediately. Check whether the tested component is defective, whether the circuit is shorted, or whether the rated current of the component is higher than the tester can support.
Refer to the Packing List image for final package contents. The image shows the BT160 main unit, integrated lead with red and black battery clips, auxiliary ground clamp, user manual, and retail box.
Choose BT160 if you need a compact no-screen 6-24V DC tester for polarity, open circuit, diode, grounding, and overload protection checks. Choose BT210 for a simple digital display, temperature test, and LED light. Choose BT250 or BT260 for TFT screen, AC / DC voltage, resistance, and multi-language support. Choose BT280 for smart test, multimeter, oscilloscope, relay, injector, component activation, online update, and higher-end diagnostic functions.
AUTOOL provides 3-year warranty support for eligible non-human damage cases. Contact AUTOOL Store for setup confirmation, product selection, package confirmation, and troubleshooting support.
