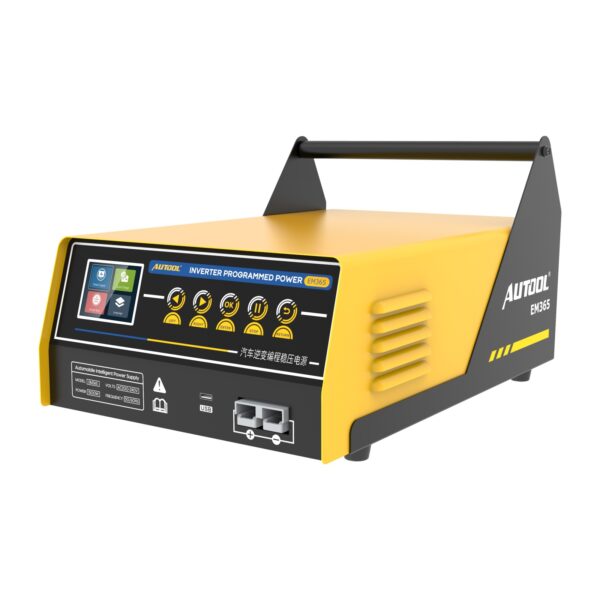

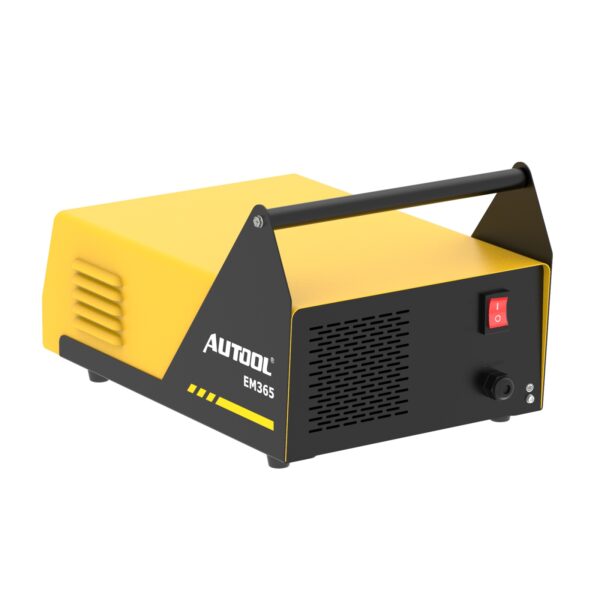

AUTOOL EM365 Power Inverter New Version
US$550.00
Key Features
- 3-in-1 Power
- ECU Power Mode
- Jump-Start Ready
- 3-in-1 Power: Combines inverter power supply, recovery, and charging functions in one unit.
- ECU Power Mode: Stable output helps during ECU programming and decoding.
- Jump-Start Ready: Supports fast charging and jump-starting for workshop use.
Secure checkoutFast supportBulk ready

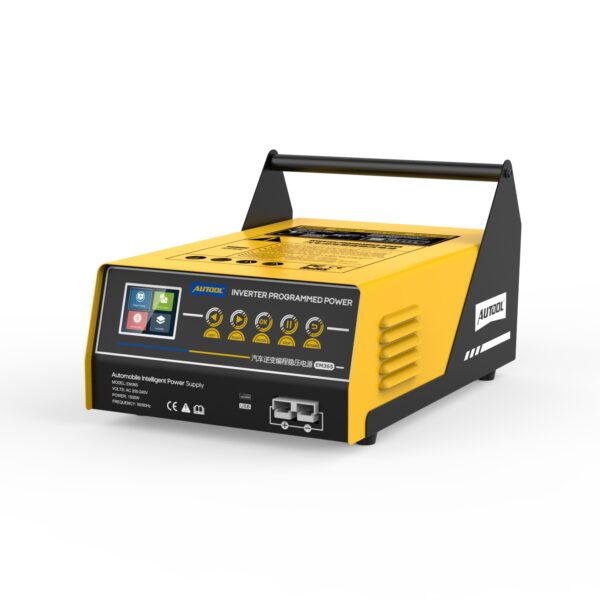

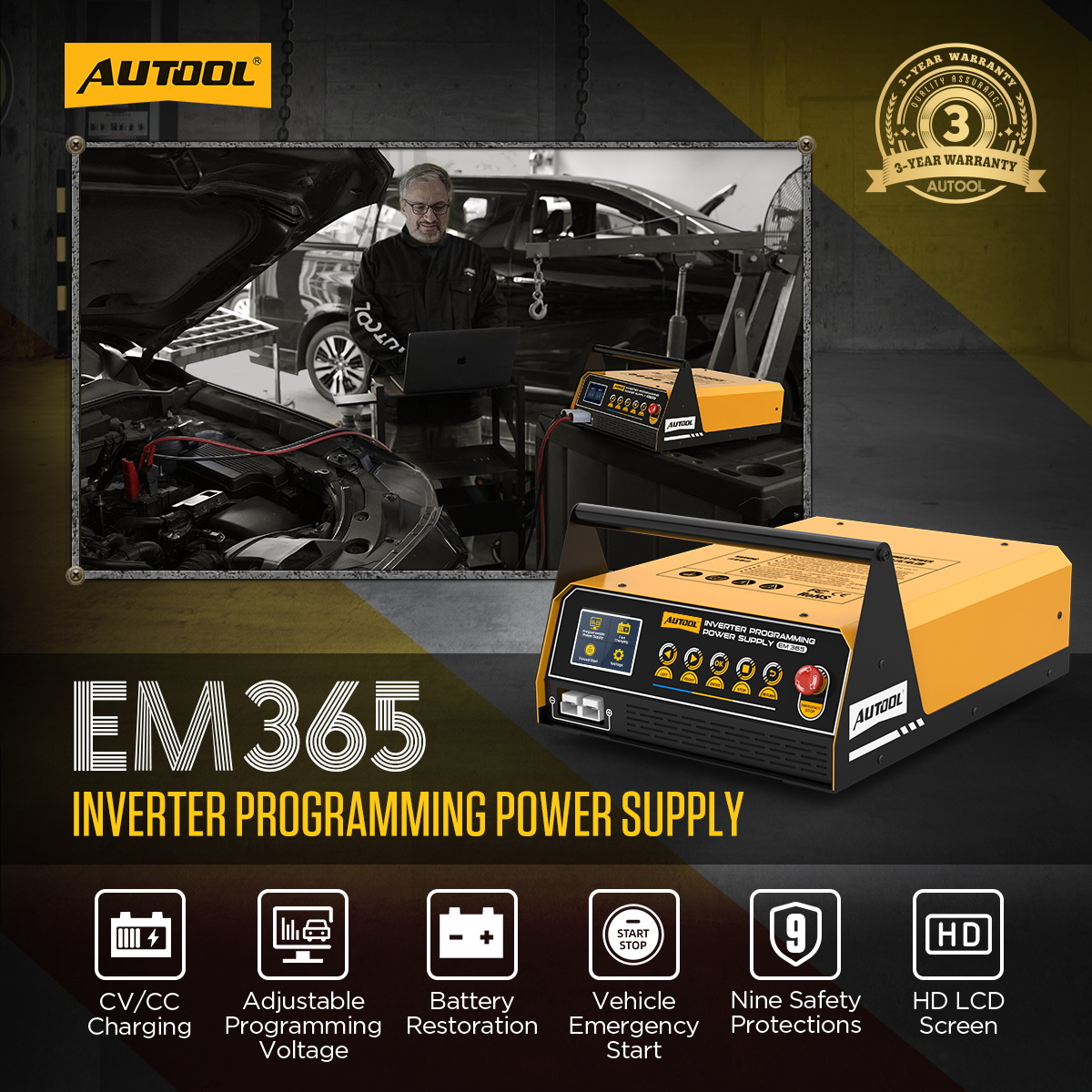

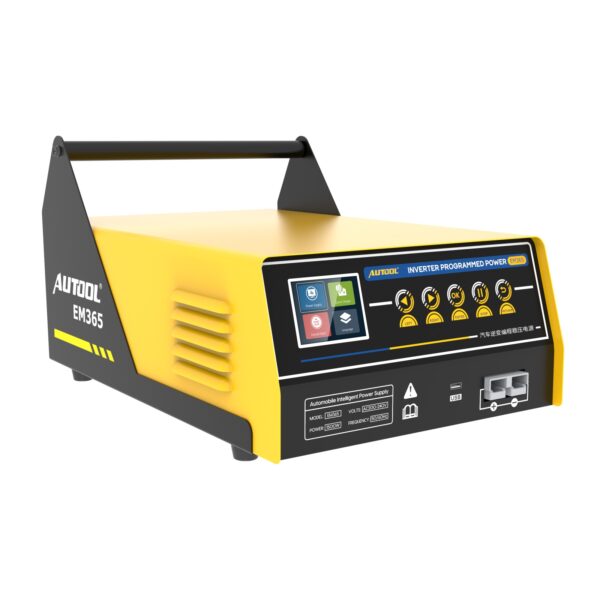

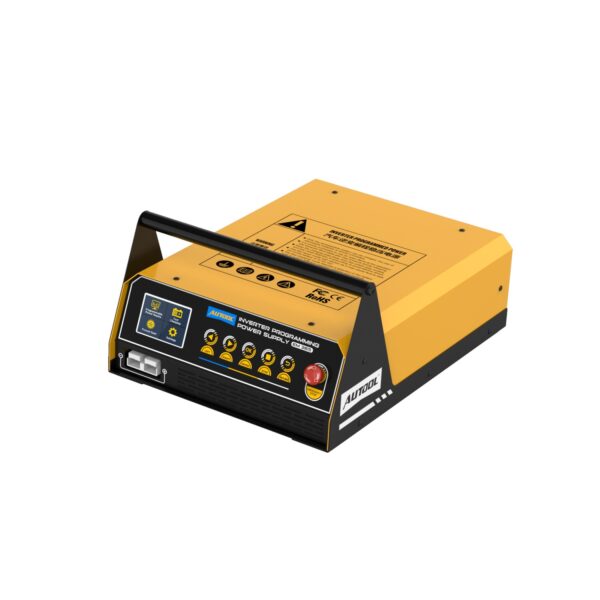

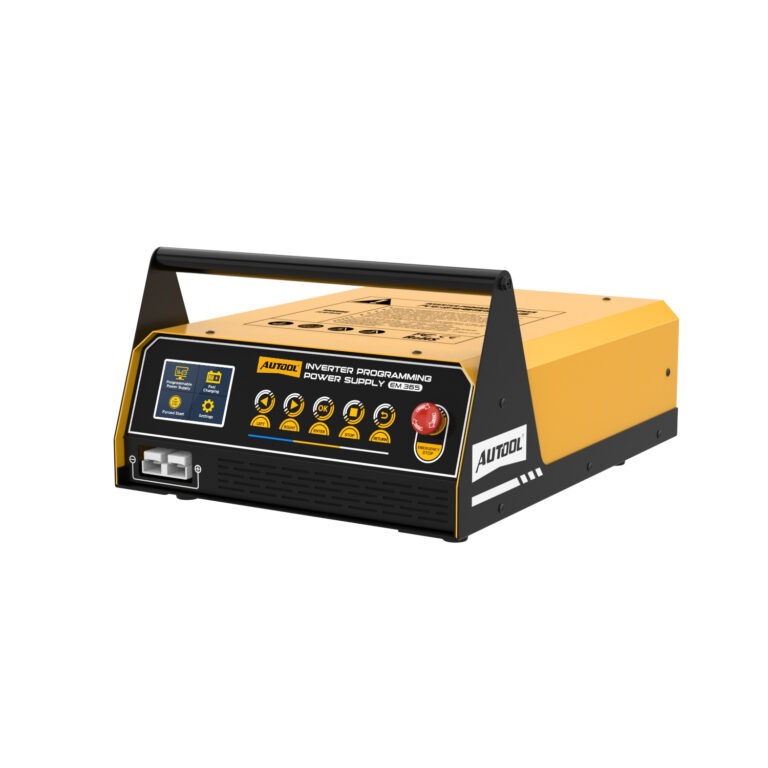

AUTOOL EM365
Product Overview

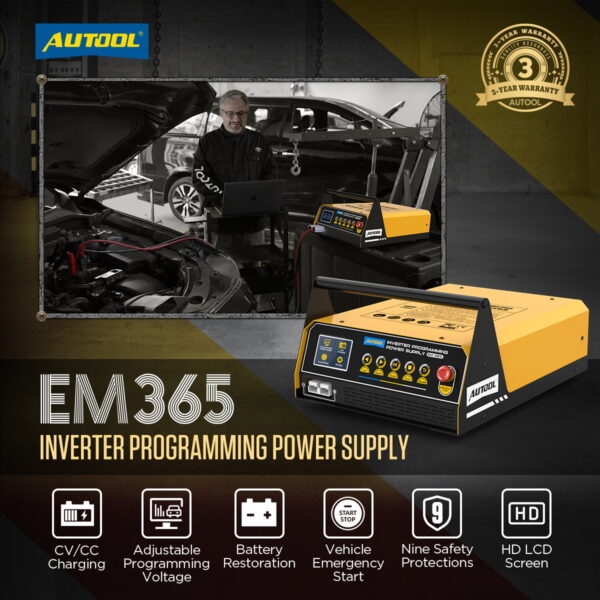

The AUTOOL EM365 New Version is a 3-in-1 inverter programming power supply designed for workshops and automotive electricians. It supports stable ECU programming power supply, fast lead-acid battery charging, vehicle display power support, battery restoration, and 12V emergency start for suitable vehicles. It is useful for compatible BMW, Audi, Mercedes-Benz, and other automotive ECU programming and repair workflows.
ECU Programming Fast Charging 400A Emergency Start Battery Restoration
150AProgramming Current
10.8-16VProgramming Voltage
400A / 12VEmergency Start
3 YearsWarranty Support
Click to enlargeHow To Choose
How To Choose
EM365 sits between EM355 and EM385. It adds stronger workshop functions than EM355, while EM385 is the better choice if lithium battery charging, adjustable charging power, or touchscreen control is required.
Choose EM355 For Basic Power Support
Choose EM355 if you mainly need ECU programming power supply and lead-acid battery charging, and do not need emergency start or vehicle display mode.
Choose EM365 For Workshop Versatility
Choose EM365 if you need 150A programming current, 400A / 12V emergency start, vehicle display mode, battery restoration, and fast charging for supported lead-acid battery types.
Choose EM385 For Lithium Support
Choose EM385 if you need lithium battery charging, adjustable charging power, a 4.3-inch touchscreen, and a wider 9-16V programmable power supply voltage range.

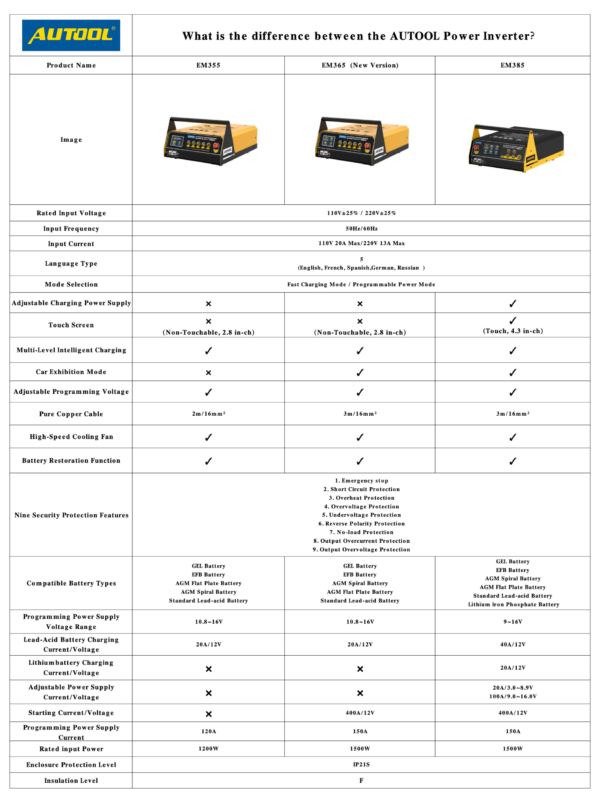

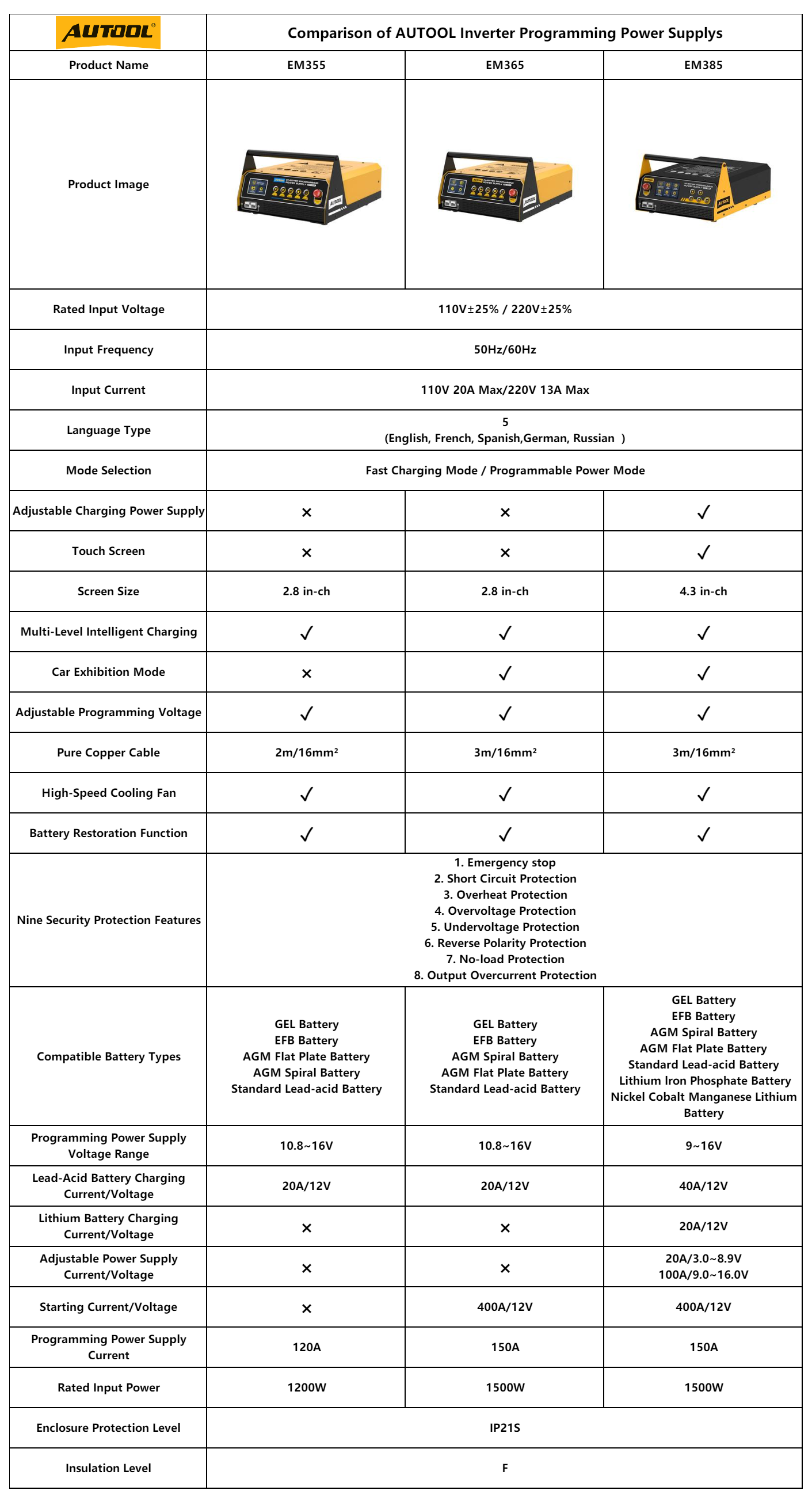

Product Comparison
Product Comparison
Compare the three AUTOOL inverter programming power supplies before choosing the right display, emergency start, lithium battery support, charging current, and programming power range.
EM365 Focus150A programming current, 10.8-16V programmable power supply voltage range, 400A / 12V starting current, 1500W rated input power, 2.8-inch non-touch display, and vehicle display mode.
Compared With EM355EM365 adds 400A / 12V emergency start, vehicle display mode, 150A programming current, 3m / 16mm² pure copper cable, and 1500W rated input power.
Compared With EM385EM385 adds lithium battery charging, adjustable charging power, a 4.3-inch touchscreen, 40A / 12V lead-acid charging current, and 9-16V programming voltage range.
Lithium Battery CheckEM365 does not support lithium battery charging. Choose EM385 if LiFePO₄, NCM, or other supported lithium battery charging is required.
Decision CheckCompare input voltage version, screen type, emergency start, lithium support, programming current, charging current, cable length, and battery type before ordering.
Click to enlargeBefore You Order And Use
Before You Order And Use
Review repair mode, EFB charging, lithium battery limits, emergency start limits, and input voltage version before using or ordering EM365.
Remove Battery Before Repair Mode
Repair mode may damage vehicle electronics. Always remove the battery from the vehicle before using repair mode.
Repair Success Depends On Battery Condition
Repair mode may help deeply discharged batteries affected by sulfation, but successful restoration depends on the degree of vulcanization and the battery’s physical condition.
Use Repair Mode Carefully
Improper repair mode use may cause fluid loss or drying inside the battery. Do not use it as a routine charging mode.
EFB Requires External Charging
EFB batteries contain liquid electrolyte that may boil during charging. Remove the battery from the vehicle and select External Charging mode for EFB charging.
Lithium Battery Not Supported By EM365
EM365 supports several lead-acid battery types, but it does not support lithium battery charging. Choose EM385 if lithium battery support is required.
Emergency Start Limit
The EM365 provides 400A / 12V starting support for suitable vehicles below 3.0L displacement. Confirm vehicle suitability before use.
Before Ordering Or Using
- Confirm the correct input voltage version for your market before ordering.
- Use repair mode only after removing the battery from the vehicle.
- For EFB batteries, use External Charging mode after removing the battery from the vehicle.
- EM365 is not the lithium-compatible model; EM385 is the upgrade option for lithium battery charging.
- For non-human damage cases, AUTOOL provides up to 3 years of warranty support and parts reissue support according to eligibility.
Key Features
Key Features

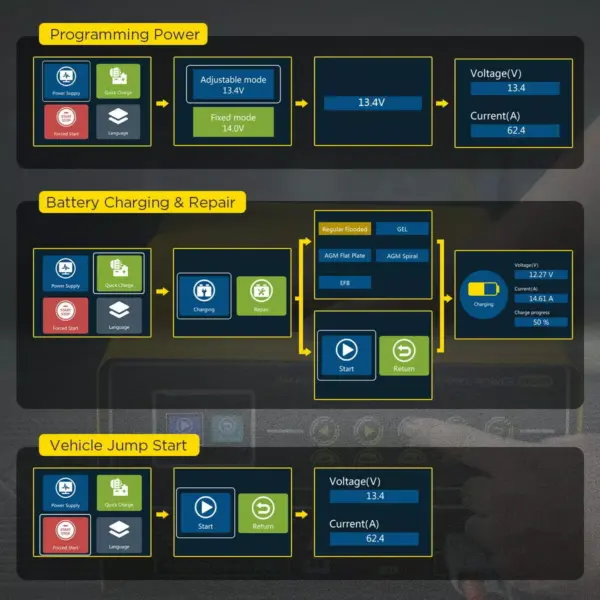

EM365 combines programmable power supply, intelligent charging, battery restoration, vehicle display support, emergency start, multi-protection, and multilingual operation in one workshop power device.

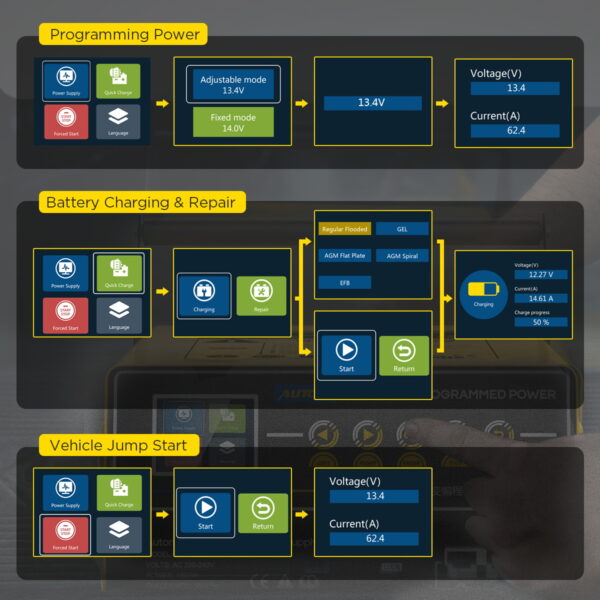

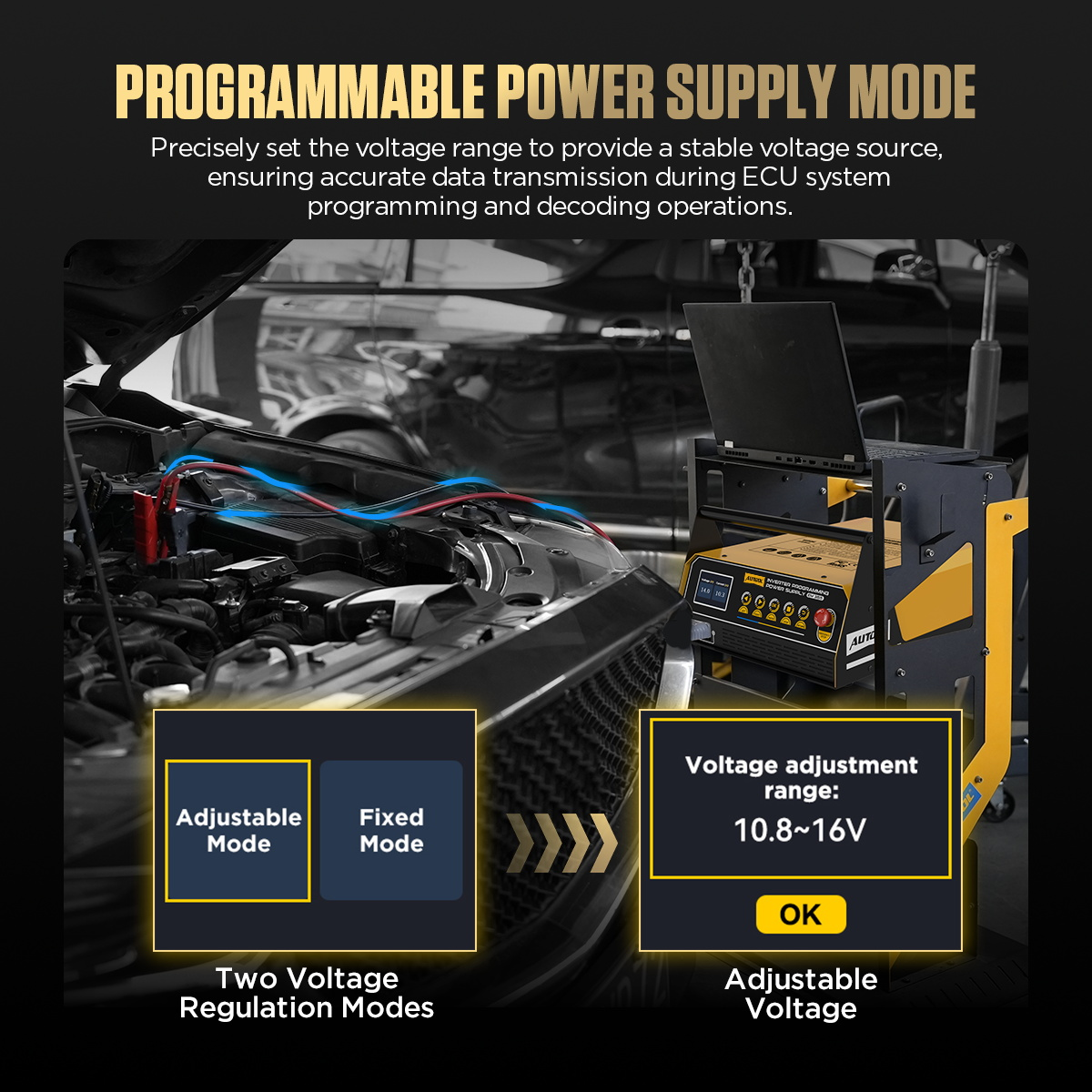

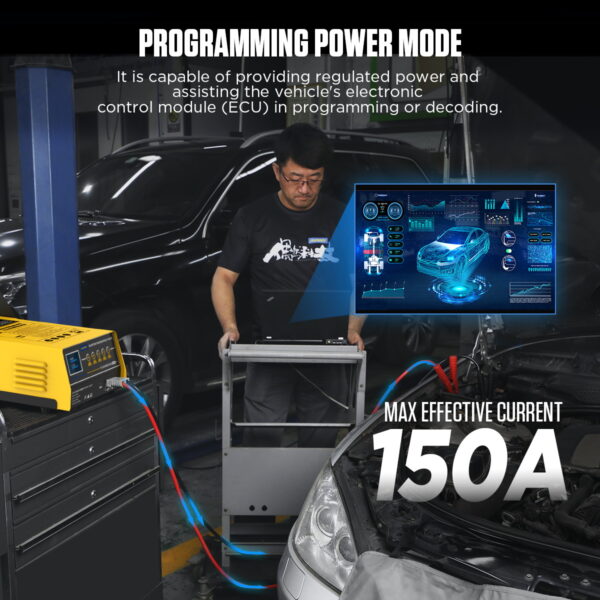

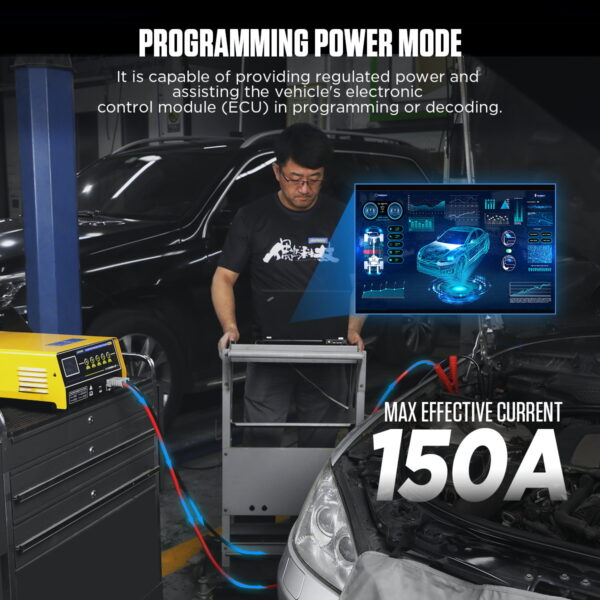

Programmable Power Mode
Set the supported voltage range to provide stable power during ECU programming and decoding, helping maintain accurate data transmission during service work.

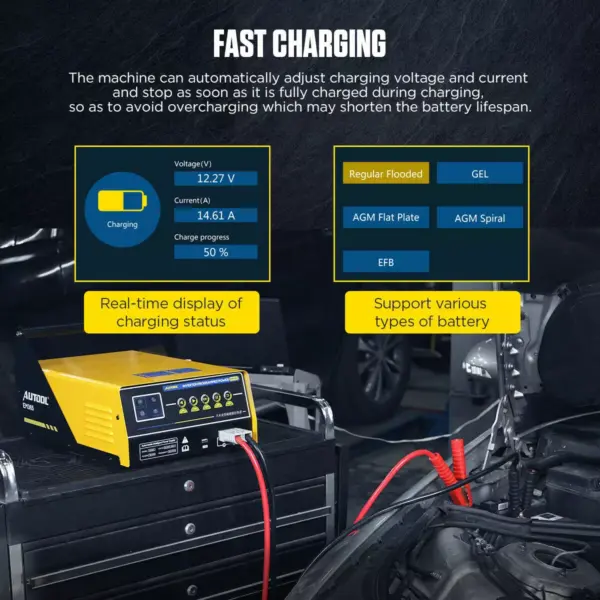

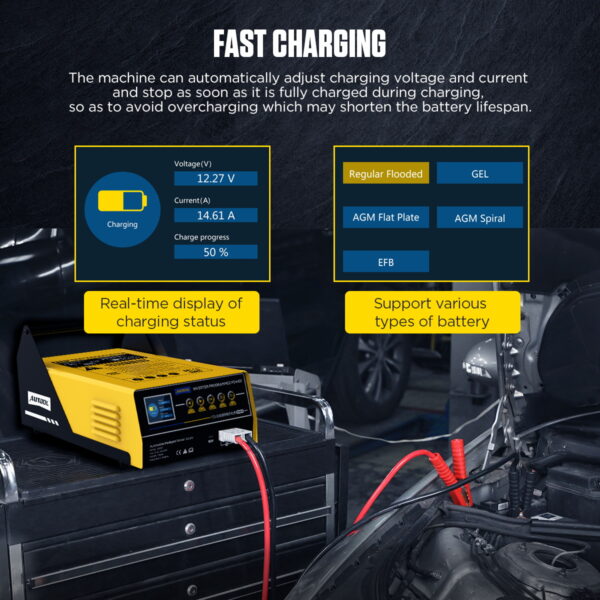

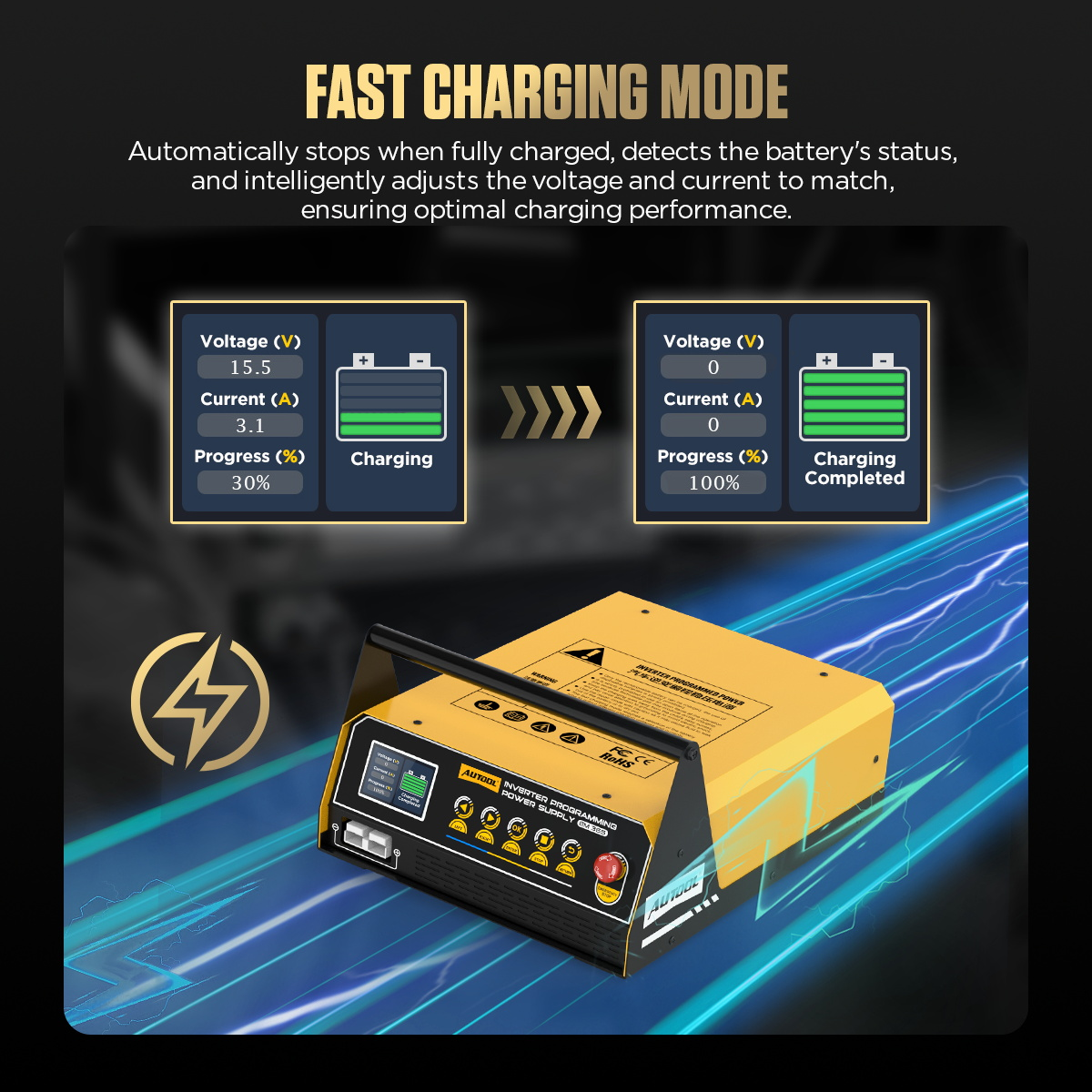

Fast Charging Mode
Automatically monitors battery status, adjusts voltage and current, and stops charging once the battery is fully charged.

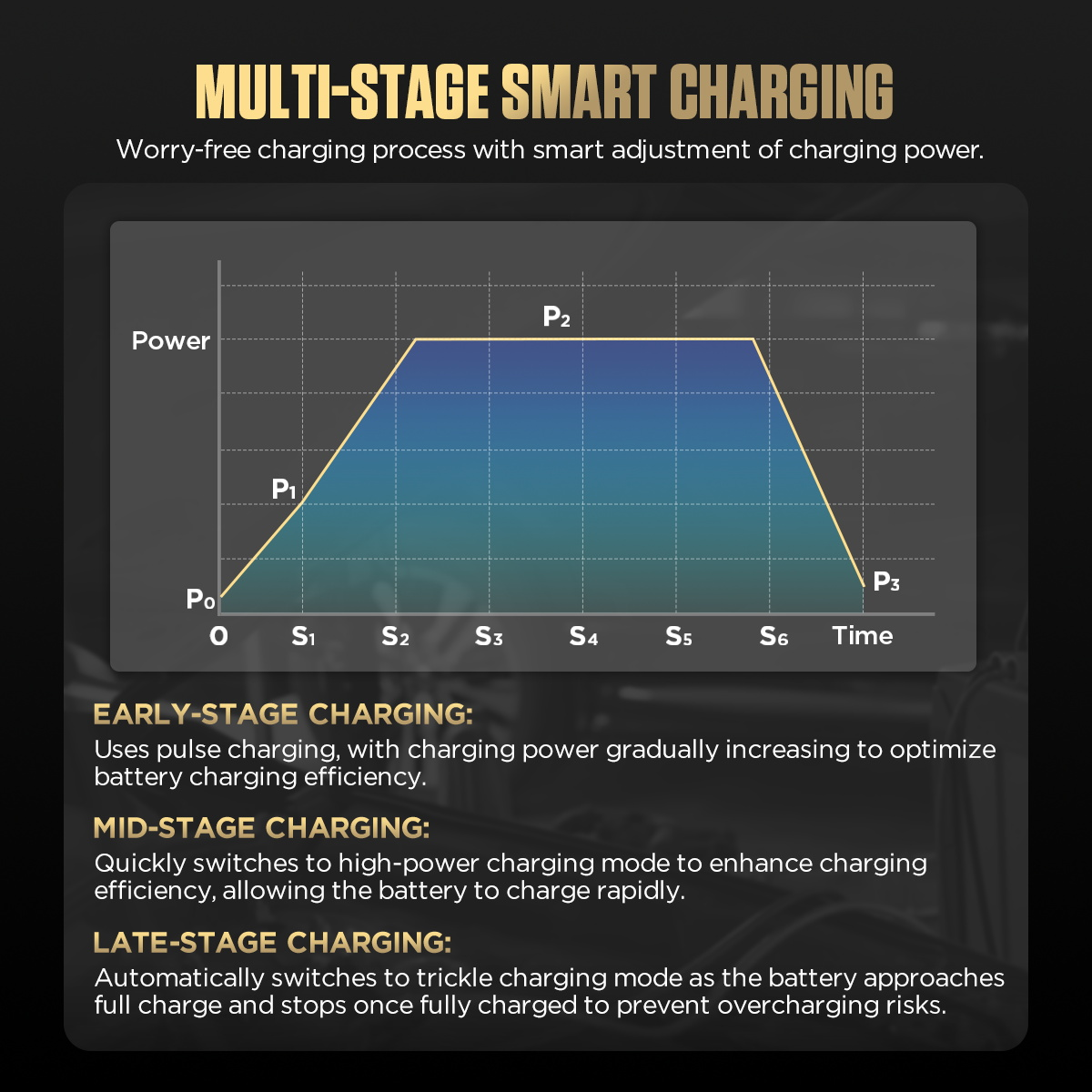

Multi-Stage Intelligent Charging
Uses early-stage pulse charging, mid-stage high-power charging, and late-stage trickle charging to improve charging efficiency and reduce overcharging risk.

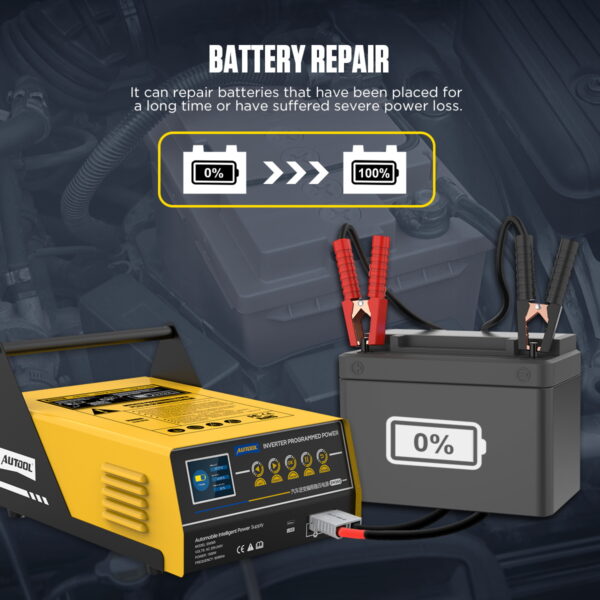

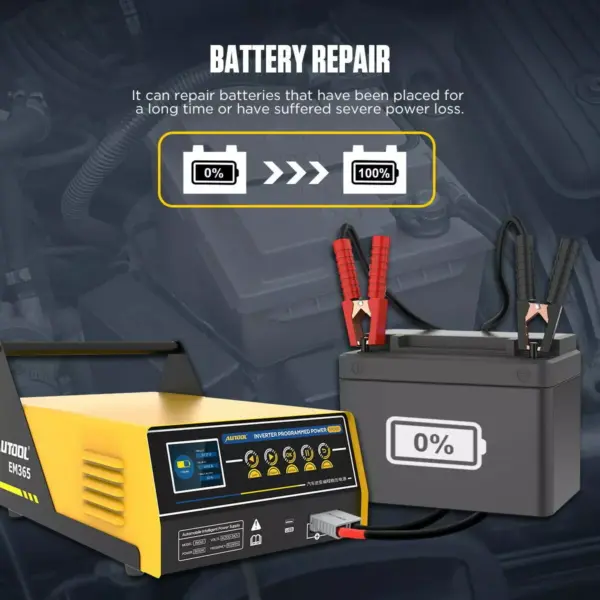

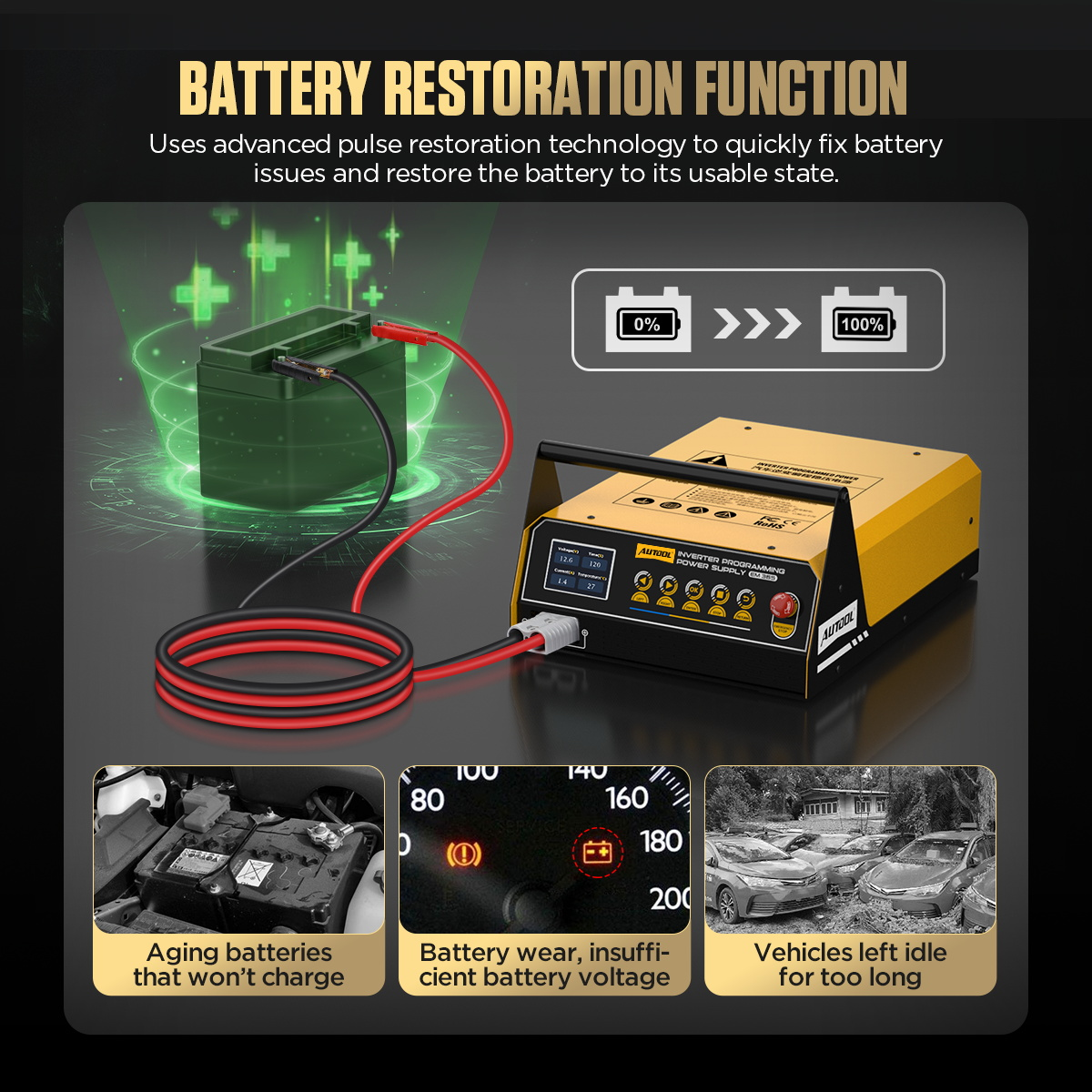

Battery Reconditioning Function
Pulse restoration may help aging, low-voltage, or long-idle lead-acid batteries that cannot be charged normally. Use this function only with the battery removed from the vehicle.

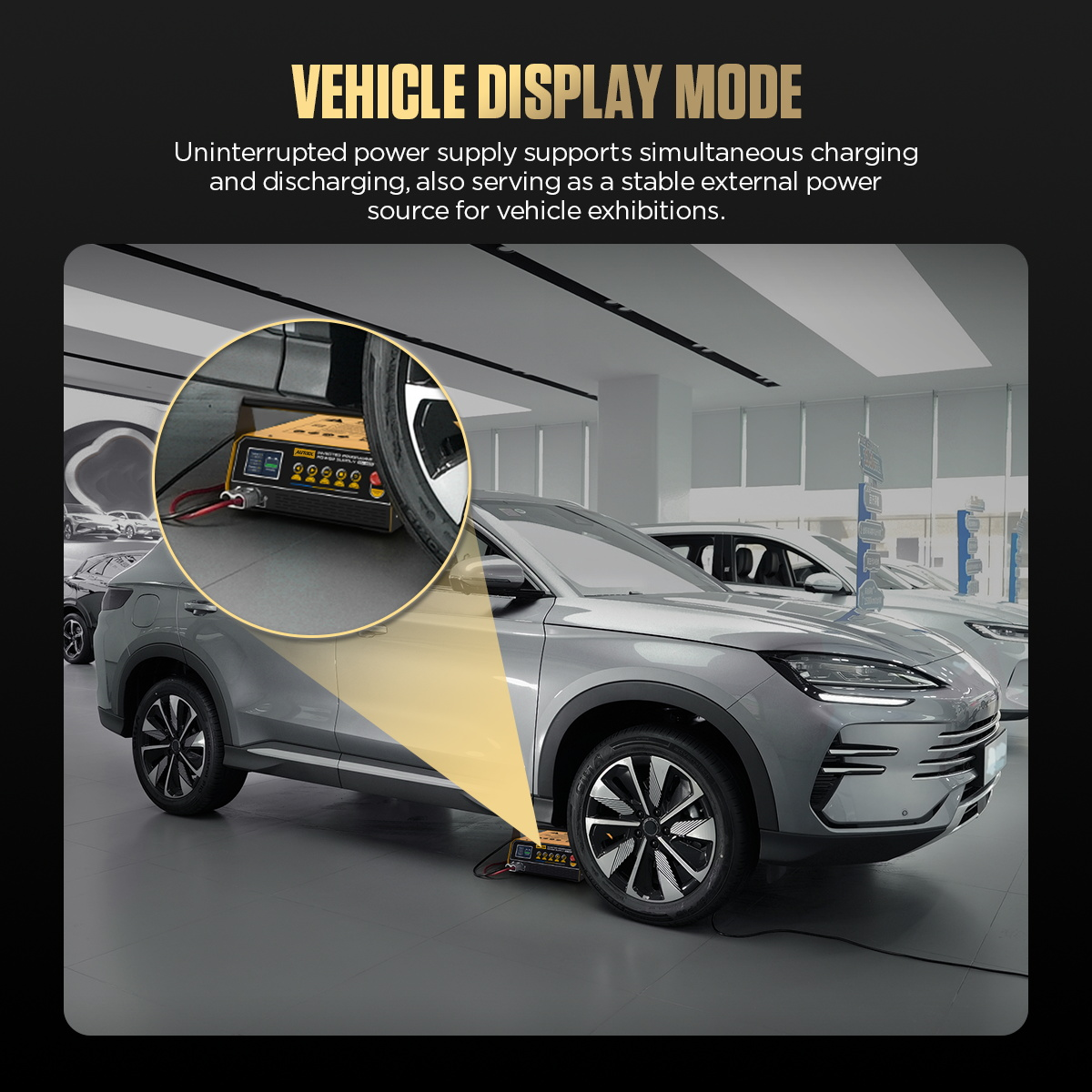

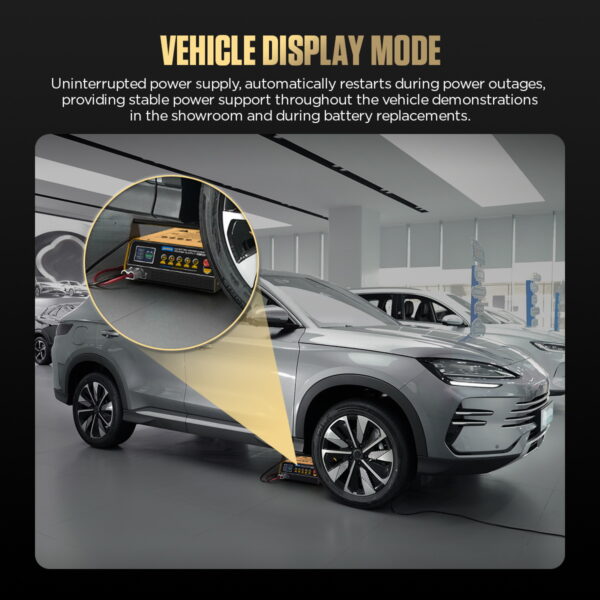

Vehicle Display Mode
Provides continuous external power support for showroom displays, vehicle exhibitions, and battery replacement scenarios where stable power is needed.

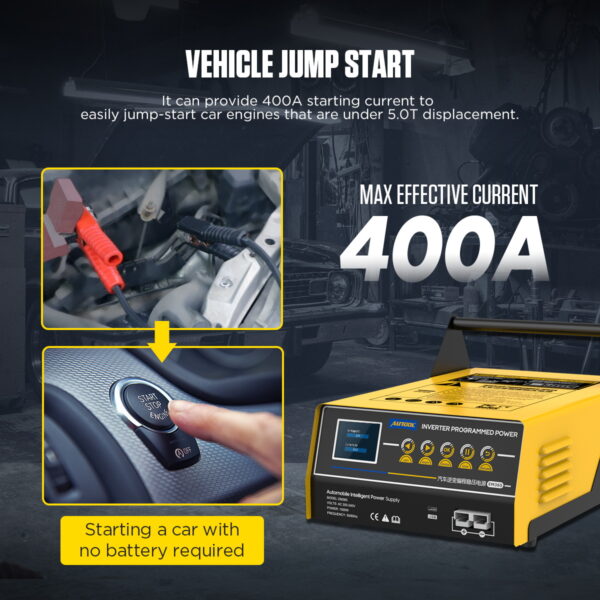

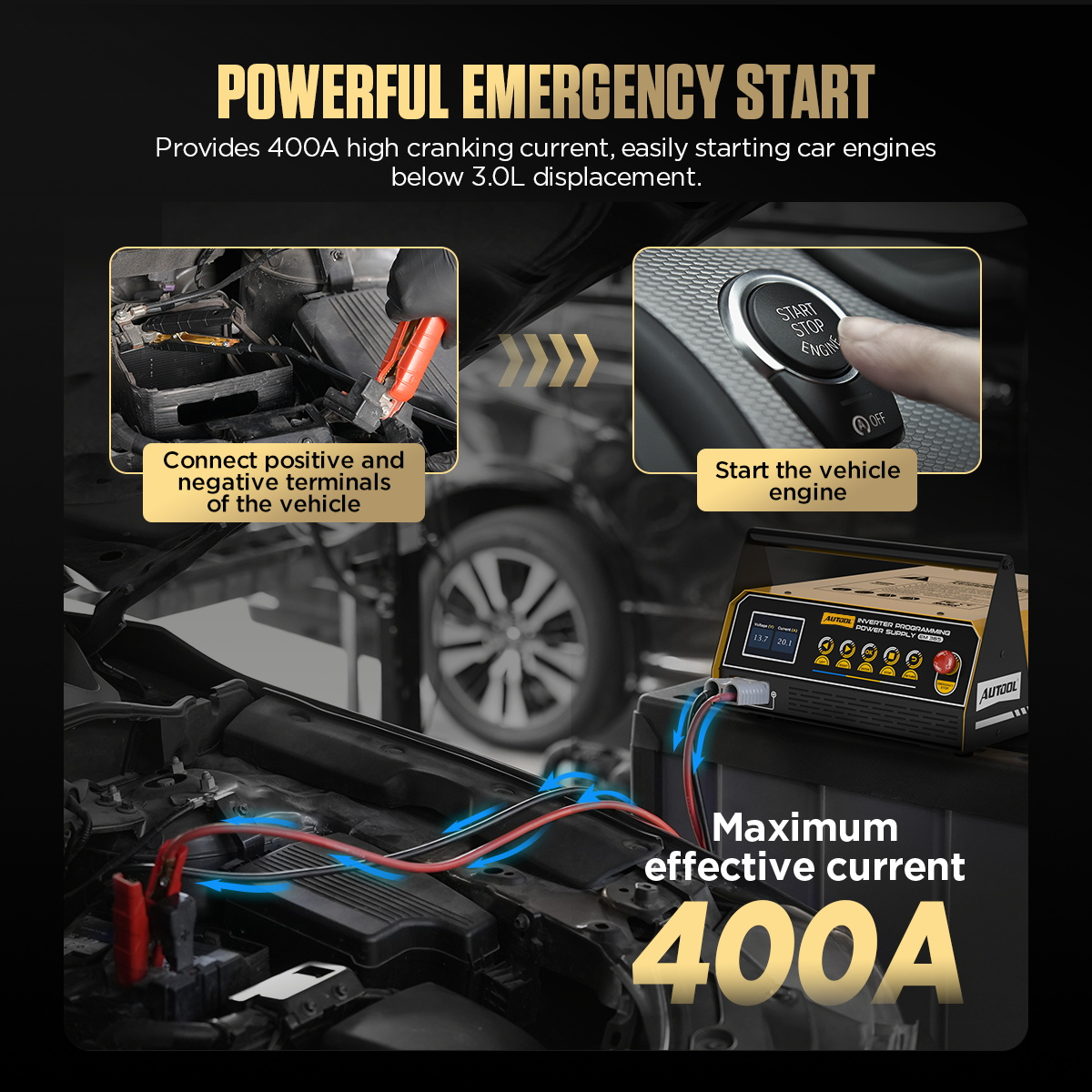

400A Emergency Start
Delivers up to 400A / 12V starting current for suitable cars, SUVs, and light vehicles below the stated displacement range.

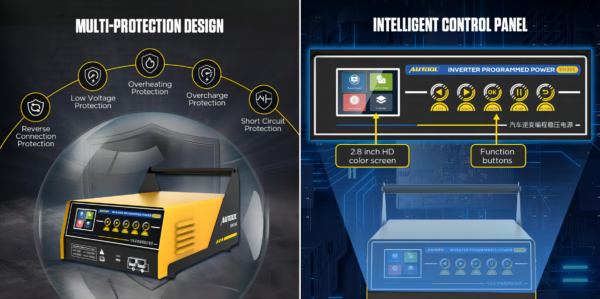

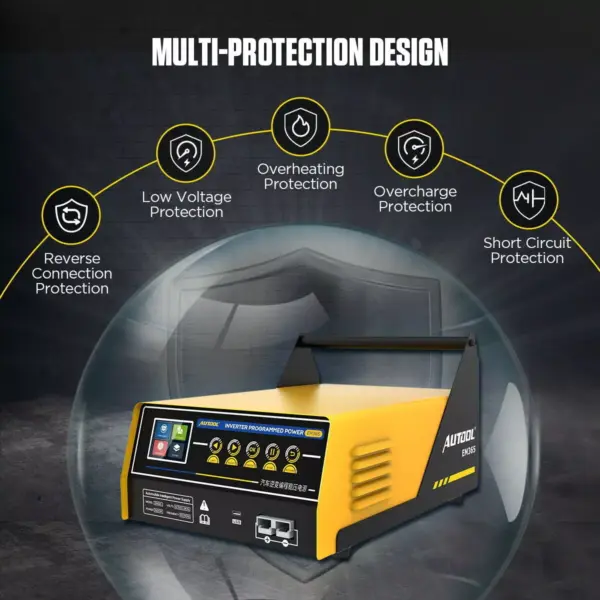

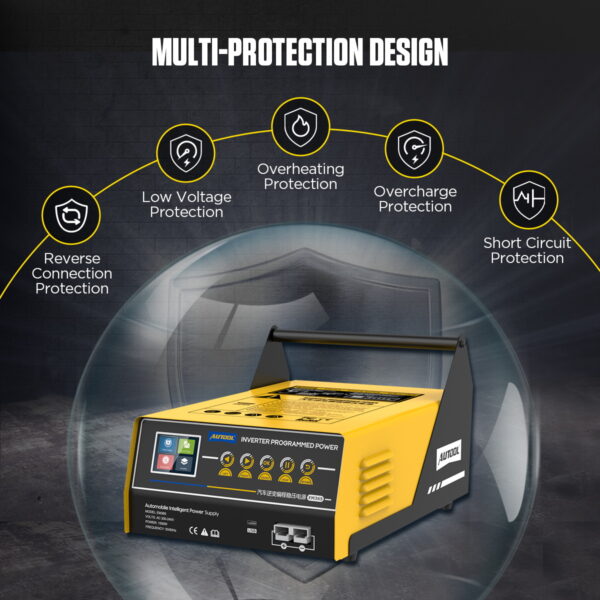

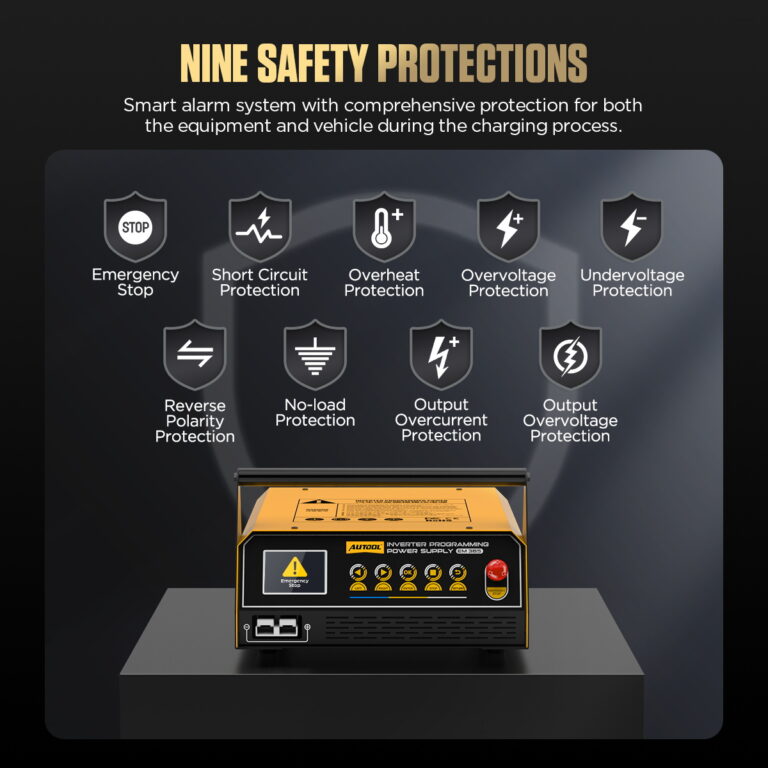

Nine Safety Protections
Includes emergency stop, short circuit protection, overheat protection, overvoltage protection, undervoltage protection, reverse polarity protection, no-load protection, output overcurrent protection, and output overvoltage protection.

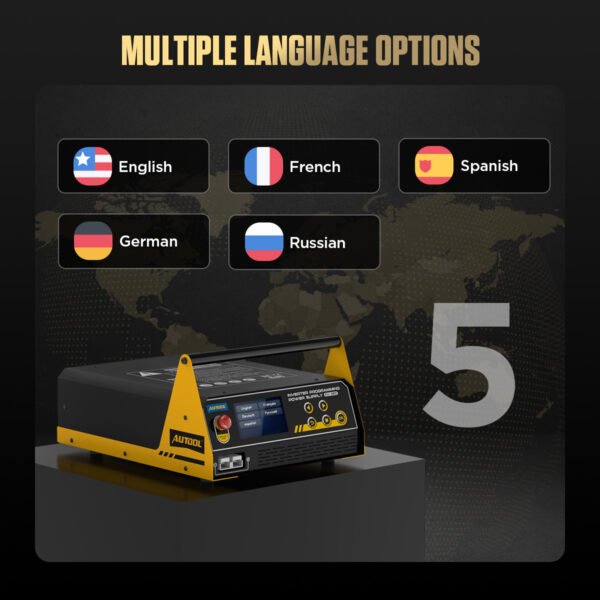

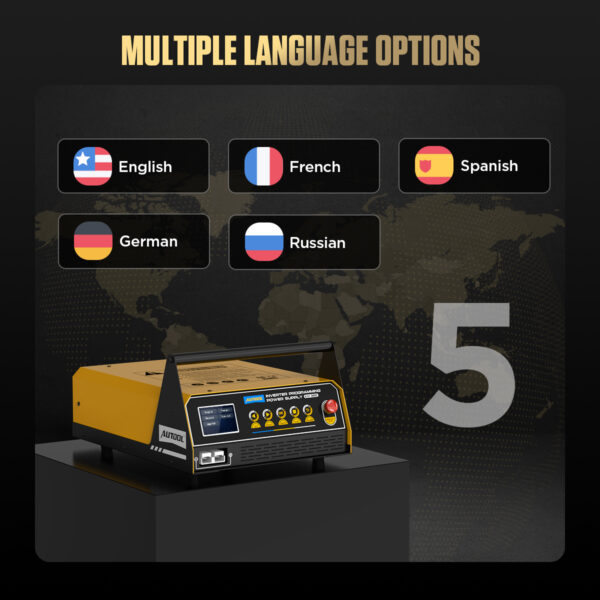

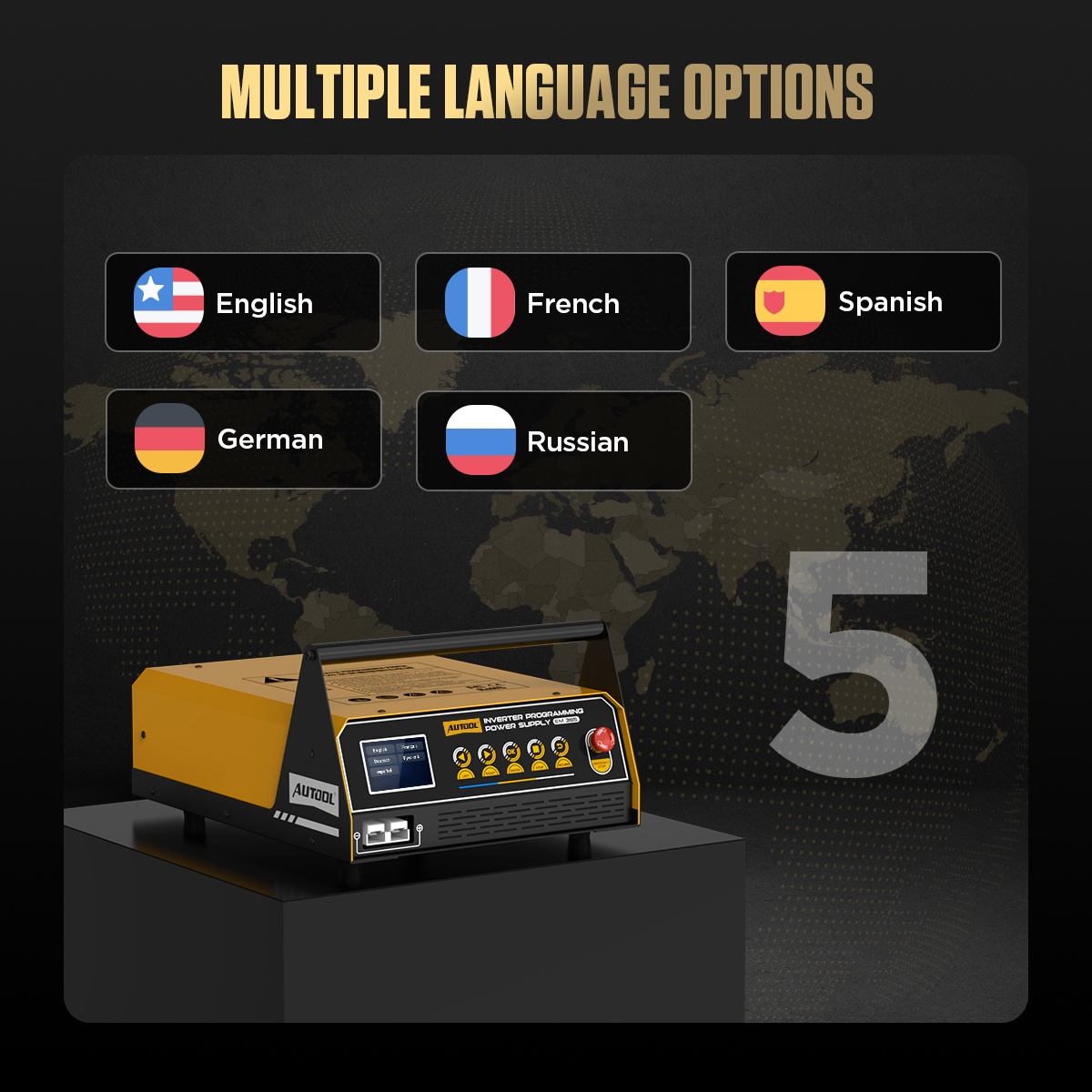

Five Language Options
Supports English, French, Spanish, German, and Russian for easier use in different workshops and regions.
3-Year Warranty Support
For eligible non-human damage cases, AUTOOL provides up to 3 years of warranty support and free parts reissue according to the warranty policy.
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlargeCompatibility And Fitment
Compatibility And Fitment
EM365 supports common lead-acid battery types used in automotive service. Lithium battery charging is not supported on EM365.

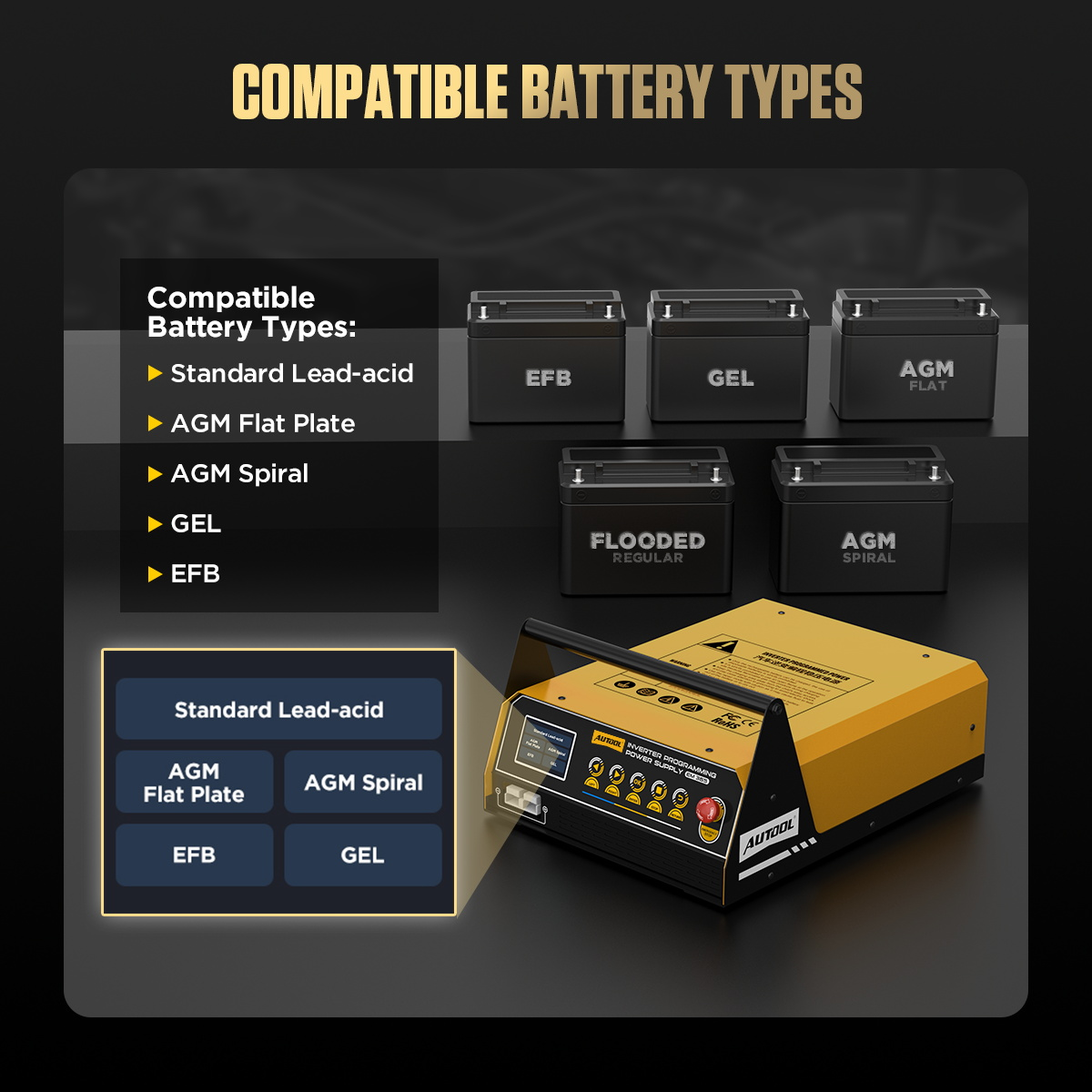

Supported Lead-Acid Types
Standard lead-acid, AGM Flat Plate, AGM Spiral, GEL, and EFB batteries are supported according to the EM365 battery type selection.
EFB Charging Rule
Do not use in-car charging for EFB batteries. Remove the EFB battery from the vehicle and use External Charging mode.
Lithium Battery Limit
EM365 does not support lithium battery charging. Choose EM385 for supported lithium battery charging needs.
Repair Mode Limit
Battery restoration is intended for deeply discharged lead-acid batteries. The battery must be removed from the vehicle before repair mode is used.
Click to enlargeApplications
Applications
Use EM365 for supported programming, charging, display, restoration, and emergency start tasks under the correct battery and vehicle conditions.
ECU Programming
Provides stable voltage support for ECU programming, coding, decoding, and software update operations under compatible service conditions.
Battery Charging
Supports fast charging and intelligent charging for compatible lead-acid battery types, with automatic adjustment during the charging process.
Battery Replacement
Can act as a stable external power source during battery replacement or service work where vehicle data and power stability are important.

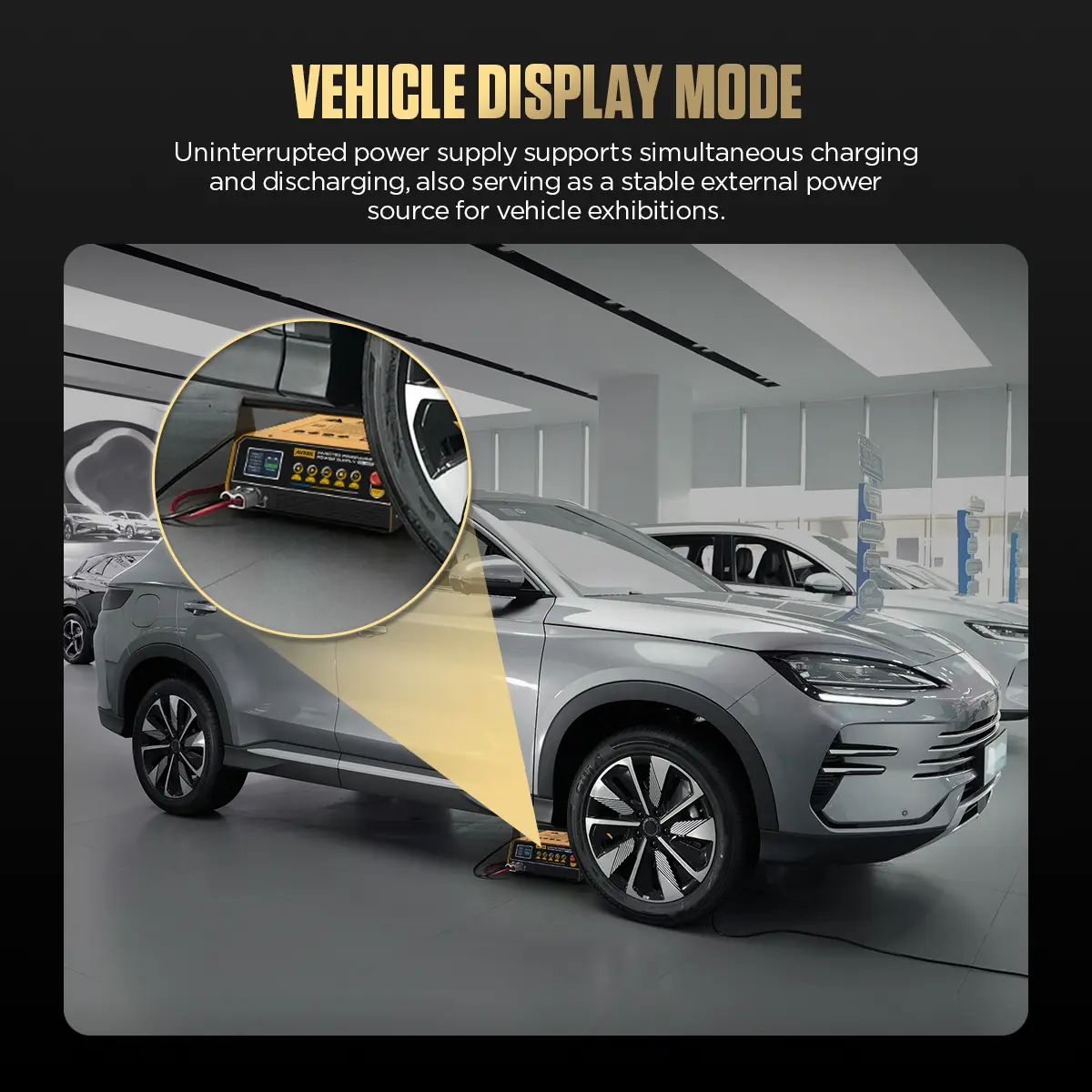

Vehicle Exhibition
Vehicle Display Mode supports showroom vehicles and exhibitions where continuous power supply is required.
Battery Restoration
Pulse restoration may help aging, worn-out, or low-voltage lead-acid batteries, depending on battery condition.
Emergency Start
Provides 400A / 12V emergency starting support for suitable vehicles below 3.0L displacement.

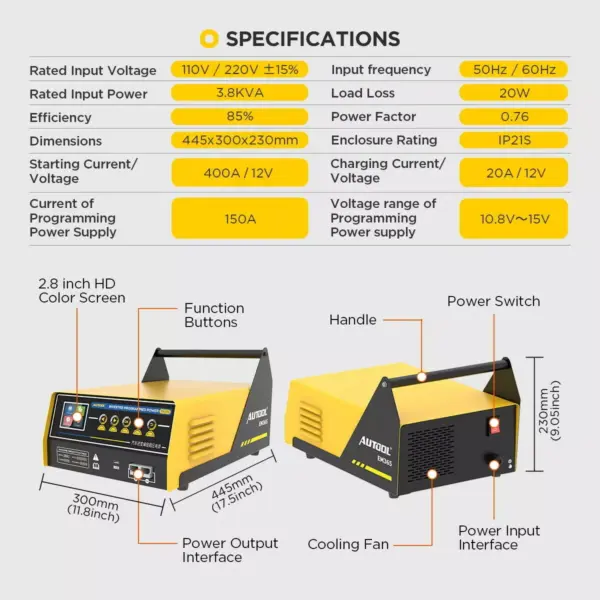

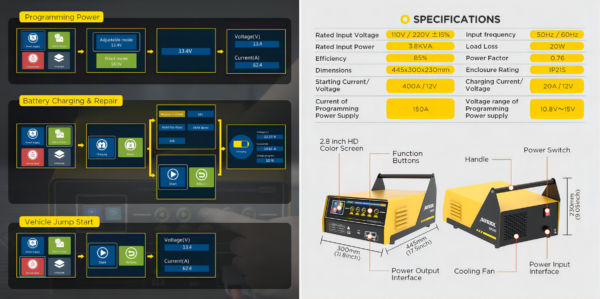

Specifications

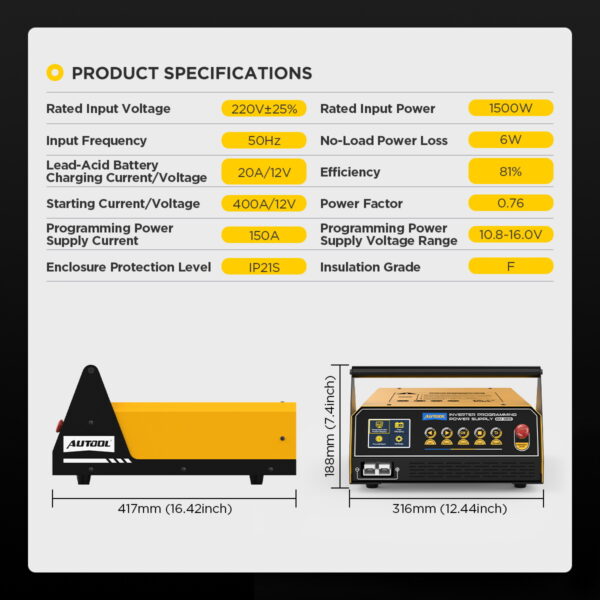

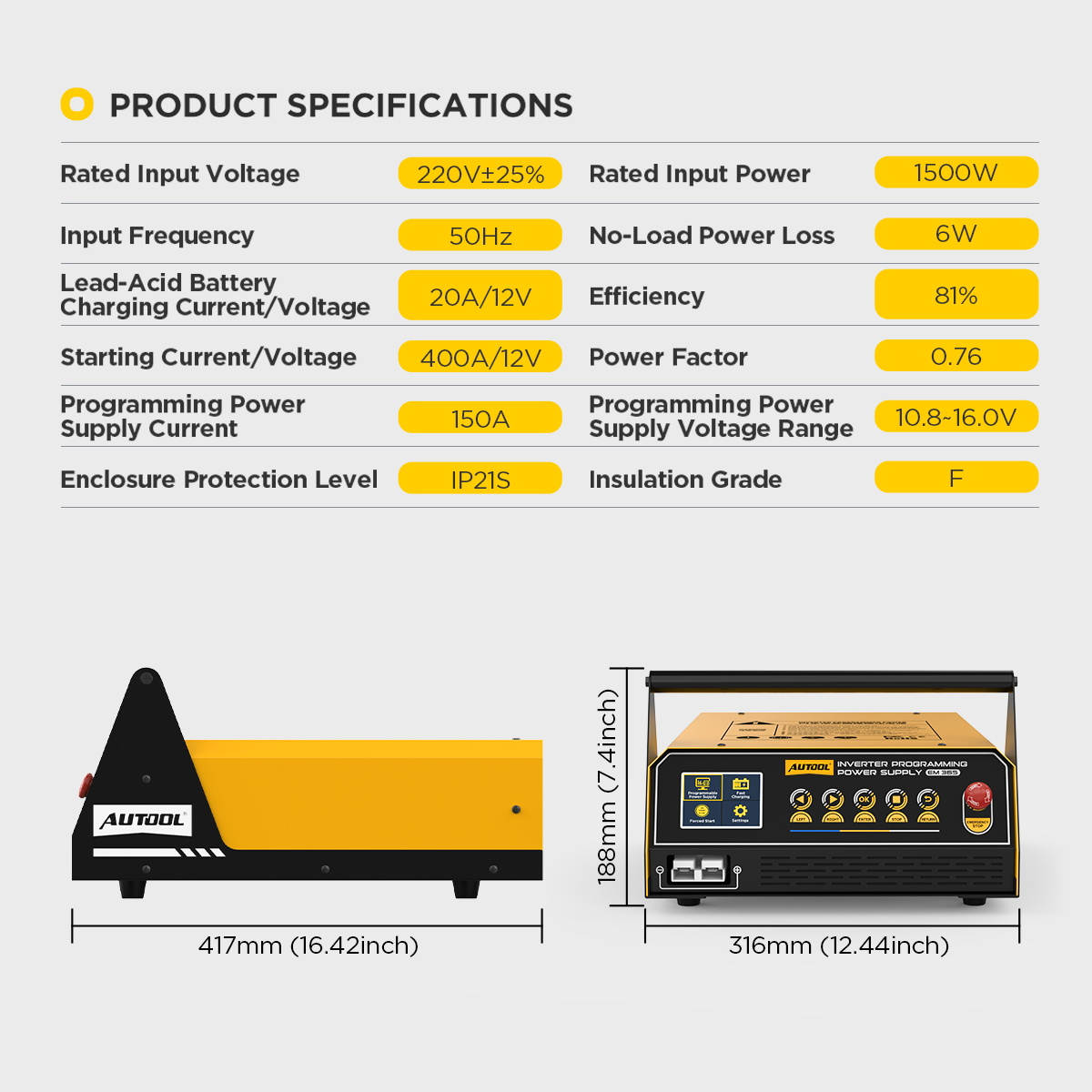

AUTOOL EM365 Product Specifications
EM365 uses a 2.8-inch display, 150A programming current, 20A / 12V lead-acid battery charging current, 400A / 12V starting current, and a 10.8-16V programming power supply voltage range.
| Core Specifications | |
| Product | AUTOOL EM365 Inverter Programming Power Supply |
| Mode Selection | Fast Charging Mode / Programmable Power Mode |
| Screen | 2.8-inch non-touch display |
| Rated Input Voltage | 110V±25% / 220V±25%, depending on version |
| Input Frequency | 50Hz / 60Hz, depending on version |
| Input Current | 110V 20A Max / 220V 13A Max |
| Rated Input Power | 1500W |
| No-Load Power Loss | 6W |
| Efficiency | 81% |
| Power Factor | 0.76 |
| Power Supply And Charging | |
| Programming Power Supply Voltage Range | 10.8-16V |
| Programming Power Supply Current | 150A |
| Lead-Acid Battery Charging Current / Voltage | 20A / 12V |
| Lithium Battery Charging Current / Voltage | Not supported |
| Adjustable Charging Power Supply | Not supported on EM365 |
| Starting Current / Voltage | 400A / 12V |
| Build And Interface | |
| Dimensions | 417 × 316 × 188mm |
| Cable | 3m / 16mm² pure copper cable |
| Enclosure Protection Level | IP21S |
| Insulation Grade | F |
| Cooling | High-speed cooling fan |
| Language | English, French, Spanish, German, Russian |
| Warranty | Up to 3 years for eligible non-human damage cases |
Click to enlargeCore Specifications
Rated Input Voltage110V±25% / 220V±25%, depending on version
Rated Input Power1500W
Screen2.8-inch non-touch display
Programming Voltage10.8-16V
Programming Current150A
Lead-Acid Charging20A / 12V
Emergency Start400A / 12V
Dimensions417 × 316 × 188mm
Click to enlarge
Click to enlargeProduct Details

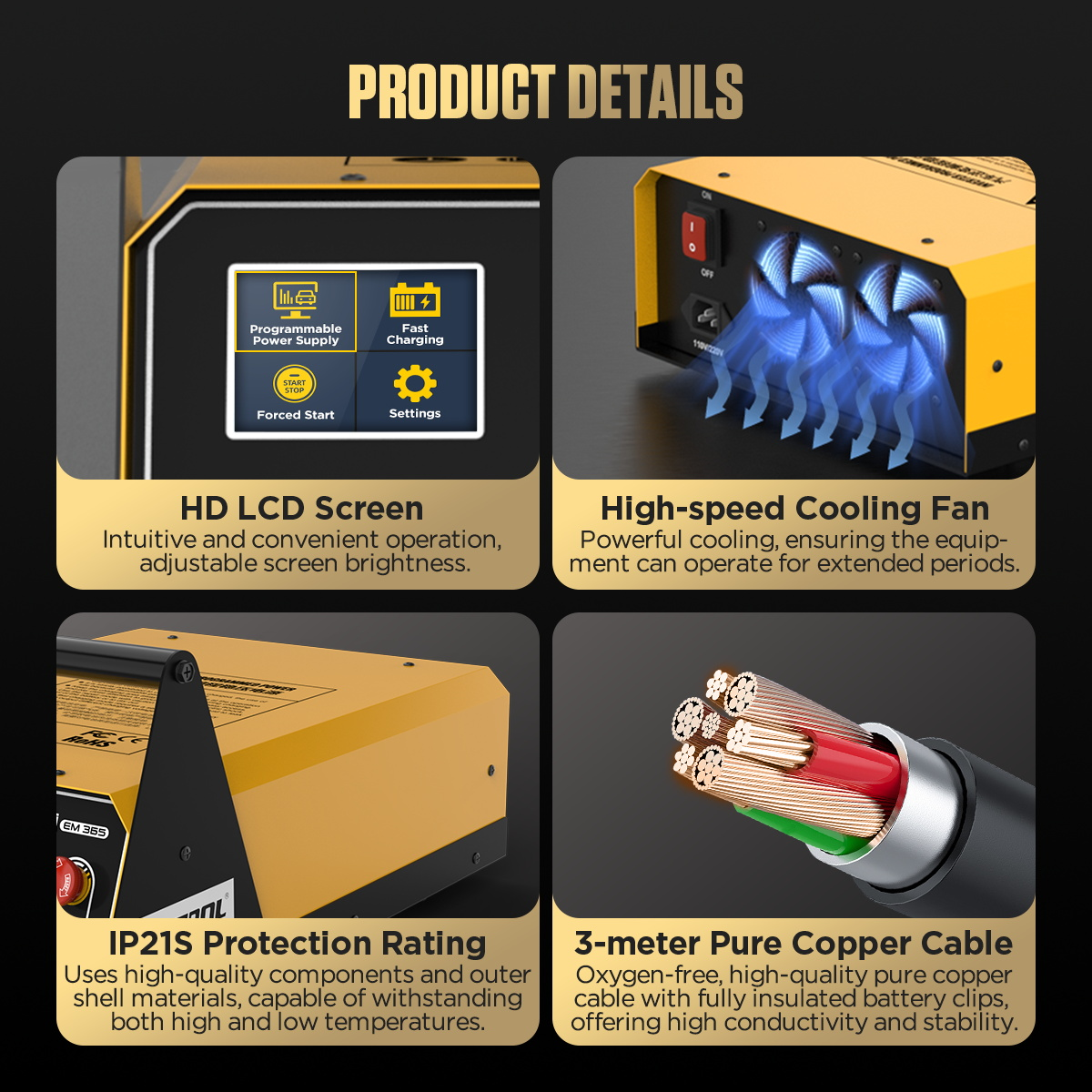

Product Details
The EM365 detail images identify the display, cooling and protection design, pure copper cable, handle controls, output terminal, power switch, power input, and fan layout.

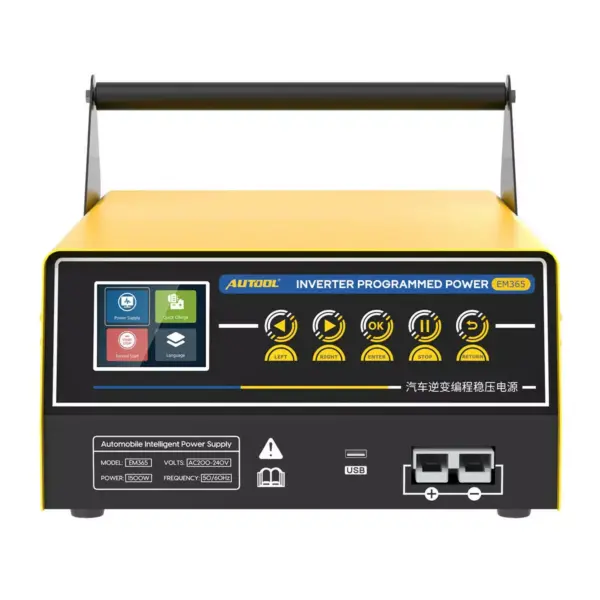

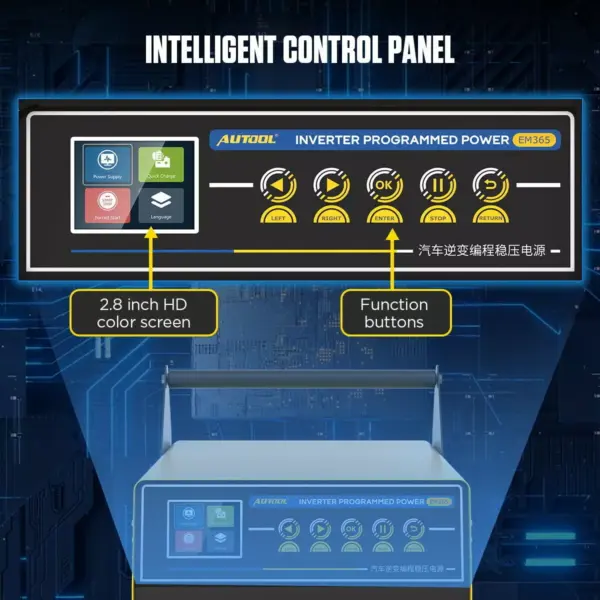

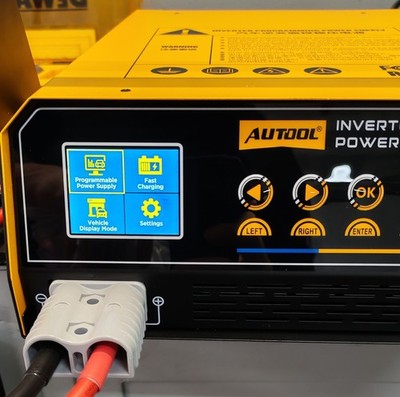

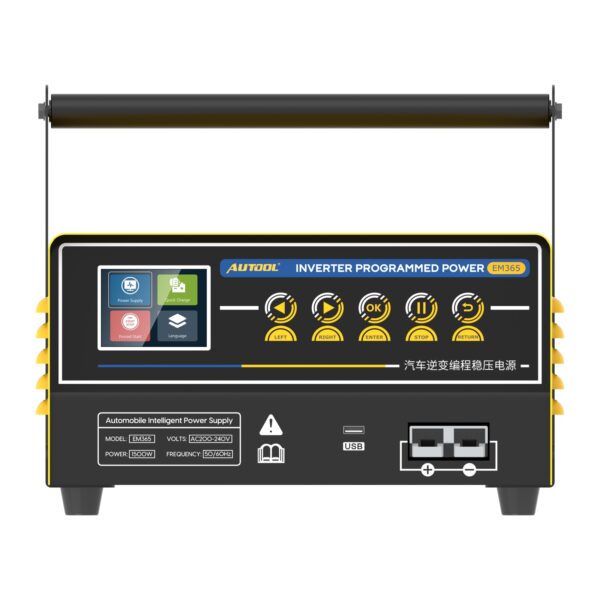

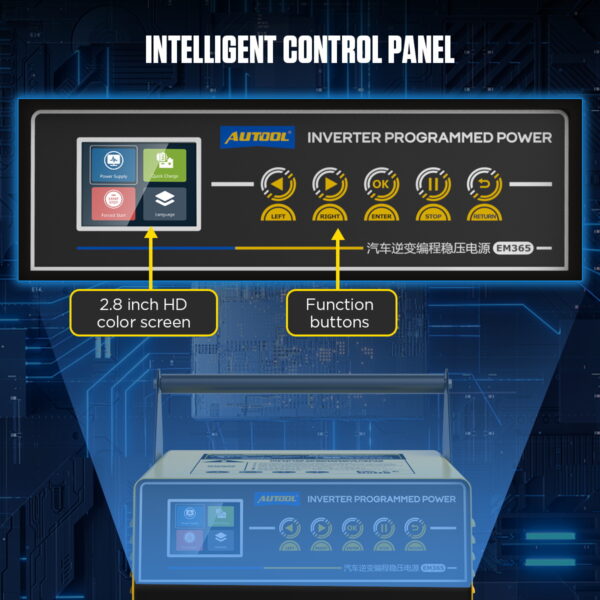

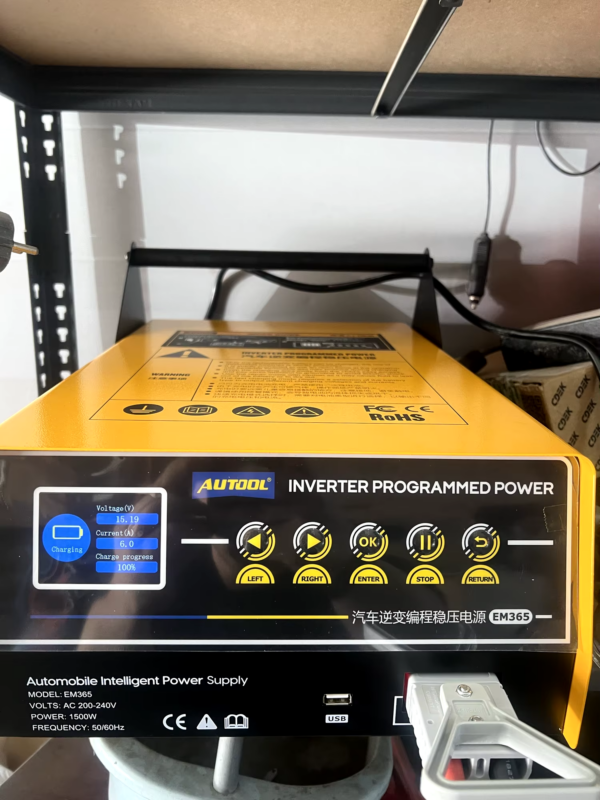

HD LCD Screen
The detail image highlights the HD LCD screen for checking working status and output information.

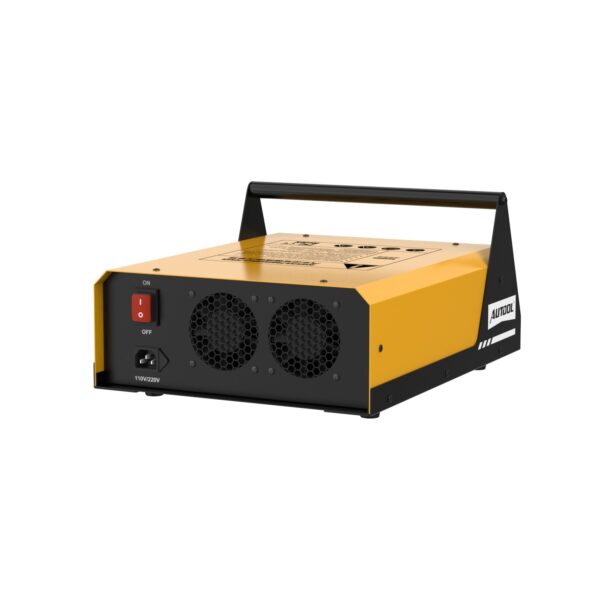

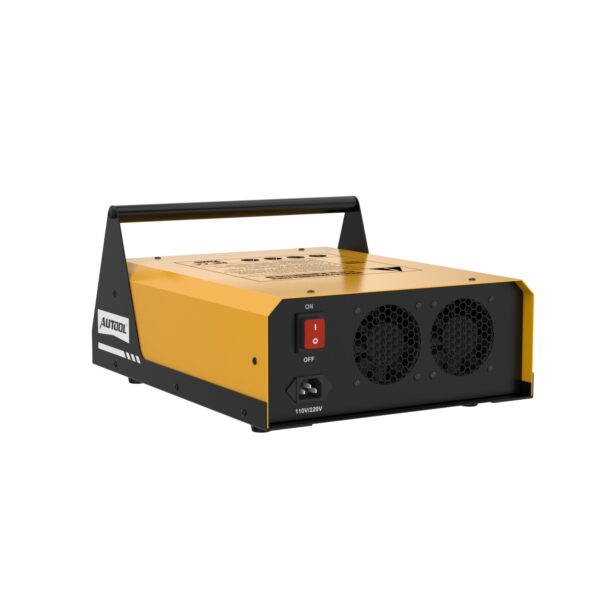

Cooling Fan
The cooling fan is shown as part of the inverter body design for heat dissipation during use.
IP21S Protection
The product detail image identifies IP21S protection as part of the housing specification.
3-Meter Pure Copper Cable
The included cable detail is shown as a 3-meter pure copper cable for workshop connection distance.

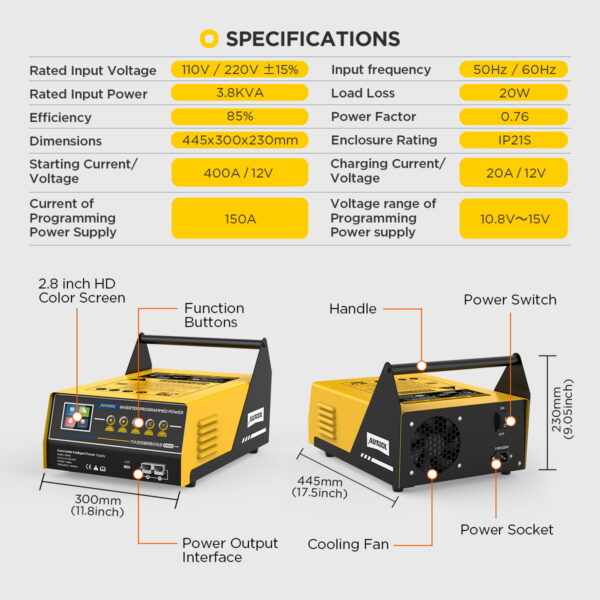

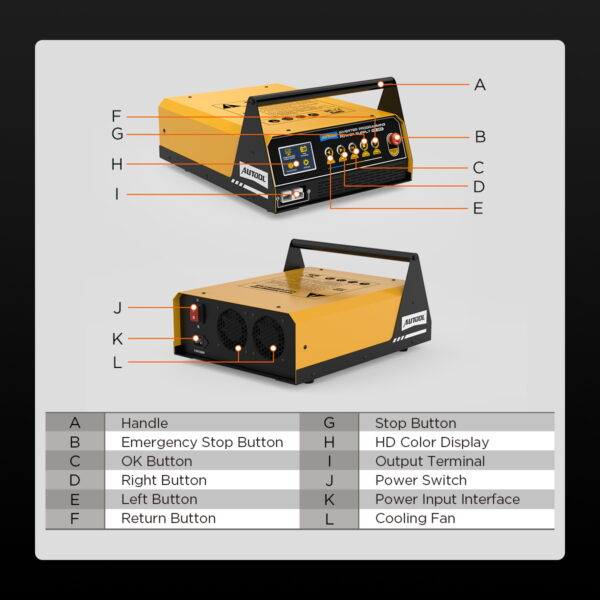

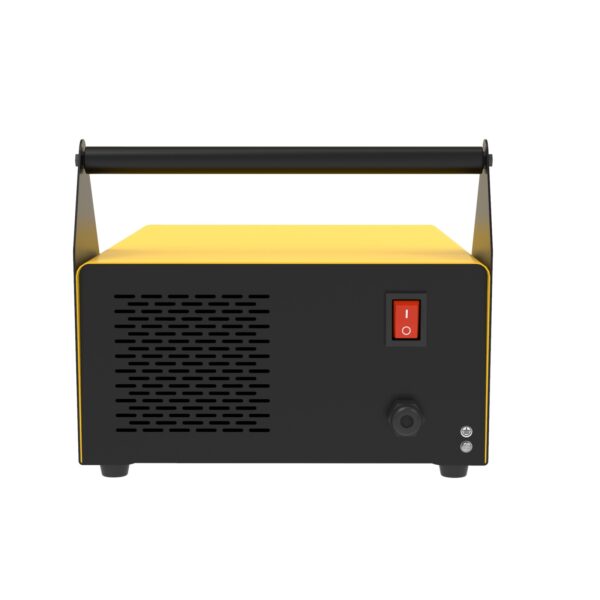

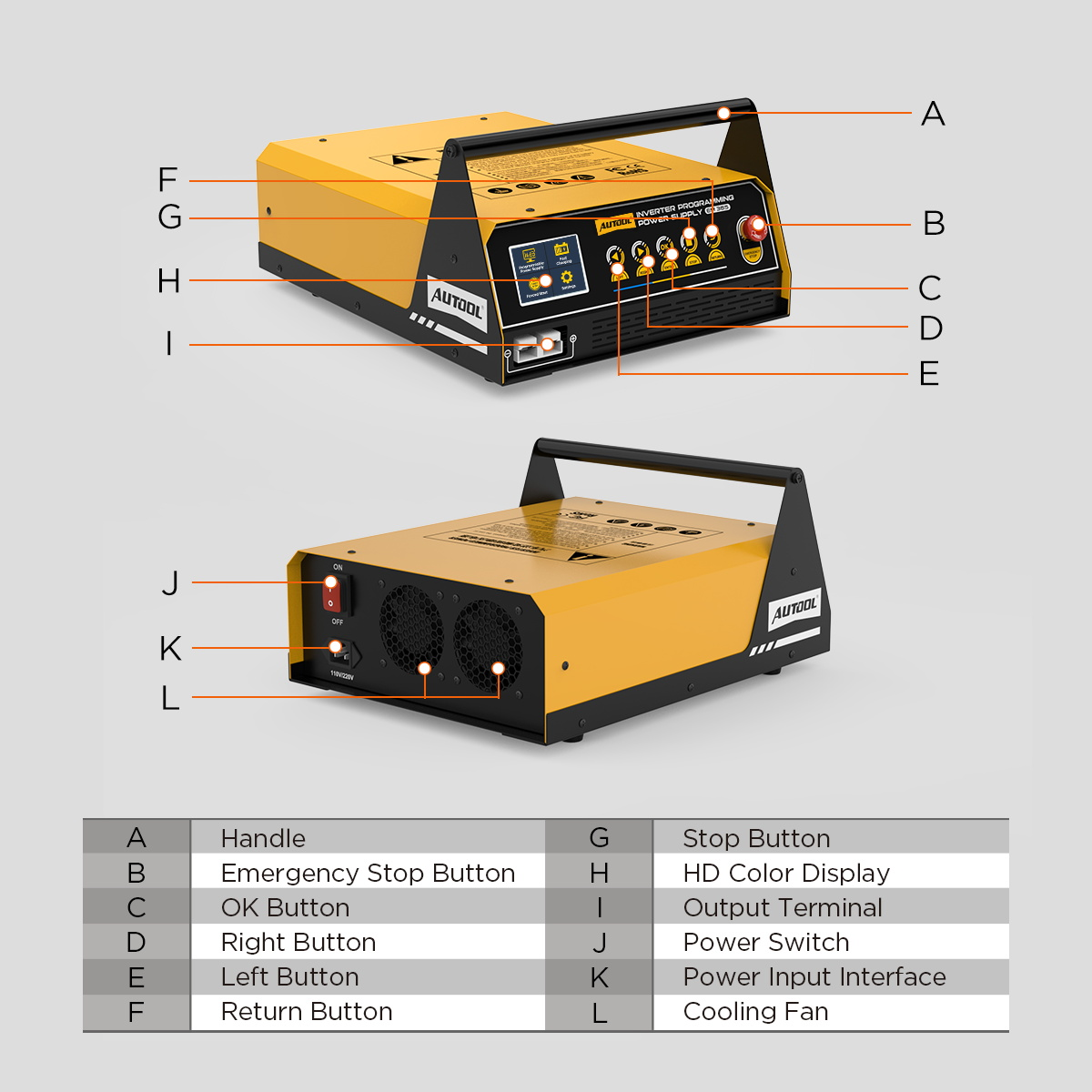

Interface Layout
Handle buttons, output terminal, power switch, power input, and cooling fan are labeled in the interface diagram.
Manual And Downloads
Manual And Downloads
Download the EM365 manual for setup, mode selection, charging, programming power supply operation, safety instructions, and interface guidance.

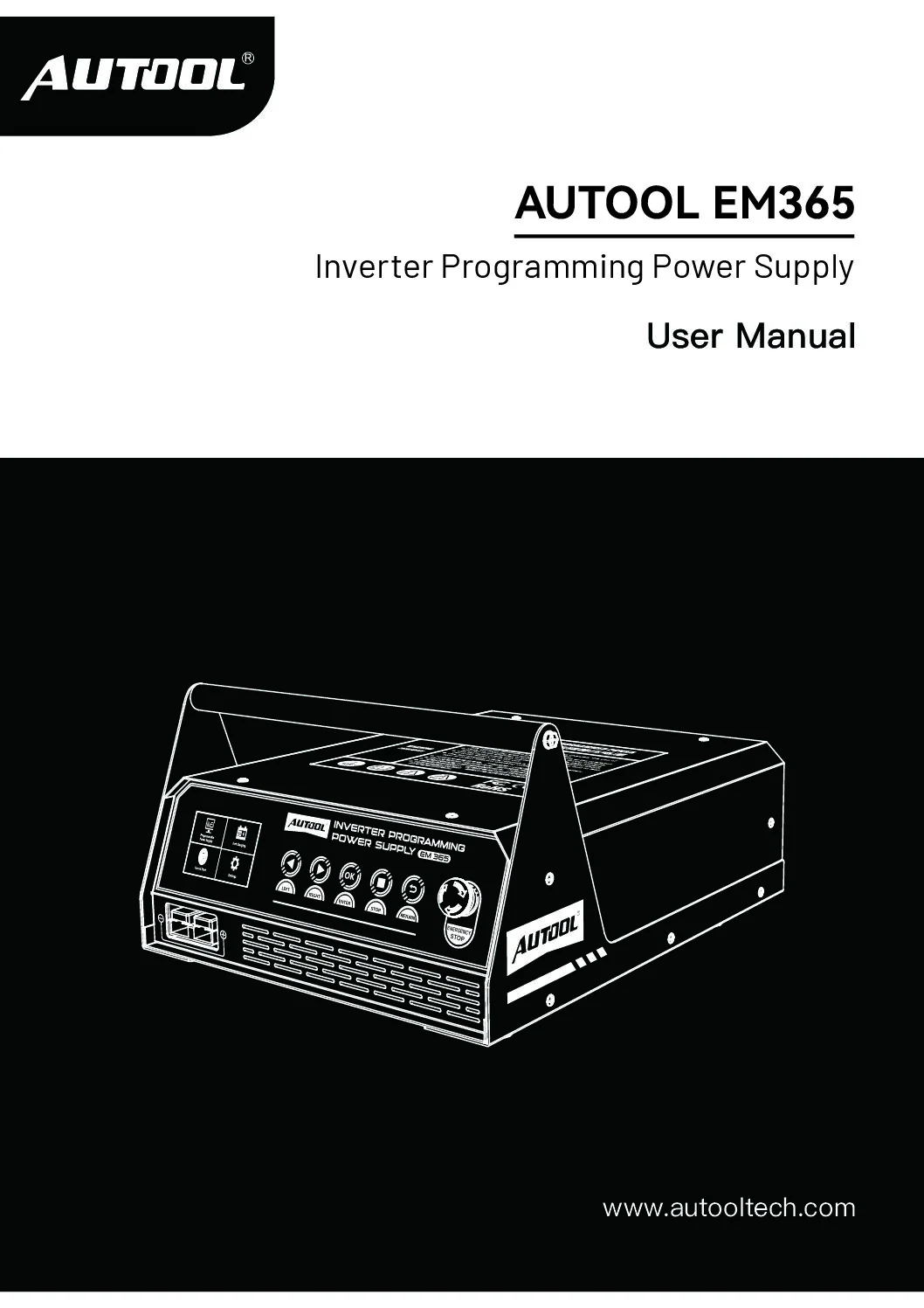

Click to enlargeAUTOOL EM365 User Manual
Use the current EM365 manual for operation and setup guidance. Contact support if you need help confirming your product version.
Download ManualNeed Version Confirmation?
Contact AUTOOL Store before ordering if you need to confirm 110V / 220V version, EFB external charging, lithium battery support, EM355 / EM365 / EM385 model differences, or repair mode usage.

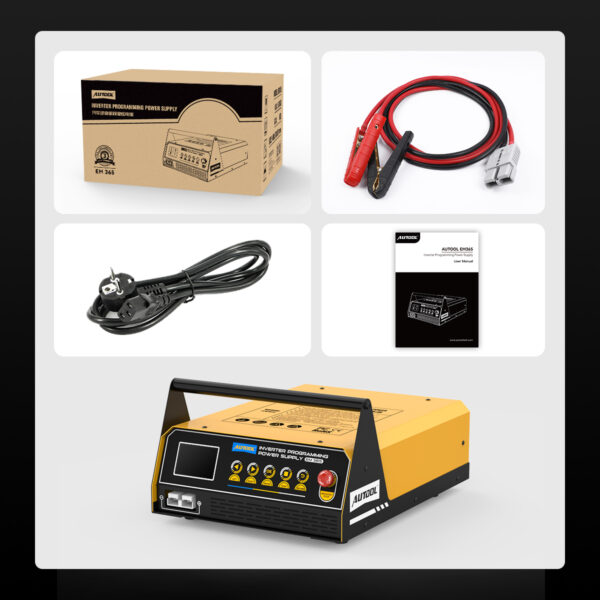

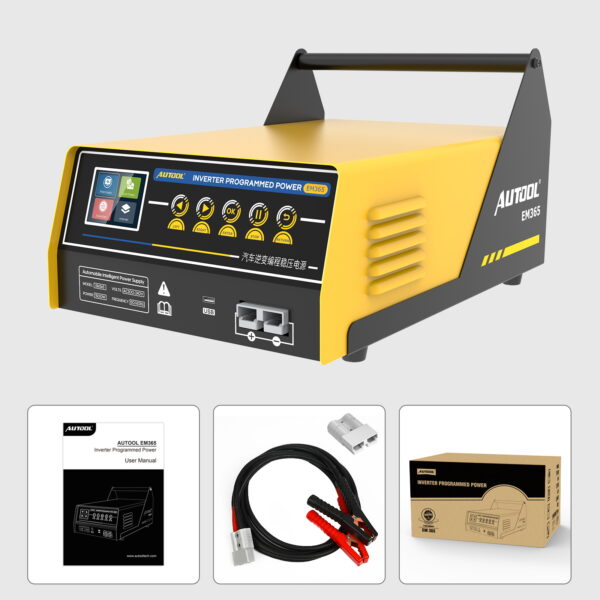

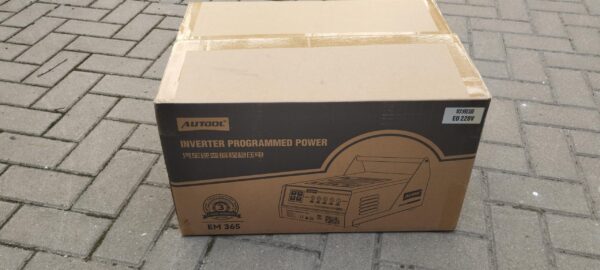

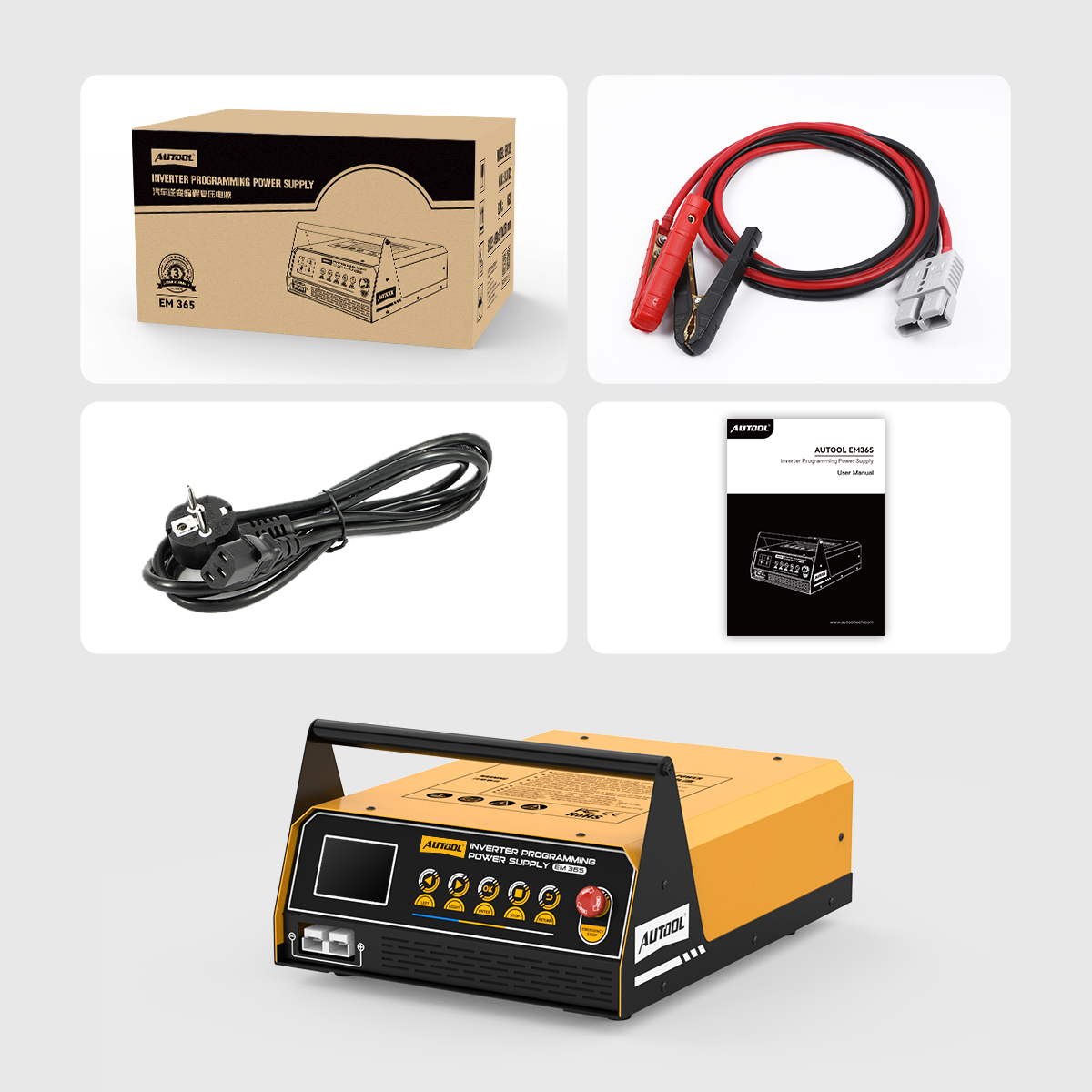

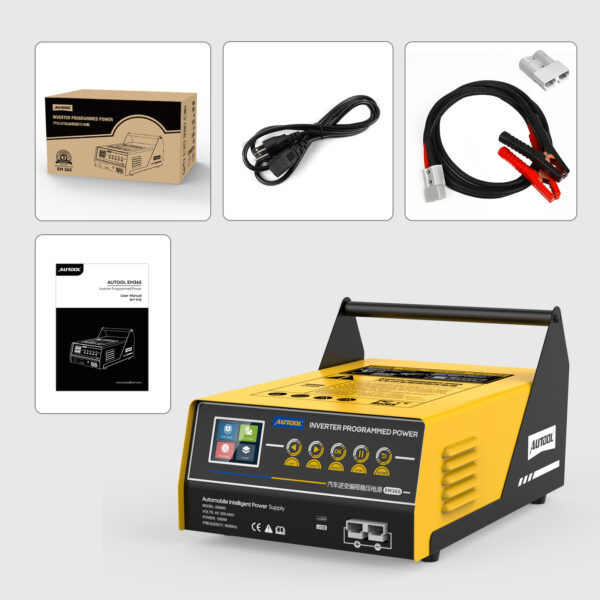

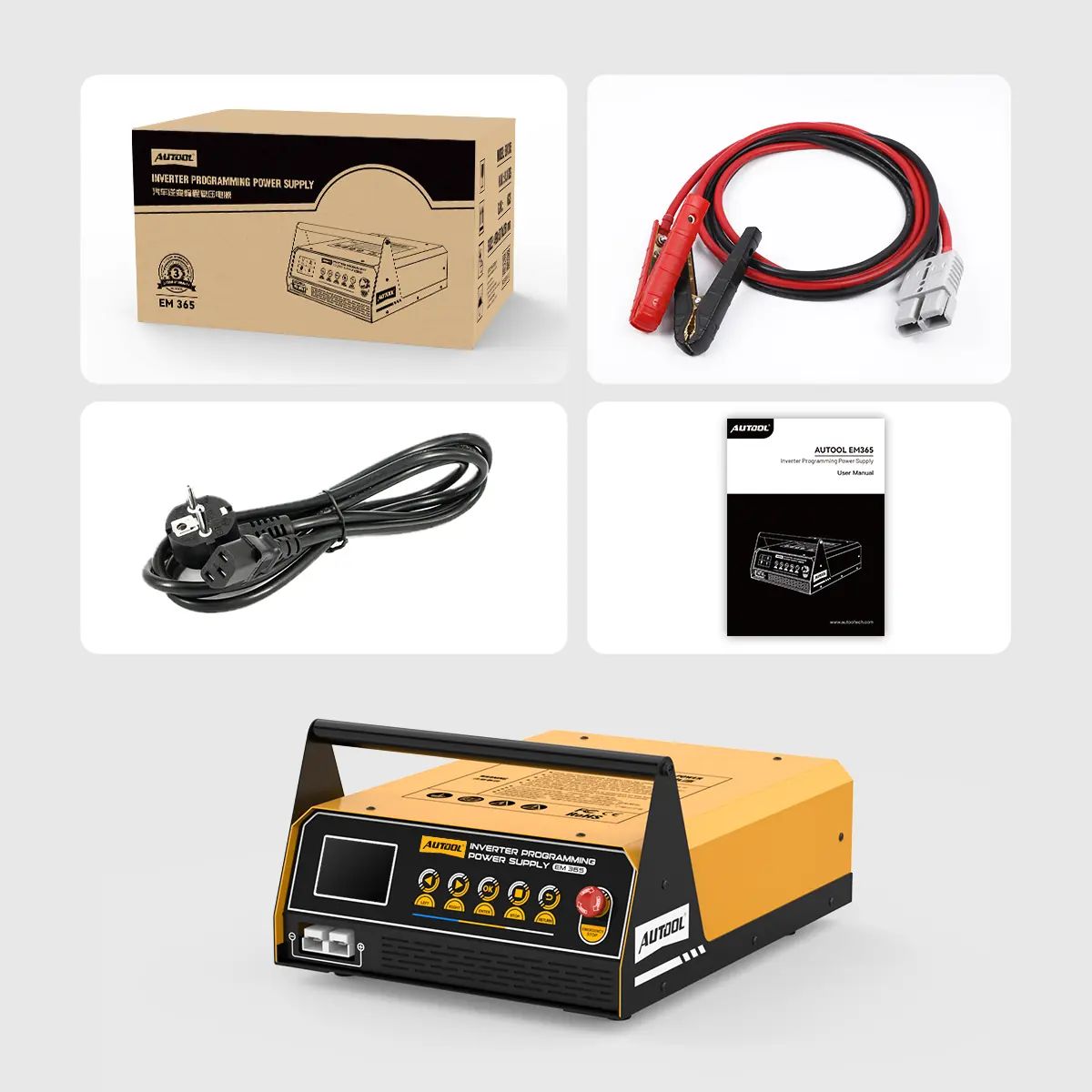

Click to enlargeWhat Is In The Box

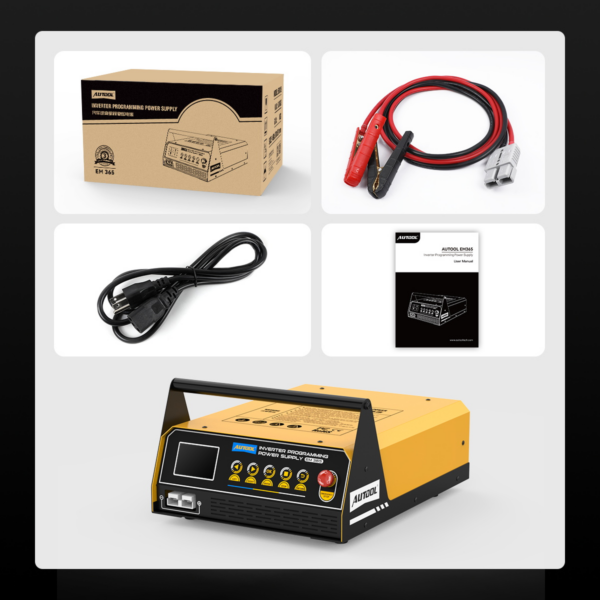

What Is In The Box

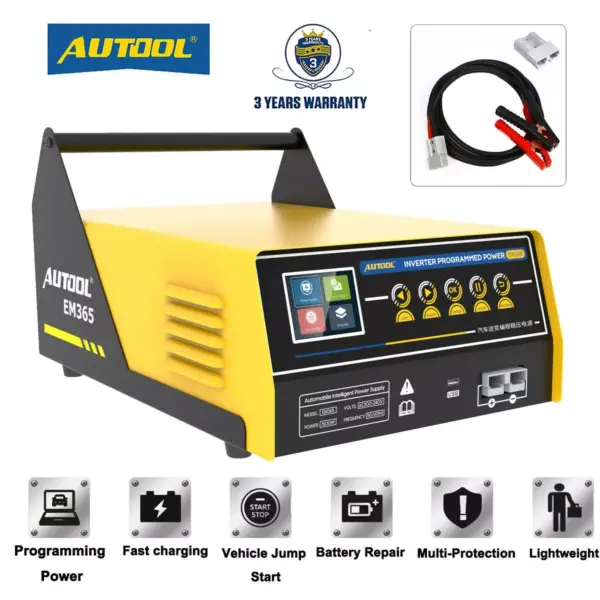

The packing list image shows the EM365 main unit and included accessories. Final package contents should follow the selected product version and the package image.
Main UnitAUTOOL EM365 inverter programming power supply
Battery Clamp CableBattery clamp output cable shown in the package image
AC Power CablePower cable shown in the package image; plug type may depend on selected version
DocumentationAUTOOL EM365 user manual
Retail BoxAUTOOL EM365 retail packaging
Related Products
Related Products
If you need lithium battery charging, adjustable charging power, or touchscreen control, compare EM365 with the EM385 upgrade option before ordering.
- Select options This product has multiple variants. The options may be chosen on the product page

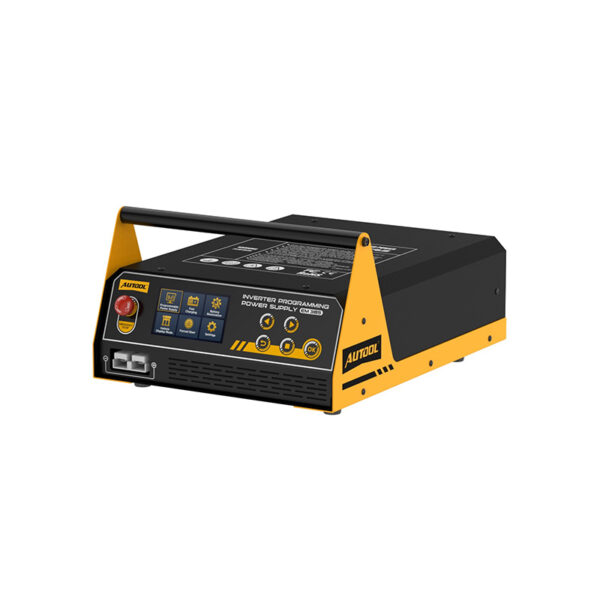

AUTOOL EM385 Auto Power Inverter ECU Programming
From US$629.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL EM355 Power Inverter ECU Programming
From US$520.00 - Select options This product has multiple variants. The options may be chosen on the product page

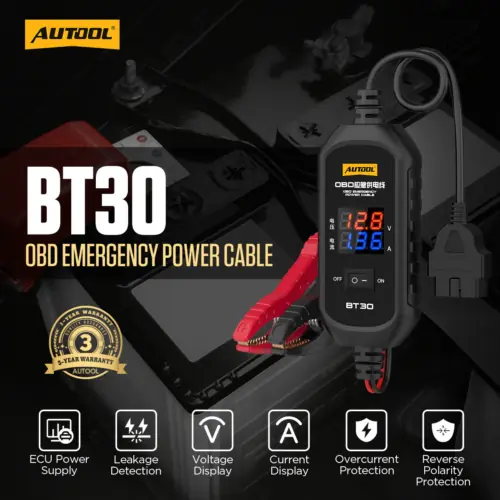

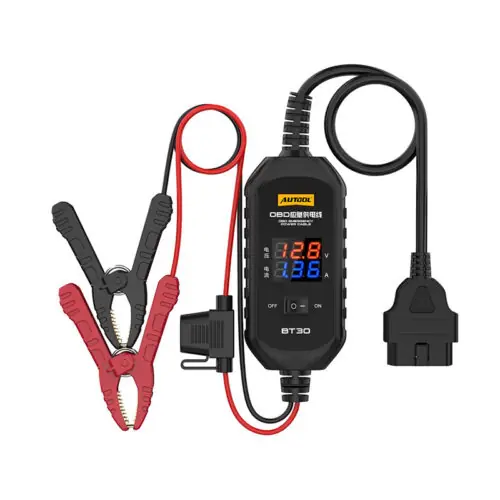

AUTOOL BT30 ECU Emergency Power Supply Cable Includes 3A Fuse
From US$29.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL DM103 Digital LCR Tweezer for Resistance Capacitance and Inductance
From US$40.00
Questions And Answers
These answers cover EM365 use, EM355 / EM365 / EM385 differences, lithium battery support, EFB charging, repair mode, emergency start, compatible battery types, manuals, and warranty support.
EM365 is an inverter programming power supply for automotive workshops. It supports ECU programming power supply, lead-acid battery charging, vehicle display power support, battery restoration, and 400A / 12V emergency start for suitable vehicles.
EM355 is the more basic model with 120A programming current and no emergency start. EM365 adds 150A programming current, 400A / 12V emergency start, vehicle display mode, and 1500W rated input power. EM385 adds lithium battery charging, adjustable charging power, a 4.3-inch touchscreen, 40A / 12V lead-acid charging current, and a wider 9-16V programming voltage range.
No. EM365 does not support lithium battery charging. Choose EM385 if you need support for LiFePO₄, NCM, or other supported lithium battery charging.
No. Repair mode may damage vehicle electronics. Always remove the battery from the vehicle before using repair mode. Use repair mode carefully because it may cause battery fluid loss or drying if used improperly.
No. Repair mode can help some deeply discharged lead-acid batteries, especially when sulfation is the cause, but the result depends on the degree of vulcanization and the battery’s physical condition. It cannot restore every damaged batteries.
EFB batteries contain liquid electrolyte that may boil and overheat during charging. For safety reasons, remove the EFB battery from the vehicle and select External Charging mode. Do not use in-car charging mode for EFB batteries.
EM365 supports Standard Lead-acid, AGM Flat Plate, AGM Spiral, GEL, and EFB batteries. It does not support lithium battery charging.
Vehicle Display Mode provides continuous power support and can serve as a stable external power source for vehicle exhibitions, showroom displays, and battery replacement scenarios.
EM365 provides up to 400A / 12V starting current for suitable vehicles below 3.0L displacement. Confirm your vehicle and battery condition before using emergency start.
Use the current EM365 manual linked in the Download section. If you need to confirm whether your unit is an older or newer version, contact AUTOOL Store support before use.
AUTOOL provides up to 3 years of warranty support for eligible non-human damage cases. For parts reissue, setup questions, version confirmation, or troubleshooting, contact AUTOOL Store support.
Related Guides
Related Guides
Use these related articles to understand AUTOOL EM power inverter applications, EM365 workshop use, and EM385 as the lithium-compatible upgrade option.

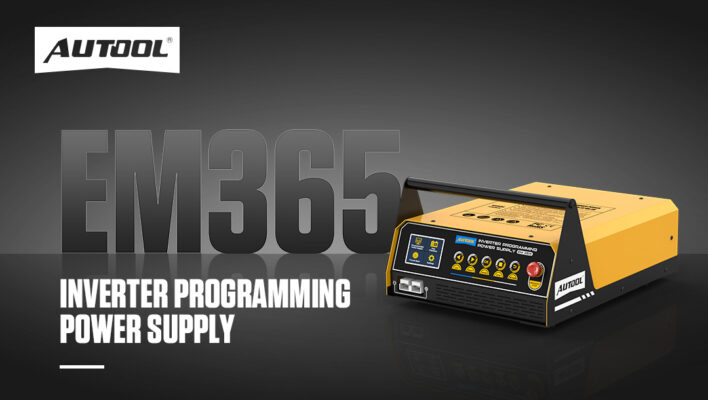

Automotive Battery Charging and ECU Programming Stabilized Voltage 2-in-1 Machine-AUTOOL EM Power Inverter
Every professional workshop needs a reliable power supply for programming services and charging. Automotive ECU programming, module reprogramming, and diagnostics are.

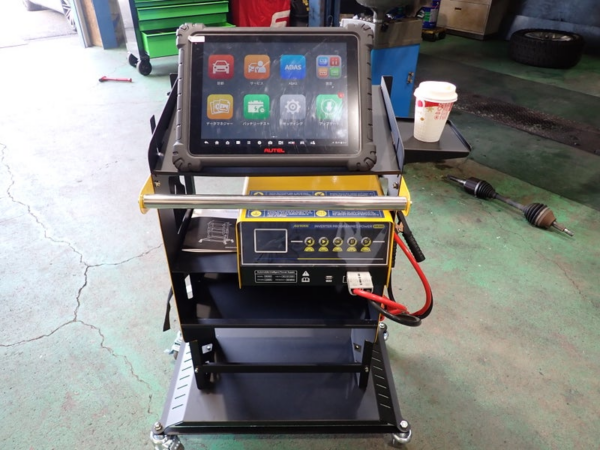

Workshop Partner-AUTOOL EM365 and Trolley Cart
