AUTOOL HTS705
Product Overview

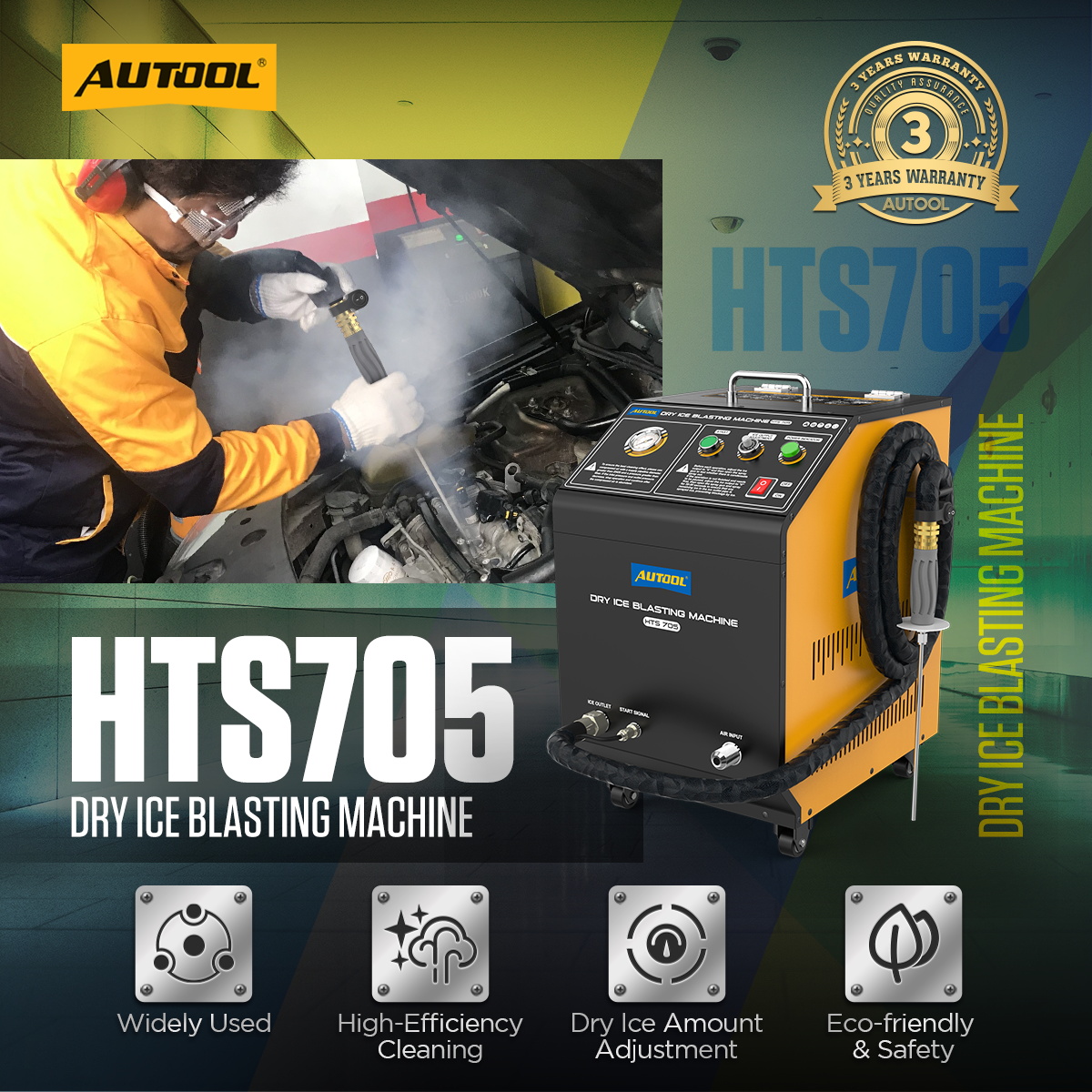

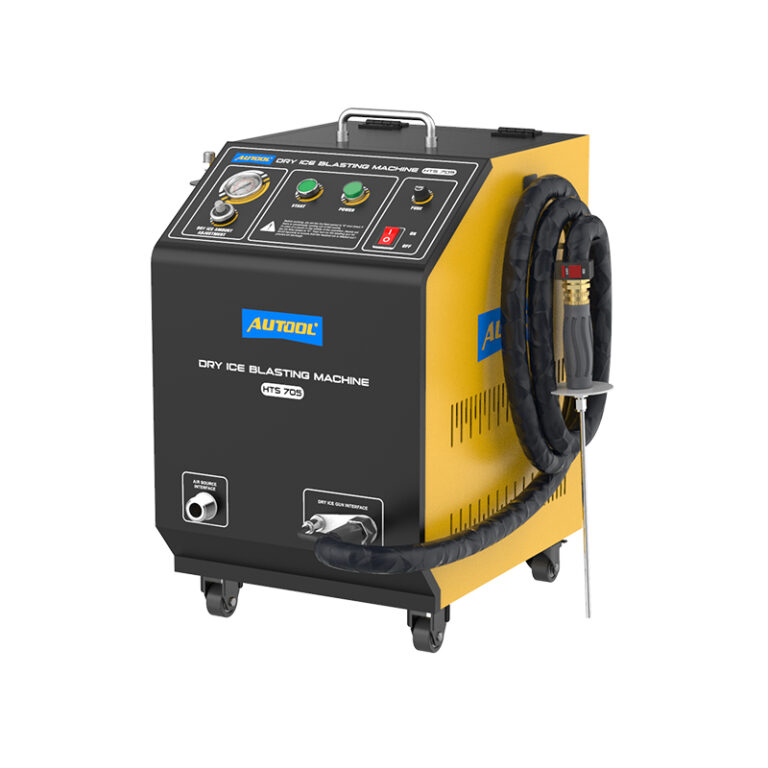

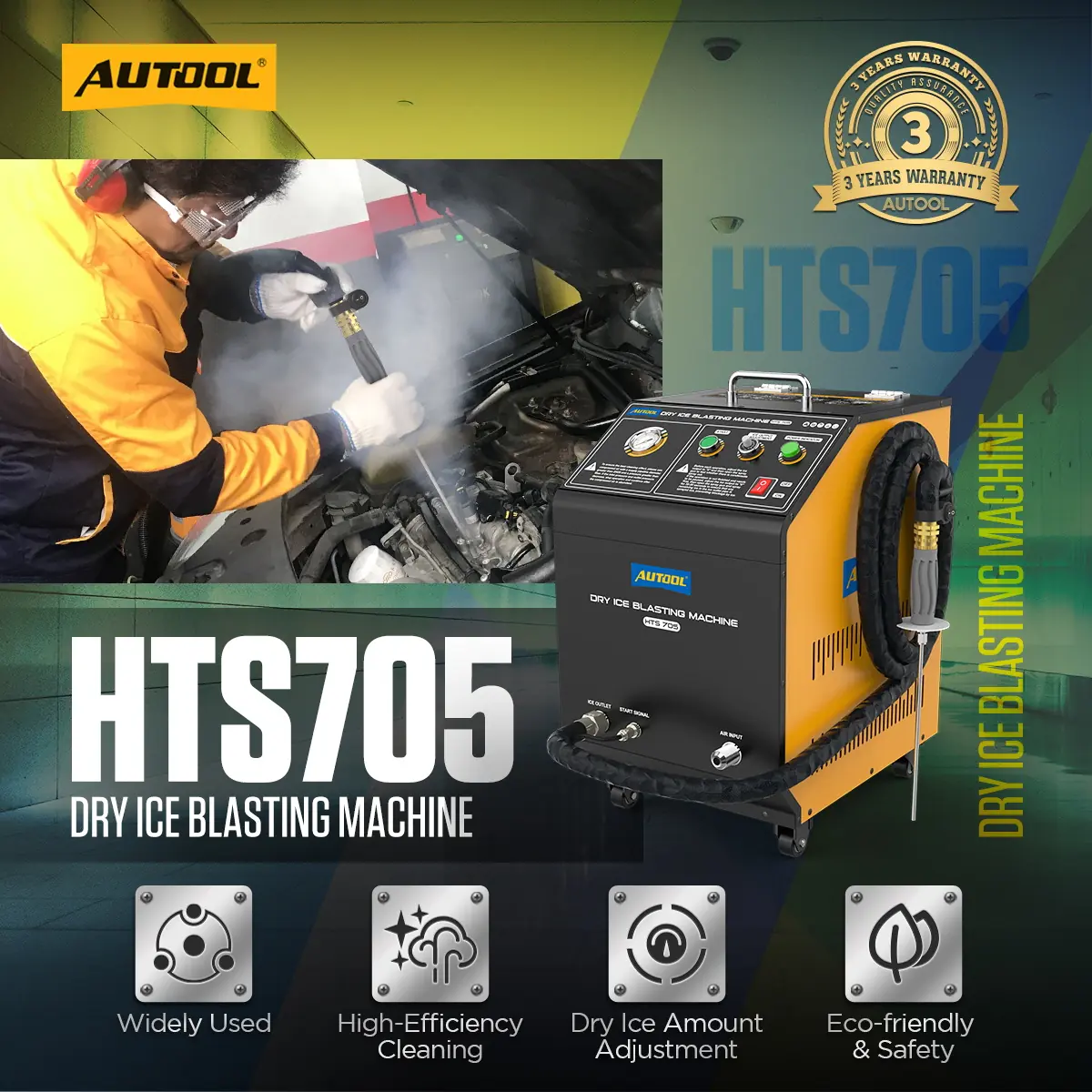

The AUTOOL HTS705 dry ice blasting machine is a compact dry ice cleaning system for automotive carbon deposit cleaning, engine bay cleaning, intake valve cleaning, throttle body cleaning, cylinder combustion chamber cleaning, and suitable workshop surface cleaning. It uses compressed air to accelerate dry ice particles toward the cleaning surface. The dry ice sublimates after impact, helping remove contaminants without water, chemical solvent, or secondary blasting media residue.
HTS705 is a professional dry ice blasting machine. Confirm the compressor, dry ice supply, shipping policy, safety protection, and cleaning requirements before ordering.
External Air Compressor Required
The air compressor is not included. HTS705 requires an external compressed air source, and cleaning effectiveness depends heavily on stable air pressure and airflow.
90 PSI / 6bar Class Air Supply
Use an air source of at least 90 PSI / 6bar class for proper cleaning. A 1.5m³/min compressor with a 300L air tank is recommended for stable operation.
Dry Ice Pellet Requirement
3mm dry ice pellets are recommended. Product materials also mention support for dry ice pellets up to 8mm, but 3mm is the standard reference for stable blasting.
Air Inlet And Nozzles
The air inlet connection is a female 1/2 thread with an inner diameter of about 19mm. Nozzle sizes are available in 5mm and 6mm.
3m Hose Included
The standard blasting hose is 3m. A longer hose can be customized up to 5m with an extra fee. Contact support before ordering a custom hose.
Shipping And Tariff Reminder
Tariff policies vary by country. HTS705 shipped from China to the United States may be tariff-free, and tariffs for other countries may be reduced depending on policy.
Return Limitation
Due to high shipping cost and possible customs duty, HTS705 does not support returns. Confirm compressor, voltage, shipping, tariff, and application details before purchase.
Use PPE And Ventilation
Dry ice is about -78.5°C. Wear gloves, goggles, hearing protection, protective clothing, and a mask. Operate in a well-ventilated area because CO₂ gas is produced.
Do Not Aim At People
Do not point the spray head at people. Dry ice particles and high-pressure airflow can cause injury. Use closed-toe shoes and avoid touching dry ice or the spray barrel directly.
Safety And Application Boundaries
Turn off the drive power of moving equipment before cleaning.
Do not operate the equipment in rain, wet locations, or unsafe electrical environments.
Keep foreign objects out of the dry ice tank when adding dry ice.
Before each operation, set ice feeding speed to 0 and check whether condensed water is sprayed from the nozzle.
Dry ice blasting is not recommended for car interiors, soft trim, or delicate surfaces unless the application is confirmed by a professional.
Dry ice can remove loose rust, surface oxidation, and weakly bonded paint, but it is not suitable for deep pitting rust, white-metal finishing, or strongly bonded coatings.
How To Choose
How To Choose
HTS705 is the portable entry model in this dry ice blasting range. Compare HTS705, HTS708, and HTS709 before choosing capacity, control level, body structure, and cleaning intensity.
Need A Portable Entry Model?
Choose HTS705 if you need a compact 5kg dry ice blaster for individual users, small workshops, mobile service, lower-frequency cleaning, or easier international shipping.
Need More Workshop Capacity?
Choose HTS708 if you need 7.5kg dry ice capacity, a more professional body structure, reduced refill frequency, and reliable medium to high-frequency workshop cleaning.
Need More Precise Control?
Choose HTS709 if you need dual pressure gauges, more detailed jet pressure and flow monitoring, and better control for complex or precision cleaning tasks.

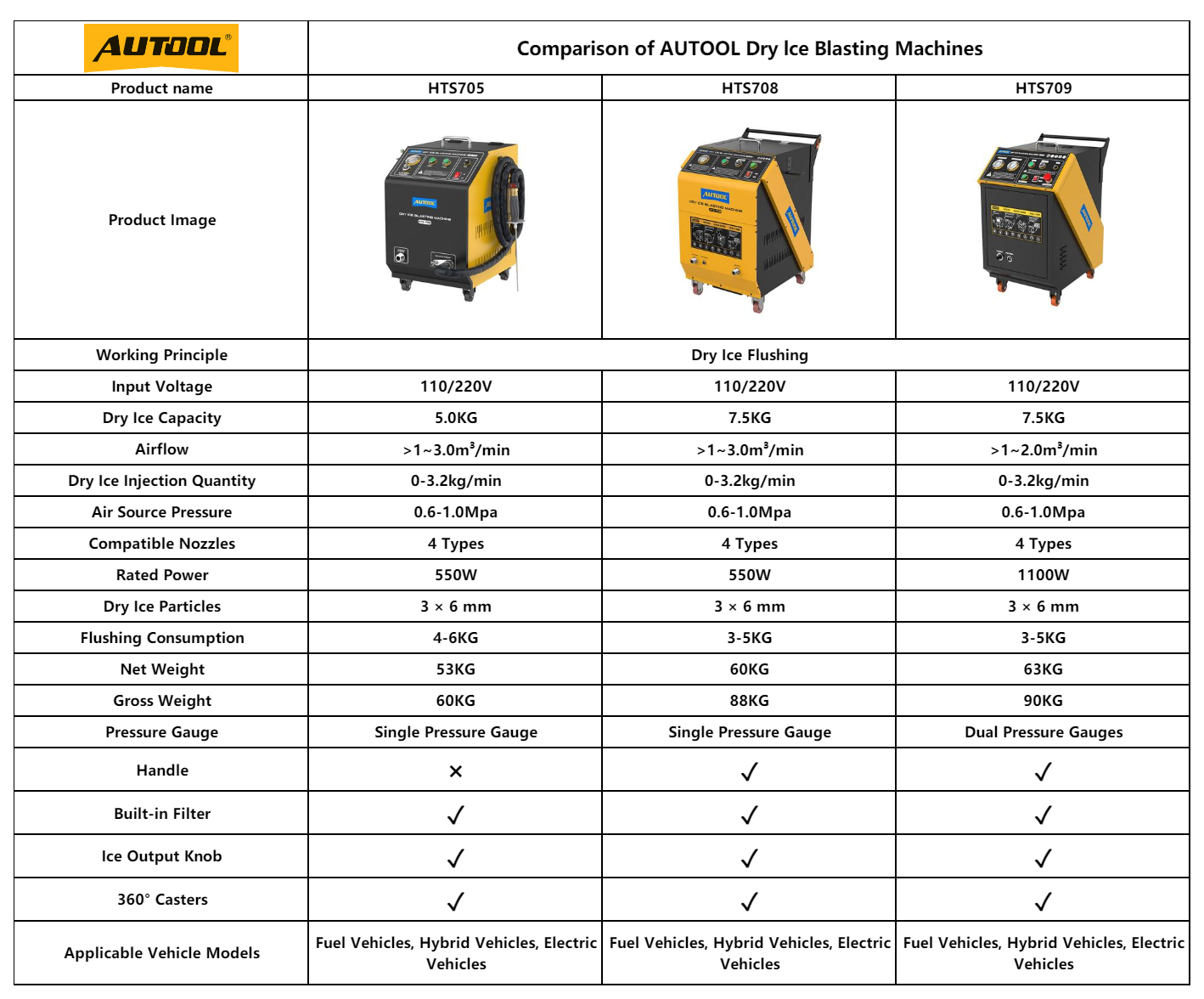

The comparison chart summarizes the dry ice capacity, airflow, rated power, gross weight, pressure gauge configuration, and handling differences among the three AUTOOL dry ice blasting machines.
HTS705 Focus5kg capacity, single pressure gauge, 550W rated power, compact body, 3m hose, and a cost-effective entry-level setup for small workshops or lower-frequency cleaning.
HTS708 Focus7.5kg capacity, single pressure gauge, professional body, 550W rated power, lower refill frequency, and daily workshop cleaning suitability.
HTS709 Focus7.5kg capacity, dual pressure gauges, 1100W rated power, and more advanced control for complex cleaning tasks or delicate components.
Shared CapabilitiesAll three models are dry ice flushing machines with 110V / 220V input options, adjustable dry ice injection quantity, compatible nozzle options, built-in filter support, ice output knob, and 360° casters.
Decision CheckChoose HTS705 for portability and budget, HTS708 for daily workshop capacity, and HTS709 for higher-control professional cleaning.
Click to enlarge
Key Features
Key Features
HTS705 is built for practical automotive and workshop cleaning, with dry ice output adjustment, compressed-air blasting, clean sublimation, compact operation, and support for common carbon deposit cleaning areas.
Cost-Effective Entry Model
HTS705 is positioned as an economical dry ice blasting option for users who need essential dry ice cleaning performance without moving directly to larger professional models.
No Major Disassembly

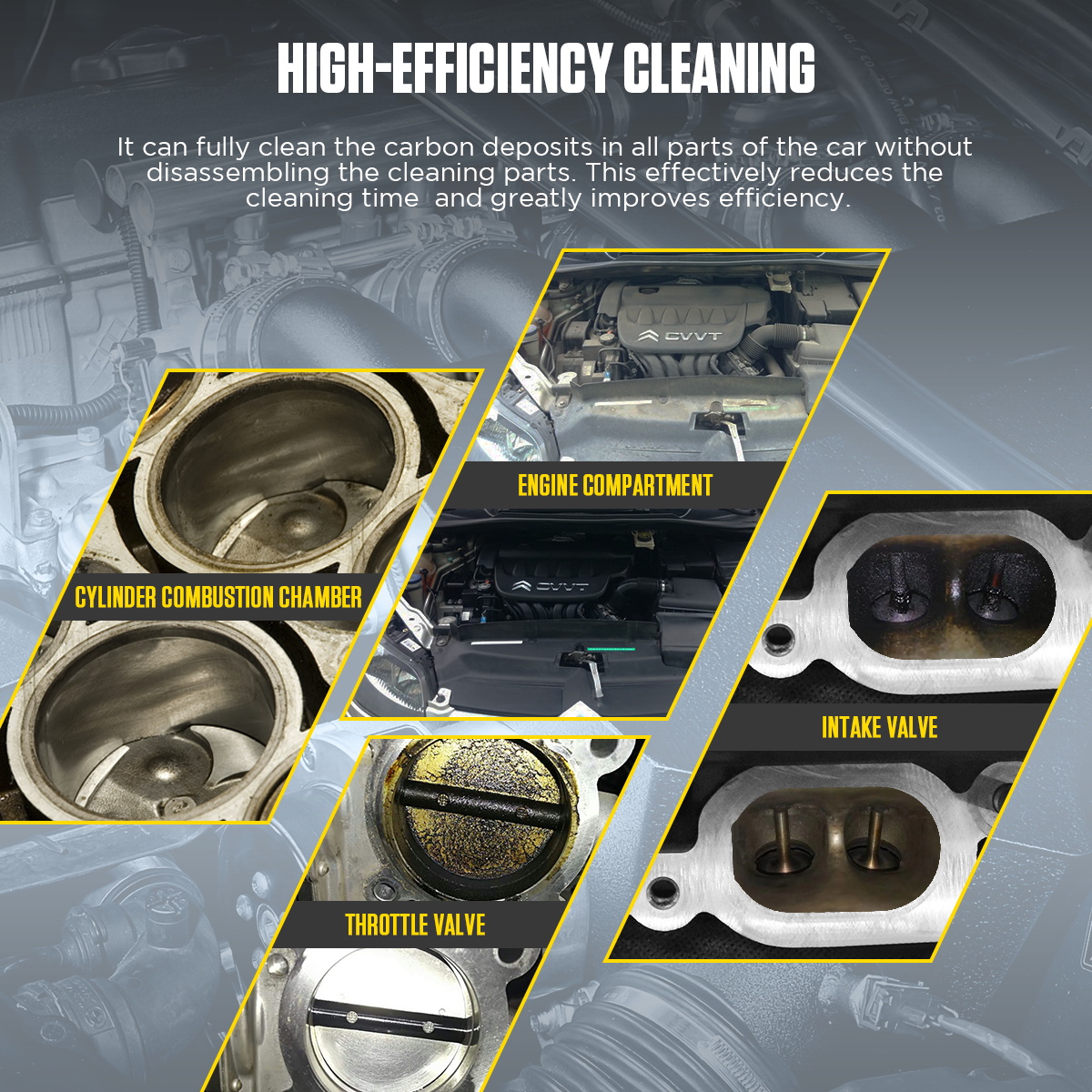

It helps clean carbon deposits from intake valves, throttle bodies, engine components, and cylinder combustion chambers with less disassembly, depending on the vehicle and cleaning area.
Dry Cleaning Process
Dry ice sublimates after impact, leaving no water, chemical solvent, or walnut shell media residue. Only the removed dirt or carbon deposits need to be handled.
Adjustable Dry Ice Output

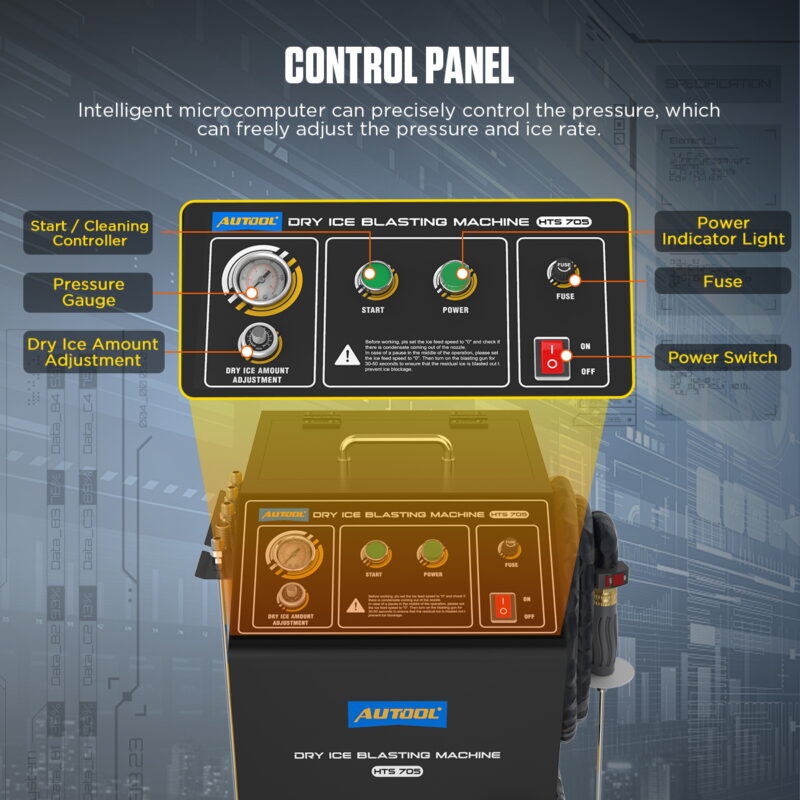

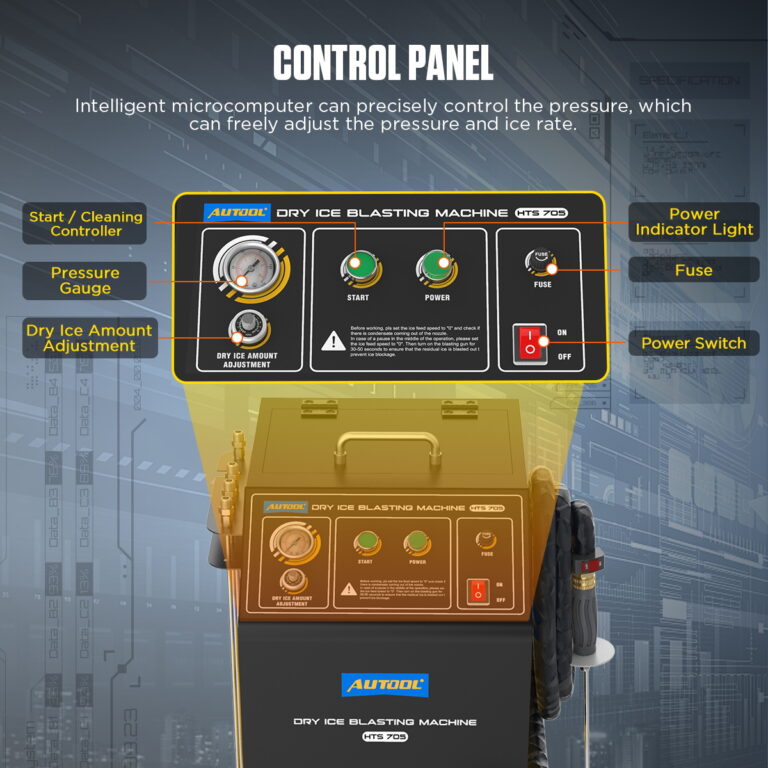

The control panel includes pressure monitoring, dry ice amount adjustment, start / cleaning control, power switch, fuse, and power indicator light.
Air Filtration Support
The high-power air filtration structure helps reduce moisture entering the machine and supports smoother dry ice delivery during cleaning.
Spiral Ice Separation
The spiral dry ice separation design helps keep particles moving, reducing clumping and supporting more stable dry ice delivery through the blasting hose.
Fast Carbon Deposit Cleaning
Some engine carbon cleaning tasks can be completed in about 15 minutes depending on air supply, dry ice quality, carbon buildup, nozzle selection, and cleaning area.
Reduces Chemical Exposure
Using dry ice instead of toxic chemical solvents can reduce chemical residue on equipment and help protect personnel when proper PPE and ventilation are used.
Warranty And Support
AUTOOL provides 3-year warranty support for eligible non-human damage cases and lifelong maintenance support according to the actual issue and service policy.
Click to enlargeClick to enlargeClick to enlargeClick to enlargeClick to enlarge
How It Works
How It Works

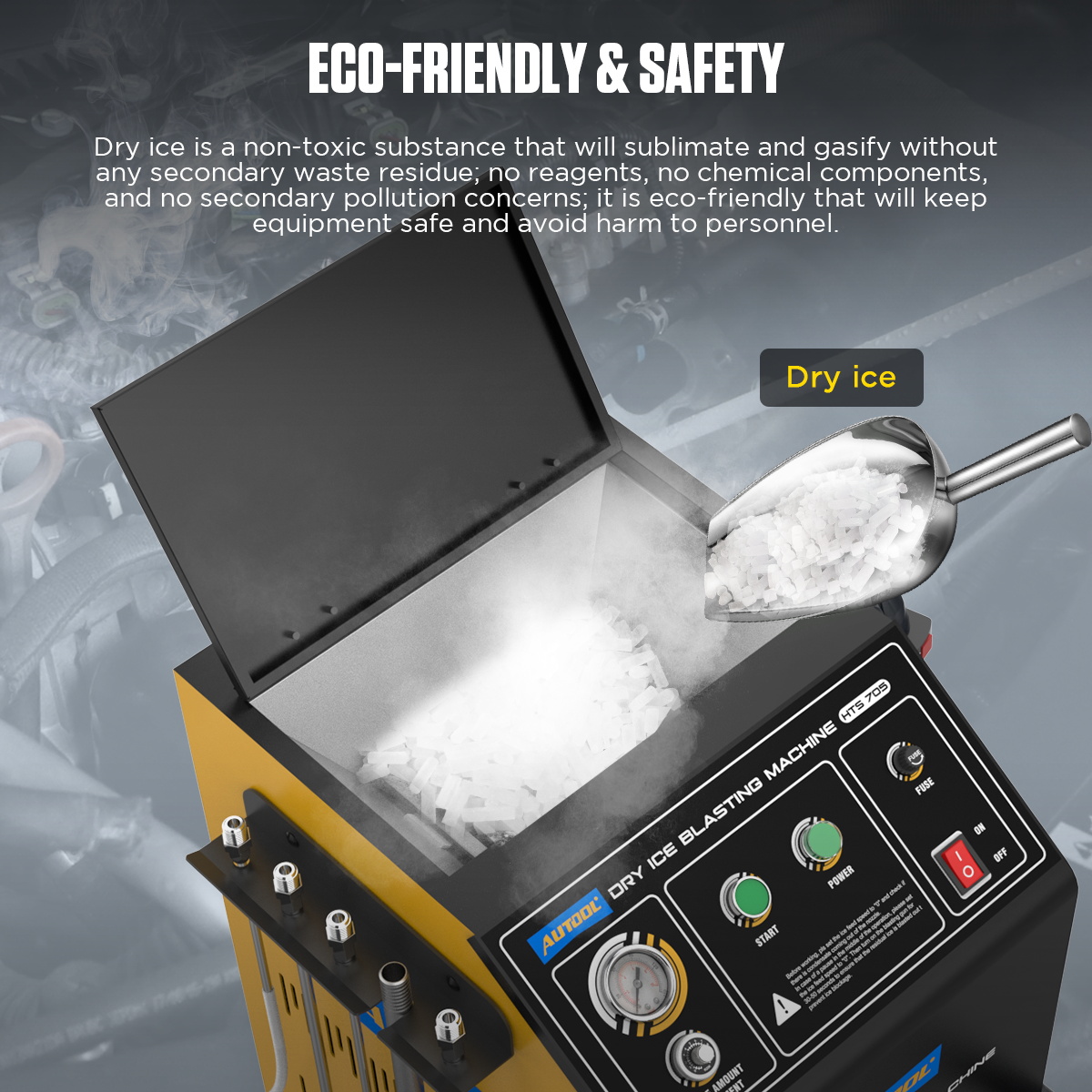

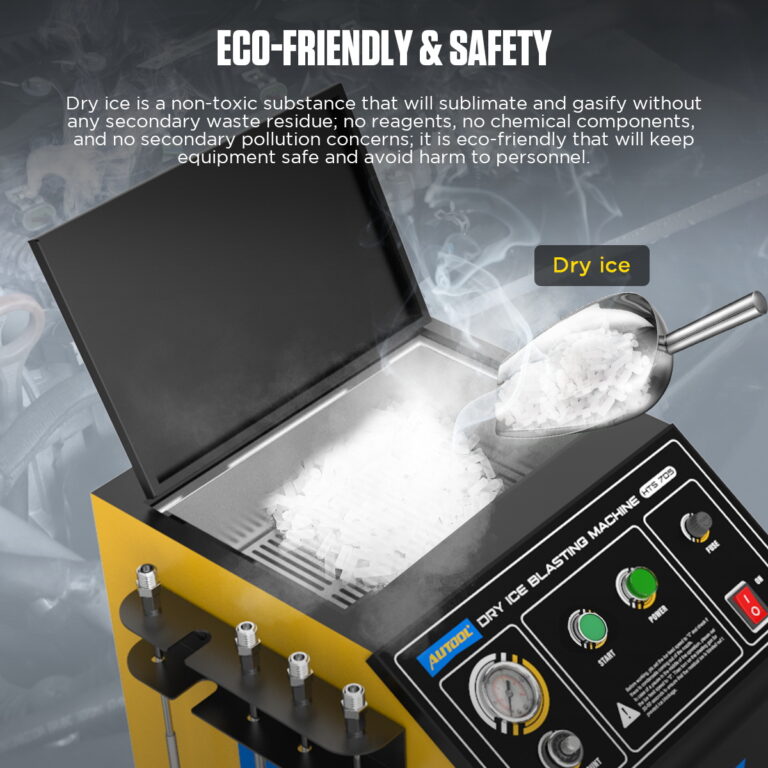

HTS705 uses compressed air, low-temperature dry ice, particle impact, and rapid sublimation to help separate contaminants from the surface without creating secondary blasting media waste.
Impact
Compressed air accelerates dry ice particles through the nozzle at high speed so they impact the cleaning surface and loosen contaminants.
Cold Shock
Dry ice is about -78.5°C. The thermal shock can make carbon deposits and attached dirt more brittle, helping break the bond between contaminant and substrate.
Expansion
Dry ice sublimates rapidly on impact. The solid CO₂ expands into gas, creating a micro-expansion effect that helps lift contaminants from the surface.
No Secondary Media Residue
Because dry ice turns into CO₂ gas, the process leaves no blasting media residue, reducing additional cleanup compared with many abrasive methods.
How To Choose
How To Choose
Dry ice cleaning is a physical cleaning process that can reduce disassembly, chemical residue, secondary waste, and abrasive media cleanup when used on suitable surfaces under proper conditions.
Less Disassembly
Many automotive cleaning tasks can be completed with little or no disassembly, helping reduce downtime in workshop environments.
No Chemical Solvent
Compared with chemical cleaning, dry ice blasting helps avoid chemical residue and reduces the need for solvent handling.
Less Abrasive Than Walnut Media
Unlike abrasive media such as walnut shell, dry ice does not leave solid blasting media behind and is gentler on suitable components.
Physical Carbon Removal
Dry ice cleaning removes carbon deposits through impact, cold shock, and sublimation instead of relying on combustion or chemical reaction.
Applications
Applications
HTS705 is especially suitable for automotive repair and carbon deposit cleaning. It can also support selected industrial cleaning applications when air supply, dry ice supply, and surface suitability are confirmed.
Automotive Carbon Cleaning
Engine bay, cylinder combustion chamber, intake valve, throttle body, engine component, wheel hub, and underbody cleaning under suitable conditions.
Workshop Efficiency
Useful for repair shops that need to reduce cleaning time, minimize disassembly, and clean carbon deposits with dry, non-chemical blasting.
Industrial Surface Cleaning
Dry ice blasting can be used in automobiles, electric power, rubber, plastic, chemical, printing, food, pharmaceutical, casting, ship, and aviation fields.
Surface Suitability Check
Always confirm the material, coating, adhesion strength, temperature sensitivity, and cleaning goal before applying dry ice blasting to delicate components.
Click to enlarge
Specifications

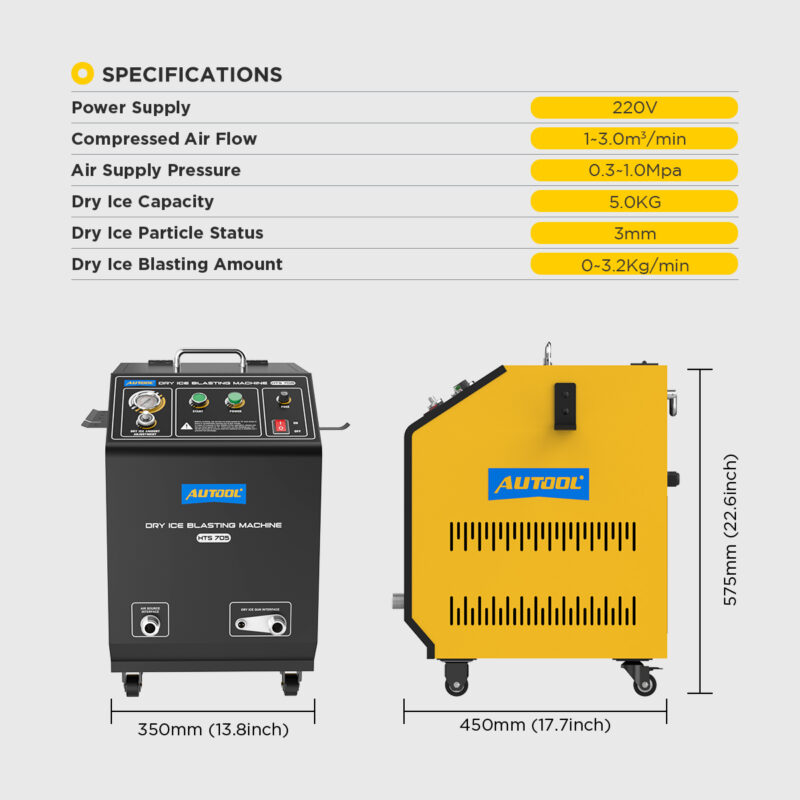

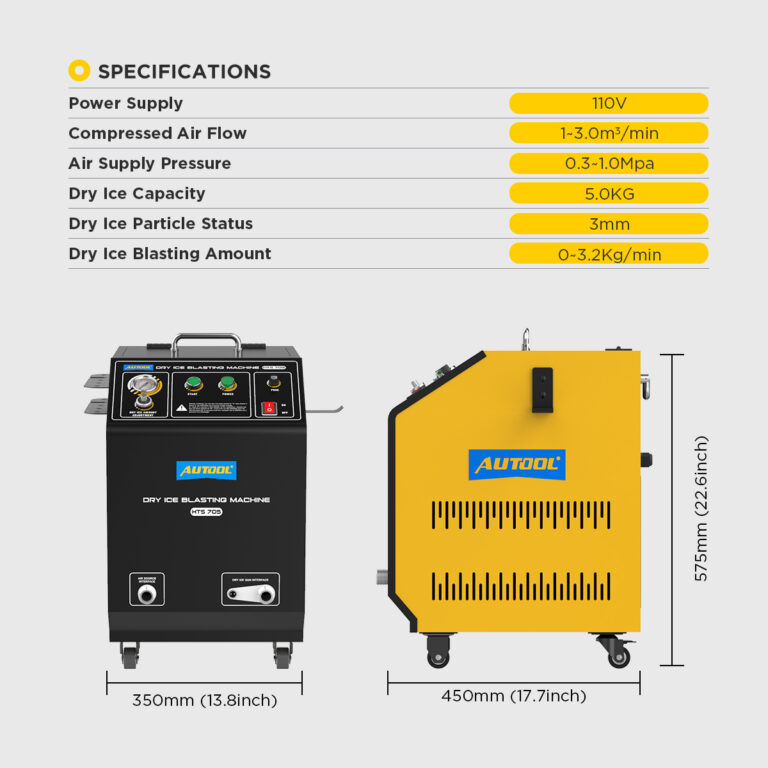

AUTOOL HTS705 Technical Requirements
Review the power supply, dry ice capacity, air supply pressure, airflow, dry ice particle size, hose, nozzle, and weight notes before ordering. Some values vary by version or product material, so confirm the final configuration with support if needed.
Core Machine Data
Product
AUTOOL HTS705 Dry Ice Blasting Machine
Working Principle
Dry ice blasting / dry ice flushing with compressed air
Input Voltage
110V / 220V
Rated Power
550W
Dry Ice Capacity
5.0kg
Dry Ice Blasting Volume
0-3.2kg/min, adjustable
Dry Ice Particle Reference
3mm recommended; warm tips mention up to 8mm dry ice pellets
Product Size
350 × 450 × 575mm
Weight Note
Weight may vary by version and shipping configuration. Product comparison materials list HTS705 gross weight around 60kg.
Compressed Air And Hose
Air Compressor
External air compressor required; not included
Recommended Compressor Setup
1.5m³/min compressor with 300L air tank for stable air pressure storage
Compressed Air Flow
>1-3.0m³/min reference range
Air Supply Pressure
At least 90 PSI / 6bar class recommended for proper cleaning; product materials also show 0.3-0.8MPa / 0.6-1.0MPa references depending on source
Air Inlet Connection
Female 1/2 thread; inner diameter about 19mm
Blasting Hose
3m standard hose; custom hose up to 5m available with extra fee
Nozzle Options
5mm and 6mm nozzles mentioned in warm tips; comparison material shows multiple compatible nozzle options
Support And Policy
Warranty
3-year warranty support for eligible non-human damage cases
Return Policy Reminder
No returns supported due to high shipping cost and customs duty risk; contact support before ordering
Support
Model selection, compressor confirmation, dry ice supply, hose customization, accessories, shipping, tariff, and troubleshooting support
Click to enlarge
Machine Data
Input Voltage110V / 220V
Rated Power550W
Dry Ice Capacity5.0kg
Dry Ice Blasting Volume0-3.2kg/min
Product Size350 × 450 × 575mm
Air And Dry Ice Requirements
Air CompressorExternal compressor required
Recommended Setup1.5m³/min + 300L tank
Air Supply≥90 PSI / 6bar class recommended
Dry Ice3mm recommended
Hose3m standard / 5m custom option
How To Use
How To Use
Use HTS705 only after confirming external air supply, grounded power, accessories, PPE, ventilation, dry ice supply, and proper nozzle selection.
Connect Air And Power
Connect the machine to the external air source and external power supply. Check whether the air pressure indicator is normal and whether the power supply is properly grounded.
Check The Machine
Connect the machine and accessories properly, check whether parts are loose, and remove unnecessary items from the machine body and work area.
Test Before Adding Dry Ice
Turn on the power switch, start the machine, press the handle switch, and adjust dry ice volume from 0 to maximum to check whether there is any abnormality before trial operation.
Add Dry Ice And Adjust Output
Add an appropriate volume of dry ice and close the lid. Start around setting 5, then adjust according to cleaning effect. For smaller inner diameter barrels, start around setting 3.
Start Cleaning
Align the spray gun with the part to be cleaned and press the handle switch to begin cleaning. Keep the nozzle away from people and sensitive surfaces.
Finish And Clear Residue
After cleaning, set dry ice output to 0 and run the spray gun for 30-50 seconds to clear remaining dry ice from the feeding pipe. Then turn off power, disconnect air, and store accessories.
Use Notes
Cleaning time and dry ice consumption depend on carbon buildup, cleaning area, air pressure, airflow, dry ice quality, and nozzle choice.

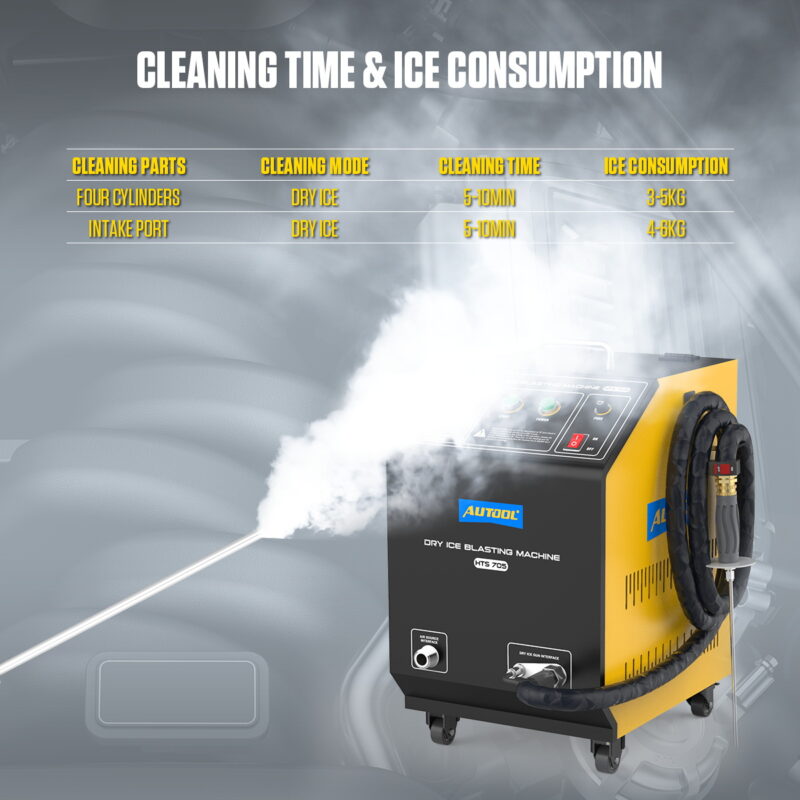

The product image shows reference values: four cylinders about 5-10 minutes with 3-5kg dry ice; intake port about 5-10 minutes with 4-6kg dry ice.
Do not shut down immediately while residual dry ice remains in the hose, or ice blockage may occur.
If the machine is suspended before finishing, set ice feeding speed to 0 and spray for 30-50 seconds to discharge residual ice.
Product Details
Product Details
Use these checks to reduce ice blockage, poor cleaning results, hose wear, moisture problems, and storage damage.
Keep Air Clean And Dry
If the dry ice pipe leaks ice and air or the cleaning effect is weak, check whether the compressed air supplied to the blaster is free of oil and water.
Prevent Ice Blocking
Before pausing or stopping, set ice output to 0 and keep spraying briefly to discharge residual ice from the pipe and reduce freezing inside the hose.
Check Air Pressure And Flow
If carbon deposits or tough stains are not cleaned thoroughly, first check whether external air pressure and flow are insufficient or restricted by a thin or long air supply pipe.
Inspect Wear Parts
Dry ice rubbing against the pipe wall over long use can thin the hose. Contact support if the dry ice pipe needs replacement.
Tighten Loose Parts
Regularly check parts that need tightening or connection. Tighten loose parts promptly to support safe operation.
Store In A Dry Place
When not in use, store HTS705 in a dry place. Do not store the machine in hot, humid, or non-ventilated environments.
Click to enlarge
What Is In The Box
What Is In The Box

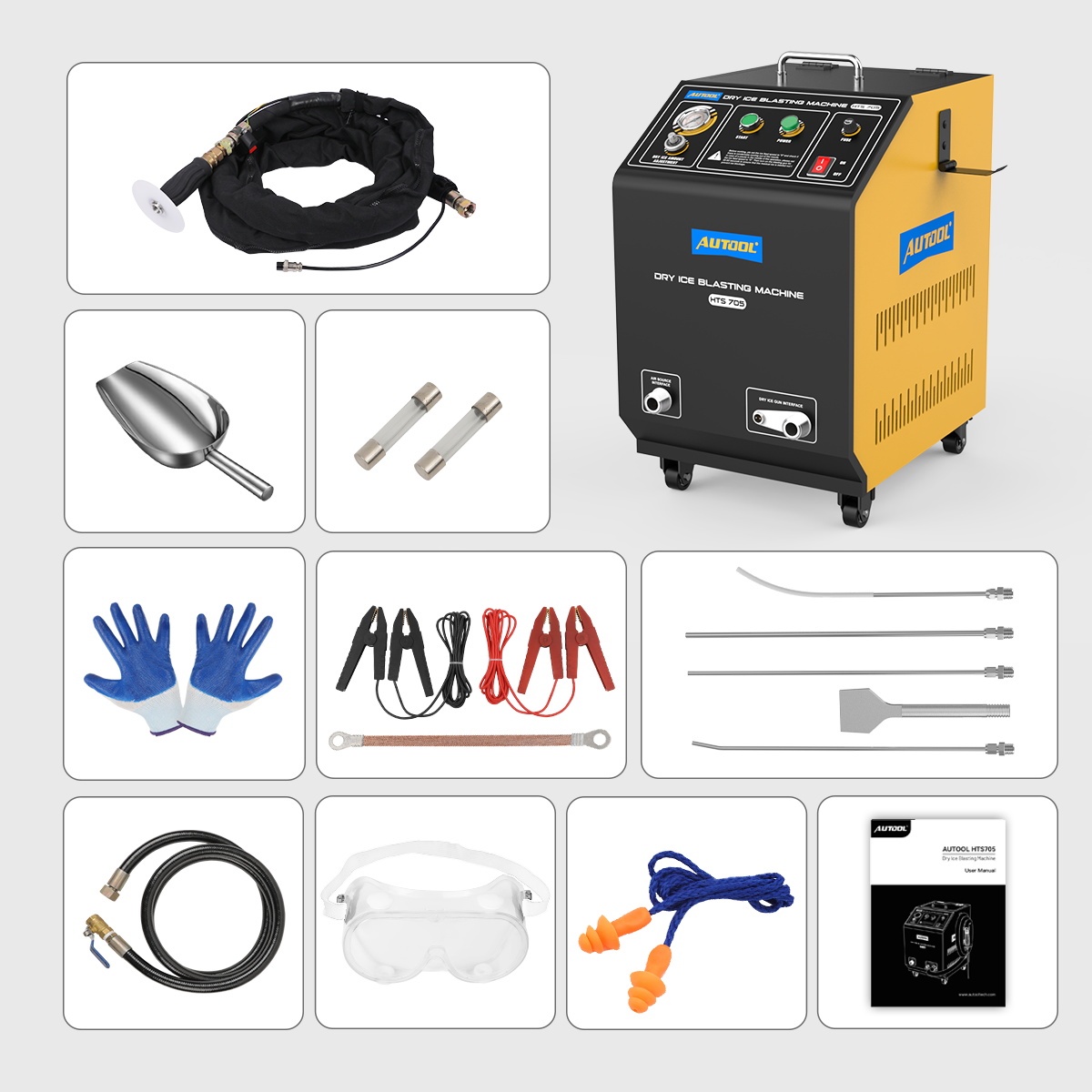

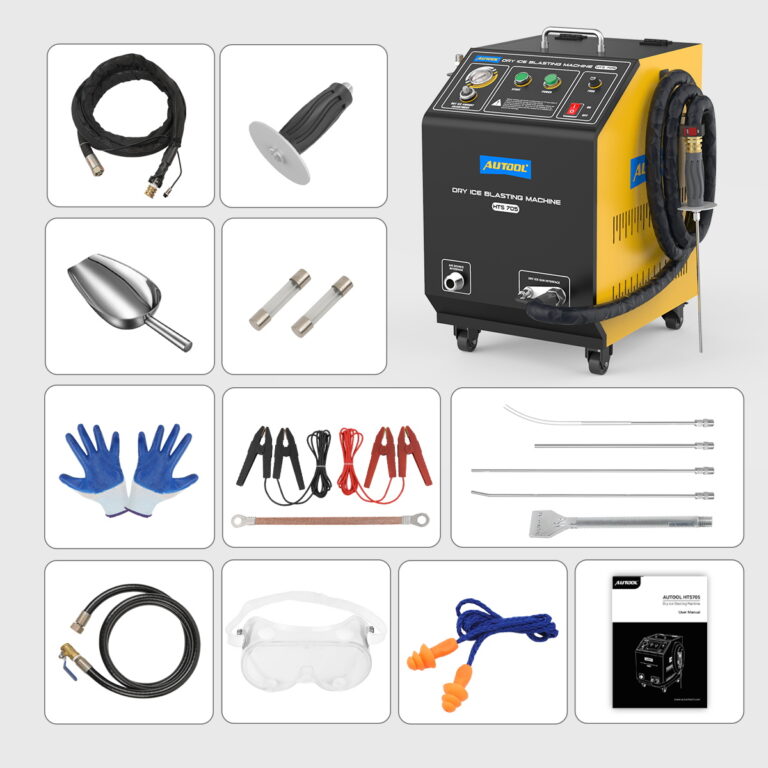

The packing list image shows the HTS705 main unit and included accessories. Final package contents should follow the actual shipment and packing list image.
Main UnitAUTOOL HTS705 dry ice blasting machine
Air And Ice LinesIntake hose, ice outlet pipe with signal line and switch, and related pipe accessories shown in the package image
Spray AccessoriesRotatable ice spray handle, ice spray barrel, ice shovel, and nozzle / tube accessories shown in the package image
Electrical AccessoriesFuses, ground clip wire, and ground wire connector
ProtectionSafety goggles, gloves, and earplugs

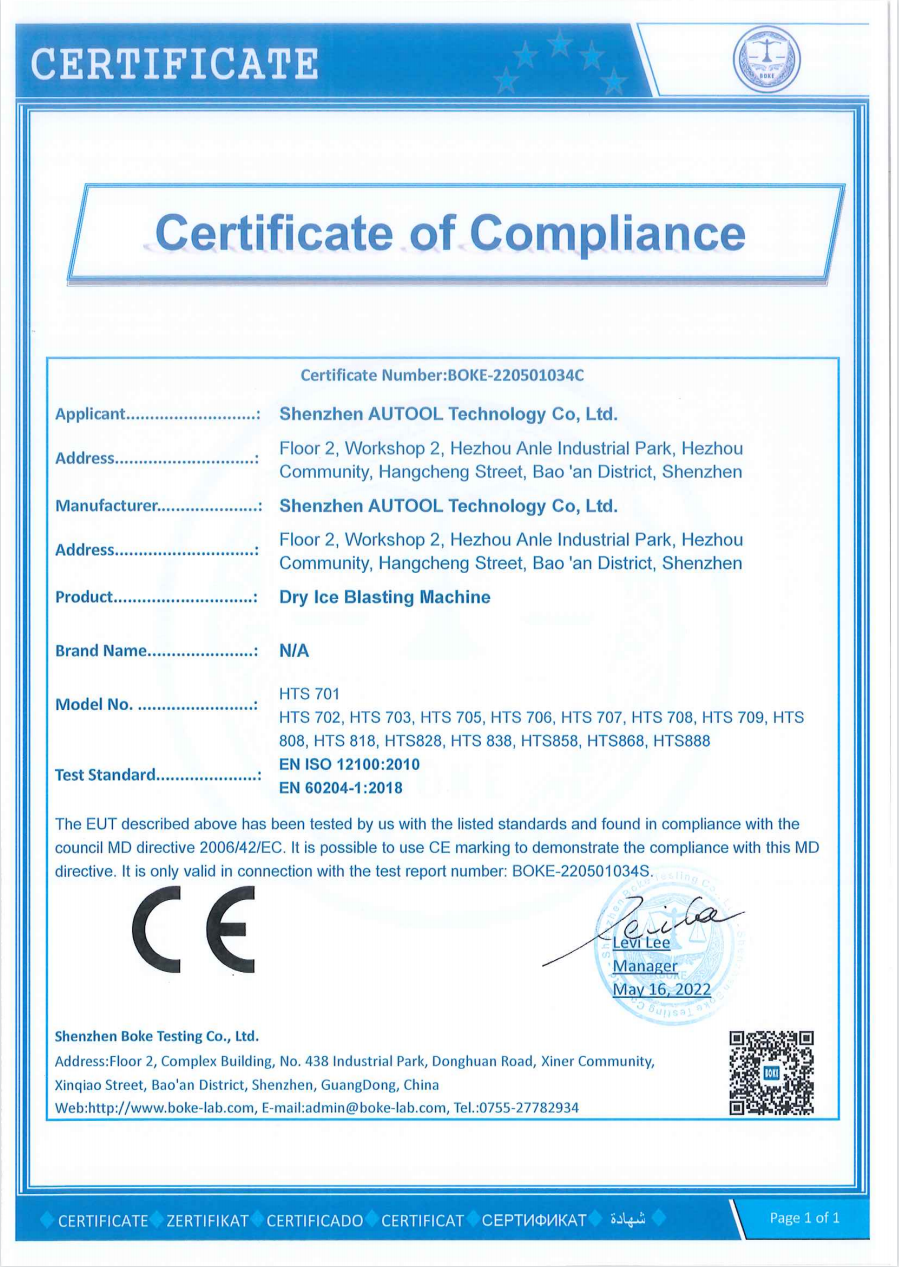

DocumentsUser manual and certificate
Manual And Downloads
Manual And Downloads
Download the user manual for technical parameters, safety cautions, operation, troubleshooting, accessories, maintenance, warranty, and return / exchange service information.
Click to enlarge

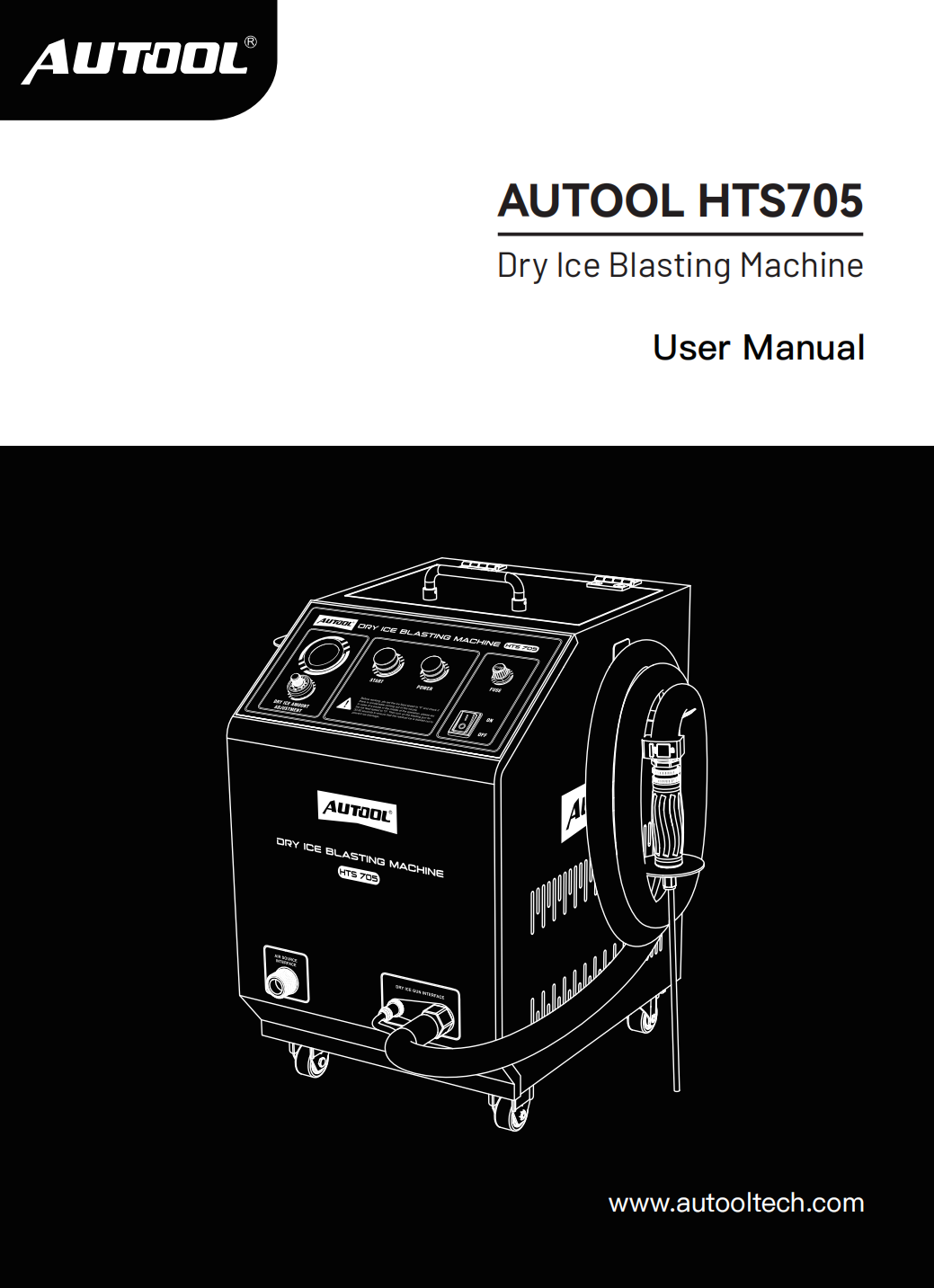

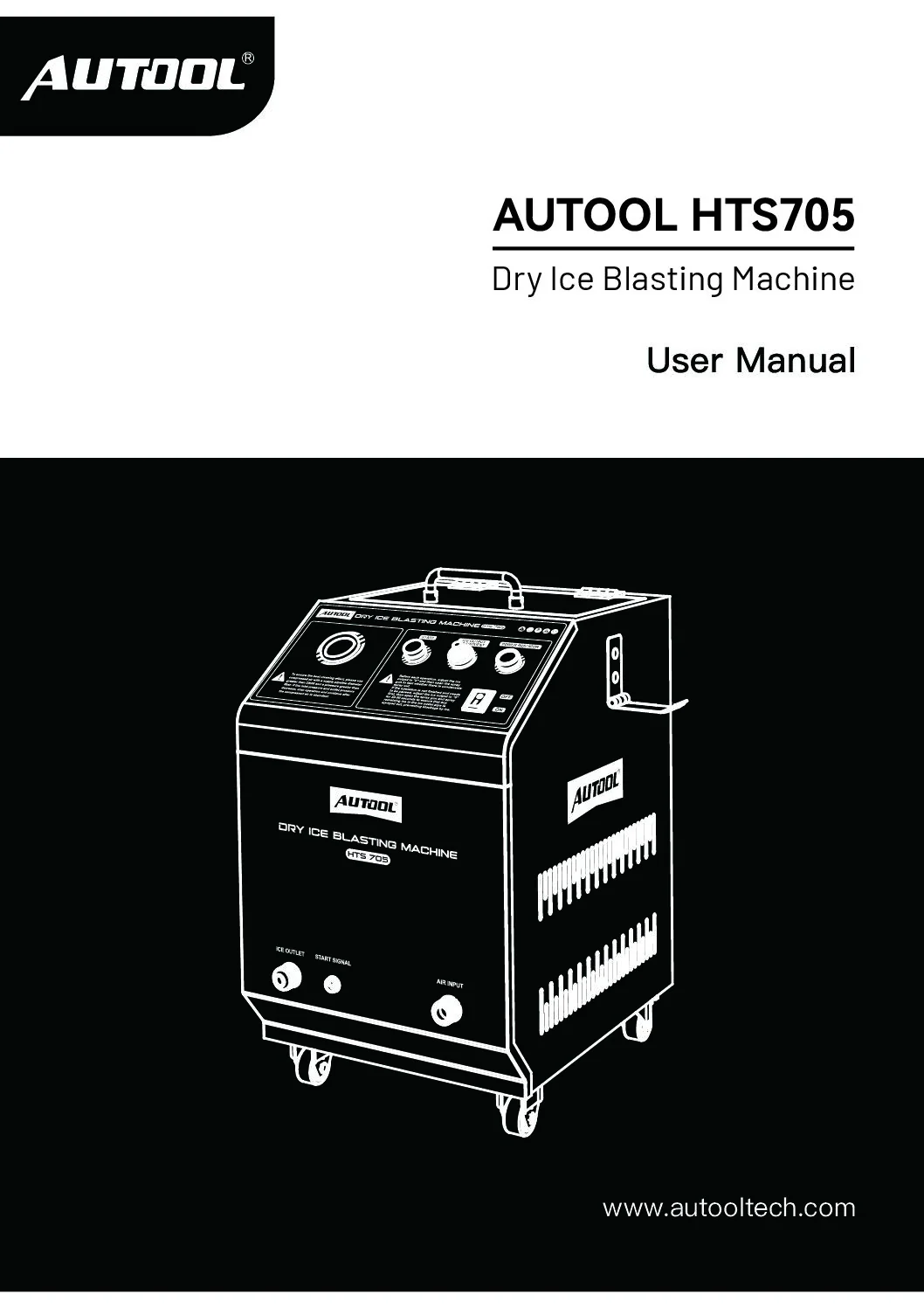

AUTOOL HTS705 User Manual
Open the PDF manual for setup, operation, air source requirements, dry ice output adjustment, final work, troubleshooting, accessories, maintenance, and warranty support.
Contact AUTOOL Store before ordering if you need to confirm compressor requirements, voltage, dry ice pellet size, hose customization, package contents, shipping, tariff, or model selection.
Compare related AUTOOL carbon cleaning equipment. HTS709 and HTS708 are dry ice blasting machine upgrades, while HTS678, HTS558, and HTS559 are walnut blasting alternatives for different carbon cleaning needs.
Dry Ice Blasting Upgrades
HTS708 and HTS709 offer larger 7.5kg dry ice capacity. HTS709 adds dual pressure gauge control for more advanced professional cleaning.
Alternative Carbon Cleaning Tools
HTS678, HTS558, and HTS559 are walnut blasting machines. They are related carbon cleaning tools, but they are not dry ice blasting machines.
SALE
Select options
This product has multiple variants. The options may be chosen on the product page
Select options
This product has multiple variants. The options may be chosen on the product page
Questions And Answers
These answers cover air compressor requirements, dry ice pellets, safety, working principle, cleaning applications, model differences, paint and rust limitations, troubleshooting, accessories, return policy, warranty, and support.
HTS705 requires an external air compressor, which is not included. It is recommended to use at least a 90 PSI / 6bar class air source. For stable operation, use a 1.5m³/min compressor with a 300L air tank. If the cleaning effect is weak, first check whether the air pressure and airflow are sufficient and whether the air supply pipe is too thin, too long, or causing pressure loss.
3mm dry ice pellets are recommended for HTS705. The warm tips also mention that up to 8mm dry ice pellets can be used. For most automotive carbon cleaning tasks, 3mm pellets are the safer standard recommendation for more stable delivery and better control.
You need the HTS705 machine, a suitable external compressed air source, grounded power supply, dry ice supply, blasting hose, spray accessories, nozzles, and proper PPE. The only major external items required for operation are compressed air, power, and dry ice. If using a portable diesel compressor, an aftercooler may help remove moisture depending on humidity.
Dry ice blasting works through impact, cold shock, and expansion. Compressed air accelerates dry ice particles toward the surface. The low temperature makes contaminants brittle, and the dry ice rapidly sublimates into CO₂ gas on impact, helping lift contaminants away without leaving secondary blasting media residue.
HTS705 is suitable for automotive carbon deposit cleaning in areas such as engine bays, cylinder combustion chambers, intake valves, throttle bodies, engine components, wheel hubs, and underbody parts when the surface and application are appropriate. It is not recommended for car interiors, soft trim, or delicate surfaces unless confirmed by a professional.
Dry ice consumption varies by carbon buildup, cleaning area, air supply, and operator technique. The product image gives reference examples: four cylinders may take about 5-10 minutes and 3-5kg dry ice, while intake port cleaning may take about 5-10 minutes and 4-6kg dry ice. Treat these as references, not fixed guarantees.
Dry ice sublimates on impact, so it does not leave secondary blasting media residue, water, or chemical solvent. The removed dirt or carbon deposits still need to be cleared from the work area.
Wear gloves, goggles, hearing protection, protective clothing, a mask, and closed-toe shoes. Dry ice is about -78.5°C and can cause cold burns. Operate in a well-ventilated area because CO₂ gas is produced. Do not aim the spray head at people. Turn off moving equipment before cleaning, and do not operate the machine in wet areas or rain.
Dry ice blasting can remove failing paint or weakly bonded paint in some applications, but it is a mild to medium cleaning method. Strongly bonded paint, certain primers, or coatings with high adhesion may be too slow, too mild, or ineffective for dry ice alone.
Dry ice blasting can remove loosely adhered rust, surface rust, oxidation, and salt residue. It will not remove deeply adhered rust, pitting oxidation, or create a contoured / white-metal finish because dry ice is non-abrasive.
Dry ice blasting may be used in professional mold remediation workflows under applicable standards, ventilation, containment, and PPE requirements. HTS705 is primarily positioned here for automotive and workshop cleaning, so mold remediation should be evaluated by a qualified professional before use.
HTS705 is the basic portable model with 5kg dry ice capacity, single pressure gauge, and compact body. HTS708 increases capacity to 7.5kg and is better for daily professional workshop use. HTS709 also has 7.5kg capacity but adds dual pressure gauges and more advanced control for complex or precision cleaning tasks.
Dry ice cleaning is a physical cleaning process. It does not require chemical solvents, does not leave walnut shell media behind, and can reduce disassembly in suitable applications. Compared with abrasive media, dry ice is less abrasive on suitable components, but it also has limits for strong coatings, deep rust, or surfaces that require abrasive finishing.
If carbon deposits or tough stains are not cleaned thoroughly, first check whether the external air pressure and airflow are insufficient. Use at least 6bar working pressure and at least 1m³/min flow. If the air supply pipe is too thin, too long, or directly connected through a restrictive quick connector, pressure drop may reduce cleaning performance. Consider connecting the blaster to the main air supply pipe when appropriate.
This may be internal ice blockage caused by intermittent use or immediate shutdown while residual dry ice remains in the outlet pipe. First adjust the ice discharge volume to 0, turn on the spray gun switch, and keep the machine running for about 3 minutes. Then adjust ice discharge volume to about 20%-30% and check whether ice output recovers.
Stop operation and open the cover plate to check whether there is too much dry ice. If there is too much, remove part of the dry ice and continue. Check whether the vibration pump works. When dry ice is filled into the funnel, it may instantly cool the air and form condensed caking; the steel bar at the center of the funnel may need to be moved up and down manually.
Check whether the compressed air supplied to the dry ice blaster is free of oil and water. If the dry ice pipe has been used for a long time, dry ice may wear and thin the internal pipe wall. Contact AUTOOL support if the pipe may need replacement.
Refer to the Packing List image for the final package contents. The package includes the HTS705 main unit and accessories such as intake hose, ice outlet pipe with signal line and switch, rotatable ice spray handle, ice spray barrel, ice shovel, fuses, ground clip wire, ground wire connector, safety goggles, gloves, earplugs, user manual, and certificate.
HTS705 does not support returns because it has relatively high shipping cost and may involve customs duty. Contact AUTOOL Store before ordering if you need to confirm compressor requirements, voltage, dry ice supply, tariffs, shipping details, application suitability, or model selection.
AUTOOL provides 3-year warranty support for eligible non-human damage cases. Repair, replacement parts, and service handling depend on the actual issue and warranty policy. For setup, troubleshooting, accessories, hose replacement, or machine support, contact AUTOOL Store.
Related Guides
Related Guides
Use these related articles to understand dry ice blasting, walnut blasting, engine carbon cleaning, and beginner guidance before choosing a carbon cleaning machine.
Cleaning engine carbon deposits: Is it necessary? The engine, as the “heart” of the car, can have its performance gradually affected by severe carbon buildup.
Whether you are a first-time buyer or an experienced user of dry ice cleaning machines, this guide will walk you through everything you need to know about the AUTOOL.
What is a dry ice blasting machine? Dry ice blasting machines utilize compressed air as the driving force to propel dry ice particles at supersonic speeds onto the.
Is Engine Carbon Buildup Difficult to Clean? Traditional cleaning methods often fail to completely remove carbon deposits, but walnut shell cleaning technology offers.
Warranty And Contact
Warranty And Contact
For HTS705 compressor confirmation, dry ice pellet selection, shipping, tariff, hose customization, packing list confirmation, troubleshooting, or HTS705 / HTS708 / HTS709 model selection, contact AUTOOL Store directly.
Pre-Sales And After-Sales Support
Contact support before ordering if you are unsure about compressor capacity, air supply pressure, air tank size, dry ice supply, voltage, nozzles, hose length, shipping cost, customs duty, return limitation, or application suitability.
3-year warranty support for eligible non-human damage cases
External compressor and air tank confirmation
3mm dry ice pellet and dry ice supply guidance
HTS705 / HTS708 / HTS709 model selection support
3m standard hose and 5m custom hose confirmation
Packing List and accessory confirmation
Shipping, tariff, and no-return policy clarification
Ice blockage, weak cleaning effect, air leak, and hose replacement troubleshooting
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Abelardo Mraz (verified owner) –
nice product
nice product
Matilde Koelpin (verified owner) –
Perfect
Checked, works,
Peyton Larson (verified owner) –
fast shiping
work good
