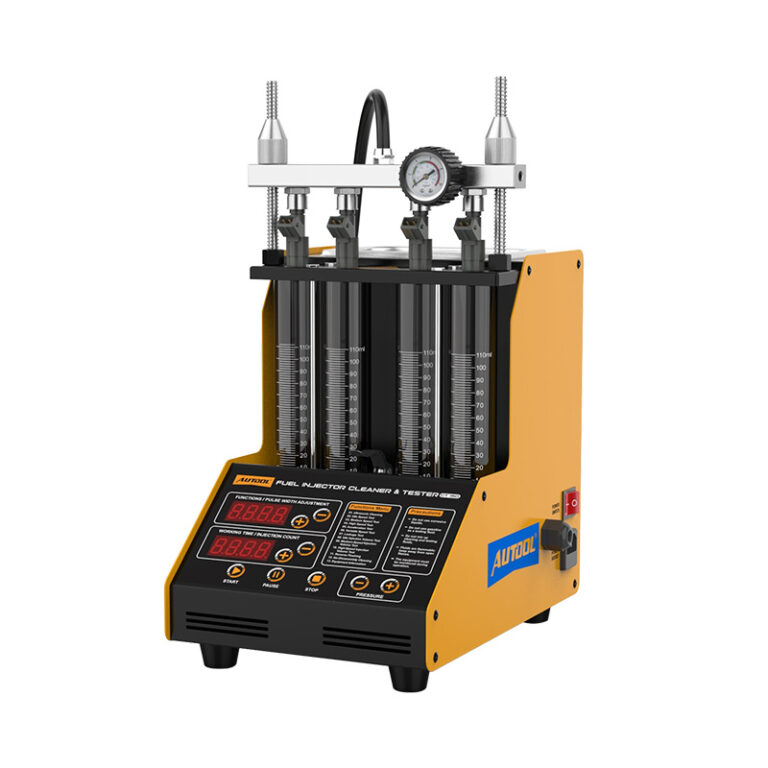

AUTOOL CT150 4-Cylinder Fuel Injector Cleaning Machine & Tester
US$259.00
Key Features
- Four-Injector 12 V Service
- Test Before You Replace
- Clean, Then Verify
- Broader Bench Testing
- Four-Injector 12 V Service: Clean and test up to four compatible standard 12 V gasoline injectors for common car and motorcycle applications.
- Test Before You Replace: Compare leaks, spray patterns, and relative flow to identify restriction or imbalance before deciding on replacement.
- Clean, Then Verify: Use ultrasonic cleaning, then repeat the same pressure, pulse width, mode, and test time to confirm whether performance improves.
- Broader Bench Testing: Simulate idle, acceleration, and variable-speed conditions, with reverse flushing available for applicable top-feed injectors.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support

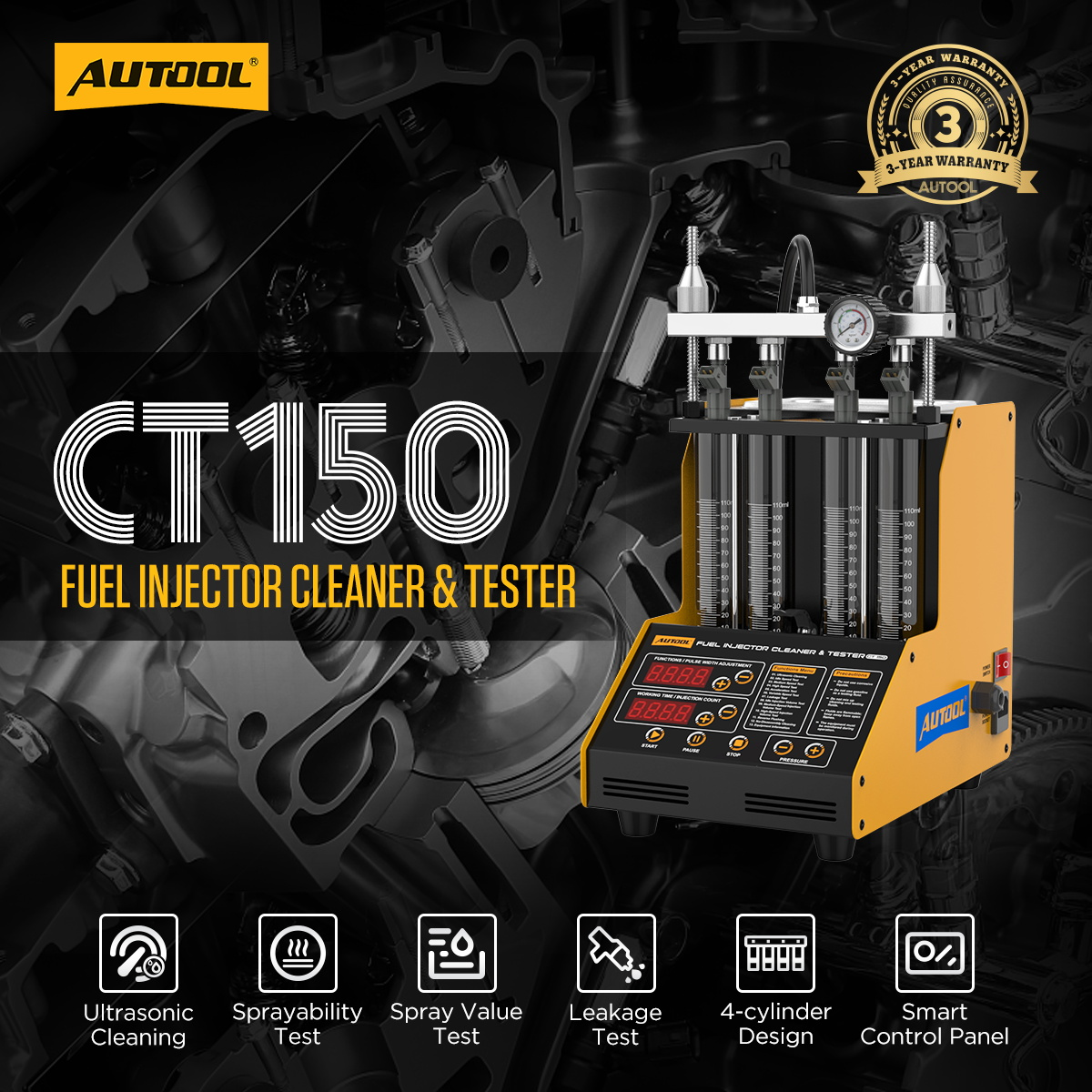

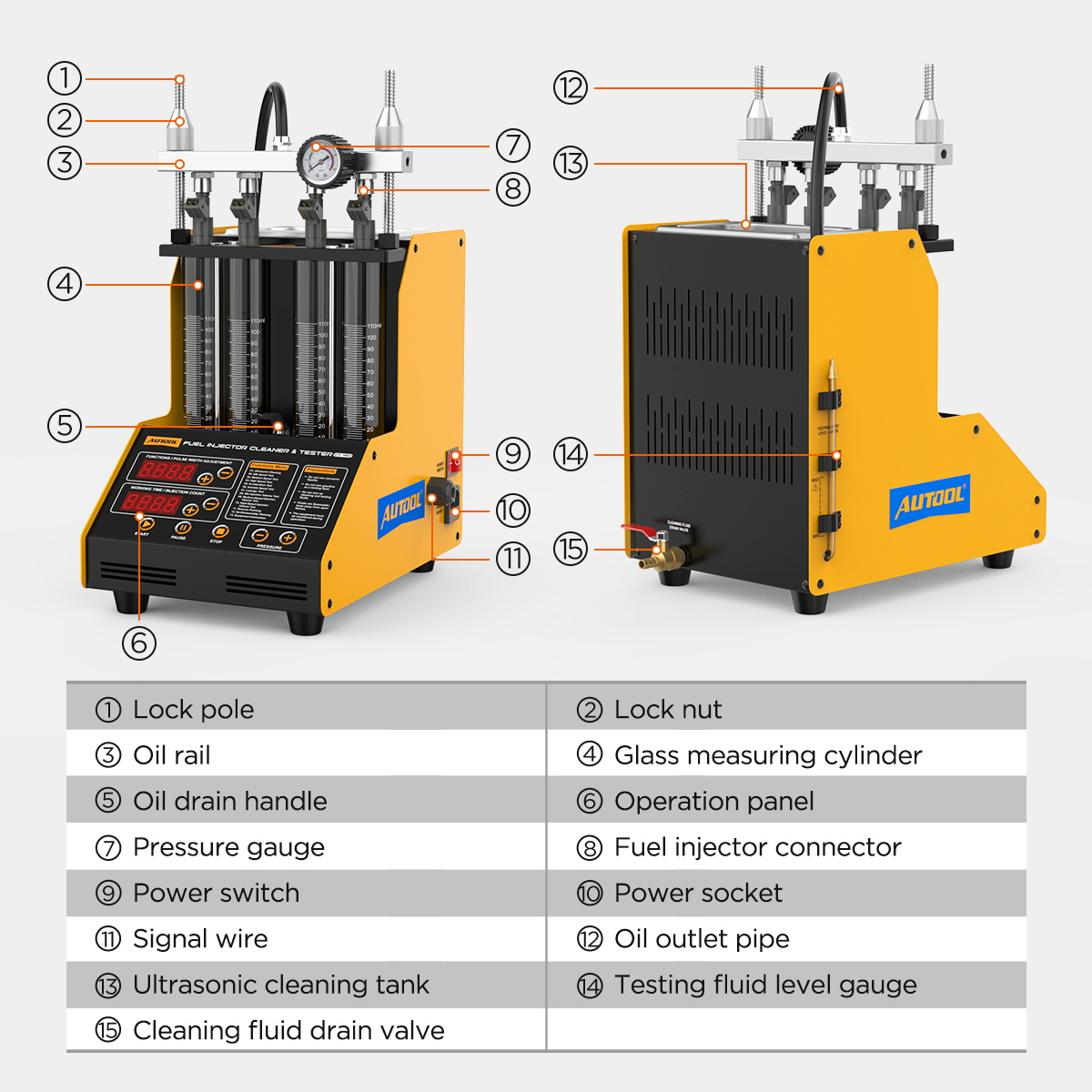

AUTOOL CT150 · 4-cylinder gasoline injector service bench
4-Cylinder Fuel Injector Cleaning and Visual Testing
AUTOOL CT150 is a 4-cylinder ultrasonic fuel injector cleaner and tester for standard 12 V gasoline injectors used in cars and compatible motorcycles. Use it to clean injectors, compare spray patterns and flow, and check for leaks or blockages before deciding whether replacement is necessary. It is suitable for standard 12V gasoline injectors; diesel injectors can be ultrasonically cleaned but cannot be tested.
- 4-Cylinder Testing
- Ultrasonic Cleaning
- Spray / Flow / Leak Test
- 12V Gasoline Injectors
Best for: four-cylinder gasoline injector cleaning, visual spray comparison, leakage checking, and repeatable before-and-after flow testing.
Core service capabilities
Key Features
CT150 combines ultrasonic cleaning, four-injector testing, spray-pattern and flow comparison, adjustable test settings, pressure monitoring, reverse flushing, and accessory-dependent service options in one compact unit.

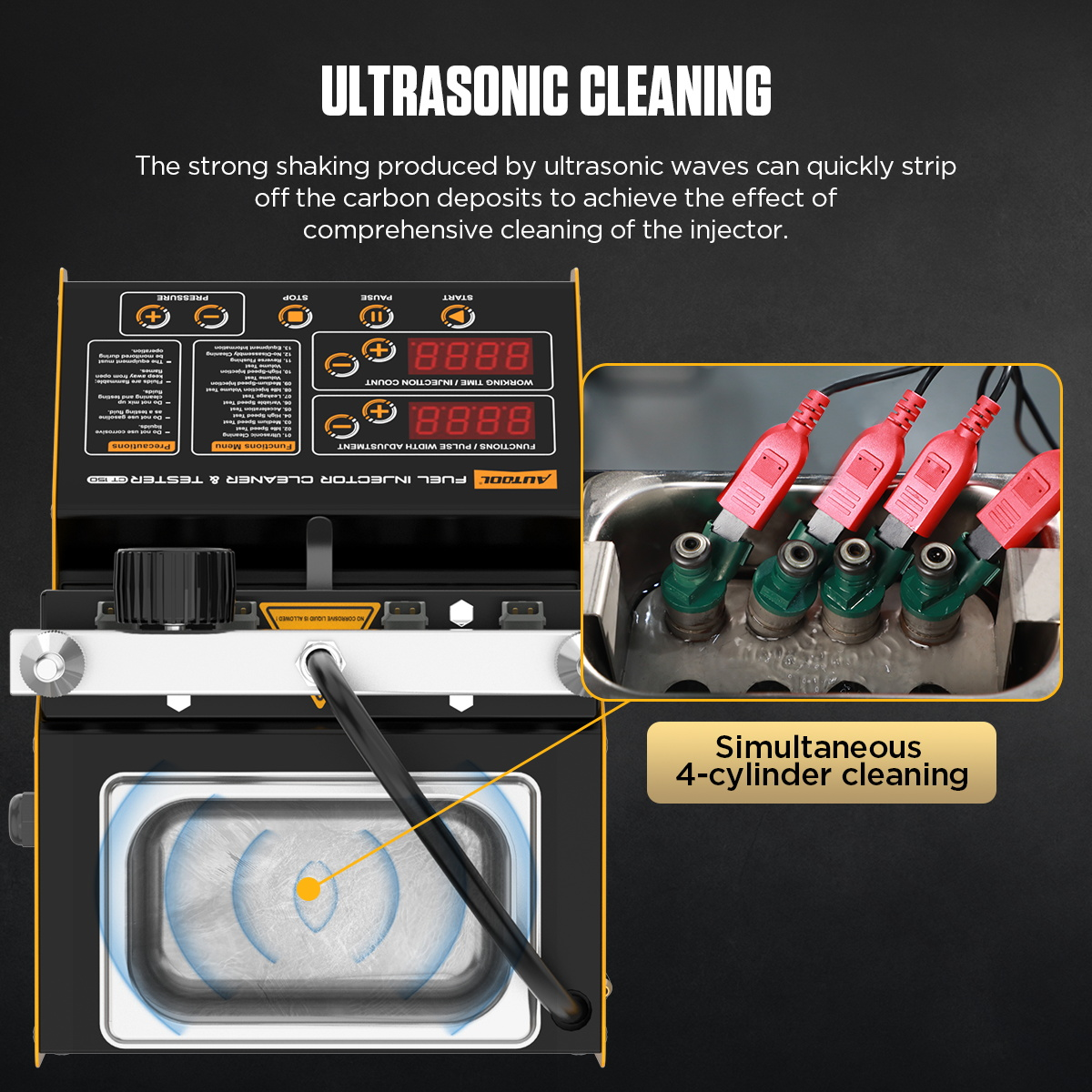

Ultrasonic Injector Cleaning
The ultrasonic tank helps remove carbon deposits from petrol injectors. Diesel injectors can also be cleaned, but diesel injector testing is not supported.

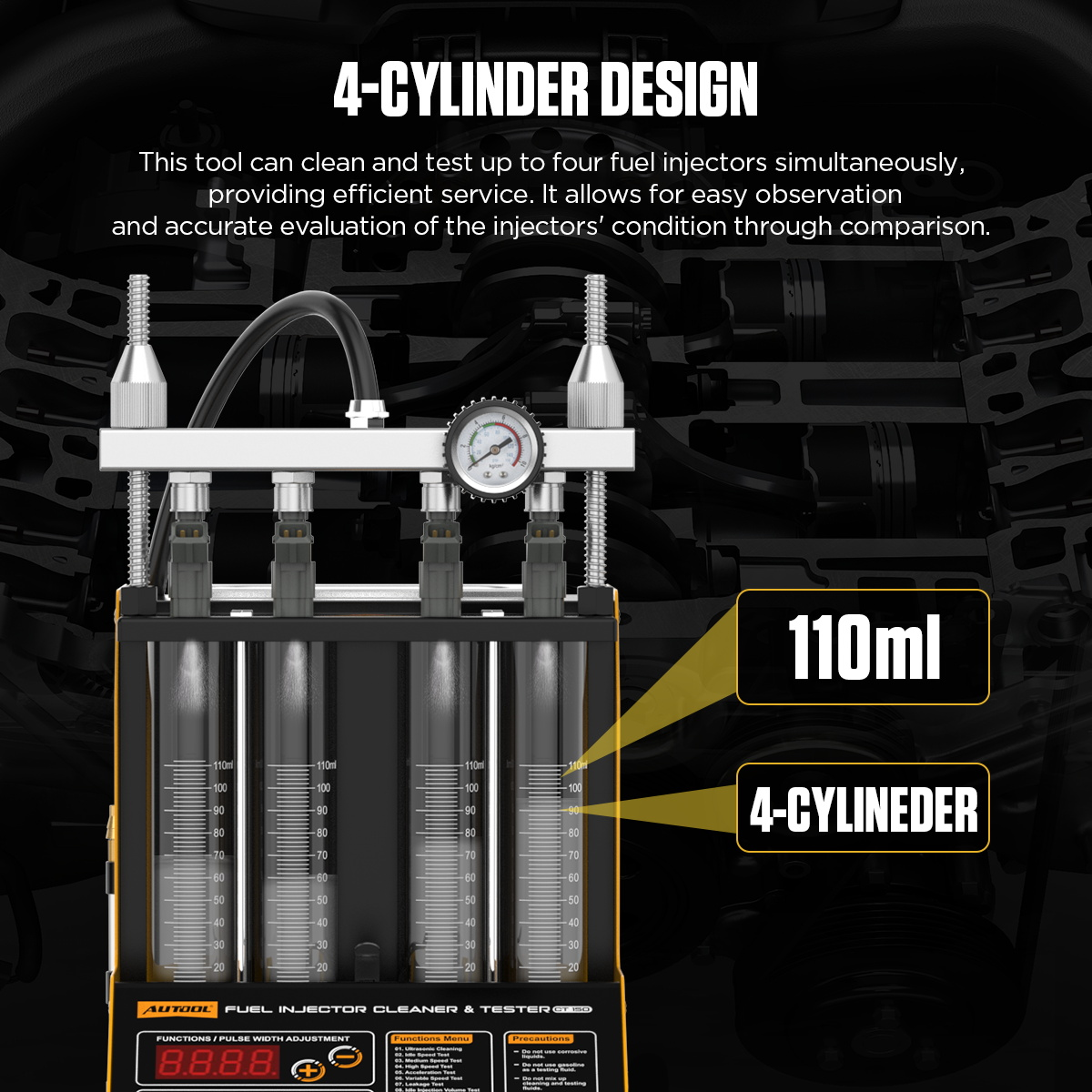

4-Cylinder Visual Testing
Up to four compatible injectors can be tested together, making spray pattern, spray volume, and measuring-tube levels easy to compare side by side.

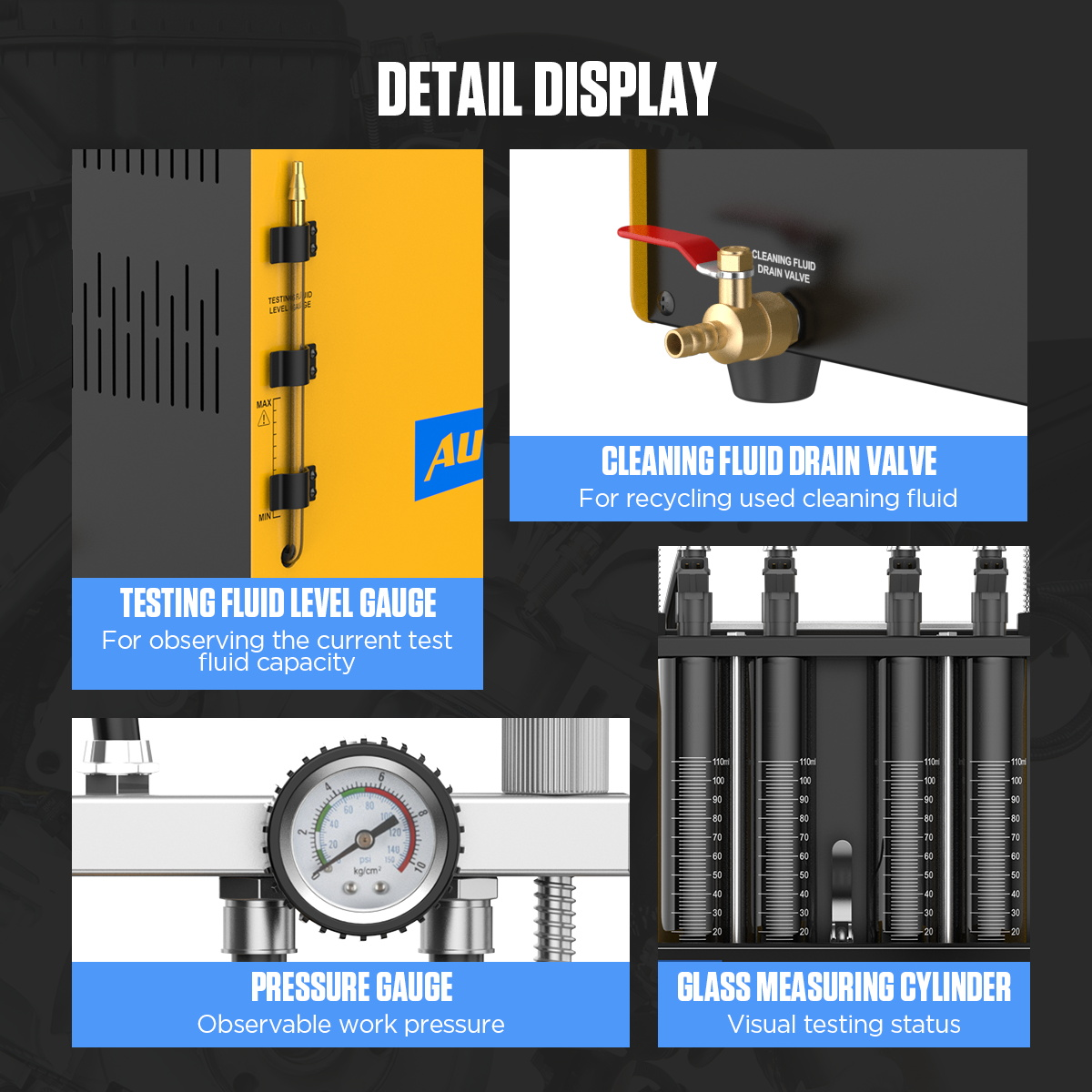

Leak, Spray And Flow Checks
CT150 checks for leaks and blockages, compares spray patterns and flow, and simulates several engine operating conditions.

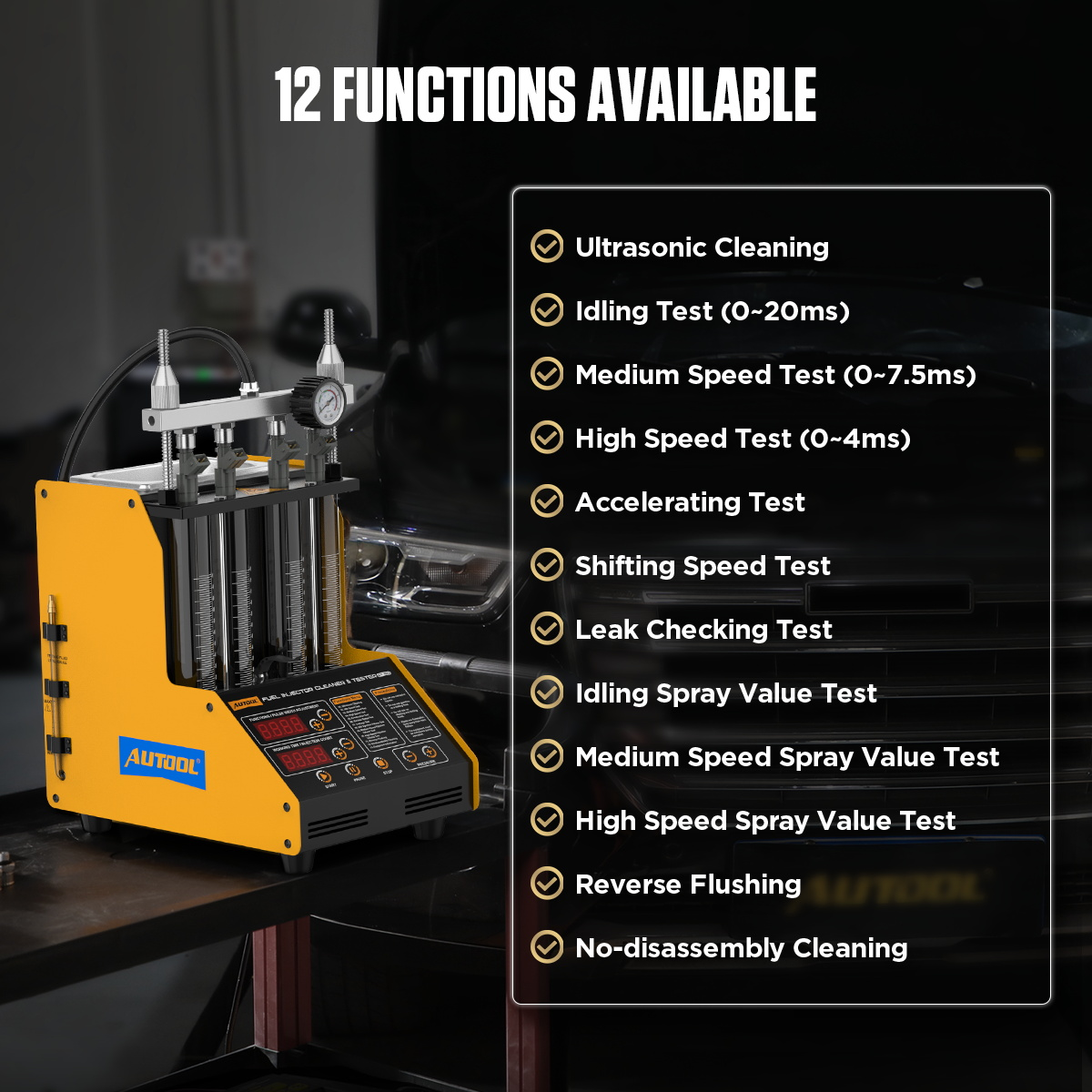

12 Available Functions
Includes ultrasonic cleaning, idle, medium-speed, high-speed, acceleration, variable-speed, leak, spray-volume, reverse-flush, and optional cleaning-without-removal modes.

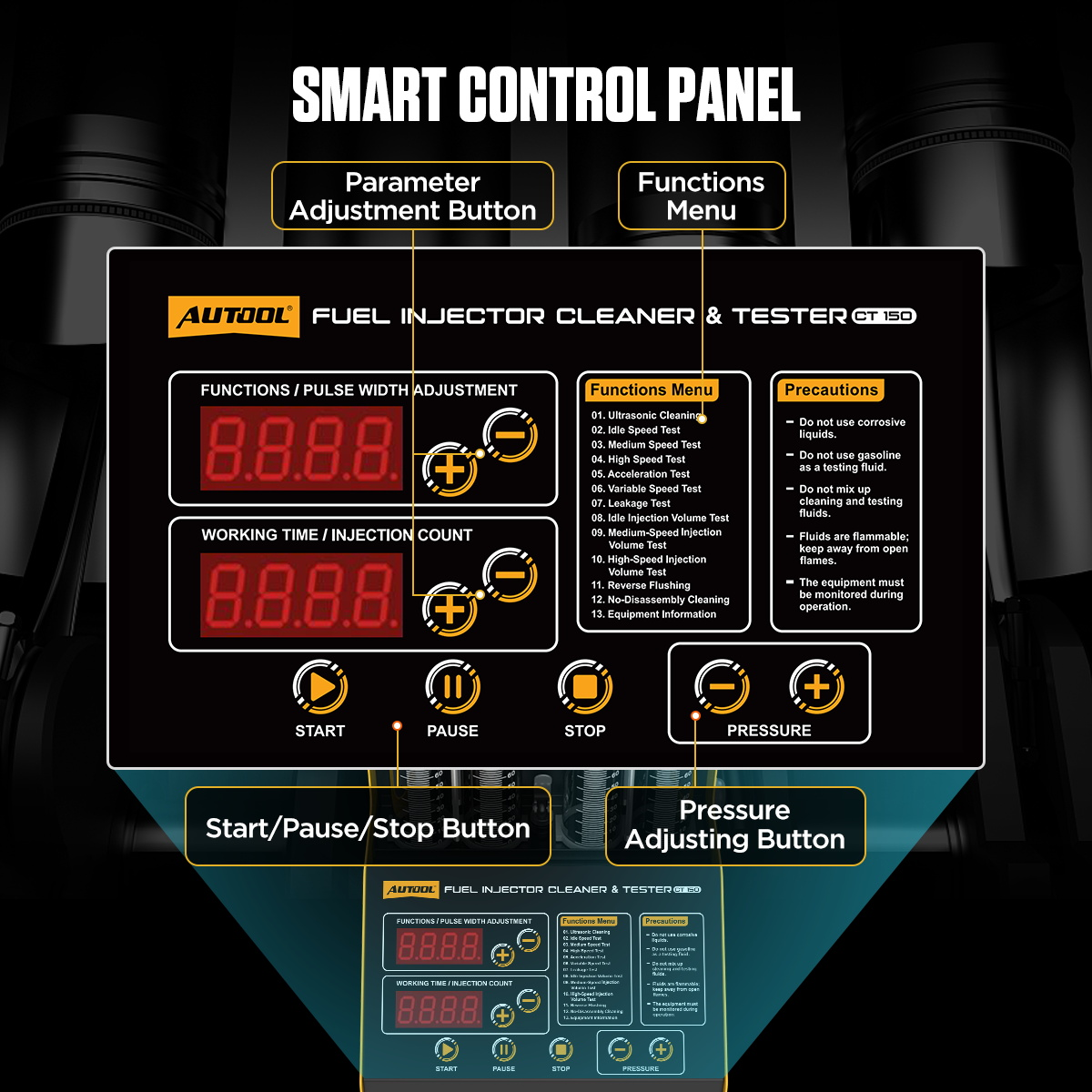

Smart Control Panel
The panel provides function selection, pulse-width adjustment, working-time or injection-count display, Start / Pause / Stop controls, and pressure adjustment.
Fuse Protection
The internal fuse can trip during short-circuit conditions to stop the machine and help protect the electrical system.
Accessory-Dependent Functions
Optional accessories are required for cleaning injectors or the throttle body without removal and for some Honda, Yamaha, Suzuki, and Sanyang motorcycle applications.
3 Years Warranty Support
Main unit: 3-year warranty. Standard accessories: 1-year warranty. Warranty Policy.
Step-by-step injector service workflow
Step-by-Step Workflow
Use CT150 to clean injector exteriors, perform ultrasonic cleaning, mount injectors on the flow bench, and run leakage, spray-pattern, and flow-rate tests with the correct fluids.
01
Clean exterior
Clean Injector Exterior
Clean the injector exterior with cleaning liquid before operating the machine, then place the injectors in the ultrasonic bath after loose dirt is removed.
- Remove loose dirt before the machine is operated.
- Clean the injector exterior with the correct cleaning liquid.
- Inspect the injector body and electrical connector before immersion.
02
Ultrasonic clean
Run Ultrasonic Injector Cleaning
Add the correct ultrasonic cleaning fluid and start the ultrasonic system. Keep the fluid below the electrical pulse connector. Recover or dispose of the used solution according to the fluid instructions.
- Add the correct ultrasonic cleaning fluid before starting.
- Keep the fluid below the electrical pulse connector.
- Do not run the ultrasonic tank dry.
03
Mount and fill
Mount Injectors and Add Test Fluid
Secure the injectors on the main unit. Check resistance, shorts, and current draw as needed. Then add professional test fluid or industrial alcohol to about half of the glass tube, as directed.
- Secure up to four compatible injectors in fixed positions.
- Check resistance, shorts, and current draw as needed.
- Use professional test fluid or the stated alternative in the test circuit.
04
Test and compare
Run Leakage, Spray, and Flow Tests
Perform leakage, spray-pattern, and flow-rate tests, then repeat the same settings after cleaning to compare performance before and after service.
- Use the same pressure, pulse width, mode, and test time.
- Compare spray pattern and measuring-tube levels side by side.
- Repeat the same settings after cleaning for a matched result.
Result interpretation
How To Read Test Results
Run every comparison with the same injector setup, test fluid, pressure, pulse width, test time, and selected mode. Review each result, then complete the recommended next step before continuing the diagnosis.
| What You Observe | What It May Mean | Recommended Next Step |
|---|---|---|
| Drips while closed | Contamination, valve-seat wear, or a sealing fault | Clean and re-test; refer or replace if leakage remains |
| One measuring cylinder fills much less | Restriction, installation leak, channel issue, or injector fault | Check pressure and sealing, swap channels, then clean and repeat |
| Deflected, split, coarse, or dripping spray | Deposit, nozzle damage, or internal mechanical issue | Clean and re-test; use specialist service if unchanged |
| Difference becomes smaller after cleaning | A recoverable restriction may have been reduced | Record the result, renew applicable seals, and verify on the vehicle |
| No measurable improvement | The injector may already be clean or have electrical / mechanical damage | Stop repeated cleaning and continue diagnosis, specialist testing, or replacement |
| Bench results look balanced but the vehicle still misfires | The root cause may be outside the injector system | Check ignition, compression, intake leakage, fuel pressure, and control signals |
Compare injectors only under identical settings. A single visual difference should be confirmed by repeating the same test. Use the injector specification, vehicle service procedure, or CT150 manual for final acceptance limits and replacement decisions.
Fluid, compatibility, and operating limits
Safety & Compatibility
Read these fluid, compatibility, and operating rules before using CT150. Cleaning fluid and test fluid serve different purposes and must be used in the correct circuit.
Use Proper Cleaning Fluid
For ultrasonic cleaning, use professional fuel injector cleaning fluid formulated for ultrasonic tanks or professional engine carbon cleaning fluid for better carbon-deposit removal.
Use Proper Test Fluid
For injector testing, use professional fuel injector test fluid. If it is not available locally, 75%+ medical alcohol may be used as an alternative.
Do Not Test With Cleaning Liquid
Corrosive cleaning liquid can damage internal components, corrode rubber parts, and cause leakage. Do not use cleaning fluid as injector test fluid.
Add Fluid Before Ultrasonic Cleaning
Add the correct ultrasonic cleaning fluid before running the ultrasonic function. Do not run the tank dry. Keep the fluid below the electrical pulse connector.
Diesel Injectors: Clean Only
CT150 can clean diesel injectors, but it cannot test diesel injectors. Testing is intended for compatible gasoline and supported motorcycle injectors.
Confirm Voltage, Panel, And Accessories
CT150 supports 110V / 220V input. Confirm the required plug and English or Russian panel version. Optional accessories are required for cleaning without injector removal and for some motorcycle applications.
Compare models
Compare AUTOOL Injector Tester Models
CT150 is selected by default. Choose the models that match your work, turn on “Show differences only” when useful, and swipe horizontally to view the table.
Compare models
Choose one or more models. CT150 is selected by default.
1 model selected
No model is selected. Choose a model to compare.

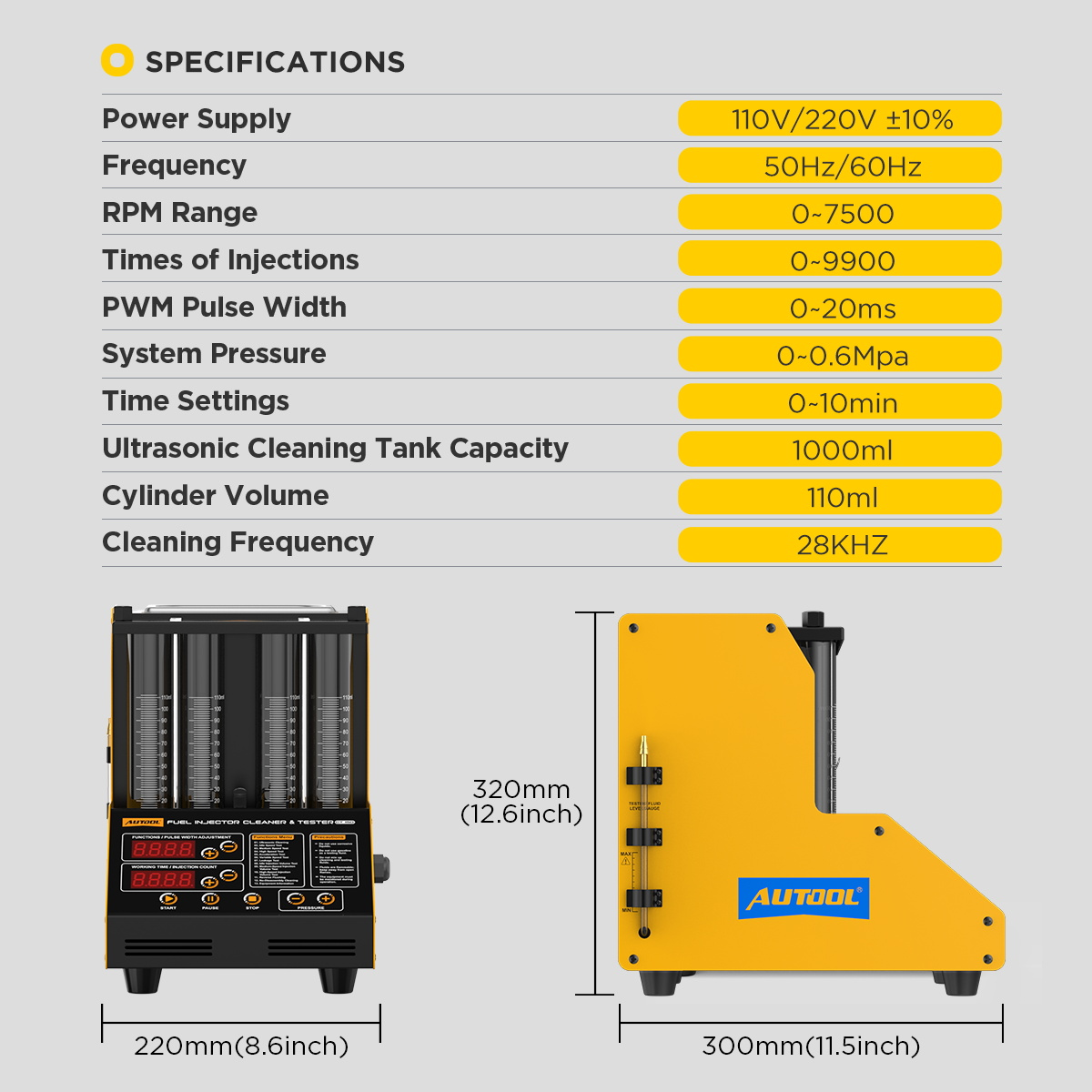

| Specification | Model 1AUTOOL CT150 | Model 2AUTOOL CT160 | Model 3AUTOOL CT200 | Model 4AUTOOL CT400 | Model 5AUTOOL CT450 | Model 6AUTOOL CT500 | Model 7AUTOOL FN606 | Model 8AUTOOL FN608 |
|---|---|---|---|---|---|---|---|---|
| Core capacity and control | ||||||||
| Power input | 110 V / 220 V | 110 V / 220 V | 110 V / 220 V | 110 V / 220 V | 110 V / 220 V | 110 V / 220 V | 110 V / 220 V | 110 V / 220 V |
| Cleaning and test modes | 3 cleaning modes 9 test modes | 3 cleaning modes 9 test modes | 3 cleaning modes 9 test modes | 3 cleaning modes 9 test modes | 3 cleaning modes 10 test modes | 3 cleaning modes 12 test modes | 3 cleaning modes 12 test modes | 3 cleaning modes 12 test modes |
| Measuring-tube capacity | 110 mL | 100 mL | 110 mL | 110 mL | 110 mL | 110 mL | 110 mL | 110 mL |
| Ultrasonic tank capacity | 1,000 mL | 2,000 mL | 1,700 mL | 2,000 mL | 2,000 mL | 1,000 mL | 550 mL | 550 mL |
| Pulse-width range | 0–20 ms | 0–20 ms | 0–20 ms | 0–20 ms | 0–20 ms | 0–40 ms 0.1 ms step | 0–40 ms 0.1 ms step | 0–40 ms 0.1 ms step |
| Time setting range | 0–10 min | 0–10 min | 0–10 min | 0–10 min | 0–10 min | 0–10 min | 0–10 min | 0–10 min |
| Simulated speed range | 0–7,500 rpm | 0–7,500 rpm | 0–7,500 rpm | 0–7,500 rpm | 0–7,500 rpm | 0–7,500 rpm | 0–7,500 rpm | 0–7,500 rpm |
| Ultrasonic cleaning power | 70 W | 70 W | 70 W | 70 W | 70 W | 70 W | 70 W | 70 W |
| Built-in pump | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Adapter types | 3 types | 5 types | 3 types | 9 types | 9 types | 9 types | 9 types | 9 types |
| Injectors tested at once | 4 injectors | 4 injectors | 6 injectors | 6 injectors | 6 injectors | 6 injectors | 6 injectors | 8 injectors |
| Injector coverage and settings | ||||||||
| Supported injector types | Standard injectors | Standard injectors | Standard injectors | Standard, GDI, EFI, and long-body FSI injectors | Standard, GDI, EFI, and long-body FSI injectors | Standard, GDI, EFI, and long-body FSI injectors | Standard, GDI, EFI, and long-body FSI injectors | Standard, GDI, EFI, and long-body FSI injectors |
| Injector drive-voltage settings | ×Not included | ×Not included | ×Not included | 12 V 70 V 120 V | 12 V 70 V 120 V | 12 V 70 V 120 V | 12 V 12–70 V 120–180 V | 12 V 12–70 V 120–180 V |
| Menu language options | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | Chinese and English | Chinese and English | Chinese and English |
| Workshop features | ||||||||
| Heated ultrasonic cleaning | ×Not included | ✓45°C | ×Not included | ×Not included | ✓50°C | ×Not included | ✓50°C | ✓50°C |
| Pressure gauge | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Display | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Test-fluid level indicator | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Splash guard | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included | ✓Included |
| Operating-condition simulations | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Fluid drain/recovery valve | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Storage drawer | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Low-impedance injector support | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Detachable Cleaning Tank | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included |
| Fuel pumps | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
Model guide
Use this overview to identify the models you want to compare in detail.
AUTOOL CT150
Four-position standard gasoline injector cleaning and visual testing without ultrasonic cleaning-fluid heating.
AUTOOL CT160
Standard 12 V gasoline injector service with a 2,000 mL ultrasonic tank and heating up to 45 °C.
AUTOOL CT200
Standard 12 V gasoline injector service with six test positions, a 1,700 mL ultrasonic tank, and 3 cleaning / 9 testing functions.
AUTOOL CT400
Six-position service for standard, GDI, EFI, and FSI long injectors with 12 V / 70 V / 120 V selection, a 2,000 mL tank, and a storage drawer.
AUTOOL CT450
Six-position GDI / EFI / FSI service with cleaning-fluid heating up to 50 °C and 10 testing functions.
AUTOOL CT500
Six-position advanced control with 0–40 ms pulse adjustment in 0.1 ms steps, Chinese / English settings, an oil baffle, and 12 testing functions for standard and direct-injection service.
AUTOOL FN606
Combines GDI support, heating up to 50 °C, extended injector-voltage ranges, a detachable 550 mL tank, advanced pulse control, and one fuel pump.
AUTOOL FN608
Extends the detachable heated platform to eight injectors and two fuel pumps while retaining advanced pulse and GDI voltage control.
Manual and support
Manual And Downloads
Download the CT150 manual for setup, injector installation, test fluid selection, ultrasonic cleaning, function settings, accessories, and safe-use instructions.

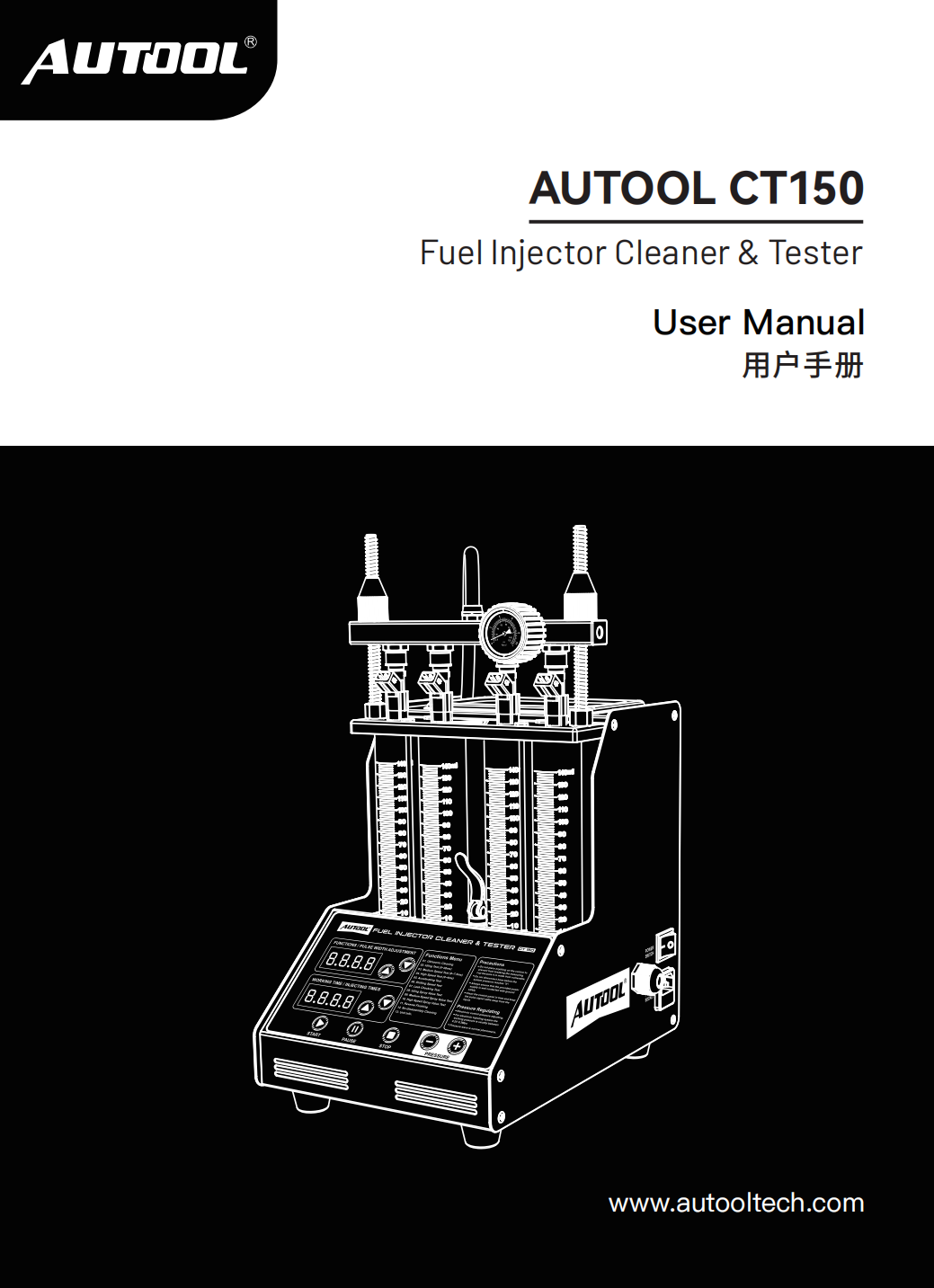

AUTOOL CT150 User Manual
Open the multilingual PDF manual for CT150 operation and setup guidance.

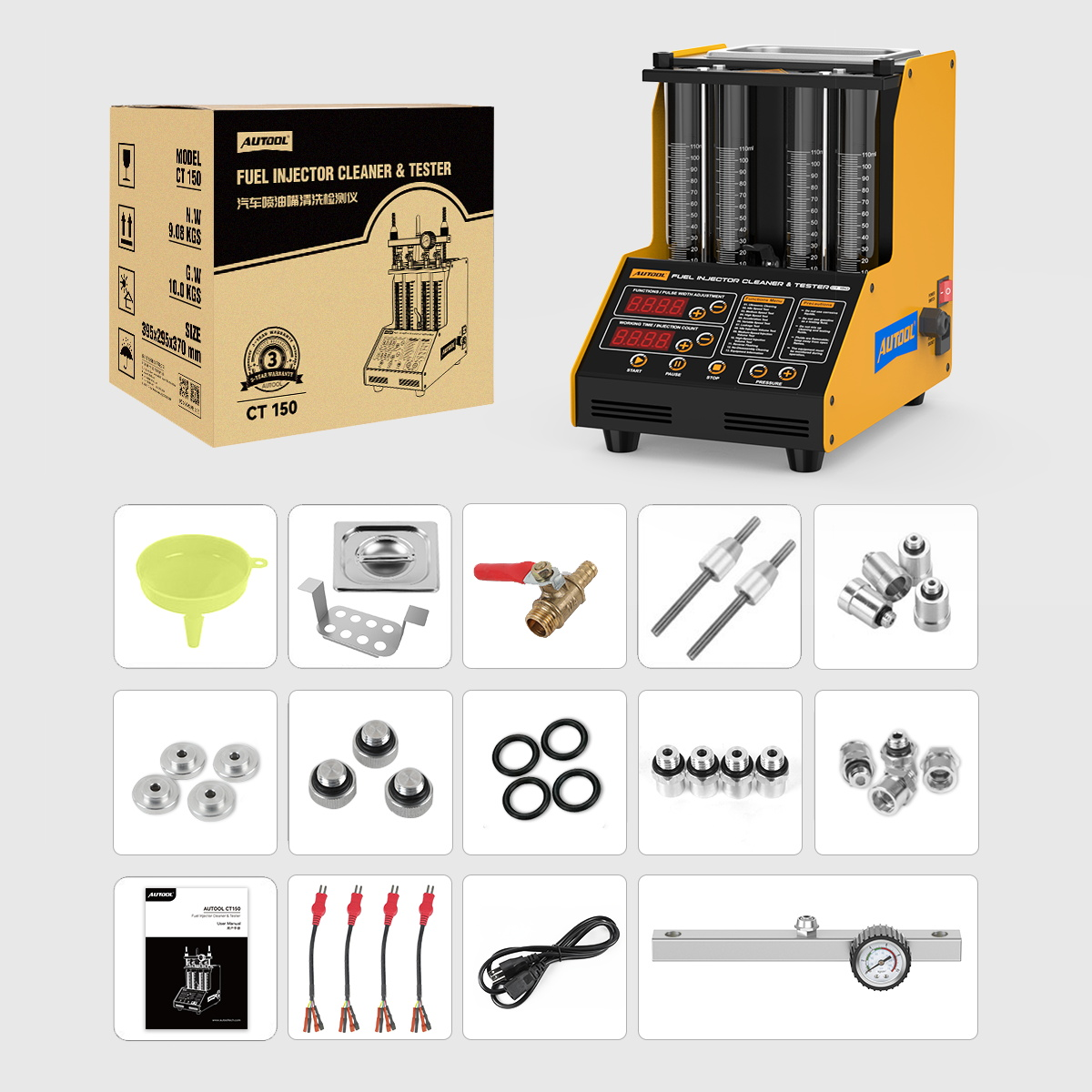

What’s included
What Is In The Box
The CT150 package image shows the main unit and included accessories. Use the package image as the final visual reference for accessory style and quantity.
- Main UnitAUTOOL CT150 fuel injector cleaner and tester
- Retail packageCT150 product box
- ManualAUTOOL CT150 user manual
- Power CablePower cable shown in the package image
- Signal wiresInjector signal harnesses
- Oil-rail assemblyOil rail and pressure gauge
- Fluid accessoriesFunnel, cleaning-tank cover, drain valve, and related fittings
- Adapters and plugsAdapter connectors, plugs, O-rings, and fittings.
Frequently asked questions
Questions And Answers
These answers cover CT150 injector compatibility, diesel injector limits, cleaning fluid, test fluid, ultrasonic use, parameter settings, cleaning without injector removal, model differences, accessories, voltage version, and warranty support.
What Is AUTOOL CT150 Used For?
AUTOOL CT150 is used to clean and test 4-cylinder gasoline fuel injectors for cars and motorcycles. It supports ultrasonic cleaning, spray-pattern testing, spray volume comparison, leak checking, flow observation, and operating condition simulation tests.
Can CT150 Clean And Test Diesel Injectors?
CT150 can clean diesel injectors, but it cannot test diesel injectors. Diesel injector testing is not supported on CT150.
What Cleaning Fluid Should I Use?
For ultrasonic cleaning, use professional injector ultrasonic cleaning fluid or professional engine carbon cleaning fluid. To achieve the intended cleaning effect, use professional injector ultrasonic cleaning fluid. If it is not available locally, 75%+ medical alcohol may be used as an alternative, but the cleaning effect may be weaker.
What Test Fluid Should I Use?
The test fluid is used to assess injector performance and simulate working states. For consistent testing results, use professional automotive injector test fluid. If it is not available locally, 75%+ medical alcohol may be used instead of test fluid.
Can I Use Cleaning Liquid To Test Injectors?
No. Do not use cleaning liquid to test injectors. Corrosive cleaning liquid may damage the equipment, corrode rubber parts, and cause leaks. If the equipment is damaged by using cleaning fluid during injector testing, repair costs may be the user’s responsibility.
What Should I Know Before Using The Ultrasonic Cleaning Function?
Add the correct cleaning fluid before running ultrasonic cleaning. Do not run the ultrasonic tank dry; doing so may damage the ultrasonic system. Keep the cleaning fluid below the electrical pulse connector.
How Do I Set CT150 Test Parameters?
You do not need complex settings. Select the feature number and set the test time or injection count according to the function. Select a test mode, then set the test time or injection count shown for that mode.
What Is The Difference Between CT150, CT160, And CT200?
CT150 and CT160 are both designed for cleaning and testing 4-cylinder gasoline engine injectors. The main difference is that CT160 adds ultrasonic heating, while CT150 does not have this feature. Compared with CT150, CT200 adds two additional test positions, allowing up to six injectors to be tested at once, while the other basic functions remain similar.
When Should I Choose CT400, CT450, CT500, FN606, Or FN608 Instead?
If you only need a tester for 12V gasoline fuel injectors, CT150 or CT160 can be suitable. For GDI high-pressure injectors or wider compatibility, compare CT400, CT450, CT500, FN606, and FN608. Choose based on injector type, test capacity, voltage settings, heating, pump configuration, and workshop workload.
What Is The Difference Between CT200 And CT400?
CT200 is mainly for standard 12V fuel injectors and supports 6-cylinder testing. CT400 supports a wider range of injectors, including standard injectors and GDI-related applications, and includes a drawer for injector adapters and accessory storage. Choose CT400 if you need broader injector compatibility and better accessory organization.
What Is The Difference Between CT400, CT450, And CT500?
CT450 adds the Pulse Injection Test compared with CT400. CT500 further adds Wide Pulse Injection Test and Continuous Injection Test compared with CT450, offering more advanced injector testing options. For cleaning, CT450 includes ultrasonic heating up to about 50°C, while CT400 and CT500 do not have the same heating function.
How Is FN608 Different From FN606 And CT500?
FN608 supports 8-cylinder testing, while FN606 and CT500 support 6-cylinder testing. FN608 has two independent fuel pumps, each corresponding to a separate fuel rail, so if one pump fails, only the corresponding rail is affected while the other can continue operating. Compared with CT500, FN608 also offers a heating cleaning tank up to about 50°C, wider voltage ranges, and a cleaning tank design that can be used independently or together with the main unit.
Can CT150 clean injectors without removing them?
CT150 can clean injectors or the throttle body without removal when the required optional accessories are installed. Accessories are sold separately. Confirm accessory availability before ordering if these functions are important for your workflow.
What Accessories Are Included With CT150?
Refer to the Packing List image for the final package contents. The package includes the CT150 main unit, manual, power cable, signal wires, oil-rail and pressure-gauge assembly, funnel, drain valve, adapters, plugs, O-rings, and related fittings. Confirm quantities before ordering.
What Voltage And Panel Versions Are Available?
CT150 supports 110V / 220V ±10%, 50Hz / 60Hz power environments. It does not provide an in-menu language switch; English and Russian panel versions may be supplied separately. Confirm the required voltage, plug, and panel version before ordering.
How Long Is The Warranty?
AUTOOL covers the main unit with a 3-year limited warranty and standard bundled accessories with a 1-year limited warranty from the date of receipt. See the Warranty Policy for coverage, exclusions, claim requirements, and any product-specific terms.
