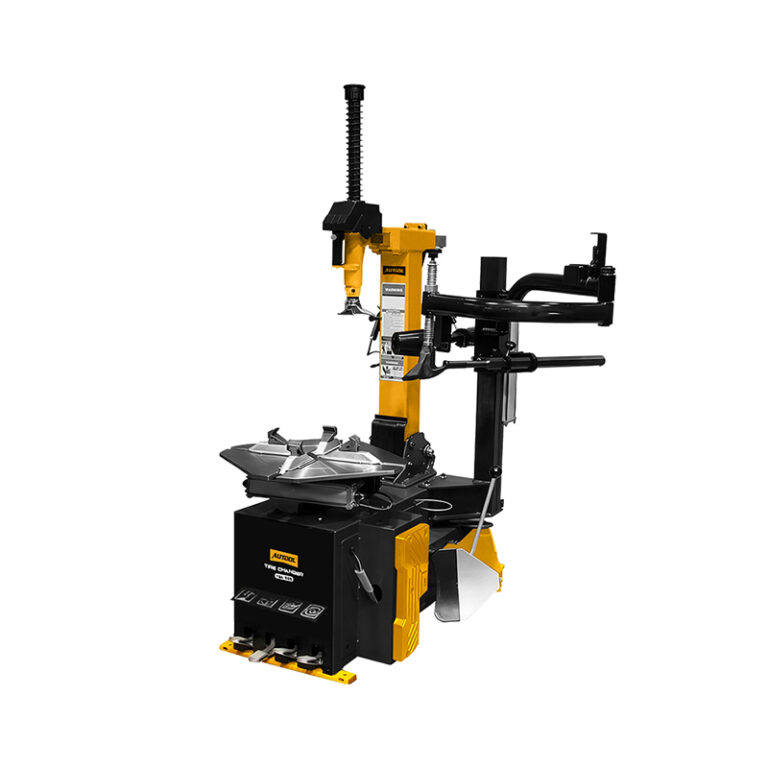

The AUTOOL TCA505 / TCA506 is a rear-tilt tire changer with a right-side auxiliary arm, designed for efficient mounting and dismounting of run-flat, low-profile, and hard-to-install tires. Its streamlined body combines appearance and practicality, while the reinforced composite housing helps reduce working-head vibration. The auxiliary arm provides tire support and tire pressing assistance during operation, and TCA506 further adds an independent tire bead blaster system for bead seating support.
TCA505 / TCA506 combines rear-tilt structure, auxiliary-arm support, rim protection, stainless steel tire tools, and strong pneumatic bead breaking for more stable tire mounting and dismounting.
Right-Side Auxiliary Arm
The right-side auxiliary arm helps mount and dismount hard-to-install tires, with both tire support and tire pressing functions for run-flat and low-profile tires.
Stable Foot Valve Assembly
The foot valve assembly uses a pull-out design for easier maintenance, while the reinforced composite housing reduces vibration from the working head.
Alloy Steel Jaws With Protection Sleeves
Alloy steel jaws with quenched tips provide durable clamping, while jaw protection sleeves help protect rims from scratches during tire service.
Stainless Steel Dismounting Head
The tire dismounting head is made of stainless steel and equipped with anti-scratch washers for safer rim contact.
Strong Bead Breaking Performance
The bidirectional large pneumatic cylinder and dual exhaust design support faster return movement and stronger bead breaking performance.
TCA506 Bead Blaster System
TCA506 includes an independent tire bead blaster system, making it more suitable when bead seating assistance is required.
Click to enlarge
Product Details
Product Details

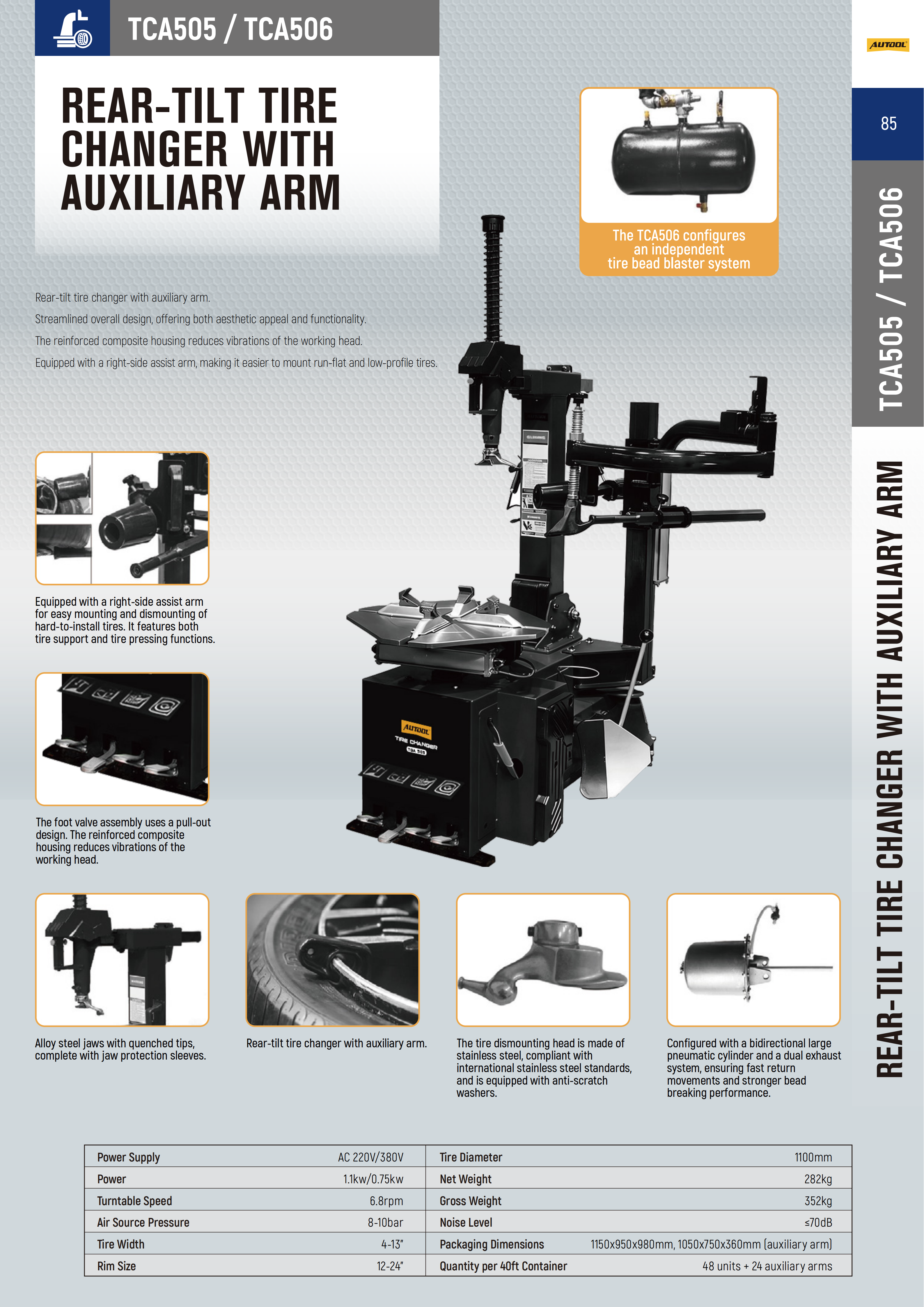

The detailed view shows the rear-tilt structure, auxiliary arm, pull-out foot valve assembly, jaw protection design, stainless steel dismounting head, pneumatic cylinder structure, and TCA506 independent tire bead blaster configuration.
Related Products
Related Products
Use these related AUTOOL tire service and wheel alignment products to build a more complete tire-changing, balancing, and alignment workflow around TCA505 / TCA506.
Select options
This product has multiple variants. The options may be chosen on the product page
Select options
This product has multiple variants. The options may be chosen on the product page
Product Comparison
Product Comparison
Both models use a rear-tilt tire changer structure with right-side auxiliary arm support. Choose based on whether your workshop needs an independent tire bead blaster system.
TCA505
TCA505 is the standard rear-tilt tire changer with auxiliary arm, suitable for mounting and dismounting run-flat, low-profile, and hard-to-install tires.
TCA506
TCA506 adds an independent tire bead blaster system for additional bead seating support during tire installation.
Decision Check
Choose TCA505 for standard auxiliary-arm tire changing needs. Choose TCA506 if bead seating assistance is important for your workshop workflow.
Specifications
TCA505 / TCA506 Specifications
Review power supply, turntable speed, air pressure, tire range, rim size, machine weight, packaging information, and shipping notes before ordering.
Machine Specs
Product
AUTOOL TCA505 / TCA506 Tilt-Back Tire Changer With Multi-Support Arm
Power Supply
AC 220V / 380V
Power
1.1kW / 0.75kW
Turntable Speed
6.8rpm
Air Source Pressure
8-10bar
Tire Width
4-13″
Rim Size
12-24″
Tire Diameter
1100mm
Noise Level
≤70dB
Weight And Shipping
Net Weight
282kg
Gross Weight Reference
352kg shown in the detailed image; the source text lists TCA505 at 352kg and TCA506 at 361kg
Packaging Dimensions
1150×950×980mm
Auxiliary Arm Packaging Dimensions
1050×750×360mm
Quantity Per 40ft Container
48 units + 24 auxiliary arms
Model Difference
TCA505
Rear-tilt tire changer with auxiliary arm
TCA506
Rear-tilt tire changer with auxiliary arm and independent tire bead blaster system
Machine Specs
ProductAUTOOL TCA505 / TCA506 Tilt-Back Tire Changer With Multi-Support Arm
Power SupplyAC 220V / 380V
Power1.1kW / 0.75kW
Turntable Speed6.8rpm
Air Source Pressure8-10bar
Tire Width4-13″
Rim Size12-24″
Tire Diameter1100mm
Noise Level≤70dB
Weight And Shipping
Net Weight282kg
Gross Weight Reference352kg shown in the detailed image; source text lists TCA505 at 352kg and TCA506 at 361kg
Packaging Dimensions1150×950×980mm
Auxiliary Arm Packaging1050×750×360mm
40ft Container48 units + 24 auxiliary arms
Model Difference
TCA505Rear-tilt tire changer with auxiliary arm
TCA506Rear-tilt tire changer with auxiliary arm and independent tire bead blaster system
What Is In The Box
What Is In The Box
The provided content includes main unit and auxiliary arm size / weight information, not a complete accessory packing list. Confirm final shipping details before arranging logistics.
TCA505 Packing Info
Main Unit Dimensions: 115×95×98 Swing-Arm Dimensions: 105×75×36 Weight: 352kg
TCA506 Packing Info
Main Unit Dimensions: 115×95×98 Swing-Arm Dimensions: 105×75×36 Weight: 361kg
Shipping Note
For container planning, the detailed image lists packaging dimensions as 1150×950×980mm plus 1050×750×360mm auxiliary arm packaging.
Before You Order And Use
Before You Order And Use
Confirm model configuration, power supply, workshop air source, tire range, and shipping details before ordering.
Purchase And Setup Notes
Confirm whether TCA505 or TCA506 is required before ordering.
Choose TCA506 if an independent tire bead blaster system is needed.
Confirm power supply requirement: AC 220V / 380V.
Confirm workshop air source pressure can support 8-10bar.
Confirm target tire size range: 4-13″ tire width, 12-24″ rim size, and 1100mm tire diameter.
Confirm final shipping weight and packing dimensions before arranging logistics.
For run-flat and low-profile tires, proper auxiliary arm operation is still required to avoid rim or tire damage.
Related Guides
Related Guides
Use these related articles to compare tire changers, understand workshop tire-service setups, and review balancing and tire-maintenance basics before building your workflow.
Compare different AUTOOL tire changer models and feature sets before deciding which machine fits your daily tire-service workload.
Questions And Answers
These answers cover model differences, run-flat and low-profile tire support, required air pressure, supported rim size, rim protection, and shipping confirmation.
TCA505 is the standard rear-tilt tire changer with auxiliary arm. TCA506 adds an independent tire bead blaster system for bead seating support.
Yes. The right-side auxiliary arm helps mount and dismount hard-to-install tires, including run-flat and low-profile tires.
The detailed image lists the required air source pressure as 8-10bar.
The detailed image lists the rim size range as 12-24″.
Yes. It uses alloy steel jaws with protection sleeves and a stainless steel dismounting head with anti-scratch washers to help reduce rim scratches.
Yes. The source content lists TCA505 at 352kg and TCA506 at 361kg, while the detailed image also lists 352kg gross weight. Confirm the final shipping weight and packing details before arranging logistics.
