AUTOOL OD710 Pneumatic Oil Picker Machine with 70L Capacity

(1 customer review)

US$359.00

Key Features
  • Large Oil Pan
  • Adjustable Height
  • 70L Tank
Key Features
☰ REQUEST BULK / B2B QUOTERequest B2B Quote
Secure checkoutFast supportBulk ready
AUTOOL OD710

Product Overview

The AUTOOL OD710 pneumatic waste oil drainer is designed for draining used engine oil from vehicles into a 70L oil storage tank through a large oil catch pan. It is suitable for workshop oil recovery tasks that require a height-adjustable oil pan, thickened tank construction, oil level monitoring, and easy movement around a service bay.

70L Oil Tank 20L Oil Catch Pan 1.5m Adjustable Height 360° Locking Casters
70LTank Capacity
20LOil Pan Capacity
0.6-0.8barOil Discharge Pressure
3 YearsMain Unit Warranty

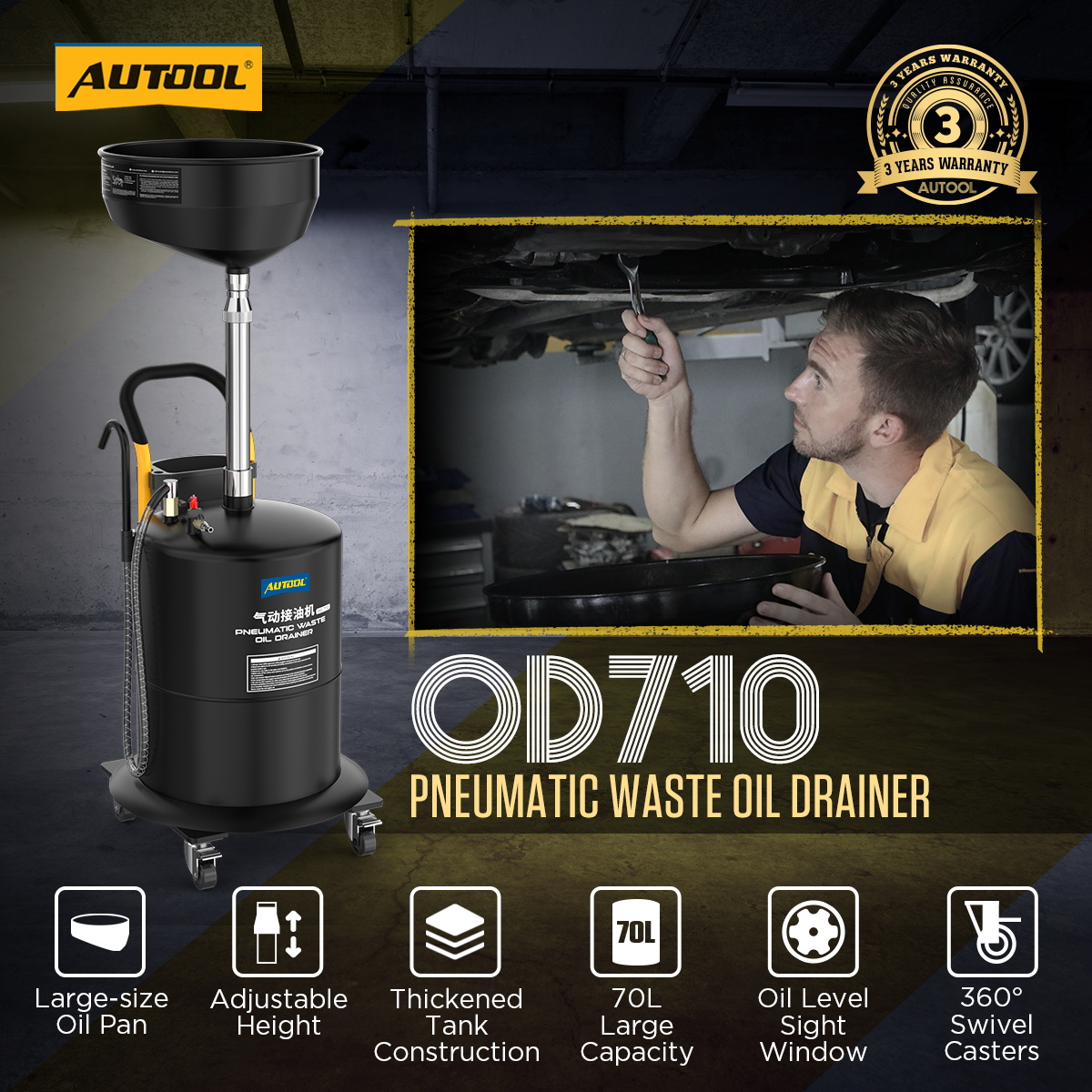

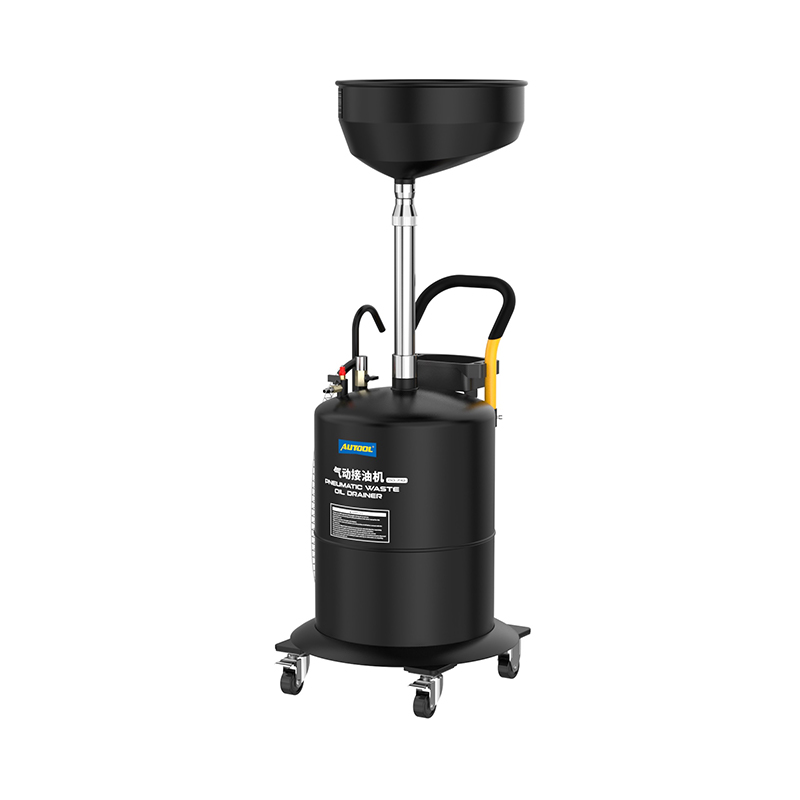

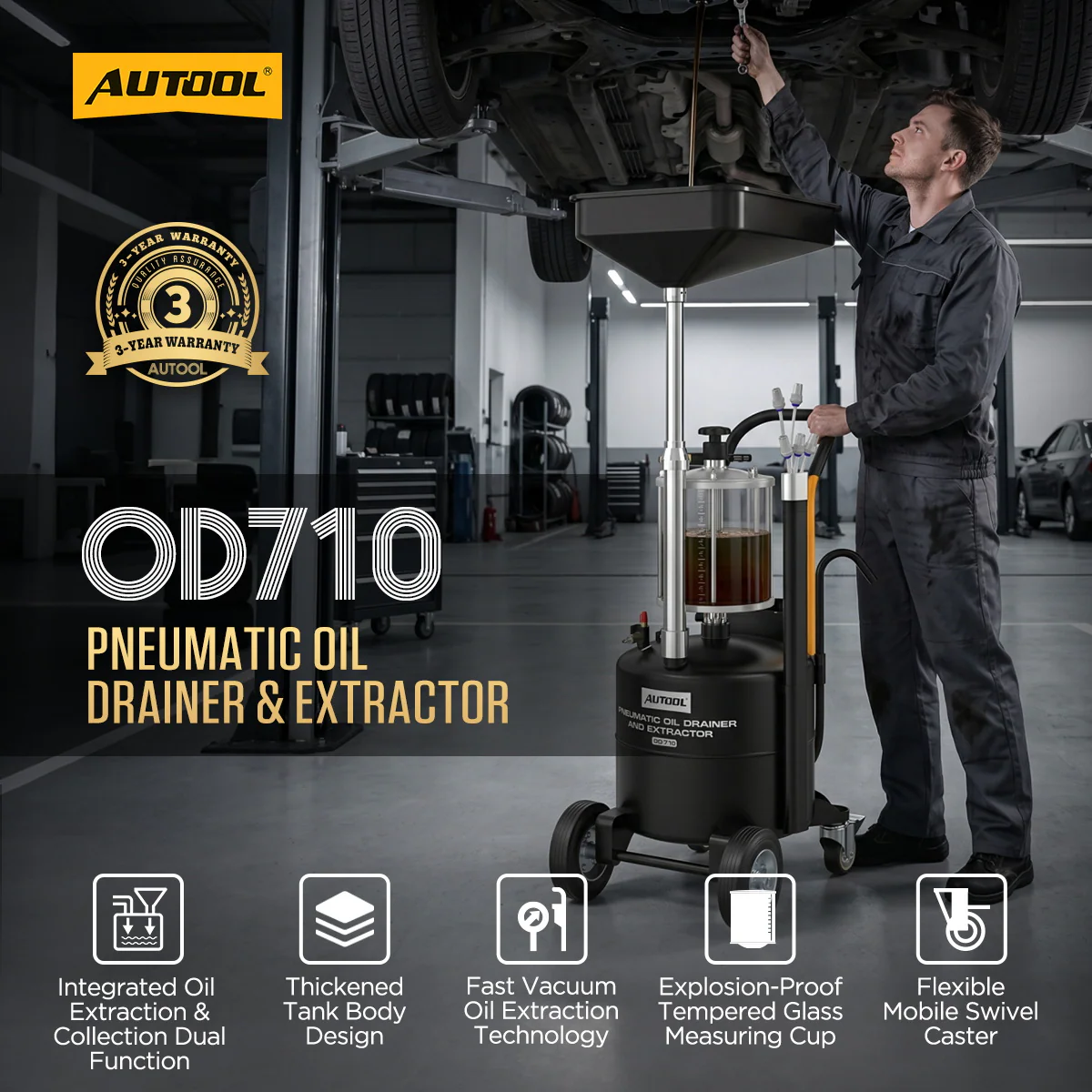

AUTOOL OD710 pneumatic waste oil drainer main product image with large oil pan adjustable height 70 liter tank sight window and swivel casters Click to enlarge
Before You Order And Use

Before You Order And Use

Read these safety rules before using the OD710. The machine is for waste engine oil draining and tank discharge only; do not use it for unlisted liquids or functions.

No Open Flames

Do not smoke or use open flames during operation. Keep the equipment away from high-temperature, high-pressure, flammable, and explosive areas.

Engine Off During Operation

The vehicle engine must remain turned off throughout the oil recovery operation.

40-60°C Waste Oil

The working waste oil temperature is 40-60°C. Be cautious of burns when draining or discharging oil.

Protect Eyes And Hands

Wear gloves and safety goggles during operation to reduce the risk of burns, splashing oil, or accidental contact.

Forbidden Liquids

Do not use the OD710 with brake oil, gasoline, diesel, liquids containing methanol or ketones, or any flammable liquids.

Check Hose Leaks Immediately

If any hose or component leaks during operation, immediately shut off the air supply and inspect the equipment before continuing.

Use Correct Pressure

The air source pressure for oil tank discharge must not be lower or higher than the specified pressure required for normal equipment operation.

Do Not Use Rod As Handle

Do not use the height-adjustable lifting rod as a handle for moving the machine. Tighten adjustment screws if they become loose.

Release Internal Pressure

After completing operation, release internal pressure, clean the equipment, and avoid damage or personal injury caused by improper pressure handling.

Additional Reminders

  • Do not make unauthorized changes or disassemble the equipment.
  • Do not use the equipment for functions not listed in the manual.
  • Dispose of or recycle waste oil according to applicable local regulations.
  • If damage or personnel accidents occur due to non-compliance with the instructions, warranty support may not apply.
Key Features

Key Features

OD710 focuses on efficient engine waste oil recovery with a large catch pan, adjustable working height, 70L storage tank, mobile caster base, oil level sight window, and practical workshop details.

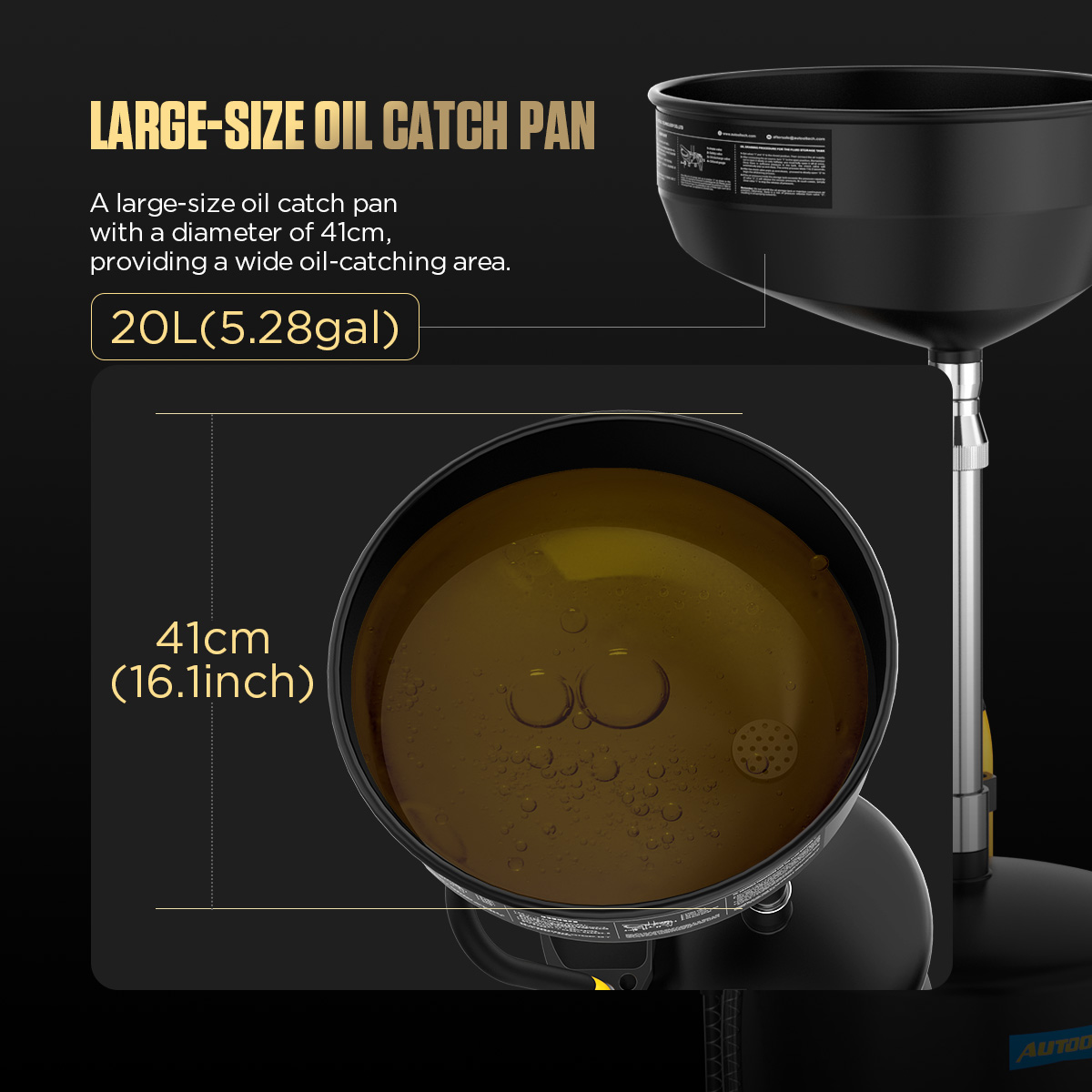

Large 20L Oil Catch Pan

The 41cm oil catch pan provides a wide oil receiving area and 20L capacity for collecting waste engine oil during vehicle service.

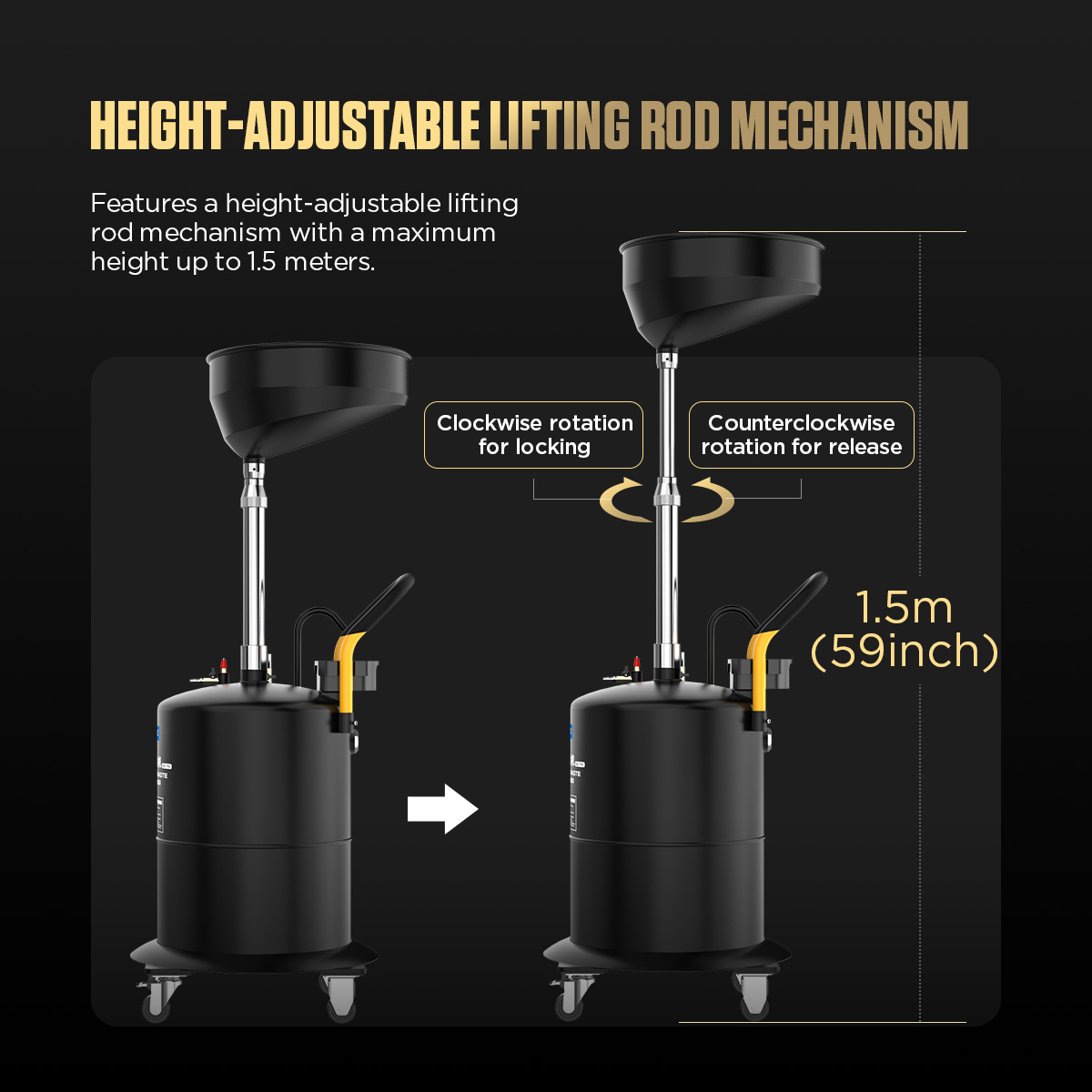

Height-Adjustable Lifting Rod

The lifting rod mechanism adjusts up to 1.5m. Rotate counterclockwise to release and adjust, then rotate clockwise to lock the height.

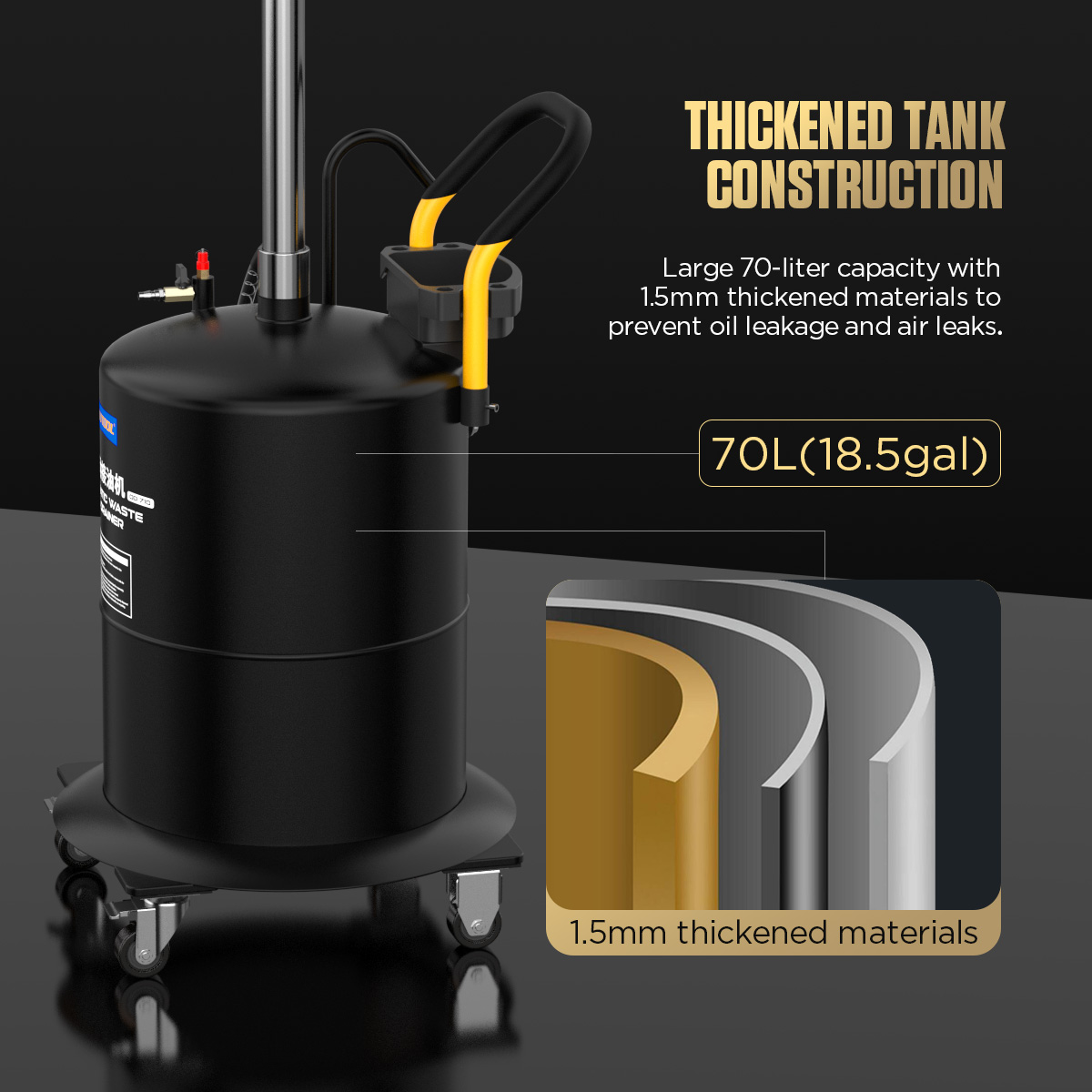

70L Thickened Tank

The 70L oil storage tank uses 1.5mm thickened material to help reduce oil leakage and air leakage during use.

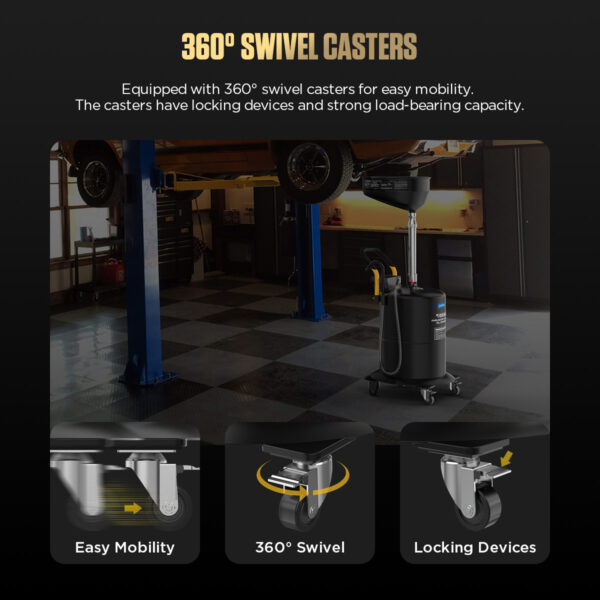

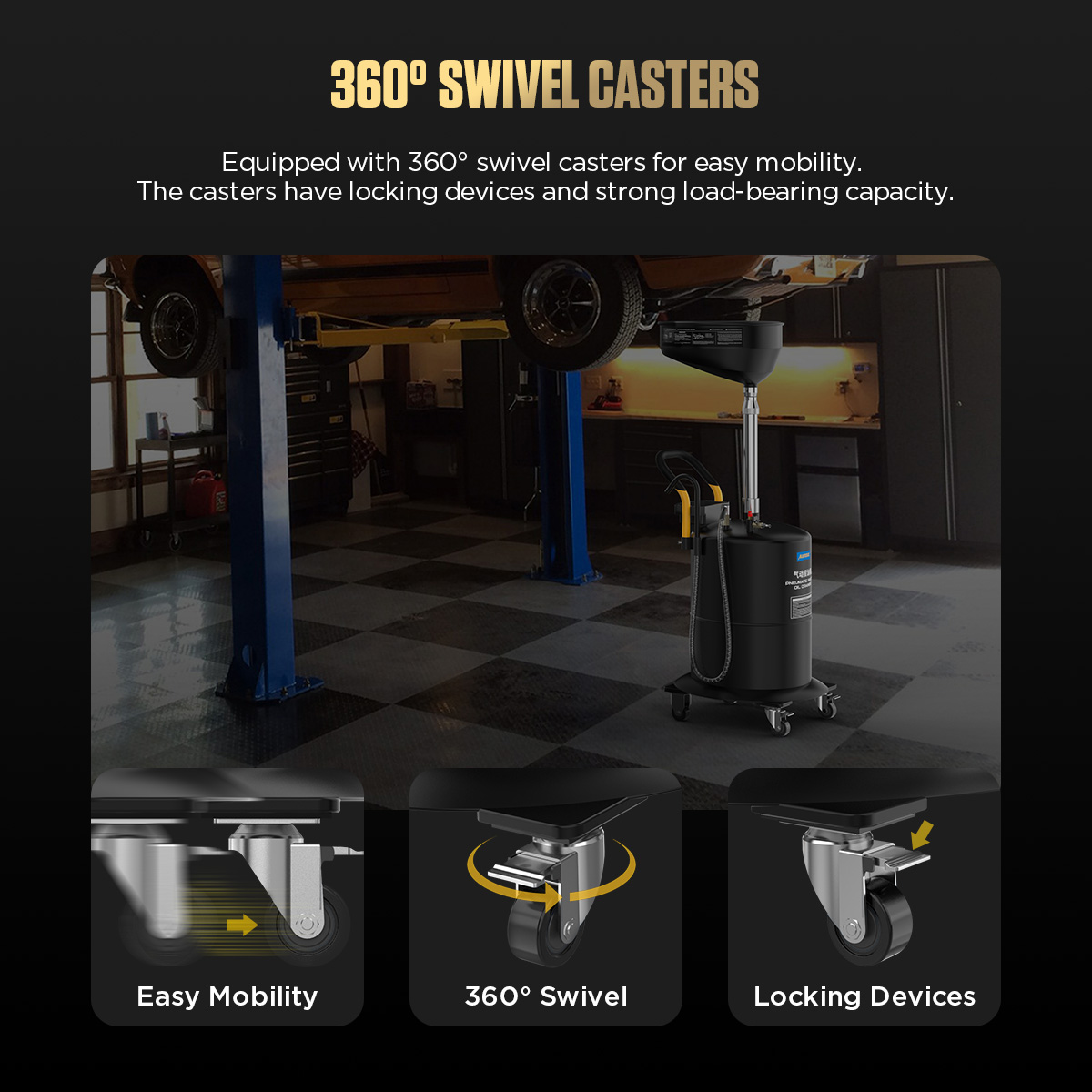

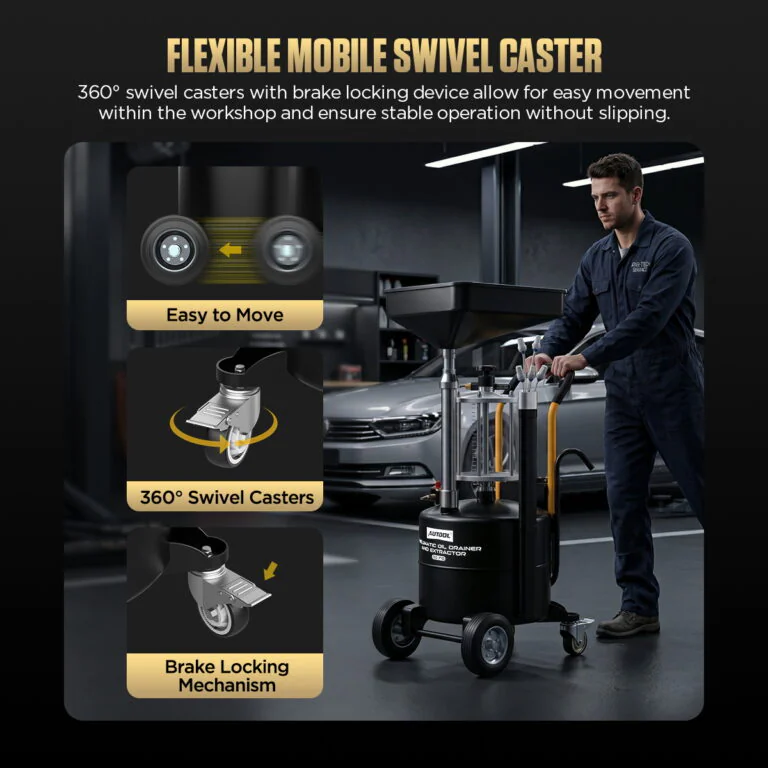

360° Swivel Casters

Swivel casters help move the unit around the workshop, while locking devices improve stability during operation.

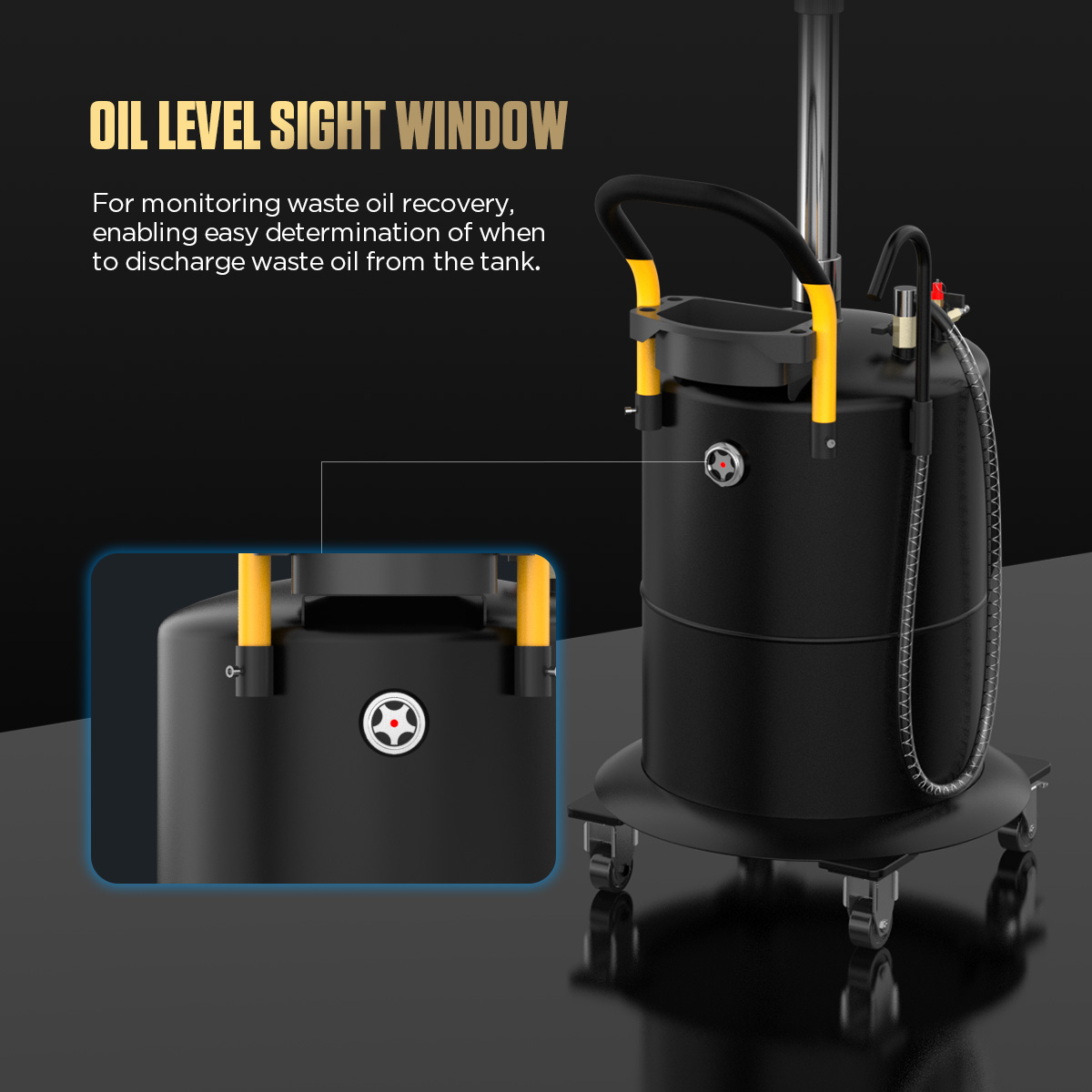

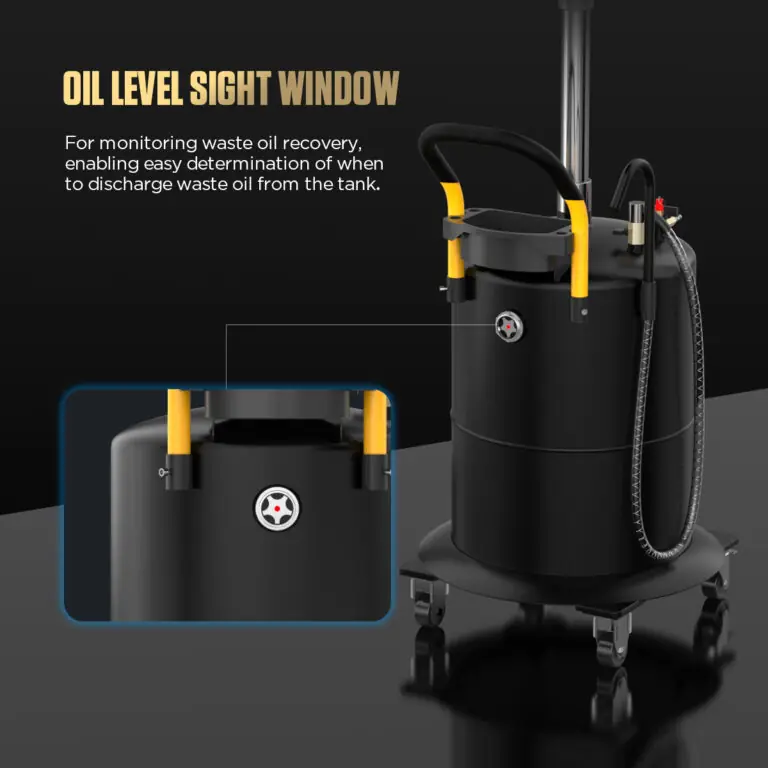

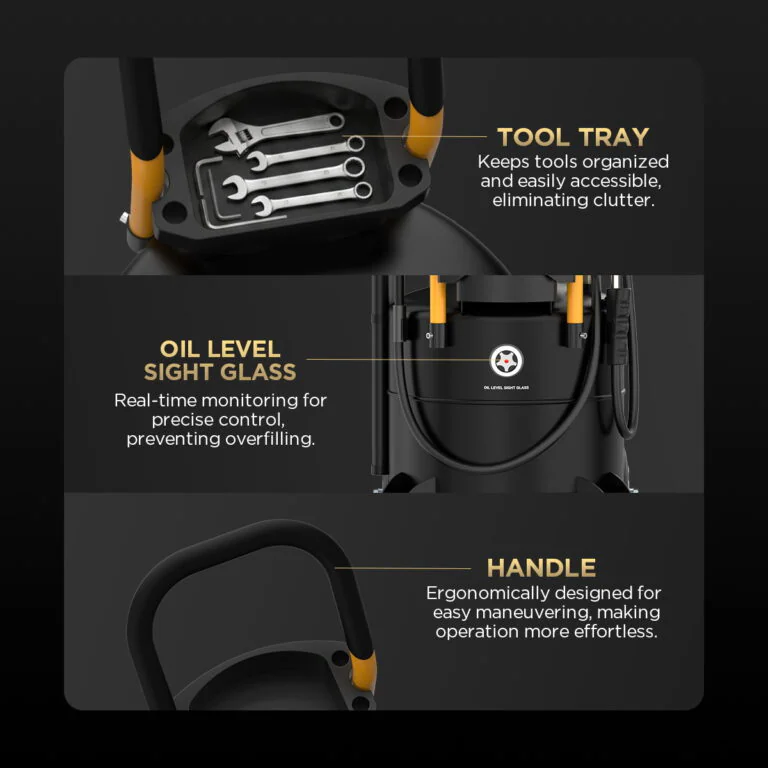

Oil Level Sight Window

The oil level sight window helps monitor waste oil recovery and decide when to discharge waste oil from the tank.

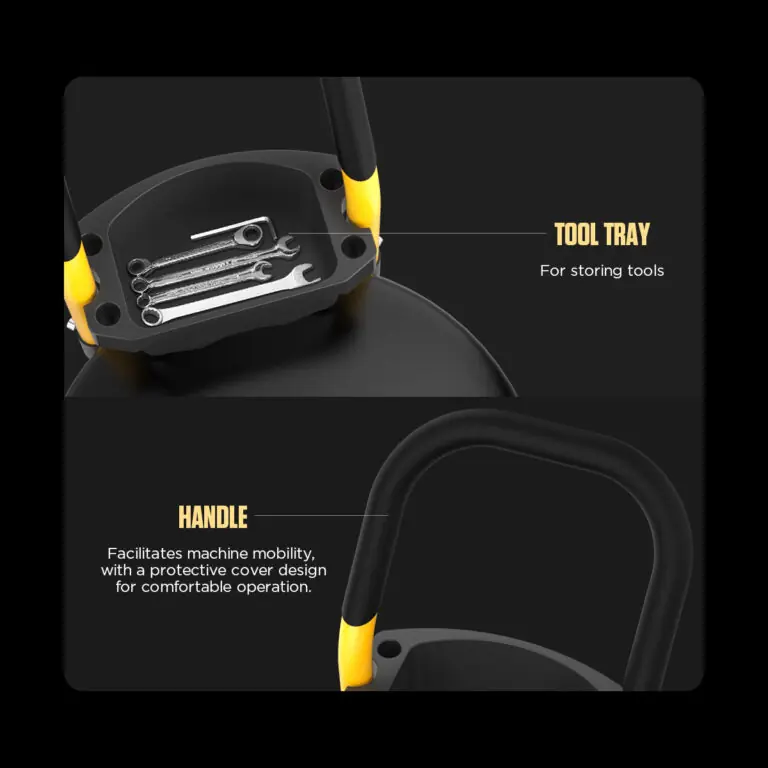

Tool Tray And Handle

The built-in tool tray supports small tool placement, and the handle helps move the machine more comfortably.

AUTOOL OD710 large size 20 liter oil catch pan with 41 centimeter diameter Click to enlarge
AUTOOL OD710 height adjustable lifting rod mechanism up to 1.5 meters Click to enlarge
AUTOOL OD710 70 liter thickened oil storage tank construction with 1.5 millimeter material Click to enlarge
AUTOOL OD710 360 degree swivel casters with locking devices Click to enlarge
AUTOOL OD710 oil level sight window for monitoring waste oil recovery Click to enlarge

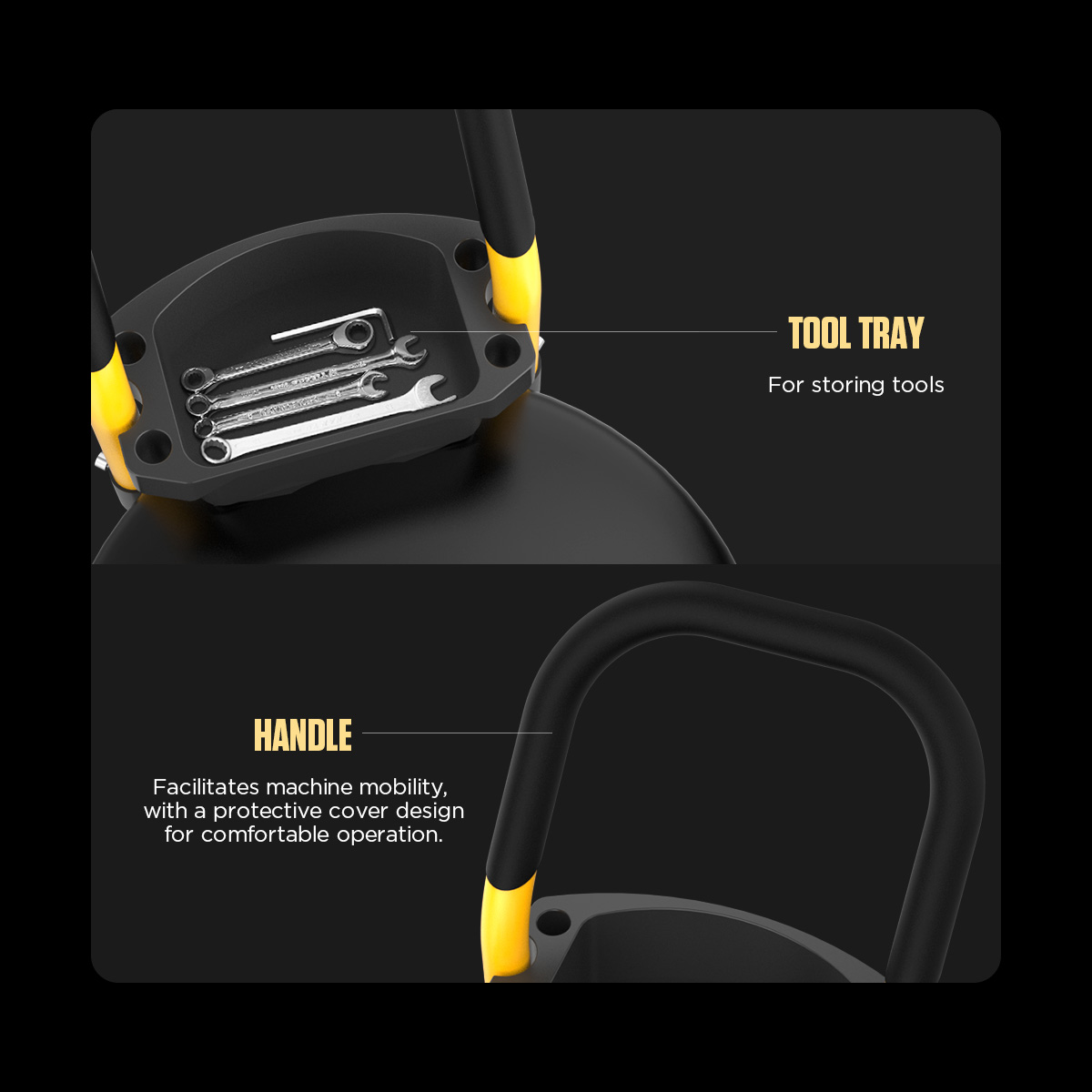

AUTOOL OD710 tool tray and handle for tool storage and mobility Click to enlarge

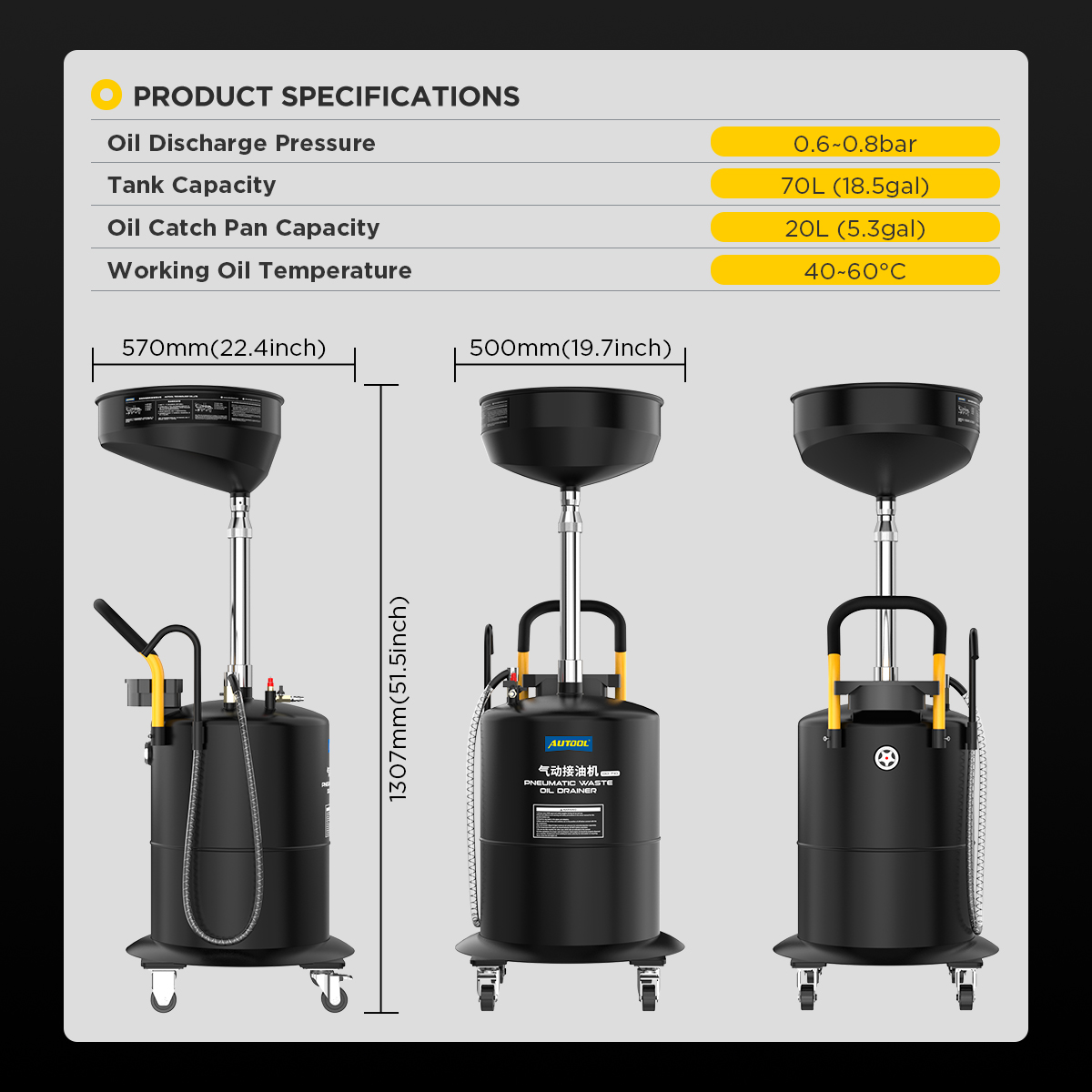

Specifications

OD710 Specifications

Review the OD710 oil discharge pressure, tank capacity, oil catch pan capacity, working oil temperature, dimensions, and main product structure before ordering.

Core Specifications
ProductAUTOOL OD710 Pneumatic Waste Oil Drainer
FunctionWaste engine oil recovery and oil storage tank discharge
Oil Discharge Pressure0.6-0.8bar
Tank Capacity70L / 18.5gal
Oil Catch Pan Capacity20L / 5.3gal
Working Oil Temperature40-60°C
Oil Catch Pan Diameter41cm / 16.1in
Maximum Adjustable Height1.5m / 59in
Overall Height Shown1307mm / 51.5in
Oil Pan Width Shown570mm / 22.4in
Body Width Shown500mm / 19.7in
Warranty3-year warranty for the main unit; 1-year warranty for included accessories

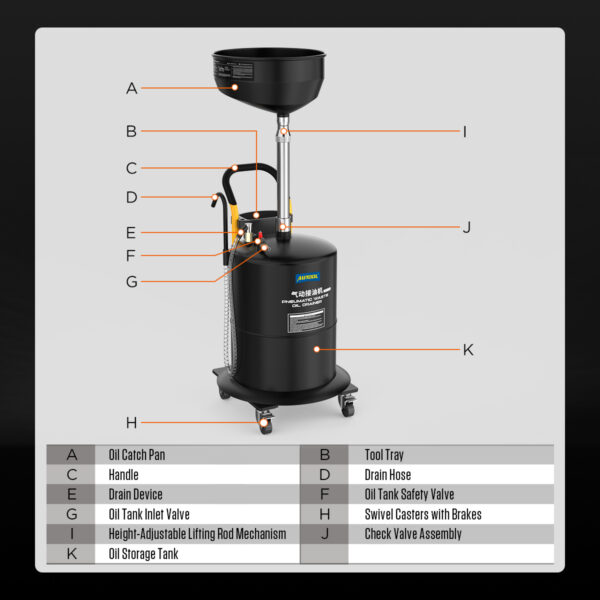

Product Structure
Structure OverviewThe OD710 structure combines the oil collection pan, storage tank, valve system, lifting rod, and mobile caster base in one workshop oil recovery unit.
Oil CollectionOil catch pan, drain hose, and oil storage tank
Operation ControlOil tank safety valve, oil tank inlet valve, drain device, and check valve assembly
MobilityHandle and swivel casters with brakes
AdjustmentHeight-adjustable lifting rod mechanism and tool tray
AUTOOL OD710 product specifications including 0.6 to 0.8 bar pressure 70 liter tank 20 liter oil pan and 40 to 60 degrees Celsius oil temperature Click to enlarge

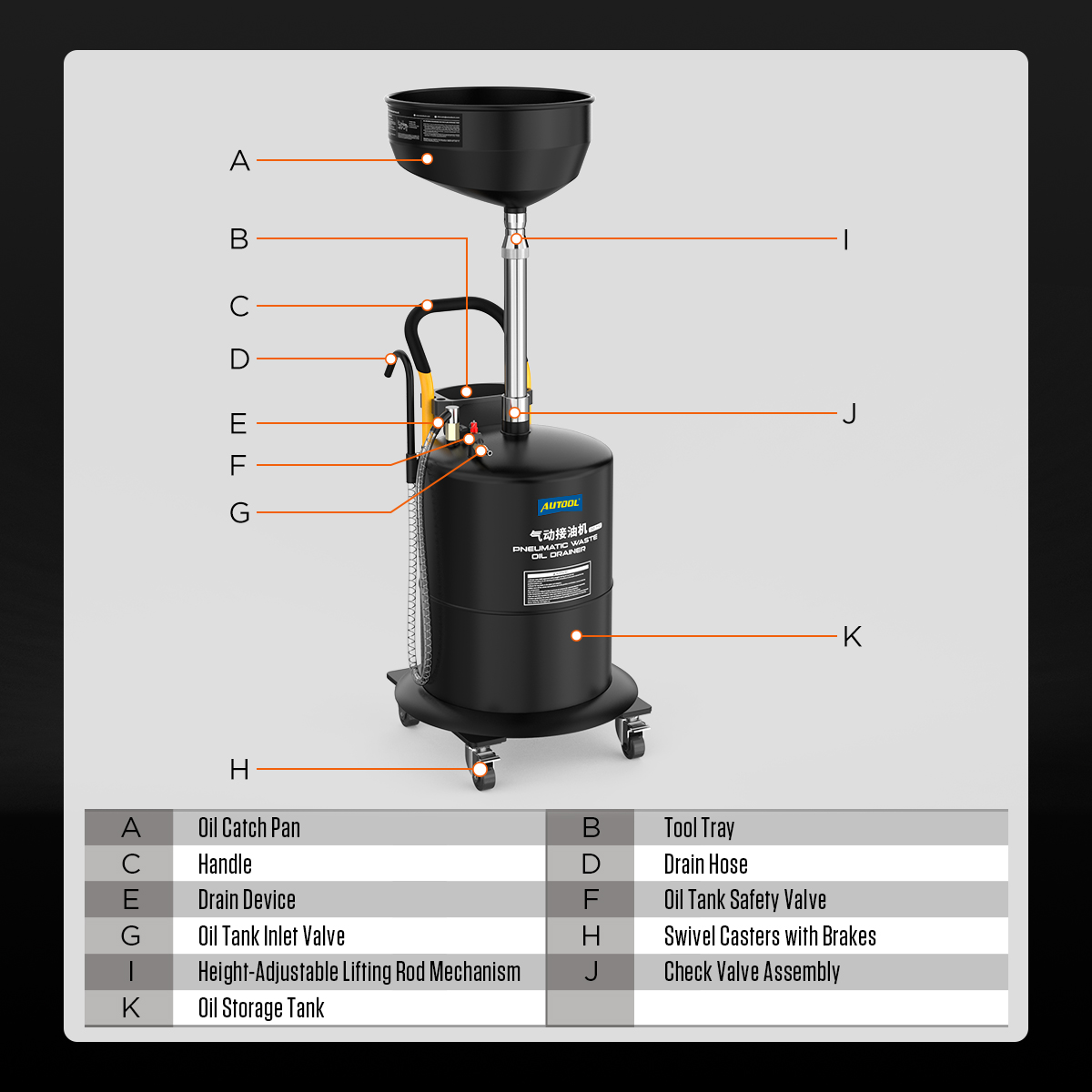

AUTOOL OD710 structure diagram showing oil catch pan tool tray handle drain hose drain device oil tank safety valve oil tank inlet valve swivel casters lifting rod check valve assembly and oil storage tank Click to enlarge
Core Specifications
ProductAUTOOL OD710 Pneumatic Waste Oil Drainer
FunctionWaste engine oil recovery and oil storage tank discharge
Oil Discharge Pressure0.6-0.8bar
Tank Capacity70L / 18.5gal
Oil Catch Pan Capacity20L / 5.3gal
Working Oil Temperature40-60°C
Oil Catch Pan Diameter41cm / 16.1in
Maximum Adjustable Height1.5m / 59in
Overall Height Shown1307mm / 51.5in
Oil Pan Width Shown570mm / 22.4in
Body Width Shown500mm / 19.7in
Warranty3-year warranty for the main unit; 1-year warranty for included accessories
Product Structure
Structure OverviewThe OD710 structure combines the oil collection pan, storage tank, valve system, lifting rod, and mobile caster base in one workshop oil recovery unit.
Oil CollectionOil catch pan, drain hose, and oil storage tank
Operation ControlOil tank safety valve, oil tank inlet valve, drain device, and check valve assembly
MobilityHandle and swivel casters with brakes
AdjustmentHeight-adjustable lifting rod mechanism and tool tray
How To Use

How To Use

Use OD710 for waste engine oil recovery and oil storage tank discharge according to the manual. Keep the vehicle engine off, work in a safe area, and control pressure carefully.

Installation

  1. Fix the lifting rod and oil pan funnel in place by rotating in the clockwise direction.
  2. After installation, make sure the lifting pole is vertical relative to the equipment.
  3. Turn the lifting rod device counterclockwise to adjust the oil pan funnel height.
  4. Turn the lifting rod device clockwise to tighten and lock the selected height.

Waste Oil Recovery

  1. Use a lifting device to raise the vehicle to a suitable height.
  2. Ensure a safe working environment and position the OD710 under the vehicle engine.
  3. Align the oil pan funnel with the engine oil drain hole.
  4. Unscrew the vehicle engine oil drain plug.
  5. Allow waste oil to discharge into the storage tank through the oil pan funnel.

Oil Storage Tank Discharge

  1. Close the oil discharge pipe valve and close the oil tank inlet valve.
  2. Connect the air supply to the oil tank inlet valve.
  3. Open the oil tank inlet valve and pressurize it; the check valve will automatically close after reaching pressure.
  4. When tank pressure exceeds 1.0bar, the safety valve will automatically release pressure.
  5. After 5 seconds, slowly open the oil drain valve.
  6. After discharging the oil, cut off the air supply.

Use Notes

  • OD710 requires vehicle lifting equipment for oil recovery under the engine.
  • Keep the engine off during the entire waste oil recovery process.
  • Open the oil drain valve slowly after pressurizing the oil storage tank.
  • Cut off the air supply after the oil storage tank discharge is complete.
  • Clean the equipment and release internal pressure after operation.
Maintenance And Care

Maintenance And Care

Keep the OD710 clean, dry, properly tightened, and protected from corrosion to maintain performance and service life.

Protect The Housing

Avoid rubbing the product against rough surfaces or wearing the sheet metal housing during use and movement.

Check Fasteners

Regularly inspect parts that need tightening or connection. If loose parts are found, tighten them in time for safe operation.

Anti-Corrosion Care

External and internal parts that contact chemical media should be treated with rust removal and painting when needed.

Do Not Overload

Follow safe operating procedures, do not overload the equipment, and keep safety guards complete and reliable.

Replace Worn Parts

Adjust clearance as needed, replace worn or damaged parts in time, and avoid contact with corrosive liquids.

Dry Storage

When not in use, store the OD710 in a dry place. Do not store it in hot, humid, or non-ventilated areas.

Product Comparison

Product Comparison

Compare AUTOOL automotive oil drain and extractor models before choosing the right tank capacity, vacuum extraction support, measuring cup, toolbox structure, air supply requirement, and lifting-equipment requirement.

OD710 Focus70L tank, 20L oil catch pan, 0.6-0.8bar oil discharge pressure, no vacuum extraction, and lifting equipment required.

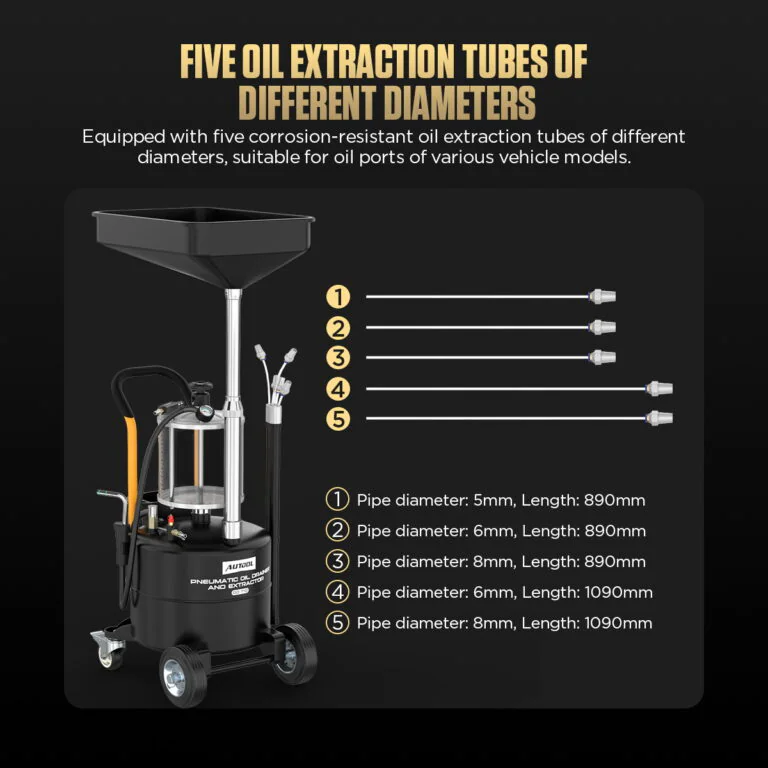

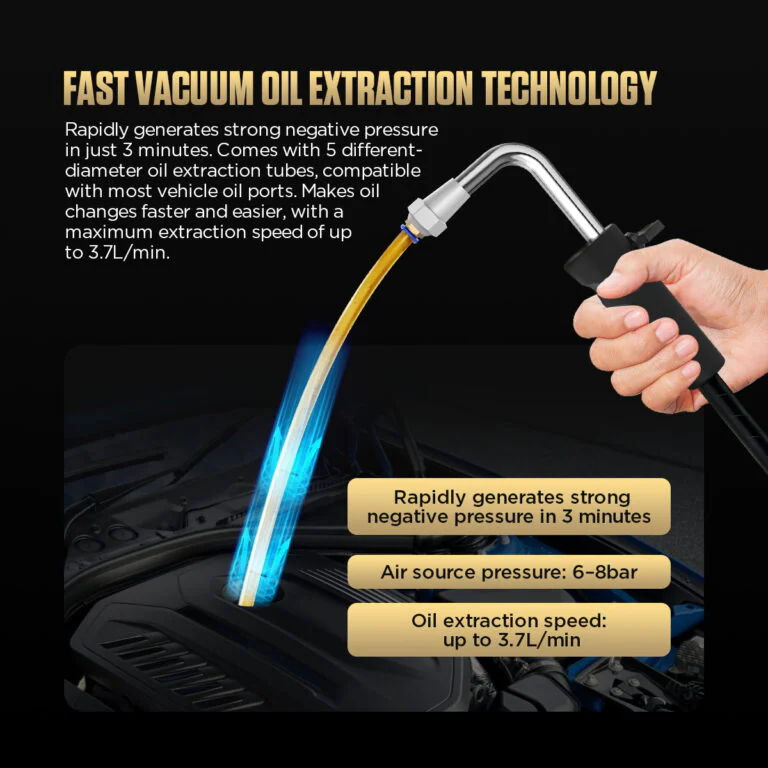

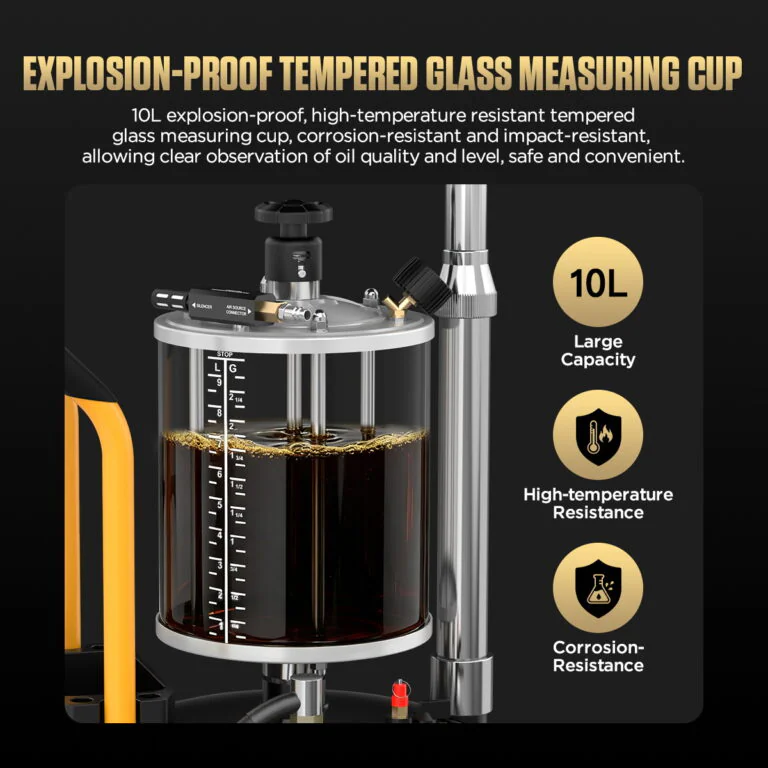

OD720 UpgradeAdds rapid vacuum extraction technology, 10L tempered glass measuring cup, 5 evacuation wands, 6-8bar air supply pressure, and 0-65cmHg vacuum level.
OD760 UpgradeAdds rapid vacuum extraction, 10L measuring cup, 5 evacuation wands, toolbox structure, and an 80L tank for larger workshop storage needs.
Shared FeaturesAll three models have a large oil pan, adjustable height, thickened tank construction, oil level sight window, 360° swivel casters, 20L oil catch pan, and 40-60°C working oil temperature.
Decision CheckChoose OD710 for straightforward waste oil draining under a lifted vehicle. Choose OD720 or OD760 if vacuum extraction and no lifting-equipment workflow are required.

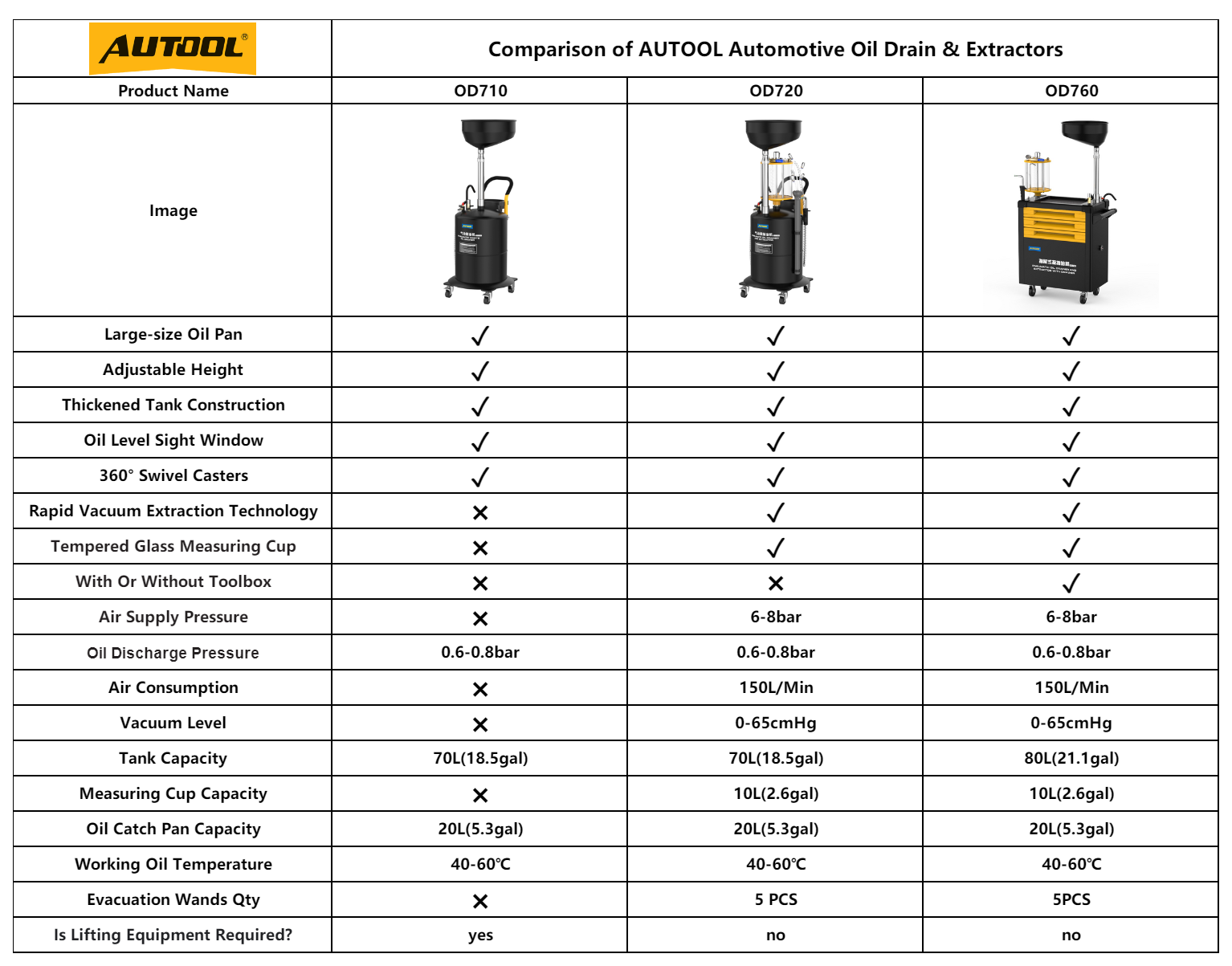

AUTOOL OD710 OD720 OD760 automotive oil drain and extractor comparison chart Click to enlarge
Related Products

Related Products

Compare related AUTOOL OD series oil drainer and oil extractor models before choosing the right workshop oil recovery setup.

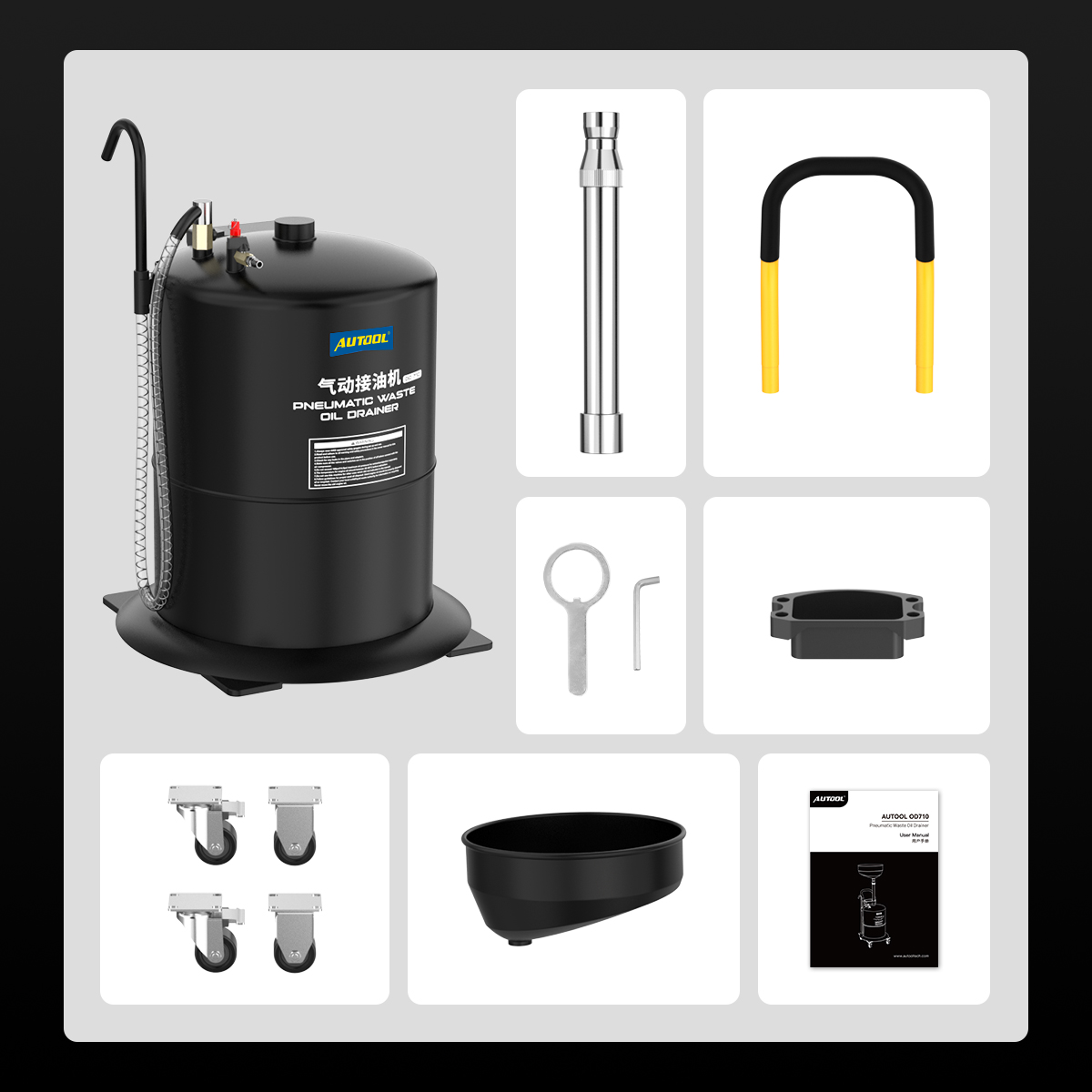

AUTOOL OD710 packing list showing main unit lifting rod handle tool tray casters oil catch pan tools and user manual Click to enlarge
What Is In The Box

What Is In The Box

The packing list image shows the OD710 main unit and included accessories. Refer to the final package contents shown in the image before installation.

Main UnitOD710 oil storage tank assembly with drain hose and valve components
Oil CollectionOil catch pan and height-adjustable lifting rod shown in the package image
Mobility PartsHandle, tool tray, and swivel casters shown in the package image
ToolsTools shown in the package image
DocumentationAUTOOL OD710 user manual
Manual And Downloads

Manual And Downloads

Download the OD710 manual for cautions, technical data, product structure, installation, waste oil recovery, oil storage tank discharge, maintenance, warranty, and return or exchange information.

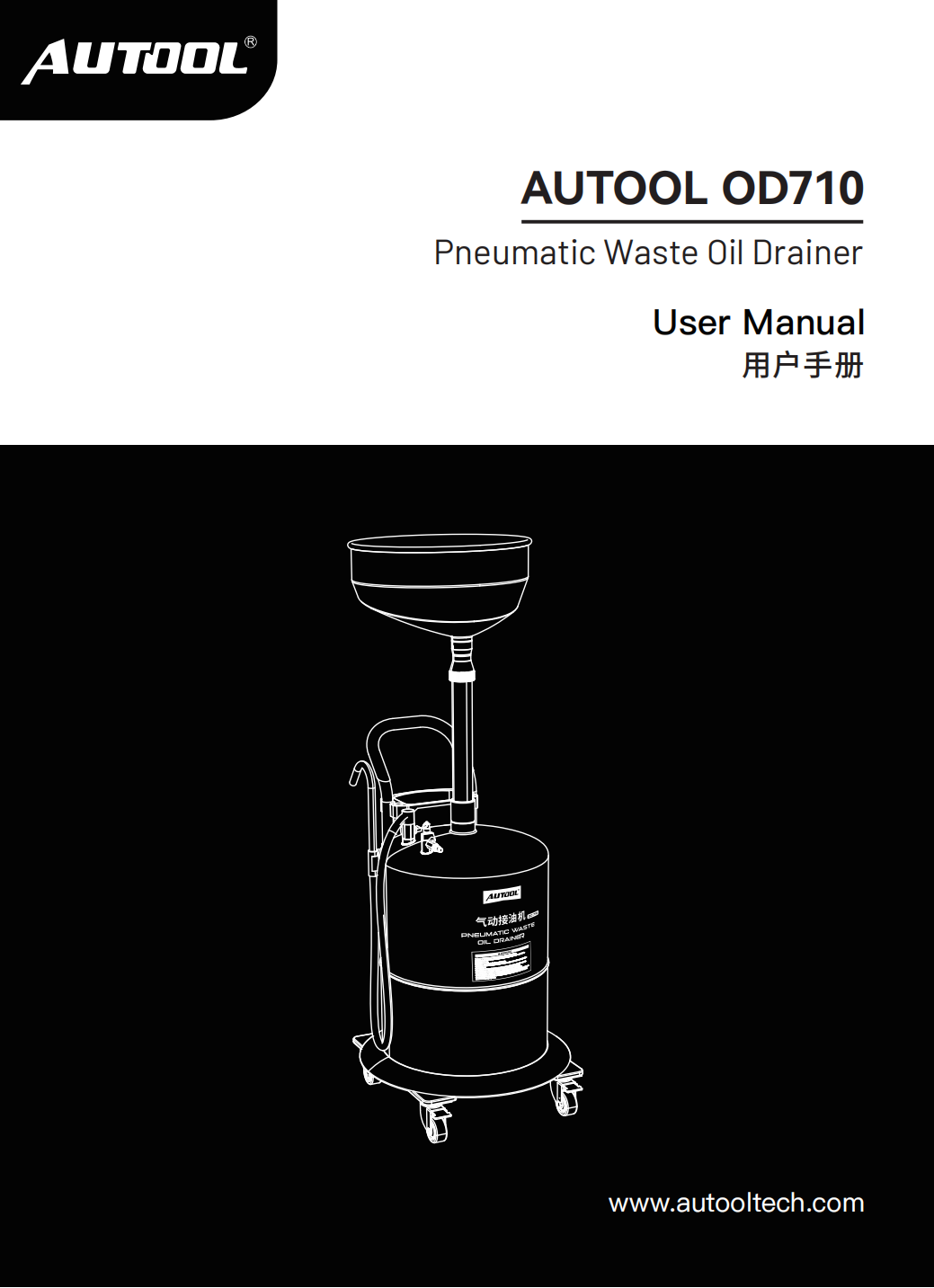

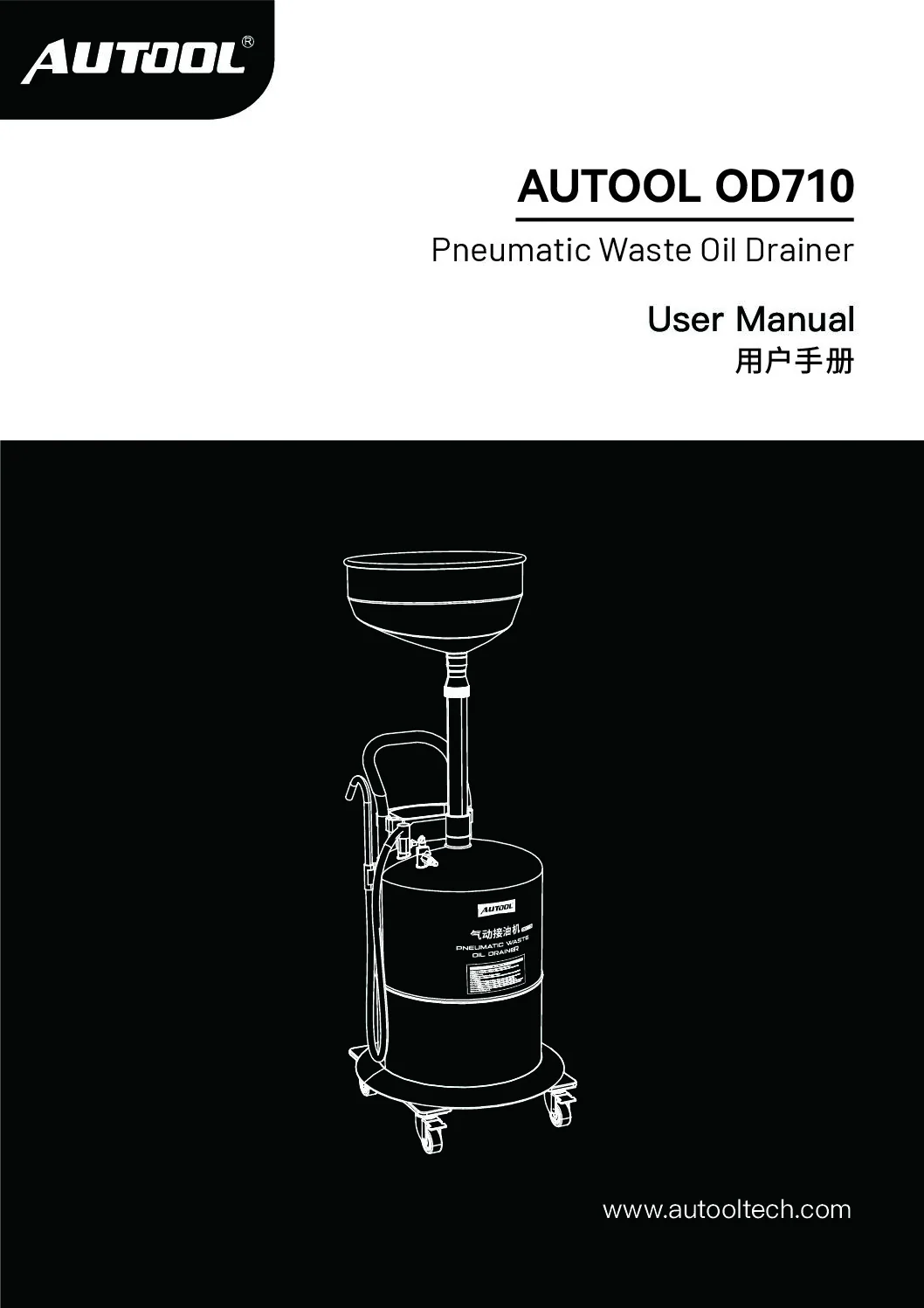

AUTOOL OD710 pneumatic waste oil drainer user manual preview Click to enlarge

AUTOOL OD710 Pneumatic Waste Oil Drainer Manual

Open the official PDF manual for OD710 setup, safe-use notes, operation, maintenance, warranty, and troubleshooting reference.

Download Manual

Need Setup Confirmation?

Contact AUTOOL Store before ordering if you need to confirm oil discharge pressure, air source setup, package contents, vehicle lifting workflow, OD710 / OD720 / OD760 model choice, or safe-use limits.

Emailsupport@autoolstore.com WhatsApp+86 189 2647 7404

Questions And Answers

These answers cover safe-use limits, forbidden liquids, working oil temperature, lifting equipment, OD710 / OD720 / OD760 differences, operation pressure, maintenance, and warranty.

Warranty And Contact

Warranty And Contact

For OD710 setup, oil discharge pressure, air source confirmation, package contents, safe-use limits, maintenance, warranty, accessory support, or OD710 / OD720 / OD760 model selection, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming whether OD710 fits your workshop workflow, whether you need OD720 or OD760 vacuum extraction instead, or how to follow safe oil recovery and tank discharge procedures.

  • OD710 / OD720 / OD760 model selection
  • Oil discharge pressure and air source setup confirmation
  • Vehicle lifting workflow and operation safety confirmation
  • Packing List and accessory confirmation
  • Maintenance, replacement parts, and after-sales support
  • 3-year main unit warranty and 1-year included accessory warranty reference
Email Supportsupport@autoolstore.com WhatsApp Support+86 189 2647 7404

Customer Reviews

  1. 5
    (1 customer review)
    100% of customers recommend this product.
    5 Stars100%4 Stars0%3 Stars0%2 Stars0%1 Star0%

  2. T. Schultz –

    Pneumatic Oil Picker Machine has a large oil receiving pan with a diameter of 41cm, which has a large oil receiving area when discharging waste oil. At the same time, the oil receiving pan has a large capacity of 20L, which can hold more waste oil.

    0 of 0 found this review helpful
Leave A Review

Your email address will not be published. Required fields are marked *

AUTOOL OD710 Pneumatic Oil Picker Machine with 70L Capacity
AUTOOL OD710 Pneumatic Oil Picker Machine with 70L Capacity

US$359.00

Add to cart This product has multiple variants. The options may be chosen on the product page
