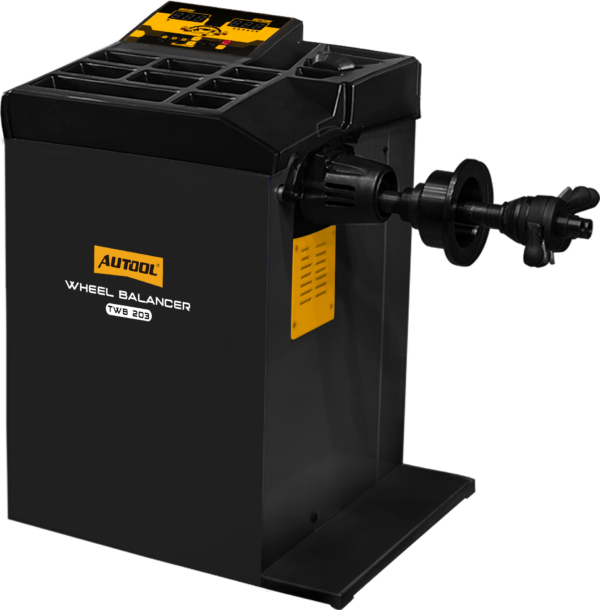

AUTOOL TWB203/TWB205 Enhanced & Intelligent Precision Wheel Balancer
Price range: US$1,950.00 through US$2,150.00
Key Features
- Extra-Wide Rim Support
- Lower-Maintenance Electronics
- Weight Work Platform
- Extra-Wide Rim Support: The thickened extended main shaft with a 40 mm lead screw is marketed for balancing extra-wide rims.
- Lower-Maintenance Electronics: The ARM microprocessor and self-check oriented control design are positioned for easier maintenance and lower repair cost.
- Weight Work Platform: The integrated platform and calibration-weight storage aim to make lead-weight handling more organized during balancing.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support
AUTOOL TWB203 / TWB205
Product Overview
The AUTOOL TWB203 / TWB205 wheel balancer series is designed for professional wheel balancing service. TWB203 is an enhanced dynamic wheel balancer for practical balancing, multiple modes, easier maintenance, and lower maintenance cost. TWB205 is an intelligent precision wheel balancer that upgrades the workflow with OPT tire/rim optimization, SPO hidden weight placement, 2D automatic measurement, laser indicators, and a cast-iron foot brake system.
Dynamic Balancing Enhanced / Intelligent Options 40mm Main Shaft OPT / SPO On TWB205
TWB203Enhanced Dynamic
TWB205Intelligent Precision
65kgMax Wheel Weight
10-26″Rim Diameter

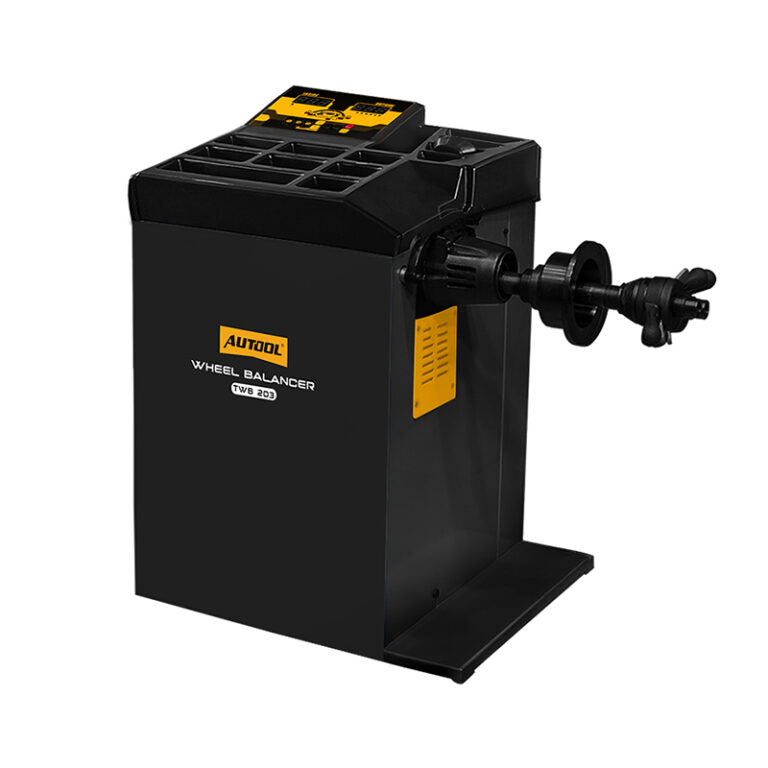

TWB203 Enhanced Dynamic Model
Choose TWB203 when you need a practical enhanced wheel balancer with multiple balancing modes, control board self-check, easy maintenance, streamlined design, and a heat-treated high-strength main shaft.

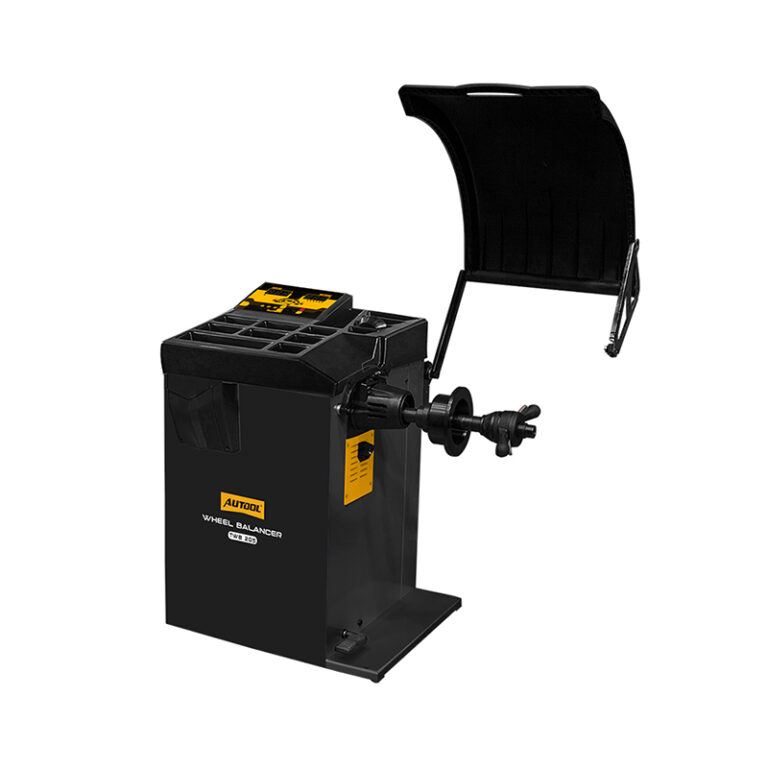

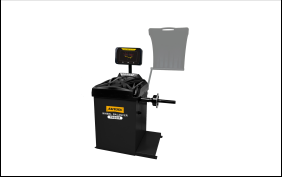

TWB205 Intelligent Precision Model
Choose TWB205 when your workflow needs OPT optimization, SPO hidden weight placement, 2D automatic parameter measurement, top and bottom laser guidance, and foot brake locking.
How To Choose
How To Choose
Choose by workshop workflow. TWB203 focuses on reliable enhanced balancing with easier maintenance, while TWB205 adds intelligent precision functions for faster parameter input, optimized weight use, cleaner wheel appearance, and more accurate placement.
Need A Cost-Effective Enhanced Wheel Balancer?
Choose TWB203 if you need an enhanced dynamic wheel balancer with multiple balancing modes, control board self-check, easy maintenance, and lower maintenance costs.
Need Intelligent Precision Balancing?
Choose TWB205 if you need advanced balancing support such as OPT optimization, SPO hidden weight placement, 2D automatic measurement, laser indicators, and foot brake locking.
Need Lower Maintenance Complexity?
TWB203 is designed with a self-check control board and an easy-maintenance layout, helping reduce maintenance difficulty and repair costs.
Need Faster Lead Weight Placement?
TWB205 is better suited for users who need automatic parameter input, laser-guided lead weight placement, and a cast-iron foot brake to lock imbalance points.
Product Comparison
Product Comparison
Both models are designed for professional wheel balancing service, but their positioning is different. TWB203 is the enhanced dynamic option for practical workshop use, while TWB205 is the intelligent precision option for optimized measurement, weight placement, and point locking.
TWB203 FocusEnhanced dynamic wheel balancer with multiple balancing modes, control board self-check, easy maintenance, lower maintenance cost, streamlined design, and heat-treated high-strength main shaft.
TWB205 FocusIntelligent precision wheel balancer with OPT, SPO, 2D automatic measurement, top and bottom laser indicators, and cast-iron foot brake support.
Shared Service UseBoth models are suitable for professional wheel balancing service and use a streamlined overall machine design for appearance and functionality.
Decision CheckChoose TWB203 for practical enhanced balancing and easier maintenance. Choose TWB205 for intelligent measurement, optimized weight placement, laser guidance, and higher-precision workflow.
Click to enlarge
Click to enlargeKey Features
Key Features
The TWB203 / TWB205 series combines a clear microcomputer control system, durable mechanical structure, wheel weight operation support, and tire protection design for professional balancing work.
New ARM Microprocessor
The machine adopts a new ARM microprocessor with independent intellectual property rights, helping make maintenance easier and repair costs lower.
Clear Digital Control System
The microcomputer system combines a digital tube display and keyboard, providing clear visibility, simple operation, and improved functional control.
40mm Thickened Main Shaft
The thickened and extended main shaft uses a 40mm lead screw, supporting balancing work for extra-wide rims.
Multiple Balancing Modes
TWB203 supports multiple balancing modes. TWB205 further supports intelligent workflow functions for parameter input and weight placement.
Wheel Weight Operation Platform
The operation platform makes it easy to cut and apply lead blocks, and includes a storage slot for a 100g calibration wheel weight.
Tire Protection Cover
The machine is equipped with a luxury tire protection cover. An external sonar measuring ruler is optional and should be confirmed before ordering.
Functions And Test Coverage
Functions And Test Coverage
TWB205 adds intelligent functions for tire/rim optimization, hidden weight placement, automatic parameter input, laser-guided placement, and easier imbalance point locking.
OPT Tire/Rim Optimization
The OPT function helps optimize tire and rim combinations, reducing the amount of wheel weights required.
SPO Hidden Weight Placement
The SPO function decomposes and hides imbalance amounts behind wheel spokes, helping keep the wheel more aesthetically clean after balancing.
2D Automatic Measurement
The 2D system automatically measures and inputs distance, diameter, and tire width parameters to reduce manual input work.
Top And Bottom Laser Indicators
Top and bottom laser indicators help guide lead weight placement more easily and accurately.
Cast-Iron Foot Brake
The cast-iron foot brake system helps lock imbalance points for easier and more stable operation.
Optimized Professional Workflow
With OPT, SPO, 2D measurement, laser guidance, and foot brake locking, TWB205 is better suited for workshops that need faster and more precise balancing operations.
Specifications
Specifications And Dimensions
Compare the listed TWB203 and TWB205 wheel balancer specifications before confirming machine model, workshop space, delivery requirements, and quotation.
| Model Specifications | ||
| Specification | TWB203 | TWB205 |
| Model Positioning | Enhanced dynamic wheel balancer | Intelligent precision wheel balancer |
| Maximum Wheel Weight | 65kg | 65kg |
| Power | 0.25kW | 0.25kW |
| Balancing Accuracy | ±1g | ±1g |
| Balancing Speed | Approx. 260 r/min | Approx. 260 r/min |
| Positioning Accuracy | 1.5° | 1.5° |
| Rim Diameter | 10-26″ | 10-26″ |
| Tire Diameter | 1100mm | 1050mm |
| Net Weight | 109kg | 120kg |
| Gross Weight | 133kg | 148kg |
| Noise Level | ≤70dB | ≤70dB |
| Packaging Dimensions | 910 × 850 × 1235mm | 850 × 910 × 1235mm |
| Quantity Per 40ft Container | 56 units | 56 units |

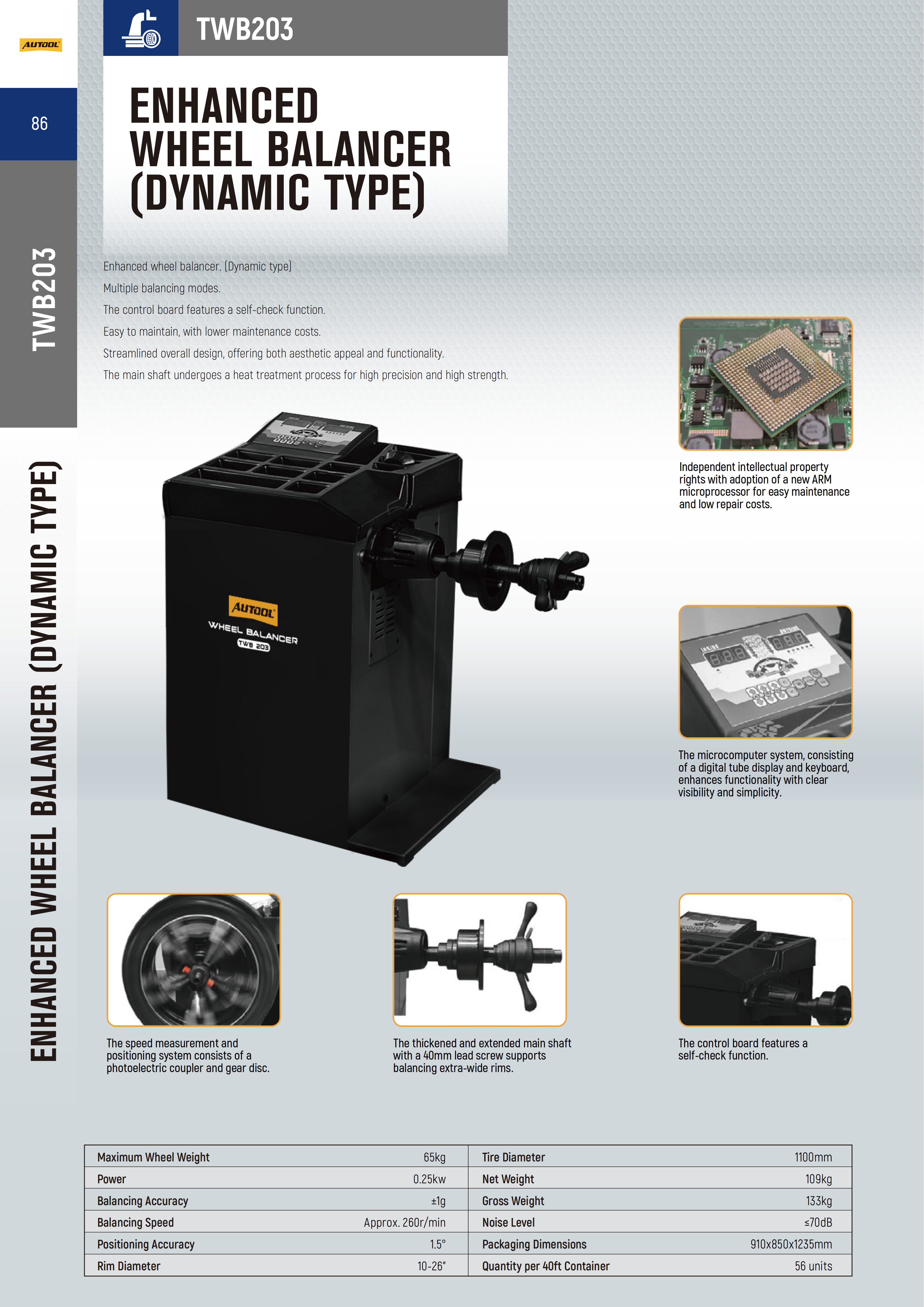

TWB203 Key Specifications
PositioningEnhanced dynamic wheel balancer
Maximum Wheel Weight65kg
Power0.25kW
Balancing Accuracy±1g
Balancing SpeedApprox. 260 r/min
Positioning Accuracy1.5°
Rim Diameter10-26″
Tire Diameter1100mm
Net / Gross Weight109kg / 133kg
Packaging Dimensions910 × 850 × 1235mm

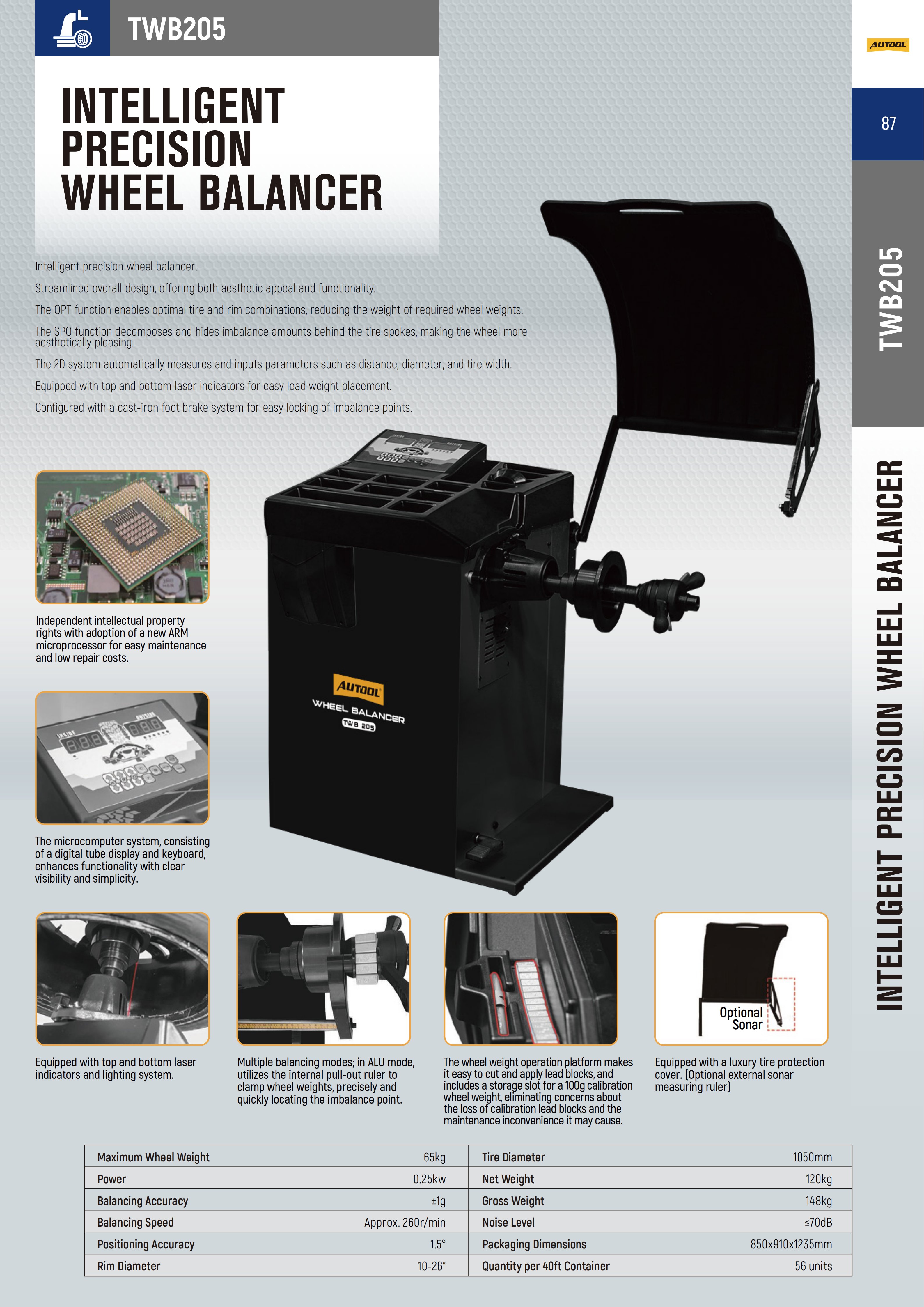

TWB205 Key Specifications
PositioningIntelligent precision wheel balancer
Maximum Wheel Weight65kg
Power0.25kW
Balancing Accuracy±1g
Balancing SpeedApprox. 260 r/min
Positioning Accuracy1.5°
Rim Diameter10-26″
Tire Diameter1050mm
Net / Gross Weight120kg / 148kg
Packaging Dimensions850 × 910 × 1235mm
Specification Note
Specification Note
Specification Note
- The listed dimensions are packaging dimensions, not a detailed installation drawing.
- Confirm available workshop space, delivery access, machine weight, and final configuration before ordering.
- No dedicated Packing List image is provided in the source content, so no Box / Packing List module is used.
Before You Order And Use
Before You Order And Use
Confirm model differences, optional configurations, installation space, delivery conditions, and machine weight before ordering.
Purchase And Configuration Notes
- TWB203 is the enhanced dynamic wheel balancer option.
- TWB205 is the intelligent precision wheel balancer option.
- TWB205 includes OPT, SPO, 2D automatic measurement, laser indicators, and cast-iron foot brake support.
- TWB203 focuses on practical balancing, self-check control board, easy maintenance, and lower repair cost.
- The 40mm thickened and extended lead screw supports balancing work for extra-wide rims.
- The wheel weight platform includes a storage slot for a 100g calibration wheel weight.
- The tire protection cover is included; the external sonar measuring ruler is optional and should be confirmed before ordering.
- Confirm available space, machine weight, packaging dimensions, delivery requirements, optional configuration, and quotation before purchase.
Questions And Answers
These answers cover TWB203 / TWB205 model differences, model selection, OPT, SPO, 2D automatic measurement, extra-wide rim support, optional sonar measuring ruler, and quotation confirmation.
TWB203 is an enhanced dynamic wheel balancer focused on practical balancing, multiple balancing modes, control board self-check, easy maintenance, and lower maintenance cost. TWB205 is an intelligent precision wheel balancer with OPT, SPO, 2D automatic measurement, laser indicators, and cast-iron foot brake support.
Choose TWB203 if your workshop needs a practical enhanced wheel balancer with easier maintenance and lower maintenance cost. Choose TWB205 if your workshop needs intelligent precision functions such as automatic parameter measurement, laser-guided placement, OPT optimization, SPO hidden weights, and foot brake locking.
Yes. TWB203 supports multiple balancing modes and is designed as an enhanced dynamic wheel balancer for professional balancing service.
OPT helps optimize tire and rim combinations to reduce the amount of wheel weights required. SPO decomposes and hides imbalance amounts behind wheel spokes, helping improve the final wheel appearance after balancing.
Yes. TWB205 uses a 2D system to automatically measure and input distance, diameter, and tire width parameters, reducing manual input work and improving balancing workflow efficiency.
The thickened and extended main shaft uses a 40mm lead screw and supports balancing work for extra-wide rims. Confirm your target wheel size and workshop use case before ordering.
The tire protection cover is included, and the external sonar measuring ruler is optional. Confirm the final configuration before ordering.
Contact AUTOOL Store before ordering to confirm TWB203 / TWB205 model selection, optional sonar measuring ruler, machine size, machine weight, packaging dimensions, configuration, delivery requirements, and quotation.
Warranty And Contact
Warranty And Contact
For TWB203 / TWB205 model selection, OPT / SPO / 2D measurement confirmation, laser indicator and foot brake confirmation, optional sonar measuring ruler, machine size, weight, configuration, and quotation support, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming whether TWB203 or TWB205 is better for your workshop, whether intelligent functions are needed, whether optional sonar measurement should be configured, and whether installation space, machine weight, and delivery conditions match your service environment.
- TWB203 / TWB205 model selection
- OPT / SPO / 2D measurement confirmation
- Laser indicator and cast-iron foot brake confirmation
- Optional sonar measuring ruler confirmation
- Machine size, net weight, gross weight, and packaging dimensions confirmation
- Wheel balancer configuration and quotation support
