AUTOOL HTS558 Walnut Blaster Engine Cleaner

Original price was: US$479.00.Current price is: US$359.00.

Key Features
  • Intake Cleaning
  • Closed-Loop Recovery
  • Walnut Media
Key Features
☰ REQUEST BULK / B2B QUOTEOfficial Quote Request
Secure checkoutFast supportBulk ready
AUTOOL HTS558

Product Overview

The AUTOOL HTS558 walnut blaster is a 1200W walnut sand de-carbon cleaner designed for intake pipe, intake manifold, and intake valve backside carbon deposit cleaning. It uses an external air compressor to drive walnut shell abrasive for physical blasting, while the built-in vacuum recovery and dust filter help separate carbon residue from reusable walnut media.

1200W Motor External Air Source 0.6-1.2mm Walnut Media Built-In Dust Filter
13LCapacity
0.02MPaVacuum Suction
<300L/minAirflow
3 YearsSupport

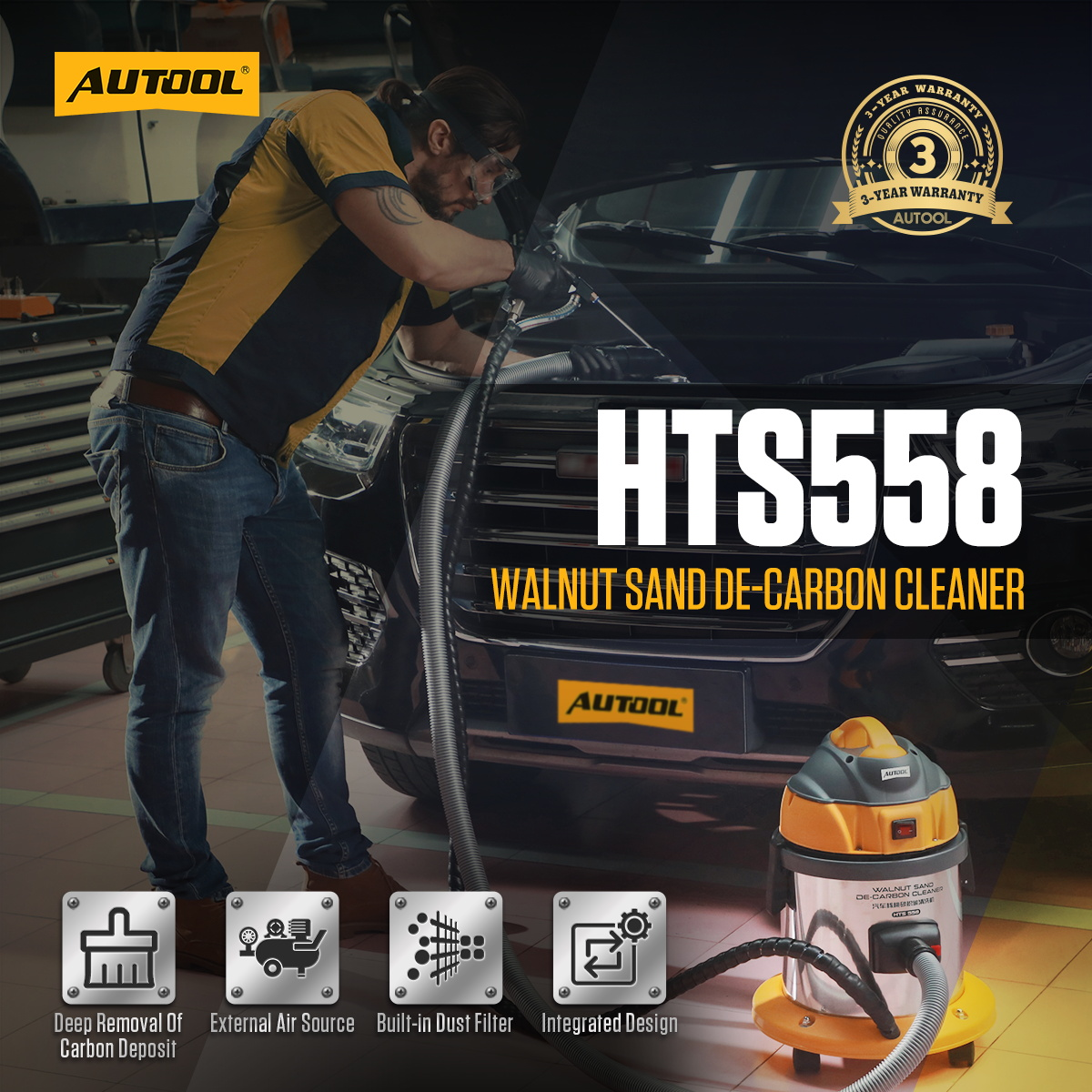

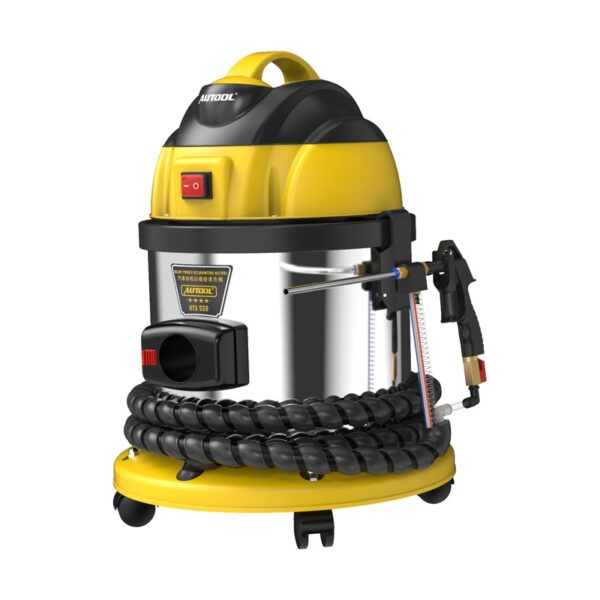

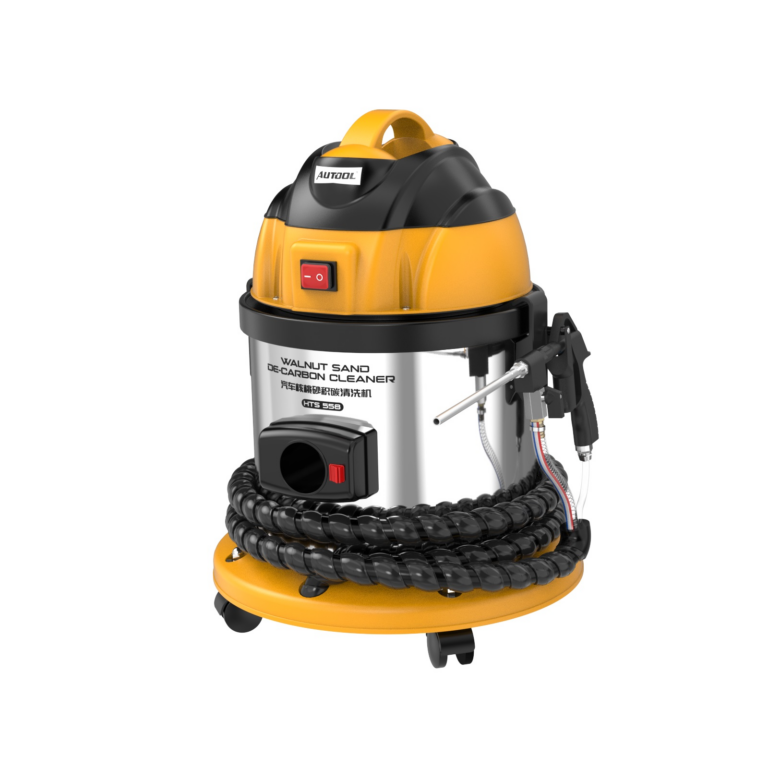

AUTOOL HTS558 walnut sand de-carbon cleaner main product image Click to enlarge
AUTOOL HTS558 walnut blaster three year warranty image Click to enlarge
Before You Order And Use

Before You Order And Use

HTS558 needs walnut shell abrasive, an external air compressor, and correct intake valve preparation. Review the media size, compressor requirement, safety gear, and cleaning range before use.

External Air Compressor Required

The package does not include a high-pressure air pump or air compressor. Use an external compressor with sufficient pressure, generally 6bar or above. The original requirement also mentions up to about 0.7MPa.

Walnut Sand Not Included

Walnut shell abrasive is not included in the package. Purchase suitable walnut media separately before cleaning.

Use 0.6-1.2mm Media

Use walnut shell abrasive between 0.6-1.2mm for HTS558. Under normal conditions, the media can usually be reused 5-10 times.

Dry Air Is Recommended

Use an air compressor equipped with a dryer filter when possible. Moisture can make walnut shell media clump and reduce blasting performance.

Close Intake Valve First

Turn off the engine and rotate the crankshaft to close the intake valve before blasting. Clean one intake pipe or intake port at a time.

Wear Safety Protection

Wear safety goggles and respiratory protection during operation to reduce risk from debris, dust, and fine walnut shell particles.

Application Limits

  • HTS558 is designed for engine intake pipe, intake manifold, and intake valve backside carbon cleaning.
  • It is not intended for injector, throttle valve, or cylinder carbon cleaning. For injector cleaning tools, use the AUTOOL injector cleaner category.
  • High-precision engine intake systems can be sensitive to foreign matter. Prepare the intake correctly before cleaning.
  • Small residual walnut powder in the intake pipe will burn to ash at high temperature after the engine starts, but correct recovery and inspection are still recommended.
  • Chemical cleaners may corrode pipes or shorten engine service life; walnut shell abrasive provides a physical cleaning method when used correctly.
Key Features

Key Features

HTS558 combines external air-source blasting with vacuum recovery, dust filtration, reusable walnut media handling, multiple intake adapters, and workshop-friendly mobility for intake carbon deposit cleaning.

Intake Manifold Cleaning

The sandblasting method helps remove carbon deposits inside the intake manifold and intake pipe, supporting smoother airflow and engine performance recovery.

Intake Valve Backside Cleaning

Walnut shell abrasive impacts carbon deposits on the backside of the intake valve without using corrosive chemical cleaning agents.

External Air Source Impact

The 1200W machine works with an external air compressor to provide continuous blasting force and improve carbon removal efficiency.

Built-In Dust Filter

The filter separates walnut shell abrasive from carbon deposits so the walnut media can be reused while reducing residual particles.

Spray And Recovery Together

HTS558 sprays and recovers walnut abrasive through an integrated closed-loop process, helping save time and reduce manual cleanup.

5 Intake Adapters

The machine includes 5 types of adapters to support different intake port shapes and vehicle cleaning needs.

Reusable Walnut Media

Walnut shell abrasive is a natural polishing medium with hardness lower than metal but higher than carbon deposits, allowing repeated use under normal conditions.

360° Swivel Caster

The 360° caster design makes the walnut blasting machine easier to move around a garage or workshop.

3-Year Support

AUTOOL provides 3-year support for eligible non-human damage cases, including accessory, setup, and troubleshooting assistance.

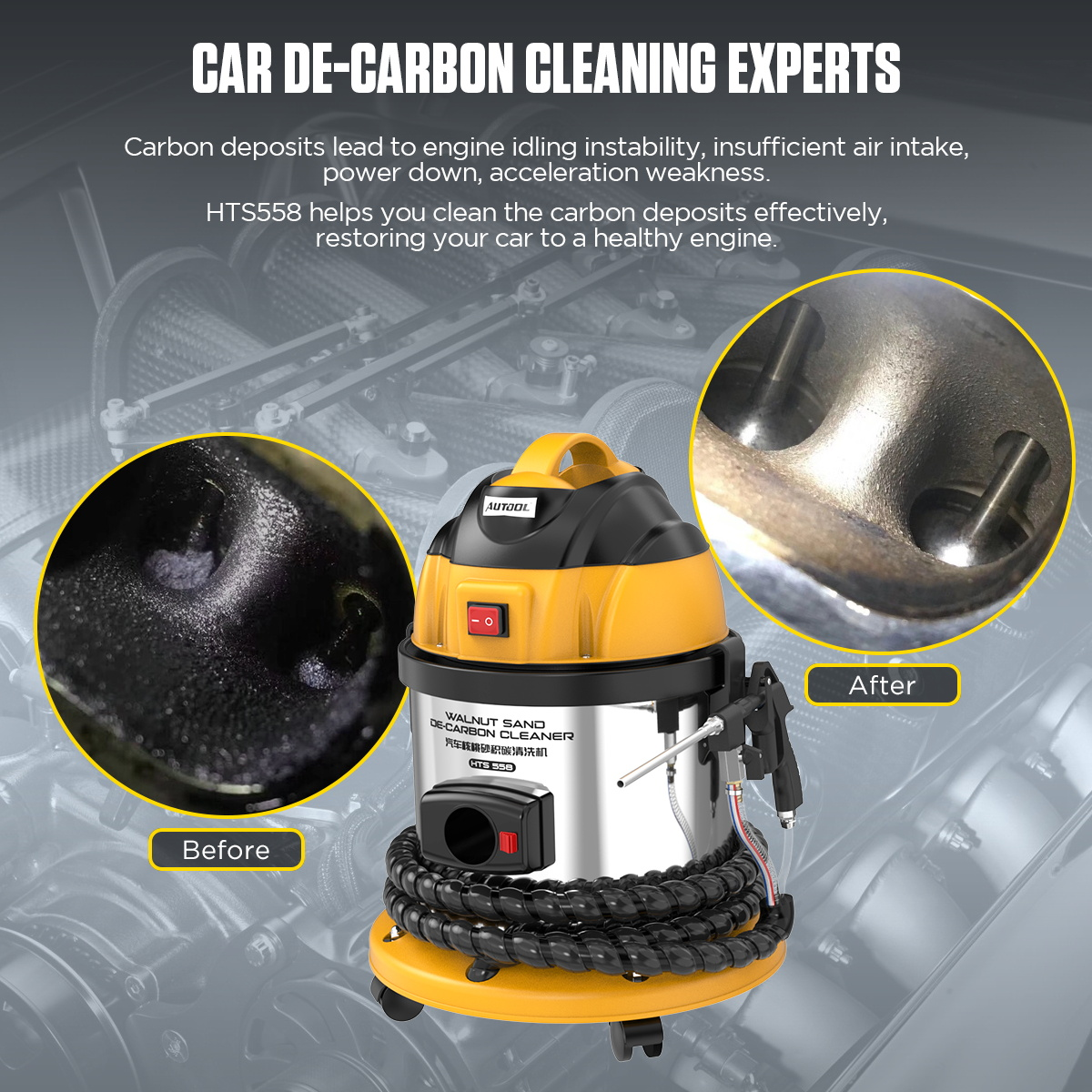

AUTOOL HTS558 before and after walnut blasting carbon deposit cleaning effect Click to enlarge

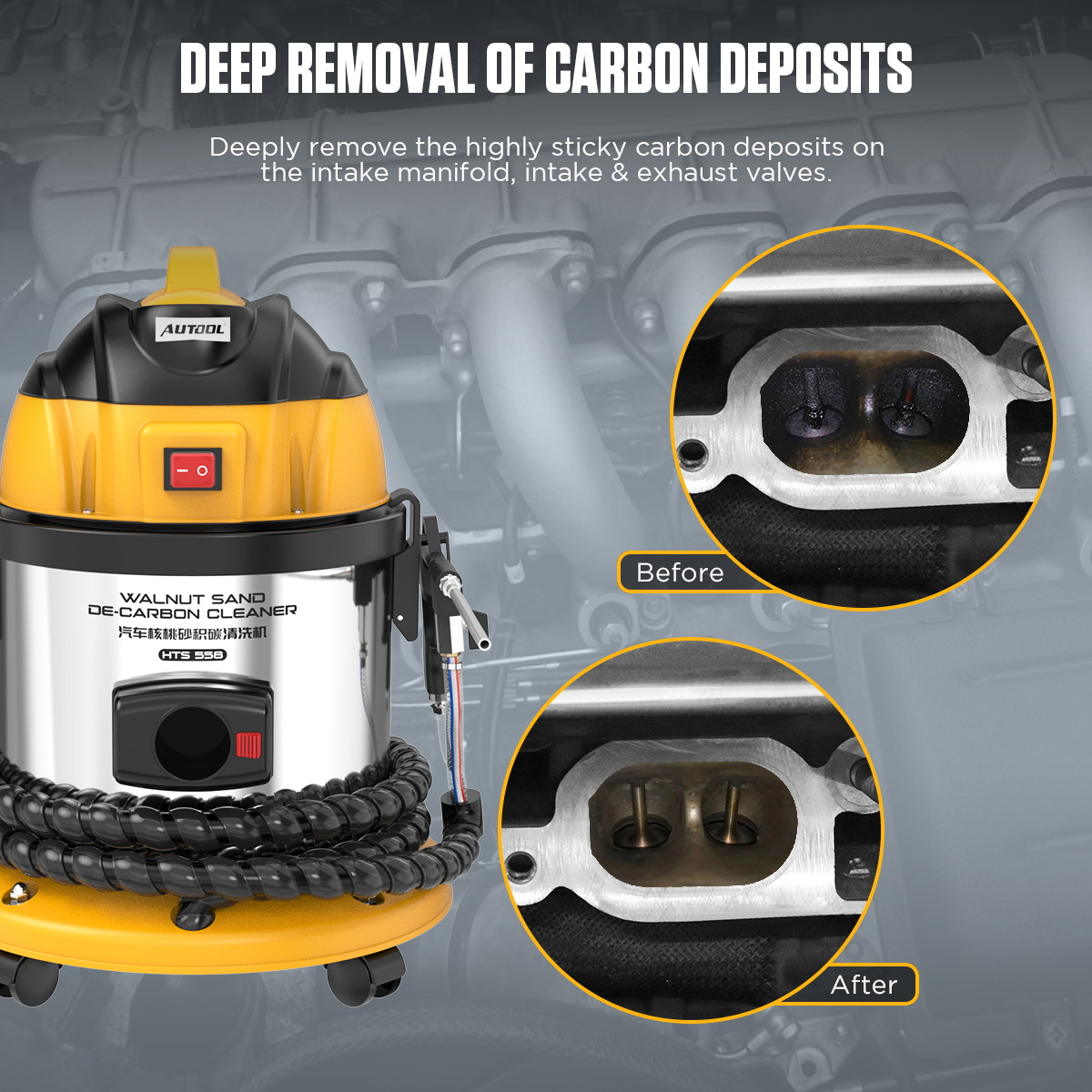

AUTOOL HTS558 deep removal of intake carbon deposits feature image Click to enlarge

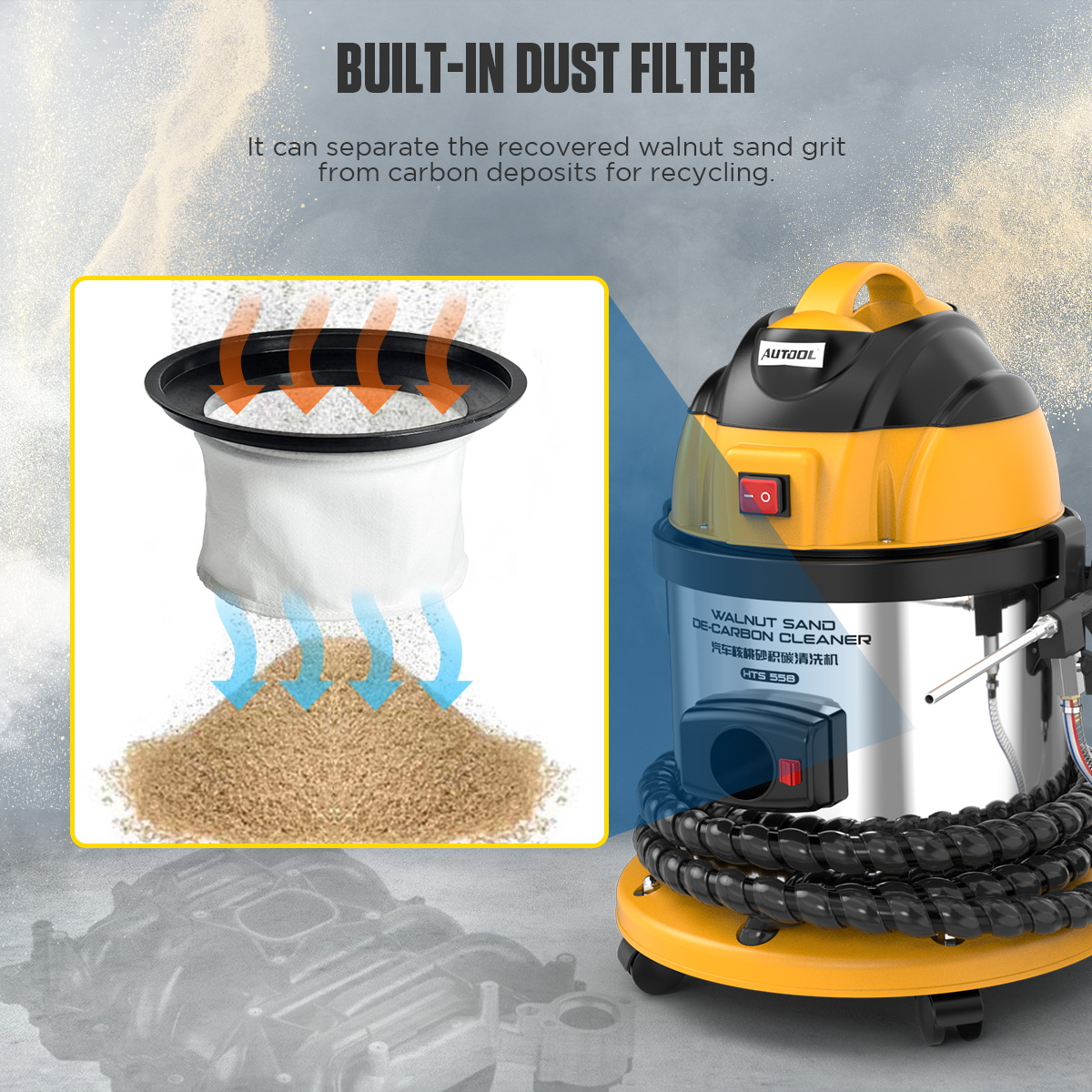

AUTOOL HTS558 built-in dust filter for walnut sand and carbon deposit separation Click to enlarge

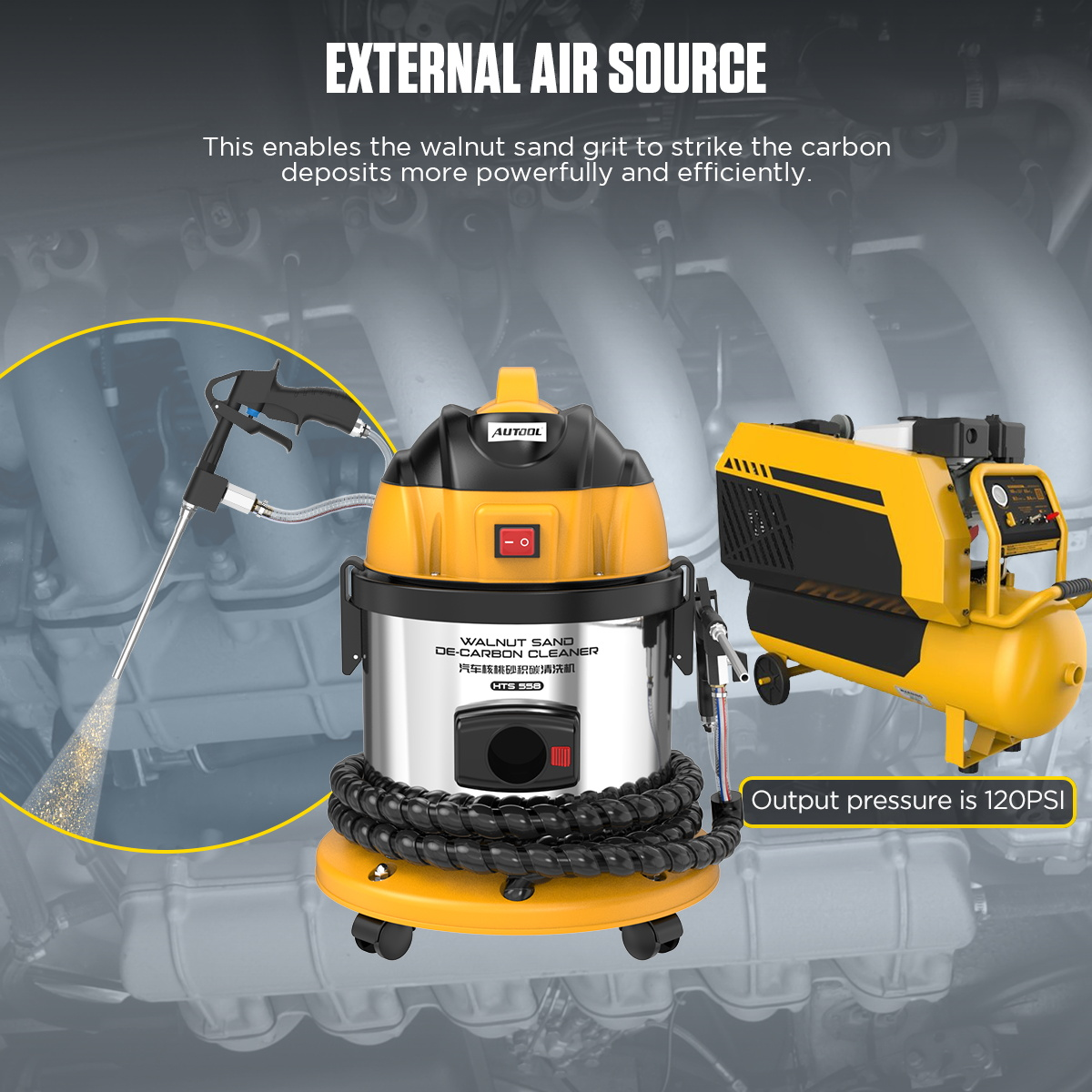

AUTOOL HTS558 external air source walnut blasting connection image Click to enlarge

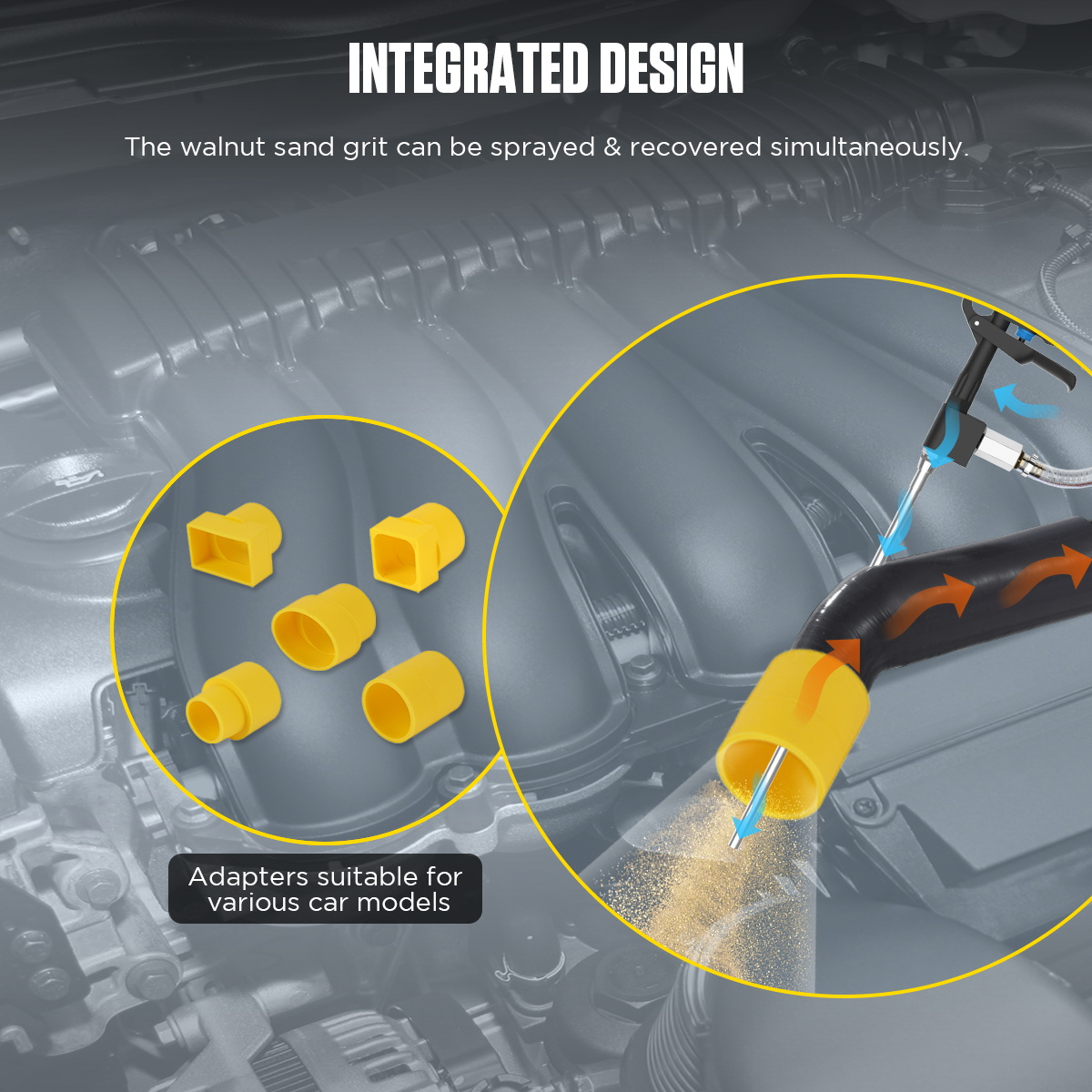

AUTOOL HTS558 integrated design with adapters for vehicle intake models Click to enlarge
How It Works

How It Works

Walnut blasting is a physical carbon cleaning method. Crushed walnut shells hit carbon deposits repeatedly, while the recovery system collects used abrasive and debris through a closed-loop process.

1. Add Walnut Media

Open the machine cover and add 2-4kg walnut powder. Press the dust guard onto the walnut powder and close the cover securely.

2. Blast With Air

The external air compressor drives walnut shell abrasive through the spray gun at high speed for carbon deposit impact cleaning.

3. Remove Deposits

Walnut powder hardness is lower than metal but higher than carbon deposits, helping clean intake carbon without damaging the metal surface when used correctly.

4. Recover And Separate

The vacuum recovery system collects walnut media and carbon residue. The filter helps separate deposits from reusable walnut shell abrasive.

Specifications

HTS558 Product Specifications

HTS558 is a 1200W walnut sand de-carbon cleaner with 13L capacity, 0.02MPa vacuum suction, less than 300L/min airflow, and 0.6-1.2mm walnut shell abrasive compatibility.

Core Specifications
ProductAUTOOL HTS558 Walnut Sand De-Carbon Cleaner
ApplicationIntake pipe, intake manifold, and intake valve backside carbon cleaning
Input Voltage110V / 220V
Rated Frequency50 / 60Hz
Rated Power1200W
Capacity13L
Vacuum Suction0.02MPa
Airflow<300L/min
Walnut Shell Abrasive Size0.6-1.2mm
Suggested Walnut Powder Amount2-4kg
Product Weight10kg
Package Dimensions400 × 400 × 540mm
Adapters5 types of intake adapters
Air SourceExternal air compressor required; not included
FilterBuilt-in dust filter
Mobility360° swivel caster

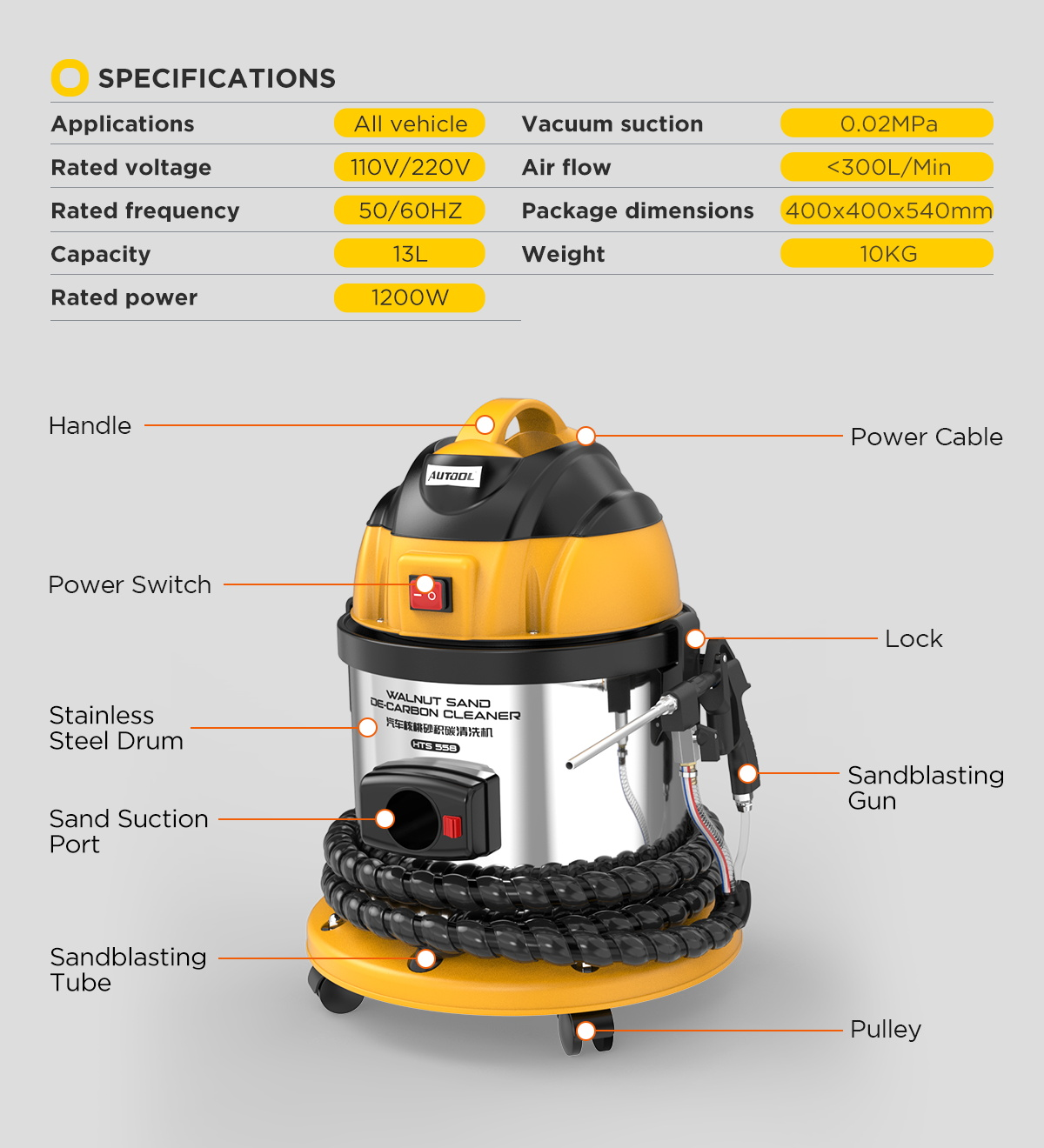

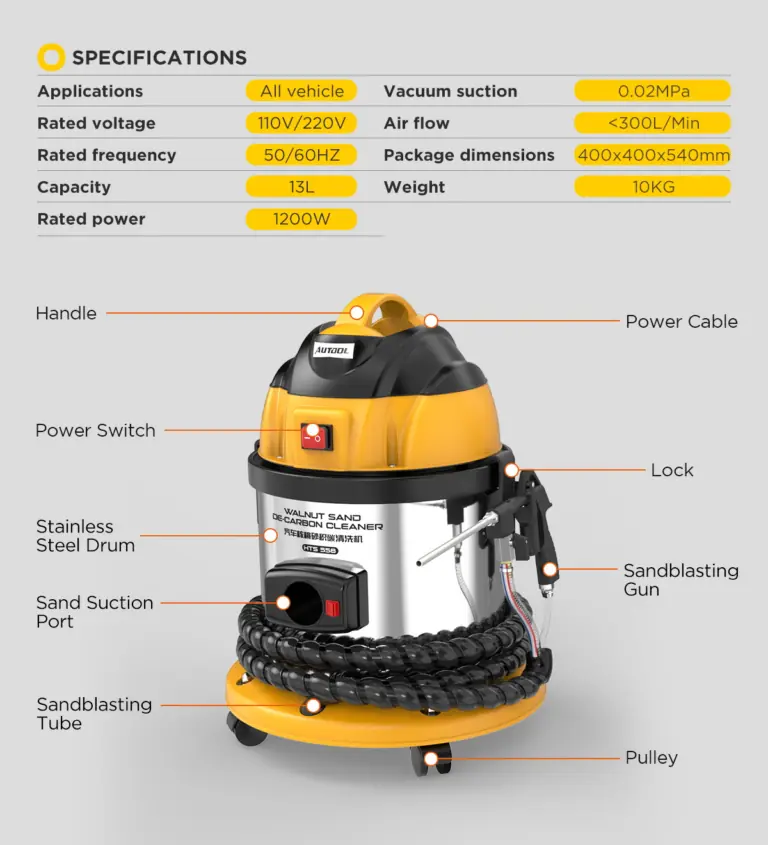

AUTOOL HTS558 specifications and product details image Click to enlarge
Core Specifications
ProductAUTOOL HTS558 Walnut Sand De-Carbon Cleaner
ApplicationIntake pipe, intake manifold, and intake valve backside carbon cleaning
Input Voltage110V / 220V
Rated Frequency50 / 60Hz
Rated Power1200W
Capacity13L
Vacuum Suction0.02MPa
Airflow<300L/min
Walnut Shell Abrasive Size0.6-1.2mm
Suggested Walnut Powder Amount2-4kg
Product Weight10kg
Package Dimensions400 × 400 × 540mm
Adapters5 types of intake adapters
Air SourceExternal air compressor required; not included
FilterBuilt-in dust filter
Mobility360° swivel caster
How To Use

How To Use

Use HTS558 only after the engine is turned off, the intake valve is closed, walnut media has been added, and the external air compressor is securely connected.

Step 1: Add Walnut Powder

Open the HTS558 cover, pour in 2-4kg walnut powder, press the dust guard onto the walnut powder, and close the cover securely.

Step 2: Assemble Spray And Recovery Hose

Join the walnut blaster spray gun muzzle with the recovery hose. The recovery hose has a hole for the spray gun muzzle connection.

Step 3: Prepare The Engine

Remove the intake manifold, insert the spray gun into the intake, and rotate the crankshaft to close the intake valve before blasting.

Step 4: Connect Air And Power

Connect the external high-pressure air compressor to the HTS558, connect AC power, and confirm all connections are secure before operation.

Step 5: Clean And Inspect

Start cleaning for about 1-3 minutes depending on carbon deposit condition, then stop the machine and check the cleaning result.

Use Notes

  • Clean one intake pipe or intake port at a time. A 6-cylinder engine should be cleaned 6 times, port by port.
  • Use 0.6-1.2mm walnut shell abrasive. Under normal conditions, the abrasive can usually be reused 5-10 times.
  • Wear safety goggles and respiratory protection during operation.
  • Use dry compressed air to prevent moisture buildup and media clumping.
  • Cleaning time depends on carbon deposit condition. Inspect the result before moving to the next intake port.

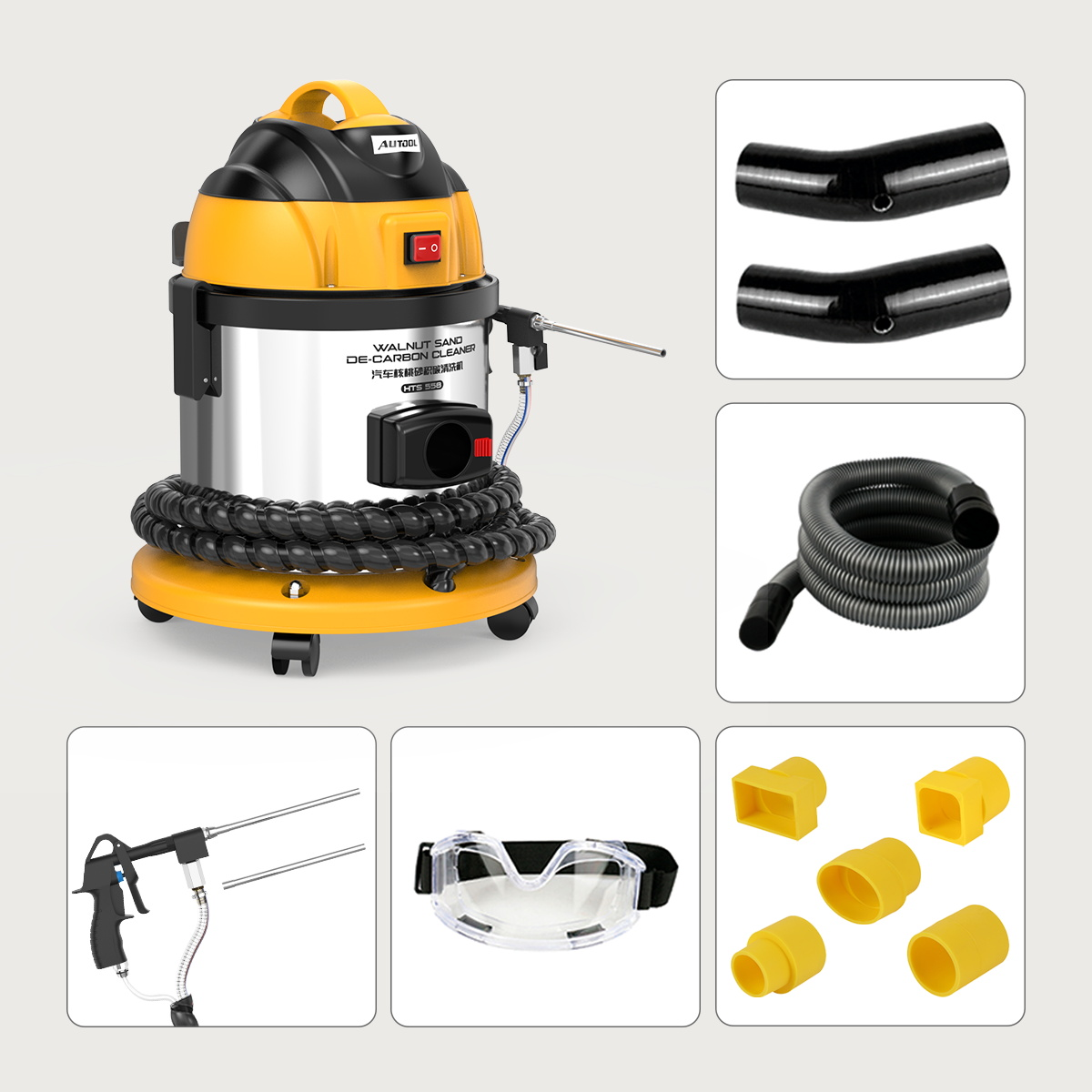

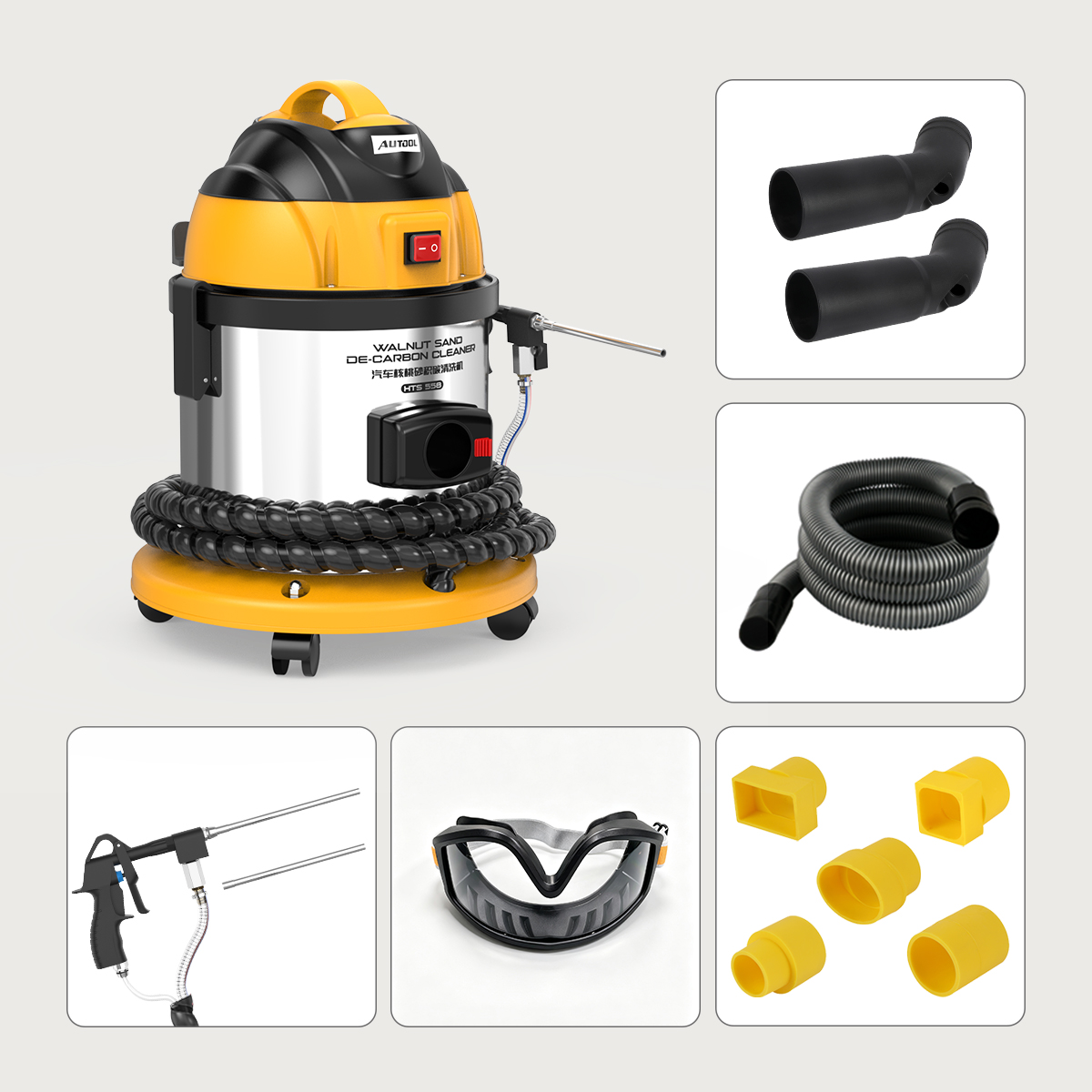

AUTOOL HTS558 packing list with main unit spray gun hose goggles and adapters Click to enlarge
What Is In The Box

What Is In The Box

The package image shows the HTS558 main unit, spray gun, hose, goggles, adapters, and accessories. Walnut sand and the external high-pressure air compressor are not included.

Main UnitAUTOOL HTS558 walnut blaster machine
Spray GunSandblasting gun and nozzle rods shown in the package image
Recovery HoseRecovery hose shown in the package image
Adapters5 yellow intake adapters and black rubber adapters shown in the package image
Safety GogglesIncluded as shown in the package image
Not IncludedWalnut sand and external high-pressure air compressor
Product Comparison

Product Comparison

Compare HTS558 with HTS559, HTS518, HTS678, and HTS728 before choosing power, capacity, working modes, pressure control, filtration, connector range, and combustion chamber cleaning capability.

Choose HTS558

Choose HTS558 if you need a basic 1200W walnut blaster with 13L capacity and 5 adapters for intake pipe and intake valve backside cleaning.

Choose HTS559

Choose HTS559 if you want an upgraded model with 1400W rated power and 30L main unit capacity for higher efficiency and durability.

Choose HTS518

Choose HTS518 if you need High / Low Mode, Low-Speed Mode, more connectors, a storage box, and a three-section telescoping handle.

Choose HTS678

Choose HTS678 if you need 1500W power, a HEPA filter, pressure regulation knob, pressure gauge, and Standard / Expert Mode.

Choose HTS728

Choose HTS728 if you need the upgraded expert-grade model using finer 0.4-0.6mm walnut media and supporting combustion chamber cleaning.

Decision Check

Compare rated power, capacity, adapter quantity, pressure gauge, pressure regulation, operating mode, HEPA filter, and cleaning range before ordering.

Comparison

What Is The Difference Between Auto Engine Decarbonizer Machines?

HTS558 is the basic 1200W / 13L model. HTS559 increases power and capacity. HTS518 adds more connectors and selectable modes. HTS678 adds pressure control, a pressure gauge, HEPA filtration, and expert mode. HTS728 is the advanced combustion chamber cleaning model.

Basic ModelHTS558: 1200W, 13L capacity, 5 adapters, suitable for individual users and general workshops.
Higher CapacityHTS559: 1400W, 30L main unit capacity, better for users who need more capacity and efficiency.
Mode SelectionHTS518: supports High / Low Mode and Low-Speed Mode for different cleaning applications.
Workshop UpgradeHTS678: adds HEPA filter, telescoping handle, pressure regulation, pressure gauge, and Standard / Expert Mode.
Advanced CleaningHTS728: upgraded from HTS678 with finer 0.4-0.6mm walnut shell abrasive and combustion chamber cleaning support.

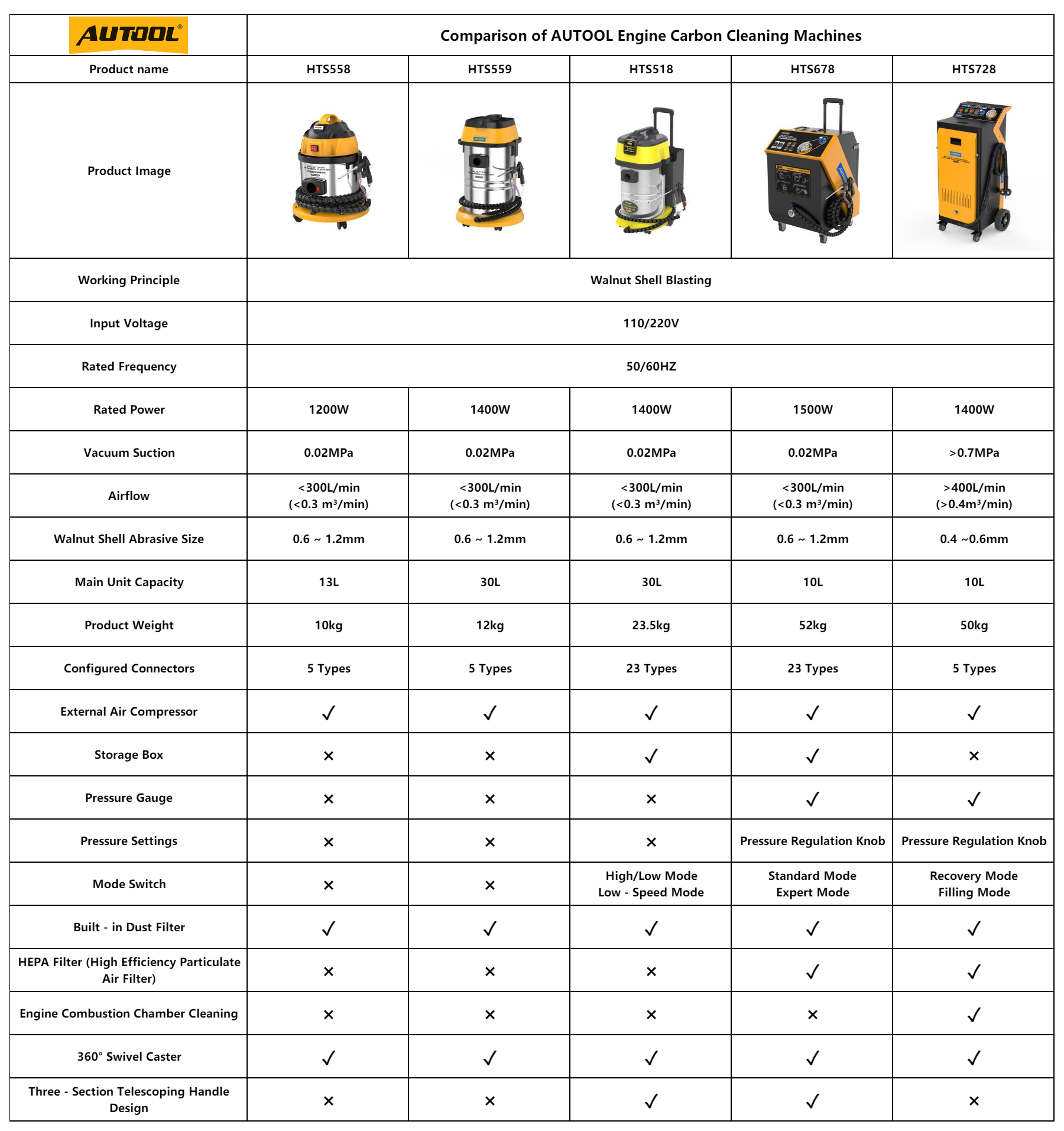

AUTOOL engine carbon cleaning machines comparison chart for HTS558 HTS559 HTS518 HTS678 and HTS728 Click to enlarge
Related Products

Related Products

Compare related AUTOOL walnut blaster models and walnut sand media before choosing the right machine, cleaning range, capacity, and accessory setup.

Manual And Downloads

Manual And Downloads

Download the HTS558 user manual for setup, walnut media filling, compressor connection, adapter use, cleaning steps, safety guidance, and maintenance information.

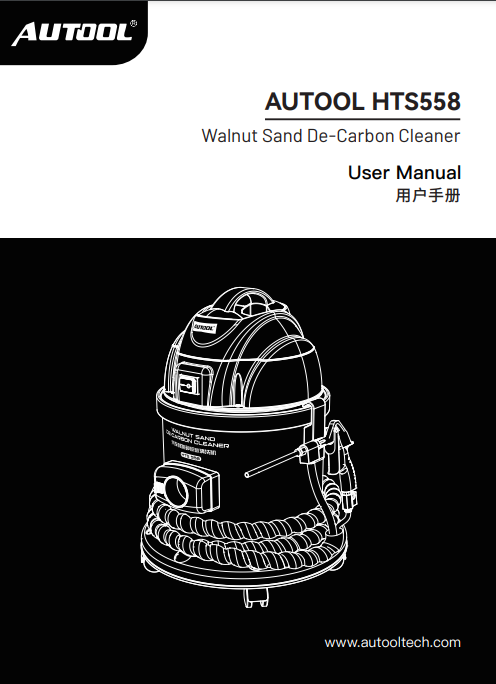

AUTOOL HTS558 walnut sand de-carbon cleaner user manual preview Click to enlarge

AUTOOL HTS558 User Manual

Open the PDF manual for HTS558 operation, connection, cleaning, and safe-use instructions.

Download Manual

Need Setup Confirmation?

Contact AUTOOL Store before ordering if you need to confirm walnut media size, compressor requirement, adapter fitment, cleaning steps, package contents, or model selection.

Email[email protected] WhatsApp+86 189 2647 7404

Questions And Answers

These answers cover walnut sand, carbon deposits, compressor requirements, cleaning range, operation, safety, replacement media, model differences, and support.

Related Guides

Related Guides

Use these related articles to understand walnut shell carbon cleaning, walnut blasting compared with dry ice blasting, and alternative engine carbon cleaning methods.

AUTOOL dry ice blasting cleaner series guide image
Guide / 07-18-2025

Why Is Dry Ice Blasting So Expensive?

More and more car enthusiasts and professionals are choosing dry ice blasting technology as an efficient and eco-friendly vehicle maintenance method. However, many are.

Warranty And Contact

Warranty And Contact

For HTS558 setup, walnut media selection, compressor confirmation, adapter fitment, packing list confirmation, replacement parts, troubleshooting, or model selection, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming HTS558 walnut media size, 2-4kg filling amount, 6bar+ external compressor requirement, dryer filter recommendation, intake valve preparation, adapter choice, package contents, or comparison with HTS559, HTS518, HTS678, and HTS728.

  • 3-year warranty support for eligible non-human damage cases
  • Walnut sand, air compressor, and dryer filter setup confirmation
  • Packing List and accessory confirmation
  • Adapter and intake port cleaning guidance
  • Replacement parts and walnut media purchase support
  • HTS558 / HTS559 / HTS518 / HTS678 / HTS728 model selection
Email Support[email protected] WhatsApp Support+86 189 2647 7404
