AUTOOL CT200 6-Cylinder Fuel Injector Cleaning Machine & Tester
US$319.00
Key Features
- Six-Injector Workshop Capacity
- Clear Visual Comparison
- Clean, Retest, Decide
- Stable, Adjustable Testing
- Six-Injector Workshop Capacity: Clean and test up to six compatible standard 12 V gasoline injectors together for faster batch service and six-cylinder workflows.
- Clear Visual Comparison: Backlit 110 mL graduated tubes make spray shape, delivery volume, and relative flow differences easier to compare side by side.
- Clean, Retest, Decide: Establish a baseline, run ultrasonic cleaning, and repeat matched settings to confirm whether injector balance improves.
- Stable, Adjustable Testing: Electronic pressure control and a digital parameter display support repeatable leakage, spray, simulated-condition, and reverse-flush checks.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support

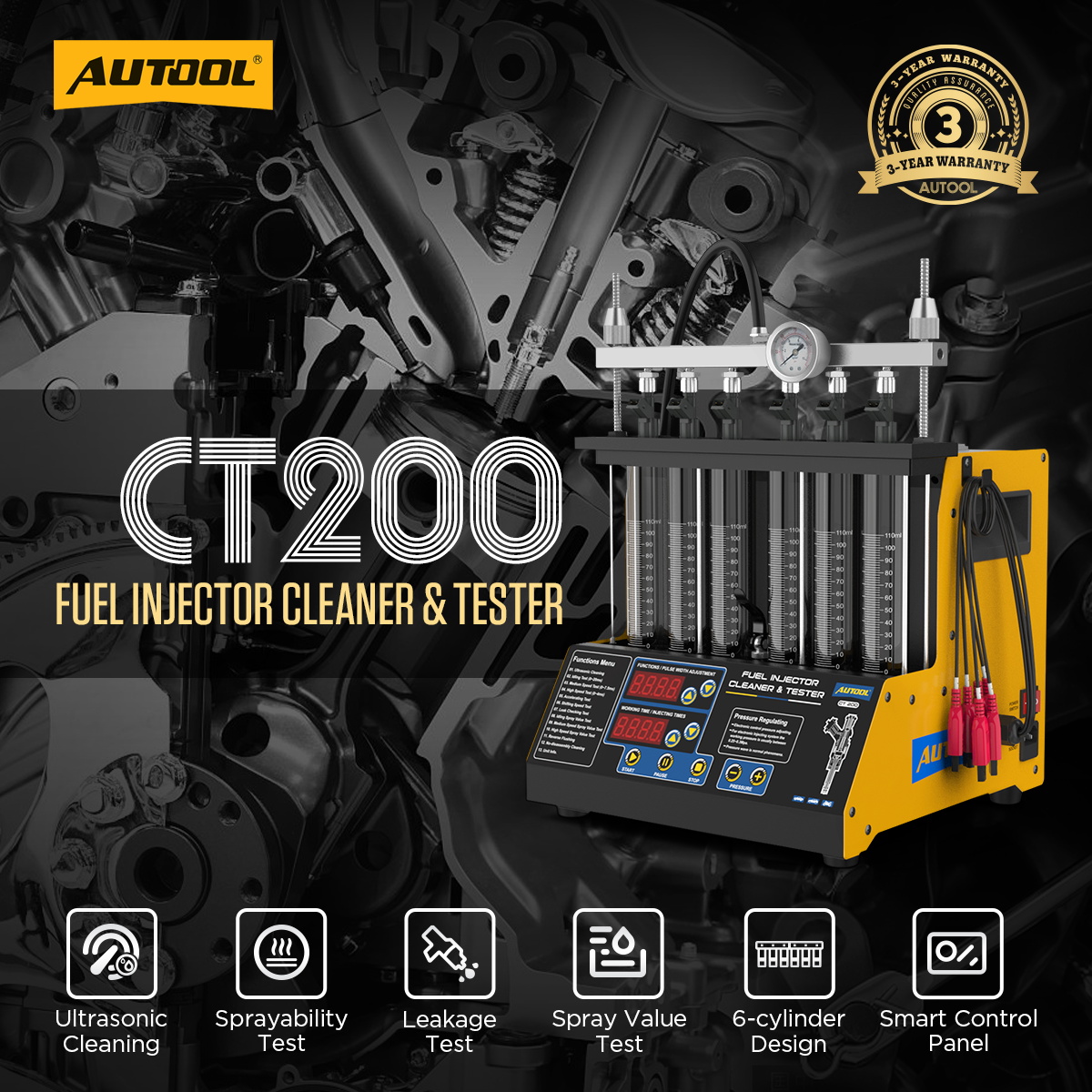

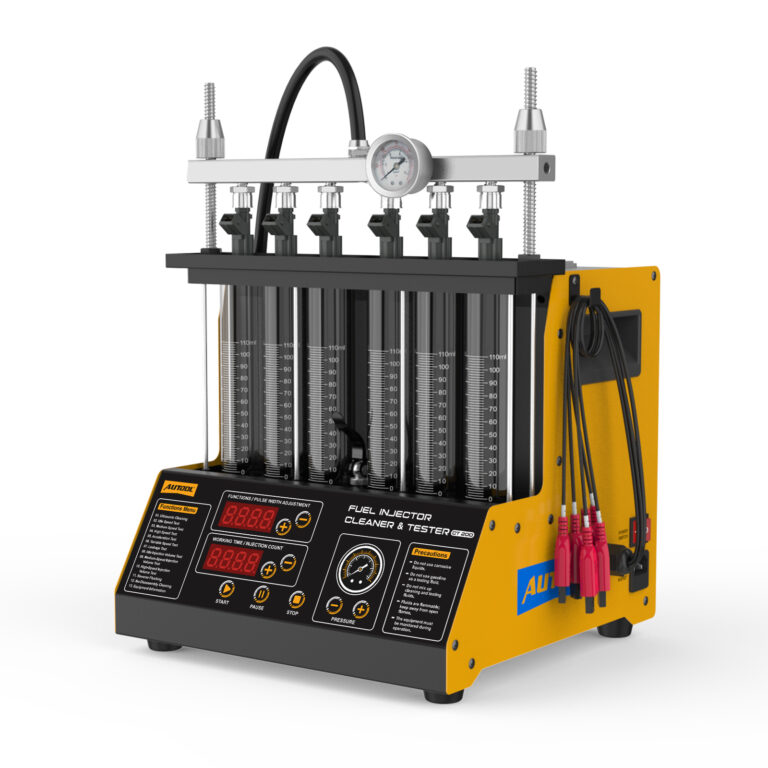

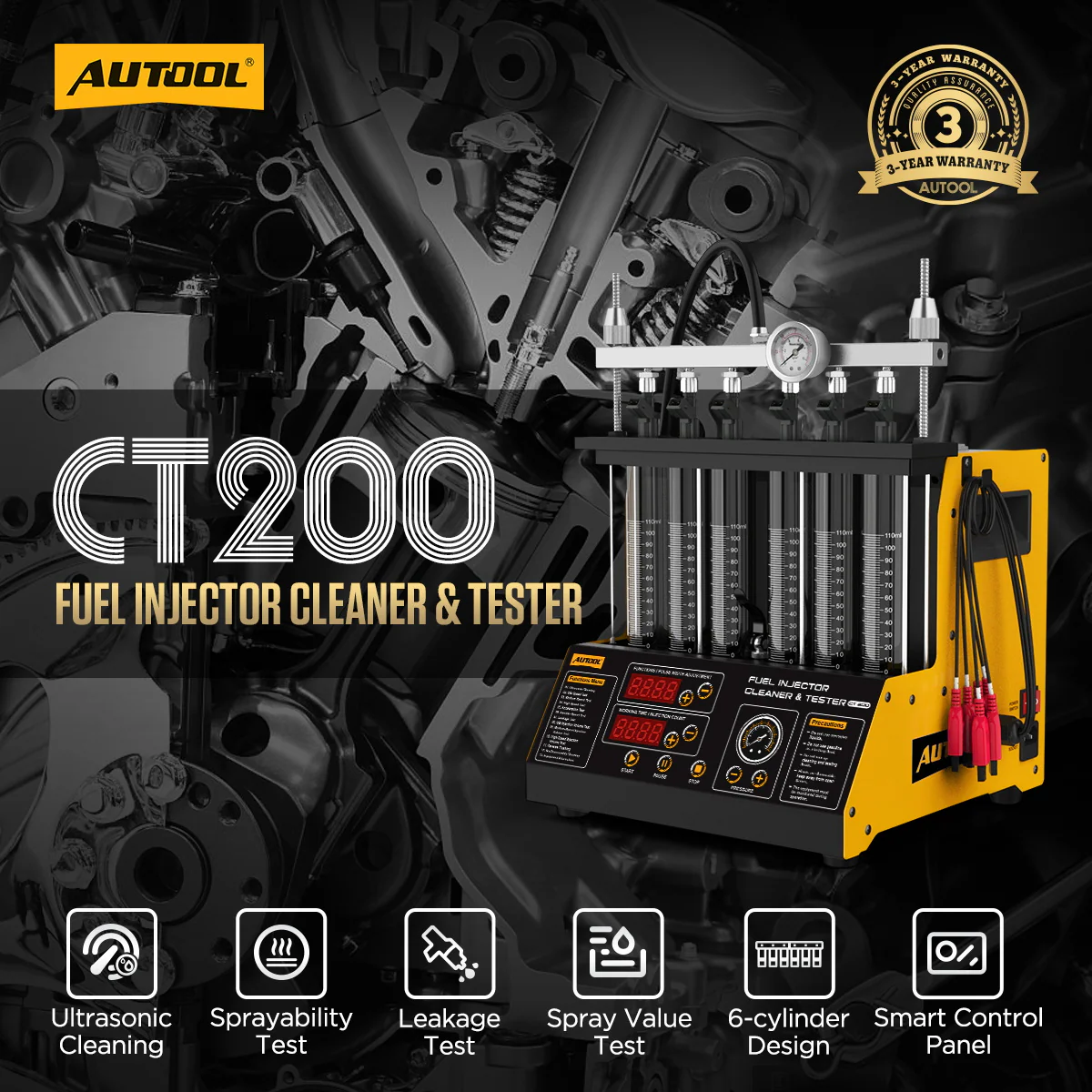

AUTOOL CT200 · six-injector standard injector service bench
6-Cylinder Standard Fuel Injector Cleaning and Testing

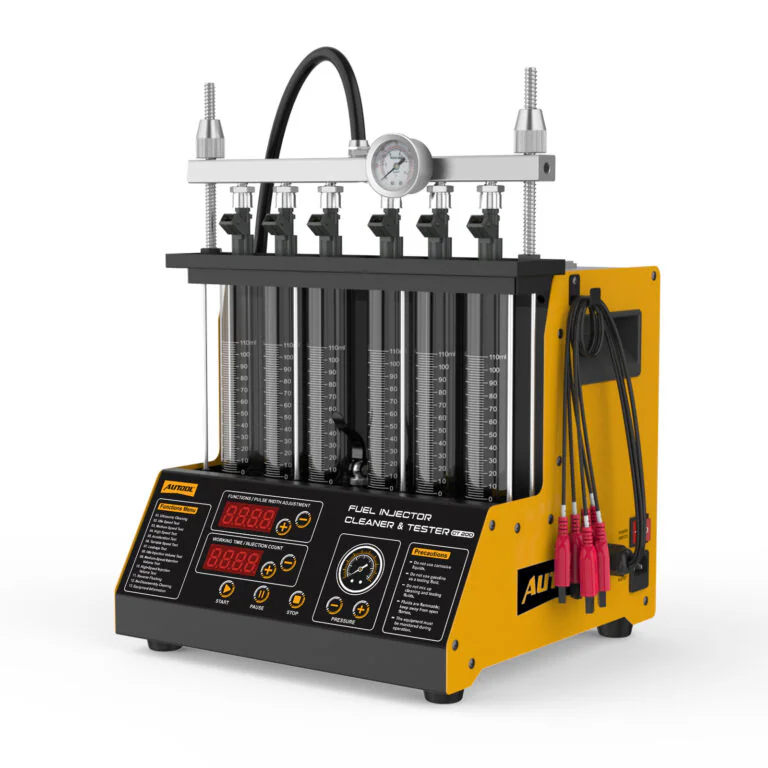

AUTOOL CT200 is a six-injector ultrasonic fuel injector cleaner and tester for up to six standard 12 V gasoline injectors. It combines ultrasonic cleaning with pressure-controlled tests for idle, medium speed, high speed, acceleration, variable speed, leaks, spray pattern, flow, and reverse flushing. Optional accessories are required for cleaning without removing the injectors. It supports 110V / 220V mains input and helps compare injector spray, flow, sealing, and blockage before and after service.
- 6-Cylinder Design

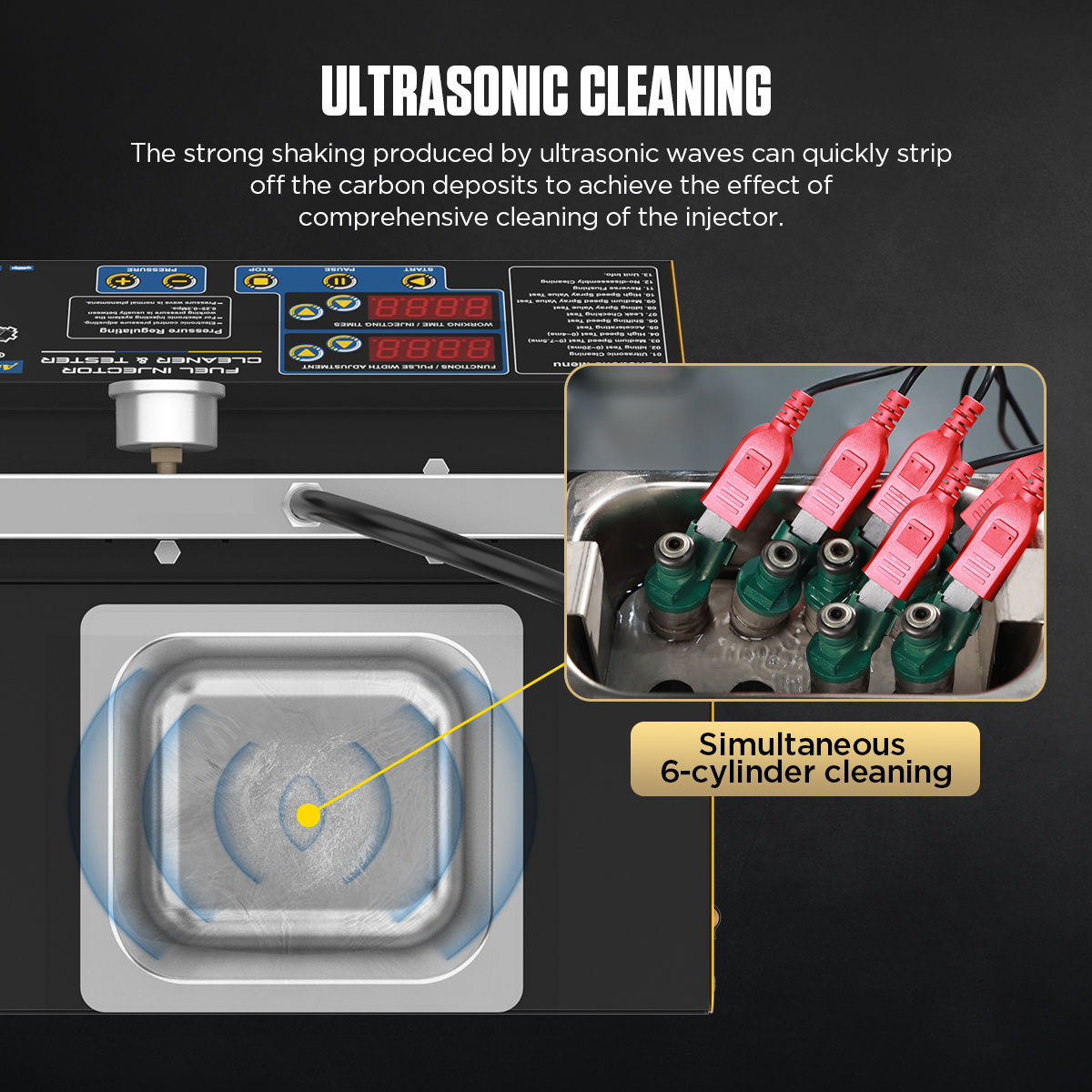

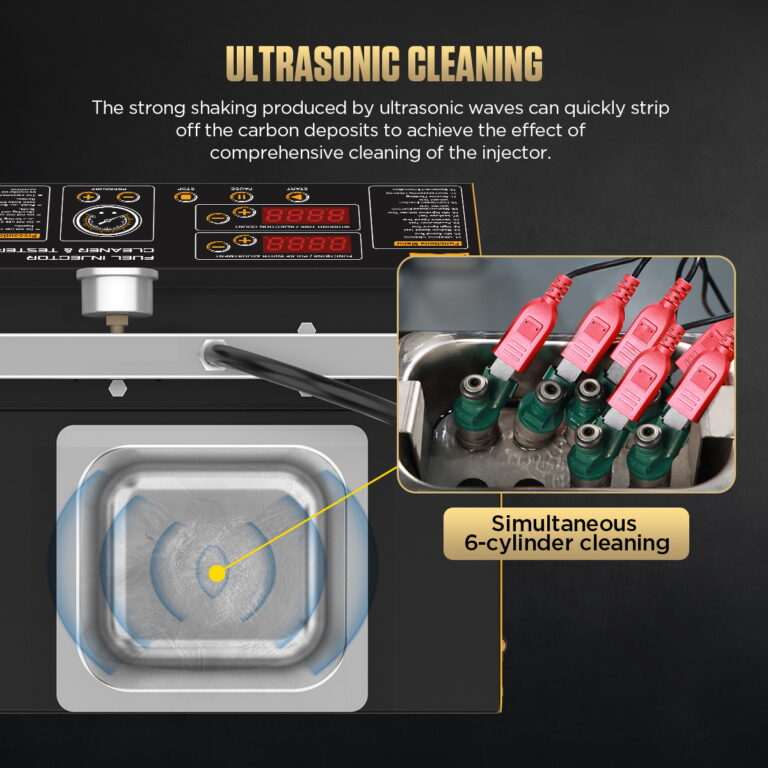

- Ultrasonic Cleaning
- Spray-pattern / leak tests
- Standard 12V Injectors
Core service capabilities
Key Features
CT200 combines six-injector cleaning and testing, pressure control, a digital display, spray-pattern comparison, reverse flushing, and fluid drainage.

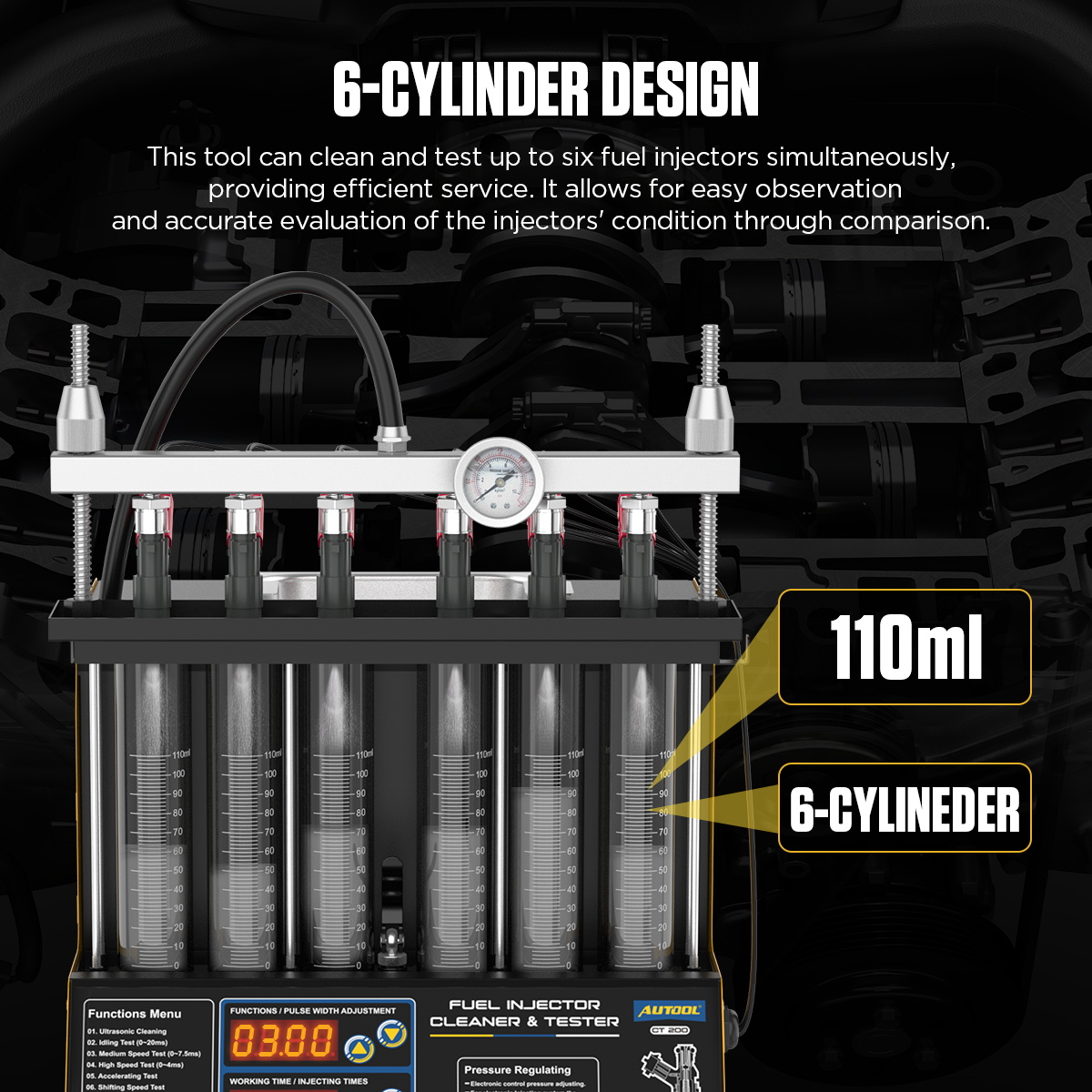

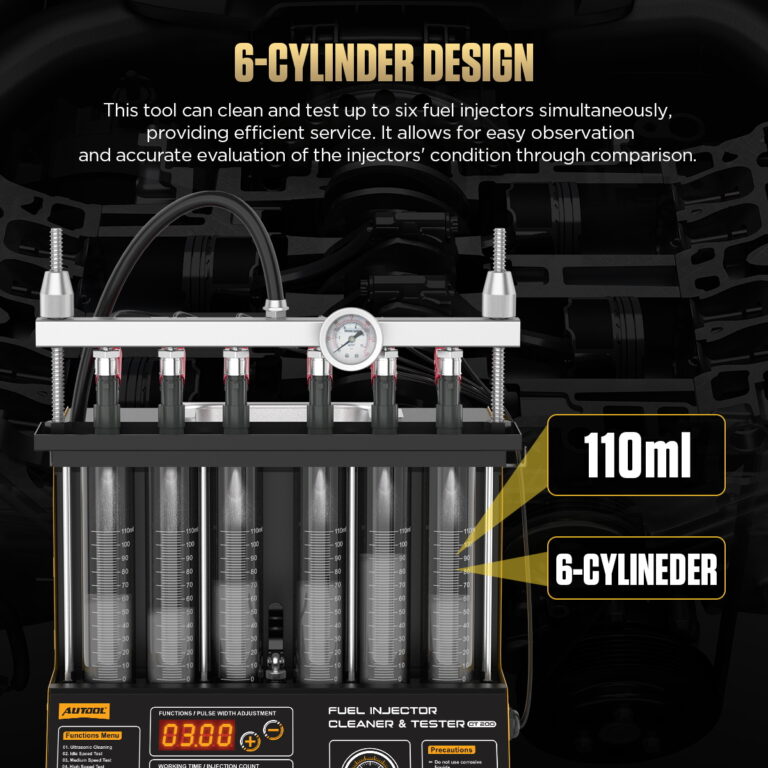

6-Cylinder Test Bench
Clean and test up to six compatible injectors together. The 110 mL measuring tubes make injection volume and spray performance easy to compare.

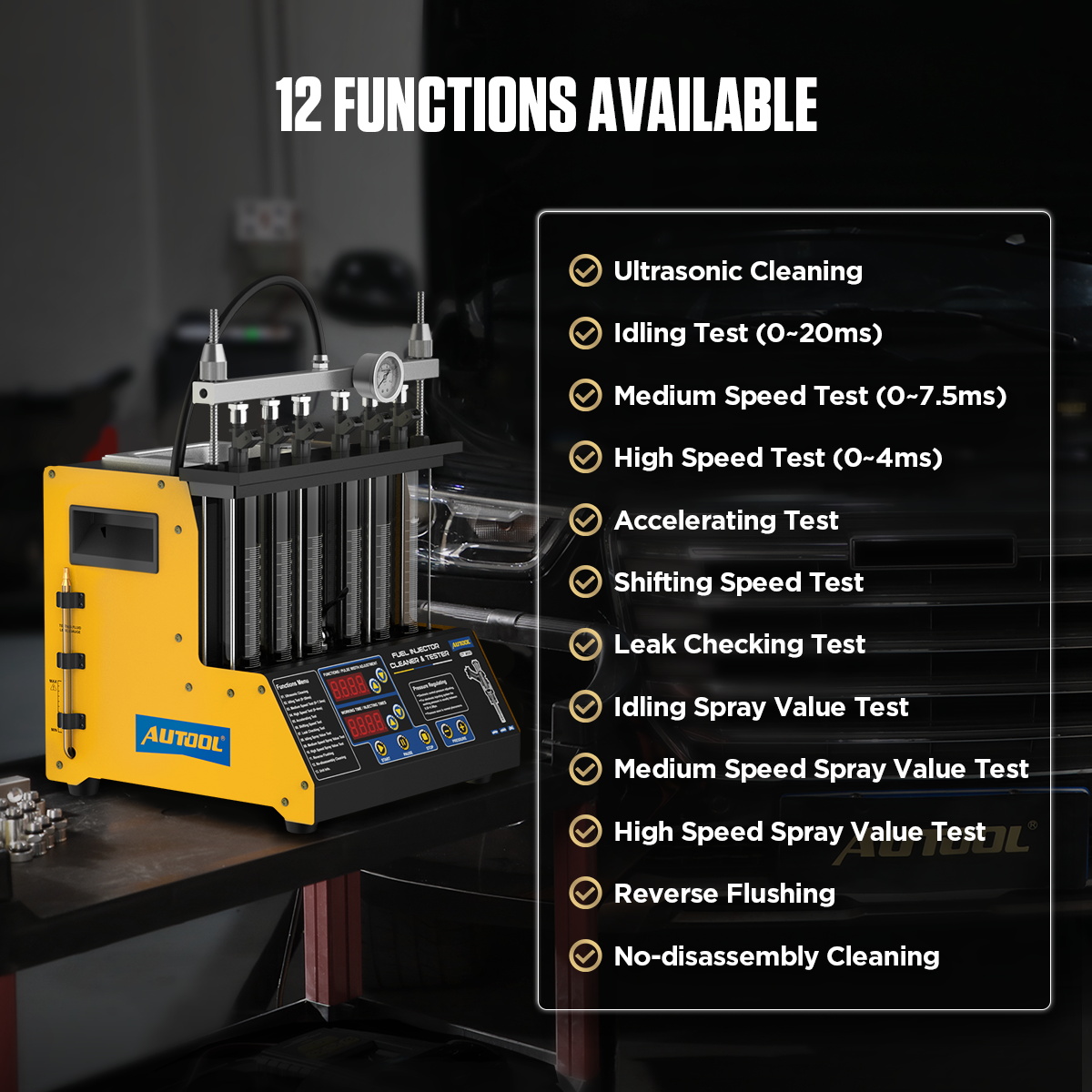

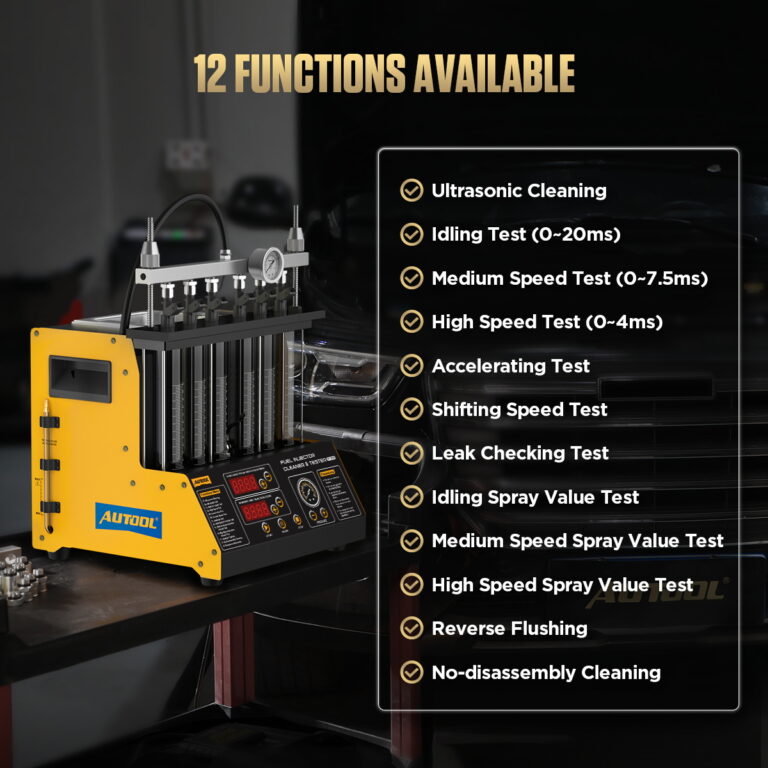

12 Cleaning And Testing Functions
Includes 3 cleaning modes and 9 test modes for simulated engine conditions, leaks, spray-pattern and flow comparison, and reverse flushing. Cleaning without removing the injectors requires optional accessories.
Electronic Pressure Control
Electronic pressure control helps maintain stable test pressure for compatible standard gasoline injectors.

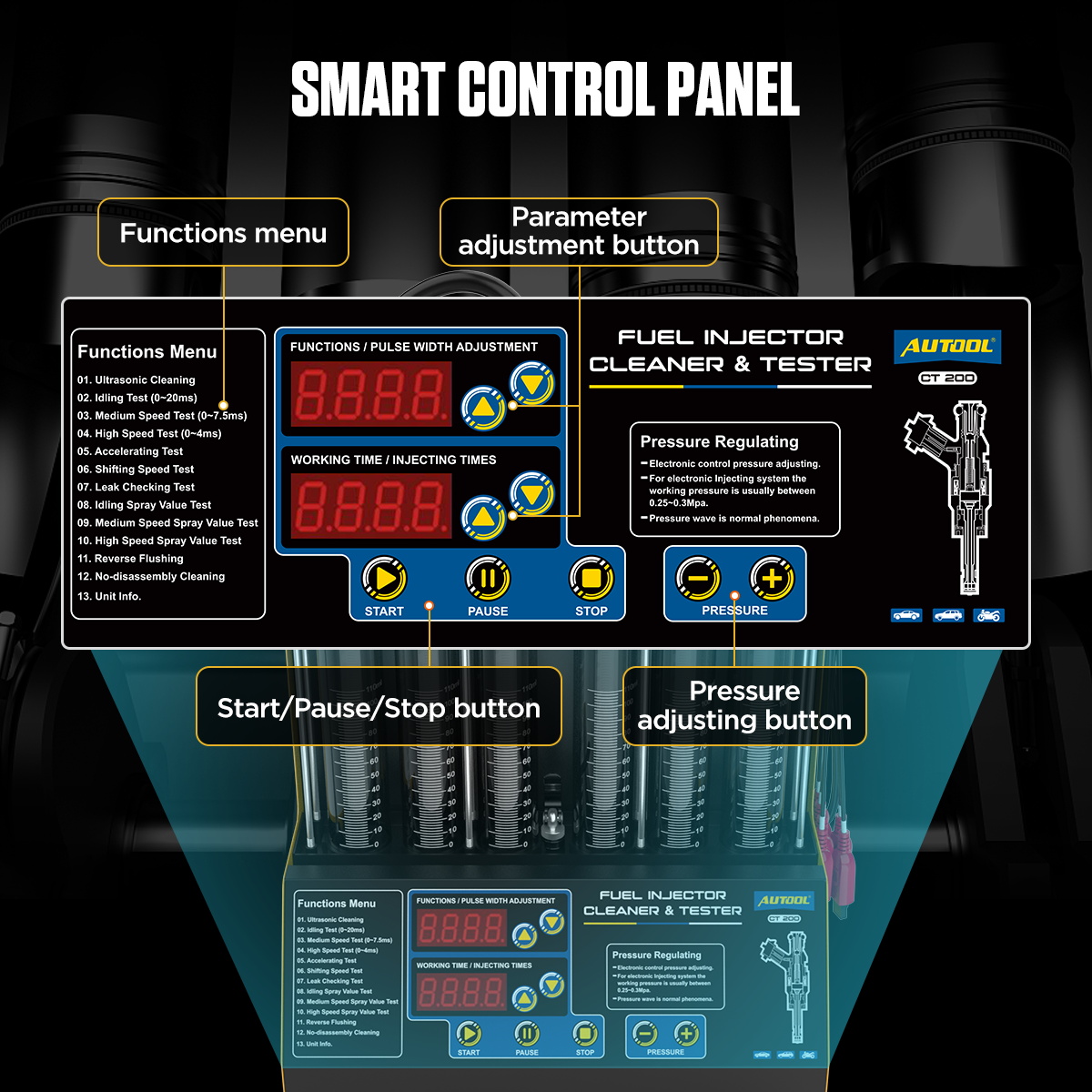

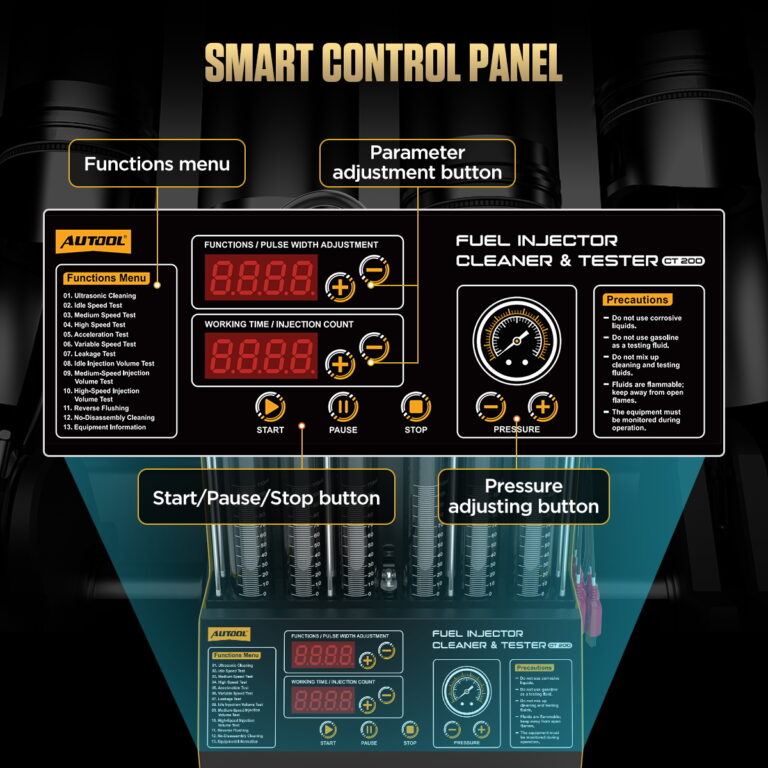

Digital Display And Simple Controls
The panel shows the selected function, pulse width, test time, and injection count for setup and monitoring.
Reverse flush and spray-pattern test
Backlighting and graduated tubes make spray patterns and flow differences easier to compare. Reverse flushing helps remove dirt from top-feed injectors.
Fluid drain and pressure recovery
Use the drain function to recover test fluid or cleaning solution after supported procedures. The system then restores test pressure for the next operation.
3 Years Warranty Support
Main unit: 3-year warranty. Standard accessories: 1-year warranty. Warranty Policy.
Step-by-step injector service workflow
Step-by-Step Workflow
Clean the injector exterior, run ultrasonic cleaning with the approved fluid, install the injectors, then perform leak, spray-pattern, flow, simulated operating, and reverse-flush tests.
01
Step 01
Pre-Clean Injector Exterior
Clean the outside of the injectors with suitable gasoline or cleaning liquid before turning on the machine so loose dirt does not contaminate the tank or test system.
02
Step 02
Add Ultrasonic Injector Cleaning Fluid
Pour the proper ultrasonic cleaning fluid into the cleaning tank, then place the injectors in the bath after exterior dirt is removed.
03
Step 03
Connect Pulse Signal And Clean
Connect the pulse signal wire and select ultrasonic cleaning so vibration can dislodge particles and carbon buildup inside the injectors.
04
Step 04
Install Injectors On The Main Unit
Pour in proper test fluid, install the injectors on the fuel distributor or rail, and secure the assembly to the main unit with bolts.
05
Step 05
Run Injector Tests
Run leakage, spray-pattern, flow-rate, idle, medium-speed, high-speed, acceleration, shifting, and reverse-flushing tests using the selected function and time.
06
Step 06
Retest And Compare
After cleaning, repeat the required tests and compare spray pattern, measuring-tube level, leakage, and flow consistency.
Result interpretation
How To Read Test Results
Use the same pressure, test time, pulse setting, fluid, injector mounting, and operating mode for every injector. Follow the table from spray observation through before-and-after confirmation so each result leads to a defined cleaning, retest, diagnosis, or replacement action.
| What You Observe | What It May Mean | Recommended Next Step |
|---|---|---|
| Drips while closed | Contamination, valve-seat wear, or a sealing fault | Clean and re-test; refer or replace if leakage remains |
| One measuring cylinder fills much less | Restriction, installation leak, channel issue, or injector fault | Check pressure and sealing, swap channels, then clean and repeat |
| Deflected, split, coarse, or dripping spray | Deposit, nozzle damage, or internal mechanical issue | Clean and re-test; use specialist service if unchanged |
| Difference becomes smaller after cleaning | A recoverable restriction may have been reduced | Record the result, renew applicable seals, and verify on the vehicle |
| No measurable improvement | The injector may already be clean or have electrical / mechanical damage | Stop repeated cleaning and continue diagnosis, specialist testing, or replacement |
| Bench results look balanced but the vehicle still misfires | The root cause may be outside the injector system | Check ignition, compression, intake leakage, fuel pressure, and control signals |
Important: Confirm any abnormal result by repeating the same test before changing settings. Keep ultrasonic cleaning fluid in the cleaning tank and non-corrosive test fluid in the test circuit. Use the injector specification, service procedure, or CT200 manual for final acceptance limits.
Fluid, compatibility, and operating limits
Safety & Compatibility
Before using CT200, confirm the injector type and prepare the correct ultrasonic cleaning fluid and injector test fluid. Cleaning fluid and test fluid must not be mixed or used in the wrong circuit.
Use Professional Cleaning Fluid
Use professional fuel injector cleaning fluid formulated for ultrasonic tanks or professional engine carbon cleaning fluid to remove carbon deposits and impurities.
Use Professional Test Fluid
Use colorless, odorless, non-corrosive professional fuel injector test fluid to simulate injector operating conditions safely.
75%+ Medical Alcohol Backup
If professional cleaning or test fluid is unavailable locally, medical alcohol above 75% can be used as a temporary alternative, although the cleaning or test effect may not be ideal.
Do Not Test With Cleaning Liquid
Do not put corrosive cleaning liquid into the test circuit. It may damage internal components, accelerate rubber deterioration, and cause leakage.
Do Not Run Ultrasonic Cleaning Dry
Add the proper ultrasonic cleaning fluid before running the ultrasonic function. Do not run the ultrasonic tank dry; doing so may damage the ultrasonic system.
Compatibility And Adapter Limits
CT200 tests standard 12V gasoline injectors. CT200 can ultrasonically clean diesel injectors, but it cannot test them or GDI high-pressure injectors. Cleaning without removing the injectors requires optional adapters.
Compare models
Compare AUTOOL Injector Tester Models
Compare CT200 with CT150, CT160, CT400, CT450, CT500, FN606, and FN608 before choosing the right cylinder capacity, injector type support, heating function, voltage setting, storage design, and pump configuration.
Compare models
Choose one or more models. CT200 is selected by default.
1 model selected
No model is selected. Choose a model to compare.
| Specification | Model 1AUTOOL CT150 | Model 2AUTOOL CT160 | Model 3AUTOOL CT200 | Model 4AUTOOL CT400 | Model 5AUTOOL CT450 | Model 6AUTOOL CT500 | Model 7AUTOOL FN606 | Model 8AUTOOL FN608 |
|---|---|---|---|---|---|---|---|---|
| Core capacity and control | ||||||||
| Power input | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V |
| Cleaning and test modes | 3 Cleaning Functions 9 Testing Functions | 3 Cleaning Functions 9 Testing Functions | 3 Cleaning Functions 9 Testing Functions | 3 Cleaning Functions 9 Testing Functions | 3 Cleaning Functions 10 Testing Functions | 3 Cleaning Functions 12 Testing Functions | 3 Cleaning Functions 12 Testing Functions | 3 Cleaning Functions 12 Testing Functions |
| Measuring-tube capacity | 110ml | 100ml | 110ml | 110ml | 110ml | 110ml | 110ml | 110ml |
| Ultrasonic tank capacity | 1000ml | 2000ml | 1700ml | 2000ml | 2000ml | 1000ml | 550ml | 550ml |
| Pulse-width range | 0-20ms | 0-20ms | 0-20ms | 0-20ms | 0-20ms | 0-40ms Step Size 0.1ms | 0-40ms Step Size 0.1ms | 0-40ms Step Size 0.1ms |
| Time setting range | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min | 0-10min |
| Simulated speed range | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm | 0-7500rpm |
| Ultrasonic cleaning power | 70w | 70w | 70w | 70w | 70w | 70w | 70w | 70w |
| Built-in pump | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Adapter types | 3 Types | 5 Types | 3 Types | 9 Types | 9 Types | 9 Types | 9 Types | 9 Types |
| Injectors tested at once | 4 Fuel Injectors | 4 Fuel Injectors | 6 Fuel Injectors | 6 Fuel Injectors | 6 Fuel Injectors | 6 Fuel Injectors | 6 Fuel Injectors | 8 Fuel Injectors |
| Injector coverage and settings | ||||||||
| Supported injector types | Standard Fuel Injector | Standard Fuel Injector | Standard Fuel Injector | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors | Standard Fuel Injector GDI, EFI, FSI Long Fuel Injectors |
| Injector drive-voltage settings | ×Not included | ×Not included | ×Not included | 12V 70V 120V | 12V 70V 120V | 12V 70V 120V | 12V 12V-70V 120V-180V | 12V 12V-70V 120V-180V |
| Menu language options | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | 2 Types (Chinese, English) | 2 Types (Chinese, English) | 2 Types (Chinese, English) |
| Workshop features | ||||||||
| Heated ultrasonic cleaning | ×Not included | ✓Included · 45℃ | ×Not included | ×Not included | ✓Included · 50℃ | ×Not included | ✓Included · 50℃ | ✓Included · 50℃ |

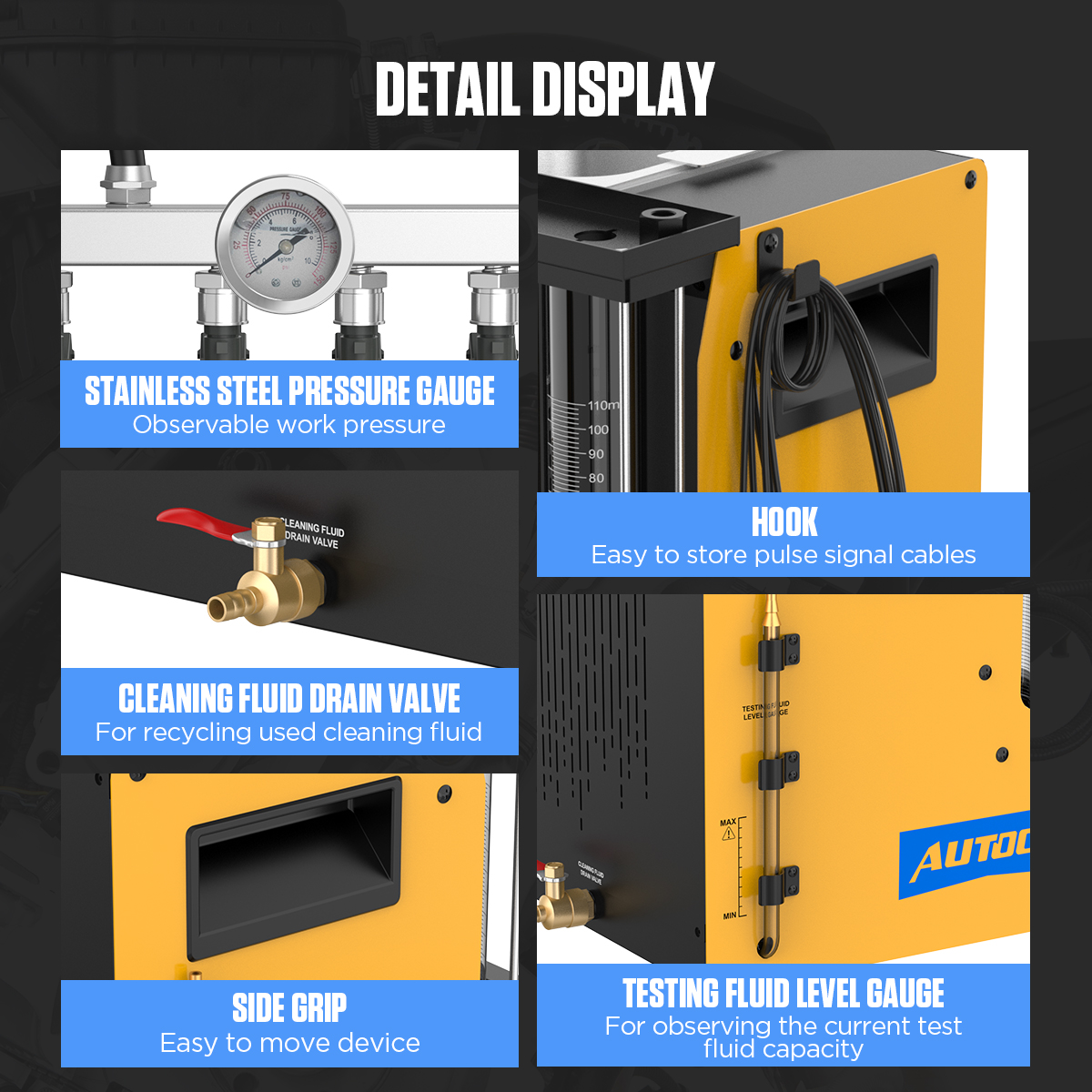

| Pressure gauge | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Display | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Test-fluid level indicator | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Splash guard | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included | ✓Included |
| Operating-condition simulations | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Fluid drain/recovery valve | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Storage drawer | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Low-impedance injector support | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included | ✓Included |
| Detachable Cleaning Tank | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | ×Not included | ✓Included | ✓Included |
| Fuel pumps | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
Model guide
Use this overview to identify the models you want to compare in detail.
AUTOOL CT150
Four-position standard gasoline injector cleaning and visual testing without ultrasonic cleaning-fluid heating.
AUTOOL CT160
Standard 12 V gasoline injector service with a 2,000 mL ultrasonic tank and heating up to 45 °C.
AUTOOL CT200
Standard 12 V gasoline injector service with six test positions, a 1,700 mL ultrasonic tank, and 3 cleaning / 9 testing functions.
AUTOOL CT400
Six-position service for standard, GDI, EFI, and FSI long injectors with 12 V / 70 V / 120 V selection, a 2,000 mL tank, and a storage drawer.
AUTOOL CT450
Six-position GDI / EFI / FSI service with cleaning-fluid heating up to 50 °C and 10 testing functions.
AUTOOL CT500
Six-position advanced control with 0–40 ms pulse adjustment in 0.1 ms steps, Chinese / English settings, an oil baffle, and 12 testing functions for standard and direct-injection service.
AUTOOL FN606
Combines GDI support, heating up to 50 °C, extended injector-voltage ranges, a detachable 550 mL tank, advanced pulse control, and one fuel pump.
AUTOOL FN608
Extends the detachable heated platform to eight injectors and two fuel pumps while retaining advanced pulse and GDI voltage control.
Manual and support
Manual And Downloads
Download the CT200 manual for setup, function selection, cleaning fluid, test fluid, injector installation, operation steps, accessory use, and safe-use instructions.

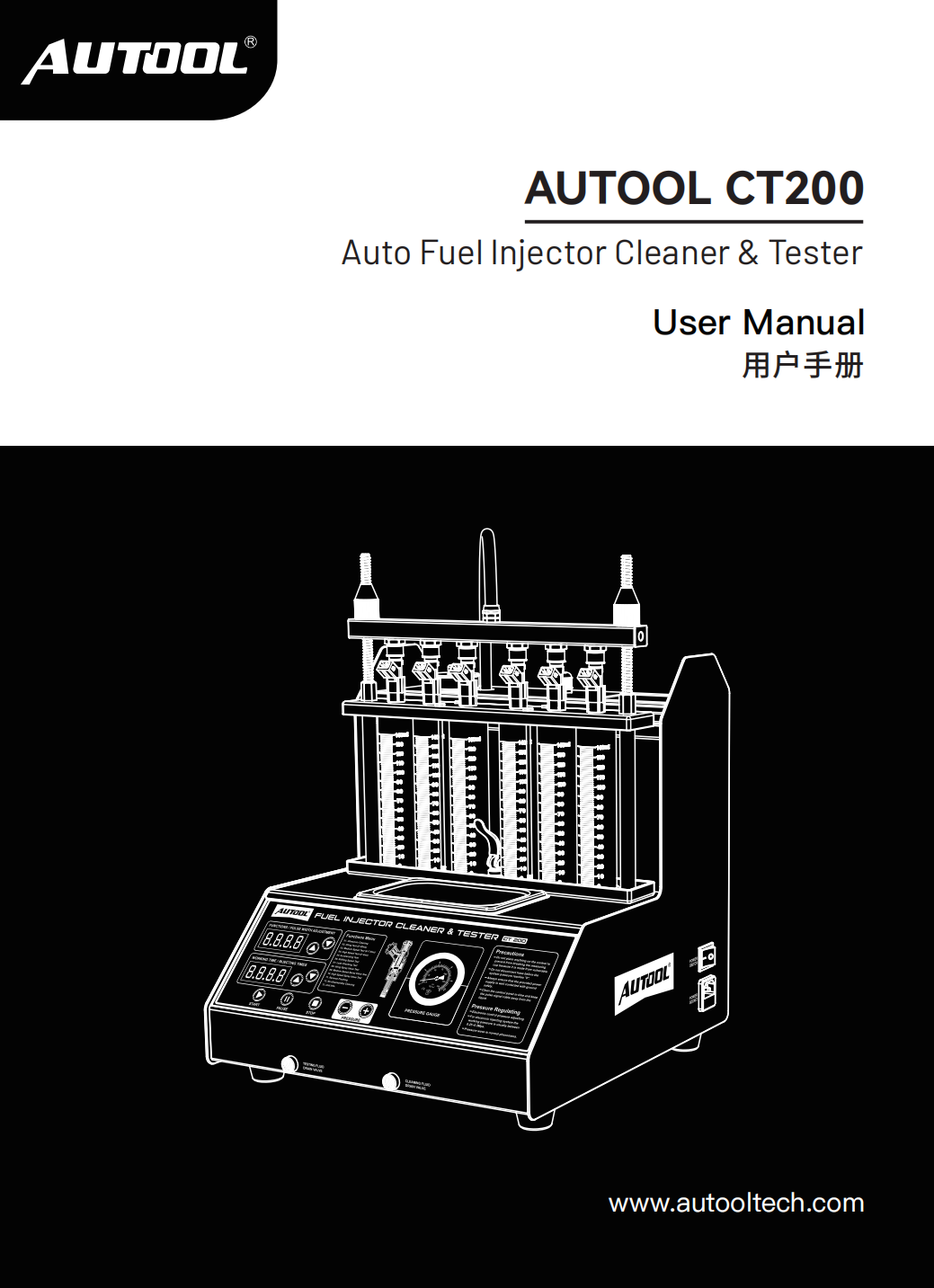

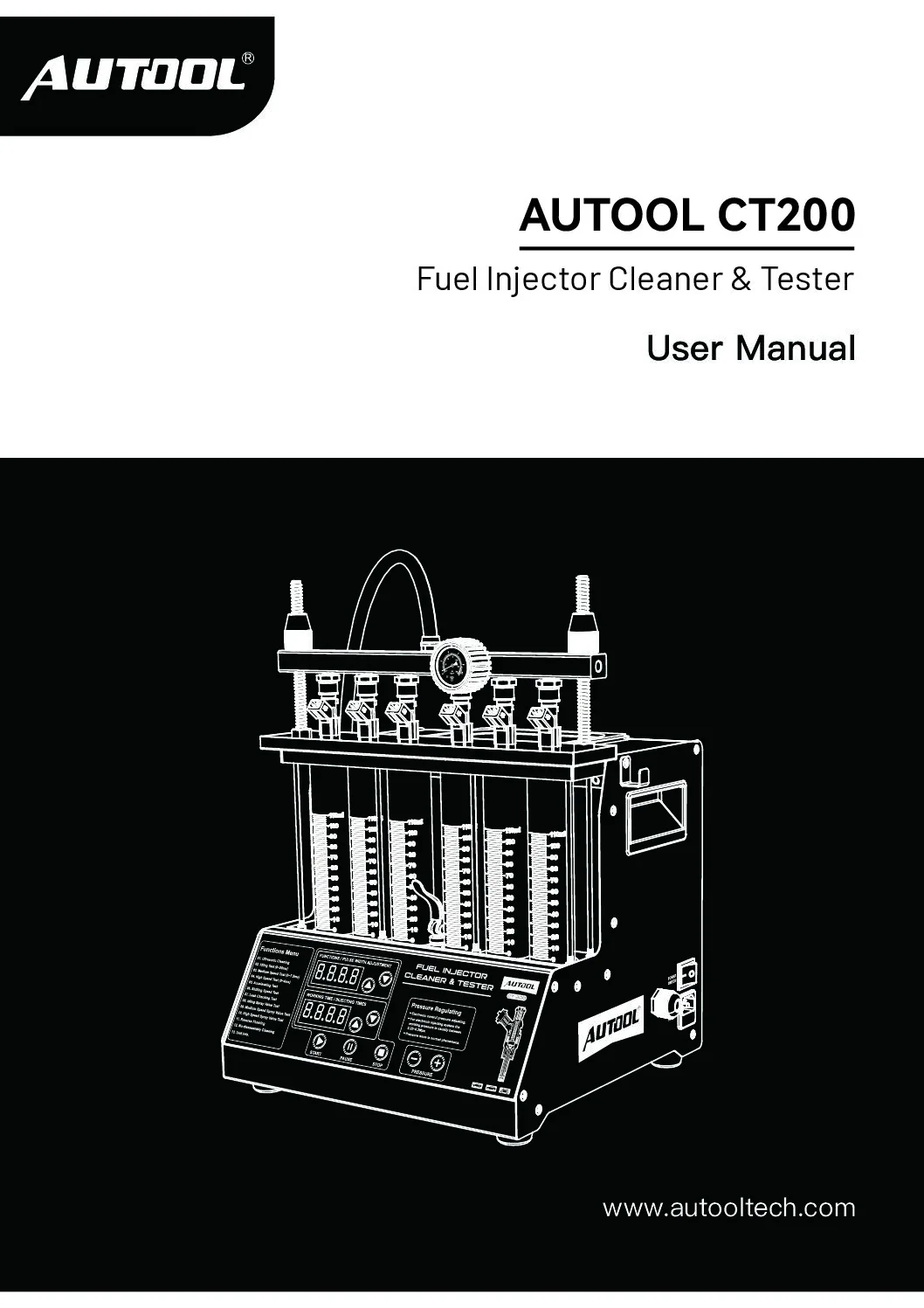

AUTOOL CT200 User Manual
Open the PDF manual before operating the CT200 injector cleaning and testing machine.

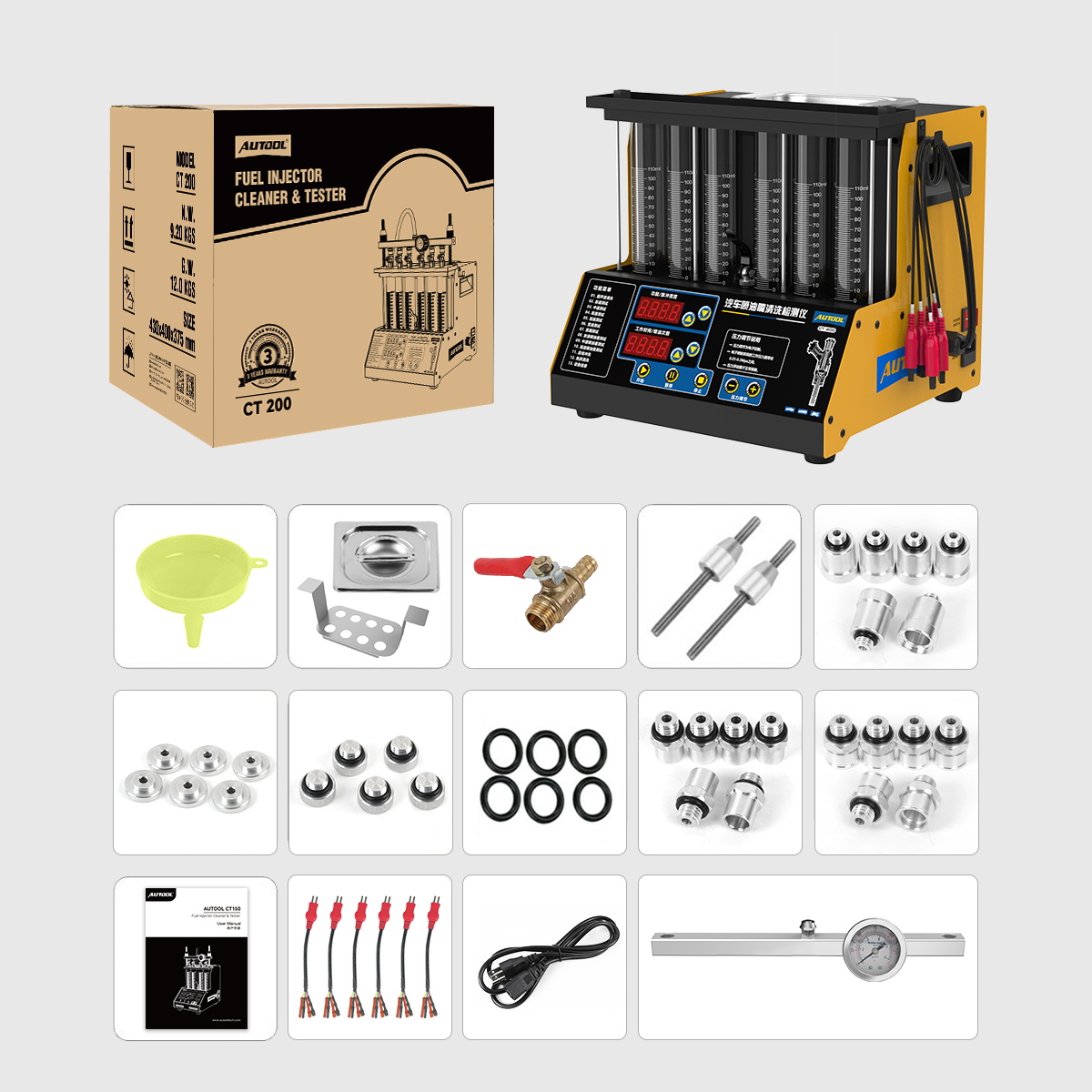

What Is In The Box
What Is In The Box

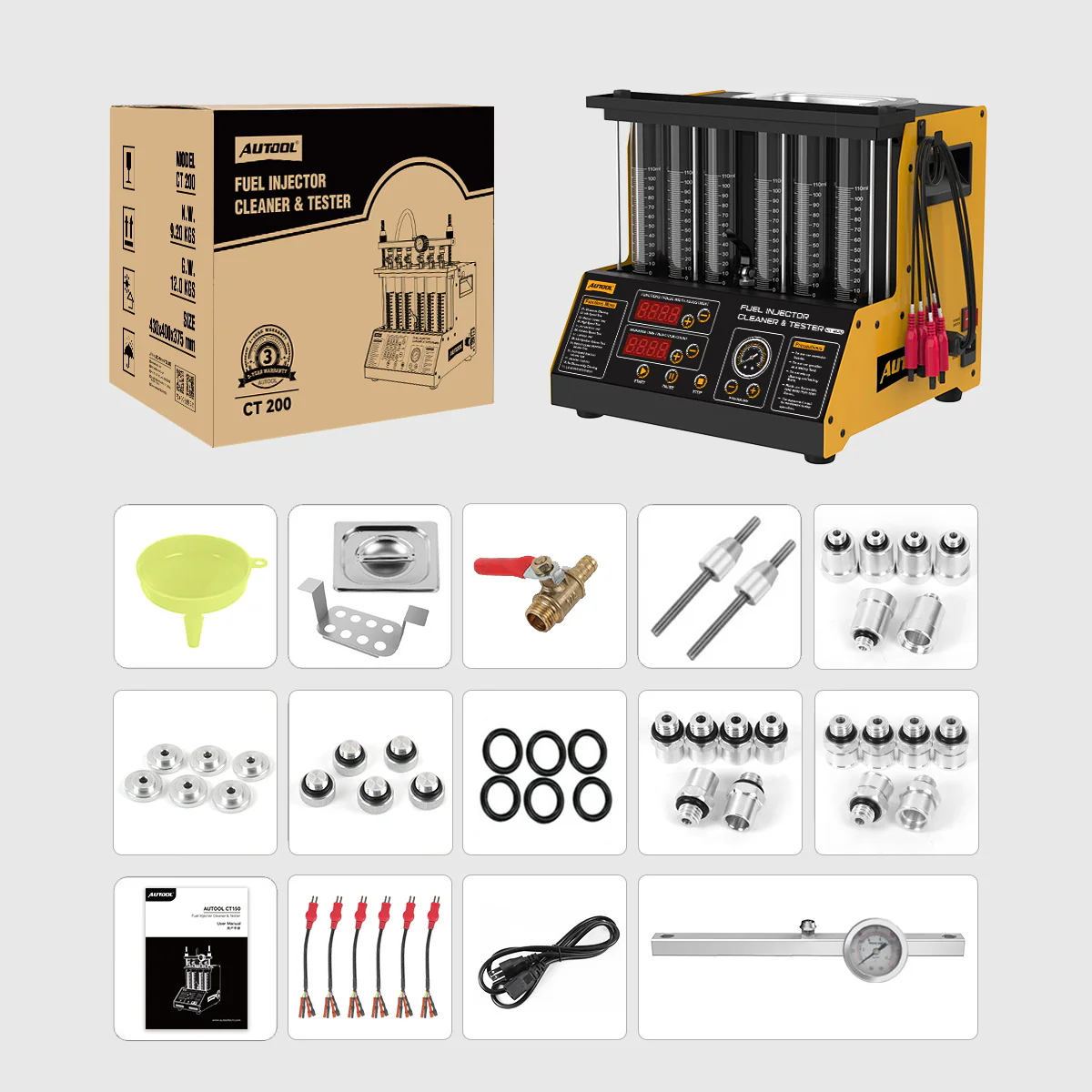

The package image shows the CT200 main unit, retail box, fuel rail, pressure gauge, cables, adapters, seals, O-rings, and other accessories. Final package contents should be confirmed by the packing list image.
- Main UnitAUTOOL CT200 fuel injector cleaner and tester
- Retail BoxCT200 product package box
- Fuel rail and gaugeFuel rail with pressure gauge
- CablesSignal wires and power cable
- Adapters and sealsInjector adapters, plugs, seals, O-rings, locking rods, and fittings
- Cleaning accessoriesFunnel, tank cover, valve, and related fittings
- DocumentationAUTOOL CT200 user manual
Frequently asked questions
Questions And Answers
These answers cover CT200 injector compatibility, cleaning fluid, test fluid, diesel and GDI limitations, plugs, parameter setup, model comparison, operation, accessories, and warranty support.
What Injectors Can AUTOOL CT200 Clean And Test?
CT200 is designed to clean and test standard 12V gasoline fuel injectors. It supports 6-cylinder testing and helps simulate idle, medium speed, high speed, acceleration, shifting, leakage, spray-pattern, and reverse flushing conditions.
Can CT200 Test GDI Or High-Pressure Injectors?
No. CT200 only supports 12V standard fuel injectors for testing. For GDI high-pressure injectors, compare CT400, CT450, CT500, FN606, and FN608 by supported injector type and test features.
Can Diesel Injectors Be Cleaned And Tested With AUTOOL CT Series Products?
AUTOOL CT series products can clean diesel injectors, but they cannot test diesel injectors. Use CT200 only within its supported testing range.
How Should I Choose Ultrasonic Cleaning Fluid?
For ultrasonic cleaning, use professional engine carbon cleaning fluid or professional automotive injector ultrasonic cleaning fluid. It helps remove deposits such as carbon buildup from injectors. If professional cleaning fluid is not available locally, 75%+ medical alcohol may be used as a substitute, but the cleaning effect may vary.
How Should I Choose Injector Test Fluid?
For consistent test results, use professional automotive injector test fluid. Test fluid is a colorless, odorless, non-corrosive liquid used to assess injector performance and simulate working states. If professional test fluid is not available locally, 75%+ medical alcohol can be used as a temporary alternative.
Can I Use Cleaning Liquid To Test Injectors?
No. Do not use cleaning liquid in the injector testing circuit. Cleaning liquid may be corrosive and can damage internal parts, accelerate rubber deterioration, cause leakage, and lead to malfunction. Damage caused by using the wrong fluid may require paid repair.
Why Must I Add Cleaning Fluid Before Ultrasonic Cleaning?
The ultrasonic tank must contain the proper cleaning fluid before the ultrasonic cleaning function is started. Do not run the ultrasonic system dry or with unapproved fluid; doing so may damage the system.
Why Does CT200 Come With Five Plugs?
When testing a single injector, plug the other five unused test positions. CT200 comes with five plugs for single-injector testing or partial injector testing.
How Do I Set CT200 Test Parameters?
You do not need special settings for normal operation. Select the feature number and set the test time through the control panel. Select a test mode and set the test time on the control panel.
What Is The Difference Between CT200 And CT400?
CT200 only supports 12V standard fuel injectors. CT400 supports both 12V standard injectors and GDI injectors, making it compatible with a wider range of injector types and vehicles. CT200 does not have dedicated accessory storage, while CT400 has a drawer for injector adapters and other accessories.
What Is The Difference Among CT150, CT160, And CT200?
CT150 and CT160 are designed for cleaning and testing fuel injectors of 4-cylinder gasoline engines. CT160 has an ultrasonic heating function, while CT150 does not. Compared with CT150, CT200 mainly adds two additional test positions, allowing up to six injectors to be tested at once, while the other functions remain similar.
What Is The Difference Among CT400, CT450, And CT500?
Compared with CT400, CT450 adds the pulse injection test. Compared with CT450, CT500 further adds wide pulse injection and continuous injection testing. CT450 also has ultrasonic cleaning with heating up to 50°C, while CT400 and CT500 do not have a heating function.
What Is The Difference Between FN608 And FN606?
FN608 supports testing for 8 cylinders, while FN606 supports 6 cylinders. FN608 has two independent fuel pumps, each corresponding to a separate left or right fuel rail. If one pump fails, only the corresponding fuel rail is affected, while the other side can continue to operate. FN606 uses a single fuel pump, so a pump failure stops the entire system until the pump is replaced.
What Is The Difference Between FN608 And CT500?
FN608 supports 8 cylinders, while CT500 supports 6 cylinders. FN608 has a heating cleaning tank that can maintain up to 50°C, while CT500 does not support heating. FN608 supports 12V, 12-70V, and 120-180V voltage ranges, while CT500 supports 12V, 70V, and 120V. FN608 allows the cleaning tank to operate independently or together with the main unit, while CT500 integrates the cleaning tank into the main body. FN608 also uses two independent fuel pumps, while CT500 uses a single pump.
Which AUTOOL Injector Cleaner Should I Choose If I Need GDI, Heating, 8-Cylinder Testing, Or Dual Pumps?
Choose CT160 for up to four standard 12 V gasoline injectors, or CT200 for up to six. If you need GDI high-pressure injector support, choose CT400, CT450, CT500, FN606, or FN608. For heated ultrasonic cleaning, compare CT160, CT450, FN606, and FN608 based on injector compatibility and capacity. If you need 8-cylinder testing and dual-pump reliability, choose FN608.
What Accessories Are Included With CT200?
Refer to the Packing List image for final package contents. The package includes the CT200 main unit, fuel rail with pressure gauge, signal wires, power cable, funnel, valve, adapters, seals, O-rings, manual, and related accessories. Confirm quantities before ordering.
How Long Is The Warranty?
AUTOOL covers the main unit with a 3-year limited warranty and standard bundled accessories with a 1-year limited warranty from the date of receipt. See the Warranty Policy for coverage, exclusions, claim requirements, and any product-specific terms.
