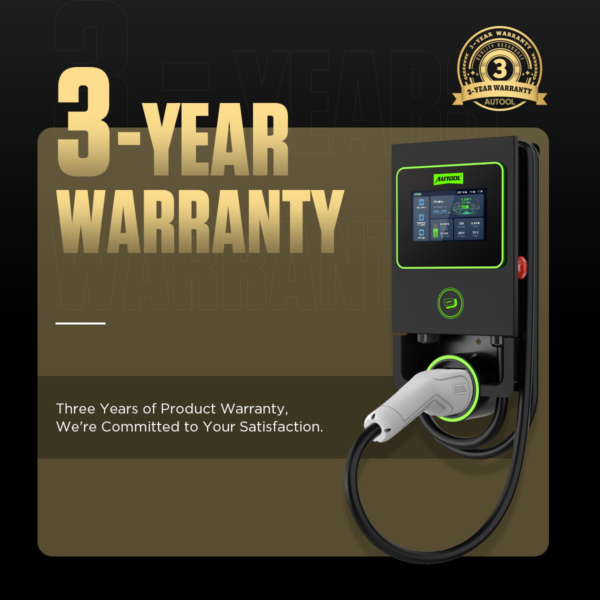

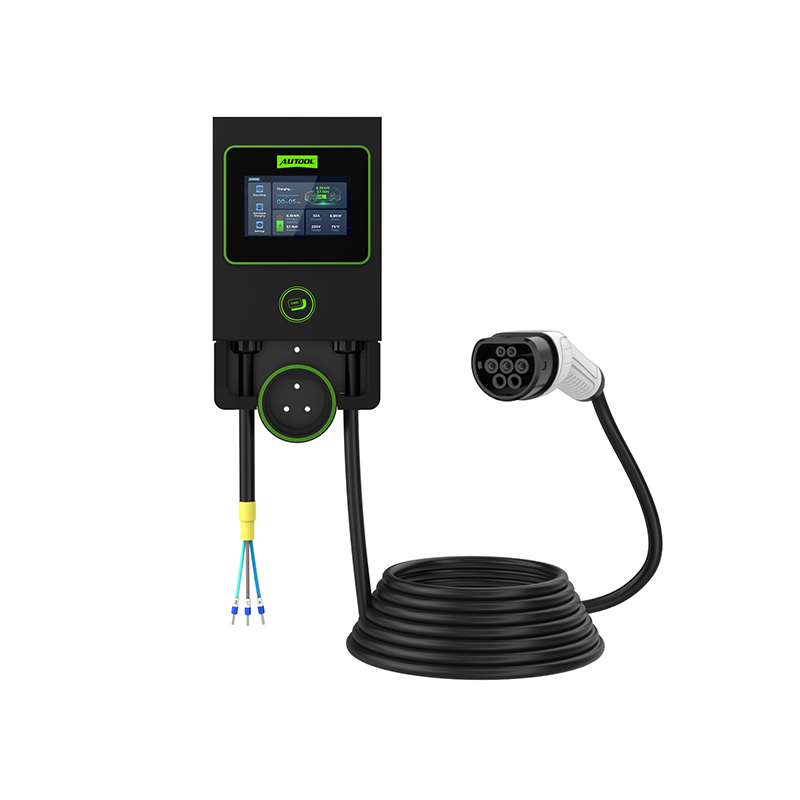

AUTOOL C701 Electric Car Charger for Home

AUTOOL C701

Product Overview

The AUTOOL C701 Electric Car Charger is a Level 2 home EV charging station designed for convenient, safer, and faster home charging. It supports up to 7KW charging power, five adjustable current levels, scheduled charging, app / Bluetooth smart control, a 4.3-inch touchscreen, an 8m pure copper charging cable, IP66 protection, and 12 built-in safety protections. It is designed for EV models compliant with IEC 62196-2 and is suitable for home garages, shared charging spaces, small fleets, and commercial vehicle charging scenarios.

7KW Charging 32A Max 8m Cable IP66

4.3-inchTouchscreen

10A-32AAdjustable

12Protections

3 YearsWarranty

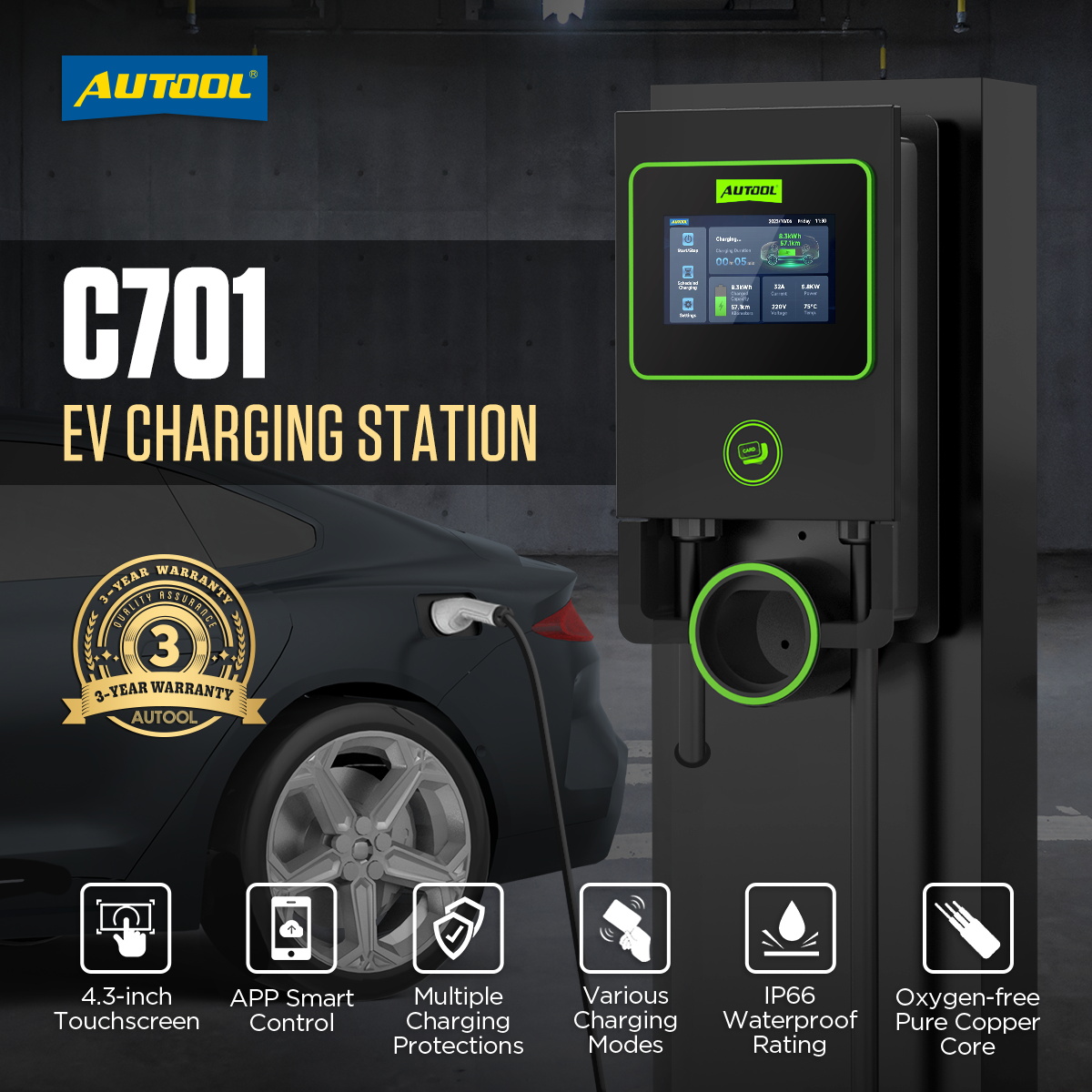

AUTOOL C701 electric car charger main feature image showing app control, protection, charging methods, IP66, and pure copper cable

Key Features

C701 combines 7KW Level 2 charging, adjustable current, scheduled charging, multiple unlocking methods, and a long pure copper cable to make home EV charging easier and more flexible.

7KW Level 2 Home Charging

C701 provides up to 7KW rated power for faster home EV charging than standard low-power charging, making it suitable for regular household and workshop charging needs.

4.3-Inch Touchscreen

The smart touchscreen clearly displays charging progress, current, voltage, temperature, power, and charging status during operation.

Five Adjustable Current Levels

Choose 10A, 14A, 16A, 25A, or 32A current levels according to circuit capacity and charging needs, corresponding to approximately 2.0-7KW charging.

App / Bluetooth Smart Control

Monitor real-time charging status, adjust charging current, and set scheduled charging through supported app / Bluetooth smart control.

Three Unlocking Methods

Card unlocking, password unlocking, and plug-and-play unlocking support shared charging, security-focused charging, and quick daily charging.

8m Pure Copper Cable

The 8m / 26ft charging cable uses an oxygen-free pure copper core and thickened outer sheath for stable conductivity and flexible installation.

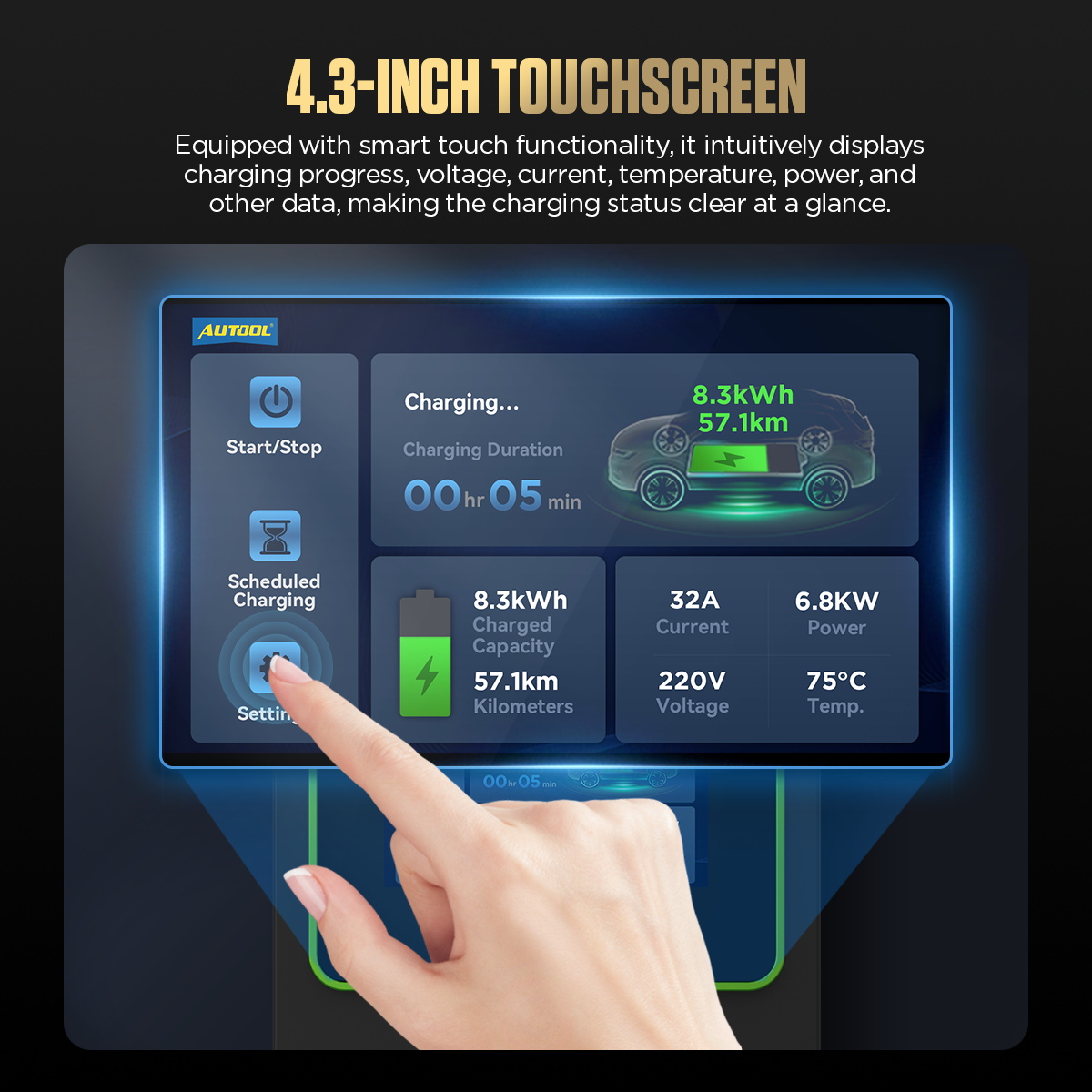

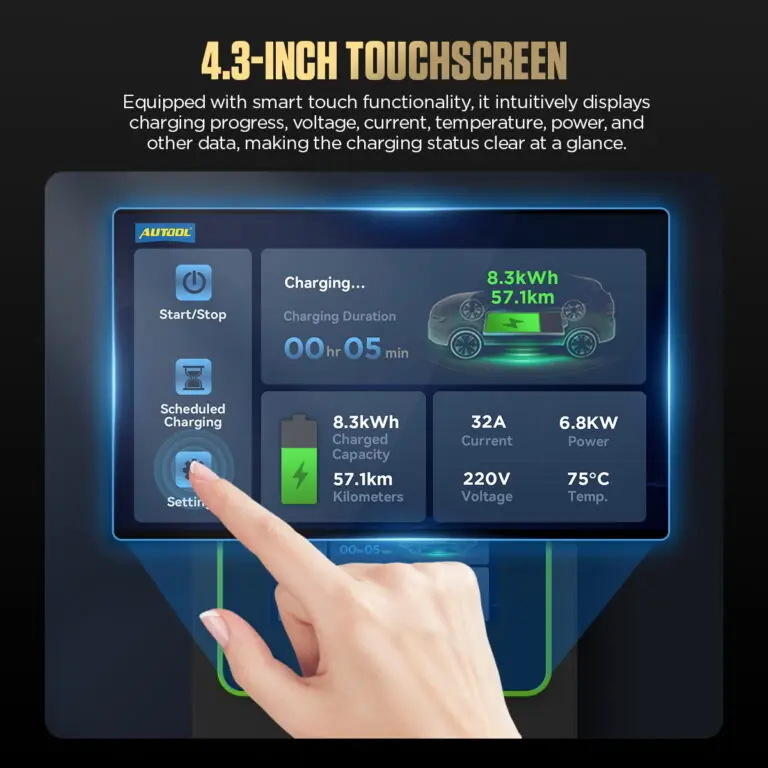

AUTOOL C701 4.3-inch touchscreen showing charging progress, voltage, current, temperature, and power

AUTOOL C701 app smart control for current setting, scheduled charging, and real-time charging status

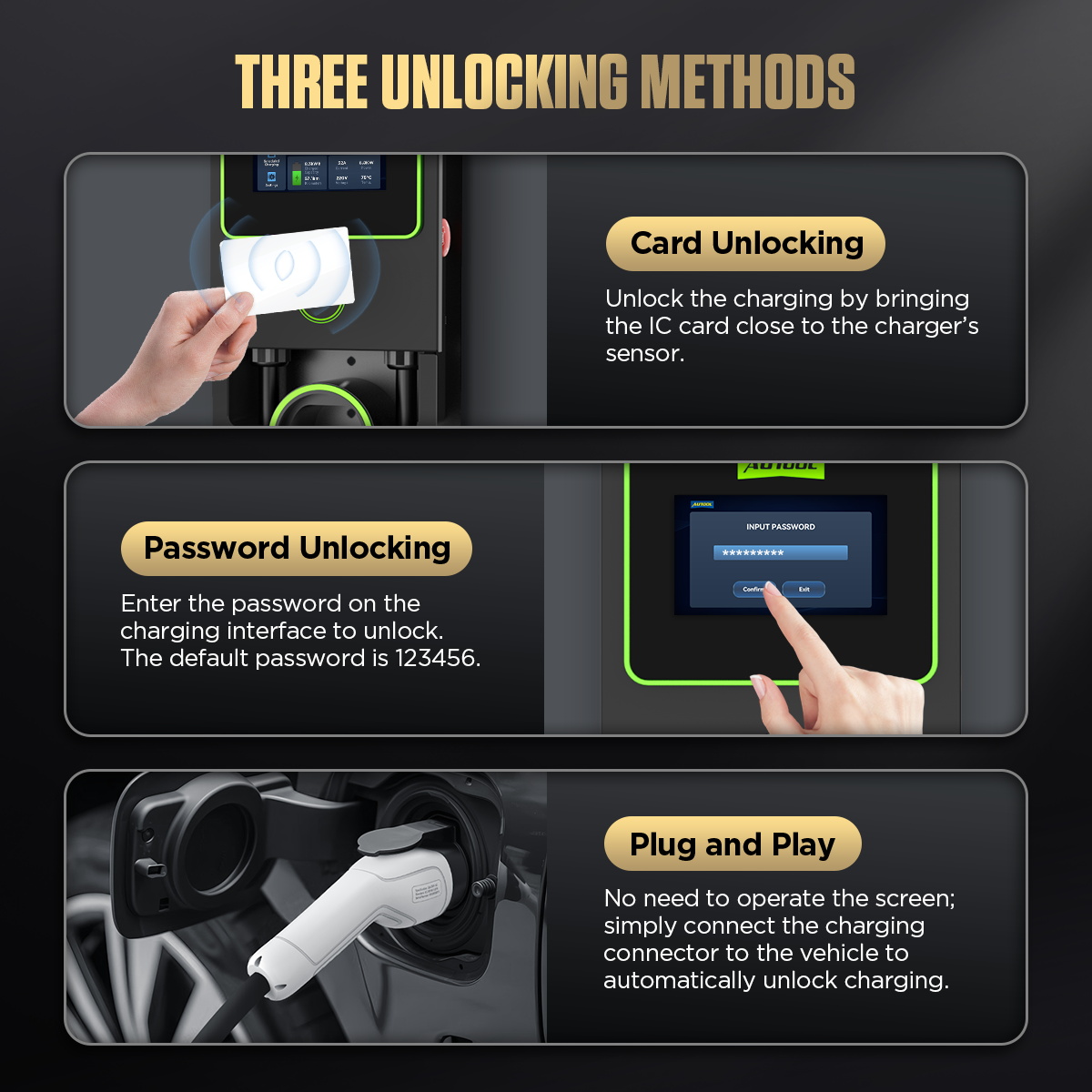

AUTOOL C701 three unlocking methods including card, password, and plug-and-play

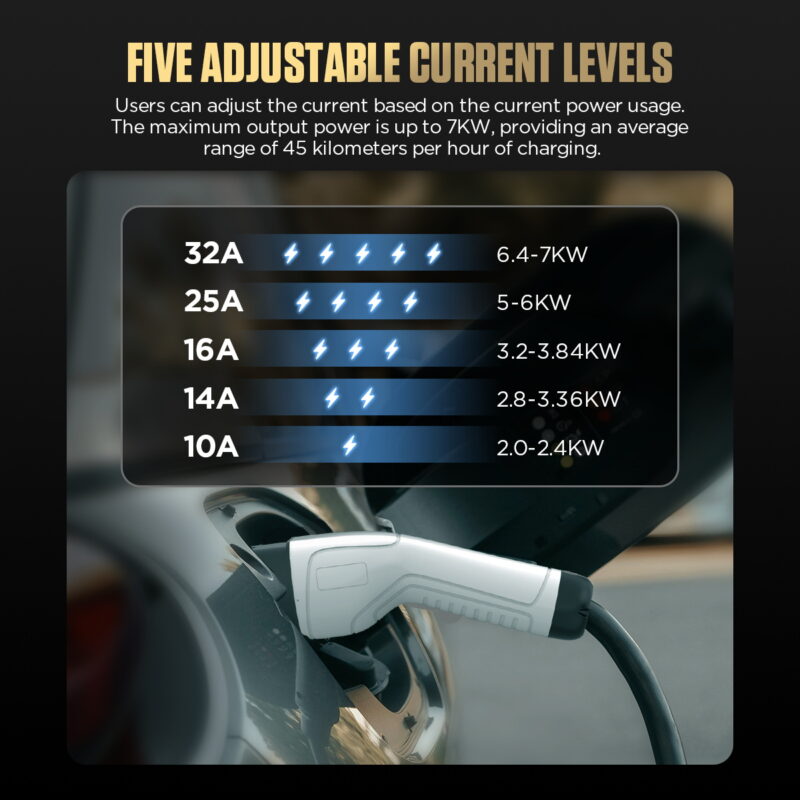

AUTOOL C701 five adjustable current levels from 10A to 32A

AUTOOL C701 scheduled charging for off-peak nighttime electricity use

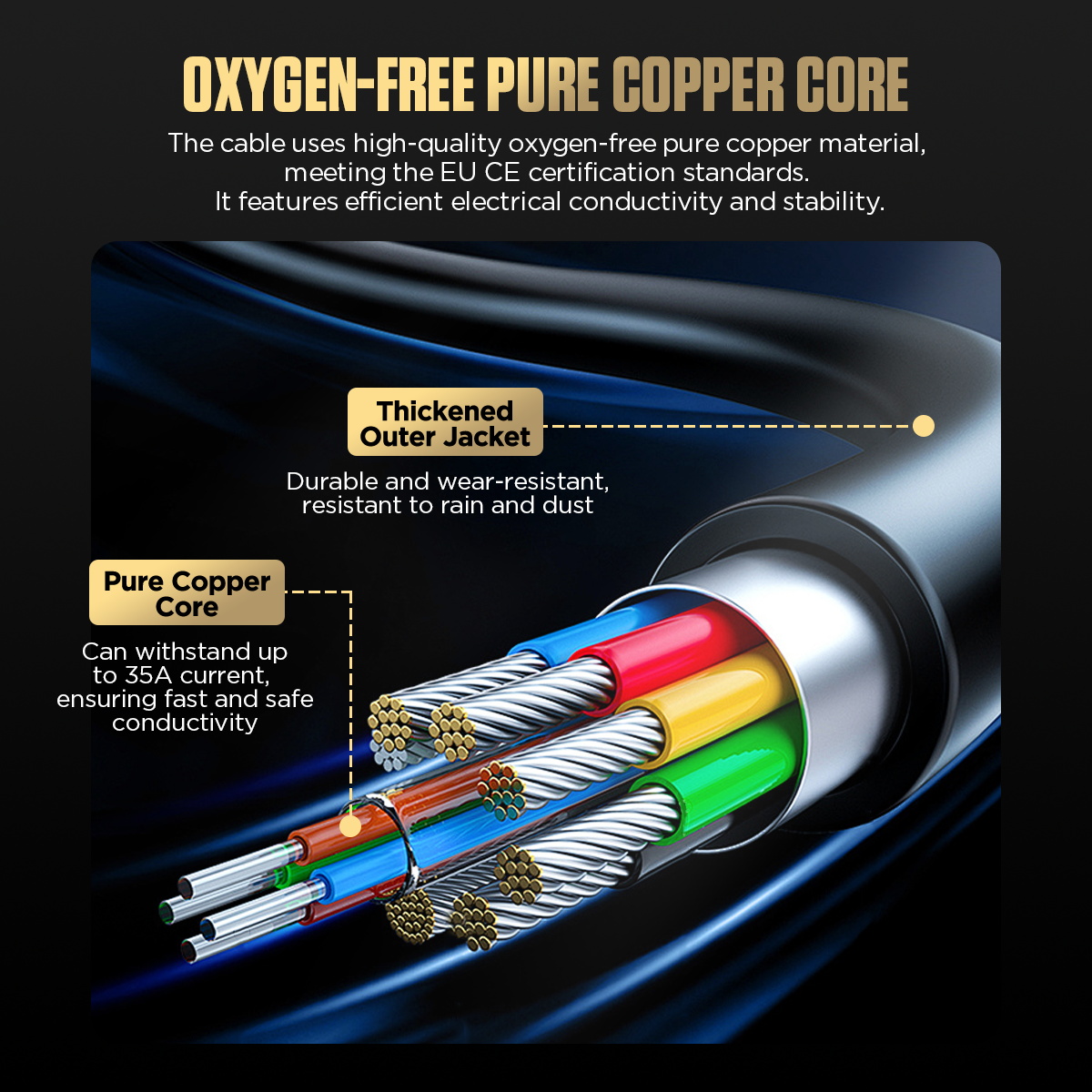

AUTOOL C701 oxygen-free pure copper cable core and thickened outer sheath

How To Use

C701 is built for flexible daily use. Users can adjust charging current, schedule charging for lower-cost electricity periods, monitor the charging process, and select the unlocking method that matches the installation scenario.

Adjust Current

10A / 14A / 16A / 25A / 32A current levels let users match charging speed to circuit capacity.

Schedule Charging

Set charging to start during off-peak nighttime hours and finish during the day to reduce electricity cost.

App / Bluetooth Monitoring

Check real-time charging status and set charging options within the supported control range.

Access Methods

Card, password, and plug-and-play unlocking support home, shared, secure, and quick-use scenarios.

Before You Order And Use

C701 is designed for safer home EV charging with 12 charging protections, IP66 waterproof and dustproof protection, insulated charging connector design, flame-retardant protection, and a high-conductivity pure copper cable.

12 Charging Protections

Includes overvoltage, undervoltage, short circuit, waterproof, emergency stop, lightning, overtemperature, moisture, reverse connection, grounding, overcurrent, and flame-retardant protections.

IP66 Waterproof And Dustproof

Designed to resist rain and dust during properly installed outdoor or garage charging use.

Wide Temperature Range

Supports operation from -20°C to 50°C, helping adapt to very cold or hot environments.

Insulated Charging Connector

The connector design supports leakage protection, insulation, and flame-retardant protection.

Pure Copper Core Cable

The oxygen-free copper core supports stable conductivity, while the thickened outer sheath improves charging cable durability.

International Certifications

The certification image references FCC, CE, RoHS, LVD, and other certification marks for quality and compliance confidence.

AUTOOL C701 multiple international certification marks including FCC, CE, RoHS, and LVD

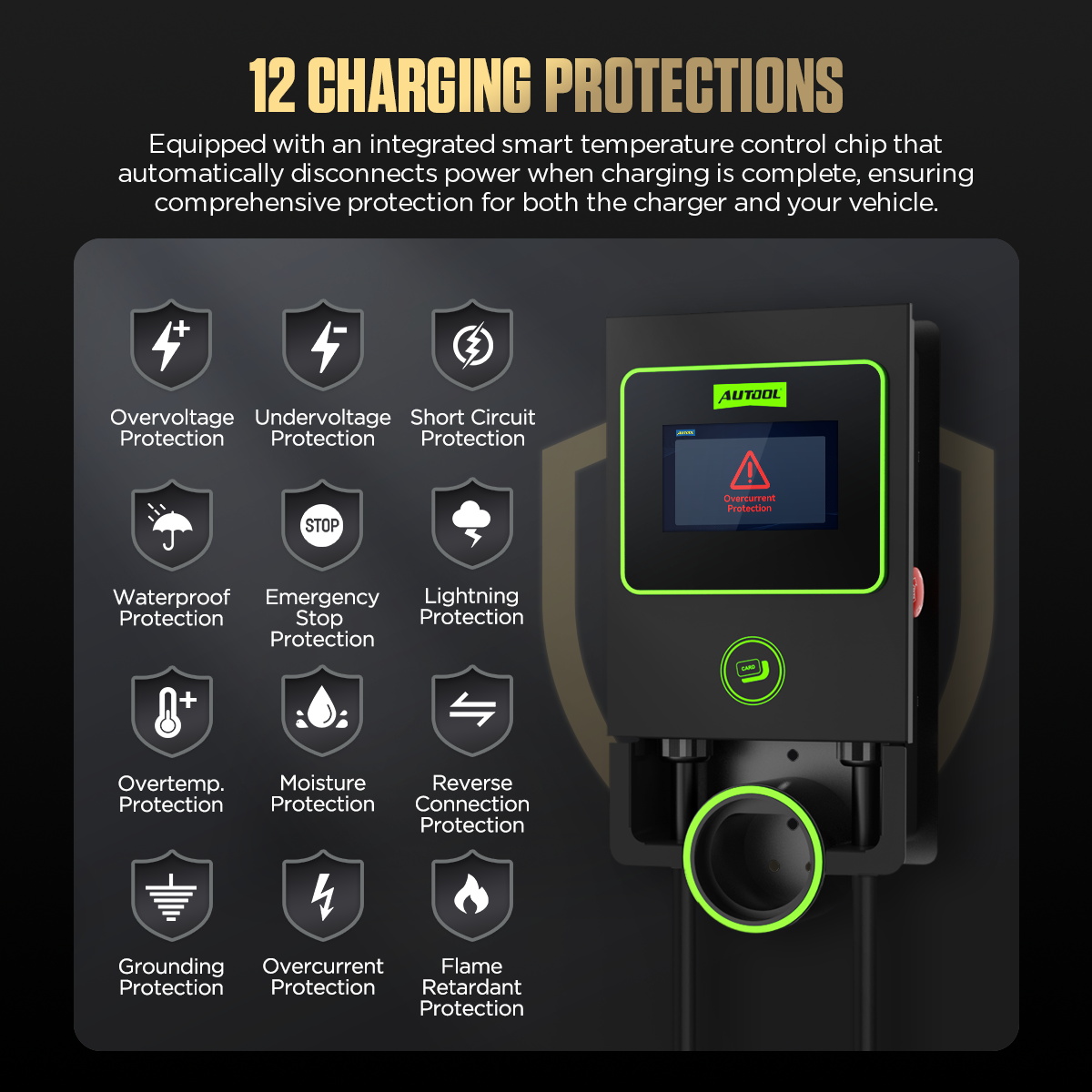

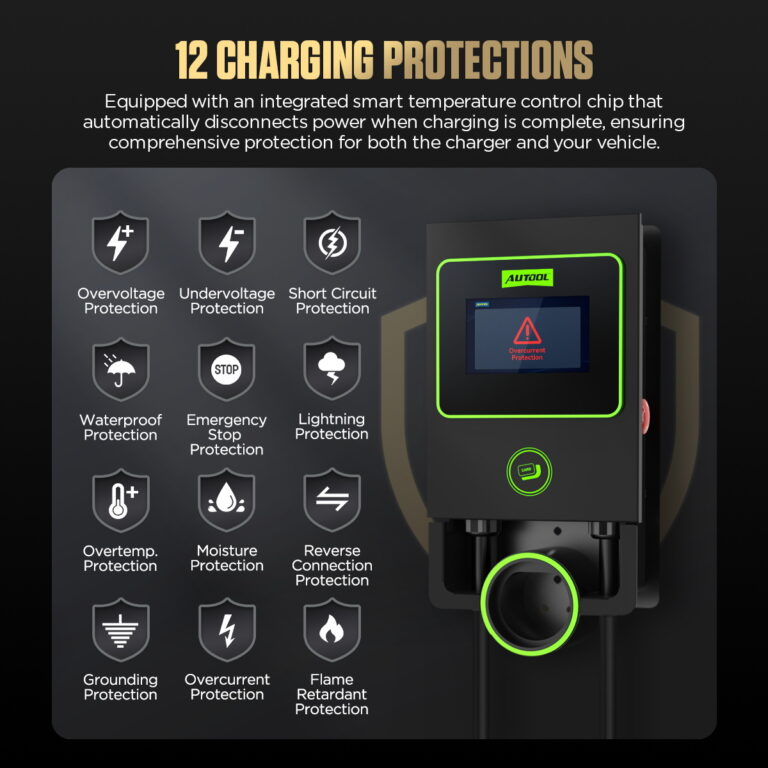

AUTOOL C701 12 charging protections including overvoltage, undervoltage, short circuit, waterproof, emergency stop, lightning, overtemperature, moisture, reverse connection, grounding, overcurrent, and flame retardant

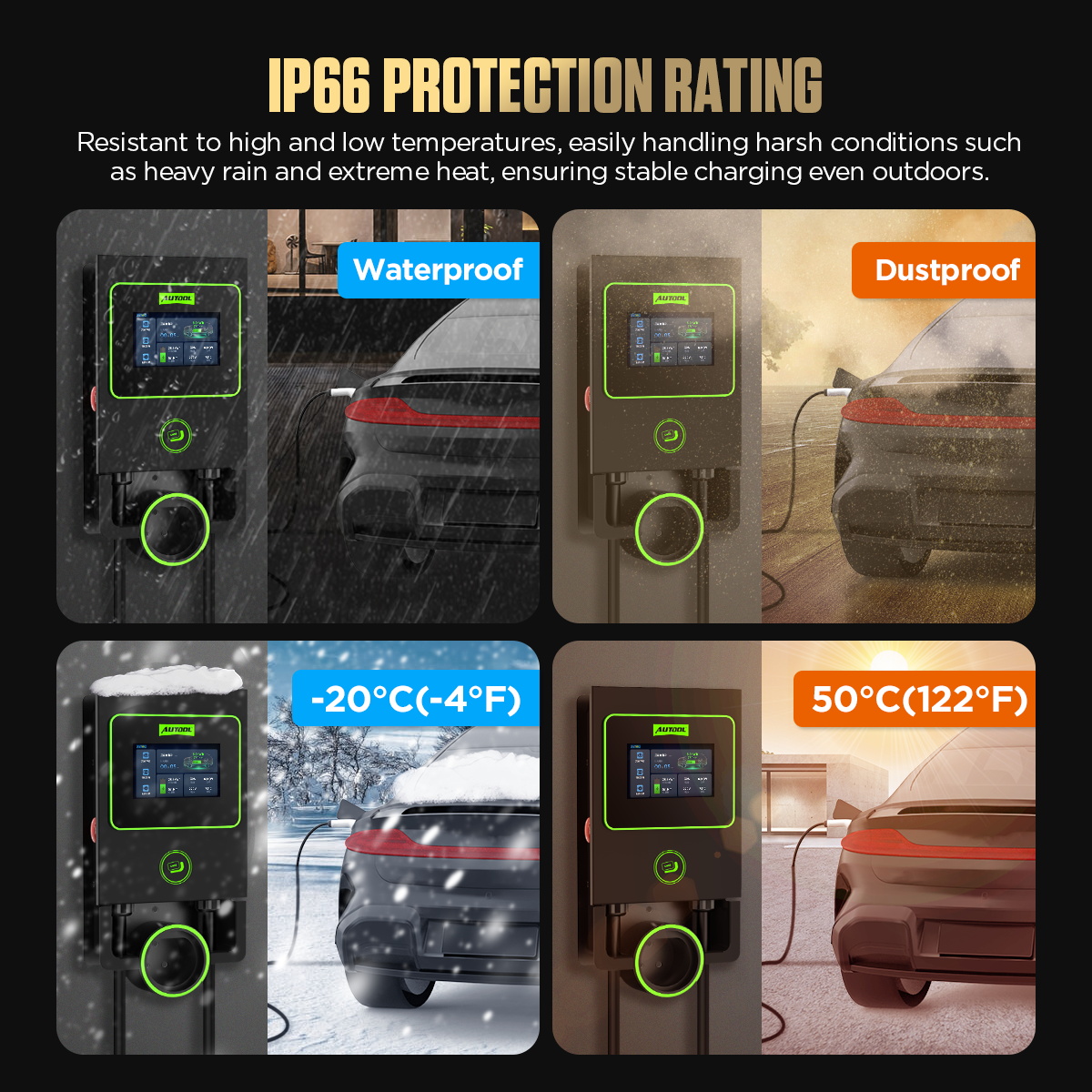

AUTOOL C701 IP66 waterproof and dustproof protection with -20°C to 50°C working temperature

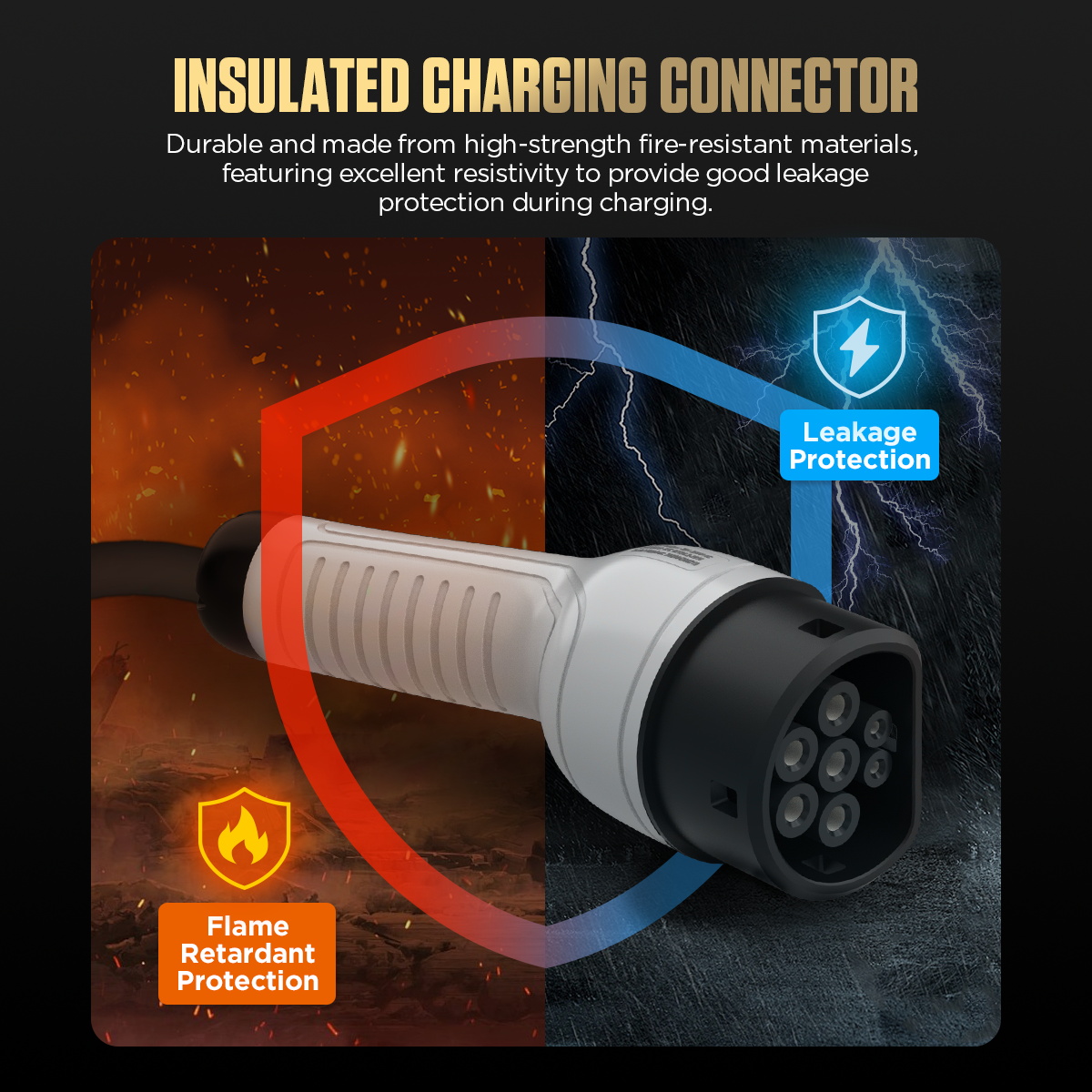

AUTOOL C701 insulated charging connector with anti-leakage and flame-retardant protection

AUTOOL C701 pure copper cable detail showing stable conductivity and thickened outer sheath

Specifications

AUTOOL C701 Specifications

Review voltage, current, cable length, frequency, IP rating, temperature range, rated power, standby power, size, and connector compatibility before ordering.

Core Specifications
Product	AUTOOL C701 Electric Car Charger
Charger Type	Level 2 home EV charging station
Input Voltage	AC 220V version shown in specifications image; confirm the correct regional voltage version before ordering
Output Current	32A max
Adjustable Current	10A / 14A / 16A / 25A / 32A
Rated Power	7KW
Standby Power	<2W
Input Frequency	50Hz
Structure And Protection
Cable Length	8m / 26ft
Protection Rating	IP66
Operating Temperature	-20°C to 50°C
Product Size	324 × 187 × 70mm
Display	4.3-inch smart touchscreen
Connector / Standard	Designed for EVs compliant with IEC 62196-2
Control And Support
Smart Control	App / Bluetooth smart control for monitoring, current setting, and scheduled charging
Unlocking Methods	Card unlocking, password unlocking, and plug-and-play unlocking
Installation Type	Wall-mounted or pillar-mounted installation supported
Warranty	3-year warranty service from the date of customer receipt when purchased through the official store

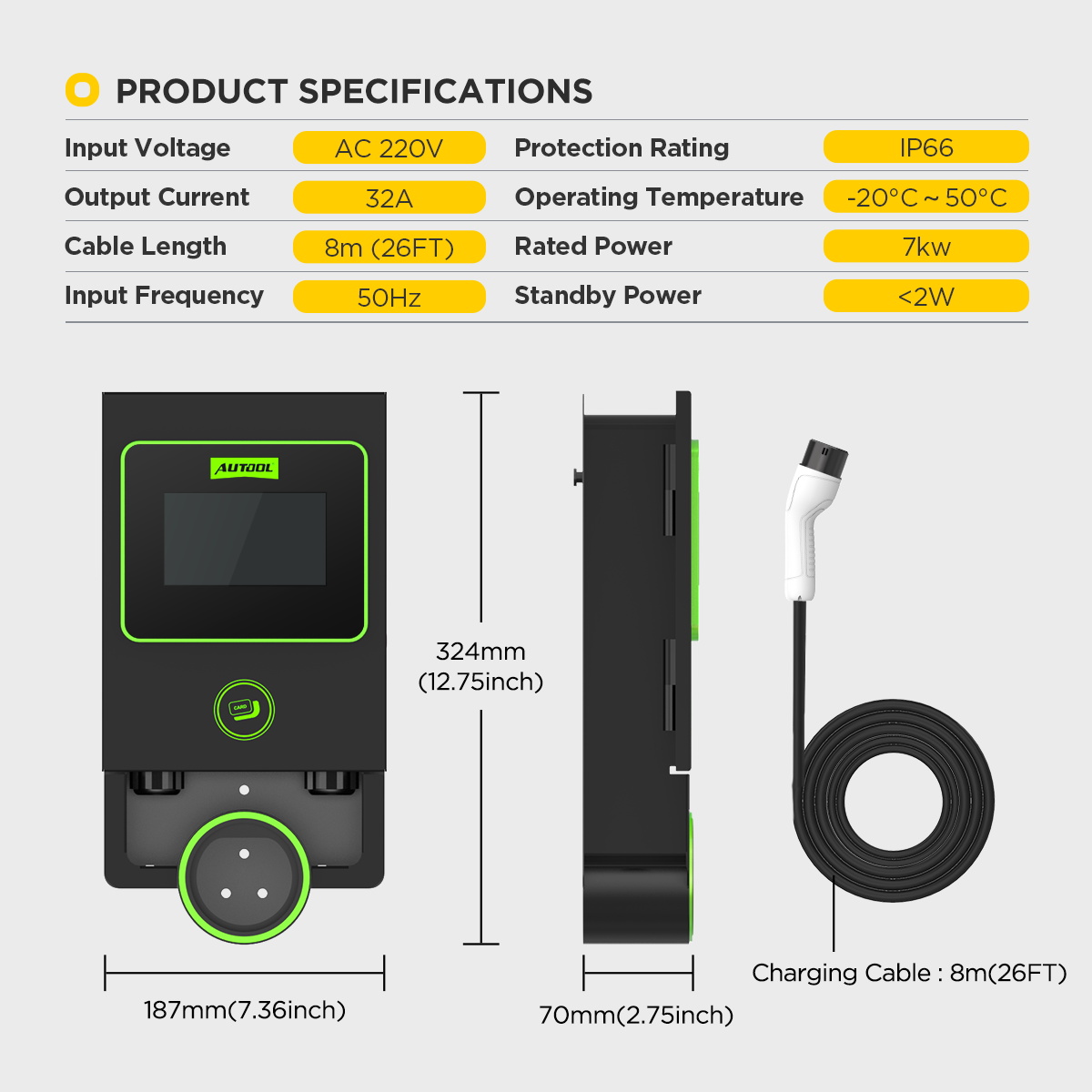

AUTOOL C701 product specifications image showing AC 220V, 32A, 8m cable, 50Hz, IP66, -20°C to 50°C, 7KW, standby power under 2W, and 324 by 187 by 70mm size

Core Specifications

ProductAUTOOL C701 Electric Car Charger

Charger TypeLevel 2 home EV charging station

Input VoltageAC 220V version shown in specifications image; confirm the correct regional voltage version before ordering

Output Current32A max

Adjustable Current10A / 14A / 16A / 25A / 32A

Rated Power7KW

Standby Power<2W

Input Frequency50Hz

Structure And Protection

Cable Length8m / 26ft

Protection RatingIP66

Operating Temperature-20°C to 50°C

Product Size324 × 187 × 70mm

Display4.3-inch smart touchscreen

Connector / StandardDesigned for EVs compliant with IEC 62196-2

Control And Support

Smart ControlApp / Bluetooth smart control for monitoring, current setting, and scheduled charging

Unlocking MethodsCard unlocking, password unlocking, and plug-and-play unlocking

Installation TypeWall-mounted or pillar-mounted installation supported

Warranty3-year warranty service from the date of customer receipt when purchased through the official store

AUTOOL C701 wide vehicle compatibility image showing Tesla, Volkswagen, Volvo, Skoda, Audi, MG, Dacia, Fiat, Ford, BMW, Mercedes-Benz and more

Compatibility And Fitment

C701 is designed for EVs compliant with IEC 62196-2. The compatibility image references Tesla, Volkswagen, Volvo, Skoda, Audi, MG, Dacia, Fiat, Ford, BMW, Mercedes-Benz and more.

Connector CheckConfirm that the vehicle charging interface is compatible with IEC 62196-2 before ordering.

Voltage CheckConfirm the correct regional voltage version and home circuit capacity before installation.

Use ScenarioSuitable for home vehicles, small fleets, and commercial vehicle charging when the installation conditions are met.

Product Comparison

Compare C350 and C701 before choosing the right AUTOOL EV charging solution for charging power, cable length, protection rating, touchscreen control, Bluetooth control, and installation style.

C350 FocusPortable EV charging option with 5m cable, 3.3KW rated power, IP65 protection, and 8A / 10A / 12A / 14A / 16A current levels.

C701 FocusWall-mounted EV charging station with 8m cable, 7KW rated power, IP66 protection, 4.3-inch smart touchscreen, Bluetooth remote control, and 10A / 14A / 16A / 25A / 32A current levels.

Decision CheckChoose C350 for portable lower-power charging. Choose C701 for higher-power home wall charging, longer cable, touchscreen control, IP66 protection, and app / Bluetooth smart control.

AUTOOL electric vehicle charging station comparison chart comparing C350 and C701

Installation And Setup

C701 is a home EV charging station and should be installed only after confirming the installation location, circuit capacity, local code requirements, and maintenance plan.

Installation Location

Select a spot near the parking space for easy access to the power supply and keep the charger away from flammable objects.

Power Requirements

Ensure the home circuit can handle the charging load. Hire a professional electrician to upgrade the wiring if needed.

Compliant Installation

Follow local electrical and building codes to ensure that the charging port is installed under the relevant regulations.

Regular Maintenance

Regularly check the working condition, cable connections, and charging port status to ensure proper operation.

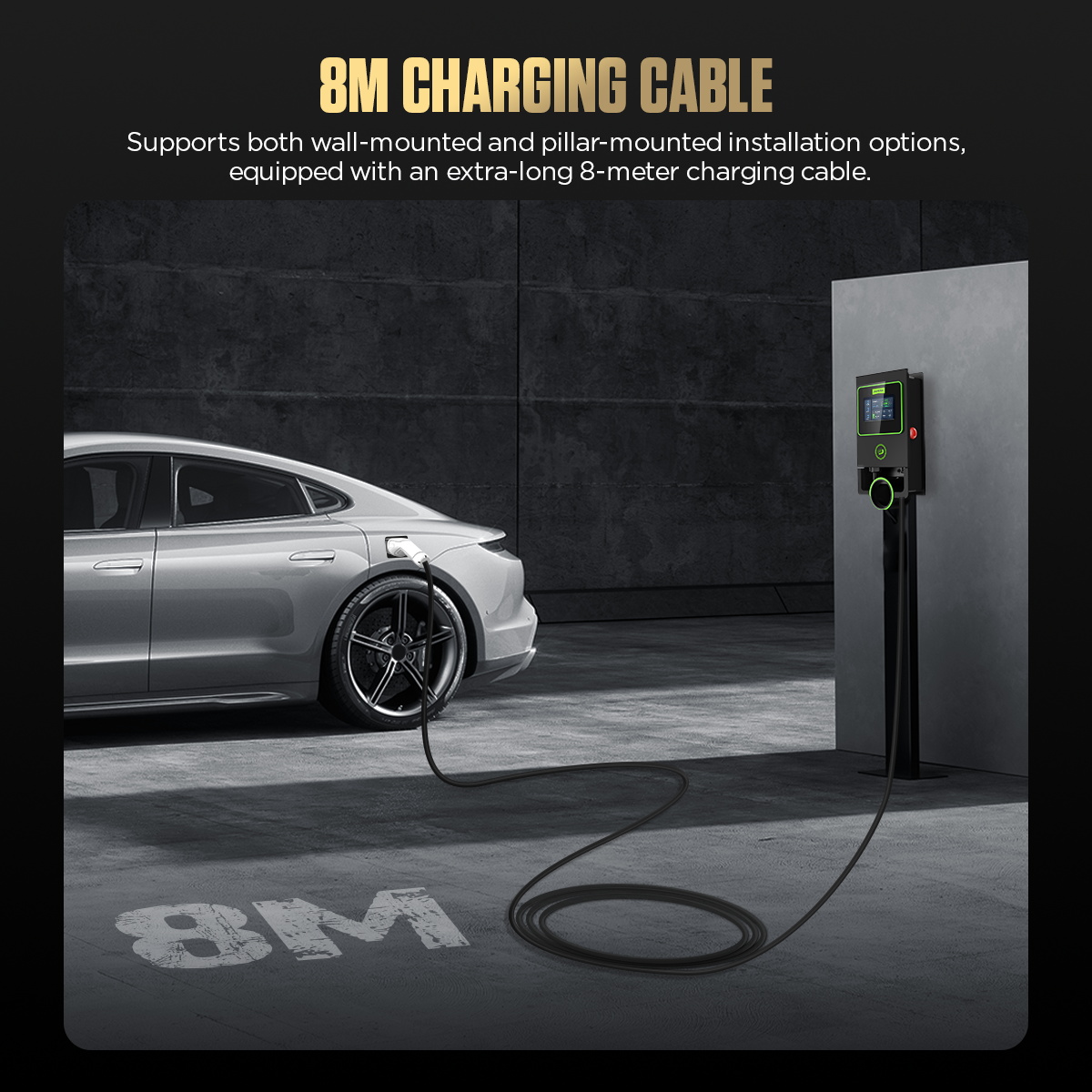

AUTOOL C701 8m charging cable with wall-mounted and pillar-mounted installation support

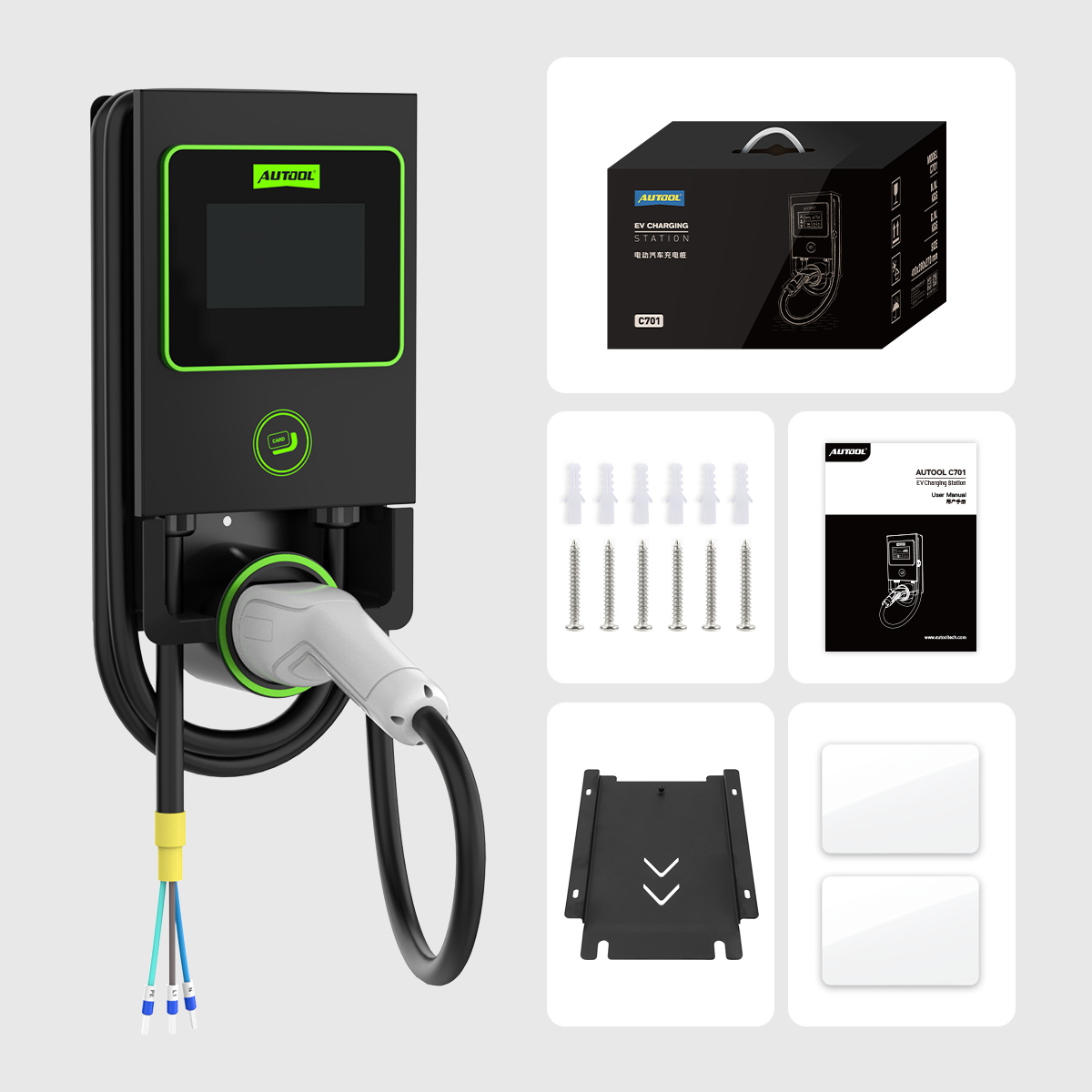

AUTOOL C701 packing list showing main unit, package box, screws, expansion tubes, user manual, mounting bracket, and access cards

What Is In The Box

Review the package image before ordering. This is the most complete packing-list image and shows the main charger, mounting accessories, user manual, wall mounting bracket, and access cards.

Main UnitAUTOOL C701 electric car charger

Installation AccessoriesScrews / expansion tubes shown in the package image

Mounting SupportWall mounting bracket shown in the package image

Access CardsCards shown in the package image for card unlocking use

DocumentationUser manual shown in the package image

Manual And Downloads

Download the AUTOOL C701 multilingual user manual for installation, wiring, operation, safety precautions, touchscreen settings, app / Bluetooth control, scheduled charging, and daily charging instructions.

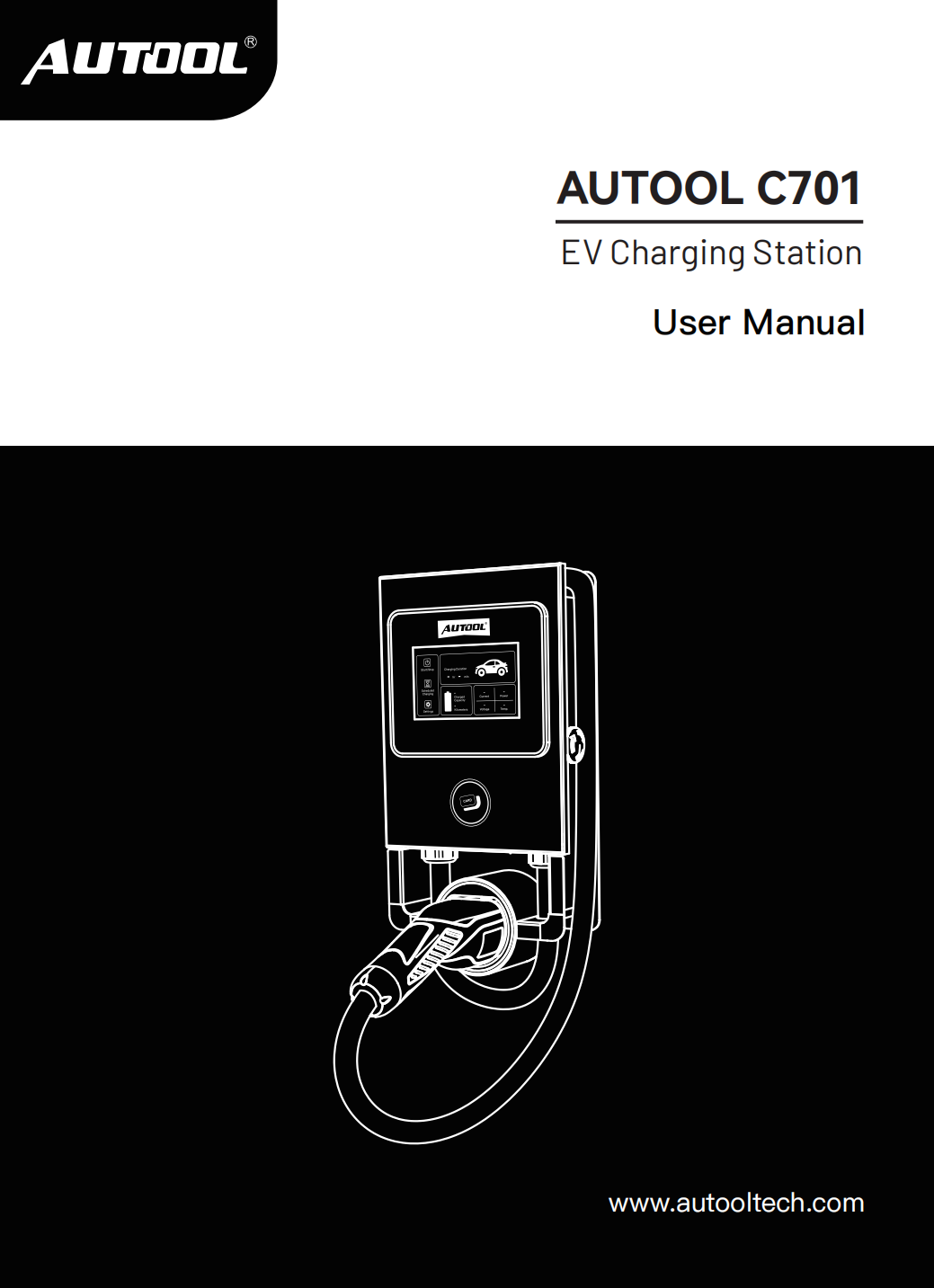

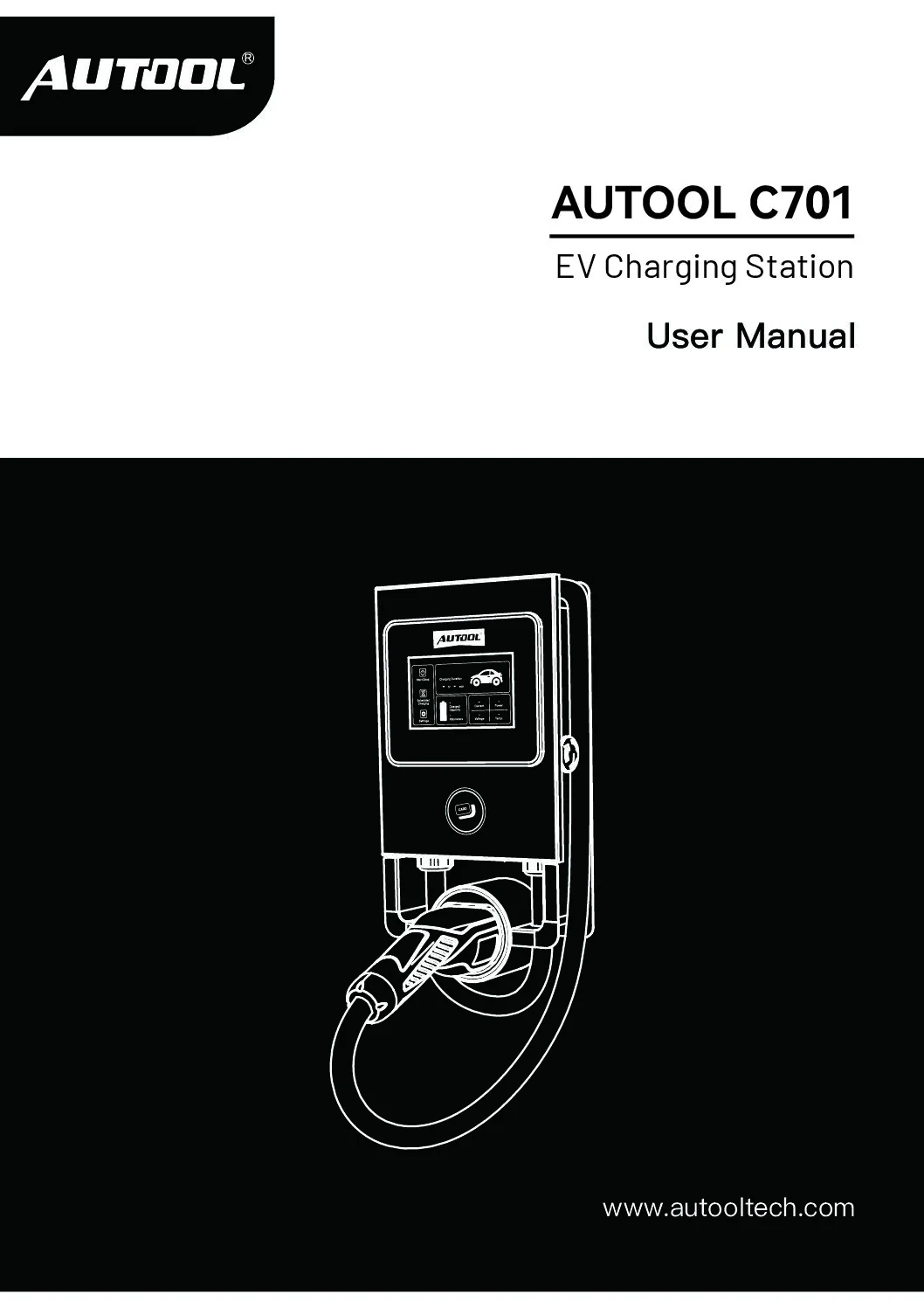

AUTOOL C701 EV Charging Station user manual cover

AUTOOL C701 Multilingual Manual

Open the PDF manual for C701 installation guidance, charging setup, safety notes, app / Bluetooth control, and daily use instructions.

Download Manual

Need Installation Confirmation?

Contact AUTOOL Store before ordering if you need to confirm voltage version, circuit capacity, installation requirements, charging connector compatibility, cable length, app / Bluetooth setup, or warranty support.

Emailsupport@autoolstore.com WhatsApp+86 189 2647 7404

Questions And Answers

These answers cover power supply, professional installation, adjustable current, scheduled charging, unlocking methods, waterproof rating, cable length, compatibility, C350 comparison, and warranty before ordering.

What Power Supply Does C701 Require?

Do I Need A Professional Electrician To Install It?

Can I Adjust The Charging Current?

Does C701 Support Scheduled Charging?

What Unlocking Methods Does C701 Support?

Is C701 Waterproof?

How Long Is The Charging Cable?

Which Vehicles Are Compatible?

What Is The Difference Between C350 And C701?

How Long Is The Warranty?

Warranty And Contact

For product support, installation confirmation, voltage / current version confirmation, circuit capacity questions, cable / connector compatibility, app / Bluetooth control help, scheduled charging setup, or warranty support, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming whether C701 is suitable for your home circuit, vehicle connector, installation location, cable reach, unlocking method, current setting, scheduled charging needs, or regional voltage version.

3-year warranty service from the date of customer receipt when purchased through the official store
Installation and circuit capacity confirmation
Voltage / current version confirmation before ordering
IEC 62196-2 connector compatibility support
App / Bluetooth control and scheduled charging setup support
Cable, unlocking method, and charging scenario confirmation
