AUTOOL PT680 Air Suspension Pressure Tester
US$459.00
Key Features
- Dual-Channel Comparison
- Leak Location Aid
- Multi-Unit Precision
- Dual-Channel Comparison: Tests left and right air suspension pressure at the same time so differences are easier to spot.
- Leak Location Aid: Pressure monitoring helps narrow down leaks in air springs, pipes, joints, and connection points.
- Multi-Unit Precision: The digital sensor is stated at ±1% FS accuracy and supports one-button switching between kg/cm², kPa, and bar.
Secure checkoutFast supportBulk ready

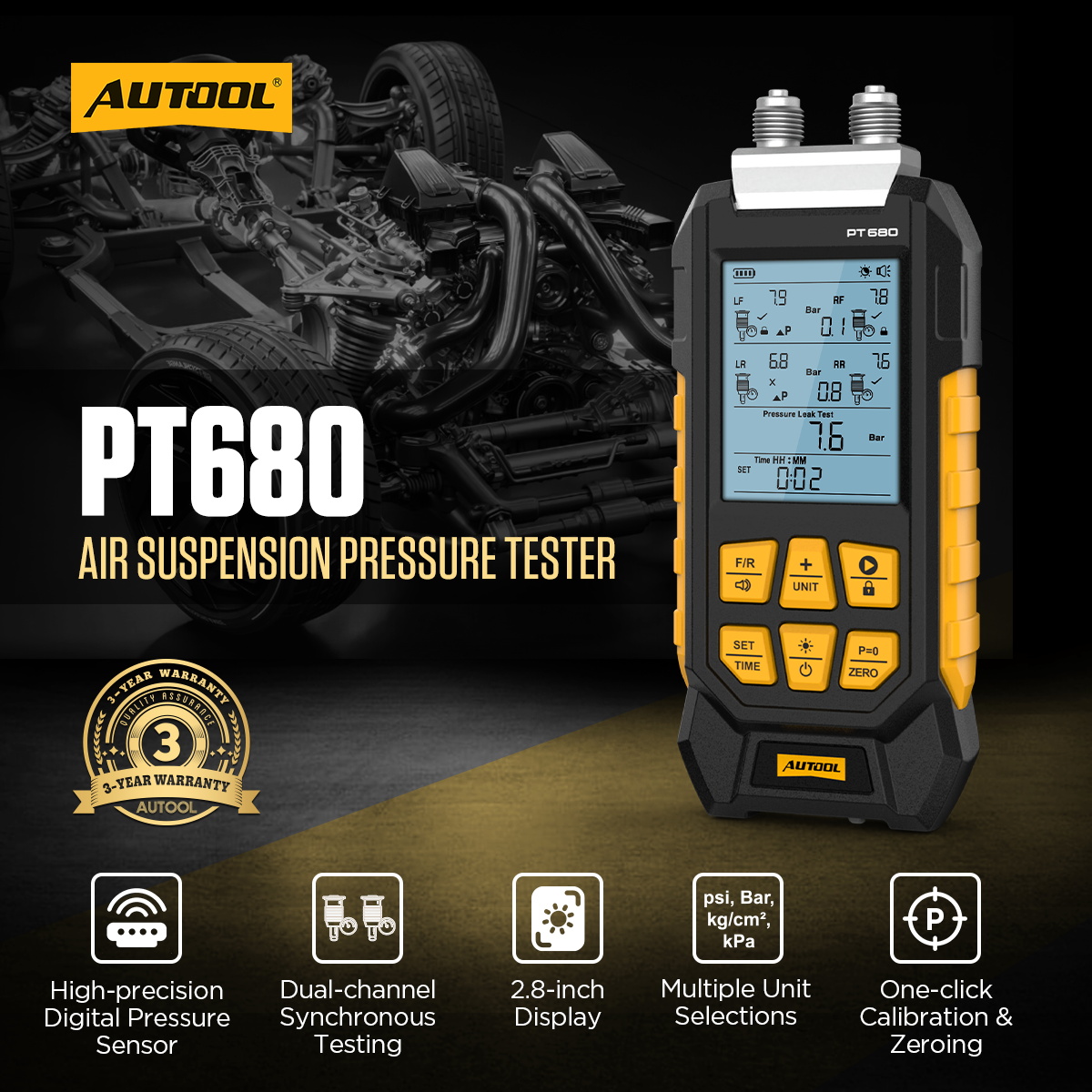

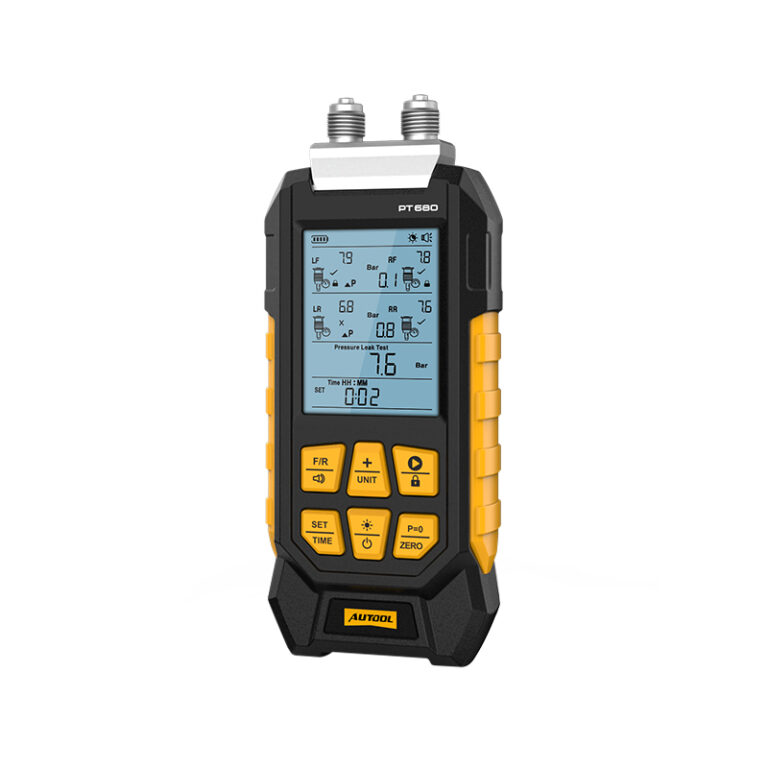

AUTOOL PT680
Product Overview
The AUTOOL PT680 is a professional digital air suspension pressure tester designed to help locate pressure leaks in vehicle air suspension systems. It supports dual-channel synchronous testing for left and right air suspension circuits, calculates pressure difference in real time, and helps check air springs, pipes, and connection points in air suspension systems.
Air Suspension Leak Test Dual-Channel Testing ±1% FS Accuracy 0-20Bar Range
0-20BarMeasurement Range
±1% FSAccuracy
2.8-inchBacklit Display
3 YearsWarranty Support
Click to enlarge
Click to enlargeBefore You Order And Use
Before You Order And Use
PT680 is built for air suspension pressure leak checks. Confirm the test object, fittings, power method, and pressure range before use.
Air Suspension Tester
PT680 is designed for air suspension system pressure leak testing, including air springs, pipes, and connection points.
Not An Engine Pressure Tester
PT680 is different from engine cylinder, engine oil, fuel, transmission oil, and brake pressure testers. Use the correct AUTOOL pressure tester for each system.
Check Adapter Fitment
Before testing, confirm that the included hoses, adapters, and fittings can connect properly to the target vehicle air suspension system.
Battery Powered
The product specifications show the operating voltage as 4 × 1.5V AAA batteries.
Type-C Interface Shown
The product detail image identifies a Type-C interface, but the supplied content does not clearly state that PT680 is rechargeable.
Use Within Rated Range
Use PT680 within its 0-20Bar measurement range and -10°C to 60°C operating temperature range.
Key Features
Key Features
PT680 combines a digital pressure sensor, dual-channel synchronous testing, pressure differential display, unit switching, a backlit screen, one-click calibration, and quick-connect fittings for efficient air suspension leak checks.

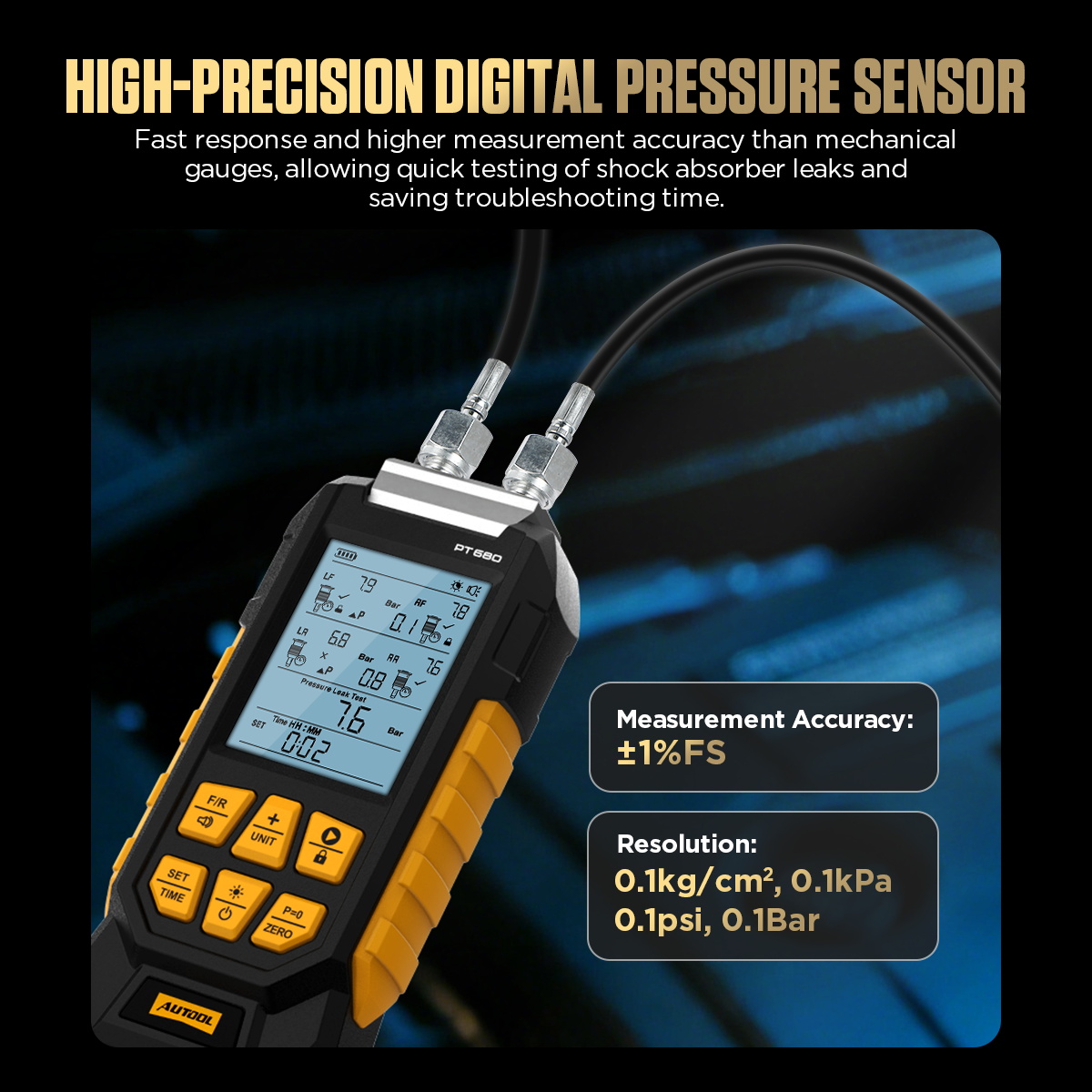

High-Precision Digital Pressure Sensor
The built-in digital pressure sensor provides ±1% FS measurement accuracy and fast response for pressure leak checking.
Dual-Channel Synchronous Test
PT680 supports simultaneous testing of left and right air suspension circuits and displays pressure changes in real time.
Pressure Difference Display
The tester calculates pressure difference to help compare left and right side pressure behavior more intuitively.

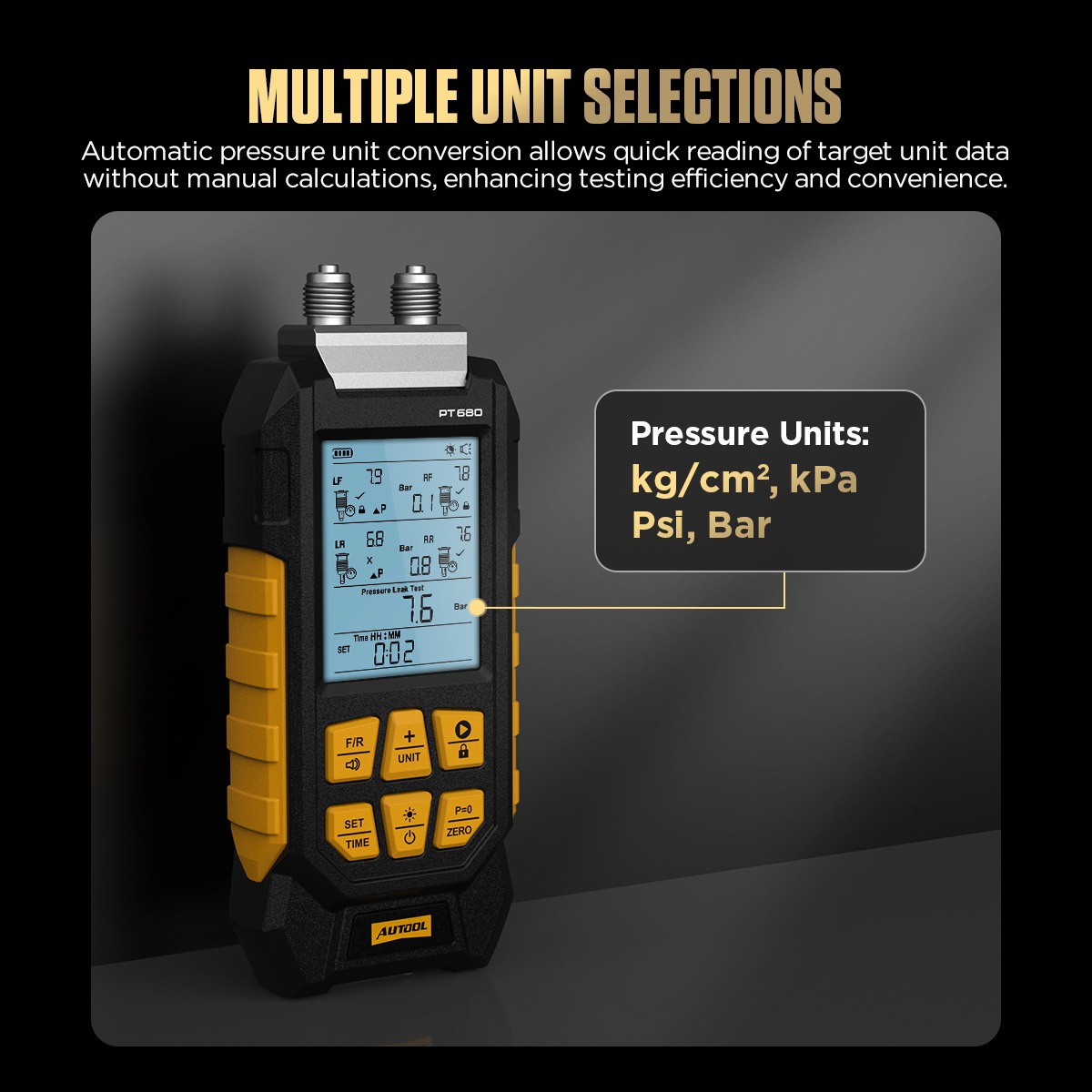

Multiple Unit Selections
Switch pressure units between psi, Bar, kg/cm², and kPa without manual conversion.

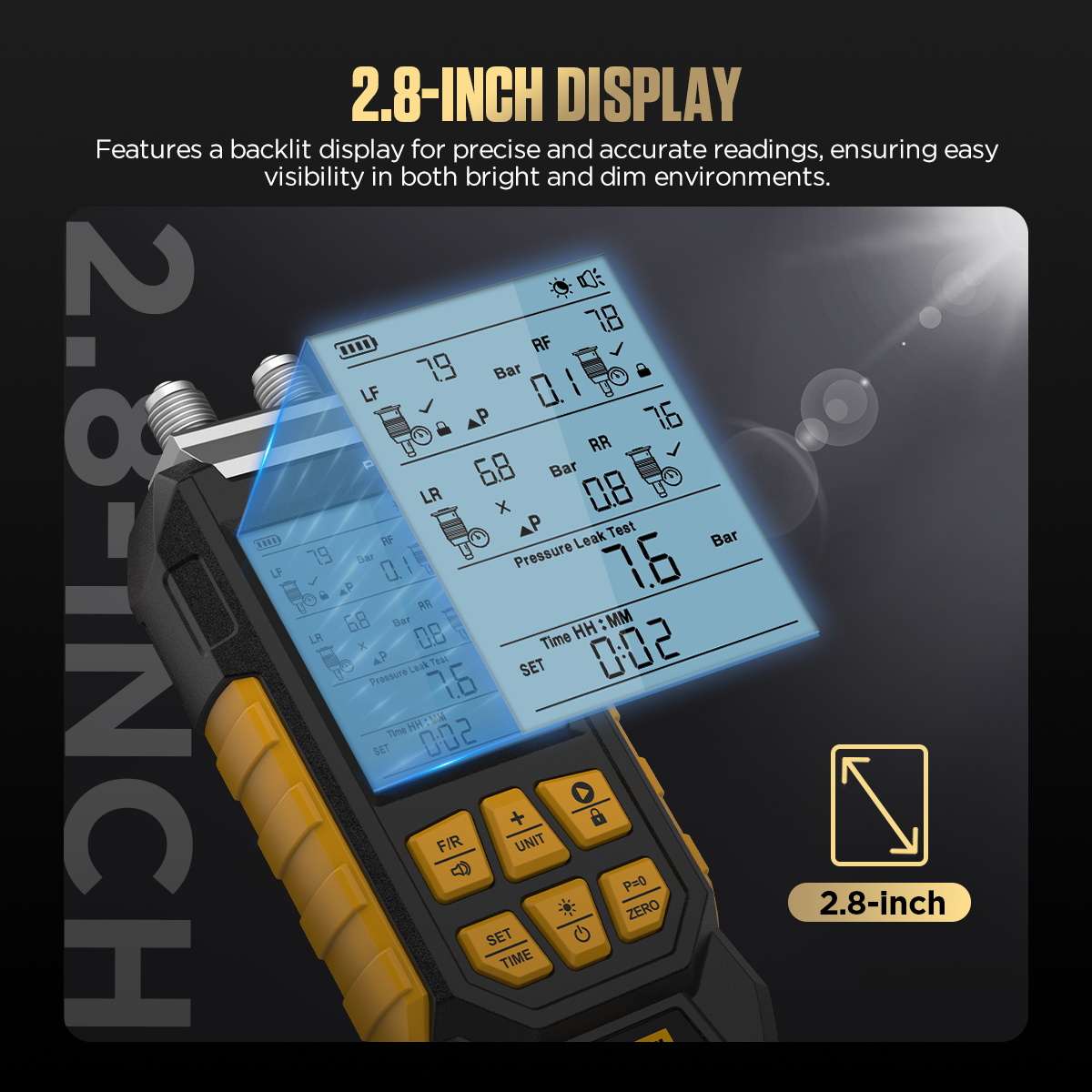

2.8-Inch Backlit Display
The 2.8-inch backlit display helps keep pressure data visible in bright daylight or dim workshop environments.

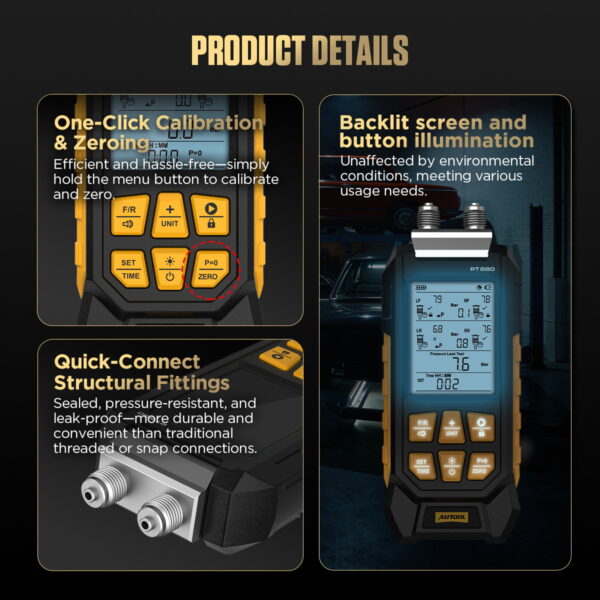

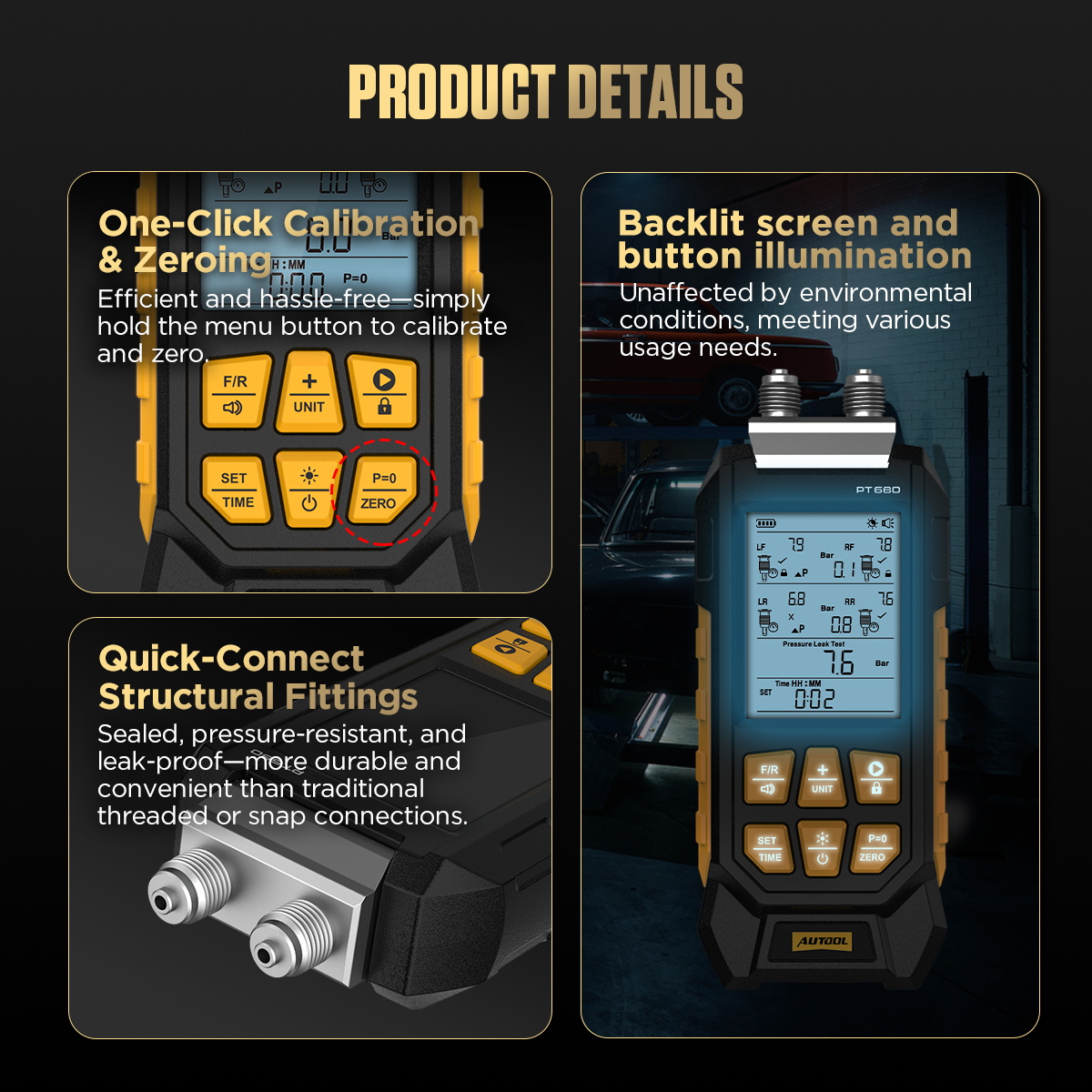

One-Click Calibration And Zeroing
Calibration and zeroing can be performed with simple button operation, helping reduce setup time during testing.
Backlit Buttons
Button illumination improves visibility during low-light workshop use and nighttime inspection work.
Quick-Connect Structural Fittings
Sealed, pressure-resistant quick-connect fittings are designed for durability, convenience, and reliable connection.
3-Year Warranty Support
For eligible non-human damage cases, AUTOOL provides 3-year warranty support and accessory assistance.
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlargeProduct Details
Product Details
PT680 does not rely on a single manual pressure reading. It monitors pressure changes and pressure difference across dual channels to help identify abnormal pressure loss.
Connect Left And Right Channels
Use the proper fittings to connect PT680 to the target left and right air suspension circuits.

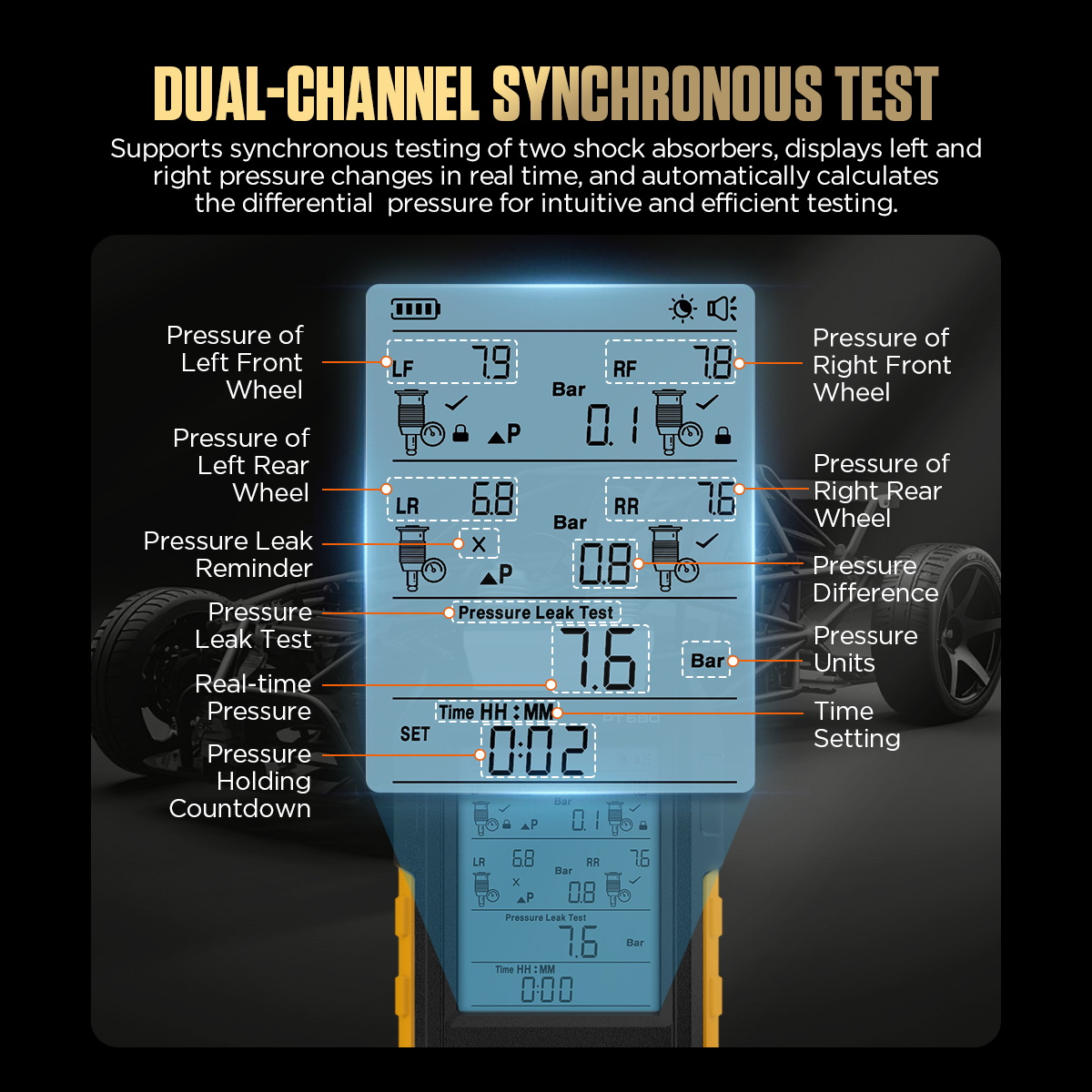

Monitor Real-Time Pressure
Read LF, RF, LR, and RR pressure values, pressure units, pressure leak reminders, and test status from the display.
Compare Pressure Difference
Use the pressure difference reading and pressure holding countdown to identify which side may have abnormal pressure loss.
Applications
Applications
PT680 is suitable for many vehicles equipped with air suspension systems, especially when technicians need to compare left and right side pressure behavior.
Air Suspension Leak Checks
Helps test pressure leakage in vehicle air suspension systems during maintenance and repair.
Air Springs
Helps check pressure loss around air spring areas when the vehicle shows abnormal height or suspension behavior.
Pipes And Connections
Useful for checking pipes, adapters, and connection points in the air suspension system.
Common Vehicle Coverage
Suitable for many Audi, Volkswagen, BMW, Mercedes-Benz, Porsche, Cayenne, and Land Rover models with compatible air suspension systems.
Specifications
AUTOOL PT680 Product Specifications
PT680 measures 0-20Bar pressure with ±1% FS accuracy and supports psi, Bar, kg/cm², and kPa pressure units.
| Core Specifications | |
| Product | AUTOOL PT680 Air Suspension Pressure Tester |
| Operating Voltage | 4 × 1.5V AAA batteries |
| Measurement Range | 0-20Bar |
| Measurement Accuracy | ±1% FS |
| Measurement Units | psi, Bar, kg/cm², kPa |
| Resolution | 0.1psi, 0.1Bar, 0.1kg/cm², 0.1kPa |
| Operating Temperature | -10°C to 60°C |
| Display | 2.8-inch backlit display |
| Dimensions | 185 × 75 × 35mm / 7.28 × 2.95 × 1.38 inch |
| Test Channels | Dual-channel synchronous pressure testing |
| Pressure Display | LF / RF / LR / RR pressure, pressure difference, pressure leak test, pressure holding countdown, time setting |
| Warranty | 3-year warranty support for eligible non-human damage cases |

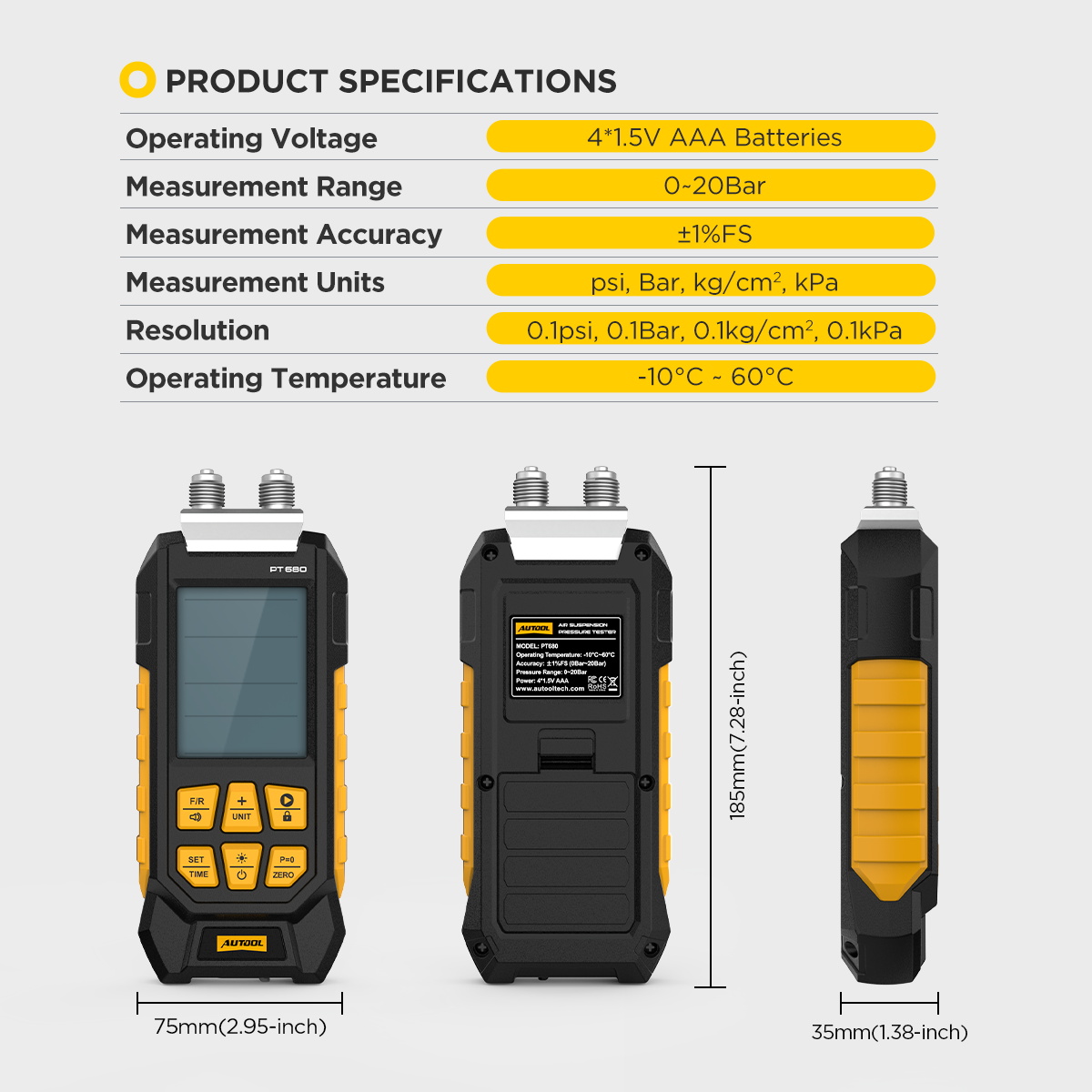

Click to enlargeCore Specifications
Operating Voltage4 × 1.5V AAA batteries
Measurement Range0-20Bar
Accuracy±1% FS
Unitspsi, Bar, kg/cm², kPa
Resolution0.1psi, 0.1Bar, 0.1kg/cm², 0.1kPa
Temperature-10°C to 60°C
Dimensions185 × 75 × 35mm
Click to enlargeProduct Details
Product Details

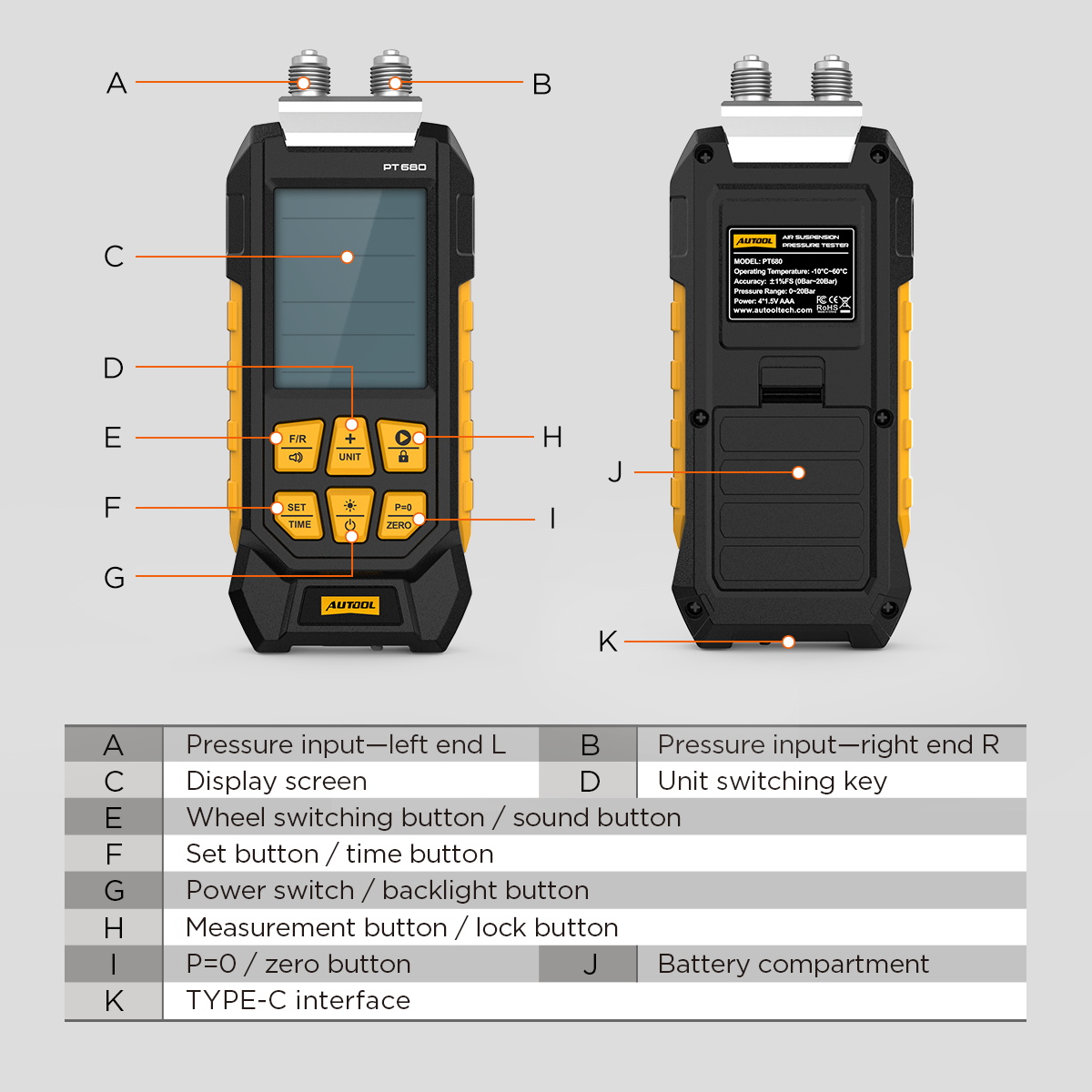

The PT680 body integrates dual pressure inputs, a clear display, unit switching, wheel switching, time setting, backlight, measurement lock, zeroing, battery compartment, and a Type-C interface shown on the device diagram.
A / BPressure input — left end L and right end R
CDisplay screen
DUnit switching key
EWheel switching button / sound button
FSet button / time button
GPower switch / backlight button
HMeasurement button / lock button
IP=0 / zero button
J / KBattery compartment and Type-C interface
Click to enlargeWhat Is In The Box

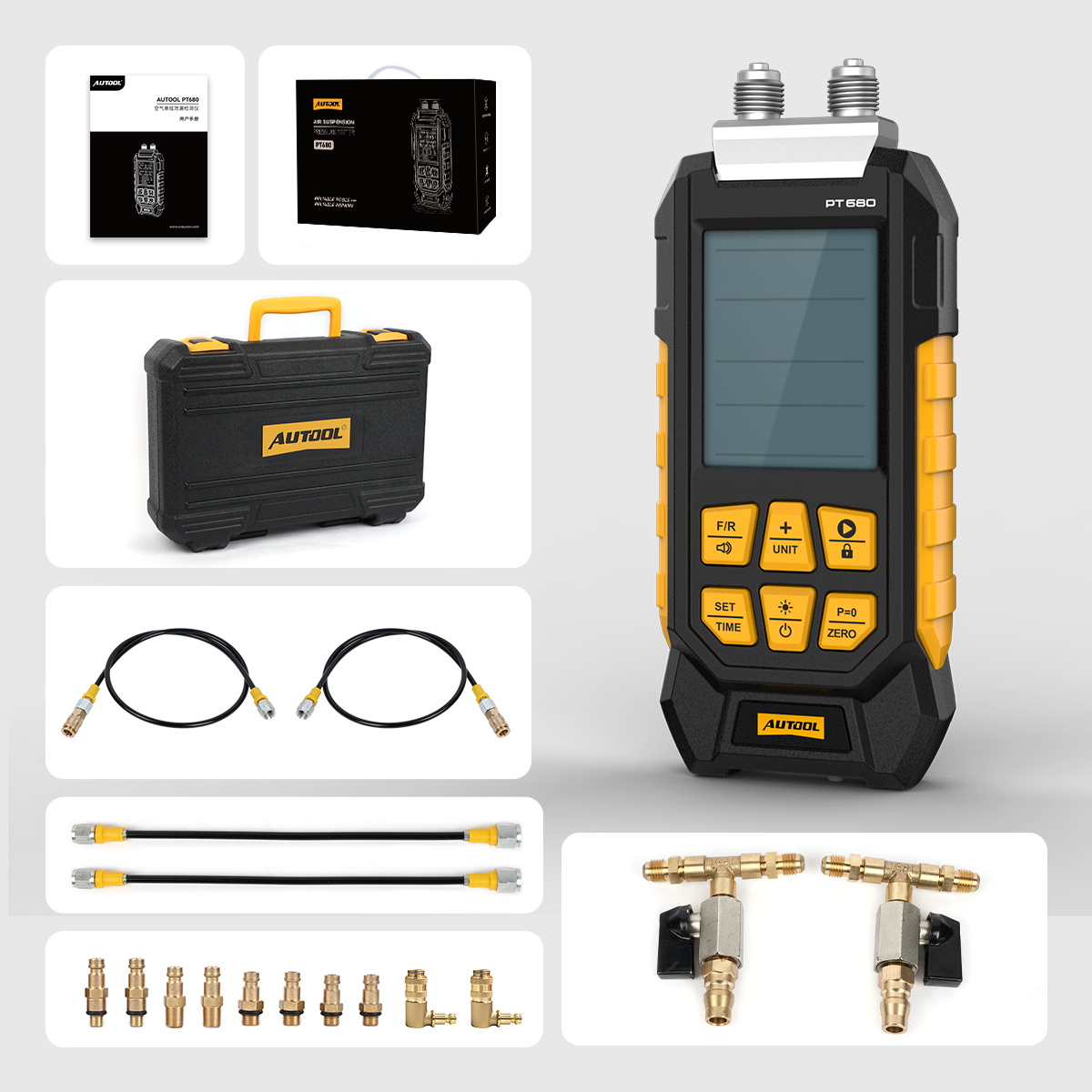

What Is In The Box
The packing list image shows the PT680 main unit, manual, retail box, carrying case, hoses, adapters, and connection fittings. Refer to the package image for the final included accessories.
Main UnitAUTOOL PT680 air suspension pressure tester
StorageAUTOOL carrying case and retail box shown in the package image
HosesFlexible test hoses and extension hoses shown in the package image
AdaptersBrass adapters, quick-connect fittings, and connection accessories shown in the package image
DocumentationUser manual shown in the package image
How To Use
How To Use
The comparison chart shows AUTOOL engine, oil, fuel, transmission, and brake pressure testers. PT680 is a separate air suspension pressure tester, so use this chart only when comparing other AUTOOL pressure tester categories.
PT610Cylinder pressure gauge for engine cylinder pressure checks, 0-30Bar range, 10 accessory connector types, and 6 sets of data storage.
PT620Oil pressure gauge kit for engine oil circulation systems, 0-30Bar range, and 18 accessory connector types.
PT630 / PT635Fuel pressure testers for automotive fuel systems. PT630 lists 17 connector types, while PT635 high-end version lists 31 connector types.
PT640GDI fuel pressure gauge for direct injection fuel pump pressure testing, with 0-360Bar range.
PT650Transmission oil pressure gauge for automotive transmission pressure testing, 0-30Bar range, and 12 accessory connector types.
PT660Brake system pressure tester with a 3-inch display, 10-210Bar range, and dual-channel pressure testing for two brake calipers.
Click to enlargeRelated Products
Related Products
Browse related AUTOOL pressure tester models for engine cylinder, engine oil, fuel, transmission, and brake pressure testing. These products are related pressure tester tools, not direct replacements for the PT680 air suspension pressure tester.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT610 Cylinder Pressure Gauge Automotive Tool
From US$119.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT620 Engine Oil Pressure Gauge with Digital Display
From US$179.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT635 Fuel Pressure Gauge(Hight-end Version) 0-426 PSI Digital Display Automotive Tool for Motorcycle Car Truck
From US$259.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT650 ATF Exchanger Transmission Oil Pressure Gauge
From US$119.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL PT660 Brake Pressure Gauge Pressure Gauge
From US$359.00
Questions And Answers
These answers cover PT680 use cases, air suspension testing, dual-channel measurement, pressure units, power supply, specifications, package contents, related pressure testers, and warranty support.
PT680 is designed to test pressure leakage in vehicle air suspension systems. It helps check air springs, pipes, and connection points in air suspension systems.
No. PT680 is an air suspension pressure tester. It is different from AUTOOL engine cylinder, engine oil, fuel, transmission, and brake pressure testers such as PT610, PT620, PT635, PT650, and PT660.
Yes. PT680 supports dual-channel synchronous testing. It can monitor left and right pressure changes and calculate pressure difference in real time.
PT680 supports psi, Bar, kg/cm², and kPa. You can switch units directly without manual conversion.
The PT680 measurement range is 0-20Bar, and the measurement accuracy is ±1% FS. Its listed resolution is 0.1psi, 0.1Bar, 0.1kg/cm², and 0.1kPa.
The product specifications show the PT680 operating voltage as 4 × 1.5V AAA batteries. The product detail diagram also shows a Type-C interface, but the supplied content does not clearly state that the unit is rechargeable.
PT680 is suitable for many vehicles with air suspension systems, including many Audi, Volkswagen, BMW, Mercedes-Benz, Porsche, Cayenne, and Land Rover models. Confirm fitting compatibility before testing.
Refer to the Packing List image for final package contents. The image shows the PT680 main unit, manual, retail box, carrying case, hoses, adapters, and connection fittings.
PT680 is for air suspension pressure testing. PT610 is for engine cylinder pressure, PT620 is for engine oil pressure, PT635 is for fuel pressure, PT650 is for transmission oil pressure, and PT660 is for brake pressure testing. Choose according to the system being tested.
AUTOOL provides 3-year warranty support for eligible non-human damage cases. For product setup, package contents, accessory confirmation, or troubleshooting, contact AUTOOL Store support.
Warranty And Contact
Warranty And Contact
For PT680 air suspension compatibility, adapter and fitting confirmation, pressure unit setup, package content checks, warranty support, or related AUTOOL pressure tester selection, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help confirming whether PT680 is suitable for your vehicle air suspension system, how to select the correct adapter, how to read pressure difference, or which AUTOOL pressure tester fits another system.
- Air suspension system and vehicle compatibility confirmation
- Adapter, hose, and fitting confirmation
- Pressure unit, zeroing, and measurement setup guidance
- Packing List and accessory confirmation
- 3-year warranty support for eligible non-human damage cases
- Related pressure tester selection for engine cylinder, oil, fuel, transmission, and brake pressure systems
