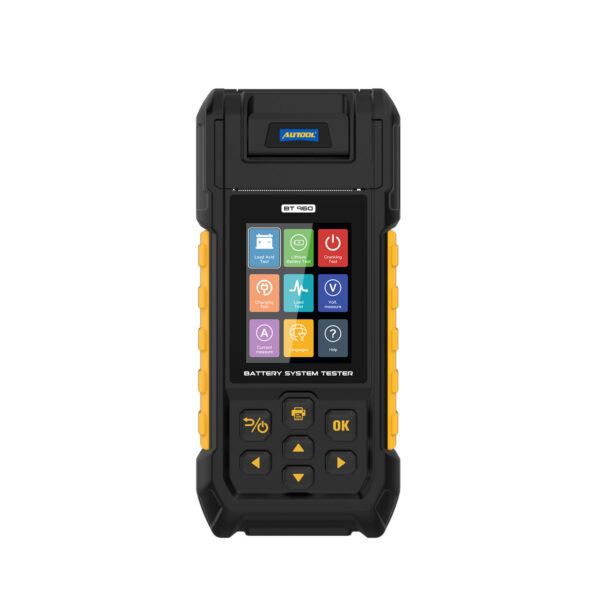

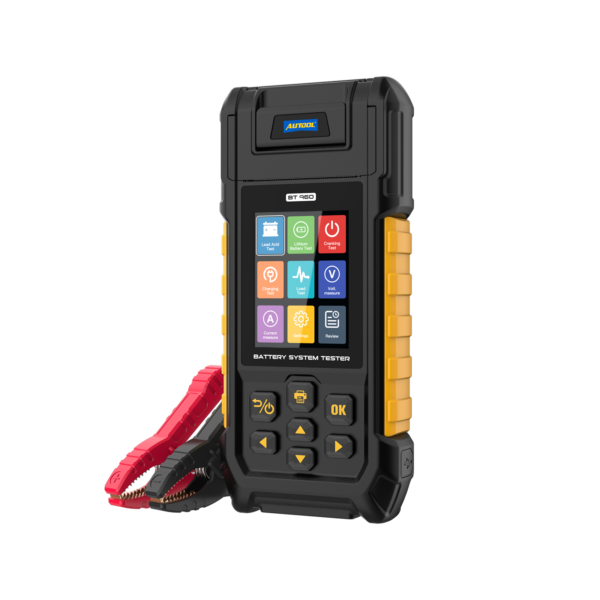

AUTOOL BT960 12V Car Battery Tester Lithium Battery Leakage Monitoring

AUTOOL BT960 12V Car Battery Tester Lithium Battery Leakage Monitoring

US$139.00

Key Features

Lithium Battery Testing
Leakage Monitoring
Built-In Printer

Shipping Warehouse

Clear

☰ REQUEST BULK / B2B QUOTE

Secure checkoutFast supportBulk ready

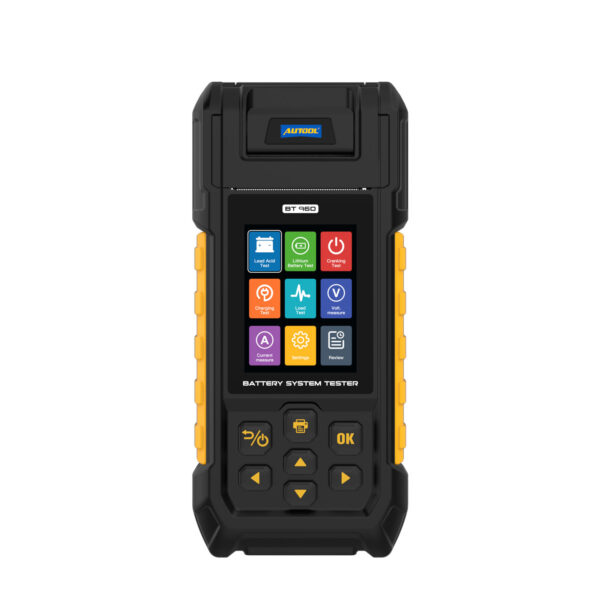

AUTOOL BT960

Product Overview

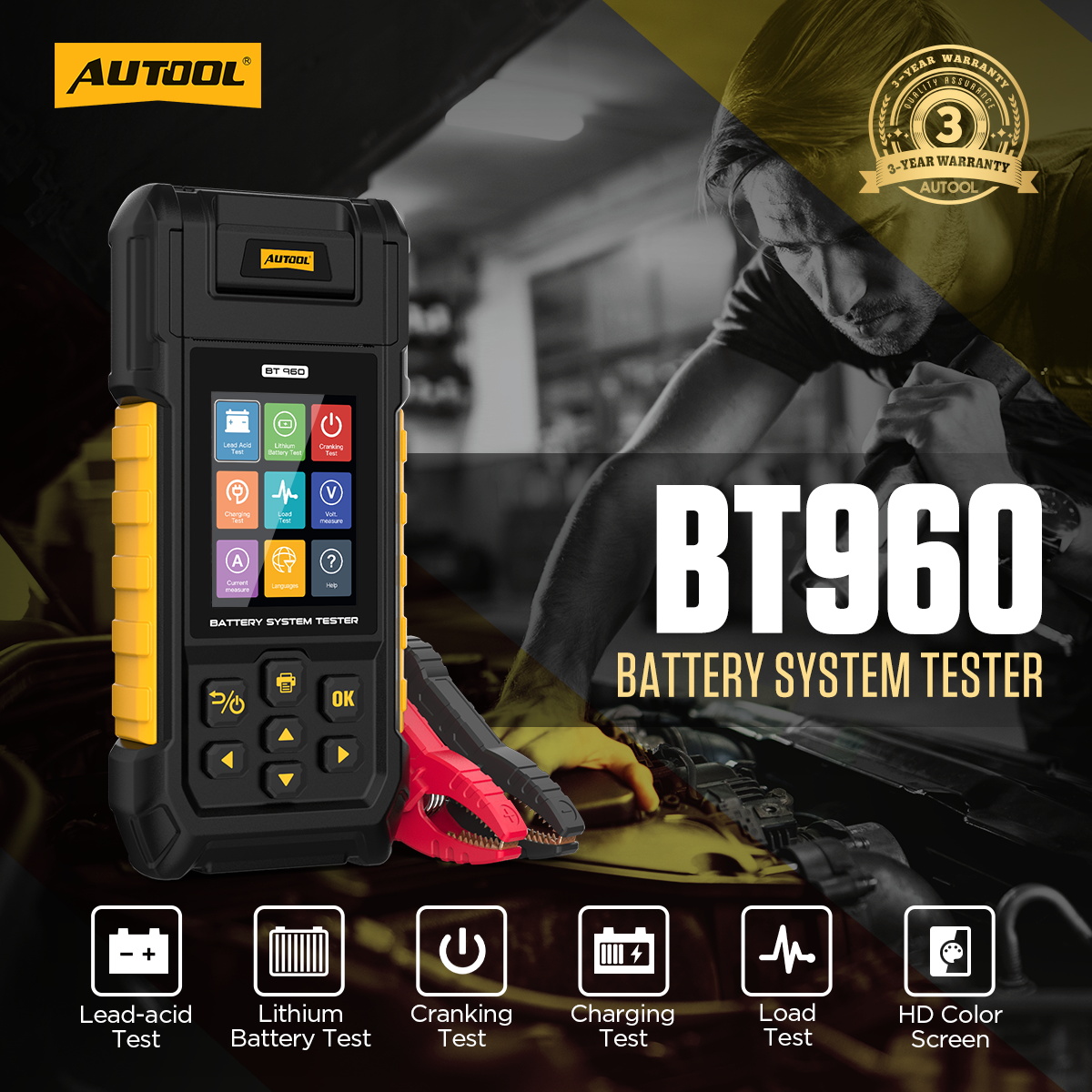

AUTOOL BT960 12V Car Battery Tester is a high-function automotive battery analyzer with lithium battery testing, battery leakage current monitoring, built-in temperature sensor, thermal printer, data records, 12V / 24V battery system support, and 0-80V voltage measurement. It helps users test lead-acid and lithium batteries, monitor slight current leakage, check battery health, print on-site test reports, and diagnose charging, starting, load, and leakage issues more efficiently.

Lithium Battery Test Leakage Monitoring Thermal Printer 0-80V Test

0-80VVoltage Test

0-10ACurrent Test

14Languages

3 YearsWarranty

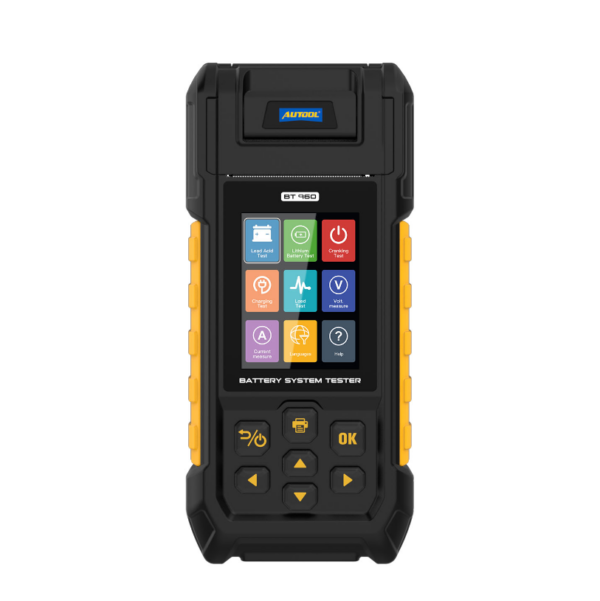

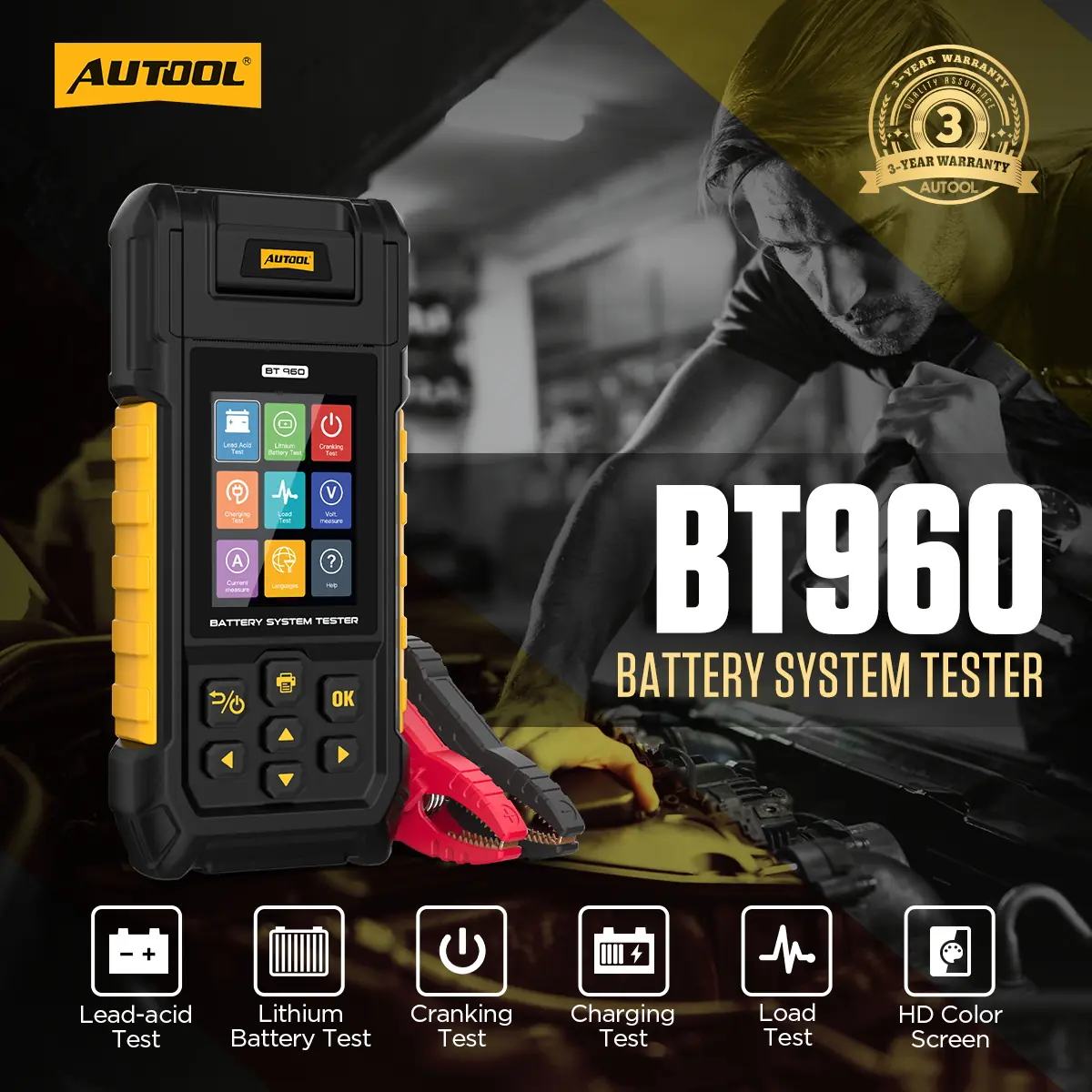

AUTOOL BT960 12V car battery tester main product image with lithium battery testing leakage monitoring and printer features

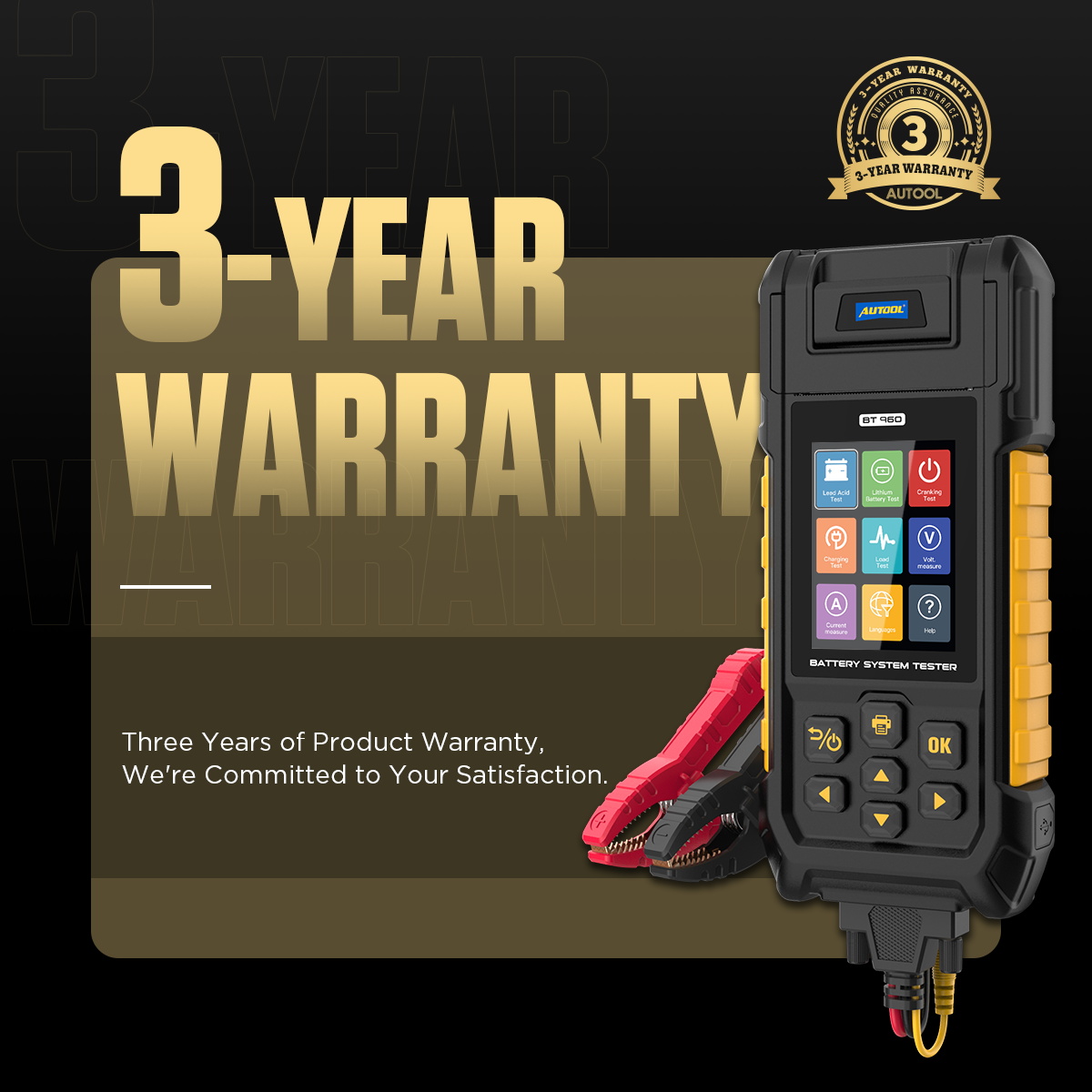

AUTOOL BT960 3-year warranty product image

Manual And Downloads

Download the AUTOOL BT960 EN-DE manual for battery testing, lithium battery testing, leakage current monitoring, thermal printing, settings, and operation guidance.

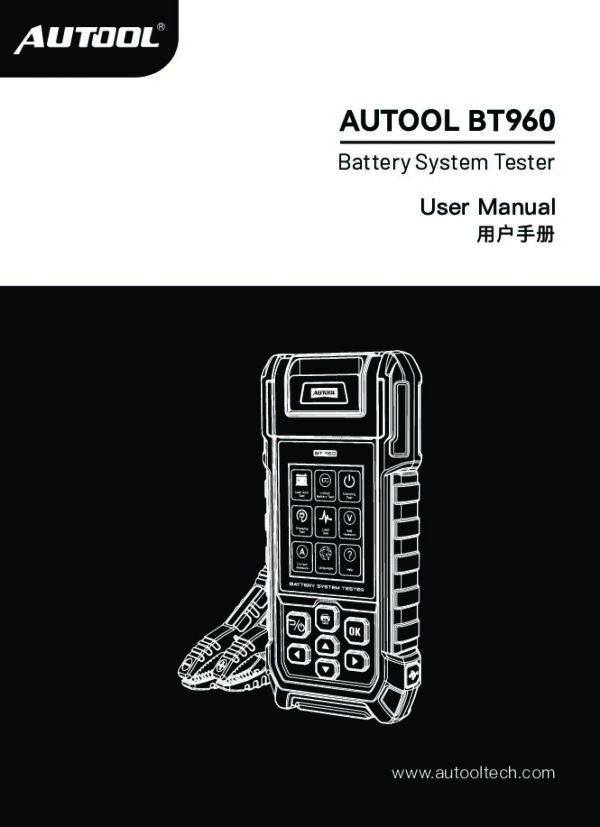

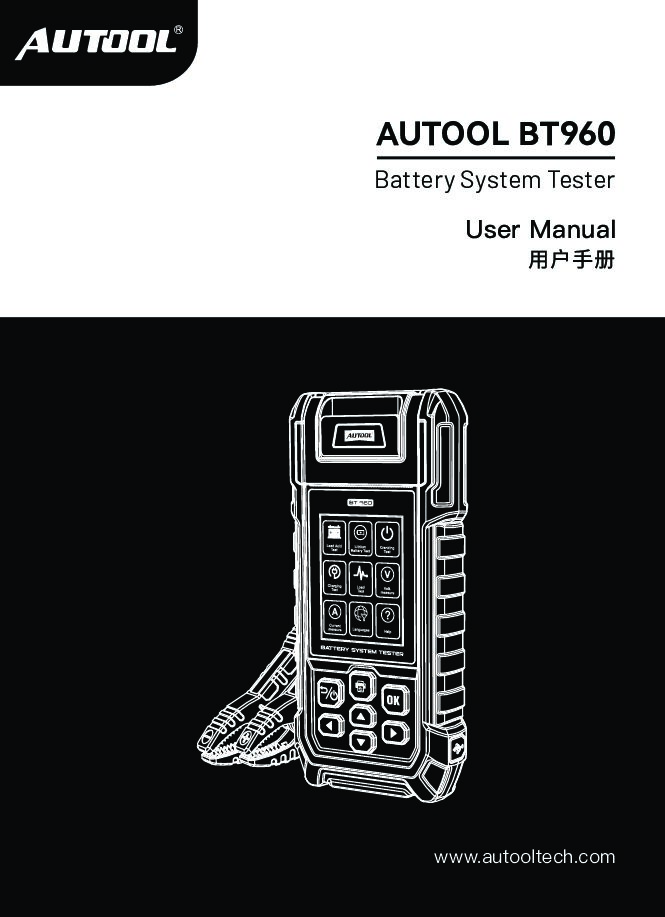

AUTOOL BT960 Battery System Tester user manual preview

AUTOOL BT960 User Manual

Open the PDF manual for BT960 setup, battery test menus, leakage test operation, lithium battery testing, data printing, and language settings.

Download Manual

Need BT960 Setup Support?

Contact AUTOOL Store if you need help with the manual, leakage test wiring, printer paper, lithium battery testing, temperature monitoring, test standards, or package accessories.

Email[email protected] WhatsApp+86 189 2647 7404

Product Comparison

BT960 is the high-function option in the AUTOOL 12V car battery tester lineup, adding lithium battery testing, leakage current monitoring, thermal monitor, data printing, data records, software upgrade, and a wide 0-80V voltage test range.

BT960 FocusHigh-function battery system tester with lithium battery testing, leakage current monitoring, thermal monitor, data printing, data records, software upgrade, and 0-80V voltage test range.

Compared With BT880Both support leakage current monitoring and data printing, while BT960 adds lithium battery testing and a broader 0-80V voltage testing range.

Compared With BT760BT760 supports printing and load testing, while BT960 adds leakage current monitoring, lithium battery testing, and broader voltage testing.

Decision CheckChoose BT960 if you need lithium battery testing, leakage current monitoring, thermal printer output, temperature monitoring, 12V / 24V system coverage, and professional report support.

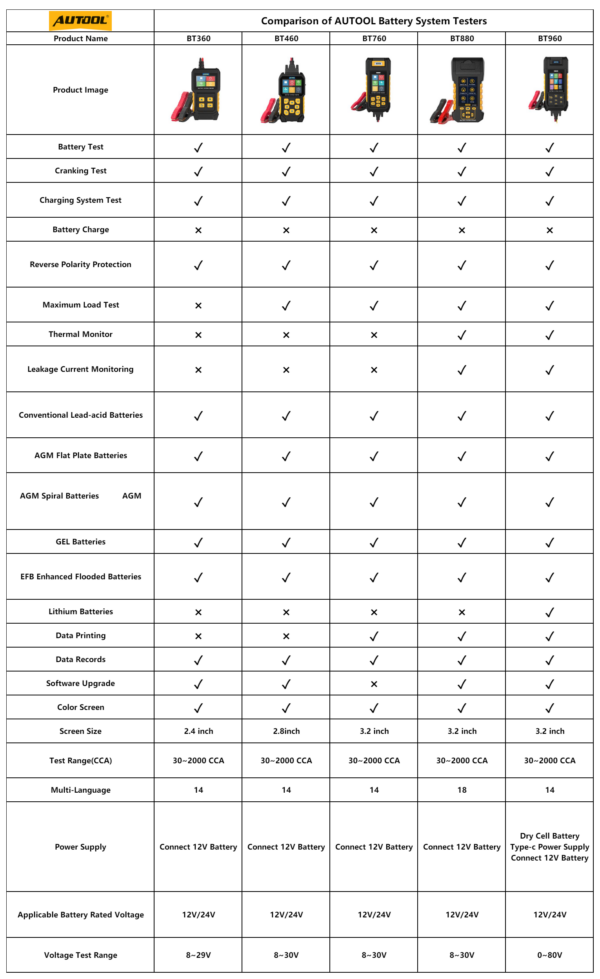

AUTOOL BT360 BT460 BT760 BT880 BT960 battery system tester comparison chart

Lithium Battery Testing

Tests iron lithium, polymer lithium, ternary lithium batteries, and other lithium battery types, displaying the current value quickly after completing the test.

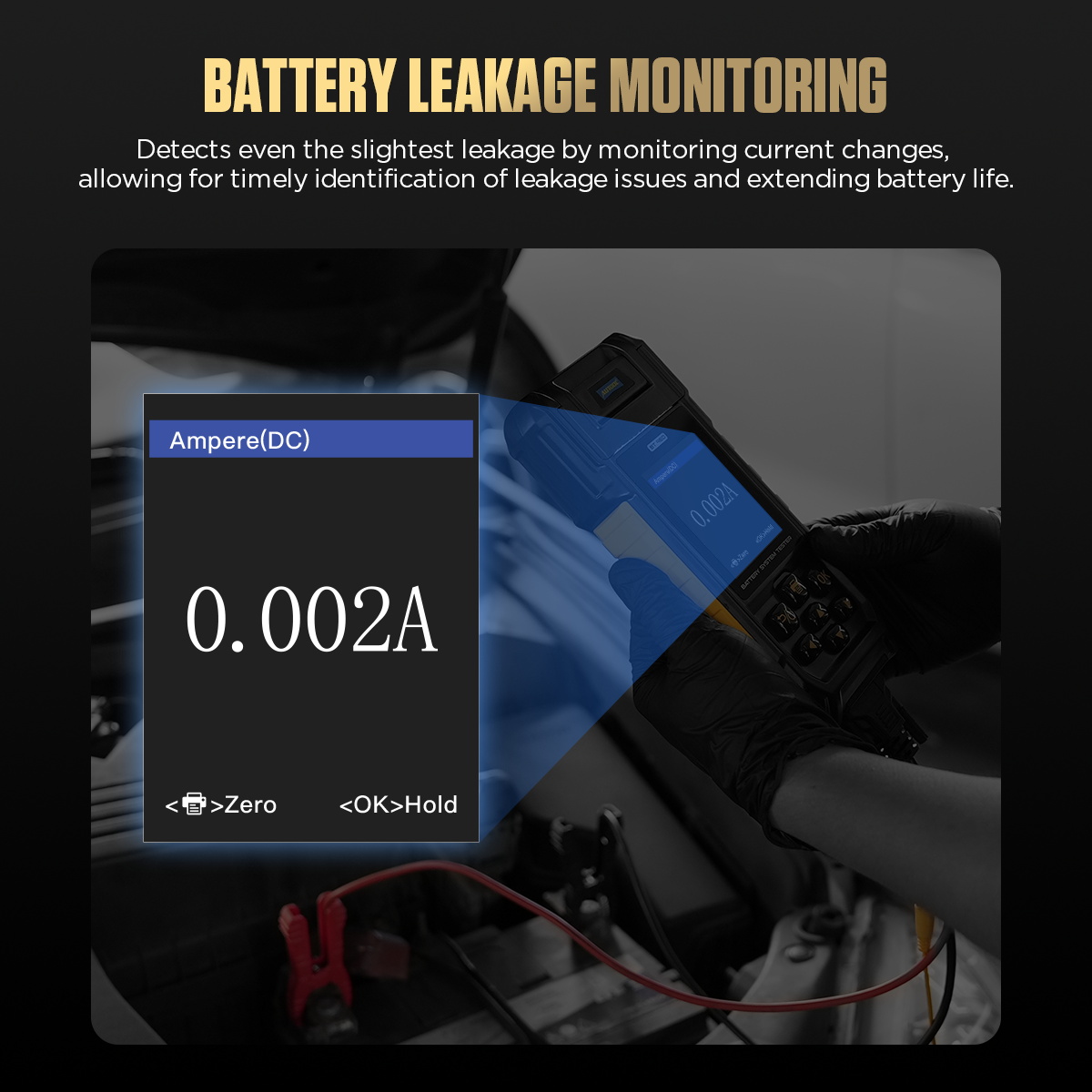

Battery Leakage Monitoring

Detects even slight leakage by monitoring current changes, helping identify abnormal battery drain, charging issues, and hidden electrical faults.

Real-Time Temperature Monitoring

Tracks ambient temperature to support more accurate battery testing. The recommended working temperature of a battery is generally 20°C-25°C.

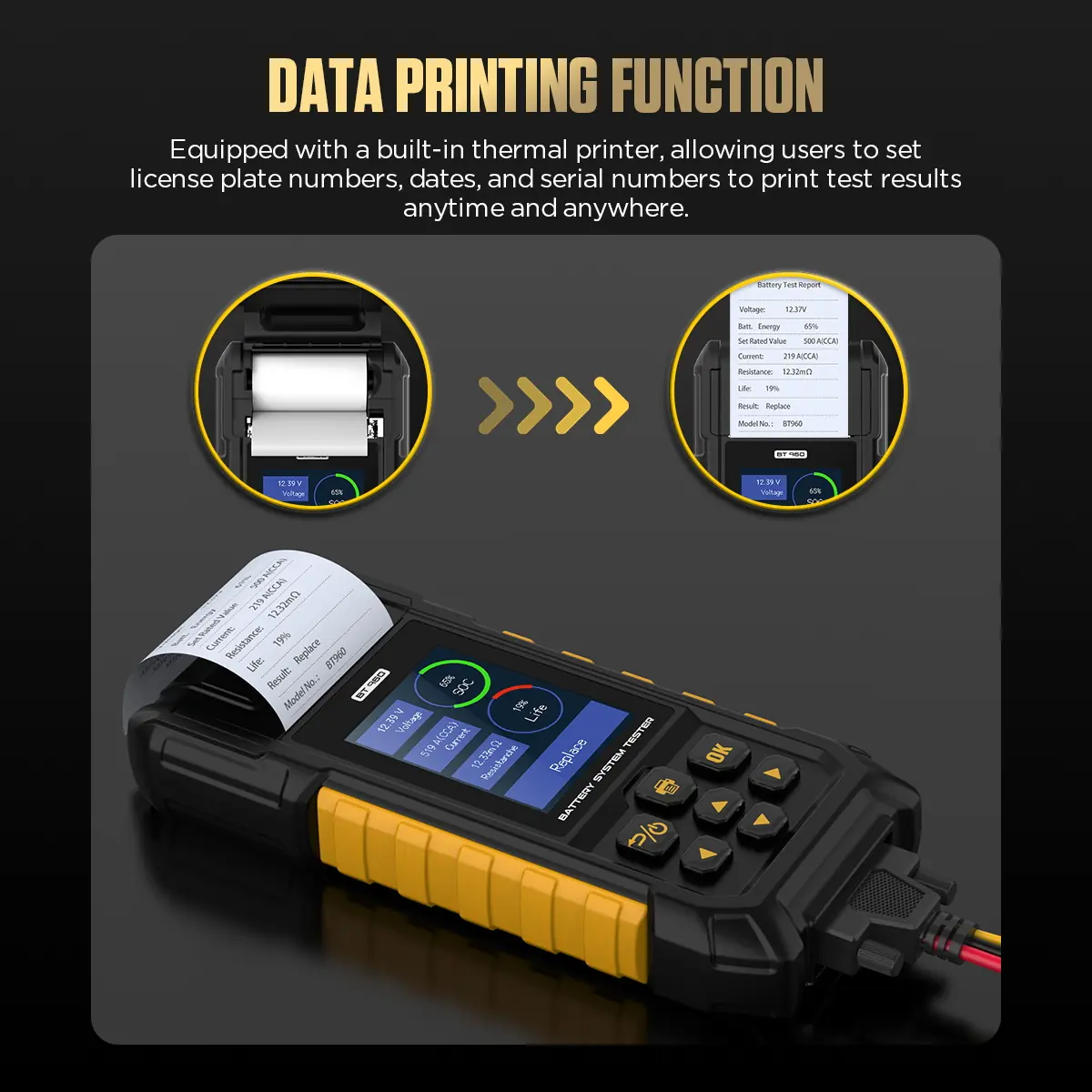

Thermal Printer Output

Built-in thermal printer prints test reports on site without ink and supports customizable license plate numbers, dates, and serial numbers.

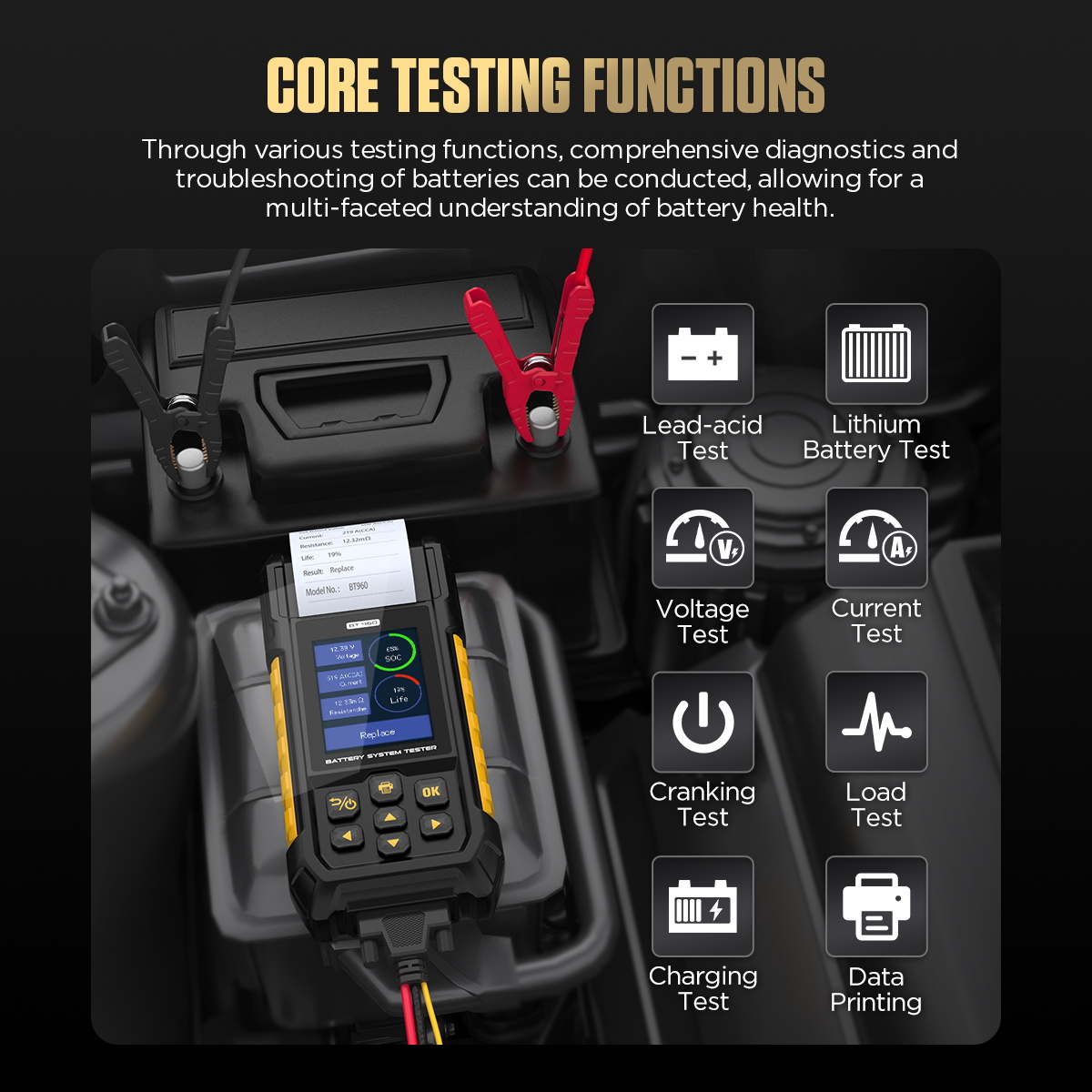

Core Battery System Tests

Supports battery test, startup / cranking test, charging test, maximum load test, voltage test, current test, leakage test, and data printing.

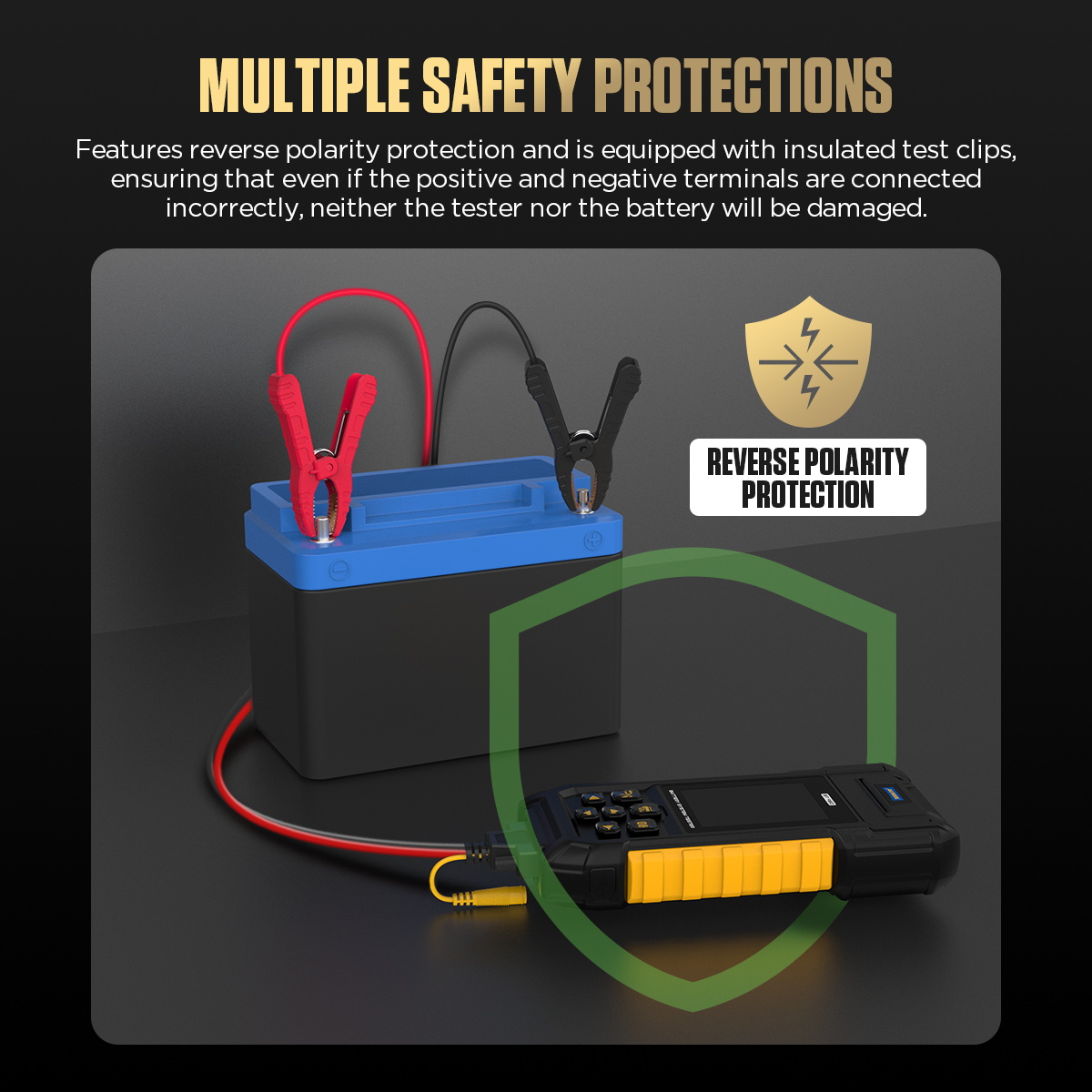

Reverse Connection Protection

Reverse polarity protection and insulated test clips help protect the battery and tester if positive and negative connections are reversed.

AUTOOL BT960 core testing functions including lead-acid lithium voltage current cranking load charging and printing

AUTOOL BT960 battery voltage testing 0 to 80V and battery type support

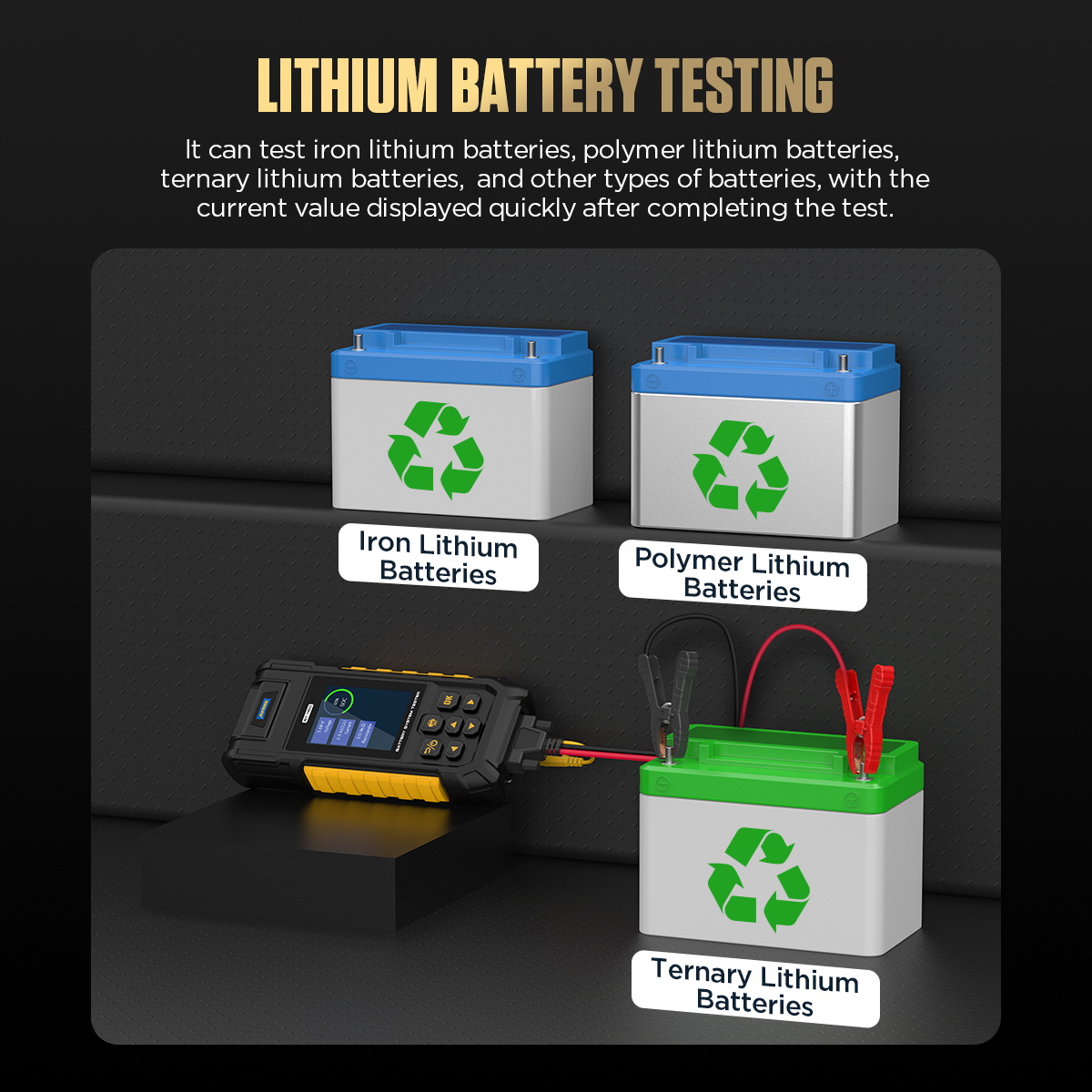

AUTOOL BT960 lithium battery testing function image

AUTOOL BT960 battery leakage current monitoring function image

AUTOOL BT960 reverse connection protection and insulated clip design image

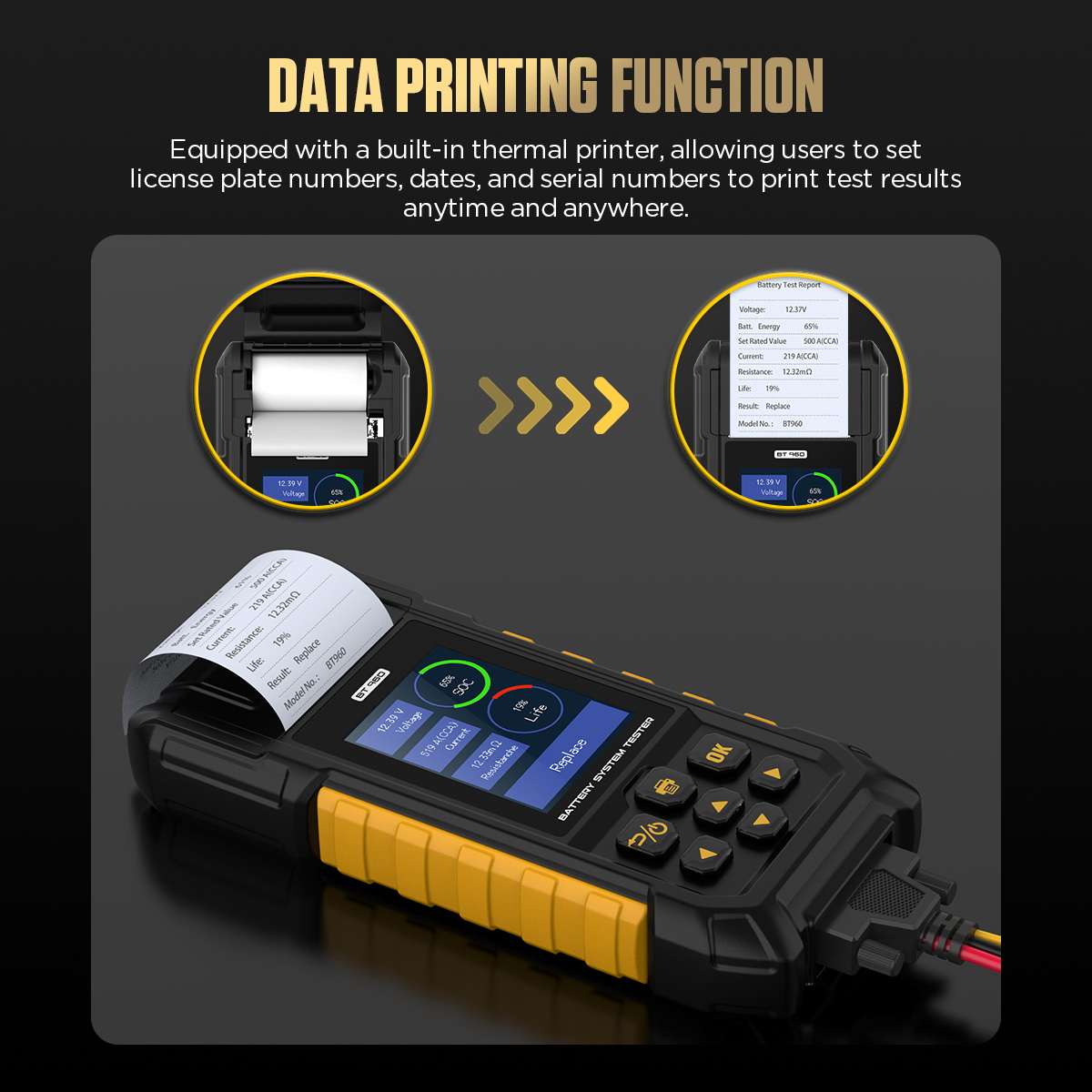

AUTOOL BT960 data printing function with built-in thermal printer

Key Features

BT960 is designed for users who need more than a basic battery tester: it supports leakage waveform monitoring, lithium battery testing, professional reporting, wide battery rating standards, and multilingual operation.

Battery Test Function

Select the battery test function, choose the status and mode as needed, and follow the on-screen prompts to check the battery status.

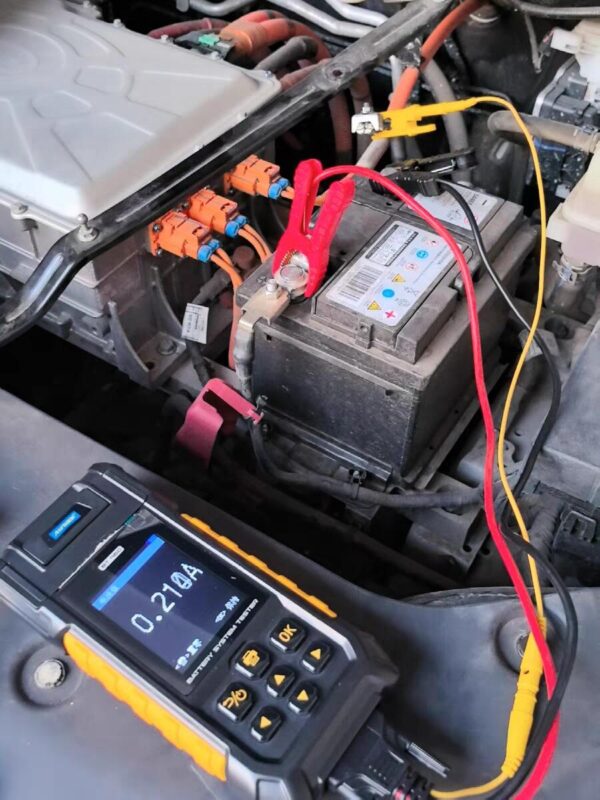

Leakage Test Workflow

After correctly connecting the power clamps to the battery terminals, disconnect the negative terminal and use the special leakage test clamp on the vehicle negative bus to monitor and record real-time leakage current waveform.

Wide Function Set

Supports battery test, startup test, charging test, maximum load test, leakage test, and reverse connection protection, making it a practical battery doctor for repair and maintenance.

Data Report Printing

Print battery test results directly and attach them to work orders or share them with customers for clear service documentation.

14 Languages

Supports English, Portuguese, Spanish, French, German, Italian, Russian, Turkish, Thai, Japanese, Traditional Chinese, Simplified Chinese, Korean, and Polish.

Wide Applications

Suitable for 12V and 24V battery systems and supports most battery rating systems, including BCI, SAE, CCA, IEC, EN, CA, DIN, MCA, JIS, and GB.

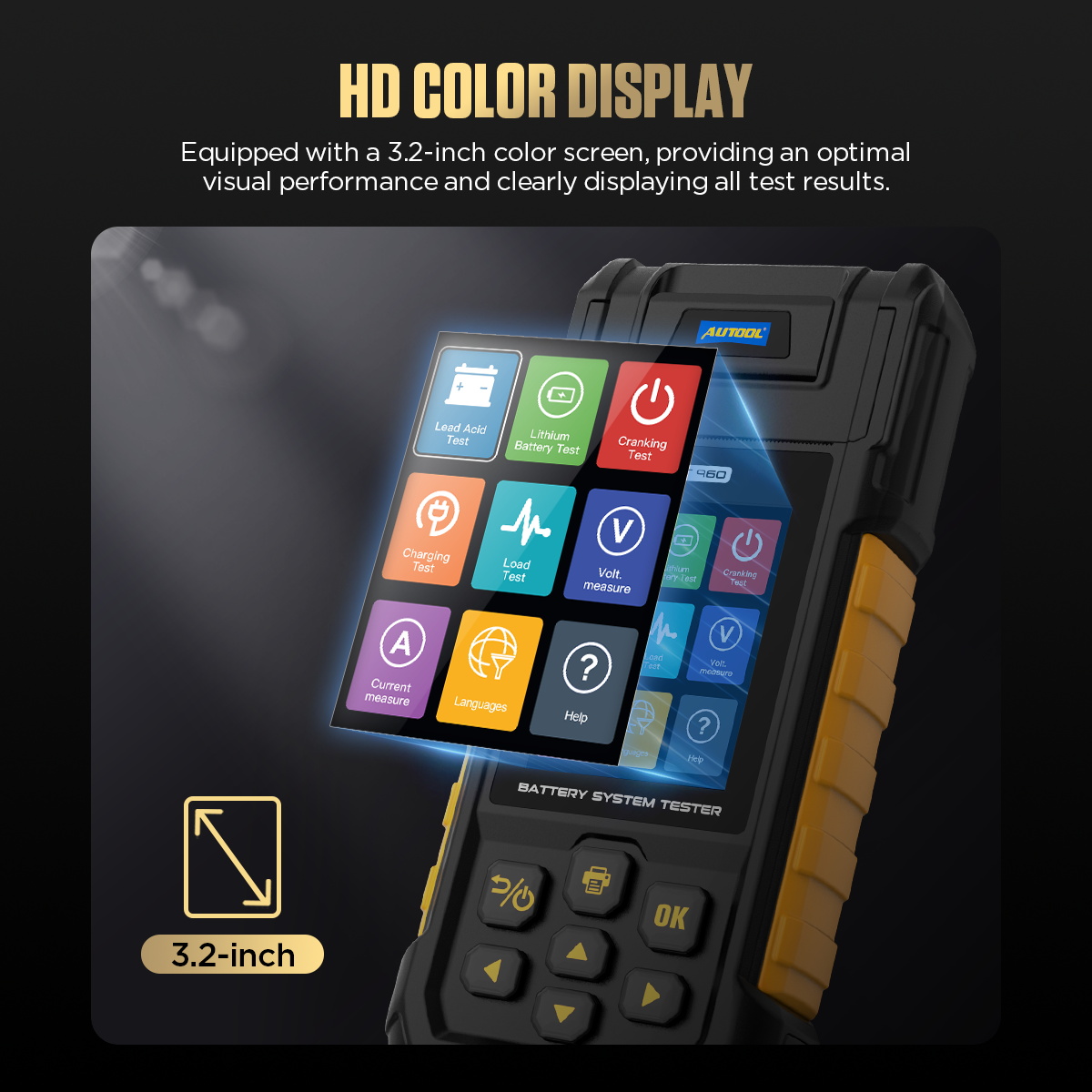

AUTOOL BT960 3.2-inch HD color display image

AUTOOL BT960 detailed function design and waveform display image

Product Details

BT960 supports both lead-acid and lithium battery testing scenarios, while also covering 12V / 24V systems and a wide range of battery rating standards for workshop and vehicle maintenance use.

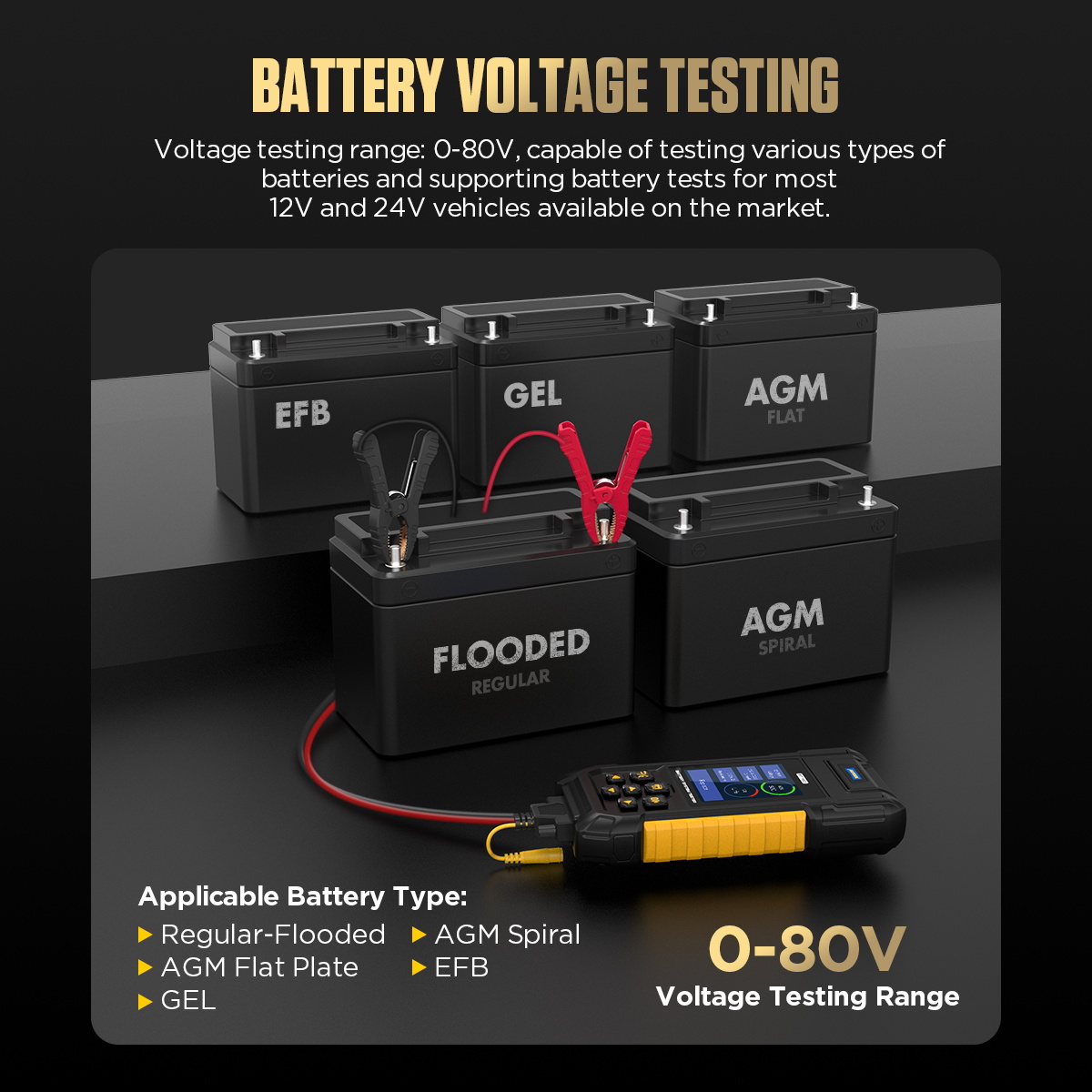

Lead-Acid Battery Test

Supports common lead-acid battery testing, including Regular-Flooded, AGM Spiral, AGM Flat Plate, EFB, and GEL battery categories shown in the BT960 battery voltage test material.

Lithium Battery Test

Supports iron lithium, polymer lithium, ternary lithium batteries, and other lithium battery types for users who need lithium battery testing beyond standard lead-acid checks.

12V / 24V Battery Systems

Suitable for 12V and 24V battery systems, making BT960 useful for more than basic 12V car battery testing.

Battery Rating Systems

Supports most battery rating systems, including BCI, SAE, CCA, IEC, EN, CA, DIN, MCA, JIS, and GB.

Specifications

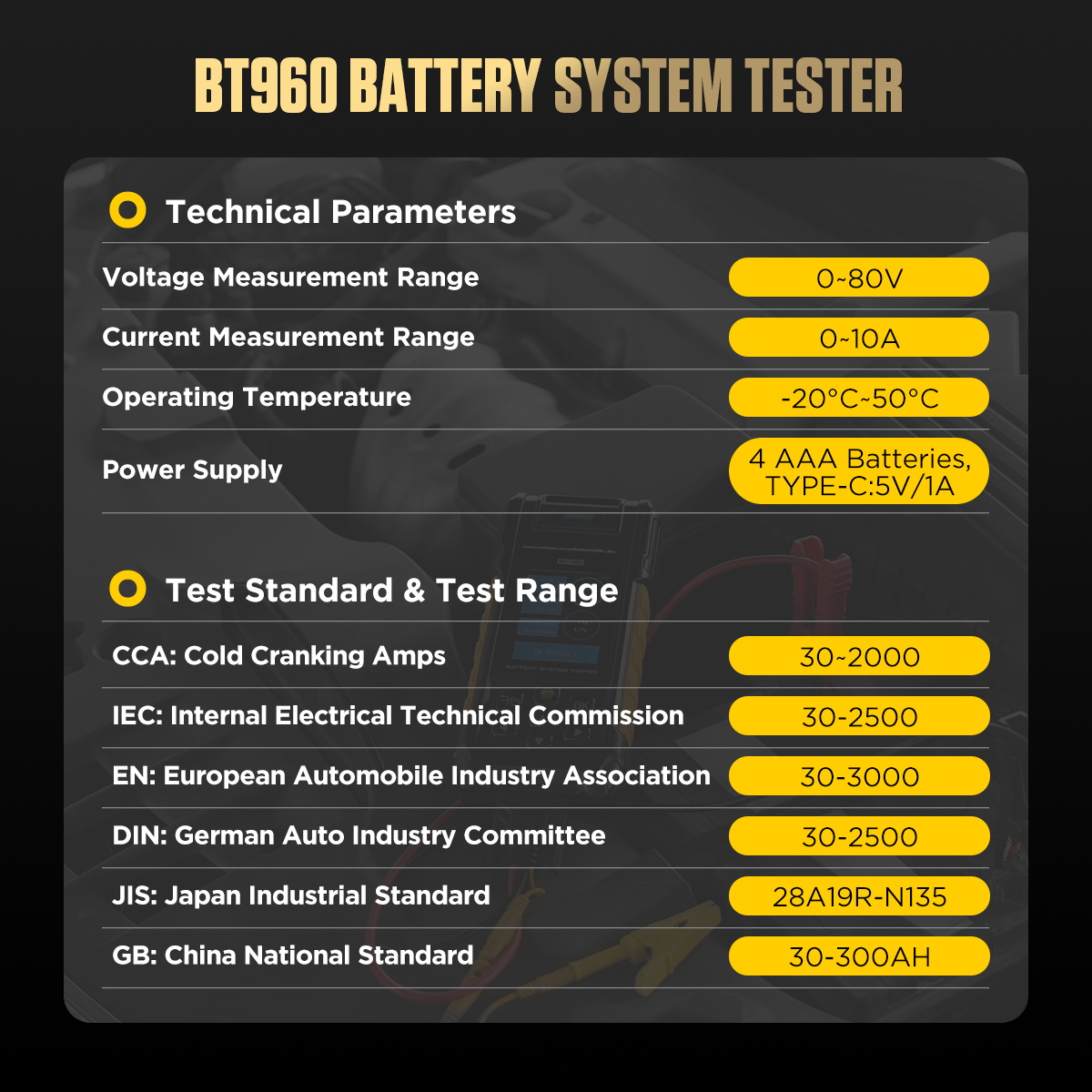

BT960 Specifications And Test Standards

BT960 covers wide voltage and current measurement ranges, multiple test standards, color display, multilingual interface, and flexible power supply options.

Core Parameters
Voltage Measurement Range	0-80V
Current Measurement Range	0-10A
Operating Temperature	-20°C to 50°C
Power Supply	4 AAA batteries or Type-C 5V / 1A
Screen	3.2-inch HD color display
Languages	14 languages
Applicable Battery System	12V / 24V battery systems
Battery Test Standards
CCA	30-2000
IEC	30-2500
EN	30-3000
DIN	30-2500
JIS	28A19R-N135
GB	30-300AH

AUTOOL BT960 test standard and technical parameter image

Core Parameters

Voltage Range0-80V

Current Range0-10A

Operating Temperature-20°C to 50°C

Power Supply4 AAA batteries or Type-C 5V / 1A

Screen3.2-inch HD color display

Languages14 languages

Battery System12V / 24V

Battery Test Standards

CCA30-2000

IEC30-2500

EN30-3000

DIN30-2500

JIS28A19R-N135

GB30-300AH

Product Details

BT960 includes a 3.2-inch HD color display, waveform display, battery specification table, print port, direction keys, battery compartment, and compact handheld body design for workshop and field use.

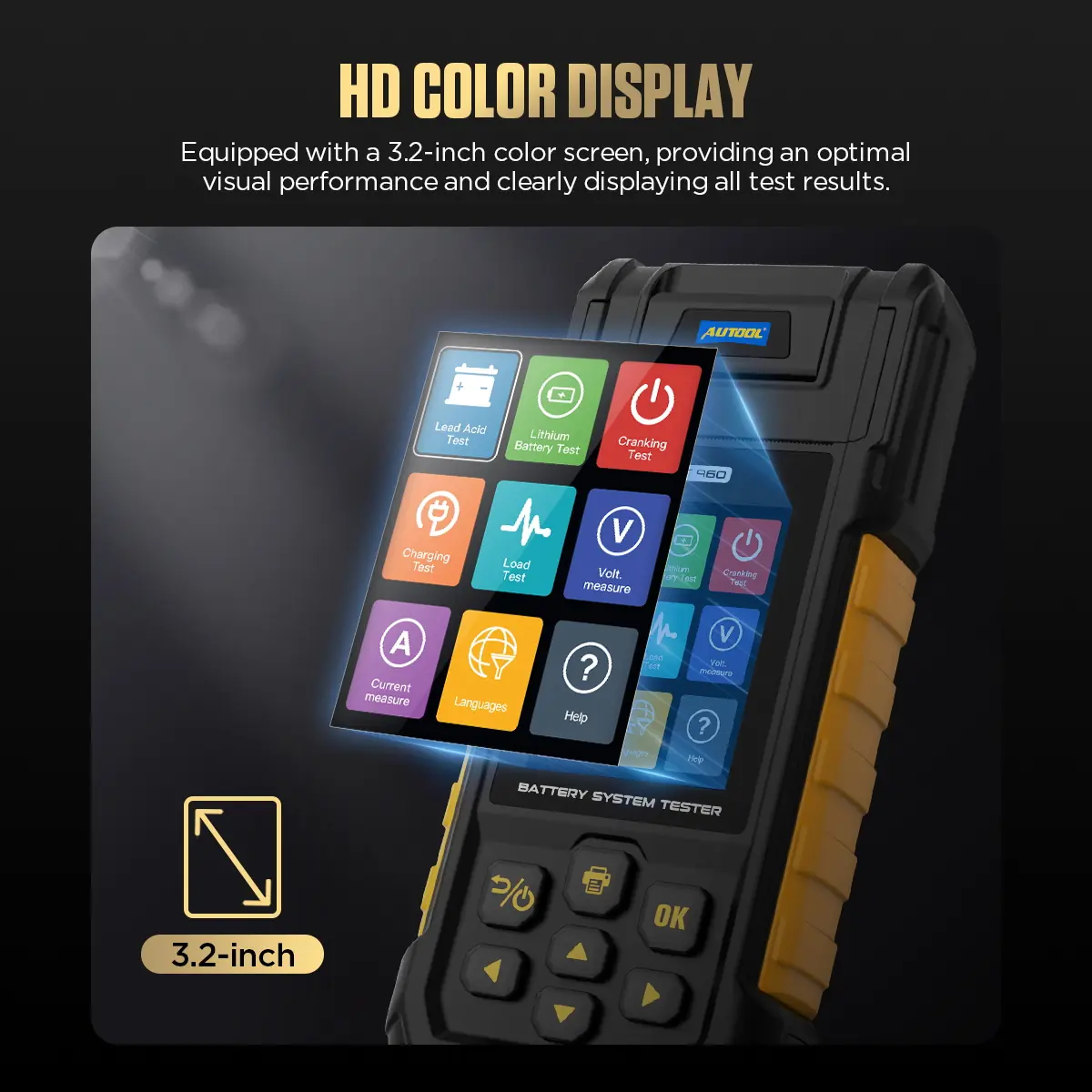

3.2-Inch HD Color Display

The 3.2-inch color screen helps users read test results, menus, and diagnostic prompts more clearly.

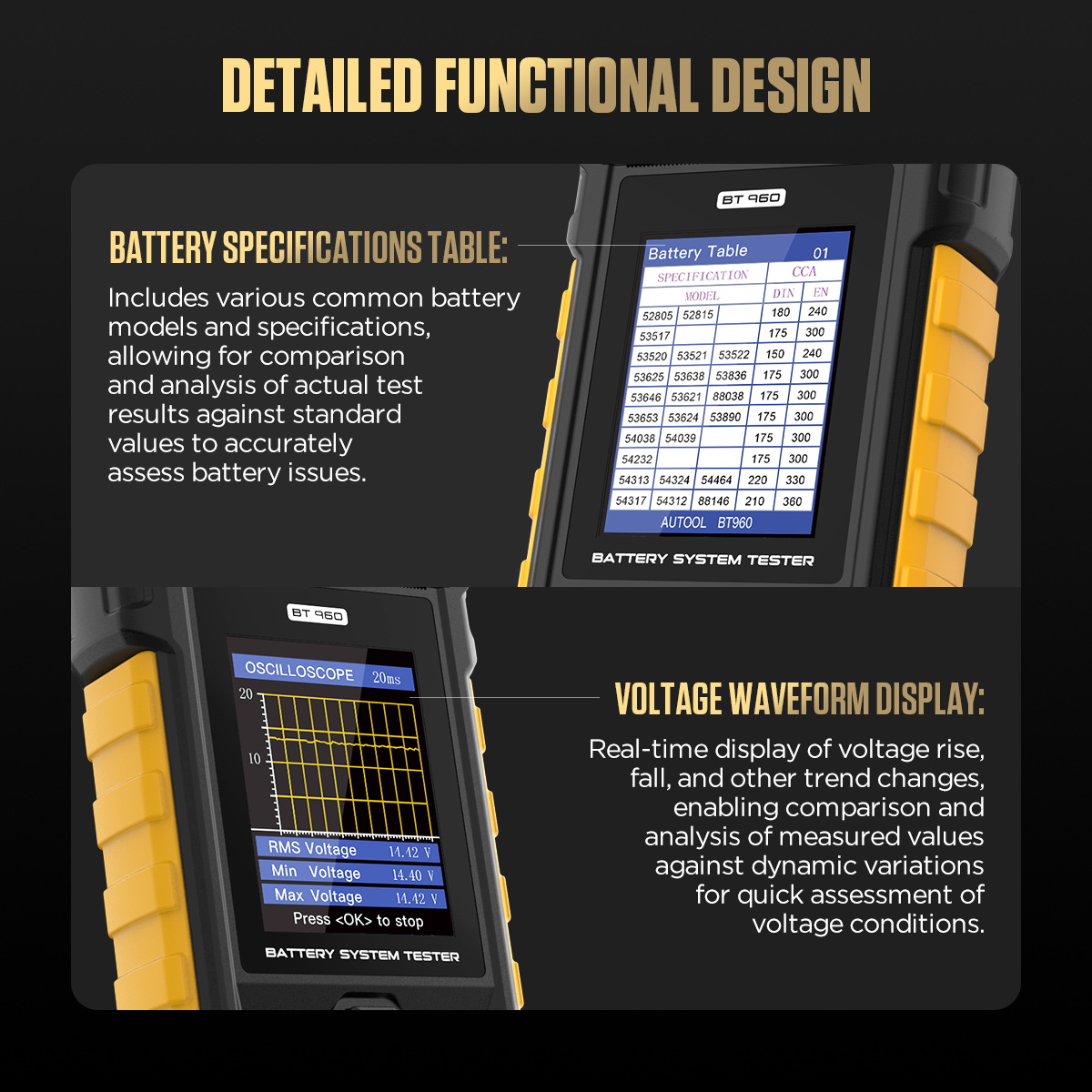

Waveform And Battery Specification Display

The detailed function design image shows battery specifications table support and voltage waveform display for more advanced checks.

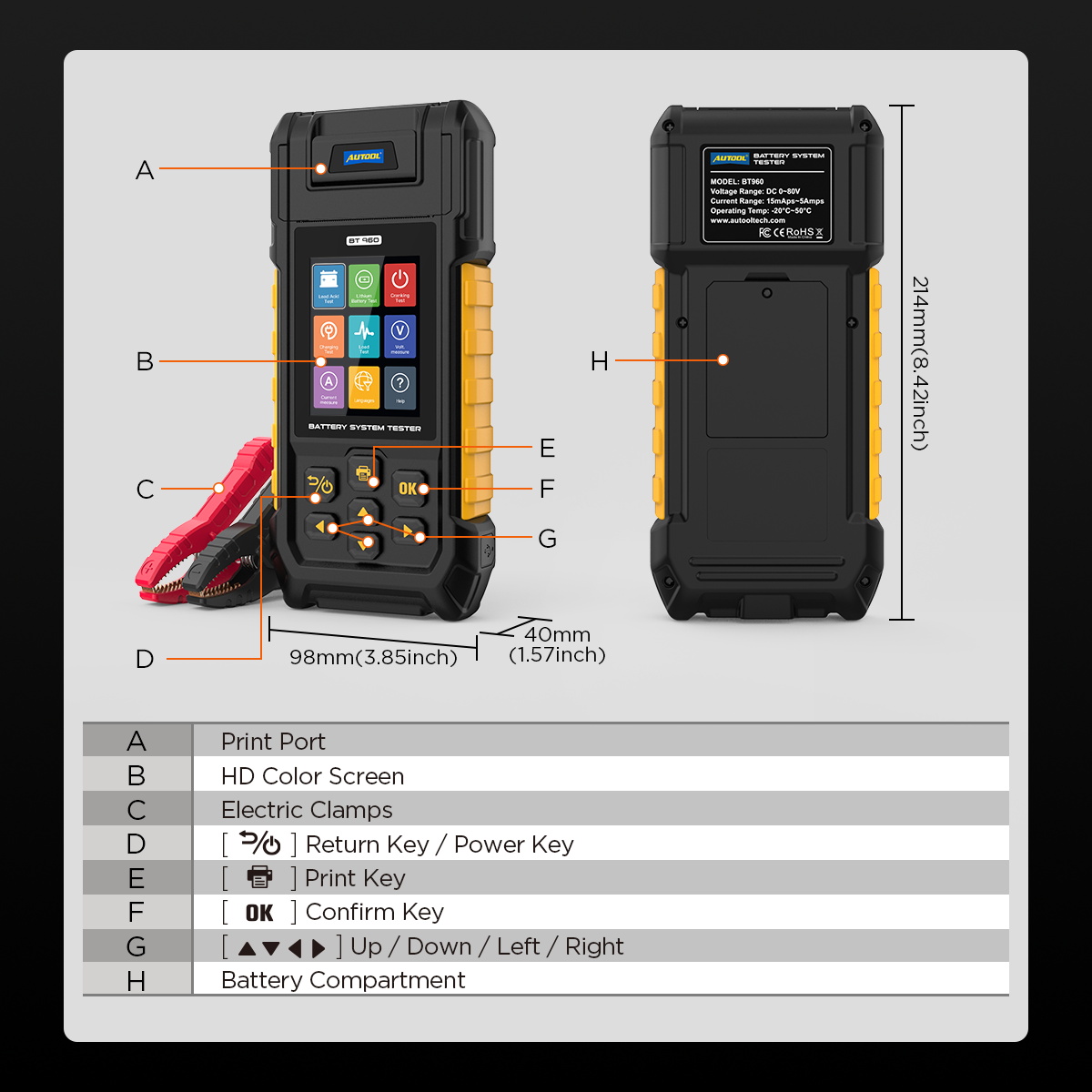

Compact Body And Button Layout

The body size is 214 × 98 × 40mm, with print port, HD color screen, return / power key, print key, OK key, direction keys, electric clamps, and battery compartment.

AUTOOL BT960 voltage waveform and battery specification function design image

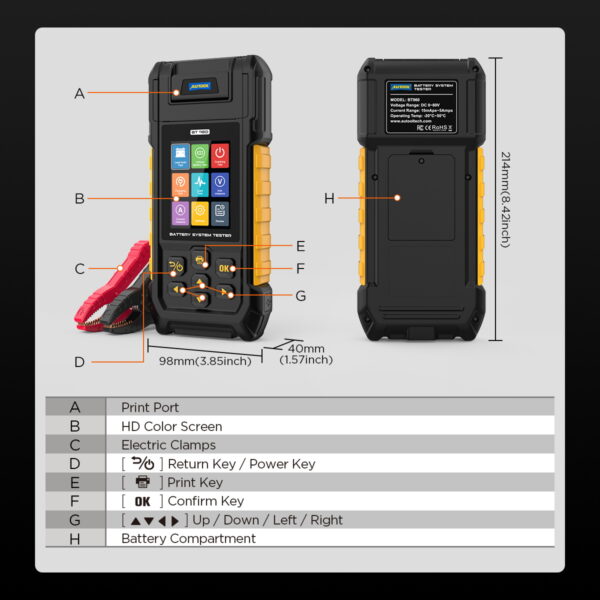

AUTOOL BT960 size and parts introduction image showing 214 by 98 by 40mm body

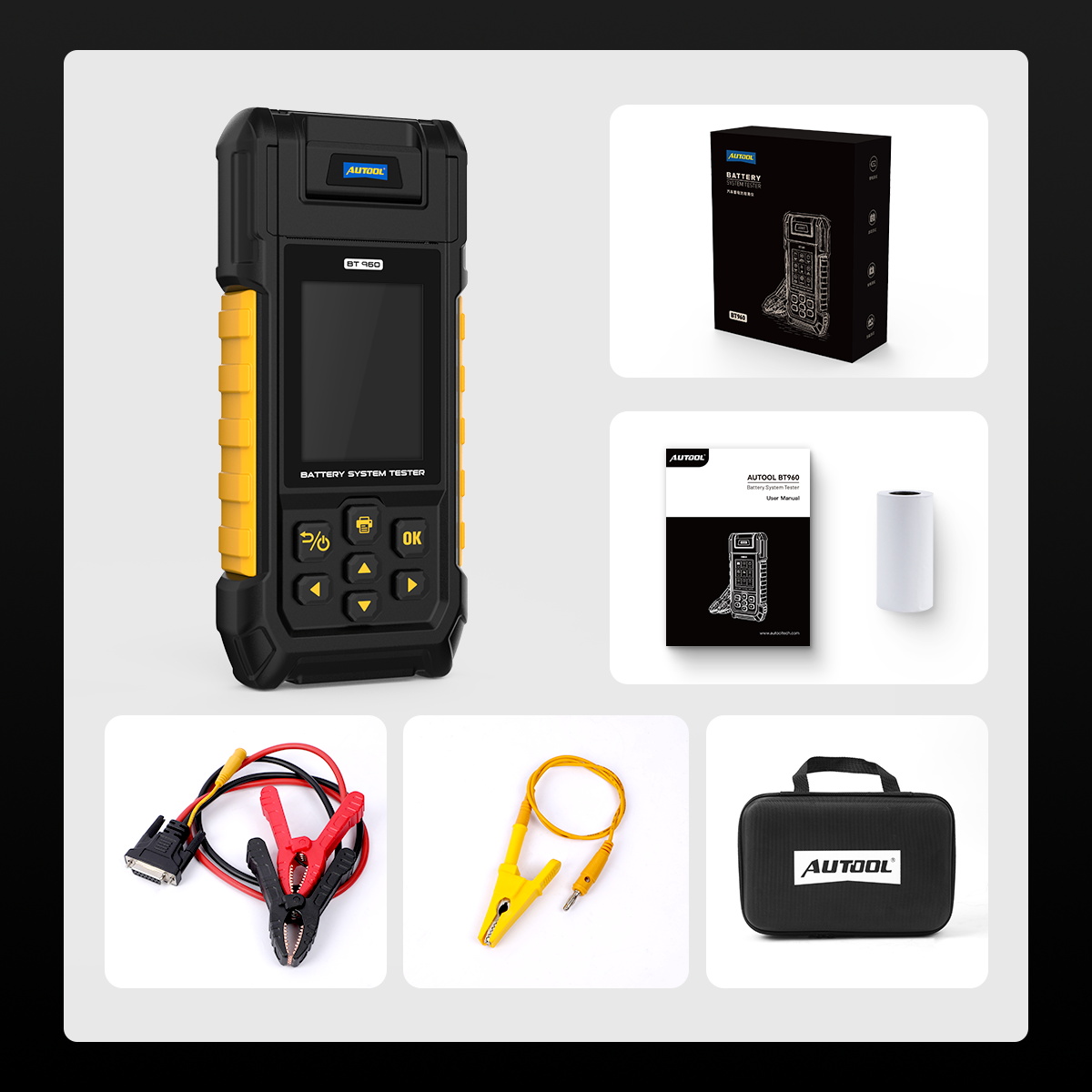

AUTOOL BT960 packing list showing main unit retail box manual thermal paper roll clamps leakage test cable and storage bag

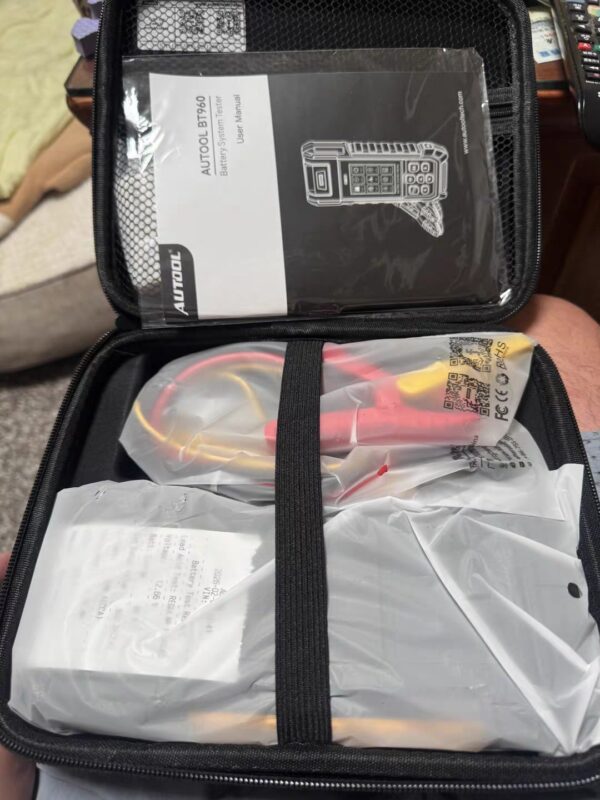

What Is In The Box

The packing image shows the BT960 main unit, retail box, user manual, thermal paper roll, main test cable / clamps, yellow leakage test cable / special clamp, and storage bag.

Main UnitAUTOOL BT960 battery tester analyzer

DocumentationUser manual

PrintingThermal paper roll for the built-in printer

Test CableMain clamp cable for battery testing

Leakage TestYellow leakage test cable / special clamp

StorageStorage bag and retail box shown in the package image

Questions And Answers

These answers cover lithium battery testing, leakage current monitoring, thermal printing, voltage and current range, 12V / 24V support, language settings, and package contents.

Does BT960 Support Lithium Battery Testing?

Can BT960 Monitor Battery Leakage Current?

Does BT960 Have A Built-In Printer?

What Voltage Range Can BT960 Measure?

What Current Range Can BT960 Measure?

Does BT960 Support 12V And 24V Battery Systems?

What Languages Are Supported?

What Is Included In The Package?

Warranty And Contact

For product support, manual download, printer paper support, leakage test connection help, lithium battery testing guidance, temperature monitoring support, test standard confirmation, or accessory confirmation, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming BT960 functions, package contents, test standards, battery rating systems, thermal printer use, leakage current monitoring wiring, lithium battery testing, or 12V / 24V application scenarios.

3-year warranty for eligible non-human damage cases
Manual download and setup support
Printer and thermal paper support
Leakage test connection support
Lithium battery test support
Temperature monitoring support
Test standard / parameter confirmation
Accessory and package confirmation

Email Support[email protected] WhatsApp Support+86 189 2647 7404
