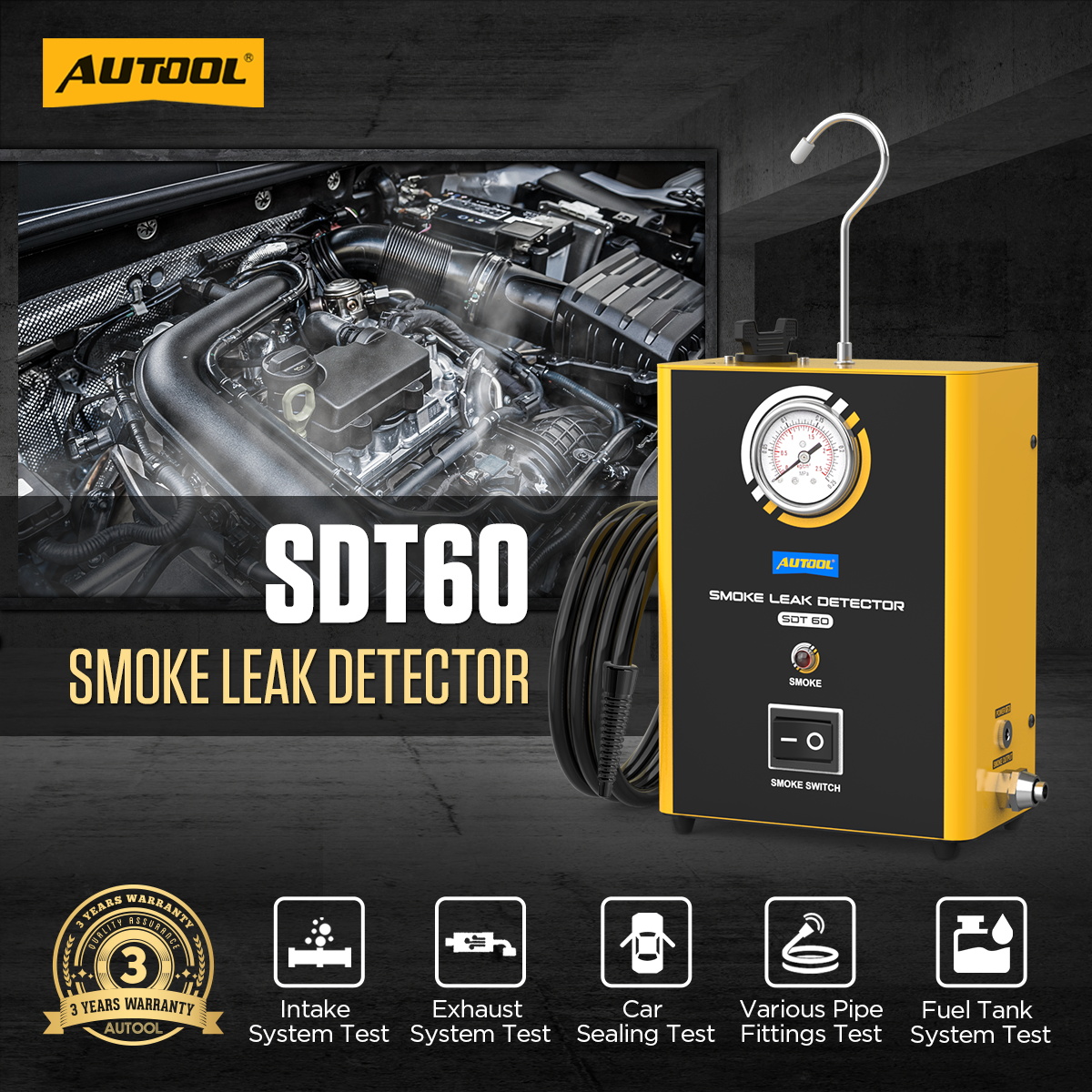

AUTOOL SDT60 Automotive Smoke Machine Leak Detector with Pressure Gauge
US$95.00
Key Features
- Pressure Gauge Feedback
- Built-In Air Pump
- EVAP, Intake & Exhaust Checks
- Compact 1.6 kg Design
- Pressure Gauge Feedback: Once the test section is sealed, monitor pressure build and decay as a second signal alongside visible smoke.
- Built-In Air Pump: Run smoke tests without an external compressor for faster setup in the garage or on the go.
- EVAP, Intake & Exhaust Checks: Use it for common EVAP, intake, exhaust, fuel-tank, pipe-fitting, and sealing-area leak checks.
- Compact 1.6 kg Design: Easy to carry, store, and position around the engine bay.
- 3-Year Warranty Main unit 3 years · Accessories 1 year
- 90-Day Returns Eligible returns within 90 days
- Official Store Genuine products · Direct support

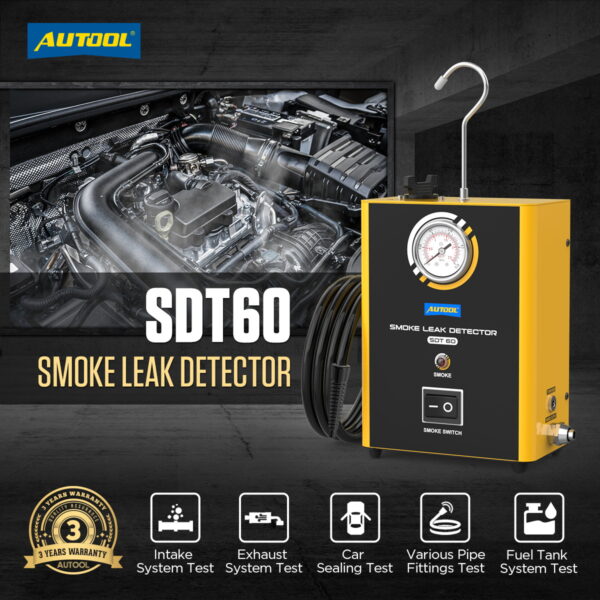

AUTOOL SDT60 · Built-In Pump Smoke Leak Detector with Pressure Gauge
See Pressure Changes While You Trace the Leak
The AUTOOL SDT60 is a compact 12V automotive smoke leak detector with a built-in air pump, pressure gauge, and lightweight body. It supports leak checks on intake, exhaust, EVAP, fuel-tank, crankcase, coolant-tank, throttle, intake-manifold, vehicle-sealing, and line-fitting systems. No external air source is required.
- Pressure Gauge Leak Check
- 5-Second Smoke Output
- Built-In Air Pump
- EVAP / Vacuum Leak Checks

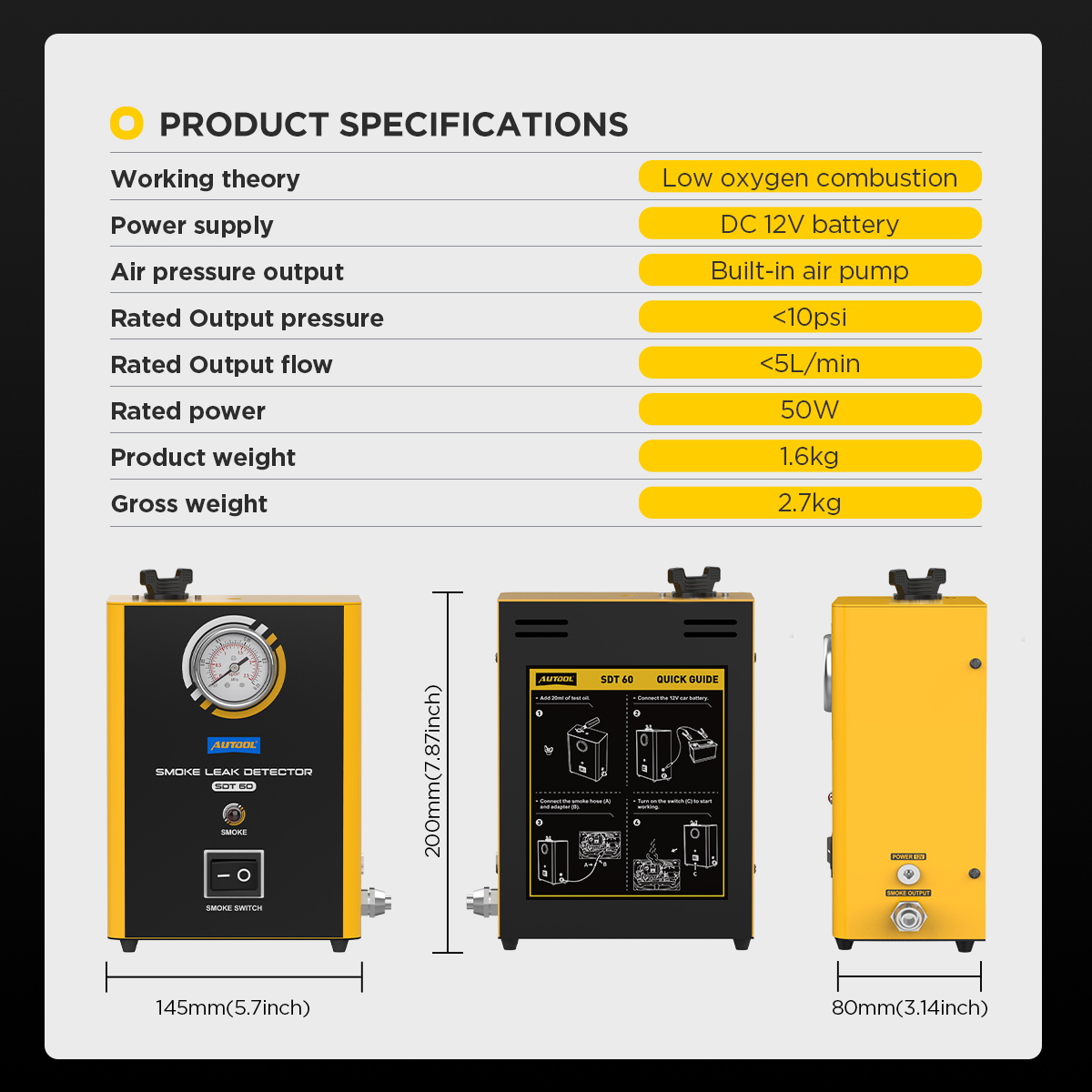

<10 psiOutput Pressure
1.6 kgMain Unit Weight
75°C / -20°COverheat / Min. Operating Temp.
3 YearsMain Unit Warranty
Core leak-detection capabilities
Key Features
SDT60 combines a pressure gauge with rapid smoke output and a built-in air pump. It is designed for 12V vehicle leak checks in a 1.6 kg portable main unit. Temperature protection and 3-year main-unit warranty support are also included.

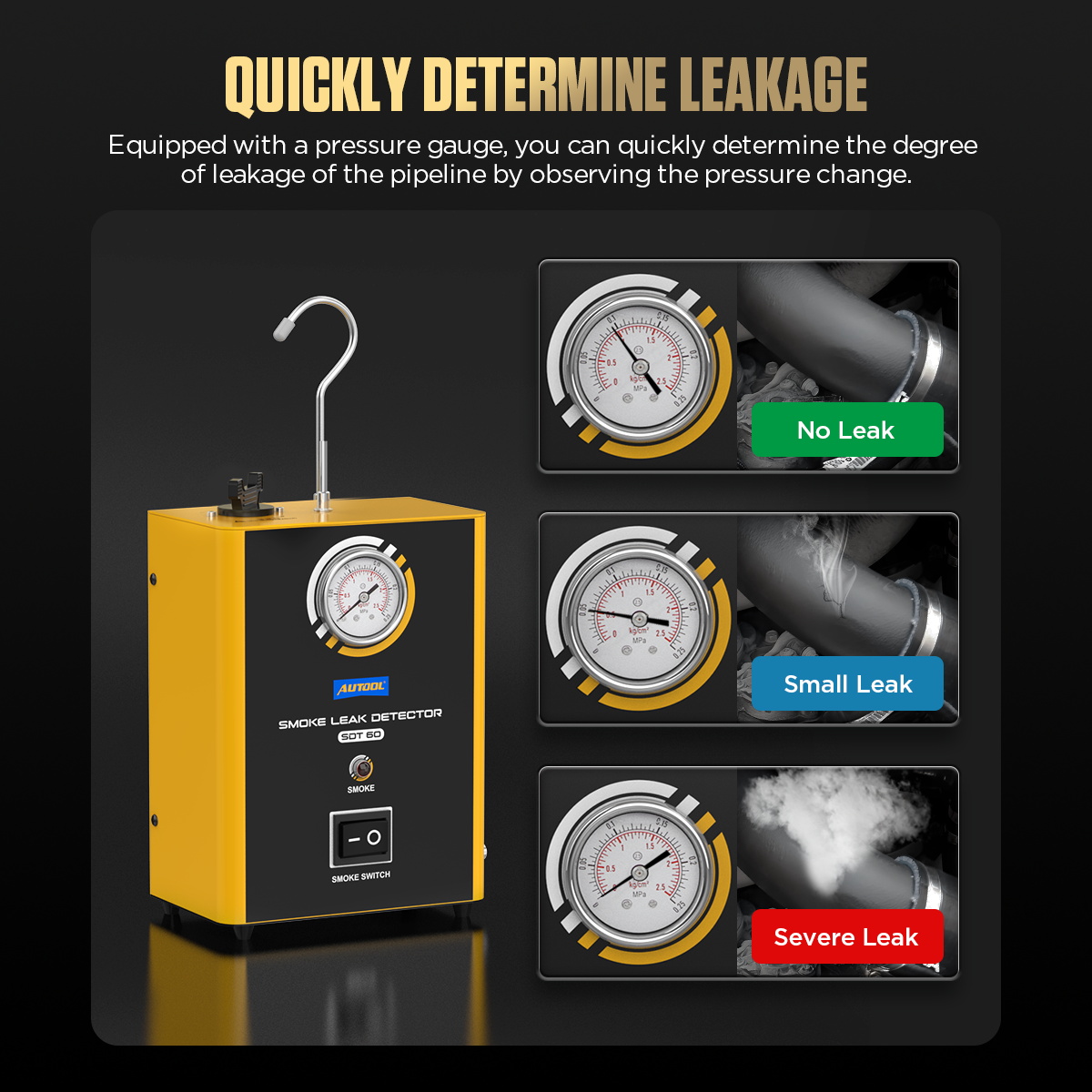

Pressure Gauge Leak Check
The pressure gauge helps you assess leak severity by monitoring pressure changes during the test.

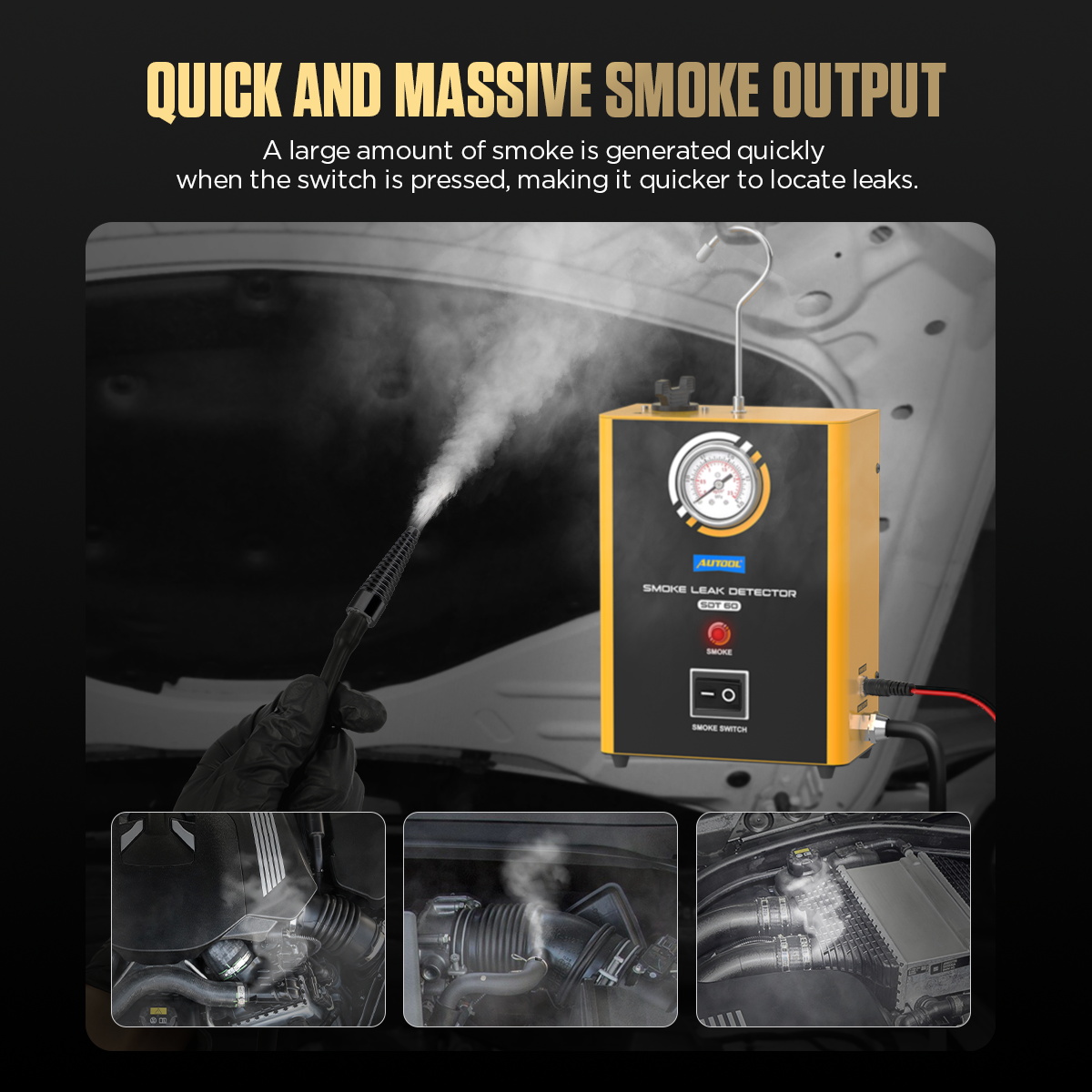

Rapid Smoke Generation
Press the smoke switch to generate smoke quickly. The connected test line can fill with smoke within about 30 seconds.

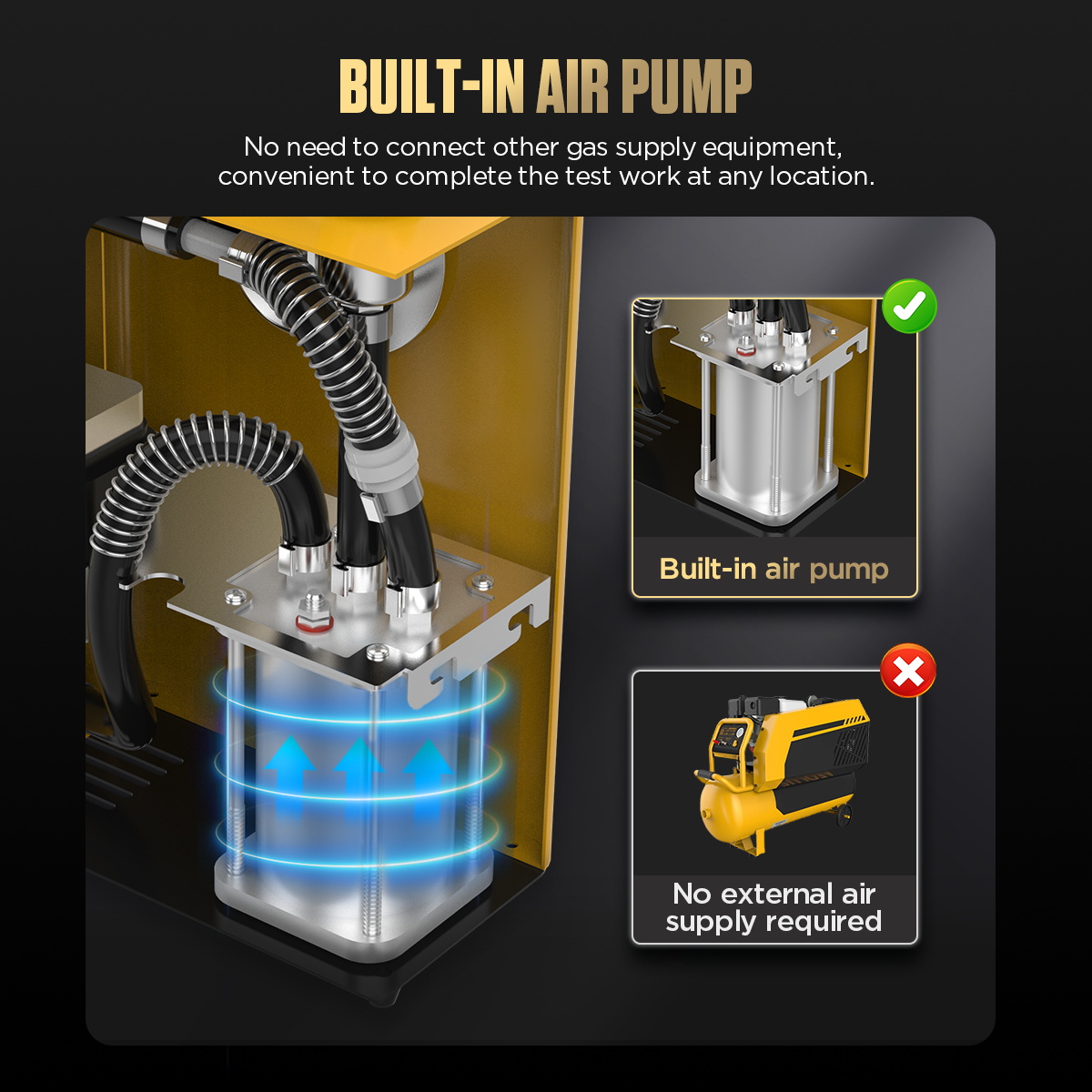

Built-In Air Pump
No external air source is required. The built-in air pump keeps setup simple for workshop, mobile, and DIY use.

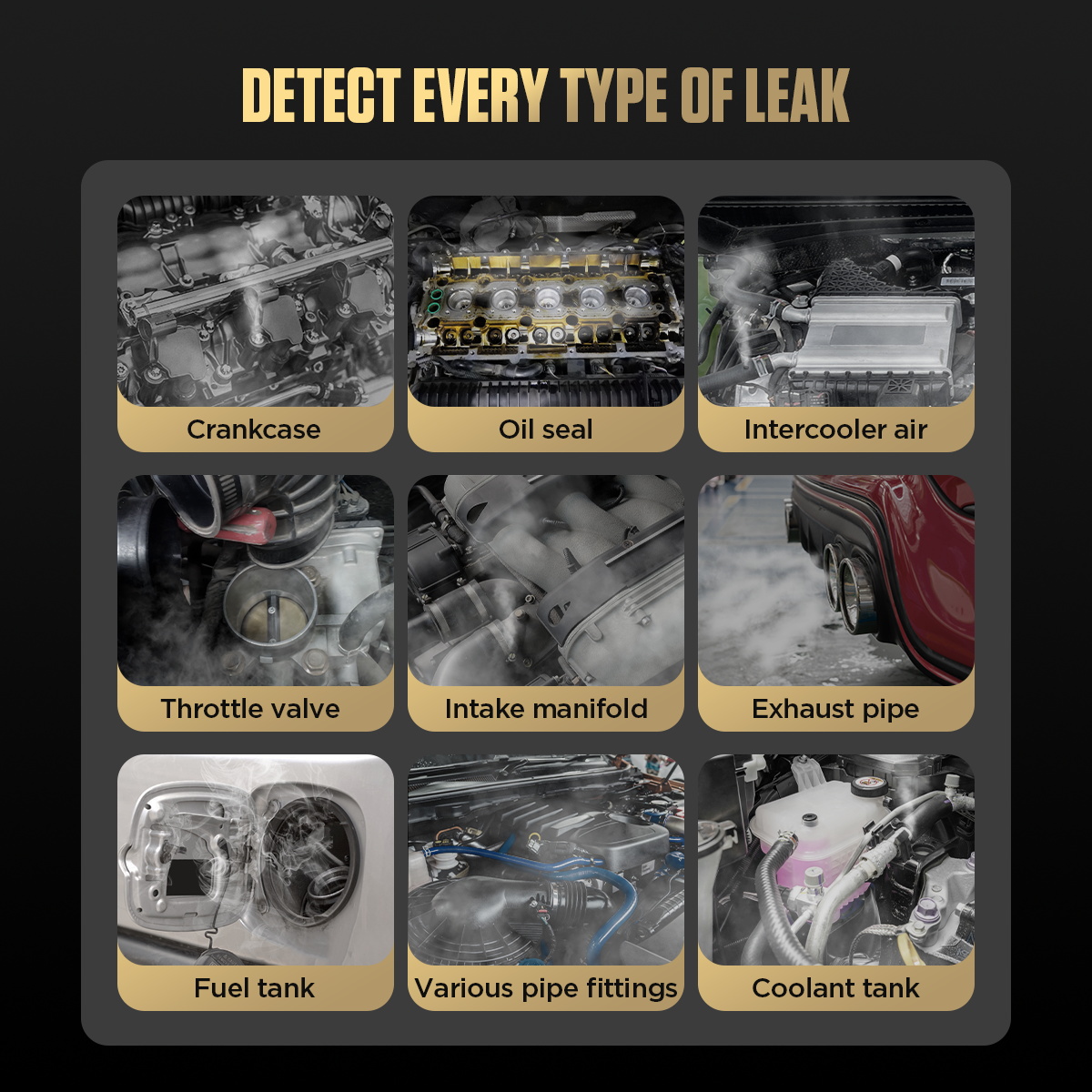

EVAP / Intake / Exhaust / Fuel Tank Checks
For intake-system diagnostics, SDT60 works as an intake smoke tester. It also supports exhaust, EVAP, fuel-tank, line-fitting, and vehicle-sealing checks. Compatible vehicles include 12V cars, motorcycles, snowmobiles, ATVs, light trucks, and speedboats.

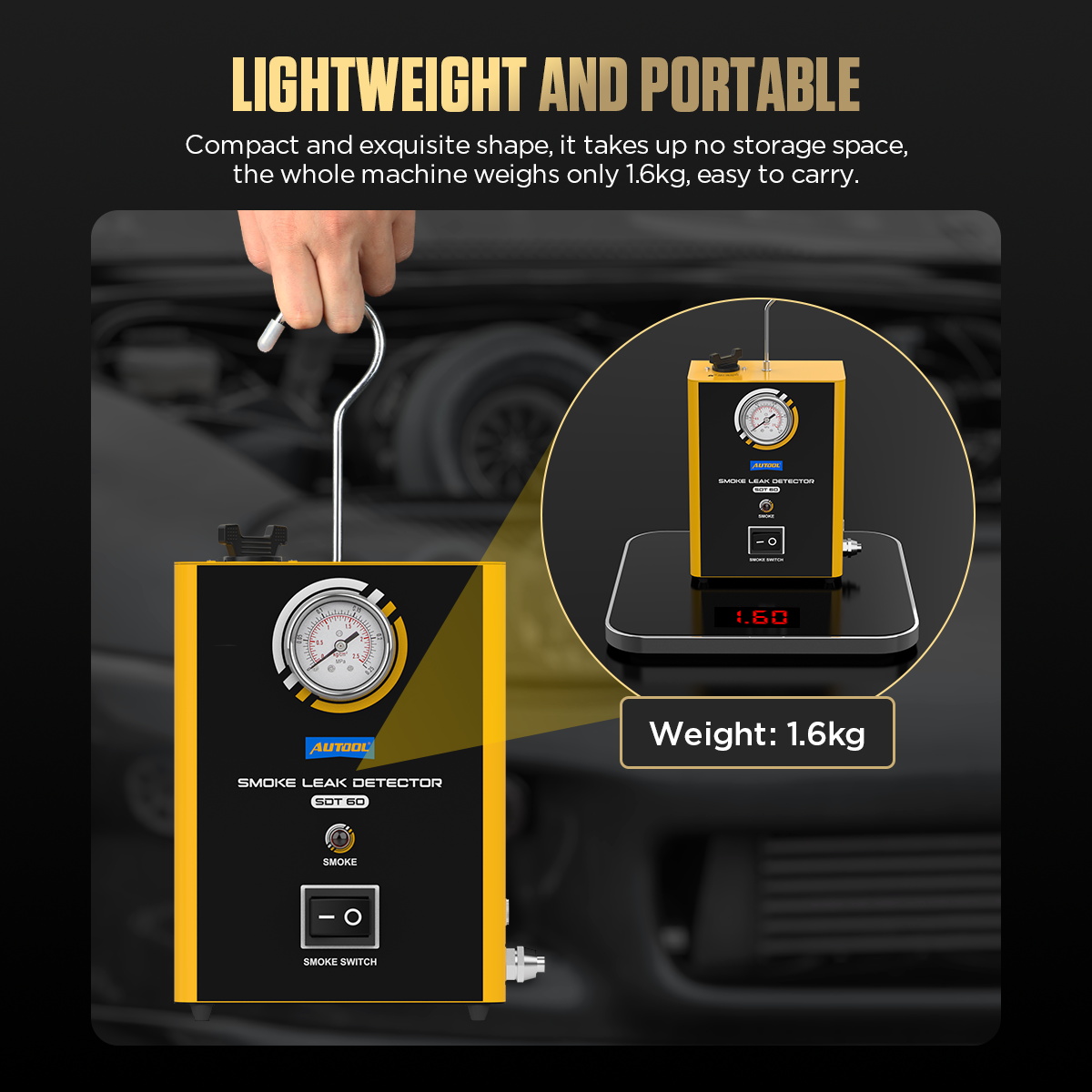

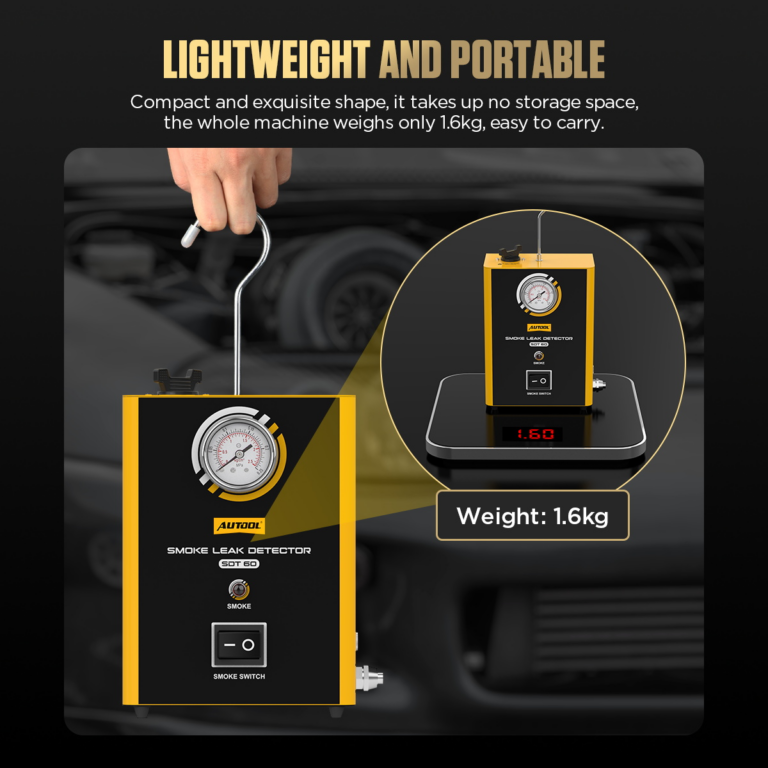

Lightweight and Portable
With a 1.6 kg main unit, SDT60 is easy to carry, store, and use in tight engine-bay spaces.

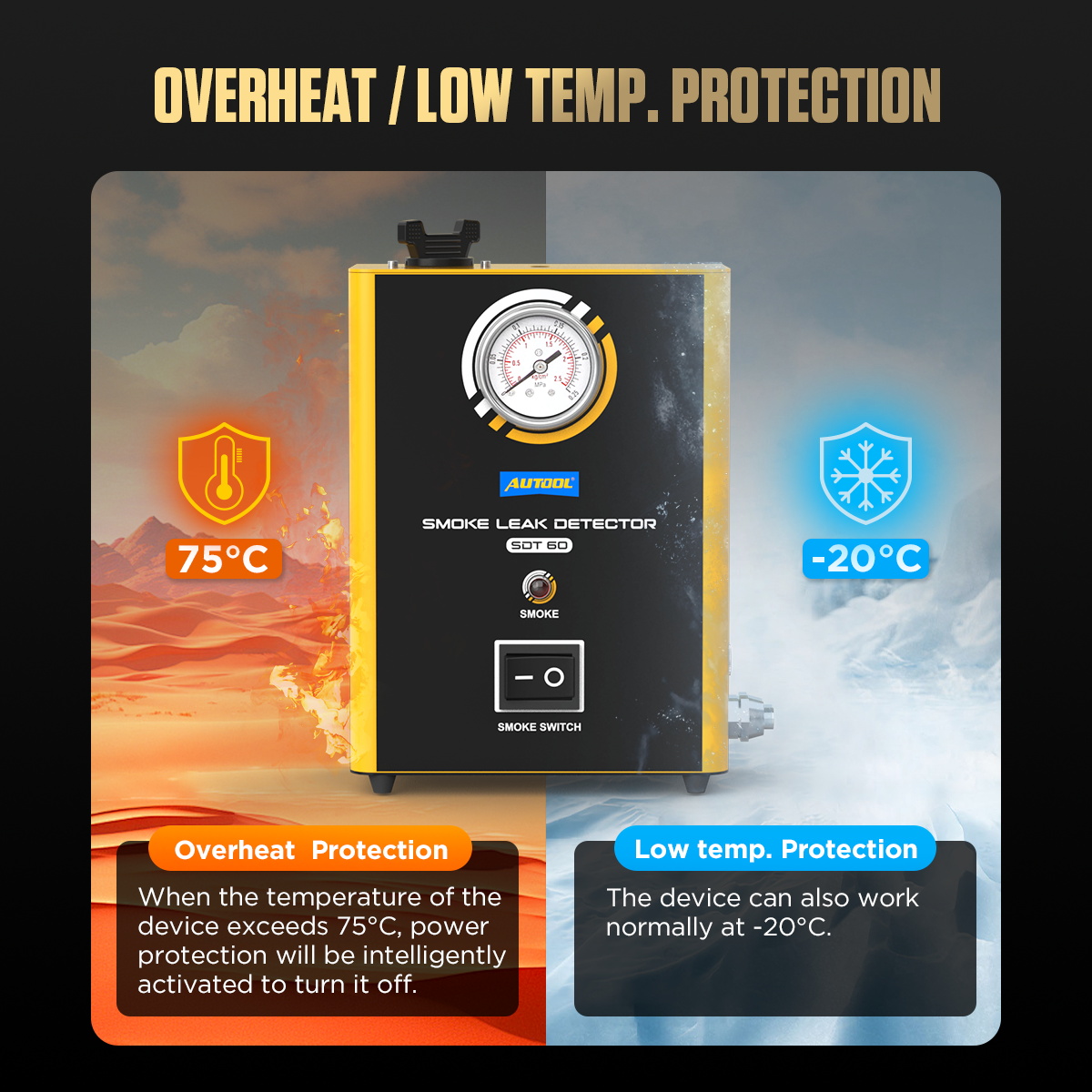

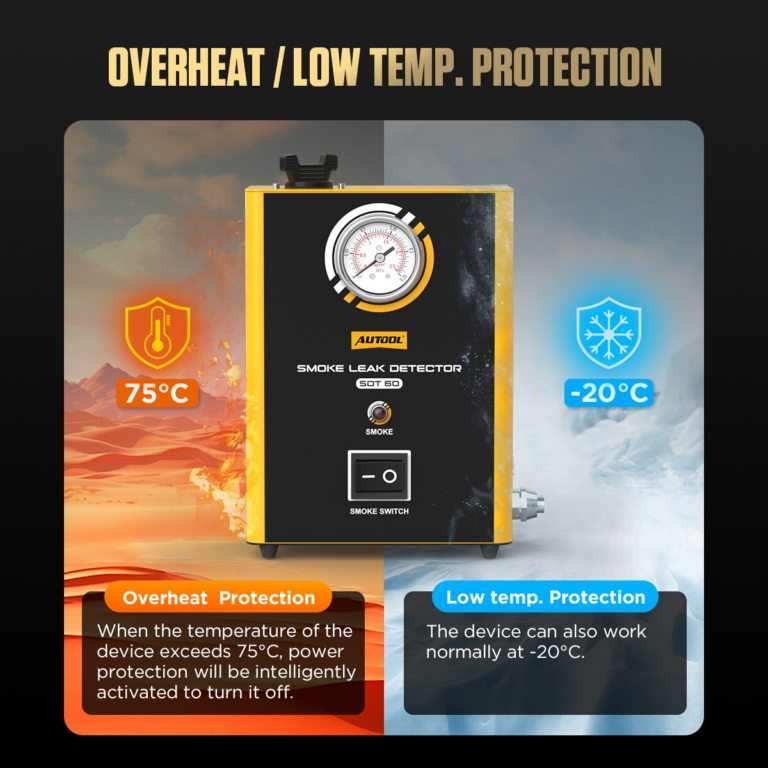

Overheat and Low-Temperature Protection
The detector automatically powers off around 75°C and supports operation down to -20°C.

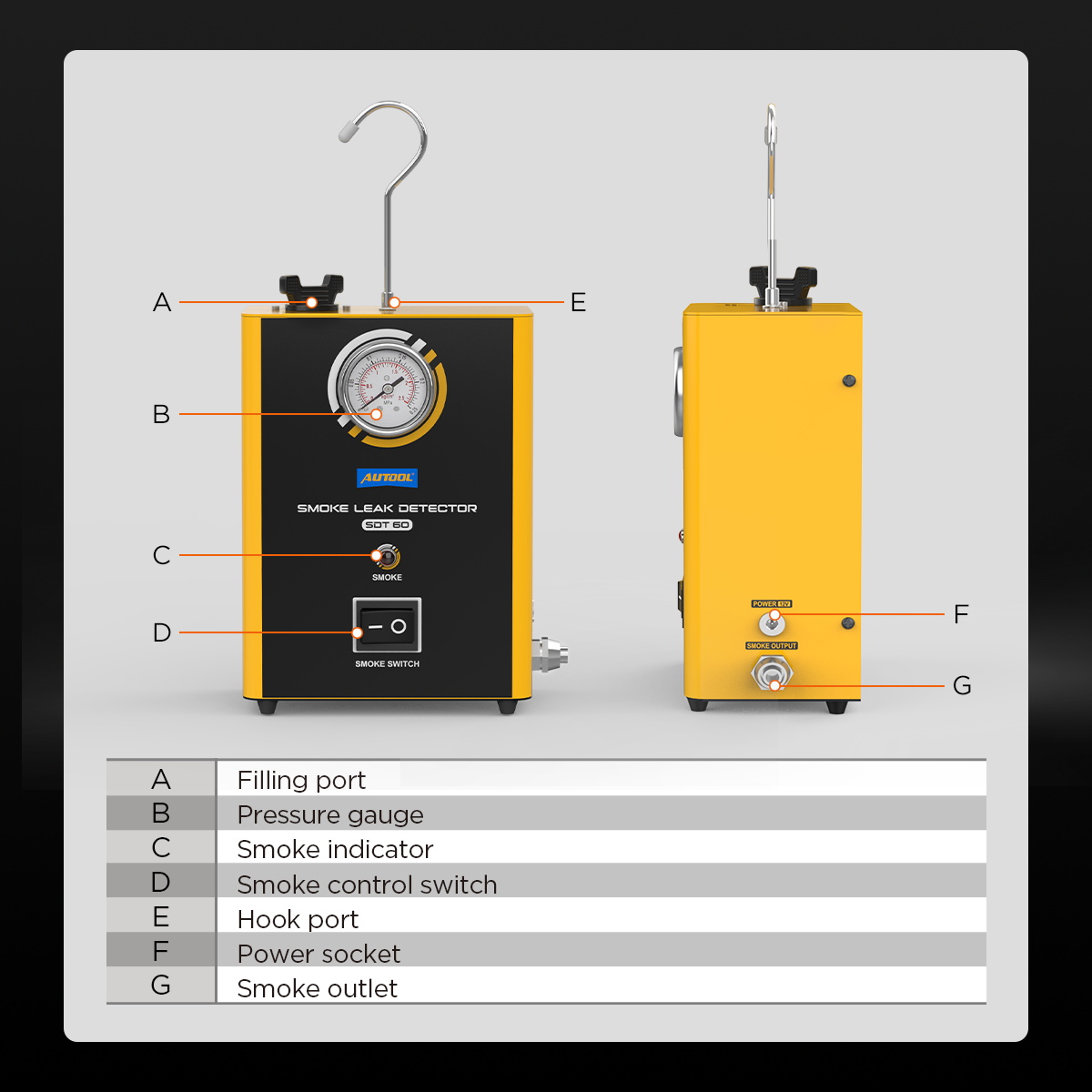

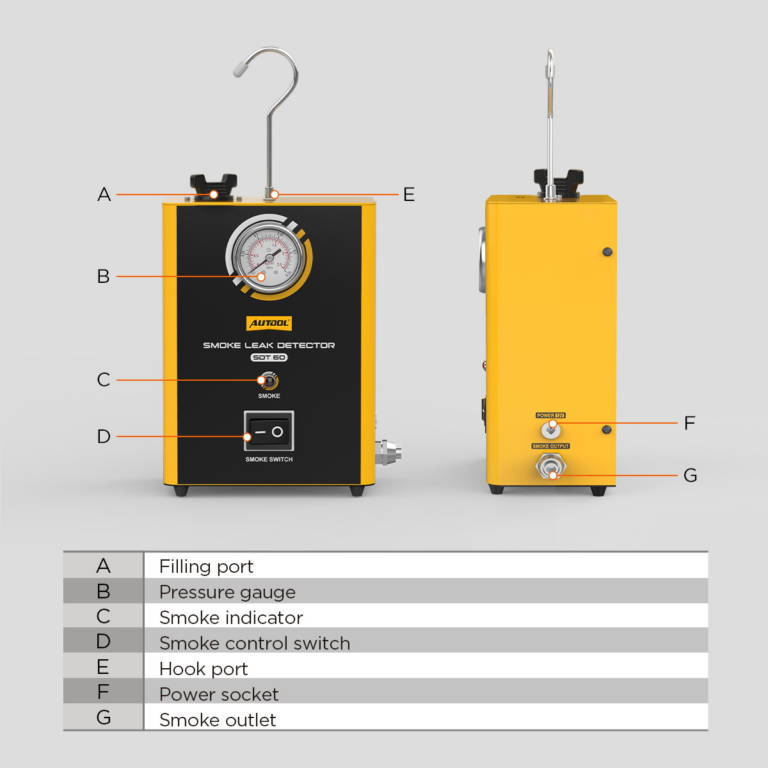

Controls & Connections
Controls and connections are grouped for quick setup and easy identification during testing.
3-Year Warranty Support
Main unit: 3-year warranty. Standard accessories: 1-year warranty. Warranty Policy
Step-by-step smoke leak testing
Step-by-Step Instructions
Use the SDT60 with liquid paraffin or baby oil as testing oil and a 12V DC battery. Only smoke-test areas allowed by the vehicle or component service procedure. Allow the unit to rest between long tests.
Step 01
Add Testing Oil
Fill 10–15 mL baby oil or liquid paraffin into the detector. Do not overfill.
Step 02
Connect the Test Line
Access the system to be tested and position the detector near the test area. Disconnect the line you want to test, then connect it to the smoke output hose.
Step 03
Power On
Connect the detector to a 12V DC battery, then turn on the power switch to start the unit.
Step 04
Check Leaks
The connected test line fills with smoke within about 30 seconds. Inspect for escaping smoke to locate leaks and use a headlamp if necessary.
Power, pressure-gauge use, testing oil, heat, and operating limits
Safety & Compatibility
SDT60 is a built-in-pump smoke leak detector with a pressure gauge for permitted low-pressure tests. Use the gauge to watch pressure changes; it does not regulate pressure or replace the service limits for the system you are testing.
12V Power and Built-In Air Pump
Connect SDT60 to a 12V DC battery before use. The built-in air pump provides the test airflow, so you do not need an external air source.
Use the Pressure Gauge to Watch Test Pressure
SDT60 outputs less than 10 psi and less than 5 L/min. Watch the gauge for pressure changes in the connected test path, and stay within the pressure allowed by the vehicle or component service procedure.
Add 10–15 mL of Testing Oil
Use liquid paraffin or baby oil as testing oil. Add 10–15 mL before use and do not exceed this range.
Drain Old Oil Before Refilling
When refilling, drain the remaining oil first and add about 10 mL of fresh testing oil. Replace the testing oil regularly.
Limit Continuous Use to 8 Minutes
Do not run SDT60 continuously for more than 8 minutes. Let the unit rest between tests.
75°C Overheat Protection
If the internal temperature exceeds 75°C, the unit automatically shuts off power. Let it cool before restarting.
Operating Temperature and Hot Surfaces
SDT60 supports operation down to -20°C. The round metal housing can become hot during use, so avoid touching hot surfaces directly.
Check Connections Before Starting Smoke
Before starting smoke, make sure the smoke hose and test line are connected securely and confirm the 12V power connection.
Compare AUTOOL smoke leak detector models
Compare Smoke Leak Detector Models
Compare AUTOOL smoke leak detector models by air source, pressure, output flow, operating mode, gauges, flow control, oil handling, vehicle power compatibility, and other model-specific features.
Compare models
Choose one or more models. SDT60 is selected by default.
1 model selected
No model is selected. Choose a model to compare.

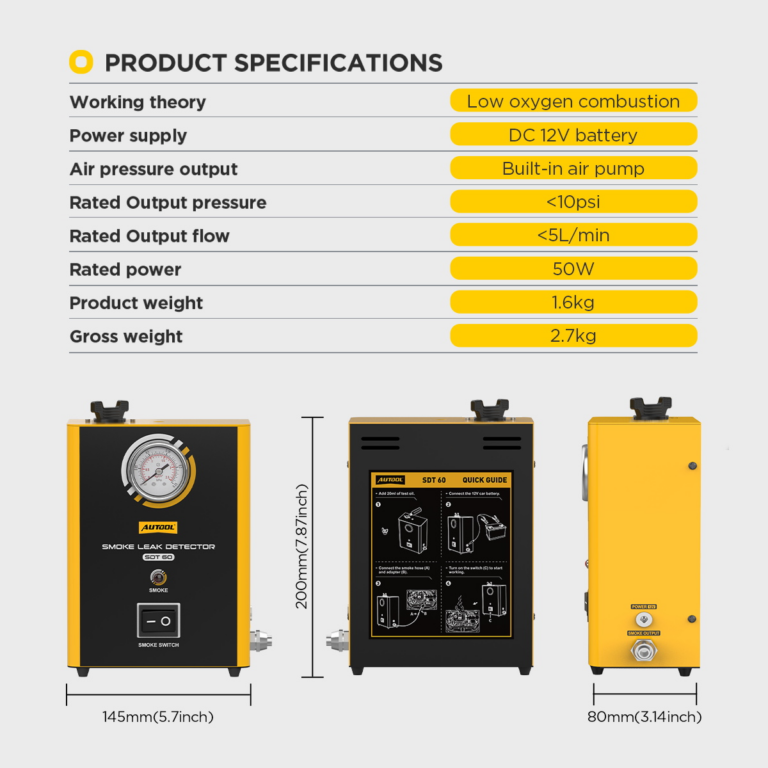

| Specification | Model 1AUTOOL SDT203 | Model 2AUTOOL SDT50 | Model 1AUTOOL SDT60 | Model 4AUTOOL SDT100 | Model 5AUTOOL SDT101 | Model 6AUTOOL SDT102 | Model 7AUTOOL SDT103 | Model 8AUTOOL SDT106 | Model 9AUTOOL SDT205 | Model 10AUTOOL SDT205S | Model 11AUTOOL SDT206 | Model 12AUTOOL SDT208 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Core Output and Power | ||||||||||||
| How It Works | Low-Oxygen Combustion | Low-Oxygen Combustion | Low-Oxygen Combustion | Low-Oxygen Combustion | Low-Oxygen Combustion | Low-Oxygen Combustion | Low-Oxygen Combustion | Low-Oxygen Combustion | Low-Oxygen Combustion | Low-Oxygen Combustion | Low-Oxygen Combustion | Low-Oxygen Combustion |
| Input Power | 12V DC | 12V DC | 12V DC | 12V DC | 12V DC / 5A | 12V DC | 12V DC / 5A | 12V DC | 12V DC | 12V DC | 12V DC | 12V / 24V DC |
| Testing Oil Fill Volume | 10–15 mL | 10–15 mL | 10–15 mL | 10–15 mL | 10–15 mL | 10–15 mL | 10–15 mL | 10–15 mL | 10–15 mL | 10–15 mL | 10–15 mL | 10–15 mL |
| Rated Output Pressure | <15 psi | <10 psi | <10 psi | <10 psi | 3.2 kPa (0.46 psi) | <10 psi | 3.2 kPa (0.46 psi) | <12 psi | <15 psi | <15 psi | <18 psi | <10 psi EVAP / 35 psi Standard |
| Rated Output Flow | <6 L/min | <5 L/min | <5 L/min | <5 L/min | >10 L/min | >6 L/min | >10 L/min | <5 L/min | <6 L/min | <6 L/min | <6 L/min | <15 L/min |
| Rated Power | 65 W | 50 W | 50 W | 50 W | 48 W | 48 W | 48 W | 50 W | 65 W | 65 W | 70 W | 80 W |
| High-Temperature Protection | Automatic shutdown above 75°C | Automatic shutdown above 75°C | Automatic shutdown above 75°C | Automatic shutdown above 75°C | Automatic shutdown above 75°C | Automatic shutdown above 75°C | Automatic shutdown above 75°C | Automatic shutdown above 75°C | Automatic shutdown above 75°C | Automatic shutdown above 75°C | Automatic shutdown above 75°C | Automatic shutdown above 75°C |
| Response Time | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds | Produces smoke in 5 seconds |
| Monitoring and Control | ||||||||||||
| Flow Meter Window | Included | Not included | Not included | Not included | Not included | Not included | Included | Not included | Not included | Included | Included | Included |
| Pressure Gauge | Included | Not included | Included | Not included | Not included | Included | Not included | Not included | Included | Included | Included | Included |
| Flow Adjustment Knob | Included | Not included | Not included | Not included | Not included | Not included | Included | Not included | Not included | Included | Included | Included |
| Fault Indicator Light | Included | Not included | Not included | Included | Not included | Included | Not included | Not included | Included | Included | Included | Included |
| Oil Level Gauge | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Included | Included |
| Air Source and Operating Modes | ||||||||||||
| Air Source Type | Built-in Air Pump | Built-in Air Pump | Built-in Air Pump | Built-in Air Pump | External Air Source | Built-in Air Pump | External Air Source | Built-in Air Pump | Built-in Air Pump | Built-in Air Pump | Dual Built-In Air Pumps | Built-in Air Pump |
| Operating Modes | Smoke Mode | Smoke Mode | Smoke Mode | Smoke Mode | Smoke Mode | Smoke Mode | Smoke Mode | Smoke Mode | Air Mode / Smoke Mode | Air Mode / Smoke Mode | Air Mode / Smoke Mode | Air Mode / Smoke Mode |
| Dual Pressure Mode | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Standard Mode (35 psi) / EVAP Mode (10 psi) |
| Oil Drain Valve | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Not included | Included | Included | Included | Included |
| Size and Weight | ||||||||||||
| Net Weight (Main Unit) | 1.7 kg | 1.5 kg | 1.6 kg | 1.6 kg | 1.6 kg | 1.6 kg | 1.15 kg | 3.5 kg | 3.2 kg | 3.2 kg | 3.5 kg | 4.2 kg |
| Main Unit Dimensions | 145 × 80 × 200 mm | 145 × 80 × 200 mm | 145 × 80 × 200 mm | 180 × 102 × 143 mm | 180 × 100 × 135 mm | 180 × 102 × 143 mm | 180 × 100 × 135 mm | 110 × 135 × 210 mm | 295 × 295 × 207 mm | 295 × 295 × 207 mm | 150 × 150 × 275 mm | 350 × 250 × 300 mm |
Model Guide
Use this overview to identify the smoke leak detector models you want to compare in detail.
AUTOOL SDT203
Built-in air pump · <15 psi rated output pressure · <6 L/min rated output flow · Smoke Mode
AUTOOL SDT50
Built-in air pump · <10 psi rated output pressure · <5 L/min rated output flow · Smoke Mode
AUTOOL SDT60
Built-in air pump · <10 psi rated output pressure · <5 L/min rated output flow · Smoke Mode
AUTOOL SDT100
Built-in air pump · <10 psi rated output pressure · <5 L/min rated output flow · Smoke Mode
AUTOOL SDT101
External air source · 3.2 kPa (0.46 psi) rated output pressure · >10 L/min rated output flow · Smoke Mode
AUTOOL SDT102
Built-in air pump · <10 psi rated output pressure · >6 L/min rated output flow · Smoke Mode
AUTOOL SDT103
External air source · 3.2 kPa (0.46 psi) rated output pressure · >10 L/min rated output flow · Smoke Mode
AUTOOL SDT106
Built-in air pump · <12 psi rated output pressure · <5 L/min rated output flow · Smoke Mode
AUTOOL SDT205
Built-in air pump · <15 psi rated output pressure · <6 L/min rated output flow · Air Mode / Smoke Mode
AUTOOL SDT205S
Built-in air pump · <15 psi rated output pressure · <6 L/min rated output flow · Air Mode / Smoke Mode
AUTOOL SDT206
Two built-in air pumps · <18 psi rated output pressure · <6 L/min rated output flow · Air Mode / Smoke Mode
AUTOOL SDT208
Built-in air pump · <10 psi EVAP / 35 psi Standard rated output pressure · <15 L/min rated output flow · Air Mode / Smoke Mode

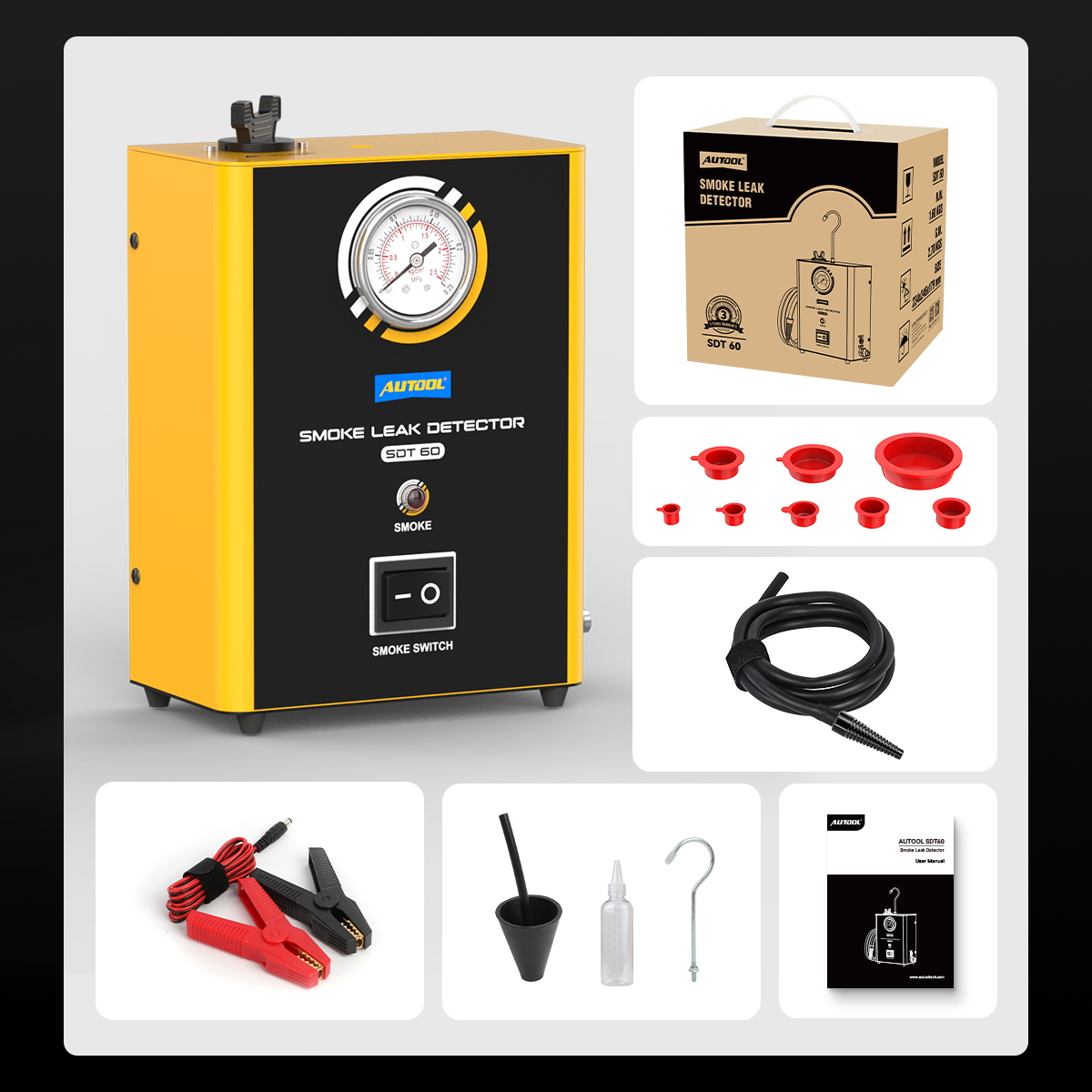

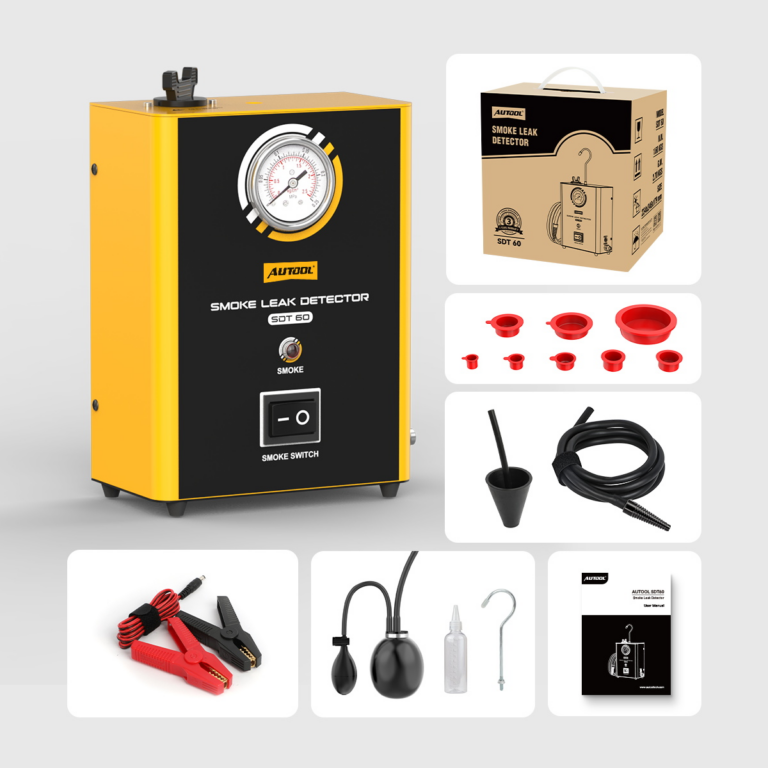

What’s in the Box
Package Contents
The package includes the main smoke leak detector, power clamps, smoke hose, adapters, oil tools, hook, user manual, and packaging. Package contents may vary by the selected package option; check the product listing for the exact items included.
- Main UnitAUTOOL SDT60 Smoke Leak Detector
- Power Cable12V battery power cable / clamps
- Smoke HoseSmoke output hose
- AdaptersRed cone / line adapters
- Oil ToolsFunnel and oil bottle
- HookHanging hook for engine bay use
- ManualUser manual
- Testing OilCheck the package contents to see whether testing oil is included. If it is not included, use liquid paraffin or baby oil.
Manual, warranty, and setup support
Manual and Downloads
Use the manual below for SDT60 setup, operation, maintenance, and safety guidance.

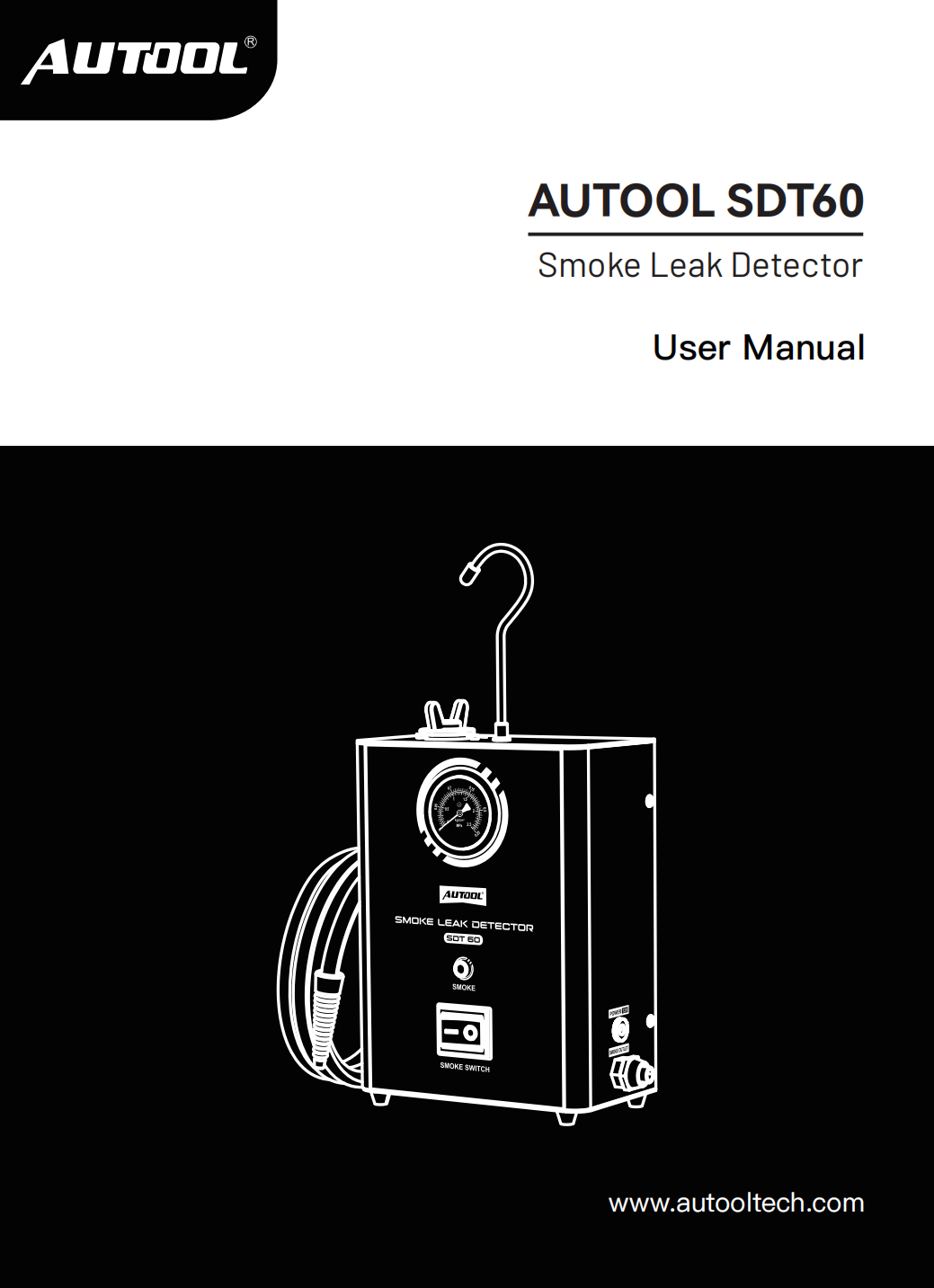

AUTOOL SDT60 User Manual
Open the PDF manual for SDT60 setup, operation, testing oil, and safe-use instructions.
Frequently asked questions
Frequently Asked Questions
What Testing Oil Should I Use for SDT60?
Use liquid paraffin or baby oil as the testing oil for SDT60 smoke generation.
How Much Testing Oil Should I Add?
Add 10–15 mL before first use and do not exceed this range. When refilling, pour out the remaining oil first and add about 10 mL fresh testing oil.
Does SDT60 Need an External Air Pump?
No. SDT60 has a built-in air pump, so it does not require an external air source for normal use.
What Power Supply Does SDT60 Need?
SDT60 requires connection to a 12V DC battery for operation.
How Long Can SDT60 Run Continuously?
Do not run the detector continuously for more than 8 minutes. Let the unit rest between uses.
Why Does the Detector Shut Off Automatically?
If the temperature exceeds 75°C, automatic overheat protection turns off the power. Let the detector cool before using it again.
Can SDT60 Work in Cold Environments?
Yes. SDT60 can operate at temperatures down to -20°C.
How Does the Pressure Gauge Help?
The pressure gauge helps you assess leaks by showing pressure changes during the test. The reading can help distinguish no obvious leak from a small or more severe leak.
Which Systems Can SDT60 Test?
For engine-related leak checks, SDT60 works as an engine smoke tester across intake, crankcase, oil-seal, throttle, and intake-manifold systems. It also supports low-pressure checks on exhaust, vehicle-sealing, fuel-tank, intercooler-air, coolant-tank, and line fittings.
How Does SDT60 Differ from SDT101 and SDT103?
SDT60 has a built-in air pump and can be used directly with a 12V battery. SDT101 and SDT103 require an external air source.
