AUTOOL EM385 ECU Programming Power Supply & LiFePO4/Lead-Acid Battery Charger

US$629.00

Key features

US$629.00

AUTOOL EM385 ECU Programming Power Supply & LiFePO4/Lead-Acid Battery Charger

US$629.00

Please select Voltage / Shipping Warehouse

  • 3-Year Warranty Main unit 3 years · Accessories 1 year
  • 90-Day Returns Eligible returns within 90 days
  • Official Store Genuine products · Direct support

AUTOOL EM385 · Touchscreen ECU Programming Power Supply & Battery Charger

Charge Lead-Acid and Lithium Batteries or Set DC Output

The AUTOOL EM385 combines ECU programming power support, lead-acid and lithium battery charging, battery restoration, vehicle display power, and momentary starting support. Its 4.3-inch touchscreen puts mode selection and output readings in view, while a separate adjustable power supply option lets you set voltage and current for compatible electrical equipment.

  • 9–16 V Programming Supply
  • Up to 150 A for About 3 Minutes
  • Lead-Acid + Lithium Charging
  • 3–16 V Adjustable DC Output
  • 400 A Momentary Start

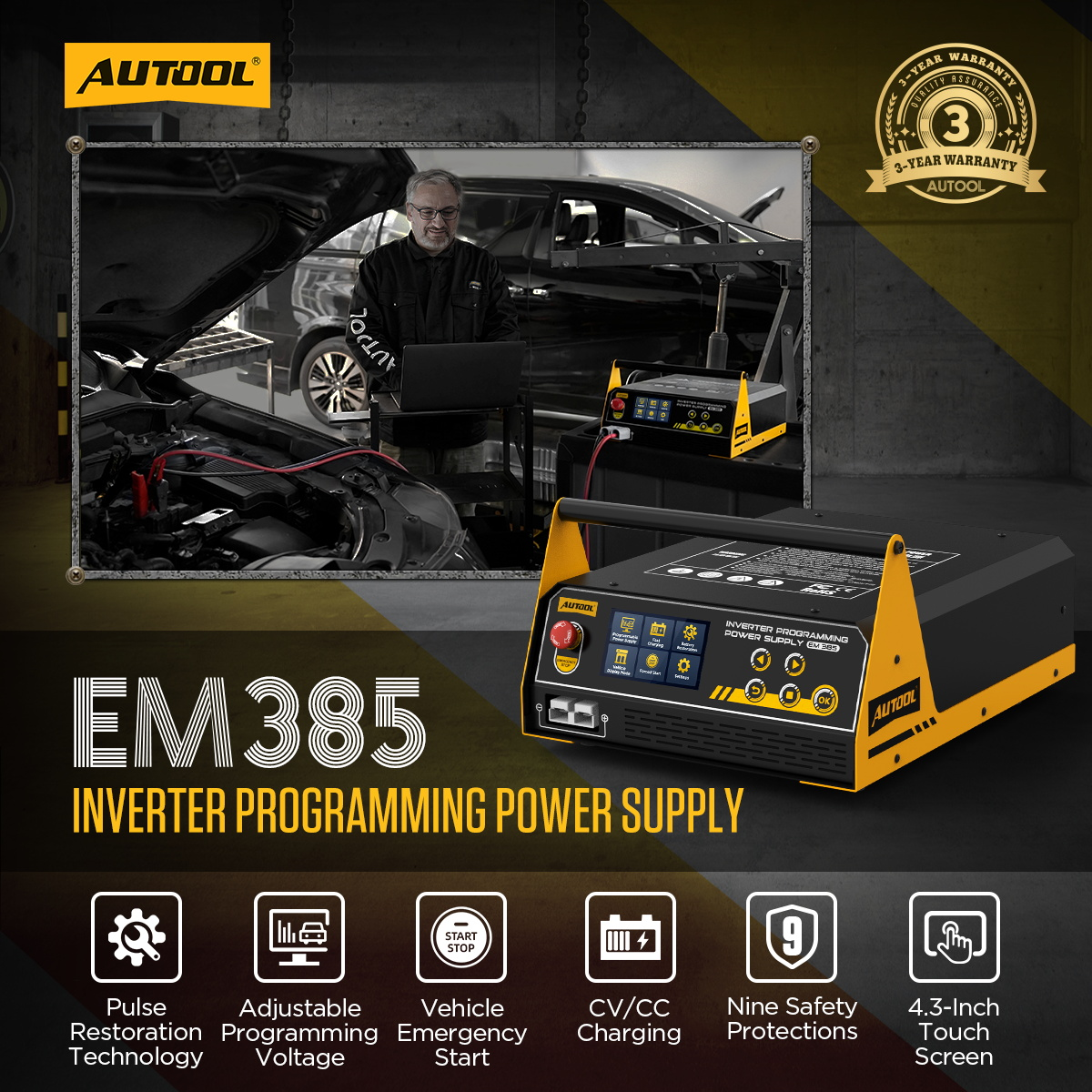

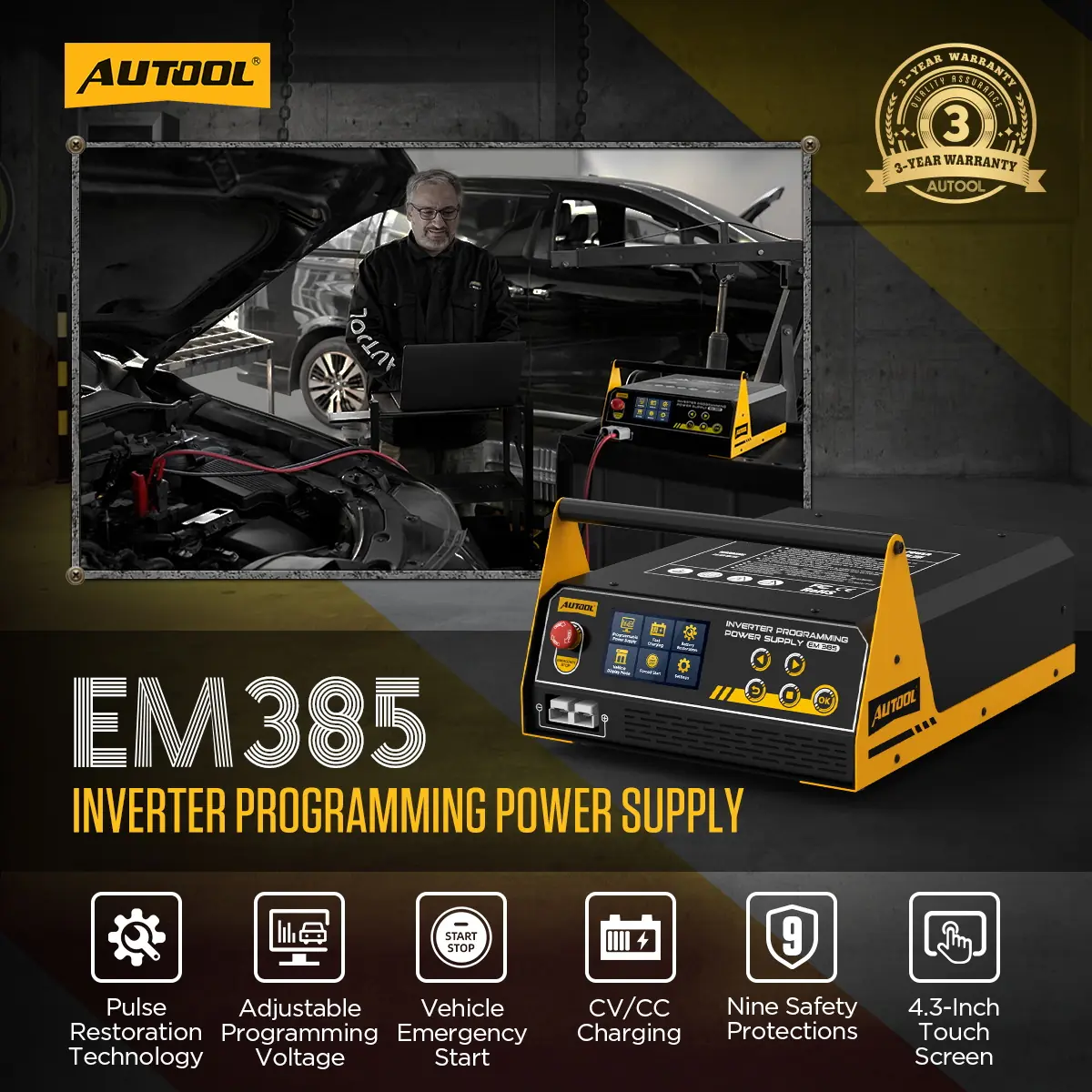

AUTOOL EM385 Auto Power Inverter ECU Programming main workshop image

Key Features

Control Programming Power, Charging and DC Output by Touchscreen

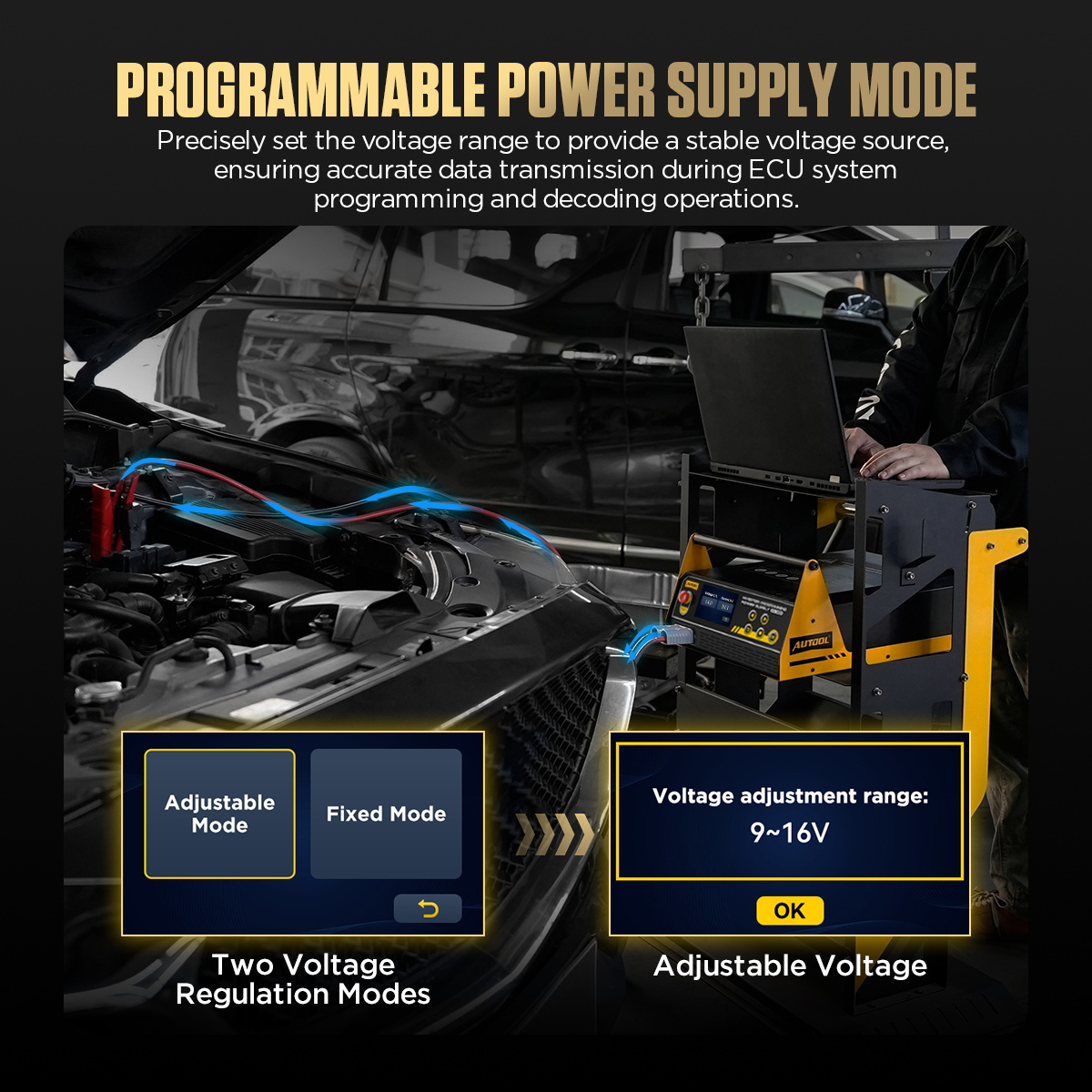

Adjust Programming Voltage From 9V To 16V

Select Adjustable Mode for 9V–16V programming power or Fixed Mode for 14V. Match output to the vehicle procedure and follow voltage and current on screen while using your separate programming equipment.

Programming Output With Live Readings

Programming Power Supply mode reaches up to 150A for approximately 3 minutes. Live voltage and current readings help you follow output during the job; thermal protection reduces available current as the unit heats up.

Lead-Acid Charging With Battery-Type Selection

Choose In-car or External Charging and select standard lead-acid, AGM flat plate, AGM spiral, or GEL. EFB uses External Charging with the battery removed. The display shows voltage, current, progress, and charging completion.

LFP And NCM Lithium Battery Charging

Fast Charging includes a dedicated lithium charging option for LFP (LiFePO4) and NCM batteries, with up to 20A. Remove the battery from the vehicle and select its chemistry before starting.

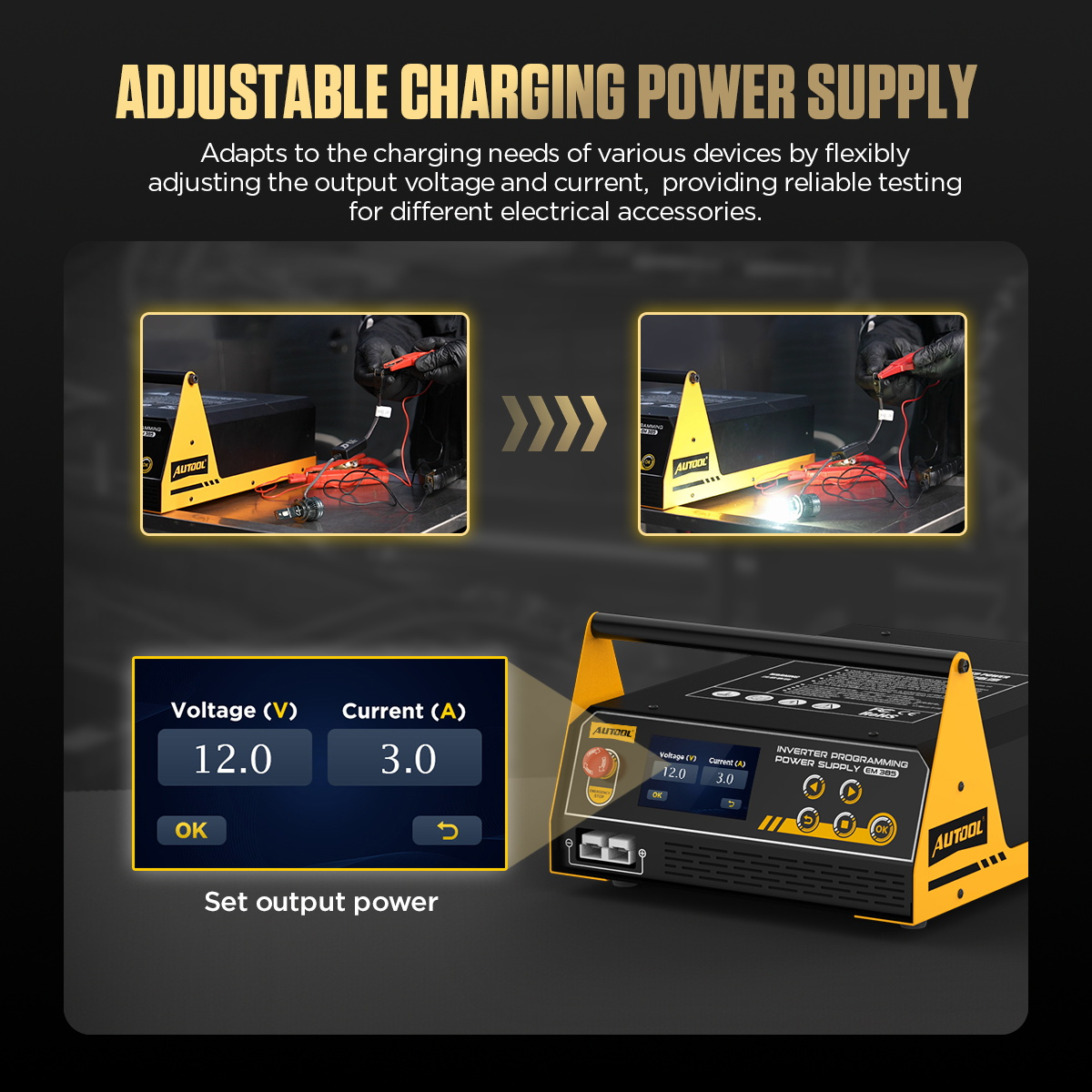

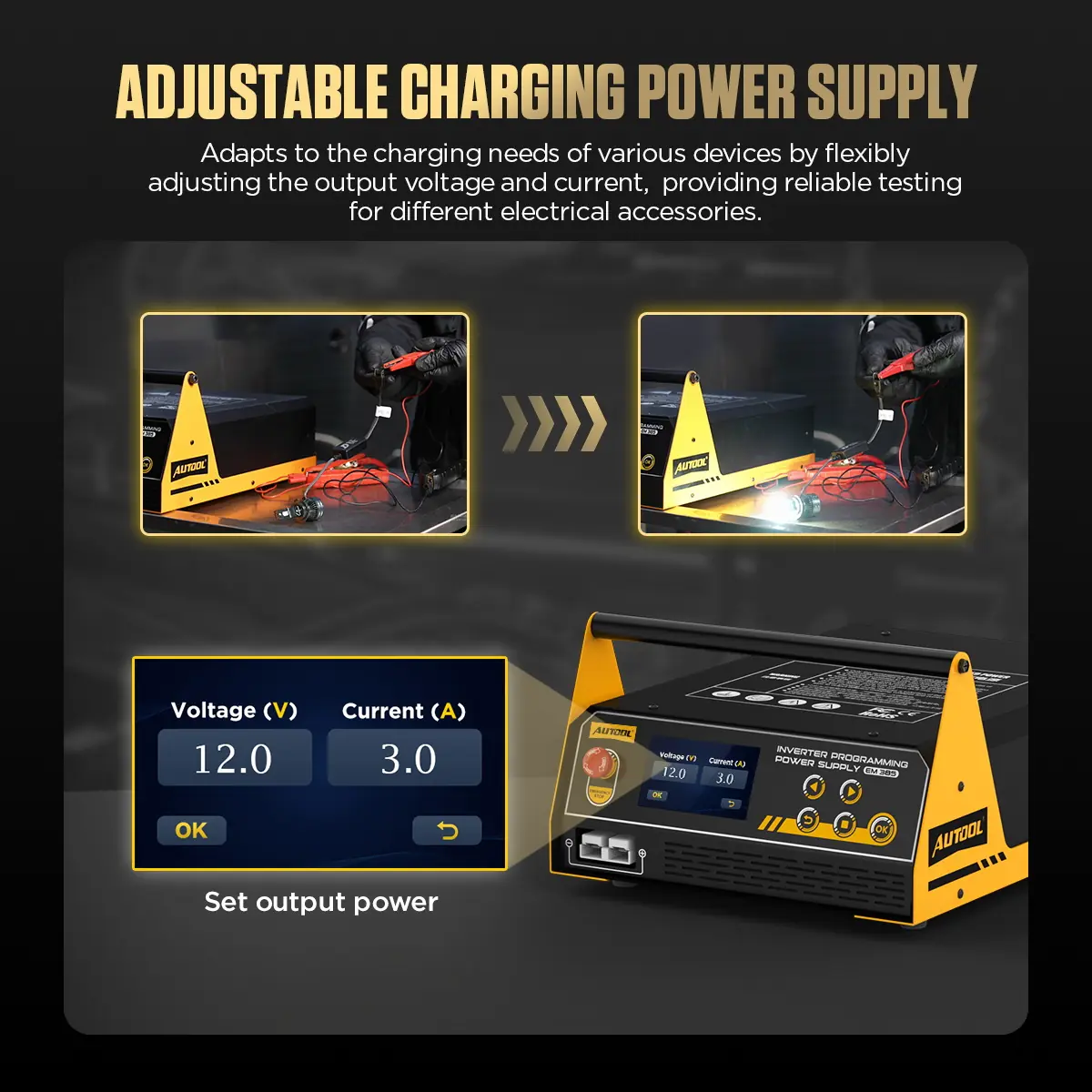

3–16 V Adjustable Equipment Supply

The separate Adjustable Power Supply option provides 3.0V–8.9V at 1A–20A or 9.0V–16.0V at 1A–100A. Set both values for the connected equipment. Thermal and power-duration limits apply to this mode.

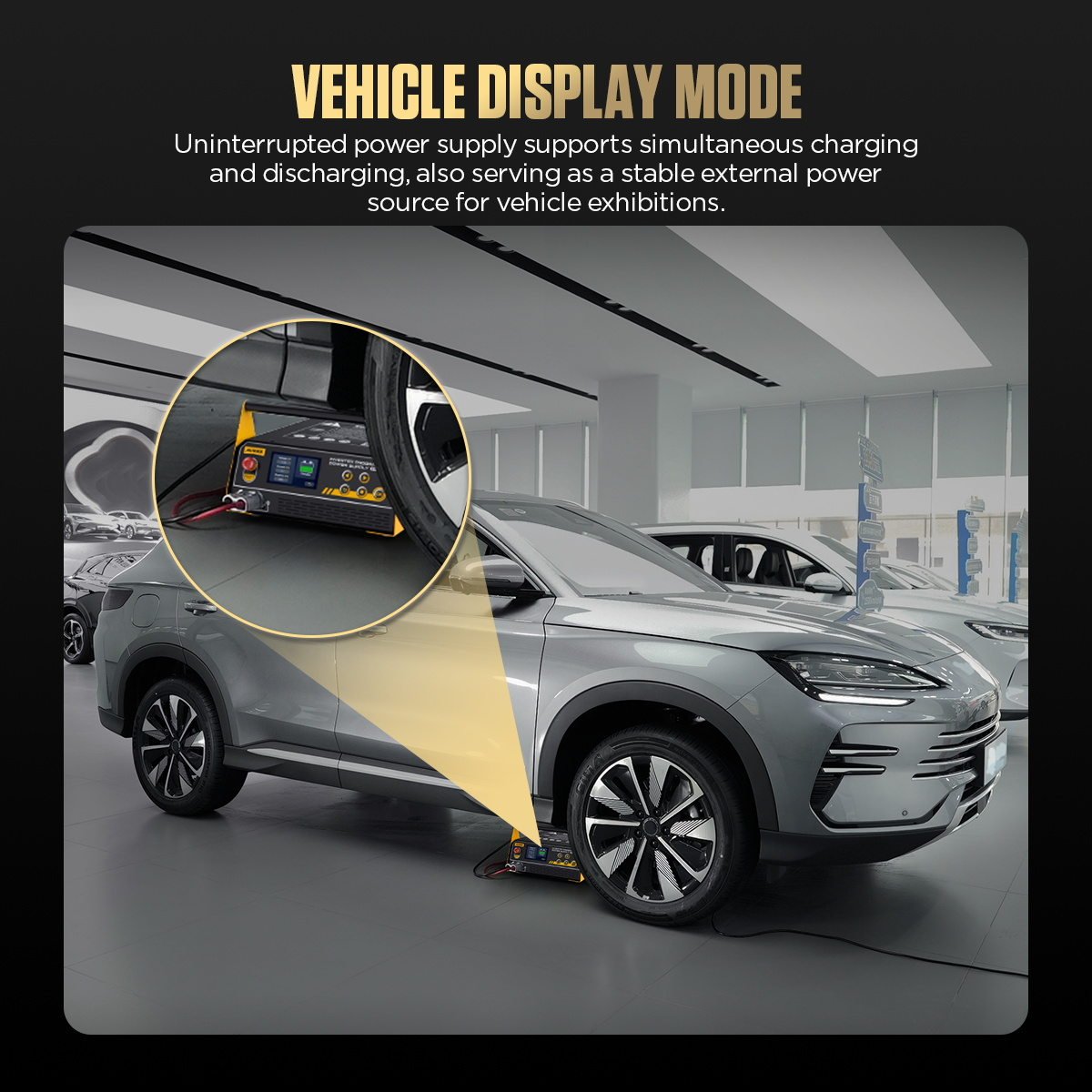

Vehicle Display Power That Responds To Load

Vehicle Display Mode maintains a float charge and increases output when battery discharge is detected, with up to 40A in this mode. This gives vehicle display work its own power-support setting.

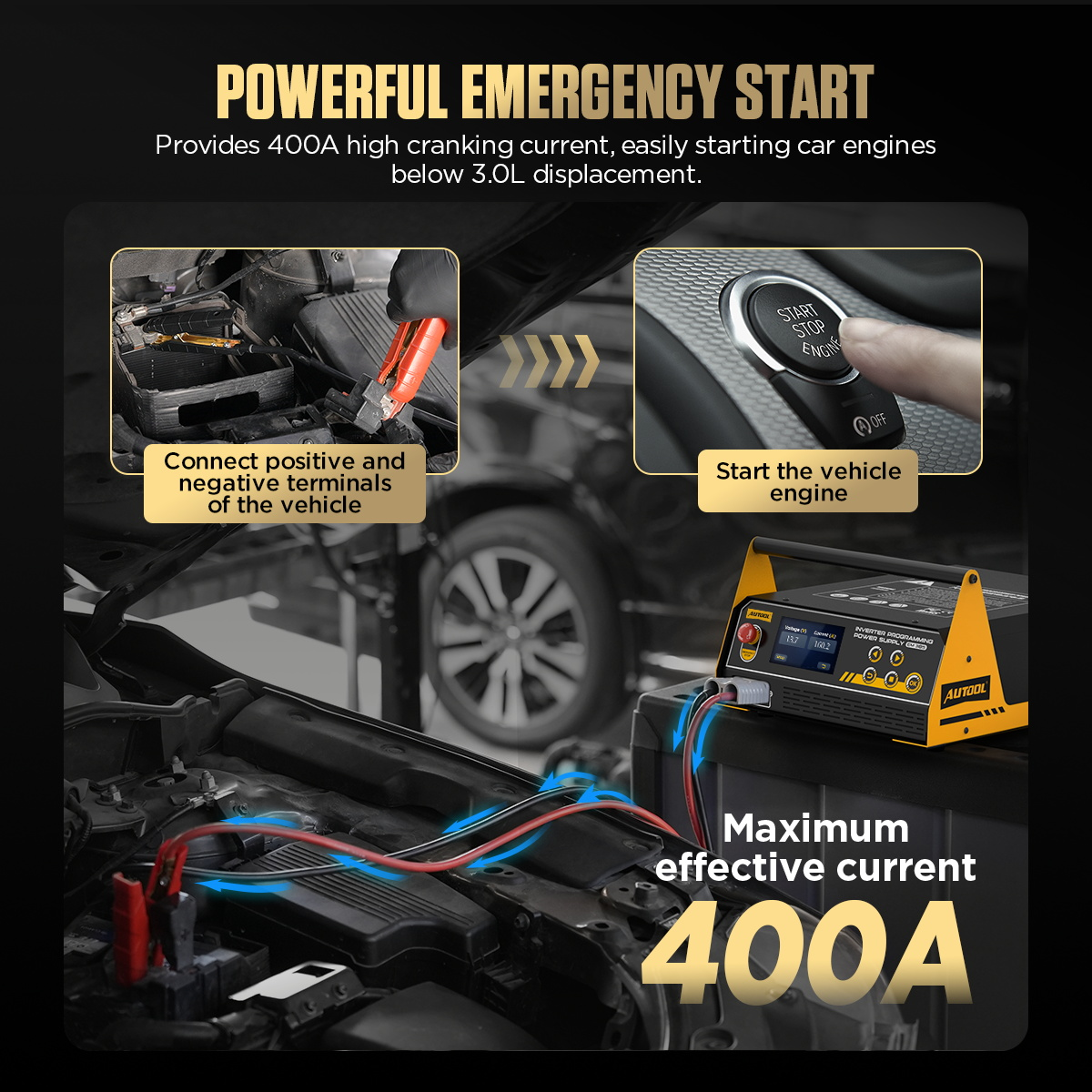

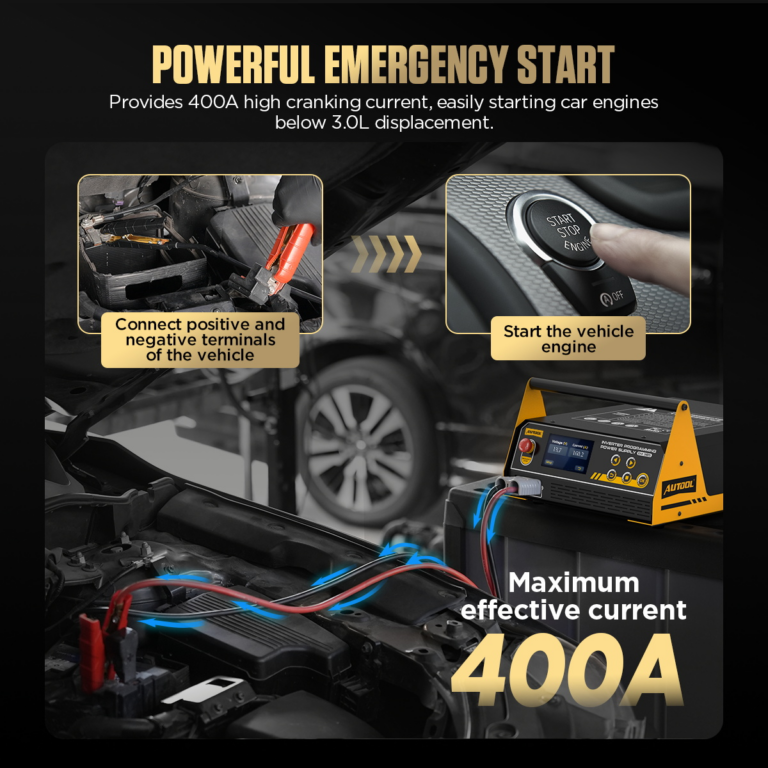

400A / 12V Momentary Starting Support

Forced Start provides momentary support for compatible vehicle starting requirements. Select the mode, confirm the prompts, and start the vehicle when the screen instructs you to do so.

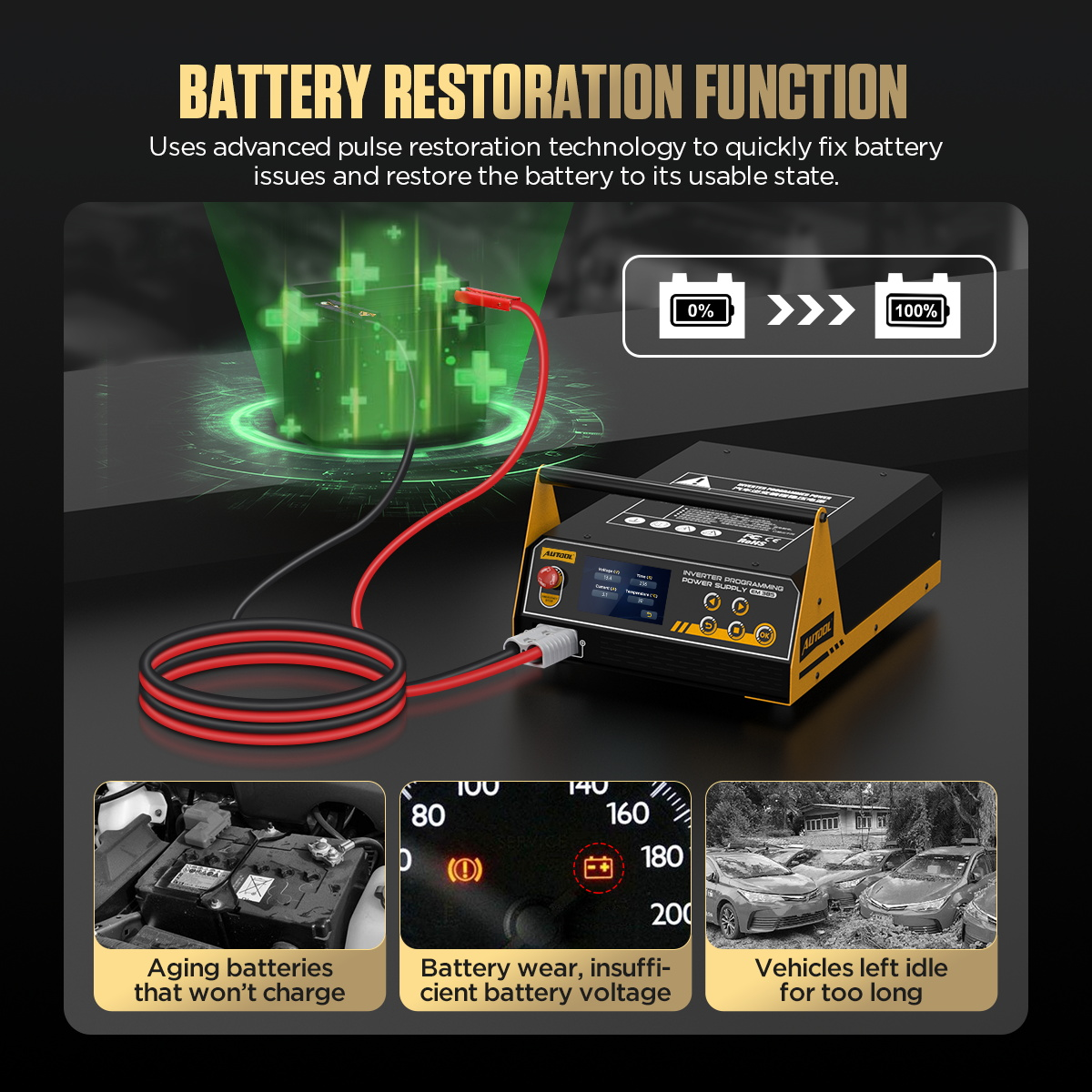

Battery Restoration For Battery Service

Battery Restoration provides a treatment option for discharged or long-idle lead-acid batteries. Remove the battery from the vehicle before use; results depend on battery condition and sulfation.

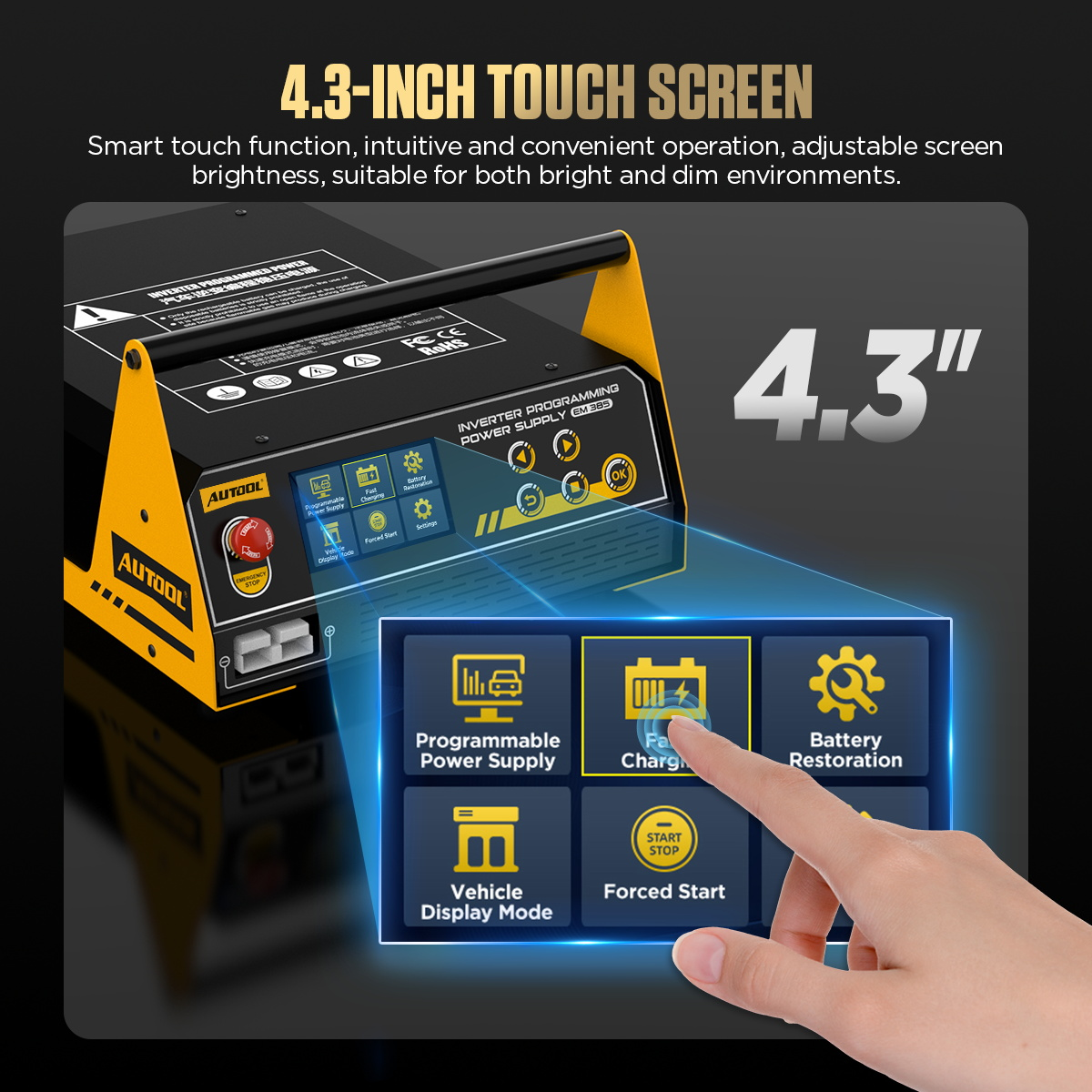

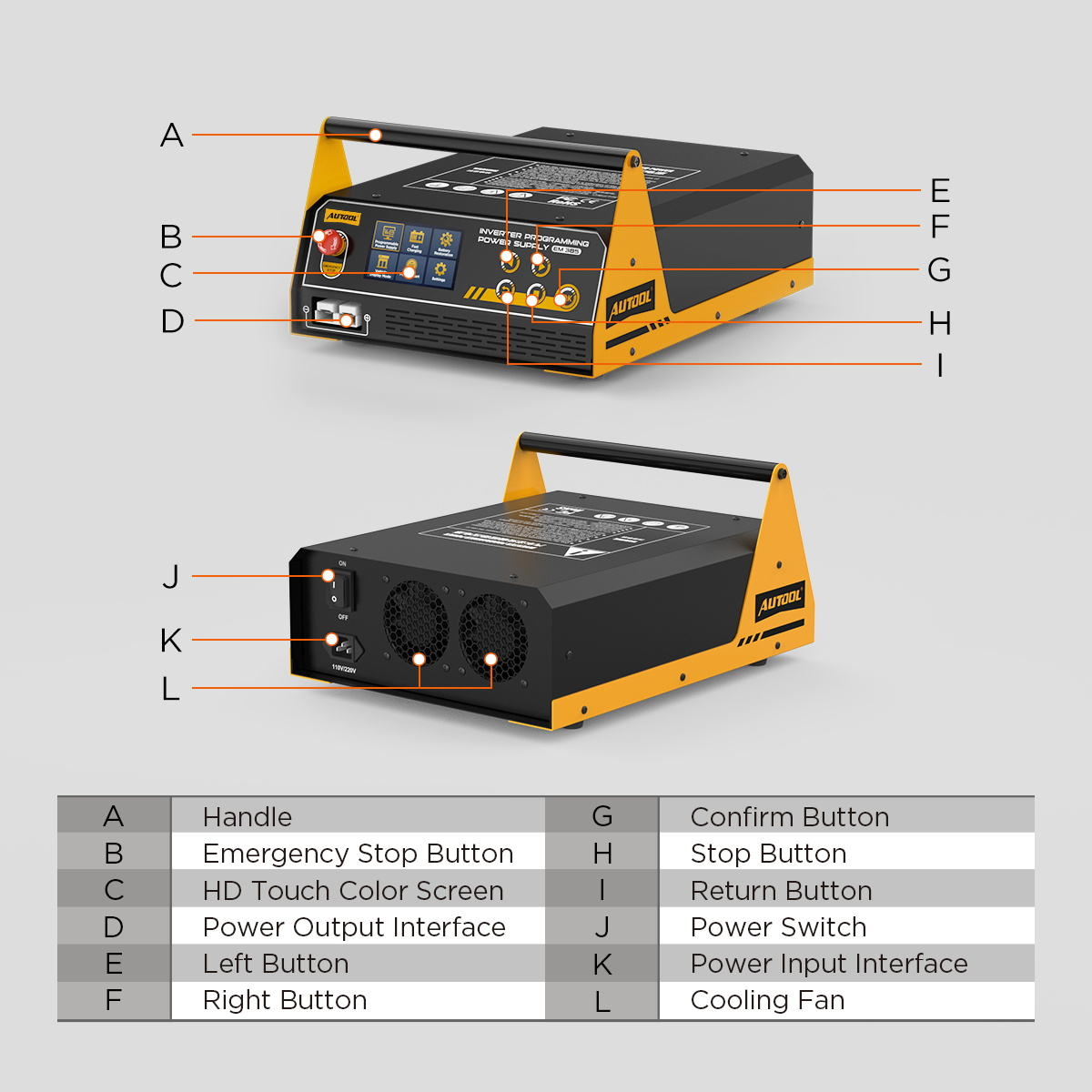

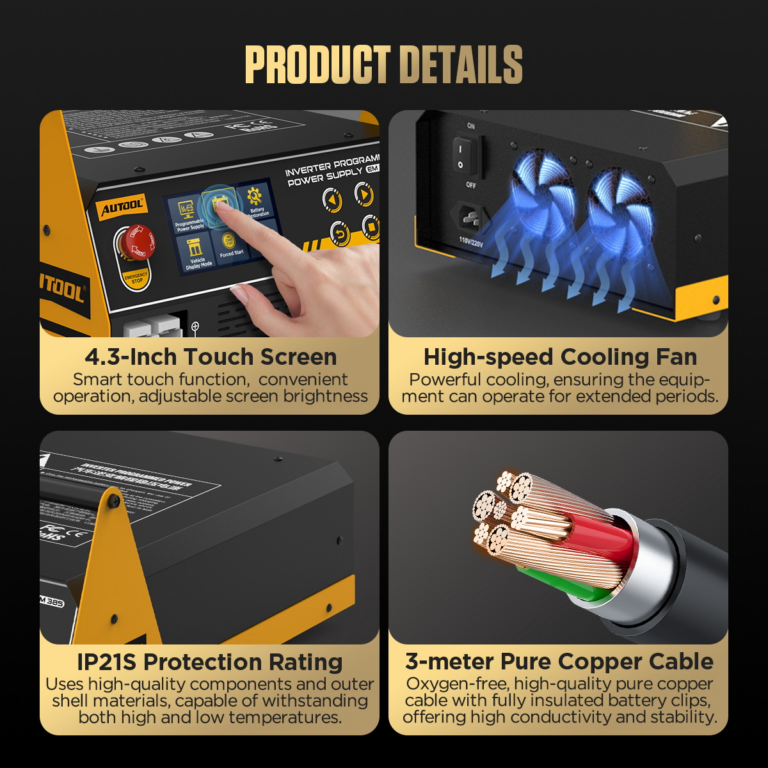

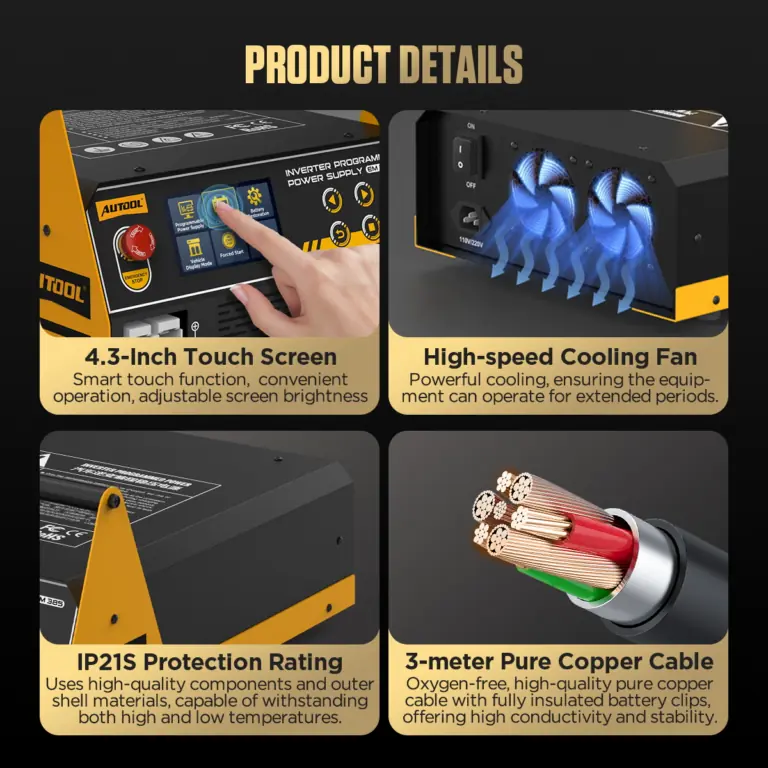

Touchscreen And Physical Button Control

Use the 4.3-inch color touchscreen or the physical arrow and OK keys to select functions. Adjustable brightness and multilingual settings let operators adapt the display, with cooling and output protection built into the unit.

3 Years Warranty Support

Main unit: 3-year warranty. Standard accessories: 1-year warranty. Warranty Policy.

How to Use

Select, Connect and Monitor the Power Mode

01

Step 1

Prepare The Vehicle

Step 1 Check the vehicle procedure for its required support voltage and make sure the 12V battery is fully charged before programming.

Safety & Compatibility

Match Battery Chemistry, Voltage and Task

Choose The Battery Type

Use the correct charging option for the battery label. EFB charging and Battery Restoration require the battery to be removed from the vehicle. Lithium charging also requires removal from the vehicle.

Match The Vehicle Procedure

For programming, start with a fully charged 12V battery and set the support voltage required by the vehicle procedure. Use the supplied manual to match the unit’s AC input version and connections.

Keep The Unit Ready To Work

Keep ventilation openings clear and use the unit in a dry, ventilated location. Stop output before changing settings; when ending charging, stop charging before removing the clamps.

Verify Polarity and Clamp Contact

Connect the clamps with correct polarity on clean, secure terminals before enabling output; stop output before removing them.

Size the Programming Session

Confirm that the selected mode, voltage range and available output match the vehicle procedure and expected transient load for the full programming event.

Care and Maintenance

A few setup essentials for the selected task.

Model Comparison

Choose the Required Power-Support Modes

Compare models

Choose one or more models. EM385 is selected by default.

1 model selected

EM385 is selected. Choose another model for a side-by-side comparison.

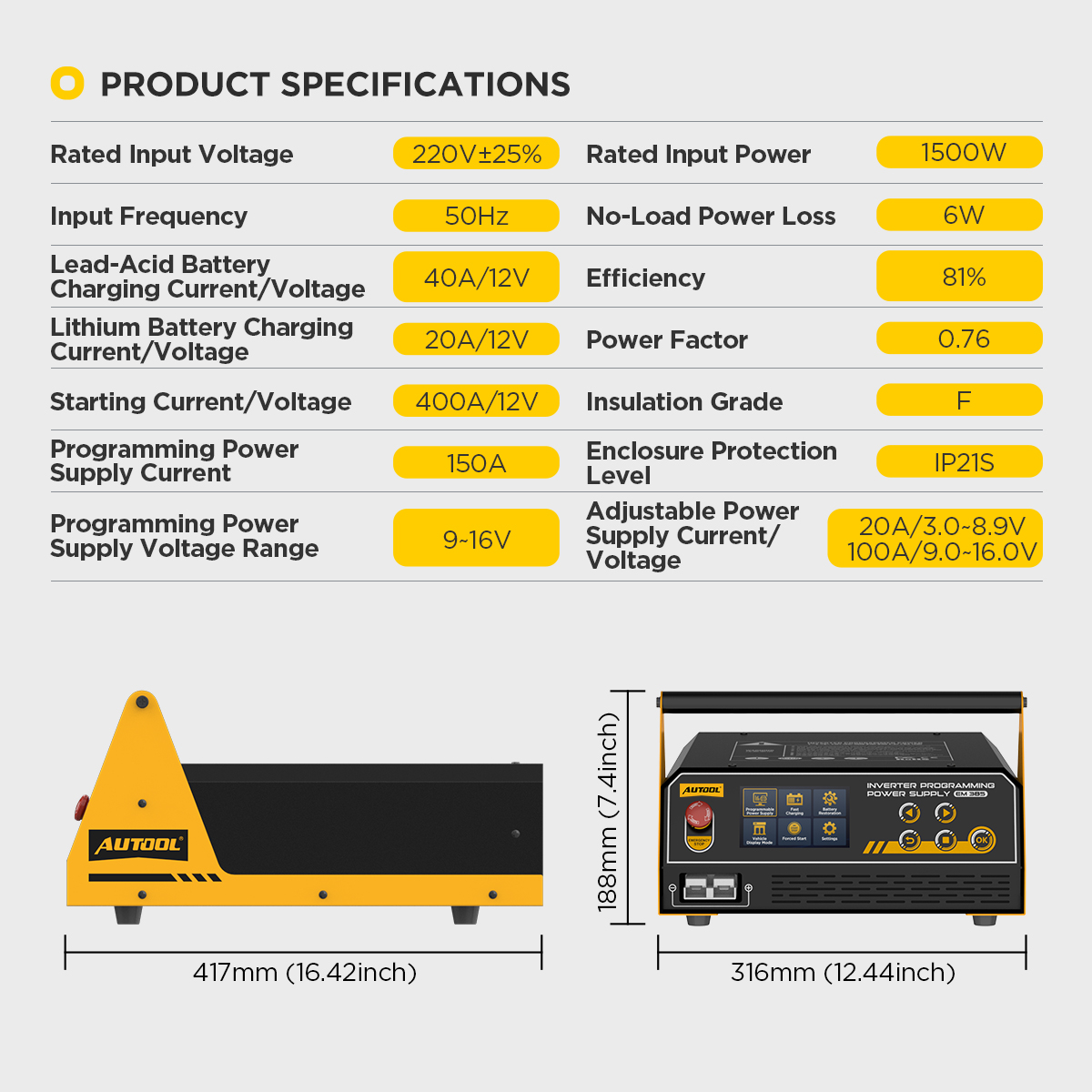

EM385 specifications

Product Name
ModelEM385
Power Input, Protection & Hardware
AC Input Version
110V or 220V version
Input Frequency
50Hz/60Hz
Rated Input Current
—
Cable Length
—
High-Speed Cooling Fan
✓Included

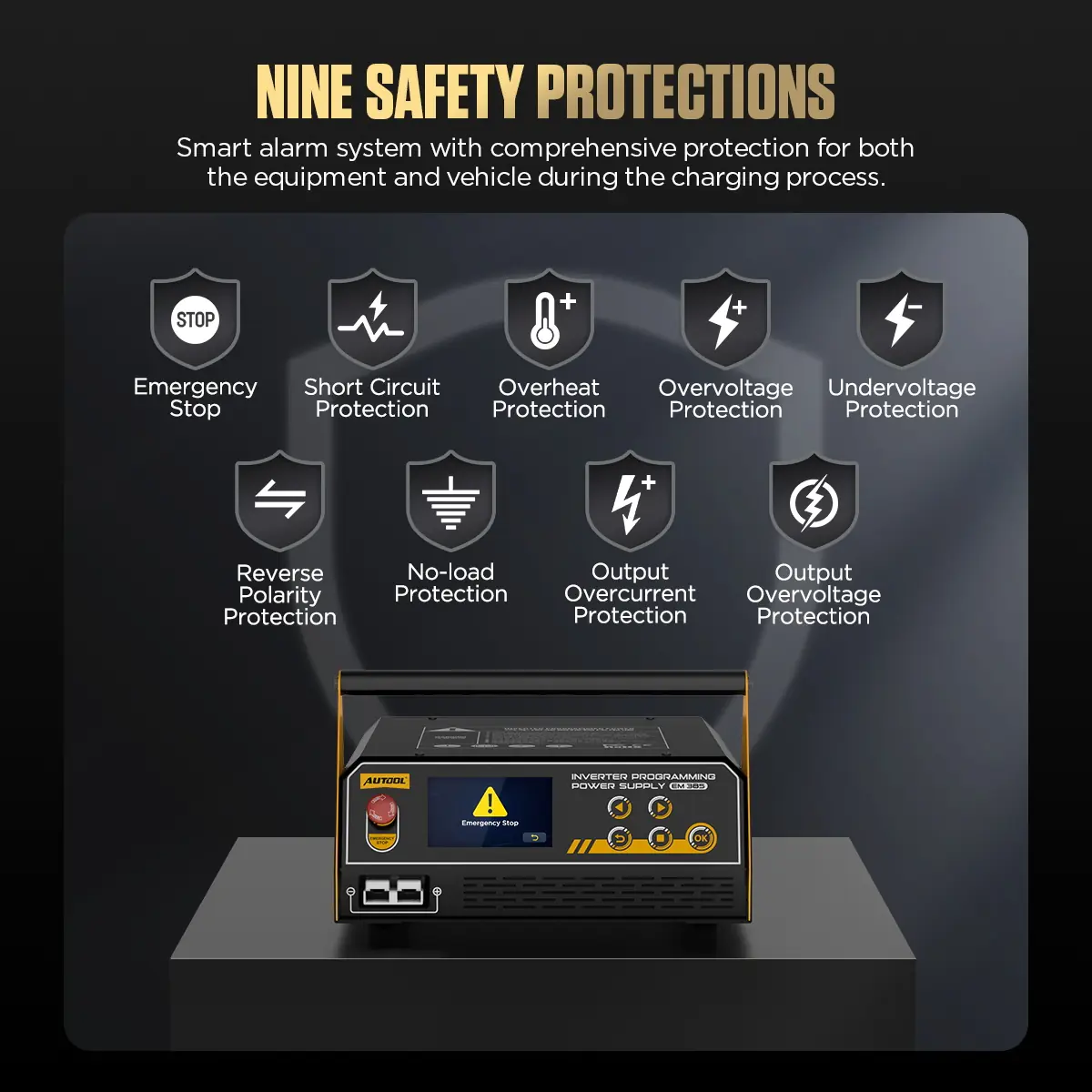

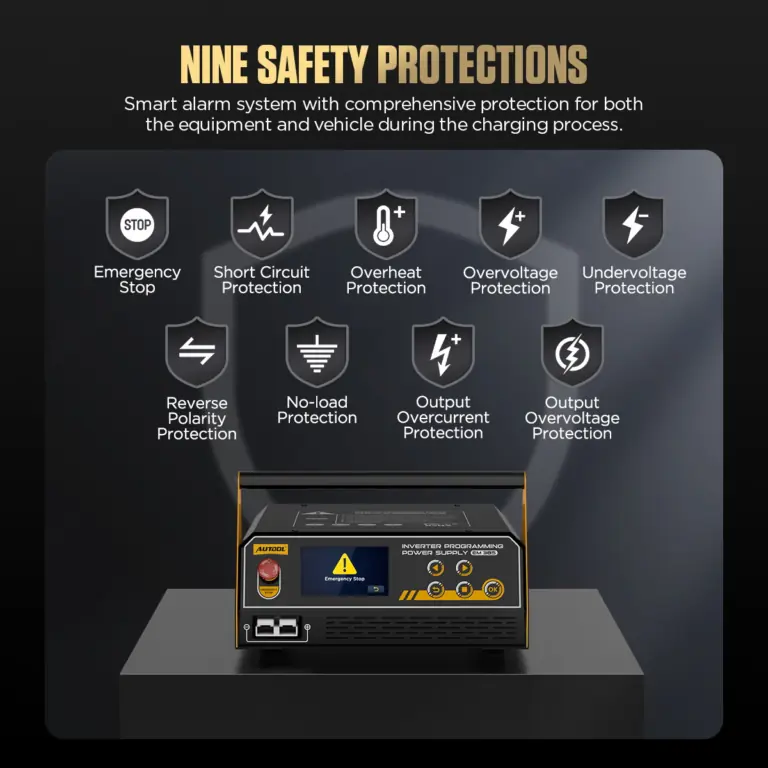

Output Protection
Reverse polarity; short circuit; overcurrent; temperature protection
Rated Input Power
1500W
Enclosure Protection Level
IP21S
Insulation Level
F
Modes, Interface & Battery Support

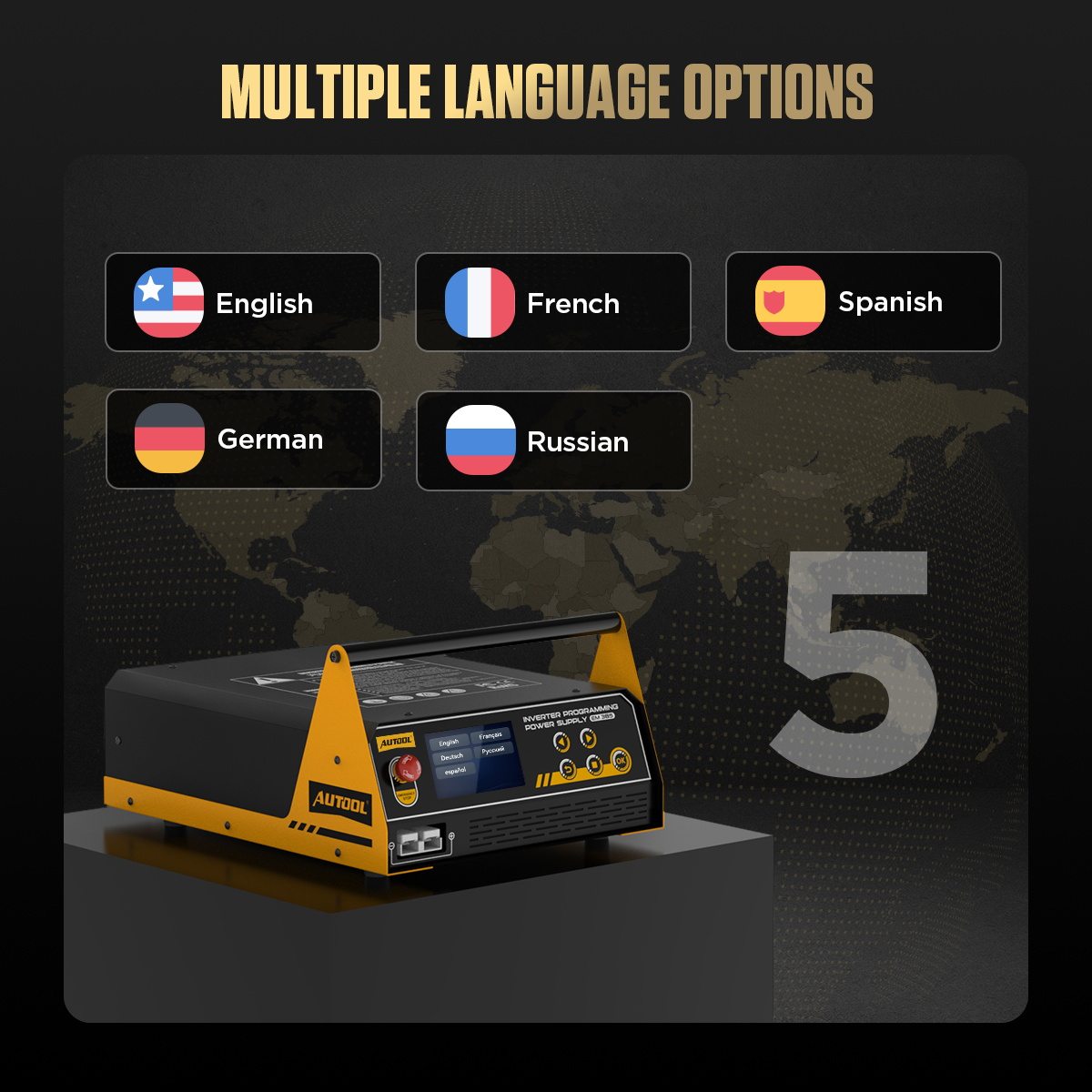

Interface Languages
Multilingual
Work Modes
Programming power; fast charging; battery restoration; vehicle display; forced start
Touch Screen
✓Included
Screen Size
4.3-inch

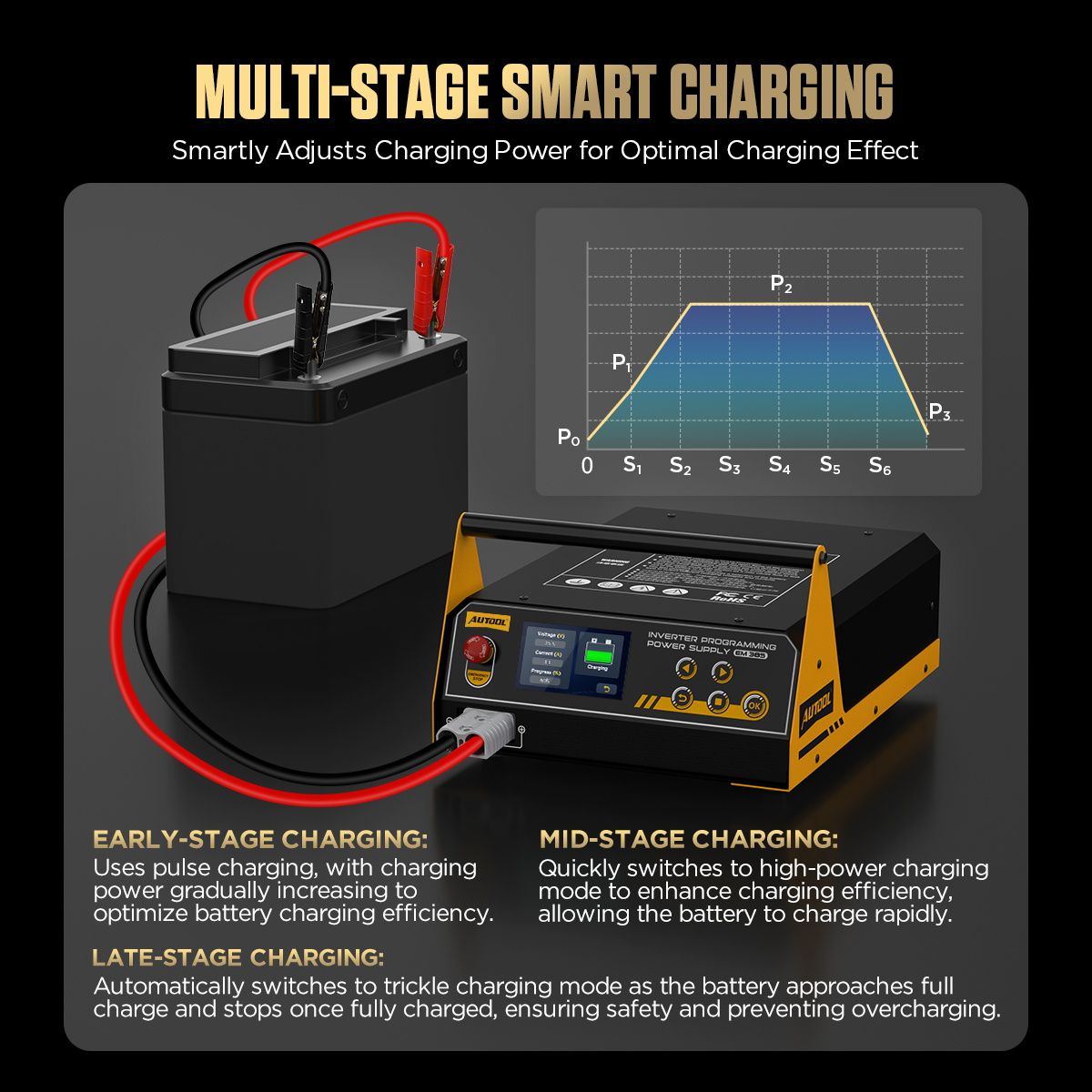

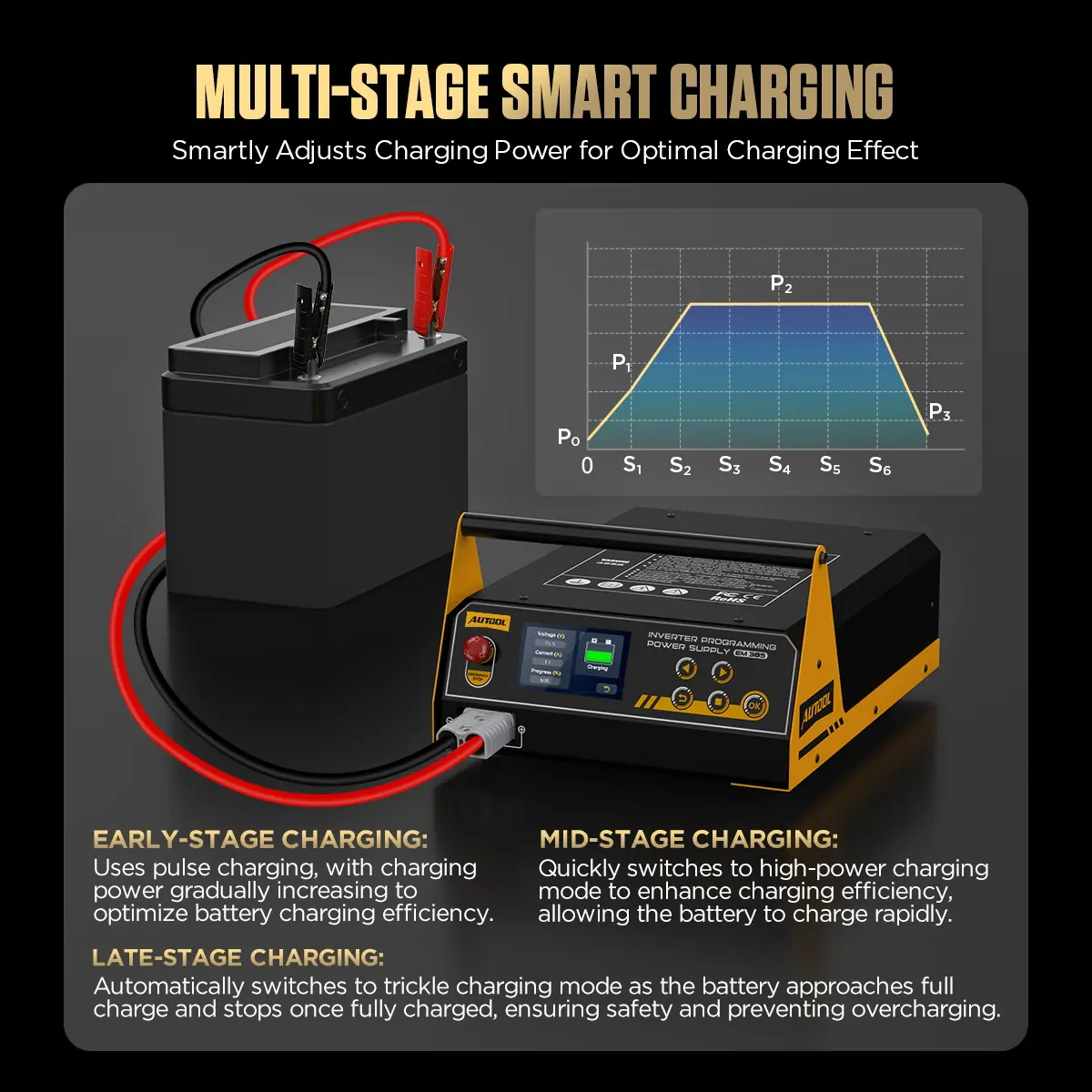

Multi-Level Intelligent Charging
✓Included
Car Exhibition Mode
✓Included
Battery Restoration Function
✓Included

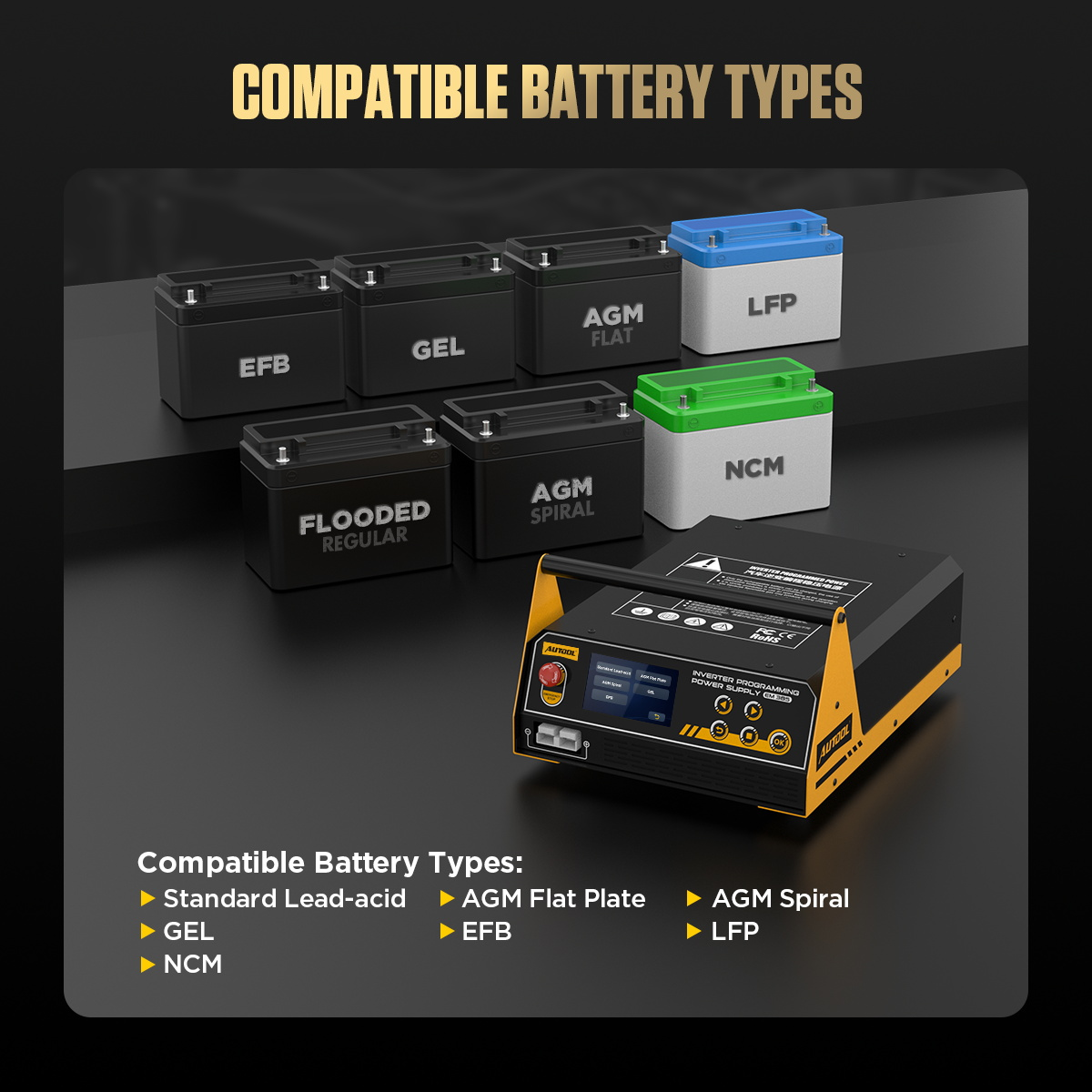

Charging Battery Types
Standard lead-acid; AGM flat plate; AGM spiral; GEL; EFB (external); LFP and NCM (removed from vehicle)
Programming & Output Ranges
Separate Adjustable Power Supply
✓Included
Adjustable Programming Voltage
✓Included
Programming Voltage Range
9V–16V
Lead-Acid Charging Current
Up to 40A in-car / 20A external
Lithium Charging Current
Up to 20A
Separate Adjustable Supply Range
3V–8.9V / 1A–20A; 9V–16V / 1A–100A
Momentary Starting Support
400A / 12V
Maximum Programming Current
Up to 150A / approx. 3 min

Manual & Support

Confirm Power Mode and Battery Fit

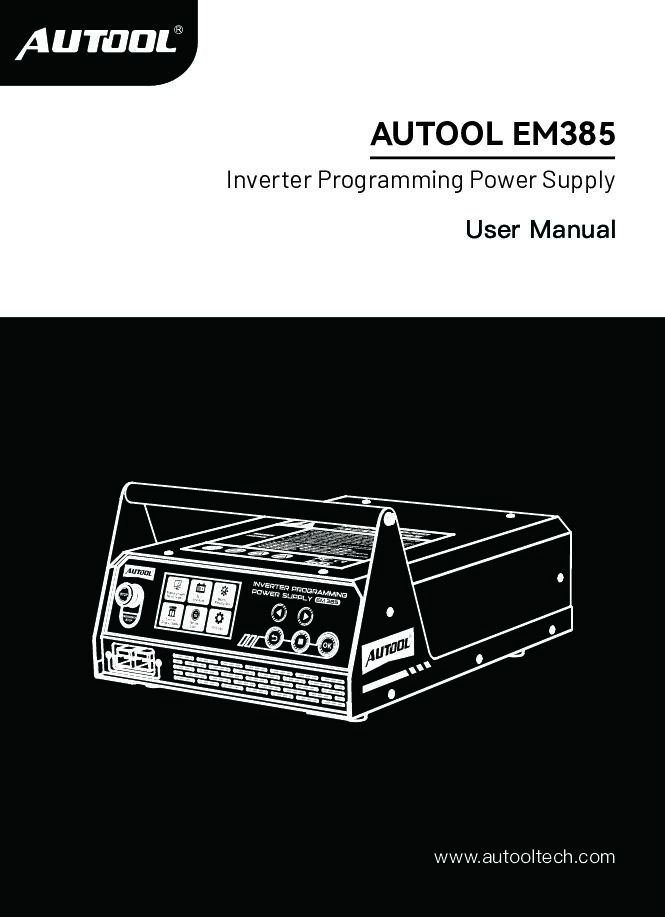

AUTOOL EM385 user manual cover
Manual / PDF

AUTOOL EM385 User Manual

Open the PDF manual for EM385 programming power, battery charging, adjustable DC output and touchscreen operation, with operating safety and troubleshooting support.

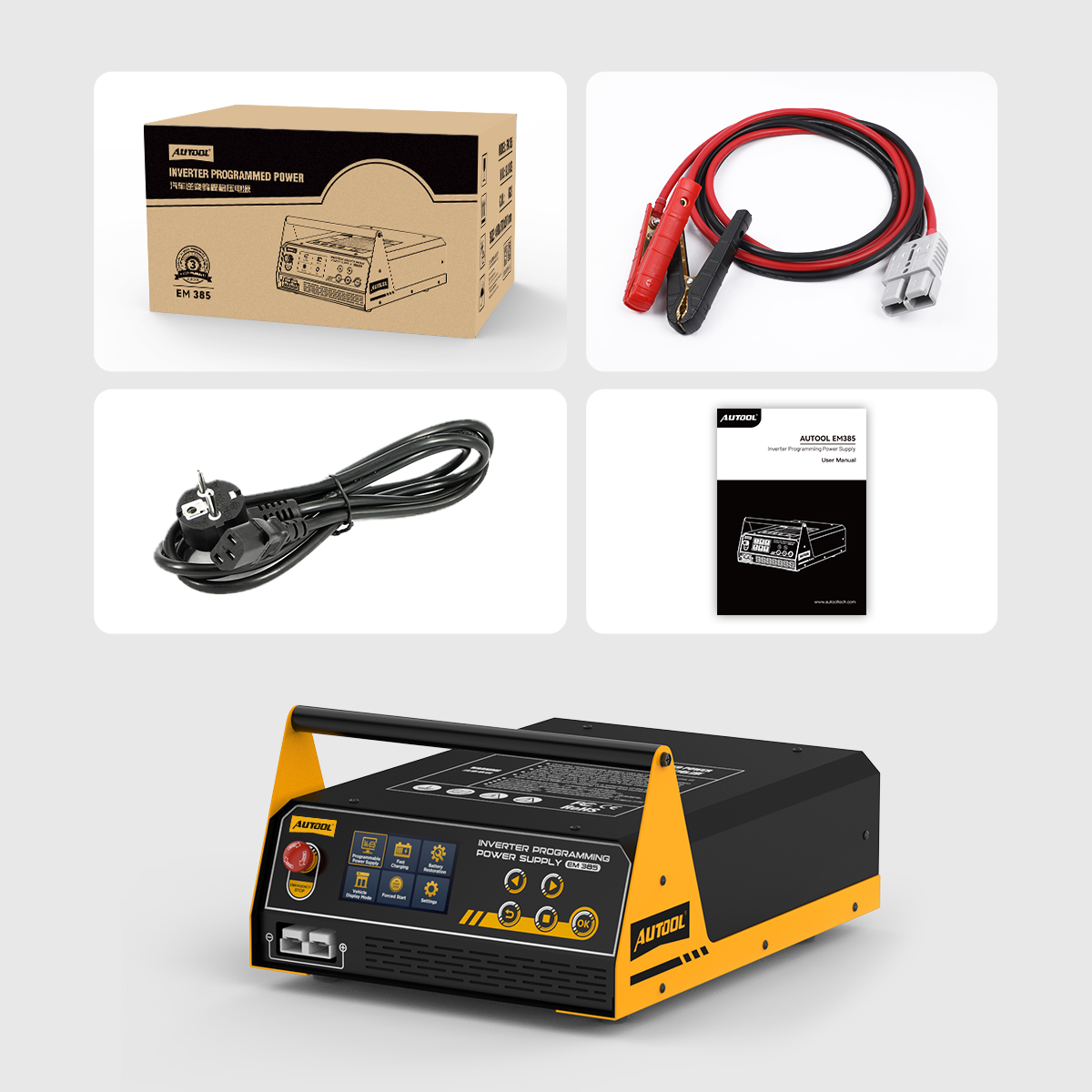

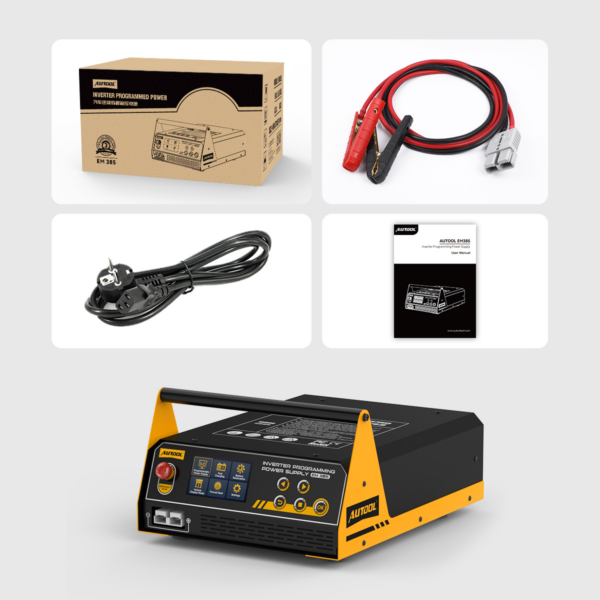

AUTOOL EM385 packing list with main unit cables manual and package box

Package Contents

Check Cables and Included Accessories

  • Main UnitAUTOOL EM385 Auto Power Inverter ECU Programming Power Supply
  • Battery Clamp CableIncluded
  • Power CableIncluded
  • User ManualIncluded
  • Package BoxIncluded
  • Included ComponentsThe packing list uses the most relevant package image only, showing the EM385 main unit, battery clamp cable, power cable, user manual, and package box.

FAQs

Programming-Power and Charging Questions

Does EM385 Program The ECU Itself?

EM385 supplies battery power support during ECU programming. You use separate programming or diagnostic equipment and follow the vehicle procedure to carry out the ECU work.

Why Use Programming Mode Instead Of Battery Charging?

Programming mode lets you choose a support voltage for the vehicle procedure. Battery Charging follows a charging process that adjusts output as the battery charges. Choose the mode for the job you are doing.

Which Programming Voltage Should I Select?

Use the voltage specified in the vehicle procedure. Adjustable Mode lets you select the required setting; Fixed Mode supplies 14V when that value is appropriate.

How Long Is The Maximum 150A Output Available?

The manual specifies up to 150A for approximately 3 minutes in programming mode. At an internal temperature of 70°C, maximum current is reduced to 50A; it returns to the maximum when the unit cools to 50°C. Match the job to its output and duration requirements.

How Do I Follow Battery Charging?

Select the correct battery type and charging location, then follow voltage, current, and charging progress on the screen. The unit indicates when charging is complete.

Can Battery Restoration Help A Long-Idle Battery?

It provides a treatment option for discharged or long-idle lead-acid batteries. Results depend on condition and sulfation. Use Battery Restoration with the battery removed from the vehicle.

Is The Adjustable Power Supply The Same As Programming Mode?

They are separate options. Programming mode offers 9V–16V adjustment or fixed 14V. Under Fast Charging, Adjustable Power Supply lets you set voltage and current: 3V–8.9V at 1A–20A or 9V–16V at 1A–100A. Output above 1200W for 3 minutes or internal temperature reaching 70°C triggers a 50A limit; cooling below 50°C restores the set current.

Which Lithium Batteries Can EM385 Charge?

The lithium charging option supports LFP (LiFePO4) and NCM batteries at up to 20A. Remove the battery from the vehicle and select the matching chemistry before charging.

What Are Vehicle Display And Forced Start Used For?

Vehicle Display Mode maintains a float charge and responds to vehicle battery discharge with up to 40A. Forced Start provides separate 400A/12V momentary starting support for compatible starting requirements.

Where Can I Check Accessories And Setup?

See Package Contents for the supplied items. Open Manual & Download for the model-specific guide to menus, connections, and operating instructions.

What Warranty Support Is Available?

Main unit: 3-year warranty. Standard accessories: 1-year warranty. Warranty Policy.

Customer reviews 13

John W.Verified Purchase

I purchased the EM385 to replace my old power supply for ECU programming and showroom vehicle display mode. So far it has performed flawlessly.
Programming power mode holds rock‑stable voltage even under high load. The forced‑start 400A function helps me for quick engine start‑up after module coding. I also like the adjustable separate DC power supply, it comes handy when testing various automotive electrical accessories.
Cables feel heavy‑duty pure copper, cooling fan keeps the unit from overheating during continuous operation. Operation is straightforward via touchscreen. The printed manual is clear and easy to follow. Worth every dollar for workshop daily use.

markdavis

Very rugged and solid power supply. I use it mainly for bench flashing and key programming on the bench. The DC output is clean with no dangerous voltage spikes.

VAG_Coder_Pro

Must-have for ODIS diagnostics and long adaptations.

If you are using ODIS for long diagnostic sessions or adapting dual-clutch transmissions, you absolutely need a power supply. I was looking at a Midtronics unit but couldn't justify the crazy cost. The EM385 handles everything I throw at it perfectly. The digital display is bright, clear, and updates the amperage draw in real-time so you know exactly what the car is doing. Highly recommended for independent shops.

Reviews13

5.0 / 5Based on 13 reviews
4 ★0
3 ★0
2 ★0
1 ★0
John W.Verified Purchase

I purchased the EM385 to replace my old power supply for ECU programming and showroom vehicle display mode. So far it has performed flawlessly.
Programming power mode holds rock‑stable voltage even under high load. The forced‑start 400A function helps me for quick engine start‑up after module coding. I also like the adjustable separate DC power supply, it comes handy when testing various automotive electrical accessories.
Cables feel heavy‑duty pure copper, cooling fan keeps the unit from overheating during continuous operation. Operation is straightforward via touchscreen. The printed manual is clear and easy to follow. Worth every dollar for workshop daily use.

markdavis

Very rugged and solid power supply. I use it mainly for bench flashing and key programming on the bench. The DC output is clean with no dangerous voltage spikes.

VAG_Coder_Pro

Must-have for ODIS diagnostics and long adaptations.

If you are using ODIS for long diagnostic sessions or adapting dual-clutch transmissions, you absolutely need a power supply. I was looking at a Midtronics unit but couldn't justify the crazy cost. The EM385 handles everything I throw at it perfectly. The digital display is bright, clear, and updates the amperage draw in real-time so you know exactly what the car is doing. Highly recommended for independent shops.

Porter M.Verified Purchase

This tool is better than most of the programming on the market, it's very…

This tool is better than most of the programming on the market, it's very compact, it provides a very stable power supply, I sometimes have to do several hours of good diagnostic work and it's all stable and has helped me tremendously!

KittyVerified Purchase

Great product. AAA++

The device works well and I would consider purchasing the diagnostic cart if I could!

SImonVerified Purchase

This is what a good programming power supply should look like

I bought it because it supports lithium batteries! Multi-stage smart charging mode allows you to charge optimally.
It makes me happy that it can provide me with a stable power supply when I do ECU programming.
I will continue to see how it works. And come back with feedback on the results

Benjamin K.Verified Purchase

Nice

I've been using it for a while now and I can genuinely say—it's a good power inverter. It supports both Lithium Iron Phosphate and Nickel Cobalt Manganese Lithium batteries, which is a huge plus for me. I had trouble with compatibility on older chargers, but this one just works flawlessly.

What I love most is the adjustable output. Being able to fine-tune the voltage and current gives me so much more control, and the multi-stage smart charging mode ensures my batteries are charged efficiently without overheating or overcharging.

The Vehicle Display Mode is another great feature—it keeps power running without interruptions and even auto-restarts if power is lost. That’s been incredibly helpful when powering diagnostic tools in the garage.

The 4.3-inch touchscreen is clear and responsive, and the adjustable brightness is a thoughtful touch—especially useful in different lighting environments. Also, the build quality is top-notch. The 2-meter pure copper cable feels premium and reliable, and the IP21S protection rating gives me peace of mind when using it in various settings.

Overall, this is one of the smartest and most well-built chargers I’ve used. Highly recommend it to anyone who values safety, flexibility, and quality in their tools!

Vladyslav Y.Verified Purchase

AUTOOL EM385 Auto Power Inverter ECU Programming

AUTOOL EM385 Auto Power Inverter ECU Programming

Jeremy M.Verified Purchase

Good

I have an EM365, which I bought three years ago. It's time to change to a new version. The EM385 is beyond my expectation. It's perfect. In addition to the increased functions, the quality is also very good. Worth buying!!!

Neil T.Verified Purchase

best choice

Quickly restores battery performance by addressing issues such as aging batteries that fail to charge, severe power loss, and prolonged vehicle inactivity, ensuring optimal battery condition.
