AUTOOL OBD2 Breakout Box Protocol Detector Premium Version

AUTOOL OBD2 Breakout Box Protocol Detector Premium Version

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

US$139.00

Key Features

Protocol Power Checks
External ECU Support
120 Ohm Series Mode

Ship From

Clear

☰ REQUEST BULK / B2B QUOTE

Secure checkoutFast supportBulk ready

AUTOOL OBD2 Premium Version

Product Overview

The AUTOOL OBD2 Breakout Box Protocol Detector Premium Version is a pass-through OBD-II diagnostic connector detector designed for vehicle diagnostics, OBD-II communication checks, power and ground line monitoring, and ECU data protection. It helps verify stable connectivity between diagnostic scanners and vehicle OBD-II systems, quickly identify communication or power supply issues, and provide convenient access to all 16 OBD2 pins for multimeter or oscilloscope testing.

The Premium Version supports an external 8-26V wide-voltage power supply to provide stable power support during diagnostics, helping reduce ECU data loss risk caused by unstable power. It also includes a 120Ω series mode so ECU data can still be read through the cable even when the ECU is removed, expanding diagnostic and repair possibilities beyond traditional OBD-II connection checks.

OBD-II Protocol Check 8-26V External Power 120Ω Series Mode 16-Pin Breakout

8-26VExternal Power

120ΩSeries Mode

45cmTPU Cable

3 YearsWarranty

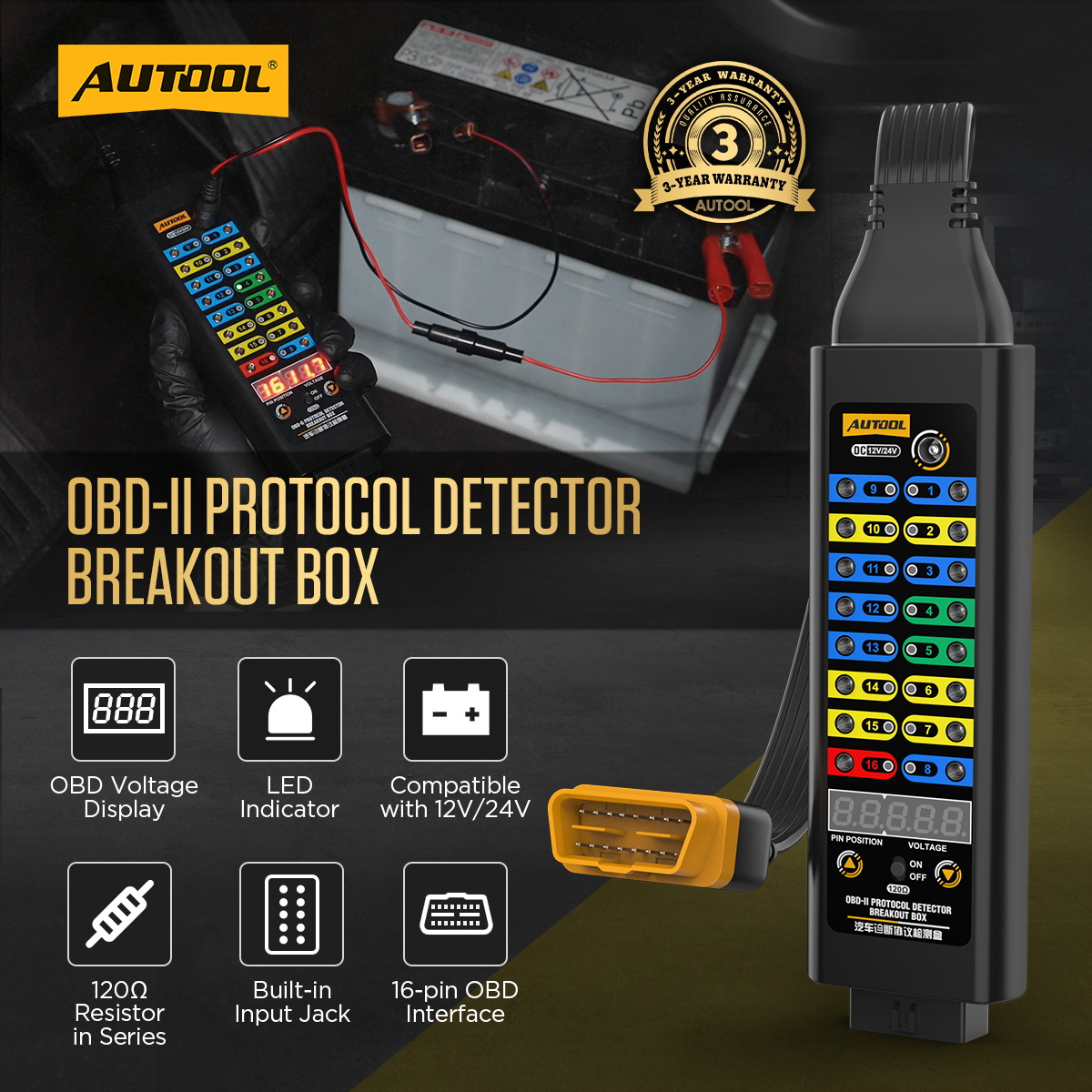

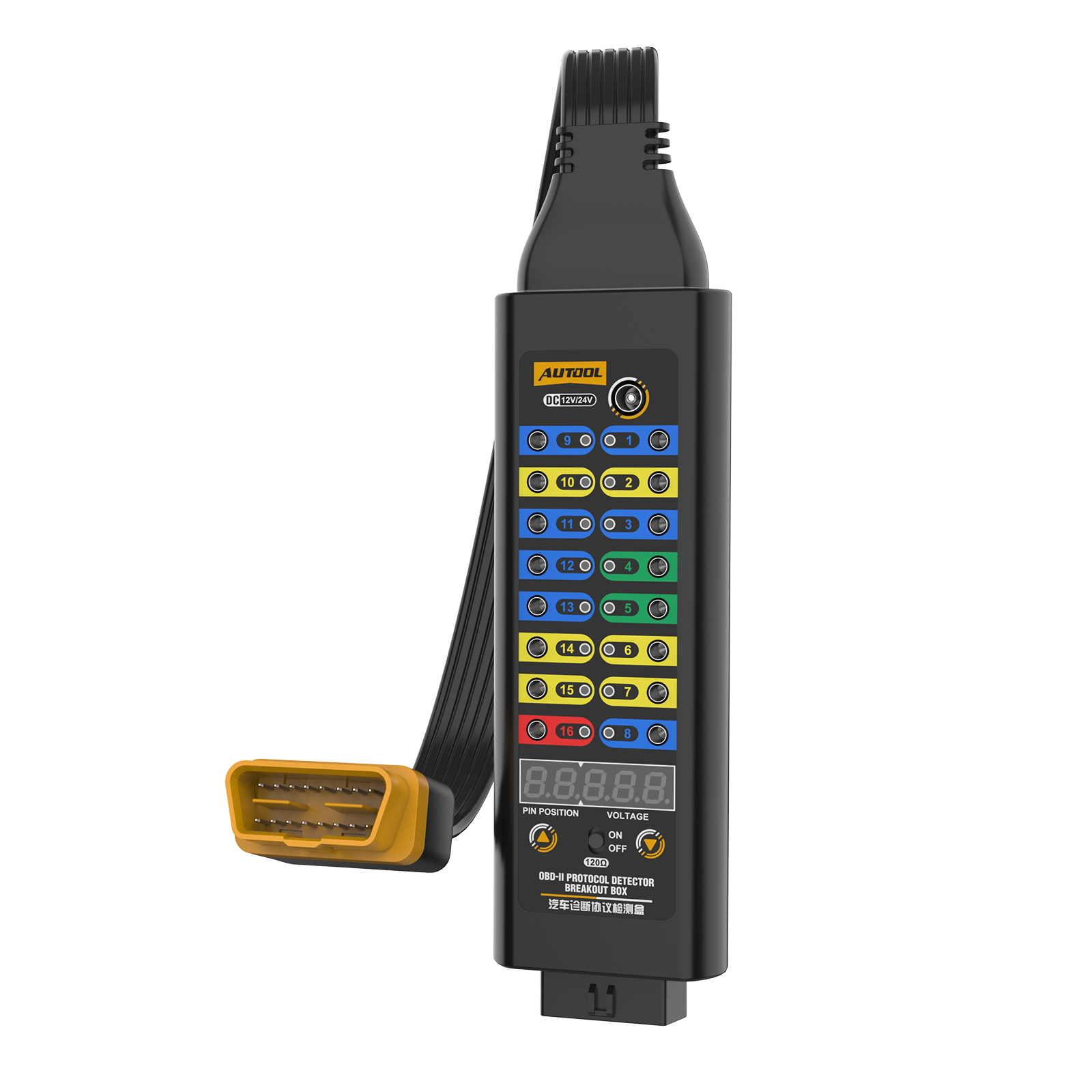

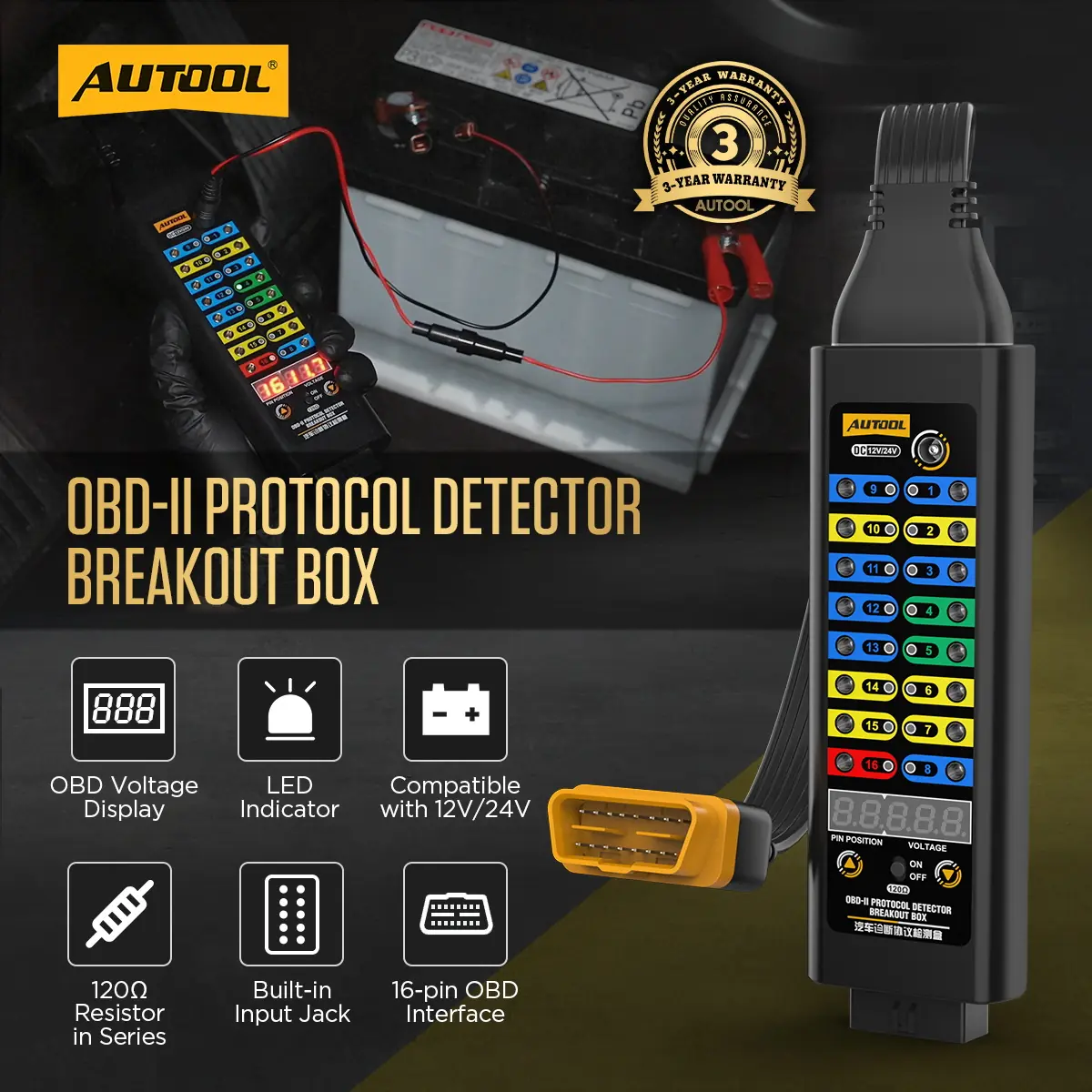

AUTOOL OBD2 Breakout Box Protocol Detector Premium Version main product image

AUTOOL OBD2 Breakout Box Protocol Detector Premium Version secondary product image

Before You Order And Use

This product directly connects to the vehicle data link. Review the safety limits before using jumpers, load devices, or pin-level diagnostic access.

Vehicle Data Link Risk

Improper use may damage the vehicle data communication system, related circuits, or related systems. Stop using the product immediately if you are not sure whether the operation may cause problems.

Jumper Short-Circuit Warning

When you are not sure about the vehicle electrical circuit, do not use a jumper to short-circuit the input jack of this product.

Load And Pin Safety

Do not use this product to connect a load device with a power exceeding 1 ampere. Do not directly short-circuit pin 16, pin 4, and pin 5.

Warm Tips

This product directly connects to the vehicle data link.
Improper use may damage the vehicle data communication system, related circuits, or systems.
When you are not sure whether your operation will cause problems, please stop using this product immediately.
When you are not sure about the electrical circuit on the car, do not use a jumper to short-circuit the input jack of this product.
Do not use this product to connect a load device with a power exceeding 1 ampere.
Do not directly short-circuit the 16th pin, the 4th pin, and the 5th pin of this product.

Product Comparison

Compare Basic, Upgraded, and Premium versions before choosing the right OBD2 breakout box for connection checking, protocol monitoring, power support, display reading, and deeper diagnostic access.

Basic VersionEntry-level OBD2 breakout box for basic OBD pin access and connection checking.

Upgraded VersionMore complete diagnostic connector detection option for users who need stronger OBD2 troubleshooting support.

Premium VersionAdds external 8-26V power support, 120Ω series mode, display voltage reading, and broader diagnostic access.

Decision CheckCompare external power supply, display screen, protocol monitoring, 120Ω mode, OBD pin breakout access, and diagnostic workflow before choosing.

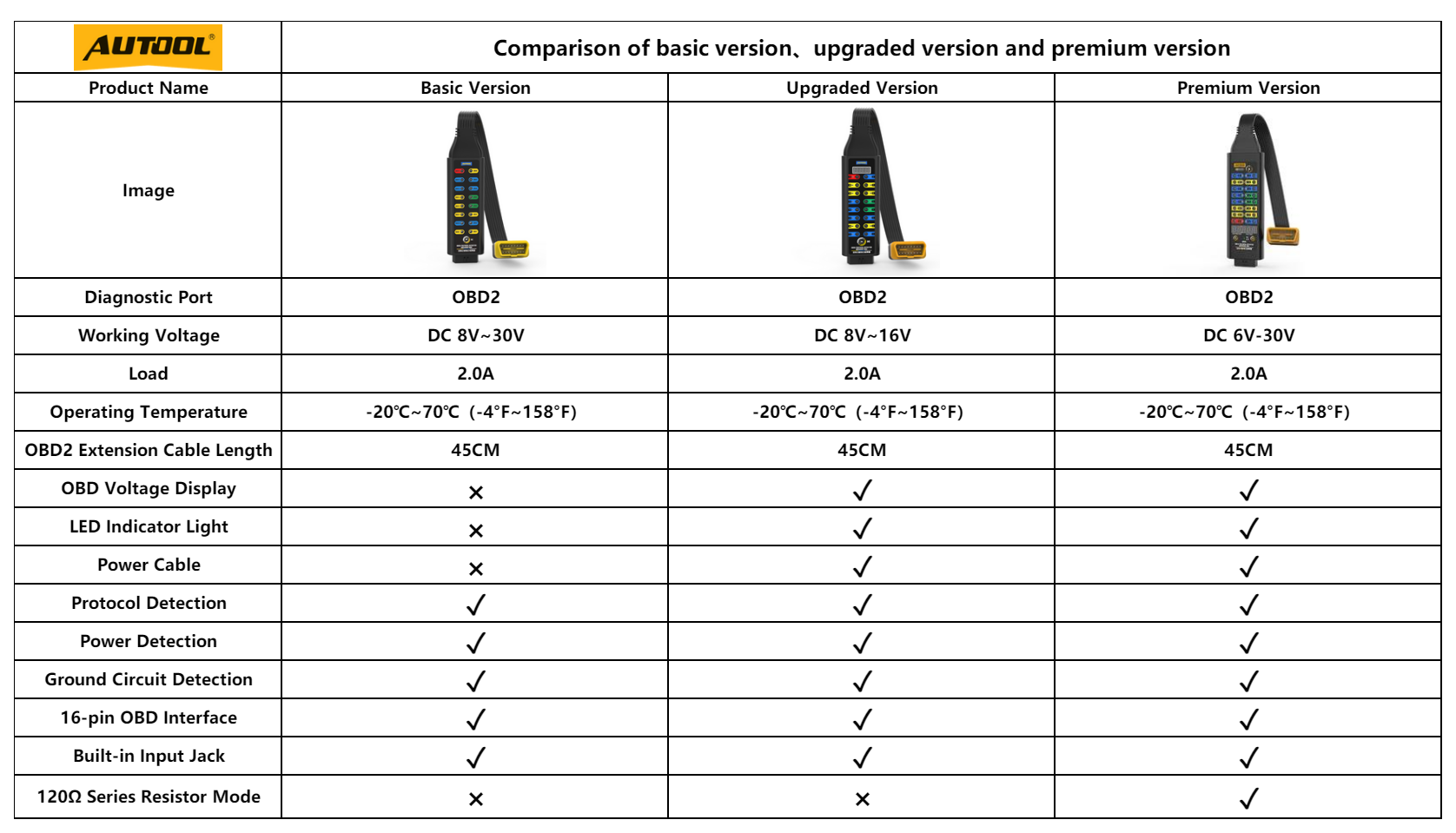

AUTOOL OBD2 Breakout Box Protocol Detector version comparison chart

Key Features

The Premium Version combines external ECU power support, CAN communication stability support, OBD2 voltage display, LED indicator checking, and full analog OBD2 interface access for diagnostic workflows.

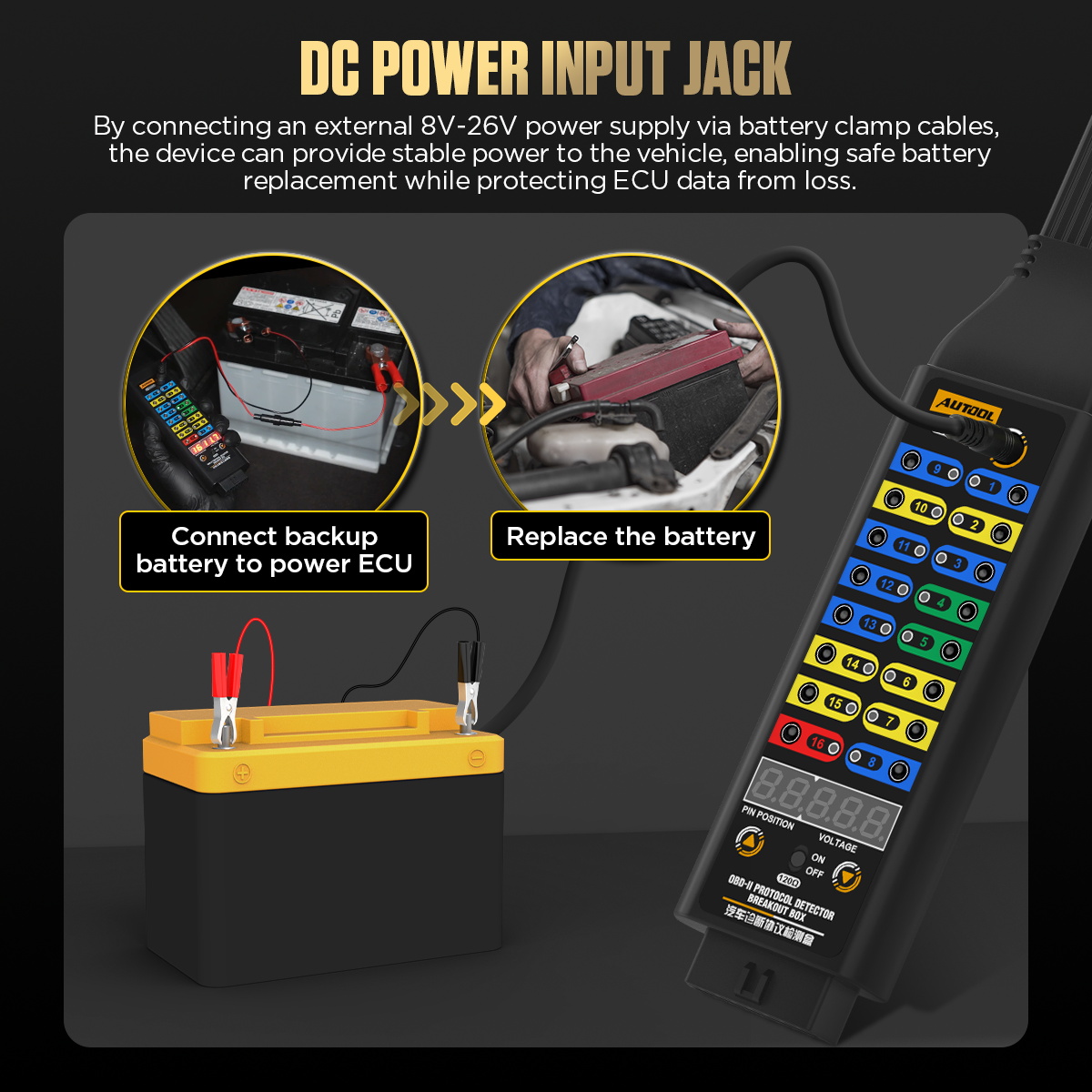

Vehicle ECU Power Supply

Connects to an external 8-26V power source to provide stable power support and help prevent ECU data loss caused by unstable diagnostic power.

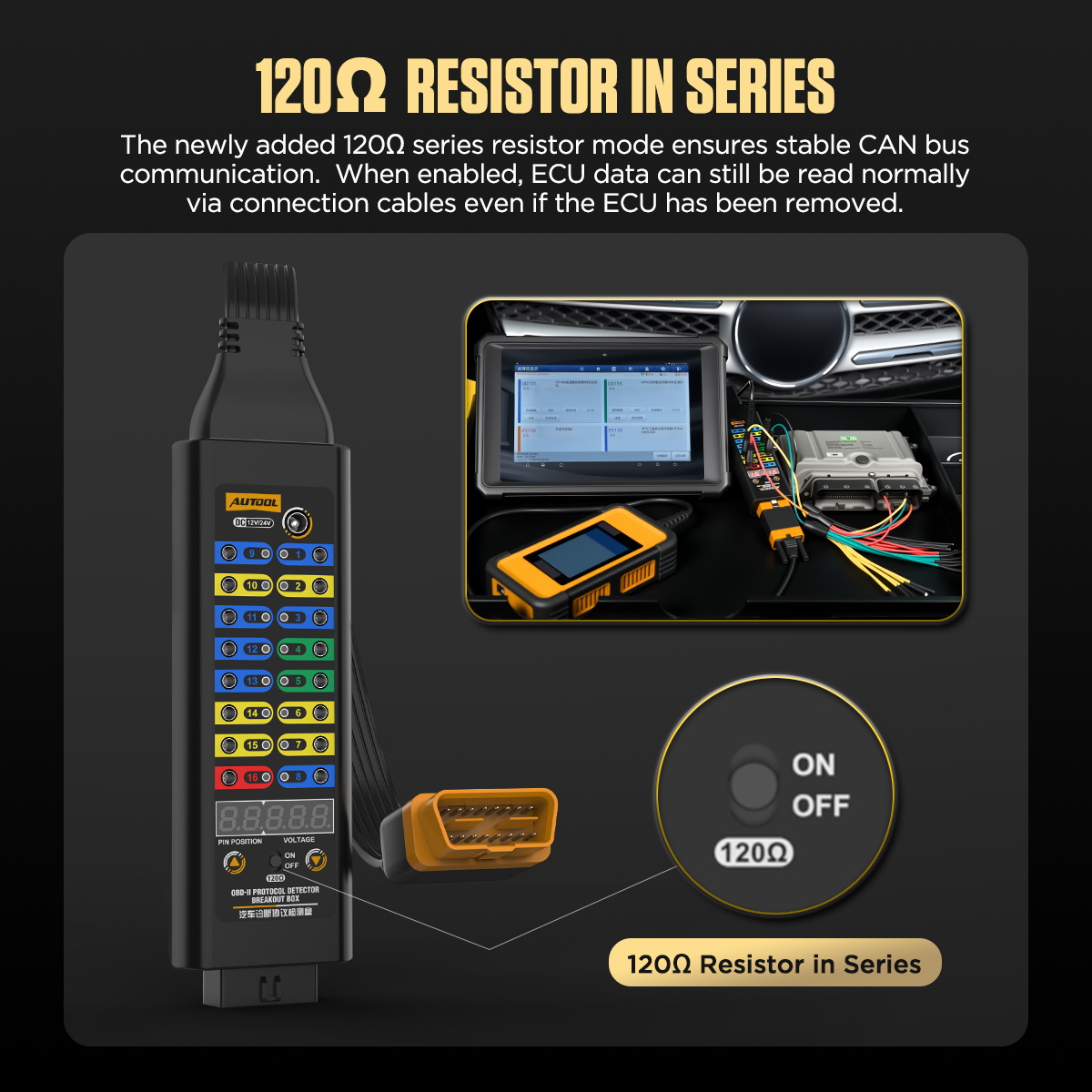

120Ω Series Resistor Mode

Supports 120Ω series mode to help stabilize CAN bus communication. ECU data remains readable via cable even after ECU removal.

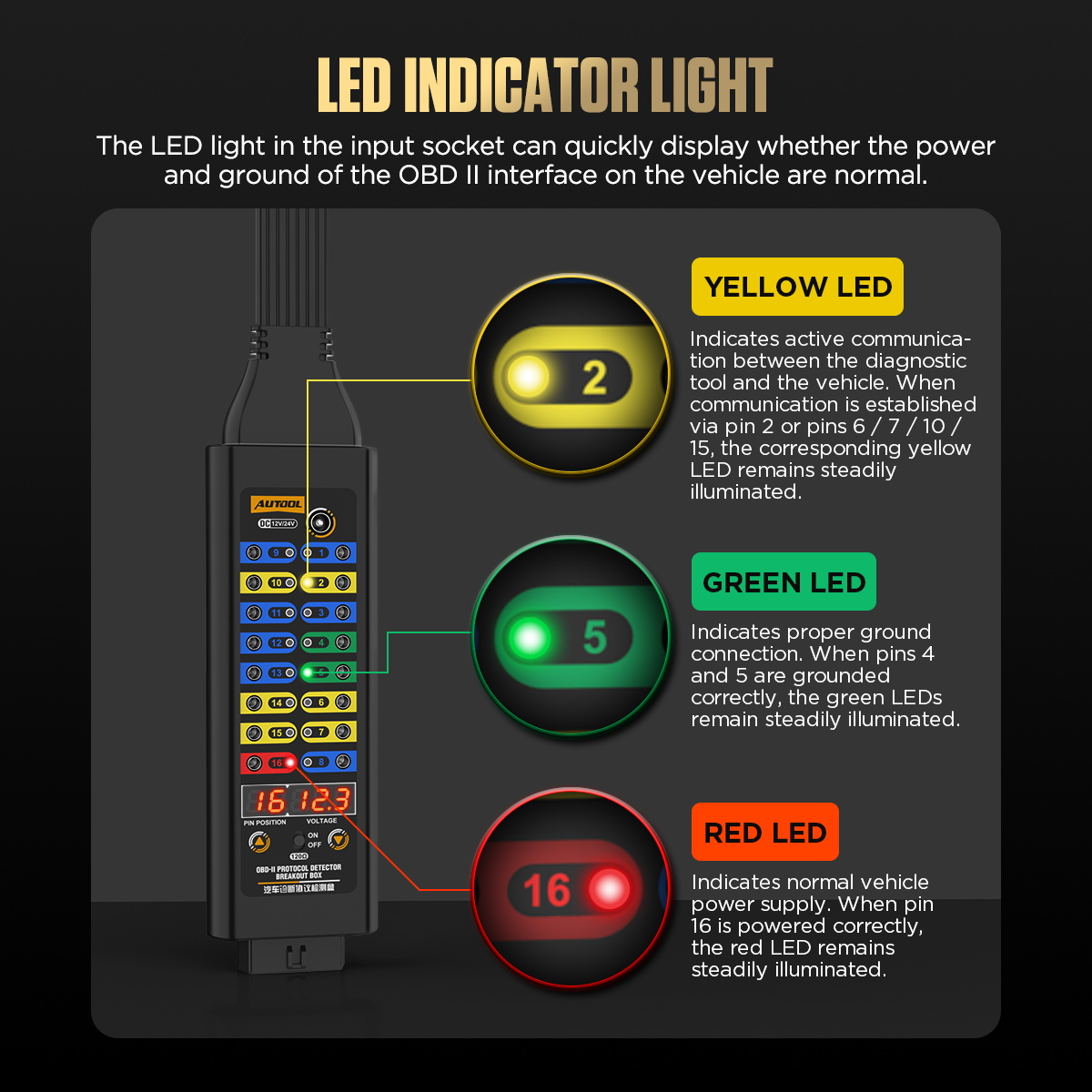

LED Indicator Function

LED indicators instantly display whether the vehicle OBD2 power and ground connections are normal.

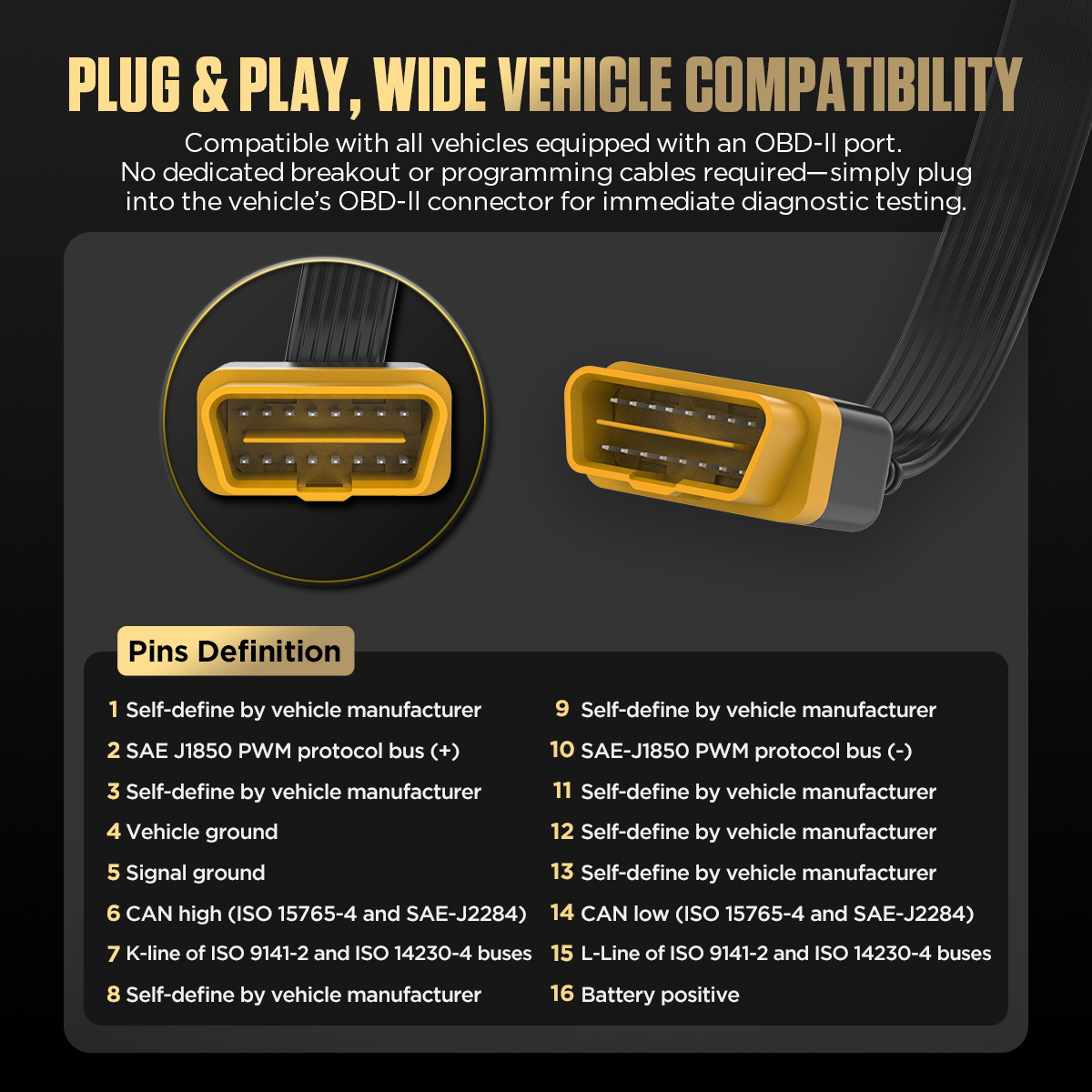

16-Pin OBD2 Connector

Compatible with vehicles featuring an OBD2 interface and provides direct diagnostic access to all 16 OBD2 pins.

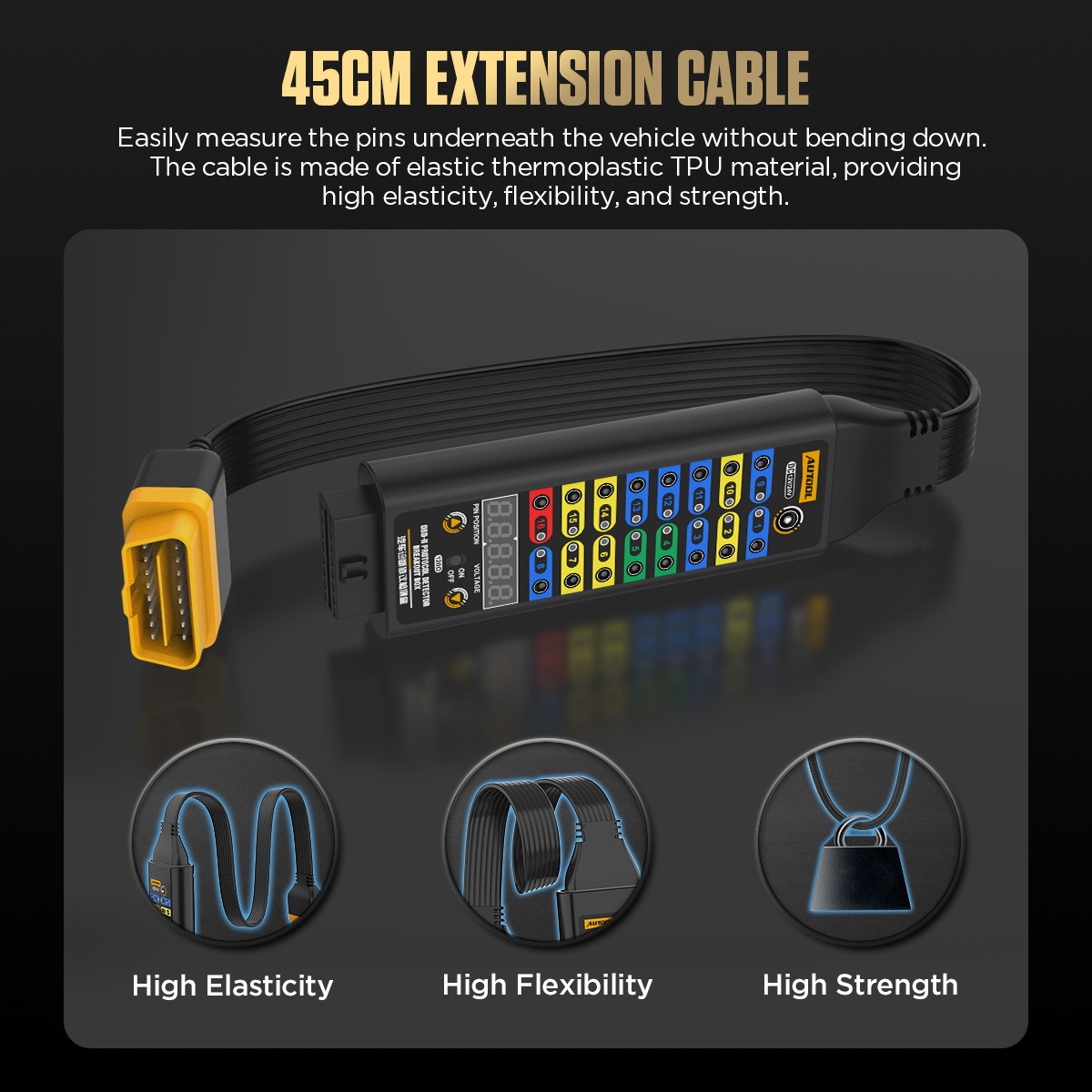

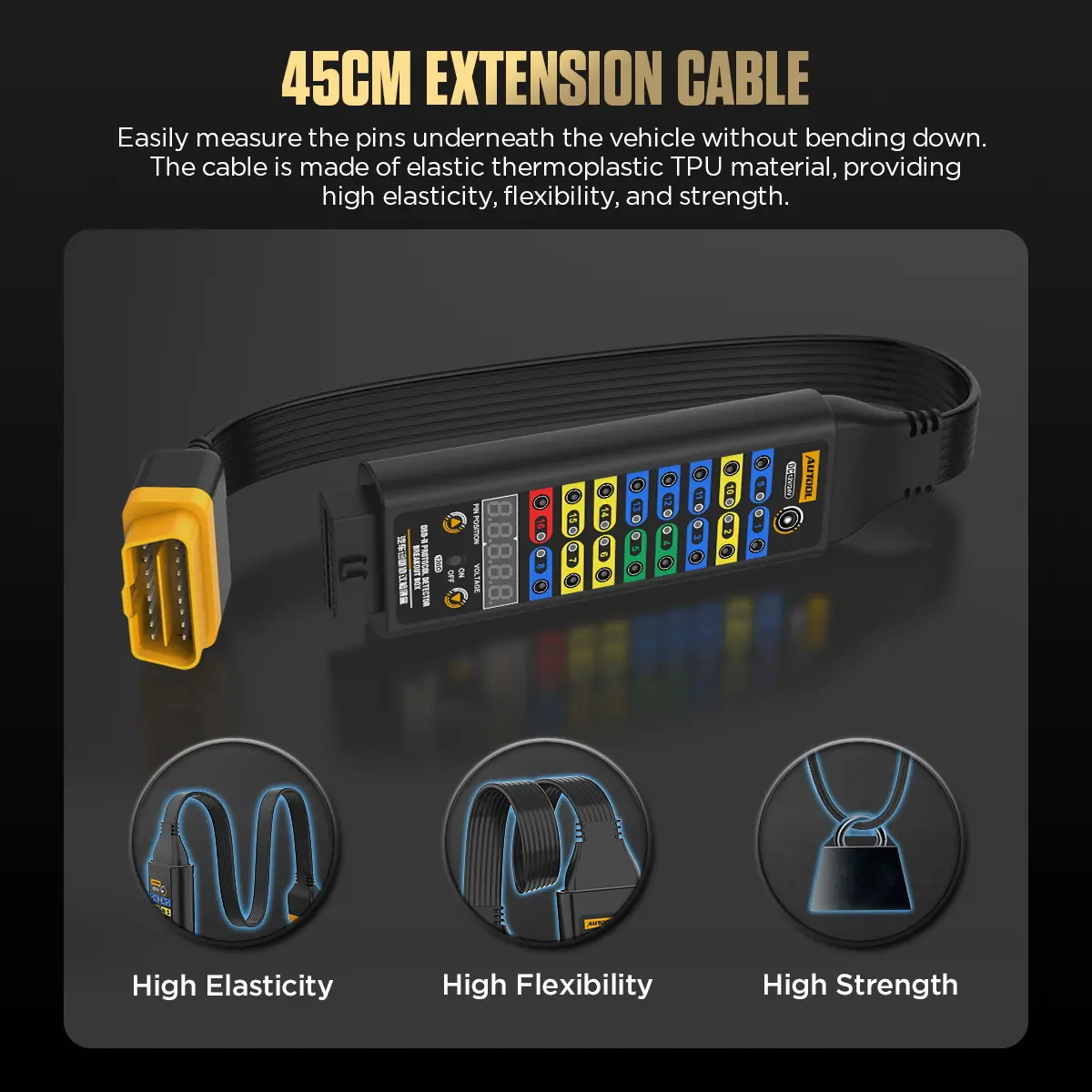

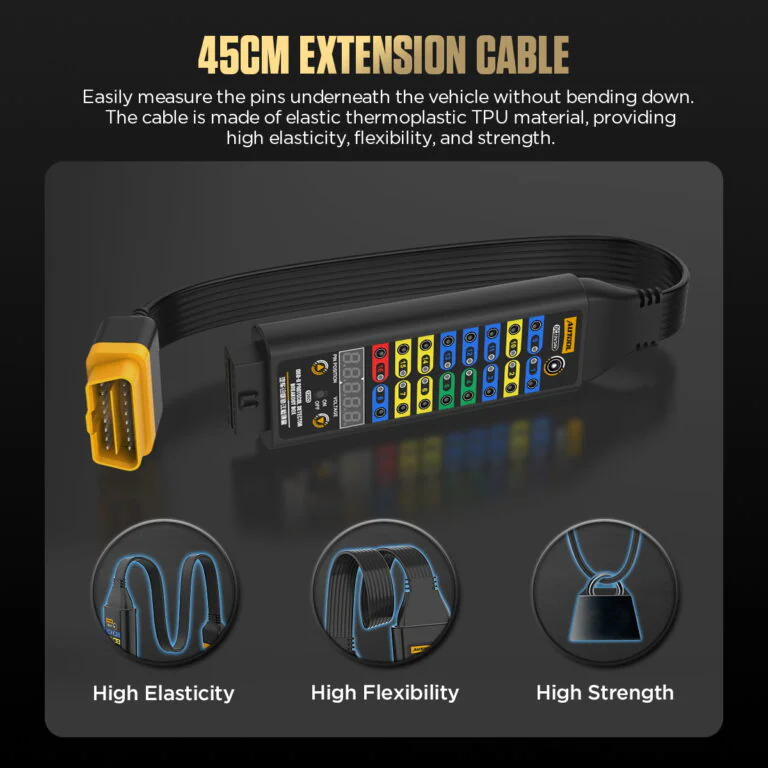

45cm TPU Cable

The 45cm TPU cable offers high elasticity, flexibility, and durability for repeated workshop diagnostic use.

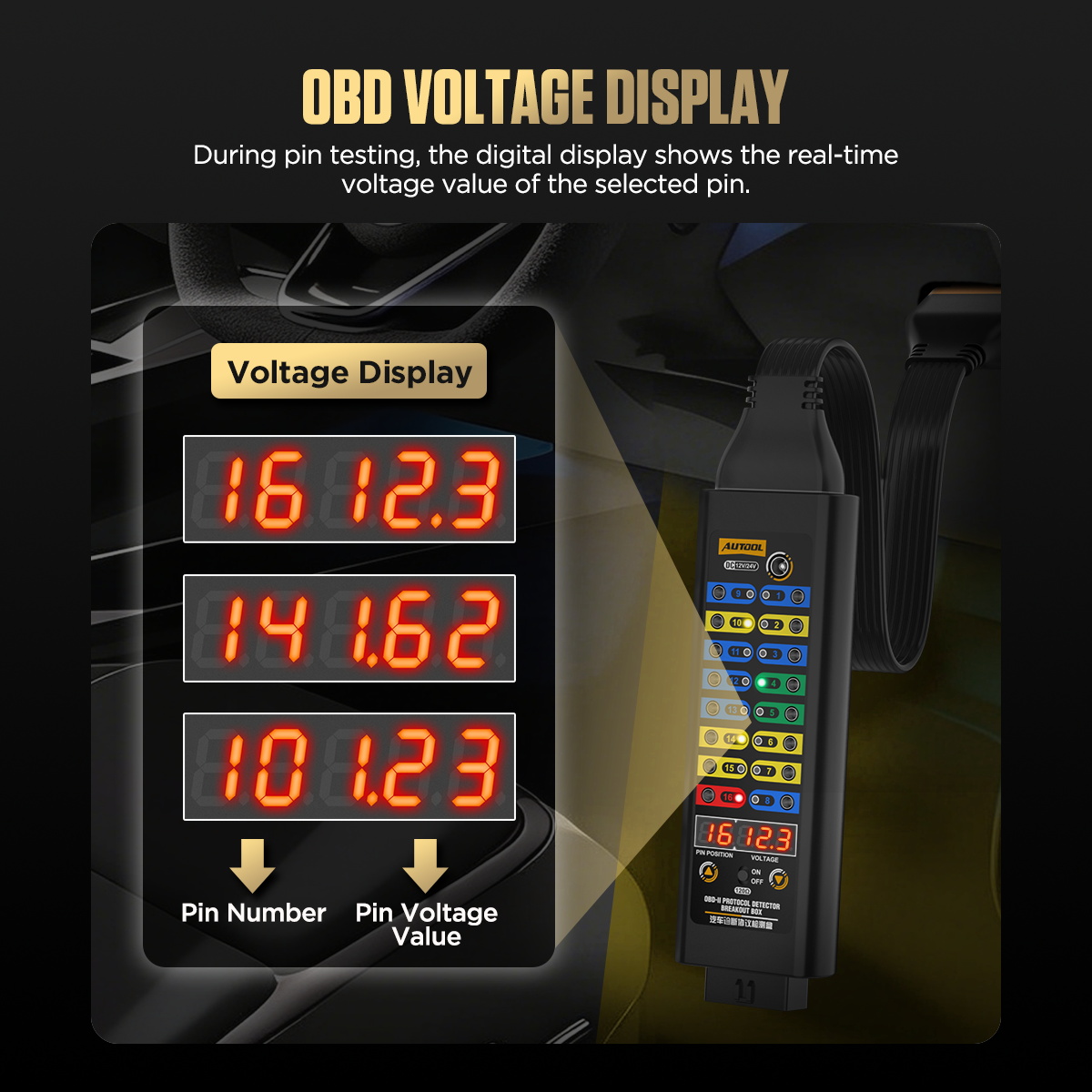

Real-Time Voltage Display

The display screen instantly measures OBD2 interface voltage and shows real-time voltage readings during diagnostic checks.

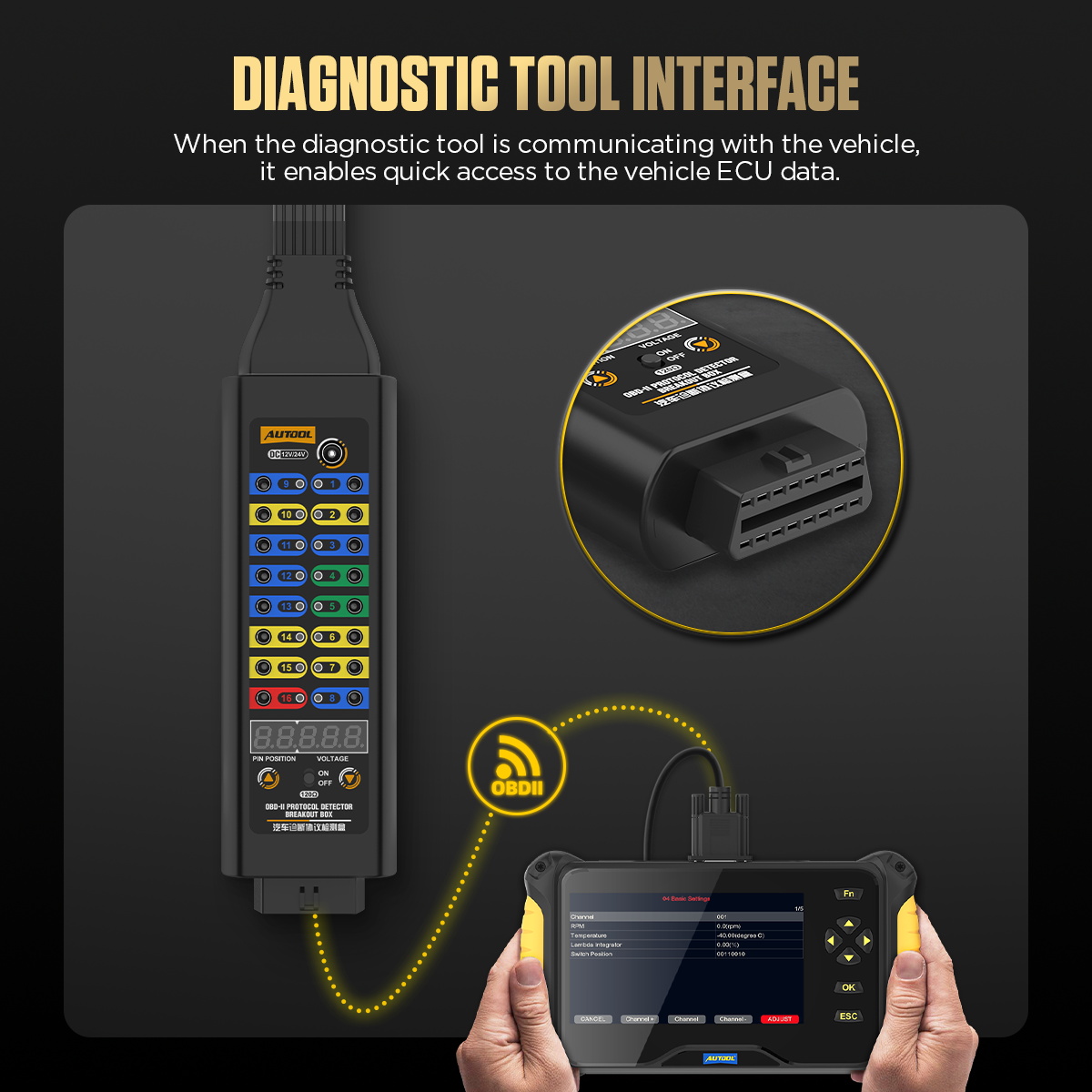

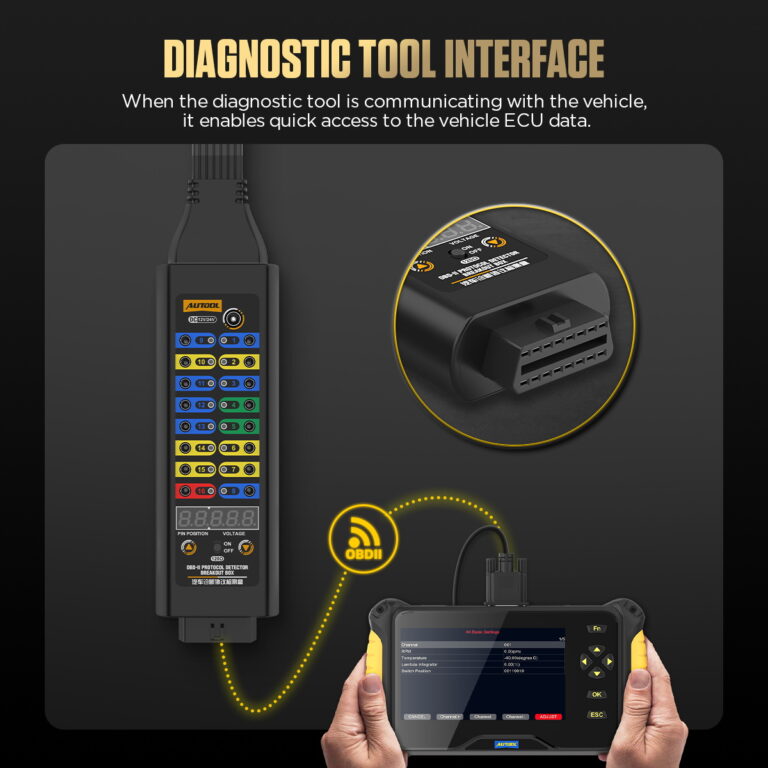

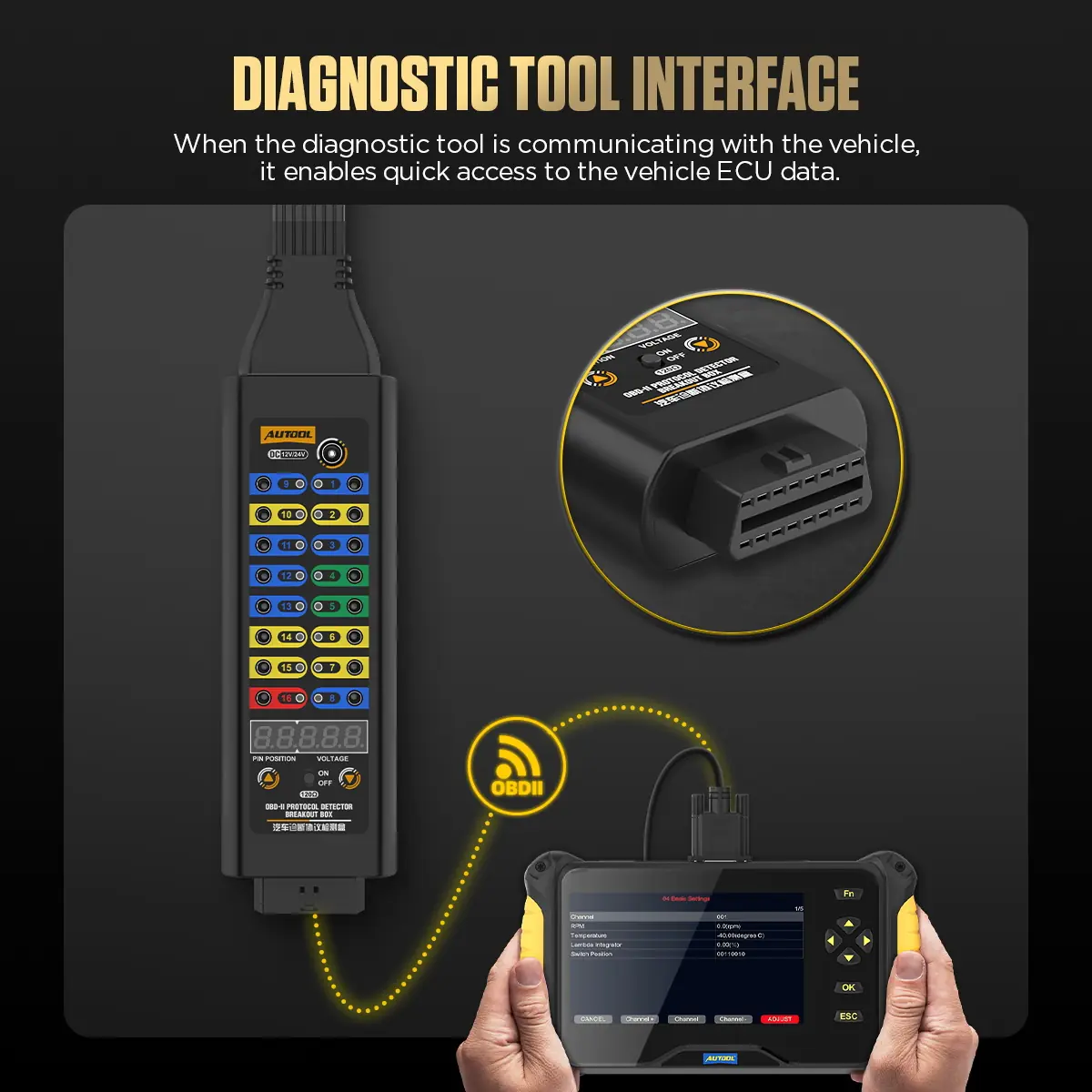

Diagnostic Interface

Enables rapid connection to all 16 OBD2 pins during vehicle communication and line condition checks.

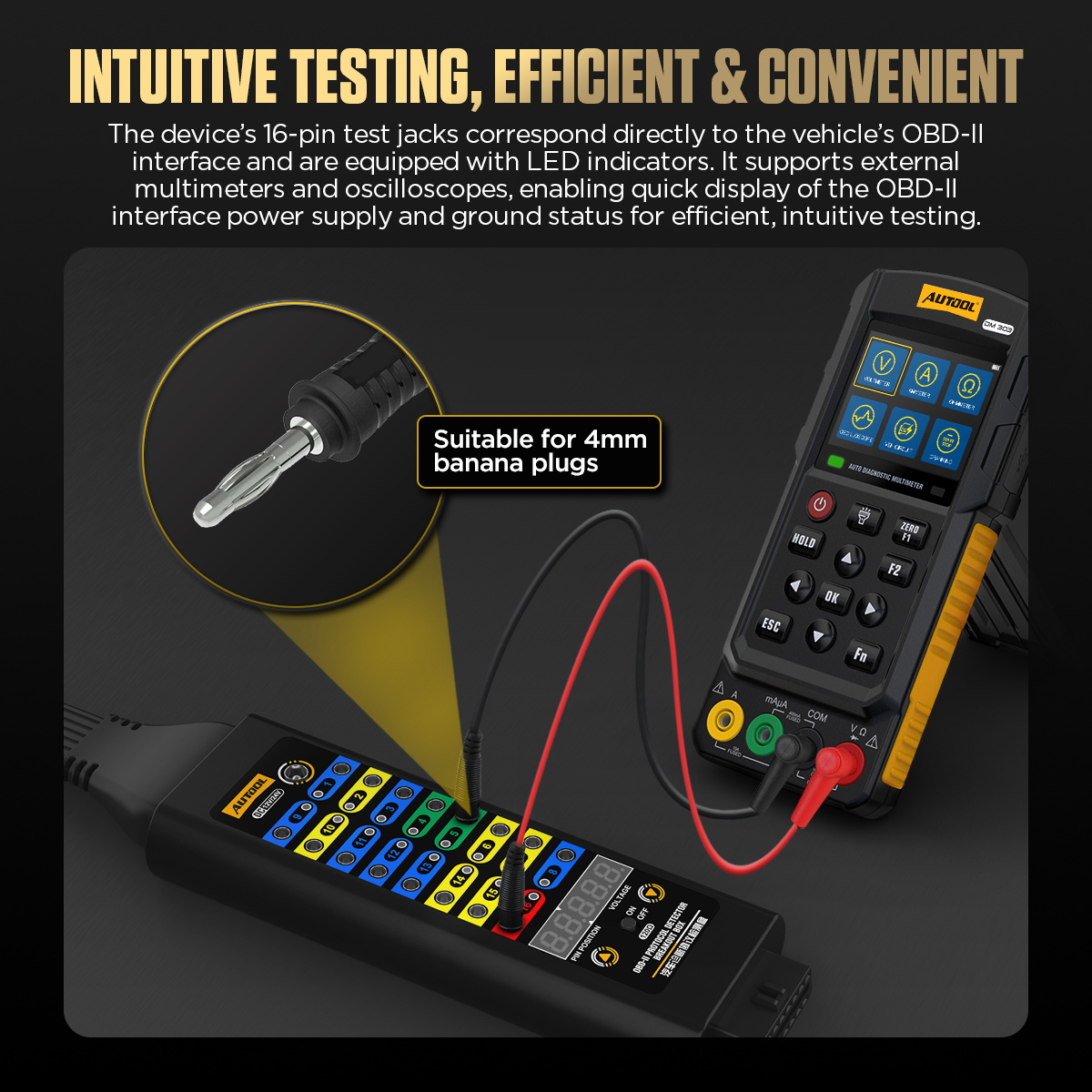

Fully Analog OBD2 Interface

Compatible with multimeters and oscilloscopes for deeper signal, circuit, and diagnostic line testing.

Warranty And Lifetime Maintenance

For eligible non-human damage cases, AUTOOL provides free replacement parts within 3 years and lifetime maintenance support.

AUTOOL OBD2 Breakout Box Premium Version feature image 1

AUTOOL OBD2 Breakout Box Premium Version feature image 2

AUTOOL OBD2 Breakout Box Premium Version feature image 3

AUTOOL OBD2 Breakout Box Premium Version feature image 4

AUTOOL OBD2 Breakout Box Premium Version feature image 5

AUTOOL OBD2 Breakout Box Premium Version feature image 6

AUTOOL OBD2 Breakout Box Premium Version feature image 7

AUTOOL OBD2 Breakout Box Premium Version feature image 8

Applications

Use the Premium Version as a diagnostic access point between a scanner and vehicle OBD-II system, especially when communication stability, power supply, or pin-level signal checks are required.

OBD-II Scanner Connection Check

Check whether the diagnostic scanner and vehicle OBD-II system are connected properly and whether communication conditions are stable.

Power And Ground Line Diagnosis

Quickly verify the condition of OBD2 power and ground lines using voltage display and LED indicator feedback.

CAN Bus / Communication Troubleshooting

Use 120Ω series mode and 16-pin breakout access to assist communication line diagnosis and CAN bus troubleshooting.

Multimeter / Oscilloscope Testing

Provides convenient access to OBD2 pins for multimeter and oscilloscope testing during deeper electrical diagnosis.

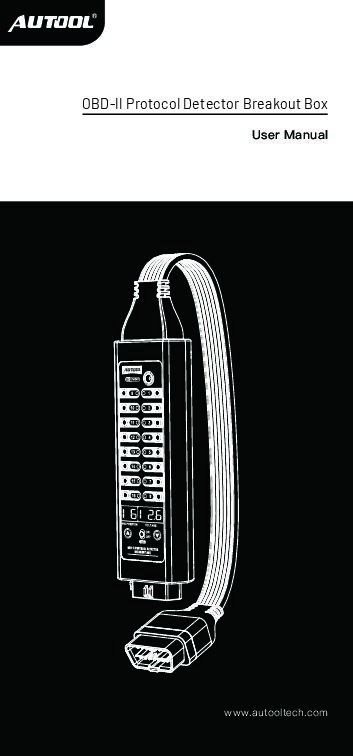

AUTOOL OBD2 Breakout Box Premium Version Manual

Open the PDF manual for Premium Version instructions, safety notes, and diagnostic connector usage details.

Download Manual

Need Operation Confirmation?

Contact AUTOOL Store before use if you need confirmation about 8-26V external power input, 120Ω series mode, OBD2 pin testing, jumper use, load limits, or multimeter / oscilloscope connection.

Emailsupport@autoolstore.com WhatsApp+86 189 2647 7404

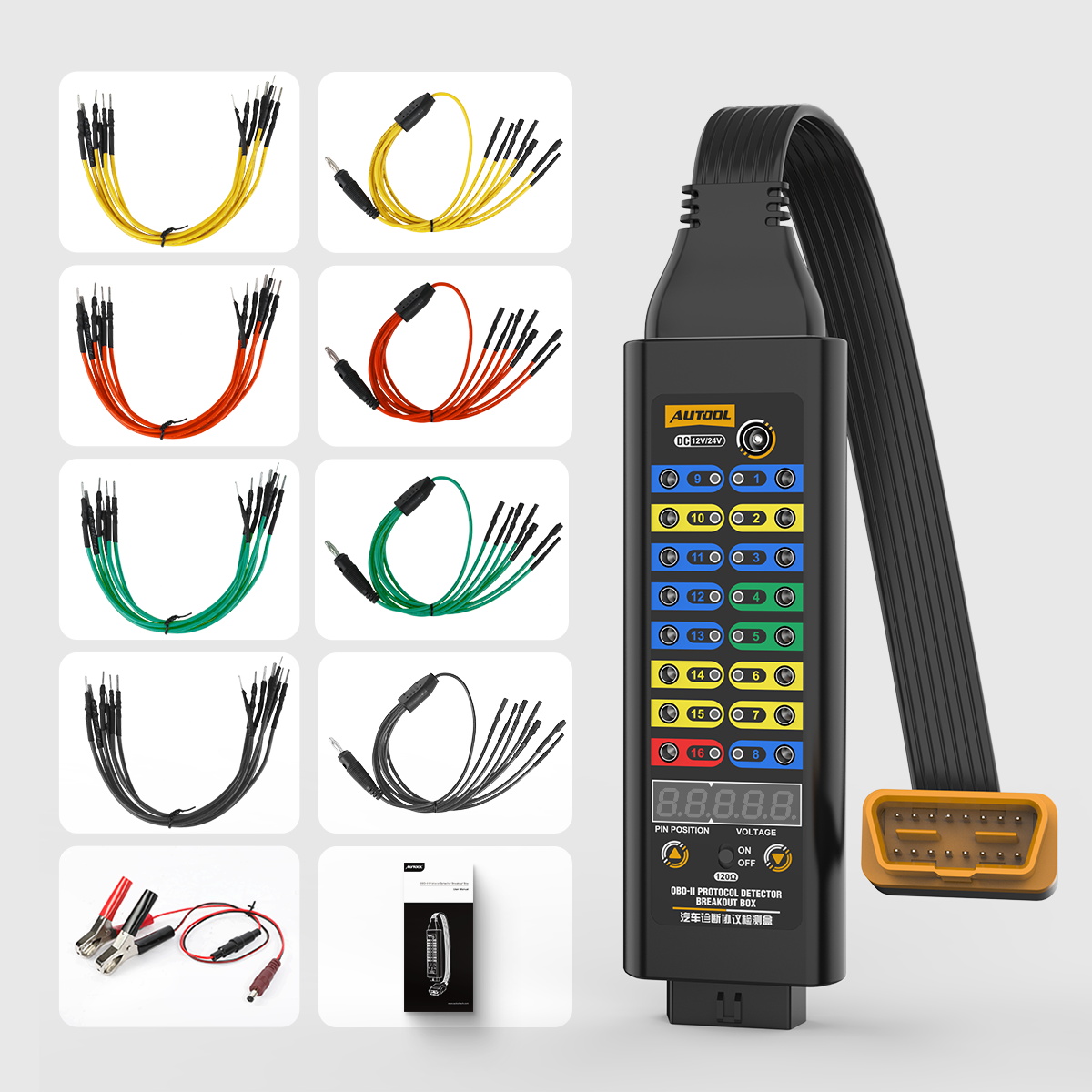

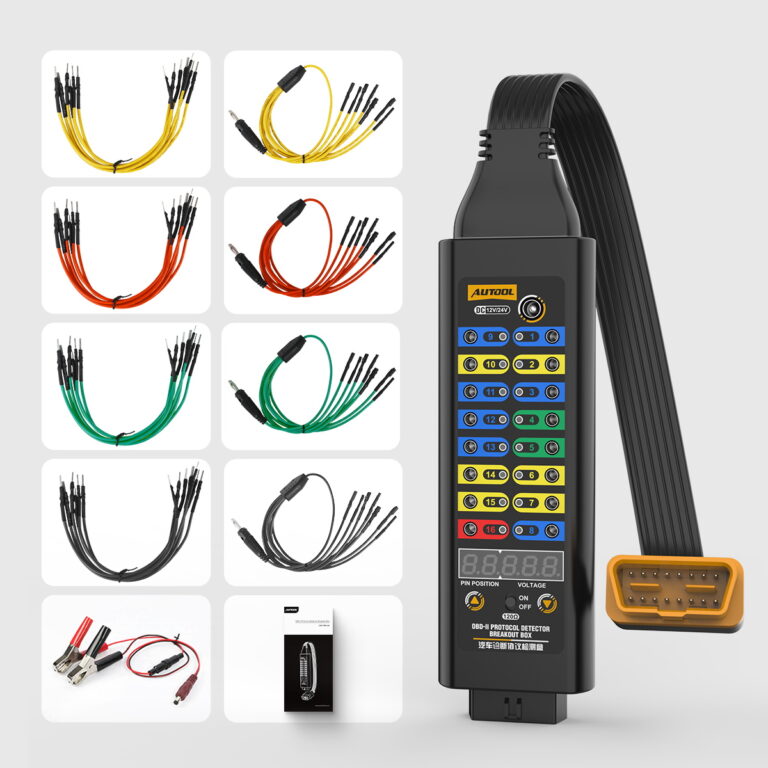

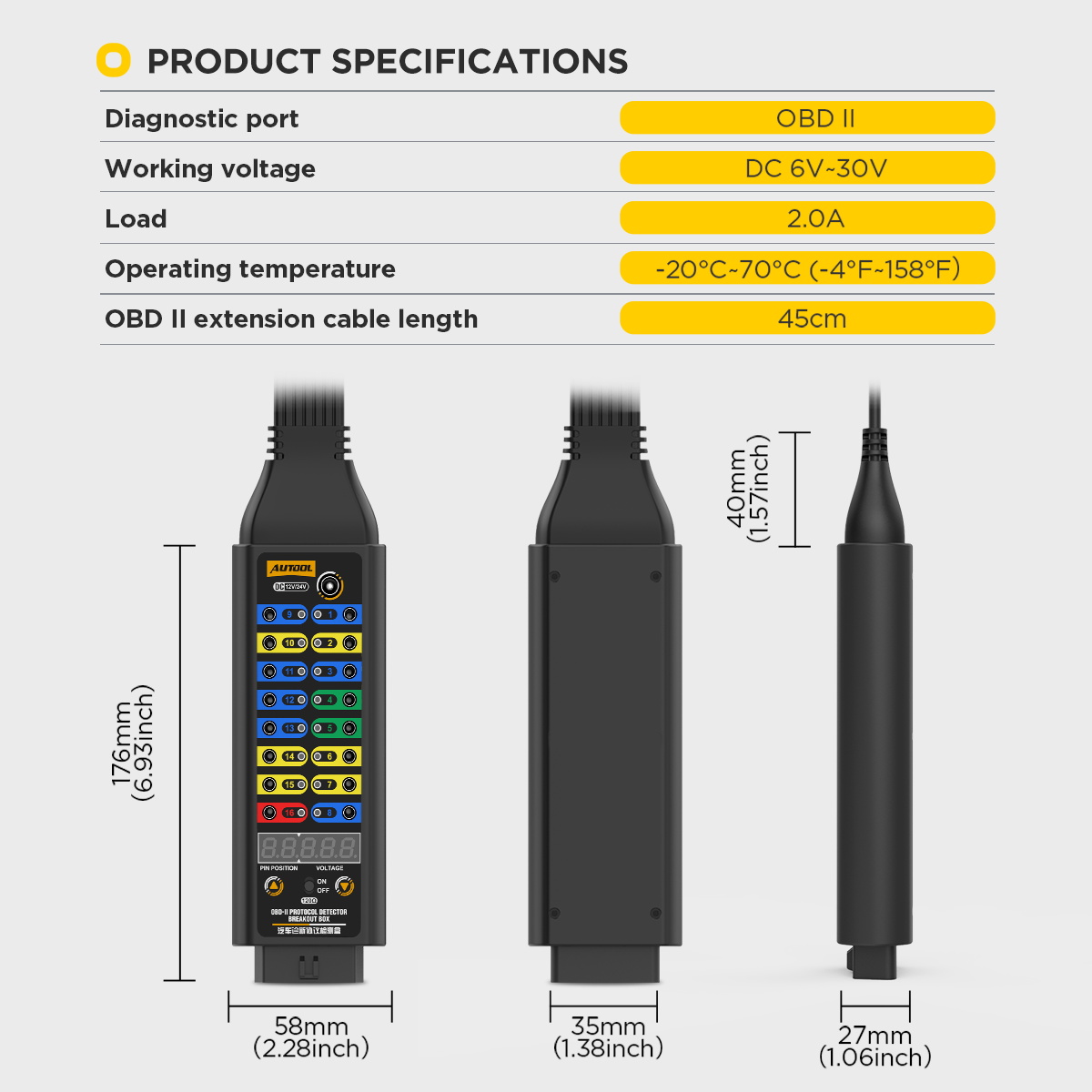

AUTOOL OBD2 Breakout Box Protocol Detector Premium Version packing list

What Is In The Box

Review the package image to confirm the Premium Version device and included package contents before ordering. Packing List is intentionally shown with one most relevant package image for a cleaner page layout.

Main DeviceAUTOOL OBD2 Breakout Box Protocol Detector Premium Version

Connector BodyOBD2 diagnostic connector / breakout access device shown in the package image

DocumentationManual available for download

Before UseConfirm safety warnings, jumper use, load limit, and pin short-circuit restrictions before operation

Questions And Answers

These answers cover OBD-II communication testing, external 8-26V power supply, 120Ω series mode, multimeter / oscilloscope testing, jumper safety, load limits, and pin short-circuit restrictions.

What Is This OBD2 Breakout Box Used For?

What Does The External 8-26V Power Supply Do?

What Is The 120Ω Series Mode Used For?

Can I Use It With A Multimeter Or Oscilloscope?

Can I Short The OBD Pins With A Jumper?

Can I Connect A Load Device?

Warranty And Contact

For Premium Version model confirmation, Basic / Upgraded / Premium version comparison, external 8-26V power use, 120Ω series mode, OBD2 pin testing, multimeter / oscilloscope connection, manual support, or safety confirmation, contact AUTOOL Store directly.

Pre-Sales And Product Support

Use support if you need help confirming version differences, safe diagnostic setup, external power supply use, jumper operation, load limits, pin-level access, or whether your planned multimeter / oscilloscope test is appropriate.

Premium Version model confirmation
Basic / Upgraded / Premium version comparison
External 8-26V power supply use confirmation
120Ω series mode questions
OBD2 pin testing and multimeter / oscilloscope connection guidance
Manual download support
Safety and jumper operation confirmation
3-year warranty and lifetime maintenance support

Email Supportsupport@autoolstore.com WhatsApp Support+86 189 2647 7404

Customer Reviews

There are no reviews yet.

Leave A Review
