AUTOOL ATF702 Transmission Fluid Exchanger
US$1,099.00
Key Features
- 20-Minute Service
- Cycle Cleaning
- Adjustable Pressure
- 20-Minute Service: Can clean the gearbox and related parts quickly without disassembly.
- Cycle Cleaning: Separate cycle cleaning helps remove sludge and metal chips more thoroughly.
- Adjustable Pressure: Pressure can be tuned to match different vehicles.
Secure checkoutFast supportBulk ready

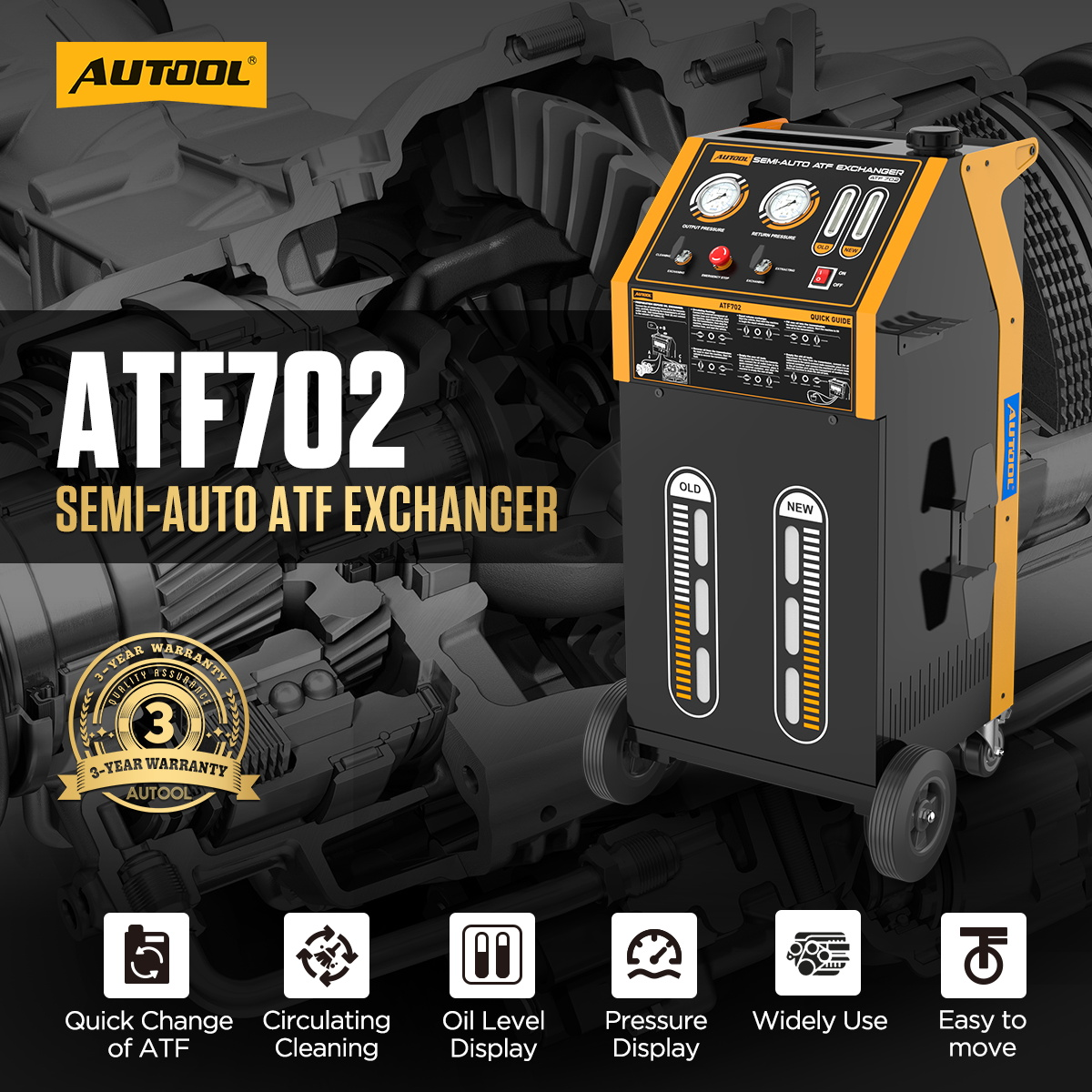

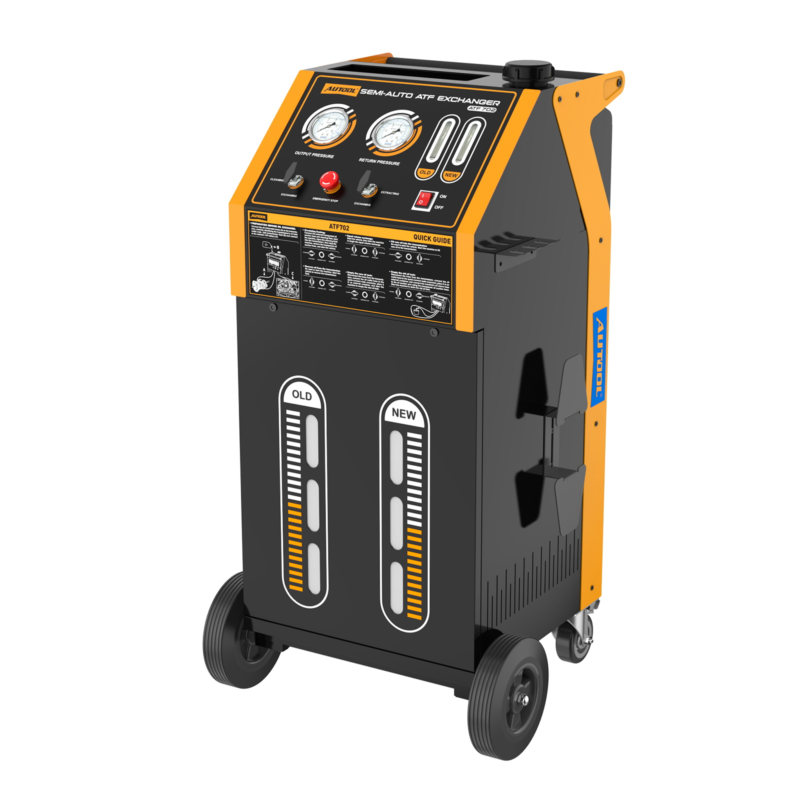

AUTOOL ATF702
Product Overview

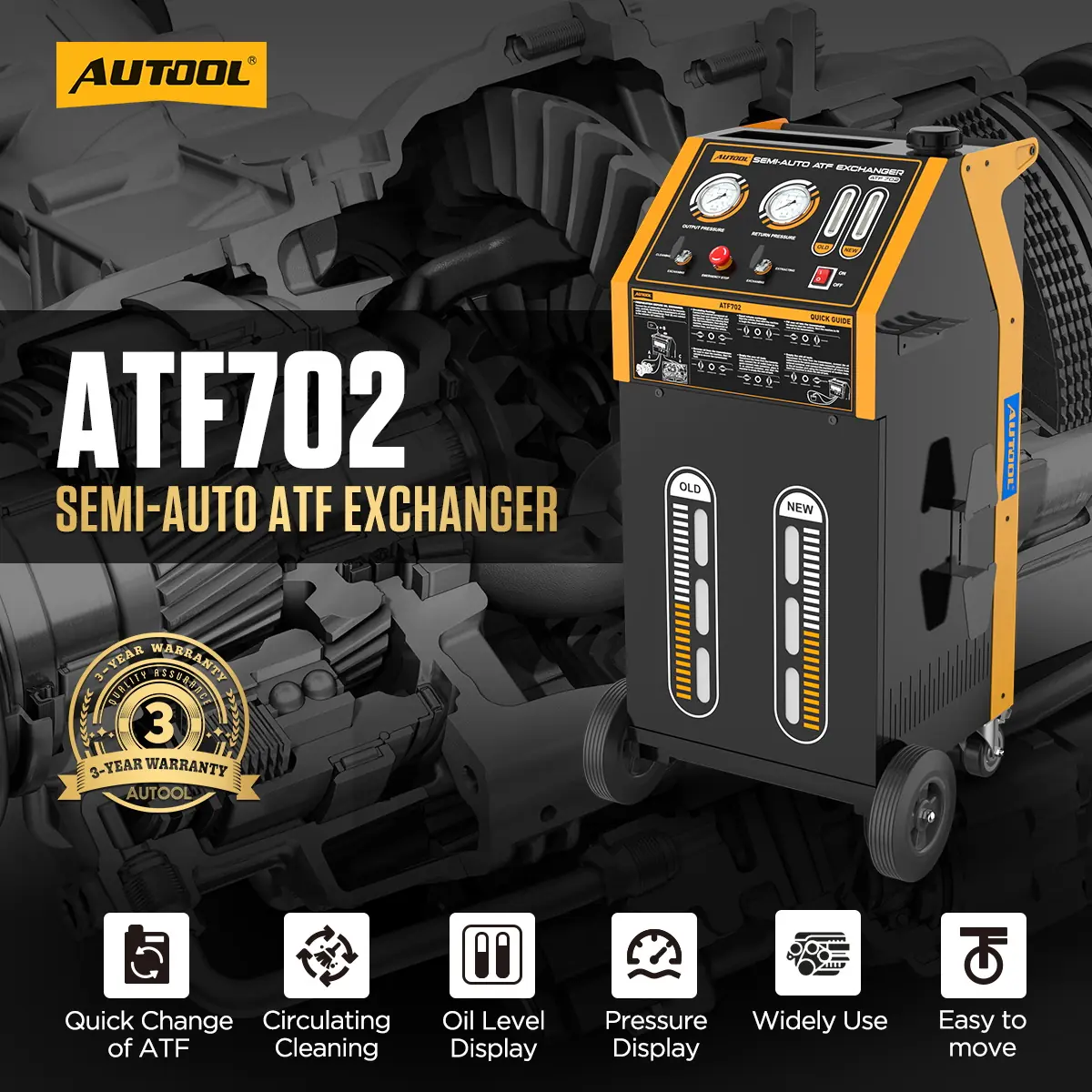

The AUTOOL ATF702 transmission fluid exchanger is designed for automatic transmission fluid exchange, cycle cleaning, old oil recovery, new oil filling, and transmission maintenance. It helps replace contaminated ATF more thoroughly than traditional draining, supports pressure and flow control, and uses visible oil windows so technicians can observe the exchange process clearly.
Semi-Auto ATF Exchange
Cycle Cleaning
DC 12V Power
20L Oil Tank
20 MinTypical Exchange
<150WMaximum Power
10kg/cm²Pressure Gauge
3 YearsWarranty Support
Click to enlarge
Click to enlargeKey Features
Key Features
Automatic transmissions are precise and complex. A controlled ATF exchange helps remove more contaminated oil, metal debris, and sludge from the transmission system compared with simple draining.
Traditional Draining Is Limited
Traditional oil changing may remove only about 25% of the old transmission fluid, leaving contaminated oil inside the transmission and torque converter.
Old Oil Pollutes New Oil
Metal chips and oil sludge can remain in the gearbox and mix with new oil, reducing the effect of maintenance and increasing contamination.
Dirty ATF Can Affect Driving
Contaminated transmission fluid may contribute to slow acceleration, gear-shifting vibration, overheating, and higher fuel consumption.
Controlled Exchange Is Important
Improper oil filling or manual valve control may cause excessive or insufficient oil filling. ATF702 helps technicians observe oil pressure, oil flow, and oil color during service.
Key Features
Key Features
ATF702 combines quick ATF exchange, separate cycle cleaning, visible old and new oil windows, pressure display, adjustable flow control, multiple working modes, and a mobile workshop design.
Quick ATF Exchange
The cleaning and oil exchange of automatic transmission fluid can be completed in about 20 minutes under proper service conditions, with exchange efficiency approaching 100%.

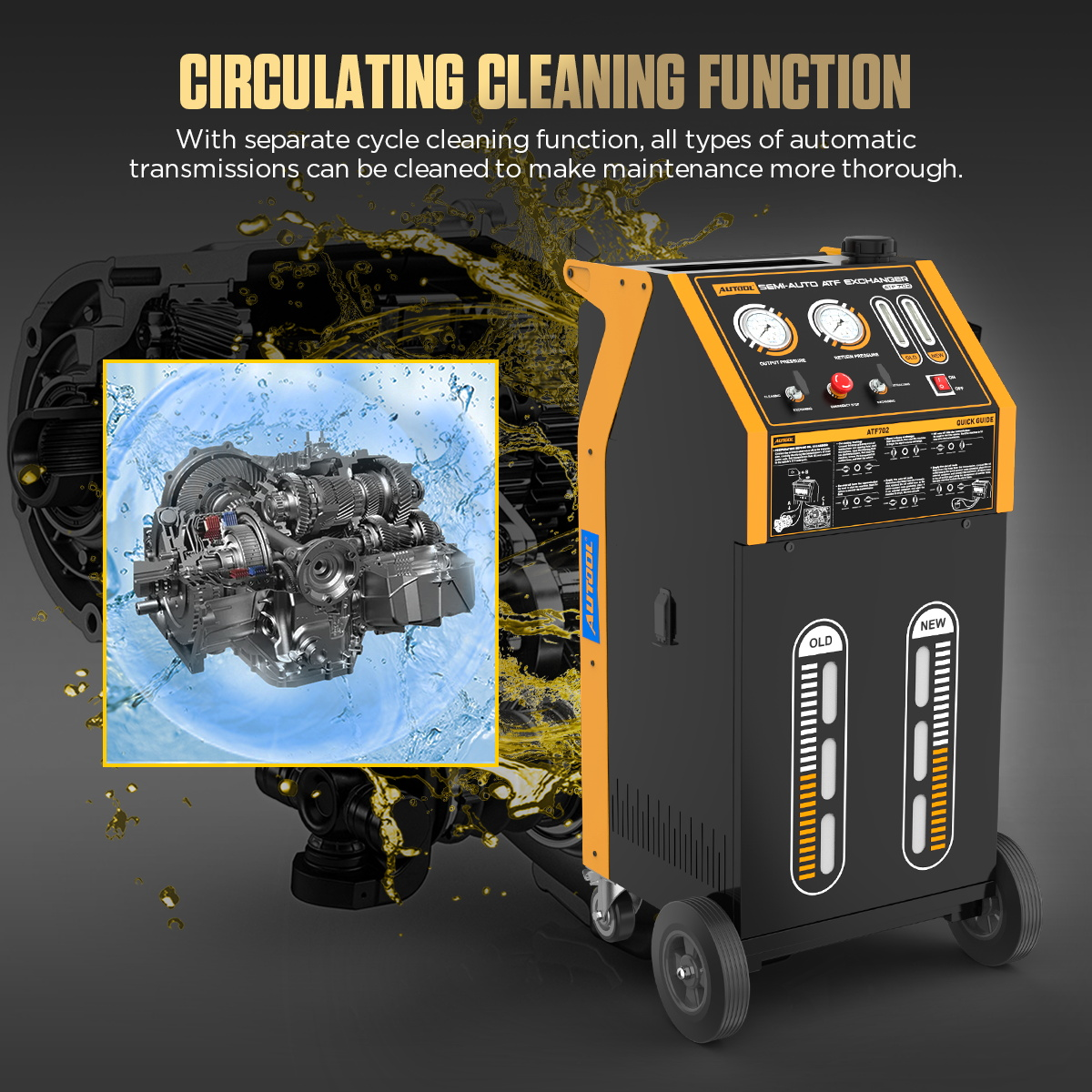

Separate Cycle Cleaning
The separate cycle cleaning function helps clean automatic transmissions more thoroughly before the final oil exchange process.

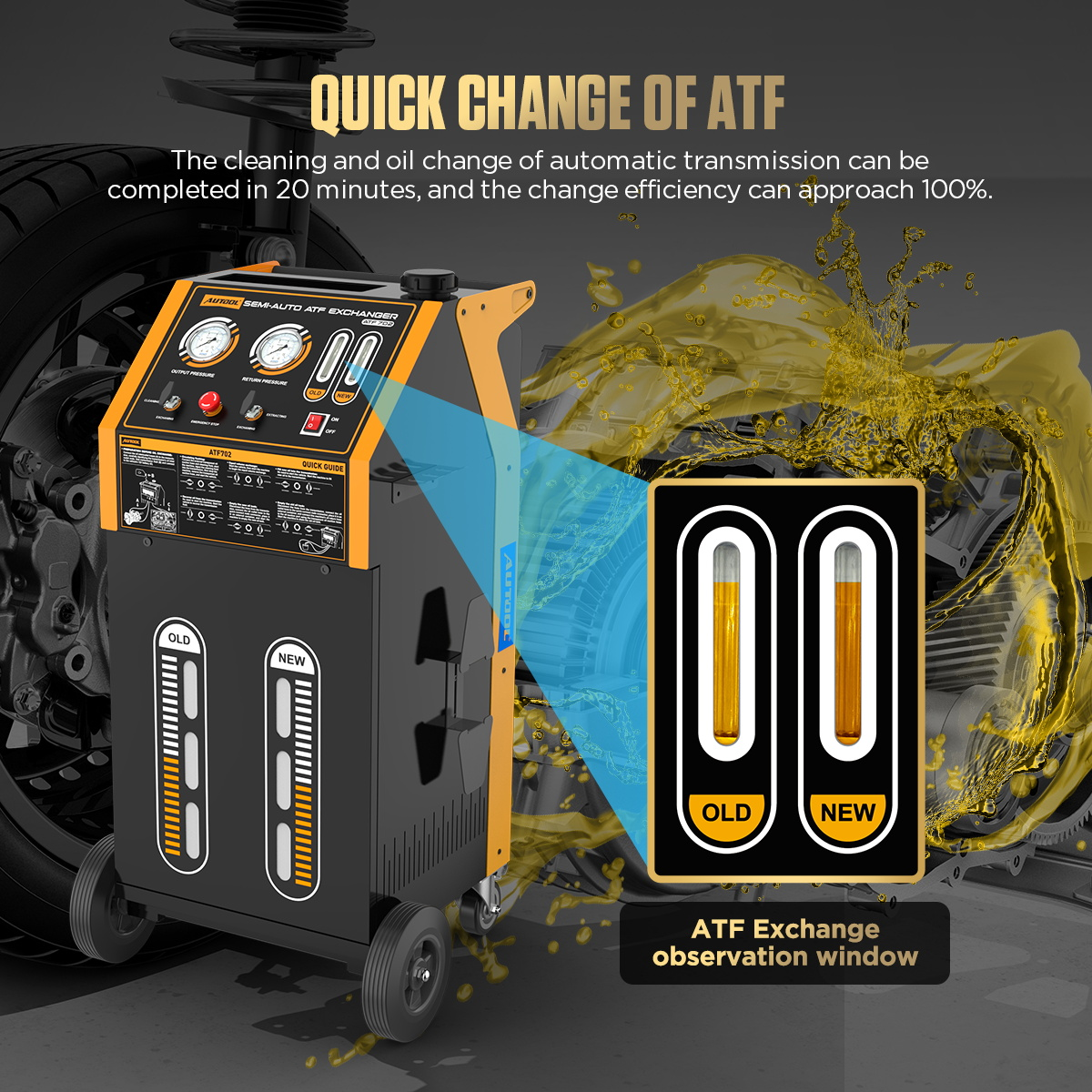

Old And New Oil Windows
Visible old and new oil observation windows let the operator compare used oil and fresh oil during the exchange process.
Pressure And Flow Control
The adjustable pressure and flow design helps technicians match different vehicle service conditions and reduce the risk of improper filling.

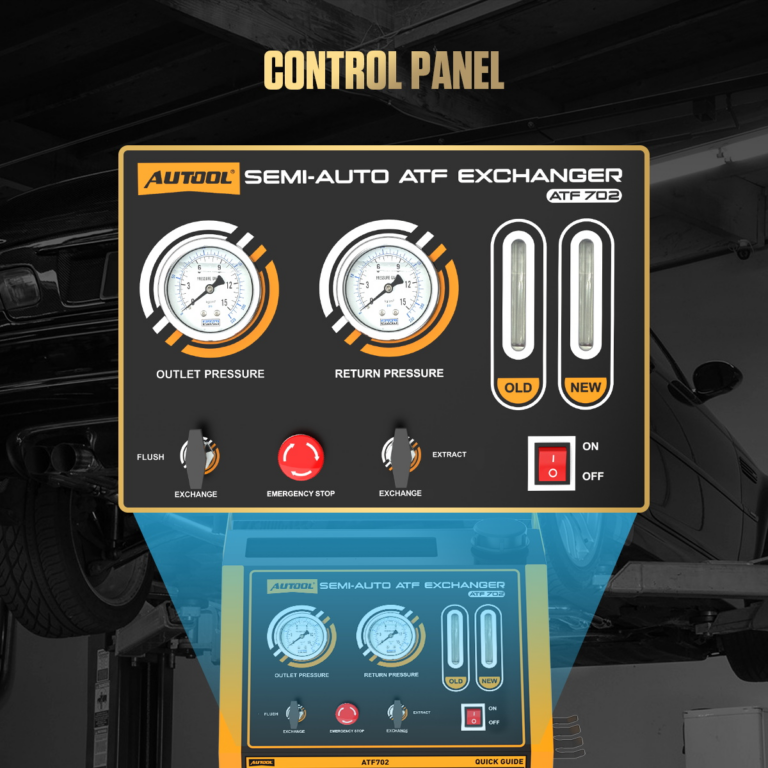

Mechanical Control Layout
The ATF702 uses mechanical control with clear valve positions, pressure gauges, emergency stop, start switch, and visible operating indicators.

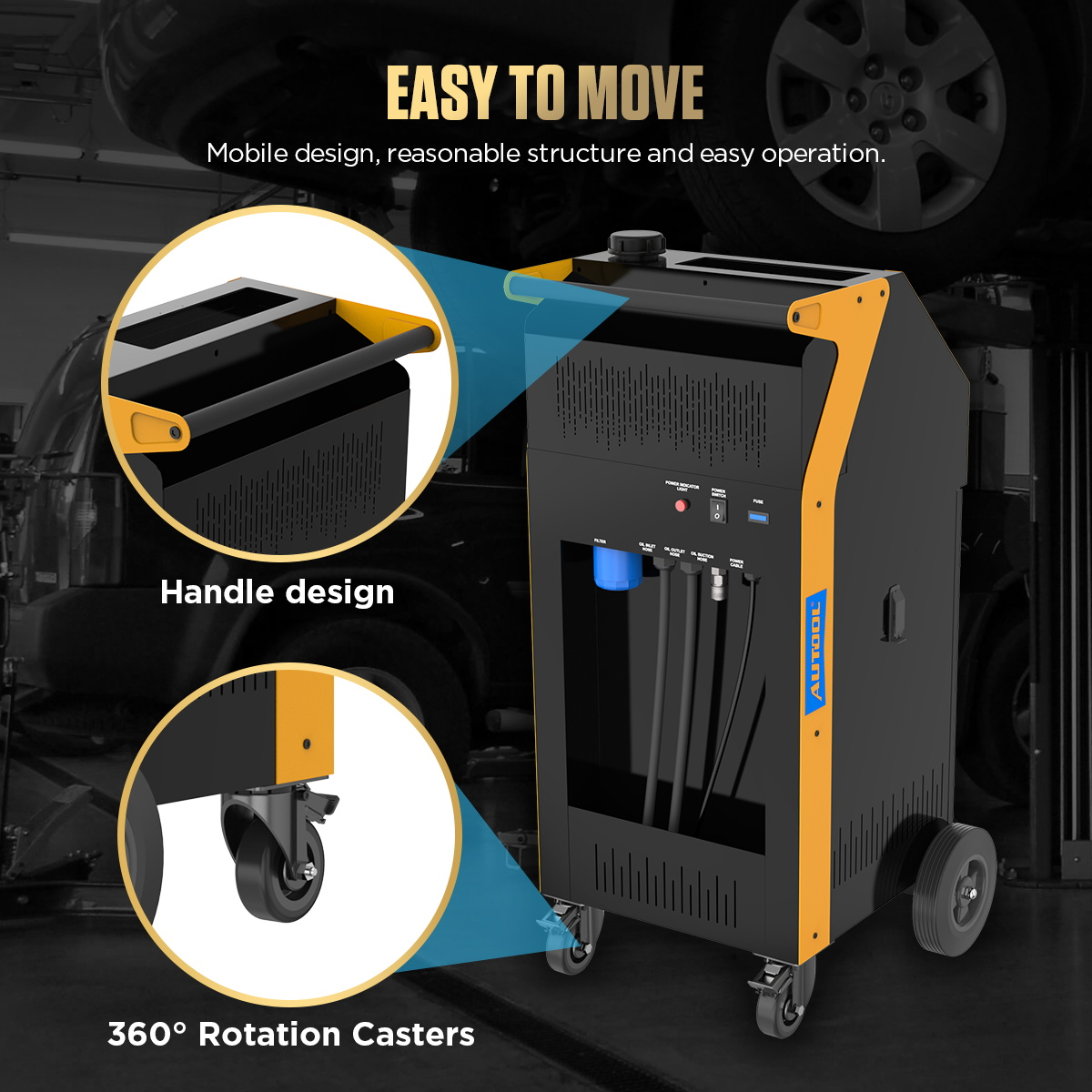

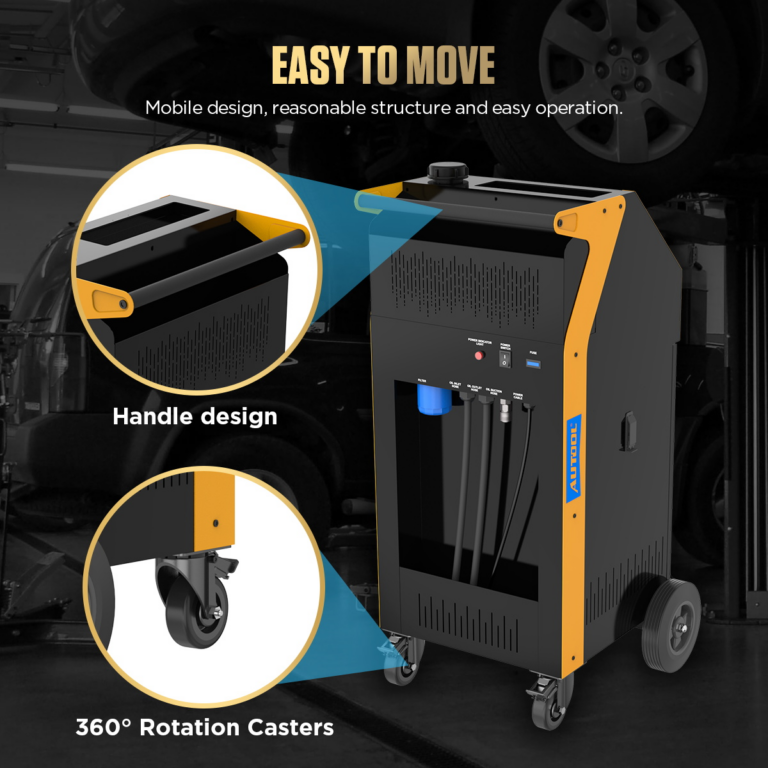

Easy To Move
The mobile body, push handle, swivel casters, and one-way casters make it easier to move around the workshop during transmission maintenance.
Click to enlarge
Click to enlarge
Click to enlargeHow To Use

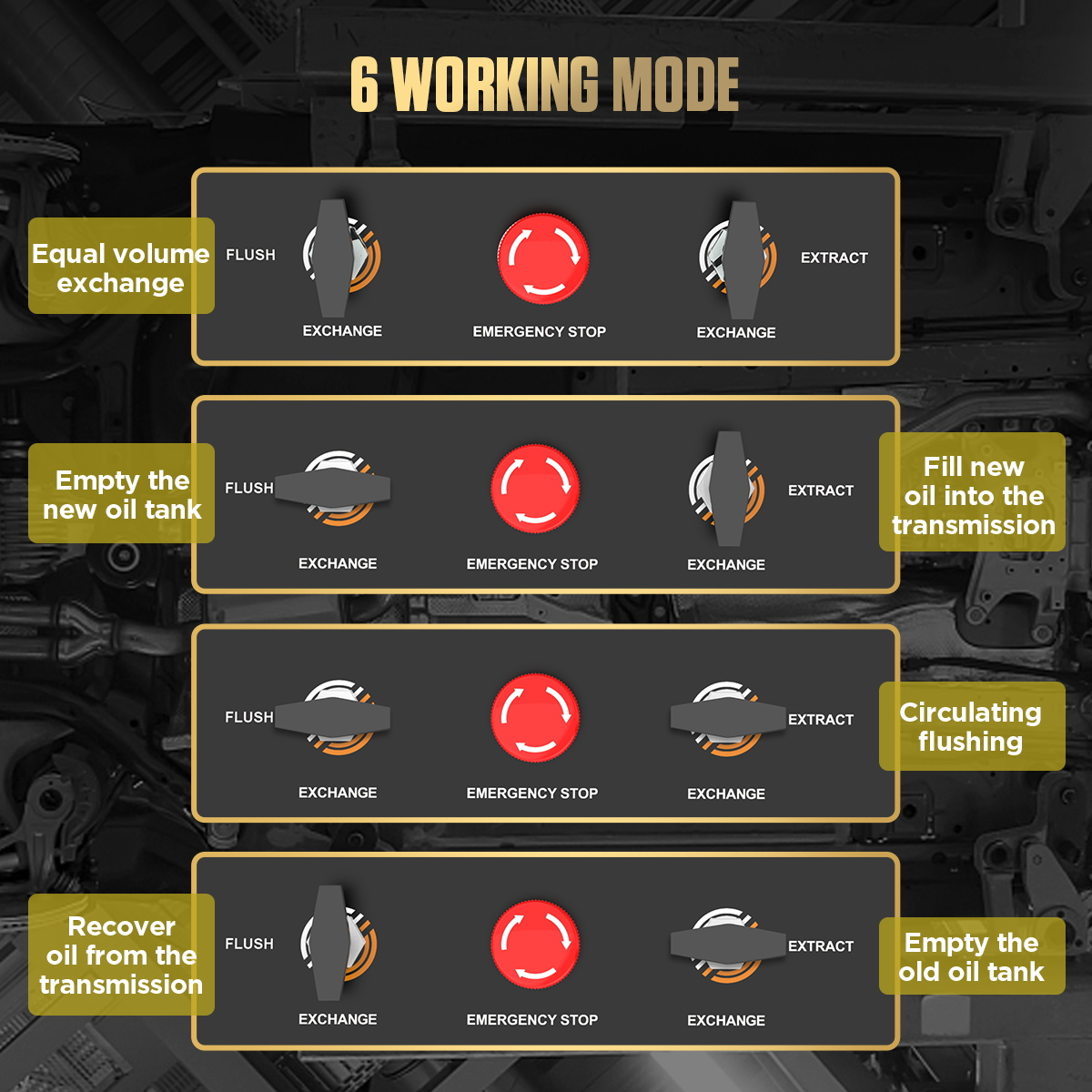

How To Use
ATF702 uses mechanical valve positions for different service operations. Always follow the product label and user manual before switching valves during service.
Equal Volume Exchange
Used for exchanging old transmission fluid with new transmission fluid while monitoring oil windows and tank levels.
Fill New Oil Into Transmission
Used when the transmission requires new oil replenishment after service or level adjustment.
Circulating Flushing
Used for cycle cleaning before the final oil exchange, according to the service process.
Recover Oil From Transmission
Used to recover transmission oil from the vehicle when required by the maintenance process.
Empty New Oil Tank
Used to drain or clear remaining fluid from the new oil tank when needed.
Empty Old Oil Tank
Used to empty the used oil tank after service and keep the machine ready for the next job.
Click to enlargeHow To Use
How To Use
The ATF702 process includes first-use preparation, external oil filling, cycle cleaning, oil exchange, oil level confirmation, leak inspection, and a short test drive. Follow the user manual and vehicle service procedure throughout the process.
1. Prepare Before First Use
- Check whether accessories are missing or damaged before operation.
- Fill the new oil tank with new transmission oil, around 12kg as a preparation reference.
- Keep the used oil bottle or waste oil tank empty before starting service.
- Confirm the power cable, oil pipes, transparent tube, adapters, and manual are ready.
2. Fill New Oil From An External Tank
- Insert the transparent connecting tube into the new external oil drum.
- Set Valve 1 and Valve 2 according to the required oil extraction or exchange mode shown on the machine and in the manual.
- Connect the power cord to a fully charged DC 12V battery.
- Turn on the power switch to start extracting oil from the external tank.
3. Run Cycle Cleaning
- Make sure the vehicle is safely braked and lifted before disconnecting any ATF oil pipe.
- Disconnect an ATF oil pipe that is convenient for disassembly and assembly on the vehicle.
- Choose suitable connectors from the adapter box and connect the red and blue oil pipes to the two ends of the removed oil pipe.
- Start the engine briefly to judge the transmission oil inlet and outlet direction.
- Connect the vehicle oil outlet pipe to the oil return pipe, and connect the vehicle oil inlet pipe to the oil outlet pipe.
- Connect a short transparent tube to the external oil inlet, open the cleaning solution, and insert the other end of the tube into the cleaning solution.
- Set the machine valves according to the cleaning and extracting positions required by the manual, then turn on the power switch to inject cleaning fluid.
- After the cleaning fluid is completely injected, remove the transparent short tube and turn off the power switch.
- Switch the machine to cycle cleaning mode according to the valve guide, start the engine, and observe the used oil through the used oil windows.
- Shift through gears during cleaning. The original instruction recommends keeping each gear for about 5-10 seconds during the cycle cleaning step, then turning off the engine after the cleaning process.
4. Perform Oil Exchange And Final Check
- After cycle cleaning, set the machine to exchange mode according to the manual and start injecting new oil into the transmission.
- When oil starts flowing through the new oil window, start the engine so the automatic gearbox begins exchanging old oil for new oil.
- Monitor both the new and used oil tank levels during the oil change process.
- If new oil flows slower than used oil, use the oil return pipe valve to reduce the used oil flow rate and help balance the exchange rate.
- Shift through all gears during oil exchange, allowing each gear to stay engaged for approximately 5-10 seconds.
- Observe the used oil window. When the used oil changes from dark and dirty to a color close to the new oil, the exchange process is complete.
- Turn off the engine and reconnect the transmission oil pipe to its original position.
- Restart the engine, switch to P gear, and check the transmission fluid level. Replenish new transmission oil if the level is insufficient.
- Inspect all pipelines for possible oil leaks.
- Conduct a test drive of about 1 kilometer and perform a final inspection after the test drive.
Operation Reminder
- For cleaning results consistent with the instructions, the original instruction recommends setting cleaning time to more than 20 minutes when the service condition requires it.
- During cycle cleaning, the engine should be running according to the service procedure, and different gears should be switched depending on the situation.
- For high-speed gear oil route circulation, follow the vehicle condition, workshop safety rules, and the user manual instead of forcing a universal speed for every vehicle.

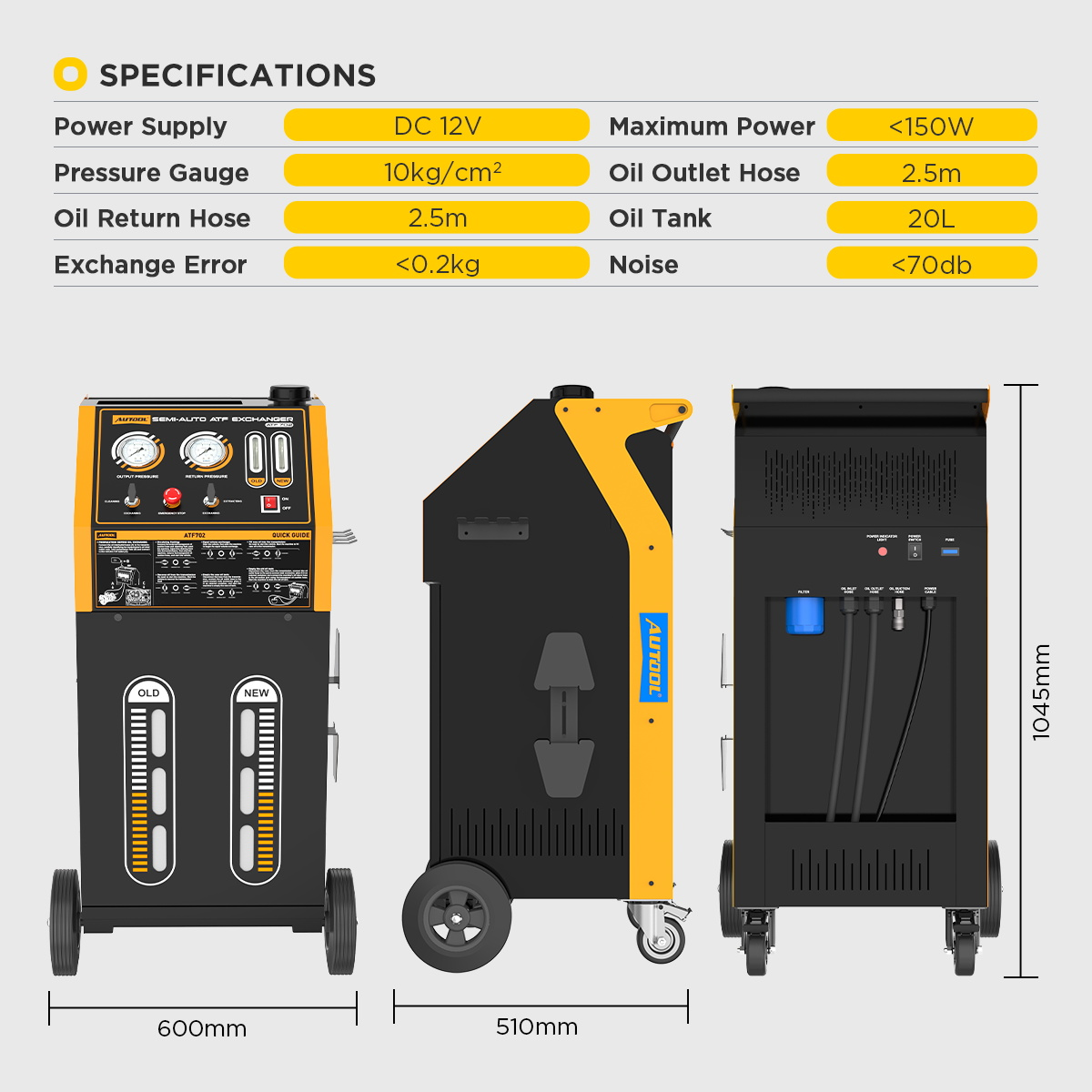

Specifications
AUTOOL ATF702 Product Specifications
ATF702 is a mechanically controlled semi-auto ATF exchanger with DC 12V power, a 20L oil tank, single oil pump, pressure gauges, 2.5m oil hoses, and visible oil windows.
| Core Specifications | |
| Product | AUTOOL ATF702 Transmission Fluid Exchanger |
| Operation Method | Mechanical control |
| Power Supply | DC 12V |
| Maximum Power | <150W |
| Noise | <70db |
| Oil Pump | Single oil pump |
| Oil Tank | 20L |
| Oil Outlet Hose | 2.5m |
| Oil Return Hose | 2.5m |
| Pressure Gauge | 2 mechanical pressure gauges, 10kg/cm² |
| Exchange Error | <0.2kg |
| Screen | No screen |
| Dimensions | 600 × 510 × 1045mm |

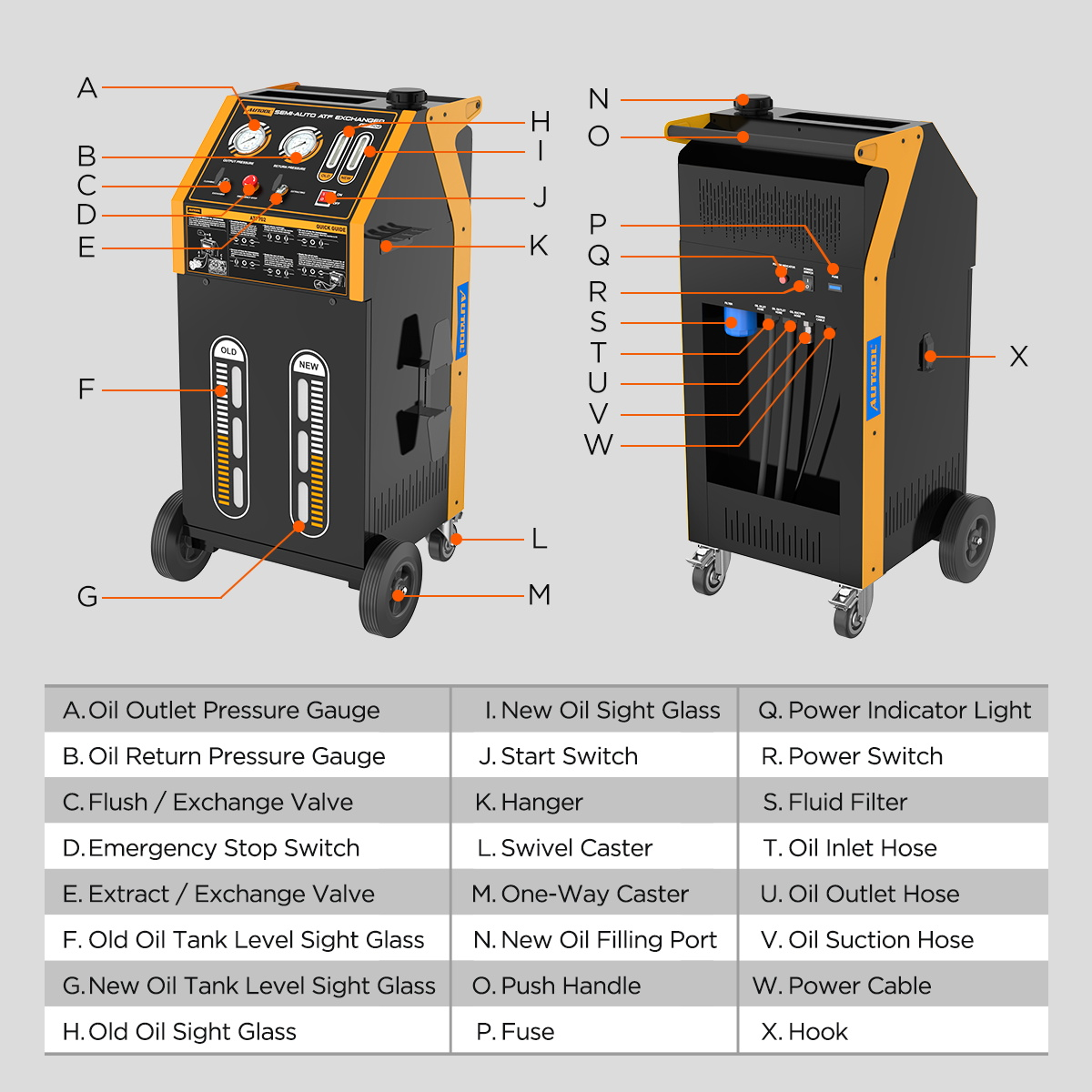

| Visible And Control Components | |
| Oil Windows | Oil exchange window, liquid level window, liquid level window backlight |
| Pressure Display | Output pressure gauge and return pressure gauge |
| Controls | Flush / exchange valve, extract / exchange valve, emergency stop switch, start switch, power switch |
| Mobility | Push handle, swivel caster, one-way caster, hook |
| Warranty | 3-year warranty support for eligible non-human damage cases |
Click to enlarge
Click to enlargeCore Specifications
ProductAUTOOL ATF702 Transmission Fluid Exchanger
Operation MethodMechanical control
Power SupplyDC 12V
Maximum Power<150W
Noise<70db
Oil PumpSingle oil pump
Oil Tank20L
Oil Outlet Hose2.5m
Oil Return Hose2.5m
Pressure Gauge2 mechanical pressure gauges, 10kg/cm²
Exchange Error<0.2kg
ScreenNo screen
Dimensions600 × 510 × 1045mm
Visible And Control Components
Oil WindowsOil exchange window, liquid level window, liquid level window backlight
Pressure DisplayOutput pressure gauge and return pressure gauge
ControlsFlush / exchange valve, extract / exchange valve, emergency stop switch, start switch, power switch
MobilityPush handle, swivel caster, one-way caster, hook
Warranty3-year warranty support for eligible non-human damage cases
Applications
Applications

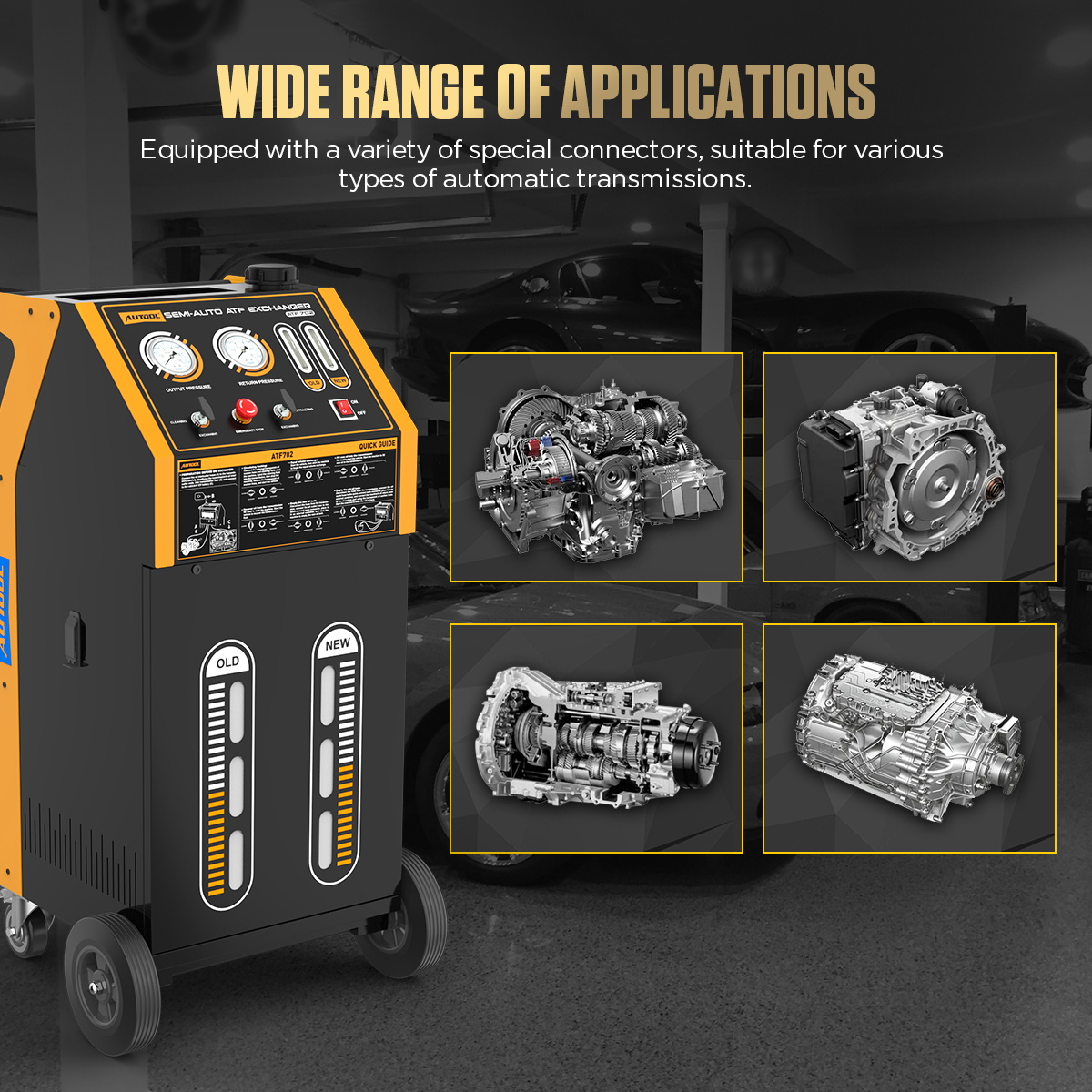

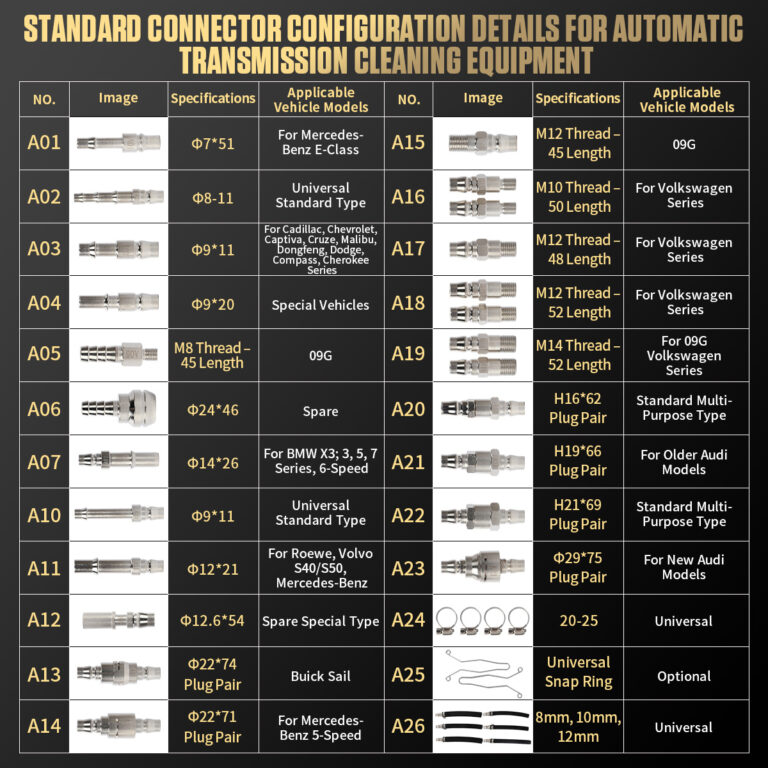

ATF702 is equipped with multiple special connectors for various automatic transmissions. Adapter selection depends on the vehicle transmission oil pipe and service requirement.
Click to enlarge
Click to enlargeTransmission ServiceDesigned for automatic transmission fluid exchange and cycle cleaning.

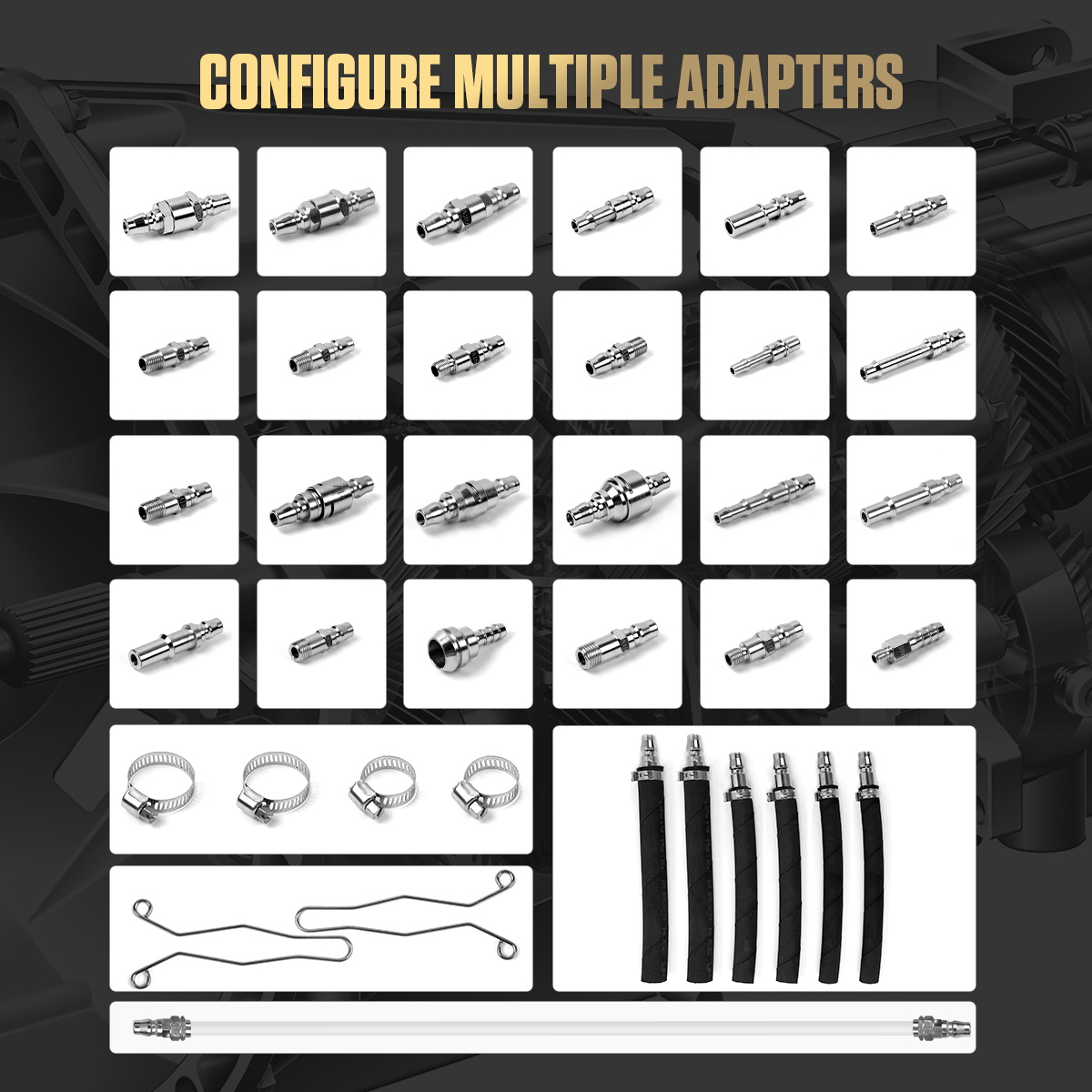

Adapter KitIncludes multiple connector types shown in the adapter image for different vehicle oil pipe connections.
Workshop UseSuitable for maintenance shops that need visible oil exchange, old oil recovery, and new oil filling support.
Before ServiceConfirm the vehicle oil pipe connection and choose the correct adapter before starting the exchange process.

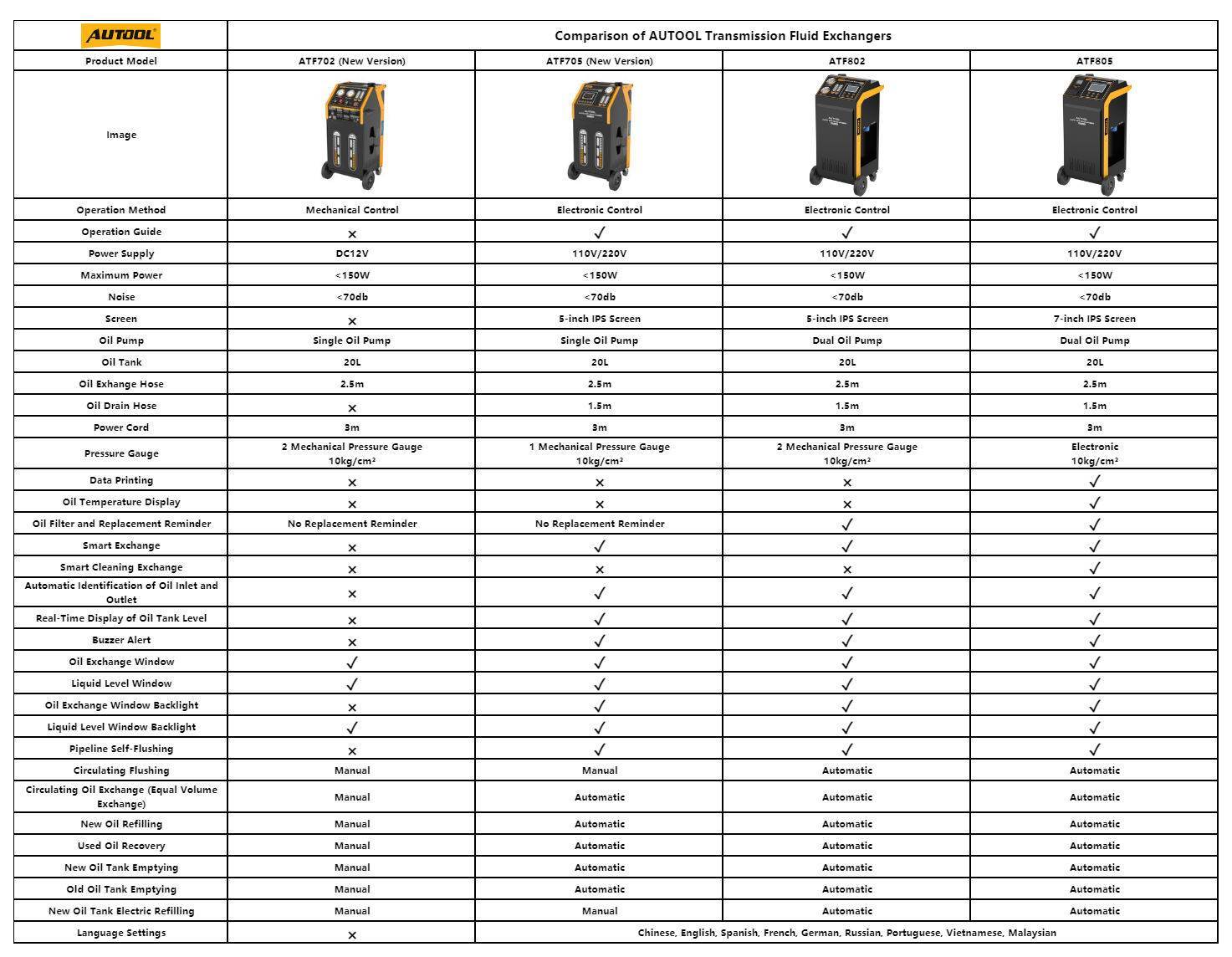

Product Comparison
Product Comparison
Compare ATF702 with ATF705, ATF802, and ATF805 before choosing the right control type, screen, pump configuration, automation level, and smart functions.
ATF702 FocusMechanical control, DC 12V, no screen, single oil pump, 20L tank, 2.5m hoses, 2 mechanical pressure gauges, manual exchange, manual recovery, and manual tank emptying.
ATF705 UpgradeElectronic control, 110V/220V power, 5-inch IPS screen, one mechanical pressure gauge, automatic exchange, automatic recovery, buzzer alert, and real-time oil tank level display.
ATF802 UpgradeElectronic control, 5-inch IPS screen, dual oil pump, automatic circulating oil exchange, automatic new oil refilling, and automatic old / new oil tank emptying.
ATF805 High-End OptionElectronic control, 7-inch IPS screen, dual oil pump, electronic pressure gauge, data printing, oil temperature display, smart exchange, smart cleaning exchange, and filter reminder.
Decision CheckChoose ATF702 for basic semi-auto workshop ATF service. Choose higher models if you need electronic control, screen operation, automatic modes, smart exchange, data printing, or oil temperature display.
Click to enlargeBefore You Order And Use
Before You Order And Use
Review these setup, operation, safety, and inspection notes before using ATF702 for automatic transmission fluid exchange.
Use DC 12V Power
Connect the power cord to a fully charged DC 12V battery before operation.
Prepare New ATF
Before first use preparation, fill the new oil tank with new transmission oil. The original instruction references around 12kg.
Keep Waste Tank Empty
Keep the used oil bottle or waste oil tank empty before starting the process.
Brake And Lift Safely
Make sure the vehicle is safely braked and lifted before disconnecting or connecting transmission oil pipes.
Confirm Oil Flow Direction
Start the engine briefly only as needed to judge the oil inlet and outlet direction before final pipe connection.
Switch Gears During Service
During cycle cleaning and oil exchange, switch through gears according to the manual and vehicle service condition.
Watch The Oil Windows
Observe the used oil window. When the used oil color becomes close to the new oil, the exchange is complete.
Check Fluid Level
After reconnecting the oil pipe, restart the engine, switch to P gear, check transmission fluid level, and replenish if needed.
Final Inspection Required
Inspect all pipelines for oil leaks, perform a short test drive of about 1 km, and check the system again after the test drive.
Click to enlargeWhat Is In The Box
What Is In The Box

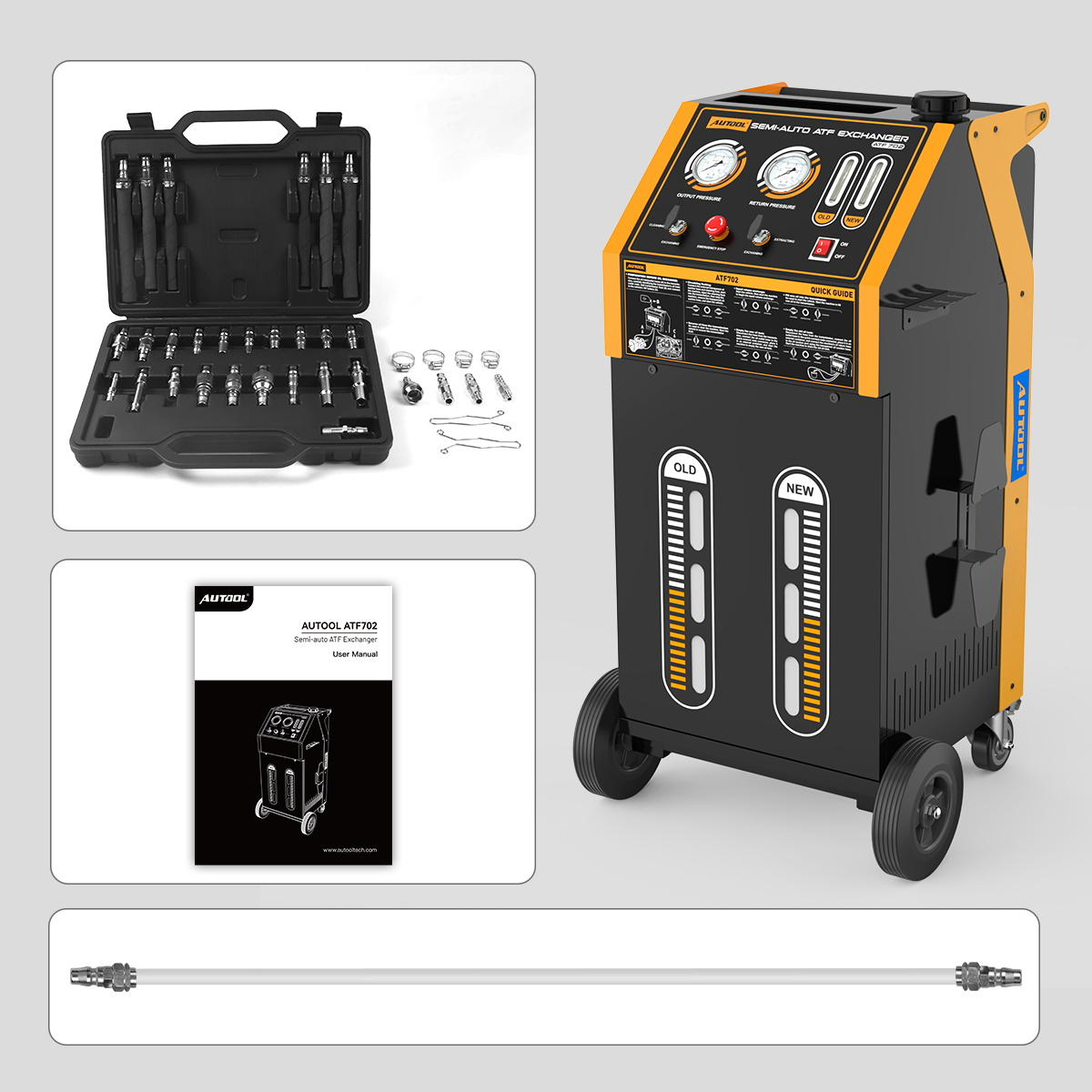

The packing list image shows the ATF702 main unit, adapter kit, user manual, and connecting tube. Final accessories should be confirmed according to the package image and current product configuration.
Main UnitAUTOOL ATF702 semi-auto ATF exchanger
Adapter KitTransmission oil pipe adapters and fittings shown in the package image
Connecting TubeTransparent connecting tube shown in the package image
DocumentationAUTOOL ATF702 user manual
Before UseCheck whether accessories are missing or damaged before operation
Related Products
Related Products
Compare ATF702 with the upgraded ATF705 exchanger and related transmission fluid tester before choosing the right tool for ATF service and inspection.
- Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATF705 Automatic Transmission Fluid ATF Exchanger
From US$1,399.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL ATF702 Transmission Fluid Exchanger
From US$1,099.00 - Select options This product has multiple variants. The options may be chosen on the product page
AUTOOL AS505 Exchanger Transmission Oil Tester with Display
From US$49.00 - Select options This product has multiple variants. The options may be chosen on the product page

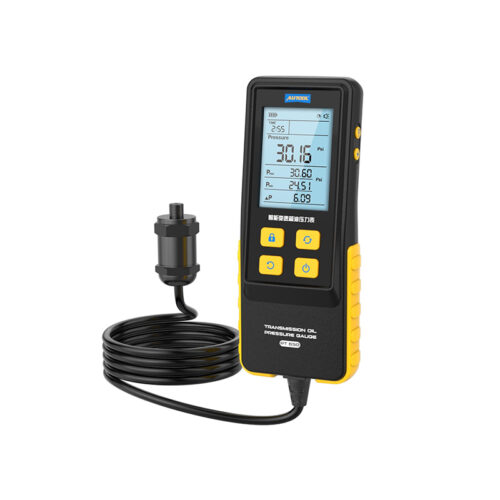

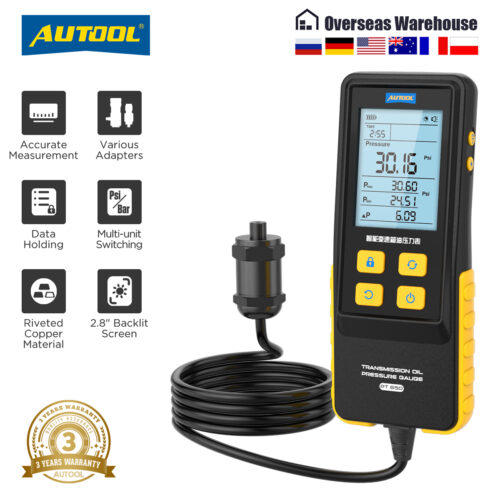

AUTOOL PT650 ATF Exchanger Transmission Oil Pressure Gauge
From US$119.00

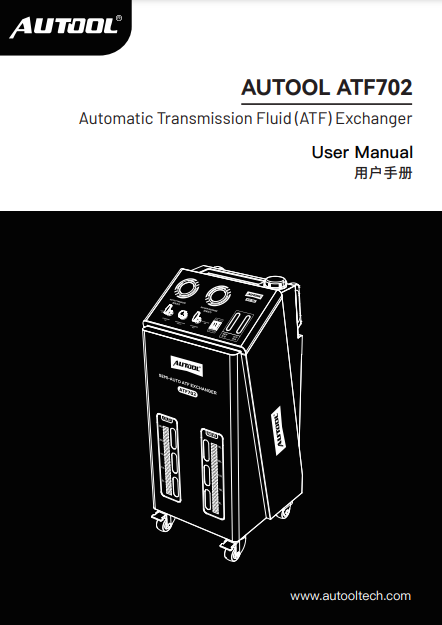

Manual And Downloads
Manual And Downloads
Download the ATF702 manual for product setup, valve position guidance, transmission oil exchange, cycle cleaning, accessories, and operation safety instructions.
Click to enlargeAUTOOL ATF702 Manual PDF
Use the PDF manual to confirm setup, accessories, valve operation, cycle cleaning, and oil exchange steps before service.
Download ManualNeed Setup Confirmation?
Contact AUTOOL Store before ordering if you need help confirming ATF702 adapters, vehicle compatibility, oil pipe connection, oil flow direction, valve mode, or model selection.
Questions And Answers
These answers cover why ATF exchange is needed, ATF702 operation, oil preparation, cycle cleaning, adapter use, model differences, final inspection, and warranty support.
Automatic transmissions are precise and complex. Traditional draining may remove only part of the old oil, while metal chips and sludge can remain inside and contaminate the new oil. A transmission fluid exchanger helps replace old oil more thoroughly and supports cleaner maintenance.
Under proper service conditions, the cleaning and oil exchange of an automatic transmission can be completed in about 20 minutes. Actual time depends on vehicle condition, oil contamination, cleaning process, adapter connection, and technician operation.
No. ATF702 is a semi-auto transmission fluid exchanger with mechanical control. It uses valve positions and observation windows for manual operation. Choose ATF705, ATF802, or ATF805 if you need more electronic control or automatic functions.
ATF702 uses mechanical control, DC 12V power, no screen, a single oil pump, and manual exchange / recovery / emptying functions. ATF705 uses electronic control, 110V/220V power, a 5-inch IPS screen, automatic exchange, automatic recovery, buzzer alert, and real-time oil tank level display.
ATF702 uses DC 12V power. Connect the power cord to a fully charged 12V battery before operation.
For first-use preparation, the original instruction says to fill the new oil tank with new transmission oil, around 12kg as a reference, and keep the used oil bottle or waste tank empty. The exact oil amount should match the vehicle service requirement.
Yes. ATF702 has a separate cycle cleaning function. During cycle cleaning, the engine should run according to the service procedure, the used oil should be observed through the oil windows, and gears should be switched depending on the vehicle condition.
Observe the used oil window during the oil exchange process. When the used oil changes from dark and dirty to a color close to the new oil, the exchange process is complete. Also monitor new and used oil tank levels during operation.
If new oil is flowing slower than used oil, reduce the used oil flow rate with the valve on the oil return pipe. This helps balance the exchange rate between old and new fluid during the process.
The package image shows an adapter kit with multiple transmission oil pipe fittings, clamps, tubes, and related accessories. Confirm the final package contents according to the current package image and product configuration before ordering.
After the exchange, turn off the engine, reconnect the transmission oil pipe, restart the engine, switch to P gear, and check the fluid level. Replenish oil if needed, inspect all pipelines for leaks, conduct a test drive of about 1 km, and perform a final inspection.
ATF702 is equipped with multiple special connectors and is suitable for various automatic transmissions, but adapter fitment depends on the vehicle oil pipe structure. Confirm compatibility before service or contact support for adapter guidance.
AUTOOL provides 3-year warranty support for eligible non-human damage cases. Contact AUTOOL Store for setup help, accessory confirmation, troubleshooting, and warranty support.
Warranty And Contact
Warranty And Contact
For ATF702 setup, adapter confirmation, model selection, valve operation, oil flow direction, transmission compatibility, Manual support, or after-sales troubleshooting, contact AUTOOL Store directly.
Pre-Sales And Product Support
Use support if you need help choosing between ATF702, ATF705, ATF802, and ATF805, confirming adapter fitment, understanding the oil exchange procedure, or preparing for workshop ATF maintenance.
- 3-year warranty support for eligible non-human damage cases
- ATF702 / ATF705 / ATF802 / ATF805 model selection
- Adapter kit and package content confirmation
- Transmission oil pipe connection and oil flow direction guidance
- Cycle cleaning, oil exchange, tank emptying, and recovery operation support
- Post-exchange oil level check, leak inspection, and troubleshooting support
Customer Reviews
Leave A Review
Tiara Hodkiewicz (verified owner) –
Works norms
thanks
Nyah Howe (verified owner) –
All as in the description
Works very well
Parker Lehner (verified owner) –
Checked, works,
Super goods
